一、防尘圈1.A2型（1）应用范围：A2型防尘圈用于气缸的轴向运动杆、柱塞和轴套上。

工作温度：标准橡胶-30℃到+80℃聚氨酯P5008-35℃到+80℃表面速度：≤2 m/s（2）材料：NBR和氟橡胶标准材料：N3587，丁腈橡胶（邵氏90A）低温材料：N8613，丁腈橡胶（邵氏80A）高温材料：V3664，氟橡胶（邵氏85A）PUR系统标准材料：P5008，聚氨酯（邵氏94A）低温材料：P5009，聚氨酯（邵氏94A）若有特殊要求（压力、温度，速度，用于水、HFA液、HFB液等介质中），请联系派克汉尼汾公司，以便向您推荐合适的材料和结构。

二、导向带1.F2型（1）主要优点：完全适用于含油空气以及干燥无油空气。

可供应剪切号的导向环，也可以来位长度单位供应导向带，客户可按需要自行剪切。

由于在PTFE材料中含有碳的添加剂，故有很高的负载量（抗压强度），磨损低，摩擦小。

在低的运动速度下无爬行。

沟槽结构简单。

活塞结构简单，滑动面无金属接触。

可按实际尺寸提供使用。

（2）应用范围：工作温度：-100℃到+200℃表面速度：≤10 m/s在工作温度≤100℃时的许可单位负荷=2.5N/mm2介质：压缩空气（含油润滑的或干燥无油的）（在起始润滑之后）。

（3）材料：Polon?33是含25%碳添加剂的PTFE材料。

若有特殊要求（压力、温度，速度等），请与本公司的咨询服务部联系，以便向您推荐合适的材料和结构。

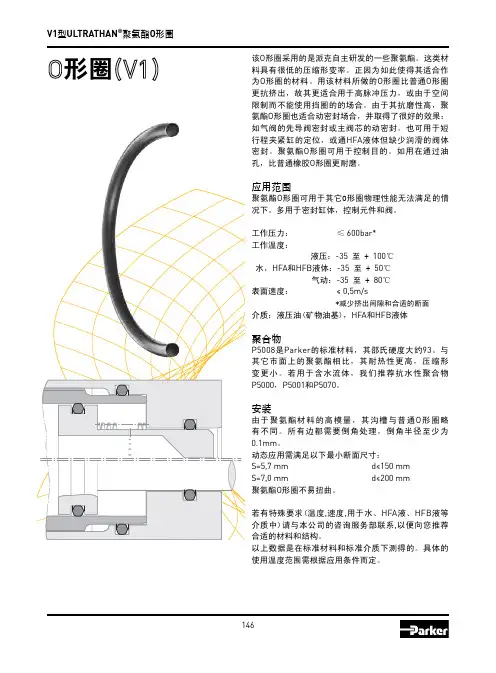

三、O形圈1.V1型（1）应用范围：聚氨酯O形圈可用于其他O形圈物理性能无法满足的情况下。

多用于密封缸体，控制元件和阀。

工作压力：≤600bar*工作温度：液压：-35℃到+100℃水，HFA和HFB液体：-35℃到+50℃气动：-35℃到+80℃表面速度：≤0.5 m/s*减少挤出间隙和合适的断面介质：液压油（矿物油基），HFA和HFB液体聚合物：P5008是派克的标准材料，其邵氏硬度大约93。

与其他市面上的聚氨酯相比，其耐热性更高，压缩变形更小。

派克汉尼汾公司版权所有未经许可不能摘录，翻印。

保留修改权利2021年6月警告销售条件本样本中产品和/或系统或相关产品出现故障，选型不当或使用不当，均可能导致人身伤亡和财产损失。

本文档以及由派克·汉尼汾公司及其子公司和授权经销商提供的其他资料，为具有技术知识的用户提供进一步研究所需的产品和/或系统选项。

重要的是，用户必须对您的应用进行全面的分析，并对当前产品样本中与产品或系统相关的资料进行评估。

由于工作条件以及产品或系统的多样性，用户必须自行分析和测试，并独自承担一切后果，包括:产品和系统的最终选型以及确保满足应用的所有性能、安全和警告等方面的要求。

派克·汉尼汾及其子公司可能会随时对本样本中的产品，包括但不限于:产品的特性、产品的规格、产品的结构、产品的有效性以及产品的价格作出变更而不另行通知.本样本中的所有产品均由派克·汉尼汾公司及其子公司和援权经销商销售。

与派克签订的任何销售合同均按照派克标准条件和销售条件中规定的条款执行(提供复印件备索)。

本公司的密封件，只能在本公司的文件资料述及的应用参数范围与接触介质、压力、温度和存放时间相一致的情况下才能使用。

在规定的应用参数范围外使用以及错误选用不同的材料都可能导致密封件寿命的缩短以及设备的损坏，甚至更严重的后果(如生命安全，环境污染等)。

样本中所列出的工作压力、温度范围、运动速度是极限值，它们之间相互关联、相互影响；在极端的工况下，建议不要同时把各个参数都同时用到极限值。

对于特殊的要求（压力、温度、速度、介质等），请联系派克汉尼汾公司以咨询合适的密封结构、材料、配置、安装建议等。

由于诸多工作参数会影响到流体传动系统及密封元件，这些设备的制造商必须在实际工作条件下测试、验证并批准密封系统的功能与可靠性。

此外，对于不断出现的新的介质（液压油、润滑脂、清洗剂等)，用户特别注意它们与目前所用的密封件弹性体材料的兼容性。

我们建议用户在大批量应用之前，在厂内或现场先做密封材料的兼容性能测试，作为密封产品与系统供应商，我们建议用户遵循我们的这些建议。
