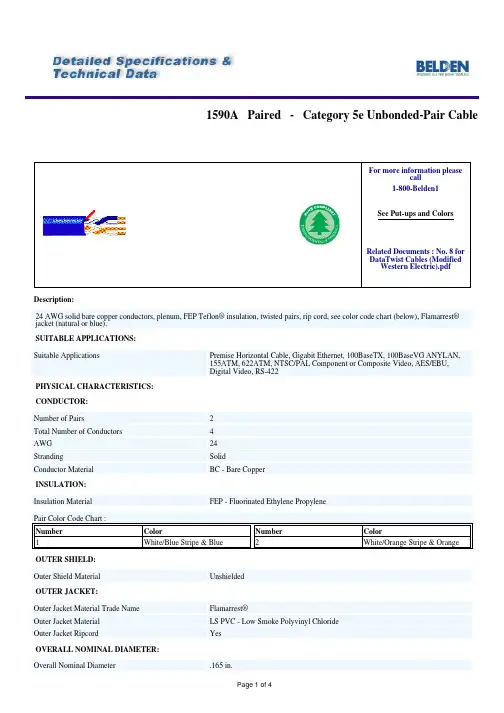

1590A Paired - Category 5e Unbonded-Pair CableFor more information pleasecall1-800-Belden1See Put-ups and ColorsRelated Documents : No. 8 forDataTwist Cables (ModifiedWestern Electric).pdf Description:24 AWG solid bare copper conductors, plenum, FEP Teflon® insulation, twisted pairs, rip cord, see color code chart (below), Flamarrest®jacket (natural or blue).SUITABLE APPLICATIONS:Suitable Applications Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN,155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU,Digital Video, RS-422PHYSICAL CHARACTERISTICS:CONDUCTOR:Number of Pairs 2Total Number of Conductors 4AWG24Stranding SolidConductor Material BC - Bare CopperINSULATION:Insulation Material FEP - Fluorinated Ethylene PropylenePair Color Code Chart :Number Color1White/Blue Stripe & Blue Number Color2White/Orange Stripe & OrangeOUTER SHIELD:Outer Shield Material UnshieldedOUTER JACKET:Outer Jacket Material Trade Name Flamarrest®Outer Jacket Material LS PVC - Low Smoke Polyvinyl Chloride Outer Jacket Ripcord YesOVERALL NOMINAL DIAMETER:Overall Nominal Diameter.165 in.1590A Paired - Category 5e Unbonded-Pair CableMECHANICAL CHARACTERISTICS:Operating Temperature Range-20°C To +75°CBulk Cable Weight21 lbs/1000 ft.Max. Recommended Pulling Tension13 lbs.Min. Bend Radius (Install)0.7 in.APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE:APPLICABLE STANDARDS:NEC/(UL) Specification CMP, UL444CEC/C(UL) Specification CMPEU CE Mark (Y/N)YesEU RoHS Compliant (Y/N)YesEU RoHS Compliance Date (mm/dd/yyyy):01/01/2005TIA/EIA Specification568-B.2 Category 5eOther Specification NEMA WC-63.1 Category 5e, UL verified to Category 5eFLAME TEST:UL Flame Test NFPA 262CSA Flame Test FT4, FT6PLENUM/NON-PLENUM:Plenum (Y/N)YNon-Plenum Number1588A, 1588RELECTRICAL CHARACTERISTICS:Nom. Mutual Capacitance @ 1 KHz14 pF/ftMaximum Capacitance Unbalance (pF/100 m)330 pF/100 mNominal Velocity of Propagation72 %Maximum Delay (ns/100 m)538 @ 100MHz ns/100 mMaximum Delay Skew (ns/100m)45 ns/100 mMaximum Conductor DC Resistance @ 20 Deg. C9.38 Ohms/100 mMaximum DCR Unbalance @ 20 Deg. C 5 %Max. Operating Voltage - UL300 V RMSELECTRICAL CHARACTERISTICS - PREMISE:Premise Cable Electricals Table 1 :1590A Paired - Category 5e Unbonded-Pair CableFrequency (MHz)Max.Attenuation(dB/100 m)Min. NEXT(dB)Min. PSNEXT(dB)Min. ACR (dB)Min. PSACR(dB)Min. ReturnLoss (dB)Min.StructuralReturn Loss(dB)1 2.065.362.363.060.320.023.0 4 4.156.353.351.049.223.023.0 8 5.851.848.846.043.024.524.5 10 6.550.347.343.040.825.025.0 168.247.344.339.036.025.025.0 209.345.842.836.533.525.025.0 2510.444.341.333.930.924.324.3 31.2511.742.939.931.028.223.623.6 62.517.038.435.422.019.021.521.5 10022.035.332.314.010.320.120.1 15528.132.529.5 4.4 1.415.820032.030.827.8 4.0 1.015.0Premise Cable Electricals Table 2 :Frequency (MHz)Input (Unfitted)Impedance (Ohms)Fitted Impedance(Ohms)Min. ELFEXT (dB)Min. PSELFEXT (dB)1100 ± 15100 ± 1563.860.84100 ± 15100 ± 1551.748.78100 ± 15100 ± 1545.742.710100 ± 15100 ± 1543.840.816100 ± 15100 ± 1539.736.720100 ± 15100 ± 1537.734.725100 ± 15100 ± 1535.832.831.25100 ± 15100 ± 1533.930.962.5100 ± 15100 ± 1527.824.9100100 ± 15100 ± 1523.820.8155100 ± 25100 ± 1519.916.9200100 ± 25100 ± 1517.714.7NOTES:Notes Jacket sequentially marked at 2 ft. intervals. Third party verified to TIA/EIA-568-B.2, Category 5e.PUT-UPS AND COLORS:Item Description Put-Up (ft.)Ship Weight (lbs.)Jacket Color Notes1590A 8771000 2 PR #24 FEPFLMRST1000 16NATURAL C1590A D151000 2 PR #24 FEPFLMRST1000 16BLUEC = CRATE REEL PUT-UP.Revision Number: 2 Revision Date: 04-18-20061590A Paired - Category 5e Unbonded-Pair Cable© Copyright 2006 Belden, IncAll Rights Reserved.Although Belden ("Belden") makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described herein are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability.Belden provides the information and specifications herein on an "AS IS" basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein.All sales of Belden products are subject to Belden's standard terms and conditions of sale.Belden believes this product to be in compliance with the following environmental regulations: California Proposition 65 Consent Judgment For Wire & Cable Mfgs.(San Francisco Superior Court Nos. 312962 And 320342); EU RoHS (Directive 2002/95/EC, 27-Jan-2003);Material manufactured prior to the compliance date may still be in stock at Belden facilities and in our Distributor's inventory. EUELV (Directive 2000/53/EC, 18-Sept-2000); EU WEEE (Directive 2002/96/EC, 27-Jan-2003); And EU BFR (Directive 2003/11/EC, 6-Feb-2003). The information provided in this Product Disclosure, and the identification of materials listed as reportable or restricted within the Product Disclosure, is correct to the best of Belden's knowledge, information and belief at the date of its publication. The information provided in the Product Disclosure is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. This Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulationsbased on their individual usage of the product.Belden declares this product to be in compliance with EU LVD (Low Voltage Directive 73/23/EEC), as amended by directive 93/68/EEC.。

RJK0305DPBSilicon N Channel Power MOS FETPower SwitchingREJ03G1353-0900Rev.9.00Apr 19, 2006Features• High speed switching• Capable of 4.5 V gate drive• Low drive current• High density mounting• Low on-resistanceR DS(on) = 6.7 mΩ typ. (at V GS = 10 V)OutlineAbsolute Maximum Ratings(Ta = 25°C)UnitRatingsItem SymbolDrain to source voltage V DSS 30 VGate to source voltage V GSS +16/-12 VDrain current I D 30 A Drain peak current I D(pulse)Note1 120 ABody-drain diode reverse drain current I DR 30 A Avalanche current I AP Note 2 10 A Avalanche energy E AR Note 2 10 mJ Channel dissipation Pch Note3 45 W Channel to Case Thermal Resistance θch-C 2.78 °C/WChannel temperature Tch 150 °CStorage temperature Tstg –55 to +150 °CNotes: 1. PW ≤ 10 µs, duty cycle ≤ 1%2. Value at Tch = 25°C, Rg ≥ 50 Ω3. Tc = 25°CElectrical Characteristics(Ta = 25°C)Item Symbol Min Typ Max Unit Test ConditionsDrain to source breakdown voltage V (BR)DSS 30 — — V I D = 10 mA, V GS = 0 Gate to source leak current I GSS — — ± 0.1 µA V GS = +16/–12 V, V DS = 0 Zero gate voltage drain current I DSS — — 1 µA V DS = 30 V, V GS = 0 Gate to source cutoff voltage V GS(off) 1.2 — 2.5 V V DS = 10 V, I D = 1 mAR DS(on) — 6.7 8.0 m Ω I D = 15 A, V GS = 10 V Note4 Static drain to source on stateresistance R DS(on) — 10 13 m Ω I D = 15 A, V GS = 4.5 V Note4 Forward transfer admittance |y fs | — 45 — S I D = 15 A, V DS = 10 V Note4 Input capacitance Ciss — 1250 — pF Output capacitance Coss — 530 — pF Reverse transfer capacitanceCrss — 70 — pF V DS = 10 V, V GS = 0,f = 1 MHz Gate Resistance Rg — 0.6 — Ω Total gate chargeQg — 8 — nC Gate to source charge Qgs — 3.6 — nCGate to drain charge Qgd — 1.5 — nCV DD = 10 V, V GS = 4.5 V,I D = 30 A Turn-on delay time t d(on) — 7.0 — ns Rise timet r — 3.0 — nsTurn-off delay timet d(off) — 35 — nsFall timet f — 3.0 — nsV GS = 10 V, I D = 15 A,V DD ≅ 10 V,R L = 0.67 Ω, Rg = 4.7 Ω Body–drain diode forward voltage V DF — 0.85 1.08 V IF = 30 A, V GS = 0 Note4Body–drain diode reverse recovery timet rr — 30 — ns IF = 30 A, V GS = 0di F / dt = 100 A/ µsNotes: 4. Pulse testMain CharacteristicsPackage DimensionsOrdering InformationPart Name Quantity Shipping ContainerRJK0305DPB-00-J0 2500pcs TapingNote: For some grades, production may be terminated. Please contact the Renesas sales office to check the state of production before ordering the product. RENESAS SALES OFFICESRefer to "/en/network" for the latest and detailed information.Renesas Technology America, Inc.450 Holger Way, San Jose, CA 95134-1368, U.S.ATel: <1> (408) 382-7500, Fax: <1> (408) 382-7501Renesas Technology Europe LimitedDukes Meadow, Millboard Road, Bourne End, Buckinghamshire, SL8 5FH, U.K.Tel: <44> (1628) 585-100, Fax: <44> (1628) 585-900Renesas Technology (Shanghai) Co., Ltd.Unit 204, 205, AZIACenter, No.1233 Lujiazui Ring Rd, Pudong District, Shanghai, China 200120Tel: <86> (21) 5877-1818, Fax: <86> (21) 6887-7898Renesas Technology Hong Kong Ltd.7th Floor, North Tower, World Finance Centre, Harbour City, 1 Canton Road, Tsimshatsui, Kowloon, Hong KongTel: <852> 2265-6688, Fax: <852> 2730-6071Renesas Technology Taiwan Co., Ltd.10th Floor, No.99, Fushing North Road, Taipei, TaiwanTel: <886> (2) 2715-2888, Fax: <886> (2) 2713-2999Renesas Technology Singapore Pte. Ltd.1 Harbour Front Avenue, #06-10, Keppel Bay Tower, Singapore 098632Tel: <65> 6213-0200, Fax: <65> 6278-8001Renesas Technology Korea Co., Ltd.Kukje Center Bldg. 18th Fl., 191, 2-ka, Hangang-ro, Yongsan-ku, Seoul 140-702, KoreaTel: <82> (2) 796-3115, Fax: <82> (2) 796-2145Renesas Technology Malaysia Sdn. BhdUnit 906, Block B, Menara Amcorp, Amcorp Trade Centre, No.18, Jalan Persiaran Barat, 46050 Petaling Jaya, Selangor Darul Ehsan, MalaysiaTel: <603> 7955-9390, Fax: <603> 7955-9510© 2006. Renesas Technology Corp., All rights reserved. Printed in Japan.。
