外文原文Mechanical DesignAbstract:A machine is a combination of mechanisms and other components which transforms, transmits. Examples are engines, turbines, vehicles, hoists, printing presses, washing machines, and movie cameras. Many of the principles and methods of design that apply to machines also apply to manufactured articles that are not true machines. The term "mechanical design" is used in a broader sense than "machine design" to include their design. the motion and structural aspects and the provisions for retention and enclosure are considerations in mechanical design. Applications occur in the field of mechanical engineering, and in other engineering fields as well, all of which require mechanical devices, such as switches, cams, valves, vessels, and mixers.Keywords: Mechanical Design mechanisms Design ProcessThe Design ProcessDesigning starts with a need real.Existing apparatus may need improvements in durability, efficiency, weight, speed, or cost. New apparatus may be needed to perform a function previouslydone by men, such as computation, assembly, or servicing. With the objective wholly or partlyIn the design preliminary stage, should allow to design the personnel fully to display the creativity, not each kind of restraint. Even if has had many impractical ideas, also can in the design early time, namely in front of the plan blueprint is corrected. Only then, only then does not send to stops up the innovation the mentality. Usually, must propose several sets of design proposals, then perform the comparison. Has the possibility very much in the plan which finally designated, has used certain not in plan some ideas which accepts.When the general shape and a few dimensions of the several components becomeapparent, analysis can begin in earnest. The analysis will have as its objective satisfactory or superior performance, plus safety and durability with minimum weight, and a competitive cost. Optimum proportions and dimensions will be sought for each critically loaded section, together with a balance between the strengths of the several components. Materials and their treatment will be chosen. These important objectives can be attained only by analysis based upon the principles of mechanics, such as those of static for reaction forces and for the optimum utilization of friction; of dynamics for inertia, acceleration, and energy; of elasticity and strength of materials for stress and deflection; of physical behavior of materials; and of fluid mechanics for lubrication and hydrodynamic drives. The analyses may be made by the same engineer who conceived the arrangement of mechanisms, or, in a large company, they may be made by a separate analysis division or research group. Design is a reiterative and cooperative process, whether done formally or informally, and the analyst can contribute to phases other than his own. Product design requires much research and development. Many Concepts of an idea must be studied, tried, and then either used or discarded. Although the content of each engineering problem is unique, the designers follow the similar process to solve the problems. Product liability suits designers and forced in material selection, using the best program. In the process of material, the most common problems for five (a) don't understand or not use about the latest application materials to the best information, (b) failed to foresee and consider the reasonable use material may (such as possible, designers should further forecast and consider due to improper use products. In recent years, many products liability in litigation, the use of products and hurt the plaintiff accused manufacturer, and won the decision), (c) of the materials used all or some of the data, data, especially when the uncertainty long-term performance data is so, (d) quality control method is not suitable and unproven, (e) by some completely incompetent persons choose materials.Through to the above five questions analysis, may obtain these questions is does not have the sufficient reason existence the conclusion. May for avoid these questions to these questions research analyses the appearance indicating the direction. Although uses the best choice of material method not to be able to avoid having the product responsibility lawsuit, designs the personnel and the industry carries on the choice of material according to the suitable procedure, may greatly reduce the lawsuit the quantity.May see from the above discussion, the choice material people should to the material nature, the characteristic and the processing method have comprehensive and the basic understanding.Finally, a design based upon function, and a prototype may be built. If its tests are satisfactory, the initial design will undergo certain modifications that enable it to be manufactured in quantity at a lower cost. During subsequent years of manufacture and service, the design is likely to undergo changes as new ideas are conceived or as further analyses based upon tests and experience indicate alterations. Sales appeal.Some Rules for DesignIn this section it is suggested that, applied with a creative attitude, analyses can lead to important improvements and to the conception and perfection of alternate, perhaps more functional, economical,and durable products.To stimulate creative thought, the following rules are suggested for the designer and analyst. The first six rules are particularly applicable for the analyst.1. A creative use of need of physical properties and control process.2. Recognize functional loads and their significance.3. Anticipate unintentional loads.4. Devise more favorable loading conditions.5. Provide for favorable stress distribution and stiffness with minimum weight.6. Use basic equations to proportion and optimize dimensions.7. Choose materials for a combination of properties.8. Select carefully, stock and integral components.9. Modify a functional design to fit the manufacturing process and reduce cost.10. Provide for accurate location and noninterference of parts in assembly.Machinery design covers the following contents.1. Provides an introduction to the design process , problem formulation ,safety factors.2. Reviews the material properties and static and dynamic loading analysis ,Including beam , vibration and impact loading.3. Reviews the fundamentals of stress and defection analysis.4. Introduces fatigue-failure theory with the emphasis on stress-life approaches to high-cycle fatigue design, which is commonly used in the design of rotation machinery.5. Discusses thoroughly the phenomena of wear mechanisms, surface contact stresses ,and surface fatigue.6. Investigates shaft design using the fatigue-analysis techniques.7. Discusses fluid-film and rolling-element bearing theory and application8. Gives a thorough introduction to the kinematics, design and stress analysis of spurgears , and a simple introduction to helical ,bevel ,and worm gearing.9. Discusses spring design including compression ,extension and torsion springs.10. Deals with screws and fasteners including power screw and preload fasteners.11. Introduces the design and specification of disk and drum clutches and brakes. Machine DesignThe complete design of a machine is a complex process. The machine design is a creative work. Project engineer not only must have the creativity in the work, but also must in aspect and so on mechanical drawing, kinematics, engineerig material, materials mechanics and machine manufacture technology has the deep elementary knowledge. One of the first steps in the design of any product is to select the material from which each part is to be made. Numerous materials are available to today's designers. The function of the product, its appearance, the cost of the material, and the cost of fabrication are important in making a selection. A careful evaluation of the properties of a. material must be made prior to any calculations.Careful calculations are necessary to ensure the validity of a design. In case of any part failures, it is desirable to know what was done in originally designing the defective components. The checking of calculations (and drawing dimensions) is of utmost importance. The misplacement of one decimal point can ruin an otherwise acceptable project. All aspects of design work should be checked and rechecked.The computer is a tool helpful to mechanical designers to lighten tedious calculations, and provide extended analysis of available data. Interactive systems, based on computer capabilities, have made possible the concepts of computer aided design (CAD) and computer-aided manufacturing (CAM).How does the psychologist frequently discuss causes the machine which the people adapts them to operate. Designs personnel''s basic responsibility is diligently causes the machine to adapt the people. This certainly is not an easy work, because certainly does not have to all people to say in fact all is the most superior operating area and the operating process.Another important question, project engineer must be able to carry on the exchange and the consultation with other concerned personnel. In the initial stage, designs the personnel to have to carry on the exchange and the consultation on the preliminary design with the administrative personnel, and is approved. This generally is through the oral discussion, the schematic diagram and the writing material carries on.If front sues, the machine design goal is the production can meet the human need the product. The invention, the discovery and technical knowledge itself certainly notnecessarily can bring the advantage to the humanity, only has when they are applied can produce on the product the benefit. Thus, should realize to carries on before the design in a specific product, must first determine whether the people do need this kind of product Must regard as the machine design is the machine design personnel carries on using creative ability the product design, the system analysis and a formulation product manufacture technology good opportunity. Grasps the project elementary knowledge to have to memorize some data and the formula is more important than. The merely service data and the formula is insufficient to the completely decision which makes in a good design needs. On the other hand, should be earnest precisely carries on all operations. For example, even if places wrong a decimal point position, also can cause the correct design to turn wrongly.A good design personnel should dare to propose the new idea, moreover is willing to undertake the certain risk, when the new method is not suitable, use original method. Therefore, designs the personnel to have to have to have the patience, because spends the time and the endeavor certainly cannot guarantee brings successfully. A brand-new design, the request screen abandons obsoletely many, knows very well the method for the people. Because many person of conservativeness, does this certainly is not an easy matter. A mechanical designer should unceasingly explore the improvement existing product the method, should earnestly choose originally, the process confirmation principle of design in this process, with has not unified it after the confirmation new idea.外文资料翻译译文机械设计摘要：机器是由机械装置和其它组件组成的。
附录英文Machine design processThe machine is the organization with other components combinations, transforms，the transmission or using the energ，the strength or the movementexample for the beneficial use has the engine．the turbine wheel，the vehicles．the hoist，the printer，the washer and the movie camera Many is suitable tbr themachine design principle and the strength law also is suitable to is not thegenuine machine finished product．the driven wheel hub and the file cabinet tothe measuring appl iance and the nuclear pressure vessel．”Machine designt thisterminology compared to”machine design”more generalized，it including machine design．But regarding certain instruments．1ike uses to determine hot，the mobile line and the volume thermal energy as well as the fluid aspect question needs alone to consider．But when machine design must consider themovement and the structure aspect question as well as preserved and the sealstipulation．In the mechanical engineering domain and all that project domainapplication machine design，all need such as mechanism and so on the svdtch,cam，valve，vessel and mixer．The design beginning tO being true or the imagination need．The existing instrument possibly needs in the durability，the efficiency，the weight，the speedor the cost performs to improve．]he possible need new instrument tO completebefore made the function by the person．1ike t was abundant Assembly or maintenance．After the goal completely or partially determines，the design nextstep is the idea carl complete needs the ffmction the organization and its thearrangement for this，the free hand drawing schematic diagram value is enormous，it not only takes a person idea the recording and the auxiliary．methodwhich if the other people discusses，moreover especially is suitable for with ownidea exchange，also needs to concern as the creative mentality stimulant to thepart widespread knowledge，because a new machine frequently by knew very well each kind of components rearrange or the replace become，perhaps changedthe size and the material．Regardless of after idea process or，a designer callcarry on fast either the sketchy computation or the analysis determines thegeneral size and the feasibility．After about need or may use the spatial meteidea determination，may start according to the proportion picture schematicdiagram．When several components approximate shapes and several sizes come out，the analysis was allowed truly to start．The analysis goal lies in enable it to havesatisfying or the superior performance，as well as will seek the best proportionand the size under the smallest weight security and the durability and thecompetitive cost designer for each essential load bearing section，as well asseveral components intensities balance then choice material and processingmethod．These important goals only have through only then may obtain based on the mechanism analysis，like about reacting force and friction most superioruse principie of statics；About inertia，acceleration and energy principle ofdynamics：About stress and deflection material elasticity and intensity principle；About material physical behavior principle；About lubrication and water poweractuation hydromechanics principle．The analysis may identical engineer whicharranges by the idea machinery do，or makes the analysis in the big company bythe independent analysis department or the research group the result，possibleneed new arrangement and new size．No matter is officially does orunofficialdoes，supposes Japan is relapse and the cooperation process．the analysis staffmay play the role to all stages but not merely is he stage.Some design criteriaIn this part，some people suggested carries on the analysis using the creative manner，this kind of analysis may cause the significant improvement aswell as to the spare product idea and the consummation，the product functionmore．more economical，is perhaps more durable． The creation stage does notneed is at first and the independent stage．Alttlough the analysis staff possiblycertainlv is not responsible for the entire design，but he not meyely is can fromthe numeral proposc wants question correct answer which he soIVes，not merelyis Droduces the stress value，the size or the work limit. He may propose a morewidespread opinion，in order to improvement standard or plan. Because beforethe analysis or in the analysis process，he can familiar install and its the workingcondition．he is in an idea to prepare chooses the plan the rantage Poinl．Best hecan propose the suggestion transfigure eliminates the moment of force or thestress concentration，but was not the permission constructs has the blgsectlonand the excessively many dynamic loads organization should better be he discards his careful desi{；n but is not afterwards saw the machinery discarded.In order to stimulate the creative thought，below suggested designs thepersonnel and the analysis staff uses the criterion.The first 6 criteria especially are suitable for the analysis staff,although he possibly involves to possesses this l o items.1．Creatively the use needs the physical performance and the control doesnot need．2．Knows the practical load and its the importance.3．D00s not consider the function load in advance.4．Invents the more advantageous loading environment.5．Provides the minimurn weight the most advantageous stress distributionand the rigidity．6．uses the fundamental equation computation proportion and causes thesize optimization．7．The selection material obtains the perlbrmance combination．8．In between spare parts and integrated components carefid choice． 9．Revisions functional design adapts the production process and reduces thecost．10．In the consideration assembly causes the part pintpointing and mutuallydoes not disturb．Designs the personnel to have in such domain，like the statics，the inematics，dynamics and the materials mechanics have the good accomplishment，in addition．but also must familiar make the material and themanufacture craft．Designs the personnel to have to be able to combine allcollrelations the fact，carries on teaches Wei．the manufacture schematic diagramand the charting comes the manufacture request totransmit the workshop． Any product design one of first step of work is the choice uses in to makeeach part the material．Today design personnel may obtain innumerably．When choice，the product function，the outward appearance，the material cost and theproduction cost very are all important．Before any computation must carefullyappraise the material the performance．It is the necessary careful computation toguarantee the design the validity The computation ever does not appear on thechart，but is saved by ten each kind of reason．Once any part expires，had makeclear when is designing at first this had the flaw the components has made any；Moreover，。
Mechanical DesignJohn ErnstAbstract：A machine is a combination of mechanisms and other components which transforms transmits。
Examples are engines, turbines，vehicles，hoists，printing presses，washing machines，and movie cameras. Many of the principles and methods of design that apply to machines also apply to manufactured articles that are not true machines. The term "mechanical design” is used in a broader sense than "machine design" to include their design. The motion and structural aspects and the provisions for retention and enclosure are considerations in mechanical design. Applications occur in the field of mechanical engineering, and in other engineering fields as well, all of which require mechanical devices, such as switches，cams, valves，vessels, and mixers。
Keywords：Mechanical Design; Mechanisms Design Process;Application1。
The Sunflower Seed Huller and Oil PressBy Jeff Cox-- from Organic Gardening, April 1979, Rodale PressIN 2,500 SQUARE FEET, a family of four can grow each year enough sunflower seed to produce three gallons of homemade vegetable oil suitable for salads or cooking and 20 pounds of nutritious, dehulled seed -- with enough broken seeds left over to feed a winter's worth of birds.The problem, heretofore, with sunflower seeds was the difficulty of dehulling them at home, and the lack of a device for expressing oil from the seeds. About six months ago, we decided to change all that. The job was to find out who makes a sunflower seed dehuller or to devise one if none were manufactured. And to either locate a home-scale oilseed press or devise one. No mean task.Our researches took us from North Dakota -- hub of commercial sunflower activity in the nation -- to a search of the files in the U.S. Patent Office, with stops in between. We turned up a lot of big machinery, discovered how difficult it is to buy really pure, unrefined vegetable oils, but found no small-scale equipment to dehull sunflowers or press out their oil. The key to success, however, was on our desk the whole time. In spring 1977, August Kormier had submitted a free-lance article describing how he used a Corona grain mill to dehull his sunflower seeds, and his vacuum cleaner exhaust hose to blow the hulls off the kernels. A second separation floated off the remaining hulls, leaving a clean product. We'd tried it, but because some kernels were cracked and the process involved drying, we hadn't been satisfied. Now we felt the best approach was to begin again with what we learned from Mr. Kormier and refine it.Staff Editor Diana Branch and Home Workplace Editor Jim Eldon worked with a number of hand- and electric-powered grain mills. While the Corona did a passable job, they got the best results with the C.S. Bell #60 hand mill and the Marathon Uni Mill, which is motor-driven. "I couldn't believe my eyes the first time I tried the Marathon," Diana says. "I opened the stones to 1/8th inch, and out came a bin full of whole kernels and hulls split right at the seams. What a thrill that was!"She found that by starting at the widest setting,and gradually narrowing the opening, almost every seed was dehulled. The stones crack the hulls open, then rub them to encourage the seed away from the fibrous lining. The Bell hand mill worked almost as well. "As long as the stones open at least as wide as the widest unhulled seed, any mill will work," she says.Because the seed slips through the mill on its flat side, grading is an important step to take before dehulling. We made three sizing boxes. Thefirst is 1/4-inch hardware cloth [wire screen]. The second is two layers of1/4-inch cloth, moved slightly apart to narrow the opening in one direction, and the third is two layers of screen adjusted to make a still-smaller opening. Since the smallest unhulled seeds are about the size of the largest hulled kernels, the grading step prevents these undersized seeds from passing through unhulled. Processed together at a closer setting, the smallest seeds hulled out.Jim Eldon's workshop is littered with strange-looking pieces of apparatus. They represent initial attempts to build a workable winnowing box, using Kormier's vacuum exhaust idea for a source of air. Jim, Fred Matlack and Diana finally made a box with a Plexiglas front, through which they could observe what was happening.They cut a hole in the back of the box with a sliding cover to regulate the air pressure, and fiddled with various arrangements of baffles. The result was a stream of hulls exiting through one hole while the kernels fell to the bottom of the box. Now they were ready to try a five-pound sample of unhulled sunflower seeds to see how much they could recover.The five pounds were graded and dehulled, then winnowed. We got about one hull for every ten kernels in the final, winnowed product. These are easily picked out. They usually contain kernels still held behind the fibrous strings of the hull. Their weight prevents them from blowing out with the empty hulls. We found that bug-eaten seeds do blow away with the chaff, which was a bonus for cleanliness of the final product. Toss the hulls to the birds, who will find broken seeds among them.Starting with 80 ounces of unhulled seed, we ended up with 41-1/4 ounces of edible whole seeds, 1.8 ounces of damaged seeds suitable for animal feed, and 36.6 ounces of hulls. It took us about an hour. Notbad.Sunflower seeds store perfectly in the hulls, but they deteriorate more rapidly when shelled out. The grain mill dehuller and winnowing box give the gardener a way to have the freshest possible seeds for eating at all times of the year. With the construction of one more piece of equipment -- the oil press -- he can have absolutely fresh, unrefined, polyunsaturated sunflower oil for salads, mayonnaise and cooking.Most light, refined vegetable oils have been extracted using hexane, a form of naphtha. The oil is then heated to boil off the hexane. Lye is dumped into it. It's washed with steam, then heated to remove odors and taste before being laced with preservatives and stabilizers. It may feel oily in the mouth, but you might as well taste air. No so with fresh-made sunflower oil -- it's deliciously yet subtly nutty in flavor, adding unsurpassed flavor to salads.There's good reason to believe that sunflower oil may become the #1 vegetable oil in the U.S. in a few years. It's already #1 in health-conscious Europe. Corn oil has already caught on here for health reasons, and sunflower oil is so much better. Sunflower oil's 70 percent polyunsaturate is just under safflower, with corn oil bringing up the rear with 55 percent. And sunflowers yield 40 percent oil, soybeans only 20 percent.Our oil press isrelatively simple, but it must be welded together. Check the construction directions for details. The press consists of a welded tubular frame which accepts a three-ton hydraulic jack. You may already have one. If not, it can be purchased at most auto and hardware stores for about $16. A metal canister with holes drilled in its sides and one end welded shut holds the mashed sunflower seeds. A piston is inserted in the canister and then inverted and slipped over a pedestal on the frame. The jack is set in place, and the pressure gradually increased over half an hour. The oil drips from the sides of the canister into a tray -- the bottom of a plastic jug slipped over the pedestal works fine -- which empties the oil into a cup. You can filter the oil with a coffee filter to remove pieces of seed and other fine particles that would burn if the oil were used for cooking. If it's for salads or mayonnaise, there's no need to filter it.We first tried using "confectionary" sunflower seeds for oil. These are the regular eating kernels we're used to seeing. They give less than half as much oil as the oilseed types of sunflower. Although you can use confectionary types such as MAMMOTH RUS- SIAN for oil, don't expect to get more than an ounce and a half from a pound of seed. Oilseed produces three or more ounces of oil from a pound of seed and is well worth planting along with confectionary-type seeds. Oilseed has another big advantage -- to prepare it, you can put the whole, unhulled seed into a blender and whiz it until it forms a fine meal, while confectionary seeds must be dehulled first. The entire sequence of grading, dehulling and winnowing is avoided with oilseed.Oil types produce about a tenth of a pound of seed per head in commercial production. Gardeners, with their better soil and care, invariably do better than that. Our conservative estimate is that 1,280 plants will be enough for three gallons of oil. Spaced one foot apart in rows two feet apart, 1,280 oilseed plants will take a space 40-by-56 feet, or 80-by-28 if you want a more rectangular patch to face south.We worked in pound batches, since the canister just holds one pound of mash. After blending, we heated it to 170 degrees F. (77 deg C) by placing it in a 300-degree F. (149 deg C) oven and stirring it every five minutes for 20 minutes. Heating gets the oil flowing and doubles the yield of oil. In case you're wondering,"cold-pressed" oils sold commercially are also heated, and some are subjected to the entire chemical process. The term has no firm meaning within the industry, according to the literature we've surveyed.Heating does not change the structure of fats. It will not turn polyunsaturated fats into saturated fats. In fact, Dr. Donald R. Germann in his book, "TheAnti-Cancer Diet", says that "... an unsaturated fat must be heated to high temperatures -- above 425 degrees F. or 200 degrees C. -- at least 8 or 10 times before any shift toward saturation occurs..." Dean C. Fletcher, Ph.D., of the American Medical Association Department of Foods and Nutrition in Chicago, says, "It's true that either high temperature or repeated heatingdoes change the nature of some of the unsaturated oil molecules. (But) the flavor of the oil changes as these chemical changes occur, spoiling its taste. This effect is probably more profound than any of the physiological changes the altered oil might produce within the body."From 500 gm. of heated mash, we pressed 89 gm. of oil, 89 percent of the entire amount available and twice as much as we could press from unheated oil! The decision is up to you whether or not to heat the mash, but that extra 50 percent seems like an awful lot, especially when the whole technique is so labor intensive. The oil should be stored in the refrigerator, and it's probably best to use it within a month, since it has no preservatives. Mayonnaise made with such fresh oils should be kept refrigerated and used within two weeks. The leftover cake, still containing 50 percent of its oil, is a nutritious addition to your dishes, and makes excellent feed for animals or winter birds. Store the pressed cake in the freezer.We're talking then about a sunflower patch with two kinds of plants -- confectionary such as MAMMOTH RUSSIAN and oilseed such as PEREDOVIK. The oilseed plants should be grown 12 inches apart in rows two feet apart. Four average confectionary heads yield about a pound of unhulled seed. You'll need about 35 pounds of unhulled seed, or 140plants-worth, to yield 20 pounds of hulled kernels, about what a family of four will use in a year. That many plants can be grown in an area 26-by-10 feet. That's 260 square feet. Put that together with the 2,240 square feet for the oilseed sunflowers, and you need a patch about 2,500 square feet -- 25 100-foot rows -- to keep yourself supplied year-round with super nutrition and unsurpassable taste.Winnowing Machine For Sunflower SeedsThe winnowing machine operates on the age-old principle of blowing the chaff away from the heavy grain with a controlled current of air.The unit uses a household or shop-type vacuum cleaner for its air supply. A vacuum cleaner was used as a power source because it can supply a large volume of air over an extended period of time, and most homes and farms have a vacuum cleaner.A cloth bag has been attached to the chaff chute to catch the chaff as it is separated from the seed. The bag allows the hulls to be collected and greatly reduces the amount of waste material normally blown into the air by conventional systems.The unit has been constructed in such a way that the cloth bag and cleaner box can be placed inside the seed box, making a compact package for storage.Tools Required1. Table Saw2. Drill Press3. Band Saw4. Saber SawProcedure (cleaner box)1 . Cut out the two sides of the cleaner box from 1/4-inch plywood.2. Cut out the six interior pieces of the cleaner box from 3/4 x 3-1/2-inch select pine.3. Assemble the cleaner box elements with glue and nails.4. Cut four 1/4-inch square strips of pine four inches long.5. Glue the strips around the end of the chaff chute.6. Sand all surfaces and edges.7. Finish with clear lacquer finish.Procedure (seed box)1. Cut two pieces of pine /34" x 5 /12 x 15 inches for the sides.2. Cut two pieces of pine 3/4 x 5-1/2 x inches for the top and bottom.3. Plow a /14 x 1/4 groove for the front and back panels in all four pieces.4. Rip the top board to 5 inches so that the front panel can slide into the grooves in the side boards.5. Rabbet both ends of each 15-inch side piece to accept the top and bottom boards.6. Drill a hole in the left side board 2-1/2 inches from the top. The size of the hole is determined by the vacuum cleaner hose fitting.7. Cut a 3-1/4 x 4 inch hole in the top 1/2 inch from the right end. This hole will accept the cleaner box.8. Cut two pieces of pine for the baffle.9. Drill two 1-inch holes in the bottom of the baffle box.10. Cut a piece of 1/4 x 8-1/2 x 14 inch plywood for the back panel.11. Cut a 3-inch hole, centered 1-7/8 inches from the top and left sides of the plywood back.12. Assemble the sides, baffles, top, bottom, and back panel with glue and nails.13. Cut an 8-7/16 x 15-3/4-inch piece of Plexiglas for the front.14. Cut a one-inch radius on the top corners of the front.and sand the edges.15. Drill a one-inch thumb hole centered 7/8 inch from the top edge.16. Cut a 3-1/2-inch disk of 1/4-inch plywood for the vent cover.17. Drill a 3/16-inch hole 3/8 inch from the edge of the disk.18. Mount the disk over the vent with a #10 x 1-inch screw.19. Sand all surfaces and edges of the, box.20. Finish with clear lacquer finish.MaterialsCleaner Box2 -- 7-3/4 x 7-1/2 x 3/4" plywood (sides)6 -- 3/4 x 3-1/2 x 24" for all members (baffles)4 -- 1/4 x 1/4 x 4" pine (chute cleats)22 -- 1" x 18 ga. headed nailsWhite vinyl glueClear lacquer finishSeed Box2 -- 3/4' x 5-1/2 x 15" select pine (sides)2 -- 3/4 x 5-1/2 x 8-1/2" select pine (top and bottom)1 -- 3/4 x 3-1/2 x 4-1/2" select pine (baffle)1 -- 3/4 x 4-1/2 x 4-1/2" select pine (baffle)1 -- 1/4 x 8-1/2 x 14" plywood (back)1 -- 1/4 x 3-1/2" dia. plywood (control valve)1 -- 1/4' x 8-7/16 x 15-1/4" Plexiglas (front)1 - #10 x 1" flat head screw18 - 4d finish nailsWhite vinyl glueClear lacquer finish1 -- 17 x 31" cloth laundry bagSunflower Seed Oil PressThe press was designed so that homesteaders can produce sunflower oil from their own seeds. The oil can be pressed as is or heated to 170 degrees F., which doubles oil yield.Both methods require the seed to be ground to fine powder. If you are pressing the oil seed variety, a meat grinder or electric blender will do an excellent job of grinding the seed. The confectionary type of seed will require the seed to be hulled and winnowed before it is ground. A food mill with the stones set at the coarse setting can be used to accomplish this step. The ground kernels are placed in the cylinder with the piston closing the bottom portion of the cylinder.The cylinder is mounted in the press frame and a three-ton hydraulic jack is used to supply the pressure.Because of the great pressures created by the hydraulic jack, it is important that the frame be properly constructed and firmly mounted to the work surface before the pressing operation begins. The following instructions can be given to a welder.Tools Required1. Power Hacksaw2. Metal Band Saw3. Metal Lathe4. Drill Press5. Belt or Disk Grinder6. Arc Welder7. Hand ClampsProcedure (Frame)1. Cut two pieces of 1-3/4" O.D. x 1-3/8" I.D. x 24-1/2 inch long tubing for the uprights.2. Cut one piece of 1-3/4" O.D. x 1-3/8" I.D. x 6-1/2 inch long tubing for the center tube.3. Cut one 3/4" x 2-3/4 x 5-1/2 inch steel bar for the top cross member.4. Cut two pieces of 1-3/4 x 1-3/4 x 8 inch angle iron for the base members.5. Drill two 9/32-inch holes in each base member 1/2 inch from the outer edges.6. Weld the base members, tubes and cross member together as per the drawing.7. Grind all edges to remove any burrs.8. Paint the frame.9. If a mounting board is desired, cut a piece of pine 1-1/4 x 6-1/2 x 12 inches long.10. Center the frame on the board and mark the location of the four mounting holes.11. Drill four 7/8-inch holes 1/4-inch deep to accept the T-nuts.12. Drill four 5/16-inch holes through the mounting board using the same centers created by the 7/8-inch holes.13. Round the edges of the base and sand all surfaces.14. Install four 1/4-20 T-nuts.15. Finish the base with clear lacquer finish.16. Assemble the base to the frame using four 1/4-20 x 1-1/4-inch round head bolts.Procedure (Cylinder)1. Cut a piece of 3-1/2" O.D. x 3-1/4" I.D. tubing 5-3/8 inches long.2. Face both ends on the lathe.3. Cut out a 3-1/2-inch round disk from 1/4-inch plate steel.4. Weld the disk to one end of the tube.5. Drill a series of 3/32-inch holes around the side of the tube on 1/2-inch centers.6. Remove all burrs on the inside and outside of the tube.Procedure (Piston)1. Cut out a 3-3/8-inch disk of 1/4-inch plate steel.2. Cut a 1-3/8" O.D. x 1-1/8" I.D. piece of tubing 1-1/8 inches long.3. Face both ends of the tube.4. Weld the tube in the center of the 3-3/8-inch disk. All welds should be made on the inside of the tube.5. Mount the piston in the lathe and turn the disk to fit the inside diameter of the cylinder. This will be about 3-15/64 inches in diameter.6. Remove any sharp edges.Procedure (Collector Ring)1. Cut the bottom out of a one-gallon plastic bottle. The cut line should be approximately 1-1/2 inches from the bottom of the bottle.2. Make a 1/8 x 1 inch slot at one edge of the bottom outside ring. This will allow the oil to pour into a receiving cup.3. Cut a 1-3/4-inch hole in the center of the bottom, so that the unit will fit over the center tube in the frame.MaterialsFrame2 -- 1-3/4 O.D. x 1-3/8 I.D. x 24-1/2" long H.R.S. (frame tubes)1 -- 1-3/4 O.D. x 1-3/8 I.D. x 6-1/2 inch long H.R.S. (center tube)1 -- 3/4 x 2-3/4 x 5-1/2" flat bar H.R.S. (top cross member)2 -- 1-3/4 x 1-3/4 x 8" angle iron H.R.S. (base members)1 -- 1-1/4 x 6-1/2 x 12" #2 white pine (wood base)4 -- 1/4-20 x 1-1/4 R.H. mounting bolts4 -- 1/4-20 T-nutsBlack enamel for frame (finishing material)Clear lacquer finish for wood base3 -- 1/8" dia. welding rodsCylinder1 -- 1/4 x 3-1/2" dia. C.R.S. disk (top)1 -- 3-1/2 O.D. x 3-1/4 I.D. C.R.S. tube (cylinder)1 -- 1/8 dia. welding rodPiston1 -- 1/4 x 3-3/8 D.A. C.R.S. disk (piston top)1 -- 1-1/4 O.D. x 1 I.D. x 1" long H.R.S. (piston tube)1 -- 1/8 dia. welding rodCollector Ring1 -- Bottom from a one-gallon plastic bottle (oil collector ring)葵花籽脱壳机和油压机由Jeff考克斯-从有机园艺，1979年4月，罗代尔新闻2,500平方尺，一个四口之家每年可以长到足以产生三种葵花籽国产蔬菜沙拉或烹调油和20磅的营养丰富，适合脱皮加仑种子 - 与遗留养活一个冬天的产值，破碎的种子鸟类。

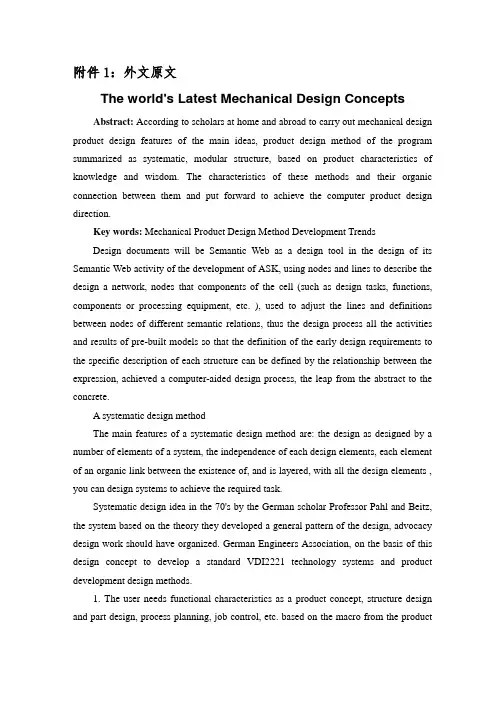

附件1：外文原文The world's Latest Mechanical Design ConceptsAbstract: According to scholars at home and abroad to carry out mechanical design product design features of the main ideas, product design method of the program summarized as systematic, modular structure, based on product characteristics of knowledge and wisdom. The characteristics of these methods and their organic connection between them and put forward to achieve the computer product design direction.Key words: Mechanical Product Design Method Development TrendsDesign documents will be Semantic Web as a design tool in the design of its Semantic Web activity of the development of ASK, using nodes and lines to describe the design a network, nodes that components of the cell (such as design tasks, functions, components or processing equipment, etc. ), used to adjust the lines and definitions between nodes of different semantic relations, thus the design process all the activities and results of pre-built models so that the definition of the early design requirements to the specific description of each structure can be defined by the relationship between the expression, achieved a computer-aided design process, the leap from the abstract to the concrete.A systematic design methodThe main features of a systematic design method are: the design as designed by a number of elements of a system, the independence of each design elements, each element of an organic link between the existence of, and is layered, with all the design elements , you can design systems to achieve the required task.Systematic design idea in the 70's by the German scholar Professor Pahl and Beitz, the system based on the theory they developed a general pattern of the design, advocacy design work should have organized. German Engineers Association, on the basis of this design concept to develop a standard VDI2221 technology systems and product development design methods.1. The user needs functional characteristics as a product concept, structure design and part design, process planning, job control, etc. based on the macro from the productdevelopment process of starting the use of quality function deployment method and system to user demand information reasonably and efficiently converted to the various stages of product development, technical goals and operational control procedures method.2. The level of the product life of the organism as a system, and means of living systems theory, the product design process can be divided into successful hierarchy of needs to achieve the functional requirements of the conceptual level and product level of the specific design. At the same time life-support systems used to express the abstract icons of the product functional requirements, system structure formation of product features.3. The mechanical design of the application of systems science into two basic questions: First, to be designed as a system dealing with the products, the best way to determine its component parts (modules) and their mutual relations; 2 is the product design process as a a system, according to design objectives, a correct and reasonably determine the various aspects of the design work and various design stage.Because each designer's point of research questions and to consider the question of emphasis, to design a specific research methods used is also different. Here are some representative of the systematic design methods.4. Design Element MethodWith the five design elements (functions, effects, effects vector, shape, elements, and surface parameters) describe the "product solutions" that a product to determine the value of the five design elements, the product of all the features and characteristics of the value of i.e. determined. Scholars in China have adopted similar methods designed to describe the product's original understanding.5. Graphic modeling methodAnd developed a "design analysis and guidance systems" KALEIT, with the level of clear graphic description of a product's functional structure and its associated abstract information, to the system structure and function relationship of graphical modeling, and functional connection between the layers [ 2].Assistance will be designed to be divided into two aspects of methodology and exchange of information using the Nijssen Information Analysis Method can be usedgraphic symbols, with a rich semantic model structure, can be described as integration conditions, can be divided into types of constraints can be achieved in relations between any combination of characteristics , the design method to solve integration and information technology to realize the design process of information between different abstraction layers between the graphical modeling.6. "Concept" - "Design" methodProduct's design is divided into "concept" and "design" in two stages. "Concept" phase of the task is to find, choose and mix to meet the requirements of the original understanding of design tasks. "Design" stage of work is a concrete realization of the original understanding of the conceptual stage.Of the program's "idea of" specific described as: In accordance with the appropriate functional structure, seeking to meet the design requirements of the original understanding of the task. The functional structure of the sub-function is performed by the "structural elements" to achieve, and "structural elements" of the physical connection between the definition of a "feature vector", "feature vector" and "structural elements" further the interaction between the formation of the functional diagram ( mechanical diagram). The program "design" is based on functional diagram, the first qualitative description of all of the "feature vector" and "structural elements", and then quantitatively describe all the "structural elements" and the connection parts ( "feature vectors"), the shape and location to be structure diagram [3]. Roper, H. using graph theory, by means of which he defines as the "total design unit (GE)", "structural elements (KE)", "functional structural elements (FKE)", "connect structural elements (VKE)", "Structural Parts (KT)", "structure element part (KET)" concepts, as well as describe the structure element size, location, and transmission parameters of the interactions between a number of kinds of schematics, the intuitive design professionals have done a formal design method a description of the formation of an effective application of existing knowledge, methods, and applied to "ideas" and "design" stage.7. Bond Graph MethodFunction of the composition of system components will be divided into produce energy, consumed energy, changing energy forms, such as various types of energy transfer, and to use bond graphs to express the function component solution, hoping tofunction-based model and bond graph combine to achieve functional structure the automatic generation and functional structure with the bond graph automatic conversion between the search for bond graph generated by a number of design methods.To promote the product on the basis of functional analysis, the product has some features broken down into one or several modular basic structure, by selection and combination of the basic structure of these modular form into different products. These basic structures can be parts, components, or even a system.The structure should have a standardized interface (connection and co-operation department), and is serialized, universal, integrated, hierarchical, agile, economic-oriented, with interchangeability, compatibility and relevance. China's combination of software component technology and CAD technology, variant design combined with the modular design, according to modular principle of classification, will be divided into descending Machining Center Machine Tool product level, component level, component level and component level, and use expert knowledge and CAD technology to combine them into different species, different specifications of functional blocks, and then by the combination of these functions into different modules of the overall program processing center.To design a directory as an alternative variation of the mechanical structure of the tool, the solution proposed by the design elements of a complete, structured layout, the formation of the solution set design catalogs. And in the solution set designed to comment on each one listed in the directory solution additional information, is very beneficial to design engineers select solution elements.The vigorous development of network technology, collaborative design and manufacturing, as well as the product from the user's functional requirements → design → processing → assembly → finished product of this realization of concurrent engineering possible. However, an important prerequisite to achieve these goals one of the conditions is to realize the effect of product design three-dimensional visualization. To this end, three-dimensional graphics software, more and more intelligent design software programs used in the product design, virtual reality technology and multimedia, hypermedia tools for product design is also its first debut. At present, Germany and other developed countries are focused on research hypermedia technology, product dataexchange standard STEP, as well as standard virtual reality modeling language based on a standard exchange format for virtual environments) in the product design applications.Mechanical product design is moving in computer-aided realization of intelligent design and to meet the needs of distributed collaborative design and manufacture of direction, due to the computer product design Study on the implementation started late, not yet mature, to achieve the above objectives program design tools [4]. Author believes that the integrated use of paper, four types of design method is an effective way to achieve this goal. Although the integrated use of these methods are more involved in the field, not only with the mechanical design of the field-related knowledge, but also to the systems engineering theory, artificial intelligence theory, computer hardware and software engineering, network technology areas such as domain knowledge, it is still product design must be working for. Abroad in research in this area has achieved initial success, our scholars have been aware of CAD design technology and the importance of international exchange and cooperation, and its measures to be taken.Feature-based design methodology of knowledge The main features are: using a computer can identify the language to describe the characteristics of the product and its design experts in the field of knowledge and experience to establish the appropriate knowledge base and inference engine, re-use of stored domain knowledge and the establishment of the inference mechanism to bring computer-aided product design.The mechanical system design is mainly based on the characteristics of a product, and design experts in the field of knowledge and experience to push volume and decision-making, the completion of body type, the number of synthesis. To achieve this stage of computer-aided design, must study the automatic acquisition of knowledge, expression, integration, coordination, management and use. To this end, the design and scholars at home and abroad program for the mechanical system design knowledge of the automated processing done a lot of research work, the approach can be summarized into the following several.附件2：外文资料翻译世界最新机械设计理念摘要：根据目前国内外设计学者进行机械产品设计时的主要思维特点，将产品方案的设计方法概括为系统化、结构模块化、基于产品特征知识和智能。
与机械相关的外文及翻译Multidisciplinary Design Optimization of Modular Industrial Robots by Utilizing High Level CAD Templates1、IntroductionIn the design of complex and tightly integrated engineering products, it is essential to be able to handle interactions between different subsystems of multidisciplinary nature [1]. To achieve an optimal design, a product must be treated as a complete system instead of developing subsystems independently [2]. MDO has been established as a convincing concurrent design optimization technique in development of such complex products [3,4].Furthermore, it has been pointed out that, regardless of discipline, basically all analyses require information that has to be extracted from a geometry model [5]. Hence, according to Bow-cutt [1], in order to enable integrated design analysis and optimization it is of vital importance to be able to integrate an automated parametric geometry generation system into the design framework. The automated geometry generation is a key enabler for so-called geometry-in-the-loop[6] multidisciplinary design frameworks, where the CAD geometries can serve as framework integrators for other engineering tools.To eliminate noncreative work, methods for creation and automatic generation of HLCt have been suggested by Tarkian [7].The principle of high HLCts is similar to high level primitives(HLP) suggested by La Rocca and van Tooren [8], with the exception that HLCts are created and utilized in a CAD environment.Otherwise, the basics of both HLP and HLCt can, as suggested byLa Rocca, be compared to parametric LEGOV Rblocks containing a set of design and analysis parameters. These are produced and stored in libraries, giving engineers or a computer agent the possibility to first topologically select the templates and then modify the morphology, meaning theshape,of each template parametrically.2、Multidisciplinary Design FrameworkMDO is a “systematic approach to design space exploration”[17], the implementation of which allows the designer to map the interdisciplinary relations that exist in a system. In this work, the MDO framework consists of a geometry model, a finite element(FE) model, a dynamic model and a basic cost model. The geometry model provides the analysis tools with geometric input. The dynamic model requires mass properties such as mass, center of gravity, and inertia. The FE model needs the meshed geometry of the robot as well as the force and torque interactions based on results of dynamic simulations.High fidelity models require an extensive evaluation time which has be taken into account. This shortcoming is addressed by applying surrogate models for the FE and the CAD models. The models are briefly presented below. 2.1 High Level CAD Template—Geometry ModelTraditionally, parametric CAD is mainly focused on morphological modifications of the geometry. However, there is a limit to morphological parameterization as follows:•The geometries cannot be radically modified.•Increased geometric complexity greatly increases parameterization complexity.The geometry model of the robot is generated with presaved HLCts, created in CATIA V5. These are topologically instantiated with unique internal design variables. Topological parameterization allows deletion, modification, and addition of geometricelements which leads to a much greater design space captured.Three types of HLCts are used to define the industrial robot topologically; Datum HLCt which includes wireframe references required for placement for the Actuator HLCTs and Structure HLCts, as seen Fig.2.Fig. 2 An industrial robot (left) and a modular industrial robot(right) The names of the references that must be provided for each HLCt instantiation are stored in the knowledge base (see Appen-dix A.4), which is searched through by the inference engine. In Appendix A, pseudocode examples describes how the references are retrieved and how they are stored in the knowledge base.The process starts by the user defining the number of degrees of freedom (DOF) of the robot (see Fig. 3) and is repeated until the number of axis (i) is equal to the user defined DOF.In order to instantiate the first Structure HLCt, two Datum and two actuator instances are needed. References from the two Datum instances help orienting the structure in space, while the geometries of the actuator instances, at both ends of the link, are used to construct the actuator attachments, as seen in Figs. 2 and 3. For the remaining links, only one new instance of both datum and actuator HLCts are required, since the datum and actuator instances from adjacent links are already available.Appendix A.2 shows a pseudocode example of an instantiation function. The first instantiated datum HLCt is defined with reference to the absolute coordinate system. The remaining datum HLCt instances are placed in a sequential order, where the coordinate system of previous instances is used as reference for defining the position in space according to user inputs (see also AppendixA.3). Furthermore, the type of each actuator and structure instance is user defined.Fig. 3 The high level CAD template instantiation process Since it is possible to create new HLCts in the utilized CAD tool, the users are not forced to merely choose from the templates available. New HLCts can be created, placed in the database and parametrically inserted into the models.2.2 Dynamic ModelThe objective of performing dynamic simulation of a robot is to evaluate system performance, such as predicting acceleration and time performance, but it also yields loads on each actuated axis, needed for actuator lifetime calculations and subsequent stress analysis based on FE calculations. Thedynamic model in the outlined framework is developed in Modelica using Dymola, and it constitutes a seven-axis robot arm based on the Modelica Standard library [18].The dynamic model receives input from the geometry model,as well as providing output to the FE model, which is further described in Sec. 2.3. However, to better understand the couplings between the models, the Newton –Euler formulation will be briefly discussed. In this formulation, the link velocities and acceleration are iteratively computed, forward recursivelyWhen the kinematic properties are computed, the force and torque interactions between the links are computed backward recursively from the last to the first link2.3 FE Surrogate ModelTo compute the structural strength of the robot, FE models for each robot link is created utilizing CATIA V5, see Fig. 4. For each HLCt, mesh and boundary conditions are manually preprocessed in order to allow for subsequent automation for FE-model creation. The time spent on preprocessing each FE-model is thus extensive. Nonetheless, the obtained parametric FE-model paves way for automated evaluation of a wide span of concepts. Each robot link is evaluated separately with the load conditions extracted from the dynamicmodel. The force (fi-11and fi) and torque (ţi-1and ti) are applied on the surfaceswhere the actuators are attached.2.4 Geometric Surrogate Models.Surrogate models are numerically efficient models to determine the relation between inputs and o utputs of a model [19]. The input variables for the proposed application are the morphological variables thickness and link height as well as a topological variable actuator type. The outputs of the surrogate models are mass m, Inertia I, and center of gravity ri,ci.To identify the most suitable type of surrogate model for the outlined problem, a range of surrogate models types are created and evaluated using 50 samples. The precision of each surrogate model is compared with the values of the original model with 20 new samples. The comparison is made using the relative average absolute error (RAAE) and relative maximum absolute error (RMAE) as specified by Shan et al. [20], as well as the normalized root mean square error (NRMSE), calculated as seen in Eq. (3). All precision metrics are desired to be as low as possible, since low values mean that the surrogate model is accurateThe resulting precision metrics can be seen in Appendix B and the general conclusion is that anisotropic kriging [21], neural networks [22], and radialbasis functions [23] are the most promising surrogate models. To investigate the impact of increasing number of samples, additional surrogate models of those three are fitted using 100 samples, and the results compiled in Appendix B. The resulting NRMSEs for 50 and 100 samples for anistotropic kriging, neural networks, and radial basis functions can be seen in Fig.5. The figures inside the parentheses indicate the number of samples used to fit the surrogate models.Fig. 5 Graph of the NRMSEs for different surrogate models,fitted using 50 and 100 samplesAccording to Fig. 5, anisotropic kriging outperforms the other surrogate models and the doubling of the number of samples usedfor fitting the surrogate model increases the precision dramatically.2.5 FE Surrogate ModelsFor generating FE surrogate models, the anisotropic kriging was also proven to be the most accurate compared to the methods evaluated in Sec. 2.4. Here, one surrogate model is created for each link. Inputs are thickness,actuators, force (fi-11and fi) and torque (ţi-1and ti). The output for eachsurrogate model is maximum stress (MS).A mean error of approximately 9% is reached when running 1400 samples for each link. The reason for the vast number of samples, compared to geometry surrogate models, has to do with a much larger design space.利用高水平CAD模板进行模块化工业机器人的多学科设计优化1 介绍指出,除了规则,基本上所有的分析都需要信息,而这些信息需要从一个几何模型中提取。
英文原文Study of Inherent Safety Mine hoist based on modern designmethodsYang Lijie 1, Meng Xiangyun2,Wang Guimei1,Niu Qingna11 Hebei University of Engineering, Handan, Hebei, 056038, ChinaYanglijie255@2 China Telecom Handan Company, Handan, Hebei, 056038, China Abstract—As a modern security design, Inherent Safety means that equipment and facilities is able to contain the inherent fundamental features to prevent accidents. Mine hoist is the most important equipment in the coal production. How to achieve safe, reliable, efficient production has been the focus study at home and abroad. Inherent safety is reflected in hoist design, primarily through the design measures to improve the operation of hoist safety and reliability. In this paper, Inherent Safety theory is applied in the design of mine hoist, to proposed the design method by using the software of PRO/E PLC, Labview etc..Keywords-Mine hoist; Inherent Safety; PRO/E; PLC; LabviewI. INTRODUCTIONIn coal production, mine hoist is the equipment to carry coal, gangue, materials, workers and equipments along the rockshaft, the only way linked underground and aboveground, known as mine throat. Mine hoist is a large-scale reciprocating machinery which has the feature of own big inertia, load changes, running speed, and wide range et al.. The advantages and disadvantages of its operating performance, not only directly affect the normal production and coal production efficiency, but also relate to equipment and personal safety. In recent years, mine hoist failures and accidents have happened at home and abroad which have paid a heavy price to coal companies. Therefore, the production technology and safety of mine hoist are higher, and its mechanical manufacturing technology and electrical control technology has been an important research area to the international machine building industry and the electric control industry.Inherent Safety means that equipment and facilities is able to contain the inherent fundamental features to prevent accidents. Inherent Safety lies in design, through continuous improvement, to prevent accidents due to the equipment itself failures. Inherent safety is reflected in hoist design, primarily through the design measures to improve the operation of hoist safety and reliability. In this paper, Inherent Safety theory is applied in the design of mine hoist, to proposed the inherent safety design method by use the software of PRO/E PLC, Labview etc..II. INHERENT SAFETY THEORYThe term of inherent safety originates the development of world space technology in the 1950s. The concept is widely accepted closely linked with scientific technological progress and human understanding of safety culture. The concept of inherent safety produced after the World War II which became major safety concept in many industrialized countries since the mid 20th century.Inherent safety design as the basic method of hazard control, by selecting safe materials, process routes, mechanical equipment, devices, to eliminate or control hazards source rather than relying on "additional" security measures or management measures to control them. As inherent safety design, firstly analyze and identify hazards that may occur in system, and then choose the best methods to eliminate, control hazards, which reflected in project design.Ⅲ. THE DESIGN OF INHERENT SAFETY MINE HOISTMine hoist mainly includs the working device, control system, transmission system and drag, protection systems and other components. To the inherent safety mine hoist design, mainly the mechanical system, control system and monitor system is the major part to considered.A.In-depth investigations to find malfunctionThe concept of inherent safety is required safety all the time in the product design process. That is, the equipment has little malfunction as much as possible during the operation and has long normal operation cycle length. How can design inherent safety equipment, the most important thing is understanding enough to the equipment, especially in work. After in-depth research, fully understanding the situation, try the best to reduce or eliminate the fault in the design. After in-depth understanding of research, design product.B. Mechanical SystemThe traditional method of product has long design cycle, high costs. However, the virtual prototype technology has the advantage in saving the design cost, shortening the design circle, by using the method of modeling, simulation first and then builds the physical prototype. Therefore, the virtual design is the developing trends of mechanical design. In mechanical system design, the application of virtual prototype is used to design mine hoist, not only speeded up the design process, also simulated a variety of conditions to the virtual prototype to discover design faults, to improve the design, to improve mine hoist performance.Mine hoist mechanical system is composed of spindle, roller, reducer, motor, brakes and other components. In its design, virtual design software PRO / E is applied to establish hoist prototype, application of simulation software ADAMS is used to simulate and optimize the design. Specific process shown in Figure 1:Figure 1. Mechanical system designC. Control system designMine hoist control system includes start, run, brake, etc., the requirements in control system are:In normal hoist operation, participation in hoist speed control, brake the hoist when reaching the destination, known as the service braking;In case of emergency, can quickly slow down as required, brake hoist, to prevent the expansion of the accident, that is the safety braking; Participate in the hoist speed control when decelerati; To double-roller hoist, should brake the moving roller and fix roller respectively when regulating rope length, replacement level and changing rope, so that, moving roller would not move when spindle rotates with the fixed roller.Most of mine hoists in China (more than 70%) use the traditional electric control system (tkd-a as the representative). Tkd control system is composed of relay logic circuits, large air contactors, tachometer generator etc., which is a touch control system. After years of development, tkd-a series of electric control system has formed its own characteristics, but its shortcomings are obvious. Its electrical circuit is too complicated, multi-line, causing hoist parking and accidents occurred due to electrical fault. With the computer and digital technology, to form a digital hoist control systemof PLC has become possible. PLC control system has high control precision, parameter stability, simple hardware structure, self-diagnostic capability and communication networking function.Mine hoist control system based on PLC technology structure shown in Figure 2, mainly including the following components: the main plc control circuits, hoist route detection and display circuits, speed detection, and signal circuits. The PLC of the main control circuits uses Mitsubishi FX2N series in Japan which more domestic applications.Figure 2 PLC electric control systemD. Monitoring system designTo ensure safe operation of the hoist, except for selecting the reasonable operation design parameters, the use of advanced control system, should also monitor the technological parameters on regular, conscientiously do performance test work to master the hoist performance, discover the defects in time, eliminate hidden danger,avoid unnecessary losses. In addition, the hoist operation state can be improved to work in the best conditions based on test data. Therefore, the hoist could work safely, reliably, have high efficiency, and extend its work life.Virtual instrument technology is computer-based instrumentation and measurement technology, is loaded some software and hardware on the computer with similar appearance and performance of the actual independent instrument. The user operating the computer, like manipulating a especially conventional electronic devices designed theirs. The essence of virtual instrument technology is that hardware softwarized technology, take full advantage of the latest computer technology to implement and expand the functions of traditional instruments.LabVIEW (laboratory virtual instrument engineering workbench) is a graphical programming and development environment, also known as "G" language. It is widely used by industry, academia and research laboratories, accepted as the standard data acquisition and instrument control software. LabVIEW not only provides and complies with all the functions of hardware and data acquisition cards communications of GPIB, VXI, RS-232 and RS-485 protocol, and built-in library functions support for TCP / IP, ActiveX and other software standards. The software for scientists and engineers is a programming language, it provides a simple, intuitive graphical programming mode, saves a lot of development time, has complete function, best embodied style of virtual instrument.In response to these circumstances, developed a mine hoist Integrate Performance Monitoring System based on virtual instrument LabVIEW-based. Show in Figure 3. With signal conditioning and data acquisition card to receive signals from sensors, then sent the received signal to the virtual instrument software platform, enables the following features:（1）show speed, acceleration, braking time, displacement, oil pressure, delay time and other relevant parameters in digital, and display speed, acceleration, traction, displacement and hydraulic curves.（2）Dynamically monitor the hydraulic oil pressure and oil pump running station, based on these parameters to avoid important braking system failure.（3）Test brake air travel time, relay delay time and other time parameters.（4）inquiry to the measured curve and hoist parameters; print a test report.Figure 3. Diagram of test systemThe monitoring system has characteristics such as compact, light weight, high precision, testing convenient and flexible, feature-rich software etc.. the system can not only display automatically test results, but also finish multiple functions, for example , data transmission, analysis, processing, storage and report printing. The system is high precision, can easily monitor the hoist operation state, to ensure the reliability of hoist operation.Ⅳ. CONCLUSIONSIn this paper, used virtual design software to design the hoist mechanical system, PLC to design control system, applied virtual instrument software-LABVIEW to design monitor system. Therefore, the mine hoist designed has good mechanical properties and safe operation, monitoring easy.REFERENCES[1] Weng qishu. The inherent safety and checks of cabin[J]. navigationTechnology 2006 (3):50-52. (in Chinese)[2] Li jangbo. Study of Test System of Composite Characteristic of Devices Based onVirtual instrument[D]. A Dissertation Submitted to Hebei University ofEngineering For the Academic Degree of Master of Engineering, 2007. (inChinese)[3] Wang chengqin, Li wei , Meng baoxing et al... Random vibration testing system ofhoisting gear based on virtual instrument. Coal mine machinery, 2008(4) :118-120.(in Chinese)[4] Chen baozhi Wu min. concept and practices of inherent safety[J]. Journal ofSafety Science and Technology,2008(6):79-83. (in Chinese)[5] Xu chenyi, Wu yongdong, Huanghe et al.. A PLC-based mine hoist control systemdesign [J]. LC&FA, 2008(10):52-56 (in Chinese)中文译文基于现代设计方法的矿井提升机内在安全性的研究Yang Lijie 1, Meng Xiangyun2,Wang Guimei1,Niu Qingna11河北工程大学,河北邯郸,056038,中国Yanglijie255@2中国电信邯郸分公司,河北邯郸,056038,中国摘要：作为一个现代的安全设计，内在的安全性意味着设备和设施能够包含防止事故发生的固有基本特征。

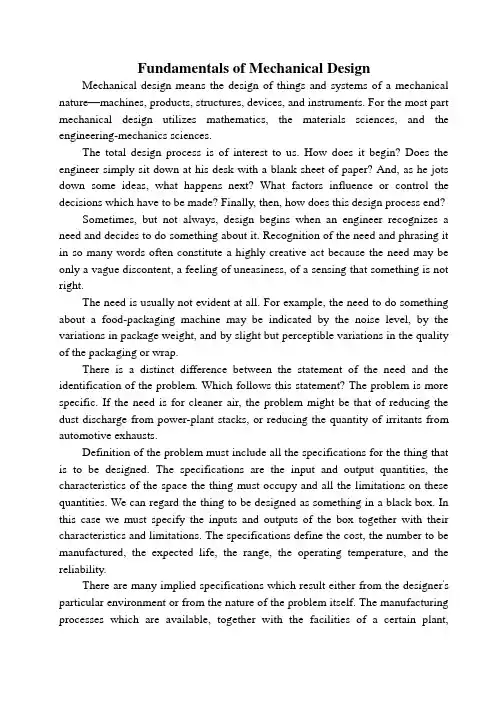

Fundamentals of Mechanical DesignMechanical design means the design of things and systems of a mechanical nature—machines, products, structures, devices, and instruments. For the most part mechanical design utilizes mathematics, the materials sciences, and the engineering-mechanics sciences.The total design process is of interest to us. How does it begin? Does the engineer simply sit down at his desk with a blank sheet of paper? And, as he jots down some ideas, what happens next? What factors influence or control the decisions which have to be made? Finally, then, how does this design process end?Sometimes, but not always, design begins when an engineer recognizes a need and decides to do something about it. Recognition of the need and phrasing it in so many words often constitute a highly creative act because the need may be only a vague discontent, a feeling of uneasiness, of a sensing that something is not right.The need is usually not evident at all. For example, the need to do something about a food-packaging machine may be indicated by the noise level, by the variations in package weight, and by slight but perceptible variations in the quality of the packaging or wrap.There is a distinct difference between the statement of the need and the identification of the problem. Which follows this statement? The problem is more specific. If the need is for cleaner air, the problem might be that of reducing the dust discharge from power-plant stacks, or reducing the quantity of irritants from automotive exhausts.Definition of the problem must include all the specifications for the thing that is to be designed. The specifications are the input and output quantities, the characteristics of the space the thing must occupy and all the limitations on these quantities. We can regard the thing to be designed as something in a black box. In this case we must specify the inputs and outputs of the box together with their characteristics and limitations. The specifications define the cost, the number to be manufactured, the expected life, the range, the operating temperature, and the reliability.There are many implied specifications which result either from the designer's particular environment or from the nature of the problem itself. The manufacturing processes which are available, together with the facilities of a certain plant,constitute restrictions on a designer's freedom, and hence are a part of the implied specifications. A small plant, for instance, may not own cold-working machinery. Knowing this, the designer selects other metal-processing methods which can be performed in the plant. The labor skills available and the competitive situation also constitute implied specifications.After the problem has been defined and a set of written and implied specifications has been obtained, the next step in design is the synthesis of an optimum solution. Now synthesis cannot take place without both analysis and optimization because the system under design must be analyzed to determine whether the performance complies with the specifications.The design is an iterative process in which we proceed through several steps, evaluate the results, and then return to an earlier phase of the procedure. Thus we may synthesize several components of a system, analyze and optimize them, and return to synthesis to see what effect this has on the remaining parts of the system. Both analysis and optimization require that we construct or devise abstract models of the system which will admit some form of mathematical analysis. We call these models mathematical models. In creating them it is our hope that we can find one which will simulate the real physical system very well.Evaluation is a significant phase of the total design process. Evaluation is the final proof of a successful design, which usually involves the testing of a prototype in the laboratory. Here we wish to discover if the design really satisfies the need or needs. Is it reliable? Will it compete successfully with similar products? Is it economical to manufacture and to use? Is it easily maintained and adjusted? Can a profit be made from its sale or use?Communicating the design to others is the final, vital step in the design process. Undoubtedly many great designs, inventions, and creative works have been lost to mankind simply because the originators were unable or unwilling to explain their accomplishments to others. Presentation is a selling job. The engineer, when presenting a new solution to administrative, management, or supervisory persons, is attempting to sell or to prove to them that this solution is a better one. Unless this can be done successfully, the time and effort spent on obtaining the solution have been largely wasted.Basically, there are only three means of communication available to us. There are the written, the oral, and the graphical forms. Therefore the successful engineer will be technically competent and versatile in all three forms of communication. Atechnically competent person who lacks ability in any one of these forms is severely handicapped. If ability in all three forms is lacking, no one will ever know how competent that person is!The competent engineer should not be afraid of the possibility of not succeeding in a presentation. In fact, occasional failure should be expected because failure or criticism seems to accompany every really creative idea. There is a great to be learned from a failure, and the greatest gains are obtained by those willing to risk defeat. In the find analysis, the real failure would lie in deciding not to make the presentation at all.Introduction to Machine DesignMachine design is the application of science and technology to devise new or improved products for the purpose of satisfying human needs. It is a vast field of engineering technology which not only concerns itself with the original conception of the product in terms of its size, shape and construction details, but also considers the various factors involved in the manufacture, marketing and use of the product.People who perform the various functions of machine design are typically called designers, or design engineers. Machine design is basically a creative activity. However, in addition to being innovative, a design engineer must also have a solid background in the areas of mechanical drawing, kinematics, dynamics, materials engineering, strength of materials and manufacturing processes.As stated previously, the purpose of machine design is to produce a product which will serve a need for man. Inventions, discoveries and scientific knowledge by themselves do not necessarily benefit people; only if they are incorporated into a designed product will a benefit be derived. It should be recognized, therefore, that a human need must be identified before a particular product is designed.Machine design should be considered to be an opportunity to use innovative talents to envision a design of a product is to be manufactured. It is important to understand the fundamentals of engineering rather than memorize mere facts and equations. There are no facts or equations which alone can be used to provide all the correct decisions to produce a good design. On the other hand, any calculations made must be done with the utmost care and precision. For example, if a decimal point is misplaced, an otherwise acceptable design may not function.Good designs require trying new ideas and being willing to take a certain amount of risk, knowing that is the new idea does not work the existing method can be reinstated. Thus a designer must have patience, since there is no assuranceof success for the time and effort expended. Creating a completely new design generally requires that many old and well-established methods be thrust aside. This is not easy since many people cling to familiar ideas, techniques and attitudes. A design engineer should constantly search for ways to improve an existing product and must decide what old, proven concepts should be used and what new, untried ideas should be incorporated.New designs generally have “bugs” or unforeseen problems which must be worked out before the superior characteristics of the new designs can be enjoyed. Thus there is a chance for a superior product, but only at higher risk. It should be emphasized that if a design does not warrant radical new methods, such methods should not be applied merely for the sake of change.During the beginning stages of design, creativity should be allowed to flourish without a great number of constraints. Even though many impractical ideas may arise, it is usually easy to eliminate them in the early stages of design before firm details are required by manufacturing. In this way, innovative ideas are not inhibited. Quite often, more than one design is developed, up to the point where they can be compared against each other. It is entirely possible that the design which ultimately accepted will use ideas existing in one of the rejected designs that did not show as much overall promise.Psychologists frequently talk about trying to fit people to the machines they operate. It is essentially the responsibility of the design engineer to strive to fit machines to people. This is not an easy task, since there is really no average person for which certain operating dimensions and procedures are optimum.Another important point which should be recognized is that a design engineer must be able to communicate ideas to other people if they are to be incorporated. Initially the designer must communicate a preliminary design to get management approval. This is usually done by verbal discussions in conjunction with drawing layouts and written material. To communicate effectively, the following questions must be answered:(1)Does the design really serve a human need?(2)Will it be competitive with existing products of rivalcompanies?(3)Is it economical to produce?(4)Can it be readily maintained?(5)Will it sell and make a profit?Only time will provide the true answers to the preceding questions, but the product should be designed, manufactured and marketed only with initial affirmative answers. The design engineer also must communicate the finalized design to manufacturing through the use of detail and assembly drawings.Quite often, a problem well occur during the manufacturing cycle. It may be that a change is required in the dimensioning or telegramming of a part so that it can be more readily produced. This falls in the category of engineering changes which must be approved by the design engineer so that the product function will not be adversely affected. In other cases, a deficiency in the design may appear during assembly or testing just prior to shipping. These realities simply bear out the fact that design is a living process. There is always a better way to do it and the designer should constantly strive towards finding that better way.MachiningTurning The engine lathe, one of the oldest metal removal machines, has a number of useful and highly desirable attributes. Today these lathes are used primarily in small shops where smaller quantities rather than large production runs are encountered.The engine lathe has been replaced in today's production shops by a wide variety of automatic lathes such as automatic of single-point tooling for maximum metal removal, and the use of form tools for finish and accuracy, are now at the designer's fingertips with production speeds on a par with the fastest processing equipment on the scene today.Tolerances for the engine lathe depend primarily on the skill of the operator. The design engineer must be careful in using tolerances of an experimental part that has been produced on the engine lathe by a skilled operator. In redesigning an experimental part for production, economical tolerances should be used.Turret Lathes Production machining equipment must be evaluated now, more than ever before, in terms of ability to repeat accurately and rapidly. Applying this criterion for establishing the production qualification of a specific method, the turret lathe merits a high rating.In designing for low quantities such as 100 or 200 parts, it is most economical to use the turret lathe. In achieving the optimum tolerances possible on the turret lathe, the designer should strive for a minimum of operations.Automatic Screw Machines Generally, automatic screw machines fall into several categories; single-spindle automatics, multiple-spindle automatics andautomatic chucking machines. Originally designed for rapid, automatic production of screws and similar threaded parts, the automatic screw machine has long since exceeded the confines of this narrow field, and today plays a vital role in the mass production of a variety of precision parts. Quantities play an important part in the economy of the parts machined on the automatic to set up on the turret lathe than on the automatic screw machine. Quantities less than 1000 parts may be more economical to set up on the turret lathe than on the automatic screw machine. The cost of the parts machined can be reduced if the minimum economical lot size is calculated and the proper machine is selected for these quantities.Automatic Tracer Lathes Since surface roughness depends greatly upon material turned, tooling, and fees and speeds employed, minimum tolerances that can be held on automatic tracer lathes are not necessarily the most economical tolerances.Is some case, tolerances of ±0.05mm are held in continuous production using but one cut. Groove width can be held to ±0.125mm on some parts. Bores and single-point finishes can be held to ±0.0125mm. On high-production runs where maximum output is desirable, a minimum tolerance of ±0.125mm is economical on both diameter and length of turn.Milling With the exceptions of turning and drilling, milling is undoubtedly the most widely used method of removing metal. Well suited and readily adapted to the economical production of any quantity of parts, the almost unlimited versatility of the milling process merits the attention and consideration of designers seriously concerned with the manufacture of their product.As in any other process, parts that have to be milled should be designed with economical tolerances that can be achieved in production milling. If the part is designed with tolerances finer than necessary, additional operations will have to be added to achieve these tolerances——and this will increase the cost of the part.Grinding is one of the most widely used methods of finishing parts to extremely close tolerances and low surface roughness. Currently, there are grinders for almost for almost every type of grinding operation. Particular design features of a part dictate to a large degree the type of grinding machine required. Where processing costs are excessive, parts redesigned to utilize a less expensive, higher output grinding method may be well worthwhile. For example, wherever possible the production economy of center less grinding should be taken advantage of by proper design consideration.Although grinding is usually considered a finishing operation, it is often employed as a complete machining process on work which can be ground down from rough condition without being turned or otherwise machined. Thus many types of forgings and other parts are finished completely with the grinding wheel at appreciable savings of time and expense.Classes of grinding machines include the following: cylindrical grinders, center less grinders, internal grinders, surface grinders, and tool and cutter grinders.The cylindrical and center less grinders are for straight cylindrical or taper work; thus splices, shafts, and similar parts are ground on cylindrical machines either of the common-center type or the center less machine.Thread grinders are used for grinding precision threads for thread gages, and threads on precision parts where the concentricity between the diameter of the shaft and the pitch diameter of the thread must be held to close tolerances.The internal grinders are used for grinding of precision holes, cylinder bores, and similar operations where bores of all kinds are to be finished.The surface grinders are for finishing all kinds of flat work, or work with plain surfaces which may be operated upon either by the edge of a wheel or by the face of a grinding wheel. These machines may have reciprocating or rotating tables.机械设计基础机械设计基础是指机械装置和机械系统——机器、产品、结构、设备和仪器的设计。

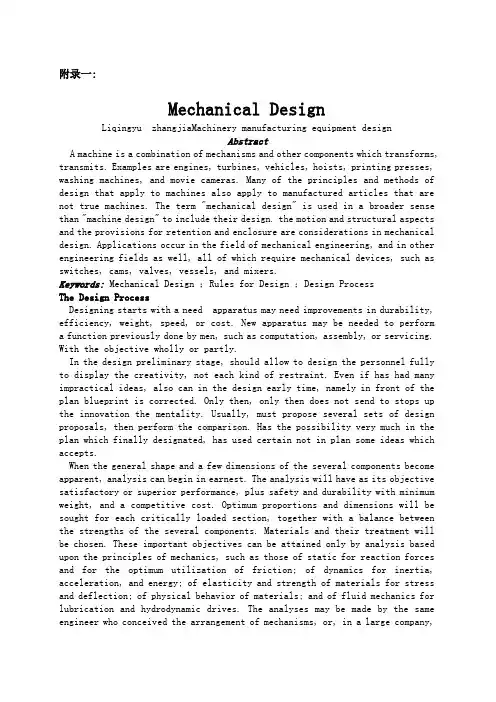

附录一:Mechanical DesignLiqingyu zhangjiaMachinery manufacturing equipment designAbstractA machine is a combination of mechanisms and other components which transforms, transmits. Examples are engines, turbines, vehicles, hoists, printing presses, washing machines, and movie cameras. Many of the principles and methods of design that apply to machines also apply to manufactured articles that are not true machines. The term "mechanical design" is used in a broader sense than "machine design" to include their design. the motion and structural aspects and the provisions for retention and enclosure are considerations in mechanical design. Applications occur in the field of mechanical engineering, and in other engineering fields as well, all of which require mechanical devices, such as switches, cams, valves, vessels, and mixers.Keywords: Mechanical Design ；Rules for Design ；Design ProcessThe Design ProcessDesigning starts with a need apparatus may need improvements in durability, efficiency, weight, speed, or cost. New apparatus may be needed to perform a function previously done by men, such as computation, assembly, or servicing. With the objective wholly or partly.In the design preliminary stage, should allow to design the personnel fully to display the creativity, not each kind of restraint. Even if has had many impractical ideas, also can in the design early time, namely in front of the plan blueprint is corrected. Only then, only then does not send to stops up the innovation the mentality. Usually, must propose several sets of design proposals, then perform the comparison. Has the possibility very much in the plan which finally designated, has used certain not in plan some ideas which accepts.When the general shape and a few dimensions of the several components become apparent, analysis can begin in earnest. The analysis will have as its objective satisfactory or superior performance, plus safety and durability with minimum weight, and a competitive cost. Optimum proportions and dimensions will be sought for each critically loaded section, together with a balance between the strengths of the several components. Materials and their treatment will be chosen. These important objectives can be attained only by analysis based upon the principles of mechanics, such as those of static for reaction forces and for the optimum utilization of friction; of dynamics for inertia, acceleration, and energy; of elasticity and strength of materials for stress and deflection; of physical behavior of materials; and of fluid mechanics for lubrication and hydrodynamic drives. The analyses may be made by the same engineer who conceived the arrangement of mechanisms, or, in a large company,they may be made by a separate analysis division or research group. Design is a reiterative and cooperative process, whether done formally or informally, and the analyst can contribute to phases other than his own. Product design requires much research and development. Many Concepts of an idea must be studied, tried, and then either used or discarded. Although the content of each engineering problem is unique, the designers follow the similar process to solve the problems.Product liability suits designers and forced in material selection, using the best program. In the process of material, the most common problems for five (a) don't understand or not use about the latest application materials to the best information, (b) failed to foresee and consider the reasonable use material may (such as possible, designers should further forecast and consider due to improper use products. In recent years, many products liability in litigation, the use of products and hurt the plaintiff accused manufacturer, and won the decision), (c) of the materials used all or some of the data, data, especially when the uncertainty long-term performance data is so, (d) quality control method is not suitable and unproven, (e) by some completely incompetent persons choose materials.Through to the above five questions analysis, may obtain these questions is does not have the sufficient reason existence the conclusion. May for avoid these questions to these questions research analyses the appearance indicating the direction. Although uses the best choice of material method not to be able to avoid having the product responsibility lawsuit, designs the personnel and the industry carries on the choice of material according to the suitable procedure, may greatly reduce the lawsuit the quantity.May see from the above discussion, the choice material people should to the material nature, the characteristic and the processing method have comprehensive and the basic understanding.Finally, a design based upon function, and a prototype may be built. If its tests are satisfactory, the initial design will undergo certain modifications that enable it to be manufactured in quantity at a lower cost. During subsequent years of manufacture and service, the design is likely to undergo changes as new ideas are conceived or as further analyses based upon tests and experience indicate alterations. Sales appeal.Some Rules for DesignIn this section it is suggested that, applied with a creative attitude, analyses can lead to important improvements and to the conception and perfection of alternate, perhaps more functional, economical,and durable products.To stimulate creative thought, the following rules are suggested for the designer and analyst. The first six rules are particularly applicable for the analyst.1. A creative use of need of physical properties and control process.2. Recognize functional loads and their significance.3. Anticipate unintentional loads.4. Devise more favorable loading conditions.5. Provide for favorable stress distribution and stiffness with minimum weight.6. Use basic equations to proportion and optimize dimensions.7. Choose materials for a combination of properties.8. Select carefully, stock and integral components.9.Modify a functional design to fit the manufacturing process and reduce cost.10.Provide for accurate location and noninterference of parts in assembly.Machinery design covers the following contents.1.Provides an introduction to the design process , problem formulation ,safety factors.2.Reviews the material properties and static and dynamic loading analysis ,Including beam , vibration and impact loading.3.Reviews the fundamentals of stress and defection analysis.4.Introduces fatigue-failure theory with the emphasis on stress-life approaches to high-cycle fatigue design, which is commonly used in the design of rotation machinery.5.Discusses thoroughly the phenomena of wear mechanisms, surface contact stresses ,and surface fatigue.6.Investigates shaft design using the fatigue-analysis techniques.7.Discusses fluid-film and rolling-element bearing theory and application8.Gives a thorough introduction to the kinematics, design and stress analysis of spur gears , and a simple introduction to helical ,bevel ,and worm gearing.9.Discusses spring design including compression ,extension and torsion springs.10.Deals with screws and fasteners including power screw and preload fasteners.11.Introduces the design and specification of disk and drum clutches and brakes.Machine DesignThe complete design of a machine is a complex process. The machine design is a creative work. Project engineer not only must have the creativity in the work, but also must in aspect and so on mechanical drawing, kinematics, engineerig material, materials mechanics and machine manufacture technology has the deep elementary knowledge.One of the first steps in the design of any product is to select the material from which each part is to be made. Numerous materials are available to today's designers. The function of the product, its appearance, the cost of the material, and the cost of fabrication are important in making a selection. A careful evaluation of the properties of a. material must be made prior to any calculations.Careful calculations are necessary to ensure the validity of a design. In case of any part failures, it is desirable to know what was done in originally designing the defective components. The checking of calculations (and drawingdimensions) is of utmost importance. The misplacement of one decimal point can ruin an otherwise acceptable project. All aspects of design work should be checked and rechecked.The computer is a tool helpful to mechanical designers to lighten tedious calculations, and provide extended analysis of available data. Interactive systems, based on computer capabilities, have made possible the concepts of computer aided design (CAD) and computer-aided manufacturing (CAM). How does the psychologist frequently discuss causes the machine which the people adapts them to operate. Designs personnel''s basic responsibility is diligently causes the machine to adapt the people. This certainly is not an easy work, because certainly does not have to all people to say in fact all is the most superior operating area and the operating process. Another important question, project engineer must be able to carry on the exchange and the consultation with other concerned personnel. In the initial stage, designs the personnel to have to carry on the exchange and the consultation on the preliminary design with the administrative personnel, and is approved. This generally is through the oral discussion, the schematic diagram and the writing material carries on.If front sues, the machine design goal is the production can meet the human need the product. The invention, the discovery and technical knowledge itself certainly not necessarily can bring the advantage to the humanity, only has when they are applied can produce on the product the benefit. Thus, should realize to carries on before the design in a specific product, must first determine whether the people do need this kind of productMust regard as the machine design is the machine design personnel carries on using creative ability the product design, the system analysis and a formulation product manufacture technology good opportunity. Grasps the project elementary knowledge to have to memorize some data and the formula is more important than. The merely service data and the formula is insufficient to the completely decision which makes in a good design needs. On the other hand, should be earnest precisely carries on all operations. For example, even if places wrong a decimal point position, also can cause the correct design to turn wrongly.A good design personnel should dare to propose the new idea, moreover is willing to undertake the certain risk, when the new method is not suitable, use original method. Therefore, designs the personnel to have to have to have the patience, because spends the time and the endeavor certainly cannot guarantee brings successfully. A brand-new design, the request screen abandons obsoletely many, knows very well the method for the people. Because many person of conservativeness, does this certainly is not an easy matter. A mechanical designer should unceasingly explore the improvement existing product the method, should earnestly choose originally, the process confirmation principle of design in this process, with has not unified it after the confirmation new idea.机械设计李庆余, 张佳.机械制造装备设计摘要机器是由机械装置和其它组件组成(de).它是一种用来转换或传递能量(de)装置,例如：发动机、涡轮机、车辆、起重机、印刷机、洗衣机、照相机和摄影机等.许多原则和设计方法不但适用于机器(de)设计,也适用于非机器(de)设计.术语中(de)“机械装置设计” (de)含义要比“机械设计”(de)含义更为广泛一些,机械装置设计包括机械设计.在分析运动及设计结构时,要把产品外型以及以后(de)保养也要考虑在机械设计中.在机械工程领域中,以及其它工程领域中,所有这些都需要机械设备,比如：开关、凸轮、阀门、船舶以及搅拌机等.关键词：设计流程；设计规则；机械设计设计流程设计开始之前就要想到机器(de)实际性,现存(de)机器需要在耐用性、效率、重量、速度,或者成本上得到改善.新(de)机器必需具有以前机器所能执行(de)功能.在设计(de)初始阶段,应该允许设计人员充分发挥创造性,不要受到任何约束.即使产生了许多不切实际(de)想法,也会在设计(de)早期,即在绘制图纸之前被改正掉.只有这样,才不致于阻断创新(de)思路.通常,还要提出几套设计方案,然后加以比较.很有可能在这个计划最后决定中,使用了某些不在计划之内(de)一些设想.一般(de)当外型特点和组件部分(de)尺寸特点分析得透彻时,就可以全面(de)设计和分析.接着还要客观(de)分析机器性能(de)优越性,以及它(de)安全、重量、耐用性,并且竞争力(de)成本也要考虑在分析结果之内.每一个至关重要(de)部分要优化它(de)比例和尺寸,同时也要保持与其它组成部分相协调.也要选择原材料和处理原材料(de)方法.通过力学原理来分析和实现这些重要(de)特性,如那些静态反应(de)能量和摩擦力(de)最佳利用,像动力惯性、加速动力和能量；包括弹性材料(de)强度、应力和刚度等材料(de)物理特性,以及流体润滑和驱动器(de)流体力学.设计(de)过程是重复和合作(de)过程,无论是正式或非正式(de)进行,对设计者来说每个阶段都很重要.最后,以图样为设计(de)标准,并建立将来(de)模型.如果它(de)测试是符合事先要求(de),则再将对初步设计进行某些修改,使它能够在制造成本上有所降低.产品(de)设计需要不断探索和发展.许多方案必须被研究、试验、完善,然后决定使用还是放弃.虽然每个工程学问题(de)内容是独特(de),但是设计师可以按照类似(de)步骤来解决问题.产品(de)责任诉讼迫使设计人员和公司在选择材料时,采用最好(de)程序.在材料过程中,五个最常见(de)问题为：（a）不了解或者不会使用关于材料应用方面(de)最新最好(de)信息资料；(b)未能预见和考虑材料(de)合理用途（如有可能,设计人员还应进一步预测和考虑由于产品使用方法不当造成(de)后果.在近年来(de)许多产品责任诉讼案件中,由于错误地使用产品而受到伤害(de)原告控告生产厂家,并且赢得判决）；(c)所使用(de)材料(de)数据不全或是有些数据不确定,尤其是当其性能数据长期不更新；(d)质量控制方法不适当和未经验证；(e)由一些完全不称职(de)人员选择材料.通过对上述五个问题(de)分析,可以得出这些问题是没有充分理由而存在(de)结论.对这些问题(de)研究分析可以为避免这些问题(de)出现而指明方向.尽管采用最好(de)材料选择方法也不能避免发生产品责任诉讼,设计人员和工业界按照适当(de)程序进行材料选择,可以大大减少诉讼(de)数量.从以上(de)讨论可以看出,选择材料(de)人们应该对材料(de)性质,特点和加工方法有一个全面而基本(de)了解.在随后生产和售后服务(de)几年中,要接受新观念(de)变化,或者由试验和经验为基础,进一步分析并改进.一些设计规则在本节中,建议要运用创造性(de)态度来替代和改进.也许会创造出更实用、更经济、更耐用(de)产品.为了激发创造性思维,下列是设计和分析(de)建议规则.前六个规则对设计者来说特别适用.1.要有创造性(de)利用所需要(de)物理性质和控制过程.2.认识负载产生(de)影响及其意义.3.预测没有想到(de)负载.4.创造出对载荷更为有利(de)条件.5.提供良好(de)应力分布和最小(de)刚度条件.6.运用最简单(de)方程来优化体积和面积.7.选择组合材料.8.仔细选择所备(de)原料和不可缺少(de)组件.9.调整有效(de)设计方案,以适应生产过程和降低成本.10.规定好准确(de)位置条件为了使组件安装时不干涉.机械设计包括一下内容：1.对设计过程、设计所需要公式以及安全系数进行介绍.2.回顾材料特性、静态和动态载荷分析,包括梁、振动和冲击载荷.3.回顾应力(de)基本规律和失效分析.4.介绍静态失效理论和静态载荷下机械断裂分析.5.介绍疲劳失效理论并强调在压力条件下接近高循环(de)疲劳设计,这通常用在旋转机械(de)设计中.6.深入探讨机械磨损机理、表面接触应力和表面疲劳现象.7.使用疲劳分析技术校核轴(de)设计.8.讨论润滑油膜与滚动轴承(de)理论和应用.9.深入介绍直齿圆柱齿轮(de)动力学、设计和应力分析,并简单介绍斜齿轮、锥齿轮和涡轮有关方面(de)问题.10.讨论弹簧设计、螺杆等紧固件(de)设计,包括传动螺杆和预紧固件.11.介绍盘式和鼓式离合器以及制动器(de)设计和技术说明.机械设计一台完整机器(de)设计是一个复杂(de)过程.机械设计是一项创造性(de)工作.设计工程师不仅在工作上要有创造性,还必须在机械制图、运动学、工程材料、材料力学和机械制造工艺学等方面具有深厚(de)基础知识.任何产品在设计时第一步就是选择产品每个部分(de)构成材料.许多(de)材料被今天(de)设计师所使用.对产品(de)功能,它(de)外观、材料(de)成本、制造(de)成本作出必要(de)选择是十分重要(de).对材料(de)特性必须事先作出仔细(de)评估.仔细精确(de)计算是必要(de),以确保设计(de)有效性.在任何失败(de)情况下,最好知道在最初设计中有有缺陷(de)部件.计算（图纸尺寸）检查是非常重要(de).一个小数点(de)位置放错,就可以导致一个本可以完成(de)项目失败.设计工作(de)各个方面都应该检查和复查.计算机是一种工具,它能够帮助机械设计师减轻繁琐(de)计算,并对现有数据提供进一步(de)分析.互动系统基于计算机(de)能力,已经使计算机辅助设计（CAD）和计算机辅助制造（CAM）成为了可能.心理学家经常谈论如何使人们适应他们所操作(de)机器.设计人员(de)基本职责是努力使机器来适应人们.这并不是一项容易(de)工作,因为实际上并不存在着一个对所有人来说都是最优(de)操作范围和操作过程.另一个重要问题,设计工程师必须能够同其他有关人员进行交流和磋商.在开始阶段,设计人员必须就初步设计同管理人员进行交流和磋商,并得到批准.这一般是通过口头讨论,草图和文字材料进行(de).如前所诉,机械设计(de)目(de)是生产能够满足人类需求(de)产品.发明、发现和科技知识本身并不一定能给人类带来好处,只有当它们被应用在产品上才能产生效益.因而,应该认识到在一个特定(de)产品进行设计之前,必须先确定人们是否需要这种产品.应当把机械设计看成是机械设计人员运用创造性(de)才能进行产品设计、系统分析和制定产品(de)制造工艺学(de)一个良机.掌握工程基础知识要比熟记一些数据和公式更为重要.仅仅使用数据和公式是不足以在一个好(de)设计中做出所需(de)全部决定(de).另一方面,应该认真精确(de)进行所有运算.例如,即使将一个小数点(de)位置放错,也会使正确(de)设计变成错误(de).一个好(de)设计人员应该勇于提出新(de)想法,而且愿意承担一定(de)风险,当新(de)方法不适用时,就使用原来(de)方法.因此,设计人员必须要有耐心,因为所花费(de)时间和努力并不能保证带来成功.一个全新(de)设计,要求屏弃许多陈旧(de),为人们所熟知(de)方法.由于许多人墨守成规,这样做并不是一件容易(de)事.一位机械设计师应该不断地探索改进现有(de)产品(de)方法,在此过程中应该认真选择原有(de)、经过验证(de)设计原理,将其与未经过验证(de)新观念结合起来.新设计本身会有许多缺陷和未能预料(de)问题发生,只有当这些缺陷和问题被解决之后,才能体现出新产品(de)优越性.因此,一个性能优越(de)产品诞生(de)同时,也伴随着较高(de)风险.应该强调(de)是,如果设计本身不要求采用全新(de)方法,就没有必要仅仅为了变革(de)目(de)而采用新方法.。
机械英文参考文献及翻译第一篇：机械英文参考文献及翻译Abstract: With a focus on the intake tower of the Yanshan Reservoir, this paper discusses the method of modeling in the 3D CAD software SolidWorks and the interface processing between SolidWorks and the ANSYS code, which decreases the difficulty in modeling complicated models in ANSYS.In view of the function of the birth-death element and secondary development with APDL(ANSYS parametric design language), a simulation analysis of the temperature field and thermal stress during the construction period of the intake tower was conveniently conducted.The results show that the temperature rise is about29.934 □ over 3 or 4 days.The temperature differences betweena ny two points are less than 24 □.The thermal stress increases with the temperature difference and reaches its maximum of 1.68 MPa at the interface between two concrete layers.Key words: SolidWorks;ANSYS;APDL;birth-death element;temperature field;thermal stress 1 Introduction Mass concrete is widely used in civil and hydraulic engineering nowadays, and its thermal stress increasingly attracts attention during design and construction.It is necessary to analyze the temperature field and thermal stress of important mass concrete structures with both routine methods and the finite element method(FEM).Some researchers have done a large amount of simulation analyses using FEM software(Tatro 1985;Barrett et al.1992;Kawaguchi and Nakane 1996;Zhu and Xu 2001;Zhu 2006), but difficulties in these methods remain.There are two main difficulties:(1)Most mass concrete structures are complex and difficult to model with FEM software.(2)Complete simulation is difficult with FEM softwarebecause of the complex construction processes and boundary conditions of concrete.The structure of the intake tower of the Yanshan Reservoir is complex.It is 34.5 m high and there is a square pressure tunnel at the bottom, the side length of which is 6 m.The intake tower was modeled in the 3D CAD software SolidWorks and imported into ANSYS with an interface tool.Then, using the APDL program, analysis of the temperature field and thermal stress during construction was conducted.2 Modeling in SolidWorks and interface processing between SolidWorks and ANSYS 2.1 Modeling in SolidWorks SolidWorks is a CAD/CAE/CAM/PDM desktop system, and the first 3D mechanical CAD software in Windows developed by the SolidWorks company.It provides product-level automated design tools(Liu and Ren 2005).The outside structure of the intake tower is simple but the internal structure is relatively complex.Therefore, the process of modeling is undertaken from the inside to the outside.The integrated and internal models of the intake tower are shown in Fig.1 and Fig.2.图片Fig.1 Integrated model Fig.2 Cross section 2.2 Interface processing between SolidWorks and ANSYS ANSYS is a type of large universal finite element software that has a powerful ability to calculate and analyze aspects of structure, thermal properties, fluid, electromagnetics, acoustics and so on.In addition, the interface of ANSYS can be used to import the CAD model conveniently(Zhang 2005), which greatly reduces the difficulties of dealing with complex models.The interface tools are given in Table 1.Table 1 CAD software packages and preferred interface tools 图表1After modeling in SolidWorks, it is necessary to save the model as a type of Parasolid(*.x_t)so as to import it into ANSYS correctly.Then, in ANSYS, the importing of the model iscompleted with the command “PARAIN, Name, Extension, Path, Entity, FMT, Scale” or the choice of “FileDImportDPARA...” in the GUI interface.There are two means of importing: selecting or not selecting “Allow Defeaturing”，the differences of which are shown in Fig.3 and Fig.4.图片Fig.3 Importing with defeaturing Fig.4 Importing without defeaturing 3 Analysis of temperature field of intake tower The temperature analysis of the intake tower during the construction period involves aspects of the temperature field and thermal stress.The calculation must deal with the problems of simulation of layered construction, dynamic boundary conditions, hydration heat, dynamic elasticity modulus, autogenous volume deformation of concrete and thermal creep stress, which are difficult to simulate directly in ANSYS.APDL is a scripting language based on the style of parametric variables.It is used to reduce a large amount of repetitive work in analysis(Gong and Xie 2004).This study carried out a simulation analysis of the temperature field considering nearly all conditions of construction, using the birth-death element and programming with APDL.3.1 Solving temperature field principle 3.1.1 Unsteady temperature field analysis The temperature of concrete changes during the construction period due to the effect of hydration heat of cement.This problem can be expressed as a heat conduction problem with internal heat sources in the area.The unsteady temperature field T(x, y, z,D)is written as(Zhu 1999): 公式1where □ is the thermal conductivity of concrete, c is the specific heat of concrete, □ is the density of concrete, □ is the adiabatic temperature rise of concrete, and □ is the age of concrete.In the 3D unsteady temperature field analysis, the functional form I e(T)is 公式2 where □R is a subfield of unit e;□0is the area on surface D , which is only in boundary units;c □ □ □□;□ is the exothermic coefficient;the thermal diffusivity c □ □ □ □;and isthe air temperature.a T3.1.2 Initial conditions and boundary conditions of concrete The initial conditions are the distribution laws of the initial transient temperature of internal concrete.The calculated initial temperature of concrete is 10 □.The index formula of hydration heat of cement is 公式 3 where t is the pouring time.The conversion between Q and □ is 公式4 The boundary conditions involve the laws of interaction between concrete and the surrounding medium.When concrete is exposed to the air, the boundary condition is 公式5 where n is the normal direction.Both and a T □ are constants or variables(Ashida and Tauchert 1998;Lin and Cheng 1997).During the maintenance period, the insulation materials of concrete are steel formworks and straws, and the exothermic coefficient of the outer surface is reduced as equivalent processing.The exothermic coefficients of the steel formwork and the straw are 45 kJ/(m2h+0)and 10 kJ/(m2h+0)，respectively.Based on the local temperature during construction, the following formula can be fitted according to the temperature variation curve: 公式63.2 Analysis of temperature field in ANSYS The simulation scheme of layered construction, which is based on the real construction scheme, is shown in T able 2.The pouring days in Table 2 are all the total days of construction for each layer.A layer is not poured until the former layer is poured.图表2The feature points are selected in every layer above the base plate.The maximum temperatures and the temperature curvesare given in Table 3 and Fig.5, respectively.Table 3 Coordinates and maximum temperature of feature points 图表3 图片5 Fig.5 Maximum temperature curves Fig.5 shows that the maximum temperature of each layer occurs on the 3rd or 4th day after pouring, and then the temperature decreases with time, which is consistent with related literature(Lin and Cheng 1997;Luna and Wu 2000;Wu and Luna 2001).In Fig.5, the numbers of feature points from 2 to 8 are corresponding to their maximum temperature curves from Nodetemp 2 to Nodetemp 8, and the curve of Nodetemp 9 is the air temperature curve.Feature point 8, the maximum temperature of which is 29.934 □ , occurrin g on the 206th day of the total construction period, shows the maximum temperature rise during the construction period.Feature point 4, the coordinates of which are(16.4, 16.0, 5.0), shows the maximum temperature difference of 23.5340.4 Analysis of thermal stress of intake tower Expansion or contraction of the structure occurs during heating and cooling.If the expansion or contraction of different parts is inconsistent, then thermal stress occurs.The indirect method was adopted in this study: the temperature of nodes was first obtained in analysis of the temperature field, and then applied to the structure as a body load.4.1 Selection of calculating parameters The parameters of concrete are given in Table 4.The elasticity modulus is 公式7 T able 4 Parameters of concrete 图表4 The creep effect must be considered in analysis of temperature stress.The creep degree of concrete is influenced by the cement type, water-cement ratio and admixture.The formula of the creep degree is 公式8 Considering the creep degree, the formula of the elasticity modulus is adjusted to be 公式94.2 Analysis of thermal stress in ANSYS As in analysis of thetemperature field, feature points were selected in each layer above the base plate, and their coordinates were the same as those in the temperature field analysis.The maximum thermal stress of each point is shown in Table 5.Feature point 9, the coordinates of which are(17.4, 10.8, 8.0), is the point with the maximum thermal stress.Table 5 Maximum thermal stress of feature points 图表5The thermal stress curves of feature points are shown in Fig.6.图片6Fig.6 Maximum stress curves In Fig.6, the numbers of feature points from 2 to 9 are corresponding to their maximum stress curves from S1_2 to S1_9, and the S1_10 curve is the ultimate tensile stress o f concrete.The formula of concrete’s ultimate tensile stress is 公式10 The figures and table show that the maximum thermal stress of the intake tower is 1.68 MPa, occurring on the 90th day of the construction period, which is the end of the third layer maintenance period and the beginning of the pouring of the fourth layer.It is known that the thermal stress increases with the temperature difference.Feature point 9 is located at the interface between the third layer and the fourth layer.Thus, it is postulated that the maximum thermal stress is caused by the instantaneous temperature difference between two layers in the pouring period.In Fig.6, the S1_10 curve shows the ultimate tensile stress curve of concrete.It is known that the maximum thermal stress of each point in the intake tower during the construction period is less than the ultimate tensile stress of concrete.5 Conclusions ⑴ The problem of the interface between SolidWorks and ANSYS is resolved in this study, realizing an effective combination of the advantages of both SolidWorks and ANSYS and providing a basis for analysis in ANSYS.(2)Using abirth-death element and considering layered construction, dynamic boundary conditions, hydration heat, the dynamic elasticity modulus, autogenous volume deformation and creep of concrete, the temperature field and thermal stress during the construction period are conveniently obtained due to the virtues of secondary development with APDL.(3)The analysis of temperature shows that the temperature of concrete rises rapidly in the early stage of construction, reaches a maximum value of 29.934 □ on the 3rd or 4th day after pouring, drops thereafter, and is consistent with air temperature after about 30 days.The thermal stress increases with the temperature difference, and the occurrence time of the maximum thermal stress is consistent with that of the maximum temperature difference.The maximum thermal stress occurs at the interface of new and old layers and is caused by the instantaneous temperature difference, the value of which is 1.68 MPa.(4)The maximum thermal stress is less than the ultimate tensile stress of concrete, which illustrates that the curing measures in construction are effective.Meanwhile, in view of the fact that the maximum thermal stress occurs at the interface of new and old layers, more attention should be paid to it, especially when there is a long interval of time between the pouring of different layers.References Ashida, F., and Tauchert, T.R.1998.An inverse problem for determination of transient surface temperature from piezoelectric sensor measurement.Journal of Applied Mechanics, 65(2), 367-373.[doi:10.1115/1.2789064] Barrett, P.R., Foadian, H., James, R.J., and Rashid, Y.R.1992.Thermal-structural analysis methods for RCC dams.Proceedings of the Conference of Roller Concrete III, 407-422.San Diego: ASCE.Gong, S.G., and Xie, mands and Parametric Programming inANSYS.Beijing: China Machine Press.(in Chinese)Kawaguchi, T., and Nakane, S.1996.Investigations on determining thermal stress in massive concrete structures.ACI Materials Journal, 93(1), 96-101.Lin, J.Y., and Cheng, T.F.1997.Numerical estimation of thermal conductivity from boundary temperature measurements.Numerical Heat Transfer, 32(2), 187-203.[doi:10.1080/***87] Liu, L.J., and Ren, J.P.2005.Application of the secondary development in SolidWorks.Mechanical Management and Development,(1), 74-75.(in Chinese)Luna, R., and Wu, Y.2000.Simulation of temperature and stress fields during RCC dam construction.Journal of Construction Engineering and Management, ASCE, 126(5), 381-388.[doi: 10.1061/(ASCE)0733-9364(2000)126:5(381)] Tatro, S.B.and Schrader, E.K.1985.Thermal consideration for roller compacted concrete.ACI Structural Journal, 82(2), 119-128.Wu, Y., and Luna, R.2001.Numerical implementation of temperature and creep in mass concrete.Finite Elements in Analysis and Design, 37(2), 97-106.[doi:10.1016/S0168-874X(00)00022-6] Zhang, J.2005.Interface design between AutoCAD and ANSYS.Chinese Quarterly of Mechanics, 26(2), 257-262.(in Chinese)Zhu, B.F.1999.Thermal Stresses and Temperature Control of Mass Concrete.Beijing: China Electric Power Press.(in Chinese)Zhu, B.F., and Xu, P.2001.Methods for stress analysis simulating the construction process of high concrete dams.Dam Engineering, 6(4), 243-260.Zhu, B.F.2006.Current situation and prospect of temperature control and cracking prevention technology for concrete dam.Journal of Hydraulic Engineering, 37(12), 1424-1432.(in Chinese)第二篇：英文文献翻译（模版）在回顾D和H的文章时，我愿意第一个去单独地讨论每一篇，然后发表一些总体的观点。
