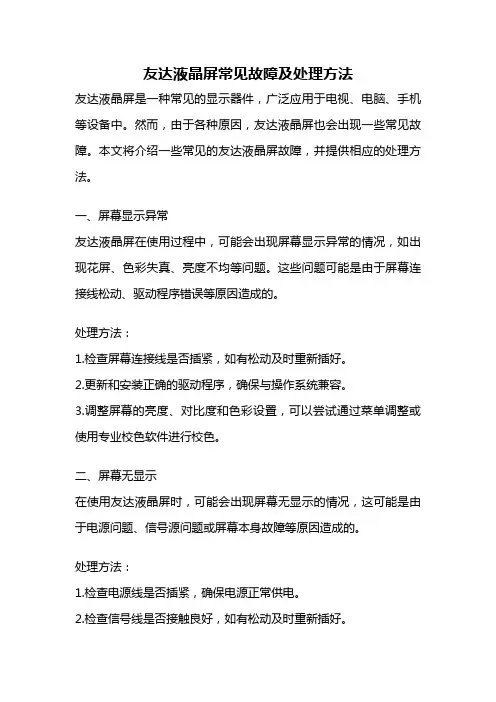

友达液晶屏常见故障及处理方法友达液晶屏是一种常见的显示器件，广泛应用于电视、电脑、手机等设备中。

然而，由于各种原因，友达液晶屏也会出现一些常见故障。

本文将介绍一些常见的友达液晶屏故障，并提供相应的处理方法。

一、屏幕显示异常友达液晶屏在使用过程中，可能会出现屏幕显示异常的情况，如出现花屏、色彩失真、亮度不均等问题。

这些问题可能是由于屏幕连接线松动、驱动程序错误等原因造成的。

处理方法：1.检查屏幕连接线是否插紧，如有松动及时重新插好。

2.更新和安装正确的驱动程序，确保与操作系统兼容。

3.调整屏幕的亮度、对比度和色彩设置，可以尝试通过菜单调整或使用专业校色软件进行校色。

二、屏幕无显示在使用友达液晶屏时，可能会出现屏幕无显示的情况，这可能是由于电源问题、信号源问题或屏幕本身故障等原因造成的。

处理方法：1.检查电源线是否插紧，确保电源正常供电。

2.检查信号线是否接触良好，如有松动及时重新插好。

3.尝试连接其他可用的信号源，排除信号源问题。

4.如果以上方法都无效，可能是屏幕本身故障，建议联系售后服务人员进行维修或更换。

三、屏幕出现黑屏或闪烁友达液晶屏在使用过程中，可能会出现屏幕黑屏或闪烁的情况，这可能是由于电源问题、驱动问题或显示设置问题等原因造成的。

处理方法：1.检查电源线是否插紧，确保电源正常供电。

2.更新和安装正确的驱动程序，确保与操作系统兼容。

3.调整屏幕的刷新率和分辨率，确保与显示器的要求相匹配。

4.排除其他外部干扰因素，如电源波动、电磁干扰等，尽量保持屏幕周围环境清洁和稳定。

四、屏幕出现残影友达液晶屏在使用过程中，可能会出现屏幕残影的情况，即显示内容在切换时会留下一定的残影。

这可能是由于响应时间过慢、信号源问题或驱动问题等原因造成的。

处理方法：1.调整屏幕的响应时间设置，选择更快的响应时间可以减少残影现象。

2.检查信号源是否接触良好，如有松动及时重新插好。

3.更新和安装正确的驱动程序，确保与操作系统兼容。

4.3 单片机与液晶显示电路接口电路设计采用液晶显示可以使显示信息多样化，降低系统的功耗。

本节介绍常用的 MDLS点阵字符型液晶显示模块及LMA97S005AD点阵图形型液晶显示模块接口电路及程序设计。

4.3.1 MDLS点阵字符型液晶显示模块模块及程序设计1. MDLS字符型液晶显示模块与单片机最小系统电路板的接口及操作指令与单片机最小系统电路板的接口J4，如图4.3.1所示。

图4.3.1MDLS字符型液晶显示模块接口从单片机最小系统板原理图中可以得知CS7信号由74LS138译码器产生，当A15A14A13A12＝1111时选中CS7，所以CS7的有效地址范围为0XF000H～0XFFFFH，使能信号在读写时由读写信号和片选信号共同产生。

从中可以得出对液晶模块操作地址如表4.3.1所示（没有使用到的地址由0代替）：表4.3.1 液晶模块操作地址与控制操作地址CS7 RS R/W 功能0XF000 0 0 0 写指令0XF001 0 0 1 读忙标志和AC值0XF002 0 1 0 写数据0XF003 0 1 1 读数据MDLS系列液晶显示模块的引脚功能定义如表4.3.2所示：表4.3.2 MDLS系列液晶显示模块的引脚功能定义引脚号符号状态功能1 Vss 电源地2 Vdd +5V逻辑3 V0 电源液晶驱动电源4 RS 输入寄存器选择 1：数据； 0：指令5 R/W 输入读写操作选择 1：读；0：写6 E 输入使能信号（MDLS未用，符号NC）7 DB0 三态数据总线8 DB1 三态数据总线9 DB2 三态数据总线10 DB3 三态数据总线11 DB4 三态数据总线12 DB5 三态数据总线13 DB6 三态数据总线14 DB7 三态数据总线（MSB）MDLS字符型液晶显示模块指令集如下所示：(1) 清屏功能：清DDRAM和AC值。

RS R/W DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB00 0 0 0 0 0 0 0 0 1(2) 归位功能：AC=0,光标，画面归HOME位。

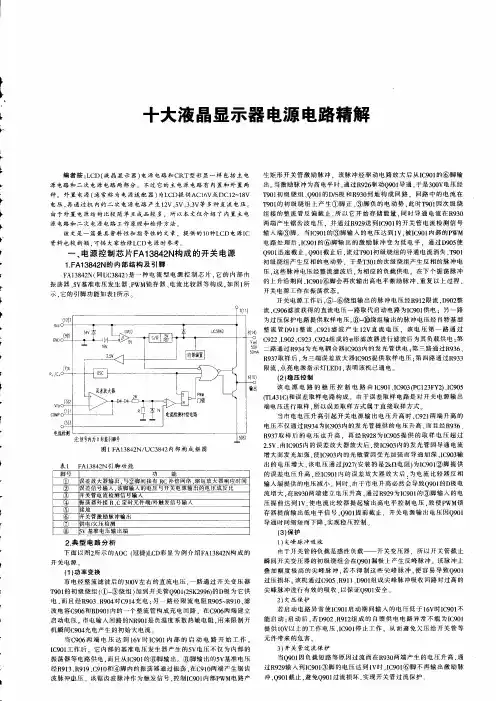

液晶显示器电源电路图220V交流市电通过交流保险管F101后进入由CXl01、LFl01等组成的抗干扰电路，经抗干扰电路处理后再进入BDl01进行整流。

为了防止瞬间大电流冲击，在整流后加入了THl01 NTC热敏电阻，最后经C101滤波生成约300V的直流电压。

从中可以看出，本电路不同于其他显示器开关电源的地方，一是THl01的位置不同(一般电路多设置在电源进线端)，另一点就是未设置电源开关，从而决定了只要插头接人市电，整个开关电源电路就开始工作，这也恰恰是借助于FAN7601优良的“绿色”功能来实现的。

整流滤波电路产生的约300V直流电压分两路输入开关电源电路，一路经开关变压器T1的①一②绕组加到开关管Q101的漏极。

另一路通过启动电阻R117加到开关电源PWM控制器FAN7601的①脚，通过启动控制电路由⑦脚对外部电容c108充电，当C108两端电压上升到11V时，FAN7601内部振荡电路起振，从⑥脚输出驱动脉冲，通过D103、R106、R107加到Q101栅极,使开关管工作于开关状态。

开关变压器各绕组有感应电压产生，通过各整流滤波系统向负载提供直流电压。

其中开关变压器的③-④绕组产生感应电压经R105限流、D102滤波后向FAN7601的⑦脚提供芯片工作电压，第 1 页启动控制电路关断①脚的电流输入。

第 2 页在以往的开关电源维修中，尽管采用启动电阻功率比较大但依然是易损元件之一，而且发热量也比较大，实际上就是由于通电后启动电阻一直有电流通过的原因。

而在这款电源中，启动电阻却采用了一个0Ω的贴片元件，是明显区别于其他电路的，这里我们学习到新型“绿色电源芯片”内部都设有一个启动开关，一旦电源达到正常工作状况(启动过程结束)，就会切断启动电阻器，这样便可省去一大部分的功率损耗。

其电路本身的故障率也接近于零该机稳压控制电路主要由U101、光电耦合器PC201、精密稳压器件U201(KIA431)及取样电阻R205、R211、R214、R210等组成。

[初三数学]AOC193Sw液晶维修手册电路图ServiceServiceServiceHorizontal Frequency30- 83 kHzTABLE OF CONTENTSDescription Page Description PageANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC Table Of Contents (1)Revision List (2)1. Monitor Specification (4)2.L C D M o n i t o rD e s c r i p t i o n (5)3. Operation Instruction (6)3.1. Gene ral Instructions (6)3.2. Control Buttons (6)3.3 Adjusting the Picture (7)4.I n p u t/O u t p u tS p e c i f i c a t i o n (10)4.1.I n p u t S i g n a lC o n n e c t o r (10)4.2.F a c t o r y P r e s e t D i s p l a yM o d e s (10)5.2. Electrical Block Diagram (15)6. Schematic (17)6.1 Main Board (17)6.2 Power Board (23)7.P C BLayout (26)7.1 Main Board (26)7.2 Powe r Board (28)8.Maintainability (32)8.1.E q u i p m e n t s a n d T o o l sR e q u i r e m e n t (32)8.2.T r o u b l eShooting (33)9.W h i t e-B a l a n c e,L u m i n a n c eEQUIPMENT CONTAINING HIGH VOLTAGES.Revision ListImportant Safety NoticeProper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service procedures recommended by AOC and described in this service manual are effective methods of performing service operations. Some of these service operations require the use of tools specially designed for the purpose. The special tools should be used when and as recommended.It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.Hereafter throughout this manual, AOC Company will be referred to as AOC.WARNINGUse of substitute replacement parts, which do not have the same, specified safety characteristics might create shock, fire, or other hazards.Under no circumstances should the original design be modified or altered without written permission from AOC. AOC assumes no liability, express or implied, arising out of any unauthorized modification of design. Servicer assumes all liability.FOR PRODUCTS CONTAINING LASER:DANGER-Invisible laser radiation when open AVOID DIRECT EXPOSURE TO BEAM.CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.CAUTION -The use of optical instruments with this product will increase eye hazard.TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF THIS SERVICE MANUAL.Take care during handling the LCD module with backlight unit-Must mount the module using mounting holes arranged in four corners.-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel.-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).-Make certain that treatment person’s body is grounded through wristband.-Do not leave the module in high temperature and in areas of high humidity for a long time.-Avoid contact with water as it may a short circuit within the module.-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may damage the panel.)1. Monitor Specification2. LCD Monitor DescriptionThe LCD Monitor will contain a main board, a power board, which house the flat panel control logic, brightness control logic and DDC.The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips each voltage.3. Operation Instructions3.1 General InstructionsPress the power button to turn the monitor on or off. The other control knobs are located at front panel of the monitor. By changing these settings, the picture can be adjusted to your personal preferences.-The power cord should be connected.-Connect the video cable from the monitor to the video card.- Press the power button to turn on the monitor. The power indicator will light up.3.2 Control Buttons•Power Button:Press this button to switch ON/OFF of monitor’s power.•MENU / ENTER:Active OSD menu or function adjust confirm or Exit OSD menu when in Brightness/Contrast OSD status.•Contrast:Adjust contrast or function adjust.•Brightness:Adjust brightness or function adjust.•Auto Adjust button / Exit:1. When OSD menu is in active status, this button will act as EXIT-KEY(EXIT OSD menu).2. When OSD menu is in off status, press this button over 2 seconds to activate the Auto Adjustmentfunction.The Auto Adjustment function is used to set the HPos, VPos, Clock and Focus.•Power Indicator:Blue — Full Power mode.Orange — Active-off mode.OSD Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then press power button to turn the monitor on. To un-lock the OSD - press and hold the MENU button while the monitor is off and then press power button to turn the monitor on.NOTES•Do not install the monitor in a location near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, or excessive dust or mechanical vibration or shock.•Save the original shipping carton and packing materials, as they will come in handy if you ever have to ship your monitor.•For maximum protection, repackage your monitor as it was originally packed at the factory.•To keep the monitor looking new, periodically clean it with a soft cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. Never use strong solvents such as thinner, benzene, or abrasive cleaners, since these will damage the cabinet. As a safety precaution, always unplug the monitor before cleaning it.3.3 Adjust the Picture1. Press the MENU-button to activate the OSD window.2. Press or to navigate through the functions. Once the desired function is highlighted, press theMENU-button to activate it. If the function selected has a sub-menu, press or again to navigate through the sub-menu functions. Once the desired function is highlighted, press MENU-button to activate it.3. Press or to change the settings of the selected function.4. To exit and save, select the exit function. If you want to adjust any other function, repeat steps 2-3.Main MenuItemMainMenuIconSub MenuItemSub MenuIconDescriptionAdjustRangeReset Value LuminanceContrast Contrast from Digital-register. 0-100Recall CoolContrast ValueBrightness Backlight Adjustment 0-100Recall CoolBrightnessValueImageSetupFocusAdjust Picture Phase to reduceHorizontal-Line noise0-100 Do Auto ConfigClockAdjust picture Clock to reduceVertical-Line noise.0-100 Do Auto ConfigImagePositionH. PositionAdjust the horizontal position ofthe picture.0-100 Do Auto Config V. PositionAdjust the vertical position of thepicture.0-100 Do Auto Config Color Temp. Warm N/ARecall warm Color Temperaturefrom EEPROM.N/AThe ColorTemperature willCool N/A Recall cool Color Temperaturefrom EEPROM.N/Abe set to Cool.The User R/G/Bvalue (default is100) will not beModified byReset function.sRGB N/A Recall sRGB Temperature from EEPROM.N/AUser / Red Red Gain from Digital-register. 0-100User/GreenGreen Gain from Digital-register. 0-100 User / Blue Blue Gain from Digital-register. 0-100Auto Config (Analog-Onl y Model) Yes N/AAuto Adjust the H/V Position,Focus and Clock of picture.N/A N/A No N/ADo not execute Auto Config,return to main menu.N/A N/AOSD Setup H. PositionAdjust the horizontal position ofthe OSD.0-100 50 V. PositionAdjust the vertical position of theOSD.0-100 50 OSDTimeoutAdjust the OSD timeout. 10-120 10Language Language N/A Select the language you like N/A The Language will be set toEnglish.Information InformationN/AShow the resolution, H/Vfrequency and input port ofcurrent input timing.N/A N/AReset Yes N/AClear each old status ofAuto-configuration and set thecolor temperature to Cool.N/A N/A No N/ADo not execute reset, return tomain menu.N/A N/AExit N/A N/A Exit OSD N/A N/A4. Input/Output SpecificationPin Signal Pin Signal1 Red Video 9 5V2 Green Video 10 Detect cable3 Blue Video 11 Monitor Ground4 GND 12 DDC-Serial Data5 GND 13 H- Sync6 GND-R 14 V- Sync7 GND-G 15 DDC-Serial Clock8 GND-BVGA connector layout4.2. Factory Preset Display Modes4.3. Panel SpecificationM190A1-L02 is a 19” wide TFT Liquid Crystal Display module with 4 CCFL Backlight unit and 30 p ins2ch-LVDS interface. This module supports 1440 x 900 WXGA+ mode and can display 16.2M colors. The inverter module for Backlight is not built in.4.3.1 General Feature- Super Wide viewing angle.- Super High contrast ratio- Super fast response time- High color saturation- WXGA+ (1440 x 900 pixels) resolution- DE (Data Enable) only mode- LVDS (Low Voltage Differential Signaling) interface- RoHS Compliance4.3.2 Mechanical Information4.3.3 Optical Characteristics Test ConditionsOptical Specification5. Block Diagram 5.1 Software Flow ChartREMARK:5.2 Electrical Block Diagram 5.2.1 Main Board19" LCD Color Monitor AOC 193SW5.2.2 Inverter / Power Board206. Schematic6.1 Main Board21TSU16/56AK SCHEMATIC22H4W3.2R MH1WA24CK LITE6AdjBA CK4TOUCH PANELPOWERA14 BC1.840.1uF/16VA340.1uF3904BP OWE R BTSU16/56AK FOR MYSON512 SWICHB26Sunday, February 06, 2005TitleSize Document Number RevDate:Sheet ofSS14R203A44 onPanel_5V/3.3V6C3.34 H2232425R 327R325R336C2C306R346C314C312220pFR335VC R345R331R349R309R350C308R318C305C310R317R313C301NCR 32656788C307CC I_S EL 6C3042C309DV I NPUTBTSU16/56AK FOR MYSON512 SWITCHC 36Sunday, February 06, 2005TitleSize Document NumberRevDate:SheetofCLK _DD C2R332C317R344R348R347R341NC R343DV I_D ET 6R323C4013077R40127PB4PB1PA[0..9]4PB8PANEL INTERFACEBTSU16/56AK FOR MYSON512 SWITCHA 56Sunday, February 06, 2005TitleSiz e Document NumberRevDate:SheetofPA1PA8LVA0P LVB1M LVB3M PB7PA2LVBCKP PB2LVBCKM LVA2M LVA3M CN503PA[0..9]PB3PB0LVA1M PB6PA7LVB0MPA6LVB1P LVACKP PB5PA9LVA0M PA3PB9PB[0..9]4LVA2P R502PA4LVB0P LVB2P PA0LVA1P LVB3P PA5LVACKM LVA3P LVB2M PB[0..9]2829R623BR651_GC608CON16A35NCQ602PMBS 390622pFLeftR608U601R640NC 0.1uFC6094C6070.001uFVolume R639ER 0.1uFC611R60610K 1/16WR6096.2 Power BoardL103ID PC1942SET1P(715G1299-5)A1.POWERA O C (T o p V i c t o r y ) E l e c t r o n i c s C o ., L t d .A 21Thursday , July 20, 2006Title Siz e Document NumberRevDate:SheetofDIMis signal GNDis power GNDCON102CONN 95G8014 6512L201R2377. PCB Layout 7.1 Main Board7.2 Power Board Inverter BoardAdapter Board8. Maintainability8.1 Equipments and Tools Requirement1. Multi-meter.2. Oscilloscope.3. Pattern Generator.4. DDC Tool with an IBM Compatible Computer.5. Alignment Tool.6. LCD Color Analyzer.7. Service Manual.8. User Manual.8.2 Trouble Shooting 8.2.1 Main BoardNo powerNo picture (LED orange)White screen8.2.2 Power/Inverter Board 1.) No power2.) No Backlight9. White- Balance, Luminance AdjustmentApproximately 30 minutes should be allowed for warm up before proceeding White-Balance adjustment.1. How to do the Chroma-7120 MEM. Channel settingA. Reference to chroma 7120 user guideB. Use “SC” key and “NEXT” key to modify x yY value and use “ID” key to modify theTEXT description Following is the procedure to do white-balance adjust2. Setting the color temp. you wantA. MEM.CHANNEL 3 (7800 color):7800 color temp. parameter is x = 296 ±20, y = 311 ±20, Y = 180 cd/m2 ,B. MEM.CHANNEL 4 (6500 color):6500 color temp. parameter is x = 313±20, y = 329 ±20, Y = 180 cd/m23. Into factory mode of 193SWFirstly, turn off the power and remove the power plug, then press the menu key and plug in at the same time, finally, press the menu again will activate the factory mode, the factory OSD will be at the left top of the screen.4. Bias adjustment:Set the Contrast to 50; Adjust the Brightness to 80.5. Gain adjustment:Move cursor to “-F-” and press MENU keyA. Adjust C2 (7800) color-temperature1. Switch the Chroma-7120 to RGB-Mode (with press “MODE” button)2. Switch the MEM. Channel to Channel 3 (with up or down arrow on chroma 7120)3. The LCD-indicator on chroma 7120 will show x = 296 ±20, y = 311 ±20, Y = 180 cd/m24. Adjust the RED of color1 on factory window until chroma 7120 indicator reached the value R=1005. Adjust the GREEN of color1 on factory window until chroma 7120 indicator reached the value G=1006. Adjust the BLUE of color1 on factory window until chroma 7120 indicator reached the value B=1007. Repeat above procedure (item 4,5,6) until chroma 7120 RGB value meet the tolerance =100±2B. Adjust C1 (6500) color-temperature1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)2. Switch the MEM.channel to Channel 4(with up or down arrow on chroma 7120)3. The LCD-indicator on chroma 7120 will show x = 313 ±20, y = 329 ±20, Y = 180 cd/m24. Adjust the RED of color3 on factory window until chroma 7120 indicator reached the value R=1005. Adjust the GREEN of color3 on factory window until chroma 7120 indicator reachedthe value G=1006. Adjust the BLUE of color3 on factory window until chroma 7120 indicator reached the value B=1007. Repeat above procedure (item 4,5,6) until chroma 7120 RGB value meet the tolerance =100±2C. Turn the Power-button off to quit from factory mode.19"LCD Color Monitor AOC 190SW4710. Monitor Exploded ViewNo Description Part NO. No Description Part NO. No Description Part NO. 1 BEZEL 034G6346AAS 1B 7 SHIELD Q15G6335 2 13HINGE BRACKET015G6233 1 2 KEY PAD077GB800SOB G8 MYLAR 052G6025 11946 14 HINGE 037G6055 1 3 PANEL-SIDE-BKT 015G6232 2 9MYLAR052G6025 11980 15 STAND 034G1546 GM B 4 PANEL 750GLM90A1211N 10 MAIN FRAME 015G6231 4 16 CLAMP 033G4695 1 C 5 MAIN BOARD CBPC5MM4WBQP 11 REAR COVER 034G6269 GM 2B 17 BASE T34G6203 GM 2B 6POWER BOARDADPC1260AEP12 RUBBER012G6204 118 FOOT PORON012G 394 311. BOM List T95MM4HBWCA2NS。

January, 2008 All Rights Reserved. T315XW02 VT - Specs. Ver 0.5 1/31No Reproduction and Redistribution AllowedDocument Version : 0.5Date : 2009/06/03Product Specifications31.5” WXGA Color TFT-LCD ModuleModel Name: T315XW02 VT( ) Preliminary Specifications(*) Final Specifications ©Copyright AU Optronics, Inc.January, 2008 All Rights Reserved. T315XW02 VT - Specs. ver 0.5 2/31No Reproduction and Redistribution Allowed©Copyright AU Optronics, Inc.January, 2008 All Rights Reserved. T315XW02 VT - Specs. ver 0.5 3/31No Reproduction and Redistribution AllowedContentsINTERFACE CONNECTIONS 3-2 COLOR INPUT DATA REFERNECE 3-5 PRECAUTIONS9PACKING 8 EMC 7-2COVER CONTENTSRECORD OF REVISIONS GENERAL DESCRIPTION 1 ABSOLUTE MAXIMUM RATINGS 2 ELECTRICAL SPECIFICATIONS 3 ELECTRICAL CHARACTREISTICS 3-1 SIGNAL TIMING SPECIFICATIONS 3-3 SIGNAL TIMING WAVEFORMS 3-4 POWER SEQUENCE 3-6 OPTICAL SPECIFICATIONS 4 MECHANICAL CHARACTERISTICS 5 RELIABLITY6 INTERNATIONAL STANDARDS7 SAFETY 7-1No©Copyright AU Optronics, Inc.January, 2008 All Rights Reserved. T315XW02 VT - Specs. ver 0.5 4/31No Reproduction and Redistribution AllowedRecord of RevisionVersionDateNoOld DescriptionNew Description Remark0 2008/10/31 First issue2008/12/3112Inverter pin assignment: Pin11=Panel status d etect. (Normal=0-0.8V . Abnormal=Open collec tor)Inverter pin assignment: Pin11=AUO internal use. Keep Open. update11 input power typ=75W Input power typ=78Wupdate 17Update power sequence of inverter update 0.1 2009/02/048 4. VCIM=1.2V 4. VCIM=1.25Vupdate11Input Power (Turn on Condition) Input Current (Turn on Condition) update7 4. Measurement condition Trush=400uS 4. Measurement condition Trush=470uS update 23 Gap= 0.66 Gap= 0.66 (1.2 Max)update 0.2 2009/2/2325 Safety: (4) EN60065: 2002; IEC 60065: 2001 add 26Update shipping label and carton label format update 18 Brightness typ: 400nit Brightness typ: 420nit update 0.3 2009/02/27 22Update front view drawing update 0.4 2009/3/12 21 Bezel Open vertical=398.3mm Bezel Open vertical=398.4mm update 0.5 2009/06/0326Add Taiwan module fabadd 12 Inverter pin assignment: Pin11=AUO internal use. Keep Open. Inverter pin assignment: Pin11=Panel status d etect. (Normal=0-0.8V . Abnormal=Open collector) update©Copyright AU Optronics, Inc.January, 2008 All Rights Reserved. T315XW02 VT - Specs. ver 0.5 5/31No Reproduction and Redistribution Allowed1. General DescriptionThis specification applies to the 31.51 inch Color TFT-LCD Module T315XW02 VT. This LCD module has a TFT active matrix type liquid crystal panel 1366x768 pixels, and diagonal size of 31.51 inch. This module supports 1366x768 XGA-WIDE mode (Non-interlace).Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.The T315XW02 VT has been designed to apply the 8-bit 1 channel LVDS interface method. It is intended to support displays where high brightness, wide viewing angle, high color saturation, and high color depth are very important.The T315XW02 VT model is RoHS verified which can be distinguished on panel label.* General InformationItemsSpecificationUnitNoteActive Screen Size 31.51 inches Display Area 697.685 (H) x 392.256(V) mm Outline Dimension 760.0(H) x 450.0(V) x 45(D) mm Driver Element a-Si TFT active matrixDisplay Colors 16.7M Colors Number of Pixels 1366 x 768 Pixel Pixel Pitch 0.51075 mm Pixel Arrangement RGB vertical stripe Display Mode Normally BlackSurface TreatmentAnti-Glare, 3HHaze =11%©Copyright AU Optronics, Inc.January, 2008 All Rights Reserved. T315XW02 VT - Specs. ver 0.5 6/31No Reproduction and Redistribution Allowed2. Absolute Maximum RatingsThe following are maximum values which, if exceeded, may cause permanent damage to the unit.ItemSymbol Min Max UnitConditions Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] Note 1 Input Voltage of Signal Vin -0.3 3.6 [Volt] Note 1 BLU Input VoltageVDDB -0.3 28 [Volt] Note 1 BLU Brightness Control Voltage Vdim -0.3 7.0 [Volt] Note 1 Operating Temperature TOP 0 +50 [o C] Note 2 Operating Humidity HOP 10 90 [%RH] Note 2 Storage Temperature TST -20 +60 [o C] Note 2 Storage Humidity HST 10 90 [%RH] Note 2 Panel Surface Temperature PST65[o C]Note 3Note 1: Duration:50 msec.Note 2 : Maximum Wet-Bulb should be 39 and No condensation.℃The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At tem ℃peratures greater than 40, the wet bulb temperature must not exceed 39. ℃℃ Note 3 : Surface temperature is measured at 50℃ Dry condition©Copyright AU Optronics, Inc.January, 2008 All Rights Reserved. T315XW02 VT - Specs. ver 0.5 7/31No Reproduction and Redistribution Allowed3. Electrical SpecificationThe T315XW02 VT requires two power inputs. One is employed to power the LCD electronics and to drive the TFT array and liquid crystal. The second input power for the BLU, is to power inverter.3-1 Electrical CharacteristicsValuesParameterSymbolMinTypMaxUnit NotesLCD:Power Supply Input V oltage Vcc 10.8 12 13.2 Vdc 1 Power Supply Input Current Icc - 0.45 0.55 A 2 Power Consumption Pc - 5.4 7.26 Watt 2 Inrush CurrentI RUSH - - 6 Apeak 3 Differential Input High ThresholdV oltageVTH-- 100 mV4Differential Input Low Threshold V oltageVTL -100 - - mV 4LVDSInterface Common Input V oltageVCIM 1.10 1.25 1.40 V 4 Input High Threshold Voltage VIH (High)2.43.3VdcCMOS InterfaceInput Low Threshold V oltageVIL (Low)0 0.7 VdcLife Time 50,000 Hours 5,6,7,8Note :1. The ripple voltage should be controlled under 10% of V CC2. Vcc=12.0V ,=v f 60Hz, fCLK=81.5Mhz , 25, Test Pattern : White Pattern ℃3. Measurement condition :©Copyright AU Optronics, Inc.January, 2008 All Rights Reserved. T315XW02 VT - Specs. ver 0.5 8/31No Reproduction and Redistribution Allowed4. VCIM = 1.25V5. The performance of the Lamp in LCD panel, for example life time or brightness, is extremelyinfluenced by the characteristics of the DC-AC Inverter. So all the parameters of an inverter should be carefully designed as not to produce too much leakage current from high-voltage output of the inverter. When you design or order the inverter, please make sure unwanted lighting caused by the mismatch of the lamp and the inverter (no lighting, flicker, etc) never occurs. After confirmation, the LCD panel should be operated in the same condition as installed in your instrument.6. Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting tape,TFT-LCD Module have a low luminance and the inverter has abnormal action because leakage current occurs between lamp wire and conducting tape.7. The relative humidity must not exceed 80% non-condensing at temperatures of 40 or less. At℃temperatures greater than 40, the wet bulb temperature must not exceed 39. When operate at ℃℃low temperatures, the brightness of CCFL will drop and the life time of CCFL will be reduced. 8. Specified values are for a single lamp only which is aligned horizontally. The lifetime is defined asthe time which luminance of the lamp is 50% compared to its original value. [Operating condition: Continuous operating at Ta = 25±2℃]0V©Copyright AU Optronics, Inc.January, 2008 All Rights Reserved. T315XW02 VT - Specs. ver 0.5 9/31No Reproduction and Redistribution Allowed3-2 Interface Connections-Connector on Panel: 093G30-B0001A-1 (Manufactured by Starconn ) Pin NoSymbolDescriptionDefault1 VCC +12V , DC, Regulated2 VCC +12V , DC, Regulated3 VCC +12V , DC, Regulated4 VCC +12V , DC, Regulated5 GND Ground and Signal Return6 GND Ground and Signal Return7 GND Ground and Signal Return8 GNDGround and Signal Return9 LVDS Option Low/Open for Normal (NS), High for JEIDA NS mode 10 Reserved Open AUO internal test11 GND Ground and Signal Return for LVDS 12 RIN0- LVDS Channel 0 negative 13 RIN0+ LVDS Channel 0 positive14 GND Ground and Signal Return for LVDS 15 RIN1- LVDS Channel 1 negative 16 RIN1+ LVDS Channel 1 positive17 GND Ground and Signal Return for LVDS 18 RIN2- LVDS Channel 2 negative 19 RIN2+ LVDS Channel 2 positive20 GND Ground and Signal Return for LVDS 21 RCLK- LVDS Clock negative 22 RCLK+ LVDS Clock positive23 GND Ground and Signal Return for LVDS 24 RIN3- LVDS Channel 3 negative 25 RIN3+ LVDS Channel 3 positive26 GNDGround and Signal Return for LVDS27 Reserved Open or High AUO internal test 28 Reserved Open or High AUO internal test29 GND Ground and Signal Return 30GNDGround and Signal ReturnNote:1. All GND (ground) pins should be connected together and should also be connected to the LCD’smetal frame. All Vcc (power input) pins should be connected together.2. For Pin 10, 27 and 28, panel will not damage if negligently connect these pins to high or low©Copyright AU Optronics, Inc.January, 2008 All Rights Reserved. T315XW02 VT - Specs. ver 0.5 10/31No Reproduction and Redistribution AllowedLVDS Option = High (JEIDA)LVDS Option = Low or Open (NS)BACKLIGHT CONNECTOR PIN CONFIGURATION 1. Electrical specificationNote 1 : Measurement condition Rising time = 20 ms (VDDB : 10%~90%); Note 2 : VDIM= 3.3V (MAX, 100% brightness), VDIM= 0V (MIN, 10% brightness) Note 3 : (a) Uniformity and flicker does not guarantee under 20% dimming control. (b) 10% dimming function okay and no backlight shut down Ta=25±5 , Turn on for 45minutes©Copyright AU Optronics, Inc. January, 2008 All Rights Reserved. T315XW02 VT No Reproduction and Redistribution Allowed-Specs. Ver 0.511/31Buy It: ）℃（2. Input specificationCN1: CI0114M1HRL-LF (Manufactured by Civilux)©Copyright AU Optronics, Inc. January, 2008 All Rights Reserved. T315XW02 VT No Reproduction and Redistribution Allowed-Specs. ver 0.512/31Buy It: 3-3 Signal Timing SpecificationsThis is the signal timing required at the input of the User connector. All of the interface signal timing should be satisfied with the following specifications for it’s proper operation. * Timing Table DE only Mode Vertical Frequency:Notes: 1.) Display position is specific by the rise of DE signal only. Horizontal display position is specified by the rising edge of 1st DCLK after the rise of 1st DE, is displayed on the left edge of the screen. Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of horizontal period. The 1st data corresponding to one horizontal line after the rise the of 1st DE is displayed at the top line of screen. 2.) The display position does not fit to the screen if a period of DE “High” and the effective data period do not synchronize with each other.©Copyright AU Optronics, Inc. January, 2008 All Rights Reserved. T315XW02 VT No Reproduction and Redistribution Allowed-Specs. ver 0.513/31Buy It: Tv Tdisp(v) ThRGB Data 768 Line Invalid Data1 Line2 Line3 Line4 Line768 LineInvalid DataCLK Th Tclk Tdisp(h)DERGB DataPixel 1366Invalid DataPixel 1Pixel 2Pixel 3Pixel 4Pixel 5Pixel 6Pixel 1366Invalid DataPixel 1Pixel 2©Copyright AU Optronics, Inc. January, 2008 All Rights Reserved. T315XW02 VT No Reproduction and Redistribution Allowed3-4 Signal Timing Waveforms-Specs. Ver 0.5DEBuy It: 14/313-5 Color Input Data ReferenceThe brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input for the color; the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.COLORDATA REFERENCEInput Color DataColor MSBRED LSB MSBGREEN LSB MSBBLUE LSBR7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0 Black Red(255) Green(255) Basic Color Blue(255) Cyan Magenta Yellow White RED(000) RED(001) RED ---RED(254) RED(255) 1 1 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 1 1 1 0 0 0 1 0 0 0 1 1 1 0 0 0 1 0 0 0 1 1 1 0 0 0 1 0 0 0 1 1 1 0 0 0 1 0 0 0 1 1 1 0 0 0 1 0 0 0 1 1 1 0 0 0 1 0 0 0 1 1 1 0 0 0 1 0 0 0 1 1 1 0 1 0 0 1 0 1 0 1 1 0 0 0 0 1 0 1 0 1 1 0 0 0 0 1 0 1 0 1 1 0 0 0 0 1 0 1 0 1 1 0 0 0 0 1 0 1 0 1 1 0 0 0 0 1 0 1 0 1 1 0 0 0 0 1 0 1 0 1 1 0 0 0 0 1 0 1 0 1 1 0 0 0 0 0 1 1 1 0 1 0 0 0 0 0 1 1 1 0 1 0 0 0 0 0 1 1 1 0 1 0 0 0 0 0 1 1 1 0 1 0 0 0 0 0 1 1 1 0 1 0 0 0 0 0 1 1 1 0 1 0 0 0 0 0 1 1 1 0 1 0 0 0 0 0 1 1 1 0 1 0 0GREEN(000) 0 GREEN(001) 0 GREEN ---GREEN(254) 0 GREEN(255) 0 BLUE(000) BLUE(001) BLUE ------BLUE(254) BLUE(255) 0 0 0 00 0 0 00 0 0 00 0 0 00 0 0 00 0 0 00 0 0 00 0 0 01 1 0 01 1 0 01 1 0 01 1 0 01 1 0 01 1 0 01 1 0 00 1 0 00 0 0 00 0 0 00 0 0 00 0 0 00 0 0 00 0 0 00 0 0 00 0 0 10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 01 11 11 11 11 11 11 10 1©Copyright AU Optronics, Inc. January, 2008 All Rights Reserved. T315XW02 VT No Reproduction and Redistribution Allowed-Specs. Ver 0.515/31Buy It: 3-6 Power Sequence for LCD Module 3.6.1 Power Sequence for LCDParameter Min. t1 t2 t3 t4 t5 t6 t7 500 0.4 0.1 200 10 0.1Values Typ. Max. 30 50 50 300 -Unitsms ms ms ms ms ms msNote: The timing controller will not be damaged in case of TV set AC input power suddenly shut down. Once power reset, it should follow power sequence as spec. definition. (1) Apply the lamp voltage within the LCD operation range. When the back-light turns on before the LCD operation or the LCD turns off before the back-light turns off, the display may momentarily become abnormal screen.©Copyright AU Optronics, Inc. January, 2008 All Rights Reserved. T315XW02 VT No Reproduction and Redistribution Allowed-Specs. Ver 0.516/31Buy It: 3.6.2 Power Sequence for InverterParameter Min. T1 T2 T3 T4 T5 T6 20 50 0 0 0 -Values Typ. Max. 10UnitsMs Ms Ms Ms Ms Ms©Copyright AU Optronics, Inc. January, 2008 All Rights Reserved. T315XW02 VT No Reproduction and Redistribution Allowed-Specs. ver 0.517/31Buy It: 4. Optical SpecificationOptical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45 minutes in a dark environment at 25 . The values specified are at an approximate distance 50cm from the LCD surface at a viewing angle of Φ and θequal to 0°. Fig.1 1 presents additional information concerning the measurement equipment and method.ParameterContrast Ratio Surface Luminance, white Luminance Variation G to G Response time Color Gamut Color Coordinates REDLWH δWHITE 9p350420 1.30 6.5 72cd/TγNTSCms %RX RY0.64 0.33 0.28 Typ.-0.03 0.60 0.15 0.05 0.28 0.29 Typ.+0.03GREENGX GYBLUEBX BYWHITEWX WYViewing Angle x axis, right(φ=0°) x axis, left(φ=180°) y axis, up(φ=90°) y axis, down (φ=0°) θr θl θu θd 89 89 89 89 Degree Degree Degree Degree 5 5 5 5©Copyright AU Optronics, Inc. January, 2008 All Rights Reserved. T315XW02 VT No Reproduction and Redistribution Allowed-Specs. ver 0.5Buy It: ㎡℃SR3 or equivalentSymbolMin. CR 2400ValuesTyp. 3000 Max.UnitsNotes1 2 3 418/31Note: 1. Contrast Ratio (CR) is defined mathematically as: Surface Luminance of Lon5 Contrast Ratio= Surface Luminance of Loff52. Surface luminance is luminance value at point 5 across the LCD surface 50cm from the surface with all pixels displaying white. For more information see FIG 2. When VDDB = 24V, IDDB = 5A, LWH=Lon5, where Lon5 is the luminance with all pixels displaying white at center 5 location. 3. The variation in surface luminance, δWHITE is defined (center of Screen) as:δWHITE(9P)= Maximum(Lon1, Lon2,…,Lon9)/ Minimum(Lon1, Lon2,…Lon9)4. Response time Tγ is the average time required for display transition by switching the input signal for five luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on fv=60Hz to optimize.FIG. 2 Luminance©Copyright AU Optronics, Inc. January, 2008 All Rights Reserved. T315XW02 VT No Reproduction and Redistribution Allowed-Specs. Ver 0.519/31Buy It: 5.Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For more information see FIG4.FIG. 3 Response TimeThe response time is defined as the following figure and shall be measured by switching the input signal for “any level of gray(bright) “ and “any level of gray(dark)”.Any level of gray(Bright) Any level of gray(Dark) Any level of gray(Bright)FIG. 4 Viewing angle©Copyright AU Optronics, Inc. January, 2008 All Rights Reserved. T315XW02 VT No Reproduction and Redistribution Allowed-Specs. ver 0.520/31Buy It: ©Copyright AU Optronics, Inc.January, 2008 All Rights Reserved. T315XW02 VT - Specs. ver 0.5 21/31No Reproduction and Redistribution Allowed5. Mechanical CharacteristicsThe contents provide general mechanical characteristics for the model T315XW02 VT. In addition the figures in the next page are detailed mechanical drawing of the LCD.Horizontal 760.0mm Vertical 450.0mmOutline DimensionDepth45mm Horizontal 703.6mm Bezel OpeningVertical 398.4mm Horizontal 697.685mm Active Display AreaVertical392.256mmWeight 6000g Typ. Surface TreatmentAG, 3H©Copyright AU Optronics, Inc.January, 2008 All Rights Reserved. T315XW02 VT - Specs. Ver 0.5 22/31No Reproduction and Redistribution AllowedFront:©Copyright AU Optronics, Inc.January, 2008 All Rights Reserved. T315XW02 VT - Specs. ver 0.5 23/31No Reproduction and Redistribution AllowedBack:©Copyright AU Optronics, Inc.January, 2008 All Rights Reserved. T315XW02 VT - Specs. ver 0.5 24/31No Reproduction and Redistribution Allowed6. Reliability:Environment test conditionNo Test ItemCondition1 High temperature storage test Ta=60℃ 300h2 Low temperature storage test Ta=-20℃ 300h3 High temperature operation test Ta=50℃ 300h4 Low temperature operation test Ta=-5℃ 300h5Vibration test (non-operating)"(10 ~ 300Hz/1.5G/11min SR, XYZ 30min/axis) Vibration level : 1.5G RMS, Bandwidth : 10-300Hz Duration: X, Y , Z 30min, " 6Shock test (non-operating)Shock level: 50GWaveform: half since wave, 11msDirection: ±X, ±Y , ±Z, one time each direction 7Vibration test (with carton)Random wave (1.5 Grms 10~200Hz) 30mins / Per each X.Y .Z axes " 8Drop test (with carton)Height: 38cm1 corner, 3 edges, 6 surfaces (ASTMD4169-I)©Copyright AU Optronics, Inc.January, 2008 All Rights Reserved. T315XW02 VT - Specs. Ver 0.5 25/31No Reproduction and Redistribution Allowed7. International Standard7-1. Safety(1) UL1950 Third Edition, Underwriters Laboratories, Inc. Jan. 28, 1995Standard for Safety of Information Technology Equipment Including electrical Business Equipment.(2) CAN/CSA C22.2 No. 950-95/60950 Third Edition, Canadian Standards Association, Standard for Safety of Information Technology Equipment Including Electrical Business Equipment.(3) EN60950 : 1992+A2: 1993+A2: 1993+C3: 1995+A4: 1997+A11: 1997 IEC 950: 1991+A1: 1992+A2: 1993+C3: 1995+A4:1996European Committee for Electrotechnical Standardization (CENELEC)EUROPEAN STANDARD for Safety of Information Technology Equipment Including Electrical Business Equipment.(4) EN60065: 2002; IEC 60065: 20017-2. EMCa) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-V oltage Electrical andElectrical Equipment in the Range of 9kHz to 40GHz. “American National standards Institute(ANSI), 1992b) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of InformationTechnology Equipment.” International Special committee on Radio Interference.c) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of InformationTechnology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC), 1998©Copyright AU Optronics, Inc.January, 2008 All Rights Reserved. T315XW02 VT - Specs. Ver 0.5 26/31No Reproduction and Redistribution Allowed8. PackingPanel label:838A0584AHZ – ZS0200838A0584AHZZ: Panel Unique ID ZS0200: AUO internal use Manufactured 09/02 2009 week 02 AM89018AUO internal useCarton Label:*838A0584AHZZ – ZM1100**838A0584AHZZ – ZS0200*©Copyright AU Optronics, Inc.January, 2008 All Rights Reserved. T315XW02 VT - Specs. ver 0.5 27/31No Reproduction and Redistribution AllowedCarton:©Copyright AU Optronics, Inc.January, 2008 All Rights Reserved. T315XW02 VT - Specs. ver 0.5 28/31No Reproduction and Redistribution AllowedSpecificationItemQty. DimensionWeight (kg) Packing Remark 1 Packing BOX 4pcs/box 832(L)mm*283(W)mm*545(H)mm 30.52 Pallet11150(L)mm*840(W)mm*138(H)mm 133 Boxes per Pallet 8 boxes/Pallet4 Panels per Pallet 32pcs/palletPallet after packing 321150(L)mm*840(W)mm*2460(H)mm256©Copyright AU Optronics, Inc.January, 2008 All Rights Reserved. T315XW02 VT - Specs. ver 0.5 29/31No Reproduction and Redistribution Allowed9. PRECAUTIONSPlease pay attention to the followings when you use this TFT LCD module.9-1 MOUNTING PRECAUTIONS(1) You must mount a module using holes arranged in four corners or four sides.(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to module. And the case on which a module is mounted should have sufficient strength so that external force is not transmitted directly to the module.(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer. Transparent protective plate should have sufficient strength in order to the resist external force.(4) You should adopt radiation structure to satisfy the temperature specification.(5) Acetic acid type and chlorine type materials for the cover case are not desirable because theformer generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by electro-chemical reaction.(6) Do not touch, push or rub the exposed polarizer with glass, tweezers or anything harder thanHB pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other softmaterials like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used to attach front/ rear polarizer. Do not use acetone, toluene and alcohol because they cause chemical damage to the polarizer.(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizercauses deformations and color fading.(9) Do not open the case because inside circuits do not have sufficient strength.9-2 OPERATING PRECAUTIONS(1) The device listed in the product specification sheets was designed and manufactured for TVapplication(2) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:V=±200mV(Over and under shoot voltage)(3) Response time depends on the temperature. (In lower temperature, it becomes longer..) (4) Brightness depends on the temperature. (In lower temperature, it becomes lower.) And inlower temperature, response time (required time that brightness is stable after turned on) becomes longer.(5) Be careful for condensation at sudden temperature change. Condensation makes damage topolarizer or electrical contacted parts. And after fading condensation, smear or spot will occur. (6) When fixed patterns are displayed for a long time, remnant image is likely to occur. (7) Module has high frequency circuits. Sufficient suppression to the electromagnetic interferenceshall be done by system manufacturers. Grounding and shielding methods may be important to minimize the interface.©Copyright AU Optronics, Inc.January, 2008 All Rights Reserved. T315XW02 VT - Specs. ver 0.5 30/31No Reproduction and Redistribution Allowed9-3 ELECTROSTATIC DISCHARGE CONTROLSince a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSUREStrong light exposure causes degradation of polarizer and color filter.9-5 STORAGE ＋When storing modules as spares for a long time, the following precautions are necessary.(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep thetemperature between 5 and 35 at normal humidity.℃℃(2) The polarizer surface should not come in contact with any other object. It is recommended that they bestored in the container in which they were shipped.9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM(1) The protection film is attached to the bezel with a small masking tape. When the protection film is peeledoff, static electricity is generated between the film and polarizer. This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-blown equipment or in such a condition, etc.(2) When the module with protection film attached is stored for a long time, sometimes there remains a verysmall amount of flue still on the Bezel after the protection film is peeled off.(3) You can remove the glue easily. When the glue remains on the Bezel or its vestige is recognized, pleasewipe them off with absorbent cotton waste or other soft material like chamois soaked with normal-hexane.©Copyright AU Optronics, Inc.January, 2008 All Rights Reserved. T315XW02 VT - Specs. ver 0.5 31/31 No Reproduction and Redistribution Allowed Appendix A1. EMI specificationModel name: T315XW02 VTNote:(a). Criteria: CISPR22(b). Signal generator: PSG400 (Sony EMCS)(c). EMI site: Sony EMCS Ichinomiya Tec. or using correlation value (d). Find result should be checked by connecting with TV-setItemMin Typ Max Unit EMI level (Note)--- --- -6 dB(µV/m) SSCG --- 300 --- ps Buy It: 。

V260B1-C01 配机芯有：8K60MAX1518包括一个高性能升压调节器、两个线性稳压控制器以及大电流运算放大器，用于有源矩阵薄膜晶体管（TFT ）液晶显示器（LCD ）。

器件还包括一个逻辑控制、具有可调节延时的高压开关。

V315B3-C01 配机芯有8M19TPS65161的20、21、22：电源输入Vin; 此IC 与外围电配合可产生几路电压：VGH ：23V V AAP ：13.5V VGL ：负5V VDA ： VON ： VOFF ： VLOGIC ：3.3V 等32寸奇美屏驱动板（屏供电12V ）V320B1-C03 配机芯有：8M10FP5138：电源管理芯片，升压、降压、升降压转换IC ，驱动能力强，可以很好的提供LCD 屏正负偏设计方案，各组电压输出稳定，还可以适用于7—12寸LED 液晶屏背光升压垣流驱动。

有短路保护、开路保护、软启动功能，工作电压1.8—15V ，工作电流5.5mA 。

1脚：FB 反馈 2脚：SCP 保护/软启动 3脚：VCC 供电 4脚：CTL 控制 5脚：OUT 输出 6脚：GND 地 7脚：OSC 振荡 8脚：COMP 补偿V296W1-C1，X7 配机芯有：8TG5V296W1-C1逻辑板电路主要有三大部分组成：1.由U4（CM2651B-KQ ）为核心的时序与逻辑控制电路，主要功能是将串行的LVDS 信号变成并行的控制信号，用于薄腊晶体管的控制或驱动；2.由U7—U11（HX8904TA 、HX8904SA ）为核心的伽玛放大电路，主要是将伽玛信号进行适当的放大，控制薄膜晶体管，实现画面对比度的调整；3.由UP1（FA3269A V ）为核心的DC-DC 变换电路，主是是将主板送来的5V 供电变成VGH （20V ）、VDA （15V ）、VGL （—5V ）、V5V （5V ）、VDD （3.3V ）等等，用于屏驱动供电，此逻辑板损坏的最多的地方就是这部分，易损坏元件为UP1、QP5、DP3、UP2、RP37、LP2电感等等。
