热线电话：400-6576-555/construction扫码约翰迪尔APP,了解更多产品信息欢迎关注约翰迪尔官方微信约翰迪尔E230 LC 挖掘机主要技术参数净额定功率117 kW工作重量23.5-24.0 吨最大挖掘深度6700 mm斗杆挖掘力109 kN铲斗挖掘力151 kN采用固态电子元件，能够最大限度地减少导线、机械式继电器，以及非密封接插件的数量，从而大大提高系统的耐久性和可靠性。
标配的电动燃油输送泵，能够实现自动燃油补给和输送，提高发动机启动可靠性。
设有三道燃油滤清器和两道油水分离器，能够去除泥沙杂质和水分，有效保护燃油系统。
标配的冷起动电热塞，保证柴油机在低温条件下，也能够迅速可靠启动。
还可以选配柴油燃烧式加热器和燃油滤清器加热器, 以确保极端气候条件下的快速启动。
采用密封开关模块（SSM），能够防尘、防潮，并防止异物进入，具有出色的耐久性。
各种细节设计，都旨在提高机器的耐久性。
其中包括：采用斗杆加强筋，使斗杆能够在满载铲斗回收时，得到保护；各黄油加注点部位，设置钢质衬圈，起到保护作用。
4123创造舒适环境，提高工作效率观察一下E230 LC型挖掘机的驾驶室，你就会明白为什么约翰迪尔挖掘机的操作人员更有效率。
宽敞的密封驾驶室，极其安静舒适。
采用机械悬浮式座椅，可以调节自如；宽大的前挡风玻璃，具有全方位视野，易于施工作业。
除此之外，驾驶室还配备有其他便利设施，其中包括：符合人体工程学设计的控制装置；简易直观的多功能LCD监控器；高效的室内空气自动调节系统；以及经久耐用的AM/FM 收音机并带有辅助输入接口—堪称应有尽有，为操作人员提高工作效率，提供了最好的条件。
213密封式增压驾驶室，噪音低，有助于操作人员减轻疲劳。
驾驶室减震装置进一步降低噪音和振动对操作人员的影响。
两片式前挡风玻璃，提供了开阔的视野，并可以打开和关闭，用于改善驾驶室的通风状况。
可以选择配置驾驶室安装的工作灯，以便为夜间作业提供照明。
450K / 550K / 650KTRIED ANDTESTEDPRODUCTIVE+RELIABLEHEARING IS BELIEVING.When customers talk, we listen. And when we designed our K-Series Dozers, we heard some greatinput. Your ideas resulted in the 450K that’s 16-percent more powerful than its predecessor. Ecomode that regulates engine rpm and the hydrostatic transmission to burn up to 20-percent lessfuel than previous models. Total Machine Control for customizable control of a variety of machinefunctions. And an optional Slope Control system that helps operators create slopes and pads withease. We believe you’ll recognize a lot to like in these proven machines.4WORKDAY WARRIORS BEEN THERE, DONE THAT.John Deere 450K, 550K, and 650K Dozers have a wealth of experience out in the real world. Whether your work is in road-building, construction, mining, or land clearing, these material masters are equipped to help you get some real work done.Go with the flowGenerous hydraulic flow and precise metering deliver quick and powerful blade response while enabling the natural “feel” that makes the most of an operator’s grading ability.Get good gradesUnlike traditional masted after-market grade-control systems that can be prone to theft, damage, and complicated installation, the purpose-built John Deere 650K SmartGrade™ Dozer combines powerful mastless technology with our track load-sensing system. This highly productive crawler features a fully integrated grade-control system that’s easy to set up and run. And it’s backed by the Deere dealer network.Fuel saverStandard Eco mode maximizesfuel usage by up to 20 percentcompared to conventionaltorque-converter transmissions,automatically adjusting engine rpmand powertrain settings based onload, without loss of performance.Engine techEPA Final Tier 4 (FT4)/EU Stage IVdiesels meet emission regulationswithout loss of power or torque.Four-valve head delivers increasedintake-air and exhaust-gas flowfor each wet-sleeve cylinder, forlong-lasting performance.Slope controlOptional Slope Control systemprovides simple-to-use gradecontrol that allows operators toset a desired slope and hold gradethrough changes in existing terrain.It helps both new and veteranoperators hold grade with lesseffort and without needing anexternal elevation reference.Shake it offOn electrohydraulic (EH)-equippedmachines, the blade-shake featurefor Power-Angle-Tilt (PAT) bladesautomatically shakes off dirt at thetouch of a button.OPTIONALSLOPE CONTROLREDUCES GRADINGEFFORTBLADE SHAKEREMOVES DEBRIS (FOR PAT BLADES ON EH-EQUIPPED MACHINES)STANDOUT FEATURE6DOWN TO EARTH.COUNTER-ROTATIONENABLES ON-THE-GO BLADE REPOSITIONING8ON THE JOB AND IN THE ZONE GET DOWN TO BUSINESS.You can almost feel fatigue fade inside the roomy, well-appointed cab of a 450K, 550K, or 650K. With their range of customer-inspired amenities, these dozers go quietly about the business of helping operators be comfortably productive.CAB-FORWARD DESIGN EXPANDS VISIBILITYTough conditions call for strong solutions. Our K-Series Dozers are built to tackle some of the most difficult applications you can put in front of them. When you know how they’re built, you’ll see what they can do for your operation.RUGGED AND RELIABLE.BUILT TO TAKE IT ONEXTEND BUSHING LIFE WITH MAXIMUM LIFE UNDERCARRIAGE(OPTIONAL)MORE UPTIME, LESS UPKEEP WE’RE OPEN-MINDED ABOUT EASY MAINTENANCE.Fluid assetsAvailable quick fluid-evacuation system helps speed servicing.500-hour engine oil and 2,000-hour transmission and hydraulic fluid intervals decrease maintenance downtime and expense.Idle awhileAuto-idle decreases engine speed when the dozer is not moving, to help maintain quiet working conditions and conserve precious fuel. Operators can program auto-idle to activatein increments from as soon as five seconds up to 15 minutes.Simplify serviceServiceability improvements on the550K and 650K over previous modelsinclude new composite fuel tank,redesigned diagnostic lines withpressure sensors, and John Deeretransmission control unit software.Get the messageExhaust filter operation and statusare indicated with on-screen displaysand icons. Diagnostic monitoralso provides easy-to-understandmessages that help speedtroubleshooting.12se.ngi i ne speedmovi i ng,to helpg condi i tionss fuel.Operatorse to activatesoon as fi fiveutes.tran n smission con n trol unit softw w are.troublesh h ootin n g.Get valuable insight withPRECISION CONSTRUCTIONThis suite of construction technology delivers ProductivitySolutions to help you get more done, more efficiently.The in-base JDLink™ subscription provides machinelocation, utilization data, and alerts to help you maximizeproductivity and efficiency. Other productivity solutionsinclude grade-management options for multiple machineforms and payload weighing for wheel loaders andarticulated dump trucks.To maximize uptime and lower costs, JDLink alsoenables John Deere Connected Support.ª John Deere’scentralized Machine Health Monitoring Center analyzesdata from thousands of connected machines, identifiestrends, and develops recommended actions, called ExpertAlerts, to help prevent downtime. Dealers use ExpertAlerts to proactively address conditions that may otherwiselikely lead to downtime. Your dealer can also monitormachine health and leverage remote diagnostics andprogramming capability to further diagnose problemsand even update machine software without a time-consuming trip to the jobsite.450K16While general information, pictures, and descriptions are provided, some illustrations and text may includeproduct options and accessories NOT AVAILABLE in all regions, and in some countries products and accessoriesmay require modifications or additions to ensure compliance with the local regulations of those countries. Machine Dimensions450K / 450K LGPBlade Type Power-Angle-Tilt (PAT)A Overall Height to Roof2799 mm (9 ft. 2 in.)B Tread Depth With Single-Bar Grouser49 mm (1.9 in.)C Ground Clearance in Dirt329 mm (13 in.)D Overall Length4016 mm (158 in.) (13 ft. 2 in.)E Blade Lift Height772 mm (30.4 in.)F Blade Digging Depth528 mm (20.8 in.)G Blade Cutting-Edge Angle, Adjustable52 to 60 deg.450K / 450K LGP WITH POWER-ANGLE-TILT (PAT) BLADEMachine Dimensions (continued)450K450K LGPStraightH Blade Width2464 mm (97 in.) (8 ft. 1 in.)2921 mm (115 in.) (9 ft. 7 in.)I Blade Height955 mm (3 ft. 2 in.)955 mm (3 ft. 2 in.)SAE Capacity 1.6 m3 (2.1 cu. yd.) 2.0 m3 (2.6 cu. yd.)Weight494 kg (1,090 lb.)628 kg (1,385 lb.)C-Frame Assembly Weight (without blade)330 kg (727 lb.)330 kg (727 lb.)J Blade Angle25.4 deg.25.4 deg.K Overall Width With Blade Angled2225 mm (7 ft. 4 in.)2639 mm (8 ft. 8 in.)L Blade Tilt (uses tilt jack)338 mm (13.3 in.)399 mm (15.7 in.)M Cut Reach56 mm (2.2 in.)58.4 mm (2.2 in.)N Width Over Track1854 mm (6 ft. 1 in.)2261 mm (7 ft. 5 in.)O Cast Reach318 mm (12.5 in.)320 mm (12.6 in.)Straight (option)H Blade Width2921 mm (115 in.) (9 ft. 7 in.)3150 mm (124 in.) (10 ft. 4 in.)I Blade Height955 mm (3 ft. 2 in.)894 mm (35 in.)SAE Capacity 2.0 m3 (2.6 cu. yd.) 1.9 m3 (2.5 cu. yd.)Weight628 kg (1,385 lb.)631 kg (1,391 lb.)C-Frame Assembly Weight (without blade)330 kg (727 lb.)330 kg (727 lb.)J Blade Angle25.4 deg.25.4 deg.K Overall Width With Blade Angled2639 mm (8 ft. 8 in.)2845 mm (9 ft. 4 in.)L Blade Tilt (uses tilt jack)399 mm (15.7 in.)429 mm (16.9 in.)M Cut Reach262 mm (10.3 in.)163 mm (6.4 in.)N Width Over Track1854 mm (6 ft. 1 in.)2261 mm (7 ft. 5 in.)O Cast Reach523 mm (20.6 in.)424 mm (17.0 in.)ABCGFI ED450KWhile general information, pictures, and descriptions are provided, some illustrations and text may include product options and accessories NOT AVAILABLE in all regions, and in some countries products and accessories may require modifications or additions to ensure compliance with the local regulations of those countries.Machine Dimensions (continued)450K / 450K LGPRear Ripper 450K / 450K LGPBlade Type PATMulti-shank parallelogram ripper with 5 pockets and 3 shanks Weight 981 kg (2,163 lb.)P Maximum Penetration 508 mm (20 in.)Q Maximum Clearance Under Tip 508 mm (20 in.)R Overall Length, Lowered Position 1450 mm (57 in.) (4 ft. 9 in.)R |Overall Length, Raised Position 1015 mm (40 in.) (3 ft. 4 in.)S Overall Beam Width 1830 mm (6 ft. 0 in.)T Slope Angle (full raise)40 deg.U Ripping Width 1670 mm (5 ft. 6 in.)V Distance Between Shanks 806 mm (32 in.)TR |RQ PVVU SLHrackJKM N O Cut ReachCast ReachWidth Over Track550K20While general information, pictures, and descriptions are provided, some illustrations and text may includeproduct options and accessories NOT AVAILABLE in all regions, and in some countries products and accessoriesmay require modifications or additions to ensure compliance with the local regulations of those countries. Machine Dimensions550K / 550K LGPBlade Type Power-Angle-Tilt (PAT)A Overall Height to Roof2799 mm (9 ft. 2 in.)B Tread Depth With Single-Bar Grouser49 mm (1.9 in.)C Ground Clearance in Dirt329 mm (13 in.)D Overall Length4016 mm (158 in.) (13 ft. 2 in.)E Blade Lift Height772 mm (30.4 in.)F Blade Digging Depth523 mm (20.6 in.)G Blade Cutting-Edge Angle, Adjustable52 to 60 deg.550K / 550K LGP WITH POWER-ANGLE-TILT (PAT) BLADEMachine Dimensions (continued)550K550K LGPStraightH Blade Width2667 mm (105 in.) (8 ft. 9 in.)2921 mm (115 in.) (9 ft. 7 in.)I Blade Height955 mm (3 ft. 2 in.)955 mm (3 ft. 2 in.)SAE Capacity 1.8 m3 (2.4 cu. yd.) 2.0 m3 (2.6 cu. yd.)Weight603 kg (1,330 lb.)628 kg (1,385 lb.)C-Frame Assembly Weight (without blade)399 kg (879 lb.)399 kg (879 lb.)J Blade Angle22.2 deg.22.2 deg.K Overall Width With Blade Angled2469 mm (8 ft. 1 in.)2705 mm (8 ft. 11 in.)L Blade Tilt (uses tilt jack)363 mm (14.3 in.)399 mm (15.7 in.)M Cut Reach117 mm (4.6 in.)56 mm (2.2 in.)N Width Over Track2007 mm (6 ft. 7 in.)2362 mm (7 ft. 9 in.)O Cast Reach345 mm (18.3 in.)287 mm (11.0 in.)Straight (option)H Blade Width2921 mm (115 in.) (9 ft. 7 in.)3150 mm (124 in.) (10 ft. 4 in.)I Blade Height955 mm (3 ft. 2 in.)894 mm (35 in.)SAE Capacity 2.0 m3 (2.6 cu. yd.) 1.9 m3 (2.5 cu. yd.)Weight628 kg (1,385 lb.)631 kg (1,391 lb.)C-Frame Assembly Weight (without blade)399 kg (879 lb.)399 kg (879 lb.)J Blade Angle22.2 deg.22.2 deg.K Overall Width With Blade Angled2705 mm (8 ft. 11 in.)2916 mm (9 ft. 7 in.)L Blade Tilt (uses tilt jack)399 mm (15.7 in.)429 mm (16.9 in.)M Cut Reach234 mm (9.2 in.)163 mm (6.4 in.)N Width Over Track2007 mm (6 ft. 7 in.)2464 mm (8 ft. 1 in.)O Cast Reach465 mm (18.3 in.)391 mm (15.4 in.)ABCGFI ED550KWhile general information, pictures, and descriptions are provided, some illustrations and text may include product options and accessories NOT AVAILABLE in all regions, and in some countries products and accessories may require modifications or additions to ensure compliance with the local regulations of those countries.Machine Dimensions (continued)550K / 550K LGPLHrackJKM N O Cut ReachCast ReachWidth Over Track Rear Ripper 550K / 550K LGPBlade Type PATMulti-shank parallelogram ripper with 5 pockets and 3 shanks Weight 981 kg (2,163 lb.)P Maximum Penetration 508 mm (20 in.)Q Maximum Clearance Under Tip 508 mm (20 in.)R Overall Length, Lowered Position 1450 mm (57 in.) (4 ft. 9 in.)R |Overall Length, Raised Position 1015 mm (40 in.) (3 ft. 4 in.)S Overall Beam Width 1830 mm (6 ft. 0 in.)T Slope Angle (full raise)40 deg.U Ripping Width 1670 mm (5 ft. 6 in.)V Distance Between Shanks 806 mm (32 in.)TR |RQ PVVU SSPECIFICATIONS650K24While general information, pictures, and descriptions are provided, some illustrations and text may includeproduct options and accessories NOT AVAILABLE in all regions, and in some countries products and accessoriesmay require modifications or additions to ensure compliance with the local regulations of those countries. Machine Dimensions650K XLT / 650K LGPBlade Type Power-Angle-Tilt (PAT)A Overall Height to Roof2762 mm (9 ft. 1.25 in.)B Tread Depth With Single-Bar Grouser49 mm (1.9 in.)C Ground Clearance in Dirt341 mm (13.5 in.)D Overall Length4255 mm (168 in.) (14 ft. 0 in.)E Blade Lift Height818 mm (32.2 in.)F Blade Digging Depth500 mm (19.7 in.)G Blade Cutting-Edge Angle, Adjustable52 to 60 deg.650K XLT / 650K LGP WITH POWER-ANGLE-TILT (PAT) BLADEABCGFI EDMachine Dimensions (continued)650K XLT650K LGPStraightH Blade Width2667 mm (105 in.) (8 ft. 9 in.)2921 mm (115 in.) (9 ft. 7 in.)I Blade Height1067 mm (3 ft. 6 in.)955 mm (3 ft. 2 in.)SAE Capacity 2.2 m3 (2.9 cu. yd.) 2.0 m3 (2.6 cu. yd.)Weight603 kg (1,330 lb.)628 kg (1,385 lb.)C-Frame Assembly Weight (without blade)399 kg (879 lb.)399 kg (879 lb.)J Blade Angle22.2 deg.22.2 deg.K Overall Width With Blade Angled2469 mm (8 ft. 1 in.)2705 mm (8 ft. 11 in.)L Blade Tilt (uses tilt jack)363 mm (14.3 in.)399 mm (15.7 in.)M Cut Reach117 mm (4.6 in.) 5 mm (0.2 in.)N Width Over Track2007 mm (6 ft. 7 in.)2464 mm (8 ft. 1 in.)O Cast Reach345 mm (13.6 in.)236 mm (9.3 in.)Straight (option)H Blade Width2921 mm (115 in.) (9 ft. 7 in.)3150 mm (124 in.) (10 ft. 4 in.)I Blade Height955 mm (3 ft. 2 in.)894 mm (35 in.)SAE Capacity 2.0 m3 (2.6 cu. yd.) 1.9 m3 (2.5 cu. yd.)Weight628 kg (1,385 lb.)631 kg (1,391 lb.)C-Frame Assembly Weight (without blade)399 kg (879 lb.)399 kg (879 lb.)J Blade Angle22.2 deg.22.2 deg.K Overall Width With Blade Angled2705 mm (8 ft. 11 in.)2916 mm (9 ft. 7 in.)L Blade Tilt (uses tilt jack)399 mm (15.7 in.)429 mm (16.9 in.)M Cut Reach234 mm (9.2 in.)112 mm (4.4 in.)N Width Over Track2007 mm (6 ft. 7 in.)2464 mm (8 ft. 1 in.)O Cast Reach465 mm (18.3 in.)340 mm (13.4 in.)650KWhile general information, pictures, and descriptions are provided, some illustrations and text may include product options and accessories NOT AVAILABLE in all regions, and in some countries products and accessories may require modifications or additions to ensure compliance with the local regulations of those countries.Rear Ripper 650K XLT / 650K LGPMulti-shank parallelogram ripper with 5 pockets and 3 shanks Weight 981 kg (2,163 lb.)P Maximum Penetration 508 mm (20 in.)Q Maximum Clearance Under Tip 508 mm (20 in.)R Overall Length, Lowered Position 1450 mm (57 in.) (4 ft. 9 in.)R |Overall Length, Raised Position1015 mm (40 in.) (3 ft. 4 in.)S Overall Beam Width 1830 mm (6 ft. 0 in.)T Slope Angle (full raise)40 deg.U Ripping Width 1670 mm (5 ft. 6 in.)V Distance Between Shanks 806 mm (32 in.)TR |RQ PVVU SLHrackJKM N O Cut ReachCast ReachWidth Over Track Machine Dimensions (continued)650K XLT 650K LGP Blade TypePATPATStraight (option)H Blade Width 3150 mm (124 in.) (10 ft. 4 in.)3251 mm (128 in.) (10 ft. 8 in.)I Blade Height 894 mm (35 in.)955 mm (3 ft. 2 in.)SAE Capacity 1.9 m 3 (2.5 cu. yd.) 2.2 m 3 (2.9 cu. yd.)Weight631 kg (1,391 lb.)694 kg (1,530 lb.)C-Frame Assembly Weight (without blade)399 kg (879 lb.)399 kg (879 lb.)J Blade Angle22.2 deg.22.2 deg.K Overall Width With Blade Angled 2916 mm (9 ft. 7 in.)3010 mm (9 ft. 11 in.)L Blade Tilt (uses tilt jack)429 mm (16.9 in.)445 mm (17.5 in.)M Cut Reach340 mm (13.4 in.)157 mm (6.2 in.)N Width Over Track 2007 mm (6 ft. 7 in.)2464 mm (8 ft. 1 in.)O Cast Reach569 mm (22.4 in.)569 mm (22.4 in.)While general information, pictures, and descriptions are provided, some illustrations and text may include product options and accessories NOT AVAILABLE in all regions, and in some countries products and accessories may require modificationsor additions to ensure compliance with the local regulations of those countries.Net engine power is with standard equipment including air cleaner, exhaust system, alternator, and cooling fan at test conditions specified per ISO9249. Specifications and design subject to change without notice. Wherever applicable, specifications are in accordance with SAE standards. Except where otherwise noted, these specifications are based on units with standard equipment, rollover protective structures (ROPS), full fuel tanks, and 79-kg (175 lb.) operators.Key: l Standard s Optional or special See your John Deere dealer for further information.Additional equipment450K 550K 650K Engine l l l Meets EPA Final Tier 4/EU Stage IV emissions l l l John Deere PowerTech™ PWS 4045 4.5L engine l l l Turbocharged and air-to-air aftercooled l l l Electronic control with automatic engine protection l l l Eco mode l l l Dual safety element dry-type air cleaner, evacuatorvalvel l l Exhaust filter, under hood, with vertical stack l l l Engine glow-plug starting system l l l Automatic turbo cool-down timer l l l Programmable auto-idle and auto shutdown l l l Wet-sleeve cylinder liners l l l Remote-mounted fuel filters with automaticelectronic primings s s Engine coolant heater, 110 volts l l l Exhaust stack, black s s s Exhaust stack, chrome s s s Rotary ejector engine air pre-cleaner s s s Severe-duty fuel filter and water separator withheating elementl l l 100-amp alternator, cab and canopyCoolingl l Direct-drive cooling fan, blower typel Hydraulically driven cooling fan, variable-speedsuction types Automatic, programmable reversing-fan-drive fanl l l Engine cooling rated –37 deg. C (–34 deg. F)l l l Enclosed safety fan guard (conforms to SAE J1308and ISO3457)l l l Perforated engine side shields l l l Heavy-duty perforated grille l l l Heavy-duty, trash-resistant radiator and high-ambientcooling packages s s Extreme-duty perforated grille with light guardPowertrainl l l Dual-path hydrostatic (HST) transmission l l l Reverse-speed ratios (100%, 115%, and 130% presets)l l l Remote diagnostic test ports l l l Operator-selectable decelerator function (hydrostatsand engine or hydrostats only)450K 550K 650K Powertrain (continued)l l l Wet, multi-disc parking brake l l l Full power turns with infinitely variable track speed l l l Single-lever steering with counter-rotate function l l l HST (dynamic) service brakes l l l Automatic cold-weather transmission warmup system l l l Automatic transmission derating for exceeded systemtemperaturesl l l 2,000-hour vertical spin-on transmission filterHydraulic Systeml l l Open-center fixed-displacement hydraulic gear pump l l l 3-spool manual control valve for Power-Angle-Tilt(PAT)s s s 3-spool electrohydraulic (EH) control valve for PAT s s s 4-spool manual-control valve for PAT s s s 4-spool EH control valve for PAT with single auxiliary l l l 2,000-hour vertical spin-on hydraulic filter s s s Drive-through hydraulic pump for use with winch s s s Grade-control-ready electrohydraulics s s s Slope Control systems SmartGrade™ 3D mastless grade controlOverall Vehiclel l l Front tow loop, bolt-on l l l Reinforced engine and mid-frame bottom guards l l l Integral transmission guard l l l Vandal protection: Engine access door / Side tankaccess doors / Fuel tank / Instrument panel / Trans- mission reservoir / Hydraulic reservoirs s s Fluid-sample valves s s s Quick-service ports s s s Forestry limb risers (sweeps)s s s Trimble-ready interface package s s s Topcon-ready interface package s s s Leica-ready interface packageAttachmentss s s Counterweight, front, 94 kg (207 lb.)s s s Counterweight, rear, 150 kg (330 lb.)s s s Retrieval hitch with pin s s s Extended rigid drawbar with pin for pull-typeimplementss s s Drawbar, extended for winch (with or withoutfairlead)26Canopy Cab Operator’s Station / Electrical l l Retractable seat belts, 76 mm (3 in.) (conform to SAE J386) l l Accessories: Convex wide-angle interior rearview mirror /Thigh cushions (2) / Cup holders (2)l l Power port (cab includes two power ports)l l Lockable dash-mounted storage compartmentl Air conditioner and heater, 24,000 Btu l Tinted glass l Dome lightSTD LGP 450K Shoes l 406-mm (16 in.) moderate servicel 610-mm (24 in.) moderate serviceSTD LGP 550K Shoes l s 457-mm (18 in.) moderate servicel 610-mm (24 in.) moderate serviceXLT LGP 650K Shoes l s 457-mm (18 in.) moderate service s s 510-mm (20 in.) moderate service with clipped cornerss 610-mm (24 in.) moderate servicel 710-mm (28 in.) moderate service with clipped cornersKey: l Standard s Optional or special See your John Deere dealer for further information.Additional equipment (continued)Canopy CabOperator’s Station / Electrical (continued)lWipers, intermittent with washers: front window and left and right doorss Rear wiper and washer s s Full screenss s Rear window screenlStandard seat, vinyl with heavy-duty air suspension l Standard seat, fabric with heavy-duty air suspension sDeluxe seat, heated with heavy-duty air suspension and leather bolstered sl Under-seat heaterl AM/FM/Weather Band (WB) radio with USB and auxiliary port and MP3 player front plug-ins Premium radio with Bluetooth ®, AM/FM/WB radio with USB and auxiliary port, remote auxiliary, and remote USB portl Radio-area storage slotl l Lockable master electrical disconnect switchllMultifunction/multi-language LCD monitor: Analog display (fuel level, coolant temperature, and engine oil pressure) / Digital display (engine rpm, charge pressure, hours, DPF soot level, and transmission direction/speed range)s sMultifunction/multi-language 178-mm (7 in.) color LCD monitor for Slope Control: Tachometer, hour meter, trans- mission direction and speed (forward/reverse), exhaust filter status, ambient temperature, and clockl l Built-in diagnostics: Diagnostic-code details / Sensor values / Calibrations / Individual circuit tester l l Keyless start with multiple security modes l l Battery, dual, 24 voltsl l Lights: LED, grille-mounted front (2) and halogen, cab-mounted rear (2)ss LED lights: grille-mounted front (2), cab-mounted front (2), and rear (2)s External-mounted attachment mirrorllJDLink™ wireless communication system (available in specific countries; see your dealer for details)While general information, pictures, and descriptions are provided, some illustrations and text may include product options and accessories NOT AVAILABLE in all regions, and in some countries products and accessories may require modificationsor additions to ensure compliance with the local regulations of those countries.Net engine power is with standard equipment including air cleaner, exhaust system, alternator, and cooling fan at test conditions specified per ISO9249. Specifications and design subject to change without notice. Wherever applicable, specifications are in accordance with SAE standards. Except where otherwise noted, these specifications are based on units with standard equipment, rollover protective structures (ROPS), full fuel tanks, and 79-kg (175 lb.) operators.450K 550K 650K Attachments (continued)s s s Rear ripper, parallelogram, 3 shank, 5 pocket s s s Winch, John Deere 4000, power in/free spool outOR power outs s s Winch, John Deere 4000, low speed, power in/freespool out OR power outs s s 4-roller fairlead for winch s s s Root-rake blade attachmentUndercarriagel l l Full-length, smooth-surface track frame covers l l l Chain guides, front and rear l l l Maximum Life undercarriage system with SC-2™bushingss s s Extended Life undercarriage with SC-2 bushings s s s Heavy-duty sealed and lubricated undercarriage s s s Full-length rock guards l l l Double-flange rollers DKAKUDZR Litho in U.S.A. (21-04)。

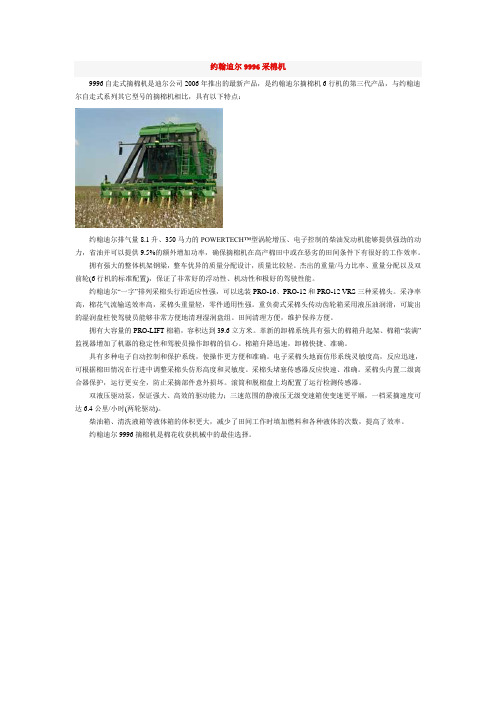

约翰迪尔9996采棉机9996自走式摘棉机是迪尔公司2006年推出的最新产品，是约翰迪尔摘棉机6行机的第三代产品，与约翰迪尔自走式系列其它型号的摘棉机相比，具有以下特点：约翰迪尔排气量8.1升、350马力的POWERTECH™型涡轮增压、电子控制的柴油发动机能够提供强劲的动力，省油并可以提供9.5%的额外增加功率，确保摘棉机在高产棉田中或在恶劣的田间条件下有很好的工作效率。
拥有强大的整体机架钢梁，整车优异的质量分配设计，质量比较轻。
杰出的重量/马力比率、重量分配以及双前轮(6行机的标准配置)，保证了非常好的浮动性、机动性和极好的驾驶性能。
约翰迪尔“一字”排列采棉头行距适应性强，可以选装PRO-16、PRO-12和PRO-12 VRS三种采棉头。
采净率高，棉花气流输送效率高，采棉头重量轻，零件通用性强。
重负荷式采棉头传动齿轮箱采用液压油润滑，可旋出的湿润盘柱使驾驶员能够非常方便地清理湿润盘组。
田间清理方便，维护保养方便。
拥有大容量的PRO-LIFT棉箱，容积达到39.6立方米。
革新的卸棉系统具有强大的棉箱升起架、棉箱“装满”监视器增加了机器的稳定性和驾驶员操作卸棉的信心。
棉箱升降迅速，卸棉快捷、准确。
具有多种电子自动控制和保护系统，使操作更方便和准确。
电子采棉头地面仿形系统灵敏度高，反应迅速，可根据棉田情况在行进中调整采棉头仿形高度和灵敏度。
采棉头堵塞传感器反应快速、准确。
采棉头内置二级离合器保护，运行更安全，防止采摘部件意外损坏。
滚筒和脱棉盘上均配置了运行检测传感器。
双液压驱动泵，保证强大、高效的驱动能力；三速范围的静液压无级变速箱使变速更平顺，一档采摘速度可达6.4公里/小时(两轮驱动)。
柴油箱、清洗液箱等液体箱的体积更大，减少了田间工作时填加燃料和各种液体的次数，提高了效率。
约翰迪尔9996摘棉机是棉花收获机械中的最佳选择。
约翰迪尔Y210（原6488）玉米果穗收割机一、基本参数品牌：约翰迪尔型号：Y210分类：玉米联合收获机配套功率：145马力工作幅宽：260cm 连接形式：自走式工作行数：4 行距：65cm二、产品介绍产品名称：约翰迪尔Y210玉米联合收获机生产厂家：约翰迪尔（佳木斯）农业机械有限公司[点击查看电话]约翰迪尔Y210（原6488）玉米收割机设计新颖，在剥皮、茎干粉碎处理等方面大胆创新，可以一次完成玉米作物的摘穗、输送、剥皮、装箱、秸秆粉碎还田的全过程作业。
•采用迪尔技术制造低倾角4行割台，加长型分禾器，板式摘穗结构•剥皮辊设计新颖，布局合理，及时处理玉米果穗。
剥皮效果好，籽粒破碎率低• 4.3立方米的大体积粮箱可有效减少卸粮次数约翰迪尔Y210玉米收获机是约翰迪尔中国自主研发的玉米收获机械，该机设计新颖，在剥皮、茎杆粉碎处理等方面进行大胆创新，可以一次完成玉米作物的摘穗、输送、剥皮、装箱、秸秆粉碎还田的全过程作业。
Y210玉米果穗收割机可满足国内玉米收获水分过高、不宜直接脱粒的要求。
具有结构紧凑、性能完善、作业效率高、作业质量好等优点。
性能卓越的迪尔玉米台采用迪尔技术制造低倾角4行割台，加长型分禾器，板式摘穗结构，具有籽粒损伤小、摘穗效果好等优点。
具有优越的适应性和可靠性。
设计新颖的剥皮辊剥皮辊设计新颖，布局合理，能够及时处理玉米果穗。
剥皮效果好，籽粒破碎率低。
4.3立方米的大体积粮箱4.3立方米的大体积粮箱可有效的减少卸粮次数。
性能先进的茎杆粉碎器茎杆粉碎器覆盖范围宽于行距，弥补行距种植偏差和转向影响，粉碎效果好。
茎杆粉碎器后方浮动辊，可使茎杆粉碎器随着地况的起伏进行仿形，有效防止粉碎器的刀片与地面接触造成损坏，使粉碎器具有更长的使用寿命和较高的可靠性。
输送系统：独创专利设计的输送系统输送系统采用二级输送方式——过桥和第二级升运器进行运输，既提高了地隙，又确保了通过能力，同时也提高了割台升降运动的灵活性。

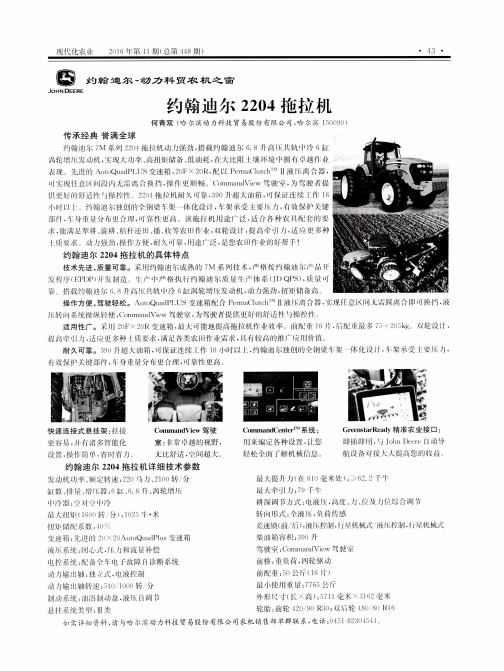

约翰迪尔参数拖拉机280 . 284拖拉机300 304拖拉机320 324拖拉机350拖拉机400拖拉机450拖拉机480拖拉机504拖拉机550拖拉机600 604600拖拉机604拖拉机发动机型号A4K43T60A A4K43T60A发动机型式直列、水冷、四冲程、直喷燃烧室直列、水冷、四冲程、直喷燃烧室缸径×行程mm 108×118 108×118标定功率kW 44 44标定燃油消耗率g/kW·h≤245≤245离合器型式干式、常接合、单片、半独立操纵、双作用离合器干式、常接合、单片、半独立操纵、双作用离合器变速箱组成式4×(2+1) 或4×(2+1)×2（选装）组成式4×(2+1) 或4×(2+1)×2（选装）制动器型式湿式、双片盘式制动器，机械操纵湿式、双片盘式制动器，机械操纵轮胎规格前轮：6.50-20、后轮12.4-32 前轮：8.3-24、后轮12.4-32 轴距mm 1996 2140液压提升系统型式开心、半分置式开心、半分置式耕深控制方式力和位控制力和位控制液压输出阀单路或多路（选装）单路或多路（选装）液压悬挂机构三点后悬挂，2类三点后悬挂，2类提升能力kN ≥13≥13最大牵引力kN ≥16≥20.25动力输出转速rpm 540/720 ；540/1000 540/720 ；540/1000行驶速度km/h 2.190～28.128 2.190～28.128变速箱挡位数（前进+倒退）8+4或16+8（选装）8+4或16+8（选装）最小离地间隙mm 385 355外形尺寸mm 3920×1765×2495（安全架）3920×1765×2125（排气管）3920×1765×2495（安全架）3920×1765×2125（排气管）最小使用质量kg 2495（结构质量、油、水、驾驶员质量75kg）2750（结构质量、油、水、驾驶员质量75kg）安全架两柱折叠式（通过OECD认证）两柱折叠式（通过OECD认证）拖拉机650</TD< tr>650拖拉机654拖拉机发动机型号A4K43T65A A4K43T65A发动机型式直列、水冷、四冲程、直喷燃烧室直列、水冷、四冲程、直喷燃烧室缸径×行程mm 108×118 108×118标定功率kW 48 48标定燃油消耗率g/kW·h≤245≤245离合器型式干式、常接合、单片、半独立操纵、双作用离合器干式、常接合、单片、半独立操纵、双作用离合器变速箱组成式4×(2+1) 或4×(2+1)×2（选装）组成式4×(2+1) 或4×(2+1)×2（选装）制动器型式湿式、双片盘式制动器，机械操纵湿式、双片盘式制动器，机械操纵轮胎规格前轮：6.50-20、后轮14.9-28 前轮：8.3-24、后轮14.9-28 轴距mm 2140 2140液压提升系统型式开心、半分置式开心、半分置式耕深控制方式力和位控制力和位控制液压输出阀单路或多路（选装）单路或多路（选装）液压悬挂机构三点后悬挂，2类三点后悬挂，2类提升能力kN ≥13≥13最大牵引力kN ≥18≥22动力输出转速rpm 540/720 ；540/1000 540/720 ；540/1000行驶速度km/h 2.198～28.231 2.198～28.231变速箱挡位数（前进+倒退）8+4或16+8（选装）8+4或16+8（选装）最小离地间隙mm 395 365外形尺寸mm 3920×1920×2510（安全架）3920×1920×2140（排气管）3920×1920×2510（安全架）3920×1920×2140（排气管）最小使用质量kg 2505（结构质量、油、水、驾驶员质量75kg）2750（结构质量、油、水、驾驶员质量75kg）安全架两柱折叠式（通过OECD认证）两柱折叠式（通过OECD认证）拖拉机700 704</TD< tr>700拖拉机704拖拉机发动机型号A4K43T70A A4K43T70A发动机型式直列、水冷、四冲程、直喷燃烧室直列、水冷、四冲程、直喷燃烧室缸径×行程mm 108×118 108×118标定功率kW 51.5 51.5标定燃油消耗率g/kW·h≤245≤245离合器型式干式、常接合、单片、半独立操纵、双作用离合器干式、常接合、单片、半独立操纵、双作用离合器变速箱组成式4×(2+1) 或4×(2+1)×2（选装）组成式4×(2+1) 或4×(2+1)×2（选装）制动器型式湿式、双片盘式制动器，机械操纵湿式、双片盘式制动器，机械操纵轮胎规格前轮：6.50-20、后轮14.9-30 前轮：8.3-24、后轮14.9-30 轴距mm 2140 2140液压提升系统型式开心、半分置式开心、半分置式耕深控制方式力和位控制力和位控制液压输出阀单路或多路（选装）单路或多路（选装）液压悬挂机构三点后悬挂，2类三点后悬挂，2类提升能力kN ≥13≥13最大牵引力kN ≥19.5≥23.5动力输出转速rpm 540/720 ；540/1000 540/720 ；540/1000行驶速度km/h 2.278～29.265 2.278～29.265变速箱挡位数（前进+倒退）8+4或16+8（选装）8+4或16+8（选装）最小离地间隙mm 395 395外形尺寸mm 4215×1990×2510（安全架）4215×1990×2140（排气管）4215×1990×2510（安全架）4215×1990×2140（排气管）最小使用质量kg 2555（结构质量、油、水、驾驶员质量75kg）2790（结构质量、油、水、驾驶员质量75kg）安全架两柱折叠式（通过OECD认证）两柱折叠式（通过OECD认证）拖拉机750拖拉机800拖拉机850拖拉机900。
