海天注塑机部分技术参数项目型号MA2000II/700 MA3800II/2250 MA6000II/4000 外形尺寸（L*W*H）M 5.9ｘ1.43ｘ2.16 7.46ｘ1.84ｘ2.359.56ｘ2.1ｘ2.68油泵马达（KW）18.5 37 55电热功率（KW）14.3 28.2 42.35机器重量（T）7.1 15 29油箱容积（L）290 690 940空开规格（A）100 150 225电源进线（平方厘米）25 35 35总零线（平方厘米）10 10 16 干燥机（KW）吸料器（KW）机械人忽略忽略忽略冷水机可选择独立电源粉碎机可选择独立电源传送设备可选择独立电源气（压缩机）可选择独立电源项目型号MA9000II/6800 MA10000II/8400 MA12000II/8400 外形尺寸（L*W*H）M11．2ｘ2.42ｘ2.75 12ｘ2.49ｘ2.7512.2ｘ2.7ｘ2.9油泵马达（KW）22+55 37+55 55+37电热功率（KW）63.75 71.55 71.55机器重量（T）45 51 60油箱容积（L）1280 1480 1480空开规格（A）250 300 300电源进线（平方厘米）50 95 95总零线（平方厘米）16 16 16 干燥机（KW）吸料器（KW）机械人忽略忽略忽略冷水机可选择独立电源粉碎机可选择独立电源传送设备可选择独立电源气（压缩机）可选择独立电源项目型号MA16000II/14600 MA21000II/19300 MA24000II/37000 外形尺寸（L*W*H）M14.5ｘ3.3ｘ5.1 15.9ｘ3.6ｘ5.318.5ｘ3.8ｘ5.5油泵马达（KW）110+37 110+55 110+55电热功率（KW）101.35 117.75 194机器重量（T）107 55 165油箱容积（L）1940 2240 2240空开规格（A）电源进线（平方厘米）总零线（平方厘米）干燥机（KW）吸料器（KW）机械人忽略忽略忽略冷水机可选择独立电源粉碎机可选择独立电源传送设备可选择独立电源气（压缩机）可选择独立电源项目型号MA28000II/50000 外形尺寸（L*W*H）M19.5ｘ3.9ｘ5.5 油泵马达（KW）110+55+55电热功率（KW）194机器重量（T）197油箱容积（L）3330空开规格（A）电源进线（平方厘米）总零线（平方厘米）干燥机（KW）吸料器（KW）机械人忽略冷水机可选择独立电源粉碎机可选择独立电源传送设备可选择独立电源气（压缩机）可选择独立电源。

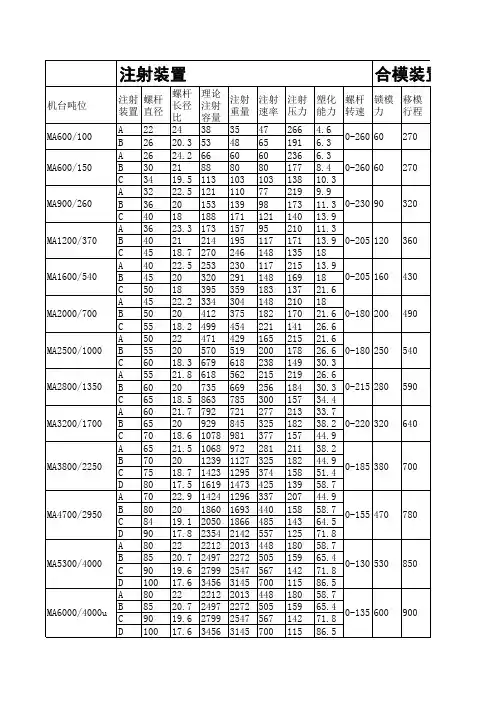

海天注塑机全参数（DOC）注射装置INJECTION UNIT A B C 螺杆直径Screw Diameter mm 34 36 40 螺杆长径比Screw L/D Ratio L/D 21.2 20 18 理论容量Shot Size(Theoretical) cm3131 147 181 注射重量Injection Weight(PS) g 119 134 165 注射压力Injection Pressure Mpa 206 183 149 螺杆转速Screw Speed rpm 0～205合模装置CLAMPING UNIT合模力Clamp Tonnage KN 860移模行程Toggle Stroke mm 310拉杆内距Space Between Tie Bars mm 360x360最大模厚Max.Mold Height mm 360最小模厚Min.Mold Height mm 150顶出行程Ejector Stroke mm 100顶出力Ejector Tonnage KN 33顶出杆根数Ejector Number Piece 5 其它OTHERS最大油泵压力Max.Pump Pressure MPa 17.5 油泵马达Pump Motor Power kw 7.5电热功率Heater Power kw 6.2外形尺寸Machine Dimension(LxWxH) m 4.5x1.25x1.9重量Machine Weight t 3.45料斗容积Hopper Capacity kg 25油箱容积Oil Tank Capacity L 230海天注塑机参数HTF86/TJHTF120J/TJ注射装置INJECTION UNIT A B C 螺杆直径Screw Diameter mm 36 40 45 螺杆长径比Screw L/D Ratio L/D 23.3 20 18.7 理论容量Shot Size(Theoretical) cm3173 214 270 注射重量Injection Weight(PS) g 157 195 246 注射压力Injection Pressure Mpa 197160 126 螺杆转速Screw Speed rpm 0～195合模装置CLAMPING UNIT合模力Clamp Tonnage KN 1200移模行程Toggle Stroke mm 350拉杆内距Space Between Tie Bars mm 410x410最大模厚Max.Mold Height mm 430最小模厚Min.Mold Height mm 150顶出行程Ejector Stroke mm 120顶出力Ejector Tonnage KN 33顶出杆根数Ejector Number Piece 5 其它OTHERS最大油泵压力Max.Pump Pressure MPa 16 油泵马达Pump Motor Power kw 11电热功率Heater Power kw 9.75外形尺寸Machine Dimension(LxWxH) m 4.92x1.33x1.95重量Machine Weight t 4.56料斗容积Hopper Capacity kg 25油箱容积Oil Tank Capacity L 240HTF160J/TJ注射装置INJECTION UNIT A B C 螺杆直径Screw Diameter mm 40 45 48 螺杆长径比Screw L/D Ratio L/D 22.5 20 18.8 理论容量Shot Size(Theoretical) cm3253 320 364 注射重量Injection Weight(PS) g 230 291 331 注射压力Injection Pressure Mpa 202 159 140 螺杆转速Screw Speed rpm 0～175合模装置CLAMPING UNIT合模力Clamp Tonnage KN 1600移模行程Toggle Stroke mm 420拉杆内距Space Between Tie Bars mm 455x455最大模厚Max.Mold Height mm 500最小模厚Min.Mold Height mm 180顶出行程Ejector Stroke mm 140顶出力Ejector Tonnage KN 33顶出杆根数Ejector Number Piece 5 其它OTHERS最大油泵压力Max.Pump Pressure MPa 17.5 油泵马达Pump Motor Power kw 15电热功率Heater Power kw 9.75外形尺寸Machine Dimension(LxWxH) m 5.4x1.45x2.05重量Machine Weight t 5.2料斗容积Hopper Capacity kg 25油箱容积Oil Tank Capacity L 320HTF200J/TJ注射装置INJECTION UNIT A B C 螺杆直径Screw Diameter mm 45 50 55 螺杆长径比Screw L/D Ratio L/D 22.2 20 18.2 理论容量Shot Size(Theoretical) cm3334 412 499 注射重量Injection Weight(PS) g 304 375 454 注射压力Injection Pressure Mpa 210 170 141 螺杆转速Screw Speed rpm 0～165合模装置CLAMPING UNIT合模力Clamp Tonnage KN 2000移模行程Toggle Stroke mm 470拉杆内距Space Between Tie Bars mm 510x510最大模厚Max.Mold Height mm 510最小模厚Min.Mold Height mm 200顶出行程Ejector Stroke mm 130顶出力Ejector Tonnage KN 62顶出杆根数Ejector Number Piece 9 其它OTHERS最大油泵压力Max.Pump Pressure MPa 17.5 油泵马达Pump Motor Power kw 18.5电热功率Heater Power kw 14.25外形尺寸Machine Dimension(LxWxH) m 5.3x1.6x2.1重量Machine Weight t 6.8料斗容积Hopper Capacity kg 50油箱容积Oil Tank Capacity L 390HTF250J/TJ注射装置INJECTION UNIT A B C 螺杆直径Screw Diameter mm 50 55 60 螺杆长径比Screw L/D Ratio L/D 22 20 18.3 理论容量Shot Size(Theoretical) cm3442 535 636 注射重量Injection Weight(PS) g 402 487 579 注射压力Injection Pressure Mpa 205 169 142 螺杆转速Screw Speed rpm 0～180合模装置CLAMPING UNIT合模力Clamp Tonnage KN 2500移模行程Toggle Stroke mm 540拉杆内距Space Between Tie Bars mm 570x570最大模厚Max.Mold Height mm 570最小模厚Min.Mold Height mm 220顶出行程Ejector Stroke mm 130顶出力Ejector Tonnage KN 62顶出杆根数Ejector Number Piece 9 其它OTHERS最大油泵压力Max.Pump Pressure MPa 17.5 油泵马达Pump Motor Power kw 22电热功率Heater Power kw 16.65外形尺寸Machine Dimension(LxWxH) m 6.02x1.7x2.1重量Machine Weight t 8.1料斗容积Hopper Capacity kg 50油箱容积Oil Tank Capacity L 630HTF300J/TJ注射装置INJECTION UNIT A B C 螺杆直径Screw Diameter mm 60 65 70 螺杆长径比Screw L/D Ratio L/D 21.7 20 18.6 理论容量Shot Size(Theoretical) cm3727 853 989 注射重量Injection Weight(PS) g 662 776 900 注射压力Injection Pressure Mpa 213 182 157 螺杆转速Screw Speed rpm 0～185合模装置CLAMPING UNIT合模力Clamp Tonnage KN 3000移模行程Toggle Stroke mm 600拉杆内距Space Between Tie Bars mm 660x660最大模厚Max.Mold Height mm 660最小模厚Min.Mold Height mm 250顶出行程Ejector Stroke mm 160顶出力Ejector Tonnage KN 62顶出杆根数Ejector Number Piece 13 其它OTHERS最大油泵压力Max.Pump Pressure MPa 16 油泵马达Pump Motor Power kw 30电热功率Heater Power kw 19.65外形尺寸Machine Dimension(LxWxH) m 6.5x2.0x2.4重量Machine Weight t 12.5料斗容积Hopper Capacity kg 50油箱容积Oil Tank Capacity L 670HTF360J/TJ注射装置INJECTION UNIT A B C 螺杆直径Screw Diameter mm 65 70 75 螺杆长径比Screw L/D Ratio L/D 21.5 20 18.7 理论容量Shot Size(Theoretical) cm31068 1239 1423 注射重量Injection Weight(PS) g 972 1127 1295 注射压力Injection Pressure Mpa 208 180 156 螺杆转速Screw Speed rpm 0～185合模装置CLAMPING UNIT合模力Clamp Tonnage KN 3600移模行程Toggle Stroke mm 660拉杆内距Space Between Tie Bars mm 710x710最大模厚Max.Mold Height mm 710最小模厚Min.Mold Height mm 250顶出行程Ejector Stroke mm 160顶出力Ejector Tonnage KN 110顶出杆根数Ejector Number Piece 13 其它OTHERS最大油泵压力Max.Pump Pressure MPa 17.5 油泵马达Pump Motor Power kw 37电热功率Heater Power kw 24.85外形尺寸Machine Dimension(LxWxH) m 6.9x2.1x2.5重量Machine Weight t 15料斗容积Hopper Capacity kg 100油箱容积Oil Tank Capacity L 922HTF450J/TJ注射装置INJECTION UNIT A B C 螺杆直径Screw Diameter mm 70 80 84 螺杆长径比Screw L/D Ratio L/D 22.9 20 19 理论容量Shot Size(Theoretical) cm31424 1860 2050 注射重量Injection Weight(PS) g 1296 1693 1866 注射压力Injection Pressure Mpa 204 156 141 螺杆转速Screw Speed rpm 0～155合模装置CLAMPING UNIT合模力Clamp Tonnage KN 4500移模行程Toggle Stroke mm 740拉杆内距Space Between Tie Bars mm 780x780最大模厚Max.Mold Height mm 780最小模厚Min.Mold Height mm 330顶出行程Ejector Stroke mm 200顶出力Ejector Tonnage KN 110顶出杆根数Ejector Number Piece 13 其它OTHERS最大油泵压力Max.Pump Pressure MPa 17.5 油泵马达Pump Motor Power kw 45电热功率Heater Power kw 29.45外形尺寸Machine Dimension(LxWxH) m 7.9x2.3x3.2重量Machine Weight t 19料斗容积Hopper Capacity kg 100油箱容积Oil Tank Capacity L 1170HTF530J/TJ注射装置INJECTION UNIT A B C D 螺杆直径Screw Diameter mm 80 84 90 100 螺杆长径比Screw L/D Ratio L/D 22 21 19.6 17.6 理论容量Shot Size(Theoretical) cm32212 2438 2799 3456 注射重量Injection Weight(PS) g 2012 2218 2547 3145 注射压力Injection Pressure Mpa 180 163 142 115 螺杆转速Screw Speed rpm 0～130 合模装置CLAMPING UNIT合模力Clamp Tonnage KN 5300移模行程Toggle Stroke mm 825拉杆内距Space Between Tie Bars mm 830x800最大模厚Max.Mold Height mm 850最小模厚Min.Mold Height mm 350顶出行程Ejector Stroke mm 200顶出力Ejector Tonnage KN 158顶出杆根数Ejector Number Piece 17 其它OTHERS最大油泵压力Max.Pump Pressure MPa 17.5油泵马达Pump Motor Power kw 55电热功率Heater Power kw 40.25外形尺寸Machine Dimension(LxWxH) m 9x2.3x3.6 重量Machine Weight t 26料斗容积Hopper Capacity kg 200油箱容积Oil Tank Capacity L 1250HTF650J/TJ注射装置INJECTION UNIT A B C D 螺杆直径Screw Diameter mm 80 90 100 110 螺杆长径比Screw L/D Ratio L/D 24.8 22 19.8 18 理论容量Shot Size(Theoretical) cm32036 2576 3181 3849 注射重量Injection Weight(PS) g 1853 2344 2895 3503 注射压力Injection Pressure Mpa 224 177 143 118 螺杆转速Screw Speed rpm 0～120合模装置CLAMPING UNIT合模力Clamp Tonnage KN 6500移模行程Toggle Stroke mm 900拉杆内距Space Between Tie Bars mm 895x895最大模厚Max.Mold Height mm 900最小模厚Min.Mold Height mm 400顶出行程Ejector Stroke mm 260顶出力Ejector Tonnage KN 175顶出杆根数Ejector Number Piece 17 其它OTHERS最大油泵压力Max.Pump Pressure MPa 17.5油泵马达Pump Motor Power kw 22+37电热功率Heater Power kw 49.25外形尺寸Machine Dimension(LxWxH) m 9.9x2.4x3.8 重量Machine Weight t 31.3料斗容积Hopper Capacity kg 200油箱容积Oil Tank Capacity L 1480HTF780J/TJ。
