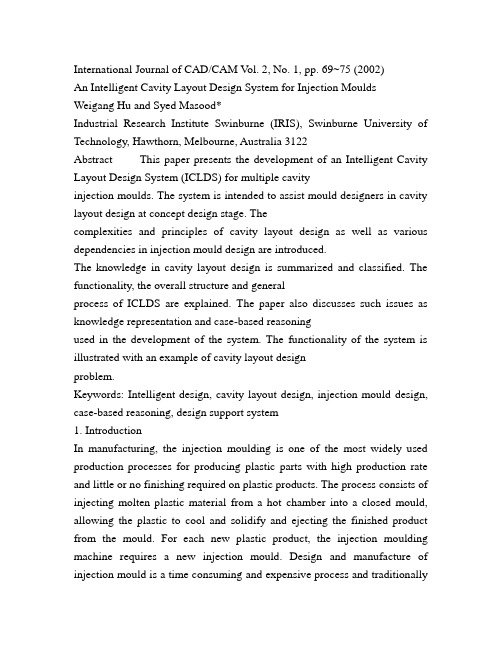

International Journal of CAD/CAM V ol. 2, No. 1, pp. 69~75 (2002)An Intelligent Cavity Layout Design System for Injection Moulds Weigang Hu and Syed Masood*Industrial Research Institute Swinburne (IRIS), Swinburne University of Technology, Hawthorn, Melbourne, Australia 3122AbstractLayout Design System (ICLDS) for multiple cavityinjection moulds. The system is intended to assist mould designers in cavity layout design at concept design stage. Thecomplexities and principles of cavity layout design as well as various dependencies in injection mould design are introduced.The knowledge in cavity layout design is summarized and classified. The functionality, the overall structure and generalprocess of ICLDS are explained. The paper also discusses such issues as knowledge representation and case-based reasoningused in the development of the system. The functionality of the system is illustrated with an example of cavity layout designproblem.Keywords: Intelligent design, cavity layout design, injection mould design, case-based reasoning, design support system1. IntroductionIn manufacturing, the injection moulding is one of the most widely used production processes for producing plastic parts with high production rate and little or no finishing required on plastic products. The process consists of injecting molten plastic material from a hot chamber into a closed mould, allowing the plastic to cool and solidify and ejecting the finished product from the mould. For each new plastic product, the injection moulding machine requires a new injection mould. Design and manufacture of injection mould is a time consuming and expensive process and traditionallyrequires highly skilled tool and mould makers. An injection mould consists of several components, which include mould base, cavities, guide pins, a sprue, runners, gates, cooling water channels, support plates, slides and ejector mechanism [1]. Design of mould is also affected by several other factors such as part geometry, mould material, parting line and number of cavities per mould. With the advances in computer technology and artificial intelligence, efforts have been directed to reduce the cost and lead time in the design and manufacture of an injection mould. Injection mould design has been the main area of research since it is a complex process involving several sub-designs related to various components of the mould, each requiring expert knowledge and experience. Mould design also affects the productivity,mould maintenance cost, manufacturability of mould, and the quality of the moulded part. Most of the work in mould design has been directed to the application of expert systems, knowledge based systems and artificial intelligence to eliminate or supplement the vast amount of human expertise required in traditional design process. Kruth and Willems [2] developed an intelligent support system for the design of injection moulds integrating commercial CAD/CAM, a relational database and an expert system. Lee et. al. [3] proposed a systematic methodology and knowledge base for injection mould design in a concurrent engineering environment. Raviwongse and Allada [4] developed a neural networkbased design support tool to compute the mould complexity index to help mould designers to assess their proposed mould design on mould manufacturability. Kwong and Smith [5] developed a computational system for the process design of injection moulding based on the blackboard-based expert system and the case-based reasoning approach, which includes mould design, production scheduling, cost estimation and determination of injection moulding parameters. Britton et. al. [6] discussed the injection mould design from a functional perspective using functional design knowledge and a number ofknowledge libraries. Mok et. al. [7] developed an interactive knowledge-based CAD system for injection mould design incorporating computational, knowledge and graphic modules. Several studies have also been made on improving the design of specific components of an injection mould. Ong et. al. [8] developed a knowledge-based and objectoriented approach for the design of the feed system for injection moulds, which can efficiently design the type, location and size of a gating system in the mould. Irani et. al. [9] also developed a software system for automatic design of gating and runner systems for injection moulds and provide evaluation of gating design based on specified performance parameters. Nee et. al. [10] proposed a methodology for determination of optimal. parting directions in injection mould design based on automatic recognition and extraction of undercut features. Chen and Chou [11] developed algorithms for selectinga parting line in mould design by computing the undercutvolumes and minimising the number of undercuts. Parkand Kwon [12] worked on the design of cooling systemsin injection moulds and proposed an optimal designbased on thermal analysis and design sensitivity analysisof the cooling stage of the injection moulding process.Lin [13] worked on the use of gate size and gate position as the major parameters for simulated injection mould performance prediction. One area in injection mould design, which has received little attention, is the design of cavity layout in a multiple cavity injection mould. Cavity layout design affects the whole process of injection moulding directly, since it is one of the most important phases in mould design process. Consideration of cavity layout design in injection mould at concept design stage will improve the quality of injection moulded products because it is associated with the determination of many key factors affecting the design and quality of mould. Such factors include number of cavities; parting line; type of mould; type and position of gate; runner system; cooling system and ejection system. Some of these factors are difficult to build astrue mathematical models for analysis and design. This paper presents the development of a design support system, called Intelligent Cavity Layout Design System (ICLDS), for multiple-cavity injection moulds based on knowledge based and object oriented approaches. It uses the case-based and ruled-based reasoning in arriving at the layout solution [14]. It is based on the commercial software system named “RETE++”, which is an integrated development platform for customers to develop their own knowledge-based systems [15]. The objective is to make full use of available techniques in artificial intelligence in assisting mould designers at concept design stage. 2. Cavity Layout Design in Injection MouldsCurrent practice for injection mould design, especially cavity layout design, depends largely on designers’ experiences and knowledge. It would therefore be desirable to use knowledge engineering, artificial intelligence and intelligent design techniques in generating an acceptable cavity layout design in injection mould accurately and efficiently. In mould design, most of patterns of cavity layout and rules and principles of cavity layout design can also be easily represented in the form of knowledge, which can be used in most of knowledge-based design systems. the criteria to select the suitable layout pattern for design are mainly dependent on working environments, conditions and requirements of customer and are mainly based on designer’s skill and experience. To make a choice of contradictory factors will rely obviously on designer’s knowledge and experiences. It is rather suitablefor intelligent design techniques to be used in systems designed for such situations, especially for routine or innovation design.Design of injection mould mainly involves consideration of design of the following elements or sub-systems:(1) mould type(2) number of cavities(3) cavity layout(4) runner system(5) ejector system(6) cooling system(7) venting(8) mounting mechanismMost of the elements are inter-dependent such that it is virtually impossible to produce a meaningful flow chart covering the whole mould design process. Obviously, in injection mould design, it is difficult for designer to monitor all design parameters. Cavity design and layout directly affects most of other activities.The application of advanced knowledge based techniques to assist designer in cavity layout design at conceptdesign stage will greatly assist in the development of a comprehensive computer-aided injection mould design and manufacturing system. Higher the number of cavities of mould, higher the productivity of the injection mould. But this may lead to difficulties with issues such as balancing the runners or products with the complicated cavity shapes, which in turn may lead to problems of mould manufacturability. It is also possible that the number of cavities and the pattern of cavity layout will influence the determination of parting line, type of gate, position of gate, runner system and cooling system. Most of the main activities of mould design are therefore linked to cavity layout design. The cavity layout design problem therefore depends upon a number of functionalities of the overall mould design system, which includes:(1) definition of design specifications includinganalysis and description of characteristics of(2) determination of mould type(3) determination of number of cavities(4) determination of orientation of product(5) determination of runner type and runnerconfiguration(6) determination of type and position of gate(7) cavity layout conceptual design(8) evaluation of ejection ability, manufacturingability and economic performances(9) determination of cooling system(10) graphic results display and output3. Structure of ICLDS and the Design ProcessThe structure of the Intelligent Cavity Layout Design System (ICLDS) is based on case-based reasoning andruled-based reasoning designed around the RETE++ The design process starts with the definition of design specifications. The ICLDS system retrieves similar cases from case base by computing the similarity between the cases and the new case. If the solution is satisfactory, then results are displayed graphically. If the solution is not satisfactory, then ICLDS will use rule-based reasoning with forward or backward chaining or a mixture of both to arrive at a solution. Ifthe solution is still unsatisfactory, then the user has to modify some of the initial design specifications. The use of case-based technology in the design process in ICLDS allows the user to obtain the solution(s) of design problem more quickly and flexibly. The structure of knowledge base and database used in the development of ICLDS is based on the underlying knowledge base and database structure from the RETE++ software system, which is a commercially available software development platform.4. Development of ICLDS4.1. Classifications of KnowledgeFor various logic and steps involved in layout design, there are different kinds of knowledge that needs to be described and represented in cavity layout design. The types of knowledge can be classified into five kinds based on object oriented (OO) concept as described below:(1) Design instance/case: previous design cases and current design instances(2) Relation: superclass-class-subclass relation, classinstance relation(3) Attribute: design variables, features, attributes of design problem(4) Rule: general design rules, design experiences(5) Procedure and/or model: numeric calculation, mathematical modeling, analysis, evaluation andprocedures.4.2. Knowledge RepresentationsTo describe each of these types of knowledge, the internal data structures of the ECLIPSE language, included in RETE++ inherently, can be used to make the object orientated representation of the design process as explained earlier. Some other considerations in knowledge representation are as follows:(1) For “design instance/case”, we combine “fact definition” and “relation definition” plus database and case base to represent it(2) The “attribute” are represented as instances of“template definition” and/or “relation definition”(3) For “relation”, we use “relation definition” to describe it(4) For “rule”, we combine “rule definition” and“rule set definition” to represent it(5) The “procedure/model” are defined by external routines using C++ language Furthermore, “goal definition” and “goal generation”techniques are used to fulfil backward chaining reasoning, and “case-based reasoning” is used to carry out casebased design.4.3. Case-based ReasoningCase-Based Reasoning (CBR) is dependent firstly on case retrieved. Case-based retrieval is based on “Similarity Metric”. Therefore, how to calculate the similarity is obviously the key technique in CBR, and it is described in detail as below. Similarity metric is a weighted distancefunction in a multi-dimensional space where each dimension corresponds to a field whose value is specified in the query (new case) and which has a non-missing value in the case being ranked. The distance between the case and the query (which corresponds to a point in this multi-dimensional space) is computed differently for ordinal and nominal fields. An ordinal field is a field whose values are ordered or sorted. A nominal field is one whose values represent qualitative information for which sorting makes no sense. In general, ordinal fields include dates, integers, and real numbers while nominal fields include Boolean, Symbols, and Text.关于CAD/CAM的国际性杂志注塑模具设计的一种智能型腔设计系统摘要：本文展示了注塑模具多腔设计的智能型腔设计的发展，这个系统可以帮助模具设计者提供流道设计的观念，介绍了复杂的型腔设计原则和多样的设计理念，以及型腔版面设计的概述、分类、功能，全面地构造和智能化腔孔版面设计的程序使用方法的解释说明。

CNC机床加工中的刀具选型与切削参数优化CNC（Computer Numerical Control）机床是一种能够按照预先输入的程序指令进行自动化加工的机床。

在CNC机床加工中，刀具选型与切削参数的选择对于加工质量和效率起着至关重要的作用。

本文将就CNC机床加工中的刀具选型与切削参数优化进行探讨。

一、刀具选型在CNC机床加工中，刀具的选型要根据加工材料、加工要求以及加工方式来选择，常用的刀具选型有以下几种：1.硬质合金刀具硬质合金刀具具有优异的耐磨性和高硬度，适用于加工硬度较高的材料，如铸铁、合金钢等。

同时，硬质合金刀具还能够提供较好的切削性能和切削稳定性，因此在高速切削中得到广泛应用。

2.高速钢刀具高速钢刀具是热处理过的优质合金钢，具有较高的硬度和耐磨性。

高速钢刀具适用于一般加工材料的加工，价格相对较低，是较为经济实用的刀具选型。

3.立铣刀具立铣刀具适用于铣削工艺，能够完成平面铣削、开槽、镗孔等加工操作。

立铣刀具具有较高的刚性和切削性能，能够提高加工效率和加工精度。

4.钻孔刀具钻孔刀具用于钻孔加工，分为普通钻头和中心钻头两类。

普通钻头适用于常规钻孔操作，而中心钻头则适用于加工前的定位孔。

二、切削参数优化在CNC机床加工中，刀具的切削参数选取直接关系到加工效率和加工质量，合理的切削参数优化能够提高加工效率和延长刀具寿命。

下面分别从切削速度、进给量、切削深度等几个方面进行优化探讨。

1.切削速度切削速度是指刀具在加工过程中的旋转速度，需要根据材料硬度和刀具类型来选择合适的转速。

过高的切削速度会导致切削过程中的高温和过量磨损，而过低的切削速度则会影响加工效率。

因此，在确定切削速度时，需要考虑加工要求和刀具特性，以达到切削效果和刀具寿命的平衡。

2.进给量进给量是指刀具在加工过程中沿工件表面前进的距离，选择合适的进给量可以控制加工负荷，保证加工质量。

过小的进给量会导致切削效率低下，过大的进给量则容易引起振动和过度磨损。

题目：数控车削加工中的刀具选择中文摘要理想的加工程序不仅应保证加工出符合图样的合格工件，同时应能使数控机床的功能得到合理的应用和充分的发挥。

数控机床是一种高效率的自动化设备，它的效率高于普通机床的2～3倍，要充分发挥数控机床的这一特点，必须在编程之前对工件进行工艺分析，根据具体条件，选择经济、合理的工艺方案。

数控加工工艺考虑不周是影响数控机床加工质量、生产效率及加工成本的重要因素。

本文从生产实践出发，探讨和总结一些数控车削过程中的工艺问题。

英文摘要The ideal processing procedure should not only guarantee the machining for the workpiece, meanwhile the pattern should be qualified to make numerically-controlled machine tool's function get reasonable application and sufficient play. Nc machine is a kind of efficient automation equipment, it is more efficient than the conventional machine tools of 2 ~ 3 times, to give full play to the characteristics of CNC programming, must be in process analysis of workpiece before, according to the specific conditions, the choice of economic and reasonable process scheme. Nc machining process thoughtfulness is the effect of nc machine tools machining quality, production efficiency and machining cost of important factor. This article from the production practice, discusses and summarizes some of the numerical control turning process process problems.关键词（Keywords）：工序划分，刀具选择，生产实践目录第一章前言 (3)第二章数控机床的组成和工作原理 (4)2.1孔加工刀具类 (4)2.2数控铣刀类 (4)2.3拉削刀具类 (5)2.4其它刀具 (5)第三章控刀具及选用 (6)3.1数控机床刀具的特点 (6)3.2金属切削刀具的主要角度 (6)3.3刀具常用材料 (6)3.4 数控机床刀具分类 (9)3.5常用数控刀具结构 (9)3.6数控机床刀具的选择 (10)3.7数控加工刀具选择的典型实例 (12)第四章数控刀具材料新产品科技近况与发展趋势 (13)4.1超硬材料领域 (13)4.2W、C O类涂层和细颗粒(超细颗粒)硬质合金材料领城 (14)4.3含CO类粉末冶金高速钢材料领城 (14)第五章结论 (16)参考文献 (17)致谢 (18)前言毕业设计（论文）是学生在导师指导下，就其某一学术课题在实验性、理论性或观察上具有新的科学研究成果或创新见解和知识的科学记录；或是某种已知原理应用于实际中取得新进展的科学总结。

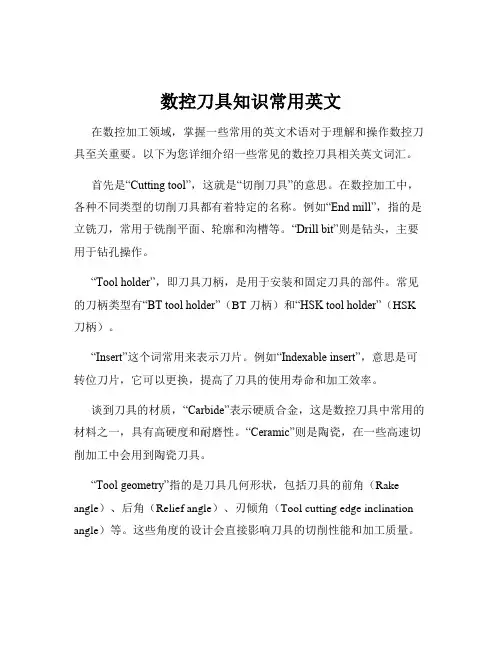

数控刀具知识常用英文在数控加工领域，掌握一些常用的英文术语对于理解和操作数控刀具至关重要。

以下为您详细介绍一些常见的数控刀具相关英文词汇。

首先是“Cutting tool”，这就是“切削刀具”的意思。

在数控加工中，各种不同类型的切削刀具都有着特定的名称。

例如“End mill”，指的是立铣刀，常用于铣削平面、轮廓和沟槽等。

“Drill bit”则是钻头，主要用于钻孔操作。

“Tool holder”，即刀具刀柄，是用于安装和固定刀具的部件。

常见的刀柄类型有“BT tool holder”（BT 刀柄）和“HSK tool holder”（HSK 刀柄）。

“Insert”这个词常用来表示刀片。

例如“Indexable insert”，意思是可转位刀片，它可以更换，提高了刀具的使用寿命和加工效率。

谈到刀具的材质，“Carbide”表示硬质合金，这是数控刀具中常用的材料之一，具有高硬度和耐磨性。

“Ceramic”则是陶瓷，在一些高速切削加工中会用到陶瓷刀具。

“Tool geometry”指的是刀具几何形状，包括刀具的前角（Rake angle）、后角（Relief angle）、刃倾角（Tool cutting edge inclination angle）等。

这些角度的设计会直接影响刀具的切削性能和加工质量。

“Cutting speed”是切削速度，它表示刀具在切削过程中旋转的线速度。

“Feed rate”则是进给速度，即刀具在加工过程中沿工件移动的速度。

“Depth of cut”是切削深度，指的是刀具在一次走刀中切入工件的深度。

在刀具的测量和精度方面，“Tool diameter”表示刀具直径，“Tool length”是刀具长度。

“Tool runout”指的是刀具跳动，它对加工精度有重要影响。

“Tool coating”是刀具涂层，常见的涂层有“TiN coating”（氮化钛涂层）、“TiAlN coating”（氮化铝钛涂层）等，涂层可以提高刀具的耐磨性和切削性能。

UG加工模块中英对照mill-planar 平面铣模块平面和垂直侧面，主要加工模具或零件中的平面区域mill-contour 轮廓铣/曲面铣模块可加工存在斜面或是曲面的工件，根据模具或零件的形状进行加工，包括型腔铣加工、等高轮廓铣加工和固定轴区域轮廓铣加工等mill-multi-axis 多轴铣模块在多轴机床上利用工作台的运动和刀轴的旋转实现多轴加工。

Drill 孔加工模块在模具中钻孔，使用的刀具为钻头。

Turning 车加工模块Wire-edm 线切割加工模块在线切割机上利用铜线放电的原理切割零件或模具Solid-tool 铸造加工模块A:-Mill_Planar平面铣1. FACE_MILLING_AREA 面铣削“面铣削区域”有部件几何体、切削区域、壁几何体、检查几何体和自动壁面选择。

2. FACE_MILLING 面铣加工面铣削基本的面切削操作，用于切削实体上的平面。

（适用于平面区域的精加工，使用的刀具多为平底刀）3. FACE_MILLING_MANUAL 面铣削混合切削模式，各个面上都不同。

其中的一种切削模式是手动，它使您能够把刀具正好放在所需的位置，就像教学模式一样。

4. PLANAR_MILL 表面加工平面铣基本的平面铣操作，它采用多种切削模式加工二维边界，以及平底面。

（适用于加工阶梯平面区域，使用的刀具多为平底刀）5.PLANAR_PROFILE 平面铣特殊的二维轮廓铣切削类型，用于在不定义毛坯的情况下轮廓铣。

常用于修边6.ROUGH_FOLLOW 平面铣使用跟随工件切削模式的平面铣。

7.ROUGH_ZIGZAG 平面铣使用往复切削模式的平面铣。

8. ROUGH_ZIG 平面铣使用单向轮廓铣切削模式的平面铣。

9. CLEANUP_CORNERS 平面铣使用来自于前一操作的二维IPW，以跟随部件切削类型进行平面铣。

常用于清除角，因为这些角中有前一刀具留下的材料。

10. FINISH_WALLS 平面铣将余量留在底面上的平面铣。

数控模具加工中的刀具选型与刀具磨削在数控模具加工中，刀具的选型和磨削是非常重要的环节。

合理的刀具选型和精确的刀具磨削可以提高加工效率和产品质量，降低生产成本。

本文将从数控模具加工的特点、刀具选型和刀具磨削技术等方面进行探讨。

一、数控模具加工的特点数控模具加工是利用计算机控制的数控机床进行的模具加工。

相比传统的手工加工和普通机床加工，数控模具加工具有以下特点：1. 高精度要求：模具加工通常需要达到较高的精度要求，以保证模具的质量和加工件的精度。

2. 复杂形状加工：模具通常具有复杂的形状和结构，需要进行多轴、多面、多角度的加工。

3. 加工难度大：模具材料通常较硬，如钢、合金等，加工难度大，对刀具的性能要求高。

二、刀具选型刀具选型是数控模具加工中的关键环节。

合理的刀具选型可以提高加工效率和产品质量。

1. 刀具材料选择：对于模具加工，通常选择硬质合金刀具。

硬质合金刀具具有高硬度、高耐磨性和高热稳定性等特点，适合加工硬材料。

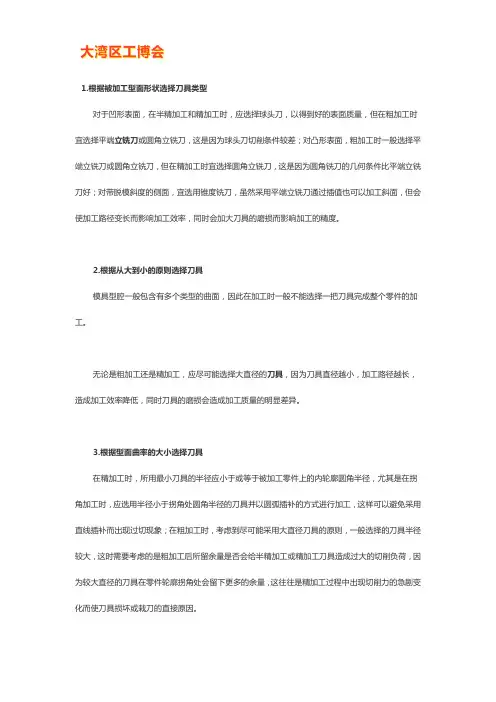

2. 刀具形状选择：根据加工件的形状和结构，选择合适的刀具形状。

常见的刀具形状有平头刀、球头刀、锥度刀等。

3. 刀具刀尖半径选择：刀尖半径的选择直接影响加工表面的质量。

一般情况下，刀尖半径越小，加工表面的质量越好，但同时也会增加刀具的易损性。

4. 刀具刃数选择：刀具刃数的选择要根据具体的加工要求和加工材料来确定。

刃数越多，加工效率越高，但刀具的稳定性和切削力也会增加。

三、刀具磨削技术刀具磨削是刀具维护和修复的重要环节。

合理的刀具磨削技术可以延长刀具的使用寿命，提高加工质量。

1. 磨削工艺选择：根据刀具的不同形状和材料，选择合适的磨削工艺。

常见的磨削工艺有平面磨削、外圆磨削、内圆磨削等。

2. 磨削参数控制：在磨削过程中，控制好磨削参数对于刀具的磨削质量至关重要。

磨削参数包括磨削速度、进给速度、磨削厚度等。

3. 刀具修复技术：对于损坏的刀具，可以通过修复技术进行修复。

常见的刀具修复技术有热处理修复、电火花修复等。

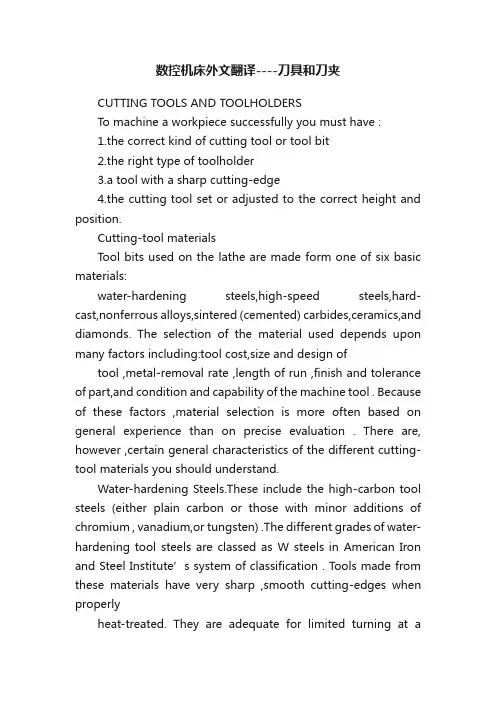

数控机床外文翻译----刀具和刀夹CUTTING TOOLS AND TOOLHOLDERSTo machine a workpiece successfully you must have :1.the correct kind of cutting tool or tool bit2.the right type of toolholder3.a tool with a sharp cutting-edge4.the cutting tool set or adjusted to the correct height and position.Cutting-tool materialsTool bits used on the lathe are made form one of six basic materials:water-hardening steels,high-speed steels,hard-cast,nonferrous alloys,sintered (cemented) carbides,ceramics,and diamonds. The selection of the material used depends upon many factors including:tool cost,size and design oftool ,metal-removal rate ,length of run ,finish and tolerance of part,and condition and capability of the machine tool . Because of these factors ,material selection is more often based on general experience than on precise evaluation . There are, however ,certain general characteristics of the different cutting-tool materials you should understand.Water-hardening Steels.These include the high-carbon tool steels (either plain carbon or those with minor additions of chromium , vanadium,or tungsten) .The different grades of water-hardening tool steels are classed as W steels in American Iron and Steel Institute’s system of classification . Tools made from these materials have very sharp ,smooth cutting-edges when properlyheat-treated. They are adequate for limited turning at arelatively low cutting speed or when old ,low-speed equipment ,such as a flat-belt lathe , is used .The main limitation of tools made form water-hardening steels is that they soften if the cutting-edge temperature exceeds approximately 300-400F during sharpening or cutting .A second disadvantage is low resistance to edge wear . High-speed Steels. High-speed steels offer great improvement in cutting efficiency over water-hardening tool steels .Tools made from high-speed steels retain enough hardness to machine at rapid rates even when the tool temperature reaches 1050F . They can be used even though they become dull red with heat . Upon cooling to room temperature , the original hardness of these steels does not change .Wear resistance of high-speed steels is much better than that of the carbon or alloy steels . This is due to the high carbide content ,especially in thehigher-alloy types of high-speed steel . Fully hardened , high-speed steels have greater resistance to shock than carbides or hard-cast alloys .There are two main types of high-speed steels designated in the American Iron and Steels Institute system , M steels (molybdenum base and T steels tungsten base . Tool bits made from these materials can be purchased already ground to various shapes . Unground tool bits called tool-bit blanks can also be purchased . These tool-bit blanks are made in standard size to fit the commonly used lathes . The common sizes are 3/16in square by 1 in long ,1/4in square by 2inlong ,5/16in square by 2-1/2in long ,and 3/8in square by 3in long . High-speedsteel tool bits are the type most used in the school machineshop .Hard-cast Alloy . These materials do not contain sufficient iron to be classed as steels . Rather , they are mainly alloys of cobalt , chromium , and tungsten with other elements added for special purpose . They reach full hardness in the as-cast condition , without heat treatment . The must be ground to size after casting . In terms of resistance to heat , wear ,shock ,and initial cost , cast alloys rank between high-speed steels and carbides .Hard-cast alloys are weaker in tension and more brittle than high-speed steels and thus are not suitable for severe shock loads . They are known by such commercial names as stellite , Rex alloy ,and tantung .Sintered Carbides . For efficient and high-speed machining ,best results can be obtained with sintered carbide tools . Carbide tools are available in solid form and as inserts which are either brazed or clamped in toolholders . Clamped inserts are usually round , square , or triangular in shape and have all edge is always available . These inserts can be rotated so that a sharp edge is always available . With modern machine tools and the proper grade of cemented carbide , it is possible to use cutting speeds 10 to 30 time faster than those feasible with high-speed steels .Carbides are suitable for most machining operations such as single-point turning , drilling ,milling , thread cutting, and reaming . Carbides should be used only when they can be supported rigidly and when the machine tool has adequate power and speed to enable their efficient use .Ceramic . With the exception of industrial diamonds , ceramic inserts are the hardest and strongest inserts available . They resistabrasive wear , chipping , and breakage . These inserts work best on very rigid machine tools and onwell-supported workpieces . For most operations , cutting fluids are not needed . Diamonds . Industrial diamonds that have either circular or facetedcutting-edges are used for light finishing cuts when an extremely high-quality surface finish required . Although a very smooth finish can be achieved using other cutting-tool materials , diamond turning can provide even smoother finishes with very small tolerances .TOOLHOLDERSThe toolholder holds the cutting tool rigid during cutting operations . Four types of toolholders are in general use .1 . The tool post with standard toolholders . The tool too post is comprised of the post , screw , washer , collar , and rocker . The washer fits the top slidee piece slot . The collar and the rocker elevate or lower the point of too . The screw clamps the toolholder in place .The standard toolholder for high-speed steel cutter bits comes in three common shapes : straight , right-hand offset or shank , and left-hand offset or shank . You can identify right-hand and left-hand offset holders by holding the setscrew end in your hand . If the shank bends to the right , it is a left-hand offset holder . The straight toolholder is fused for most work . The left-hand toolholder is used when you need to cut close to the chuck or lathe dog . The right-hand holder isused when feeding toward the tailstock of the lathe . The cutting-tool bit is held in each of these toolholders at an angle of 14 to 16.5 degrees . This is called the toolholder angle .Carbide toolholders also come in three styles and are similarin appearance to those mentioned above . The hole for the cutter bit , however , is parallel to the bottom edge of the holder .2. The open-side or heavy-duty tool block holds one tool ata time and consists of a T-slot clamp , a C-shaped block , and two or more tool clamping screws . Because this unit is very rigid , it is especially useful for heavy cuts . A tool bit can be mounted directly in the tool block or some type of carbide tooolholder can be used .3. The turret tool block or four-way toolholder consists of a swiveling block in which the tools are clamped Common turret block hold four tools . Each can be quickly swiveled into cutting position and clamped in place . Some turret blocks have eight tool stations . Frequently ,an open-side-type tool block is also mounted on the rear of the cross slide to add one additional cutting operation . With this arrangement , anywhere form five to nine different kinds of tools can be mounted and operated in sequence for turning , forming ,facing ,knurling , and cutting off duplicate parts .4. The quick-change-type tool system holds only one tool ata time , but three different sides can be used to position the tool . It consists of a quick-change tool post with a clamping lever and a series of toolholders for turning , facing ,boring , cutting off , threading , knurling , and thread cutting .Single-point Cutting ToolsTool Parts . Before you can grind a tool bit , you must become acquainted with some of the terms used to describe the various parts of the cutting tool .1 . The face is the top of the tool bit . It is the surface on which a part of the chip attaches as it is cut away form the workpiece .2. The cutting-edge is that part of the cutter bit which actually does the cutting .3. The nose is the corner or are formed by the side and end cutting-edge .4. The flank is the surface below the cutting-edge .5. The point is the part of the tool bit which is shaped to form the cutting-edge and face .Tool Angles .The following are important tool angles used for all single-point cutting tools .1.The side relief angle is the angle between the ground surface and the verticalside of the tool bit before it is ground . This angle was formerly called side clearance , and many machinists still use this term .The side relief angleprovides clearance between the cut surface of the work and the flank of tool .Tool wear reduces the effective side clearance angle .If the angle is too small, the cutter will rub and heat . If the angle is too large , the cutting-edge will be weak and the tool will have a tendency to dig into the workpiece.2.The end relief angle is the angle formed between the end of the cutting-edgeand a vertical line. It was formerly called front clearance. The end reliefangle provides clearance between the finished surface of the work and the tool. If this angle is too small, the tool will rub on the finished surface and produce a poor finish. Wear tends to reduce this angle. If the angle is too large , the tool may dig into the work , chatter, and fail through chipping . An angle of 8 to 15 is recommened for steel tools and 6 to 8 for carbide tools .If thetool is set above the center of rotation , the effective clearance angle is reduce . This must be considered in choosing the proper angle .3.The end cutting-edge angle provides clearance between the cutter and thefinished surface of the work .If this angle is too small, it may cause chatter. A small angle of about 6 is desirable on light finishing cuts, however, in order to produce a smooth finish .4.The side cutting-edge angle turns the chip away form the finishedsurface .Recommended angles are between 5 and 15 .5.The nose radius removes the fragile corner of the tool , prolongs tool life ,and improves finish . The radius may be large for maximum-strengthrough-cutting tools and may be reduced for light feeds . The larger the nose radius ,the better the finish as long as chatter dose not occur .Recommended nose radii are 0.010 to 0.030 in . or more for finishing cuts , and 1/30 to 1/2 in for roughing cuts .6.To help shape the cutting-edge and face , it is necessary to grind rake angleson a tool bit .Rake is an inclination form the vertical or horizontal .The two rake angles are back rake and side rake .Back rake , in a single-point feeding to the side , turns the chip away form the finished work and gives the tool a slicing action .A zero back rack tends to make a spiral chip , and a back rake angle greater than zero tends to stretch the spiral chip out into a helix . A back-rake angle of form 5 to 15 is used to keep chips form scratching the workpiece . High-speed steel tool bits are always ground with a positive rake .However , cementedcarbide tools may have either a positive or negative rake .Negative rake increases the shear angle at which the chip is formed , providing for a good chip and a good surface finish .Negative rake tools are generally used on a heavy-duty lathe that is operated at high speed with a heavy feed .Side rake refers to the angle between the face of the tool and a line that would represent the top of the unground tool bit as viewed form the end . Side rake controls the type of chip produced during machining as well as the direction in which the chip will travel .A tool with a small side-rake angle will produce shorter chips than one with a large rake angle .7 .The nose angle is the angle between the side-cutting edge and the end-cutting edge .Classes of Single-point T oolsDifferent shapes of tool bits are needed to do certain machining operations . Most tool bits are ground to cut in one direction only .The two common types are referred to as right cut and left cut .These were formerly called right-hand and left-hand tool bits .A right-cut single-point tool is one that , when viewed form the point end with the face up , has its cutting-edge on the right side .When the tool bits is placed in the lathe , the cutting-edge is on the left side .This tool bit cuts form the right to the left , or form the tailstock end toward the headstock of the lathe .A left-cut tool bit has the cutting-edge on the left when viewed form the point end with the face up . This tool bit is ground to cut form the left to the right or toward the tailstock of the lathe .Commonly used types of tool bits include the following:1.A roughing tool is a tool bit designed to take heavyroughing cuts to reducethe diameter of a workpiece to approximate size . Because finish is notimportant when roughing work , such a tool bit may be ground to almost a sharp point . However , the point is usually rounded very slightly to prevent its breaking down .2.A finishing tool is one that has a keenly ground cutting-edge which may behoned with an oilstone to produce a very smooth finish ,A finish toolgenerally has a larger rounded nose than a roughing tool .3.A roundnose cutting tool is a general-purpose tool used for many types ofwork .When ground flat on the top , it can be used for both right and left cuts and for turning brass . It may also be used to form a radius at the corner of a shoulder . Roundnose tool bits are used as finishing tools .4.The square-nose tool cuts on the end only . It is used for chamfering and forroughing cuts to square a shoulder .5.A cutoff or parting tool cuts on the end only and is used for cutting off stockor workpieces held in a chuck .6.Side-facing tools or side tools , as they are often called , are used forfinishing the ends of work square and smooth .A right-cut side-facing tool is always used to finish the end of a shaft . A left-cut side-facing tool may be used to finish the left side of a shoulder .Chip BreakersTo eliminate the problem of a continuous chip , a chip breaker is often ground on a high-speed steel tool bit .Chip breakers can either be ground on an off-hand grinding wheel , or in the case of the grooved chip breaker , it can be done with a thin grinding wheel on a surface grinder .A separate chip breaker is often used with insert-type carbide tools .Cutting ActionIn lathe turning , there are three basic cutting forces , the longitudinal force of the workpiece against the side of the tool , the radial force of the workpiece against the front of tool , and the tangential force of the workpiece against the top of the tool . The tangential cutting force is by far the greatest and has the most influence on the cutting action . This tremendous force is exerted against the cutting-edge . Pressures as great as a quarter-million pounds per square foot have been measured on large metal-cutting lathes . If the tool is shaped incorrectly or set at an incorrect angle ,it will dull rapidly .Here is what actually happens when cutting on the lathe ,As the workpiecemeets the cutting-edge of the tool bit , chips or a continuous ribbon of metal are wedged away from the material being machined ,On soft , ductile material , this wedging is continuous. On harder materials , the wedging force causes the metal to compress . Compression continues until a shearing point is reached , and the compressed metal is separated from the workpiece . This is repeated throughout the cutting operation .The shape is much more important than the actual sharpness of a cutting-edge . Lack of clearance permits the tool to drag on the workpiece , greatly increasing the pressure on the cutting-edge and interfering withtool performance .Too-large clearance angles make the tool weak and do not edge breaks off or wears out rapidly .Grinding a High-speed Steel Tool BitA tool bit is ground:1.To provide a sharp cutting-edge2. To obtain the correct or best shape for a particular operation3. To provide clearance away form the end of the tool bit4. To provide clearance away form the side of the tool bit5. To provide good chip movement over the face of the tool bit and away the cutting-edgeHere is the correct procedure for grinding a right-cut roundnose tool bit :1.Check the grinding wheels to make certain the faces of the wheels aredressed properly. It is difficult to grind good cutting tools on wheels that areuneven or have grooves in them. Use a bench or floor grinder that is used only for grinding cutting tools. Such a grinder should have a coarse-gritaluminum-oxide wheel on one side and a fine-grit wheel on the other side.Use the coarse-grit wheel for finishing the tool bit to shape. Then use thefine-grit wheel for finishing the tool bit.2.The tool grinder should be equipped with tool rests. Rest your hands on themto control the movement of the tool bit. Hold the tool bit firmly to keep itform bouncing around on the wheel. Do not grip it so tightly,however, that you have difficulty move it.3.Grind the side-relief angle to form the side-cutting-edge angle by holding thetool bit against the wheel, as shown in Fig 18. This angle should be about 6 for mild steel. Hold the tool bit against the wheel, and tilt the bottom inward to get this angle. As you grind, move the tool bit back and forth across the face of the wheel without changing its position. This helps to grind the tool faster and prevents grooving the wheel. As the tool bit heats up, dip it inwater to cool it. A beginner often makes the mistake of moving the tool bit up and down. This forms many different angles on the flank, and it becomesvery irregular. To avoid this, hold the tool bit in affixed position on the wheel.Move it back and forth, but never up or down.4.Grind the side-relief angle on the opposite side to form the shape of the toolbit, as shown in.5.To grind the end-relief angle, holds the tool with the and up. Swing the shankof the tool bit in a semicircle. Try to blend the end radius to meet the sides neatly and cleanly. Always ease up on the pressure when grinding theroundnose of the tool bit. If you fail to so this, you woll grind a largerroundnose tool than desired.6.To grind side rake for a right-cut tool bit, hold the tool bit, face or top, atright angles to the right side of the grinding wheel. Tilt thetool inward at the bottom. Hold it in this position until the wheel cleans up the entire face to the cutting-edge. To grind the side-rake angle for a left-cut tool bit, hold the tool bit at the left side of the grinding wheel. Tilt the bottom inward, and let the grinding wheel clean up the entire face to the cutting-edge. There is noreason to grind the face of the tool bit below the shank at the front end. To do so wastes the expensive tool bit and results in a poorly shaped cutting tool.7.It is good practice to hone tool bits used for finishing work. Select amedium-fine oilstone. Apply a little kerosene or lard cutting oil to theoilstone. Move the cutting-edge back and forth against the oilstone. Be sure to hold the bit flat so as not to change any anglesWith a little practice, you will be able to grind a tool bit correctly. Remember, a well-ground bit is one that has proper tool angles together with flat, evenly ground surface.CARE OF LATHESKeep the lathe clean and well lubricated at all times. Like any precision machine, the lathe requires careful treatment. It will operate better and do accurate work as long as you care for it properly. Do not make the mistake of relying upon others to keep the lathe oiled and in good repair. Your own personal safety depends upon your ability to keep the lathe in a safe operating condition. The proper care of a lathe includes such things as cleaning, oiling, adjusting, and making minor repairs.Cleaning the latheClean the lathe thoroughly after each work period. Whenchips and dirt are left on ways, gears, and other moving parts, the surfaces become roughened and dented. This causes fast wear and makes it difficult to operate the parts. The following procedure is recommended for cleaning a lathe:1. Use a brush first to remove all chips.Most chips are razor sharp, so never use your hands.A 2in paintbrush or a small bench brush is convenient for this purpose. Move the tailstock to the right end of the bed.2. Wipe off all painted surfaces with a clean cloth or cotton waste. Oil left on the painted surfaces becomes hardened and steins the paint.3. Using the same cloth or cotton waste, remove oil and grease form all machined surfaces.4. Brush all chips form the chip pan, them wipe it clean.5. Before mounting a chuck, clean its inside threads with a wore thread cleaner. Wipe off the spindle threads, and place a drop or two of oil on them.6. Clean the spindle holes and taper shanks of centers before mounting them in place. If centers have burrs or rough spots on them, use a file or an oilstone to remove them before placing the centers in the spindle holes.7. Occasionally, clean the thread grooves of the lead screw with a piece lf cord. Place the cord around the lead screw. Adjust the gears to turn the lead screw at a medium sped. Start the lathe, and with the lead screw turning, move the cord back end forth as it feeds along the screw.8. When oiling a lathe, wipe off any oil that may spill or drip on the painted surfaces.9. Always make certain there is a light film of oil on the ways before you start to work.10. Adjust the cross-feed and compound slide gib screws to remove looseness or play between the parts. When you can move the cross-feed by grasping the tool post with your hand and moving it back and forth, it means the gib screws are too loose. Adjust each of the gib screws until a smooth movement is obtained on the cross-feed handle. When they are properly adjusted, it will not be possible to move the cross-feed by pulling or pushing on the tool post.11. Never lay tools or workpieces on the ways of a lathe. To do so destroys the accuracy of these precision handscraped surfaces.place your tools on to lathe board.12.When using a tool-post grinder, always protect the machined surfaces of the lathe by covering them. Abrasive particles from the grinding wheel can become imbedded in the surface bearings end soon destroy the accuracy of the lathe if surfaces are not covered during the grinding operation.13. Once a week wipe down the entire lathe with a Clean cloth dampened with kerosene. Do the painted surfaces first, then the machined surfaces. Wipe dry, and place a thin film of clean oil over all machined surfaces.Oiling and Greasing the LatheIt is important that the lathe be properly lubricated. An oiling or lubrication chart comes with each machine. Be sure to use the grades and kinds of oil and grease called for in the chart. Form the habit of oiling your lathe each day before you start work. Certain parts require daily oiling. Other parts should be oiled weekly or monthly as the chart says. Too often, when several persons use the same lathe, each one depends on the other, and the result is that no one does the oiling or maintenance.刀具和刀夹想顺利的加工工件，就必须做到：1．刀具或刀片的种类要恰当。

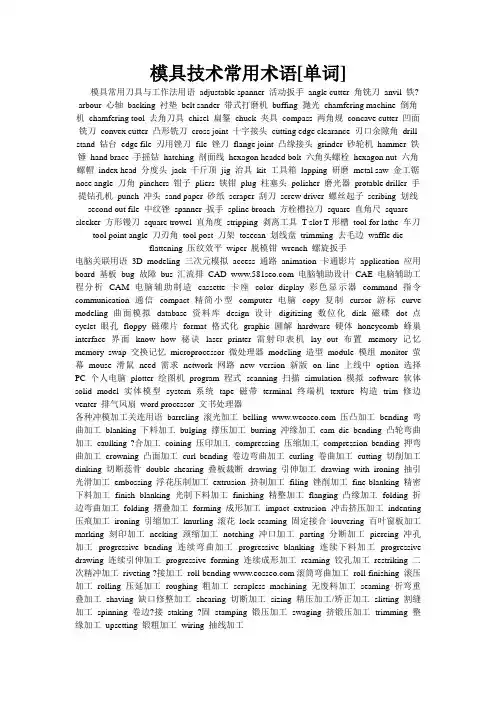

模具技术常用术语[单词]模具常用刀具与工作法用语adjustable spanner 活动扳手angle cutter 角铣刀anvil 铁? arbour 心轴backing 衬垫belt sander 带式打磨机buffing 抛光chamfering machine 倒角机chamfering tool 去角刀具chisel 扁錾chuck 夹具compass 两角规concave cutter 凹面铣刀convex cutter 凸形铣刀cross joint 十字接头cutting edge clearance 刃口余隙角drill stand 钻台edge file 刃用锉刀file 锉刀flange joint 凸缘接头grinder 砂轮机hammer 铁锤hand brace 手摇钻hatching 剖面线hexagon headed bolt 六角头螺栓hexagon nut 六角螺帽index head 分度头jack 千斤顶jig 治具kit 工具箱lapping 研磨metal saw 金工锯nose angle 刀角pinchers 钳子pliers 铗钳plug 柱塞头polisher 磨光器protable driller 手提钻孔机punch 冲头sand paper 砂纸scraper 刮刀screw driver 螺丝起子scribing 划线second out file 中纹锉spanner 扳手spline broach 方栓槽拉刀square 直角尺square sleeker 方形镘刀square trowel 直角度stripping 剥离工具T-slot T形槽tool for lathe 车刀tool point angle 刀刃角tool post 刀架tosecan 划线盘trimming 去毛边waffle dieflattening 压纹效平wiper 脱模钳wrench 螺旋扳手电脑关联用语3D modeling 三次元模拟access 通路animation 卡通影片application 应用board 基板bug 故障bus 汇流排CAD 电脑辅助设计CAE 电脑辅助工程分析CAM 电脑辅助制造cassette 卡座color display 彩色显示器command 指令communication 通信compact 精简小型computer 电脑copy 复制cursor 游标curve modeling 曲面模拟database 资料库design 设计digitizing 数位化disk 磁碟dot 点eyelet 眼孔floppy 磁碟片format 格式化graphic 圆解hardware 硬体honeycomb 蜂巢interface 界面know how 秘诀laser printer 雷射印表机lay out 布置memory 记忆memory swap 交换记忆microprocessor 微处理器modeling 造型module 模组monitor 萤幕mouse 滑鼠need 需求network 网路new version 新版on line 上线中option 选择PC 个人电脑plotter 绘图机program 程式scanning 扫描simulation 模拟software 软体solid model 实体模型system 系统tape 磁带terminal 终端机texture 构造trim 修边venter 排气风扇word processor 文书处理器各种冲模加工关连用语barreling 滚光加工belling 压凸加工bending 弯曲加工blanking 下料加工bulging 撑压加工burring 冲缘加工cam die bending 凸轮弯曲加工caulking ?合加工coining 压印加工compressing 压缩加工compression bending 押弯曲加工crowning 凸面加工curl bending 卷边弯曲加工curling 卷曲加工cutting 切削加工dinking 切断蕊骨double shearing 叠板裁断drawing 引伸加工drawing with ironing 抽引光滑加工embossing 浮花压制加工extrusion 挤制加工filing 锉削加工fine blanking 精密下料加工finish blanking 光制下料加工finishing 精整加工flanging 凸缘加工folding 折边弯曲加工folding 摺叠加工forming 成形加工impact extrusion 冲击挤压加工indenting 压痕加工ironing 引缩加工knurling 滚花lock seaming 固定接合louvering 百叶窗板加工marking 刻印加工necking 颈缩加工notching 冲口加工parting 分断加工piercing 冲孔加工progressive bending 连续弯曲加工progressive blanking 连续下料加工progressive drawing 连续引伸加工progressive forming 连续成形加工reaming 铰孔加工restriking 二次精冲加工riveting ?接加工roll bending 滚筒弯曲加工roll finishing 滚压加工rolling 压延加工roughing 粗加工scrapless machining 无废料加工seaming 折弯重叠加工shaving 缺口修整加工shearing 切断加工sizing 精压加工/矫正加工slitting 割缝加工spinning 卷边?接staking ?固stamping 锻压加工swaging 挤锻压加工trimming 整缘加工upsetting 锻粗加工wiring 抽线加工冲压机械及周边关连用语back shaft 支撑轴blank determination 胚料展开bottom slide press 下传动式压力机board drop hammer 板落锤brake 煞车buckle 剥砂面camlachie cramp 铸包casting on flat ?合chamotte sand 烧磨砂charging hopper 加料漏斗clearance 间隙closed-die forging 合模锻造clump 夹紧clutch 离合器clutch brake 离合器制动器clutch boss 离合器轮壳clutch lining 离合器覆盖coil car 带卷升降运输机coil cradle 卷材进料装置coil reel stand 钢材卷料架column 圆柱connection screw 连杆调节螺钉core compound 砂心黏结剂counter blow hammer 对击锻锤cradle 送料架crank 曲柄轴crankless 无曲柄式cross crank 横向曲轴cushion 缓冲depression 外缩凹孔dial feed 分度送料die approach 模口角度die assembly 合模die cushion 模具缓冲垫die height 冲压闭合高度die life 模具寿命die opening 母模逃孔die spotting press 调整冲模用压力机double crank press 双曲柄轴冲床draght angle 逃料倾斜角edging 边锻伸embedded core 加装砂心feed length 送料长度feed level 送料高度filling core 埋入砂心filling in 填砂film play 液面花纹fine blanking press 精密下料冲床forging roll 辊锻机finishing slag 炼後熔渣fly wheel 飞轮fly wheel brake 飞轮制动器foot press 脚踏冲床formboard 进模口板frame 床身机架friction 摩擦friction brake 摩擦煞车gap shear 凹口剪床gear 齿轮gib 滑块引导部gripper 夹具gripper feed 夹持进料gripper feeder 夹紧传送装置hammer 槌机hand press 手动冲床hand rack pinion press 手动齿轮齿条式冲床hand screw press 手动螺旋式冲床hopper feed 料斗送料idle stage 空站inching 微调尺寸isothermal forging 恒温锻造key clutch 键槽离合器knockout 脱模装置knuckle mechanic 转向机构land 模具直线刀面部level 水平loader 供料器unloader 卸料机loop controller 闭回路控制器lower die 下模micro inching device 微寸动装置microinching equipment 微动装置motor 马达moving bolster 活动工作台notching press 冲缺口压力机opening 排料逃孔overload protection device 防超载装置pinch roll 导正滚轮pinion 小齿轮pitch 节距pressfit 压入progressive 连续送料pusher feed 推杆式送料pusher feeder 料片押片装置quick die change system 快速换模系统regrinding 再次研磨releasing 松释动作reversed blanking 反转下料robot 机器人roll forming machine 辊轧成形roll forming machine 辊轧成形机roll release 脱辊roller feed 辊式送料roller leveler 辊式矫直机rotary bender 卷弯成形机safety guard 安全保护装置scrap cutter 废料切刀scrap press 废料冲床seamless forging 无缝锻造separate 分离shave 崩砂shear angle 剪角sheet loader 薄板装料机shot 单行程工作shrinkage fit 收缩配合shut height 闭合高度sieve mesh 筛孔sintering of sand 铸砂烧贴slide balancer 滑动平衡器slug hole 逃料孔spin forming machine 旋压成形机spotting 合模stack feeder 堆叠拨送料机stickness 黏模性straight side frame 冲床侧板stretcher leveler 拉伸矫直机strip feeder 料材送料装置stripping pressure 弹出压力stroke 冲程take out device 取料装置toggle press 肘杆式压力机transfer 传送transfer feed 连续自动送料装置turrent punch press 转塔冲床two speed clutch 双速离合器uncoiler 闭卷送料机unloader 卸载机vibration feeder 振动送料机wiring press 嵌线卷边机线切割放电加工关连用语abnormal glow 不规则辉光放电arc discharge 电弧放电belt 皮带centreless 无心chrome bronze 铭铜clearance angle 後角corner shear drop 直角压陷deflection 桡曲度discharge energy 放电能量dressing 修整dwell 保压flange 凸缘gap 间隙graphite 石墨graphite contraction allowance 电极缩小余量graphite holder 电极夹座hair crack 发裂horn 电极臂jump 跳刀magnetic base 磁性座master graphite 标准电极pipe graphite 管状电极pulse 脉冲rib working 肋部加工roller electrode 滚轮式电极rotary surface 旋转面shank 柄部sharp edge 锐角部tough bronze 韧铜traverse 摇臂tungsten bronze ?青铜waviness 波形起伏work 工件working allowance 加工余量working dischard 加工废料锻铸造关连用语accretion 炉瘤acid converter 酸性转炉acid lining cupola 酸性熔铁炉acid open-hearth furnace 酸性平炉aerator 松砂机air set mold 常温自硬铸模airless blasting cleaning 离心喷光all core molding 集合式铸模all round die holder 通用模座assembly mark 铸造合模记号back pouring 补浇注backing sand 背砂base bullion 粗金属锭base permeability 原砂透气度belling 压凸billet 坏料bleed 漏铸blocker 预锻模膛blocking 粗胚锻件blow hole 铸件气孔board drop hammer 板落锤bottom pour mold 底浇bottom pouring 底注boxless mold 脱箱砂模break-off core 外贸seo缩颈砂心brick molding 砌箱造模法buckle 剥砂面camber 错箱camlachie cramp 铸包cast blade 铸造叶片casting flange 铸造凸缘casting on flat 水平铸造chamotte sand 烧磨砂charging hopper 加料漏斗cleaning of casting 铸件清理closed-die forging 合模锻造core compound 砂心黏结剂core template 砂心模板core vent 砂蕊排气孔corner gate 压边浇口counter blow hammer 对击锻造counter lock 止口镶嵌方式depression 外缩凹孔die approach 模口角度draw out 锻造拔长draw plate 起模板draw spike 起模长针dummying 预锻embedded core 加装砂心erosion 冲砂fettling 铸件清理filling core 埋入砂心filling in 填砂film play 液面花纹finishing slag 炼後熔渣flash gutter 锻模飞边槽flask molding 砂箱造模forging roll 辊锻机formboard 进模口板gutter 锻模飞边槽hammer man 锻工heading machine 顶镦机impacter 卧式锻造机inblock cast 整体铸造ingot 铸锭ingot blank 铸坯inlay casting 镶铸法investment casting 失模铸造isothermal forging 恒温锻造loose piece 木模活块molding pit 铸模地坑pouring process 浇注法recasting 重铸roll forging 轧锻rolled surface 轧制表面rough sand 粗砂roughing forge 粗锻sand crushing 塌箱seamless forging 无缝锻造separate 分离shave 崩砂shrinkage fit 收缩配合shut height 闭合高度sieve mesh 筛孔sintering of sand 铸砂烧贴slag 熔渣slag inclusion 夹渣stickness 黏模性strip layout 带状胚料排样法tap casting 顶注top gate 顶注浇口unworked casting 不加工铸件upender 翻转装置upending 顶锻uphill casting 底铸white cast iron 白口铸件模具加工方法barrel 滚筒(加工) bending 波纹加工broaching 拉刀切削centering 定中心cutting 切削cylindrical lathe cutting 外圆车削electric discharge machine 放电加工electrolytic grinding 电解研磨embossing 压花加工facing 面车削filing 锉刀修润hand finishing 手工修润hemming 卷边加工hobbing 滚齿加工joggling 摇动加工lapping 抛光/研磨修润laser beam machining 海外推广雷射加工lathe cutting 车床车削planning 刨削加工polishing 抛亮光reaming 铰孔修润rough machining 粗切削rounding 圆形加工sawing 锯削scaling 清除钢碇缺陷shaping 成形加工skiving 表面研磨slotting 切缝切削taper turning 锥度车削thread cutting 螺纹切削ultrasonic machining 超音波加工up cut milling 逆铣加工学理实验与试验用语air permeability test 透气性试验austenitic steel 沃斯田铁钢brinell hardness 布耐内尔硬度brinell hardness test 布氏硬度试验charpy impact test 夏比冲击试验conical cup test 圆锥杯突试验cup flow test 杯模式流动度试验dart drop impact test 落锤冲击试验Elmendorf test 埃罗门多撕裂强度试验environmental stress cracking test 环境应力龟裂试验ericessen test 埃留伸薄板拉伸试验falling ball impact test 落球冲击试验fatigue test 疲劳试验ferrite 纯铁体gantt chart 甘特图heat cycle test 热循环试验histogram 柱状图hot bend test 热弯试验izod impact test 埃左德冲击试验loop tenacity 环结强度martens heat distortion temperature test 马顿斯耐热试验martensite 马氏体mullen bursting strength tester 密廉式破裂强度试验机nol ring test 诺尔环试验normal distribution 常态分配ozoneresistance test 抗臭氧试验pareto diagram 柏拉图peeling test 剥离试验pinhole test 针孔试验机rattler test 磨耗试验rockweel hardness test 洛氏硬度试验rockweel hardness 洛氏威尔硬度rolinx process 罗林克斯射出压缩成形法rossi-peakes flow test 罗西皮克斯流动试验sampling inspection 抽样检查scratch hardness 抗刮硬度shore hardness 萧氏硬度spiral flow test 螺旋流动试验surface abrasion test 谷歌优化表面磨耗试验taber abraser 泰伯磨耗试验机tensile impact test 拉伸冲击试验tensile strength 抗拉强度tension test 张力试验thermal shock test 冷热剧变试验torsion test 扭曲试验ubbelohde viscometer 乌别洛德黏度计vicat indentation test 维卡针压陷试验V ickers hardness test 维氏硬度试验warpage test 翘曲试验weatherometer 人工老化试验机weissenberg effect 威森伯格回转效应砂轮用语abrasive 砂轮Al2O3 氧化铝balance 平衡bond 结合borazon 氧化硼立方晶buffing wheel 抛光布轮diamond 钻石dresser 砂轮整修机dressing 修整endless grinding belt 循环式研磨带finishing allowance 加工余量grain 磨粒grinding disc 研磨盘jamp up 孔眼堵塞mesh 网筛目parameter 参数resinoid grinding wheel 半树脂型砂轮slitting 切缝量vitrified 陶瓷的wheel 旋转机械设计及周边其他用语assembly drawing 装配图auto tool change cycle 自动换刀时间周期beam 横梁bending moment 弯矩bending stress 弯曲应力bottoming 底靠buckling 纵弯曲chamfering 去角斜切channel 凹槽chattering 颤动check point 查核点chip 切屑chip conveyor 排屑输送机coefficient of friction 摩擦系数compact 小型的cooling pipe 冷却管coupon 试样胚deflection 挠曲量distortion 扭曲变形draft taper 拔模锥度draw out 拉拔fit tolerance 配合公差flexible rigidity 弯曲刚性gas vent 气孔hatching 剖面线heater cooler 加热器冷却装置hook cavity 钩穴inching 寸动lug 凸缘maintenance 维修保固metallurgy 冶金学notch effect 切口效果out of roughness 真圆度performance 动作性能pit 坑plane strain 倒角应力plug mill 蕊棒轧管机repeated load 重覆载荷riveted joint ?钉接合sand paper 砂纸shift 偏移shrink fit 热压配合shrinkage hole 缩孔sinking 凹陷sketch 草图spalling 剥落straightness 直度submarine 深陷式surface roughness 表面粗度tapping 攻螺丝thermocouple 热电耦torsion load 扭转载荷toughness 韧性tracing 描图under cut 凹割3D coordinate measurement 三次元量床3D modeling 三次元模拟aberration 色差abnormal glow 不规则辉光放电abrasive 砂轮access 通路account 帐户accretion 炉瘤accurate die casting 精密压铸acid converter 酸性转炉acid lining cupola 酸性熔铁炉acid open-hearth furnance 酸性平炉activator 活化剂acetylene 乙炔adjustable spanner 活动扳手aerator 松砂机after service 售後服务age hardening 时效硬化ageing 老化处理air hardening 气体硬化airless plasting cleaning 离心喷光air patenting 空气韧化air permeability test 透气性试验air set mold 常温自硬铸模air vent valve 通气阀all core molding 集合式铸模alloy tool steel 合金工具钢allround die holder 通用模型aluminium alloy 铝合金钢amendment 修正ampere 电流安培anchor pin 锚梢angle cutter 角铣刀angle welding 角焊angular pin 角梢angular pin 倾斜梢animation 卡通影片anode effect 阳极效应annealing 退火acetylene 乙炔ampere 电流安培angle welding 角焊arc 电弧argon arc welding 氩弧焊接bare electrode 光熔接条butt welding 对接焊接camber 电弧弯曲cascade 阶叠熔接法clad weld 被覆熔接crator 焊疤excess metal 多余金属filler rod 焊条fillet weld 填角焊接gas shield 气体遮蔽groove welding 起槽熔接hand face shield 手握面罩hard facing 硬表面堆焊jig welding 工模焊接laser beam welding 雷射光焊接metal electrode insert gas welding MIG熔接nugget 点焊熔核overlaying 堆焊peening of welding 珠击熔接法plug welding塞孔熔接positioned welding 正向熔接pressure welding 压焊propane gas cutting 丙烷气切割pure nickel electrode 纯镍熔接条reinforcement of weld 加强焊接resist 抗蚀护膜root running 背面熔接seam 焊缝seaming 接合seam welding 流缝熔接series seam welding 串联缝熔接skip welding process 谷歌SEO跳焊法spark 火花spot welding 点焊接stitch welding 针角焊接stud arc welding 电弧焊接under laying 下部焊层void 焊接空隙weld flow mark 焊接流痕weld flush 焊缝凸起weld line 焊接纹weld mark 焊接痕weld penetration 熔接透入weld zone 焊接区welding 焊接welding bead 焊接泡welding direction 焊接方向welding distortion 焊接变形welding flux 焊剂welding ground 电熔接地welding interval 焊接周期welding stress 熔接应变welding torch 熔接气炬。

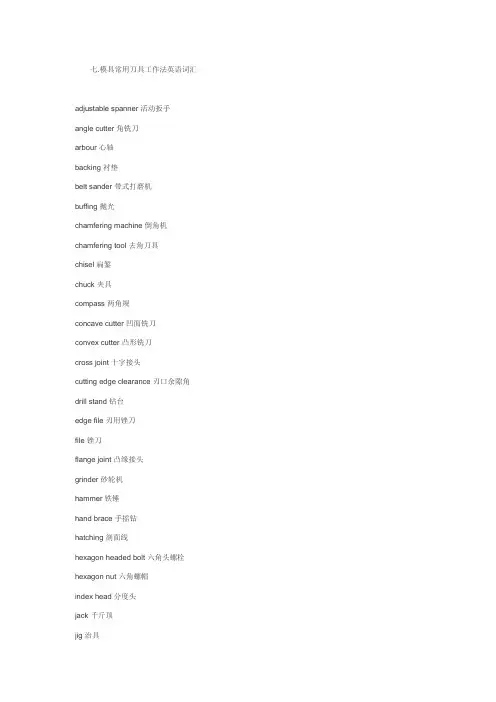

七.模具常用刀具工作法英语词汇adjustable spanner 活动扳手angle cutter 角铣刀arbour 心轴backing 衬垫belt sander 带式打磨机buffing 抛光chamfering machine 倒角机chamfering tool 去角刀具chisel 扁錾chuck 夹具compass 两角规concave cutter 凹面铣刀convex cutter 凸形铣刀cross joint 十字接头cutting edge clearance 刃口余隙角drill stand 钻台edge file 刃用锉刀file 锉刀flange joint 凸缘接头grinder 砂轮机hammer 铁锤hand brace 手摇钻hatching 剖面线hexagon headed bolt 六角头螺栓hexagon nut 六角螺帽index head 分度头jack 千斤顶jig 治具kit 工具箱lapping 研磨metal saw 金工锯nose angle 刀角pinchers 钳子pliers 铗钳 plug 柱塞头polisher 磨光器protable driller 手提钻孔机punch 冲头sand paper 砂纸scraper 刮刀screw driver 螺丝起子scribing 划线second out file 中纹锉spanner 扳手spline broach 方栓槽拉刀square 直角尺square sleeker 方形镘刀square trowel 直角度stripping 剥离工具T-slot T形槽tool for lathe 车刀tool point angle 刀刃角tool post 刀架tosecan 划线盘trimming 去毛边waffle die flattening 压纹效平wiper 脱模钳wrench 螺旋扳手。
