监控摄像机基本使用方法和安装操作监控摄像机基本使用方法和安装操作监控摄像机是一种广泛应用于各种场合的安全设备，它可以通过录像或实时监视的方式提供监控和防护。
本文将介绍监控摄像机的基本使用方法和安装操作。
一、监控摄像机的基本使用方法1. 开启监控摄像机要开始使用监控摄像机，需要将其连接到电源并打开电源开关。
通常，摄像机会附带一个电源适配器，您只需将其插入适配器插座，并将另一端插入摄像机的电源接口。
一旦接通电源，摄像机就会自动启动。
2. 连接监控摄像机监控摄像机通常支持有线和无线两种连接方式。
如果您选择有线连接，只需将摄像机的网线插入摄像机的网络接口，然后将另一端插入路由器或网络交换机的网络接口。
如果您选择无线连接，需要将摄像机与无线路由器进行配对，具体的配对方式可以参考您所使用摄像机的说明书。
3. 设置监控摄像机一旦摄像机成功连接到网络，您可以通过访问摄像机的IP地质或域名来配置和管理摄像机。
通常，您可以使用方式、电脑或平板电脑上的相关应用或软件来进行配置。
登录后，您可以设置摄像机的分辨率、图像质量、录像模式、移动侦测等功能。
4. 进行实时监控和录像配置完成后，您可以通过相关应用或软件来进行实时监控。
只需打开应用或软件，并选择您要监控的摄像机，您就可以在设备上查看实时画面。
如果您需要录像，大多数监控摄像机都支持定时、移动侦测等录像模式，您可以根据需要进行设置。
二、监控摄像机的安装操作1. 确定安装位置在安装监控摄像机之前，您需要确定合适的安装位置。
，您需要考虑监控范围和监控目的，选择一个合适的覆盖范围。
，您需要确保安装位置可以提供稳定的支撑，以避免摄像机晃动或移位。
2. 安装支架和摄像机安装摄像机之前，您需要安装支架。
通常，支架会附带摄像机，并配有安装螺丝。
，您需要使用螺丝将支架固定在合适的位置上，然后将摄像机与支架连接起来。
确保连接牢固并定位准确。
3. 连接电源和网络安装完成后，您需要将摄像机连接到电源和网络。

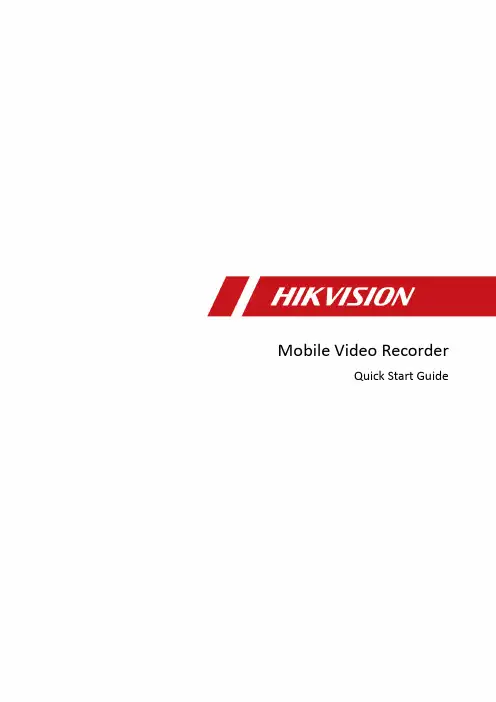

Mobile Video RecorderQuick Start GuideLegal Information©2022 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.About this ManualThe Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision website (https:///).Please use this Manual with the guidance and assistance of professionals trained in supporting the Product.Trademarksand other Hikvision’s trademarks and logos are the properties of Hikvision in various jurisdicti ons. Other trademarks and logos mentioned are the properties of their respective owners.DisclaimerTO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED “AS IS” AND “WITH ALL FAULTS AND ERRORS”. HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATTER PREVAILS.Regulatory InformationFCC InformationPlease take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.FCC ComplianceThis equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.FCC ConditionsThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:1.This device may not cause harmful interference.2.This device must accept any interference received, including interference that may causeundesired operation.EU Conformity StatementThis product and - if applicable - the supplied accessories too are marked with "CE" andcomply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU, RE Directive 2014/53/EU.2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: 2006/66/EC (battery directive): This product contains a battery that cannot be disposedof as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: Industry Canada ICES-003 ComplianceThis device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.Symbol ConventionsTABLE OF CONTENTSChapter 1 Panel Introduction (1)Front Panel (1)Rear Panel (2)Chapter 2 Installation and Connections (4)Environment (4)Install HDD (4)Install SIM Card (8)Install SD Card (9)Install Antenna (10)Chapter 3 Device Wiring (12)Power Cord Wiring (12)3.1.1 Shutdown Delay (12)3.1.2 Scheduled Shutdown (13)Alarm Input/Output Connection (14)3.2.1 Alarm Input Connection (14)3.2.2 Alarm Output Connection (14)Sensor-in Wiring (15)Power-on (15)Chapter 1 Panel Introduction Front PanelFront PanelNo. Name Description1 Dummy HDD Two HDDs can be installed.2 Network interface 10M/100M/1000M RJ45 Ethernet interface.3 USB 3.0 USB 3.0 interface.4 PWR indicator●Solid green: Device is powered on.●Solid red: Device is standby.RDY indicator ●Solid green: Device starts up normally. REC indicator●Recording indicator.●Solid green: Device is recording normally. GNSS indicator●Unlit: Positioning module is abnormal.●Solid green: Device is positioning.●Flashing green: Positioning succeeded. ANT indicator●Unlit: Dialing module is abnormal.●Solid green: Device is dialing.●Flashing green: Dialing up succeeded. ALM indicator Red: Alarm occurs.Rear PanelRear Panel5IR receiver IR receiver for remote control. 6Dummy HDD lock Lock/unlock the dummy HDD. 7 SD card slot Slot for SD card.No. NameDescription 1RS-485 interface RS-485 interface for connecting devices like speed dome. 2RS-232 interface RS232-1 is for debugging. 3RS-232 interface RS232-2 is for connecting external devices. 4EXT.DEV RS-485 communication interface, two-way audio interface, and CVBS video output 5VGA VGA video output interface 6 USB interface USB interface of 5-pin aviation plug.Chapter 2 Installation and ConnectionsEnvironmentTo ensure the device can ventilate well, find a position with enough space. Recommended installation space is shown in Figure 2-1.Recommended Installation SpaceInstall HDDBefore You Start:Prepare the tools and components for installation:●Factory recommended 2.5-inch HDD.●Antistatic gloves.●Key to dummy HDD (delivered with device).●Cross screwdriver.●Screws (delivered with device).ToolsPurpose:Perform the following steps to install the HDD on the device. Figures in following steps are only for reference.Wear antistatic gloves.Insert the key and turn counterclockwise to unlock dummy HDD.Unfasten the two screws of dummy HDD and pull dummy HDD out of device.Dummy HDDUnfasten ScrewsPull Dummy HDD outUse cross screwdriver to loosen the two screws and remove them, and then take the dummy HDD apart.Place the first HDD into the dummy HDD, with the PCB facing down.Place HDDPush the HDD along the direction shown in Figure 2-6 to connect HDD with socket of dummyHDD.Push HDDUse four sunk screws to fix HDD with dummy HDD.Fix HDDRepeat step 4 to 6 to install the secondary HDD in the other socket of dummy HDD.Install the Other HDDReassemble the dummy HDD.Reassemble Dummy HDDPlug the dummy HDD back to the device and then tighten the screws clockwise.Turn the key clockwise to lock dummy HDD.Install SIM CardPurpose:Pluggable 4G/5G wireless communication module is designed for the device and you should install the SIM card to realize the wireless communication function.Before You StartPrepare the tools and components for installation:●SIM card●WrenchPhillips ScrewdriverWear antistatic gloves.Use wrench to unfasten and remove the two screws fixing the 4G/5G and Wi-Fi module.Unfasten ScrewsPull out the 4G/5G and Wi-Fi module. Press the yellow button on the 4G/5G slot and then pull the SIM card tray out.Place the SIM card on SIM card tray with the metal side facing upwards.Insert the SIM card tray back to SIM card slot.Install the 4G/5G module back to the device and tighten the set screw.Install SD CardBefore You StartPrepare the tools and components for installation:● Key to dummy HDD (delivered with device)● SD cardToolsWear antistatic gloves.Insert the key and turn counterclockwise to unlock dummy HDD.Unfasten the two screws of dummy HDD and pull dummy HDD out of device.Unfasten ScrewsDummy HDDUnfasten ScrewsOpen the cover of SD card slot.Insert SD card into SD card slot with gold contacts facing down till you hear a click.Plug the dummy HDD back to the device, close the cover of SD card slot, and then tighten the screws clockwise.Turn the key clockwise to lock dummy HDD.Install AntennaThis section is only applicable to the device supporting 4G/5G and Wi-Fi.Connect antennas to corresponding antenna interfaces.Antenna InterfaceInterface Corresponding AntennaM-ANT/Main 4G/5G antennaAUX Aux Wi-Fi antennaWIFI/Main Wi-Fi antennaGNSS/Positioning antennaPlace antenna vertically with its signal receiving end facing upward.If the cable is too long, you can roll them up to prevent signal receiving from being affected.Install 4G/5G antenna in car windshield, seat backrest, or other non-metallic objects. Keep away from metal objects for at least 50 cm.Vertically install positioning antenna on the automobile roof with no shelter.Install Positioning Antenna on Automobile RoofFollow the instructions below in case that you need to install positioning antenna inside your automobile.1)Install antenna on platform under the front windshield.Install Positioning Antenna Inside Automobile2)Fix antenna with neutral silica gel.3)When adjusting the antenna position, ensure that at least 4 satellites have a signalstrength above 35 dB. You can go to Configuration > Vehicle > Position Settings > Location Status to view positioning signal status.Chapter 3 Device WiringPower Cord WiringIn order to ensure the safety of your automobile and device, a fuse is required for wiring of automobile power and device power.Do not connect the power cord to the device before all the cables are connected.Purpose:The device starts up when your automobile ignites and shuts down after automobile is off. Automobile ignition startup and shutdown are realized by automobile positive pole ignition switch (providing high level signal when the switch closes). The wire connection of the device varies with the automobile ignition models.Ignition switch is connected to the positive pole of +12/24 VDC of automobile batteries. Make sure that the connection is correct, and then perform the following steps:Connect the DC IN + of the device to the positive pole of automobile batteries, jumping over the switch of normal automobile power.Connect the DC IN - of the device to the negative pole of automobile batteries.Connect the ACC of the device to the automobile ignition switch.Place the fuse into the fuse holder.What to do next: For detailed time settings of time-delay shutdown, see the Chapter “Configure Delayed Shutdown” in user manual.Install Fuse for Two Types of Power SupplyACC DC IN +-Automobile Ignition SwitchDeviceAutomobileBattery Automobile Power System Wiring of DevicePoint of Connection Positive PoleNegative PoleAutomobile Power SwitchShutdown Delay● Please contact the automobile manufacturer for the connection information of ignitionswitch.● The automobile ignition switch, also called car key, controls the startup and shutdown ofyour automobile . Most of automobiles adopt positive pole ignition switch currently.● The normal automobile power refers to the main power of the automobile power supplysystem. After the automobile is off, the normal automobile power still provides direct-current source for the other devices inside and generally a main switch is used to turnon/off it.Connect the DC IN + and KEY + of the device to the positive pole of automobile batteries. Connect the DC IN - and KEY - of the device to the negative pole of automobile batteries. Place the fuse into the fuse holder.What to do next: For detailed time settings of time-delay shutdown, see the Chapter “Enable Scheduled Startup/Shutdown” in user manual.Install Fuse for Power SupplyACC DC IN+-DeviceAutomobileBattery Automobile Power SwitchAutomobile Power System Wiring of DevicePoint of Connection Negative PolePositive PoleScheduled Shutdown Alarm Input/Output ConnectionThe device adopts the high/low-level electrical signals triggering (high level: 6 to 36 VDC; low level: 0 to 5 VDC) to realize alarm input. And in order to avoid error report caused by voltage fluctuation, no alarm will be triggered by voltage ranging of 5 to 6 VDC.Alarm 1IO Alarm 2Alarm 3Alarm 4121516Alarm Input Connection Follow the figure bellow to wire alarm output.n and n# are a pair of alarm output. You can connect them with a relay alarm device. When the voltage of connected alarm device exceeds the valid alarm output range, you need to connect a relay to protect alarm output.RelayOutput nn#Load GND Power Output JQC-3FG Relay (10 A/250 VAC)~ 220 VAC NeutralLive Relay Output n#n Alarm Powered by Direct Current Alarm Powered by Alternating CurrentAlarm Output Connection Sensor-in WiringConnect the delivered extension cable to I/O interface.Connect the automobile braking, reversing, left-turn, and right-turn signals to sensor-in interface.IOBrakingReversing121516Left-turn Right-turnSensor-in Wiring Power-onThe indicator types vary with different models. Here the most comprehensive indicators are introduced.Connect the device to power supply after all the installations above are finished. You can view the indicators to get knowledge of the device status. For details, see descriptions in Table 1-1UD 16。

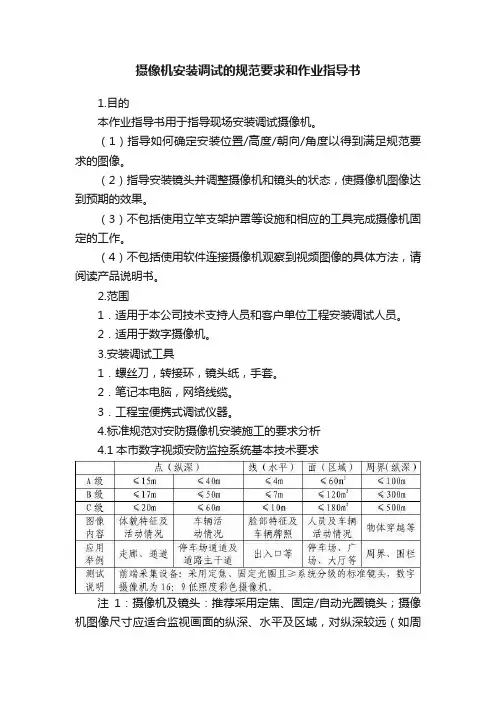

摄像机安装调试的规范要求和作业指导书1.目的本作业指导书用于指导现场安装调试摄像机。
（1）指导如何确定安装位置/高度/朝向/角度以得到满足规范要求的图像。
（2）指导安装镜头并调整摄像机和镜头的状态，使摄像机图像达到预期的效果。
（3）不包括使用立竿支架护罩等设施和相应的工具完成摄像机固定的工作。
（4）不包括使用软件连接摄像机观察到视频图像的具体方法，请阅读产品说明书。
2.范围1．适用于本公司技术支持人员和客户单位工程安装调试人员。
2．适用于数字摄像机。
3.安装调试工具1．螺丝刀，转接环，镜头纸，手套。
2．笔记本电脑，网络线缆。
3．工程宝便携式调试仪器。
4.标准规范对安防摄像机安装施工的要求分析4.1本市数字视频安防监控系统基本技术要求注1：摄像机及镜头：推荐采用定焦、固定/自动光圈镜头；摄像机图像尺寸应适合监视画面的纵深、水平及区域，对纵深较远（如周界）的监视画面应选用4：3的图像尺寸。
注2：布点设计室外以1080P为主室内视实际情况而定。
数字视频安防监控系统的布控应根据所监视区域的点（纵深）、线（水平）、面（区域）进行分别设计，应充分考虑数字摄像机较模拟摄像机对监视环境适应性不同的优劣和特征。
同一数字视频监控系统的清晰度可根据所选用摄像机清晰度的不同而允许存在多种分级。
用于特征性场合摄像机（如：电梯等），带云台变焦镜头摄像机可采用模拟摄像机，系统组成方式，可沿用原有模拟摄像机+视频电缆（控制和电缆）+硬盘录像设备等方式独立搭建，系统指标应不低于270线；重要场合摄像机（除小区楼栋出入口外）的选型应保证系统清晰度指标不低于600线，网络型摄像机应安装存储介质，且不宜采用POE供电方式。
电梯轿厢采用模拟摄像机的，应安装在电梯轿箱顶部、电梯控制面板的上方，应配置电梯楼层信号叠加显示器；采用数字摄像机的，应具有抗逆光功能，应安装在电梯轿箱顶部、电梯控制面板的对角处。
网络型摄像机应具有网络中断、设备故障、报警状态的本地视（音）频信息存储功能，存储图像的性能指标应符合《本市视频安防监控用彩色数字摄像机技术规范》4.4条的要求。
表数据AXIS P1264Network Camera高性价比、隐蔽式针孔摄像机AXIS P1264Network Camera是一款高性价比的隐蔽式针孔摄像机，具备HDTV720p性能。
包括一个传感器单元和一个主机，此款室内摄像机很适用于商店、ATM以及自动售票机/自动售货机。
可使用包括在内的安装支架将该针孔传感器单元安装在紧凑空间内以及薄金属/塑料/玻璃面板后方。
该传感器单元可提供57°水平视野。
一根8米（26英尺）长的可拆卸式电缆可将传感器单元连接至小型主机。
该主机支持PoE、前端存储和Zipstream技术，可用于降低带宽和存储使用。
>针孔镜头适用于隐蔽式监控>HDTV720p和57°水平视野>Axis Zipstream技术>内置microSD卡槽>以太网供电AXIS P1264Network Camera 摄像机图像传感器1/4''（有效）逐行扫描RGB CMOS镜头固定光圈、固定焦距、针孔3.7毫米，F2.5水平视野：57°垂直视野：31°最低照度颜色：0.5lux快门时间1/24500s至1/6s视频视频压缩H.264(MPEG-4Part10/AVC)Baseline、Main和HighProfileMotion JPEG分辨率1280x720至480x270帧速率25/30fps(50/60Hz)视频流提供多个可单独配置的H.264和Motion JPEG格式的视频流采用H.264格式的Axis Zipstream技术可控制的帧速和带宽VBR/ABR/MBR H.264图像设置压缩、颜色、亮度、锐度、对比度、白平衡、曝光值、曝光控制、曝光区域、局部对比度、旋转、走廊模式、WDR、文本和图像叠加、隐私遮罩、图像成像网络安全密码保护、IP地址过滤、HTTPS a加密、IEEE802.1X(EAP-TLS)a网络访问控制、摘要式身份验证、用户访问日志、集中式证书管理、强力延迟保护、签名固件支持的协议IPv4、IPv6USGv6、HTTP、HTTPS a、SSL/TLS a、QoS Layer3DiffServ、FTP、CIFS/SMB、SMTP、Bonjour、UPnP TM、SNMPv1/v2c/v3(MIB-II)、DNS、DynDNS、NTP、RTSP、RTP、SFTP、TCP、UDP、IGMPv1/v2/v3、RTCP、ICMP、DHCP、ARP、SOCKS、SSH、LLDP、MQTT v3.1.1系统集成应用程序编程接口用于进行软件集成的开放API，包括VAPIX®和AXIS Camera Application Platform(ACAP)；规格请参见一键云连接ONVIF®Profile G、ONVIF®Profile S和ONVIF®Profile T，规格请参见事件触发分析前端存储事件事件动作文件上传：电子邮件、FTP、HTTP、HTTPS、网络共享通知：电子邮件、HTTP、HTTPS和TCP报警前和报警后视频缓冲发送SNMP陷阱、WDR模式内置安装帮助像素计算器数据流事件数据分析应用随附AXIS Motion Guard、AXIS Fence Guard、AXIS Loitering Guard、AXIS视频移动侦测支持AXIS Cross Line Detection支持AXIS Camera Application Platform，能够安装第三方应用，请参见/acap常规外壳AXIS P12Mk II Main UnitUnit：：钢和塑料AXIS F1004Pinhole Sensor UnitUnit：：金属外壳（铝）存储器512MB RAM，256MB闪存电源以太网供电IEEE802.3af/802.3at1型2类最大4.0W,标准2.5W接口用于10BASE-T/100BASE-TX PoE的内孔RJ45用于传感器单元的RJ12存储支持microSD/microSDHC/microSDXC卡和加密录制到网络附加存储(NAS)有关SD卡和NAS的建议，请参见工作条件-20°C至50°C（-4°F至122°F）湿度10-85%RH（非冷凝）存放条件-40°C至65°C（-40°F至149°F）湿度5-95%RH（非冷凝）认证EMCEN55022B类、FCC第15部分B子部分B类、ICES-003B类、VCCI B类安全IEC/EN/UL60950-1、IS13252环境IEC60068-2-1、IEC60068-2-2、IEC60068-2-6、IEC60068-2-14、IEC60068-2-27网络NIST SP500-267尺寸AXIS P12Mk II Main UnitUnit：：16x46x109毫米（0.6x1.8x4.3英寸）AXIS F1004Pinhole Sensor UnitUnit：：27x20x18毫米（1.1x0.8x0.7英寸）传感器单元电缆：8米（26英尺）重量AXIS P12Mk II Main UnitUnit：：72克（0.16磅）AXIS F1004Pinhole Sensor UnitUnit：：14克（0.03磅）传感器单元电缆：128克（0.28磅）所含附件安装指南、Windows®解码器单用户许可证AXIS F8206Pinhole Mounting Bracket8米（26英尺）黑色电缆可选附件AXIS T812015W Midspan1-portAXIS T8129PoE ExtenderNetwork cable coupler indoor slimAXIS Surveillance CardsAXIS F7315Cable White15mAXIS F8204Mounting BandAXIS F9201Black Height Strip HousingAXIS F9201Silver Height Strip Housing有关更多附件的信息，请参见视频管理软件AXIS Companion、AXIS Camera Station、Axis应用开发合作伙伴的视频管理软件可在/vms上获得质保有关5年保修的信息，请参见/warrantya.本产品包括由OpenSSL Project开发的用于OpenSSL工具包的软件(/)以及由Eric Young(*****************)编写的加密软件。

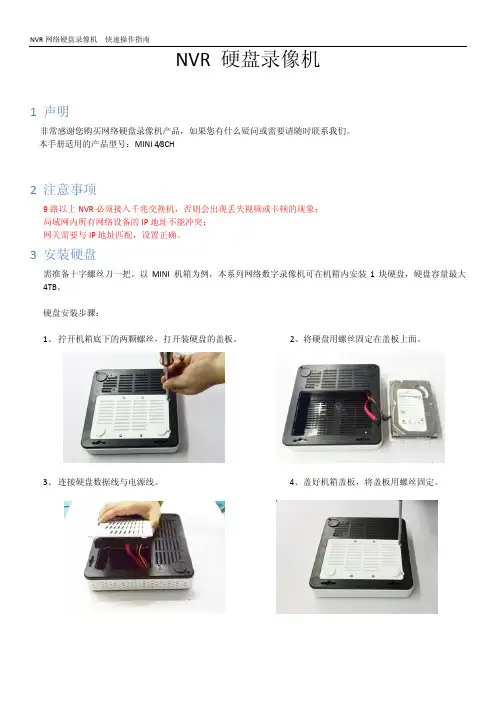

NVR 硬盘录像机1 声明非常感谢您购买网络硬盘录像机产品，如果您有什么疑问或需要请随时联系我们。
本手册适用的产品型号：MINI 4/8CH2 注意事项9路以上NVR必须接入千兆交换机，否则会出现丢失视频或卡顿的现象；局域网内所有网络设备的IP地址不能冲突；网关需要与IP地址匹配，设置正确。
3 安装硬盘需准备十字螺丝刀一把。
以MINI 机箱为例，本系列网络数字录像机可在机箱内安装1块硬盘，硬盘容量最大4TB。
硬盘安装步骤：1、拧开机箱底下的两颗螺丝，打开装硬盘的盖板。
2、将硬盘用螺丝固定在盖板上面。
3、连接硬盘数据线与电源线。
4、盖好机箱盖板，将盖板用螺丝固定。
4 后面板接口说明MINI 4/8CH5 主机操作5.1 开机插上电源线，按下后尾板电源开关，NVR 开机。
开机完成后视频输出默认为多画面输出模式，若开机启动时间在录像设定时间内，系统将自动启动定时录像功能。
注意：请使用与网络数字录像机配套提供的电源，不得使用其它类型或品牌的电源代替原配电源。
5.2 登陆系统正常开机后，会出现开机向导画面。
管理员默认密码为：123456 鼠标单击“下一步”进入到设置向导5.3 设置向导此页面可以设置设备名称、系统语言、系统时间 等；设置完成后鼠标单击“下一步”进入到向导网络 设置；HDMI 高清接口USB 接口电源输入5.4 网络设置进入网络参数界面，设置网络参数，设置好NVR 的IP 地址、子网掩码、网关等。
可以通过用局域网内的PC 主机运行命令ping 命令去ping NVR 的IP 检测NVR是否已经连接进局域网。
注意：IP 地址存在冲突风险，请正确设置网关。
否刚将导致NVR 工作不正常，请确保局域网内所 有网络设备IP 地址的唯一性。
单击“完成”按钮进入到NVR 主界面。
5.5 关机主界面点击下方状态栏 “关闭系统”按钮， 1. 注销：注销当前用户名，锁定NVR ； 2. 关机：设备自动关机； 3. 重启：设备自动重启；（提示：关机时建议使用 此方式，以避免意外断电时对设备造成的损害）。
·Mobile Network CameraInstallation GuideLegal Information©2022 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.About this ManualThe Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision website (https:///).Please use this Manual with the guidance and assistance of professionals trained in supporting the Product.Trademarksand other Hikvision’s trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned are the properties of their respective owners.DisclaimerTO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED “AS IS” AND “WITH ALL FAULTS AND ERRORS”. HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATTER PREVAILS.Regulatory InformationFCC InformationPlease take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.FCC ComplianceThis equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.FCC ConditionsThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:1.This device may not cause harmful interference.2.This device must accept any interference received, including interference that may causeundesired operation.EU Conformity StatementThis product and - if applicable - the supplied accessories too are marked with "CE" andcomply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU.2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: 2006/66/EC (battery directive): This product contains a battery that cannot be disposedof as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: Industry Canada ICES-003 ComplianceThis device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.Applicable ModelsSymbol ConventionsSafety Instructions●Proper configuration of all passwords and other security settings is the responsibility of theinstaller and/or end-user.●In the use of the product, you must be in strict compliance with the electrical safety Inputvoltage should meet limited power source or PS2 requirements regulations of the nation and region. Please refer to technical specifications for detailed information.●Input voltage should meet limited power source or PS2 requirements according to theIEC60950-1 or IEC 62368-1 standard. Please refer to technical specifications for detailedinformation.●Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire hazard.●Please make sure that the plug is firmly connected to the power socket.●If smoke, odor or noise rise from the device, turn off the power at once and unplug the powercable, and then please contact the service center.TABLE OF CONTENTSChapter 1 Packing List and Cable Description (1)Packing List (1)Cable Description (3)Chapter 2 Installation (4)Installation Requirements (4)2.1.1 Installation Position Requirements (4)2.1.2 Installation Surface Requirements (4)2.1.3 Water Proof Requirements (4)Vertical Installation (4)2.2.1 Vertical Installation Method 1 (4)2.2.2 Vertical Installation Method 2 (7)Horizontal Installation (11)Chapter 3 Angle Adjustment (15)Adjust With Wrench (15)Adjust the Body of the Camera (16)Chapter 1 Packing List and Cable DescriptionBefore You BeginBefore unboxing, check if the package is intact. Refer to the list to make sure that all the assembly parts are included. The 3 types of packing lists of the mobile network camera is shown below.Packing ListThere are 3 type of cable available, differing on their support for power, alarm and internet interface. Please choose according to your actual need.Packing List of Type I CameraNoPicture Name Number 1Camera 12Wrench 13ST4.8×25 Screws 1 4QSG 1 5Tape 3 6Water Proof Suit(Only Available forRJ45 Cable)1Packing List of Type II CameraNoPicture Name Number 1Camera 12Wrench 13ST4.8×25 Screws 1 4QSG15Tape 3NoPicture Name Number 1Camera 12Wrench 13ST4.8×25 Screws 14QSG 1 5Tape 3Cable DescriptionThere are 3 types of cables for the network camera, as shown in the following figures. Please refer to the relevant instructions according to the physical equipment.Rj45 Cable4 Core Cable6 Core Cable ● Power Interface: the camera supports 9V-36V power supply. Please connect the positive and negative poles of the power supply correctly.● Internet Interface: network signal output.● Alarm Interface: support alarm input and output.Chapter 2 InstallationInstallation RequirementsBefore you beginPuncture a hole on the body of the vehicle for the cable of the camera to go through. Match the sheet metal fixed support with the hole when installing the camera.The camera can be installed both horizontally and vertically, though the later is preferred. Typically, horizontal installation is recommended for the police vehicle, and the vertical installation is recommended for school bus and ambulance.To install the camera vertically, two requirements should be met for the best capture performance and the ease of installation:●The height of installation should be between 1-1.6 m●The surface of installation should be vertical to the ground.When both requirements can be met, refer to 2.2.1 Vertical Installation Method 1. If not and camera is to be installed on a tilted surface, refer to 2.2.2 Vertical Installation Method 2. On the tilted surface, the camera requires further calibration of its angle.For the stability of the camera, two further requirements of the material of the surface of the installation should be met:●When the camera is installed on the sheet metal, its thickness should be more than 1.2 mm. Ifthe thickness is bellow this number, it is recommended to strengthen the sheet metal with a reinforcing plate.●When the camera is installed on a plastic surface, it is recommended to strengthen the surfacewith a reinforcing plate.The throwing line of the camera should not be exposed outside of the vehicle. It is recommended to get the cable connection part water-proof treatment.Vertical InstallationSince the installation process of cameras with differing cables are the same, we take one type to illustrate the installation process.Use the hexagon wrench in the package to unfasten the two the screws at the back of the camera.Unfasten the ScrewsTake off the sheet metal from the camera, and the rubber seal of the cable from the sheet metal.Take Off the Sheet Metal and Rubber SealVertically place the sheet metal fixed support on the place where the camera is to be installed, and then fix it with the screw.Fix the Sheet Metal Fixed SupportGuide the cable through the cable hole, seal the hole with the rubber seal, and install the camera back to the sheet metal fixed support.Reinstall the Camera to the Fixed SupportTighten the two screw on the back of the camera.Tighten the ScrewsLoose the screw on the two sides of the camera with the hexagon wrench, adjust the angle of the camera for the best vision and tighten the two fixation screw to avoid wobble.Adjust the Angle of the CameraUse the hexagon wrench in the package to unfasten the two the screws at the back of the camera.Unfasten the ScrewsTake off the sheet metal from the camera, and the rubber seal of the cable from the sheet metal.Take Off the Sheet Metal and Rubber SealVertically place the sheet metal fixed support on the place where the camera is to be installed, but do not tighten the screw to the end.Fix the Sheet Metal Fixed SupportGuide the cable through the cable hole, seal the hole with the rubber seal.Reinstall the Camera to the Fixed SupportInstall the camera back to the sheet metal fixed support, adjust and record the angle of the camera for best vision. For details, see Chapter 3 Angle Adjustment.Adjust the Angle of the CameraTighten the two screw on the back of the camera.Tighten the ScrewsAgain guide the cable through the cable hole, seal the hole with the rubber seal.Organize the CableRe-install the camera back to the sheet metal fixed support, adjust the angle of inclination of the camera to the angle recorded, and tighten the two fixation screw to avoid wobble.Reinstall the CameraHorizontal InstallationUse the hexagon wrench in the package to unfasten the two the screws at the back of the camera.Unfasten the ScrewsTake off the sheet metal from the camera, and the rubber seal of the cable from the sheet metal.Take Off the Sheet Metal and Rubber SealHorizontally place the metal sheet on the position of installation and then fasten the screws.Guide the cable through the cable hole, seal the hole with the rubber seal, and install the camera back to the sheet metal fixed support.Install the Camera to the Fixed SupportTighten the two screw on the back of the camera.Tighten the ScrewsLoose the screw on the two sides of the camera, adjust the angle of the camera for the best vision, and tighten the two fixation screw to avoid wobble.Adjust the Angle of the CameraChapter 3 Angle AdjustmentAdjust With WrenchThe angle of the camera can be adjusted in 2 ways: adjust with the wrench and adjust the angle that it is installed on the surface of the vehicle. If the installation surface is vertical to the ground, then no need for adjusting the body of the camera.Loose the screw on the two sides of the camera with the hexagon wrench.Adjust the Angle With the WrenchAdjust the angle of the camera for the best vision. The range is 80°and the scales differ by 10°. After the adjustment, tighten the two fixation screw to avoid wobble.Range And ScaleAdjust the Body of the CameraWhen installed on a tilted surface, loosen the two screws at the back of the camera and adjust the body of the camera before adjusting the camera itself.Loosen the ScrewsThe metal sheet can be opened up to 30° and both sides are supported.Range of the Inclination AngleAdjust the vertical vision by the moving the camera around the screw in the metal sheet.Adjust the Vertical VisionUD30023B 0。
智能安防系统安装与调试操作规程第一章智能安防系统概述 (4)1.1 系统简介 (4)1.2 系统功能 (5)第二章安装前的准备工作 (5)2.1 环境检查 (5)2.1.1 检查安装现场的环境条件，保证符合智能安防系统的安装要求。
主要包括： (5)2.1.2 对不符合安装要求的环境，提出整改意见，待整改完成后进行安装。
(6)2.2 设备准备 (6)2.2.1 根据智能安防系统设计方案，准备所需的设备，主要包括： (6)2.2.2 对设备进行外观检查，保证设备无损坏、变形等问题； (6)2.2.3 检查设备说明书、合格证明等资料是否齐全； (6)2.2.4 对设备进行功能测试，保证设备功能稳定、可靠。
(6)2.3 工具与材料准备 (6)2.3.1 准备安装过程中所需的工具，主要包括： (6)2.3.2 准备安装过程中所需的材料，主要包括： (6)2.3.3 对工具与材料进行检查，保证数量充足、质量可靠。
(7)第三章设备安装 (7)3.1 摄像机安装 (7)3.1.1 准备工作 (7)3.1.2 安装过程 (7)3.1.3 安装注意事项 (7)3.2 录像机安装 (7)3.2.1 准备工作 (7)3.2.2 安装过程 (7)3.2.3 安装注意事项 (8)3.3 控制设备安装 (8)3.3.1 准备工作 (8)3.3.2 安装过程 (8)3.3.3 安装注意事项 (8)第四章网络布线 (8)4.1 网络规划 (8)4.1.1 根据智能安防系统的需求，进行网络规划，保证网络覆盖范围、带宽及稳定性满足系统运行要求。
(8)4.1.2 考虑未来网络扩展的可能性，预留一定数量的网络接口和路由器端口，以应对后期系统升级和设备增加。
(9)4.1.3 分析网络拓扑结构，合理布局交换机、路由器等网络设备，保证数据传输高效、稳定。
(9)4.1.4 确定网络布线方案，包括线缆类型、长度、路由等，以满足智能安防系统对网络传输功能的要求。

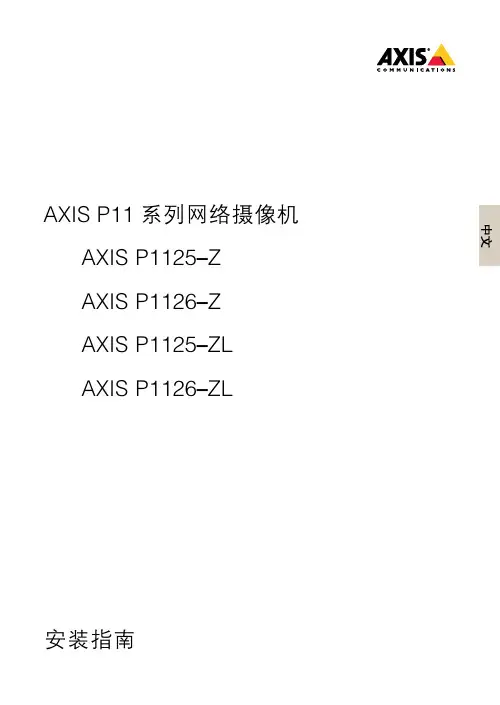

AXIS P11系列网络摄像机AXIS P1125–ZAXIS P1126–ZAXIS P1125–ZLAXIS P1126–ZL安装指南AXIS P11系列网络摄像机法律考虑事项责任本文档在制作时已力求审慎。
如发现任何不准确或遗漏的内容，请及时告知您当地的安讯士办事处。
安讯士网络通信有限公司不承诺对任何技术或印刷错误承担责任，并保留对产品及手册进行变更的权利，恕不另行通知。
安讯士网络通信有限公司不对本文档中包含的材料做出任何形式的担保，包括但不限于为特定目的而对适销性和适用性做出的暗示担保。
安讯士网络通信有限公司对于与该材料的提供、执行或使用相关的偶然或间接损坏不承担任何责任，也不负责。
该产品仅可按其使用意图使用。
商标声明AXIS COMMUNICATIONS、AXIS、ETRAX、ARTPEC和VAPIX 是安讯士网络通讯有限公司在全球各个国家的商标和注册商标。
所有其他公司名称和产品是其各自公司的商标或注册商标。
Apple、Boa、Apache、Bonjour、Ethernet、Internet Explorer、Linux、Microsoft、Mozilla、Real、SMPTE、QuickTime、UNIX、Windows、Windows Vista和WWW均为各自持有者的注册商标。
Java和所有基于Java的商标和标识均为Oracle公司和/或其下属公司的商标或注册商标。
UPnP TM是UPnP TM Implementers 公司的认证标志。
SD、SDHC和SDXC是SD-3C,LLC在美国和/或其他国家和地区的商标或注册商标。
另外，miniSD、microSD、miniSDHC、microSDHC、microSDXC是SD-3C，LLC在美国和/或其它国家/地区的商标或注册商标。
支持支持如果您需要任何技术帮助，请与您的安讯士经销商联系。
如果不能立即回答您的问题，经销商将会通过适当的渠道上报您的疑问，以获得快速响应。
