日本费加罗FIGARO氨气传感器 TGS826

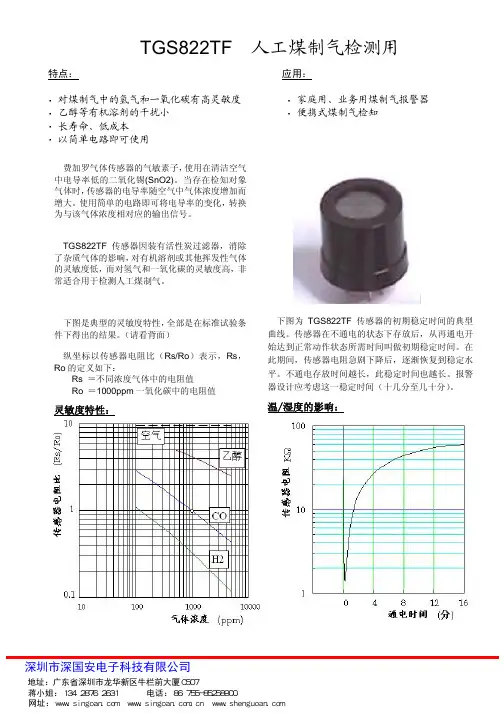

费加罗可燃气体传感器
经过市场40余年运用的历史发展，气体传感器和气体报警器都得到了持续的改进。

因此，如今的气体报警器可以做到免维护运行，质保期可达5年。

通过使用内置过滤器来提高传感器耐久性以及防止气体引起误报警的方法已经成为标准做法。

 所有费加罗可燃气体传感器的家用气体报警器都有一个内置过滤器。

过滤材料的使用量满足欧洲标准中设计所要求的响应时间（≤30s）。

 费加罗可燃气体传感器还具有一下特点：
 每一只传感器，都在严控温湿度的条件下生产制造，对使用对象气体就行100%全检。

 有可追溯的制造记录，传感器的制造记录可以通过生产批号进行追溯。

 面向精准客户要求，费加罗推出了LPM2610,NGM2611,CGM6812等几款预校准模块，这些模块出厂前已经经过严格控制条件下的预校准。

 4.符合ROHS与REACH标准。

费加罗气体传感器符合限制有害物质指令（ROHS）以及化学品注册，评估，授权和限制令（REACH）等环保规范。

 
 低功耗。

费加罗持续致力于研究低功耗的传感器，由于传感器芯片的小型化，TGS2610/2611的功耗仅有280mw。

 长寿命。

TGS6810/6812传感器的预期寿命在10年左右。

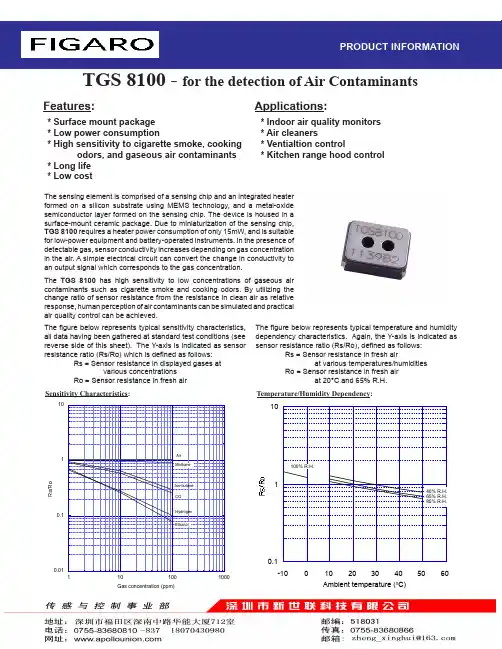

TGS2602 空气污染、臭味检测用特点： 应用：・低功耗 ・空气清新机、换气扇控制 ・对VOC 、氨气、硫化氢有高灵敏度 ・脱臭器控制・长寿命、低成本 ・室内空气监视器・可利用简单电路下图是典型的香烟烟雾灵感度特性。

香烟的根数是约10平米的房间吸烟情况下的数值。

这里的纵轴也用传感器电阻比Rs/Rs(Air)来表示， 这里的Rs ､Rs(Air)定义如下： Rs ＝香烟的烟雾存在时的传感器电阻值 Rs(Air) ＝清洁大气中的传感器电阻值 香烟灵敏度特性：敏感素子由集成的加热器以及在氧化铝基板上形成的金属氧化物半导体构成。

当可检知的气体存在时，空气中该气体的浓度越高，传感器的电导率就越高。

使用简单的电路就可以将这种电导率的变化变换为与气体浓度对应的输出信号。

TGS2602不仅对香烟的烟雾或烹调臭味有很高的灵敏度，而且对硫化氢、VOC 、氨气有高灵敏度。

这种传感器是利用相对值检知来实现更接近人类感觉的控制，即以空气清洁的时候为基准，通过传感器电阻值比空气清洁时变化了多少来检测空气的污染程度。

下图是典型的灵敏度特性，全部是在标准试验条件下得出的结果。

（请看背面） 纵轴以传感器电阻比Rs/Rs(Air)表示，Rs ､Rs(Air)的定义如下： Rs ＝各种浓度气体中的传感器电阻值Rs(Air)＝清洁大气中的传感器电阻值灵敏度特性：规格： 结构及尺寸：型 号 TGS2602素子类型 26系列 标准封装 金属 对象气体氢气、酒精等检测范围 1 ～10 ppm标准回路加热器电压 VH 5.0±0.2V DC/AC 回路电压 VC 5.0±0.2V DC Ps 15mW ≦ 负载电阻 RL 可变Ps 15mW ≦标准试验加热器电阻 RH59 Ω（室温）加热器电流 IH 56mA 加热器功耗 PH 280mW VH ＝5.0V DC/AC 传感器电阻Rs10～100 K Ω（空气中） 灵敏度(Rs 的变化率)0.15～0.5Rs(乙醇：10 )Rs(Air)标准试验试验气体条件 20±2℃，65±5％RH 回路条件 VC ＝5.0±0.2V DCVH ＝5.0±0.2V DC/AC试验前预热时间 96小时以上功耗（Ps ）值可用下式计算： 传感器电阻（Rs ），可根据VOUT测定值，用下式计算：为提高性能，本规格书将不事先预告而变更。

日本费加罗Figaro氧气传感器广州南创陈工FIGARO是一家专业生产半导体气体传感器的公司，1962年发明全球第一款半导体产品，目前全球第一。

FIGARO的产品远销38个国家，在多个国家设立了分支机构或办事处，生产基地遍布美洲、东欧、中国等地；并在中国设立了广州南创传感器事业部，可为用户的实验和生产提供最佳的服务与解决方案。

半导体气体传感器采用金属氧化物半导体烧结工艺，对被检测的检测气体具有灵敏度高、响应时间短、成本低、长期稳定性好等优点。

我们的产品包括可燃气体、有毒气体、空气质量、一氧化碳、二氧化碳、氨气、汽车尾气、酒精等传感器元件、传感模块等，以及各种气体传感器的配套产品。

目前已经被广泛应用于家用燃气报警器、工业有毒气体报警器、空气清新机、换气空调、空气质量控制、汽车尾气检测、蔬菜大棚、酒精检测、孵化机械等。

日本费加罗Figaro氧气传感器KE-25KE-50信息日本费加罗Figaro氧气传感器KE-25KE-50性能：测量范围：0-100％O2精度：氧气传感器KE-25：±1％（全量程）；氧气传感器KE-50：±2％（全量程）工作温度：5～40℃储存温度：-20～＋60℃响应时间：KE-25：14±2秒；KE-50：60±5秒初始输出：KE-25：10.0–15.5mv；KE-50：47.0-65.0mv期望寿命：KE-25：5年；KE-50：10年日本费加罗Figaro氧气传感器KE-25KE-50特性：长寿命（KE-25-5年，KE-50-10年）不受CO2，CO，H2S，NOx，H2影响低成本，在常温下工作信号输出定，无需外部电源不需加热以上日本费加罗Figaro氧气传感器技术参数以《OIML60号国际建议》92年版为基础，最新具体变化可查看《JJG669—12FIGARO广州南创传感器事业部检定规程》产品特性描述：氧气传感器KE-25KE-50属于半导体气体传感器不受CO2，CO，H2S，NOx，H2影响，氧气传感器KE-25KE-50低成本在常温下工作信号输出定，无需外部电源不需加热；精度氧气传。

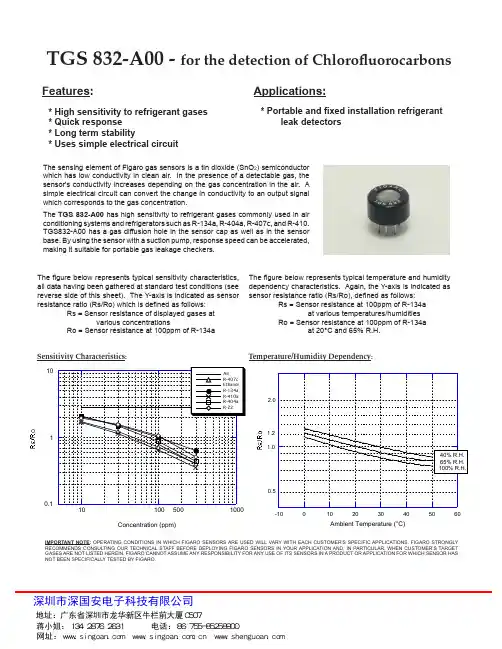

Applications:Features:TGS 832-A00 - for the detection of ChlorofluorocarbonsThe figure below represents typical sensitivity characteristics, all data having been gathered at standard test conditions (see reverse side of this sheet). The Y-axis is indicated as sensor resistance ratio (Rs/Ro) which is defined as follows: Rs = Sensor resistance of displayed gases at various concentrations Ro = Sensor resistance at 100ppm of R-134a The figure below represents typical temperature and humidity dependency characteristics. Again, the Y-axis is indicated as sensor resistance ratio (Rs/Ro), defined as follows: Rs = Sensor resistance at 100ppm of R-134a at various temperatures/humidities Ro = Sensor resistance at 100ppm of R-134a at 20°C and 65% R.H.The sensing element of Figaro gas sensors is a tin dioxide (SnO 2) semiconductor which has low conductivity in clean air. In the presence of a detectable gas, the sensor's conductivity increases depending on the gas concentration in the air. A simple electrical circuit can convert the change in conductivity to an output signal which corresponds to the gas concentration.The TGS 832-A00 has high sensitivity to refrigerant gases commonly used in air conditioning systems and refrigerators such as R-134a, R-404a, R-407c, and R-410.TGS832-A00 has a gas diffusion hole in the sensor cap as well as in the sensor base. By using the sensor with a suction pump, response speed can be accelerated, making it suitable for portable gas leakage checkers.* Portable and fixed installation refrigerant leak detectors* High sensitivity to refrigerant gases * Quick response * Long term stability* Uses simple electrical circuitTemperature/Humidity Dependency:Sensitivity Characteristics:1.21.0Structure and Dimensions:1 Sensing Element: SnO2 is sintered to form a thick film on the surface of an alumina ceramic tubewhich contains an internal heater.2 Sensor Cap 3 Sensor Base: Nylon 664 Flame Arrestor: 100 mesh SUS316 double gauzeStandard Circuit Conditions:Pin Connection and Basic Measuring Circuit:The numbers shown around the sensor symbol in the circuit diagram at the right correspond with the pin numbers shown in the sensor's structure drawing (above). When the sensor is connected as shown in the basic circuit, output across the Load Resistor (V RL ) increases as the sensor's resistance (Rs) decreases, depending on gas concentration.Sensor Resistance (Rs) is calculated by the following formula:Power dissipation across sensor electrodes (Ps) is calculated by the following formula:Standard Test Conditions:TGS 832 complies with the above electrical characteristics when the sensor is tested in standard conditions as specified below:Test Gas Conditions: 20°±2°C, 65±5%R.H.Circuit Conditions: V C = 10.0±0.1V (AC or DC), V H = 5.0±0.05V (AC or DC), R L = 10.0kΩ±1%Preheating period before testing: More than 7 days Electrical Characteristics:Basic Measuring Circuit:REV: 10/12Rs = ( -1) x R LV CV RLPs =V C 2 x Rs(Rs + R L )217 ± 0.59.516.5±0.56.5±0.51.0±0.563425145˚45˚um : mm。

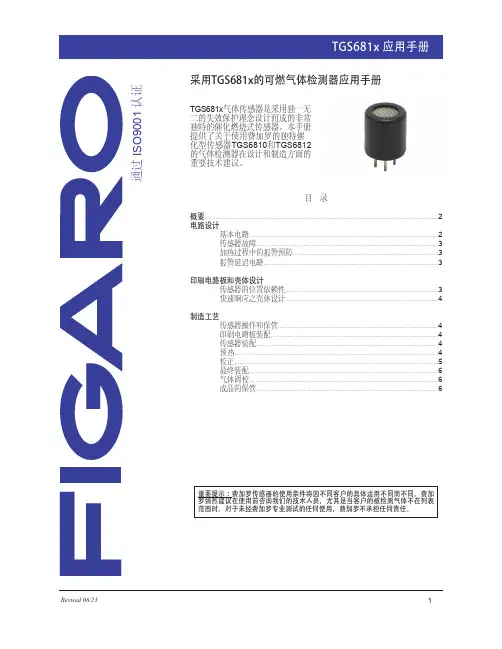

TGS681x 气体传感器是采用独一无二的失效保护理念设计而成的非常独特的催化燃烧式传感器。

本手册提供了关于使用费加罗的独特催化型传感器TGS6810和TGS6812的气体检测器在设计和制造方面的重要技术建议。

目 录概要.....................................................................................................................................2电路设计 基本电路................................................................................................................2 传感器故障............................................................................................................3 加热过程中的报警预防......................................................................................3 报警延迟电路.......................................................................................................3印刷电路板和壳体设计 传感器的位置依赖性...........................................................................................3 快速响应之壳体设计 (4)制造工艺 传感器操作和保管...............................................................................................4 印刷电路板装配...................................................................................................4 传感器装配............................................................................................................4 预热...................................................................................................4 校正........................................................................................................................5 最终装配................................................................................................................6 气体调校................................................................................................................6 成品的保管 (6)采用TGS681x的可燃气体检测器应用手册重要提示：费加罗传感器的使用条件将因不同客户的具体运用不同而不同。

Technical Information for Methane Gas SensorsThe Figaro 2600 series is a new type thick f ilm metal oxide semiconductor, screen printedgas sensor which o f f ers miniaturization and lower power consumption. The TGS2611displays high selectivity and sensitivity to methane.PageSpecificationsFeatures.....................................................................................2Applications...................................................................2Structure...................................................................................2Basic Measuring Circuit................................................................2Circuit & Operating Conditions.....................................................3Specifications.......................................................................................3Dimensions.......................................................................................3Basic Sensitivity CharacteristicsSensitivity to Various Gases..........................................................4Temperature and Humidity Dependency......................................5Heater Voltage Dependency...................................................................6Cautions on Sensor Power Consumption.................................................6Gas Response..............................................................................................7Initial Action....................................................................................7Long Term Characteristics....................................................................8ReliabilityCorrosion Test..........................................................................................9Ignition Test....................................................................................9Effect of Air Flow..............................................................................9Heater Resistance Durability........................................................10HMDS Test............................................................................................11Lighter Gas Exposure Test..........................................................................11Cautions (12)See also Technical Brochure ‘Technical Information on Usage of TGS Sensors for Toxic and Explosive Gas Leak Detectors’.a n I S O 9001 a n d 14001 c o m p a n yIMPORTANT NOTE: OPERATING CONDITIONS IN WHICH FIGARO SENSORS ARE USED WILL VARY WITH EACH CUSTOMER’S SPECIFIC APPLICATIONS.FIGARO STRONGLY RECOMMENDS CONSULTING OUR TECHNICAL STAFF BEFORE DEPLOYING FIGARO SENSORS IN YOUR APPLICATION AND, IN PARTICULAR, WHEN CUSTOMER’S TARGET GASES ARE NOT LISTED HEREIN. FIGARO CANNOT ASSUME ANY RESPONSIBILITY FOR ANY USE OF ITS SENSORS IN A PRODUCT OR APPLICATION FOR WHICH A SENSOR HAS NOT BEEN SPECIFICALLY TESTED BY FIGARO.Both TGS2611-C00 and -E00 are UL recognized components in accordance with the requirements of component recognition testing has confirmed long term stability in 60ppm of methane; other characteristics shown in this brochure have not been confirmed by UL as part of component recognition.TGS2611 is available in two different models with different external housings but identical sensitivity to methane gas. TGS2611-C00 possesses small size and quick gas response, making it suitable for gas leakage checkers, while TGS2611-E00 uses filter material in its housing to eliminate the influence of interference gases such as alcohol, resulting in highly selective response to methane gas. Both models are capable of meeting the requirements of EN50194 and UL1484.1. Specifications1-1 Features*High selectivity to methane*Low power consumption*Small size*Long life and low cost*Uses simple electrical circuit1-2 Applications* Residential gas alarms* Portable gas detectors* Gas leak detectors for gas appliances1-3 StructureFigure 1 shows the structure of TGS2611. Using thick film techniques, the sensing material (SnO2) is printed on electrodes (noble metal) which have been printed onto an alumina substrate. One electrode is connected to pin No.2 and the other is connected to pin No.3. The sensor element is heated by RuO2 material printed onto the reverse side of the substrate and connected to pins No.1 and No.4.Lead wires are Pt-W alloy and are connected to sensor pins which are made of Ni-plated Ni-Fe 50%.The sensor base is made of Ni-plated steel. The caps of both TGS2611-C00 and TGS2611-E00 are stainless steel. The upper opening in both caps is covered with a double layer of 100 mesh stainless steel gauze (SUS316). The TGS2611-E00 utilizes a charcoal filter inside the cap for reducing the influence of interference gases.1-4 Basic measuring circuitFigure 2 shows the basic measuring circuit. Circuit voltage (Vc) is applied across the sensor element which has a resistance (Rs) between the sensor’s two electrodes and the load resistor (R L) connected in series. When DC is used for Vc, the polarity shown in Figure 2 must be maintained. The Vc may be applied intermittently. The sensor signal (V RL) is measured indirectly as a change in voltage across the R L. The Rs is obtained from the formula shown at the right.Fig. 1 - Sensor structureVc - V RLV RLRs = x R LFormula to determine RsFig. 2 - Basic measuring circuitNOTE: In the case of V H, there is no polarity, so pins 1 and 4 can be considered interchangeable. However, in the case of V C, when used with DC power, pins 2 and 3 must be used as shown in theFigure above.TGS2611-E00Sensingelement1-5 Circuit & operating conditionsThe ratings shown below should be maintained at all times to insure stable sensor performance:1-6 Specifications NOTE 1Mechanical Strength:The sensor shall have no abnormal findings in its structure and shall satisfy the above electrical specifications after the following performance tests:Withdrawal Force - (pin from base) Vibration - Shock -withstand force of 5kg in each directionfrequency-1000cycles/min.,total amplitude-4mm, duration-one hour, direction-verticalacceleration-100G, repeated 5timesNOTE 1: Sensitivity characteristics are obtained under the following standard test conditions:(Standard test conditions)Temperature and humidity: 20 ± 2˚C, 65 ± 5% RH Circuit conditions:Vc = 5.0±0.01V DCV H = 5.0±0.05V DC R L = 10.0k Ω ± 1%Preheating period: 7 days or more under standard circuit conditions.1-7 DimensionsFig. 3 - Sensor dimensionsAll sensor characteristics shown in this brochure represent typical characteristics.Actual characteristics vary from sensor to sensor and from production lot to production lot. The only characteristics warranted are those shown in the Specification table above.TGS2611-C00 TGS2611-E00Pin connection: 1: Heater2: Sensor electrode (-) 3: Sensor electrode (+) 4: Heater2-1 Sensitivity to various gasessensor resistance in 5000ppm of methane (Ro).sensitivity to methane.and with a matched R Lvoltage (V RL) change as shown in Figure 5. NOTE:calibration is required for each sensor (for Toxic and Explosive Gas Leak Detectors’).under various ambient conditionsTable 1 - Temperature and humidity dependency(typical values of Rs/Ro for Fig. 6)Table 1 shows a table of values of the sensor’s resistance ratio (Rs/Ro) under the same conditions as those used to generate Figure 6.Figure 7 shows the sensitivity curve for TGS2611 to methane under several ambient conditions. While temperature may have a large influence on absolute Rs values, this chart illustrates the fact that effect on the slope of sensor resistance ratio (Rs/Ro) is not significant. As a result, the effects of temperature on the sensor can easily be compensated.For economical circuit design, a thermistor can be incorporated to compensate for temperature (for additional information on temperature compensation in circuit designs, please refer to the Technical Advisory ‘Technical Information on Usage of TGS Sensors for Toxic and Explosive Gas Leak Detectors’).2-3 Heater voltage dependencyratio according to variations in heater voltage (V typical characteristics shown in this brochure.2-4 Cautions on sensor power consumptionFigure 9relationship is referred to as V-I characteristics.basic measuring circuit (see Figure 2and can be calculated according as follows:Ps =where :R L : Load resistor value (k Ω)V RL : Sensor output voltage (v)Vc : Circuit voltage (v)Ps : Power consumption (mW)Vc 2/(4 x R L damage to the sensor due to Joule heat.minimum R L voltage.Table 2 - Minimum suggested R L valuesV RL x (Vc-V RL )R L2-7 Long-term characteristics3000ppm of ethanol.were powered under standard test conditions. 1000ppm of iso-butane.to a stable level within three days of energizing.As the charts presented in this section illustrate, the sensor shows stable long term characteristics.3. Reliability3-1 Corrosion testFigure 15 shows the effect on TGS2611 of corrosivegases specified in Item 43.15 of the UL 1484 standard.Sensor resistance prior to corrosive gas exposure wasmeasured. Unenergized sensors were then placedinto an environment of 23˚±2˚C and 95%RH. In thisenvironment, two separate tests were conducted: onein 0.1% H2S, the other in a combination of 0.5% SO2and 1.0% CO2, with each test exposure lasting 10days. After this exposure, the sensor was re-energized in normal air prior to measuring sensorresistance after removal from corrosive gases.As this data would suggest, sensor characteristics aretemporarily influenced by exposure to corrosive gasconcentrations specified by Sec. 43.15 of UL 1484,TGS2611 has been successfully tested against theignition test requirements of the UL1484 standard.The sensor did not initiate ignition of a propaneFigure 16 shows how the sensor signal (V RL) isaffected by air flow. The test procedure involvessituating the sensor in an air stream of 3.1 meters persecond, with the air flow vertical/horizontal to theflameproof stainless steel double gauze of theThe decrease in sensor signal shown in Figure 16resulted from the decrease in sensor elementtemperature caused by the air flow. As a result, directFig. 16 - Effect of air flow on TGS2611-C00Fig. 17 - Test procedure for heater durability3-4 Heater resistance durabilityFigure 17 illustrates the procedure for testing the effects of excess voltage applied to the heater. Heater resistance was measured while the heater was unpowered and at room temperature.The results of this test are shown in Figure 18 which shows the change in resistance of the heater when various heater voltages (rather than the standard 5.0V) are applied in the absence of gases.As this section demonstrates, the heater shows good durability against increased heater voltage.However, since excessive heater voltage will cause the sensor’s heater resistance to drift upwards,excessive heater voltage should still be avoided.standard circuit conditions. After returning the sensorexposure as shown in Figure 20.The result of the above test is shown in Fig. 20. A 10% iso-butane exposure for 60 seconds appears to cause an increase in Rs in gas. Furthermore, sensor to its original value after energizing in normal air.may cause a permanent change in the sensor’sdone, it must be carefully administered to avoid sensor damage.NOTE: To achieve the optimal level of accuracy in gas detectors, each TGS2611 sensor should be individually calibrated by matching it with a load resistor (R L) in an environment containing the target gas concentration for alarming (refer to Fig. 2).For the convenience of users, TGS2611 is classified into 24 groups according to the each sensor’s Rs in methane. ID numbers marked on the sensor’s body indicate the sensor’s grouping. Individual sensor calibration can be eliminated by matching the sensor with the recommended R L for each sensor ID. However, because group calibration is used instead of individual calibration, an average of 10% less accuracy would result for detectors using group calibration. Please refer to “Application Notes for TGS2611” for more information.4 Cautions on Usage of Figaro Gas Sensors4-1 Situations which must be avoided1) Exposure to silicone vaporsIf silicone vapors adsorb onto the sensor’s surface, the sensing material will be coated, irreversibly inhibiting sensitivity. Avoid exposure where silicone adhesives, hair grooming materials, or silicone rubber/putty may be present.2) Highly corrosive environmentHigh density exposure to corrosive materials such heater material.3) Contamination by alkaline metalsSensor drift may occur when the sensor is contaminated by alkaline metals, especially salt water spray.4) Contact with waterSensor drift may occur due to soaking or splashing the sensor with water.5) FreezingIf water freezes on the sensing surface, the sensing material would crack, altering characteristics.6) Application of excessive voltageIf higher than specified voltage is applied to the sensor or the heater, lead wires and/or the heater may be damaged or sensor characteristics may drift, even if no physical damage or breakage occurs. 7) Operation in zero/low oxygen environment TGS sensors require the presence of around 21% (ambient) oxygen in their operating environment in order to function properly and to exhibit characteristics described in Figaro’s product literature. TGS sensors cannot properly operate in a zero or low oxygen content atmosphere.8) Excessive exposure to alcoholIF TGS2611-E00 is exposed to high concentrations of alcohol (such as 10,000ppm or more) for a long period of time, the filter may become saturated. In this case,Figaro USA Inc. and the manufacturer, Figaro Engineering Inc. (together referred to as Figaro)reserve the right to make changes without notice to any products herein to improve reliability,functioning or design. Information contained in this document is believed to be reliable. However, Figaro does not assume any liability arising out of the application or use of any product or circuit describedherein; neither does it convey any license under its patent rights, nor the rights of others.Figaro's products are not authorized for use as critical components in life support applications wherein a failure or malfunction of the products may result in injury or threat to life.the sensor would show a lower resistance in alcohol than that indicated in Figure 4a.4-2 Situations to be avoided whenever possible 1) Water condensationLight condensation under conditions of indoor usage should not pose a problem for sensor performance.However, if water condenses on the sensor’s surface and remains for an extended period, sensor characteristics may drift.2) Usage in high density of gasSensor performance may be affected if exposed to a high density of gas for a long period of time,regardless of the powering condition.3) Storage for extended periodsWhen stored without powering for a long period, the sensor may show a reversible drift in resistance according to the environment in which it was stored.The sensor should be stored in a sealed bag containing clean air; do not use silica gel. Note that as unpowered storage becomes longer, a longer preheating period is required to stabilize the sensor before usage .4) Long term exposure in adverse environmentRegardless of powering condition, if the sensor is exposed in extreme conditions such as very highhumidity, extreme temperatures, or high contamination levels for a long period of time, sensor performance will be adversely affected.5) VibrationExcessive vibration may cause the sensor or lead wires to resonate and break. Usage of compressed air drivers/ultrasonic welders on assembly lines may generate such vibration, so please check this matter.6) ShockBreakage of lead wires may occur if the sensor is subjected to a strong shock.7) SolderingIdeally, sensors should be soldered manually.However, wave soldering can be done under the following conditions:a) Suggested flux: rosin flux with minimal chlorine b) Speed: 1-2 meters/min.c) Preheating temperature: 100±20˚C d) Solder temperature: 250±10˚Ce) Up to two passes through wave soldering machine allowedResults of wave soldering cannot be guaranteed if con-ducted outside the above guidelines since some flux vapors may cause drift in sensor performance similar to the effects of silicone vapors.。

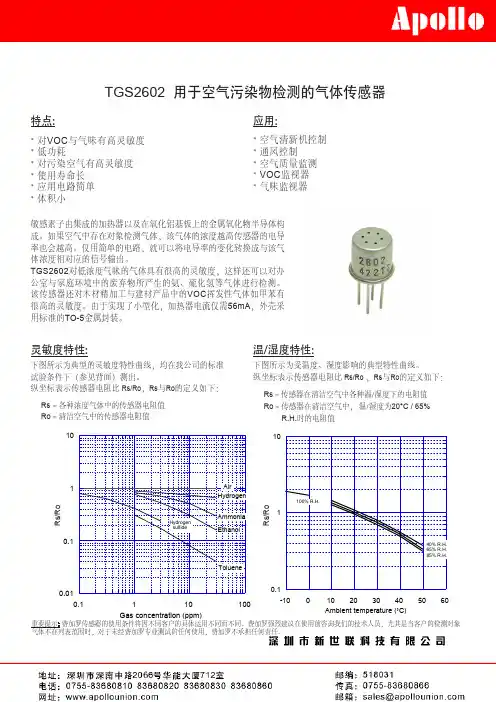

TGS2602 用于空气污染物检测的气体传感器* 对VOC 与气味有高灵敏度* 低功耗* 对污染空气有高灵敏度* 使用寿命长* 应用电路简单* 体积小特点:应用:敏感素子由集成的加热器以及在氧化铝基板上的金属氧化物半导体构成。

如果空气中存在对象检测气体，该气体的浓度越高传感器的电导率也会越高。

仅用简单的电路，就可以将电导率的变化转换成与该气体浓度相对应的信号输出。

TGS2602对低浓度气味的气体具有很高的灵敏度，这样还可以对办公室与家庭环境中的废弃物所产生的氨、硫化氢等气体进行检测。

该传感器还对木材精加工与建材产品中的VOC 挥发性气体如甲苯有很高的灵敏度。

由于实现了小型化，加热器电流仅需56mA ，外壳采用标准的TO-5金属封装。

下图所示为典型的灵敏度特性曲线，均在我公司的标准试验条件下（参见背面）测出。

纵坐标表示传感器电阻比 Rs/Ro ，Rs 与Ro 的定义如下：Rs = 各种浓度气体中的传感器电阻值下图所示为受温度、湿度影响的典型特性曲线。

纵坐标表示传感器电阻比 Rs/Ro ，Rs 与Ro 的定义如下：Rs = 传感器在清洁空气中各种温/湿度下的电阻值Ro= 传感器在清洁空气中， 温/湿度为20°C / 65% R.H.时的电阻值灵敏度特性:温/湿度特性:重要提示: 费加罗传感器的使用条件将因不同客户的具体运用不同而不同。

费加罗强烈建议在使用前咨询我们的技术人员，尤其是当客户的检测对象气体不在列表范围时，对于未经费加罗专业测试的任何使用，费加罗不承担任何责任。

* 空气清新机控制* 通风控制* 空气质量监测* VOC 监视器* 气味监视器R s /R oR s /R o规格:结构以及尺寸:管脚连接: 1: 加热器2: 传感器电极 (-) 3: 传感器电极 (+) 4: 加热器功耗值（P S ）可通过下式求出：传感器电阻（R S ）可根据V OUT （V RL ）的测定值用下式求出：(V C - V RL )2R SV C V RLR S = (- 1) x R L P S =在此产品规格书中所显示的都是传感器的典型特性，实际的传感器特性因产品不同而不同，详情请参阅各传感器唯一对应的规格表。

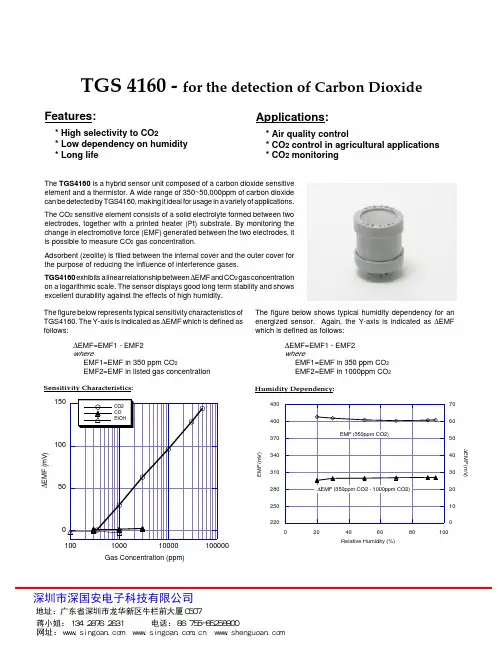

Applications:Features:TGS 4160 - for the detection of Carbon DioxideThe figure below represents typical sensitivity characteristics of TGS4160. The Y-axis is indicated as ∆EMF which is defined as follows:∆EMF=EMF1 - EMF2where EMF1=EMF in 350 ppm CO 2EMF2=EMF in listed gas concentrationThe figure below shows typical humidity dependency for an energized sensor. Again, the Y-axis is indicated as ∆EMF which is defined as follows:∆EMF=EMF1 - EMF2whereEMF1=EMF in 350 ppm CO 2 EMF2=EMF in 1000ppm CO 2* Air quality control* CO 2 control in agricultural applications * CO 2 monitoringThe TGS4160 is a hybrid sensor unit composed of a carbon dioxide sensitive element and a thermistor. A wide range of 350~50,000ppm of carbon dioxide can be detected by TGS4160, making it ideal for usage in a variety of applications.The CO 2 sensitive element consists of a solid electrolyte formed between two electrodes, together with a printed heater (Pt) substrate. By monitoring the change in electromotive force (EMF) generated between the two electrodes, it is possible to measure CO 2 gas concentration.Adsorbent (zeolite) is filled between the internal cover and the outer cover for the purpose of reducing the influence of interference gases.TGS4160 exhibits a linear relationship between ∆EMF and CO 2 gas concentration on a logarithmic scale. The sensor displays good long term stability and shows excellent durability against the effects of high humidity.* High selectivity to CO 2* Low dependency on humidity * Long life地址：广东省深圳市龙华新区牛栏前大厦Ｃ５０７ 网址：ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ．ｃｎ ｗｗｗ．ｓｈｅｎｇｕｏａｎ．ｃｏｍ蒋小姐：１３４　２８７６　２６３１ 电话：８６　７５５－８５２５８９００Structure and Dimensions:Basic Measuring Circuit:The TGS4160 sensor requires heater voltage (V H ) input. The heater voltage is applied to the integrated heater in order to maintain the sensing element at a specific temperature which is optimal for sensing. Electromotive force (EMF)of the sensor should be measured using a high impedance (> 100 G Ω) operation-al amplifier with bias current < 1pA (e.g.Texas Instruments' model #TLC271).Since the solid electrolyte type sensorSpecifications:functions as a kind of battery, the EMF value itself would drift using this basic measuring circuit. However, the change of EMF value (∆EMF) shows a stable relationship with the change of CO 2concentration. Therefore, in order to obtain an accurate measurement of CO 2, a special microprocessor for signal processing should be used with TGS4160. Figaro can provide a special evaluation sensor module (AM-4) for TGS4160.Sensing Element Structure:Bottom view(u/m = mm)Green DotBottom View (Sensor Element)A: Lead wiresSide view (Sensor Element)B : Pt Heater F : Sealing Glass E : Counter Electrode (Anode)C : Solid ElectrolyteD : Sensing Electrode (Cathode)EMFVHTGS41601364I BIAS < typ. 1pAGND25ThermistorThermistorOperational amplifier +-深圳市深国安电子科技有限公司地址：广东省深圳市龙华新区牛栏前大厦Ｃ５０７ 网址：ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ ｗｗｗ．ｓｉｎｇｏａｎ．ｃｏｍ．ｃｎ ｗｗｗ．ｓｈｅｎｇｕｏａｎ．ｃｏｍ蒋小姐：１３４　２８７６　２６３１ 电话：８６　７５５－８５２５８９００。

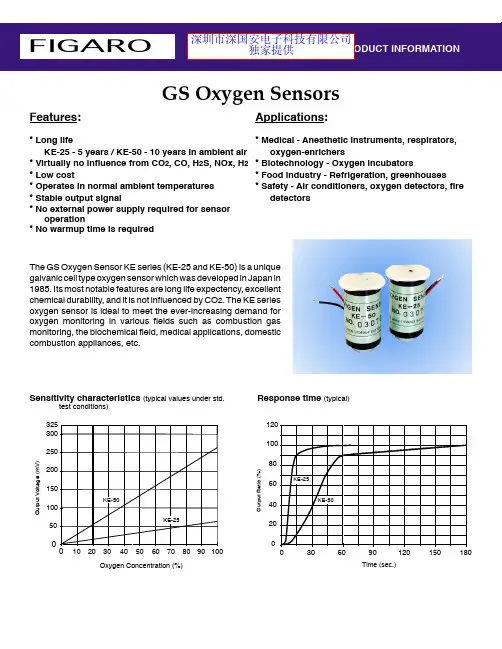

Sensitivity characteristics (typical values under std.test conditions)Response time (typical)The GS Oxygen Sensor KE series (KE-25 and KE-50) is a unique galvanic cell type oxygen sensor which was developed in Japan in 1985. Its most notable features are long life expectency, excellent chemical durability, and it is not influenced by CO 2. The KE series oxygen sensor is ideal to meet the ever-increasing demand for oxygen monitoring in various fields such as combustion gas monitoring, the biochemical field, medical applications, domestic combustion appliances, etc.Features:* Long lifeKE-25 - 5 years / KE-50 - 10 years in ambient air * Virtually no influence from CO 2, CO, H 2S, NOx, H 2* Low cost* Operates in normal ambient temperatures * Stable output signal* No external power supply required for sensoroperation* No warmup time is requiredGS Oxygen SensorsApplications:* Medical - Anesthetic instruments, respirators,oxygen-enrichers* Biotechnology - Oxygen incubators* Food industry - Refrigeration, greenhouses* Safety - Air conditioners, oxygen detectors, firedetectorsREV: 08/03SpecificationsNotes:1) When calibrated at both 0% and 100% of O 2, accuracy in the range from 0-100% O 2 shall be within ±1% of full scale for KE-25 and ±2% of full scale for KE-50.2) Va = output voltage at 21% O 2 V 0 = output voltage at 0% O 2V 100 = output voltage at 100% O 23) Va = output voltage at 25˚C V H = output voltage at 40˚C V L = output voltage at 5˚C4) Sensors should be used under conditions where the air exchange is greater than 200~300ml per minute in order to obtain the response speed as specified in Table 1.22.7±0.5KE-25/KE-50 standard versionKE-25F1 (w/o flange)KE-25F3 (threaded top)KE-25F4 (O-ring top)22.7±0.522.7±0.5。
