锐捷认证客户端常见问题解答

锐捷常见错误及解决方法锐捷常见错误及解决方法1．客户端一运行即消失的故障？答：故障原因：如果用户的电脑设置了多个DNS或多个IP地址及系统里有system32.exe这个进程，可能是木马进程序，有可能伪装成其它的名字的话，会导致以上故障。

故障解决办法如下：正确设置IP地址（只设置网络中心提供的地址）及DNS地址（二个以内）。

2．客户端提示“找不到合适的网卡”故障信息？答：故障原因：系统没有正确获得网卡信息，或者网卡有问题。

故障解决办法如下：退出并重新打开客户端，如果问题依旧存在，请将网卡驱动程序卸载重装，如果还是不能解决问题，更换一张网卡。

3．客户端提示“目前系统工作环境与软件运行环境相冲突,软件不能正常运行，CODE=2”的故障信息？答：故障原因：安装了多块网卡，与客户端运行的环境不符合要求。

故障解决办法：卸载或者禁用多余网卡，只保留一张网卡运行（如果是win98系统，禁用拨号适配器）。

4．客户端提示“目前系统工作环境与软件运行环境相冲突,软件不能正常运行CODE＝4”的故障信息？答：故障原因：由于安装了代理软件，与客户端运行的环境不符合要求。

故障解决办法：关闭或卸载代理服务器以及一切可能成为代理服务器的软件。

例如用了PP加速器的，它会自动在IE选项里加载代理。

5．客户端认证失败，没有任何的错误提示信息？答：故障原因：WINXP启用了系统自带的802.1X功能。

故障解决办法：双击网络连接图标，把属性里面的身份验证标签下“启用802.1X身份认证”前的勾去掉。

6．客户端提示认证失败，提示“已达到最大连接数”的故障？答：故障原因：使用的帐号已在线，可能使用了别人的帐号，或者帐号输入错误。

故障解决办法：确认自己帐号正确性，如果确属自己帐号，则告知相关请有效证件，要求网络中心将其帐号下线。

7．客户端提示认证失败，提示“IP类型错误”的故障？答：故障原因：认证服务器没有获得IP地址信息。

故障解决办法：在本地连接属性里面正确填写IP地址，如果还是不能解决，请将网卡驱动程序卸载重装一次。

校园网常见故障及故障的排除方法1．客户端运行后立即消失的故障？答：故障原因：如果用户的电脑设置了多个DNS或多个IP地址及系统里有system32.exe这个进程，可能是木马进程序，有可能伪装成其它的名字的话，会导致以上故障。

故障解决办法如下：正确设置IP地址（只设置网络中心提供的地址）及DNS地址（二个以内）。

2．客户端提示“找不到合适的网卡”故障信息？答：故障原因：系统没有正确获得网卡信息，或者网卡有问题。

故障解决办法如下：退出并重新打开客户端，如果问题依旧存在，请将网卡驱动程序卸载重装，如果还是不能解决问题，更换一张网卡。

3．客户端提示“目前系统工作环境与软件运行环境相冲突,软件不能正常运行，CODE=2”的故障信息？答：故障原因：安装了多块网卡，与客户端运行的环境不符合要求。

故障解决办法：卸载或者禁用多余网卡，只保留一张网卡运行（如果是win98系统，禁用拨号适配器）。

4．客户端提示“目前系统工作环境与软件运行环境相冲突,软件不能正常运行CODE＝4”的故障信息？答：故障原因：由于安装了代理软件，与客户端运行的环境不符合要求。

故障解决办法：关闭或卸载代理服务器以及一切可能成为代理服务器的软件。

5．客户端认证失败，没有任何的错误提示信息？答：故障原因：1. WINXP启用了系统自带的802.1X功能。

2. 网卡的驱动程序太旧3. 客户端的“网卡”那一栏选择的不是真实的网卡（如：1394接口，摄像头等）故障解决办法：1. 双击网络连接图标，把属性里面的身份验证标签下“启用802.1X身份认证”前的勾去掉。

2. 更新网卡的驱动程序3. 选择正确的网卡6．客户端提示认证失败，提示“已达到最大连接数”的故障？答：故障原因：使用的帐号已在线，可能使用了别人的帐号，或者帐号输入错误。

故障解决办法：确认自己帐号正确性，如果确属自己帐号，请到自助服务提交故障，要求网络中心查实并将其帐号下线。

个别网卡可能跟校园网的接入设备兼容性存在问题，导致这种情况，请在下网前点击客户端的“断开连接”按钮，这样可以避免这种情况。

1.锐捷认证成功，但是访问不了内网，如学校的主页：
打开360里面的功能大全，然后点击修复网络（LSP），如下图
然后就会弹出下面的界面，有问号的就是说明出现问题了，点击立即修复，要多点几次，即可。

点了之后
2.锐捷认证成功，上不了网页
方法：打开网络和共享中心-----本地连接---属性----Internet协议版本4（TCP/IPv4），点击使用下面的DNS服务器地址，输入自己学校公用的DNS地址：
首选DNS服务器：202.96.128.86 或202.96.128.166
首选DNS服务器：211.66.184.33
点击确定，重新打开网页。

3.善用360安全卫士
修复不成功，也可以试试强力修复额。

4.如果锐捷客户端认证成功，登陆翼起来页面输入账号密码显示欠费停用，
请登录自助平台手动复通宽带，网址：/GDQY/，登录账号是您的锐捷账号和密码，选择“学生登录”，登录后选择“我的校园宽带”->“校园宽带管理”，点击申请复通。

注:锐捷认证成功，翼起来网页却打不开，可能问题是IP不对，也可能是lsp，都应该一步一步排除解决。

LSP修复方法：可以使用360安全卫士-功能大全-网络修复LSP。

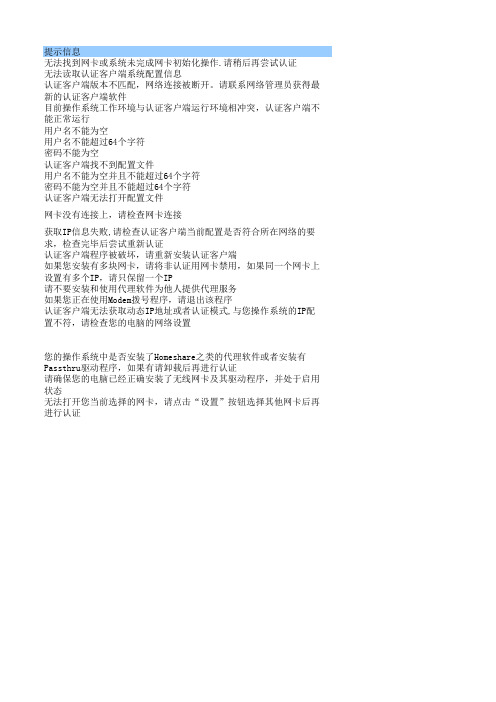

提示信息无法找到网卡或系统未完成网卡初始化操作.请稍后再尝试认证无法读取认证客户端系统配置信息认证客户端版本不匹配，网络连接被断开。

请联系网络管理员获得最新的认证客户端软件目前操作系统工作环境与认证客户端运行环境相冲突，认证客户端不能正常运行用户名不能为空用户名不能超过64个字符密码不能为空认证客户端找不到配置文件用户名不能为空并且不能超过64个字符密码不能为空并且不能超过64个字符认证客户端无法打开配置文件网卡没有连接上，请检查网卡连接获取IP信息失败,请检查认证客户端当前配置是否符合所在网络的要求，检查完毕后尝试重新认证认证客户端程序被破坏，请重新安装认证客户端如果您安装有多块网卡，请将非认证用网卡禁用，如果同一个网卡上设置有多个IP，请只保留一个IP请不要安装和使用代理软件为他人提供代理服务如果您正在使用Modem拨号程序，请退出该程序认证客户端无法获取动态IP地址或者认证模式,与您操作系统的IP配置不符，请检查您的电脑的网络设置您的操作系统中是否安装了Homeshare之类的代理软件或者安装有Passthru驱动程序，如果有请卸载后再进行认证请确保您的电脑已经正确安装了无线网卡及其驱动程序，并处于启用状态无法打开您当前选择的网卡，请点击“设置”按钮选择其他网卡后再进行认证原因网卡有异常，SU打开失败。

Su某些配置文件被删除或被破坏。

Su版本过低，SAM/SMP服务器上已限制该版本使用。

启用了微软1X认证客户端。

使用空用户名认证。

用户名超过最大长度64个字符。

使用空密码认证Su某些配置文件被删除或破坏用户名为空或超过最大长度64个字符密码超过为空或最大长度64个字符Su某些配置文件被删除或破坏监测到网卡使用不正常。

获取IP地址信息失败。

认证客户端程序被破坏。

安装有多块网卡、或者在同一块网卡上设置多个IP。

安装了代理软件。

监测到使用了MODEM拨号。

获取网卡IP地址失败。

获取不到IP地址。

可能由于网卡有问题或者使用不正常。

1．客户端一运行即消失的故障？答：故障原因：如果用户的电脑设置了多个DNS或多个IP地址及系统里有system32.exe这个进程，可能是木马进程序，有可能伪装成其它的名字的话，会导致以上故障。

故障解决办法如下：正确设置IP地址（只设置网络中心提供的地址）及DNS地址（二个以内）。

2．客户端提示“找不到合适的网卡”故障信息？答：故障原因：系统没有正确获得网卡信息，或者网卡有问题。

故障解决办法如下：退出并重新打开客户端，如果问题依旧存在，请将网卡驱动程序卸载重装，如果还是不能解决问题，更换一张网卡。

3．客户端提示“目前系统工作环境与软件运行环境相冲突,软件不能正常运行，CODE=2”的故障信息？答：故障原因：安装了多块网卡，与客户端运行的环境不符合要求。

故障解决办法：卸载或者禁用多余网卡，只保留一张网卡运行（如果是win98系统，禁用拨号适配器）。

4．客户端提示“目前系统工作环境与软件运行环境相冲突,软件不能正常运行CODE＝4”的故障信息？答：故障原因：由于安装了代理软件，与客户端运行的环境不符合要求。

故障解决办法：关闭或卸载代理服务器以及一切可能成为代理服务器的软件。

例如用了PP加速器的，它会自动在IE选项里加载代理。

5．客户端认证失败，没有任何的错误提示信息？答：故障原因：WINXP启用了系统自带的802.1X功能。

故障解决办法：双击网络连接图标，把属性里面的身份验证标签下“启用802.1X身份认证”前的勾去掉。

6．客户端提示认证失败，提示“已达到最大连接数”的故障？答：故障原因：使用的帐号已在线，可能使用了别人的帐号，或者帐号输入错误。

故障解决办法：确认自己帐号正确性，如果确属自己帐号，则告知相关请有效证件，要求网络中心将其帐号下线。

7．客户端提示认证失败，提示“IP类型错误”的故障？答：故障原因：认证服务器没有获得IP地址信息。

故障解决办法：在本地连接属性里面正确填写IP地址，如果还是不能解决，请将网卡驱动程序卸载重装一次。

锐捷认证客户端常见问题解答（Rujie client FAQ）Fault phenomenon 1: client prompt "can not find the appropriate network card.""Reason: the system does not properly access the network card information, or the network card has a problemSolution: exit and reopen the client. If the problem persists, please uninstall the network driver, reinstall it, and change a network card if it still doesn't work out.Fault phenomenon 2: client prompt: "the system working environment and software running environment conflict, the software can not run normally, CODE = 2.""Reason: the installation of multiple network cards and server requirements are inconsistentThe solution: uninstall or disable the extra network card and leave only one network card running (if it is the Win98 system, disable the Dial-Up Adapter).The other: sometimes installed cameras also have this message, as long as the installation of the camera program after the perturbation without pulling out the camera to restart the computer system can be installed; and when the virtual machine will prompt code=2, it is because the virtual machine will be out of a virtual network card, and the nature of multi card system is the same. Therefore, we do not recommend using the virtual machine installed on the internet!Disable redundant network card drivers: my computer - properties - hardware - Device Manager - View - shows hidden devices - network adapters - disabled.Fault phenomenon 3: client prompt: "the system working environment and software running environment conflict, the software can not run normally, CODE = 4.""Reason: the proxy server was installed and the server requested is inconsistentSolution: turn off or uninstall the proxy server and all the software that could become proxy servers (such as your own SMTP mail server, FTP file, download server, etc.).Malfunction 4: authentication failed, without any error tipsReason: WINXP users enabled the system to own 802.1X authenticationSolution: double click the network connection icon and remove the tag before the "802.1X authentication" in the authentication tag inside the property.Fault 5: authentication failed, prompting the maximum number of connections to be reached"Two situations lead to the above:Reason: student account number is stolen! Solution: Please bring your student ID card to the information center in time.Fault phenomenon 6: cannot authenticate, prompt the network card not to connect"Reason: cable connection is not correct, the quality of the network is poor, the quality of the small switch installed by himself is poor, and the switchboard is out of powerSolution: check whether the network is normal, to confirm whether the exchange cabinet power failure. If the students around are such a situation, please promptly student management network group (22328778)Malfunction 7: cannot authenticate, the authentication client has been stuck in: "looking for authentication server" and finally "authentication failed""Reasons: bad quality of the network, or network card problems, or did not choose to use private multicast address authentication"Solution: check whether the network is normal, in the authentication client set "use private multicast address authentication", reinstall the network card driver, and if the problem persists, replace a network card.At this time such as data packets without receiving packet (0) can try to card rate to 10M full duplex mode (Methods: network connection - local connection - properties - configuration - - link mode - speed/duplex high value - 10 full mode)Malfunction 8: cannot authenticate, the authentication client stops at: connection authentication server...Reason: the service access switch to the network management center server communication is not normal, may be a switch or network management center power failureSolution: notify the network management team of this phenomenon and be patient.Malfunction 9: "the current system conflicts with the work environment. DHCP gets the failure, code=6."Symptoms: the original network can be normal dynamic access to IP address, authentication, access to the Internet, suddenly code=6 can not get IP address, Certified Internet accessSolution: Check: start - run - CMD - ipconfig input /renew input as a hint: "= = = = The following error occurred when renewing adapter in a non local connection: socket to try a" prompt according to the operation to recover the problem, if not this hint to reinstall the NIC with the client software to try, you can set the relevant information such as the appropriate changes to the registry.Reason: this problem may occur if the WinSocks library or TCP/IP stack is corrupted.Solution：To solve this problem, follow these steps:Warning: Registry Editor improperly used can cause serious problems. You may need to reinstall your operating system.Microsoft does not guarantee that you can solve problems caused by improper use of the registry editor. Using the Registry Editor takes you at your own risk.1. click start, and then click run.2. in the open box, type regedit, and then press the Enter key.3. browse to the following registry key:HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\Winsoc k4. on the registry menu, click export registry file.5. in the file name box, type the name of the backup file; for example, type Winsock Registry key, and then click save. Make a note of the name of the folder where the registry file is saved.6. repeat steps 3 through 5 of the following registration entries:HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\Winsoc k27. remove the following items from the registry:HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\Winsoc kHKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\Winsoc k2Note: the two registry keys are backed up from steps 3 through 6. In case of unexpected behavior on the computer, you can use the backup file to restore these registry keys. For more information about how to restore registry keys from the.Reg file, search for the import or export registry keys topic in the registry editor help file.8. close the registry editor.9. uninstall the TCP/IP protocol. To do this, follow these steps:A. in the control panel,Click the network and dial up connections, right-click the LAN connection, and then click Properties on the shortcut menu.B. in this connection using the selected components, click Internet protocol (TCP/IP), and then click uninstall.C. uninstall TCP/IP as shown on the screen.10. restart the computer and reinstall the TCP/IP (if it is not automatically installed):A. in the control panel, double-click the network and dial up connections, right-click the LAN connection, and then click Properties on the shortcut menu.B. click install.C. in the select network component type dialog box, click agreement, and then click add.D. under the vendor, click Microsoft, click the Internet protocol under the network protocol (TCP/IP), and then click ok.E. install the TCP/IP as shown on the screen.11. test the Internet connection to see if it is normal.Solution two: start - run - enter Netsh Winsock reset, reboot the system, or direct super rabbit IE fix - force fix Winsock2 try.Solution three: try to shut down the firewall and antivirus software, then verify.Solution four: if the above operations can not solve the problem, or afraid of trouble, it is recommended to reinstall the system (if no special instructions, the default is for the XP system)Fault phenomenon 10: client running, that is, the disappearance of the fault?Answer: cause of the failure: if the user's computer has set up multiple DNS or multiple IP addresses and the system has system32.exe, this process may be Trojan horse into the program,It may cause other faults if it is disguised as another name.The troubleshooting is as follows: see the process with the CTRL+DEL+ALT key.Another: the certification of the Internet, as long as the "hook" "save password" item, the other four please do not tick, or sometimes there will be "initialization card failed" tips!Fault phenomenon 11.. Client prompt authentication failed, indicating "IP type error" fault?Answer: cause of failure: authentication server did not receive IP address information.Fault solution: students dormitory online IP address is automatically access to IP access to the Internet, so if the binding IP address is not certified Internet access.At this point, you can connect to the network - the local connection - Property - internet protocol (TCP/IP) - automatically gets the IP address and automatically gets the DNS server address faultFault phenomenon 12.. Client can authenticate successfully,but is unable to access the Internet fault?Answer: the reason for the failure: automatic access to the IP address error.Troubleshooting: check out what IP address you've gotFault phenomenon 13., the client can authenticate successfully, you can go to QQ, but you can't open the fault of the web pageAnswer: generally a personal system problem.Fault solution:First, infected with the virus causedThis often occurs when you open IE, and in the lower left of the IE screen, prompt: "the page is being opened, but the old half."The sky is not responding. In the task manager, look at the process. (enter the method, put the mouse on the taskbar, right - taskManager - process) look at the occupancy rate of CPU, and if it's 100%, be sure you're infected with the virus,At this point, you want to run other programs, just suffering. It's important to find out which process greedily takes up CPU resources.After finding the best record the name, and then click on the end, if not complete, should start to securityType, delete this, and enter the registry. (method: start - run, enter regedit) in the registryDialog box, point edit - find, enter that program name, find, click the right mouse button to delete, and then several timesThe search often can be completely deleted clean.With a lot of viruses, the only way to do this is to remove them manually.Two, installed isolation firewallIf you install the firewall isolation, such as Mcafee virus firewall, or Skynet, Kingsoft, Rising Firewall, canTry to switch off first to see if the firewall software has been isolated from the IE. Or check your Start > program inNo network assistant, Baidu super search, such as garbage cleaning, shielding lists and other functions, if availableFirst off, or unloaded, these are normally installed automatically when you are not aware of them,Three, and set up proxy serverCheck that the proxy server (control panel - Internet option)is connected to the IE browserDomain network settings - using proxy servers for LAN - setting proxy servers does not affect QQ networking, because QQ uses4000 ports, while access to the Internet uses 80 or 8080 ports. Proxy servers are generally not very stable, sometimesHou shang,Sometimes I can't get on. If you have this setting, please cancel the agent to see if it has any effectFour, DNS server parsing errorThe so-called DNS, that is, domain name server (Domain Name Server), it translates the domain name into the computer can identify IPAddress, if the DNS server error, it can not be domain name resolution, and naturally can not access the internet.But normally, if you set up two of our school's DNS on your computer, just DNS is no problem, now promptedPlease set the following DNS in your computer, namely: 202.103.96.112 and 202.103.96.68Five, reinstall the driver or replace the network adapter to try.Six, the system file missing, resulting in IE can not start properlyThis phenomenon is quite common, because:1, the system instability is characterized by frequent crashes, often inexplicable restart, illegal shutdown, resulting in loss of system files;2, the hardware and software conflicts often show the installation of certain programs that cause network card driver conflicts or conflicts with IE. SinceAfter the introduction of hyper threading INTEL by CPU, one of the outstanding problems is that the IE6 under XP SP1 conflicts with hyper threading;3, viruses cause damage or loss of system files.If it is the first case, you can try to repair the system, or 2000 or XP system, into the original installation CD (Note: 1)Make sure you install the disc first. Enter SFC /scanow in the start run and press enter. 98 of the system can also use SFC lifeOrder for inspection.In second cases, you can uninstall the most recently installed hardware or programs, and 2000 or XP systems are availableAfter the device starts, press F8 to enter the boot menu, select the last correct configuration, and if the XP system is availableIn order to take advantage of the restore function of the system, the problem can be solved quickly.If it's XP's system, you can disable hyper threading in BIOS or upgrade to SP2 because of hyper threading CPU. thisUnder the circumstances, QQ comes with TT browser in general can be normal browsing, you can use a try.If it is the third case, the system disk should be comprehensive killing virus.Seven, IE browser damageIf the above method does not work, there may be damage to the IE kernel, although the system repair, also unable to make up for itWhat's the best way to reinstall IE?.If it is 98 or 2000 systems, if the version of IE is 5, it is recommended to upgrade to 6.98 of the system has been upgraded, installed 6, then click on the add / Remove program in the control panel will be playedMake a repair dialog box, select the default fix, restart it.If it is 2000+IE6.0 or XP (comes with IE is 6) of the system, reinstall IE is a bit troublesome, there are two kindsMethod：1, open the registry, expandHKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Active Setup\InStalled, Components\{,89820200-ECBD-11cf-8B85-00AA005B4383,}, IsInstalledThe value of DWORD is changed to 0;2. Put in the XP installation CD and enter "rundll32.exe setupapi", "InstallHinf" in the start run132%节defaultinstall windir % \ inf文件ie.inf”注：重装IE并不一定就能解决问题，仅是一个处理问题的思路而已。

认证客户端常见问题解答1．客户端一运行即消失的故障？答：故障原因：如果用户的电脑设置了多个DNS或多个IP地址及系统里有system32.exe这个进程，可能是木马进程序，有可能伪装成其它的名字的话，会导致以上故障。

故障解决办法如下：正确设置IP地址（只设置网络中心提供的地址）及DNS地址。

2．客户端提示“找不到合适的网卡”故障信息？答：故障原因：系统没有正确获得网卡信息，或者网卡有问题。

故障解决办法如下：退出并重新打开客户端，如果问题依旧存在，请将网卡驱动程序卸载重装，如果还是不能解决问题，更换一张网卡。

3．客户端提示“目前系统工作环境与软件运行环境相冲突,软件不能正常运行，CODE=2”的故障信息？答：故障原因：安装了多块网卡，与客户端运行的环境不符合要求。

故障解决办法：卸载或者禁用多余网卡，只保留一张网卡运行。

4．客户端提示“目前系统工作环境与软件运行环境相冲突,软件不能正常运行CODE＝4”的故障信息？答：故障原因：由于安装了代理软件，与客户端运行的环境不符合要求。

故障解决办法：关闭或卸载代理服务器以及一切可能成为代理服务器的软件。

5．客户端认证失败，没有任何的错误提示信息？答：故障原因：WINXP启用了系统自带的802.1X功能。

故障解决办法：双击网络连接图标，把属性里面的身份验证标签下“启用802.1X身份认证”前的勾去掉。

6．客户端提示认证失败，提示“已达到最大连接数”的故障？答：故障原因：使用的帐号已在线，可能使用了别人的帐号，或者帐号输入错误。

故障解决办法：确认自己帐号正确性，如果确属自己帐号，则告知相关请有效证件，要求网络中心将其帐号下线。

7．客户端提示认证失败，提示“IP类型错误”的故障？答：故障原因：认证服务器没有获得IP地址信息。

故障解决办法：在本地连接属性里面把IP获取方式改为自动获取，如果还是不能解决，请将网卡驱动程序卸载重装一次。

8．客户端提示认证失败，提示“XXXX绑定错误”的故障？答：故障原因：非正常使用帐号；目前使用的网卡相关设置和教育技术办用户信息数据库里的相关绑定记录不一致。

一．常见故障排除：1.经常断线。

表现形式：在上网期间，经常会不断出现，间隔不到五分钟，认证窗口就跳出来自动重连。

问题分析：情况1：中了病毒容易导致这种错误；如果宿舍使用一个HUB上网，其中一个用户中毒，有可能导致整个宿舍上网不正常。

例如：VKTServ病毒的检查和清除：1.进入安全模式，在“服务”里面将VKTServ服务禁用。

2.在c:windowssystem32vktserv.exe下，将VKTServ.exe文件删除。

3.在CMD下，使用 sc delete vtkserv 命令，删除VKTServ服务。

4.用“VKTServ”关键字搜索注册表，将搜索到的键值全部删除。

5.再用“VKTServ”关键字，搜索WINDOWS目录，确认没有这个文件的其他病毒了。

npf病毒的检查和清除该病毒通常有三个文件loadhw.exe，msitinit.dll，npf.sys，前两个一般的杀毒软件都可删除。

npf.sys是该病毒主要文件，病毒修改注册表创建系统服务NPF 实现自启动，运行后执行ARP欺骗，不停地向各个机器发送ARP包堵塞网络，使得网络传输数据越来越慢，并且通过伪掉线来使用户重新登陆游戏，这样它就可以截取局域网内所有用户登陆游戏时的信息数据。

该病毒往往造成网络堵塞，严重时造成机器蓝屏。

在本地机器上查找是否存在npf.sys。

开始杀毒首先进入注册表删除HKEY_LOCAL_MACHINESYSTEMCurrentControlSetServicesNpf服务。

同时删除HKEY_LOCAL_MACHINESYSTEMControlSet001EnumRootLEGACY-NPFHKEY_LOCAL_MACHINESYSTEMControlSet002EnumRootLEGACY-NPF删除这两个键时，会提示无法删除，这是因为没有权限，于是右键，权限，设置为everyone控制，删除。

再去c:windowssysytem32drivers，删除npf文件。
