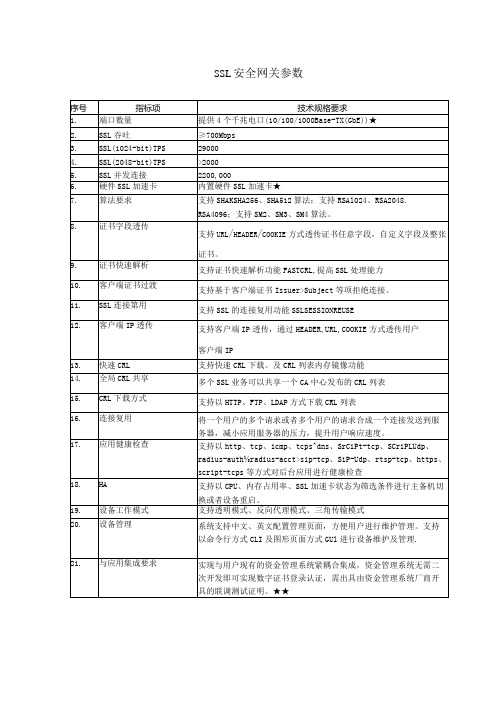

网关参数一览表

产品简介LM Gateway101-B 数据采集网关，基于稳固的硬件平台设计，完善的软件内核。

提供1个RS-485串口，1个10/100Mbps 以太网口，网关内嵌Modbus,DLT645，PPI,Mbus 等数据采集驱动，提供私有协议驱动集成，网关作为BACnet IP 和BACnet MS/TP 服务器对外提供数据。

硬件规格LM Gateway101硬件参数：CPU ARM926EJ,主频为300MHz 内存64MByte 高性能内存Nand Flash 128MByte SLC Flash 串口1个全隔离RS485接口网口1个100M/10M 以太网接口WIFI可选配USB 无线网卡电源DC9V ～48V ，支持防反接，抗雷，过流等保护整机重量280g 外壳防护等级IP51安装尺寸98.5mm ×96mm ×27mm(L ×W ×H)含挂耳机械安装DIN 导轨卡槽固定LM Gateway101环境参数：功耗主板最大功耗≤2W 工作温度工作相对湿度-40～85℃20～90％无凝露接口定义1．POWER 电源座信号说明Vin+电源正Vin-电源负E 安全地线2.DC 座，5.5*2.1mm在电源质量不佳的环境下，建议使用开关电源供电，能有效提高网关抗干扰的能力。

3．网口10/100M 高速自适应网卡；采用双级防雷防静电保护，能抵抗2KV 雷击；唯一MAC 地址。

LAN 口默认IP 子网掩码Eth0192.168.1.233255.255.255.04．CON 功能座RS485：全隔离RS485接口，采用三级防护；支持GB/T 17626.5-2008标准中10/700uS 测试的最高等级4KV 防护；±15kV 人体放电模式；±15kV IEC1000-4-2气隙放电；通讯参数可配置，默认通讯参数：9600，8-1-N 。

5．LEDx-灯组PIN 号标记说明1POWER 电源指示，上电灯亮2SYS系统运行指示3TX1串口发送指示4RX1串口接收指示接口标记数据服务网关作为BACnet IP ,BACnet MS/TP 服务器对外提供数据，支持AI,AO,AV,BI,BO,BV,MSI,MSO,MSV 等属性，可配置数据单位。

型号PA-5500-U05PA-5500-U06PA-5500-U10A PA-5500-U10B PA-5500-U10C PA-5500-U10-POEPA-5500-U20A PA-5500-U20B PA-5500-U20CPA-5500-U20-POE性能指标防火墙吞吐量200Mbps600Mbps2Gbps2Gbps2Gbps2Gbps4Gbps4Gbps4Gbps4Gbps 最大并发连接数30万50万100万100万100万100万200万200万200万200万每秒新建连接50001万2万2万2万2万3万3万5万5万IPSEC VPN吞吐量100Mbps200Mbps300Mbps300Mbps300Mbps300Mbps500Mbps500Mbps500Mbps500Mbps IPSEC并发隧道数500100015001500150015002000200020002000 IPS吞吐量100Mbps200Mbps300Mbps300Mbps300Mbps300Mbps600Mbps600Mbps600Mbps600Mbps 推荐最大用户数200人600人1000人1000人1000人1000人2000人2000人2000人2000人硬件特性网络接口11GE11GE11GE9GE+2SFP4Combo+4GE 12GE（其中4个PoE口）11GE9GE+2SFP4Combo+4GE12GE（其中4个PoE口）管理接口1×Console1×Console1×Console1×Console1×Console1×Console1×Console1×Console1×Console1×Console 内存2G2G2G2G2G2G2G2G2G2G 机箱尺寸（W*D*H,mm）1U（430*248*43）1U（430*248*43）1U（430*248*43）1U（430*248*43）1U（440*285*44）1U（440*275*44）1U（430*248*43）1U（430*248*43）1U（440*285*44）1U（440*275*44）电源单电源单电源单电源单电源单电源单电源单电源单电源单电源单电源物理环境整机最大功耗35W35W35W35W35W100W35W35W35W100W 电源输入范围176~264V AC176~264V AC176~264V AC176~264V AC100~240V AC100~240V AC176~264V AC176~264V AC100~240V AC100~240V AC 设备重量4Kg4Kg4Kg4Kg4Kg4Kg4Kg4Kg4Kg4KgMTBF30年30年30年30年30年30年30年30年30年30年存储温度－20℃～70℃－20℃～70℃－20℃～70℃－20℃～70℃－20℃～70℃－20℃～70℃－20℃～70℃－20℃～70℃－20℃～70℃－20℃～70℃工作温度-5℃～45℃-5℃～45℃-5℃～45℃-5℃～45℃-5℃～45℃-5℃～45℃-5℃～45℃-5℃～45℃-5℃～45℃-5℃～45℃环境湿度10%-90%非凝结10%-90%非凝结10%-90%非凝结10%-90%非凝结10%-90%非凝结10%-90%非凝结10%-90%非凝结10%-90%非凝结10%-90%非凝结10%-90%非凝结高度0到9840ft(3000m)0到9840ft(3000m)0到9840ft(3000m)0到9840ft(3000m)0到9840ft(3000m)0到9840ft(3000m)0到9840ft(3000m)0到9840ft(3000m)0到9840ft(3000m)0到9840ft(3000m)冲击1.14m/sec(45in./sec)1/2正弦输入1.14m/sec(45in./sec)1/2正弦输入1.14m/sec(45in./sec)1/2正弦输入1.14m/sec(45in./sec)1/2正弦输入1.14m/sec(45in./sec)1/2正弦输入1.14m/sec(45in./sec)1/2正弦输入1.14m/sec(45in./sec)1/2正弦输入1.14m/sec(45in./sec)1/2正弦输入1.14m/sec(45in./sec)1/2正弦输入1.14m/sec(45in./sec)1/2正弦输入汉柏安全网关产品规格表。

WAM180智慧WIFI网关详细参数硬件规格产品名称WAM-180智慧WIFI网关CPU 高性能网络处理器DRAM内存128MBFlash闪存8MB广域网WAN端口4个10/100/1000M自适应RJ45局域网LAN端口1个10/100/1000M自适应RJ45L (mm) 440W (mm) 260H (mm) 44输入电压范围AC100V-240V50/60Hz(开关电源)输出电压12V 2A功耗24W工作湿度10% 到 95% RH无凝结工作温度-20℃～60℃存储湿度5%到95% RH无凝结存储温度40ºC～70ºC传输介质五类线、超五类线、六类线软件功能双WAN接入可同时接入4条ADSL、光纤或不同ISP线路双WAN特色带宽叠加、线路备份、策略路由、IP分流、联机数均衡、行为管理端口切换可转换为3WAN/2LAN或1WAN/4LAN 多子网设置支持5条多子网维盟智能QoS √单机速度限制√带宽保证√时间段管理速度限制、访问控制、应用限制PPPoE服务器XWeb认证支持250用户PPTP/L2TP服务器支持2条隧道PPTP/L2TP客户端√DHCP服务器√DHCP高级功能支持分配多个网段IP、分配网关、DNS PPPoE用户到期提醒√PPPoE在线用户列表√通告功能√认证主机例外√上网行为管理√网址分类√网址黑白名单√QQ黑白名单√域名过滤√域名重定向√URL重定向特别适用百度、搜狗等推广用户P2P软件限制BT、迅雷、eMule、FTP、超级旋风、Vagaa、http多线程IM软件管理QQ、MSN、飞信、旺旺在线视频管理QQlive、PPlive、PPS、UUSee、Qvod、Flash视频、酷狗即插即用上网√ARP防御自动防御、一键绑定、ARP欺骗日志ACL访问规则√(特有的支持域名的ACL管控)最大联机数10000联机数管控√端口映射√DMZ主机√DDNS动态域名解析√DDoS攻击防御各种常见的蠕虫病毒、碎片、SYN、DoS洪水攻击静态路由√VPN穿透 L2TP/PPTP/IPSec穿透网络远程唤醒√系统资源状态查看√在线IP流量分析√WAN口接入连接类PPPoE/静态IP/DHCP/PPTP/L2TP型系统日志记录访问规则日志、攻击日志、PPPoE日志、系统日志MAC地址克隆√访问方式 WebUI/Telnet/SSH 支持远程访问与升级参数备份√(可单独对PPPoE用户信息、访问控制、ARP信息备份) 升级方式 WebUI/TFTP升级其它参数默认IP地址192.168.1.1初始账户/密码root/admin默认DHCP服务器开启默认DHCP地址池192.168.1.100-192.168.1.200默认WAN连接方式DHCP3C √ROHS √语言支持中文快速操作手册√电子说明书√超五类网线√电源适配器√保修卡√质保卡√合格证√电子光盘√控制方式Web UI/Telnet/SSH实际带机量250台质保期限三年(第一年免费维修，后两年免人工费维修)。

Product Data SheetApril 201300813-0200-4420, Rev FA⏹Gateway connects wireless self-organizing networks with any host system ⏹Easy configuration and management of self-organizing networks⏹Easy integration into control systems and data applications through serial and Ethernet LAN connections⏹Seamless integration into AMS Device Manager and DeltaV™ automation system ⏹Greater than 99% reliability with industry proven security⏹Smart Wireless capabilities extends the full benefit of PlantWeb ® architecture to previously inaccessible locationsSmart Wireless GatewaySmart Wireless Gateway April 2013Emerson Smart Wireless GatewayGain real-time process information with greater than 99% wireless data reliability⏹The Smart Wireless Gateway automatically manages wireless communications in constantly changing environments⏹Native integration with DeltaV and Ovation automation systems provides simple and fast commissioning for wireless field networks⏹Connect to data historians, legacy host systems, and other via a LAN applications through Ethernet, Modbus, Serial, OPC, EtherNet/IP, and HART outputsGuarantee system availability withredundant Smart Wireless Gateways⏹Never lose the wireless network with hot standby capabilityand automatic fault detection⏹Smart Wireless Gateways function as a single system,eliminating the need for duplicate host integration⏹One click configuration and plug-and-play architectureComplete wireless network configuration toolsprovided with each Gateway⏹The integrated web interface allows easy configuration of thewireless network and data integration without the need to installadditional software⏹Complimentary AMS Wireless Configurator software providesEmerson Device Dashboards to configure devices and viewdiagnostic dataDrag and Drop device provisioning enables asecure method to add new wireless devices tothe wireless field networkContentsEmerson’s Smart Wireless Solution .. . . . . . . . . page3IEC 62591 (WirelessHART®)... The Industry Standard page3Ordering Information . . . . . . . . . . . . . . . . . . . . . page4Accessories and Spare parts . . . . . . . . . . . . . . . . page5 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . page6 Product certifications . . . . . . . . . . . . . . . . . . . . . page8 Dimensional drawings . . . . . . . . . . . . . . . . . . . . . page9Smart Wireless Gateway April 2013Emerson’s Smart Wireless SolutionIEC 62591 (Wireless HART®)... The Industry StandardSelf-Organizing, Adaptive Mesh Routing⏹No wireless expertise required, network automatically finds the best communication paths⏹The self-organizing, self-healing network manages multiple communication paths for any given device. If an obstruction is introduced into the network, data will continue to flow because the device already has other established paths. The network will then lay in more communication paths as needed for that device.Reliable Wireless Architecture⏹Standard IEEE 802.15.4 radios⏹2.4 GHz ISM band sliced into 15 radio-channels⏹Time Synchronized Channel Hopping to avoid interference from other radios, WiFi, and EMC sources and increase reliability⏹Direct sequence spread spectrum (DSSS) technology delivers high reliability in challenging radio environment Emerson’s Smart WirelessSeamless Integration via a LAN to All Existing Host Systems ⏹Native integration into DeltaV and Ovation is transparent and seamless⏹Gateways interface with existing host systems via a LAN, using industry standard protocols including OPC, Modbus TCP/IP, Modbus RTU, and EtherNet/IPLayered Security Keeps Your Network Safe⏹Ensures that data transmissions are received only by the Smart Wireless Gateway⏹Network devices implement industry standard Encryption, Authentication, Verification, Anti-Jamming, and Key Management⏹Third party security verification including Achilles andFIPS197- User based login and enforced password strength. Password strength monitoring, user based log in, password reset requirements, automatic lockout, password expiration requirements. Based on guidelines from ISA99.03.03 standard approved level two. SmartPower™ Solutions⏹Optimized Emerson instrumentation, both hardware and software, to extend power module life⏹SmartPower technologies enable predictable power lifeSmart Wireless Gateway April 2013 Ordering InformationTable 1. Smart Wireless Gateway Ordering Information★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery.The Expanded offering is subject to additional delivery lead time.Model Product Description1420Smart Wireless GatewayPower InputStandard StandardA24 VDC Nominal (10.5-30 VDC)★Ethernet Communications - Physical ConnectionStandard Standard1(1)(2)Ethernet★2(3)(4)Dual Ethernet★Wireless Update Rate, Operating Frequency, and ProtocolStandard StandardA3User Configurable Update Rate, 2.4 GHz DSSS, Wireless HART★Serial Communication]Standard StandardN None★A(5)Modbus RTU via RS485★Ethernet Communication - Data ProtocolsStandard Standard2Webserver, Modbus TCP/IP, AMS Ready, HART-IP★4Webserver, Modbus TCP/IP, AMS Ready, HART-IP, OPC★5(6)DeltaV Ready★6(6)Ovation Ready ★8Webserver, EtherNet/IP, AMS Ready, HART-IP★9Webserver, EtherNet/IP, Modbus TCP/IP, AMS Ready, HART-IP★Options (Include with selected model number)Product CertificationsStandard StandardN5FM Division 2, Non-incendive★N6CSA Division 2, Non-incendive★N1ATEX Type n★ND ATEX Dust★N7IECEx Type n★NF IECEx Dust★KD FM & CSA Division 2, Non-incendive and ATEX Type n★N3China Type n★N4TIIS Type n★Redundancy OptionsStandard Standard RD(7)(8)(9)Gateway Redundancy★AdaptersStandard StandardJ1CM 20 Conduit Adapters★J2PG 13.5 Conduit Adapters★J33/4 NPT Conduit Adapters★Antenna Options(10)Standard Standard WL2Remote Antenna Kit, 50 ft. (15.2 m) cable, Lightning Arrestor★Smart Wireless GatewayApril 2013Accessories and Spare partsWL3Remote Antenna Kit, 20 ft. (6.1 m) and 30 ft. (9.1 m) cables, Lightning Arrestor ★WL4Remote Antenna Kit, 10 ft. (3.0 m) and 40 ft. (12.2 m) cables, Lightning Arrestor ★Expanded WN2(11)High-Gain, Remote Antenna Kit, 25 ft. (7.6m) cable, Lightning ArrestorTypical Model Number:1420A2A3 A 2 N5(1)Single active 10/100 baseT Ethernet port with RJ45 connector.(2)Additional ports disabled.(3)Dual active 10/100 baseT Ethernet ports with RJ45 connectors.(4)Multiple active ports have separate IP addresses, firewall isolation, and no packet forwarding.(5)Convertible to RS232 via adaptor, not included with Gateway.(6)Includes Webserver, Modbus TCP, AMS Ready, HART-IP, and OPC.(7)Requires the selection of Dual Ethernet option code 2.(8)Not available with DeltaV Ready option code 5.(9)Not available with EtherNet/IP option codes 8 and 9(10)The WL2, WL3, WL4, and WN2 options require minor assembly.(11)Not available in all countriesTable 1. Smart Wireless Gateway Ordering Information★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery.The Expanded offering is subject to additional delivery lead time. Table 2. AccessoriesItem DescriptionPart Number AMS® Wireless SNAP-ON™, 1 Gateway License 01420-1644-0001AMS Wireless SNAP-ON, 5 Gateway Licenses 01420-1644-0002AMS Wireless SNAP-ON, 10 Gateway Licenses 01420-1644-0003AMS Wireless SNAP-ON, 5-10 Upgrade Licenses 01420-1644-0004Serial Port HART Modem and Cables only 03095-5105-0001USB Port HART Modem and Cables only03095-5105-0002Table 3. Spare PartsItem DescriptionPart Number Spare Kit, WL2 Replacement (1), Remote Antenna, 50 ft. (15.2 m) Cable, and Lightning Arrestor01420-1615-0302Spare Kit, WL3 Replacement (1), Remote Antenna, 20/30 ft. (6.1/9.1 m) Cables, and Lightning Arrestor01420-1615-0303Spare Kit, WL4 Replacement (1), Remote Antenna, 10/40 ft. (3.0/12.2 m) Cables, and Lightning Arrestor 01420-1615-0304Spare Kit, WN2 Replacement (1), High Gain, Remote Antenna, 25 ft. (7.6 m) Cable, and Lightning Arrestor (2)01420-1615-0402(1)Can not upgrade from integral to remote antenna.(2)Not available in all countries.Smart Wireless GatewayApril 2013SpecificationsFunctional SpecificationsInput Power10.5 - 30 VDCCurrent DrawRadio Frequency Power Output from AntennaMaximum of 10 mW (10 dBm) EIRPMaximum of 40 mW (16 dBm) EIRP for WN2 High Gain optionEnvironmentalOperating Temperature Range: -40 to 158 °F (-40 to 70 °C)Operating Humidity Range: 10-90% relative humidityEMC PerformanceComplies with EN61326-1:2006.Antenna OptionsIntegrated Omnidirectional AntennaOptional remote mount Omnidirectional AntennaPhysical SpecificationsWeight10 lb (4.54 kg)Material of ConstructionHousingLow-copper aluminum, NEMA 4X PaintPolyurethaneCover GasketSilicone Rubber AntennaIntegrated Antenna: PBT/PC Remote Antenna: Fiber Glass CertificationsClass I Division 2 (U.S.)Equivalent WorldwideCommunication SpecificationsIsolated RS4852-wire communication link for Modbus RTU multidrop connectionsBaud rate: 57600, 38400, 19200, or 9600Protocol: Modbus RTUWiring: Single twisted shielded pair, 18 AWG. Wiring distance up to 4,000 ft. (1,524 m)Ethernet10/100base-TX Ethernet communication portProtocols: EtherNet/IP Modbus TCP, OPC, HART-IP, HTTPS (for Web Interface)Wiring: Cat5E shielded cable. Wiring distance 328 ft. (100 m).ModbusSupports Modbus RTU and Modbus TCP with 32-bit floating point values, integers, and scaled integers.Modbus Registers are user-specified.OPCOPC server supports OPC DA v2, v3EtherNet/IPSupports EtherNet/IP protocol with 32 bit Floating Point values and Integers.EtherNet/IP Assembly Input-Output instances are user configurable.EtherNet/IP specifications are managed and distributed by ODVA.Self-Organizing Network SpecificationsProtocolIEC 62591 (Wireless HART), 2.4 - 2.5 GHz DSSS.Maximum Network Size100 wireless devices @ 8 sec or higher.50 wireless devices @ 4 sec.25 wireless devices @ 2 sec.12 wireless devices @ 1 sec.Supported Device Update Rates1, 2, 4, 8, 16, 32 seconds or 1 - 60 minutesNetwork Size/Latency100 Devices: less than 10 sec.50 Devices: less than 5 sec.Data Reliability>99%C u r r e n t (m A )Operating Current Draw is based on 3.6 Watts average powerconsumption. Momentary startup Current Draw up to twice Operating Current Draw.Smart Wireless Gateway April 2013System Security SpecificationsEthernetSecure Sockets Layer (SSL)- enabled (default) TCP/IPcommunicationsSmart Wireless Gateway AccessRole-based Access Control (RBAC) including Administrator,Maintenance, Operator, and Executive. Administrator hascomplete control of the gateway and connections to hostsystems and the self-organizing network.Self-Organizing NetworkAES-128 Encrypted Wireless HART, including individual sessionkeys. Drag and Drop device provisioning, including unique joinkeys and white listing.Internal FirewallUser Configurable TCP ports for communications protocols,including Enable/Disable and user specified port numbers.Inspects both incoming and outgoing packets.Third Party CertificationWurldtech: Achilles Level 1 certified for network resiliency.National Institute of Standards and Technology (NIST):Advanced Encryption Standard (AES) Algorithm conforming toFederal Information Processing Standard Publication 197(FIPS-197)Smart Wireless Gateway April 2013 Product certificationsApproved Manufacturing LocationsRosemount Inc. – Chanhassen, Minnesota, USAEmerson Process Management GmbH & Co. - Karlstein, GermanyEmerson Process Management Asia Pacific Private Limited - SingaporeBeijing Rosemount Far East Instrument Co., Limited - Beijing, ChinaTelecommunication ComplianceAll wireless devices require certification to ensure that they adhere to regulations regarding the use of the RF spectrum. Nearly every country requires this type of product certification. Emerson is working with governmental agencies around the world to supply fully compliant products and remove the risk of violating country directives or laws governing wireless device usage.FCC and ICThis device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions. This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This device must be installed to ensure a minimum antenna separation distance of 20 cm from all persons. Ordinary Location Certification for FMAs standard, the Gateway has been examined and tested to determine that the design meets basic electrical, mechanical, and fire protection requirements by FM, a nationally recognized testing laboratory (NRTL) as accredited by the Federal Occupational Safety and Health Administration (OSHA).North American CertificationsN5FM Division 2, Non-IncendiveCertificate Number: 3028321Nonincendive for Class I, Division 2, Groups A, B, C, and D.Suitable for Class II, III, Division 1,Groups E, F, and G; Indoors/outdoor locations;Type 4XTemperature Code: T4 (-40 °C < T a < 60 °C)Canadian Standards Association (CSA)N6CSA Division 2, Non-IncendiveCertificate Number: 1849337Suitable for Class I, Division 2, Groups A, B, C, and D.Dust Ignition-proof for Class II, Groups E, F, and G;Suitable for Class III Hazardous Locations.;Install per Rosemount drawing 01420-1011.Temperature Code: T4 (-40 °C < T a < 60 °C)CSA Enclosure Type 4X European Union Directive InformationThe EC declaration of conformity for all applicable European directives for this product can be found on the Rosemount websiteat . A hard copy may be obtained by contacting your local sales representative.European CertificationN1ATEX Type nEx nA nL IIC T4 (-40 °C < T a< 60 °C)Special condition for safe use (X):The surface resistivity of the antenna is greater than onegigaohm. To avoid electrostatic charge build-up, it mustnot be rubbed or cleaned with solvents or a dry cloth.The Apparatus is not capable of withstanding the 500Vinsulation test required by Clause 9.4 of EN 60079-15:2005. This must be taken into account when installing the apparatus.ND ATEX DustCertificate Number: Baseefa 07ATEX0057Ex tD A 22 IP66 T135 (-40 °C < T a < 60 °C)Maximum working Voltage = 28 VN7IECEx Type nCertificate Number: IECEx BAS 07.0012XEx nA nL IIC T4 (-40 °C < T a < 60 °C)Maximum working voltage = 28 VSpecial condition for safe use (X):The surface resistivity of the antenna is greater than onegigaohm. To avoid electrostatic charge build-up, it mustnot be rubbed or cleaned with solvents or a dry cloth.The Apparatus is not capable of withstanding the 500 Vinsulation test required by Clause 9.4 of EN 60079-15:2005. This must be taken into account when installing the apparatus.NF IECEx DustCertification Number: IECEx BAS 07.0013Ex tD A22 IP66 T135 (-40 °C < T a < 60 °C)Maximum working voltage = 28 VCombinations of CertificationsKD Combination of N5, N6, and N1.Smart Wireless Gateway April 2013Dimensional drawingsFigure 1. Smart Wireless Gateway Dimensions are in inches (millimeters)Smart Wireless Gateway April 2013 Remote Antenna KitThe Remote Antenna kit includes sealant tape for remote antenna connection, as well as mounting brackets for the antenna, Lightning Arrestor, and the Smart Wireless Gateway.Lightning protection is included on all the options.*Note that the cables lengths on the remote antenna options WL3 and WL4 are interchangeable for installation convenience.Smart Wireless Gateway April 201311Standard Terms and Conditions of Sale can be found at \terms_of_sale The Emerson logo is a trade mark and service mark of Emerson Electric Co.Rosemount and the Rosemount logotype are registered trademarks of Rosemount Inc.PlantWeb is a registered trademark of one of the Emerson Process Management group of companies.HART and WirelessHART are registered trademarks of the HART Communication Foundation Modbus is a trademark of Modicon, Inc.All other marks are the property of their respective owners.© 2012 Rosemount Inc. All rights reserved.Emerson Process Management Rosemount Inc.8200 Market Boulevard Chanhassen, MN 55317 USA T (U.S.) 1-800-999-9307T (International) (952) 906-8888F (952) Emerson Process Management Blegistrasse 23P.O. Box 1046CH 6341 Baar Switzerland T +41 (0) 41 768 6111F +41 (0) 41 768 Emerson Process Management Asia Pacific Pte Ltd 1 Pandan Crescent Signapore 128461T +65 6777 8211F +65 6777 0947Service Support Hotline: +65 6770 8711Email:***************************.comSmart Wireless Gateway00813-0200-4420, Rev FAProduct Data Sheet April 2013Emerson Process Management Latin America 1300 Concord Terrace, Suite 400Sunrise Florida 33323 USA Tel + 1 954 846 5030。

编号：NS005FATA--
产品名称：NetEye 防火墙版本号：3.1
产品型号：SG-1000（灵巧网关－以太网卡/ADSL －具有VPN 功能）
型号集成网卡配置集成显卡配置型号数量品牌容量数量
型号数量
型号
数量
外频型号数量
型号数量
1U 438*290*44nupro775intel 82559celoen 8001DOM200032MB DiskOn Module
1Intel pro100 s
1kingmax 250 md
1150亿阳网
警
SJY22-B PCI 密码卡
1台湾 SS-200U1
1
产品名称：NetEye 防火墙版本号：3.1
产品型号：SG-1000（灵巧网关－以太网卡/ADSL －无VPN 功能）
型号
集成网卡配置集成显卡配置型号
数量
品牌
容量
数量
型号
数量
型号
数量
外频
型号
数量
型号
数量
硬件配置表
机箱规格
型号主板CPU 网卡
内存加密卡
电源
FLASH 卡
硬件配置
硬件配置
机箱规格型号
主板
CPU FLASH 卡
网卡内存加密卡电源
VPN功能）PN功能）。

语音中继网关SMG3000-B1参数与功能列表1、技术参数外形尺寸：长×高×深＝440×44×267 mm3重量：约3.1kg环境要求：工作温度：0℃—40℃储存温度：-20℃—85℃湿度：8%—90% 无结露储存湿度：8%—90% 无结露网络接口：接口数量：2（10/100/1000 BASE-TX（RJ-45））自适应带宽：支持自动翻转：支持E1/T1接口：接口数量：1接口类型：RJ45串口：接口数量：1（RS-232）波特率：115200bps接口类型：RJ45（信号定义见硬件描述）数据位：8 bits停止位：1 bit校验：无流控：无注意：串口连接时，请按照以上配置进行设置，否则可能造成异常。

电源要求：接入电压：100～240V AC最大消耗功率：≤22W信令和协议：7号信令：TUP协议、ISUP协议ISDN协议：ISDN用户侧、ISDN网络侧1号信令：SS1协议SIP信令：SIP V1.0/2.0、RFC3261音频编解码速率：G.711A 64 kbpsG.711U 64 kbpsG.729A/B 8 kbpsG723 5.3/6.3 kbpsG722 64 kbpsAMR 4.75/5.15/5.90/6.70/7.40/7.95/10.20/12.20 kbpsiLBC 13.3/15.2 kbpsSILK(16K) 20 kbpsOPUS(16K) 20 kbpsSILK(8K) 20 kbpsOPUS(8K) 20 kbps采样率：8kHz安全防护：防雷击能力：4级2、功能列表PSTN呼叫：PSTN线路呼入，经过路由和号码变换，连接指定的SIP中继进行语音通信IP呼叫：IP线路呼入，经过路由和号码变换，连接指定的PCM中继进行语音通信号码变换：删减号码头部或尾部的数字，或者对号码添加前缀或后缀PSTN/ VoIP路由：用户可以设置路由路径，从IP到PSTN或从PSTN到IP传真：用户可以设置传真模式、最大传真速率、训练方式、纠错模式等传真参数回波抵消：在通话过程中提供回波抵消功能信令和协议：7号信令：7号信令TUP协议、7号信令ISUP协议ISDN协议：ISDN用户侧、ISDN网络侧1号信令：1号信令SIP信令：兼容的协议：SIP V1.0/2.0、RFC3261语音：音频编解码格式G.711A、G.711U、G.729、G722、G723、iLBC、AMR、SILK(16K)、OPUS(16K)、SILK(8K)、OPUS(8K) DTMF模式：RFC2833、SIP INFO、INBAND、RFC2833+信令、带内+信令传真：传真模式T.38、Pass-Through波特率14400bps、9600bps、4800bps网络协议：TCP/UDP、HTTP、ARP/RARP、DNS、NTP、TFTP、TELNET、STUN静态IP：IP地址修改DNS：域名解析管理认证：支持管理员认证确保资源和数据的安全性WEB配置：通过WEB界面修改配置支持语言：中文，英文软件升级：基于WEB的用户界面、网关服务、内核及固件升级跟踪测试：基于WEB的Ping测试和Tracert测试SysLog类型：ERROR、WARNING、INFO。
