Types of Bridges
1. Beam bridge 2. Arch Bridge 3. Moveable bridge 4. Cable-Stayed Bridge 5. Suspension Bridge
Beam bridge
• a bridge that utilizes girders as the means of supporting the deck
mae
• span 600 to 1200 m -- way farther than any other type of bridge
• Most suspension bridges have a truss system beneath the roadway to resist bending and twisting.
Thank you
Moveable bridge
• Beam is moveable • Advantage： lower cost • Disadvantage：traffic must be halted when
it is opened
Moveable bridge
• All kinds of moveable bridges
• the most commonly built and utilized bridge • the most simplified form • No moments are transferred throughout the
support
Arch Bridge
One or more arches Masonry, reinforced concrete or steel deck arch bridge(上承式拱桥) through arch

关于桥的介绍ppt课件

关于桥的介绍ppt课件
9
Python Bridge, Amsterdam
This dipping Borneo-Sporenburg pedestrian bridge is
one of three that connects Amsterdam with Borneo
Island. Its unusual shape lends it the name "Python
Like a modern drawbridge, London's Rolling
Bridge unfurls to connect workers and
residents to two sides of the Grand Union
Canal without obstructing boats.
Made for walking: The world’s most aesthetic footbridges
1
Helix（螺旋） Bridge, Singapore This twisting bridge, modeled after the DNA structure, holds the title of the world's first curved bridge. Linking the Marina Bay and Marina Center in Singapore, the three-yearold Helix Bridge symbolizes life and continuity with its intertwining steel frame. It also hosts five viewing platforms to take in the city's skyline

建筑工程专业英语课件(全)

建筑工程专业英语课件(全)
Unit1
一、本单元学习要求 二、text学习 介绍text专业背景 词汇和短语 课程内容分析 课程内容难点分析 完成课后练习 三、reading material作为课后要求 四、supplement学习
一、本单元学习要求
1、掌握关于土木工程常用的英语专业词汇 的表示；
2、通过课程内容分析，概括土木工程所包 含的内容，并与中文专业表述进行比较， 进一步理解专业英语的表述；
3、课后自行阅读reading material，了解 土木行业的相关职业，能看懂并会写简 单的求职信；
4、学习专业英语中科技论文阅读技巧；
二、text学习
——Civil Engineering
专业背景介绍
所谓土木，是指一切和水、土、文化有关的基础建 设的计划、建造和维修。现时一般的土木工作项 目包括：道路、水务、渠务、防洪工程及交通等。 过去曾经将一切非军事用途的民用工程项目，归 类入本类，但随着工程科学日益广阔，不少原来 属于土木工程范围的内容都已经独立成科。目前， 从狭义定义上来说，土木工程（Civil Engineering） 也就是民用工程，即建筑工程（或称结构工程）、 桥梁与隧道工程、岩土工程、公路与城市道路、 铁路工程等这个小范围。
土木工程提出了特殊的挑战，因为由土木工程师设计建造 的每个结构或系统都是惟一的。一个结构几乎不能完全复 制成为另一个。
（2）Brevity简洁
专业英语的内容通常包括理论分析、公式推导和 研究的目的、范围、方法、步骤、结论等。在不 影响表达的前提下，语言应尽可能简洁，避免不 必要的润饰和重复，但并不排除会使用复杂句或 长句。
材料的屈服准则指可能导致材料屈服的应力组合 的数学表达式。换句话说，它表示应力与强度之 间的关系。

2019年-沉管隧道介绍(英文)-PPT精选文档-PPT精选文档

2019年-沉管隧道介绍(英文)-PPT精选文档-PPT精选文档

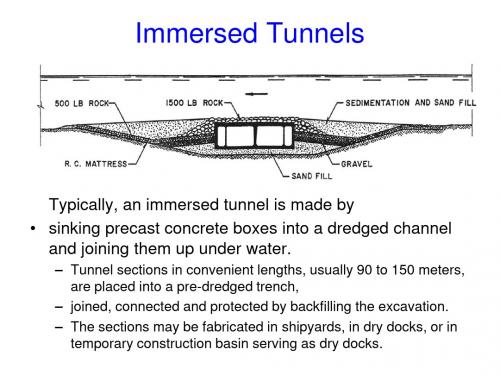

• Tides and current effects of the waterway must be evaluated to determine conditions during dredging and tube sinking operations.
