智能小车-电机源代码

#include<reg52.h>#define sense P1 /*宏定义光电传感器端口*/#define input1 P0 /*左电机的IN1,IN2定义在P0口*/#define input2 P2 /*右电机的IN3,IN4及ENA,ENB定义在P2口*/ //宏定义电机的具体端口sbit MOTO1_INT1=P0^0;sbit MOTO1_INT2=P0^1;sbit MOTO1_ENA=P2^0;sbit MOTO2_INT3=P2^5;sbit MOTO2_INT4=P2^4;sbit MOTO2_ENB=P2^2;//宏定义传感器的具体端口sbit sense_L=P1^3;sbit sense_R=P1^6;//宏定义金属传感器端口sbit METAL=P1^1;//宏定义DELAY函数中的一些变量int Dtime1=20000;int Dtime2=2000;int i=0;unsigned char SIGNAL(void); //传感器信号分析函数void DELAY(void); //延时函数void main(){int a;MOTO1_INT1=1; //使车开始时运动MOTO1_INT2=0;MOTO1_ENA=1;MOTO2_INT3=1;MOTO2_INT4=0;MOTO2_ENB=1;while(1){if(METAL==1) //有金属时车停止DELAY();else{a=SIGNAL();switch(a){case 1:input2=0x25;break; //前进case 2:input2=0x24;break; //左转case 3:input2=0x21;break; //右转default:break;}}}}void DELAY() //延时函数{input2=0x20; //使驱动芯片的两个使能端为0，使两个电机停转for(i=0;i<Dtime1;i++); //实现延时，用DTIME控制input2=0x25; //使驱动芯片的两个使能端为1,使两个电机重新转for(i=0;i<Dtime2;i++);}unsigned char SIGNAL(){unsigned char Re;Re=sense&0x28;if(Re==40)return 1;//前进else if(Re==8)return 2;//左转else if(Re==32)return 3;//右转else return 1;//有错时前进}。

简易智能小车——2003年全国大学生电子设计竞赛，c51源程序系统的单片机程序#include "reg52.h"#define det_Dist 2.55 //单个脉冲对应的小车行走距离，其值为车轮周长/4 #define RD 9 //小车对角轴长度#define PI 3.1415926#define ANG_90 90#define ANG_90_T 102#define ANG_180 189/*============================全局变量定义区============================*/sbit P10=P1^0; //控制继电器的开闭sbit P11=P1^1; //控制金属接近开关sbit P12=P1^2; //控制颜色传感器的开闭sbit P07=P0^7; //控制声光信号的开启sbit P26=P2^6; //接收颜色传感器的信号，白为0，黑为1sbit P24=P2^4; //左sbit P25=P2^5; //右接收左右光传感器的信号，有光为0unsigned char mType=0; //设置运动的方式，0 向前1 向左2 向后3 向右unsigned char Direction=0; //小车的即时朝向0 朝上1 朝左2 朝下3 朝右unsigned sX=50; unsigned char sY=0; //小车的相对右下角的坐标CM（sX,sY）unsigned char StartTask=0; //获得铁片后开始执行返回卸货任务，StartTask置一unsigned char Inter_EX0=0; // 完成一个完整的任务期间只能有一次外部中断// Inter_EX0记录外部中断0的中断状态// 0 动作最近的前一次未中断过，// 1 动作最近的前一次中断过unsigned char cntIorn=0; //铁片数unsigned char bkAim=2; //回程目的地，0为A仓库，1为B仓库，2为停车场，//(在MAIN中接受铁片颜色判断传感器的信号来赋值)unsigned char Light_Flag=0;//进入光引导区的标志(1)unsigned int cntTime_5Min=0;//时间周期数,用于T0 精确定时unsigned int cntTime_Plues=0; //霍尔开关产生的脉冲数/*============================全局变量定义区============================*//*------------------------------------------------*//*-----------------通用延迟程序-------------------*//*------------------------------------------------*/void delay(unsigned int time) // time*0.5ms延时{unsigned int i,j;for(j=0;j<time;j++){for(i=0;i<60;i++){;}}}/*-----------------------------------------------*//*-------------------显示控制模块----------------*//*-----------------------------------------------*//*数码管显示，显示铁片的数目(设接在P0，共阴)*/void Display(unsigned char n){charNumb[12]={0x3F,0x06,0x5B,0x4F,0x66,0x6D,0x7D,0x07,0x7F,0x6F,0x37,0x7 7};P0=Numb[n];}/*-----------------------------------------------*//*-------------------传感器模块------------------*//*-----------------------------------------------*//*光源检测程序: *//*用于纠正小车运行路线的正确性*/unsigned char LightSeek(){ void Display(unsigned char);bit l,r;l=P24;r=P25;if(l==0&&r==1){//Display(1);return (3); //偏左,向右开}if(r==0&&l==1){//Display(3);return(1); //偏右,向左开}if((l==1&&r==1)||(l==0&&r==0)){//Display(9);return(0); //没有偏离,前进}}/*铁片检测程序: *//*判断铁片的颜色，设定bkAim,0为A仓库，1为B仓库，2为停车场*/ void IornColor(){delay(4000);bkAim=(int)(P26);Display((int)(P26)+2);}/*-----------------------------------------------*//*------------------运动控制模块-----------------*//*-----------------------------------------------*//*====基本动作层:完成基本运动动作的程序集====*//*运动调整程序: *//*对小车的运动进行微调*/void ctrMotor_Adjust(unsigned char t){if(t==0){P2=P2&240|11; //用来解决两电机不对称的问题delay(6);}if(t==3){P2=P2&250; //向左走delay(1);}if(t==1){P2=(P2&245);delay(1); //向右走}P2=((P2&240)|15);delay(10);}/*直走程序: *//*控制小车运动距离,dist为运动距离(cm),type为运动方式(0 2)*/ /*只改变小车sX 和sY的值而不改变Direction的值. */ void ctrMotor_Dist(float dist,unsigned char type){unsigned char t=0;mType=type;P2=((P2&240)|15);cntTime_Plues=(int)(dist/det_Dist);while(cntTime_Plues){if(Inter_EX0==1&&StartTask==0){cntTime_Plues=0;break;}if(Light_Flag==1) t=LightSeek();if(type==0) //向前走{P2=P2&249;delay(40);ctrMotor_Adjust(t);}if(type==2) //向后退{P2=P2&246;delay(50);ctrMotor_Adjust(t);}P2=((P2&240)|15);if(mType==2) delay(60);//刹车制动0.5mselse delay(75);}}/*拐弯程序: *//*控制小车运动角度,type为运动方式（1 3）*//*只改变小车Direction的值而不改变sX 和sY的值*/void ctrMotor_Ang(unsigned char ang,unsigned char type,unsigned char dir) {unsigned char i=0;mType=type;P2=((P2&240)|15);cntTime_Plues=(int)((PI*RD*90/(180*det_Dist)*1.2)*ang/90);while(cntTime_Plues){if(Inter_EX0==1&&StartTask==0){cntTime_Plues=0;break;}if(type==1) //向左走{P2=P2&250;delay(100);ctrMotor_Adjust(0);}if(type==3) //向右走{P2=P2&245;delay(100);ctrMotor_Adjust(0);}P2=((P2&240)|15);delay(50);//刹车制动0.5ms}if(!(Inter_EX0==1&&StartTask==0)){Direction=dir;}}/*====基本路线层:描述小车基本运动路线的程序集====*//*当小车到达仓库或停车场时，放下铁片或停车(0，1为仓库，2为停车场)*/ void rchPlace(){unsigned int time,b,s,g;time=(int)(cntTime_5Min*0.065535);//只有一个数码管时，轮流显示全过程秒数个十百b=time%100;s=(time-b*100)%100;g=(time-b*100-s*10)%10;if(bkAim==2){//到达停车场了，停车EA=0;P2=((P2&240)|15);while(1){Display(10); //Ndelay(2000);Display(cntIorn);delay(2000);Display(11);//Adelay(2000);Display(b);delay(2000);Display(s);delay(2000);Display(g);delay(2000);}}else{if(Inter_EX0==1&&StartTask==1)P10=0; //到达仓库，卸下铁片}}/*无任务模式: *//*设置小车的固定运动路线,未发现铁片时的运动路线*/void BasicRoute(){ //Light_Flag=1;ctrMotor_Dist(153,0);//Light_Flag=0;ctrMotor_Ang(ANG_90,1,1);ctrMotor_Dist(100-sX,0);ctrMotor_Dist(125,2);ctrMotor_Dist(73,0);ctrMotor_Ang(ANG_90,1,2);//Light_Flag=1;ctrMotor_Dist(153,0);//Light_Flag=0;ctrMotor_Ang(ANG_180,1,0);rchPlace();}/*任务模式: *//*设置小车的发现铁片后的运动路线*/void TaskRoute(){//基本运行路线表,记载拐弯0 向前1 左拐2 向后3 右拐，正读去A区;反读去B区StartTask=1;ctrMotor_Ang(ANG_90_T,1,2);if(bkAim==1) //仓库A{ctrMotor_Dist(10,0);P2=((P2&240)|15);delay(60);ctrMotor_Ang(ANG_90_T,1,3);ctrMotor_Dist(100-sX,2);ctrMotor_Ang(ANG_90_T,1,2);Light_Flag=1;ctrMotor_Dist(153,2);Light_Flag=0;// ctrMotor_Ang(208,1,0);}else if(bkAim==0) //仓库B{ctrMotor_Dist(10,0);P2=((P2&240)|15);delay(60);ctrMotor_Ang(ANG_90_T,1,3);ctrMotor_Dist(100-sX,0);ctrMotor_Ang(ANG_90_T,1,0);Light_Flag=1;ctrMotor_Dist(153,2);Light_Flag=0;//ctrMotor_Ang(208,1,0);}delay(5000);rchPlace();}/*---------------------------------------------*//*-------------------主程序段------------------*/ /*---------------------------------------------*/void main(){delay(4000);P2=0xff; //初始化端口P07=0;P1=0;TMOD=0x01; //初始化定时器0/1 及其中断TL0=0;TH0=0;TR0=1;ET0=1;ET1=1;IT0=1; //初始化外部中断EX0=1;IT1=1;EX1=1;EA=1;P11=1;while(1){Display(cntIorn);bkAim=2;BasicRoute();if(Inter_EX0==1){TaskRoute();//按获得铁片后的路线运动IE0=0;EX0=1;}Inter_EX0=0;}}/*----------------------------------------------------*//*----------------------中断程序段--------------------*//*----------------------------------------------------*//*定时器0中断程序: *//*当时间过了5分钟，则就地停车并进入休眠状态*/void tmOver(void) interrupt 1{cntTime_5Min++;TL0=0;TH0=0;if(cntTime_5Min>=4520){Display(5);P2=((P2&240)|15);EA=0; //停车程序P07=1;delay(4000);PCON=0X00;while(1);}}/*外部中断0中断程序: *//*发现铁片，发出声光信号并将铁片吸起，发光二极管和蜂鸣器*//*并联在一起（设接在P07）. 0为A仓库，1为B仓库，2为停车场*/ void fndIorn(void) interrupt 0{unsigned char i;P10=1;P2=((P2&240)|15); //停车P07=1;delay(1000);//刹车制动0.5msP07=0;Inter_EX0=1;cntIorn++;Display(cntIorn);for(i=0;i<40;i++){P2=P2&249;delay(2);P2=((P2&240)|15);delay(2);}P2=P2&249;delay(100);P2=((P2&240)|15); //停车IornColor(); //判断铁片黑白,设置bkAimfor(i=0;i<95;i++){P2=P2&249;delay(3);P2=((P2&240)|15);delay(2);}P2=((P2&240)|15); //停车delay(4000); //把铁片吸起来EX0=0;}/*外部中断1中断程序: *//*对霍尔开关的脉冲记数,对小车的位置进行记录，以便对小车进行定位*/ void stpMove(void) interrupt 2{cntTime_Plues--;if(Direction==0) //向上{if(mType==0) sY+=det_Dist;else if(mType==2)sY-=det_Dist;}else if(Direction==1) //向左{if(mType==0) sX+=det_Dist;else if(mType==2)sX-=det_Dist;}else if(Direction==2) //向下{if(mType==0) sY-=det_Dist;else if(mType==2)sY+=det_Dist;}else if(Direction==3) //向右{if(mType==0) sX-=det_Dist;else if(mType==2)sX+=det_Dist;}}。

智能小车原理图及源程序智能小车避障、圣光报警程序/*用T0计时器中断进行对小车方向的调节用INT0外部中断进行声光报警用INT1外部中断进行超声避障用T1计时器进行对时间的测量*/#include<reg52.h>#include<stdio.h>sbit P00=P1^0; //循迹口sbit P01=P1^1;sbit P02=P1^2;sbit P03=P0^3; //声光信号P03接蜂鸣器，P04接LED sbit P04=P0^4;sbit P20=P2^0; //电机1 左轮sbit P21=P2^1;sbit P22=P2^2; //电机2sbit P23=P2^3;void zhuanxiang(char,char,char);void delay1ms(void);void delaynms(int);unsigned int i=0,j=0; //特殊情况旗标void kongzhi(void) interrupt 1 //PWM信号进行电机控制{if(P00==0&&P01==1&&P02==0) //小车直线快走定时0.02ms{TH0=0X1F;TL0=0XEC;P20=0; //电机1 左轮P21=1;P22=1; //电机2 右转P23=0;}if(P00==0&&P01==0&&P02==1) //小车右转定时0.05ms {TH0=0X1F;TL0=0XCE;P20=1; //电机1 左轮P21=1;P22=1; //电机2P23=0;i=1;}if(P00==0&&P01==0&&P02==0&&i==1) // 特别{TH0=0X1F;TL0=0XCE;P20=1;P21=1;P22=1;P23=0;j=0;}if(P00==1&&P01==0&&P02==0) //小车左转定时0.05ms {TH0=0X1F;TL0=0XCE;P20=0; //电机1P21=1;P22=1; //电机2P23=1;j=1;}if(P00==0&&P01==0&&P02==0&&j==1) // 特别{TH0=0X1F;TL0=0XCE;P20=0;P21=1;P22=1;P23=1;i=0;}if(P00==1&&P01==1&&P02==1){ //全部检测到黑线时车停TH0=0X1F;TL0=0XCE;P20=1;P21=1;P22=1;P23=1;}}void shengguang(void) interrupt 0 //停车并产生声光2s{unsigned int i,j;P20=1;P21=1;P22=1;P23=1;delaynms(500);for(i=0;i<20;i++){P04=0;for(j=0;j<100;j++){P03=0;delay1ms();P03=~P03;}}P03=1; //关闭声光P04=1;delaynms(500);P20=0;//继续行车P21=1;P22=1;P23=0;}void chaoshengbo(void) interrupt 2 //超声波测距避障程序{}void main(){while(1){P20=1;P21=1;P22=1;P23=1;//小车停P03=1;P04=1;PX0=1;TMOD=0X10;//T0用方式0，T1用方式1EA=1; //开启中断总开关EX0=1;//T0中断EX1=1; //T1中断ET0=1;//INT0中断ET1=1; //INT1中断TR1=1; //开启T1计时器zhuanxiang(P00,P01,P02);}}void zhuanxiang(char P00,char P01,char P02){if(P00==0&&P01==1&&P02==0) // 小车直走{ //0.01msTH0=0X1F;TL0=0XF6;;TR0=1;}if(P00==0&&P01==0&&P02==1) //小车右转定时0.05ms{TH0=0X1F;TL0=0XCE;TR0=1;}if(P00==1&&P01==0&&P02==0) //小车左转定时0.05ms {TH0=0X1F;TL0=0XCE;TR0=1;}if(P00==1&&P01==1&&P02==1) //全部检测到黑线时车停{TH0=0X1F;TL0=0XCE;TR0=1;}}void delay1ms(void){int i;for(i=0;i<120;i++);}void delaynms(int n){int i,j;for(i=0;i<n;i++)for(j=0;j<120;j++);}诺基亚显示程序：#include <reg51.h>#include <stdio.h>#include<string.h>sbit SCLK = P1^5; // pin 2 header 5sbit SDIN = P1^4; // pin 3 header 4sbit LCD_DC = P1^3; // pin 4 header 3sbit LCD_CE = P1^2; // pin 5 header 2sbit LCD_RST = P1^1; // pin 9 header 1void LCD_init(void);void LCD_clear(void);void LCD_write_chinese_string(unsigned char X, unsigned char Y,unsigned char ch_with,unsigned char num,unsigned char line,unsigned char row);void LCD_write_char(unsigned char c);void LCD_write_byte(unsigned char dat, unsigned char dc);void LCD_set_XY(unsigned char X, unsigned char Y);void delay_1us(void);unsigned char font6x8[5][4]={{'a','s','d','f'},{'j','k','f','e'},{'j','y','i','o'},{'t','f','j','g'},{'d','s',' ','g'}}; unsigned char write_chinese[3][1]={{'1'},{'g'},{'h'}};void main(void){LCD_init(); //初始化液晶LCD_clear();while(1){LCD_init();//设置基本功能LCD_clear();//清屏LCD_set_XY(0,0);//设置坐标X：0-83，Y：0-5LCD_write_chinese_string(12,4,12,4,0,5);//写入汉字}}void LCD_init(void){// 产生一个让LCD复位的低电平脉冲LCD_RST = 0;delay_1us();LCD_RST = 1;// 关闭LCDLCD_CE = 0;delay_1us();// 使能LCDLCD_CE = 1;delay_1us();LCD_write_byte(0x21, 0); // 使用扩展命令设置LCD模式LCD_write_byte(0xc8, 0); // 设置偏置电压LCD_write_byte(0x06, 0); // 温度校正LCD_write_byte(0x13, 0); // 1:48LCD_write_byte(0x20, 0); // 使用基本命令LCD_clear(); // 清屏LCD_write_byte(0x0c, 0); // 设定显示模式，正常显示// 关闭LCDLCD_CE = 0;}void LCD_clear(void) //LCD_clear : LCD清屏函数{unsigned int i;LCD_write_byte(0x0c, 0);LCD_write_byte(0x80, 0);for (i=0; i<504; i++)LCD_write_byte(0, 1);}/* LCD_set_XY : 设置LCD坐标函数输入参数：X ：0－83Y ：0－5*/void LCD_set_XY(unsigned char X, unsigned char Y){LCD_write_byte(0x40 | Y, 0); // columnLCD_write_byte(0x80 | X, 0); // row}/*-----------------------------------------------------------------------LCD_write_char : 显示英文字符输入参数：c ：显示的字符；*/void LCD_write_char(unsigned char c){unsigned char line;c -= 32;for (line=0; line<6; line++)LCD_write_byte(font6x8[c][line], 1);}/*----------------------------------------LCD_write_chinese_string: 在LCD上显示汉字输入参数：X、Y ：显示汉字的起始X、Y坐标；ch_with ：汉字点阵的宽度num ：显示汉字的个数；line ：汉字点阵数组中的起始行数row ：汉字显示的行间距例如：LCD_write_chi(0,0,12,7,0,0);-------------------------------------------*/void LCD_write_chinese_string(unsigned char X, unsigned char Y,unsigned char ch_with,unsigned char num,unsigned char line,unsigned char row){unsigned char i,n;LCD_set_XY(X,Y); //设置初始位置for (i=0;i<num;){for (n=0; n<ch_with*2; n++) //写一个汉字{if (n==ch_with) //写汉字的下半部分{if (i==0) LCD_set_XY(X,Y+1);elseLCD_set_XY((X+(ch_with+row)*i),Y+1);}LCD_write_byte(write_chinese[line+i][n],1);}i++;LCD_set_XY((X+(ch_with+row)*i),Y);}}/*-----------------------------------------------------------------------LCD_write_byte : 使用SPI接口写数据到LCD输入参数：data ：写入的数据；command ：写数据/命令选择；-----------------------------------------------------------------------*/void LCD_write_byte(unsigned char dat, unsigned char command) {unsigned char i;//PORTB &= ~LCD_CE ; // 使能LCDLCD_CE = 0;if (command == 0)// PORTB &= ~LCD_DC ; // 传送命令LCD_DC = 0;else// PORTB |= LCD_DC ; // 传送数据LCD_DC = 1;for(i=0;i<8;i++){if(dat&0x80)SDIN = 1;elseSDIN = 0;SCLK = 0;dat = dat << 1;SCLK = 1;}// SPDR = data; // 传送数据到SPI寄存器//while ((SPSR & 0x80) == 0); // 等待数据传送完毕//PORTB |= LCD_CE ; // 关闭LCDLCD_CE = 1;}。

'*************************************************//***************************************************//// 智能小车控制器基于51 单片机实现前进后退转弯与智能采样控制功能#include <reg52.h>#include<intrins.h>unsigned int tata[8];unsigned char flag=0,flag2=0,flag3=0,n,m;unsigned int Angle,q,length,temp1;sbit A仁P3A2;sbit A2=P3A3;sbit B1=P3A4;sbit B2=P3A5;sbit ENA=P3A6;sbit ENB=P3A7;sbit red1=P1A3;sbit red2=P1A6;void InitUART(void) {TMOD = 0x20;SCON = 0x50;TH1 = 0xFD;TL1 = TH1;PCON = 0x00; ES = 1; TR1 = 1;EA = 1;ENA = 1;ENB = 1;}void delay(void) // 直线延时延时函数{unsigned char a,b;for(b=255;b>0;b --) for(a=38;a>0;a--);}void delay1(void) // 转角延时函数{unsigned char w,y,c;for(c=1;c>0;c--) for(y=97;y>0;y--)for(w=3;w>0;w --);void delay3(void) // 避障延时函数{unsigned char a,b,c; for(c=98;c>0;c--) for(b=100;b>0;b --)for(a=40;a>0;a --);}void delay2(void) // 手动控制延时函数{unsigned char a,b,c;for(c=98;c>0;c--) for(b=15;b>0;b --) for(a=17;a>0;a --) { if(m){ break;}}}void qianjin() // 前进{unsigned char f;A1=1;A2=0;B1=1;B2=0;for(f=0;f<155;f++){A1=0;A2=0;B1=0;B2=1;} // 直线校准语句A1=1;A2=0;B1=1;B2=0;}void zuozhuan() // 左转{A1=1;A2=0;B1=0;B2=1;}void youzhuan() // 右转A1=0;A2=1;B1=1;B2=0;}void houtui(){A1=0;A2=1;B1=0;B2=1;}void tingzhi(){A1=0;A2=0;B1=0;B2=0;}void main(){unsigned char temp;InitUART();while(1){if(flag){flag=0;for(temp=2;temp<8;temp++) // 字符型转成整型函数{tata[temp]=tata[temp]%16;}// 执行转角指令Angle=10*(tata[2]*100+tata[3]*10+tata[4]);m=0;if(Angle<10) // 地面小角度摩擦校正函数{Angle++;}if(tata[1]=='L'){for(q=0;q<Angle;q++){zuozhuan();delay1();if(m){break;}}}else if(tata[1]=='R'){for(q=0;q<Angle;q++){ youzhuan(); delay1(); if(m) { break;}}} tingzhi();delay(); for(temp=2;temp<8;temp++) // 字符型转成整型函数{ tata[temp]=tata[temp]%16;}// 执行前进指令length=100*(tata[5]*100+tata[6]*10+tata[7]);// m=0;if(!m){ for(q=0;q<length;q++){ qianjin(); delay(); delay(); if(m) { break;} if(!red1){ delay1(); if(!red1) { youzhuan(); delay3();while(!red1);}if(!red2){delay1(); if(!red2){zuozhuan(); delay3();while(!red2);}}if((!red1)||(!red2)){houtui();delay3();while((!red1)||(!red2));}}}}if(flag3){m=0;flag3=0;if(tata[1] =='W'){qianjin(); }else if(tata[1]=='A'){A1=0;A2=0;B1=0;B2=1;} elseif(tata[1]=='S'){houtui();}else if(tata[1]=='D'){A1=0;A2=1;B1=0;B2=0;}else if(tata[1]=='T'){tingzhi(); }delay2();}tingzhi();}}void UARTInterrupt(void) interrupt 4 {if(RI) m=1;RI = 0;if(SBUF=='$'){flag2=1;}if(flag2){tata[n]=SBUF;n++;if(n==9&&tata[8]=='*'){n=0;flag=1;flag2=0;}if(n==3&&tata[2]=='#'){n=0;flag3=1;flag2=0;}}。

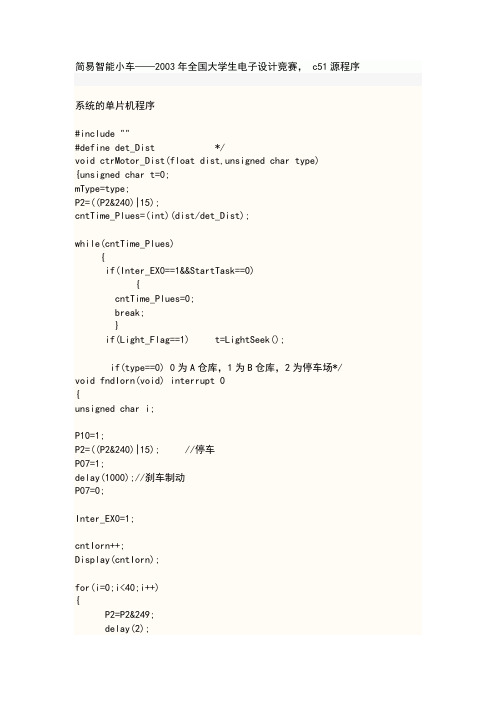

简易智能小车——2003年全国大学生电子设计竞赛， c51源程序系统的单片机程序#include ""#define det_Dist */void ctrMotor_Dist(float dist,unsigned char type) {unsigned char t=0;mType=type;P2=((P2&240)|15);cntTime_Plues=(int)(dist/det_Dist);while(cntTime_Plues){if(Inter_EX0==1&&StartTask==0){cntTime_Plues=0;break;}if(Light_Flag==1) t=LightSeek();if(type==0) 0为A仓库，1为B仓库，2为停车场*/ void fndIorn(void) interrupt 0{unsigned char i;P10=1;P2=((P2&240)|15); //停车P07=1;delay(1000);//刹车制动P07=0;Inter_EX0=1;cntIorn++;Display(cntIorn);for(i=0;i<40;i++){P2=P2&249;delay(2);P2=((P2&240)|15);delay(2);}P2=P2&249;delay(100);P2=((P2&240)|15); //停车IornColor(); //判断铁片黑白,设置bkAimfor(i=0;i<95;i++){P2=P2&249;delay(3);P2=((P2&240)|15);delay(2);}P2=((P2&240)|15); //停车delay(4000); //把铁片吸起来EX0=0;}/*外部中断1中断程序: *//*对霍尔开关的脉冲记数,对小车的位置进行记录，以便对小车进行定位*/ void stpMove(void) interrupt 2{cntTime_Plues--;if(Direction==0) //向上{if(mType==0) sY+=det_Dist;else if(mType==2)sY-=det_Dist;}else if(Direction==1) //向左{if(mType==0) sX+=det_Dist;else if(mType==2)sX-=det_Dist;}else if(Direction==2) //向下{if(mType==0) sY-=det_Dist;else if(mType==2)sY+=det_Dist;}else if(Direction==3) //向右{if(mType==0) sX-=det_Dist; else if(mType==2)sX+=det_Dist;}}。

include<>include <>xe”软件上(de)数据设置/define leftdata 0x11define rightdata 0x22define forwarddata 0x33define backdata 0x44define stopdata 0x55define uchar unsigned chardefine uint unsigned intunsigned char receiveData,high_velosity,low_velosity; void UsartConfiguration();/电机端口定义/sbit IN1=P1^0; //为高电平时,左电机后转sbit IN2=P1^1; //为高电平时,左电机正转sbit IN3=P1^2; //为高电平时,右电机正转sbit IN4=P1^3; //为高电平时,右电机后转/无线遥控模块定义/sbit Key_A = P2^0; //B键信号端对应D0sbit Key_B = P2^1; //D键信号端对应D1 sbit Key_C = P2^2; //C键信号端对应D2sbit Key_D = P2^3; //C键信号端void delay0(int a);void delay15us(void);void delay1ms(int z);void di(); //蜂鸣器函数声明unsigned int time;//用于存放定时器时间值unsigned int S; //用于存放距离(de)值char flag =0; //量程溢出标志位char f1,f2,f3,f4,n0;int a;int n;//运行次数判断标志int s_left,s_right;void Delay10us(unsigned char i){unsigned char j;do{j = 10;do{_nop_();}while(--j);}while(--i);}///电机程序/ //void loop(){IN1=1; //左电机IN2=0;IN3=1; //右电机IN4=0;}void runfront(){IN1=1; //左电机IN2=0;IN3=0; //右电机IN4=1;}//小车后退函数void runback(){IN1=0; //左电机 IN2=1;IN3=1; //右电机 IN4=0;}//小车左转void runleft(){IN1=0; //左电机 IN2=0;IN3=0; //右电机 IN4=1;}//小车右转void runright(){IN1=1; //左电机 IN2=0;IN3=0; //右电机 IN4=0;}////小车左后转//void runbackleft() //{// IN1=0; //左电机// IN2=0;// IN3=0; //右电机// IN4=1;//}////小车右后转//void runbackright() //{// IN1=1; //左电机// IN2=0;// IN3=0; //右电机// IN4=0;//}//小车停止函数void stop(){IN1=0; //左电机IN2=0;IN3=0; //右电机IN4=0;}///蓝牙程序///void delay(unsigned int a){unsigned int b;for(;a>0;a--)for(b=3;b>0;b--);}//左电机转void left_motor_runfront(unsigned int a) {IN1=1; //左电机IN2=0;delay(a);IN1=0;IN2=0;delay(100-a);}void right_motor_runfront(unsigned int a){IN3=0; //右电机IN4=1;delay(a);IN3=0;IN4=0;delay(100-a);}void left_motor_back(unsigned int a) {IN1=0; //左电机IN2=1;delay(a);IN1=0;IN2=0;delay(100-a);}void right_motor_back(unsigned int a) {IN3=1; //右电机IN4=0;delay(a);IN3=0;IN4=0;delay(100-a);}void left_motor_stop(){IN1=0; //左电机IN2=0;}void right_motor_stop(){IN3=0; //左电机IN4=0;}//PWM调速void PWM_RUNFRONT(unsigned int a,unsigned int b) //a属于0~100{left_motor_runfront(a);right_motor_runfront(b);}void PWM_RUNBACK(unsigned int a,unsigned int b) //a属于0~100{left_motor_back(a);right_motor_back(b);}void PWM_RUNLEFT(unsigned int a) //a属于0~100{right_motor_runfront(a);left_motor_stop();}void PWM_RUNRIGHT(unsigned int a) //a属于0~100{right_motor_stop();left_motor_runfront(a);}void bluestop(){left_motor_stop() ;right_motor_stop() ;}void UsartConfiguration(){SCON=0X50; //设置为工作方式1TMOD=TMOD|0x21; //设置计数器工作方式2PCON=0X80; //波特率加倍TH1=0XFA; //计数器初始值设置,注意波特率是4800(de) TL1=0XFA;ES=1; //打开接收中断EA=1; //打开总中断TR1=1;TH0=0;TL0=0;ET0=1; //打开计数器}/函数名 :Delay(unsigned int i)函数功能 : 延时函数输入 : 无输出 : 无void Usart() interrupt 4{receiveData=SBUF;//出去接收到(de)数据RI = 0;//清除接收中断标志位if(receiveData==0x66){low_velosity=1;high_velosity=0;// write_com(0x80);}if(receiveData==0x77){low_velosity=0;high_velosity=1;}}///舵机程序/void delayx(int t){char j;for(;t>0;t--)for(j=19;j>0;j--);}void degree0(){int i;for(i=0;i<10;i++){PWM=1;delayx(10);//1msPWM=0;delayx(390);//19ms }}void degree90(){int i;for(i=0;i<10;i++)PWM=1;delayx(24);//50PWM=0;delayx(376);//}}void degree180(){int i;for(i=0;i<15;i++){PWM=1;delayx(40);//PWM=0;delayx(360);//}}///超声波程序/ ///A键被按下后,前进/void Count1(void){time=TH1256+TL1;TH1=0;TL1=0;S=(time/100;n++;if(S<=30&&n==1){led1=0;stop();degree0();di();}if(S>30&&n==1){led1=1;runfront();n=0;}if(n==2){s_left=S;degree180();di();}if(n==3){s_right=S;degree90();di();n=0; //标志位清零if(s_left>s_right){led2=1;delay1ms(50);led2=0;delay1ms(50);runright();delayx(1250);}else{led3=1;delay(800);led3=0;delay(500);runleft();delayx(1250);}}}/超声波高电平脉冲宽度计算程序/void Timer_Count(void){TR1=1; //开启计数while(RX); //当RX为1计数并等待TR1=0; //关闭计数//Count1(); //计算}//void StartModule() //启动模块{TX=1; //启动一次模块 Delay10us(2);TX=0;}///主程序///void main(void){UsartConfiguration();while(1){if(k1==0&&n0==0){delay1ms(20);if(k1==0){n0++;}}else if(k1==0&&n0==1){delay1ms(20);if(k1==0){n0--;}if(n0==0){if(Key_B==0&&Key_D==0&&Key_C==0&&Key_A==1) //A键被按下{f1=1;f2=0;f3=0;f4=0;di();}else if(Key_A==0&&Key_D==0&&Key_B==1&&Key_C==0) //B键被按下{f1=0;f2=1;f3=0;f4=0;di();}else if(Key_B==0&&Key_D==0&&Key_A==0&&Key_C==1) //C键被按下{f1=0;f2=0;f3=1;f4=0;di();}else if(Key_D==1&&Key_B==0&&Key_A==0&&Key_C==0) //D键被按下{f1=0;f2=0;f3=0;f4=1;di();if(f1){StartModule();for(a=951;a>0;a--){if(RX==1){Timer_Count();Count1();}}}if(f2){runback();}if(f3){loop();}if(f4){stop();}}if(n0==1){if(low_velosity){switch(receiveData){case leftdata: PWM_RUNLEFT(30); break;case rightdata: PWM_RUNRIGHT(30); break;case forwarddata: PWM_RUNFRONT(64,70); break;case backdata: PWM_RUNBACK(64,70); break;case stopdata: bluestop(); break;}}if(high_velosity){switch(receiveData){case leftdata: PWM_RUNLEFT(50); break;case rightdata: PWM_RUNRIGHT(50); break;case forwarddata: PWM_RUNFRONT(94,100); break;case backdata: PWM_RUNBACK(94,100); break;case stopdata: stop(); break;}}}}}/蜂鸣器/void di(){int i;for(i=0;i<150;i++){Beep= 1;delay0(20);}Beep=0;}void delay0(int a){char j;int i;for(i=a; i > 0; i--)for(j = 200; j > 0; j--); }void delay1ms(int z) //延时1ms {int x,y;for(x=z;x>0;x--)for(y=110;y>0;y--);}。

智能寻光小车源程序#include#define uchar unsigned char//宏定义#define uint unsigned int//宏定义sbit zuo1=P0^0;//定义控制左边电机的单片机引脚sbit zuo2=P0^1;//定义控制左边电机的单片机引脚sbit you1=P0^2;//定义控制右边电机的单片机引脚sbit you2=P0^3;//定义控制右边电机的单片机引脚sbit qh=P1^0;//前后控制位sbit zy=P1^1;//左右控制位sbit ting=P1^2;//停止控制位void delay(uint z)//一个带参数的延时程序{int i,j;//定义两个变量for(i=10;i>0;i--)for(j=z;j>0;j--);//将参数z赋值给j}void goright()//前进右转子程序{zuo1=0;zuo2=1;//左边轮子正转delay(24);//pwm有用值，越大左边方向的轮子越快zuo1=1;//关闭左边轮子you1=0;you2=1; //右边轮子正转delay(10);//pwm有用值，越大右边的轮子越快you1=1;//关闭右边轮子delay(80);//pwm无用值，越大，小车跑的越慢}void goleft()//前进左转子程序{zuo1=0;zuo2=1;//左边轮子正转delay(10);//pwm有用值，越大左边方向的轮子越快zuo1=1;//关闭左边轮子you1=0;you2=1; //右边轮子正转delay(24);//pwm有用值，越大右边的轮子越快you1=1;//关闭右边轮子delay(80);//pwm无用值，越大，小车跑的越慢}void down()//停止子程序{zuo1=1;zuo2=1;you1=1;you2=1; //左右轮全部停止}void main(){while(1){zy=1;qh=1;ting=1;//初始化各个引脚while(ting==1)//如果中间传感器检测到光亮则认为是遇到光源，就停止{down();}if(qh==0&&zy==1)//当前后传感器为0且左边传感器触发时，前进左转goleft();if(qh==0&&zy==0)//当前后传感器为0且右边传感器触发时，前进右转goright();}}。

#include <stc.h>#include <string.h>#define STOP1 65535-1680; //1685为实例舵机的静止参数，基本静止即可#define STOP2 65535-1686;#define LFORWARD 65535-1680+400;#define LBACKWARD 65535-1686-400;#define RFORWARD 65535-1686+235;#define RBACKWARD 65535-1690-159;#define LOW 65535-20000; //低电平时间20ms （思考：会不会有误差？误差体现在哪里？）sbit left =P3^0; //电机2接P3.0口sbit right =P3^1; //电机1接P3.1口sbit l_touch=P0^1;sbit r_touch=P0^0;sbit xj_r=P0^2;sbit xj_l=P0^4;sbit red=P0^3;int flag =0;int flag1=0;int i,L,R;int seg1; //阶段一左轮高电平，右轮低电平时间1.686+-0.4int seg2; //阶段而左轮低电平，右轮高电平时间 1.686 +-0.4int seg3; //阶段三左轮、右轮都是低电平，时间 20msunsigned char ADCS_cnt=0x00;//ADC通道标志unsigned int disbuf[3];void init(void); //初始化函数void forward_run(int); //前进函数void backward_run(int); //回转void stop_run(int); //停止void turnleft_run(int); //右转void turnright_run(int); //左转void rest(void); //休息函数，如果不加此函数，可能造成MCU停顿而无相应/*************************************************//*主程序有两个功能：/*第一个是进行计时器0的初始化*********************//*第二个是在中断服务程序重新设置后开启计时器******/float ADC_L(){float ADC_Result;P1ASF=0x40;//P1ASF=01000000 P1^4口作为模拟A/D转换口AUXR1=0x04;//ADRJ=1，高2位放在ADC_RES中，低8位放在ADC_RESL中,转换结果=1024*Vin/VccADC_CONTR=0x8E;//ADC_CONTR=10001000,即ADC_Power=1,ADC_STart=1;DelayMs(10);ADC_Result=ADC_RESL+ADC_RES*256; //取值ADC_Result=(ADC_Result*500)/1024; //转换为电压return ADC_Result;ADC_CONTR=0x00;//关闭ADC以节约能量}float ADC_R(){float ADC_Result;P1ASF=0x20;//P1ASF=00010000 P1^5口作为模拟A/D转换口AUXR1=0x04;//ADRJ=1，高2位放在ADC_RES中，低8位放在ADC_RESL中,转换结果=1024*Vin/VccADC_CONTR=0x8D;//ADC_CONTR=10001000,即ADC_Power=1,ADC_STart=1;DelayMs(10);ADC_Result=ADC_RESL+ADC_RES*256; //取值ADC_Result=(ADC_Result*500)/1024; //转换为电压return ADC_Result;ADC_CONTR=0x00;//关闭ADC以节约能量}void rest (void){TR0=0;DelayMs(20);}void forward_run(int n){seg1=LFORWARD;seg2=RBACKWARD;seg3=LOW;TR0=1;DelayMs(n*10);}void backward_run(int n) {seg1=LBACKWARD;seg2=RFORWARD;seg3=LOW;TR0=1;DelayMs(n*100);}void turnleft_run(int n) {seg1=LBACKWARD;seg2=RBACKWARD;seg3=LOW;TR0=1;Delay01Ms(n*10);}void turnright_run(int n) {seg1=LFORWARD;seg2=RFORWARD;seg3=LOW;TR0=1;Delay01Ms(n*10);}void stop_run(int n){seg1=STOP1;seg2=STOP2;seg3=LOW;TR0=1;DelayMs(n*1000);}/************初始化定时器0***********************/void init(void){TMOD=0x01;TH0=0xB1;TL0=0xDF; //这里可以是随机值，目的是产生计时器0中断后，进入服务子程序TR0=1;EA=1;ET0=1;}/************计数器0的服务程序*****************//*分成三个计数阶段****************************/void timer0_servo() interrupt 1{if (flag==0){ TH0=(seg1)/256;TL0=(seg1)%256;left =1;right =0;flag++;}else if (flag ==1){TH0=(seg2)/256;TL0=(seg2)%256;left =0;right=1;flag++;}else if(flag ==2){TH0=(seg3)/256;TL0=(seg3)%256;left =0;right=0;flag=0;}}主程序void main(){float ADC_Res_L,ADC_Res_R,LEN=450,HIG=1450;float ADC_L();float ADC_R();SP=0x70;init();while(1){i=1;while(i<300){i++;if(l_touch==0&&r_touch==1) //碰撞 {backward_run(2);rest();turnright_run(21);rest();continue;}else if(l_touch==1&&r_touch==0){backward_run(2);rest();turnleft_run(21);rest();continue;}else if(l_touch==0&&r_touch==1){backward_run(2);rest();turnleft_run(84);rest();continue;}else{if(red==0) //红外 {backward_run(2);rest();turnleft_run(210);rest();continue;}else{if(xj_l==0&&xj_r==0) //循迹 {forward_run (1);rest();}else if(xj_l==1&&xj_r==0){turnleft_run(5);rest();}else if(xj_l==0&&xj_r==1){turnright_run(5);rest();}else{turnleft_run(20);rest();}}}}flag1=0;i=0;while(flag1<=1){i++;L=xj_l;R=xj_r;turnleft_run(10);rest();if(L!=xj_l||R!=xj_r)flag1++;ADC_Res_L=ADC_L();ADC_Res_R=ADC_R();if(ADC_Res_L>LEN||ADC_Res_R>LEN)//发现火源{i=1;while(i){ADC_Res_L=ADC_L();ADC_Res_R=ADC_R();if(ADC_Res_L>(ADC_Res_R+20))//左边>右边{turnleft_run(5);forward_run(1);rest();}else if(ADC_Res_R>(ADC_Res_L+20))//右边>左边{turnright_run(5);forward_run(1);rest();}else if(ADC_Res_L>HIG||ADC_Res_R>HIG)//停车灭火 {stop_run(1);rest();}else if(ADC_Res_L<LEN&&ADC_Res_R<LEN)//未发现火源 {i=0;}else{forward_run(1);rest();}}}}}}。

驱动两路电机，可以实现电机的正转，反转，开始，停止，左拐，右拐，加速，减速。

代码#include <reg51.h>#include <intrins.h>#include <math.h>#define uchar unsigned char#define uint unsigned intsbit ma1=P2^5; //电机控制位sbit mb1=P2^4;sbit pwm1=P2^6;sbit key1=P3^0; //减速sbit key2=P3^1; //加速sbit key3=P3^2; //前进后退sbit key4=P3^3; //停止sbit key5=P3^4; //左拐sbit key6=P3^5; //右拐sbit ma2=P2^2;sbit mb2=P2^1;sbit pwm2=P2^3; //占空比控制位bit flag=0,flag0=0,flag1=0,flag2=0; //电机转动控制标志位。

uchar num=0;void delay(uchar xms) //简单的延时uint i;uchar j;for(i=xms;i>0;i--)for(j=110;j>0;j--);}void turn_around() //电机转动占空比控制函数{pwm1=0;pwm2=0;delay(num);pwm1=1;pwm2=1;delay(100-num);}void Rotational_mode() //电机转动模式选择，正转，反转，停止，开启{if(flag0==0){if(flag==0) //flag用来控制电机的正反转，flag=0时电机正转，否则电机反转。

{ma1=1;ma2=1;mb1=0;mb2=0;}else{ma1=0;ma2=0;mb1=1;mb2=1;}}else //电机停止控制{ma1=0;ma2=0;mb1=0;mb2=0;}}void turn_left() //电机左转，使两个电机的占空比不同，电机就会有不同的转动模式。
