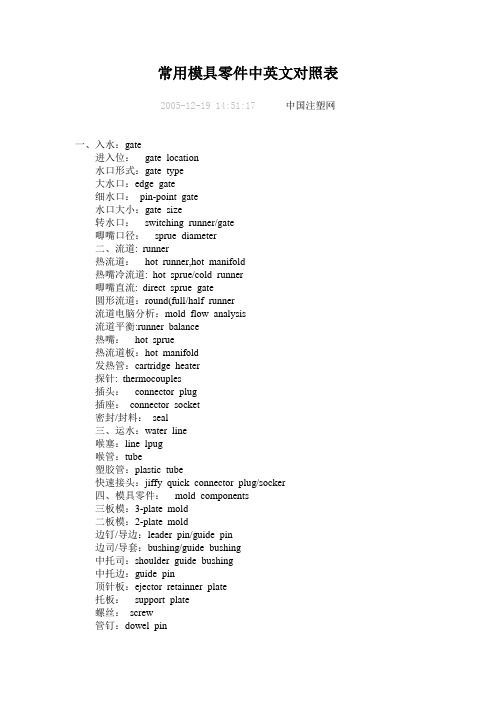

常用模具零件中英文对照表2005-12-19 14:51:17中国注塑网一、入水：gate进入位：gate location水口形式：gate type大水口：edge gate细水口：pin-point gate水口大小：gate size转水口：switching runner/gate唧嘴口径：sprue diameter二、流道: runner热流道：hot runner,hot manifold热嘴冷流道: hot sprue/cold runner唧嘴直流: direct sprue gate圆形流道：round(full/half runner流道电脑分析：mold flow analysis流道平衡:runner balance热嘴：hot sprue热流道板：hot manifold发热管：cartridge heater探针: thermocouples插头：connector plug插座：connector socket密封/封料：seal三、运水：water line喉塞：line lpug喉管：tube塑胶管：plastic tube快速接头：jiffy quick connector plug/socker四、模具零件：mold components三板模：3-plate mold二板模：2-plate mold边钉/导边：leader pin/guide pin边司/导套：bushing/guide bushing中托司：shoulder guide bushing中托边：guide pin顶针板：ejector retainner plate托板：support plate螺丝：screw管钉：dowel pin开模槽：ply bar scot内模管位：core/cavity inter-lock顶针：ejector pin司筒：ejector sleeve司筒针：ejector pin推板：stripper plate缩呵：movable core,return core core puller扣机（尼龙拉勾）：nylon latch lock斜顶：lifter模胚（架）：mold base上内模：cavity insert下内模：core insert行位（滑块）：slide镶件：insert压座/斜鸡：wedge耐磨板/油板：wedge wear plate压条：plate撑头: support pillar唧嘴：sprue bushing挡板：stop plate定位圈：locating ring锁扣：latch扣鸡：parting lock set推杆：push bar栓打螺丝：顶板：eracuretun活动臂：lever arm分流锥：spure sperader水口司:bush垃圾钉：stop pin隔片：buffle弹弓柱：spring rod弹弓:die spring中托司：ejector guide bush中托边：ejector guide pin镶针：pin销子：dowel pin波子弹弓：ball catchFor personal use only in study and research; not for commercial use喉塞:pipeplug锁模块：lockplate斜顶：anglefrompinFor personal use only in study and research; not for commercial use斜顶杆：angleejectorrod尼龙拉勾：partinglocks活动臂：leverarm复位键、提前回杆：earlyreturnbar气阀：valves斜导边：anglepin术语：terms承压平面平衡：partingsurfacesupportbalance模排气：partinglineventing回针碰料位：returnpinandcavityinterference模总高超出啤机规格：moldbaseshuthight顶针碰运水：waterlineinterfereswithejectorpin料位出上/下模：partfromcavith(core)side模胚原身出料位：cavitydirectcutonA-plate,coredirectcutonB-plate.不准用镶件：Donotuse(core/cavity)insert用铍铜做镶件：useberylliumcopperinsert初步（正式）模图设计：preliinary(final)molddesign反呵：reversecore弹弓压缩量：springcompressedlength稳定性好：goodstability,stable强度不够：insufficientrigidity均匀冷却：evencooling扣模：sticking热膨胀：theroexpansion公差：tolorance铜公(电极）：copperelectrode塑件模具相关英文词汇出处：FanE『翻译中国』作者：(转载) FanE『翻译中国』2005-12-16 20:41:59compre sion molding压缩成型flash mold溢流式模具plsitive mold挤压式模具split mold分割式模具cavity型控母模core模心公模taper锥拔leather cloak仿皮革shiver饰纹flow mark流痕welding mark溶合痕post screw insert螺纹套筒埋值self tapping screw自攻螺丝striper plate脱料板piston活塞cylinder汽缸套chip细碎物handle mold手持式模具encapsulation molding低压封装成型、射出成型用模具two plate两极式（模具）well type蓄料井insulated runner绝缘浇道方式hot runner热浇道runner plat 浇道模块valve gate阀门浇口band heater环带状的电热器spindle阀针spearhead刨尖头slag well冷料井cold slag冷料渣air vent排气道welding line 熔合痕eject pin顶出针零件英语punch冲头insert入块(嵌入件)deburring punch压毛边冲子groove punch压线冲子stamped punch字模冲子round punch圆冲子special shape punch异形冲子bending block折刀roller滚轴baffle plate挡块located block定位块supporting block for location 定位支承块air cushion plate气垫板air-cushion eject-rod气垫顶杆trimming punch 切边冲子stiffening rib punch = stinger 加强筋冲子ribbon punch 压筋冲子reel-stretch punch 卷圆压平冲子guide plate 定位板sliding block 滑块sliding dowel block 滑块固定块active plate 活动板lower sliding plate 下滑块板upper holder block 上压块upper mid plate 上中间板spring box 弹簧箱spring-box eject-rod 弹簧箱顶杆spring-box eject-plate 弹簧箱顶板bushing bolck 衬套cover plate 盖板guide pad 导料块14. electrical discharge machining (EDM) 电火花加工15. electrical insulating property 电绝缘性能16. electrochemical die-sinking machine 电解型腔加工机，电解型腔加工机床17. electrochemical machine (ECM) 电解加工机床，电化学加工机床18. electrochemical machining (ECM) 电解加工，电化学加工19. electro-discharge cutting 电火花加工，电火花切割20. electro-discharge cutting machine 电火花切割机21. electro-discharge machine tool 电火花加工机床22. Electro-discharge Machine 电火花加工机床23. electro-discharge machining 电火花加工24. electro-discharge machining process 电火花加工工艺，电火花加工工序25. epoxy resin 环氧树脂9. guide bushing 导套10. guide pillar 导柱，导杆，导柱11. guide pin 导向销，导杆12. guide pin cover 导柱盖13. guide plate 导料板，导板14. guide plate blanking die 导板式冲裁模，导板式落料模15. guide post 导柱，导柱16. guide stock plate 挡料板4. injection mold 注射模，注塑模5. injection molding 注射成型，注塑成型6. injection-molding machine 注塑机，注射机，注塑成形机7. injection plunger 注射柱塞8. in-line reciprocating screw 联机往复螺杆，串联往复螺杆，直线排列往复螺杆9. inner ram 内滑块10. inserting molding 嵌件成形11. integrated manufacturing 集成制造12. internal stress 内应力13. intermediate platen 中间板，隔板塑料成型模具的主要设计要素脱模距stripper distance脱模斜度draft投影面积projected area最大开距maximum daylight;open daylight闭合高度mould-shut height抽芯距core-pulling distance抽芯力core-pulling force脱模力ejector force开模力mould opening force模内压力internal mould pressure;cavity pressure成型压力moulding pressure背压环back-up ring1 bar = 14.5psi高压接头bite type fitting液压马达hydraulic motor冷却水流量计waterflow regulator打磨器材abrasive material打磨砂轮grinding wheels切割砂轮cutting wheels码模夹(注塑机使用) mould clamps; lifting clamps小五金工具piping tools高压力软管high pressure hose风管,水软管air .water hose高压油表pressure gauge压力油喉hydraulic hoses光塑检测photoelastic testing吹塑模plastic blow mould注塑模plastic injection mould冲扎复合模blank & form compound die精密冲模precision blanking die熔料流动率MFR=melt flow rate熔料流动指数MET=melt flow index推板导柱guide pin for ejector plater座板clamping plate垫块space block(plate)推板ejector block(plate)afdek plate 档尘板guide stripe 行位后板cavity sub-insert 前模镶件core sub-insert 后模镶件sprue puller insert 扣针镶件stage ejector 顶棍spacer rock(risers) 间隔板变形distortion弯曲warp拖花drag marks火花纹EDM marks困气venting烧黑burns表面缩水shrinkage料位过薄/砸穿thin wall stock走水不平行uneven fill pattern夹水纹/流纹witness line;mismatch;stress marks 走水纹knit lines走水不齐short shotsorifice 料口nozzle seat 热嘴垫圈nozzle plate 射嘴板cross pin 十字头销sled 射台seal ring 封密圈spacer rail 介子座heater groove 发热管槽heater cement 发热管的结合剂soak 浸泡seat 垫圈ream 铰大圆孔直径grind 磨床drill 钻床mill 铣床caliper 卡尺G-caliper 分厘卡Depth Gauge 深厚计hardness tester 硬度计angle gauge 角规marble table 云台石projector 投影仪height gauge 高度仪microscope 显微镜plug gauge 塞规leveller 水平器R gauge R 规Inter caliper 内分厘卡surface 平面仪item number 细目编码catalog number 材料分类编码undercut lip 倒扣口hot tip = hot drop = nozzle 热嘴blow-off strip 放气板blow-off nozzle 吹风口spiral hose 螺旋式的连接喉rust solvent 除锈剂shaft 曲轴tensile strength 拉伸力yield strength 屈服力spark erosion 电火花蚀刻etch(photo-etch) 电蚀harden 淬硬copper electrode 铜公corrosion resistance 耐腐蚀anneal 退火heat treatment 淬火FEM(finite elemnet method) 有限元法preliminary tool design 初期模具设计图zone 热流道区域reverse taper 倒啤把clamp plate 码板toggle clamp 快速夹vacuum furnace 真空炉cavity insert rounds 圆柱镶件cavity insert b0locks 方柱镶件tensile strength 抗张强度,抗拉强度Concept drawing 概念图Assembly drawing 装配图mismatch;witness line 夹纹shut-off(n.) 枕位venting valves 疏气阀venting plug 疏气塞valve casing 阀门罩twist drill 旋钻harden/nitride 碎硬anneal 退火temper 回火stess crack 应力断裂corrosion resistance 防腐,防锈tensile strength 物】抗张强度,抗拉强度split mould (分离)组合式的模具inclined plate 斜面inclined bolt 斜栓jaw (工具,机械等)夹住东西的部分,钳口step change of the P/L 分形面枕位的改变thin steel section 较薄的料位clean-up 清理,清除,清扫Mold Dating Insert 模具日志镶件Hot Sprue Bushing 热浇口套semi-automatic 半自动quick disconnector 快速断开接头full shot 足量注射mismatch 夹痕;夹水纹ejector mark 顶痕screw boss 螺丝孔,螺丝基座sink mark 缩坑15% glass filled ABS 掺有15%玻璃的ABS spraying mold release 脱模剂drag mark 拖痕stress mark 应力痕reinforcement rib 加强筋slght stoning 轻度磨砂soliid line 实线dotted line 虚线internal diameter 内径external diameter 外径nickel-plated 电镀的handling hole;lifting hole 吊装孔parallel 平行块piston 活塞plunger 柱塞carrier 导轨rest 支架item number 项目编号catalog item 商品目录编码dimensional datum 尺寸基准heat treatment certification 淬硬证明文件back-up bushing 支撑导套jacking screw 起重螺丝,千斤顶tapped hole (带有螺旋角度的)螺丝孔diagonal corner 成对角的角落burn mark 烧痕hot runner mainfold (热流道板)分流板texuring 蚀纹clamping screw (注塑机)码模螺丝imperial 英制的metric 公制的puller bushing 水口套puller bar 水口铁drool bushing 防漏胶套筒safety switch 限位制water line connected internally or hard tubing 不可用胶喉连接运水lifter on square rod or locked from rotation 用方形柱或用管钉止转gate insert 入水镶件gate shut-offs 流道开关配件guided ejection 中托司parting line shutoff 前后模接触面waterlines clear tie bars. 运水喉咀接驳位要避开啤机呵林柱. BGV=Balanced Gate Value 平衡入水值spacer 垫块pocket 挖槽rough 粗加工finish 精加工plunge rate 进刀率retract rate 提刀速率splindle rate 主轴转速coolant 冷却液SPLIT RING 开口环(钥匙圈)侧向抽芯力side pulling-core forceconvert.transfer 转图guide pin 边针Tee slot cutter T形SLOT CUTTERzigzag 双向切削constant overlap spiral 等距环切parallel spiral 环绕切削parallel spiral clean corners 环切并清角morph spiral 依外形环绕true spiral 螺旋切削one way 单向end mill 平铣刀spher mill 球刀bull mill 圆鼻刀face mill 面铣刀rad mill 圆角成型刀chamfer mill 倒角刀slot mill 槽刀taper mill 推拔铣刀dove mill 鸠尾铣刀lot mill 棒状drill 钻孔reamer 纹刀bore bar 搪刀tap RH 右牙刀Tap LH 左牙刀ctr Drill 中心钻spot drill 点钻cntr bore 沉头孔刀c. sink 鱼眼孔钻loft surface 举升曲面coons surface 昆氏曲面ruled surface 直纹曲面revolved surface 旋转曲面swept surface 扫描曲面draft surface 牵引曲面grinding wheel 磨砂使用的轮子quench steel 将...淬火,使冷却stress relieving 应力消除molten 熔热的oxide film 氧化层guide pin and sleeve, locating ring ,导边,司筒,定位圈ejector ,ejector balde, ejector sleeve,顶针,扁顶针,顶针司筒, lifters, wear plate,horn pin,斜坊,磨损板,气顶针,O ring, water baffle, water pipe plug,O形圈,隔片,运水管道塞, water line connector,wear plate ,运水管道转接头,耐磨板air cylinder,hydraulic cylinder,氯压缸,液压缸micro switch,oil nipple, spring,开关装置,油枪接头,弹弓sprue bushing,early return system,浇口套,早期回撞装置, accelerated ejectors, slied holder,加速顶针,注塑周期计数器, cycle counter,date stamper，滑块固定板,生产日期铭牌,hot runner system ，热流道系统chemical composition 化学成份thermal conductiivity 导热性能thermal diffusivity 热扩散性能dimensonal stablity 尺寸稳定性能cooling effiency 冷却效率easiler ejection 易于脱模alloy insert 合金镶件(cooling) duct 输送管;导管maintenance cost 维护费用ultrasonic testing 超声波检测crack 断裂direct gate 直接浇口ring gate 环形浇口disk gate;disphragm gate 盘形浇口spoke gate;spider gate 轮辐浇口pin-point gate 点浇口edge gate 侧浇口submarine gate;tunnel gate 潜伏浇口fan gate 扇形浇口tab gate 护耳浇口runner plate 流道板(或冷或热)secondary nozzle 二级喷嘴torpedo;torpedo body assembly 鱼雷形组合体catridge heater 管式加热器heat pipe 热管valve gate 阀式浇口force plunger;pot plunger 柱塞flash groove;spew groove 溢料槽impression;cavity block;cavity plate 凹模punch;force 凸模movable insert;loose detail 活动镶件cavity splits;core splits(凹模拼块) (型芯拼块) 拼块side core 侧型芯thread plug;threaded core 螺纹型芯thread ring;threaded cavity 螺纹型环cutting wheel 切割砂轮grinding wheel 打磨砂轮abrasive material 打磨器材mould clamps;lifting clamp 砂模夹(注塑机使用) air (water) hose 风管,水轮管pressure gauge 高压油表hydraulic hose 压力油喉plastic blow mould 吹塑模plastic injection mould 注塑模blandk&form compound die 冲扎复合模precisiion blanking die 精密冲模MFR=melt flow rate 熔料流动率MFT=melt flow index 熔料流动指数handling hole 拉铃孔stop plate 限位块linder bush 衬套spacer block(plate) 垫块,方铁back-up ring 背位环standoff 限位块American Safety Hoist Rings. 英制安全吊装环Mechanical Properties 机械性能Tensile Strength(MPa) 抗拉强度elongation 延伸率hardness(Brinell) 硬度shear stength(MPa) 剪切力impact strength 冲韧性Physical Properties 物理性能solidification shrinkage 凝固收缩率freezing range 凝固与熔范围thermal expansion 热膨胀系数specific heat 比热thermal conductivity 热导率electrical conductivity 电导率micro-structure 金相分析hot work tool steel 热作钢circular motion 环形运动variable 变数,参数graphics window 图形窗口45 degree entry and a zero degree exit. 进刀口45度,退刀口0度runner stripper plate 脱料板stripper plate 活动板spacer rock(risers) 间隔板stage ejector 顶棍sprue puller insert 扣针导套guide strip 行位后板afdek plate 挡尘板side gate 大水口pinpoint gate 细水口SHCS 杯头螺丝FHCS 平头螺丝set screw 无头螺丝ball catch 波子螺丝wedge 行位较杯gib 线条,(撑鸡的导轨)latch 拉杆clamp 码仔spring guide pin 弹弓导柱steel pad disc 橙仔方ejector cam insert 斜顶块(screw) nut 螺母taper 嗲把/ 斜度taper interlock 嗲把锁texture 花纹toggle-lok 回撞装置top clamping plate 顶码板unified national coarse (UNC) 美制螺丝(粗牙) unified national fine (UNF) 美制螺丝(幼牙) set screw 喷头螺丝side gate 大水口slide retainer 行位管位water junction 喉咀spacer block 登仔jiffy-matic socket 喉咀套jiffy-tite plug 喉咀公spring plunger 弹弓座sprue puller 勾针/勾粒spring washer 弹簧塑圈stepped ejector pin 有托顶针strippers plate 推板/细水口板submarine gate 潜水口support pin 拉杆support plate 暗板surface finish 光洁度alignment strip 斜锁angle pin 斜针fan gate 扇形入水fillet 圆口ball catch 弹弓波子blade ejector 扁顶bottom clamping plate 底码板free length 自然长度bridge piece 水口铁helix spindle 锅杆hose clip 水喉箍bubbler 隔气运水jiggle 斜顶jiggle witness line 斜顶片位置center distance (CRS) 山打距离(中心线距离)clamp 码仔contour 外形leader pin 导针location ring(flange) 法兰counterbore 拔头,介子托mock-up;prototype 手办die cast 合金压铸national pipe thread(NPT) 美制喉牙overflow 垃圾位ejection sleeve 司筒,顶套epoxy 胶样pin point gate 细水口pressure plug 喉塞pressure spring 压力弹簧parting line flash 披锋burned 烧黑underfilled 缺料insert mismatch 镶件夹口ejector pins not flush 顶针有高低ejector pins skid 顶针滑动insert flash 镶件披锋pressure transducer 压力探测头hydraulic schematic 油积筒油路接驳图jiffy connector recessed 安装喉嘴后不可突出模胚knock out pullback stud -flush with clamp plate 顶棍镶件与底板有否空间safety switches 限位开关stop block 限位块safety strap 安全带drool bushing 防漏胶套筒insert mismatch 镶件夹口EDM visible 明显火花纹lifter scrapes 斜顶拖花short shots 走水不齐wall stock 料位厚薄knit lines 走水纹stress marks 夹水纹uneven fill pattern 走水不平行drag marks 拖花sprue pretrusion 唧嘴突出高度sprue orifice and radil size 唧嘴R尺寸sprue bushing-keyed 唧嘴有管钉English Chineseprogram name 产口名称part name 零件名称tool name 模具名称tool source 模具来源tool steel 模具钢材resin 塑料program number 产品编号part number 零件编号tool number 模具编号customer 客户名称No of cavities 内模编号machine size 啤机吨数drum miller 鼓形铣床duplex horizontal miller 复式卧铣床face miller 端面铣床grinding miller 研磨机plain miller 平面铣床planer-type miller 刨式铣床rack miller 齿条铣床slab miller 大型平面铣床slot miller 键槽铣刀spline miller 花键铣刀thread miller 螺纹铣刀vertical miller 立式铣刀,立辊,立辊轧机endmill 立铣刀plastic mould steel 塑料模钢cold work steel 冷作钢hot work steel 热作钢high speed steel 高速钢electric magnetic clutch 电磁离合器pad printer 移印机screen printer 丝印机hot stamper 烫印机solid carbide slitting saw 钻石钢锯片convex cutter 凸锣刀片concave cutter 凹锣刀片side&face cutters,staggered teeth 正侧双用镶钻石钢锣刀end-mill 锣刀semi-rod 半圆刀split double end 双头刀single end 单头刀2-flute 两辨3-flute 三辨4-flute 四辨reamer 直拈centre drill 中心钻solid carbide drill 钻咀zinc ingot 锌锭aluminium ignot 铝锭tin ignot 锡锭heater cement 发热管的结合剂heater groove 发热管槽spacer rail 介子座cross pin 十字头销nozzle plate 射嘴板nozzle seat 热嘴addendum 齿冠dedendum 齿根air compressor 空气压缩机air exhauster 抽气机air intake 进气口air seal 空气隔离层仅供个人用于学习、研究；不得用于商业用途。

常用模具零件中英文对照表2005-12-19 14:51:17中国注塑网一、入水：gate进入位：gate location水口形式：gate type大水口：edge gate细水口：pin-point gate水口大小：gate size转水口：switching runner/gate唧嘴口径：sprue diameter二、流道: runner热流道：hot runner,hot manifold热嘴冷流道: hot sprue/cold runner唧嘴直流: direct sprue gate圆形流道：round(full/half runner流道电脑分析：mold flow analysis流道平衡:runner balance热嘴：hot sprue热流道板：hot manifold发热管：cartridge heater探针: thermocouples插头：connector plug插座：connector socket密封/封料：seal三、运水：water line喉塞：line lpug喉管：tube塑胶管：plastic tube快速接头：jiffy quick connector plug/socker四、模具零件：mold components三板模：3-plate mold二板模：2-plate mold边钉/导边：leader pin/guide pin边司/导套：bushing/guide bushing中托司：shoulder guide bushing中托边：guide pin顶针板：ejector retainner plate托板：support plate螺丝：screw管钉：dowel pin开模槽：ply bar scot内模管位：core/cavity inter-lock顶针：ejector pin司筒：ejector sleeve司筒针：ejector pin推板：stripper plate缩呵：movable core,return core core puller 扣机（尼龙拉勾）：nylon latch lock斜顶：lifter模胚（架）：mold base上内模：cavity insert下内模：core insert行位（滑块）：slide镶件：insert压座/斜鸡：wedge耐磨板/油板：wedge wear plate压条：plate撑头: support pillar唧嘴：sprue bushing挡板：stop plate定位圈：locating ring锁扣：latch扣鸡：parting lock set推杆：push bar栓打螺丝：S.H.S.B顶板：eracuretun活动臂：lever arm分流锥：spure sperader水口司:bush垃圾钉：stop pin隔片：buffle弹弓柱：spring rod弹弓:die spring中托司：ejector guide bush中托边：ejector guide pin镶针：pin销子：dowel pin波子弹弓：ball catch喉塞:pipeplug锁模块：lockplate斜顶：anglefrompin斜顶杆：angleejectorrod尼龙拉勾：partinglocks活动臂：leverarm复位键、提前回杆：earlyreturnbar气阀：valves斜导边：anglepin术语：terms承压平面平衡：partingsurfacesupportbalance模排气：partinglineventing回针碰料位：returnpinandcavityinterference模总高超出啤机规格：moldbaseshuthight顶针碰运水：waterlineinterfereswithejectorpin料位出上/下模：partfromcavith(core)side模胚原身出料位：cavitydirectcutonA-plate,coredirectcutonB-plate.不准用镶件：Donotuse(core/cavity)insert用铍铜做镶件：useberylliumcopperinsert初步（正式）模图设计：preliinary(final)molddesign反呵：reversecore弹弓压缩量：springcompressedlength稳定性好：goodstability,stable强度不够：insufficientrigidity均匀冷却：evencooling扣模：sticking热膨胀：theroexpansion公差：tolorance铜公(电极）：copperelectrode塑件模具相关英文词汇出处：FanE『翻译中国』作者：(转载) FanE『翻译中国』2005-12-16 20:41:59compre sion molding压缩成型flash mold溢流式模具plsitive mold挤压式模具split mold分割式模具cavity型控母模core模心公模taper锥拔leather cloak仿皮革shiver饰纹flow mark流痕welding mark溶合痕post screw insert螺纹套筒埋值self tapping screw自攻螺丝striper plate脱料板piston活塞cylinder汽缸套chip细碎物handle mold手持式模具encapsulation molding低压封装成型、射出成型用模具two plate两极式（模具）well type蓄料井insulated runner绝缘浇道方式hot runner热浇道runner plat浇道模块valve gate阀门浇口band heater环带状的电热器spindle阀针spear head刨尖头slag well冷料井cold slag冷料渣air vent排气道welding line熔合痕eject pin顶出针零件英语punch冲头insert入块(嵌入件)deburring punch压毛边冲子groove punch压线冲子stamped punch字模冲子round punch圆冲子special shape punch异形冲子bending block折刀roller滚轴baffle plate挡块located block定位块supporting block for location 定位支承块 air cushion plate气垫板air-cushion eject-rod气垫顶杆trimming punch 切边冲子stiffening rib punch = stinger 加强筋冲子ribbon punch 压筋冲子reel-stretch punch 卷圆压平冲子guide plate 定位板sliding block 滑块sliding dowel block 滑块固定块active plate 活动板lower sliding plate 下滑块板upper holder block 上压块upper mid plate 上中间板spring box 弹簧箱spring-box eject-rod 弹簧箱顶杆spring-box eject-plate 弹簧箱顶板bushing bolck 衬套cover plate 盖板guide pad 导料块14. electrical discharge machining (EDM) 电火花加工15. electrical insulating property 电绝缘性能16. electrochemical die-sinking machine 电解型腔加工机，电解型腔加工机床17. electrochemical machine (ECM) 电解加工机床，电化学加工机床18. electrochemical machining (ECM) 电解加工，电化学加工19. electro-discharge cutting 电火花加工，电火花切割20. electro-discharge cutting machine 电火花切割机21. electro-discharge machine tool 电火花加工机床22. Electro-discharge Machine 电火花加工机床23. electro-discharge machining 电火花加工24. electro-discharge machining process 电火花加工工艺，电火花加工工序25. epoxy resin 环氧树脂9. guide bushing 导套10. guide pillar 导柱，导杆，导柱11. guide pin 导向销，导杆12. guide pin cover 导柱盖13. guide plate 导料板，导板14. guide plate blanking die 导板式冲裁模，导板式落料模15. guide post 导柱，导柱16. guide stock plate 挡料板4. injection mold 注射模，注塑模5. injection molding 注射成型，注塑成型6. injection-molding machine 注塑机，注射机，注塑成形机7. injection plunger 注射柱塞8. in-line reciprocating screw 联机往复螺杆，串联往复螺杆，直线排列往复螺杆9. inner ram 内滑块10. inserting molding 嵌件成形11. integrated manufacturing 集成制造12. internal stress 内应力13. intermediate platen 中间板，隔板塑料成型模具的主要设计要素脱模距stripper distance脱模斜度draft投影面积projected area最大开距maximum daylight;open daylight闭合高度mould-shut height抽芯距core-pulling distance抽芯力core-pulling force脱模力ejector force开模力mould opening force模内压力internal mould pressure;cavity pressure成型压力moulding pressure背压环back-up ring1 bar = 14.5psi高压接头bite type fitting液压马达hydraulic motor冷却水流量计waterflow regulator打磨器材abrasive material打磨砂轮grinding wheels切割砂轮cutting wheels码模夹(注塑机使用) mould clamps; lifting clamps 小五金工具piping tools高压力软管high pressure hose风管,水软管air .water hose高压油表pressure gauge压力油喉hydraulic hoses光塑检测photoelastic testing吹塑模plastic blow mould注塑模plastic injection mould冲扎复合模blank & form compound die精密冲模precision blanking die熔料流动率MFR=melt flow rate熔料流动指数MET=melt flow index推板导柱guide pin for ejector plater座板clamping plate垫块space block(plate)推板ejector block(plate)afdek plate 档尘板guide stripe 行位后板cavity sub-insert 前模镶件core sub-insert 后模镶件sprue puller insert 扣针镶件stage ejector 顶棍spacer rock(risers) 间隔板变形distortion弯曲warp拖花drag marks火花纹EDM marks困气venting烧黑burns表面缩水shrinkage料位过薄/砸穿thin wall stock走水不平行uneven fill pattern夹水纹/流纹witness line;mismatch;stress marks 走水纹knit lines走水不齐short shotsorifice 料口nozzle seat 热嘴垫圈nozzle plate 射嘴板cross pin 十字头销sled 射台seal ring 封密圈spacer rail 介子座heater groove 发热管槽heater cement 发热管的结合剂soak 浸泡seat 垫圈ream 铰大圆孔直径grind 磨床drill 钻床mill 铣床caliper 卡尺G-caliper 分厘卡Depth Gauge 深厚计hardness tester 硬度计angle gauge 角规marble table 云台石projector 投影仪height gauge 高度仪microscope 显微镜plug gauge 塞规leveller 水平器R gauge R 规Inter caliper 内分厘卡surface 平面仪item number 细目编码catalog number 材料分类编码undercut lip 倒扣口hot tip = hot drop = nozzle 热嘴blow-off strip 放气板blow-off nozzle 吹风口spiral hose 螺旋式的连接喉rust solvent 除锈剂shaft 曲轴tensile strength 拉伸力yield strength 屈服力spark erosion 电火花蚀刻etch(photo-etch) 电蚀harden 淬硬copper electrode 铜公corrosion resistance 耐腐蚀anneal 退火heat treatment 淬火FEM(finite elemnet method) 有限元法preliminary tool design 初期模具设计图zone 热流道区域reverse taper 倒啤把clamp plate 码板toggle clamp 快速夹vacuum furnace 真空炉cavity insert rounds 圆柱镶件cavity insert b0locks 方柱镶件tensile strength 抗张强度,抗拉强度Concept drawing 概念图Assembly drawing 装配图mismatch;witness line 夹纹shut-off(n.) 枕位venting valves 疏气阀venting plug 疏气塞valve casing 阀门罩twist drill 旋钻harden/nitride 碎硬anneal 退火temper 回火stess crack 应力断裂corrosion resistance 防腐,防锈tensile strength 物】抗张强度,抗拉强度split mould (分离)组合式的模具inclined plate 斜面inclined bolt 斜栓jaw (工具,机械等)夹住东西的部分,钳口step change of the P/L 分形面枕位的改变thin steel section 较薄的料位clean-up 清理,清除,清扫Mold Dating Insert 模具日志镶件Hot Sprue Bushing 热浇口套semi-automatic 半自动quick disconnector 快速断开接头full shot 足量注射mismatch 夹痕;夹水纹ejector mark 顶痕screw boss 螺丝孔,螺丝基座sink mark 缩坑15% glass filled ABS 掺有15%玻璃的ABS spraying mold release 脱模剂drag mark 拖痕stress mark 应力痕reinforcement rib 加强筋slght stoning 轻度磨砂soliid line 实线dotted line 虚线internal diameter 内径external diameter 外径nickel-plated 电镀的handling hole;lifting hole 吊装孔parallel 平行块piston 活塞plunger 柱塞carrier 导轨rest 支架item number 项目编号catalog item 商品目录编码dimensional datum 尺寸基准heat treatment certification 淬硬证明文件back-up bushing 支撑导套jacking screw 起重螺丝,千斤顶tapped hole (带有螺旋角度的)螺丝孔diagonal corner 成对角的角落burn mark 烧痕hot runner mainfold (热流道板)分流板texuring 蚀纹clamping screw (注塑机)码模螺丝imperial 英制的metric 公制的puller bushing 水口套puller bar 水口铁drool bushing 防漏胶套筒safety switch 限位制water line connected internally or hard tubing 不可用胶喉连接运水lifter on square rod or locked from rotation 用方形柱或用管钉止转gate insert 入水镶件gate shut-offs 流道开关配件guided ejection 中托司parting line shutoff 前后模接触面waterlines clear tie bars. 运水喉咀接驳位要避开啤机呵林柱. BGV=Balanced Gate Value 平衡入水值spacer 垫块pocket 挖槽rough 粗加工finish 精加工plunge rate 进刀率retract rate 提刀速率splindle rate 主轴转速coolant 冷却液SPLIT RING 开口环(钥匙圈)侧向抽芯力side pulling-core forceconvert.transfer 转图guide pin 边针Tee slot cutter T形SLOT CUTTERzigzag 双向切削constant overlap spiral 等距环切parallel spiral 环绕切削parallel spiral clean corners 环切并清角morph spiral 依外形环绕true spiral 螺旋切削one way 单向end mill 平铣刀spher mill 球刀bull mill 圆鼻刀face mill 面铣刀rad mill 圆角成型刀chamfer mill 倒角刀slot mill 槽刀taper mill 推拔铣刀dove mill 鸠尾铣刀lot mill 棒状drill 钻孔reamer 纹刀bore bar 搪刀tap RH 右牙刀Tap LH 左牙刀ctr Drill 中心钻spot drill 点钻cntr bore 沉头孔刀c. sink 鱼眼孔钻loft surface 举升曲面coons surface 昆氏曲面ruled surface 直纹曲面revolved surface 旋转曲面swept surface 扫描曲面draft surface 牵引曲面grinding wheel 磨砂使用的轮子quench steel 将...淬火,使冷却stress relieving 应力消除molten 熔热的oxide film 氧化层guide pin and sleeve, locating ring ,导边,司筒,定位圈ejector ,ejector balde, ejector sleeve,顶针,扁顶针,顶针司筒, lifters, wear plate,horn pin,斜坊,磨损板,气顶针,O ring, water baffle, water pipe plug,O形圈,隔片,运水管道塞, water line connector,wear plate ,运水管道转接头,耐磨板air cylinder,hydraulic cylinder,氯压缸,液压缸micro switch,oil nipple, spring,开关装置,油枪接头,弹弓sprue bushing,early return system,浇口套,早期回撞装置, accelerated ejectors, slied holder,加速顶针,注塑周期计数器, cycle counter,date stamper，滑块固定板,生产日期铭牌,hot runner system ，热流道系统chemical composition 化学成份thermal conductiivity 导热性能thermal diffusivity 热扩散性能dimensonal stablity 尺寸稳定性能cooling effiency 冷却效率easiler ejection 易于脱模alloy insert 合金镶件(cooling) duct 输送管;导管maintenance cost 维护费用ultrasonic testing 超声波检测crack 断裂direct gate 直接浇口ring gate 环形浇口disk gate;disphragm gate 盘形浇口spoke gate;spider gate 轮辐浇口pin-point gate 点浇口edge gate 侧浇口submarine gate;tunnel gate 潜伏浇口fan gate 扇形浇口tab gate 护耳浇口runner plate 流道板(或冷或热)secondary nozzle 二级喷嘴torpedo;torpedo body assembly 鱼雷形组合体catridge heater 管式加热器heat pipe 热管valve gate 阀式浇口force plunger;pot plunger 柱塞flash groove;spew groove 溢料槽impression;cavity block;cavity plate 凹模punch;force 凸模movable insert;loose detail 活动镶件cavity splits;core splits(凹模拼块) (型芯拼块) 拼块side core 侧型芯thread plug;threaded core 螺纹型芯thread ring;threaded cavity 螺纹型环cutting wheel 切割砂轮grinding wheel 打磨砂轮abrasive material 打磨器材mould clamps;lifting clamp 砂模夹(注塑机使用)air (water) hose 风管,水轮管pressure gauge 高压油表hydraulic hose 压力油喉plastic blow mould 吹塑模plastic injection mould 注塑模blandk&form compound die 冲扎复合模precisiion blanking die 精密冲模MFR=melt flow rate 熔料流动率MFT=melt flow index 熔料流动指数handling hole 拉铃孔stop plate 限位块linder bush 衬套spacer block(plate) 垫块,方铁back-up ring 背位环standoff 限位块American Safety Hoist Rings. 英制安全吊装环Mechanical Properties 机械性能Tensile Strength(MPa) 抗拉强度elongation 延伸率hardness(Brinell) 硬度shear stength(MPa) 剪切力impact strength 冲韧性Physical Properties 物理性能solidification shrinkage 凝固收缩率freezing range 凝固与熔范围thermal expansion 热膨胀系数specific heat 比热thermal conductivity 热导率electrical conductivity 电导率micro-structure 金相分析hot work tool steel 热作钢circular motion 环形运动variable 变数,参数graphics window 图形窗口45 degree entry and a zero degree exit. 进刀口45度,退刀口0度runner stripper plate 脱料板stripper plate 活动板spacer rock(risers) 间隔板stage ejector 顶棍sprue puller insert 扣针导套guide strip 行位后板afdek plate 挡尘板side gate 大水口pinpoint gate 细水口SHCS 杯头螺丝FHCS 平头螺丝set screw 无头螺丝ball catch 波子螺丝wedge 行位较杯gib 线条,(撑鸡的导轨)latch 拉杆clamp 码仔spring guide pin 弹弓导柱steel pad disc 橙仔方ejector cam insert 斜顶块(screw) nut 螺母taper 嗲把/ 斜度taper interlock 嗲把锁texture 花纹toggle-lok 回撞装置top clamping plate 顶码板unified national coarse (UNC) 美制螺丝(粗牙) unified national fine (UNF) 美制螺丝(幼牙) set screw 喷头螺丝side gate 大水口slide retainer 行位管位water junction 喉咀spacer block 登仔jiffy-matic socket 喉咀套jiffy-tite plug 喉咀公spring plunger 弹弓座sprue puller 勾针/勾粒spring washer 弹簧塑圈stepped ejector pin 有托顶针strippers plate 推板/细水口板submarine gate 潜水口support pin 拉杆support plate 暗板surface finish 光洁度alignment strip 斜锁angle pin 斜针fan gate 扇形入水fillet 圆口ball catch 弹弓波子blade ejector 扁顶bottom clamping plate 底码板free length 自然长度bridge piece 水口铁helix spindle 锅杆hose clip 水喉箍bubbler 隔气运水jiggle 斜顶jiggle witness line 斜顶片位置center distance (CRS) 山打距离(中心线距离)clamp 码仔contour 外形leader pin 导针location ring(flange) 法兰counterbore 拔头,介子托mock-up;prototype 手办die cast 合金压铸national pipe thread(NPT) 美制喉牙overflow 垃圾位ejection sleeve 司筒,顶套epoxy 胶样pin point gate 细水口pressure plug 喉塞pressure spring 压力弹簧parting line flash 披锋burned 烧黑underfilled 缺料insert mismatch 镶件夹口ejector pins not flush 顶针有高低ejector pins skid 顶针滑动insert flash 镶件披锋pressure transducer 压力探测头hydraulic schematic 油积筒油路接驳图jiffy connector recessed 安装喉嘴后不可突出模胚knock out pullback stud -flush with clamp plate 顶棍镶件与底板有否空间safety switches 限位开关stop block 限位块safety strap 安全带drool bushing 防漏胶套筒insert mismatch 镶件夹口EDM visible 明显火花纹lifter scrapes 斜顶拖花short shots 走水不齐wall stock 料位厚薄knit lines 走水纹stress marks 夹水纹uneven fill pattern 走水不平行drag marks 拖花sprue pretrusion 唧嘴突出高度sprue orifice and radil size 唧嘴R尺寸sprue bushing-keyed 唧嘴有管钉English Chineseprogram name 产口名称part name 零件名称tool name 模具名称tool source 模具来源tool steel 模具钢材resin 塑料program number 产品编号part number 零件编号tool number 模具编号customer 客户名称No of cavities 内模编号machine size 啤机吨数drum miller 鼓形铣床duplex horizontal miller 复式卧铣床face miller 端面铣床grinding miller 研磨机plain miller 平面铣床planer-type miller 刨式铣床rack miller 齿条铣床slab miller 大型平面铣床slot miller 键槽铣刀spline miller 花键铣刀thread miller 螺纹铣刀vertical miller 立式铣刀,立辊,立辊轧机endmill 立铣刀plastic mould steel 塑料模钢cold work steel 冷作钢hot work steel 热作钢high speed steel 高速钢electric magnetic clutch 电磁离合器pad printer 移印机screen printer 丝印机hot stamper 烫印机solid carbide slitting saw 钻石钢锯片convex cutter 凸锣刀片concave cutter 凹锣刀片side&face cutters,staggered teeth 正侧双用镶钻石钢锣刀end-mill 锣刀semi-rod 半圆刀split double end 双头刀single end 单头刀2-flute 两辨3-flute 三辨4-flute 四辨reamer 直拈centre drill 中心钻solid carbide drill 钻咀zinc ingot 锌锭aluminium ignot 铝锭tin ignot 锡锭heater cement 发热管的结合剂heater groove 发热管槽spacer rail 介子座cross pin 十字头销nozzle plate 射嘴板nozzle seat 热嘴addendum 齿冠dedendum 齿根air compressor 空气压缩机air exhauster 抽气机air intake 进气口air seal 空气隔离层。

导柱（边钉、GR定位销DP）——可分为普通型导柱（直边）和有托导柱（托边），起定位导向作用，保证各类机构在工作过程中定位导向。

一般硬度为HRC58~62导套（胚司）------可分为直司（BB套）和托司（BA套），起定位导向作用，配合导柱一起使用。

顶柱（EP/RR回针、回程柱、回位销）——保持顶针板活动顺滑，并确保顶针回复原位。

中导柱（中GP针板边、EGP ------用做顶针板定位之用，承托顶针板的重量，使顶出及回复时更顺畅，保证顶针能正确垂直的顶出制品。

中导套（中BA、EGP ------配合中导柱一起使用，运用中导套设计使顶针板定位更加精确。

拉杆（水口边、SR ——承托上模重量，限制上夹板（定模面板）、水口板、A板之间的行程。

挡圈（水口介子）——固定在拉杆的末端，作用是限制上夹板、水口板、A 板的行程距离，防止A板脱落浇口套（唧咀）是一个与注塑机连接的配件，塑胶料从此通道注入模内。

一般硬度为HRC53~58^ 口套也就是模具浇注系统的主流道。

定位环（法兰）------用作模具与啤机容易对准和定位。

顶针将成品从模芯顶出，达到脱模的目的。

司筒（顶管）-----■#成品从模芯顶出，作用与顶针相同，但一般用于制品中心带有细孔的圆柱时的脱模.司筒针------用于制品的柱位孔成型，配合司筒使用，并不是脱模用途.撑头（SP）- 承托B板，减少因注塑时受压变型.垃圾钉（ST） -----承托着顶针板，由于它面积较少，可防止垃圾积在上面，令顶针板不平或变形.运水孔------用于对模具的有效冷却，使模温保持在一定的范围内.喉咀------安装在模具运水孔上，用来连接啤机的冷却水喉，一般用黄铜制成.拉料杆------1、分流道拉料杆：因分流道中所存的塑料不易脱落，便于开摸系时冷料脱模。

2、浇口拉料杆：在开模时从浇口套内拉出主流道凝料使与注塑机喷嘴分离，一般都设在冷料穴的尽端，拉料杆直径等于、浇口内孔大端的直径，以便于沟住冷料。

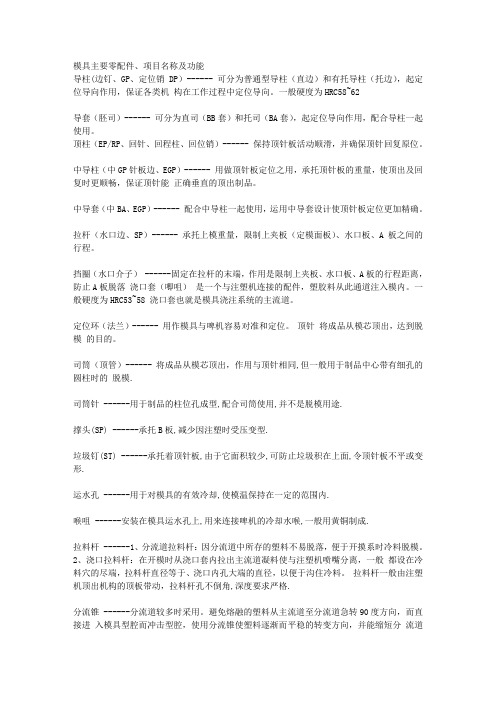

模具主要零配件、项目名称及功能导柱(边钉、GP、定位销DP）------ 可分为普通型导柱（直边）和有托导柱（托边），起定位导向作用，保证各类机构在工作过程中定位导向。

一般硬度为HRC58~62导套（胚司）------ 可分为直司（BB套）和托司（BA套），起定位导向作用，配合导柱一起使用。

顶柱（EP/RP、回针、回程柱、回位销）------ 保持顶针板活动顺滑，并确保顶针回复原位。

中导柱（中GP针板边、EGP）------ 用做顶针板定位之用，承托顶针板的重量，使顶出及回复时更顺畅，保证顶针能正确垂直的顶出制品。

中导套（中BA、EGP）------ 配合中导柱一起使用，运用中导套设计使顶针板定位更加精确。

拉杆（水口边、SP）------ 承托上模重量，限制上夹板（定模面板）、水口板、A板之间的行程。

挡圈（水口介子） ------固定在拉杆的末端，作用是限制上夹板、水口板、A板的行程距离，防止A板脱落浇口套（唧咀）是一个与注塑机连接的配件，塑胶料从此通道注入模内。

一般硬度为HRC53~58 浇口套也就是模具浇注系统的主流道。

定位环（法兰）------ 用作模具与啤机容易对准和定位。

顶针将成品从模芯顶出，达到脱模的目的。

司筒（顶管）------ 将成品从模芯顶出，作用与顶针相同,但一般用于制品中心带有细孔的圆柱时的脱模.司筒针 ------用于制品的柱位孔成型,配合司筒使用,并不是脱模用途.撑头(SP) ------承托B板,减少因注塑时受压变型.垃圾钉(ST) ------承托着顶针板,由于它面积较少,可防止垃圾积在上面,令顶针板不平或变形.运水孔 ------用于对模具的有效冷却,使模温保持在一定的范围内.喉咀 ------安装在模具运水孔上,用来连接啤机的冷却水喉,一般用黄铜制成.拉料杆 ------1、分流道拉料杆：因分流道中所存的塑料不易脱落，便于开摸系时冷料脱模。

2、浇口拉料杆：在开模时从浇口套内拉出主流道凝料使与注塑机喷嘴分离，一般都设在冷料穴的尽端，拉料杆直径等于、浇口内孔大端的直径，以便于沟住冷料。

模具上的各个零件的材料模具上的各个零件的材料如下所表格做镜面钢见附件，polmax 是超镜面钢项目零件名称适用材质适用硬度HRC 焠火使用硬度HRC 1 定位环S45C 13~21 14~28S50C 20~28 35~38S55C 28~32 38~402 注口衬套S45C S50C S55C3 静模固定板S45C S50C S55C4 静模座S45C S50C S55C5 静模心型(母模仁) P20 30~35718*618 35~40NAK80 35~45FDAC 40~44H136 38~45 52~606 动模心型(公模仁) P20 30~35718*618 35~40NAK80 35~45FDAC 40~44H136 38~457 动模座S45C S50C S55C8 垫板S45C S50C S55C9 脚垫(枕脚) S45C S50C S55C10 顶板S45C S50C S55C11 动模固定板S45C S50C S55C12 导套SK3 65MN 28~35 55~6513 导柱SK3 65MN 28~35 28~35射销(顶针) 65MN 28~35 28~3514 SKD61 37~42 55~65SKD11 55~61 60~6815 阻销S45C S50C S55C16 滑块P20*718*618*S55C*S50C17 斜销SKD61*11DH2F 38~42 58~6218 束仁SK319 镶件,模仁铍铜13~19 28~381.HB:最底的阻燃等级2.S136和S136H的确是H为预热钢的标志一般是经硬化和回火至约HB290~330还有一种是S136 SUP比S136高一倍的价钱S-136H 做了预硬，无需淬火3.适合要求高光整度的模具如生产硬胶（PS）及超不淬胶（ABS）等还有型号M202 优质预加硬塑胶模具钢、M238超级预加硬塑胶模具钢、M300优质预加硬抗腐蚀镜面模具钢、M310 优质抗腐蚀镜面模具钢、W302耐热压铸模具钢、K460不变形耐磨油钢、K110 不变形韧性高铬钢。

模具零件英文名称及缩写序号中文名称英文名称缩写1斜导柱Angular Pins AP2斜销Angular Cams ANC3锁紧块Locking Blocks LB4斜导柱压板Stopper Plates for Angular Pin APP5滑块Slider S6滑块镶件Slider Insert SLI7滑块座Slider Base SLB8滑块挡块Slider Core Stop Blocks SLNB9滑块导轨Guide Rails GR10浇口套Sprue Busings SB11定位环Locating Rings LR12拉料销Runner Lock pins RL13点式浇口套Point Gate Bushing PGB14顶针Ejector Pins EP15阶梯推杆Stepped EP SEP16扁顶针Rectangular Ejector Pins ER17推管/司筒Ejector Sleeves EL/ES 18司筒针/中心销Center Pin CP19镶块/压块Stopper for Cavity Insert ICS20楔块Spacer Wedge SPW 21精密定位销Taper PIN Sets TP22侧定位块Slide Straight Block Sets SSB23耐磨块/滑块调整块Slide Adjustment Plates SAP24精密定位销垫圈Spacers for Taper Pin Sets TPS25精面斜面定位块Taper Blocks Sets TBS26导柱Guide Pins GP27导套Guide Bushings GB28推板导柱Ejector Guide Pins EGP29推板导套Ejector Guide Bushings EGB30支撑柱/撑头Support Pillars SPL31垃圾钉/止动垫（用平头螺丝）Stop Rings STR32垃圾钉（敲进模板型）Stop Pins STP33垫模块Distance Spacers DS34顶模块/顶出限位块Ejector Rods ERD35锁模板Mould opening protection Plates OPP36阻尼销/拉模扣Parting Locks PL37定距拉板Tension Links TL38芯杆固定板/司筒针固定板Holding Plates for Pin CPHP/APP 39前模模仁Cavity CAV40后模模仁Core COR41前模镶件Cavity Insert CAI42后模镶件Core Insert COI43斜顶Angular Lifter LF44前模镶针Cavity Pin CAP45后模镶针Core Pin COP46流道板Runner Plate RUP47隔热板Insulation Sheet ISH48销钉Dowel Pin DP 49冷却水镶件Inesert For Cooling IFC 50弹簧Spring SP 51螺钉Screw SC 52无头螺钉Screw Plug SCP 53平头螺钉Socker Head Cap Screw SHCP 54球头顶丝Ball Plunger BAP 55O形密封圈O ring OR 56堵头Taper Screw Plug TSP 57拉杆定位介子Support Pin Spacer SUPS 58齿轮Gear GE 59轴承Bearing BE 60油缸Oil Cylinder OCY 61气缸Air Cylinder ACY 62间隔圈Spacer Ring SPR。

版本: A00更新时间: 2007.11.25类别子类序号编号范例零 件 名 称备 注1FCAB01前模仁(Cavity block)2FCIC01前模镶件(Cavity insert core)3FCIP01前模镶针(Cavity insert pin)4FCIW01楔形压紧块(Insert wedge)5FCLB01前模定位镶块(Cavity lock block)6FCCB01前模运水接块(Cooling block)7FCAP01前模调整板(Adjust plate)7FCWC01前模线割件(Wire cut part)1FMAP01A板(A plate)2FMST01水口板(Stripper plate)3FMTC01上固定板(Top clamp plate)4FMRP01顶针面板(Ejector retainer plate)5FMEP01顶针底板(Ejector plate)6FMSP01托板(Support plate）7FMBP01座板(Base plate)8FMSB01方铁(Space block)1FSBD01行位(Slide body)2FSIC01行位镶件(Slide insert core)3FSIP01行位镶针(Slide insert pin)4FSGR01行位压条(Guide rail)5FSWW01铲机耐磨块(Wedge wear plate)6FSSW01行位背面耐磨块(Side wear plate)7FSBW01行位底面耐磨块(Bottom wear plate)8FSCK01行位导滑块(Center guide key)9FSWB01锁紧块(铲机)(Wedge block)10FSAB01压块(Attach block）11FSSB01挡块(Stopper block）12FSAP01斜导柱(Angular pin)13FSAG01斜导滑块(Angular guide block)14FSLB01连接块(Link block)1FALF01斜顶(Lifter)2FACO01斜顶块(Angular core)3FAGH01斜顶导滑槽(angular guide housing)4FASU01斜顶滑动块(angular slide unit)5FAGP01斜顶导滑板(angular guide plate)6FALP01斜顶边接杆(Angular link pin)7FAIC01斜顶镶件(Angular insert core)8FAIP01斜顶镶针(Angular insert pin)9FASP01间隔套(Space pipe)1FEPN01顶针(Ejector pin)2FEBD01扃顶针(Eejector brade)3FESL01司筒(Ejector sleeve)4FEIP01司筒内针(sleeve inside pin)5FECO01顶块(Ejector core)定模部分模仁相关行位相关斜顶相关Plastic mould Part List模 具 零 件 一 览 表模胚相关顶出相关版本: A00更新时间: 2007.11.25类别子类序号编号范例零 件 名 称备 注Plastic mould Part List模 具 零 件 一 览 表分顶出相关标。
