ZINWELL无线HDMI3D高清影音传输器WHD-200中文说明书

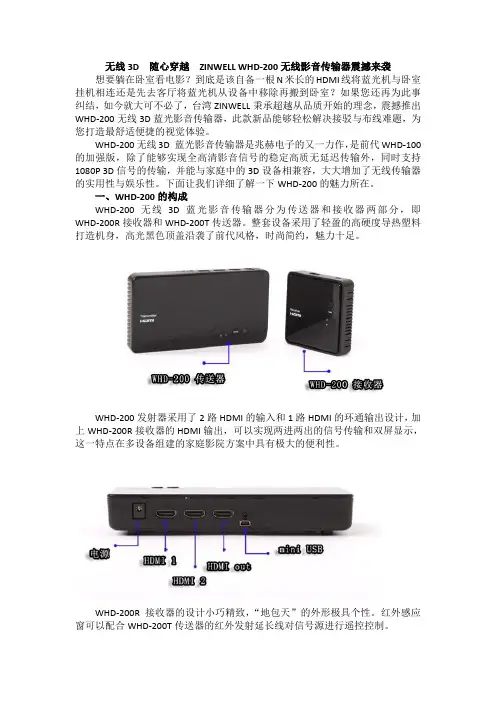

无线3D 随心穿越ZINWELL WHD-200无线影音传输器震撼来袭想要躺在卧室看电影？到底是该自备一根N米长的HDMI线将蓝光机与卧室挂机相连还是先去客厅将蓝光机从设备中移除再搬到卧室？如果您还再为此事纠结，如今就大可不必了，台湾ZINWELL秉承超越从品质开始的理念，震撼推出WHD-200无线3D蓝光影音传输器，此款新品能够轻松解决接驳与布线难题，为您打造最舒适便捷的视觉体验。

WHD-200无线3D 蓝光影音传输器是兆赫电子的又一力作，是前代WHD-100的加强版，除了能够实现全高清影音信号的稳定高质无延迟传输外，同时支持1080P 3D信号的传输，并能与家庭中的3D设备相兼容，大大增加了无线传输器的实用性与娱乐性。

下面让我们详细了解一下WHD-200的魅力所在。

一、WHD-200的构成WHD-200无线3D 蓝光影音传输器分为传送器和接收器两部分，即WHD-200R接收器和WHD-200T传送器。

整套设备采用了轻盈的高硬度导热塑料打造机身，高光黑色顶盖沿袭了前代风格，时尚简约，魅力十足。

WHD-200发射器采用了2路HDMI的输入和1路HDMI的环通输出设计，加上WHD-200R接收器的HDMI输出，可以实现两进两出的信号传输和双屏显示，这一特点在多设备组建的家庭影院方案中具有极大的便利性。

WHD-200R接收器的设计小巧精致，“地包天”的外形极具个性。

红外感应窗可以配合WHD-200T传送器的红外发射延长线对信号源进行遥控控制。

二、WHD-200连接方式首先，用HDMI线将蓝光机与WHD-200T连接在一起。

注意是将HDMI接入WHD-200T的HDMI in接口。

其次，用HDMI线将WHD-200R与液晶电视进行连接。

按下遥控器的SOURCE 键，选择“HDMI”输入源。

这时，电视机上就会出现影音设备的播放画面。

三、WHD-200优势一览WHD-200支持1080P画质,且支持3D效果的无线传输；WHD-200能够传输无损无压缩视频信号，且是一种无延迟（小于1ms）的无线传输；WHD-200是一种纯硬件设计的传输设备，无需安装软件，即插即用；WHD-200可以实现两进两出的信号传输和双屏显示；WHD-200特别设置了一枚红外发射延长线插口，可以耦合信号源的红外信号到WHD-200R端，用遥控器对着WHD-200R的红外感应窗可直接遥控控制信号源。

HDMI完全使用手册第一章我们为什么需要数字传输接口 (3)第一节数字化影音时代模拟接口的缺陷 (3)第二节HDMI标准横空出世 (4)第三节HDMI标准的主要特性和优势 (6)第二章HDMI技术详细解析 (7)第一节HDMI传输原理解析 (7)第二节HDMI接口类型 (10)第三节HDMI支持的显示格式 (16)第四节HDCP版权保护技术解析 (18)1HDCP版权保护机制的功能 (18)2HDCP实现机制 (19)第五节HDMI标准的发展之路 (20)第六节HDMI音频功能解析 (21)1HDMI音频功能浅析 (21)2HDMI对音频格式支持的变迁 (22)第七节HDMI1.3标准详解 (22)第八节HDMI系统中传输线材的重要性 (25)第三章HDMI标准身后的商业模式 (27)第一节HDMI标准的普及状况 (27)第二节HDMI标准的收费模式 (28)第三节HDMI的"D E FACTO"推广策略 (30)第四章HDMI推广过程中的主要问题 (31)第一节厂商在生产HDMI设备时的问题 (31)第二节HDMI ATC认证的先天缺陷 (32)第三节S IMPLAY HD过高收费带来的障碍 (32)第五章HDMI技术面临的机遇和挑战 (34)第一节HMDI的有力对手—D ISPLAY P ORT技术 (34)第二节HDMI面对的机遇 (35)第一章我们为什么需要数字传输接口第一节数字化影音时代模拟接口的缺陷说起显示设备，很多人都会在第一时间想起电视机和电脑显示器这些在生活中随处可见的设备。

的确，随着人类社会的不断进步，各种显示设备已经在人类社会中发挥了巨大的作用，无论是在工业生产的第一线，还是在家庭休闲娱乐的时刻，人们都希望能看到清晰、流畅的影像。

而对于显示设备来说，要想显示出丰富多彩的高分辨率画面，除了高质量的信号源，还需要一个高性能的信号传输、接收装置，也就是我们常说的信号接口。

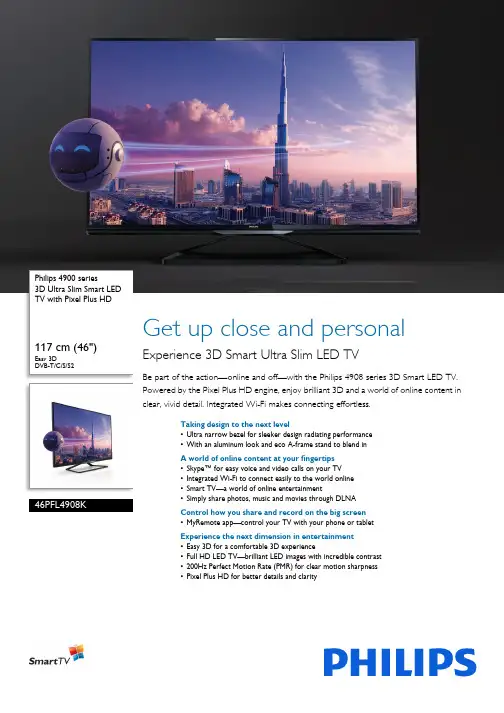

Philips 4900 series3D Ultra Slim Smart LED TV with Pixel Plus HD117 cm (46") Easy 3DDVB-T/C/S/S246PFL4908K Get up close and personal Experience 3D Smart Ultra Slim LED TVBe part of the action—online and off—with the Philips 4908 series 3D Smart LED TV. Powered by the Pixel Plus HD engine, enjoy brilliant 3D and a world of online content in clear, vivid detail. Integrated Wi-Fi makes connecting effortless.Taking design to the next level•Ultra narrow bezel for sleeker design radiating performance•With an aluminum look and eco A-frame stand to blend inA world of online content at your fingertips•Skype™ for easy voice and video calls on your TV•Integrated Wi-Fi to connect easily to the world online•Smart TV—a world of online entertainment•Simply share photos, music and movies through DLNAControl how you share and record on the big screen•MyRemote app—control your TV with your phone or tabletExperience the next dimension in entertainment•Easy 3D for a comfortable 3D experience•Full HD LED TV—brilliant LED images with incredible contrast•200Hz Perfect Motion Rate (PMR) for clear motion sharpness•Pixel Plus HD for better details and clarityHighlightsUltra narrow bezelGood design tells a story. Take for example the precision crafted front panel made from one piece of polished high gloss. Or the ultra-thin bezel designed to create a sleeker profile. Together these speak volumes about the high performance and accuracy we deliver—inside and out.Aluminum look and A-frameWith an aluminum look and eco A-frame stand to blend inSkype™ TV video calls*Add a new dimension to your calls and share experiences with the people that matter to you, wherever they are. With Skype™ on your TV, make voice and video calls from your living room. Just plug the optional Philips TV camera (PTA317) into your TV and enjoy excellent video and sound quality from the comfort of your couch.Integrated Wi-FiIntegrated Wi-Fi on your Philips Smart TV makes connecting to your home network quick and easy, allowing you to access a world of content or share wirelessly at home. Smart TV online appsExplore the boundaries that lie beyond traditional TV. Rent and stream movies, videos, games and more, directly onto your TV from online video stores. Watch catch-up TV from your favorite channels and enjoy a rich selection of online apps with Smart TV. Connect to family and friends with Skype™ or social networking. Or... just browse the Internet!SimplyShare TVShare photos, music, videos and moviesthrough DLNA using your smartphone, tabletor computer and enjoy them on the big screen.Sharing made simple.MyRemote*Control your TV and record on the go withouta remote control using one easy app.Transform your tablet or smart phone into auniversal remote with all the options of youroriginal remote plus extra features like textentry. The SimplyShare function beamscontent onto your TV. Stay up to date byrecording your favorite programs on-the-gousing MyRemote recording. Simply flip throughthe content on the TV Program Guide tochoose which shows to record and view later.A Smart TV deserves a truly smart app.Easy 3DEnjoy hours of viewing comfort thanks topassive 3D technology that delivers you highquality, flicker free, low ghosting 3D. Convertany 2D content into vivid and flawless 3D. Thestylish, lightweight 3D glasses are comfortableto wear and do not require batteries.Full HD LED TVPicture quality matters. Regular HDTVs deliverquality, but you expect the best. Imaginebreathtakingly crisp detail paired with highbrightness, incredible contrast, sharp motiondefinition, realistic colors and a true to lifepicture—as well as low power consumption.Well, look no further. Full HD LED deliversmore detail than standard HDTVs. And moredetail in the image means a more intenseviewing experience for you.200Hz PMRFor picture movement that looks precise,smooth and natural, Philips created PMR—ourstandard for measuring moving imagesharpness. Perfect Motion Rate is thecombined result of our unique videoprocessing, number of frames per second andrefresh rate of each frame, perfection indimming capabilities, and backlightingtechnology. A higher PMR number contributesto higher contrast and better motionclarity—which means a superior image for you.Pixel Plus HDOur advanced digital picture processingtechnology increases the number of lines andthe number of pixels. The result delivers razorsharp pictures with incredible detail and depth,every time and from any source.Smart TVSmart TV-a world of online apps, videosto rent and catch-upExplore the boundaries that lie beyondtraditional TV. Rent and stream movies,videos, games and more, directly ontoyour TV from online video stores. Watchcatch-up TV from your favorite channelsand enjoy a rich selection of online appswith Smart TV. Connect to family andfriends with Skype™ or socialnetworking. Or... just browse theInternet!Issue date 2022-06-03 Version: 2.1.212 NC: 8670 001 06249 EAN: 87 12581 69662 7© 2022 Koninklijke Philips N.V.All Rights reserved.Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.SpecificationsPicture/Display•Display: LED Full HD•Diagonal screen size: 46 inch / 117 cm•Panel resolution: 1920x1080p•3D: 2 Player Full Screen Gaming*, 3D Depth adjustment, 2D to 3D conversion, Easy 3D •Aspect ratio: 16:9•Brightness: 350 cd/m²•Picture enhancement: Pixel Plus HD, 200Hz Perfect Motion Rate, Micro DimmingSmart TV•Interactive TV: HbbTV*•SmartTV apps*: Catch-up TV, Netflix*, Online apps, Online Video stores, Open Internet browser, YouTube•Social TV: Facebook, Skype, Twitter•TV programe guide*: 8 day Electronic Program GuideUser Interaction•Wireless interaction: SimplyShare, MultiRoom Client*, Wi-fi Miracast Certified*, PC In Monitor •Program: Pause TV, USB Recording*•Ease of Installation: Auto detect Philips devices, Device connection wizard, Network installation wizard, Settings assistant wizard•Ease of Use: One-stop Home button, Onscreen Usermanual•Firmware upgradeable: Firmware auto upgrade wizard, Firmware upgradeable via USB, Online firmware upgrade•Screen Format Adjustments: Autofill, Autozoom, Movie expand 16:9, Super Zoom, Unscaled, Widescreen•Signal strength indication•Teletext: 1000 page Smart Text•My Remote App*: Control, MyRemote Recording, Simply Share, TV GuideSound•Output power (RMS): 20W•Sound Enhancement: Auto Volume Leveler, Clear Sound, Incredible SurroundConnectivity•Number of HDMI connections: 3•Number of component in (YPbPr): 1•Number of scarts(RGB/CVBS):1•Number of USBs: 2•Wireless connection: Integrated Wi-Fi 11n •Other connections: Antenna IEC75, Common Interface Plus (CI+), Ethernet-LAN RJ-45, Digital audio out (coaxial), Audio L/R in, Headphone out, Satellite Connector •HDMI features: 3D, Audio Return Channel•EasyLink (HDMI-CEC): Remote control pass-through, System audio control, System standby,Plug & play add to Homescreen, Auto subtitle shift(Philips), Pixel Plus link (Philips), One touch playMultimedia Applications•Video Playback Formats: Containers: AVI, MKV,H264/MPEG-4 AVC, MPEG-1, MPEG-2, MPEG-4,WMV9/VC1•Music Playback Formats: AAC, MP3, WMA (v2 upto v9.2)•Picture Playback Formats: JPEGSupported Display Resolution•Computer inputs: up to 1920x1080 @ 60Hz•Video inputs: 24, 25, 30, 50, 60 Hz, up to1920x1080pTuner/Reception/Transmission•Digital TV: DVB-T/C/S/S2•MPEG Support: MPEG2, MPEG4•Video Playback: NTSC, PAL, SECAMPower•Mains power: AC 220 - 240 V 50/60Hz•Ambient temperature: 5 °C to 35 °C•Energy Label Class: A+•Eu Energy Label power: 47 W•Annual energy consumption: 69 kW·h•Standby power consumption: <0.15W•Power Saving Features: Auto switch-off timer, Ecomode, Picture mute (for radio)•Off mode power consumption: < 0.3Dimensions•Box dimensions(W x H x D):1222 x 725 x 134 mm•Set dimensions(W x H x D):1046 x 623 x 72.8 mm•Set dimensions with stand (W x H x D):1046 x 700 x 261 mm•Product weight: 14.1 kg•Product weight (+stand): 15.3 kg•Weight incl. Packaging: 18 kg•Compatible wall mount: 400 x 400mmAccessories•Included accessories: 2 x 3D Glasses, RemoteControl, 2 x AAA Batteries, Power cord, Quickstart guide, Legal and safety brochure, WarrantyLeaflet•Optional accessories: Philips TV camera PTA317,3D glasses PTA417, 3D glasses Game kit PTA436*MyRemote app and related functionalities varies per TV model andcountry, as well as smart device model and OS. For more detail,please visit: /TV.*Compatibility depends on wifi miracast certification Android 4.2 orlater. For more details please refer to your device documentation.*For smart TV app, visit /TV to discover the servicesoffering in your country*USB recording for digital channels only, recordings may be limited bybroadcast copy protection (CI+). Country and channel restrictionsmay apply.*Philips TV camera (PTA317) is sold separately.*Parents should monitor their children during 3D viewing and ensurethey do not experience any discomfort as mentioned above.Watching 3D is not recommended for children under 6 years of ageas their visual system is not fully developed yet.*The TV supports DVB reception for 'Free to air' broadcast. SpecificDVB operators may not be supported. An up to date list can befound in the FAQ section of the Philips support website. For someoperators Conditional Access and subscripction are required.Contact your operator for more information.*Software upgrade required for HbbTV, Multiroom client and server,Netflix and myRemote app.*Energy consumption in kWh per year, based on the powerconsumption of the television operating 4 hours per day for 365days. The actual energy consumption will depend on how thetelevision is used.*EPG and actual visibility (up to 8 days) is country and operatordependent.。

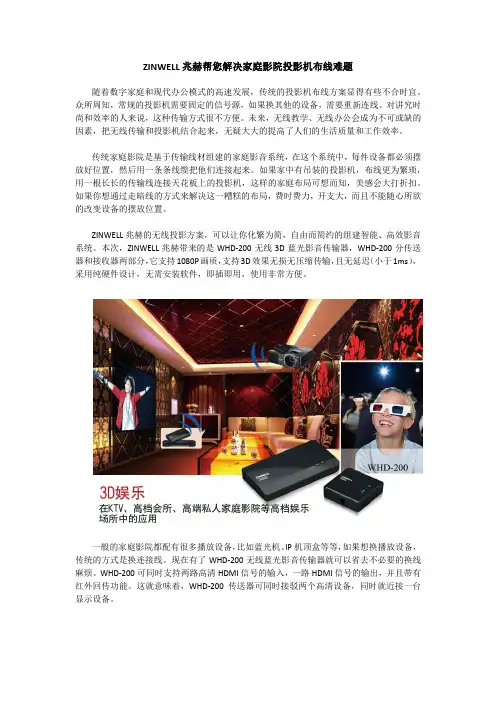

ZINWELL兆赫帮您解决家庭影院投影机布线难题随着数字家庭和现代办公模式的高速发展，传统的投影机布线方案显得有些不合时宜。

众所周知，常规的投影机需要固定的信号源，如果换其他的设备，需要重新连线。

对讲究时尚和效率的人来说，这种传输方式很不方便。

未来，无线教学、无线办公会成为不可或缺的因素，把无线传输和投影机结合起来，无疑大大的提高了人们的生活质量和工作效率。

传统家庭影院是基于传输线材组建的家庭影音系统，在这个系统中，每件设备都必须摆放好位置，然后用一条条线缆把他们连接起来。

如果家中有吊装的投影机，布线更为繁琐，用一根长长的传输线连接天花板上的投影机，这样的家庭布局可想而知，美感会大打折扣。

如果你想通过走暗线的方式来解决这一糟糕的布局，费时费力，开支大，而且不能随心所欲的改变设备的摆放位置。

ZINWELL兆赫的无线投影方案，可以让你化繁为简，自由而简约的组建智能、高效影音系统。

本次，ZINWELL兆赫带来的是WHD-200无线3D蓝光影音传输器，WHD-200分传送器和接收器两部分，它支持1080P画质，支持3D效果无损无压缩传输，且无延迟（小于1ms），采用纯硬件设计，无需安装软件，即插即用，使用非常方便。

一般的家庭影院都配有很多播放设备，比如蓝光机、IP机顶盒等等，如果想换播放设备，传统的方式是换连接线。

现在有了WHD-200无线蓝光影音传输器就可以省去不必要的换线麻烦。

WHD-200可同时支持两路高清HDMI信号的输入，一路HDMI信号的输出，并且带有红外回传功能。

这就意味着，WHD-200传送器可同时接驳两个高清设备，同时就近接一台显示设备。

WHD-200传送器连接示意图WHD-200接收器可USB供电，这就意味着接收器可在带有USB接口的投影机上直接取电，非常方便。

如果投影机无USB接口，插在电源上就可以取电。

无线技术的应用使用户真正摆脱了杂乱的线缆的羁绊，满足了无拘无束自由投影的愿望。

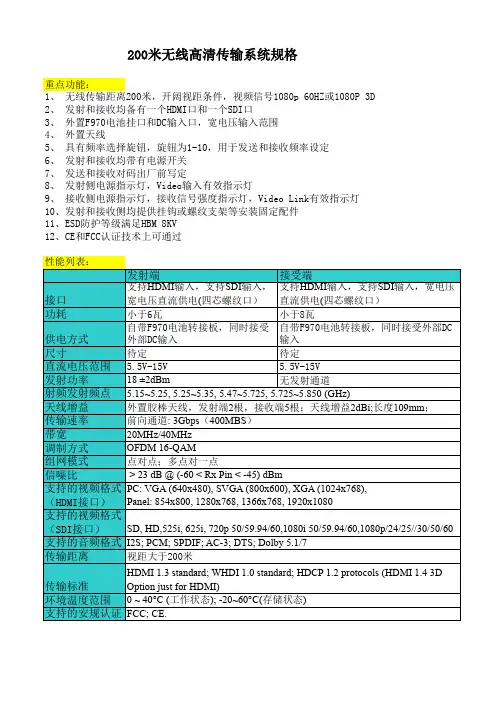

200米无线高清传输系统规格
重点功能：
1、 无线传输距离200米，开阔视距条件，视频信号1080p 60HZ或1080P 3D
2、 发射和接收均备有一个HDMI口和一个SDI口
3、 外置F970电池挂口和DC输入口，宽电压输入范围
4、 外置天线
5、 具有频率选择旋钮，旋钮为1-10，用于发送和接收频率设定
6、 发射和接收均带有电源开关
7、 发送和接收对码出厂前写定
8、 发射侧电源指示灯，Video输入有效指示灯
9、 接收侧电源指示灯，接收信号强度指示灯，Video Link有效指示灯
10、发射和接收侧均提供挂钩或螺纹支架等安装固定配件
11、ESD防护等级满足HBM 8KV
12、CE和FCC认证技术上可通过。

Microscope Digital CameraHD200-MUse 1/2.8 inch SONY CMOS IMX291 ultra wide dynamic ultra low illumination sensor camera, excellent color reduction, to help you get the sharpest image effect.122Power On/OffThe power status indicator of the wired controllerPower status indicator lightTF card slotImage output interface (Mini HDMI)PlayVideo mode FreezeAuto white balanceTime-lapse snapshot AEManual exposureOne-time exposureInterval recordPreviousNext......CE210 Dimensions GuangZhou Ostec Electronic Technology Co.,LimitedManufacturer: No.8 West Lane, Jiangcheng Road, Bangjiang East Village, Shiqi Town, Panyu District, Guangzhou, China.Hi-tech Enterprise qualification NO.：GR201744000114The content of this promotion catalogue is published by the company's research and review. The contents are subject to change without prior notice.HD200-M Parameters HD200-M DimensionsHD200-M Packing List Camera SpecificationsImage Sensor SONY CMOS IMX291 super wide dynamic CMOS sensor Expose mode Rolling shutterMaximum Resolution 1920 x 1080 (2,073,600 pixels)Sensor Optical Format 1/2.8" (6.08 mm (H) x 4.415mm(V))Pixel Size 2.9 µm x 2.9µm Dynamic Range 128dB SNR(Signal Noise Ratio)30dB Spectral Characteristics 380~650nmExposure Capability Real-time auto, Single auto, Manual adjustmentWhite Balance Real-time auto, Single auto, Manual adjust R G B separately Display (preview) resolution HDMI: 1920 x 1080P60Record formatSnapshotPicture Format: JPG Resolution: 1920x1080RecordVideo Format: MOVResolution: 1920x1080P30, 1280x720P60Record RouteTF card (Maximum support 128G, Support hot plug)Monitor ParametersSize 12.5"Type a-Si TFT-LCD/IPS Resolution 1920 x 1080Color display 16.7M Brightness 300 Nit Contrast 800:1Visible angle 170° horizontal and vertical Power supplyAdapter:Input:AC100~240V/50~60Hz; Output:DC12V/5A/60WMonitor:USB-A-Output:DC5V/2A×3Image input interfaceHDMI1,HDMI2Camera Interface ParameterCamera interface C mount thread (1" x 1/32")Image output interfaceHDMI TYPE C (Mini HDMI)C a m e r a HDMI cable CD Wired ControllerA C a d a p t e r CE210 packing listGuangZhou Ostec Electronic Technology Co.,LimitedManufacturer: No.8 West Lane, Jiangcheng Road, Bangjiang East Village, Shiqi Town, Panyu District, Guangzhou, China. Hi-tech Enterprise qualification NO.：Meiji Techno America, Inc. 5895 Rue Ferrari San Jose, CA 95138Tel: 408.226.3454 | Fax: 408.226.0900 。

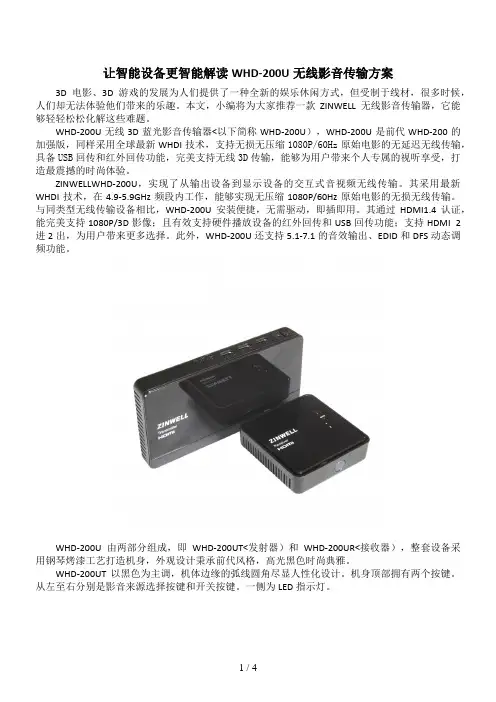

让智能设备更智能解读WHD-200U无线影音传输方案3D电影、3D游戏的发展为人们提供了一种全新的娱乐休闲方式，但受制于线材，很多时候，人们却无法体验他们带来的乐趣。

本文，小编将为大家推荐一款ZINWELL无线影音传输器，它能够轻轻松松化解这些难题。

WHD-200U无线3D蓝光影音传输器<以下简称WHD-200U），WHD-200U是前代WHD-200的加强版，同样采用全球最新WHDI技术，支持无损无压缩1080P/60Hz原始电影的无延迟无线传输，具备USB回传和红外回传功能，完美支持无线3D传输，能够为用户带来个人专属的视听享受，打造最震撼的时尚体验。

ZINWELLWHD-200U，实现了从输出设备到显示设备的交互式音视频无线传输。

其采用最新WHDI技术，在4.9-5.9GHz频段内工作，能够实现无压缩1080P/60Hz原始电影的无损无线传输。

与同类型无线传输设备相比，WHD-200U安装便捷，无需驱动，即插即用。

其通过HDMI1.4认证，能完美支持1080P/3D影像；且有效支持硬件播放设备的红外回传和USB回传功能；支持HDMI 2进2出，为用户带来更多选择。

此外，WHD-200U还支持5.1-7.1的音效输出、EDID和DFS动态调频功能。

WHD-200U由两部分组成，即WHD-200UT<发射器）和WHD-200UR<接收器），整套设备采用钢琴烤漆工艺打造机身，外观设计秉承前代风格，高光黑色时尚典雅。

WHD-200UT以黑色为主调，机体边缘的弧线圆角尽显人性化设计。

机身顶部拥有两个按键。

从左至右分别是影音来源选择按键和开关按键。

一侧为LED指示灯。

通过观察，我们发现WHD-200UT具有2路HDMI输入和1路HDMI环通输出。

2路HDMI IN 输入口可接PC、笔记本、蓝光播放机、高清网络播放机、高清卫星机顶盒、高清摄像机、PS3或XBOX等设备。

用户通过顶部的Source按键即可实现2路信号源<2路HDMI IN）的相互切换。

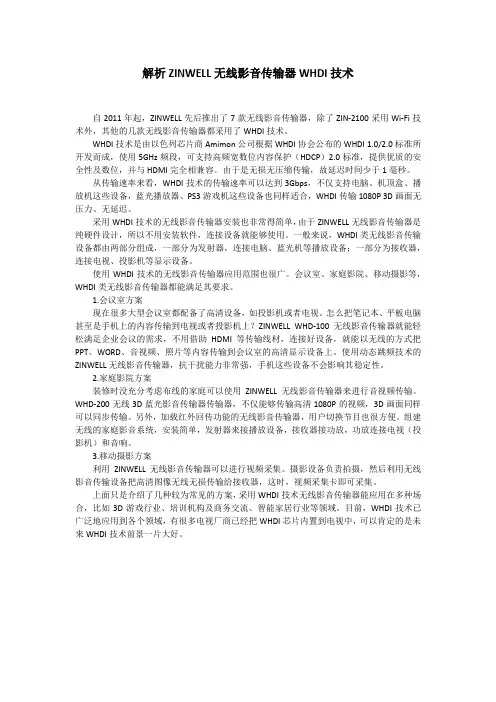

解析ZINWELL无线影音传输器WHDI技术自2011年起，ZINWELL先后推出了7款无线影音传输器，除了ZIN-2100采用Wi-Fi技术外，其他的几款无线影音传输器都采用了WHDI技术。

WHDI技术是由以色列芯片商Amimon公司根据WHDI协会公布的WHDI 1.0/2.0标准所开发而成，使用5GHz频段，可支持高频宽数位内容保护（HDCP）2.0标准，提供优质的安全性及数位，并与HDMI完全相兼容。

由于是无损无压缩传输，故延迟时间少于1毫秒。

从传输速率来看，WHDI技术的传输速率可以达到3Gbps，不仅支持电脑、机顶盒、播放机这些设备，蓝光播放器、PS3游戏机这些设备也同样适合，WHDI传输1080P 3D画面无压力、无延迟。

采用WHDI技术的无线影音传输器安装也非常得简单，由于ZINWELL无线影音传输器是纯硬件设计，所以不用安装软件，连接设备就能够使用。

一般来说，WHDI类无线影音传输设备都由两部分组成，一部分为发射器，连接电脑、蓝光机等播放设备；一部分为接收器，连接电视、投影机等显示设备。

使用WHDI技术的无线影音传输器应用范围也很广。

会议室、家庭影院、移动摄影等，WHDI类无线影音传输器都能满足其要求。

1.会议室方案现在很多大型会议室都配备了高清设备，如投影机或者电视。

怎么把笔记本、平板电脑甚至是手机上的内容传输到电视或者投影机上？ZINWELL WHD-100无线影音传输器就能轻松满足企业会议的需求，不用借助HDMI等传输线材，连接好设备，就能以无线的方式把PPT、WORD、音视频、照片等内容传输到会议室的高清显示设备上。

使用动态跳频技术的ZINWELL无线影音传输器，抗干扰能力非常强，手机这些设备不会影响其稳定性。

2.家庭影院方案装修时没充分考虑布线的家庭可以使用ZINWELL无线影音传输器来进行音视频传输。

WHD-200无线3D蓝光影音传输器传输器，不仅能够传输高清1080P的视频，3D画面同样可以同步传输。

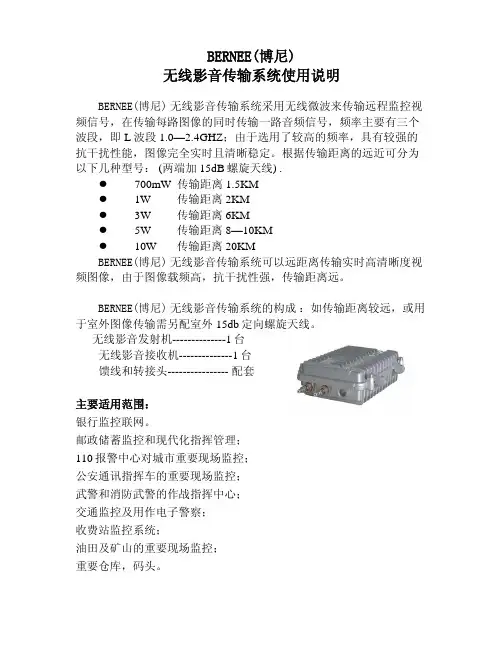

BERNEE(博尼)无线影音传输系统使用说明BERNEE(博尼)无线影音传输系统采用无线微波来传输远程监控视频信号，在传输每路图像的同时传输一路音频信号，频率主要有三个波段，即L波段1.0—2.4GHZ；由于选用了较高的频率，具有较强的抗干扰性能，图像完全实时且清晰稳定。

根据传输距离的远近可分为以下几种型号： (两端加15dB螺旋天线) .z700mW 传输距离 1.5KMz1W 传输距离 2KMz3W 传输距离 6KMz5W 传输距离 8—10KMz10W 传输距离 20KMBERNEE(博尼)无线影音传输系统可以远距离传输实时高清晰度视频图像，由于图像载频高，抗干扰性强，传输距离远。

BERNEE(博尼)无线影音传输系统的构成：如传输距离较远，或用于室外图像传输需另配室外15db定向螺旋天线。

无线影音发射机--------------1台无线影音接收机--------------1台馈线和转接头---------------- 配套主要适用范围：银行监控联网。

邮政储蓄监控和现代化指挥管理；110报警中心对城市重要现场监控；公安通讯指挥车的重要现场监控；武警和消防武警的作战指挥中心；交通监控及用作电子警察；收费站监控系统；油田及矿山的重要现场监控；重要仓库，码头。

型号频率0.9G/1.2G/1.3G/2.4G 供电交流220V 尺寸230×180×80mm 距离两端加定向天线 公里附：外壳接线示意图1W 或以上机接线图如下700mW(室内型)以下发射机接线图如下注意：1、发射机的频道已在机内选定，请在接收机端选择与发射机相对应的频道。

2、使用环境：由于本系统采用微波传送图像及声音，频率较高，遇到阻挡物时，将严重影响传输距离，在使用中应尽量避免；最适合在空旷地带使用，特别在高处（高楼、山顶等）使用，在两端加上高增益定向螺旋天线，距离可增加2倍。

3、本系统外罩可防雨，可以直接在室外使用，但请注意防晒、防雷（加装避雷针或避雷器）。

ZINWELL教你如何选择好的无线影音传输器衡量无线影音传输器最重要的标准在于其是否稳定和有无延迟，而这两个标准取决于很多因素。

下面，笔者结合自身经验为用户一一分析。

一，技术协议的选择目前，无线影音传输器主要选择的技术有：WHDI，WirelessHD，WiDi，WiGig，DLNA。

1.WHDIWHDI的全称是“Wireless Home Digital Interface”，即无线家庭数字接口。

该技术基于WHDI自主技术标准，工作在5GHz频段，可以达到30米范围内穿墙的信号传输。

其带宽为3Gbps,可以实现无损、无压缩的高清信号的传输。

WHDI标准最大的特点是规定了延迟小于1ms，同时对HDMI接口保持完整的兼容。

低延迟可以保证用户进行娱乐体验时保持良好的影音同步，以及没有延后的操作体验。

同时可以达到较远的传输距离，并且具备一定的穿墙能力。

WHDI技术目前可以实现1920×1080的无损视频传输，以及7.1声道的PCM高清音频传输，同时还提供了一个100k的回传通道，用于HDCP控制协议的通信。

2. WirelessHDWirelessHD技术基于802.15.3c标准，采用60GHz的高频频段，理论带宽可以达到28Gbps，足以应对无损传输全高清数据的需求。

但目前WirelessHD有一些弊端，那就是延迟比较高，且无法穿墙。

3. WiDiWiDi又叫做“Intel WirelessDisplay”，是著名芯片厂商Intel公司给予WiFi标准研发出来的一种无线高清传输技术，需要搭配Intel特定的处理器以及特定操作系统才能使用。

这项技术目前已经进化到2.0版本。

给予2.4G/5GHz频段，可以提供300Mbps的带宽。

由于带宽有限，因此WiDi在传输高清影音信号时要对数据进行压缩。

4. WiGigWiGig的全称是Wireless Gigabit，即无线千兆比特。

该技术基于IEEE802.11ad标准，是一种基于60Hz高频频段的高速短距离无线技术。
