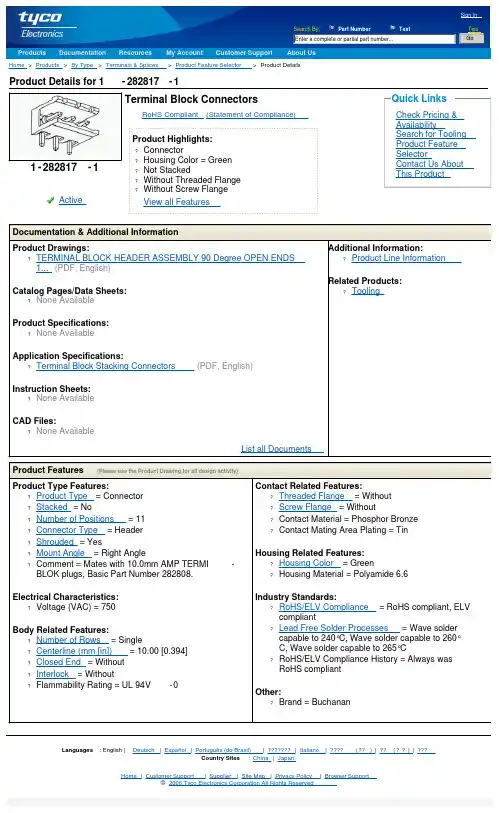

Product Details for 1-282817-1Languages: English | Deutsch | Español | Português (do Brasil) | ??????? | Italiano | ????(??) | ?? (??) | ???Country Sites : China | JapanHome | Customer Support | Supplier | Site Map | Privacy Policy| Browser Support© 2006 Tyco Electronics Corporation All Rights ReservedHome > Products > By Type > Terminals & Splices > Product Feature Selector > Product Details1-282817-1ActiveTerminal Block ConnectorsRoHS Compliant(Statement of Compliance)Product Highlights:?Connector?Housing Color = Green ?Not Stacked?Without Threaded Flange ?Without Screw Flange View all FeaturesCheck Pricing &AvailabilitySearch for Tooling Product Feature SelectorContact Us About This ProductQuick LinksDocumentation & Additional InformationProduct Drawings:?TERMINAL BLOCK HEADER ASSEMBLY 90 Degree OPEN ENDS 1...(PDF, English)Catalog Pages/Data Sheets:?None Available Product Specifications:?None AvailableApplication Specifications:?Terminal Block Stacking Connectors (PDF, English)Instruction Sheets:?None Available CAD Files:?None AvailableList all DocumentsAdditional Information:?Product Line Information Related Products:?ToolingProduct Features(Please use the Product Drawing for all design activity)Product Type Features:?Product Type = Connector ?Stacked = No?Number of Positions = 11 ?Connector Type = Header ?Shrouded = Yes?Mount Angle = Right Angle?Comment = Mates with 10.0mm AMP TERMI -BLOK plugs, Basic Part Number 282808. Electrical Characteristics:?Voltage (VAC) = 750Body Related Features:?Number of Rows = Single ?Centerline (mm [in]) = 10.00 [0.394] ?Closed End = Without ?Interlock = Without?Flammability Rating = UL 94V -0Contact Related Features:?Threaded Flange = Without ?Screw Flange = Without?Contact Material = Phosphor Bronze ?Contact Mating Area Plating = Tin Housing Related Features:?Housing Color = Green?Housing Material = Polyamide 6.6Industry Standards:?RoHS/ELV Compliance = RoHS compliant, ELV compliant?Lead Free Solder Processes = Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder capable to 265°C?RoHS/ELV Compliance History = Always was RoHS compliant Other:?Brand = BuchananSearch By:Part NumberText Tips nm l k j i nm l k j Enter a complete or partial part number...GoSign InProducts Documentation Resources My Account Customer Support About Us元器件交易网。
