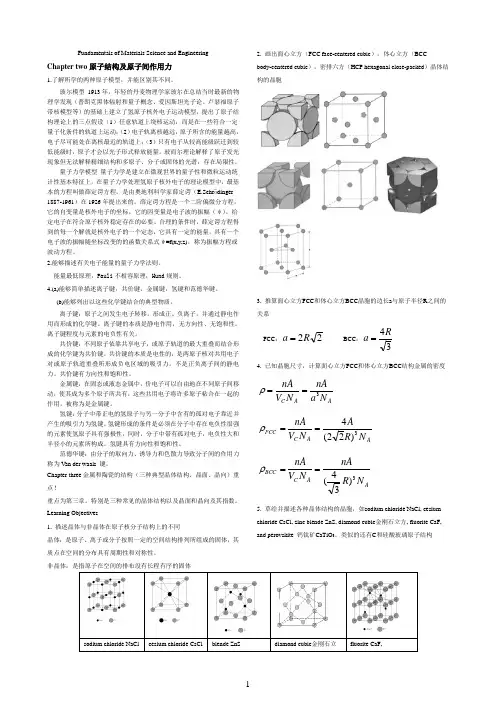

Fundamentals of Materials Science and Engineering Chapter two原子结构及原子间作用力1.了解所学的两种原子模型，并能区别其不同。

玻尔模型1913年，年轻的丹麦物理学家玻尔在总结当时最新的物理学发现（普朗克黑体辐射和量子概念、爱因斯坦光子论、卢瑟福原子带核模型等）的基础上建立了氢原子核外电子运动模型，提出了原子结构理论上的三点假设（1）任意轨道上绕核运动，而是在一些符合一定量子化条件的轨道上运动；（2）电子轨离核越远，原子所含的能量越高，电子尽可能处在离核最近的轨道上；（3）只有电子从较高能级跃迁到较低能级时，原子才会以光子形式释放能量。

玻而尔理论解释了原子发光现象但无法解释精细结构和多原子、分子或固体的光谱，存在局限性。

量子力学模型量子力学是建立在微观世界的量子性和微粒运动统计性基本特征上，在量子力学处理氢原子核外电子的理论模型中，最基本的方程叫做薛定谔方程，是由奥地利科学家薛定谔（E.Schrödinger 1887-1961）在1926年提出来的。

薛定谔方程是一个二阶偏微分方程，它的自变量是核外电子的坐标，它的因变量是电子波的振幅（ψ）。

给定电子在符合原子核外稳定存在的必要、合理的条件时，薛定谔方程得到的每一个解就是核外电子的一个定态，它具有一定的能量，具有一个电子波的振幅随坐标改变的的函数关系式ψ=f(x,y,z)，称为振幅方程或波动方程。

2.能够描述有关电子能量的量子力学法则。

能量最低原理，Pauli不相容原理，Hund规则。

4.(a)能够简单描述离子键，共价键，金属键，氢键和范德华键。

(b)能够列出以这些化学键结合的典型物质。

离子键：原子之间发生电子转移，形成正、负离子，并通过静电作用而形成的化学键。

离子键的本质是静电作用，无方向性、无饱和性。

离子键程度与元素的电负性有关。

共价键：不同原子依靠共享电子，或原子轨道的最大重叠而结合形成的化学键为共价键。
