燎原星汽车摩托车gps跟踪器使用说明书(NR006)

G P S卫星定位仪操作使用说明一、调整集思宝GPS76至工作状态(1)安装好GPS电池后，到达数据采集点（保证天线部分不受遮挡，并能够看到开阔的可视天空，并随身带备用电池）(2)按下红色的电源键并保持至开机，屏幕首先显示开机界面，按下翻页键后进入GPS主页面（页面上方显示该点高度和当前数据精度，中间显示收到卫星信号的情况，下方显示日期、时间、当前经度、纬度，数据采集主要使用此主页面，如不在此页面可以按退出键切换到主页面）(3)清空GPS历史记录数据（开机进入主页面后按两次菜单按键—选择航点—按输入后即可看见历史记录的航点—再次按菜单按键—选择全部删除，每次采集前应该清除历史记录以免重复，但如果是继续采集同一块烟田数据则不需要清除数据）(4)检查GPS的数据显示保存格式为度分秒。

（开机进入主页面后按两次菜单按键—选择设置—按输入—选择坐标）(5)检查GPS电量是否充足（电量过低会在屏幕下方显示）二、GPS数据采集(1)到达需要采集数据的位置，进入GPS主页面，保持GPS静止一到两分钟，保证收到三颗以上卫星信号（屏幕中间显示三个黑条以上、每根黑条代表一个卫星信号的强度），看到屏幕右上方精度显示在10m以下方可采集数据。

(2)按住输入键2秒钟，GPS自动记录下当前位置，并显示标记航点页面。

（按方向键选择第一行再按输入，根据所采数据的类型进行编号，可以按“+”“–”按键切换输入法，编号必须按照编码规则顺序编写并在野外采集记录卡上记录每一个采集点的相关信息，避免数据采集错误。

注意编号不能重复，选择OK,再选择确定，完成一个点的数据采集）(3)在采集管网沟渠及烟田时，需严格按照沿途实际形状进行记录,即在每一个折转弯处进行记录(不含五米内折转弯)。

(4)在采集相邻两块烟田时不得交叉越界采集。

(5)因水窑分布密度相对较大在采集水窑时要求采集每一个水窑时定位时间不得少于10分钟，GPS手持机上提示的精度要小于5米。

GPS坐标仪器使用方法简介GPS坐标仪器（GPS coordinate instrument）是一种用于测量和记录地理位置的设备，通过全球定位系统（GPS）技术获得精准的地理坐标信息。

它在土地测量、地理信息系统（GIS）、野外探险等领域有着广泛的应用。

本文将为您介绍GPS坐标仪器的使用方法，帮助您快速上手，准确获取目标位置的精确坐标。

步骤一：开启设备首先，将GPS坐标仪器从包装中取出，并确保电量充足。

通常，仪器上方会有一个电源按钮或开关，按下或切换开关，打开设备。

步骤二：找到卫星信号为了获得准确的地理坐标信息，GPS坐标仪器需要与卫星建立连接并获得信号。

一般情况下，需要在露天的空旷地区进行操作，避免遮挡物干扰信号接收。

打开设备后，通常会显示当前接收的卫星数量。

如果显示为0或很少的数量，可以将设备移动到独立的宽阔区域，以确保设备可以接收到更多的卫星信号。

步骤三：设置坐标模式在开始记录坐标之前，需要根据具体需要设置坐标模式。

大多数GPS坐标仪器提供多种坐标系统，如经纬度（WGS-84）、UTM、MGRS等。

经纬度坐标是最常用的坐标系统，也是用来在地图上标记位置最为普遍的方式。

通过设备的菜单或设置选项，选择所需的坐标系统。

如果您不确定需要使用哪种坐标系统，建议选择经纬度（WGS-84），它在大多数应用场景下都能满足需求。

步骤四：记录目标位置设备已经开启并接收到足够的卫星信号，坐标模式也已经设置好，现在我们可以准确记录目标位置的坐标了。

1.在设备上方通常会有一个记录按钮或触摸屏上的相应选项。

按下该按钮或选择相应选项进入记录模式。

2.设备将开始定位并显示当前位置坐标。

等待几秒钟，确保设备已经稳定获取到了准确的坐标。

3.按下记录按钮或选择相关选项，将当前位置的坐标保存下来。

某些仪器还可以提供添加备注或标签的功能，可以根据需要添加额外的信息。

4.重复以上步骤，记录更多目标位置的坐标。

步骤五：导出和共享坐标数据当您完成了所有需要记录的目标位置后，可以将记录下来的坐标数据导出到其他设备或软件进行进一步的处理或展示。

G P S卫星定位仪操作使用说明集团企业公司编码：（LL3698-KKI1269-TM2483-LUI12689-ITT289-G P S卫星定位仪操作使用说明一、调整集思宝GPS76至工作状态(1)安装好GPS电池后，到达数据采集点（保证天线部分不受遮挡，并能够看到开阔的可视天空，并随身带备用电池）(2)按下红色的电源键并保持至开机，屏幕首先显示开机界面，按下翻页键后进入GPS主页面（页面上方显示该点高度和当前数据精度，中间显示收到卫星信号的情况，下方显示日期、时间、当前经度、纬度，数据采集主要使用此主页面，如不在此页面可以按退出键切换到主页面）(3)清空GPS历史记录数据（开机进入主页面后按两次菜单按键—选择航点—按输入后即可看见历史记录的航点—再次按菜单按键—选择全部删除，每次采集前应该清除历史记录以免重复，但如果是继续采集同一块烟田数据则不需要清除数据）(4)检查GPS的数据显示保存格式为度分秒。

（开机进入主页面后按两次菜单按键—选择设置—按输入—选择坐标）(5)检查GPS电量是否充足（电量过低会在屏幕下方显示）二、GPS数据采集(1)到达需要采集数据的位置，进入GPS主页面，保持GPS静止一到两分钟，保证收到三颗以上卫星信号（屏幕中间显示三个黑条以上、每根黑条代表一个卫星信号的强度），看到屏幕右上方精度显示在10m以下方可采集数据。

(2)按住输入键2秒钟，GPS自动记录下当前位置，并显示标记航点页面。

（按方向键选择第一行再按输入，根据所采数据的类型进行编号，可以按“+”“–”按键切换输入法，编号必须按照编码规则顺序编写并在野外采集记录卡上记录每一个采集点的相关信息，避免数据采集错误。

注意编号不能重复，选择OK,再选择确定，完成一个点的数据采集）(3)在采集管网沟渠及烟田时，需严格按照沿途实际形状进行记录,即在每一个折转弯处进行记录(不含五米内折转弯)。

(4)在采集相邻两块烟田时不得交叉越界采集。

GPS卫星定位仪支配使用证明之阳早格格创做一、安排集思宝GPS76至处事状态(1)拆置佳GPS电池后，到达数据支集面（包管天线部分没有受遮挡，并不妨瞅到启阔的可视天空，并随身戴备用电池）(2)按下白色的电源键并脆持至启机，屏幕最先隐现启机界里，按下翻页键后加进GPS主页里（页里上圆隐现该面下度战目前数据粗度，中间隐现支到卫星旗号的情况，下圆隐现日期、时间、目前经度、纬度，数据支集主要使用此主页里，如没有正在此页里不妨按退出键切换到主页里）(3)浑空GPS履历记录数据（启机加进主页里后按二次菜单按键—采用航面—按输进后即可瞅睹履历记录的航面—再次按菜单按键—采用局部简略，屡屡支集前该当扫除履历记录免得沉复，但是如果是继承支集共一齐烟田数据则没有需要扫除数据）(4)查看GPS的数据隐现保存圆法为度分秒.（启机加进主页里后按二次菜单按键—采用树立—按输进—采用坐标）(5)查看GPS电量是可充脚（电量过矮会正在屏幕下圆隐现）二、GPS数据支集(1)到达需要支集数据的位子，加进GPS主页里，脆持GPS停止一到二分钟，包管支到三颗以上卫星旗号（屏幕中间隐现三个乌条以上、每根乌条代表一个卫星旗号的强度），瞅到屏幕左上圆粗度隐现正在10m以下圆可支集数据.(2)按住输进键2秒钟，GPS自动记录下目前位子，并隐现标记表记标帜航面页里.（按目标键采用第一止再按输进，根据所采数据的典型举止编号，不妨按“+”“–”按键切换输进法，编号必须依照编码准则程序编写并正在家中支集记录卡上记录每一个支集面的相关疑息，预防数据支集过失.注意编号没有克没有及沉复，采用OK ,再采用决定，完毕一个面的数据支集）(3)正在支集管网沟渠及烟田时，需庄重依照沿途本质形状举止记录, 即正在每一个合转直处举止记录(没有含五米内合转直).(4)正在支集相邻二块烟田时没有得接叉越界支集.(5)果火窑分散稀度相对于较大正在支集火窑时央供支集每一个火窑时定位时间没有得少于10分钟，GPS脚持机上提示的粗度要小于5米.三、数据后期处理(1)支集完数据后，如果需要建改某个航面的编号，不妨启机加进主页里后按二次菜单按键—采用航面—按输进后即可瞅睹履历记录的航面，即可再次建改此面的编号.(2)查看GPS上的支集疑息后，把GPS对接至估计机举止数据导进，但是对接前一定要关关GPS电源再对接.。

eTrex Venture（中文）——奇遇使用手册合众思壮隆重推出中文输入功能完善面积计算器人性化界面第一章序言说明书介绍感谢您购买eTrex Venture（奇遇）GPS接收机——我们不停努力的结果，为了可以使您的新型GPS接收机发挥最大的用途，并且了解所有的操作细节，您可以花些时间阅读一下本手册。

手册由四部分组成：一、序言部分二、速查部分介绍了一些Venture的细节、主要操作页面和基本导航方式三手册部分提供了使用Etrex Venture 的所有细节。

四、附录部分包括一些有关附件，说明书，维修向导，主题索引等方面的信息。

标准配置包括主机1个牵引绳索1根中文说明书1本本手册中，所有的按键将使用黑体字，所有的菜单选项将用“”括起来。

GPS介绍全球定位系统（Global Positioning System - GPS）是美国从本世纪70年代开始研制，历时20年，耗资200亿美元，于1994年全面建成，具有在海、陆、空进行全方位实时三维导航与定位能力的新一代卫星导航与定位系统。

经近10年我国测绘等部门的使用表明，GPS以全天候、高精度、=自动化、高效益等显著特点，赢得广大测绘工作者的信赖，并成功地应用于大地测量、工程测量、航空摄影测量、运载工具导航和管制、地壳运动监测、工程变形监测、资源勘察、地球动力学等多种学科，从而给测绘领域带来一场深刻的技术革命。

随着全球定位系统的不断改进，硬、软件的不断完善，应用领域正在不断地开拓，目前已遍及国民经济各种部门，并开始逐步深入人们的日常生活。

GPS系统的特点:1、全球，全天候工作：能为用户提供连续，实时的三维位置，三维速度和精密时间。

不受天气的影响。

2、定位精度高：单机定位精度优于10米，采用差分定位，精度可达厘米级和毫米级。

3、功能多，应用广：随着人们对GPS认识的加深，GPS不仅在测量，导航，测速，测时等方面得到更广泛的应用，而且其应用领域不断扩大GPS发展历程GPS实施计划共分三个阶段：第一阶段为方案论证和初步设计阶段。

GPS &GSM/GPRS 汽车跟踪定位仪使用说明书121. 安装操作说明1.1接口说明1: 扩展接口42: 扩展接口53: 断电路/油路4: ACC（12V）点火线5: DC(12V)6: 扩展接口37: SOS 紧急呼叫8: 扩展接口19: 扩展接口210: 电源地SIM 卡接口MIC/PHONE：耳机与话筒组合LED:状态指示灯LED状态指示LED灯全灭表示未工作,亮1秒灭1秒表示GSM注册成功亮0.1秒灭2.9秒表示GPS定位常亮表示GSM注册成功并且GPS定位1.2安装检查第一步：检查配件的完整性：主机盒、10Pin连接线、油路控制器、GSM天线、GPS天线、紧急报警报钮、说明书。

第二步： SIM准备购买SIM手机卡（只支持GSM网络，不支持CDMA和小灵通卡），记录好SIM卡对应的号码（即手机号码），SIM卡必须开通来电显示功能，否则无法进行电话监听。

第三步：安装注意电源DC(12V)、电源地与汽车电瓶的正负极、ACC（车钥匙打火）和GSM天线、GPS天线即可。

油路控制接法参照图纸，注意要请专业人员安装第四：GPS天线安装时必须正面朝上，平放对准天空第五：油路控制接线方法注意：油路控制器分12V和24V两种规格，所以在安装时一定要看清油路控制器上的标识规格。

3继电器SOS紧急呼叫42.使用说明3.1位置请求短信功能发送短信：A+密码+,+000（初始密码：000000）例如：A000000,000设备收到短信后，回复位置信息，格式如下：Longitude E114.04577 Latitude N22.32405 08-10-2017:38:30注：如果没有定位，则经纬度时间都是0，为无效值，时间为格林威治时间，具体时间与本地时区有关，如北京，小时数要加8才能与具全时间相符。

3.2修改主用户密码功能发送短信：A+原密码+,+001+,+新密码例如：A000000,001,123456注：000000为旧密码，123456为新密码设备收到短信后，回复位置信息，格式如下：Set Password OK!53.3设置实时反馈位置信息发送短信：A+密码+,+002+,+X注：X=0表示停止 ，X的取值[30~64800]秒钟，当ACC断掉后，即汽车的发动机熄火后，不发送位置位信息。

GPS卫星定位仪操作使用说明GPS（Global Positioning System）卫星定位仪是一种用于确定地理位置和导航的设备。

它通过接收来自全球定位系统卫星发射的信号，计算出接收器与卫星之间的距离，进而确定接收器的位置。

以下是一些关于GPS卫星定位仪操作使用的说明：1.知道基本术语：在使用GPS卫星定位仪之前，你需要了解一些基本的术语，例如经度、纬度、高度、航向等。

这些术语将有助于你理解设备提供的定位信息。

2.开启设备：打开GPS卫星定位仪的电源开关。

在一些设备上，你可能需要长按电源按钮几秒钟才能开启它。

3.等待信号：一旦设备开启，它会自动并连接可用的卫星信号。

在此过程中，可能需要一些时间来获取足够的卫星信号以准确确定位置。

尽量在开阔地区使用GPS卫星定位仪，以获得更好的信号接收质量。

4.确定位置：一旦设备成功接收到卫星信号，它将显示你的当前经度和纬度坐标。

这些坐标将有助于你确定自己所在的位置。

5.导航功能：大多数GPS卫星定位仪还具有导航功能，可以帮助你规划路线并导航到目的地。

输入你想要前往的目的地，并跟随设备上的导航指示进行导航。

6.记录轨迹：有些GPS卫星定位仪允许你记录你的移动轨迹。

通过记录轨迹，你可以随时查看你走过的路径和旅程。

7.了解设备设置：在使用GPS卫星定位仪之前，确保你理解设备的设置选项。

这些设置可能包括度量单位（公制或英制）、地图显示和声音提示等。

根据你的偏好进行设置，以便更好地使用设备。

8.保持设备充电：GPS卫星定位仪通常使用电池供电，因此确保设备始终保持充电状态。

充电时间和使用时间会有所不同，具体取决于设备型号和电池容量。

建议在使用之前充满电池，并带上备用电池以防万一9.定期更新地图：GPS卫星定位仪使用预装的地图数据来提供导航功能。

定期更新设备上的地图数据，以确保你获得最新和准确的导航信息。

这可以通过连接设备到电脑并使用制造商提供的地图更新软件来完成。

10.维护和保养：定期清洁设备的屏幕和外壳，确保它们保持干净，并避免长时间暴露在强烈的阳光下。

GPS Vehicle tracker(GPS+GSM+SMS/GPRS)User Manual(Version 5.0N)This user manual has been specially designed to guide you through the functions and features of your GPS vehicle tracker.1. Accessories:▶Device▶Power cord▶Relay▶Microphone▶SOS alarm cable & button▶User Manual2. SpecificationsDimension 106(L) x 54(W) x 16(H) mm Weight 96gBackup Battery 450mAh / 3.7VOperation Temperature-25℃-60℃Humidity 5% - 95%Standby Time 60hoursGSM Frequencies 850/900/1800/1900 MHz GPRS Class 12GPS Channel 20GPS Sensitivity -159dBmAcquisition Sensitivity -144dBmPosition Accuracy 10mTTFF （Open Sky）Cold Start: ＜38s Warm Start：＜15s Hot Start：＜2sGSM/GPS Antenna Built-in designLED Indicator GSM-green, GPS-blue, Power-redData Transmit TCP, SMSGeo-fence View any existing Geo-fence in the mapSpeeding Alarm Report when speeds higher than the pre-set value. Low Power Alarm Alarm when backup battery is running outNon-movement Detection Movement alarm based on built-in 3D motion sensor Mileage Report Track by time/distance intervalRemote Control Cut off petrol/electricity3. LED IndicationsGPS LED Indicator - BlueFlashing (interval 0.1s) Searching GPS signalSolid blue GPS fixOFF No GPS fix or initializingGSM LED Indicator - GreenQuick flashing (interval 0.1s) GSM initializingSlow flashing (flash 0.1s every 2s) Receive GSM signal normally Solid green Connected to GSM network OFF No GSM signalPower Status - RedFlashing (interval 0.1s) Low batterySlow flashing (interval 0.2s) Full chargeSlow flashing (flash 0.1s every 2s) Normal operatingSolid Red ChargingOFF Low battery/Power offIgnition detection indication: three LED indicators take turns flashing.4. Getting StartedPlease follow below instructions for ensuring safe and correct use.4.1 Install the SIM cardPlace the SIM card into the device with the gold-colored side facing down.Note: Make sure there is enough credit on the SIM card. If you will be using the GPRS function, you should pay attention to the current SIM card GPRS charge.4.2 Install the deviceYou need to choose somewhere that it won't be found, because the whole point of fitting covert GPS vehicle tracker is the secrecy element.Installation please refers to below picture.NOTE:1. Any high power devices such as reversing radar, anti-theft device or communication equipment would affect the signal of the device.2. All metallic cases of the windshield will attenuate the signal on the tracking device. It’s simply due to the shielding effects of the metal compound of the case.4.3 Wiring configurationLine No. Specification Color Instruction1. 2 Keypod Orange / Orange Connect to SOS button3. 4 MIC-,MIC+ Black / Red Connect to Microphone5 TX Green Sending data (TX) / backup6 RX White Receiving data (RX) / backup7 GND Black Ground wire8 MOTOR Yellow Connect to relay control line9 ACC White Connect to ACC ignition10 V- Black(thick) Negative side of 12V/24Vcar storage battery.11 V+ Red(thick)Notes of the relay wiringThe relay wiring of pump: oil connectors of both ends are a fine white line (85) and a fine yellow line (86). The fine white line (85) is connected to vehicle positive power (+12V). The fine yellow line is connected to the device relay control line.Cut off the positive connection line of the pump; then connect in series to the relay N.C. contact (thick green line 87a) and the other end to relay COM contact (thick green line 30).4.4 Device wiring diagramPlease choose the right relay (12V-standard / 24V-optional) for the proper installation. 4.5 Power/ACC/Tele-cutoff(petrol/electricity) control line (4 pin) 1. Your device comes with a power cord and is designed to use only manufacturer-specified original device. The red line is positive while the black one is negative (the side should not be connect with ground wire).2. The ACC line (white) connects to ACC switch of the vehicle. Please be sure to connect the ACC line; otherwise the device will enter ignition detectionstatus when disconnect the ACC line. If you don’t need to anti-theft temporarily, just connect the ACC line to the positive side in parallel.3. Tele-cutoff (petrol/ electricity) control line (yellow) is connected to pin 86 of the Tele-cutoff (petrol/ electricity) relay (equal to the yellow line of the relay socket).4. USB cable (3 pin)Firmware updating interface/expanded function to reserve space.5. MIC line (2 pin)Externally connect to microphone for voice monitoring function.6. SOS line (2 pin)Externally connect to SOS switch for SOS function.5. Quick Operation InstructionsOperation Tips: To properly use the device, common parameters should be set before initial use. This can be done by using the parameter editor or by sending SMS commands to the device. (“,”should be English comma and no space before and after the comma)5.1 APN settingTo connect default platform , please send the SMS command below:APN command format: APN,APN's Name#E.g: APN,internet# (“internet” is the APN of carrier)The device will reply “OK” if setting successfully.Note: The APN of some countries have user name and password, you may need to send SMS command as following:APN,APN name,user name,password#E.g: APN,internet,CLIENTE,AMENA#5.2 DNS settingTo connect other platform, please send the two SMS commands bleow: Command format：SERVER,1,DNS,Port,0#E.g:SERVER, 1,,8841,0#It will reply “OK” after set successfully.5.3 ON /OFF GPRSWhen you want to disable GPRS, you can SMS command to the SIM card number which used in the device.Command format:GPRS ON：GPRSON,1#GPRS OFF：GPRSON,0#It will reply “OK” after set successfully.5.4 Add specific numberSMS command to the device to set the SOS number.SOS,A,No.1,No.2,No.3#“A” means to add new numbers, for example:SOS,A,135****5991,135****5992,135****5993#If there is only one SOS number, you can appoint a specific number as SOS number. And the null means no adding.For example:SOS,A,135****5991#means to set the first number as SOS number SOS,A,,135****5992#means to set the second number as SOS number SOS,A,,,135****5993#means to set the third number as SOS numberIf set successfully, there is a “success” reply SMS.5.5 Delete specific numberBefore deleting specific number, please check its corresponding code. For the code, please SMS “PARAM#” to the device.SMS command to the device to delete the number.SOS,D,serial NO.1,serial NO.2,serial NO.3#“D” means to delete the number, for example:SOS,D,1# means to delete the first numberSOS,D,3# means to delete the third numberIf you want to delete more than one numbers, you can send this command: SOS,D,1,3# means to delete the first and third numbers.If you forget serial number of the mobile number you want delete, you can send this command:SOS,D,mobile number# means to delete the mobile number directly.For example:SOS,D,135****2360#meanstodeletethe135********directly.After deleting the SOS number, it will receive “Delete number 135XXXXXXXX success! specific number total 2” for successful deleting of the specific number.5.6 Set the center numberIf you want to cut off/restore oil by SMS command, you have to set a centernumber firstly. Only the center number can send the cut off/restore oil command to the device. You can set your own mobile number as center number.The command for setting center number is:CENTER,A,mobile number#Forexample:CENTER,A,159****3401#If set successfully, there is an “OK” reply message.NOTE：Only the SOS number can be used to set center number successfully.5.7 Delete the center numberSMS command to the device to delete the center number.The command is:CENTER,D#For example:CENTER,D#If set successfully, there is an “OK” reply SMS.NOTE：Only the SOS number can be used to delete center number successfully.Only SOS phone number can send this command successfully to set the center number. There is only one center number can be set.5.8 Check parameter settingSend command to the terminal, you can check the parameter setting. Command format: PARAM#e.g.: PARAM#
Information replied:IMEI: 353419032348877 ---IMEI number of the device;Timer: 10,10; ---GPS data uploading Interval;SENDS:5; --- the GPS working time when ACC is OFF;SOS:159****3401;---SOSnumbers,maximum3SOSnumberscanbeset and used for alarm and monitoring;CenterNumber:159****3401;---only1centernumbercanbesetandused for cutting off /restoring oil command;Sensorset:10,1,5,180 --- detect 5 vibrations in 10s; the alarm delay is 180s; Defense time: 10; --- the defense delay is 10 minute;TimeZone:E,8,0; --- set time zone; default as E8.The replied information contains IMEI number, GPS data uploading interval, SENDS, SOS, center number, sensor set time interval, defense time and time zone.5.9 Check GPRS parametersSMS command format：GPRSSET#Eg：GPRSSET#Reply message：GPRS:ON //GPRS on/off status// Currently use APN:,,; //APN setting information// Server:1,,8841,0; //platform information// URL:/maps?q=; //preset web link setting information // 5.10 GPS data uploading intervalThe default sending interval is 10,10. It means when ACC ON ,the device will upload positioning data to platform server every 10s.when ACC OFF ,the device will upload positioning data to platform server every 10s.Users can modify sending interval by SMS“TIMER,time1(seconds), time2(seconds)”The time1&time2 ranges from 10-18000sFor example:TIMER,10,20#It means when ACC ON ,the device will upload positioning data to platform server every 10s.when ACC OFF ,the device will upload positioning data to platform server every 20s.5.11 Sensor alarm time settingWhen the vehicle power is off and ACC is in low-level, if ACC is off over 10 minutes, the device will enter sensor alarm state. In this case, if the vehicle vibrates for a few times, it will activate the vibration alarm system. If the vehicle battery is still not on (ACC is in low level) after 3 minutes, the device will start vibration alarm.SMS format: “DEFENSE,TIME(minutes)#” The time ranges from 1 to 60 mins.For example: DEFENSE,15#. It means when ACC is in low level for 15mins, it will enter sensor alarm status (vehicle power is off)NOTE：1. Preset SOS numbers when send SMS alarm messages and calls2. If there is no need for vibration alarm, please SMS SENSOR,0# to close it.5.12 Restore to factory settingSMS command format: “FACTORY#” to set all parameter to default factory value. Once received “OK”, it succeeds.5.13 Reboot deviceWhen there is something wrong with the link of GPRS, e.g., The parameter setting of the device is correct, but you can't track the car on the platform. At this moment you can send a command to the device to reboot the device. The format is: RESET#After receiving this command, the device will reboot after 1mins.6. Operation of device6.1 Power on/ Power offPower on: Once insert a valid SIM card and connect all the wires, turn on the device, then Power LED will flash first, During signal searching process, GSM and GPS LED will flash. Once GPS LED keeps solid light, it means the device has been located and it starts to work.Power off: Just turn off the power switch.The device will begin to upload positioning data to server once inserting a valid SIM card and power on. During the working time, it can upload data to server every 10 seconds.6.2 Check location1. Via SMS1.1 SMS “WHERE#”, to the SIM number of device. The device will send a location message automatically. You can get the coordinates. If the device does not search any information of location, it will send “No data” to the cell phone.Example:Lat:N22.571285,Lon:E113.877115,Course:42.20,Speed:0.0740,DateTime:10-11-23 22:28:511.2 SMS “URL#”, to the SIM number of device. The device will send a location Google Map link. If the device does not search any information of location, it will send “No data” to the cell phone.Example:<Date Time：10-11-23 23:42:51> /maps?q=N22.571490,E113.8771032. Via platformGo to the platform website offered by dealers to check your vehicle location.6.3 SOS alarmIn emergent case, press SOS for 3s to activate SOS alarm. Then the device will send SOS SMS to preset specific numbers and then dial the numbers in circles until the call is picked up. At the meantime, the device will upload SOS alarm data to the server. And it will send:SOS Alarm! <DateTime:11-06-17 14：53：06>，/maps?q=N22576713,E113.916585Note: The specific numbers should be preset, just refer to 6.46.4 Wire cut-off alarmWhen the electricity supply of device is cut off, it will activate cut-off alarm. In this case, the device will send related SMS to the specific numbers and dial the numbers in circles. If nobody answers, the call just keeps 3 loops at most. At the meantime, the device will upload SOS alarm data to the server. And it will send:Cut Power！<Date Time:11-06-17 14：53：06>，/maps?q=N22576713,E113.916585Note: The specific numbers should be preset, just refer to 6.46.5 Low battery alarmWhen the device is only working with battery, once the internal voltage of battery is less than 3.7V, device will send low battery alarm sms to specific number and alarm on platform.Low battery alarm sms content example: “Attentionbattery too low, please charge.” Which means the battery is to low, to inform user charging it i n time. Note: The specific numbers should be preset, just refer to 6.46.6 Vibration alarmThe vibration alarm function is off by default. To activate this function, please send the following command: SENALM, ON#. The alarm will be sent to both the service platform and SOS numbers.When vehicle power is off, ACC status is low, and if the lead time of low ACC is more than 10 minutes （settable）, device will activate security alarm. When the security alarm is on, once the vehicle vibrates for several times, the alarm will be activated; in the next 3 minutes, if vehicle power is still off（ACC status is low）, device will start alarm. At this time, it will send alarm message to the service platform with the latitude and longitude, while the platform will reply the Chinese address. Then the terminal will send vibration alarm message to SOS numbers with the Chinese address, and call the SOS numbers in cycle. If nobody answers, it will stop calling after 3 loops.If the Chinese address can not be acquired for certain reason, the terminal will send a message with the website link to the SOS numbers.e.g.:Sensor Alarm！<11-23 14:53>,/maps?q=N22576713,E113.916585Note:1.The SOS numbers should be preset.2.Send “SEN ALM, OFF#” to turn off the vibration alarm.6.7 Voice monitoringWhen the special number cell phone dial device, ringing for 10 seconds, it will enter voice monitoring status. At this time, caller can monitoring the sound in vehicle. Incoming call from non special number will not activate voice monitoring function.Note:To realize this function, please set special number beforehand.The SIM card put into the device should be equipped with caller identification.6.8 Oil cut-off1. Via platformSend oil cut-off command on platform. To make sure the security of vehicle, tracker can only indicate to cut off oil when GPS is in valid position status, and the speed is less than 20KM/H or in static. Platform account password is needed when sending oil cut off command.2. Via SMSFirstly, you should set a center number. Please refer to 6.6.Only center number can send the command to the device to cut off and restore oil.The format is: RELAY,1#After the command is carried out, it will reply “Cut off the fuel supply: Success! Speed:0 Km/h”. If the command didn't carry out, it will reply the reason about fail to carry out.Note: To ensure the safety of the driver and the car, this command is valid only under two conditions: the GPS is located; the speed is less than 20km/h 6.9 Restoring Oil1. Via platformWhen the alarm is off, sending recover oil commands manually. Device will restore oil supplying, and vehicle will work normally again.Platform account password is needed when sending oil cut off command.2. Via SMSOnly center number can send the command to the device to restore oil.The format is: RELAY,0#After the command is carried out, it will receive “Restore fuel supply:Success!”6.10 Over speed AlarmWhen the car is moving over a limited speed in average in a limited time period, then the device will send over speed alarm SMS to user.To turn on the over speed function, please send below SMS command: SPEED,ON/OFF,Time,Limited speed,uploading mode#Speed alarm switch:ON/OFF default:OFFTime range (seconds):5-600s(default as 20s)Limited speed range(km/h):1-255km/h. default:100Mode:0/1. default:1 way of alarming,0 means GPRS only,1 meansSMS+GPRSExample:SPEED,ON,20,100,1#Means when the car is moving over 100km/h in average in 20 seconds,the device will send over speed alarm to user7．Web based tracking online activationThe GPRS web based tracking platform allows real time tracking with the latest Google maps. There is also a playback feature that allows you to view where the vehicle has been for up to 30 days in the past making it ideal for fleet management.8．Trouble shootingIf you are having trouble with your device, try these troubleshooting procedures before contacting a service professional.Problems Causes SolutionsFail to connect platform The fuse blows Replace the fuse ACC ignition disconnected Turn on ACC with keyFail to connect network Wrong installation of SIMcardCheck SIM card installation(Refer to 4.1 Install SIM card) Filth on the SIM card ironsurface.Clean itUseless SIM Contact internet serviceproviderImproper installation Check installation of device(Refer to 4.2 Install the device) Beyond GSM service area Use it in effective GSM serviceoffer areaBad signal Try again in a better signalareaFail to charge The voltage is unsuitable Connect with power withsuitable voltage Improper connection Check connection withcharger1. The warranty is valid only when the warranty card is properly completed, and upon presentation of the proof of purchase consisting of original invoice indicating the date of purchase, model and serial No.of the product. Wereserve the right to refuse warranty if this information has been removed or changed after the original purchase of the product from the dealer.2. Our obligations are limited to repair of the defect or replacement the defective part or at its discretion replacement of the product itself.3. Warranty repairs must be carried out by our Authorized Service Centre. Warranty cover will be void, even if a repair has been attempted by any unauthorized service centre.4. Repair or replacement under the terms of this warranty does not provide right to extension or renewal of the warranty period.5. The warranty is not applicable to cases other than defects in material, design and workmanship.Maintenance RecordShenZhen Concox Information Technology CO.,LtdTel: +86 755 2912 1200Fax: +86 755 2912 1290E-mail:**************.Add: 4/F, Building B, Gaoxinqi Industrial Park,Liuxian 1st Road, No.67 Bao'an District, Shenzhen DateServiced by Product ModelIMEI NumberFaultDescriptionsCommentsWarranty instructions and service。

GPS Vehicle tracker(GPS+GSM+SMS/GPRS)GT06 User Manual(Version 3.2)Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual. Any change will be integrated in the latest release. The manufacturer assumes no responsibility for any errors or omissions in this document.1. SummaryWorking Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet.Overview of the characteristics:1.GSM 850/900/1800/1900MHZ.2.GPS position.3.Auto set APN.4.300Mah Battery inside, Power-Cut alarm.5.Motion detect, save GPRS flow.6.SOS Alarm.7.Shock Alarm.8.ACC Alarm.9.Speed Alarm10.Voice Surveillance.11.Voltage DC 9-50V.12.Enginee Cut off.2．Accessories：Power line:Relay:Microphone:SOS line:Manual3. Specs1）.GSM：850/900/1800/1900MHZ2）.GPRS: Class12, TCP/IP3）.Working Voltage：9-50V DC4）.Working current：≈22mA (12VDC)5）.Working current：≈12mA (24VDC)6）.GPS locating time：Cold start≈38s（Open sky） Warm start≈32sHot start≈2s（Open sky）7）.GPS Precision：10m（2D RM）8）.Working temperature：-20℃～+70℃9）.Working humidity：20%～80%RH10）.Measurement：98（L）×52（W）×16.5（H）mm4.Wire defined5.Device status indicators5.1 Connect DC 9-50V power supply and the red LED will light continuously.5.2 The blue LED light continuously when searching the GPS signals. When GPSposition,the blue LED flashing.5.3 The intermediate green LED (GSM signal state)GSM signal is normal, green LED flashing. No GSM signal, the blue LED light continuously.All LED will turn off after 5 minutes. When there is a new call, the LED will relight and turn off 5 minutes later.6.Installation6.1 Prepare for installation6.11 Product Check. Open the packing box and check the device‘s model and accessories.If the model is wrong or the accessories not complete, please contact the dealer.6.12 Choose SIM card. Please insert a SIM card to the device. Please take dealer’sadvice as reference.6.13 SIM card installation. Discharge the cover of the device and uncover the SIMcard holder. Then insert the SIM card and cover SIM card holder (as follows).6.14 Open the cover, Push the switch to make the battery working. Then Put back thefront cover and screw it up.6.15 Connect the device to the 9-50V power supply.6.16 Install the device in the hidden place of the car；The SIM card must be with GPRS function and enough deposit. If your SIM card need input PIN when power on, please cancel it.6.2 InstallationThe GPS tracker must be installed under professional personnel.Note：1) Please install the device in the hidden place as followings：Under Front windshield；In the front instrument panel；Under back windshield；2) Avoid being placed with signal radiators like reverse sensor ；3) The device has GSM antenna and GPS antenna inside. Please ensure thereceiving side of the device is face up and without metal cover.Note: The metal cover will lessen the receiving of GPS signals.6. The device connecting requirements.7. Device wiring requirements7.1The device power supply is DC 9-50V. The red line is positive pole while the black line is negative pole.7.2 The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.7.3 When finishing the power supply wire connection, please make the plug of power supply to the device.8.The Device Working8.1Power on:Connecting to the power. Then the three LED indicators will light. Thedevice will upload the data to the online platform (the default intervalof uploading data is 15seconds). When the car is in static state for a longtime, the device will be in energy saving mode and it will be more smartand precise.8.2 Power off：Pull off the power plug then power off the device.er Settings9.1 SMS Commands instruction1)Center NumberText command Parameter SampleCENTER Add710#number#711#number# 710#135****5000# 711#138****8000#CENTER DelD01#D02# D01# D02#Command Description 1)Center number can control the oil and power and resumefactory settings2) Center number can receive the call and text of vibration alarm and over speeding alarm.3) SIM must display the income call number to controloil and power.4) Only 2 number can be center number.5) Change center number must resend the command.6)Add new center number by CETNER,A, and delete byCENTER,DCommandFeedbackSuccessful Setting：Add admin account 1 OK!2) View Center NumberText command Parameter SampleView 901# 901#CommandDescriptionThis directive is used to view Device Manager number.Command Feedback Successful Setting：Admin1: Admin2:3)Authorized Number SetText command Parameter SampleAuthorized Add 101# number #102# number #103# number #1：101#138****8000#2：102#12345678912#3：103#12345678912#Authorized Del D11#D12#D13#D11#D12#D13#Command Description 1) Authorization number for SMS control oil.2) only three numbers to set the authorization number3) change the authorization number needs to delete the previous numberCommand Feedback Successful Setting：Add Authorization account 1 OK!4) View Authorized NumberText command Parameter SampleViewauthorizedC10# C10#Command Description This directive is used to view the equipment authorization numberCommand FeedbackSuccessful Setting： Authorization 1： Authorization 2： Authorization 3：5)APN SettingText command Parameter SampleAPN Setting 802#username#pass1：802#intenet#123#123#word] 2: 802#internet#Command Description APN differs according to the local telecom operators. For example：APN request password，please refer to Sample 1，and Sample 2 for no password.CommandFeedbackSuccessful Setting：SET APN OK！6) Set ServerText command Parameter SampleSERVERParameter803#SERVER # port# 803#222.217.240.243#8011# View SERVER CIP# 1）CIP#Command Description Change the IP and port when move to a new server port：10~655351 is domain and 0 is IP；Command Successful Setting：set IP OK!Feedback7)Moving Time IntervalText command Parameter Sample TIMEERParametersetting730#uploading interval# 730#20#Command Description Time scope：0，10~60 seconds； 0,no data uploading；10~60,means time interval；the default value is 15 seconds！CommandFeedbackSuccessful Setting：SET TIMER OK！8)Static Time IntervalText command Parameter Sample STATIC SUP# time interval#SUP#5#Command Description Timescope：1~60 minutes；The device has3D transmission and the default time interval are 5 minutes.CommandFeedbackSuccessful Setting：SET STATIC TIME OK！9)Cancel the continuous uploadText command Parameter SampleNUP NUP# NUP#Command Description This command is used to cancel sending data to the platformIf need again to restore the upload , you need to send TIMEER Parameter setting.CommandFeedbackSET OK！10)Oil-CutText command Parameter SampleRELAYParameter1222# 222# cut off oil and power RELAYParameter2333# 333# recover oil and powerCommand Description 1)RELAY control the start and closeness of the relay2) Only the center number can operate.3）the device only cut off the oil circuit on the condition of the driving speed below 20KM/H or in static state.4)When send the command, the device will reply “please waiting “When the vehicle speed is over 20KM/H, the device will cut off the oil or the power when the speed below 20KM/H.Command Feedback Successful Setting：Fuel cut has already been completed OK!11)GMTText command Parameter Sample GMT801#location,time#801#E8#Command Description The default time zone is Beijing time. If time zone need revised, please operate according to the above command.CommandFeedbackSuccessful Setting：Set time zone ok!12)Vibration AlarmText command Parameter Sample Open Vibration Alarm911# 911# VIBRATION Parameter123#sensitivity#,alarming way#1) 123#2#3# Set intovibration alarm time V123#2#1) V123#2#2) V123#1#Cancel vibrationalarm456# 456#Command Description the sensitivity value of the vibration is from 1 to 5，1is the most sensitive and o is close. Alarming ways: 1, calling 2, texting, 3 calling and texting.Must set the center number and receiving number.Command Feedback set vibration alarm level，OK!13)Speed AlarmText command Parameter SampleSPEEDING Parameter SSA#120# alarmingway#11) SSA#120#2) SSA#150#3#Command Description The speed scope is form 60-220, if the speed is no this cope, the alarm is off.Alarming ：1, calling 2, texting, 3 calling and texting.Must set the center number and receiving number. CommandFeedbackSuccessful Setting：set speeding alarm，OK!14)ACC AlarmText command Parameter SampleOpen ACCAlarm840#1# 840#1#Close ACCALARM840#0#Close ACC ALARM The speed scope is form 60-220, if the speed is no this cope, the alarm is off.Alarming ：1, calling 2, texting, 3 calling and texting. Must set the center number and receiving number.CommandFeedbackSuccessful Setting：set speeding alarm，OK!15)ResetText command Parameter SampleRESET 930# 930#CommandDescriptionReset the deviceCommandFeedbackSuccessful Setting：Reset system, ok!16)FactoryText command Parameter Sample Parameter 940# 940#Command Description Restore the factory settingOnly center number can initial this functionFactory setting will recover to the original settingCommand Successful Setting：FACTORY OK！Feedback17)Language SettingText command Parameter SampleLANG Parameter LANG1#LANG0#LANG1# 1:CHINESE，LANG0#：ENGLISHCommand Description ；When check the location, it will reply the Chinese location in Chinese language setting; while reply the URL link when in English language setting.CommandFeedbackSuccessful Setting：SET LANG OK！18)PositionText command Parameter Samplecommand 988# 988#Command Check the longitude and altitude and otherDescription information of the deviceCommandFeedbackReply with longitude and altitude, speed and IMEL.19)Google LinkText command Parameter Samplecommand 666# 666#CommandDescriptionCheck the location link of Google mapCommand Feedback <Datetime:12-07-05 13:21:30>/maps?q=N22.540885,E113.9526520)VersionText command Parameter SampleVERSION V00# V00#Command The command is to check the software versionDescriptionCommand Feedback VERSION:XxxxBUILD:2012-07-05 10:1221)Param CheckText command Parameter Sample PARAM 886# 886#Command Description The command is to check the settings and the default parameter.Command Feedback IMEI:351190012535936APN : cmnetIP:IP and portTIMER: moving uploading interval STATIC: static uploading interval CENTER: center numberLANG: language(CN/EN)GMT: time zone (E/W8)22)Status CheckText command Parameter Sample STATUS 902# 902#Command Description The command is designed for checking the device’s working status.Command Feedback External power:ON/OFFGSM Signal:HIGH/MIDDLE/LOW GPS:FIXED/UNFIXED RELAYER:DISABLE/ENABLE Vibrate Warning:ON/OFF Pause:ON/OFF23)Monitor (Voice Surveillance)Text command Parameter SampleSSS# SSS# SSS#Command Description Using Command Send this command to the tracker’s number, the tracker will call back to admin number.CommandFeedback10.Trouble shooting10.1 The device is not online or offline on the web platform.10.1.1 First, please check the three LED working state. Ifpossible. You can call the device’s number to check.● If not connected, the device is out of signal. If the GSMsignals cannot reach your location, please drive to the open sky.z If reminding the device SIM card is out of deposit, please make deposit by the telecom operator.● If you can connect to the device when calling, the SIM card hasdeposited and please check with your operator for GPRS function. You also can check by searching the internet on your mobile phone.● If reminding the device is power off, please turn back the deviceand proceed as followings:a)Check if the red LED is in constant glow. If the LED is dark, pleasecheck the power connecting. If fuse is broken, please return the device to the seller.b)If the green GSM LED is not in constant glow, please check theinstallation of SIM card.10.1.2Please check the offline area in order to judge if the networkproblem of operators.10.2When GPS cannot receive the signals, please drive in the open skyand ensure there is no metal thins on the device.10.3 When the device cannot receive the GSM signal, please check theSIM card installation. If the GSM signals cannot reach your location (such as the basement), please drive to the open sky.。

一、GPS终端定位系统安装接线图
二、安全注意事项
1、安装前，接上GPS和GSM天线，注意两根天线不要接反，扁扁长长的为GSM天线，正方型带磁铁的为GPS天线。

2、摆放GPS天线时，带磁铁的一面向下用双面胶贴好，GPS天线头的上方不能有金属物遮档，玻璃和塑料不会影响GPS信号的接收。

3、6P线定义：接上主机的电源线，红色接电源的正极，黑色的接电源的负极。

白色线为ACC感应线，其余的线为预留线，无需理会。

4、通上电以后观察两个指示灯的状态。

黄色灯与红色灯交替闪烁，说明设备定位通讯正常。

5、主机正常，固定好GPS主机，安装完成。

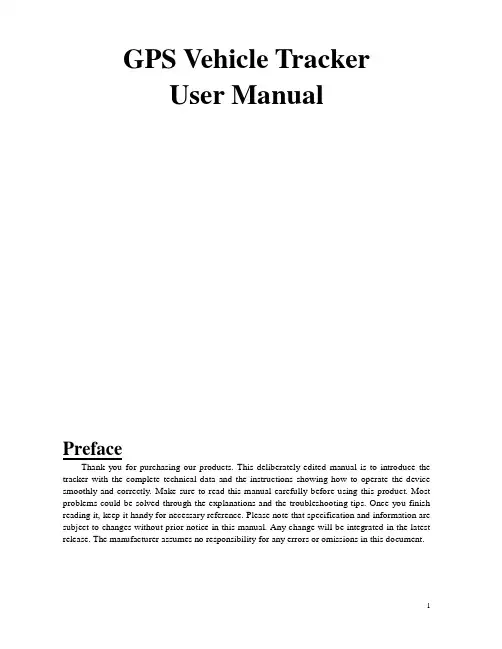

GPS Vehicle TrackerUser ManualPrefaceThank you for purchasing our products. This deliberately edited manual is to introduce the tracker with the complete technical data and the instructions showing how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Most problems could be solved through the explanations and the troubleshooting tips. Once you finish reading it, keep it handy for necessary reference. Please note that specification and information are subject to changes without prior notice in this manual. Any change will be integrated in the latest release. The manufacturer assumes no responsibility for any errors or omissions in this document.ContentⅠ. Preface (1)Ⅱ. Attentions (2)ⅢHardware description (3)Ⅳ. Main function (3)Ⅴ. Set up (4)Ⅵ. Installation diagram (7)Ⅶ. Installation (7)Ⅷ. Application (9)Ⅸ.Specification (10)Ⅹ.Command set (11)Attention1. Make sure to read this manual carefully before using this product.2. Please insert the SIM card before installing, and make sure the SIM card has no password, otherwise the tracker will not work normally.3. Please make sure that all the cables of the tracker has been connected rightly, and then connect the tracker to host power. Must not install or take down the tracker when it is power on. If you found any troubles or omissions about the connections of cables, please cut off power first, otherwise you will easily damage the tracker.4. The tracker works in wireless communications, so please cut off the host power before your vehicles entering fuel depot and dangerous material place.5. The tracker’s work voltage is 9V-30V. Please use the tracker in the scope of work voltage.6. The host of GPS tracker is a low-power wireless transmitter and receiver. It receives and sends radio frequency signal when it is working.7. To avoid electromagnetic interference or uncompatible configuration, please stop using your tracker in the noticed place.GPS Vehicle Tracker◆Hardware Description1.Host Tracker2. Start upPut the SIM card in place and installed the tracker in the car, the red indicator is on. About 40 seconds, the unit will begin to work and acquire the GSM signals as well as the GPS signals, and the red indicator will keep flashing every 2 seconds when the GSM module is no communication. When the blue indicator is light, the unit has been located.◆Main functions1. Positioning and Tracking: Through the on-line Positioning Platform or the cell phone to locates at times, and get the working status. You can choose the Positioning Platform by yourself.2. Triggering Emergency Alarm: When there is a emergency happened on the vehicle, you can put on the button and the installed unit will send out alarm to the authorized numbers.3. Remote controlling oil and circuit: you can control the oil and circuit via the unit by SMS in anywhere and anytime.4. Remote Monitoring: In anywhere and anytime, call the phone number in the unit, when it connects, you can monitor the sound around 5 meter.5. Movement Alert: Send SMS to the unit to start the movement alert function. When the vehicle is moving, the unit will send the movement alert to all authorized numbers.6. Overspeed Alert: Send SMS to the unit to start the movement alert function. When the vehicle is overspeed, the unit will send the overspeed alert to all authorized numbers.7. Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to all authorized numbers when it breaches the district.8. Restart the unit: send SMS to resume the default of unit.9. Auto Track: You can set up auto track by SMS or on-line positioning platform.10. Mileage statistics; ACC checking; cutting off power and alarm.◆Set up1．InitializationSend “begin + password” in SMS to the unit, it will reply “begin ok” and initialize all the settings. (Default password: 123456)2. Add authorized numberSend SMS “admin123456 136****5678”."admin" as instruction, "123456" as password, "136****5678"asauthorized number. It will reply “admin ok!”.3. Delete authorized numberSend SMS “noadmin123456 136********”."noadmin" as instruction, "123456" as password, "136****5678"asdeletednumber.Itwillreply“noadminok!”.4. Change the PasswordSend SMS: “password + old password + space + new password”to change the password.For example: Send SMS “Password123456 138138”."password" as instruction, "123456"as old password, "138138" as new password. Password must be six digits. Tracker’s initial password is 123456.5. Resume the initial passwordIf you forget your password, you can resume the initial password 123456.Send “resumepassword” to the tracker, the tracker will resume the initial password. If there is no authorized numbers, all numbers can resume initial password. If there is already authorized numbers, only the authorized numbers can resume initial password.6. Control OilSend SMS “stopoil+password”to control oil. For example send SMS: stopoil123456"stopoil" as instruction, "123456"as password.To supply the oil again, send SMS“supplyoil+password”to the unit. For example, send SMS “Supplyoil123456” to the tracker. "Supplyoil" as instruction, "123456" as the password.7. Control CircuitSend SMS “stopelec+password”to control circuit. For example send SMS: “stopelec123456”. "stopoil" as instructions, "123456" as the password.To supply the circuit again, send SMS“supplyelec+password”to the unit. For example, send SMS “Supplyelec123456” to the tracker. "Supplyelec" as instruction, "123456" as password.8. Monitor modeThere are three modes for monitor.1) All Monitor Mode: Send SMS “AllMonitor” to the unit, the unit will return to this mode. In this mode, any number can monitor this unit.2) Restrict Monitor Mode: Send SMS “RestrictMonitor” to the unit, the unit will return to this mode. In this mode, authorized number can monitor this unit.3) Close Monitor Mode: Send SMS “CloseMonitor” to the unit, the unit will return to this mode. In this mode, all numbers can not monitor this unit.9. Movement alertSet up: The user can send SMS“Move + password”to the unit, then the unit will reply “move ok!” .In case of such a movement, it will send SMS “Move”along with a Geo-info to the number. For example, send SMS “Move123456” to the unit. "Move" as instructions, “123456”as password. Cancel: Send SMS“nomove+password” to deactivate the movement alert.10. Overspeed alertSet up: Send SMS“speed+password+space+080”to the unit (support the speed is 80km/h).For example, send SMS “speed123456 080”. "speed" as instruction, "80" as limit speed, “123456”as password.Cancel: Send SMS“nospeed+password” to deactivate the overspeed alert.11. Geo-fenceSet up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.Set up: The user can Send SMS “stockade + password + space + MinLatitude, MinLongitude; MaxLatitude, MaxLongitude” to unit to set the restricted district. In case of breach, it will send SMS “stockade! + geo-info” to the authorized numbers.For example send SMS “stockade123456 22.548123, 114.081234; 22.549123, 114.082234” to the unit.Remark: The first latitude & longitude is coordinate of min of the Geo-fence, while the second latitude & longitude is the coordinate of the max. It will alarm one time in each setting.Cancel: Send SMS “nostockade + password” to deactivate this function.This function will be out of effect after the unit moves outside the district.12 . Restart the tracker.Send SMS“reboot+password” to the tracker. For example“reboot123456”.The tracker will be restarted. It will reply “system will reboot...”.13. Enquiry PositioningSend SMS “position”to the unit, then the unit will send SMS with real-time longitude and latitude to the cell phone.14. Auto trackSend SMS “at30sum5”to the unit, it will reply “Auto track set ok.” and report a Geo-info at 30 seconds intervals for 5 times: The max intervals is 65535 seconds. Y ou can send “at30sum0” for heaps of times.Send“noat123456” to the tracker, it will reply “Cancel auto track ok.”. And the tracker will stop send messages.15. Modes switch between “track” and “monitor”The default mode is “track”. Send SMS “monitor + password” to the unit, and it will reply “monitor ok!” and switch to “monitor” mode. For example send SMS: “monitor123456”. In this mode, you can monitor tracker by call tracker card number.Send SMS “tracker + password” to the unit, it will reply “tracker ok!” and restore to “track” mode. For example send SMS “tracker123456”. In this mode, you can get position SMS by call tracker.16. Modes switch between “telephone” and “web”Set up: Send SMS “web + password” to device. For example, the password is 123456. Send SMS “web123456” to the device, the device will reply SMS “set web ok”. After this, the tracker will report the GPS data to IP address.If you want to send GPS data to telephone, you can send SMS “telephone + password” to device, the device will reply “set telephone ok”. And then, the device will send GPS data to your telephone by SMS. (The default is sending the GPS data to the telephone)17. Modify IP address and portThe IP address and port of the tracker can be modified and transferred data to other platform. Send SMS “ IP + ip address + PORT + port value”to the unit. If the platform’s IP address and port is 123.67.87.9 and 344, send SMS “ip 123.67.87.9port344” to the tracker. It will reply “set IP address and PORT ok.”. After this, device will send GPS data to this IP and Port.18. Set Device ID numberThis command uses only for GPRS communication. Default device ID is the same. In order to identify device for platform, must set device ID for every device. Send SMS “number + tracker ID number” to the tracker. For example“number136********”.19. Set APNIn order to send GPS data to IP address, you still must set mobile network Access Point Name (APN). If you don’t know the APN, you can consult local network service supplier. The format of set APN is “APN + password +space + apn value”. For example you send SMS “apn123456 cmnet” to the device. The device will reply SMS “Set APN ok.” .20. Set GPRS user name and passwordSome country must be set GPRS user name and password for GPRS communication. The format of set GPRS user name and password is “user + space + GPRS user name + space + GPRS password”. For example, “user name 123456”, “user” is command, “name” is GPRS user name, “123456” is GPRS password. After send SMS, tracker will reply “Set GPRS User and Password ok . ” .21. Set country time zoneIn the default, tracker reply position SMS time is UTC time. After you can set zone time, tracker will reply the time of your country. The format is “zone + password + space + time zone value”. For example, “zone123456 8” is set east 8 time zone. Time zone value ranges from -12 to 12. One time zone stands for one hour. “zone123456 -8” is set west 8 time zone. After send SMS, tracker will reply “Set Time Zone OK.”.22. Set ACC open and close send data intervalYou can set the interval of send data when ACC open and close. The format of set ACC open interval is “accon + time interval”. For example “accon 30” stand for when ACC open send data for every 30 seconds. The format of set ACC close interval is “accoff + time interval”. For example “accoff 60” stand for when ACC close send data for every 60 seconds.23. Set ACC open and close send SMS notifyYou can set the SMS notify of when ACC on and off. The format of set is “accnotify + 1 or 0”. For example “accnotify 1” stand for when ACC on and off send SMS to authorized numbers. “accnotify 0” stand for close send SMS notify. In order to use this function, you must set authorized numbers.24. Get GPS Info with Google FormatYou can get latitude and longitude with Google website format. So you can open map directly by mobile. The format of SMS is “google”. After you send SMS, tracker will reply GPS info with google website format.25. Set call reply SMS formatYou can set reply SMS format after you call tracker. The format of SMS is “geosms + value”. The SMS of “geosms 1” set reply SMS format as “position”. The SMS of “geosms 2” set reply SMS format as “google”.◆Installation diagram of The Tracker◆GPS Vehicle Tracker InstallationGPS tracker should be installed by technical professional of local service centre. Without permission, the user cann’t repair and move the tracker randomly. If users do, any unfortunated damage should be compensated by himself.Installation steps (caution: the following installation should under no power, otherwise will be dangerous)1.Power supply line: The red wire connects 12V“+”;Black wire connects to 12V“-”2. Wire for cutting off oil of the trackerYellow wire connects the relay pin 86;85 pin connect to 12 V DC , 87a pin and 30 pin in series power supply circuits. Caution: Wrong connection of yellow wire will damage the tracker.3. Wire for cutting off circuit of the trackerWhite wire connects relay pin 86;85 pin to 12 V DC, 87a pin and 30 pin are in series power supply circuits. Caution: Wrong connection of yellow wire will damage the tracker.4. Emergency triggering alarmThe blue wire connects the positive of the alarm button, and the black wire connects the negative of the alarm button.◆Application1.V ehicle Rental/Special Tracking System2.Finance and Insurance Business Tracking System3.Car Commanding and Dispatching System4.Heavy Construction V ehicles Tracking Device5.Shipping Cargoes Tracking◆Specs.Content Specs.Dim. 87 * 64 * 26 (mm)Weight 495gNetwork GSM/GPRS/GPSBand 900/1800MHz or 850/900/1800/1900MHzGPS chip SiRF III chip GSM/GPRS Module SIM900 or SIM900AGPS sensitivity -159dBmGPS accuracy 5 mTime To First Fix Reacquisition 0.1s Cold status 45s Warm status 35sHot status 1sWork V oltage DC 9V－30VBattery Chargeable changeable 3.7V / 1.2Ah Li-ion battery Standby work current < 30mAStorage Temp. -40°C to +85°COperation Temp. -20°C to +70°CHumidity 5%--95% non-condensing◆Command SetNo. Function SMS Reply1 Initialization Begin123456 Begin ok2 Add Number Admin123456 136******** Admin ok3 Delete Number Noadmin123456136****5678Noadmin ok4 ChangepasswordPassword123456 138138 Change password ok5 Resumepasswordresumepassword Resume password ok6 Control oilStopoil123456 Stop oil ok Supplyoil123456 Supply oil ok7 Control circuit Stopelec123456 Stop electricity okSupplyelec123456 Supply electricity ok8 Set monitormodeAllMonitor Set all monitor okRestrictMonitor Set restrict monitor okCloseMonitor Set close monitor ok9 Movement alert Move123456 Move okNomove123456 Cancel move ok10 Overspeed alert Speed123456 080 Speed okNospeed123456 Cancel speed ok11 Geo fence alert Stockade123456coordinate;coordinateSet stockade okNostockade123456 Cancel stockade ok12 Restart tracker Reboot123456 System will reboot13 Enquiry position position GPS info14 Auto trackAt30sum5 Auto track set ok Noat123456 Cancel auto track ok15 Set call response Tracker123456 Tracker okMonitor123456 Monitor ok16 Set auto trackmode Telephone123456 Set telephone ok Web123456 Set web ok17 Change IP andPORT Ip112.33.44.211port2332 set IP address andPORT ok18 Set device id Number136******** set number ok19 Set APN Apn123456 cmnet Set apn ok20 Set GPRS username andpasswordUser name passSet GPRS user nameand password ok21 Set time zone Zone123456 8 Set time zone ok22 Set ACC openand closeintervalAccon 30 Set ACC ON IntervalOK.Accoff 60 Set ACC OFF IntervalOK.23 Set ACC openand close SMSnotify Accnotify 1 Set ACC Notify OK. Accnotify 0 Set ACC Notify OK.24 Get Googleformat GPS info Google GPS info with Googlewebsite format25 Set reply SMSformat Geosms 1 Set Geo SMS FormatOK。
