led视觉效应参数显色指数-回复什么是LED视觉效应参数显色指数？LED视觉效应参数显色指数，又称为色彩还原指数或者显色指数（Color Rendering Index，简称CRI），是评价灯光对物体真实颜色呈现能力的重要指标。
它用来衡量光源对照明对象颜色的还原度，即灯光照射物体后与自然光照射物体的颜色差异程度。
CRI的范围是从0到100，数值越高表示光源对物体颜色的还原能力越强。
为什么LED视觉效应参数显色指数很重要？在我们的日常生活中，色彩起着重要的作用。
好的照明条件能够使人们更舒适地工作、学习和生活，而LED照明作为新一代照明技术，具有高效节能、长寿命和可调光等优点，因此被广泛应用在各种照明场景中。
然而，由于LED发光的特性，不同的LED灯具在对颜色还原上会存在较大差异。
灯光的颜色质量对于保证物体颜色的真实还原以及人眼的舒适感都非常重要。
因此，了解和评价LED视觉效应参数显色指数是选择合适的LED照明产品非常重要的一步。
如何确定LED视觉效应参数显色指数？确定LED视觉效应参数显色指数有两种常用的方法：通过实验测量和通过光谱分析。
实验测量是通过人眼感知不同光源下物体颜色的差异来确定显色指数。
对一系列已知颜色的标准样品，使用被测试的LED光源照射，并与标准光源照射下的样品颜色进行比较。
根据比较结果，计算出显色指数。
这种方法比较直观，能够准确地反映灯光对物体颜色的还原能力。
光谱分析则通过测量光源辐射的光谱信息，利用数学模型计算出显色指数。
这种方法更多地依赖于光谱仪等仪器设备，操作复杂、繁琐。
但它对人眼感知的不同颜色有较高的准确性和稳定性。
因此，从理论上来说，光谱分析方法可以更准确地评估LED照明产品的显色能力。
LED视觉效应参数显色指数的影响因素是什么？LED视觉效应参数显色指数受到多种因素的影响，其中最主要的因素包括光源的光谱分布、光源的颜色温度、照明环境以及物体的表面反射特性等。
光源的光谱分布是影响显色指数的关键因素。
城市景观照明技术规范篇一：城市景观照明工程技术规范城市景观照明工程技术规范(表摘要：为了规范和发展城市景观照明工程技术，照明学会组织有关单位的专家、学者、工程技术人员成立了《城市景观照明工程技术规范》编制组。
1 总则1.0.1 为使城市景观照明工程建设走向规范化、标准化，特制定本技术规范。
1.0.2 本规范适用于省市城市建筑物外景、道路、水系、桥梁、立交桥、广场、名胜古迹、公园、商业街、生活居住区、迎宾区、文化休闲区、橱窗、广告及标志等景观照明。
1.0.3 城市道路、体育场、栈场等功能性照明应符合相关专业性标准的规定。
1.0.4 在执行过程中，尚应符合国家或地方现行有关标准规范的规定。
2 术语和符号2.0.1 灯具 luminair收集、分配或改变光能方向和分布的器具，包括除光源以外所有用于固定保护光源、调节光能的全部部件，以及与电源连接所必需的线路附件。
2.0.2 配光曲线 luminous intensity distribution curve是描述灯具的发光强度在不同方向上变化的曲线，根据灯具的特点它可以是一根或是一组曲线。
通常配光曲线是以总光通量为1000 lm来绘制，因此当灯具的光通量不是1000 lm时，发光强度应根据光通量的比例加以修正。
2.0.3 照度(E) illuminace被照面单位面积上得到的光通量，反映物体被照明程度，单位为勒克斯(lx)。
2.0.4 亮度(L) luminance发光面在观察方向上单位投影面积发出的光强，是反映人眼对物体明亮感的参数，单位为尼脱(nt)。
(1 nt = 1 cd/m2)。
2.0.5 泛光照明 floodlighting用单个或成组的投光灯从外面照射照明对象物，使其亮度和色调区别于周围环境的照明方式。
2.0.6 轮廓照明 outline lighting用白炽灯泡、串灯、霓虹灯管或其他线状、带状光源勾画建筑物轮廓的照明方式。
2.0.7 内透光照明 illumination with inner lighting sources利用室内光源照明建筑物内体，通过门、窗、构孔透射光显示建筑艺术美的照明方式。

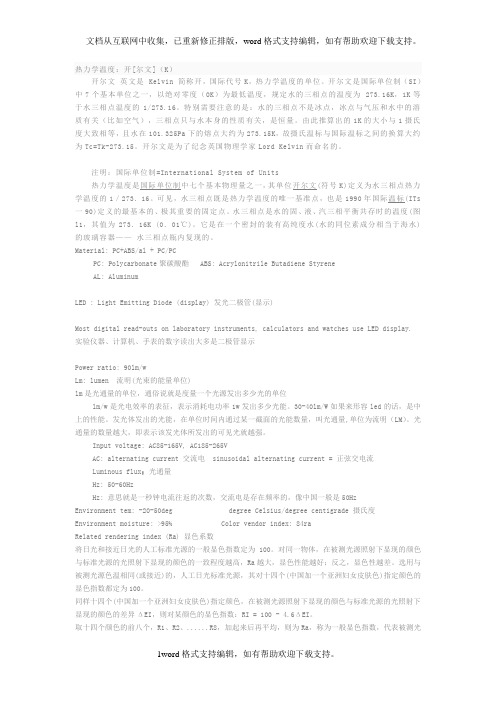

热力学温度：开[尔文]（K）开尔文英文是 Kelvin 简称开，国际代号K，热力学温度的单位。
开尔文是国际单位制（SI）中7个基本单位之一，以绝对零度（0K）为最低温度，规定水的三相点的温度为 273.16K，1K等于水三相点温度的1/273.16。
特别需要注意的是：水的三相点不是冰点，冰点与气压和水中的溶质有关（比如空气），三相点只与水本身的性质有关，是恒量。
由此推算出的1K的大小与1摄氏度大致相等，且水在101.325Pa下的熔点大约为273.15K，故摄氏温标与国际温标之间的换算大约为Tc=Tk-273.15。
开尔文是为了纪念英国物理学家Lord Kelvin而命名的。
注明：国际单位制=International System of Units热力学温度是国际单位制中七个基本物理量之一，其单位开尔文(符号K)定义为水三相点热力学温度的1／273．16。
可见，水三相点既是热力学温度的唯一基准点，也是1990年国际温标(ITs 一90)定义的最基本的、极其重要的固定点。
水三相点是水的固、液、汽三相平衡共存时的温度(图l1，其值为273．16K (0．01℃)。
它是在一个密封的装有高纯度水(水的同位素成分相当于海水)的玻璃容器——水三相点瓶内复现的。
Material: PC+ABS/al + PC/PCPC: Polycarbonate聚碳酸酯 ABS: Acrylonitrile Butadiene StyreneAL: AluminumLED : Light Emitting Diode (display) 发光二极管(显示)Most digital read-outs on laboratory instruments, calculators and watches use LED display. 实验仪器、计算机、手表的数字读出大多是二极管显示Power ratio: 90lm/wLm: lumen 流明(光束的能量单位)lm是光通量的单位，通俗说就是度量一个光源发出多少光的单位lm/w是光电效率的表征，表示消耗电功率1w发出多少光能。
ICS03.180A 18备案号：四川省地方标准DB51/T -2015中小学校及幼儿园教室照明设计标准(征求意见稿)Standard for lighting design of classrooms in schools and children gardens2015- 发布 2015- 实施四川省质量技术监督局发布目次前言 (Ⅰ)1 范围 ............................................ .............. ............... ..12 规范性引用文件 ................................................ ............... ..13 术语和定义 ..................................................... .. (2)4 教室照明质量要求 ................................................. (5)5 灯具的技术要求 ................................................ . (8)6 电子镇流器的技术要求 ............................................. . (9)7 光源的技术要求 ........................................ (9)前言为保障学生视力健康，抑制视力不良发病率，提高教室照明光环境质量，加强学校节能减排工作，特制定本标准。
本标准参考了国家标准GB7793-2010《中小学教室采光和照明卫生标准》、 GB50034-2013《建筑照明设计标准》、GB50099-2011《中小学校设计规范》、GB/T 13379-2008《视觉工效学原则室内工作场所照明》和DB31/539-2011《中小学校及幼儿园教室照明设计规范》，结合四川省教室照明实际情况和部份地方教室照明改善工程经验，并参考了国内外建筑照明标准和照明节能标准而制定。

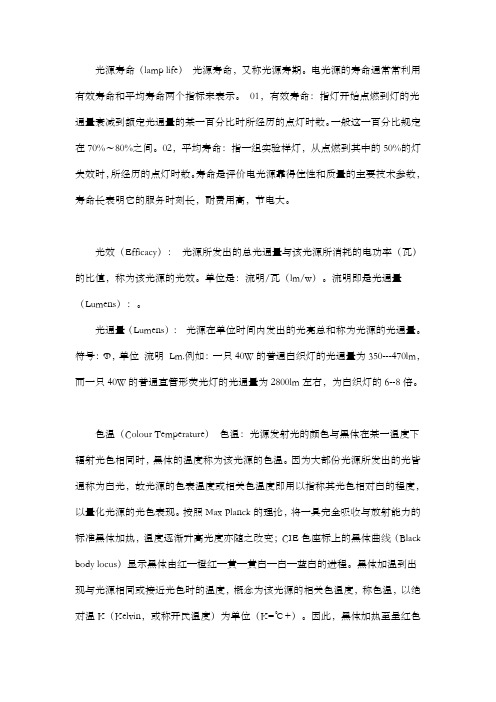

光源寿命（lamp life）光源寿命，又称光源寿期。
电光源的寿命通常常利用有效寿命和平均寿命两个指标来表示。
01，有效寿命：指灯开始点燃到灯的光通量衰减到额定光通量的某一百分比时所经历的点灯时数。
一般这一百分比规定在70%～80%之间。
02，平均寿命：指一组实验样灯，从点燃到其中的50%的灯失效时，所经历的点灯时数。
寿命是评价电光源靠得住性和质量的主要技术参数，寿命长表明它的服务时刻长，耐费用高，节电大。
光效（Efficacy）：光源所发出的总光通量与该光源所消耗的电功率（瓦）的比值，称为该光源的光效。
单位是：流明/瓦（lm/w）。
流明即是光通量（Lumens）：。
光通量（Lumens）：光源在单位时间内发出的光亮总和称为光源的光通量。
符号：Φ，单位流明Lm.例如：一只40W的普通白织灯的光通量为350---470lm，而一只40W的普通直管形荧光灯的光通量为2800lm左右，为白织灯的6--8倍。
色温（Colour Temperature）色温：光源发射光的颜色与黑体在某一温度下辐射光色相同时，黑体的温度称为该光源的色温。
因为大部份光源所发出的光皆通称为白光，故光源的色表温度或相关色温度即用以指称其光色相对白的程度，以量化光源的光色表现。
按照Max Planck的理论，将一具完全吸收与放射能力的标准黑体加热，温度逐渐升高光度亦随之改变；CIE色座标上的黑体曲线（Black body locus）显示黑体由红—橙红—黄—黄白—白—蓝白的进程。
黑体加温到出现与光源相同或接近光色时的温度，概念为该光源的相关色温度，称色温，以绝对温K（Kelvin，或称开氏温度）为单位（K=℃+）。
因此，黑体加热至呈红色时温度约527摄氏度即800K，其他温度影响光色转变。
光色愈偏蓝，色温愈高；偏红则色温愈低。
一天当中画光的光色亦随时刻转变：日出后40分钟光色较黄，色温3,000K；正午阳光雪白，上升至4,800-5,800K，阴天正午时分则约6,500K；日落前光色偏红，色温又降至纸2,200K。
