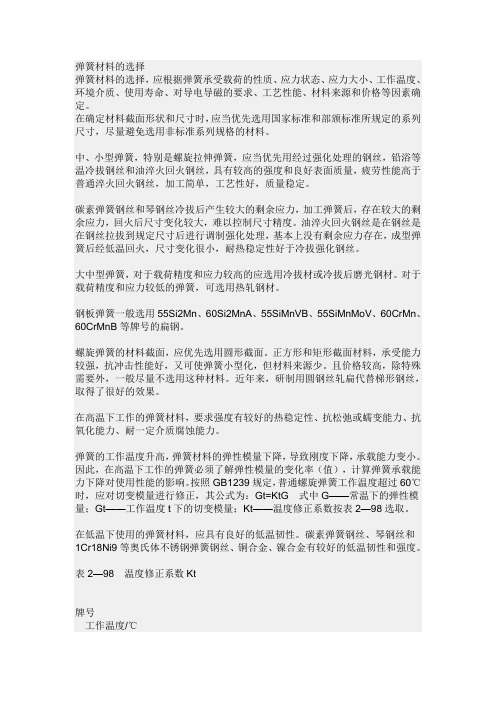

弹簧材料的选择弹簧材料的选择，应根据弹簧承受载荷的性质、应力状态、应力大小、工作温度、环境介质、使用寿命、对导电导磁的要求、工艺性能、材料来源和价格等因素确定。
在确定材料截面形状和尺寸时，应当优先选用国家标准和部颁标准所规定的系列尺寸，尽量避免选用非标准系列规格的材料。
中、小型弹簧，特别是螺旋拉伸弹簧，应当优先用经过强化处理的钢丝，铅浴等温冷拔钢丝和油淬火回火钢丝，具有较高的强度和良好表面质量，疲劳性能高于普通淬火回火钢丝，加工简单，工艺性好，质量稳定。
碳素弹簧钢丝和琴钢丝冷拔后产生较大的剩余应力，加工弹簧后，存在较大的剩余应力，回火后尺寸变化较大，难以控制尺寸精度。
油淬火回火钢丝是在钢丝是在钢丝拉拔到规定尺寸后进行调制强化处理，基本上没有剩余应力存在，成型弹簧后经低温回火，尺寸变化很小，耐热稳定性好于冷拔强化钢丝。
大中型弹簧，对于载荷精度和应力较高的应选用冷拔材或冷拔后磨光钢材。
对于载荷精度和应力较低的弹簧，可选用热轧钢材。
钢板弹簧一般选用55Si2Mn、60Si2MnA、55SiMnVB、55SiMnMoV、60CrMn、60CrMnB等牌号的扁钢。
螺旋弹簧的材料截面，应优先选用圆形截面。
正方形和矩形截面材料，承受能力较强，抗冲击性能好，又可使弹簧小型化，但材料来源少。
且价格较高，除特殊需要外，一般尽量不选用这种材料。
近年来，研制用圆钢丝轧扁代替梯形钢丝，取得了很好的效果。
在高温下工作的弹簧材料，要求强度有较好的热稳定性、抗松弛或蠕变能力、抗氧化能力、耐一定介质腐蚀能力。
弹簧的工作温度升高，弹簧材料的弹性模量下降，导致刚度下降，承载能力变小。
因此，在高温下工作的弹簧必须了解弹性模量的变化率（值），计算弹簧承载能力下降对使用性能的影响。
按照GB1239规定，普通螺旋弹簧工作温度超过60℃时，应对切变模量进行修正，其公式为：Gt=KtG 式中G——常温下的弹性模量；Gt——工作温度t下的切变模量；Kt——温度修正系数按表2—98选取。
BELLEVILLE碟型弹簧计算程序Mubea Automotive Components (Taicang) Co., Ltd注意: 慕贝尔公司保留Bellevilledesign.xls计算程序包括复制在内的所有权利。
尽管对该程序进行了细致地调试，我们仍不能保证在计算过程中会出现错误。
安装 Bellevilledesign.xls硬件要求应用Bellevilledesign.xls计算程序，您的计算机需要满足以下硬件配置要求：• IBM TM兼容计算机• 光驱• 硬盘拥有1 MB 空间软件要求Bellevilledesign.xls计算程序基于Microsoft Excel Windows TM设计开发而成，您的计算机需要安装以下软件• Microsoft Windows• Microsoft Excel安装将Bellevilledesign.xls拷贝到计算机硬盘，采用与其它Excel程序相同的打开方式将其打开。
为防止文件被不经意地更改，您可以使用Excel程序工具栏里的“表单保护”功能如希望获得其它信息和帮助，请按右面地址与我们联系：慕贝尔汽车部件（太仓）有限公司江苏省太仓市上海东路105号 A12 厂房电话: 0086 512 53950900-7913 传真: 0086 512 53950901E-Mail: en.liu@程序描述启动程序Bellevilledesign.xls计算程序存储在Excel 工作表单里。
打开文选择语言选择国际单或英制单位程序被格式化以便能打印出来作为存档所用的数据表单。
数据输入单元工作表包括必要的数据输入和计算单元。
黄色区域为输入单元格，其它区域被锁定以防止不经意的覆盖。
语言用户可以在language区域选择以下三种语言:1 德语2 英语3 法语在语言选项区输入所选语言代码，回车后整个工作表单将以所选语言显示。
单位程序允许选择国际单位制和英制单位。
零件号 /图纸号和客户名称为满足图纸存档的需要，您可在part/drawing no. and customer 区域输入零件号/图纸号和客户名称。
德国标准和国际标准、中国标准中英文对照表发布日期：2007-03-14 浏览次数：829德国标准和国际标准、中国标准中英文对照表序号德国标准中文品名英文品名国际标准中国标准Item DIN-Standard Description in Chinese Description in English ISO-Standard GB-Standard 1DIN1圆锥销taper pins ISO2339GB117 2DIN7圆柱销parallel pins ISO2338GB119-86 3DIN84开槽圆柱头螺钉slotted cheese head screws ISO1207GB65-85 4DIN85开槽盘头螺钉slotted pan head screws ISO1580GB67-85 5DIN93单耳止动垫圈tab washers GB854 6DIN94开口销split cotter pins ISO1234GB91 7DIN95开槽半沉头木螺钉slotted raised csk head wood screws GB101 8DIN96开槽半圆头木螺钉slotted round head wood screws GB99 9DIN97开槽沉头木螺钉slotted countersunk head wood screws GB100 10DIN125-A平垫plain washers ISO7089GB97.1-85 11DIN125-B平垫(带倒角)mediun washers ISO7090GB97.2-85 12DIN126平垫plain washers ISO709113DIN127-A重型弹垫spring lock washers,tang ends GB7244 14DIN127-B标准弹垫spring lock washers,square ends GB93-87 15DIN128-A鞍形弹垫single coil spring lock washers GB7245-87 16DIN137-A弹簧止动垫圈curved spring washers17DIN137-B波形弹垫wave spring washers GB955 18DIN186T型方颈螺栓T-head bolts with square neck GB37-88 19DIN188T型双接头螺栓T-head bolts with double nip20DIN258螺纹圆锥销taper pins with threaded end ISO873721DIN261T型头螺栓T-head bolts22DIN315AF蝶型螺母(美制)wing nuts amercia form23DIN315DF蝶型螺母(德制)wing nuts germany form GB62-88 24DIN316AF蝶型螺钉(美制)wing screws amercia form25DIN317DF蝶型螺钉(德制)wing screws germany form26DIN319圆球型盖型螺母ball knobs27DIN404开槽带孔球面圆柱头螺钉slotted capstan screws GB832-88 28DIN417开槽长圆柱端紧定螺钉slotted set srews with full dog point ISO7435GB75-85 29DIN427开槽平端紧定螺钉(半牙)slotted set srews with chamfered end ISO2342GB73-85 30DIN431小六角特薄细牙螺母pipe nuts with thread GB808-88 31DIN432外舌止动垫圈external tap GB856-88 32DIN433小垫圈(用于圆柱头螺钉)washers for cheese head screws ISO7092GB848-95 33DIN434方斜垫圈(U型)square taper washers for U-section GB852-88 34DIN435方斜垫圈(I型)square taper washers for I-sections GB852-88 35DIN436方垫圈square washers36DIN438开槽凹端紧定螺钉slotted set with cup point ISO7436GB74-85 37DIN439六角薄螺母hexagon thin nuts ISO4035GB6172-86 38DIN439细牙六角薄螺母hexagon thin nuts ISO8675GB6173-86 39DIN440木螺钉专用垫圈rounds washers for wood constructions ISO709440DIN443密封帽sealing caps,push-in type41DIN444活节螺栓B 型eye bolts form B GB798-88 42DIN462内舌止动垫圈internal tab washers43DIN463双耳止动垫圈washers with two taps GB855-88 44DIN464滚花高头螺钉knurled thumb screws with collar GB834-88 45DIN465开槽滚花高头螺钉slotted knurled thumb screws with collar46DIN466滚花高螺母knurled thumb nuts with collar GB806-88 47DIN467滚花薄螺母knurled thumb thin nuts GB807-88 48DIN470锁紧垫圈sealing washers49DIN471轴用弹性挡圈retaining rings for shafts(external),circlips GB894.1-86 50DIN472孔用弹性挡圈retaining rings for bores(internal),circlips GB893.1-86 51DIN478方头带垫螺栓square head bolts with collar52DIN479方头圆柱底端螺栓square head bolts with half dog point53DIN480方头带垫半圆底端螺栓square head bolts with collar,half dog point and rounded end54DIN508T型槽螺母T-slot nuts ISO29955DIN525单头螺柱single end studs56DIN529地脚螺栓masonry bolts GB799-88 57DIN546带槽圆螺母slotted round nuts GB817-7658DIN547端面带孔圆螺母round nuts with drilled holes in one face GB815-88 59DIN551开槽平端紧定螺钉slotted sit screws with flat point ISO4776GB73-85 60DIN553开槽锥端紧定螺钉slotted set screws with cone point ISO7434GB71-85 61DIN555六角螺母hexagon nuts ISO403462DIN557方螺母-C square nuts GB39-88 63DIN558六角头螺钉hexagon screws ISO401864DIN561六角头圆柱端紧定螺钉hexagon set screws with full dog point65DIN562薄型方螺母-B square nuts without bevel(pressed nuts)66DIN571六角头木螺钉hexagon head wood screws (coach screws)GB102-86 67DIN580吊环螺钉lifting eye bolts ISO3266GB825-76 68DIN582吊环螺母lifting eye nuts69DIN601六角头螺栓hexagon bolts ISO401670DIN603大半圆头方颈螺栓(马车螺栓)mushroom head square neck bolts (carriagebolts)ISO8677GB14-8871DIN604沉头带插销马车螺栓flat countersunk nib bolts72DIN605沉头长方颈马车螺栓flat countersunk long square neck bolts73DIN607半圆头带插销马车螺栓cup head nib bolts74DIN608沉头短方颈马车螺栓flat countersunk short square neck bolts75DIN609六角头精配螺栓（长螺纹）hexagon fitted bolts,long thread76DIN610六角头精配螺栓（短螺纹）hexagon fitted bolts,short thread77DIN653滚花平头螺钉knurled thumb screws thin type GB835-88 78DIN660半圆头铆钉round head rivets ISO1051GB867-86 79DIN661沉头铆钉contersunk head rivets ISO1051GB869-86 80DIN662半沉头铆钉raised contersunk head rivets ISO105181DIN674大扁头铆钉mushroom head rivets ISO105182DIN703重型侧面带孔圆螺母adjusting rings,heavy range (shafting collars)83DIN705侧面带孔圆螺母adjusting rings,light range (shafting collars)GB816-88 84DIN741卡头wire rope clips85DIN787T型槽螺钉T-slot screws ISO29986DIN835双头螺柱（牙长=2D）studs-metal (end=2d)GB900-88 87DIN906内六角锥型闭锁螺钉hexagon socket pipe plugs,conical thread88DIN908内六角直型闭锁螺钉hexagon socket screw plugs,cyl. thread89DIN909外六角锥型闭锁螺钉hexagon head pipe plugs,conical thread90DIN910外六角直型闭锁螺钉hexagon head screw plugs,cyl.thread91DIN911内六角扳手socket wrenches ISO293692DIN912内六角圆柱头螺钉hexagon socket cap screws ISO4762GB70-8593DIN913内六角平端紧定螺钉hexagon socket set screws with flat point ISO4026GB77-8594DIN914内六角尖端紧定螺钉hexagon socket set screws with cone point ISO4027GB78-8595DIN915内六角圆柱端紧定螺钉hexagon socket set screws with dog point ISO4028GB79-8596DIN916内六角凹端紧定螺钉hexagon socket set screws with cup point ISO4029GB80-8597DIN917薄型盲螺母hexagon cap nuts98DIN920开槽小圆柱头螺钉slotted short cheese head screws99DIN921开槽大圆柱头螺钉slotted large cheese head screws GB838-88 100DIN923开槽圆柱头轴肩螺钉slotted pan head screws with shoulder GB830-88 101DIN927开槽无头轴肩螺钉slotted shoulder screws102DIN928焊接方螺母square weld nuts GB/T13680-92 103DIN929焊接六角螺母hexagon weld nuts GB/T13681-92 104DIN931六角头螺栓（半牙）hexagon head screws ISO4014GB5782-86 105DIN933六角头螺栓（全牙）hexagon head screws ISO4017GB5783-86 106DIN934六角头螺母(1型)hexagon full nuts ISO4032GB6170-86 107DIN934细牙六角头螺母(1型)hexagon full nuts ISO8673GB6171-86 108DIN935开槽六角螺母hexagon slotted and castle nuts ISO7035GB6178-86 109DIN936六角头薄螺母hexagon thin nuts ISO4035GB6172.1-86 110DIN937六角头开槽薄螺母hexagon thin slotted and castle nuts ISO7038GB6181-86 111DIN938双头螺距（牙长=1D）studs metal (end=1d)GB897-88 112DIN939双头螺距（牙长=1.25D）studs metal (end=1.25d)GB898-88 113DIN940双头螺距（牙长=1.5D）studs metal (end=1.5d)114DIN960六角头细牙螺栓（半牙）hexagon head bolts,metric fine pitch thread ISO8765GB5785-86 115DIN961六角头细牙螺栓（全牙）hexagon head bolts,metric fine pitch thread ISO8676GB5786-86 116DIN962头部穿孔六角头螺栓additional shapes and versions for bolts117DIN963开槽沉头螺钉slotted countersund head screws ISO 2009GB68-85118DIN964开槽半沉头螺钉slotted raised countersunk oval head screws ISO 2010GB69-85119DIN965十字槽沉头螺钉cross recessed countersunk head screws ISO7046GB819-85 120DIN966十字槽半沉头螺钉cross recessed raised countersunk head screws ISO7047GB820-85121DIN970六角头螺母hexagon nuts type-1122DIN971六角头螺母hexagon nuts type-2123DIN972细牙六角头螺母(2型)hexagon nuts with fine thread ISO8674GB6176-86 124DIN975牙条(全螺纹)threaded rods(studdings)GB15389-94 125DIN976螺纹销threaded pins(stud bolts)126DIN979六角头开槽薄螺母（2型）hexagon thin slotted and castle nuts127DIN980全金属六角锁紧螺母（1型）prevailling torque type hexagon nuts,all metallnutsISO7199GB6184-86128DIN981圆螺母locknuts ISO2982GB812-88129DIN982六角头尼龙锁紧螺母prevailling torque type hexagon nuts,heavy type,with nylon insertISO7040GB889.1-86130DIN985六角头薄型尼龙锁紧螺母prevailling torque type hexagon nuts,heavy type,with nylon insertISO10511GB6172.2-86131DIN986六角盖型尼龙锁紧螺母prevailling torque typedomed capnuts with nylon insert132DIN988配合垫片shim rings133DIN1052木材连接用垫片washers for timber connectors134DIN1151沉头钢钉round plain head nails135DIN1440销钉专用垫片A型plain washers for clevis pins(A型)ISO8738136DIN1441销钉专用垫片plain washers for clevis pins137DIN1444带头销钉clevis pins with head ISO2341138DIN1471圆锥型槽销grooved pins,taper grooved ISO8744GB/T13829.2 139DIN1472圆锥型槽销(半槽)grooved pins,taper grooved half length ISO8745GB/T13829.2 140DIN1473平行槽销(带倒角)grooved pins,parallel grooved full length ISO8740141DIN1474前端凹槽槽销grooved pins,reserve grooved half length ISO8741142DIN1475中部凹槽槽销grooved pins,centre grooved ISO8742143DIN1476圆头槽销grooved pins with round head ISO8746GB/T13829.3 144DIN1477沉头槽销grooved pins with countersunk head ISO8747145DIN1479六角螺母棒turnuckles(centre parts),made out of hexagon bar146DIN1480花篮螺栓turnuckles with eye bolt and hook bolt147DIN1481弹性圆柱销spring pins,heavy type ISO8752GB879-86 148DIN1587组合式盖型螺母hexagon domed cap nuts GB802-88 149DIN1804开槽圆螺母（配合沟头扳手）slotted round nuts for hook spanner150DIN1816圆螺母（带插销孔）round nuts with set holes151DIN2093盘型弹簧垫圈disc springs152DIN3017喉箍hose clamps153DIN3404润滑油嘴（旋扭头）lubricating nipples,button head154DIN3567管夹shackles for conduilts155DIN3570U型螺栓stirrup bolts(U-bolts)156DIN6319球面垫圈spherical washers,conical seats GB849-88157DIN6325圆柱销parallel pins ISO8734158DIN6330厚六角螺母hexagon nuts ,1.5d GB56-88159DIN6331厚六角法兰面螺母hexagon nuts ,1.5d with collar GB6177-86 160DIN6334长六角螺母hexagon nuts ,3d161DIN6797-A外齿锁紧垫圈external teeth lock washers GB862.1-87 162DIN6797-I内齿锁紧垫圈internal teeth lock washers GB861.1-87 163DIN6798-A外锯齿锁紧垫圈external teeth serrated lock washers GB862.2-87 164DIN6798-I内锯齿锁紧垫圈internal teeth serrated lock washers GB861.2-87 165DIN6799开口挡圈retaining rings for shafts(E-rings),circlips GB896-76166DIN6885平键（A型）parallel keys(form A )ISO773/2491167DIN6888半圆键woodruff keys ISO3912168DIN6899嵌环（支撑环）thimbles169DIN6900机器螺钉和垫圈组合件screws and washers assemblies GB9074.1-.17 170DIN6901自攻螺钉和垫圈组合件tapping screws and washers assemblies GB9074.18-.23171DIN6912薄型带孔内六角圆柱头螺钉hexagon socket head cap screws with hole,low head172DIN6914大六角头螺栓hexagon head bolts with large head(friction grip bolts)173DIN6915大六角螺母hexagon nuts with large wideth across flat(friction grip nuts)174DIN6916大垫圈round washers for friction grip bolts175DIN6917楔型方垫圈spuare taper washers for friction grip bolts on T-sections176DIN6923六角法兰面螺母hexagon flange nuts ISO4161GB6177-86177DIN6925全金属六角锁紧螺母(2型）prevailing torque type hexagon nuts,all metallicnutsISO7042GB6185.1-2000178DIN7337开口型抽芯铆钉（沉头、扁圆头）blind rivets GB12617/12618179DIN7338扁平头半空心/全空心铆钉rivets for brake and clutch lining GB875/975-86 180DIN7343螺旋夹紧销spiral pins ISO8750181DIN7346轻型弹性圆柱销spring pins,light type ISO13337182DIN7349重型弹性圆柱销用垫圈washers for bolts with heavy type spring pinss183DIN7500ISO公制螺纹螺钉(多种头型)threadforming screws for ISO-metric thread184DIN7504自攻自钻螺钉(多种头型)self-drilling tapping screws185DIN7513开槽切削螺纹螺钉(多种头型)thread cutting screws186DIN7516十字槽切削螺纹螺钉(多种头型)thread cutting screws cross recess187DIN7965T型四爪螺母tee nuts with pronge188DIN7968钢结构用六角头螺栓连接副hexagon head fitted bolts for steel structures GB1228/1229/1230 189DIN7971开槽盘头自攻螺钉pan head tapping screws with slot ISO1481GB5282-85190DIN7972开槽沉头自攻螺钉countersunk flat head tapping screws with slot ISO1482GB5283-85191DIN7973开槽半沉头自攻螺钉raised countersunk oval head tapping screws withslotISO1483GB5284-85192DIN7976六角头自攻螺钉hexagon tapping screws ISO1479GB5285-85193DIN7980圆柱头螺钉用弹簧垫圈spring lock washers for screws with cylindricalheadsISO8738194DIN7981十字槽盘头自攻螺钉pan head tapping screws with cross recessed ISO 7049GB845-85195DIN7982十字槽沉头自攻螺钉countersunk flat head tapping screws with crossrecessedISO7050GB846-85196DIN7983十字槽半沉头自攻螺钉raised countersunk oval head tapping screws withcross recessedISO7051GB847-86197DIN7984薄型内六角圆柱头螺钉hexagon socket head cap screws with，reduced head198DIN7985十字槽盘头螺钉pan head screws with cross recessed ISO7045GB818-85199DIN7989钢结构用垫圈washers for steel structures GB1230-84 200DIN7990钢结构用六角头螺栓hexagon head bolts for steel structures GB1229-84 201DIN7991内六角沉头螺钉hexagon socket countersunk head screws ISO10642GB/T70.3-2000 202DIN7993轴用钢丝挡圈roundwire snap rings for shafts GB895.2-86203DIN7995十字槽半沉头木螺钉cross recessed raised countersunk head woodscrewsGB952-86204DIN7996十字槽圆头木螺钉cross recessed round head wood screws GB950-86205DIN7997十字槽沉头木螺钉cross recessed countersunk head wood screws GB951-86 206DIN8140螺纹护套（普通\自锁等）ciol inserts,coarse,fine thread,silf locking207DIN9021大外径垫圈washers,outside diameter appro.3d ISO7093GB96-85 208DIN11024弹簧卡子spring cotter for a bolt209DIN13257平板螺栓belting bolts (elevator bolts)210DIN18182干壁钉（墙板钉）dry wall screws211DIN28129环型螺母lifting nuts(eye nuts)GB63-88 212DIN70952圆螺母用止退垫圈tab washers for slotted round nuts GB858-88。
din17223-c标准
DIN 17223-C 是德国标准化协会（Deutsches Institut für Normung）制定的钢丝弹簧线材的标准规范。
该标准规定了钢丝弹簧
线材的技术要求和机械性能指标。
根据 DIN 17223-C 标准，钢丝弹簧线材主要由碳素钢制成，具
有高强度和良好的弹性特性。
该标准规定了线材的化学成分、机械
性能、尺寸容差、表面质量等方面的要求。
在 DIN 17223-C 标准中，钢丝弹簧线材按照不同的强度等级进
行分类，如C、D、VD、VDH等级，每个等级都有其特定的机械性能
要求。
这些性能指标包括抗拉强度、屈服强度、伸长率等。
此外，DIN 17223-C 标准还规定了钢丝弹簧线材的尺寸容差，
包括直径、圆度、截面形状等方面的要求。
同时，标准还对线材的
表面质量进行了要求，确保线材表面光洁度和无明显缺陷。
总的来说，DIN 17223-C 标准是针对钢丝弹簧线材制造的规范，通过制定统一的技术要求和机械性能指标，确保钢丝弹簧线材的质
量和可靠性。
这个标准在工程和制造领域中被广泛采用，用于生产各种类型的弹簧产品。

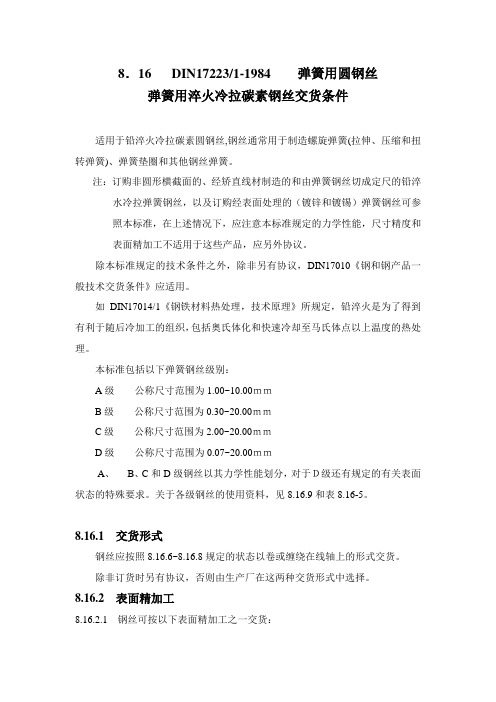

8．16 DIN17223/1-1984 弹簧用圆钢丝弹簧用淬火冷拉碳素钢丝交货条件适用于铅淬火冷拉碳素圆钢丝,钢丝通常用于制造螺旋弹簧(拉伸、压缩和扭转弹簧)、弹簧垫圈和其他钢丝弹簧。
注：订购非圆形横截面的、经矫直线材制造的和由弹簧钢丝切成定尺的铅淬水冷拉弹簧钢丝，以及订购经表面处理的（镀锌和镀锡）弹簧钢丝可参照本标准，在上述情况下，应注意本标准规定的力学性能，尺寸精度和表面精加工不适用于这些产品，应另外协议。
除本标准规定的技术条件之外，除非另有协议，DIN17010《钢和钢产品一般技术交货条件》应适用。
如DIN17014/1《钢铁材料热处理，技术原理》所规定，铅淬火是为了得到有利于随后冷加工的组织，包括奥氏体化和快速冷却至马氏体点以上温度的热处理。
本标准包括以下弹簧钢丝级别：A级公称尺寸范围为1.00~10.00ｍｍB级公称尺寸范围为0.30~20.00ｍｍC级公称尺寸范围为2.00~20.00ｍｍD级公称尺寸范围为0.07~20.00ｍｍA、B、C和D级钢丝以其力学性能划分，对于Ｄ级还有规定的有关表面状态的特殊要求。
关于各级钢丝的使用资料，见8.16.9和表8.16-5。
8.16.1 交货形式钢丝应按照8.16.6~8.16.8规定的状态以卷或缠绕在线轴上的形式交货。
除非订货时另有协议，否则由生产厂在这两种交货形式中选择。
8.16.2 表面精加工8.16.2.1 钢丝可按以下表面精加工之一交货：光亮干拉和磷化的（DIN165《商用钢丝的表面状态术语和缩写》规定的tr bk phr）光亮干拉和灰色的（DIN 1653规定的tr bk gr）光亮干拉和淡红色的（DIN 1653规定的tr bk rt）光亮湿拉和磷化的（n bk phr）1）光亮湿拉和灰色的（DIN 1653规定的n bk gr）光亮湿拉和淡红色的（DIN 1653规定的n bk rt）除非订货时另有协议，材料交货应由生产厂决定或是光亮干拉和磷化的，或是光亮湿拉和磷化的。
德國BAUER 盤形彈簧 DISC SPRING㈵性◆ 行程短 、負荷重 ◆ 所需空間小 ◆ 組合使用方便 ◆ 維修換裝容易 ◆ 經濟、安全性高 ◆ 使用壽命長應用範圍 ※ 動力傳輸元件，如離合器 、剎車系統、磁碟機傳動軸…等。
※ 電氣系統傳動開關裝置之元件。
※ 切削㆗心機、鑽孔機、控制閥、球閥…等。
※ 管路輸送系統、管路支架及沖床等螺柱、螺絲彈性墊圈。
※ 升降機、起重機、堆高機…等重機械之元件。
※ ㉂動化機械之元件，如編織機、㊞刷…等。
※ 大型電動馬達、汽油壓渦輪、柴油引擎、幫浦…等元件。
※ 手工具、園藝工具及農業機械，如剪草機、牽引機…等。
※ 沖床模具、軸承預壓用、油封。
※ 航空器、機車、㉂行車等座椅之元件。
材質 (DIN2093)Ck67 :使用於厚度小於1.25mm的盤形彈簧 50CrV4:所㈲DIN盤形彈簧均㊜用※ 另㈲不銹鋼AISI 301、AISI 631 詳細規格,請來電洽詢!盤形彈簧 (Disc springs) 其形狀為圓錐盤狀，㊜用於安裝空間小，而且需要大負荷之重機械或模具。
目前歐、美、㈰等先進國家的工程師在機械元件的使用㆖，已將盤形彈簧大量應用， 除了安全性的考量，也取㈹原先傳統螺旋彈簧使用空間和負荷㈲限及壓縮行程過大等缺點，並提高機械之性能。
物理㈵性/溫度範圍Ck 75(AISI 1075)50 Cr V4(SAE 6150)X12CrNI 177(AISI 301)X7CrNiAl 177(AISI 631)NiCr15Fe7TiAl (Inconel X750)表面處理: 磷酸處理後加潤滑油(※其他㈵殊表面處理:如鍍鋅、鋼、鉻、㈮屬膜、烤漆等電鍍㈲可能產生碳化層,如㈲容許公差 (CK67、50CrV4)6.0 - 15材 質材質硬度(HRC)抗拉強度kg/mm 2135 - 180 135 - 180 120 - 160 130 - 170119E 係數 (20℃)PSI x 106281.25 - 2.0 2.0 - 3.0 3.0 - 6.0 > 0.6 < 1.250.2 - 0.6 3.8 - 6.0盤簧厚度t or t'(mm)厚度t (mm)㉂由高度lo(mm)負荷 (%)F (s = 0.75 ho)+25-7.5± 0.10 ± 0.3042 - 52容許公差+0.02-0.06 +0.03-0.09+0.04-0.12+0.05-0.15 +15-7.5+10-5-200 to 350 -260 to 60030± 5+0.1-0.05 +0.15-0.08溫度範圍 ( °C ) -20 to 100 -50 to 150 -200 to 1003029 +0.2-0.1 +0.3-0.1531外徑、內徑公差表> 3 ~ 6 > 6 ~ 10 > 10 ~ 18 > 18 ~ 30 > 30 ~ 50 > 50 ~ 80 > 80 ~ 120 > 120 ~ 180 > 180 ~ 250 > 250 ~ 315 > 315 ~ 400 > 400 ~ 500 > 500 ~ 600※可依客戶需求另行製作，歡迎來電洽詢選購!外徑或內徑(mm)0 ~ - 0.120 ~ + 0.12容許公差外徑(mm)內徑(mm)0 ~ - 0.150 ~ - 0.180 ~ - 0.210 ~ - 0.250 ~ - 0.680 ~ - 0.300 ~ - 0.350 ~ - 0.400 ~ - 0.460 ~ + 0.630 ~ - 0.520 ~ - 0.570 ~ - 0.630 ~ + 0.180 ~ + 0.210 ~ + 0.250 ~ + 0.680 ~ + 0.300 ~ + 0.350 ~ + 0.400 ~ + 0.460 ~ + 0.520 ~ + 0.570 ~ + 0.15負荷 F kgf kgf kgf kgf B6320363.20.300.450.500.0311.930.089.040.1111.930.1515.61B832020.200.40 1.000.04 1.040.10 2.090.15 2.630.20 3.04B832030.300.550.830.05 3.840.138.300.1910.740.2512.81B832040.400.600.500.04 5.730.1013.290.1518.930.2024.29B832050.500.700.400.0410.580.1025.140.1536.470.2047.44B842020.200.45 1.250.05 1.820.13 3.470.19 4.020.25 4.29 B842030.300.550.830.05 4.340.139.380.1912.130.2514.47 B842040.400.600.500.04 6.480.1015.010.1521.390.2027.44 B1032030.300.65 1.170.07 4.370.188.460.2610.000.3511.03 B1032040.400.700.750.06 6.300.1511.390.2318.570.3022.41 B1032050.500.750.500.058.610.1320.650.1928.760.2536.47 B1042040.400.700.750.06 6.650.1514.330.2319.600.3023.66 B1042050.500.750.500.059.090.1321.810.1930.360.2538.51 B1042060.600.850.420.0514.970.1336.730.1951.880.2566.54 B1052030.250.55 1.200.06 2.600.15 4.920.23 5.920.30 6.39 B1052040.400.700.750.067.360.1515.850.2321.690.3026.17 B1052050.500.750.500.0510.060.1324.120.1933.580.2542.60 B1242040.400.80 1.000.087.220.2014.430.3018.310.4020.99 B1242050.500.850.700.079.710.1821.700.2628.760.3535.87 B1242060.60 1.000.670.0818.700.2041.320.3056.820.4070.84 B1252050.500.900.800.0812.630.2026.820.3035.670.4043.24 B1252060.600.950.580.0716.290.1837.760.2651.240.3565.39 B1262050.500.850.700.0711.160.1824.970.2633.070.3541.26 B1262060.600.950.580.0717.740.1841.160.2655.870.3571.28 B135205 5.20.500.850.700.079.310.1820.820.2627.570.3534.40 B1362040.350.80 1.290.097.170.2313.390.3415.470.4516.36 B1362050.500.850.700.0710.030.1822.450.2629.730.3537.09 B1362070.70 1.000.430.0619.760.1546.620.2368.640.3087.23 B1472040.350.80 1.290.09 5.840.2310.910.3412.600.4513.33 B1472050.500.900.800.0810.090.2021.410.3028.490.4034.53 B1472080.80 1.100.380.0623.370.1555.840.2382.980.30106.12 B1552040.400.95 1.380.118.710.2815.890.4117.900.5518.44 B1552050.50 1.00 1.000.1011.270.2522.510.3828.590.5032.74 B1552060.60 1.050.750.0914.310.2331.360.3441.770.4550.93 B1552070.70 1.100.570.0817.760.2040.350.3056.660.4071.89 B1562050.50 1.00 1.000.1011.710.2523.420.3829.730.5034.06 B1562060.60 1.050.750.0914.890.2332.610.3443.440.4552.97 B1562070.70 1.100.570.0818.470.2041.960.3058.930.4074.77 B1582070.70 1.100.570.0821.290.2048.360.3067.920.4086.16 B1582080.80 1.200.500.0830.360.2070.340.30100.230.40128.67 B1682040.400.90 1.250.107.180.2513.390.3815.820.5016.89 B1682060.60 1.050.750.0914.410.2331.580.3442.060.4551.29 B1682070.70 1.150.640.0921.130.2347.890.3465.400.4581.44 B1682080.80 1.200.500.0825.500.2059.090.3084.210.40108.06 B1682090.90 1.250.390.0729.860.1873.010.26102.450.35134.59 B1862040.40 1.00 1.500.127.310.3012.870.4514.150.6013.96 B1862050.50 1.10 1.200.1211.100.3020.990.4525.050.6027.27 B1862060.60 1.20 1.000.1216.200.3032.390.4540.860.6047.11 B1862070.70 1.250.790.1119.810.2842.800.4156.150.5568.57 B1862080.80 1.300.630.1023.850.2553.350.3874.840.5093.05 B1882050.50 1.10 1.200.1211.980.3022.640.4527.010.6029.40 B1882070.70 1.250.790.1121.370.2846.150.4160.570.5573.96 B1882080.80 1.300.630.1025.710.2557.530.3880.700.50100.36 B188210 1.00 1.400.400.0834.980.2083.110.30120.510.40156.84 B1892050.45 1.05 1.330.1210.380.3018.960.4521.810.6022.76 B1892070.70 1.200.710.1019.520.2542.520.3858.370.5071.38 B1892101.001.400.400.0837.130.2088.230.30127.960.40166.43負荷 F 壓縮mm 壓縮mm 負荷 F 壓縮mm 負荷 F 壓縮mm 產品編號㉂由高L 9.2186.28.28.2168.2155.26.26.2147.212.5 5.26.2125.24.2103.24.283.284.2S=1.0ho (總行程)外徑O.D 內徑I.D 厚度t 行程 S=0.75ho ho/t 行程 S=0.20ho行程 S=0.50ho負荷 F kgf kgf kgf kgf B2082050.50 1.15 1.300.1311.010.3320.440.4923.580.6524.85 B2082060.60 1.30 1.170.1418.310.3534.920.5342.190.7046.23 B2082070.70 1.350.930.1322.100.3345.570.4958.180.6568.17 B2082080.80 1.400.750.1226.400.3056.870.4576.640.6093.93 B2082090.90 1.450.610.1131.110.2870.940.4196.840.55122.55 B208210 1.00 1.550.550.1140.960.2895.090.41131.430.55168.16 B2010040.400.90 1.250.10 4.580.258.540.3810.090.5010.78 B2010050.50 1.15 1.300.1312.120.3322.510.4925.970.6527.36 B2010080.80 1.350.690.1125.410.2856.610.4176.000.5594.81 B2010090.90 1.450.610.1134.260.2878.110.41106.630.55135.00 B201010 1.00 1.550.550.1145.100.28104.690.41144.690.55185.20 B201011 1.10 1.550.410.0945.180.23109.390.34156.220.45201.63 B201012 1.20 1.550.290.0743.210.18107.960.26153.370.35203.57 B201015 1.50 1.800.200.0670.130.15172.960.23262.860.30340.82B2211060.60 1.40 1.330.1620.660.4037.760.6043.420.8045.31B2211080.80 1.450.810.1325.740.3355.040.4972.440.6587.26 B221113 1.25 1.750.400.1057.110.25135.710.38199.180.50256.02 B2382070.70 1.50 1.140.1623.840.4045.760.6055.470.8061.43 B2382080.80 1.550.940.1528.070.3857.650.5673.140.7585.96 B2382090.90 1.600.780.1432.800.3570.070.5394.390.70114.18 B238210 1.00 1.700.700.1442.400.3592.740.53127.450.70156.73 B2310090.90 1.650.830.1538.960.3882.620.56107.650.75129.90 B231010 1.00 1.700.700.1444.980.3598.400.53135.200.70166.22 B231013 1.25 1.900.520.1372.040.33168.270.49236.730.65301.53B231210 1.00 1.600.600.1239.480.3088.950.45124.180.60156.73B231213 1.25 1.850.480.1271.390.30166.330.45237.860.60306.12B231215 1.50 2.100.400.12117.960.30280.410.45406.730.60528.98B25101010.2 1.00 1.750.750.1541.180.3889.640.56119.180.75146.53 B2512070.70 1.60 1.290.1828.410.4552.520.6861.310.9064.85 B2512090.90 1.600.780.1430.780.3565.760.5388.570.70107.14 B251210 1.00 1.800.800.1649.090.40104.180.60138.670.80168.06 B251213 1.25 1.950.560.1470.410.35160.510.53227.760.70287.14 B251215 1.50 2.050.370.1185.530.28208.270.41296.940.55389.90 B2810080.80 1.75 1.190.1929.720.4856.690.7167.420.9573.76 B281010 1.00 1.900.900.1843.210.4588.960.68115.820.90136.43 B281013 1.25 2.050.640.1661.360.40136.630.60189.080.80236.94 B281015 1.50 2.200.470.1482.880.35193.780.53280.100.70358.27 B281210 1.00 1.950.950.1949.900.48101.900.71129.180.95151.22 B281213 1.25 2.100.680.1770.450.43156.530.64213.160.85264.29 B281215 1.50 2.250.500.1595.090.38222.960.56312.760.75402.96 B2814080.80 1.80 1.250.2037.240.5069.500.7581.78 1.0087.64 B281410 1.00 1.800.800.1640.010.4084.900.60112.960.80136.94 B281413 1.25 2.100.680.1775.760.43168.270.64229.180.85284.18 B281415 1.50 2.150.430.1385.260.33203.780.49291.220.65375.51 B321210 1.00 2.10 1.100.2249.970.5597.060.83119.39 1.10133.57 B321213 1.25 2.200.760.1963.790.48138.060.71183.670.95225.20 B321215 1.50 2.350.570.1785.740.43197.040.64275.200.85348.27 B3216080.80 1.85 1.310.2132.990.5360.880.7970.14 1.0573.63 B321613 1.25 2.150.720.1866.120.45143.780.68196.220.90240.71 B321615 1.50 2.400.600.18104.800.45236.120.68331.530.90416.02 B321618 1.75 2.450.400.14114.590.35272.350.53398.470.70513.88 B3216202.002.750.380.15181.020.38437.960.56627.350.75821.84負荷 F 壓縮mm 壓縮mm 負荷 F 壓縮mm 負荷 F 壓縮mm 產品編號㉂由高L 16.331.514.212.22810.212.210.212.212.2232510.28.222.511.2208.2S=1.0ho (總行程)外徑O.D內徑I.D厚度t 行程 S=0.75ho ho/t 行程 S=0.20ho行程 S=0.50ho負荷 F kgf kgf kgf kgf B341210 1.00 2.25 1.250.2554.480.63102.040.94119.69 1.25128.16 B341213 1.25 2.350.880.2268.630.55142.140.83185.92 1.10220.31 B341215 1.50 2.500.670.2091.380.50201.940.75277.65 1.00346.12 B341413 1.25 2.400.920.2377.100.58158.670.86203.06 1.15239.49 B341415 1.50 2.550.700.21102.240.53225.410.79305.82 1.05377.96 B341615 1.50 2.550.700.21107.860.53237.760.79322.76 1.05398.78 B341620 2.00 2.850.430.17172.960.43412.860.64592.140.85765.10 B3618090.90 2.05 1.280.2339.240.5873.010.8684.83 1.1590.18 B361813 1.25 2.250.800.2061.390.50130.310.75173.37 1.00210.10 B361820 2.00 2.800.400.16153.570.40364.900.60529.290.80688.47 B401413 1.25 2.65 1.120.2876.980.70148.67 1.05181.43 1.40202.24 B401415 1.50 2.750.830.2593.600.63197.760.94259.90 1.25312.04 B401420 2.00 3.050.530.21148.880.53345.610.79487.35 1.05621.22 B401615 1.50 2.800.870.26103.160.65214.490.98281.43 1.30334.80 B401620 2.00 3.100.550.22163.570.55373.780.83530.10 1.10671.43 B40182018.3 2.00 3.150.580.23181.220.58414.290.86575.71 1.15575.71 B402010 1.00 2.30 1.300.2648.510.6589.380.98103.88 1.30109.39 B402015 1.50 2.650.770.2392.980.58200.610.86266.94 1.15326.63 B402020 2.00 3.100.550.22180.410.55412.350.83584.69 1.10740.61 B402023 2.25 3.150.400.18192.450.45457.240.68667.760.90862.86 B402025 2.50 3.450.380.19275.820.48664.900.71955.000.951,248.98 B452213 1.25 2.85 1.280.3289.300.80165.31 1.20192.96 1.60204.80 B452218 1.75 3.050.740.26127.650.65275.610.98373.37 1.30456.63 B452225 2.50 3.500.400.20228.470.50542.860.75787.35 1.001,024.49 B501813 1.25 2.85 1.280.3264.840.80120.10 1.20140.10 1.60148.78 B501815 1.50 3.30 1.200.36117.760.90222.65 1.35265.61 1.80289.18 B501820 2.00 3.500.750.30160.510.75345.82 1.13467.45 1.50571.12 B501825 2.50 3.850.540.27242.960.68560.41 1.01785.61 1.351,003.98 B501830 3.00 4.000.330.20277.550.50669.290.75980.51 1.001,284.69 B502020 2.00 3.500.750.30164.690.75354.90 1.13479.80 1.50586.22 B502025 2.50 3.850.540.27249.390.68575.20 1.01806.33 1.351,030.61 B502220 2.00 3.600.800.32188.670.80400.41 1.20532.86 1.60645.82 B502225 2.50 3.900.560.28270.610.70616.73 1.05868.37 1.401,104.08 B502513 1.25 2.85 1.280.3273.200.80135.51 1.20158.16 1.60167.96 B502515 1.50 3.10 1.070.32105.610.80206.94 1.20256.33 1.60290.20 B502520 2.00 3.400.700.28162.860.70356.22 1.05485.92 1.40601.84 B502523 2.25 3.750.670.30242.350.75535.61 1.13738.88 1.50918.06 B502525 2.50 3.900.560.28288.160.70656.84 1.05924.80 1.401,175.51 B502530 3.00 4.100.370.22350.100.55838.160.831,228.57 1.101,595.92 B562815 1.50 3.45 1.300.39125.100.98231.12 1.46267.45 1.95282.24 B562820 2.00 3.600.800.32160.410.80340.31 1.20452.86 1.60548.88 B562825 2.50 4.200.680.34303.670.85668.37 1.28918.78 1.701,138.78 B562830 3.00 4.300.430.26341.730.65805.610.981,167.35 1.301,505.10 B602020 2.00 4.10 1.050.42196.84 1.05387.65 1.58483.06 2.10548.57 B602025 2.50 4.300.720.36252.240.90548.47 1.35744.59 1.80918.37 B602030 3.00 4.700.570.34369.080.85839.69 1.281,184.69 1.701,498.98 B602525 2.50 4.400.760.38288.880.95620.51 1.43836.22 1.901,020.10 B602530 3.00 4.650.550.33372.860.83856.73 1.241,204.08 1.651,530.61 B603025 2.50 4.500.800.40340.82 1.00723.27 1.50962.45 2.001,166.33 B603028 2.75 4.750.730.40428.78 1.00930.31 1.501,261.22 2.001,553.06 B603030 3.00 4.700.570.34421.940.85959.90 1.281,354.08 1.701,713.27 B6030353.505.000.430.30543.670.751,282.651.131,860.201.502,401.02S=1.0ho (總行程)外徑O.D內徑I.D厚度t 行程 S=0.75ho ho/t 行程 S=0.20ho行程 S=0.50ho 344012.24522.4㉂由高L 16.320.435.518.314.214.316.3負荷 F 壓縮mm 壓縮mm 負荷 F 壓縮mm 負荷 F 壓縮mm 產品編號5628.520.422.425.45018.320.425.530.560負荷 F kgf kgf kgf kgf B633118 1.80 4.15 1.310.47202.86 1.18373.98 1.76432.35 2.35455.41 B633125 2.50 4.250.700.35245.820.88540.20 1.31732.55 1.75908.57 B633130 3.00 4.800.600.36406.630.90916.43 1.351,279.59 1.801,615.31 B633135 3.50 4.900.400.28444.800.701,057.14 1.051,533.67 1.401,994.90B70252025.5 2.00 4.50 1.250.50206.22 1.25384.80 1.88453.16 2.50485.20 B703025 2.50 4.900.960.48317.76 1.20642.55 1.80819.49 2.40955.10 B703030 3.00 5.100.700.42390.71 1.05854.69 1.581,168.37 2.101,443.88 B703530 3.005.100.700.42420.10 1.05919.08 1.581,257.14 2.101,553.06 B703535 3.50 5.300.510.36503.270.901,161.22 1.351,651.02 1.802,113.27 B703640 3.75 5.800.590.36760.310.901,736.73 1.352,440.82 1.803,086.73 B704040 3.75 5.600.530.32722.860.801,676.53 1.202,382.65 1.603,041.84 B704050 4.60 6.200.390.24978.060.602,354.080.903,435.71 1.204,477.55 B713620 2.00 4.60 1.300.52245.51 1.30452.24 1.95524.90 2.60553.67 B713625 2.50 4.500.800.40243.06 1.00515.71 1.50686.22 2.00831.84 B713640 3.75 5.600.530.32635.710.801,473.47 1.202,094.90 1.602,674.49 B803125 2.50 5.30 1.120.56313.47 1.40605.41 2.10738.67 2.80823.47 B803130 3.00 5.500.830.50381.12 1.25800.71 1.881,058.16 2.501,270.41 B803140 3.75 6.100.670.42642.55 1.051,433.67 1.581,983.67 2.102,464.29 B803630 3.00 5.700.900.54455.82 1.35938.37 2.031,218.37 2.701,439.80 B803640 3.75 6.200.700.44719.18 1.101,591.84 1.652,183.67 2.202,704.08 B804123 2.25 5.20 1.310.59317.35 1.48584.08 2.21674.59 2.95709.18 B804130 3.00 5.300.770.46373.06 1.15799.80 1.731,075.51 2.301,310.20 B804140 3.75 6.200.700.44768.67 1.101,701.02 1.652,333.67 2.202,890.82 B804150 4.70 6.700.460.341,007.040.852,377.55 1.283,436.73 1.704,418.37 B904625 2.50 5.70 1.280.64362.86 1.60671.94 2.40784.08 3.20832.35 B904635 3.50 6.000.710.50487.96 1.251,063.27 1.881,447.96 2.501,784.69 B904650 4.707.000.530.40968.78 1.002,248.98 1.503,198.98 2.004,087.76 B1004140 3.757.200.970.64789.18 1.601,612.24 2.402,066.33 3.202,403.06 B1004150 4.757.750.670.551,073.47 1.382,400.00 2.063,298.98 2.754,115.31 B1005127 2.70 6.20 1.300.70410.00 1.75756.12 2.63878.88 3.50927.65 B1005135 3.50 6.300.800.56472.35 1.401,002.35 2.101,333.67 2.801,616.33 B1005140 3.757.000.920.60782.04 1.501,623.47 2.252,109.18 3.002,487.76 B1005150 4.757.800.680.561,212.24 1.402,693.88 2.103,708.16 2.804,611.22 B1005160 5.608.200.500.441,466.33 1.103,424.49 1.654,900.00 2.206,282.65 B1125730 3.00 6.90 1.300.78500.51 1.95922.24 2.931,070.41 3.901,128.57 B1125740 3.757.200.970.64691.84 1.601,413.27 2.401,811.22 3.202,107.14 B1125760 5.608.500.560.501,369.39 1.253,154.08 1.884,470.41 2.505,666.33 B1254140413.758.20 1.240.84781.02 2.101,483.67 3.151,770.414.201,910.20 B1255140 3.758.50 1.330.90929.49 2.251,731.63 3.382,022.45 4.502,129.59 B1255150 4.758.900.950.781,177.55 1.952,424.49 2.933,132.65 3.903,666.33 B12551605.609.400.730.681,510.20 1.703,316.33 2.554,521.43 3.405,566.33 B1256150 4.709.000.970.801,319.39 2.002,701.02 3.003,466.33 4.004,038.78 B1256160 5.609.600.770.721,763.27 1.803,830.61 2.705,175.51 3.606,323.47 B12561807.6010.900.460.582,818.37 1.456,636.73 2.189,568.37 2.9012,316.33 B1256435 3.508.00 1.290.90730.20 2.251,350.00 3.381,573.47 4.501,667.35 B1256450 4.708.500.860.701,094.90 1.752,312.24 2.633,055.10 3.503,652.04 B1256460 5.609.600.770.721,812.24 1.803,938.78 2.705,321.43 3.606,502.04 B1256470 6.5510.000.570.602,115.31 1.504,858.16 2.256,859.18 3.008,703.06 B12564807.5010.600.450.522,565.31 1.306,073.47 1.958,768.37 2.6011,336.73 B1257160 5.609.300.710.661,728.57 1.653,817.35 2.485,233.67 3.306,459.18 B12571807.4010.400.450.482,542.86 1.206,035.71 1.808,723.47 2.4011,275.51 B12571109.2011.800.320.363,522.450.908,593.88 1.3512,663.27 1.8016,632.65B1407238 3.808.70 1.290.98816.02 2.451,507.14 3.681,755.10 4.901,857.14 B1407250 4.709.000.970.801,084.69 2.002,220.41 3.002,848.98 4.003,319.39 B14072807.5011.200.530.642,638.781.606,119.392.408,698.983.2011,102.04S=1.0ho (總行程)外徑O.D內徑I.D厚度t 行程 S=0.75ho ho/t 行程 S=0.20ho行程 S=0.50ho ㉂由高L 負荷 F 壓縮mm 壓縮mm 負荷 F 壓縮mm 負荷 F 壓縮mm 產品編號6331.030.57136.031.035.540.5709046.036.041.0807114072125616411257514151100負荷 F kgf kgf kgf kgf B1506150 4.8010.30 1.18 1.061,367.35 2.652,623.47 3.983,169.39 5.303,474.49 B1506160 5.8010.800.890.961,710.20 2.403,556.12 3.604,638.78 4.805,505.10 B1507160 5.6510.800.960.961,867.35 2.403,825.51 3.604,913.27 4.805,732.65 B15071807.5012.000.640.802,934.69 2.006,600.00 3.009,168.37 4.0011,479.59 B15081807.5011.700.600.742,864.29 1.856,518.37 2.789,148.98 3.7011,520.41 B15081109.3013.000.440.604,125.51 1.509,808.16 2.2514,193.88 3.0018,377.55 B1608243 4.309.90 1.30 1.121,043.88 2.801,921.43 4.202,228.57 5.602,348.98 B1608260 5.6010.500.930.901,559.18 2.253,227.55 3.384,187.76 4.504,920.41 B16082109.4013.500.470.704,170.41 1.759,818.37 2.6314,142.86 3.5018,183.67 B1809248 4.8011.00 1.29 1.241,256.12 3.102,319.39 4.652,697.96 6.202,854.08 B1809260 5.6011.10 1.04 1.021,513.27 2.553,037.76 3.833,829.59 5.104,374.49 B18092109.4014.000.530.803,874.49 2.008,993.88 3.0012,795.92 4.0016,346.94 B180921312.1016.500.400.706,956.12 1.7516,673.47 2.6324,316.33 3.5031,581.63 B20082807.6014.200.91 1.242,952.04 3.106,123.47 4.657,962.24 6.207,962.24 B20082109.4515.500.68 1.104,317.35 2.759,593.88 4.1313,224.49 5.5016,418.37 B200821211.3516.600.490.925,574.49 2.3013,030.61 3.4518,642.86 4.6023,938.78 B20092109.5015.600.68 1.124,594.90 2.8010,204.08 4.2014,051.02 5.6017,469.39 B200921211.4016.800.500.966,109.18 2.4014,234.69 3.6020,336.73 4.8026,061.22 B200921413.2018.100.400.827,838.78 2.0518,755.10 3.0827,306.12 4.1035,459.18 B20010255 5.5012.50 1.27 1.401,698.98 3.503,151.02 5.253,684.697.003,920.41 B200102807.5013.600.87 1.122,804.08 2.805,913.27 4.207,793.88 5.609,311.22 B200102109.4015.600.70 1.124,901.02 2.8010,826.53 4.2014,836.73 5.6018,357.14 B2001021211.2516.200.480.845,527.55 2.1013,000.00 3.1518,673.47 4.2024,040.82 B2001021413.1018.200.420.848,544.90 2.1020,357.14 3.1529,510.20 4.2038,265.31 B2001121211.1016.200.500.845,967.35 2.1013,969.39 3.1519,979.59 4.2025,622.45 B2001121412.9017.500.400.707,483.67 1.7517,979.59 2.6326,244.90 3.5034,102.04 B2001121614.7018.800.310.568,646.94 1.4021,112.24 2.1031,132.65 2.8040,908.16 B22511260 6.0013.60 1.34 1.522,219.39 3.804,046.94 5.704,642.867.604,830.61 B22511265 6.2013.60 1.24 1.422,014.29 3.553,818.37 5.334,550.007.104,913.27 B225112807.5014.500.99 1.302,777.55 3.255,654.08 4.887,223.47 6.508,367.35 B2251121211.2517.000.55 1.005,339.80 2.5012,316.33 3.7517,448.98 5.0022,204.08 B2251121615.0020.500.400.9010,530.61 2.2525,214.29 3.3836,744.90 4.5047,734.69 B250102109.7018.000.88 1.604,735.71 4.009,866.33 6.0012,897.968.0015,336.73 B2501021211.2519.000.74 1.406,268.37 3.5013,724.49 5.2518,673.477.0022,948.98 B25012765 6.5014.80 1.35 1.662,547.96 4.154,634.69 6.235,303.068.305,497.96 B25012770 6.7014.80 1.25 1.562,298.98 3.904,339.80 5.855,150.007.805,538.78 B250127109.4017.000.86 1.404,358.16 3.509,205.10 5.2512,153.067.0014,540.82 B2501271211.3019.300.75 1.467,295.92 3.6515,887.76 5.4821,520.417.3026,346.94 B2501271413.1019.600.54 1.127,714.29 2.8017,867.35 4.2025,387.76 5.6032,387.76 B2501271615.1021.800.481.1611,581.632.9027,224.494.3539,081.635.8050,306.12S=1.0ho (總行程)外徑O.D內徑I.D 厚度t 行程 S=0.75ho ho/t 行程 S=0.20ho行程 S=0.50ho ㉂由高L 負荷 F 壓縮mm 壓縮mm 負荷 F 壓縮mm 負荷 F 壓縮mm 產品編號10212725011222511220092102180928281160821506171負荷 F 負荷 F kgf kgf AK6239.8 6.20.200.40 1.000.200.10 1.940.15 2.45AK62412.87.20.250.50 1.000.250.13 2.450.19 2.96AK625 63415.88.20.250.55 1.200.300.15 2.040.23 2.35AK626 63518.89.20.300.65 1.170.350.18 2.650.26 3.16AK60718.810.20.350.70 1.000.350.18 4.080.26 5.20AK608 62721.812.30.350.75 1.140.400.20 3.880.30 4.69AK60923.714.30.400.90 1.250.500.257.040.388.16AK6000 62925.714.30.400.90 1.250.500.25 5.510.38 6.53AK600127.717.30.40 1.00 1.500.600.307.450.458.16AK620029.717.30.40 1.10 1.750.700.358.160.538.37AK6002 620131.720.40.40 1.10 1.750.700.358.060.538.27AK630034.620.40.40 1.10 1.750.700.35 6.120.53 6.22AK6003 620234.622.40.50 1.20 1.400.700.3510.820.5312.14AK630136.620.40.50 1.30 1.600.800.4010.510.6011.33AK620339.625.50.50 1.30 1.600.800.4010.510.6011.33AK6004 630241.625.50.50 1.40 1.800.900.4511.530.6811.63AK6005 6204 630346.530.50.60 1.50 1.500.900.4514.290.6815.82AK6205 630451.535.50.60 1.50 1.500.900.4512.650.6813.78AK600654.540.50.60 1.50 1.500.900.4512.960.6814.29AK6007 6206 630561.540.50.70 1.80 1.57 1.100.5516.730.8318.98AK600867.550.50.70 1.70 1.43 1.000.5014.590.7516.33AK630671.545.50.70 2.10 2.00 1.400.7019.39 1.0518.88AK620771.550.50.70 2.10 2.00 1.400.7022.76 1.0522.14AK600974.555.50.80 1.90 1.38 1.100.5518.980.8321.63AK630779.550.50.80 2.30 1.88 1.500.7523.27 1.1323.27AK6010 620879.555.50.80 2.30 1.88 1.500.7526.94 1.1326.94AK620984.560.50.90 2.50 1.78 1.600.8035.92 1.2036.43AK630889.560.50.90 2.50 1.78 1.600.8028.98 1.2029.39AK6011 621089.565.50.90 2.50 1.78 1.600.8033.67 1.2033.98AK601294.575.5 1.00 2.20 1.20 1.200.6027.760.9033.16AK63099965.5 1.00 2.60 1.60 1.600.8027.96 1.2029.90AK6013 62119970.5 1.00 2.60 1.60 1.600.8031.84 1.2033.98AK631010970.5 1.25 2.70 1.16 1.450.7330.00 1.0936.33AK6014 621210975.5 1.25 2.70 1.16 1.450.7333.37 1.0940.20AK601511490.5 1.25 2.450.96 1.200.6031.730.9040.41AK631111975.5 1.25 2.80 1.24 1.550.7827.55 1.1632.55AK621311985.51.252.801.241.550.7833.781.1639.90總壓縮mm 行程 S=0.50ho壓縮mm 壓縮mm 行程 S=0.75ho外徑O.D 內徑I.D 厚度t ㉂由高L ho/t產品編號(㊜用軸承)負荷 F 負荷 F kgf kgf 總壓縮mm 行程 S=0.50ho壓縮mm 壓縮mm 行程 S=0.75ho外徑O.D 內徑I.D 厚度t ㉂由高L ho/t產品編號(㊜用軸承)AK6016 621412490.5 1.25 3.00 1.40 1.750.8840.00 1.3145.00AK631212985.5 1.25 3.20 1.56 1.950.9838.27 1.4641.02AK6017 621512995.5 1.25 3.20 1.56 1.950.9833.47 1.4645.00AK631313990.5 1.25 3.25 1.60 2.00 1.0033.57 1.5036.02AK6018 6216139101 1.25 3.25 1.60 2.00 1.0040.61 1.5043.57AK631414995.5 1.50 3.20 1.13 1.700.8531.84 1.2838.78AK6020 6217149106 1.50 3.20 1.13 1.700.8537.55 1.2845.71AK6315159101 1.50 3.50 1.33 2.00 1.0036.33 1.5041.73AK6021 6218159111 1.50 3.50 1.33 2.00 1.0042.35 1.5048.67AK6316169111 1.50 3.80 1.53 2.30 1.1544.08 1.7348.16AK6022 6219169121 1.50 3.80 1.53 2.30 1.1550.71 1.7355.31AK6317179121 2.00 4.20 1.10 2.20 1.1071.63 1.6587.86AK6024 6220179126 2.00 4.20 1.10 2.20 1.1077.65 1.6595.31AK6318189121 2.00 4.30 1.15 2.30 1.1564.08 1.7377.55AK6221189131 2.00 4.30 1.15 2.30 1.1571.63 1.7386.63AK6319198131 2.00 4.50 1.25 2.50 1.2570.51 1.8882.96AK6026 6222198141 2.00 4.50 1.25 2.50 1.2579.49 1.8893.57AK6224 6320213151 2.25 4.50 1.00 2.25 1.1376.12 1.6996.02AK6030 6321223161 2.25 4.60 1.04 2.35 1.1876.22 1.7695.20AK6226228161 2.25 4.95 1.20 2.70 1.3588.16 2.03105.10AK6322238161 2.25 5.25 1.33 3.00 1.5090.41 2.25104.08AK6228248171 2.50 5.00 1.00 2.50 1.2581.12 1.88102.04AK6324258171 2.50 5.50 1.20 3.00 1.5094.69 2.25113.06AK6230268181 2.50 5.70 1.28 3.20 1.60101.02 2.40118.37AK6326278181 2.50 6.00 1.40 3.50 1.75104.08 2.63118.37AK6232288191 2.75 5.75 1.09 3.00 1.5095.00 2.25117.35AK6328298191 2.75 6.35 1.31 3.60 1.80115.31 2.70133.67AK6234308202 3.00 6.10 1.03 3.10 1.55107.14 2.33132.65AK6236 6330318212 3.00 6.20 1.07 3.20 1.60108.16 2.40132.65AK6238 6332338232 3.00 6.60 1.20 3.60 1.80120.41 2.70143.88AK6240 63343582423.007.201.404.202.10137.763.15156.12。
DIN标紧固件的中文对照序号xx标准中文译文4DIN 1圆锥销5DIN 7圆柱销6DIN 84开槽圆柱头螺钉7DIN 85开槽盘头螺钉8DIN 93xx止动垫圈9DIN 94开口销10DIN 95开槽半沉头xx11DIN 96开槽半圆头xx12DIN 97开槽沉头xx13DIN 125-1平垫14DIN 125-2平垫(带倒角)15DIN 126平垫16DIN 127-1重型弹垫17DIN 127标准弹垫18DIN 128-1波形弹垫19DIN 137-1弹簧止动垫圈20DIN 137-2鞍形弹垫21DIN 186T型方颈螺栓22DIN 188T型双接头螺栓23DIN 258螺纹圆锥销24DIN 261T型头螺栓25DIN 315AF蝶型螺母(xx制)26DIN 315DF蝶型螺母(德制)27DIN 316AF蝶型螺钉(xx制)28DIN 317DF蝶型螺钉(德制)29DIN 319圆球型盖型螺母30DIN 404开槽带孔球面圆柱头螺钉31DIN 417开槽长圆柱端紧定螺钉DIN405 32DIN 427开槽平端紧定螺钉(半牙)33DIN 431小六角特薄细牙螺母34DIN 432外舌止动垫圈35DIN 433小垫圈(用于圆柱头螺钉)36DIN 434方斜垫圈(U型)37DIN 435方斜垫圈(I型)38DIN 436方垫圈39DIN 438开槽凹端紧定螺钉40DIN 439六角薄螺母41DIN 439六角薄螺母B级无倒角42DIN 439细牙六角薄螺母43DIN 440xx专用垫圈44DIN 443xx帽45DIN 444活节螺栓B型46DIN 462内舌止动垫圈47DIN 463xx止动垫圈48DIN 464滚花高头螺钉49DIN 465开槽滚花高头螺钉50DIN 466滚花高螺母51DIN 467滚花薄螺母52DIN 470锁紧垫圈53DIN 471轴用弹性挡圈54DIN 472xx弹性挡圈55 DIN 478方头带垫螺栓56 DIN 479方头圆柱底端螺栓57 DIN 480方头带垫半圆底端螺栓58 DIN 481弹性圆柱销59 DIN 508 T型槽螺母60 DIN 525单头螺柱61 DIN 529地脚螺栓62 DIN 546带槽圆螺母63 DIN 547端面带xx圆螺母64 DIN 551开槽平端紧定螺钉65 DIN 553开槽锥端紧定螺钉66 DIN 555六角螺母67 DIN 557方螺母-C68 DIN 558六角头螺钉69 DIN 561六角头圆柱端紧定螺钉70 DIN 562薄型方螺母-B71 DIN 571六角头xx72 DIN 580吊环螺钉73 DIN 582吊环螺母74 DIN 601六角头螺栓75 DIN 603大半圆头方颈螺栓(马车螺栓) C级76 DIN 604沉头带插销马车螺栓77 DIN 605沉头长方颈马车螺栓78 DIN 607半圆头带插销马车螺栓79 DIN 608沉头短方颈马车螺栓80 DIN 609六角头精配螺栓（长螺纹）81 DIN 610六角头精配螺栓（短螺纹）82 DIN 653滚花平头螺钉83 DIN 660半圆头铆钉84 DIN 661沉头铆钉85 DIN 662半沉头铆钉86 DIN 674大扁头铆钉87 DIN 703重型侧面带xx圆螺母88 DIN 705侧面带xx圆螺母89 DIN 741卡头90 DIN 787 T型槽螺钉91 DIN 835双头螺柱（牙长=2D）92 DIN 906xx锥型闭锁螺钉93 DIN 908xx直型闭锁螺钉94 DIN 909外六角锥型闭锁螺钉95 DIN 910外六角直型闭锁螺钉96 DIN 911xx扳手97 DIN 912xx圆柱头螺钉98 DIN 913xx平端紧定螺钉99 DIN 914xx尖端紧定螺钉100 DIN 915内六角圆柱端紧定螺钉101 DIN 916内六角凹端紧定螺钉102 DIN 917薄型盲螺母103 DIN 920开槽小圆柱头螺钉104 DIN 921开槽大圆柱头螺钉105 DIN 923开槽圆柱头轴肩螺钉106 DIN 927开槽无头轴肩螺钉107 DIN 928焊接方螺母108 DIN 929焊接六角螺母109 DIN 931六角头螺栓（半牙）110 DIN 933六角头螺栓（全牙）111 DIN 934六角头螺母(1型)112 DIN 934-2细牙六角头螺母(1型) 113 DIN 935开槽六角螺母114 DIN 936六角头薄螺母115 DIN 937六角头开槽薄螺母116 DIN 938双头螺距（牙长=1D）117 DIN 939双头螺距（牙长=1.25D）118 DIN 939双头螺距（牙长=1.5D）119 DIN 940双头螺距（牙长=1.5D）120 DIN 960六角头细牙螺栓（半牙）121 DIN 961六角头细牙螺栓（全牙）122 DIN 962头部穿孔六角头螺栓123 DIN 963开槽沉头螺钉124 DIN 964开槽半沉头螺钉125 DIN 965十字槽沉头螺钉126 DIN 966十字槽半沉头螺钉127 DIN 970六角头螺母128 DIN 971六角头螺母129 DIN 972细牙六角头螺母(2型)130 DIN 975牙条(全螺纹)131 DIN 976螺纹销132 DIN 979六角头开槽薄螺母（2型）133 DIN 980全金属六角锁紧螺母（1型）134 DIN 981圆螺母135 DIN 982六角头尼龙锁紧螺母136 DIN 985六角头薄型尼龙锁紧螺母137 DIN 986六角盖型尼龙锁紧螺母138 DIN 988配合垫片139 DIN 1052木材连接用垫片140 DIN 1151沉头钢钉141 DIN 1440销钉专用垫片A型142 DIN 1441销钉专用垫片143 DIN 1444带头销钉144 DIN 1471圆锥型槽销145 DIN 1472圆锥型槽销(半槽)146 DIN 1473平行槽销(带倒角)147 DIN 1474前端凹槽槽销148 DIN 1475中部凹槽槽销149 DIN 1476圆头槽销150 DIN 1477沉头槽销151 DIN 1479六角螺母棒152 DIN 1480花篮螺栓153 DIN 1481弹性圆柱销开槽重型154 DIN 1587组合式盖型螺母155 DIN 1804开槽圆螺母（配合沟头扳手）156 DIN 1816圆螺母（带插销孔）157 DIN 2093盘型弹簧垫圈158 DIN 3017喉箍159 DIN 3404润滑油嘴（旋扭头）160 DIN 3567管夹161 DIN 3570 U型螺栓162 DIN 5587 2型六角螺母A和B级163 DIN 6319球面垫圈164 DIN 6325圆柱销165 DIN 6330厚六角螺母166 DIN 6331厚六角法兰面螺母167 DIN 6334xx六角螺母168 DIN 6797-A外齿锁紧垫圈169 DIN 6797-I内齿锁紧垫圈170 DIN 6798-A外锯齿锁紧垫圈171 DIN 6798-I内锯齿锁紧垫圈172 DIN 6799开口挡圈173 DIN 6823六角xx面螺母174 DIN 6885平键（A型）175 DIN 6888半圆键176 DIN 6899嵌环（支撑环）177 DIN 6900机器螺钉和垫圈组合件178 DIN 6901自攻螺钉和垫圈组合件179 DIN 6912薄型带孔内六角圆柱头螺钉180 DIN 6914大六角头螺栓181 DIN 6915大六角螺母182 DIN 6916大垫圈183 DIN 6917楔型方垫圈184 DIN 6921六角法兰面螺栓加大系列B级185 DIN 6923六角xx面螺母186 DIN 6925全金属六角锁紧螺母(2型）187 DIN 7337开口型抽芯铆钉（沉头、扁圆头）188 DIN 7338扁平头半空心/全空心铆钉189 DIN 7343螺旋夹紧销190 DIN 7346轻型弹性圆柱销191 DIN 7349重型弹性圆柱销用垫圈192 DIN 7500 ISO公制螺纹螺钉(多种头型) 193 DIN 7504自攻自钻螺钉(多种头型)194 DIN 7513开槽切削螺纹螺钉(多种头型) 195 DIN 7516十字槽切削螺纹螺钉(多种头型) 196 DIN 7965 T型四爪螺母197 DIN 7968钢结构用六角头螺栓连接副198 DIN 7971开槽盘头自攻螺钉199 DIN 7972开槽沉头自攻螺钉200 DIN 7973开槽半沉头自攻螺钉201 DIN 7976六角头自攻螺钉202 DIN 7978圆锥销203 DIN 7980圆柱头螺钉用弹簧垫圈204 DIN 7981十字槽盘头自攻螺钉205 DIN 7982十字槽沉头自攻螺钉206 DIN 7983十字槽半沉头自攻螺钉207 DIN 7984薄型内六角圆柱头螺钉208 DIN 7985十字槽盘头螺钉209 DIN 7989钢结构用垫圈210 DIN 7990钢结构用六角头螺栓211 DIN 7991xx沉头螺钉212 DIN 7993轴用钢丝挡圈213 DIN 7995十字槽半沉头木螺钉214 DIN 7996十字槽圆头木螺钉215 DIN 7997十字槽沉头木螺钉216 DIN 8140螺纹护套（普通\自锁等）217 DIN 9021大外径垫圈218 DIN 11024弹簧xx219 DIN 13257平板螺栓220 DIN 18182干壁钉（墙板钉）221 DIN 28129环型螺母222 DIN 70952圆螺母用止退垫圈螺丝，紧固件，标准件词汇的中英文对照机(踏)车用螺丝、轴心Screws And Shafts For Motorcycle Or Bicycle 针车用螺丝、轴心Screws And Shafts For Sewing Maching止付螺丝Socket Set Screws不锈钢宽牙螺丝Stainless Steel Coarse Thread Screws不锈钢高低牙螺丝Stainless Steel High-Low Thread Screws不锈钢机械螺丝Stainless Steel Machine Screws不锈钢钻尾螺丝Stainless Steel Self Drilling Screws不锈钢自攻螺丝Stainless Steel Self Tapping Screws不锈钢自削螺丝Stainless Steel Thread Cutting Screws不锈钢三角牙螺丝Stainless Steel Tri-Lobular Thread Screws插片壁虎Steel Ceiling Anchors内迫壁虎Drop in Anchors碳钢锤钉壁虎Steel Hit Anchors碳钢六角螺帽Steel Hex Coupling Nuts强力xx壁虎Wedge Anchors外迫壁虎Cut Anchors化学壁虎Chemical Anchors不锈钢重载胀栓Heavy Duty Expansion Anchors鱼眼壁虎企眼长螺帽Tie Wire Anchors锌合金打入式壁虎Hammer Drive Anchors弹簧螺帽Strut Nuts兰花夹系列Toggle Bolts (Spring Toggle & Gravity Toggle)门窗、地板专用壁虎Nylon Frame Anchors or Metalframe Anchors石膏板中空壁虎Hollow Wall Anchors套管式壁虎Sleeve Anchors打入式壁虎鱼形尼龙壁虎Nylon Frame Harmmer Fixing (Nylon Hammer Drive Anchors)强力式锤钉壁虎Hit Anchors电梯壁虎Bolt Anchors重载壁虎Heavy duty anchors两片夹Loxin Masonry Anchors定位螺栓Set Bolts长型兰花夹Short Strap Anchors工具棒Drop in Setting Tools象脚壁虎Elephant foot anchors水泥预埋件Concrete Insert翻边胀轴Drop in Anchor with Lip冲件Legs Drywall Anchors六角盖头螺帽Hex Cap Nuts六角锯齿螺帽Hex Serrated Nuts六角轮缘螺帽Hex Flange Nuts高脚螺帽Hex Coupling Nuts(High Nuts) 圆螺帽Round Nuts四角螺帽Square Nuts管用螺帽Pipe Nuts轮壳螺帽Wheel Nuts蝶型螺帽Wing NutsU形螺帽U NutsT形螺帽T Nuts环首螺帽Eye Nuts齿形螺帽Kep Nuts齿花螺帽Clinch Nuts耐候钢六角重型螺帽Corten Steel Heavy Hex Nuts焊接螺帽Weld Nuts高张力螺帽Heigh Strength Nuts建业用螺帽Structural Nuts不锈钢螺帽Stainless Steel Nuts铜螺帽Brass Nuts铝螺帽Aluminum Nuts合金钢螺帽Alloy Steel Nuts重型车螺帽Heavy Duty Wheel Hub Nuts铁器焊接袋帽Acorn Cap Nuts金属预置扭矩式螺帽All-Metal Prevailing Torque Type Nuts 壁虎螺帽Anchor Nuts大尺寸螺帽Big Size Nuts铁盖袋帽Closed End Acorn Nuts盘形华司螺帽Conical Washer Nuts铁盖+尼龙圈组合盖帽Din 986 Domed Cap Nuts突缘尼龙盖帽Flange Nylon Insert Lock Nuts平面华司螺帽Flat Waser Nuts六角割沟螺帽Hex Slotted Nut自锁螺帽Self-Locking Nuts制止螺帽Sliding NutsSln-自动防松螺帽Sln Self-Locking Nuts其它特殊螺帽Special Nuts弹簧螺帽Spring Nuts不锈钢突缘螺帽Stainless Steel Flange Nuts不锈钢六角轮缘尼龙螺帽Stainless Steel Flange Nylon Insert Lock Nuts 不锈钢六角重型螺帽Stainless Steel Heavy Hex Nuts不锈钢六角螺帽Stainless Steel Hex Nuts不锈钢尼龙嵌入螺帽Stainless Steel Nylon Insert Lock Nuts普通六角螺帽Hex Nuts六角重型螺帽Heavy Hex Nuts薄型螺帽Hex Jam Nuts尼龙嵌入防松螺帽Nylon Insert Lock Nuts机械螺丝用六角螺帽Hex Machine Screw Nut六角螺丝(栓) Hex Head Cap Screws(Hex Bolts)六角机械螺丝Hex Head Machine Bolts六角xx螺丝Hex Lag Bolts四角螺丝Square Head BoltsT头螺丝T Head Bolts马车螺丝Carriage Bolts环首螺丝Eye Bolts内六角孔螺丝Hex Socket Cap Screws固定螺丝Set Screws螺椿栓Stud Bolts螺旋椿Screw Studs轮壳螺栓Wheel Bolts翼形螺丝Wing Screws自攻螺丝Self Tapping Screws自削螺丝Thread Cutting Screws钻尾螺丝Self Drilling Screws旋入螺丝Drive Screws机械螺丝Machine Screws木螺丝Wood Screws家具螺丝Furniture Screws塑板螺丝Chipboard Screws墙用螺丝Drywall Screws基础螺栓Foundation BoltsU型螺栓U Bolts勾头螺栓Hook Bolts套挂螺丝Toggle Bolts突缘螺丝Flange Bolts轨道螺栓(鱼尾螺丝) Track Bolts耐候钢螺丝Corten Steel Heavy Hex Bolts扭矩控制螺栓T.C.Bolts高张力螺栓High Strength Bolts剪力钉(焊接螺丝) Welding Studs螺丝附华司组合Screws And Washers Assembled(Sems)大尺寸螺栓Big Size Bolts不锈钢小螺丝Stainless Steel Sheet Metal Screws不锈钢大螺丝Stainless Steel Bolts铜螺丝Brass Screws铝螺丝Aluminum Screws合金钢螺丝Alloy Steel Screws电子螺丝Electronic Screws微小精密螺丝Micro Screws塑料螺丝Plastic Screws复合材料用螺丝Particle Board Screws钛合金螺丝Titanium Alloy Bolts钛、锆、钼、铌等螺丝、零件、材料Ti,Zr,Mo,Nb Pare Metal Bolts Parts 拇指螺丝Thumb Screws双头牙螺丝Double End Screws Hanger Bolt车辆(汽车)螺丝、螺帽Automotive Fasteners航天用螺丝Aerospace Fasteners飞机特殊扣件Source Control BoltsxxBlind Bolts面板螺丝Panel Fasteners电梯螺丝Elevator Bolts四角头固定螺丝Square Set Screws大头马车螺丝Step Bolts单向螺丝One Way Lag Screws管夹螺丝Hose Clamp Screws不锈钢固定螺丝Stainless Steel Hex Socket Cap Screws 不锈钢内六角螺丝Stainless Steel Hex Socket Cap Screws 铰链螺丝Hinge Screws货柜螺丝Container Screws复合材料钻尾螺丝Bi-Metal Self Drilling Screws三角牙螺丝Trilobular Thread Screws高低牙螺丝High Low Screws夹板用螺丝Particle Board Screws马桶螺丝Toilet Closet Bolts特长螺丝Special Longer Screws建业螺丝Building Fasteners不锈钢六角螺丝Stainless Steel Hex Socket Cap Screws 其它特殊螺丝Special Screws Or Bolts不锈钢特殊螺丝Special Stainless Steel Screws宽牙螺丝（粗牙螺丝）Coarse Thread Screws链带螺丝Collated Screws水泥螺丝Concrete Screws板模螺丝Construction Bolts锌蝶螺丝Die Cast Wing Screws; Zinc Alloy重型车螺丝Heavy Duty Wheel Hub Bolts内六角固定螺丝Hex Socket Set Screws复合材料用螺丝（夹板用）Particle Board Screws 犁壁螺丝Plow Bolts不锈钢木螺丝Stainless Steel Wood Screws套挂螺栓及螺丝Toggle Bolts钛合金膨胀螺丝Titanium Alloy Expansion Bolts 六角盖头螺帽Hex Cap Nuts六角锯齿螺帽Hex Serrated Nuts六角轮缘螺帽Hex Flange Nuts高脚螺帽Hex Coupling Nuts(High Nuts)圆螺帽Round Nuts四角螺帽Square Nuts管用螺帽Pipe Nuts轮壳螺帽Wheel Nuts蝶型螺帽Wing NutsU形螺帽U NutsT形螺帽T Nuts环首螺帽Eye Nuts齿形螺帽Kep Nuts齿花螺帽Clinch Nuts耐候钢六角重型螺帽Corten Steel Heavy Hex Nuts焊接螺帽Weld Nuts高张力螺帽Heigh Strength Nuts建业用螺帽Structural Nuts不锈钢螺帽Stainless Steel Nuts铜螺帽Brass Nuts铝螺帽Aluminum Nuts合金钢螺帽Alloy Steel Nuts重型车螺帽Heavy Duty Wheel Hub Nuts铁器焊接袋帽Acorn Cap Nuts金属预置扭矩式螺帽All-Metal Prevailing Torque Type Nuts 壁虎螺帽Anchor Nuts大尺寸螺帽Big Size Nuts铁盖袋帽Closed End Acorn Nuts盘形华司螺帽Conical Washer Nuts铁盖+尼龙圈组合盖帽Din 986 Domed Cap Nuts突缘尼龙盖帽Flange Nylon Insert Lock Nuts平面华司螺帽Flat Waser Nuts六角割沟螺帽Hex Slotted Nut自锁螺帽Self-Locking Nuts制止螺帽Sliding NutsSln-自动防松螺帽Sln Self-Locking Nuts其它特殊螺帽Special Nuts弹簧螺帽Spring Nuts不锈钢突缘螺帽Stainless Steel Flange Nuts不锈钢六角轮缘尼龙螺帽Stainless Steel Flange Nylon Insert Lock Nuts 不锈钢六角重型螺帽Stainless Steel Heavy Hex Nuts不锈钢六角螺帽Stainless Steel Hex Nuts不锈钢尼龙嵌入螺帽Stainless Steel Nylon Insert Lock Nuts锌压属螺帽Zinc Die Casting Nuts普通六角螺帽Hex Nuts六角重型螺帽Heavy Hex Nuts薄型螺帽Hex Jam Nuts尼龙嵌入防松螺帽Nylon Insert Lock Nuts机械螺丝用六角螺帽Hex Machine Screw Nut合金钢线材盘元Alloy Steel Wire Rod球状化线材Annealing Wire And Rod黑铁丝Black Wire黄铜棒线Brass Wire And Rod磨光棒钢Bright Steel Bar(Hex/Round/Square)铜合金线Copper Alloy Wire线切割线E.D.M Cutting Wire快削钢线材盘元Free Cutting Steel Wire Rod线材Iron Or Steel Wire线材盘元Iron Or Steel Wire Rod洋白铜线Nickel Silver Wire磷青铜线Phosphate Bronze Wire不锈钢条棒Stainless Steel Bar(Round/Hex/Square)不锈钢冷锻线材Stainless Steel Cold Heading Wire不锈钢线(抽线后) Stainless Steel Draw Wire不锈钢线材Stainless Steel Wire不锈钢线材及盘元Stainless Steel Wire And Rod棒钢Steel Bar(Hex/Round/Square)转回90度碾线头机90讧evolving Wire Twisting Machine气动拉钉机Air Riveter各式螺丝类产品自动包装Automatic Packaging For All Kinds Of Packaging 自动包装机Automatic Packing Machine螺丝制造搓牙机械Automatic Thread Rolling Machine螺丝割尾加工机械Automatic Thread Slotting Machine螺丝制造成型机械Automatic Trimming Machine拉钉打头机Blind Rivet Heading Machine螺丝、螺帽成型机Bolt Formers,Nuts Formers,Headers螺丝、螺帽热处理Bolt Nut And Screws Heat Treatment螺丝、螺帽热处理炉Bolt Nut And Screws Heat Treatment Furnaces球状化电器炖炉Carburizing Furnace Vacuum And Bell Type Furnace超防锈复合瓷膜Ceramic Coating连续式光辉渗碳淬火炉Continuous Bright Carburizing Quenching Furnace 连续式光辉调质淬火炉Continuous Bright Hardening Quenching Furnace 中、高热镀锌光辉连续炉Continuous Bright Heat Treat Furnace连续式光辉热处理炉Continuous Type Bright Heat Treatment Furnace螺丝割尾及特殊割遘加工Machine Screw Shank Slotting螺丝钻孔加工Screw Shank Drilling鸡眼上下模Eyelets Dies一般线材、盘元、退火炉General Wire,Wire Rod,Annealing Furnace倒立式滑落型伸线机Handstand Type Wire Drawing Machine十字冲模Header Punches In Various Drives成型冲模Header Punches In Various Drives螺丝打头机Heading Machine螺丝制造高速搓牙机械High Speed Automatic Thread Rolling Machine高中低周波感应加热炉High,Medium,Low Frequency Induction Heater 空心打头机Hollow Heading Machine热浸镀锌螺丝、螺帽Hot Dip Galvanizing Bolts And Nuts机械镀锌Mechanical Galvanized迷你成型机Mini-Formers成品自动收线机Non-Stop Coiler精抽自动收线机Non-Stop Coiler(Skinpass)螺帽模Nut Forming Dies螺帽成型模Nuts Formers特殊零件成型机Parts Forming Maching冲模Punch Dies冲子Punch Pins罗拉成型机Rollers Formers机(踏)车用螺丝成型机Screw For Motorcycle Or Bicycle Heading Machine 止付螺丝成型机Set Screws Formers套高成型机Sockets Formers一般线材、盘元、螺丝合金炖炉Spheroidizing Bright Annealing Furnace 球状化热处理炉Spheroidizing Heat Treatment Furnace攻牙机Tapping Machine螺丝攻、车刀、模具Taps Dies And Tools搓牙机铁屑分离装置Thread Chip Separator滚牙轮Thread Rolling Dies牙板Thread Rolling Dies Plates精密油压滚牙机Hydraulic Thread Rolling Machines模具Tools六角整头模Trimming Dies Hexagan碳化钨模具Tungsten Carbide Die镀钛处理(Tin)专业加工服务Tin Hard Coating For Cutting Tools And Punch By Pvd电镀化学原料Various Electroplating Chemicals环规校正Calibration For Ring Gage环规、牙规、三线规校正Calibration For Ring Gage, Athread Gage, 3 Wire Gage螺丝、螺帽品检量测仪器Fasteners Inspection And Measurement Instruments螺丝、螺帽成型攻牙专用油Forming And Tapping Oils For Bolts And Nuts Formers螺丝、螺帽五金等检验Insptection Services For Fasteners And Hardware德国schatz扭力机代理Representative Of Schatz Torque MachinIso品质保证系统Iso Quality Assurance System生产管理系统Production Control System物料管理系统Material Control System齿轮Gears不锈钢牙条棒Stainless Steel Hread Rod马达轴承轴心组件Bearing Shaft(Motor)轴承轴心Bearing Shaft开口铆钉Blind Rivets长形拉帽Blind Rivet Nuts拉帽Blind NutsxxBlind Rivets实心梢Clevis Pins And Straight Pins弹片Clips卷钉Coil Nails冷锻零件Cold Forming Part开口销Cotter PinsE型环E-Rings膨胀螺栓Expansion Anchor Bolts鸡眼钉Eyelets RivetsR型销Snap Pins闸、锁Latches And Keeper Assembleds其它特殊铆钉Other Specil Rivets销Pins格式管夹、管束Pipe Hanger铆钉Rivets螺旋锔及螺旋圈Screw Hook And Screw Rings 中空钉Semi-Tubular Rivet开叉钉Split Drive Anchors弹簧华司Spring Washers弹簧蝴蝶夹Spring Wings不锈钢华司Stainlesssteel Washers钢铁钉Steel And Iron Nails搓牙铁钉Thread Nails钛合金铆钉Titaium Alloy Rivets管形铆钉Tubular Rivets华司Washers真空热处理Vacuum Heat Treatment螺丝、螺帽、五金、Diy扣件Fasteners合金钢工具Alloy Steel Tools螺栓模Bolt Heading Dies手动xx钳Hand Riveter船舶链Anchor Chain脚踏车链锁Bicycle Chain Locks螺丝起子Bit罗拉Chain Roller特殊铆合扣件Collars(A Blindfastener For Huck Intl) 装饰链Decorative Chains自攻螺纹衬套Ensat Threaded Inserts六角扳手Hexagon Keys超音螺纹压入式螺纹自动锁扣Threaded Inserts For Plastic Injection Mouldeings汽车特殊杆接件Special Auto-Mobile Fastener As Your Needs螺纹护套Recoil Inserts链条用滚子Roller For Roller Chain金属板镶嵌组件及自动夹扣组件Sheet Metal Fasteners工具套筒组件Socket Wrench Sets不锈钢链Stainless Steel Chains轭子T-Yoke轮胎链Tire Chains狗链Dog Chains喇叭头轭铁U-Yoke,T-Yoke For Speaker不锈钢输送带轮用轨道Stainless Wheel's Rack For Transporter工业用链Industrial Steel Link Chains拖链安全链Tow Chains And Safety Chains机车离合器零件Manufacture Of Motorcycle's Cvt Parts牙条棒Thread Rod。
根据GB/T 13304《钢分类》标准，按照基本性能及使用特性一，弹簧钢属于机械结构用钢；按照质量等级，属于特殊质量钢，即在生产过程中需要特别严格控制质量和性能的钢。
按照化学成分分类：1.碳素弹簧钢。
· 2.合金弹簧钢。
1、碳素弹簧钢:多采用材质为：65#,70#、65Mn、82B、72A、72B钢丝，特点是可塑性低，弹性强，抗应力能力强.用途：多用于席梦思床、汽车及各种靠垫、机械制造、文具电动工具、体育用械、扭簧用、拉簧用、电器设备等行业.。
规格范围：线径Φ0.20mm-Φ6.50mm. 标准：碳素弹簧钢丝国家标准GB4357-89 主要用途：用于制造在冷状态下缠绕成形而不经淬火的弹簧2.合金弹簧钢：合金弹簧弹钢是用于制造制弹簧或者其他弹性零件的钢种。
弹簧一般是在交变应力下工作，常见的破坏形式是疲劳破坏，因此，合金弹簧钢必须具有高的屈服点和屈强比（σs/ σb）、弹性极限、抗疲劳性能，以保证弹簧有足够的弹性变形能力并能承受较大的载荷。
同时，合金弹簧钢还要求具有一定的塑性与韧性，一定的淬透性，不易脱碳及不易过热。
一些特殊弹簧还要求有耐热性、耐蚀性或在长时间内有稳定的弹性。
中碳钢和高碳钢都可作弹簧使用，但因其淬透性和强度较低，只能用来制造截面较小、受力较小的弹簧。
合金弹簧钢则可制造截面较大、屈服极限较高的重要弹簧常见弹簧材料种类：1、油淬火回火弹簧钢丝2、碳素弹簧钢丝3、非机械弹簧用碳素弹簧钢丝4、工具钢冷轧钢带5、回火弹簧钢丝用热扎盘条6、铬钒弹簧钢丝7、铬钒合金弹簧钢丝8、硅锰合金弹簧钢丝9、火铬硅合金弹簧钢丝10、硅锰弹簧钢丝11、铬钒弹簧钢丝12、铬硅弹簧钢丝13、弹簧钢钢材。
