Lenovo ThinkServer RQ750Lenovo Press产品指南ThinkServer RQ750是一款四路2U机架式服务器，它采用Intel Xeon E5-4600 v3处理器，最高支持1TB的DDR4内存。
RQ750可提高业务应用程序的性能并加快IO，高效的设计有助于降低功耗和成本；可扩展的设计可根据您的业务需求进行扩展，同时降低成本；远程管理功能可提高可靠性并延长无故障运行时间。
建议用途：适用于政府和中型企业IT核心应用程序，包括大中型数据库服务器、虚拟化、财务管理以及ERP和CRM等关键任务系统。
图1：Lenovo ThinkServer RQ750相关信息ThinkServer RQ750采用Intel Xeon E5-4600系列处理器，可按成本高效的方式为您提供四路性能。
Click here to check for updates除了多达八个SAS或SATA驱动器以外，ThinkServer RQ750最多还可支持四个高性能PCIe NVMe固态硬盘。
NVMe驱动器可提供最佳存储性能，因为它们直接连接到处理器的PCIe总线，并采用最新的固态硬盘技术。
主要特性ThinkServer RQ750采用节省空间的2U设计，可提供四路性能。
该服务器采用节能设计、强大的高性能处理器、大容量高性能DDR4内存，灵活的存储和网络配置非常适合关键任务应用程序和虚拟化部署使用。
可扩展性和性能RQ750提供了各种特性，可提高性能、增强可扩展性并降低成本：•通过多达18个内核的Intel Xeon processor E5-4600 v3系列处理器、最高45 MB的三级缓存以及最高9.6 GT/秒的QPI互连链路提供优良的系统性能，进而提高生产效率。
▪最多支持四个处理器、72个内核和144个线程，可最大限度地提高多线程应用的并行执行性能。
▪采用高能效英特尔睿频加速技术2.0（Intel Turbo Boost Technology 2.0）提供智能、适应性的系统性能，可允许CPU内核在峰值负载期间以最高速度运行，暂时超出处理器热设计功率（TDP）。

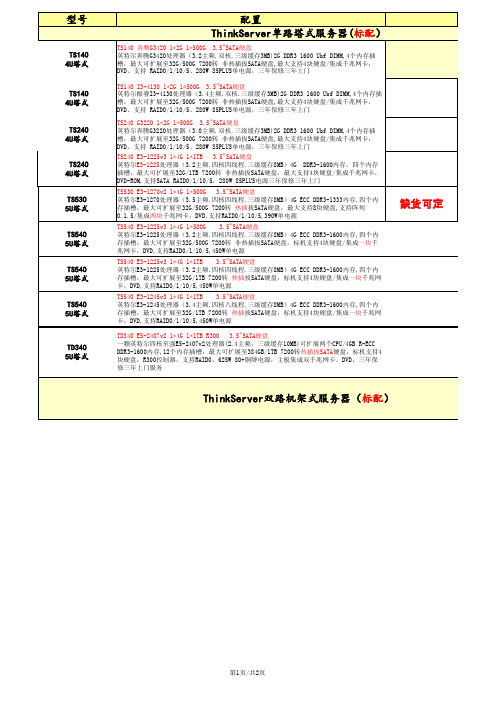

配置TS140 奔腾G3420 1*2G 1*500G 3.5"SATA硬盘英特尔奔腾G3420处理器（3.2主频.双核.三级缓存3MB)2G DDR3 1600 Ubf DIMM,4个内存插槽，最大可扩展至32G/500G 7200转 非热插拔SATA硬盘,最大支持4块硬盘/集成千兆网卡，DVD、支持RAID0/1/10/5、280W 85PLUS单电源，三年保修三年上门TS140 I3-4130 1*2G 1*500G 3.5"SATA硬盘英特尔酷睿I3-4130处理器（3.4主频.双核.三级缓存3MB)2G DDR3 1600 Ubf DIMM,4个内存插槽，最大可扩展至32G/500G 7200转 非热插拔SATA硬盘,最大支持4块硬盘/集成千兆网卡，DVD、支持 RAID0/1/10/5、280W 85PLUS单电源，三年保修三年上门TS240 G3220 1*2G 1*500G 3.5"SATA硬盘英特尔奔腾G3220处理器（3.0主频.双核.三级缓存3MB)2G DDR3 1600 Ubf DIMM,4个内存插槽，最大可扩展至32G/500G 7200转 非热插拔SATA硬盘,最大支持4块硬盘/集成千兆网卡，DVD、支持RAID0/1/10/5、280W 85PLUS单电源，三年保修三年上门TS240 E3-1225v3 1*4G 1*1TB 3.5"SATA硬盘英特尔E3-1225处理器（3.2主频.四核四线程.三级缓存8MB）4G DDR3-1600内存，四个内存插槽，最大可扩展至32G/1TB 7200转 非热插拔SATA硬盘，最大支持4块硬盘/集成千兆网卡，DVD-ROM,支持SATA RAID0/1/10/5，280W 85PLUS电源三年保修三年上门TS530 E3-1270v2 1*4G 1*500G 3.5"SATA硬盘英特尔E3-1270处理器（3.5主频.四核四线程.三级缓存8MB）4G ECC DDR3-1333内存,四个内存插槽，最大可扩展至32G/500G 7200转 热插拔SATA硬盘，最大支持8块硬盘,支持阵列0.1.5/集成两块千兆网卡，DVD,支持RAID0/1/10/5,390W单电源缺货可定TS540 E3-1225v3 1*4G 1*500G 3.5"SATA硬盘英特尔E3-1225处理器（3.2主频.四核四线程.三级缓存8MB）4G ECC DDR3-1600内存,四个内存插槽，最大可扩展至32G/500G 7200转 非热插拔SATA硬盘，标机支持4块硬盘/集成一块千兆网卡，DVD,支持RAID0/1/10/5,450W单电源TS540 E3-1225v3 1*4G 1*1TB 3.5"SATA硬盘英特尔E3-1225处理器（3.2主频.四核四线程.三级缓存8MB）4G ECC DDR3-1600内存,四个内存插槽，最大可扩展至32G/1TB 7200转 热插拔SATA硬盘，标机支持4块硬盘/集成一块千兆网卡，DVD,支持RAID0/1/10/5,450W单电源TS540 E3-1245v3 1*4G 1*1TB 3.5"SATA硬盘英特尔E3-1245处理器（3.4主频.四核八线程.三级缓存8MB）4G ECC DDR3-1600内存,四个内存插槽，最大可扩展至32G/1TB 7200转 热插拔SATA硬盘，标机支持4块硬盘/集成一块千兆网卡，DVD,支持RAID0/1/10/5,450W单电源TD340 E5-2407v2 1*4G 1*1TB R300 3.5"SATA硬盘一颗英特尔四核至强E5-2407v2处理器(2.4主频，三级缓存10MB)可扩展两个CPU/4GB R-ECC DDR3-1600内存,12个内存插槽，最大可扩展至384GB/1TB 7200转热插拔SATA 硬盘，标机支持4块硬盘，R300控制器，支持RAID0，625W 80+铜牌电源，主板集成双千兆网卡。
Lenovo ThinkServer TS150 (Intel Xeon E3-1200 v5, Core i3, Pentium/Celeron G Series Processors)Product Guide (withdrawn product)The Lenovo ThinkServer TS150 is the perfect first tower server for small and medium businesses, remote or branch offices, and retail environments. It features the latest Intel Xeon processor E3-1200 v5 product family with four cores and support for up to 64 GB of 2133 MHz DDR4 UDIMM memory. Also, it offers an integrated NIC and additional PCIe expansion slots for advanced RAID protection and network scalability. Up to 24 TB of internal enterprise-class storage supports storage-intensive workloads, such as office applications, web, e-mail and file and print serving, and provides growth capacity.The following figure shows the Lenovo ThinkServer TS150.Figure 1. Lenovo ThinkServer TS150Did you know?The TS150 offers enterprise-class reliability features such as error correcting code (ECC), the onboard RAID controller, and enterprise-class hard drives and network adapters at an affordable price.Intel Active Management Technology (AMT) built into the TS150 offers easy-to-use, industry-standard management tools for remote monitoring, updates, and repairs.The TS150 runs a wide range of server operating systems, and it also supports client OS capability.The TS150 is among the quietest tower servers in the industry that fits under or beside an office desk.Components and connectorsThe following figure shows the front of the TS150.Figure 2. TS150 front viewThe following figure shows the rear of the TS150.Figure 3. TS150 rear viewFigure 4. TS150 internal viewSystem specificationsThe following table lists the system specifications.Table 1. System specificationsComponents SpecificationForm factor Tower or 4U rack-mount (on a shelf)Processor One processor:Intel Xeon processor E3-1200 v5 product family with four cores up to 3.7 GHz, 8 MBcache, and up to 2133 MHz memory speed; orIntel Core i3 processor 6100/6300 product families with two cores up to 3.9 GHz, up to4 MB cache, and 2133 MHz memory speed; orIntel Pentium processor G4400/G4500 product families with two cores up to 3.6 GHz, 3MB cache, and up to 2133 MHz memory speed; orIntel Celeron Processor G3900 product family with two cores up to 2.9 GHz, 2 MBcache, and up to 1866 MHz memory speed.Chipset Intel C236.ProcessorsThe TS150 supports one processor. The following table lists the specifications of the processors that are available for the TS150.Table 2. Processor specifications (Hyper-Threading [HT], Turbo Boost [TB], Virtualization Technology [VT])Processor model Core frequency(Base / TB Max)Cores /Threads CacheMax DDR4frequency TDP HT TB VT-x VT-d IG#Mgmt*Intel Xeon processorsE3-1220 v5 3 / 3.5 GHz 4 / 48 MB2133 MHz80 W No Yes Yes Yes No AMT E3-1225 v5 3.3 / 3.7 GHz 4 / 48 MB2133 MHz80 W No Yes Yes Yes Yes AMT E3-1230 v5 3.4 / 3.8 GHz 4 / 88 MB2133 MHz80 W Yes Yes Yes Yes No AMT E3-1240 v5 3.5 / 3.9 GHz 4 / 88 MB2133 MHz80 W Yes Yes Yes Yes No AMT E3-1245 v5 3.5 / 3.9 GHz 4 / 88 MB2133 MHz80 W Yes Yes Yes Yes Yes AMT E3-1270 v5 3.6 / 4 GHz 4 / 88 MB2133 MHz80 W Yes Yes Yes Yes No AMT E3-1275 v5 3.6 / 4 GHz 4 / 88 MB2133 MHz80 W Yes Yes Yes Yes Yes AMT E3-1280 v5 3.7 / 4 GHz 4 / 88 MB2133 MHz80 W Yes Yes Yes Yes No AMT Intel Core processorsi3-6100 3.7 GHz 2 / 4 3 MB2133 MHz51 W Yes No Yes Yes Yes ISM i3-6100T 3.2 GHz 2 / 4 3 MB2133 MHz35 W Yes No Yes Yes Yes ISM i3-6300 3.8 GHz 2 / 4 4 MB2133 MHz51 W Yes No Yes Yes Yes ISM i3-6300T 3.3 GHz 2 / 4 4 MB2133 MHz35 W Yes No Yes Yes Yes ISM i3-6320 3.9 GHz 2 / 4 4 MB2133 MHz51 W Yes No Yes Yes Yes ISM Intel Pentium processorsG4400 3.3 GHz 2 / 2 3 MB2133 MHz54 W No No Yes Yes Yes ISM G4400T 2.9 GHz 2 / 2 3 MB2133 MHz35 W No No Yes Yes Yes ISM G4500 3.5 GHz 2 / 2 3 MB2133 MHz51 W No No Yes Yes Yes ISM G4500T 3 GHz 2 / 2 3 MB2133 MHz35 W No No Yes Yes Yes ISM G4520 3.6 GHz 2 / 2 3 MB2133 MHz51 W No No Yes Yes Yes ISM Intel Celeron processorsG3900 2.8 GHz 2 / 2 2 MB1866 MHz51 W No No Yes Yes Yes ISM G3900T 2.6 GHz 2 / 2 2 MB1866 MHz35 W No No Yes Yes Yes ISM G3920 2.9 GHz 2 / 2 2 MB1866 MHz51 W No No Yes Yes Yes ISM * Mgmt = Management# IG = Intel Integrated HD GraphicsMemoryInternal storageThe TS150 server supports the following internal storage configurations:1. 4x 3.5-inch + 1x2.5-inch non-hot-swap drive bays + slim optical drive bay2. 3x3.5-inch + 1x 2.5-inch non-hot-swap drive bays + half high (HH) optical drive bay3. 3x 3.5-inch + 1x 2.5-inch non-hot-swap drive bays + slim optical drive bay + ODD/backup drive bay4. 2x 3.5-inch + 1x 2.5-inch non-hot-swap drive bays + HH optical drive bay + ODD/backup drive bay These configurations are shown in the following figure.Figure 5. Internal storage configurationsIn addition, the TS150 server can be upgraded with 2x SD card internal slots. The SD card slots are connected to the Intel Platform Controller Hub (PCH) via USB.The following table lists the internal storage expansion options that are available for the TS150 server.Table 5. Internal storage expansion optionsDescriptionPart number Maximum supported ThinkServer TS150 3.5" HDD to 5.25" Tray Convertor Kit4XF0G889351ThinkServer TS150 3.5" HDD to 5.25" Tray Convertor with Slim ODD Kit 4XF0G889361ThinkServer TS150 FDD to 2.5" HDD Convertor Kit 4XF0G889341ThinkServer SDHC Flash Assembly Module4XF0G889331Cache None NoneCache protection None NoneFastPath None NoneCacheCade Pro 2.0None NoneFeature RAID 121i RAID 520i* The RAID 121i is a hardware-assist, software RAID feature (Intel Rapid Storage Technology Enterprise [RSTe]) integrated into the Intel C236 Platform Controller Hub (PCH).** Up to four ports are used for SATA HDDs or SSDs, and the remaining two ports are used for optical drives; or up to five ports are used for SATA HDDs or SSDs, and the remaining port is used for an optical drive.The following table lists drive types and internal drive bay configurations that are supported by the internal RAID controller.Table 8. Storage controllers, drive types, and internal drive baysStorage controller Drive type4x 3.5-inch + 1x 2.5-inch non-hot-swap drive baysRAID 121i NL SATA HDD YesSATA SSD YesRAID 520i NL SATA HDD YesSATA SSD YesDrives for internal storageThe TS150 server supports the internal drive options listed in the following table.Table 9. Internal drive optionsDescription Part number Maximum supported3.5-inch non-hot-swap HDDs - SATA 6 GbpsThinkServer 3.5" 1TB 7.2K SATA 6Gbps Hard Drive (Desktop)4XB0G887554 ThinkServer 3.5" 2TB 7.2K SATA 6Gbps Hard Drive (Desktop)4XB0G887564 3.5-inch non-hot-swap HDDs - NL SATA 6 GbpsThinkServer TS150 3.5" 500GB 7.2K Enterprise SATA 6Gbps HDD4XB0G887584 ThinkServer TS150 3.5" 1TB 7.2K Enterprise SATA 6Gbps HDD4XB0G887604 ThinkServer TS150 3.5" 2TB 7.2K Enterprise SATA 6Gbps HDD4XB0G887644 ThinkServer TS150 3.5" 4TB 7.2K Enterprise SATA 6Gbps HDD4XB0G887964 ThinkServer TS150 3.5" 5TB 7.2K Enterprise SATA 6Gbps HDD4XB0G887974 ThinkServer TS150 3.5" 6TB 7.2K Enterprise SATA 6Gbps HDD4XB0G887984 2.5-inch non-hot-swap SSDs (2.5-in. SSDs in 3.5-in. drive trays) - 5100 Enterprise Mainstream SATA 6 Gbps TS150 2.5" 240GB 5100 Enterprise Mainstream SATA 6Gbps SSD with 3.5" Tray4XB0K124225 TS150 2.5" 480GB 5100 Enterprise Mainstream SATA 6Gbps SSD with 3.5" Tray4XB0K124245 TS150 2.5" 960GB 5100 Enterprise Mainstream SATA 6Gbps SSD with 3.5" Tray4XB0K124265 2.5-inch non-hot-swap SSDs (2.5-in. SSDs in 3.5-in. drive trays) - 5100 Enterprise Entry SATA 6 GbpsTS150 2.5" 480GB 5100 Enterprise Entry SATA 6Gbps SSD with 3.5" Tray4XB0N684925 TS150 2.5" 960GB 5100 Enterprise Entry SATA 6Gbps SSD with 3.5" Tray4XB0N684945 2.5-inch non-hot-swap SSDs (2.5-in. SSDs in 3.5-in. drive trays) - PM863a Enterprise Entry SATA 6 Gbps TS150 2.5" 240GB PM863a Enterprise Entry SATA 6Gbps SSD with 3.5" Tray4XB0K123545External storage systemsThe TS150 server can be attached to external NAS storage via 1 Gb Ethernet network, or SAN storage systems via 1 Gb iSCSI with an iSCSI software initiator in the operating system.The following table lists the external storage systems that are offered by Lenovo and support 1 Gb Ethernet NAS or 1 Gb iSCSI connectivity.Table 17. External storage systemsDescription Part numberLenovo ThinkSystem DS Series Storage (iSCSI connectivity)Lenovo ThinkSystem DS2200 LFF FC/iSCSI Dual Controller Unit (US English documentation)4599A31* Lenovo ThinkSystem DS2200 LFF FC/iSCSI Dual Controller Unit (Simplified Chinese documentation)4599A3C^ Lenovo ThinkSystem DS2200 LFF FC/iSCSI Dual Controller Unit (Japanese documentation)4599A3J** Lenovo ThinkSystem DS2200 SFF FC/iSCSI Dual Controller Unit (US English documentation)4599A11* Lenovo ThinkSystem DS2200 SFF FC/iSCSI Dual Controller Unit (Simplified Chinese documentation)4599A1C^ Lenovo ThinkSystem DS2200 SFF FC/iSCSI Dual Controller Unit (Japanese documentation)4599A1J** Lenovo ThinkSystem DS4200 LFF FC/iSCSI Dual Controller Unit (US English documentation)4617A31* Lenovo ThinkSystem DS4200 LFF FC/iSCSI Dual Controller Unit (Simplified Chinese documentation)4617A3C^ Lenovo ThinkSystem DS4200 LFF FC/iSCSI Dual Controller Unit (Japanese documentation)4617A3J** Lenovo ThinkSystem DS4200 SFF FC/iSCSI Dual Controller Unit (US English documentation)4617A11* Lenovo ThinkSystem DS4200 SFF FC/iSCSI Dual Controller Unit (Simplified Chinese documentation)4617A1C^ Lenovo ThinkSystem DS4200 SFF FC/iSCSI Dual Controller Unit (Japanese documentation)4617A1J** Lenovo ThinkSystem DS6200 SFF FC/iSCSI Dual Controller Unit (US English documentation)4619A11* Lenovo ThinkSystem DS6200 SFF FC/iSCSI Dual Controller Unit (Simplified Chinese documentation)4619A1C^ Lenovo Storage S Series (iSCSI connectivity)Lenovo Storage S2200 LFF Chassis FC/iSCSI Single Controller, Rack Kit, 9x5NBD64114B1 Lenovo Storage S2200 LFF Chassis FC/iSCSI Dual Controller, Rack Kit, 9x5NBD64114B2 Lenovo Storage S2200 SFF Chassis FC/iSCSI Single Controller, Rack Kit, 9x5NBD64114B3 Lenovo Storage S2200 SFF Chassis FC/iSCSI Dual Controller, Rack Kit, 9x5NBD64114B4 Lenovo Storage S3200 LFF Chassis FC/iSCSI Single Controller, Rack Kit, 9x5NBD64116B1 Lenovo Storage S3200 LFF Chassis FC/iSCSI Dual Controller, Rack Kit, 9x5NBD64116B2 Lenovo Storage S3200 SFF Chassis FC/iSCSI Single Controller, Rack Kit, 9x5NBD64116B3 Lenovo Storage S3200 SFF Chassis FC/iSCSI Dual Controller, Rack Kit, 9x5NBD64116B4 Lenovo Storage V Series (iSCSI connectivity)Lenovo Storage V3700 V2 LFF Control Enclosure6535C1D Lenovo Storage V3700 V2 LFF Control Enclosure (TopSeller)6535EC1 Lenovo Storage V3700 V2 SFF Control Enclosure6535C2D Lenovo Storage V3700 V2 SFF Control Enclosure (TopSeller)6535EC2 Lenovo Storage V3700 V2 XP LFF Control Enclosure6535C3D Lenovo Storage V3700 V2 XP LFF Control Enclosure (TopSeller)6535EC3 Lenovo Storage V3700 V2 XP SFF Control Enclosure6535C4D Lenovo Storage V3700 V2 XP SFF Control Enclosure (TopSeller)6535EC4 Lenovo Storage V5030 LFF Control Enclosure 3Yr S&S6536C12Description number Lenovo Storage V5030 LFF Control Enclosure 5Yr S&S6536C32 Lenovo Storage V5030 SFF Control Enclosure 3Yr S&S6536C22 Lenovo Storage V5030 SFF Control Enclosure 5Yr S&S6536C42 Lenovo Storage V5030F SFF Control Enclosure 3Yr S&S6536B1F Lenovo Storage V5030F SFF Control Enclosure 5Yr S&S6536B2F IBM Storwize for Lenovo (iSCSI connectivity)IBM Storwize V3500 3.5-inch Dual Control Storage Controller Unit6096CU2^ IBM Storwize V3500 2.5-inch Dual Control Storage Controller Unit6096CU3^ IBM Storwize V3700 3.5-inch Storage Controller Unit6099L2C IBM Storwize V3700 2.5-inch Storage Controller Unit6099S2C IBM Storwize V7000 2.5-inch Storage Controller Unit, w/3 Yr S&S (Model 524)6195SC5†IBM Storwize V7000 2.5-inch Storage Controller Unit, w/3 Yr S&S (LA) (Model 524)6195SCL‡IBM Storwize V7000 2.5-inch Storage Controller Unit, w/5 Yr S&S (Model 524)61951F1†IBM Storwize V7000 2.5-inch Storage Controller Unit, w/5 Yr S&S (LA) (Model 524)61951FL‡IBM Storwize V7000 SFF Control Enclosure, 3YR SWMA (Model HC1 [Gen2+])6195C32†IBM Storwize V7000 SFF Control Enclosure, 3YR SWMA, LA (Model HC1 [Gen2+])6195C3L‡IBM Storwize V7000 SFF Control Enclosure, 5YR SWMA (Model HC1 [Gen2+])6195C52†IBM Storwize V7000 SFF Control Enclosure, 5YR SWMA, LA (Model HC1 [Gen2+])6195C5L‡Lenovo Storage DX8200 Series (NAS or iSCSI connectivity)Lenovo Storage DX8200D Storage Virtualization Entry, 4TB, 3yr SW S&S5135A2x# Lenovo Storage DX8200D Storage Virtualization Entry, 4TB, 4yr SW S&S5135J2x# Lenovo Storage DX8200D Storage Virtualization Entry, 4TB, 5yr SW S&S51351Vx# Lenovo Storage DX8200D Storage Virtualization Mid, 16TB, 3yr SW S&S5135B2x# Lenovo Storage DX8200D Storage Virtualization Mid, 16TB, 4yr SW S&S5135L2x# Lenovo Storage DX8200D Storage Virtualization Mid, 16TB, 5yr SW S&S51352Vx# Lenovo Storage DX8200D Storage Virtualization High, 64TB, 3yr SW S&S5135C3x# Lenovo Storage DX8200D Storage Virtualization High, 64TB, 4yr SW S&S5135M3x# Lenovo Storage DX8200D Storage Virtualization High, 64TB, 5yr SW S&S51353Wx# Lenovo Storage DX8200D ServerSAN Entry, 8TB, 3yr SW S&S5135D2x# Lenovo Storage DX8200D ServerSAN Entry, 8TB, 4yr SW S&S5135N2x# Lenovo Storage DX8200D ServerSAN Entry, 8TB, 5yr SW S&S51354Vx# Lenovo Storage DX8200D ServerSAN Mid, 16TB, 3yr SW S&S5135F2x# Lenovo Storage DX8200D ServerSAN Mid, 16TB, 4yr SW S&S5135P2x# Lenovo Storage DX8200D ServerSAN Mid, 16TB, 5yr SW S&S51355Vx# Lenovo Storage DX8200D ServerSAN High, 32TB, 3yr SW S&S5135G3x# Lenovo Storage DX8200D ServerSAN High, 32TB, 4yr SW S&S5135Q3x# Lenovo Storage DX8200D ServerSAN High, 32TB, 5yr SW S&S51356Wx# Lenovo Storage DX8200N with 1x N2226 HBA (Requires a supported external drive enclosure)5128A1x# Lenovo Storage DX8200N with 2x N2226 HBAs (Requires a supported external drive enclosure)5128A2x# Lenovo Storage DX8200 Series (S3 cloud storage)Lenovo Storage DX8200C 56TB (14x 4TB HDDs) with Cloudian HyperStore - 3yr HW/SW S&S5120C1x#Rack cabinetsThe following table lists the rack cabinets that are offered by Lenovo that can be used in ThinkServer TS150 solutions.Table 19. Rack cabinetsDescription Part number 25U S2 Standard Rack93072RX25U Static S2 Standard Rack93072PX42U S2 Standard Rack93074RX42U 1100mm Enterprise V2 Dynamic Rack93634PX42U 1100mm Enterprise V2 Dynamic Expansion Rack93634EX42U 1200mm Deep Dynamic Rack93604PX42U 1200mm Deep Static Rack93614PX42U Enterprise Rack93084PX42U Enterprise Expansion Rack93084EXFor more information, see the list of Product Guides in the Rack Cabinets category:/servers/options/racksKVM switches and consolesThe following table lists the KVM switches and consoles that are offered by Lenovo that can be used in ThinkServer TS150 solutions.Table 20. KVM switch and console optionsDescription Part number Consoles1U 18.5" Standard Console (without keyboard)17238BX Console keyboardsLenovo UltraNav Keyboard USB - US Eng00MW310 Keyboard w/ Int. Pointing Device USB - Arabic 253 RoHS v246W6713 Keyboard w/ Int. Pointing Device USB - Belg/UK 120 RoHS v246W6714 Keyboard w/ Int. Pointing Device USB - Chinese/US 467 RoHS v246W6715 Keyboard w/ Int. Pointing Device USB - Czech 489 RoHS v246W6716 Keyboard w/ Int. Pointing Device USB - Danish 159 RoHS v246W6717 Keyboard w/ Int. Pointing Device USB - Dutch 143 RoHS v246W6718 Keyboard w/ Int. Pointing Device USB - French 189 RoHS v246W6719 Keyboard w/ Int. Pointing Device USB - Fr/Canada 445 RoHS v246W6720 Keyboard w/ Int. Pointing Device USB - German 129 RoHS v246W6721 Keyboard w/ Int. Pointing Device USB - Greek 219 RoHS v246W6722 Keyboard w/ Int. Pointing Device USB - Hebrew 212 RoHS v246W6723 Keyboard w/ Int. Pointing Device USB - Hungarian 208 RoHS v246W6724 Keyboard w/ Int. Pointing Device USB - Italian 141 RoHS v246W6725 Keyboard w/ Int. Pointing Device USB - Japanese 194 RoHS v246W6726Description Part number Keyboard w/ Int. Pointing Device USB - Korean 413 RoHS v246W6727 Keyboard w/ Int. Pointing Device USB - LA Span 171 RoHS v246W6728 Keyboard w/ Int. Pointing Device USB - Norwegian 155 RoHS v246W6729 Keyboard w/ Int. Pointing Device USB - Polish 214 RoHS v246W6730 Keyboard w/ Int. Pointing Device USB - Portugese 163 RoHS v246W6731 Keyboard w/ Int. Pointing Device USB - Russian 441 RoHS v246W6732 Keyboard w/ Int. Pointing Device USB - Slovak 245 RoHS v246W6733 Keyboard w/ Int. Pointing Device USB - Spanish 172 RoHS v246W6734 Keyboard w/ Int. Pointing Device USB - Swed/Finn 153 RoHS v246W6735 Keyboard w/ Int. Pointing Device USB - Swiss F/G 150 RoHS v246W6736 Keyboard w/ Int. Pointing Device USB - Thai 191 RoHS v246W6737 Keyboard w/ Int. Pointing Device USB - Turkish 179 RoHS v246W6738 Keyboard w/ Int. Pointing Device USB - UK Eng 166 RoHS v246W6739 Keyboard w/ Int. Pointing Device USB - US Euro 103P RoHS v246W6740 Keyboard w/ Int. Pointing Device USB - Slovenian 234 RoHS v246W6741 Console switchesGlobal 4x2x32 Console Manager (GCM32)1754D2X Global 2x2x16 Console Manager (GCM16)1754D1X Local 2x16 Console Manager (LCM16)1754A2X Local 1x8 Console Manager (LCM8)1754A1X Console cablesSingle Cable USB Conversion Option (UCO)43V6147 USB Conversion Option (4 Pack UCO)39M2895 Virtual Media Conversion Option Gen2 (VCO2)46M5383 Serial Conversion Option (SCO)46M5382For more information, see the list of Product Guides in the KVM Switches and Consoles category:/servers/options/kvmPower distribution unitsThe following table lists the power distribution units (PDUs) that are offered by Lenovo that can be used in ThinkServer TS150 solutions.Table 21. Power distribution unitsDescription Part number0U Basic PDUs0U 36 C13/6 C19 24A/200-240V 1 Phase PDU with NEMA L6-30P line cord00YJ776 0U 36 C13/6 C19 32A/200-240V 1 Phase PDU with IEC60309 332P6 line cord00YJ777 0U 21 C13/12 C19 32A/200-240V/346-415V 3 Phase PDU with IEC60309 532P6 line cord00YJ778 0U 21 C13/12 C19 48A/200-240V 3 Phase PDU with IEC60309 460P9 line cord00YJ779 Switched and Monitored PDUs0U 20 C13/4 C19 Switched and Monitored 24A/200-240V/1Ph PDU w/ NEMA L6-30P line cord00YJ781 0U 20 C13/4 C19 Switched and Monitored 32A/200-240V/1Ph PDU w/ IEC60309 332P6 line cord00YJ780 0U 18 C13/6 C19 Switched / Monitored 32A/200-240V/346-415V/3Ph PDU w/ IEC60309 532P6 cord00YJ782 0U 12 C13/12 C19 Switched and Monitored 48A/200-240V/3Ph PDU w/ IEC60309 460P9 line cord00YJ783 1U 9 C19/3 C13 Switched and Monitored DPI PDU (without line cord)46M4002 1U 9 C19/3 C13 Switched and Monitored 60A 3Ph PDU with IEC 309 3P+Gnd cord46M4003 1U 12 C13 Switched and Monitored DPI PDU (without line cord)46M4004 1U 12 C13 Switched and Monitored 60A 3 Phase PDU with IEC 309 3P+Gnd line cord46M4005 Ultra Density Enterprise PDUs (9x IEC 320 C13 + 3x IEC 320 C19 outlets)Ultra Density Enterprise C19/C13 PDU Module (without line cord)71762NX Ultra Density Enterprise C19/C13 PDU 60A/208V/3ph with IEC 309 3P+Gnd line cord71763NU C13 Enterprise PDUs (12x IEC 320 C13 outlets)DPI C13 Enterprise PDU+ (without line cord)39M2816 DPI Single Phase C13 Enterprise PDU (without line cord)39Y8941 C19 Enterprise PDUs (6x IEC 320 C19 outlets)DPI Single Phase C19 Enterprise PDU (without line cord)39Y8948 DPI 60A 3 Phase C19 Enterprise PDU with IEC 309 3P+G (208 V) fixed line cord39Y8923 Front-end PDUs (3x IEC 320 C19 outlets)DPI 30amp/125V Front-end PDU with NEMA L5-30P line cord39Y8938 DPI 30amp/250V Front-end PDU with NEMA L6-30P line cord39Y8939 DPI 32amp/250V Front-end PDU with IEC 309 2P+Gnd line cord39Y8934 DPI 60amp/250V Front-end PDU with IEC 309 2P+Gnd line cord39Y8940 DPI 63amp/250V Front-end PDU with IEC 309 2P+Gnd line cord39Y8935 Universal PDUs (7x IEC 320 C13 outlets)DPI Universal 7 C13 PDU (with 2 m IEC 320-C19 to C20 rack power cord)00YE443 NEMA PDUs (6x NEMA 5-15R outlets)DPI 100-127V PDU with fixed NEMA L5-15P line cord39Y8905 Line cords for PDUs that ship without a line cordDPI 30a Line Cord (NEMA L6-30P)40K9614 DPI 32a Line Cord (IEC 309 P+N+G)40K9612DPI 32a Line Cord (IEC 309 3P+N+G)40K9611DPI 60a Cord (IEC 309 2P+G)40K9615DPI 63a Cord (IEC 309 P+N+G)40K9613DPI Australian/NZ 3112 Line Cord40K9617DescriptionPart number For more information, see the list of Product Guides in the Power Distribution Units category:/servers/options/pduUninterruptible power supply unitsThe following table lists the uninterruptible power supply (UPS) units that are offered by Lenovo that can be used in ThinkServer TS150 solutions.Table 22. Uninterruptible power supply unitsDescription Part numberTower UPS unitsT1kVA Tower UPS (100-125VAC)55951AX T1kVA Tower UPS (200-240VAC)55951KX T1.5kVA Tower UPS (100-125VAC)55952AX T1.5kVA Tower UPS (200-240VAC)55952KX Rack or Tower UPS unitsRT1.5kVA 2U Rack or Tower UPS (100-125VAC)55941AX RT1.5kVA 2U Rack or Tower UPS (200-240VAC)55941KX RT2.2kVA 2U Rack or Tower UPS (100-125VAC)55942AX RT2.2kVA 2U Rack or Tower UPS (200-240VAC)55942KX RT3kVA 2U Rack or Tower UPS (100-125VAC)55943AX RT3kVA 2U Rack or Tower UPS (200-240VAC)55943KX RT5kVA 3U Rack or Tower UPS (200-240VAC)55945KX RT6kVA 3U Rack or Tower UPS (200-240VAC)55946KX RT8kVA 6U Rack or Tower UPS (200-240VAC)55948KX RT11kVA 6U Rack or Tower UPS (200-240VAC)55949KX RT8kVA 6U 3:1 Phase Rack or Tower UPS (380-415VAC)55948PX RT11kVA 6U 3:1 Phase Rack or Tower UPS (380-415VAC)55949PX For more information, see the list of Product Guides in the Uninterruptible Power Supply Units category:/servers/options/upsLenovo Financial ServicesTrademarksLenovo and the Lenovo logo are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. A current list of Lenovo trademarks is available on the Web athttps:///us/en/legal/copytrade/.The following terms are trademarks of Lenovo in the United States, other countries, or both:Lenovo®Lenovo ServicesRackSwitchThinkServer®ThinkSystem®TopSellerTruDDR4UltraNav®The following terms are trademarks of other companies:Intel®, Celeron®, Intel Core™, Xeon®, and Pentium® are trademarks of Intel Corporation or its subsidiaries. Linux® is the trademark of Linus Torvalds in the U.S. and other countries.Microsoft®, Hyper-V®, Windows Server®, and Windows® are trademarks of Microsoft Corporation in the United States, other countries, or both.Other company, product, or service names may be trademarks or service marks of others.。
超强性能ThinkServer RD—650作者：张越来源：《个人电脑》2015年第05期说到联想服务器，给广大企业级用户留下的最深刻印象就是产品性能高、稳定性强、可扩展性好等几大优势，而RD650进一步加强了这些优势。
编辑评价RD650凭借出众的存储密度、高度灵活的设计和超可靠的性能，充分满足电信、互联网云计算数据中心的供电需求，成为云时代的绝佳选择。
014年在“新云力量联想企业级业务策略暨ThinkServer Gen5发布会”上，联想正式发布了基于最新的英特尔至强E5-2600 v3系列处理器ThinkServer第五代产品家族，其中包括2U高度的RD650和1U高度的RD500两款双路机架式服务器。
这次来到我们实验室的是其中的RD650服务器。
随着近些年云计算领域在IT行业的不断开展和深入，使得服务器等大型传统硬件设备成为了用户着重关注的重点内容之一，说到联想服务器，给广大企业级用户留下的最深刻印象就是产品性能高、稳定性强、可扩展性好等几大优势，而RD650进一步加强了这些优势。
ThinkServer第五代产品采用创新的AnyBay、AnyFabric和AnyRAID等技术，以出色的客户端灵活性，帮助客户轻松应对云时代的到来。
联想的AnyBay设计开创了行业先河，允许在同一驱动器托盘中使用多种存储类型，包括从SAS和SATA硬盘，到可前部检修的PCIe固态硬盘等。
ThinkServer AnyRAID适配器还可用于提供先进的数据保护和性能增强特性，而无需占用PCIe插槽。
为实现最高的灵活性和可扩展性，这款机架式服务器支持混合机箱配置，允许组合使用2.5英寸和3.5英寸驱动器，适合于创建分层存储环境。
同时，它们还可以选择使用两款企业级M.2固态硬盘（SSD）来提供安全启动服务，并使用SD卡来提供管理程序启动服务。
RD650还可以支持一个AnyFabric适配器，该夹层卡适配器用于支持板载网络而且不占用PCIe插槽资源。
