设计报告设计任务：设计一个智能化万年历时钟电路，LED数码管作为电路的显示部分，按钮开关作为调时部分，通过与单片机连接数码管动态显示年、月、日、时、分、秒、星期、温度。
并能准确计算闰年闰月的显示。
设计要求：通过与单片机连接数码管动态显示年、月、日、时、分、秒、星期等功能，并能准确计算闰年闰月的显示，三个个按钮连接P3.0、P3.1、P3.2可以精确调整每一个时间数值，通过对所设计的万年历时钟电路进行实验测试，达到了动态显示时间，随时调整时间等技术所连线路和单片机接口仿真图如图3所示：图3 仿真按键4）温度采集部分：DS18B20温度传感器，测温范围－55℃～+125℃，固有测温分辨率0.5℃。
独特的单线接口方式，DS18B20在与微处理器连接时仅需要一条口线即可实现微处理器与DS18B20的双向通讯。
DS18B20的采集数据通过DQ传入单片机，单片机读取数据后将数据输出！如图所示：程序如下：ReadOneChar(void){unsigned char i=0;// 定义i用于循环unsigned char dat = 0;// 读取的8位数据for (i=8;i>0;i--)//8次循环{DQ = 0;// 拉低DQ总线开始读时序dat>>=1;// dat左移一位DQ = 1; //释放DQ总线if(DQ)// 如果DQ=1，执dat|=0x80；（0x80即第7位为1，如果DQ为1，即读取的数据为1，将dat的第7为置1，然后dat>>=1，循环8次结束，dat 即为读取的数据）//DQ=0，就跳过dat|=0x80;Tdelay(4);// 延时以完成此次读时序，之后再读下一数据}return(dat); 返回读取的dat}//写一个字节WriteOneChar(unsigned char dat){unsigned char i=0;//for (i=8; i>0; i--)//{DQ = 0;//DQ = dat&0x01;//Tdelay(5);//延时以完成此次读时序，之后再读下一数据DQ = 1;//dat>>=1;//}}//读取温度ReadTemperature(void){unsigned char a=0;unsigned char b=0;unsigned int t=0;float tt=0;//Init_DS18B20();WriteOneChar(0xCC);// 写指令，跳过ROM，WriteOneChar(0x44);// 启动温度转换Init_DS18B20();WriteOneChar(0xCC);// 写指令，跳过ROM，WriteOneChar(0xBE);// 写指令，读暂存存储器a=ReadOneChar();//读低8位b=ReadOneChar();//读高8位t=b;//t<<=8;//t=t|a;//tt=t*0.0625;//t= tt*10+0.5;//return(t); //获得0.01°C 的精度并返回}LED数码管的选择LED数码管分为共阴和共阳两种，以利用STC89C51的P0口作为LED显示的数据部分，以P2口的七个口作为显示部分的位选，通过三八译码器和4-16译码器扩展为17位的位选分别接在一个四位数码管和13个数码管的位选部分。

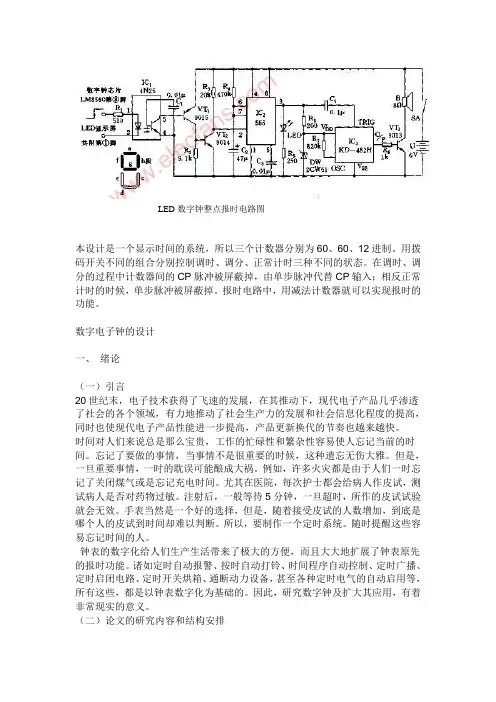

四川机电职业技术学院数字电子课程设计说明书题目:数字电子钟院系名称：电子电气工程系专业班级：09电气6班学生姓名：姚瑶学号：0907041114指导教师：刘惠兰、刘廷敏、徐贵仁教师职称：2010年12月15日摘要数字电子钟是采用数字电路实现对“时”、“分”、“秒”数字显示的设计装置。
由于数字集成电路的发展和石英晶体振荡器的广泛应用，使得数字钟的精度、稳定度远远超过了老式机械钟表。
在数字显示方面，目前还可以直接采用CMOS-LED 光电组合器件，构成模块式石英晶体数字钟。
为了帮助同学们了解数字钟的组成，运用已学过的数字电路基本知识，掌握设计简单数字系统的方法，本课题介绍数字钟的设计制作方法。
关键词：数字集成电路计数器七段数码显示校时电路1设计题目数字电子钟A 纸，页边距为2.5cm数字电子钟是采用数字电路实现对“时”、“分”、“秒”数字显示的设计装置。
由于数字集成电路的发展和石英晶体振荡器的广泛应用，使得数字钟的精度、稳定度远远超过了老式机械钟表。
在数字显示方面，目前还可以直接采用CMOS-LED 光电组合器件，构成模块式石英晶体数字钟。
为了帮助同学们了解数字钟的组成，运用已学过的数字电路基本知识，掌握设计简单数字系统的方法，本课题介绍数字钟的设计制作方法。

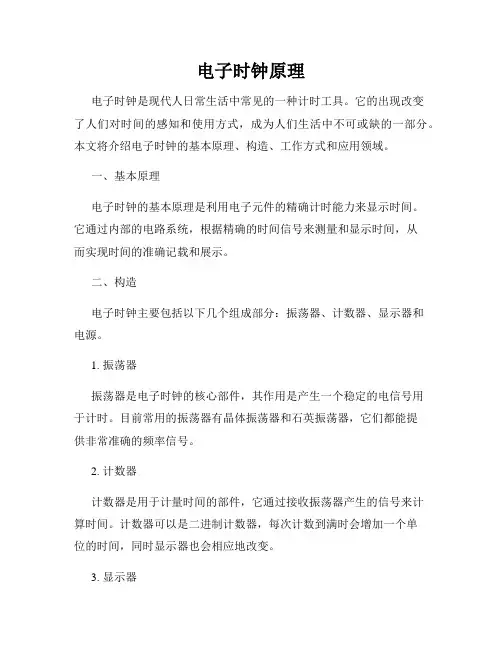

1.1数字钟的组成和工作原理一个简单的数字钟，主要由六部分组成。
整机电路方框图如图1-1所示。
图1-1数字钟整机方框图（宋体，5号）1.1.1石英晶体振荡器模块振荡器主要用来产生时间标准信号。
因为数字钟的精度，主要取决于时间标准信号的频率及其稳定度，所以要产生稳定的时标信号，一般是采用石英晶体多谐振荡器，从数字钟的精度考虑，晶振频率愈高，钏表的计时准确度就愈高。
但这会使振荡器的耗电量增大，分频器的级数也要增多。
所以在确定频率时应考虑两方面的因素，然后再选定石英晶体的型号。
图1-2晶体振荡器之一100kΩ1.1.2分频器模块因为振荡器产生的时标信号频率很高，要使它变成能用来计时的“秒”信号，需要一定级数的分频电路。
《单片机原理与应用》课程设计总结报告题目：单片机电子时钟（带秒表）的设计目录1.题目与主要功能要求 (2)2.整体设计框图及整机概述 (3)3.各硬件单元电路的设计、参数分析及原理说明 (3)4.软件流程图和流程说明 (4)5.总结设计及调试的体会 (10)附录1.图一：系统电路原理图 (11)2.图二：系统电路PCB (12)3.表一：元器件清单 (13)4.时钟程序源码 (14)题目：单片机电子时钟的设计与实现课程设计的目的和意义课程设计的目的与意义在于让我们将理论与实践相结合。
培养我们综合运用电子课程中的理论知识解决实际性问题的能力。
让我们对电子电路、电子元器件、印制电路板等方面的知识进一步加深认识，同时在软件编程、排错调试、焊接技术、相关仪器设备的使用技能等方面得到较全面的锻炼和提高，为今后能够独立完成某些单片机应用系统的开发和设计打下一个坚实的基础。
课程设计的基本任务利用89C51单片机最小系统，综合应用单片机定时器、中断、数码显示、键盘输入等知识，设计一款单片机和简单外设控制的电子时钟。
主要功能要求最基本要求1)使用MCS-51单片机设计一个时钟。
要求具有6位LED显示、3个按键输入。
2)完成硬件实物制作或使用Pruteus仿真（注意位驱动应能提供足够的电流）。
3)6位LED数码管从左到右分别显示时、分、秒(各占用2位)，采用24小时标准计时制。
开始计时时为000000，到235959后又变成000000。
4)使用3个键分别作为小时、分、秒的调校键。
每按一次键，对应的显示值便加1。
分、秒加到59后再按键即变为00；小时加到23后再按键即变为00。
在调校时均不向上一单位进位 (例如分加到59后变为00，但小时不发生改变)。
5) 软件设计必须使用MCS-51片内定时器，采用定时中断结构，不得使用软件延时法，也不得使用其他时钟芯片。
6）设计八段数码管显示电路并编写驱动程序，输入并调试拆字程序和数码显示程序。
#include<Windows.h>#include<string.h>#include<mmsystem.h>#include<wingdi.h>#include"resource.h"#include<math.h>#include<commdlg.h>#pragma comment(lib,"WinLib.lib")#pragma comment(lib,"WINMM.LIB")//导入声音用void SetDlgMenuID(UINT nMainDlgID,UINT nCalendarDlgID,UINT nMenuID); void SetButtonID(UINT nCalendarID,UINT nExitID,UINT nBiaoPan1,UINT nBiaoPan2,UINT nBiaoPan3);INT_PTR ShowMainDlg();/**********************************************************API函数参考：GetLocalTime: 获得当前时间(公历：年、月、日、周)MoveToEx: 移动划线的起点LineTo: 绘制到某一点SetTextColor: 设置要绘制的文字颜色TextOut: 绘制文字SetBkMode: 设置背景显示模式wsprintf: 整数转换为字符串，宽字符，用Unicode码GetClientRect: 获取窗口大小GetDC: 获取内存设备SetTimer: 设置定时器FillRect: 填充矩形CreateSolidBrush: 创建刷子RGB: 设置RGB颜色CreateFont:创建一种有特殊性的字体结构体类型参考：SYSTEMTIME: 描述时间类型，包括年月日、时分秒、周**********************************************************/HINSTANCE g_hInst;//保存操作系统传递进来的"应用程序实例句柄"//Windows程序入口函数int WINAPI WinMain( HINSTANCE hInstance, HINSTANCE hPrevInstance, LPSTR lpCmdLine, int nShowCmd ){g_hInst = hInstance;SetDlgMenuID(IDD_DLG_CLOCK,IDD_DLG_CALENDAR,IDR_MENU);SetButtonID(ID_CALENDAR,ID_EXIT,ID_BIAO1,ID_BIAO2,ID_BIAO3);ShowMainDlg(IDD_DLG_CLOCK);}typedef struct _stDateTime{int nYear;int nMonth;int nDay;}stDateTime;//定义表格，存储年-2099年的农历信息：每年的大小月、闰月信息、春节所在的公历日期unsigned int LunarCalendarTable[199] ={0x04AE53,0x0A5748,0x5526BD,0x0D2650,0x0D9544,0x46AAB9,0x056A4D, 0x09AD42,0x24AEB6,0x04AE4A,/*1901-1910*/0x6A4DBE,0x0A4D52,0x0D2546,0x5D52BA,0x0B544E,0x0D6A43,0x296D37, 0x095B4B,0x749BC1,0x049754,/*1911-1920*/0x0A4B48,0x5B25BC,0x06A550,0x06D445,0x4ADAB8,0x02B64D,0x095742, 0x2497B7,0x04974A,0x664B3E,/*1921-1930*/0x0D4A51,0x0EA546,0x56D4BA,0x05AD4E,0x02B644,0x393738,0x092E4B, 0x7C96BF,0x0C9553,0x0D4A48,/*1931-1940*/0x6DA53B,0x0B554F,0x056A45,0x4AADB9,0x025D4D,0x092D42,0x2C95B6, 0x0A954A,0x7B4ABD,0x06CA51,/*1941-1950*/0x0B5546,0x555ABB,0x04DA4E,0x0A5B43,0x352BB8,0x052B4C,0x8A953F, 0x0E9552,0x06AA48,0x6AD53C,/*1951-1960*/0x0AB54F,0x04B645,0x4A5739,0x0A574D,0x052642,0x3E9335,0x0D9549, 0x75AABE,0x056A51,0x096D46,/*1961-1970*/0x54AEBB,0x04AD4F,0x0A4D43,0x4D26B7,0x0D254B,0x8D52BF,0x0B5452, 0x0B6A47,0x696D3C,0x095B50,/*1971-1980*/0x049B45,0x4A4BB9,0x0A4B4D,0xAB25C2,0x06A554,0x06D449,0x6ADA3D, 0x0AB651,0x093746,0x5497BB,/*1981-1990*/0x04974F,0x064B44,0x36A537,0x0EA54A,0x86B2BF,0x05AC53,0x0AB647, 0x5936BC,0x092E50,0x0C9645,/*1991-2000*/0x4D4AB8,0x0D4A4C,0x0DA541,0x25AAB6,0x056A49,0x7AADBD,0x025D52, 0x092D47,0x5C95BA,0x0A954E,/*2001-2010*/0x0B4A43,0x4B5537,0x0AD54A,0x955ABF,0x04BA53,0x0A5B48,0x652BBC, 0x052B50,0x0A9345,0x474AB9,/*2011-2020*/0x06AA4C,0x0AD541,0x24DAB6,0x04B64A,0x69573D,0x0A4E51,0x0D2646, 0x5E933A,0x0D534D,0x05AA43,/*2021-2030*/0x36B537,0x096D4B,0xB4AEBF,0x04AD53,0x0A4D48,0x6D25BC,0x0D254F, 0x0D5244,0x5DAA38,0x0B5A4C,/*2031-2040*/0x056D41,0x24ADB6,0x049B4A,0x7A4BBE,0x0A4B51,0x0AA546,0x5B52BA, 0x06D24E,0x0ADA42,0x355B37,/*2041-2050*/0x09374B,0x8497C1,0x049753,0x064B48,0x66A53C,0x0EA54F,0x06B244, 0x4AB638,0x0AAE4C,0x092E42,/*2051-2060*/0x3C9735,0x0C9649,0x7D4ABD,0x0D4A51,0x0DA545,0x55AABA,0x056A4E, 0x0A6D43,0x452EB7,0x052D4B,/*2061-2070*/0x8A95BF,0x0A9553,0x0B4A47,0x6B553B,0x0AD54F,0x055A45,0x4A5D38, 0x0A5B4C,0x052B42,0x3A93B6,/*2071-2080*/0x069349,0x7729BD,0x06AA51,0x0AD546,0x54DABA,0x04B64E,0x0A5743, 0x452738,0x0D264A,0x8E933E,/*2081-2090*/0x0D5252,0x0DAA47,0x66B53B,0x056D4F,0x04AE45,0x4A4EB9,0x0A4D4C, 0x0D1541,0x2D92B5 /*2091-2099*/};char* TianGanDizhi[60]={"甲子", "乙丑","丙寅","丁卯","戊辰","已巳","庚午","辛未","壬申","癸酉","甲戌","乙亥","丙子","丁丑","戊寅","已卯","庚辰","辛巳","壬午","癸未","甲申","乙酉","丙戌","丁亥","戊子","已丑","庚寅","辛卯","壬辰","癸巳","甲午","乙未","丙申","丁酉","戊戌","已亥","庚子","辛丑","壬寅","癸卯","甲辰","乙巳","丙午","丁未","戊申","已酉","庚戌","辛亥","壬子","癸丑","甲寅","乙卯","丙辰","丁巳","戊午","已未","庚申","辛酉","壬戌","癸亥"char *ChDayTable[] ={"*","初一","初二","初三","初四","初五","初六","初七","初八","初九","初十","十一","十二","十三","十四","十五","十六","十七","十八","十九","二十","廿一","廿二","廿三","廿四","廿五","廿六","廿七","廿八","廿九","三十"};char *ChMonthTable[] = {"*","正","二","三","四","五","六","七","八","九","十","十一","腊"};//定义表格，存储每月日离元旦的天数（不考虑瑞年）unsigned int MonthAdd[12] ={0,31,59,90,120,151,181,212,243,273,304,334};//定义用户要显示的年、月、日unsigned int nCurrentYear=0; //button控制年unsigned int nCurrentMonth=0;//月unsigned int nCurrentDay=0; //日UINT LiteSongs = 0; //判断是否听歌UINT Total=0; //我自定义的变量，当月的总天数UINT PreTotal=0; //自定义的当月的前一月的总天数UINT BUTTON6=0;UINT BUTTON4=0;int k=0;int m=0;//TCHAR Hours[255];SYSTEMTIME BellTime;UINT Inthour=0;//判断某年是否为公历瑞年int IsLeapYear(WORD iYear) //学生需要修改此函数，已经修改{if(((iYear%4==0)&&!(iYear%100==0))||(iYear%400==0))return 1;elsereturn 0;}//公历日期转农历日期的函数void SunToLunar(const stDateTime* pSunDay,stDateTime* pLunarDay) {int i=0;int SunDiff=0;int SpringDiff=0;int nSpringYear=pSunDay->nYear;int nSpringMonth=1;int nSpringDay=0;//计算当前公历日离当年元旦的天数SunDiff = MonthAdd[pSunDay->nMonth-1] + pSunDay->nDay - 1;if(IsLeapYear(pSunDay->nYear) && (pSunDay->nMonth > 2) )//若是瑞年且大于月，天数再加SunDiff++;//计算春节所在公历日离元旦的天数：通过查表，计算当年的春节所在的公历日期，if(((LunarCalendarTable[pSunDay->nYear - 1901] & 0x60)>>5)==1)//若春节在公历月SpringDiff=(LunarCalendarTable[pSunDay->nYear-1901]&0x1F)-1;else//若春节在公历月SpringDiff=(LunarCalendarTable[pSunDay->nYear-1901]&0x1F)-1+31;//SunDiff和SpringDiff的差就是当前公历日离春节的天数if(SunDiff>=SpringDiff)//公历日在春节后{int x = SunDiff - SpringDiff;int bLunar = (LunarCalendarTable[nSpringYear - 1901] & 0xF00000)>>20;//闰月月份i=0;nSpringMonth=1;for(;;){int a = (LunarCalendarTable[pSunDay->nYear-1901] & (0x80000>>i));//计算大小月if(a==0)a=29;elsea=30;if(x<a)break;x =x - a;i++;nSpringMonth++;}nSpringDay =x+1;//如果有闰月if(nSpringMonth>bLunar && bLunar>0)nSpringMonth--;}else//公历日在春节前{int x = SpringDiff-SunDiff;int nShift=0;int bLunar = (LunarCalendarTable[nSpringYear - 1901] & 0xF00000)>>20;//闰月月份i=0;nSpringYear--;//需要上一年的农历信息nSpringMonth=12;//从最后一个月开始计算if (bLunar == 0)//如果没有润月nShift = 0x100;elsenShift = 0x80;for(;;){int a = (LunarCalendarTable[nSpringYear-1901] & (nShift<<i));//计算大小月if(a==0)a=29;elsea=30;if(x<a){x = a-x;break;}x =x - a;i++;nSpringMonth--;}nSpringDay =x+1;if(nSpringMonth<bLunar && bLunar>0)nSpringMonth++;}pLunarDay->nYear = nSpringYear;pLunarDay->nMonth= nSpringMonth;pLunarDay->nDay = nSpringDay;}//根据公历日期获得星期int GetDayOfWeek(const stDateTime* pSunDay){//根据泰勒公式//nWeek = [nYear1÷] - 2*nYear1 + nYear2 + [nYear2÷] + [26(nMonth+1)÷] + nDay - 1int nWeek=0;int nYear1=pSunDay->nYear/100;//年的前两位数字int nYear2=pSunDay->nYear%100;//年的后两位数字int nDay=pSunDay->nDay; //公立日int nMonth=pSunDay->nMonth;//公立月数，所求的月份如果是月或月，//则应视为上一年的月或月，//也就是公式中nMonth的取值范围是从到而不是从到if(nMonth==1 || nMonth==2){nMonth=12+nMonth;nYear1=(pSunDay->nYear-1)/100;//年的前两位数字nYear2=(pSunDay->nYear-1)%100;//年的后两位数字}nWeek = nYear1/4 - 2*nYear1 + nYear2 + nYear2/4 + (26*(nMonth+1))/10 + nDay - 1;if(nWeek < 0)nWeek = ((nWeek)%7+7);// 有问题吗?nWeek可能小于零,循环加elsenWeek = (nWeek)%7;return nWeek;}//根据公立年得到农历干支年char* GetGanZhi(int nYear){int i=(nYear-1984)%60;return TianGanDizhi[i];}//日历绘制函数,学生自己实现该函数void DrawCalendar(HDC hDC,int nWidth,int nHeight){//获得日历的背景色stDateTime SunDay,LunarDay; //存储当时年月日SYSTEMTIME DateTime; //系统时间RECT rc;HBRUSH hBrush;HFONT hFont;TCHAR RILI[255]; //日历的标题TCHAR GraTime[255]; //表格日期UINT xOrg=50; //x起始坐标UINT yOrg=50; //y起始坐标UINT xRight=nWidth-45; //X的右端不包括UINT yBottom = nHeight-30; //Y的底部UINT i=0,biaoGe=0; //日历表格用TCHAR *WeekDay[] = {"日","一","二","三","四","五","六"};TCHAR *ShuXiang[]= {"鼠","牛","虎","兔","龙","蛇","马","羊","猴","鸡","狗","猪"};UINT Week=0;//列数UINT Hang=0;//行数TCHAR Str[255];//农历和公历年月字符UINT week=0;UINT hangkuan=0,liekuan=0;UINT First=0;UINT xLeft=0;UINT yRigth=0;UINT ShengXiao=0;UINT BeiJing=0;HBITMAP hBkmap;//得到图片HDC hdc;//绘制日历的矩形背景(改变皮肤)hdc = CreateCompatibleDC(hDC);switch (nCurrentMonth%12){case 0:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/beijing/yiyue.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE);break;case 1:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/beijing/eryue.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE);break;case 2:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/beijing/sanyue.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE) ;break;case 3:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/beijing/siyue.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE);break;case 4:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/beijing/wuyue.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE);break;case 5:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/beijing/liuyue.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE) ;break;case 6:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/beijing/qi.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE);break;case 7:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/beijing/ba.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE);break;case 8:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/beijing/jiu.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE);break;case 9:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/beijing/shi.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE);break;case 10:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/beijing/shiyi.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE);break;case 11:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/beijing/shier.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE);break;}SelectObject(hdc,hBkmap);BitBlt(hDC,0,0,nWidth,nHeight,hdc,0,0,SRCCOPY);SetRect (&rc,xOrg+65,yOrg,xRight-65,yOrg+25);hBrush=CreateSolidBrush(RGB(230,0,150));FillRect(hDC,&rc,hBrush);SetRect (&rc,xOrg,yOrg,xOrg+65,yOrg+25);hBrush=CreateSolidBrush(RGB(0,255,255));FillRect(hDC,&rc,hBrush);SetRect (&rc,xRight-65,yOrg,xRight,yOrg+25);hBrush=CreateSolidBrush(RGB(0,255,255));FillRect(hDC,&rc,hBrush);//绘制星期背景色MoveToEx(hDC,xOrg,yOrg,NULL);LineTo(hDC,xRight,yOrg);MoveToEx(hDC,xOrg,yOrg,NULL);LineTo(hDC,xOrg,yBottom);MoveToEx(hDC,xRight,yOrg,NULL);LineTo(hDC,xRight,yBottom);MoveToEx(hDC,xOrg,yBottom,NULL);LineTo(hDC,xRight,yBottom);//星期标题框MoveToEx(hDC,xOrg,yOrg+25,NULL);LineTo(hDC,xRight,yOrg+25);//行biaoGe = yBottom-yOrg-25;//只是日历的高度biaoGe = biaoGe/6;//高度分为六块hangkuan=biaoGe;for(i=0;i<5;i++)//画五行{MoveToEx(hDC,xOrg,yOrg+25+biaoGe*(i+1),NULL);LineTo(hDC,xRight,yOrg+25+biaoGe*(i+1));}//列biaoGe = xRight-xOrg;//只是日历的宽度biaoGe = biaoGe/7;//要七列liekuan=biaoGe;for(i=0;i<6;i++)//画七列{MoveToEx(hDC,xOrg+biaoGe*(i+1),yOrg,NULL);LineTo(hDC,xOrg+biaoGe*(i+1),yBottom);}//绘制‘星期’标题框内的文字SetTextColor(hDC,RGB(255,0,0));TextOut(hDC,xOrg+20,yOrg+6,WeekDay[0],strlen(WeekDay[0]));//星期日的//绘制“属相”的文字SetTextColor(hDC,RGB(0,100,255));switch((nCurrentYear-4)%12)//jisuan{case 0:TextOut(hDC,xOrg-35,yOrg,ShuXiang[0],strlen(ShuXiang[0]));break;case 1:TextOut(hDC,xOrg-35,yOrg,ShuXiang[1],strlen(ShuXiang[1]));break;case 2:TextOut(hDC,xOrg-35,yOrg,ShuXiang[2],strlen(ShuXiang[2]));break;case 3:TextOut(hDC,xOrg-35,yOrg,ShuXiang[3],strlen(ShuXiang[3]));break;case 4:TextOut(hDC,xOrg-35,yOrg,ShuXiang[4],strlen(ShuXiang[4]));break;case 5:TextOut(hDC,xOrg-35,yOrg,ShuXiang[5],strlen(ShuXiang[5]));break;case 6:TextOut(hDC,xOrg-35,yOrg,ShuXiang[6],strlen(ShuXiang[6]));break;case 7:TextOut(hDC,xOrg-35,yOrg,ShuXiang[7],strlen(ShuXiang[7]));break;case 8:TextOut(hDC,xOrg-35,yOrg,ShuXiang[8],strlen(ShuXiang[8]));break;case 9:TextOut(hDC,xOrg-35,yOrg,ShuXiang[9],strlen(ShuXiang[9]));break;case 10:TextOut(hDC,xOrg-35,yOrg,ShuXiang[10],strlen(ShuXiang[10]));break;case 11:TextOut(hDC,xOrg-35,yOrg,ShuXiang[11],strlen(ShuXiang[11]));break;}SetTextColor(hDC,RGB(0,0,0));for(i=1;i<6;i++)//星期一到六{TextOut(hDC,xOrg+20+biaoGe*i,yOrg+6,WeekDay[i],strlen(WeekDay[i ]));}SetTextColor(hDC,RGB(255,0,0));TextOut(hDC,xOrg+20+biaoGe*6,yOrg+6,WeekDay[6],strlen(WeekDay[6 ]));//以下代码是公历显示if(nCurrentYear==0)//如果当前日期还没有被设定{GetLocalTime(&DateTime);nCurrentYear = DateTime.wYear;nCurrentMonth= DateTime.wMonth;nCurrentDay =DateTime.wDay;}SunDay.nYear = nCurrentYear;SunDay.nMonth = nCurrentMonth;SunDay.nDay = nCurrentDay;SunToLunar(&SunDay,&LunarDay);//得到农历TextOut(hDC,80,28,ChMonthTable[LunarDay.nMonth],strlen(ChMonthTable[LunarDay.nMonth]));//农历显示TextOut(hDC,110,28,"月",strlen("月"));SunDay.nDay = 1;wsprintf(GraTime,"%.4d年%.2d月%.2d日",nCurrentYear,nCurrentMonth,nCurrentDay);//现在时间TextOut(hDC,50,10,GraTime,strlen(GraTime));//标题的时间//十二生肖图片hdc = CreateCompatibleDC(hDC);switch((nCurrentYear-4)%12){case 0:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/shengxiao/0.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE);break;case 1:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/shengxiao/1.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE);break;case 2:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/shengxiao/2.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE);break;case 3:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/shengxiao/3.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE);break;case 4:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/shengxiao/4.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE);break;case 5:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/shengxiao/5.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE);break;case 6:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/shengxiao/6.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE);break;case 7:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/shengxiao/7.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE);break;case 8:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/shengxiao/8.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE);break;case 9:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/shengxiao/9.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE);break;case 10:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/shengxiao/10.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE);break;case 11:hBkmap = (HBITMAP)LoadImage(g_hInst,"../image/shengxiao/11.bmp",IMAGE_BITMAP,0,0,LR_LOADFROMFILE);break;}SelectObject(hdc,hBkmap);BitBlt(hDC,7,20,150,150,hdc,0,0,SRCCOPY);//该月的总天数if(SunDay.nMonth==12){//PreTotal=30;Total=31;elseTotal=MonthAdd[SunDay.nMonth]-MonthAdd[SunDay.nMonth-1];if(IsLeapYear(SunDay.nYear)&&SunDay.nMonth==2){Total++;}//前一月的总天数if(SunDay.nMonth==1)PreTotal=31;else if(SunDay.nMonth==3){PreTotal=28;if(IsLeapYear(SunDay.nYear))PreTotal++;}else if(SunDay.nMonth==12)PreTotal=30;elsePreTotal=MonthAdd[SunDay.nMonth-1]-MonthAdd[SunDay.nMonth-2];First=GetDayOfWeek(&SunDay); //该月的第一天是星期几for(i=1;i<=Total;i++){SunDay.nYear = nCurrentYear;SunDay.nMonth = nCurrentMonth;SunDay.nDay=i; //从一号开始week=GetDayOfWeek(&SunDay);//得到该月第i号是星期几 SunToLunar(&SunDay,&LunarDay);//得到农历Week=week%7; //从第Week列开始Hang=((First+i-1)-(First+i-1)%7)/7; //从第Hang行开始xLeft=xOrg+15+(Week)*liekuan;yRigth=yOrg+40+(Hang)*hangkuan;if(DateTime.wYear==SunDay.nYear&&DateTime.wMonth==SunDay.nMonth &&DateTime.wDay==i)//显示今天{SetRect (&rc,xOrg+(Week)*liekuan,yOrg+25+(Hang)*hangkuan,xOrg+(Week)*liekuan+liekuan,yOrg+25+(Hang)*hangkuan+hangkuan) ;hBrush=CreateSolidBrush(RGB(0,255,255));FillRect(hDC,&rc,hBrush);}if(nCurrentYear==SunDay.nYear&&nCurrentMonth==SunDay.nMonth&&nC urrentDay==i)//动态显示每一天{SetRect (&rc,xOrg+(Week)*liekuan,yOrg+25+(Hang)*hangkuan,xOrg+(Week)*liekuan+liekuan,yOrg+25+(Hang)*hangkuan+hangkuan) ;hBrush=CreateSolidBrush(RGB(255,255,0));FillRect(hDC,&rc,hBrush);}SetTextColor(hDC,RGB(0,0,255));//节日颜色if(SunDay.nMonth==1&&SunDay.nDay==1){TextOut(hDC,xLeft,yRigth,"元旦",strlen("元旦"));//显示公历}else if(SunDay.nMonth==2&&SunDay.nDay==14){TextOut(hDC,xLeft,yRigth,"情人节",strlen("情人节"));}else if(SunDay.nMonth==5&&SunDay.nDay==1){TextOut(hDC,xLeft,yRigth,"劳动节",strlen("劳动节"));else if(SunDay.nMonth==5&&SunDay.nDay==4){TextOut(hDC,xLeft,yRigth,"青年节",strlen("青年节"));}else if(SunDay.nMonth==9&&SunDay.nDay==10){TextOut(hDC,xLeft,yRigth,"教师节",strlen("教师节"));}else if(SunDay.nMonth==10&&SunDay.nDay==1){TextOut(hDC,xLeft,yRigth,"国庆节",strlen("国庆节"));}else if(SunDay.nMonth==11&&SunDay.nDay==11){TextOut(hDC,xLeft,yRigth,"光棍节",strlen("光棍节"));}else if(SunDay.nMonth==11&&SunDay.nDay==24){TextOut(hDC,xLeft,yRigth,"感恩节",strlen("感恩节"));}else if(SunDay.nMonth==12&&SunDay.nDay==25){TextOut(hDC,xLeft,yRigth,"圣诞节",strlen("圣诞节"));}else{wsprintf(Str,"%i",i);SetTextColor(hDC,RGB(0,0,255));TextOut(hDC,xLeft,yRigth,Str,strlen(Str));//显示公历}//显示农历SetTextColor(hDC,RGB(0,0,255));//节日颜色if(LunarDay.nMonth==1&&LunarDay.nDay==1){TextOut(hDC,xLeft,yRigth+15,"春节",strlen("春节"));//农历显示else if(LunarDay.nMonth==1&&LunarDay.nDay==15){TextOut(hDC,xLeft,yRigth+15,"元宵节",strlen("元宵节"));//农历显示}else if(LunarDay.nMonth==5&&LunarDay.nDay==5){TextOut(hDC,xLeft,yRigth+15,"端午节",strlen("端午节"));//农历显示}else if(LunarDay.nMonth==9&&LunarDay.nDay==15){TextOut(hDC,xLeft,yRigth+15,"中秋节",strlen("中秋节"));//农历显示}else if(LunarDay.nMonth==9&&LunarDay.nDay==9){TextOut(hDC,xLeft,yRigth+15,"重阳节",strlen("重阳节"));//农历显示}else{SetTextColor(hDC,RGB(255,255,0));if(LunarDay.nDay==1)//月初改为月名{TextOut(hDC,xLeft,yRigth+15,ChMonthTable[LunarDay.nMonth],strlen(ChMonthTable[LunarDay.nMonth]));TextOut(hDC,xLeft+20,yRigth+15,"月",strlen("月"));}elseTextOut(hDC,xLeft,yRigth+15,ChDayTable[LunarDay.nDay],strlen(ChDayTable[LunarDay.nDay]));//农历显示}}//forhFont=CreateFont(44,20,0,100,FW_NORMAL,TRUE,0,0,ANSI_CHARSET,OU T_DEFAULT_PRECIS,CLIP_DEFAULT_PRECIS,DEFAULT_QUALITY,DEFAULT_PITCH | FF_MODERN, "华文新魏"); //字体输出格式SelectObject(hDC,hFont);SetTextColor(hDC,RGB(50,50,255));wsprintf(RILI,"My>>万年历>> ");TextOut(hDC,200,10,RILI,10);}//事件函数：点击日历界面上各个按钮后被调用,学员自己实现该函数//注意：该函数调用完后，系统自动调用DrawCalendar函数// 因此，可以理解为，该函数和DrawCalendar函数是联动的void CalendarButtonEvent(UINT nID,HWND hDlg) //学生需要修改此函数{TCHAR Hours[255];int temp1;switch (nID){case IDC_BTN_YEARUP://点击了"年↑"按钮nCurrentYear++;break;case IDC_BTN_YEARDOWN:nCurrentYear--;break;case IDC_BTN_MONTHUP:{nCurrentMonth++;if(nCurrentMonth>12){nCurrentYear+=1;nCurrentMonth=1;}}break;case IDC_BTN_MONTHDOWN:{if(nCurrentMonth==1){nCurrentYear--;nCurrentMonth=12;}elsenCurrentMonth--;}break;case IDC_BTN_TODAY://GetDlgItemText(hDlg,IDC_BELL,Hours,sizeof(Hours));//nCurrentYear = atoi(Hours);nCurrentYear=0;break;case IDC_BUTTON_Day1://动态显示显示每一天{nCurrentDay++;if(nCurrentDay>Total){nCurrentDay=1;nCurrentMonth++;if(nCurrentMonth>12){nCurrentYear+=1;nCurrentMonth=1;}}}break;case IDC_BUTTON_Day2://动态显示显示每一天{nCurrentDay--;if(nCurrentDay<=0)nCurrentDay=PreTotal;nCurrentMonth--;if(nCurrentMonth==0){nCurrentYear--;nCurrentMonth=12;}}}break;case IDC_PLAYSONG:k++;{switch ( k%3){case 0:mciSendString("stop ../image/sound/b.mp3","",0,NULL); mciSendString("play ../image/sound/a.mp3","",0,NULL);break;case 1:mciSendString("stop ../image/sound/a.mp3","",0,NULL); mciSendString("play ../image/sound/y.mp3","",0,NULL);break;case 2:mciSendString("stop ../image/sound/y.mp3","",0,NULL); mciSendString("play ../image/sound/b.mp3","",0,NULL);break;}}break;case IDC_BUTTON6:m++;{switch ( m%3){case 0:mciSendString("pause ../image/sound/a.mp3","",0,NULL);break;case 1:mciSendString("pause ../image/sound/y.mp3","",0,NULL);break;case 2:mciSendString("pause ../image/sound/b.mp3","",0,NULL);break;}}break;case IDC_BUTTON_BELL:GetDlgItemText(hDlg,IDC_EDIT_YEAR,Hours,sizeof(Hours));temp1 = atoi(Hours);nCurrentYear = temp1;nCurrentMonth = 1;break;}}//该函数每.5秒被调用一次,时钟界面上的文字绘制,学生自己实现该函数void DrawClockText(HDC hDC){ //TCHAR year[255];//获得本地年月日时间stDateTime DateTime;stDateTime DateTime1,DateTime2; //得到公历农历日期 TCHAR HTime[255]; //存储时分秒TCHAR YTime[255]; //存储年TCHAR MTime[255]; //存储月TCHAR DTime[255];TCHAR TGAN[255]; //获得天干地支SYSTEMTIME LocTime; //定义当地时间RECT rec;HBRUSH hBrush;HFONT hfon;GetClientRect(hDC,&rec) ; //得到背影区域SetRect (&rec,33,52,94,65) ; //设置这块区域hBrush = CreateSolidBrush( RGB(0,0,222)); //建立画刷颜色FillRect(hDC,&rec,hBrush);SetBkMode(hDC,TRANSPARENT); //设置背景涂画，以备下次调用//获取星期和时间（时分秒）SetTextColor(hDC,RGB(111,208,252)); //字体颜色GetLocalTime(&LocTime);wsprintf(HTime,"%.2d:%.2d:%.2d",LocTime.wHour,LocTime.wMinute,L ocTime.wSecond);SetTextColor(hDC,RGB(235,255,0));SetBkMode(hDC,3);TextOut(hDC,35,50,HTime,8) ;//获得星期GetLocalTime(&LocTime);if(LocTime.wHour==Inthour)mciSendString("play ../image/sound/12.mp3","",0,NULL);//整点报时if(LocTime.wSecond==0&&LocTime.wMinute==0){switch(LocTime.wHour){case 6:mciSendString("play ../image/sound/06.mp3","",0,NULL);break;case 7:mciSendString("play ../image/sound/07.mp3","",0,NULL);break;case 8:mciSendString("play ../image/sound/08.mp3","",0,NULL);break;case 9:mciSendString("play ../image/sound/09.mp3","",0,NULL);break;case 10:mciSendString("play ../image/sound/10.mp3","",0,NULL);break;case 11:mciSendString("play ../image/sound/11.mp3","",0,NULL);break;case 12:mciSendString("play ../image/sound/12.mp3","",0,NULL);break;case 13:mciSendString("play ../image/sound/13.mp3","",0,NULL);break;case 14:mciSendString("play ../image/sound/14.mp3","",0,NULL);break;case 15:mciSendString("play ../image/sound/15.mp3","",0,NULL);break;case 16:mciSendString("play ../image/sound/16.mp3","",0,NULL);break;}}DateTime.nYear = LocTime.wYear ;DateTime.nMonth = LocTime.wMonth ;DateTime.nDay = LocTime.wDay ;SetTextColor(hDC,RGB(255,255,0));//字体颜色switch(GetDayOfWeek(&DateTime)){case 1:TextOut(hDC,41,69,"星期一",6) ;break;case 2:TextOut(hDC,41,69,"星期二",6) ;break;case 3:TextOut(hDC,41,69,"星期三",6) ;break;case 4:TextOut(hDC,41,69,"星期四",6) ;break;case 5:TextOut(hDC,41,69,"星期五",6) ;break;case 6:TextOut(hDC,41,69,"星期六",6) ;break;case 7:TextOut(hDC,41,69,"星期日",6) ;break;default:break;}//得到天干GetLocalTime(&LocTime);wsprintf(TGAN,GetGanZhi(LocTime.wYear));SetTextColor(hDC,RGB(250,100,100)); //字体颜色TextOut(hDC,48,89,TGAN,4);//获得农历的年月日GetLocalTime(&LocTime);DateTime1.nYear = LocTime.wYear ;DateTime1.nMonth = LocTime.wMonth ;DateTime1.nDay = LocTime.wDay ;SetTextColor(hDC,RGB(255,255,0));SunToLunar(&DateTime1,&DateTime2);//调用农历函数TextOut(hDC,70,35,ChDayTable[DateTime2.nDay],4);if(DateTime2.nMonth<11){TextOut(hDC,31,35,ChMonthTable[DateTime2.nMonth],2);TextOut(hDC,52,35,"月",2);}else{TextOut(hDC,31,35,ChMonthTable[DateTime2.nMonth],4);TextOut(hDC,52,35,"月",2);}//获得年GetLocalTime(&LocTime);hfon=CreateFont(13,0,380,67,FW_NORMAL,FALSE,0,0,ANSI_CHARSET,OU T_DEFAULT_PRECIS,CLIP_DEFAULT_PRECIS,DEFAULT_QUALITY,DEFAULT_PITCH | FF_SWISS, ("Arial")); //字体输出格式SelectObject(hDC,hfon);wsprintf(YTime,"%.4d",LocTime.wYear);SetTextColor(hDC,RGB(255,255,0)); //字体颜色TextOut(hDC,25,25,YTime,4);//得到月hfon=CreateFont(13,0,3400,67,FW_NORMAL,FALSE,0,0,ANSI_CHARSET,O UT_DEFAULT_PRECIS,CLIP_DEFAULT_PRECIS,DEFAULT_QUALITY,DEFAULT_PITCH | FF_SWISS, ("Arial")); //字体输出格式SelectObject(hDC,hfon);wsprintf(MTime,"%.2d",LocTime.wMonth);SetTextColor(hDC,RGB(255,255,0)); //字体颜色TextOut(hDC,68,8,MTime,2);//得到日。
