ABP B CFC 低压给水加热器系统手册第2-5章

§2.2.2 ABP低压给水加热器系统一、功能ABP系统的功能是在主凝结水进入除氧器之前，利用汽轮机的抽汽加热给水，从而提高二回路热力循环效率，并使进入除氧器的主凝结水达到预定的温度。

这个功能是利用3级低压加热器来实现的。

二、组成本系统包括1级、2级、3级低加及其相应的管道、阀门、疏水装置和仪表控制等设施。

其中，1、2级低加为三列并联连结的双生式（DUPLEX TYPE）或称复合式结构（1/2A，1/2B，1/2C），它们以并联方式在三条给水管线中，每列复合式加热器通过1/3额定给水流量，其布置在3台凝汽器的喉部，分别用汽机低压缸的6级后抽汽和5级后抽汽对主凝结水进行加热；第三级低加分两列（3A/3B）并联运行，每列加热器通过为1/2额定给水流量，其抽汽来自3号低压缸的4级后抽汽。

三、系统描述该系统又可分为凝结水、抽汽、疏水和排气四部分，见图⑴低压加热器系统流程图，现分述如下：1、凝结水侧在正常运行工况，来自凝结水抽取系统（CEX）的凝结水，被分成三条并列管线，分别进入3台复合式加热器第一级的水室，经过第1、2级低压加热器的U型管加热后，从第2级低加出水室排出，汇集在母管中。

然后，再分成两条并列的管线，分别进入并列的第三级低压加热器进口水室，经第三级加热器U型管加热后，从出口水室排出，汇集成一条管线送往除氧器系统。

2、抽汽侧复合式低压加热器所用抽汽分别取自汽机3个低压缸的5、6级后抽汽（即1级低加为6级后抽汽：2级低加为5级后抽汽）。

复合式低压加热器直接安放在凝汽器喉部，大大缩短了抽汽管道长度（减少中间容积），减少汽机超速的危险性，所以复合式加热器的抽汽管道上不装逆止阀，又因该加热器正常疏水和紧急疏水不受限制，故也不必安装隔离阀。

3级低加所用抽汽取自LP3低压汽缸4级后。

3级低压加热器抽汽管上设有逆止阀和隔离阀，逆止阀尽量靠近汽轮机抽汽口，以减少中间容积，防止汽机甩负荷时蒸汽或水倒流入汽机，而导致汽机超速或损坏叶片。

低压加热器启机阶段疏水不畅的问题分析及解决措施薛向科发表时间：2018-06-01T10:26:48.237Z 来源：《电力设备》2018年第2期作者：薛向科[导读] 摘要：核电站ABP系统为常规岛低压给水加热系统，对汽轮机组的保护和机组的热力循环起着至关重要的作用。

（核工业工程研究设计有限公司北京 101300）摘要：核电站ABP系统为常规岛低压给水加热系统，对汽轮机组的保护和机组的热力循环起着至关重要的作用。

本文基于低压加热器疏水不畅问题的原因分析，通过对比改造方案，最终确定解决措施，以保证核电站ABP系统以及汽轮机组二回路热力系统的正常运行。

关键词：核电站；低压加热器水；疏水；液位1．引言常规岛低压给水加热系统（ABP）的主要功能是利用汽机低中压缸抽汽加热给水，提高机组热力循环的效率。

而ABP401/402RE两台低压加热器为ABP系统的第4级加热设备，抽汽来源于中压缸，在启机阶段ABP401/402RE壳侧因疏水不畅液位异常上涨触发警报，严重影响设备正常运行。

本文通过对ABP系统的研究，分析疏水不畅造成液位异常上涨的原因，根据系统功能和现场空间选取几种改造方案，通过方案比选最终确认增加一条疏水管线来解决低加启机阶段疏水不畅的问题，保证核电站ABP系统和汽轮机组二回路热力系统的正常运行。

2．常规岛ABP系统简介2.1常规岛ABP系统介绍为了提高汽轮机热力循环的热利用效率，降低给水吸热温差，核电站对给水进行抽汽回热加热，即汽轮机抽汽对给水加热。

CPR100电厂共采用7级加热，其中4级低压加热、2级高压加热和1级除氧器混合加热。

ABP系统主要由4级低压加热器及其疏水系统和连接管路、阀门组成。

低压加热器设备整体构造详见图1。

图1：低压加热器设备构造图2.2常规岛ABP系统流程低压加热器（ABP401/402RE）加热蒸汽来源于汽轮机中压缸抽汽，抽汽加热给水后凝结，因低压加热器有疏水冷却段，所以设有调节阀109/209VL控制低加液位，根据003/004MN液位信号将疏水排往疏水接收箱，对应的疏水无阀门控制靠重力自流。

第x篇低压加热器检修工艺规程第一章低压加热器结构概述第一节低压加热器工作原理1.1 概述本厂330MW机组共四台低压加热器，本低压加热器为卧式，双流程表面式、水室与壳体采用法兰连接。

1.2 工作原理：低压加热器的作用是利用在汽轮机内做过部分功的蒸气，抽至加热器内加热给水，提高水的温度，减少了汽轮机排往凝汽器中的蒸汽量，降低了能源损失，提高了热力系统的循环效率。

加热器的受热面一般是用黄铜管或无缝钢管构成的直管束或U形管束组成的。

被加热的水从上部进水管进入分隔开的水室一侧，再流入U形管束中，U形管在加热器的蒸气空间，吸收加热蒸气的热量，由管壁传递给管内流动的水，被加热的水经过加热器出口水室流出。

第二节高压加热器结构组成2.1结构简介主要结构是由壳体、水室、传热管、隔板、防冲板和包壳板组成，具体见图（2-I）。

其中，NO7、8两台低加为一个壳体，安装于凝汽器接颈内。

检修为抽芯式，在两加热器芯子上均装有滚轮。

本低压加热器的加热面设计成两个区段，一是凝结段，二是疏水冷却段。

第二章低压加热器主要技术规范第一节低压加热器设备参数1.1 主要参数：第三章检修周期及检修项目第一节检修周期1.1检修周期1.1.1高压加热器A级检修周期为4年。

1.1.2高压加热器C级检修周期为1年。

第二节检修项目2.1 检修项目2.1.1 A级检修标准项目2.1.1.1 水室密件的维修,更换密封垫片。

2.1.1.2 检漏及堵管。

2.1.1.3 水室检查及清理。

2.1.1.4 安全阀.水位计等附件的解体检查及另部件更换。

2.1.1.5 更换法兰螺栓及密封垫片。

2.1.1.6 水.汽侧水压试验。

2.1.2 C修标准项目2.1.2.1 清洗水位计，更换盘根或玻璃管。

2.1.2.2 各阀门检查，加盘根。

2.1.2.3 安全阀整定、校验1.2.3 特殊项目1)壳体解体检修。

2)更换新管。

第三节检修前的准备工作3.1 检修前的准备3.1.1备齐专用工具、检修用料等。

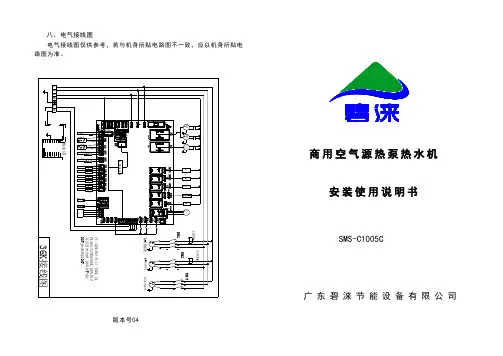

版法版权本号Array目录一、空气源热泵原理 (1)二、产品技术性能 (2)1.机组分类 (2)2.产品执行标准 (2)一一、、空空气气源源热热泵泵的的原原理理空气源热泵是采用“逆卡诺循环原理”，制冷剂在压缩机的作用下循环工作，不断地在蒸发器中蒸发而吸收空气中的热能，同时又不断地在冷凝器中冷凝释放热量，从而使流经冷凝器的冷水升温．由于整个系统只需二二、、产产品品技技术术性性能能 11..机机组组分分类类本说明书所含家用空气源热泵热水机由常压直热循环式一体机组、直热循环式分体机组。

22..产产品品执执行行标标准准 GB/T21362-2008 <<商业或工业用及类似用途的热泵热水机>> JB8654-1997<<容积式和离心式冷水（热泵）机组 安全要求>> 33..机机组组外外形形图图广东碧涞节能设备有公司保修卡用户姓名邮政编码通讯地址省市RB-30K RB-60K产品退换政策参照国家有关部委颁布的《部分商品修理更换退货责任规定》执行。

55..不不属属““三三包包””维维修修服服务务范范围围内内的的内内容容（（实实行行收收费费服服务务））因用户电源电压不稳，超过热泵热水机使用电压范围或线路连接不规范，不符合国家安全用电标准造成热泵热水机损坏的。

因用户使用不当、保管不善而损坏的。

非我公司特约技术服务部安装、维修而造成损坏的。

请您要求维修人员认真填写他们携带的《维修记录表》，并在上面提出您的意见和签名确认。

33..用用户户投投诉诉如果您对我们提供的产品和服务有任何怀疑或不满，包括产品质量、安装维修技术、服务态度、收费标准等问题，请您向本公司特约技术服务部反映，他们将会对您的意见进行妥善处理。

如果上述单位仍不能解决您的问题或者您对处理的结果仍不满意，请您立即向我公司顾客技术服务部反映，我们将会迅速、妥善地解决您对服务质量的问题和不满。

我公司的免费咨询服务热线：400-8308-166。

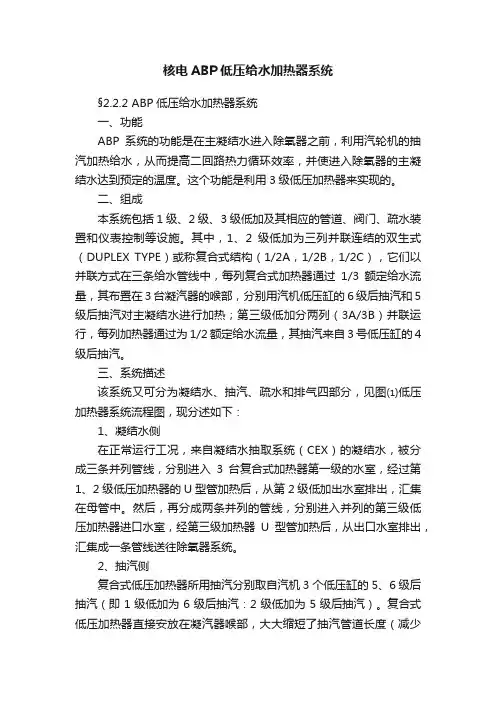

核电ABP低压给水加热器系统§2.2.2 ABP低压给水加热器系统一、功能ABP系统的功能是在主凝结水进入除氧器之前，利用汽轮机的抽汽加热给水，从而提高二回路热力循环效率，并使进入除氧器的主凝结水达到预定的温度。

这个功能是利用3级低压加热器来实现的。

二、组成本系统包括1级、2级、3级低加及其相应的管道、阀门、疏水装置和仪表控制等设施。

其中，1、2级低加为三列并联连结的双生式（DUPLEX TYPE）或称复合式结构（1/2A，1/2B，1/2C），它们以并联方式在三条给水管线中，每列复合式加热器通过1/3额定给水流量，其布置在3台凝汽器的喉部，分别用汽机低压缸的6级后抽汽和5级后抽汽对主凝结水进行加热；第三级低加分两列（3A/3B）并联运行，每列加热器通过为1/2额定给水流量，其抽汽来自3号低压缸的4级后抽汽。

三、系统描述该系统又可分为凝结水、抽汽、疏水和排气四部分，见图⑴低压加热器系统流程图，现分述如下：1、凝结水侧在正常运行工况，来自凝结水抽取系统（CEX）的凝结水，被分成三条并列管线，分别进入3台复合式加热器第一级的水室，经过第1、2级低压加热器的U型管加热后，从第2级低加出水室排出，汇集在母管中。

然后，再分成两条并列的管线，分别进入并列的第三级低压加热器进口水室，经第三级加热器U型管加热后，从出口水室排出，汇集成一条管线送往除氧器系统。

2、抽汽侧复合式低压加热器所用抽汽分别取自汽机3个低压缸的5、6级后抽汽（即1级低加为6级后抽汽：2级低加为5级后抽汽）。

复合式低压加热器直接安放在凝汽器喉部，大大缩短了抽汽管道长度（减少中间容积），减少汽机超速的危险性，所以复合式加热器的抽汽管道上不装逆止阀，又因该加热器正常疏水和紧急疏水不受限制，故也不必安装隔离阀。

3级低加所用抽汽取自LP3低压汽缸4级后。

3级低压加热器抽汽管上设有逆止阀和隔离阀，逆止阀尽量靠近汽轮机抽汽口，以减少中间容积，防止汽机甩负荷时蒸汽或水倒流入汽机，而导致汽机超速或损坏叶片。

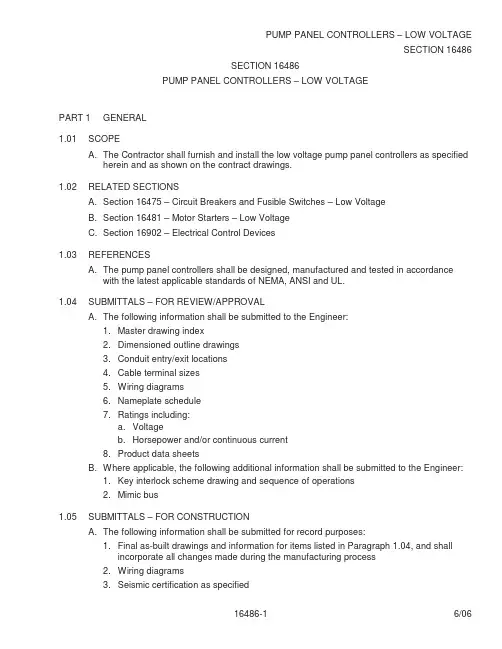

SECTION 16486PUMP PANEL CONTROLLERS – LOW VOLTAGEPART 1 GENERAL1.01 SCOPEA. The Contractor shall furnish and install the low voltage pump panel controllers as specifiedherein and as shown on the contract drawings.1.02 RELATED SECTIONSA. Section 16475 – Circuit Breakers and Fusible Switches – Low VoltageB. Section 16481 – Motor Starters – Low VoltageC. Section 16902 – Electrical Control Devices1.03 REFERENCESA. The pump panel controllers shall be designed, manufactured and tested in accordancewith the latest applicable standards of NEMA, ANSI and UL.1.04 SUBMITTALS – FOR REVIEW/APPROVALA. The following information shall be submitted to the Engineer:1. Master drawing index2. Dimensioned outline drawings3. Conduit entry/exit locations4. Cable terminal sizes5. Wiring diagrams6. Nameplate schedule7. Ratings including:a. Voltageb. Horsepower and/or continuous current8. Product data sheetsB. Where applicable, the following additional information shall be submitted to the Engineer:1. Key interlock scheme drawing and sequence of operations2. Mimic bus1.05 SUBMITTALS – FOR CONSTRUCTIONA. The following information shall be submitted for record purposes:1. Final as-built drawings and information for items listed in Paragraph 1.04, and shallincorporate all changes made during the manufacturing process2. Wiring diagrams3. Seismic certification as specified1.06 QUALIFICATIONSA. The manufacturer of the assembly shall be the manufacturer of the major componentswithin the assembly.B. For the equipment specified herein, the manufacturer shall be ISO 9001 or 9002 certified.C. The manufacturer of this equipment shall have produced similar electrical equipment for aminimum period of five (5) years. When requested by the Engineer, an acceptable list ofinstallations with similar equipment shall be provided demonstrating compliance with thisrequirement.D. £Provide Seismic tested equipment as follows:1. The equipment and major components shall be suitable for and certified to meet allapplicable seismic requirements of the International Building Code (IBC) for zone 4application. Guidelines for the installation consistent with these requirements shall beprovided by the switchgear manufacturer and be based upon testing of representativeequipment. The test response spectrum shall be based upon a 5% minimum dampingfactor, IBC: a peak of 2.45g’s (3.2-11 Hz), and a ZPA of 0.98g’s applied at the base ofthe equipment. The tests shall fully envelop this response spectrum for all equipmentnatural frequencies up to at least 35 Hz.-- OR –1. The equipment and major components shall be suitable for and certified to meet allapplicable seismic requirements of the California Building Code (CBC) through zone 4application. Guidelines for the installation consistent with these requirements shall beprovided by the switchgear manufacturer and be based upon testing of representativeequipment. The test response spectrum shall be based upon a 5% minimum dampingfactor, CBC: a peak of 2.15g’s, and a ZPA of 0.86g’s applied at the base of theequipment. The tests shall fully envelop this response spectrum for all equipmentnatural frequencies up to at least 35 Hz.-- OR --1. The manufacturer may certify the equipment based on a detailed computer analysis ofthe entire assembly structure and its components. Guidelines for the installationconsistent with these requirements shall be provided by the switchgear manufacturerand be based upon testing of representative equipment. The equipment manufacturershall document the requirements necessary for proper seismic mounting of theequipment2. The following minimum mounting and installation guidelines shall be met, unlessspecifically modified by the above referenced standards.a. The Contractor shall provide equipment anchorage details, coordinated with theequipment mounting provision, prepared and stamped by a licensed civil engineerin the state. Mounting recommendations shall be provided by the manufacturerbased upon approved shake table tests used to verify the seismic design of theequipment.b. The equipment manufacturer shall certify that the equipment can withstand, that is,function following the seismic event, including both vertical and lateral requiredresponse spectra as specified in above codes.£ Note to Spec. Writer - OptionalNote to Spec. Writer – Select onec. The equipment manufacturer shall document the requirements necessary for properseismic mounting of the equipment. Seismic qualification shall be consideredachieved when the capability of the equipment, meets or exceeds the specifiedresponse spectra.1.07 REGULATORY REQUIREMENTS1.08 DELIVERY, STORAGE AND HANDLINGA. Equipment shall be handled and stored in accordance with manufacturer’s instructions.One (1) copy of these instructions shall be included with the equipment at time ofshipment.PART 2 PRODUCTS2.01 MANUFACTURERSA. Eaton / Cutler-Hammer productsB. __________C. __________The listing of specific manufacturers above does not imply acceptance of their products that do not meet the specified ratings, features and functions. Manufacturers listed above are notrelieved from meeting these specifications in their entirety. Products in compliance with thespecification and manufactured by others not named will be considered only if pre-approved by the Engineer ten (10) days prior to bid date.2.02 PUMP PANEL CONTROLLERSA. Electromechanical Controller1. Magnetic starters through NEMA Size 7 shall be equipped with double-break silver alloycontacts. The starter must have straight-through wiring. Each starter shall have one (1)normally open auxiliary contact2. Coils shall be of molded construction through NEMA Size 7. All coils to be color-codedthrough Size 5 and permanently marked with voltage, frequency and part number3. Overload relays shall be an ambient compensated bimetallic-type with interchangeableheaters, calibrated for 1.0 and 1.15 service factor motors. Electrically isolated normallyopen/normally closed contacts shall be provided on the relay. Visual trip indication shallbe standard. A test trip feature shall be provided for ease of troubleshooting and shallbe conveniently operable without removing components or the motor starter. Overloadto have (+/-) 24% adjustability, single-phase sensitivity, and isolated alarm contact, andmanual or automatic reset-- OR --3. Solid-State Overload RelayNote to Spec. Writer – Insert data in blanksNote to Spec. Writer – Select onea. Provide a solid-state overload relay for protection of the motors. The relay shall beCutler-Hammer type CEP7 or approved equal.b. The overload relay shall provide high accuracy through the use of state-of-the-artmicroelectronic packaging technology. The relay shall be suitable for applicationwith NEMA Size 1 through Size 7 motor starters.c. The overload relay shall be modular in design, be an integral part of a family ofrelays to provide a choice of levels of protection, replace existing electromechanicaloverload relays, and be listed under UL Standard 508.d. The overload relay shall have the following features:1. Be self-powered2. Class 10 or 20 fixed tripping characteristics3. Manual or automatic reset4. Phase loss protection. The relay shall trip in 2 seconds or less underphase loss condition when applied to a fully loaded motor5. Visible trip indication6. One normally open and one normally closed isolated auxiliary contact7. Test button that operates the normally closed contact8. Test trip function that trips both the normally open and one normally closedcontacts9. A current adjustment range of 3.2:1 or greater10. Ambient temperature compensated4. NEMA Size 00 through 2 starters shall be suitable for the addition of at least six (6)external auxiliary contacts of any arrangement normally open or normally closed . Size3 through 7 starters shall be suitable for the addition of up to six (6) external auxiliarycontacts of any arrangement normally open or normally closed5. Across-the-line magnetic starters for motors up to 600 hp, 600 volts shall be Cutler-Hammer Freedom Series type “ECN” enclosed-- OR --A. Vacuum Starters1. Vacuum starters shall incorporate “low-chop” interrupters and limit chop currents to lessthan 0.5 amperes. Contact material to be silver tungsten carbide2. Interrupters shall have contact wear detection indicators3. Vacuum starters shall have front removable coil and auxiliaries4. The contactor coil shall utilize rectified AC current5. Provide a “push-to-test” button for Sizes 5 and 66. Vacuum contactors shall be Cutler-Hammer Class V200 for non-reversing andClass V210 for reversing7. Overload relays shall be an ambient compensated bimetallic-type with interchangeableheaters, calibrated for 1.0 and 1.15 service factor motors. Electrically isolated normallyopen/normally closed contacts shall be provided on the relay. Visual trip indication shallbe standard. A test trip feature shall be provided for ease of troubleshooting and shallbe conveniently operable without removing components or the motor starter. Overload Note to Spec. Writer – Select oneto have (+/-) 24% adjustability, single-phase sensitivity, and isolated alarm contact andmanual or automatic reset-- OR --7. Solid-State Overload Relaya. Provide a solid-state overload relay for protection of the motors. The relay shall beCutler-Hammer type CEP7 or approved equal.b. The overload relay shall provide high accuracy through the use of state-of-the-artmicroelectronic packaging technology. The relay shall be suitable for applicationwith NEMA Size 1 through Size 7 motor starters.c. The overload relay shall be modular in design, be an integral part of a family ofrelays to provide a choice of levels of protection, be designed to directly replaceexisting electromechanical overload relays, and be listed under UL Standard 508.d. The overload relay shall have the following features:1. Be self-powered2. Class 10 or 20 fixed tripping characteristics3. Manual or automatic reset4. Phase loss protection. The relay shall trip in 2 seconds or less under phase losscondition when applied to a fully loaded motor5. Visible trip indication6. One normally open and one normally closed isolated auxiliary contact7. Test button that operates the normally closed contact8. Test trip function that trips both the normally open/normally closed contacts9. A current adjustment range of 3.2:1 or greater10. Ambient temperature compensated-- OR --A. Motor Starters – IT Design1. Provide electromechanical type motor starters with coil control and overload integratedinto a single or dual microcontroller2. The motor starter shall operate over a temperature range of -40 to 149 degrees F (-40to 65 degrees C) and shall meet or exceed the following Standards and Certifications:UL, CSA, NEMA ICS1, ICS2, ICS5, IEC 60947-4-1, CE and KEMA where applicable.Devices shall meet Electromagnetic Compatibility (EMC) Requirements per EMC IEC61000-43. Provide one toroidal current sensor per phase accurate to 2% providing input to analogcircuitry and software, which yields a time-current curve paralleling actual motorheating. Motor FLA shall be set via a potentiometer for 1.0 or greater Service Factorsettings4. Provide user selectable overload Trip Class of 5, 10, 20 and 30 on each OverloadRelay. To adjust factory defaults, trip class shall be manually changed using the testbutton and FLA dial5. Provide phase loss and phase current unbalance protection. If the phase unbalance ofany phase is greater than, or less than, approximately 50% of the average, the device Note to Spec. Writer – Select onetrips. This feature is user enabled/disabled and manually changed using the Testbutton and FLA dial6. Provide each motor starter with a lockable cover that prevents unwanted tampering ofFLA dial settings once installed7. Provide a microcontroller with the following features:a. Monitor the nominal 24 Vdc and adjust the Pulse Width Modulation (PWM)accordingly to minimize utilized power and maximize contact sealed force.b. Energizes coil at full voltage and then applies Pulse Width Modulation.c. Monitors user control inputs (i.e., permissive {stop}, forward, reverse, local reset,remote reset, test/test to trip. Control inputs shall be rated are 24 Vdc (3–5 mA) witha plug and unplug lockable control connector.d. Operates an LED indicator which displays a flash sequence for thermal capacitiesover 70%, test button depression, trip indication, class setting, phaseenablement/disablement, and microcontroller reset condition.e. Monitors 3-Phase current into a common node.f. Sweeps the current waveform to avoid synchronizing with the current waveform.g. Provides Thermal Memory (in addition, Thermal Pile, Thermal Capacity) which shallbe saved to non-volatile memory for safety purposes in the event of a power loss orremoval and restore event.h. Controls an alarm output, which is a solid-state open collector or emitter type outputat 24 Vdc 250 mA.i. Shall solve a first order differential equation for an actual motor heating model tocalculate trip points.j. Provides an “alarm only” or “alarm without trip” mode for critical must-runapplications.k. Provides built-in logic to provide either 2- or 3-wire control, eliminating the need to provide and wire auxiliary contacts to seal-in and interlock the contactor coil.l. £Starter can be easily networked with the appropriate Starter Network Adapter device communicating to a factory bus.8. Control Voltages:a. The starter voltage shall be nominal 24 Vdc from 20 to 28 Vdc.9. Motor starters shall have replaceable fixed and movable contacts, Size 1 through 510. Motor starters shall have no laminations, shading coils, or magnet noise11. Accessoriesa. Motor starters shall accommodate auxiliary contacts per various maximumcombinations of single and dual auxiliaries. Maximum number of circuits shall be six(6) for Size 1 through 4 and twelve (12) for Size 5 starters. Contacts shall be ratedten (10) amperes continuous, 7200 VA make, 720 VA break for 120 Vac, 3600 VAmake, 360 VA break for 240 Vac, 1800 VA make, 180 VA break for 480 Vac 1440VA make, 144 VA break for 600 Vac, and 137.5 VA make and break for 125through 250 Vdc. No seal-in auxiliary contacts are required.b. Provide mechanical interlock on reversing contactors of a pivot-type mechanism toprevent closing of one contactor when the other is closed. Coil Controller energizesboth forward and reverse contactors providing one control point for wiring.£ Note to Spec. Writer – Optionalc. Provide control modules to perform the indicated input/output control functionsshown on the drawings. Module shall incorporate faceplates having membrane typepushbuttons and LED’s. All pushbutton and LED functions shall be provided withclearly written identification. Modules shall be provided with the ability to replaceconventional start, stop, hand, auto control functions, and overload reset function.Modules shall be provided with the ability to replace conventional indicating lightstatus of run, off, selector switch pushbutton position, and overload trip and circuitbreaker trip.12. Microprocessor-based motor starters shall be Cutler-Hammer IT series orapproved equal13. All printed wiring boards shall be conformal coated to provide environmental robustness14. £Motor starters shall provide Manual, Remote Reset, or Auto Reset capability2.03 ENCLOSURESA. The enclosure shall be NEMA 3R. £Provide [narrow], [standard], or [oversized] enclosure.2.04 ACCESSORIESA. Each starter shall be equipped with [HOA selector switch] [start pushbutton]. Unlessotherwise specified, the secondary shall be 120 Vac.B. Pilot devices, where specified, shall be oil-tight and mounted in the flange. Pilot lights shallbe transformer-type for extended lamp life. Pilot device nameplates shall be engravedphenolic or aluminum.C. Starters shall have [an adjustable instantaneous motor circuit protector (HMCP) type] [athermal-magnetic circuit breaker type] [a fusible type] [a non-fused type] disconnect device.D. £Where indicated on the drawings, pump panel controllers shall be suitable for ServiceEntrance use.2.05 £ALTERNATORA. An alternator shall be provided for duplexing and alternation of two pumps.PART 3 EXECUTION3.01 FACTORY TESTINGA. Standard factory tests shall be performed on the equipment provided under this section. Alltests shall be in accordance with the latest version of UL and NEMA standards.B. The manufacturer shall provide three (3) certified copies of factory test reports.£ Note to Spec. Writer – OptionalNote to Spec. Writer – Select one3.02 FIELD QUALITY CONTROLA. Provide the services of a qualified factory-trained manufacturer’s representative to assistthe Contractor in installation and startup of the equipment specified under this section. Themanufacturer’s representative shall provide technical direction and assistance to theContractor in general assembly of the equipment, connections and adjustments, andtesting of the assembly and components contained herein.B. The Contractor under the technical direction of the manufacturer’s service representativeshall perform the following minimum work.1. Inspection and final adjustments2. Operational and functional checks of controllers/starters and spare partsC. The Contractor shall provide three (3) copies of the manufacturer’s field startup report3.03 MANUFACTURER’S CERTIFICATIONA. A qualified factory-trained manufacturer’s representative shall certify in writing that theequipment has been installed, adjusted and tested in accordance with the manufacturer’srecommendations.B. The Contractor shall provide three (3) copies of the manufacturer’s representative’scertification.3.04 TRAININGA. The Contractor shall provide a training session for up to five (5) owner’s representatives for____ normal workdays at a job site location determined by the owner.B. The training shall be conducted by a manufacturer’s qualified representative.C. The training program shall consist of the following:1. Instructions on the proper maintenance and operation of the equipment.Note to Spec. Writer – Insert data in blanks。

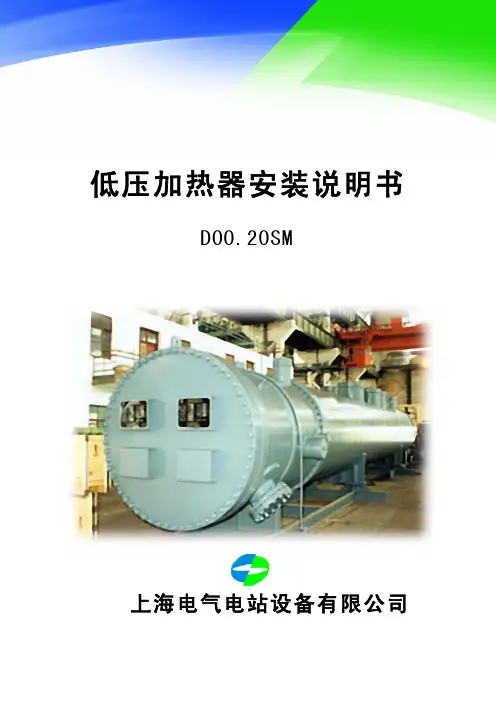

低压加热器安装说明书D00.20SM上海电气电站设备有限公司★★★：以下仅仅提醒安装和使用人员 （详细安装运行问题请见后面各章节）★： 保持稳定和一定高的加热器水位，不仅对机组和加热器效率、安全运行很重要，低水位运行将引起加热器内部汽水二相流，导致加热器传热管迅速泄漏、损坏。
