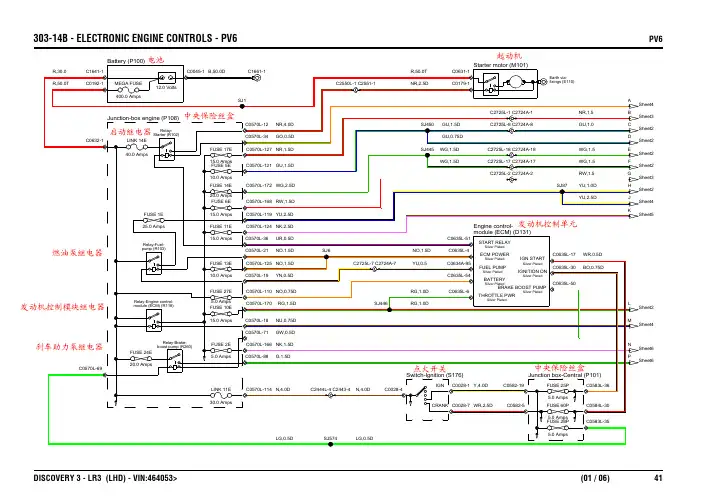

【捷豹路虎全系工程师版电路图】EVOQUE[VIN856580-]电路图(RHD)-2014

路虎维修手册电路图语言：中文Chinese 、英文English。

D.路虎2015年路虎Discovery Sport L550原厂维修手册2014-2015年路虎Freelander2 L359原厂维修手册2014-2015年路虎Range Rover Sport L494原厂维修手册2012-2013年路虎Range Rover Sport L320 原厂维修手册2013-2015年路虎Range Rover L405原厂维修手册2013-2015年路虎Discovery4 L319原厂维修手册2012-2015年路虎Range Rover Evoque L538原厂维修手册2009-2015年路虎卫士Defender L316原厂维修手册2008-2015年路虎Freelander2 L359原厂维修手册2007-2012年路虎Range Rover Sport L320原厂维修手册2005-2007年路虎Discovery3 L319原原厂维修手册2006-2012年路虎Range Rover L322原厂维修手册2008-2009年路虎Discovery3 L319原厂维修手册2011-2012年路虎Discovery 4 L319原厂维修手册2009-2015年路虎系列车型修数据规格资料2015年路虎年Discovery Sport车型DTC故障代码及诊断帮助信息2012-2015年Range Rover Evoque车型DTC故障代码及诊断帮助信息2010-2015年路虎Discovery4车型DTC故障代码及诊断帮助信息2008-2015年Range Rover Sport车型DTC故障代码及诊断帮助信息2008-2015年Freelander2车型DTC故障代码及诊断帮助信息JLR维修手册(第一册)描述与运作JLR维修手册（第二册）修理指南JLR维修手册(第三册)电路图2006-2015路虎Range Rover Sport电路图与电器元件维修信息说明2006-2014年路虎Discovery电路图与电器元件维修信息说明2008-2015路虎Freelander2电路图与电器元件维修信息说明2012-2015年Range Rover Evoque电路图与电器元件维修信息说明2015年Discovery Sport/L550原厂电路图2015路虎卫士Defender/L316原厂电路图2015路虎Range Rover Sport/L494原厂电路图2015年路虎Range Rover/L405原厂电路图2015路虎Range Rover Evoque/L538原厂电路图2015年路虎Freelander2/L359原厂电路图2015路虎Discovery4/L319原厂电路图2014Range Rover Evoque/L538原厂电路图2014年Range Rover (All New)/L405原厂电路图2014年Range Rover Sport/L494原厂电路图2013年Range Rover Evoque/L538电路图2013年Discovery4原厂电路图2013年Freelander2原厂电路图2013年Range Rover Sport电路图2012年Range Rover Evoque汽油机原厂电路图2012年Range Rover Evoque柴油机原厂电路图2006年New Range Rover原厂电路图2007年New Range Rover原厂电路图2008年New Range Rover原厂电路图2009年Range Rover Sport原厂电路图2010年Range Rover Sport原厂电路图2011年New Range Rover原厂电路图2012年New Range Rover原厂电路图2012年Range Rover Sport原厂电路图2006年Discovery3原厂电路图2007年Discovery3原厂电路图2008年Discovery3原厂电路图2009年Discovery3原厂电路图2011年Discovery4原厂电路图2010年Discovery4原厂电路图2011年Discovery4原厂电路图2012年Discovery4 原厂电路图2008年Freelander2原厂电路图2009年Freelander2原厂电路图2011年Freelander2原厂电路图2012年Freelander2柴油机原厂电路图2012年Freelander2汽油机原厂电路图2006年Freelander2原厂电路图2007年Defender原厂电路图2011年Defender原厂电路图2012年Defender原厂电路图路虎一级技师培训-路虎车型介绍路虎一级技师培训--路虎电路图知识技术培训路虎一级技师培训- IDS诊断与测试技术培训路虎一级技师培训-路虎SDD诊断电脑使用技术培训路虎一级技师培训-路虎底盘系统技术培训路虎一级技师培训--路虎发动机技术培训路虎一级技师培训--路虎变速箱技术培训路虎一级技师培训-路虎车身电器系统技术培训路虎一级二级技师测评复习试题路虎二级技师培训--路虎新揽胜极光技术介绍路虎二级技师培训--路虎胎压监测系统技术培训路虎二级技师培训--路虎四轮驱动系统技术培训路虎二级技师培训--路虎数据总线网络管理技术培训路虎二级技师培训--路虎汽油机技术培训路虎二级技师培训--路虎柴油机技术培训路虎二级技师培训--路虎空调系统技术培训路虎二级技师培训--路虎空气悬挂系统技术培训路虎二级技师培训--路虎电控发动机管理系统技术培训路虎三级技师培训--JLR新款发动机电子管理系统诊断技术培训路虎三级技师培训--路虎ABS、TCS系统技术培训（包含内训及考题）路虎三级技师培训--路虎TPMS系统技术培训（包含内训及考题）路虎三级技师培训--路虎ZF与JATCO自动变速器技术培训（包含内训及考题）路虎三级技师培训--路虎底盘悬挂与制动系统技术培训（包含内训及考题）路虎三级技师培训--路虎电子驻车制动系统技术培训（包含内训及考题）路虎三级技师培训--路虎分动器及差速器技术培训（包含内训及考题）路虎三级技师培训--路虎空调系统技术培训（包含内训及考题）路虎三级技师培训--路虎全地形反馈系统技术培训（包含内训及考题）路虎三级技师培训--路虎自适应巡航ACC系统技术培训（包含内训及考题）路虎差速器分动箱后桥全地形反馈系统培训路虎揽胜运动LR538培训手册JLR D4无钥匙进入系统内训师课程新型路虎技术特训课程JLR 导航专题培训JLR认证技师自学课程发现三全车诊断高级电器培训路虎新款发动机管理系统培训1路虎新款发动机管理系统培训2路虎新款发动机管理系统培训3路虎诊断电脑使用方法技师培训L405上市培训神行者2培训路虎极光全车系统培训路虎揽胜运动版培训路虎发动机培训路虎技师基础培训路虎的电路图基础知识培训路虎车载导航系统安装培训路虎底盘及空气悬挂培训路虎车身电器系统培训JLR柴油车电气系统培训路虎柴油产品自学手册路虎变速箱系统培训路虎V8发动机培训JLR新型柴油机技术培训新型柴油机技术研讨英文版路虎培训资料路虎技术视频JLR简写代码JLR防盗匹配改装2010年路虎区域案例研讨2011年路虎区域案例研讨2012年路虎区域案例研讨2007年路虎技术通报2008年路虎技术通报2009年路虎技术通报2010年路虎技术通报2011年路虎技术通报2012年路虎技术通报2013年路虎技术通报2014年路虎技术通报2015年路虎技术通报E.奥迪奥迪A1技术培训学习手册奥迪A2技术培训学习手册奥迪A3技术培训学习手册奥迪A4L技术培训学习手册奥迪A5技术培训学习手册奥迪A6LC6技术培训学习手册奥迪A6LC7技术培训学习手册奥迪A7技术培训学习手册奥迪A8D3技术培训学习手册奥迪A8LD4技术培训学习手册奥迪Q3技术培训学习手册奥迪Q5技术培训学习手册奥迪Q7技术培训学习手册奥迪R8技术培训学习手册奥迪RS技术培训学习手册奥迪S8技术培训学习手册奥迪TT技术培训学习手册奥迪工厂技师基础培训奥迪技师考试资料奥迪防盗系统高级培训新款奥迪A4L A6L A7技术高级培训新款奥迪Q3 Q5技术高级培训新款奥迪A8L Q7 技术高级培训新款奥迪编码、匹配、数据流新款奥迪SVM行动升级代码奥迪V AS、ODIS诊断技术培训新款奥迪系列发动机技术高级培训新款奥迪系列变速箱技术高级培训新款奥迪系列底盘技术高级培训新款奥迪混合动力技术培训新款奥迪系列空调技术高级培训新款奥迪系列电器技术基础培训新款奥迪系列电器诊断技术高级培训奥迪A5 ITV多媒体视频培训奥迪Q5 ITV多媒体视频培训奥迪Q7 ITV多媒体视频培训奥迪A7 ITV多媒体视频培训奥迪新A6L ITV多媒体视频培训奥迪新A8L ITV多媒体视频培训奥迪新型电器系统ITV多媒体视频培训新款奥迪防盗系统ITV多媒体视频培训新款奥迪双离合变速箱ITV多媒体视频培训2011年SOST专题培训第一期+TPI通告2011年SOST专题培训第二期+TPI通告2012年SOST专题培训第一期+TPI通告2012年SOST专题培训第二期+TPI通告2012年SOST专题培训第三期+TPI通告2013奥迪SOST专题培训第一期+TPI通告2013奥迪SOST专题培训第二期+TPI通告2013奥迪SOST专题培训第三期+TPI通告2014奥迪SOST专题培训+TPI通告奥迪车辆重要TPI（技术经理现场看车）奥迪年度重点技术议题汇总寶馳名車國際服務中心Bao Chi Super luxury car International Service Center ==持久更新。

二、捷达/捷达王轿车电气线路图捷达/捷达王轿车电气线路如图6-2-23~图6-2-49所示。

图6-2-23 发电机、蓄电池、起动机、点火开关电路图A-蓄电池J59-X-触点卸荷继电器ws-白色bl-蓝色B-起动机T1a-单孔接头——蓄电池附近sw-黑色gr-灰色C-发电机①接地线，蓄电池——车身ro-红色li-紫色C1-电压调节器②接地线，变速器——车身br-棕色ge-黄色D-点火开关–接地连接点1，前大灯线束内gn-绿色图6-2-24 散热器风扇、自动阻风门、进气歧管预热电路图F18-散热器风扇温度开关F26-自动阻风门温度开关* F35-进气管预热温度开关* F87-风扇起动温度开关J81-进气管预热继电器J138-散热器风扇起动控制单元N1-自动阻风门N52-加热电阻（部分负荷处喉管加热-化油器）N69-冷起动热时间阀T1n-单孔插头，左前大灯附近T2a-两孔插头，左前大灯附近V7-散热器风扇–接地连接点，发动机接地，右前线束内–接地连接点1，前大灯线束内-正极连接点（30），左前线束内–正极连接点（15），化油器线束内注：*不适用1.8L发动机图6-2-25 进气歧管预热、点火系统、超速切断电路图G40-霍尔传感器J130-超速切断控制器单元，仅用于1.8L发动机N-点火线圈N41-晶体管点火系统控制单元，压力通风舱左侧N51-进气管预热加热电阻N68-怠速-超速控制阀O-分电器P-火花塞插头Q-火花塞-接地点，发动机舱左侧–接地连接点1，发动机舱线束内图6-2-26 仪表板连接、油压开关、冷却液温度传感器电路图F1-油压开关*（180kPa）F22-油压开关*（30 kPa）G-燃油表传感器G2-冷却液温度表传-远光警报灯K5-转向警报灯T28-28孔插头，在仪表板上–搭铁连接点1，感器K在发动机舱线束内注：*不适用1.8L发动机图6-2-27 仪表板（燃油表、油压报警、时钟、转速表）电路图G1-燃油表G3-冷却液温度表G5-转速表G54-速度传感器（仪表板内）J6-稳压器J243-油压和冷却液报警及转速度表控制单元K3-油压警报灯K28-冷却液温度警报灯L8-时钟照明灯L10-仪表板照明灯T1d-单孔插接件，继电器盘后面T11-11孔插接件，控制器J243上T28-28孔插接件，仪表板旁Y2-数字式时钟图6-2-28 手制动和制动液液面警报、磁带盒照明电路图F9-手制动指示灯开关F34-制动液面警报开关K7-双管路制动及手制动指示灯L66-磁带盒照明灯T2i-两孔插接件，仪表板后–接地点1，继电器盘旁–接地点1，发动机舱线束内–接地连接1，前大灯线束内图6-2-29 点烟器、收放机、鼓风机电路图E9-鼓风机开关L16-空调控制板照明灯L28-点烟器照明灯N23-鼓风机串联电阻R-收放机插头S24-过热保险丝T1b-单孔插接件，继电器盘后面T1c-单孔插接件，继电器盘后面T1m-单也插接件，仪表板的右后面T2V-两孔插接件，鼓风机串联电阻上T3a-3孔插接件，仪表板后T5e-5孔插接件，鼓风机串联电阻上T8-8孔插接件，收放机上U1-点烟器V2-鼓风机–连接点（30），仪表线束-接地点，接线柱A左下面–接地连接1，仪表线束内图6-2-30 车内灯、行李仓照明灯、牌照灯电路图F2-左前门联锁开关F3-右前门联锁开关F5-行李舱照明灯开关F10-左后门联锁开关F11-右后门联锁开关T1e-单孔插接件，继电器盘上部T10-单孔插接件，继电器盘上部T2e-2孔插接件，行李舱左后部T21-2孔插接件，行李舱左侧W3-行李舱灯W15-带延迟关闭的内饰灯（室内灯）X-牌照灯–接地点1，继电器盘旁–接地点，行李舱左侧–接地点，后挡板右侧图6-2-31 前大灯远近光调节电路图E102-灯光距离调节器L54-灯光调节器照明灯T2f-2孔插接件，车身左前围板上V48-左灯光调节电机V49-右灯光调节电机–接地点1，断电器盘附近–接地点1，前大灯线束内–接地点2，前大灯线束内图6-2-32 前大灯、停车灯、变光及转向灯开关电路图E4-变光及转向灯开关L1-左前大灯双丝灯L2-右前大灯双丝灯M1-左停车灯M3-右停车灯T5b-5孔插接件，转向柱开关后面–接地连接点1，前大灯线束内-接地连接点2，前大灯线束内图6-2-33 转向信号和危险警报灯、驻车灯开关电路图E2-转向灯开关E3-遇险警报灯开关E19-驻车灯开关J2-遇险警报灯继电器（闪光器）K6-遇险警报灯T4c-4孔插接件，转向柱开关后T5b-5孔插接件，转向柱开关后T7a –7孔插接件，转向柱开关后图6-2-34 转向灯、尾灯电路图M2-右尾灯M4-左尾灯M5-左前转向灯M6-左后转向灯M7-右前转向灯M8-右后转向灯M18-左侧停车转向灯M19-右侧停车转向灯T1i-单孔插接件，左减震器支柱后T2d-2孔插接件，左减振器支柱后T6a-6孔插接件，左尾灯T6b-6孔插接件，右尾灯–接地点，行李舱盖左侧-接地点，行李舱盖右侧–接地点，左尾灯灯架处- 接地点，右尾灯灯架处–接地连接点1，前大灯线束内-接地点2，前大灯线束内图6-2-35 车灯开关、制动灯电路图E1-车灯开关E20-车灯控制开关和仪表F-制动灯开关L9-车灯开关照明灯M9-左制动灯M10-右制动灯T1m-单孔插接件，插在继电器位置10触点3上T6a-6孔插接件，左尾灯上T6b-6孔插接件，右尾灯上-接地点，左尾灯灯架上- 接地点，右尾灯灯架上图6-2-36 倒车灯、后窗加热、双音喇叭电路图E15-后风窗加热开关F4-倒车灯开关H1-双音喇叭J4-双音喇叭继电器K10-后风窗加热指示灯L39-后风窗加热开关照明灯M16-左倒车灯M17-右倒车灯T2b-2孔插接件，继电器盘后面T2e-2孔插接件，行李舱左后侧T6a-6孔插接件，左尾灯上T6b-6孔插接件，右尾灯上Z1-后风窗加热–接地点，行李舱右侧-接地点，左尾灯灯架上-接地点，右尾灯灯架上–接地连接点，双音喇叭线束内–电源线连接点，双音喇叭线束内图6-2-37 后雾灯电路图E23-前后雾灯开关K13-后雾灯指示灯L20-后雾灯灯泡L40-前、后雾灯开关照明灯T2g-2孔插接件，左后悬架上T6a-6孔插接件，左尾灯上- 接地点，右尾灯灯架图6-2-38 前风窗刮水器、清洗装置电路图E22-间歇工作的前风窗雨刷器开关H1-喇叭开关J31-清洗/刮水-间歇自动控制继电器T4c-4孔插接件，转向柱开关后T5c-5孔插接件，转向柱开关后T7a-7孔插接件，转向柱开关后V-前风窗雨刷电机图6-2-39 后风窗刮水器、清洗装置、杂物箱照明灯电路图J30-后风窗雨刷器和清洗器继电器T2 c-2孔插接件，仪表板右后部T2k-2孔插接件，行李舱左后部V12-后风窗雨刷电机V59-前、后风窗洗涤泵W6-杂物箱照明灯–接地点，后挡板右侧–接地连接点1，仪表线束内图6-2-40 空调开关、鼓风机电路图A-蓄电池E9-鼓风机开关E33-蒸发器温度开关（温度低开+1℃时断开）E35-空调开关F73-制冷液管路低压开关（压力低于200kPa时断开）J32-空调继电器N23-鼓风机串联电阻N62-怠速提升双通阀S23-主保险丝S24-过热保险丝T1a-单孔插接件，仪表板后T1c-单孔插接件，仪表板后T2a-2孔插接件，仪表板后T21-2孔插接件，发动机舱前T3a-3孔插接件，仪表板后T5a-5孔插接件，仪表板后T5b-5孔插接件，仪表板后V2-鼓风机–接地点1，继电器盘附近–接地点1，仪表线束内图6-2-41 电磁离合器、压力开关、散热器风扇电路图F18-散热器风扇热敏开关F23-空调管路上的高压开关J69-起动继电器J138-散热器风扇控制单元N25-空调电磁离合器T1b-单孔插接件T2c-2孔插接件，发动机舱前T2e-2孔插接件，发动机舱前T2f-2孔插接件，发动机舱前T2g-2孔插接件，发动机舱前T21-2孔插接-散热器风扇–接地端1，左前线束内件，发动机舱前V图6-2-42 前后雾灯开关、前雾灯电路图E23-前后雾灯开关J5-前雾灯继电器K13-后雾灯指示灯L22-左前雾灯L23-右前雾灯L40-前后雾灯开关照明灯T2b-2孔插接件，右前大灯附近T2g-2孔插接件，右前大灯附近T2h-2孔插接件，左前大灯附近–接地端1，前大灯线束内图6-2-43 收放机、前扬声器、拉杆天线电路图D-点火开关E20-开关及仪表照明调节器K-仪表部件L16-空调调节器照明灯L28-点烟器照明灯L39-后风窗加热开关照明灯L40-前、后雾灯开关照明灯R-带双音调谐的收放机R2-左前扬声器R3-右前扬声器R11-天线T1-单孔插接件，继电器盘后T2-2孔插接件，仪表板中后部T8-8孔插接件，收音机上T8a-8孔插接件，收音机上T28-28孔插接件，收音机上U1-点烟器–接地点，接线柱A-右下部–电源正极连接点（30a），仪表板线束内图6-2-44 多点喷射控制单元、点火系统、冷却液温度传感器电路图A-蓄电池G2-冷却液温度传感器G40-霍尔传感器G62-冷却温度传感器J220-多点喷射控制单元N79-加热电阻（曲轴箱通风）N152-点火线圈P-火花塞插头Q-火花塞T4-4孔插头T8-8孔插头T80-80孔插头–接地点，在气缸盖上–接地连接点1，在发动机舱线束内–接地连接点（传感器接地），在发动机线束内–正极连接点1（15），在发动机舱线束内–连接点1，在多点喷射控制单元线束内图6-2-45 多点喷射控制单元、节气门控制单元、爆震传感器1、进气温度传感器电路图F60-怠速开关G61-爆震传感器1 G69-节气门电位计G72-进气温度传感器G88-节气门调节器电位计J220-多点喷射控制单元J338-节气门控制单元T80-80孔接点V60-节气门调节器图6-2-46 多点喷射控制单元、发动机转速传感器、爆震传感器电路图B-起动机D-点火开关G28-发动机转速传感器G66-爆震传感器2 J220-多点喷射控制单元T3-3孔插头，靠近发动机转速传感器T80-80孔插头-接地点，在发动机舱左侧–接地连接点（传感器接地），在发动机线束内ws-白色sw-黑色ro-红色br-棕色gn-绿色bl-蓝色gr-灰色li-紫色ge-黄色图6-2-47 多点喷射控制单元、空气流量计、燃油泵继电器、喷油器电路图G39-λ传感器G70-空气流量计J17-燃油泵继电器J220-多点喷射控制单元N30-1缸喷油器N31-2缸喷油嘴N32-3缸喷油器N33-4缸喷油器N4a-4孔插头T80-80孔插头TV2-30号接线柱，分线器，在继电器盘后–连接点（喷油阀），在发动机舱线束内ws-白色sw-黑色ro-红色br-棕色gn-绿色bl-蓝色gr-灰色li-紫色ge-黄色图6-2-48 多点喷射控制单元、燃油泵电路图A-蓄电池G-燃油表传感器G6-燃油泵J32-空调继电器，在继电器盘上J220-多点喷射控制单元N25-空调装置电磁离合器N80-活性磁罐电磁阀 1 S51-保险丝T8-8孔插头T16-16孔插头，T80-80孔插头–接地连接点1，在仪表板线束内ws-白色sw-黑色ro-红色br-棕色gn-绿色bl-蓝色gr-灰色li-紫色ge-黄色注*散热器风扇接通控制单元图6-2-49 仪表板电路图F1-机油压力开关F22-机油压力开关（30kPa）G1-燃油表G3-冷却液温度表K-仪表板T8-8孔插头T28-28孔插头，在仪表板上ws-白色sw-黑色ro-红色br-棕色gn-绿色bl-蓝色gr-灰色li-紫色ge-黄色1、捷达轿车有几种车型？答：捷达轿车目前有12种车型。

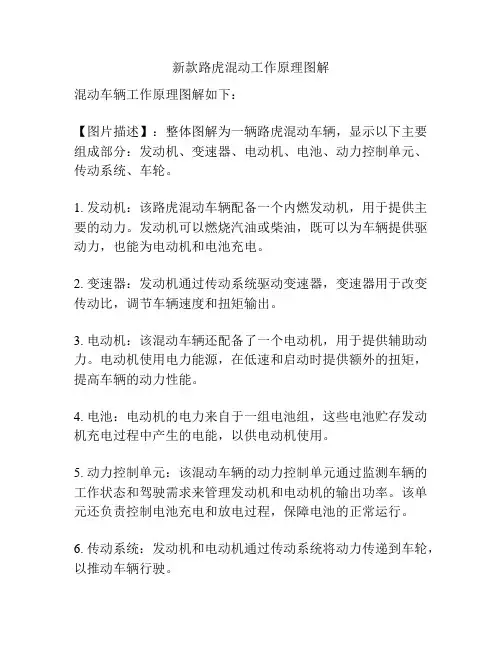

新款路虎混动工作原理图解
混动车辆工作原理图解如下：
【图片描述】：整体图解为一辆路虎混动车辆，显示以下主要组成部分：发动机、变速器、电动机、电池、动力控制单元、传动系统、车轮。

1. 发动机：该路虎混动车辆配备一个内燃发动机，用于提供主要的动力。

发动机可以燃烧汽油或柴油，既可以为车辆提供驱动力，也能为电动机和电池充电。

2. 变速器：发动机通过传动系统驱动变速器，变速器用于改变传动比，调节车辆速度和扭矩输出。

3. 电动机：该混动车辆还配备了一个电动机，用于提供辅助动力。

电动机使用电力能源，在低速和启动时提供额外的扭矩，提高车辆的动力性能。

4. 电池：电动机的电力来自于一组电池组，这些电池贮存发动机充电过程中产生的电能，以供电动机使用。

5. 动力控制单元：该混动车辆的动力控制单元通过监测车辆的工作状态和驾驶需求来管理发动机和电动机的输出功率。

该单元还负责控制电池充电和放电过程，保障电池的正常运行。

6. 传动系统：发动机和电动机通过传动系统将动力传递到车轮，以推动车辆行驶。

7. 车轮：车轮是支撑和驱动车辆运动的部分。

【备注】: 以上图解为示意图，具体不同车型的混动车辆工作原理可能存在差异。

B,1.5RW,0.5YB,0.5YB,0.5YB,0.5YB,0.5GB,0.5GR,0.5GW,0.5RW,1.0GW,0.5YR,0.5B,0.5B,0.5RW,1.5RW,1.5RW,0.5RW,0.5RW,1.0GB,0.5GB,0.5Y,0.5GU,0.5GB,0.5NR,0.5NR,0.5NR,0.5NR,0.5NR,0.5NR,0.5NR,1.5BO,0.5U,0.5BR,0.5BG,0.5BP,0.5BG,0.5B,1.5B,0.5B,1.5B,1.5RW,0.5RW,0.5B,0.5B,0.5B,1.5RW,0.5B,0.5module (ECM) (D131)Engine control-G Sheet1Capacitor (G158)Ignition coil-2 (D234)2aIgnition coil-1 (D233)1aB Sheet1Fuel injector-No.3 (T174)Fuel injector-No.5 (T176)Fuel injector-No.6 (T177)Fuel injector-No.4 (T175)Fuel injector-No.2 (T173)Fuel injector-No.1 (T172)Ignition coil-3 (D235)3aTYPE 3Ignition coil-5 (D237)2bIgnition coil-6 (D238)3bIgnition coil-4 (D236)1bTYPE 3C0052A-4C0052A-1C0156A-4C0156A-1SJ950SJ930C1323A-3C1323A-2C1323A-1C0634A-61Silver PlatedCOIL 1AC0634A-59Silver PlatedCOIL 2AC0052A-3C0052A-2C0156A-2C0156A-3C0634A-62Silver PlatedIGF1SJ1250C0634A-64Silver PlatedIGF2C0527A-2C0526A-2C0525A-2C0524A-2C0523A-2C0522A-2SJ730C0634A-58Silver PlatedCOIL 2BC0634A-82Silver PlatedCYL 3A INJECTORC0634A-83Silver PlatedCYL 3B INJECTORC0634A-81Silver PlatedCYL 2B INJECTORC0634A-79Silver PlatedCYL 1B INJECTORC0526A-1C0527A-1C0525A-1C0634A-56Silver PlatedCOIL 3BC0634A-57Silver PlatedCOIL 3AC0634A-80Silver PlatedCYL 2A INJECTORC0634A-78Silver PlatedCYL 1A INJECTORC0524A-1C0523A-1C0522A-1C0634A-60Silver PlatedCOIL 1BC0276A-2C0276A-1SJ970SJ1060SJ12900C2649A-1C1771A-4C1771A-3C0276A-3C1772A-2C0276A-4C1772A-1C1772A-3C1771A-2C1772A-4C1771A-1C1770A-2C1770A-3C1770A-4C1770A-1SJ940SJ1050C2651A-1喷油嘴喷油嘴喷油嘴喷油嘴喷油嘴喷油嘴点火线圈点火线圈点火线圈点火线圈点火线圈点火线圈发动机控制模块电容RB,0.5DG,0.75DWU,0.5D NK,1.5HNK,1.5HG,0.5H (NAS ONLY)WU,0.5H (NAS ONLY)RB,0.5H(NON NAS)WU,0.5H (NON NAS)RB,0.5H(NAS ONLY)G,0.5H (NON NAS)GP,0.5DGP,0.5DR,0.5Y,0.5NK,2.5H(NAS ONLY)NK,2.5H(NON NAS)GP,1.0DNK,2.5DGP,0.5DGP,1.5DRB,0.5DWO,0.5DU,0.5D U,0.5H (NAS ONLY)RB,0.5H(NAS ONLY)WO,0.5H (NAS ONLY)RB,0.5H(NON NAS)WO,0.5H (NON NAS)U,0.5H (NON NAS)NK,1.5HNK,1.5H(HO2S)-Rear-LH (T185)Sensor-Heated oxygen-B(HO2S)-Rear-LH (T185)Sensor-Heated oxygen-BC2374A-1 C2373L-1C2374A-7 C2373L-7C2374A-2 C2373L-2C2411L-2 C2412L-2position (CMP) (T107)Sensor-Camshaft-C2365L-18 C2366A-18K Sheet1ABS module (D277)Stop lamp switch (S215)module (ECM) (D131)Engine control-(HO2S)-Rear-RH (T184)Sensor-Heated oxygen-A(HO2S)-Rear-RH (T184)Sensor-Heated oxygen-AC2374A-3 C2373L-3C2374A-5 C2373L-5C2374A-4 C2373L-4C0908-3Gold PlatedC0908-4Gold PlatedC0908-2C0643-4C0643-3C0643-2C0908-1C0643-1C0176A-1C0176A-2C0506L-30C0075L-1SJ882SJ814C0635L-26Silver PlatedHEGO B SIGC0634A-34Silver PlatedCAM +C0642-1C0642-2SJ1444C0164-4Gold PlatedC0164-3Gold PlatedC0164-2C0642-4C0642-3SJ4444C0164-1C0635L-41Silver PlatedBRAKE SWC0634A-7Silver PlatedCAM -C0635L-46Silver PlatedHEGO A HTRC0635L-22Silver PlatedHEGO A GNDC0635L-47Silver PlatedHEGO B HTRC0635L-25Silver PlatedHEGO A SIGC0635L-34Silver PlatedHEGO B GND凸轮轴位置传感器ＡＢＳ模块刹车灯开关发动机控制模块右侧后加热型氧传感器右侧后加热型氧传感器左侧后加热型氧传感器左侧后加热型氧传感器。

LGW,0.35D,2785YN,0.5D,450YB,0.5D,490W,4.0,240YG,0.5D,1735BN,0.5D,100YW,0.5D,1115YU,0.5D,1115OG,1.5D,2555GP,1.0D,1620N,0.5D,2785B,0.5D,290B,0.5D,290B,0.5D,290WR,1.5D,1000B,0.5D,690GP,0.5D,1360YU,0.5D,2465YW,0.5D,2465NR,6.0D,1155BN,0.5D,740YG,0.5D,740OG,1.5D,3075BN,0.5D,1635R,35.0D,345NS,6.0D,1155NR,4.0D,1050LGW,0.5D,1195GP,1.0D,1060N,0.5D,1195WR,1.5D,1280B,50.0D,235Y,0.5,1630NG,0.5,485GB,1.5D,1180NG,0.5,1145YW,0.35D,915YU,0.35D,915YN,0.5D,645YB,0.5D,645GB,0.75D,1195R,4.0,385B,1.0D,2815YW,0.35D,460YU,0.35D,460B,4.0,395LGB,0.5,1645G,0.5,1645GP,0.5D,460GP,0.5D,3315B,4.0D,820Module (BCM) (D207)Body Control-FUSE 62P 10.0 AmpsLINK 17E 50.0 AmpsFUSE 21P 10.0 AmpsFUSE 11E 15.0 AmpsLINK 18E 50.0 Amps C1168L-15 C1166L-15Junction box-Central (P101)C2443-5 C2444L-5Ignition (R211)Relay-PCB (R16)C3127-1 C3126-1C3127-2 C3126-2temperature (T119)Sensor-Ambient air-(A/C) (R180)Relay-Air conditioning-R14MINIJunction-box engine (P108)LINK 12E 40.0 Amps Blower (R176)Relay-R16MINIC2996L-2 C2997-2C2443-4 C2444L-4C2240L-2 C2238L-2C2240L-1 C2238L-1C1270-2C1270-3C1270-112.0 VoltsBattery (P100)C3070L-8 C3069M-8Instrument cluster (D107)module (ECM) (D131)Engine control-C0047L-9 C0223L-9C Sheet2temperature (ECT) (T121)Sensor-Engine coolant-Center Instrument panel (S425)Switch pack-Front (M132)Motor-Blower-motor control-Front (D258)Module-Blower-C2053TL-15 C2054L-15Control (D243)Module-Climate conditioning (A/C) (D149)Clutch-Compressor-Air-TYPE 3C2997-1 C2996L-1TYPE 3C2054L-16 C2053TL-16C2054L-17 C2053TL-17BSheet2C0581-4MS CAN LC0583L-22C0585L-46C0412-1C0412-2SJ939SJ1005SJ1024SJ396T C0583L-21C0570L-11C0632-1C0582-13C0581-5MS CAN H C0570L-117C0570L-30C0570L-186C0570L-33SJ553SJ1028SJ1026C1661-1C1641-1C0045-1C0570L-28C0570L-10C0634-68Silver PlatedC0634-13Silver PlatedC0635L-58Silver Plated HS CAN H C0635L-45Silver PlatedHS CAN LC0635L-4Silver PlatedSensor Gnd C0635L-29Silver Plated AMBIENT TEMPC0230-23MS CAN H C0230-21HS CAN H C0230-5HS CAN LC0230-7MS CAN L PIS44SJ862SJ731SJ852SJ730C0169B-2Gold PlatedC0169B-1Gold PlatedSJ199C1629L-4MS CAN LC1629L-3MS CAN H C0056-2+C0056-1-C2281-4C2281-5C3470-13MS CAN LC3470-12MS CAN H C3470-1C3470-6C3510-6C3510-4C3510-11C3510-13C3470-5C3471-7C3471-19C1629L-10C2281-1C2281-3C0182M-1C2606L-1C2629L-1蓄电池发动机舱集线盒空调继电器鼓风机继电器中央集线盒车身控制模块BCM供电继电器乮点火开关ON 时乯环境空气温度传感器发动机控制模块ECM仪表空调压缩机离合器前鼓风机马达前鼓风机马达控制模块气候控制模块中央仪表板开关组合发动机冷却液温度传感器B,4.0D,1645O,0.5,825GY,0.5,855RG,0.5,355O,0.5,670Y,0.5,920GY,0.5,700O,0.5,350O,0.5,310U,0.5,600GY,0.5,340GY,0.5,380RY,0.5,1015P,0.5,180NB,0.5,1110BG,0.5D,830N,0.5,1505RW,0.5,1505GB,0.5,1505YB,0.5,1505P,0.5,930BG,0.5D,2020BR,0.5D,2785BG,0.5D,1775O,0.5D,2785BG,0.5D,730UY,0.5D,1445GB,0.75D,1195P,0.5,575B,0.5D,3690B,0.5D,3690B,0.5D,3690B,0.5D,3065B,0.5D,3690B,0.5D,690BG,0.5D,2055O,0.5,390GY,0.5,360RY,0.5,200Control (D243)Module-Climate Sensor-Evaporator (T165)C Sheet1Humidity (T315)Sensor-Temperature/Intake air door motor (M138)MA Sheet3D Sheet3Sensor-Air quality (T306)B Sheet1C2240L-4 C2238L-4C2240L-3 C2238L-3C2240L-5 C2238L-5C2240L-6 C2238L-6door motor (M279)Face/feet air distribution Mdoor motor (M204)RH air temperature door motor (M203)LH air temperature MMdoor motor (M259)Screen air distribution MTYPE 2C0417-1C0417-2C3471-5SJ3C0419-5C0419-1C0419-3C0419-6RECC0419-7FRSC1443L-1C1443L-2C2683-2HC/COC2683-1C2683-3BATTC2683-6GNDC2683-4NOX SJ173C3471-17C3471-3C3471-26C3471-9C3471-21C3470-16SJ550C3470-15C3470-26C3470-14C3471-1C3471-25C3471-11SJ1SJ2SJ4C2133-4C2130-2ININOUTC2133-2C2133-6C2130-4C2130-5C2130-6INOUT C2131-4C2131-5C2131-2C2131-6INOUTC2134-4C2134-5C2134-6C2134-2C0560L-1空气质量传感器气候控制模块温度/湿度传感器空气进入门马达蒸发器温度传感器风档空气分流门马达右侧空气温度门马达左侧空气温度门马达脸部/脚部空气分流门马达RU,0.5D,2785BU,0.5D,2785GW,0.5D,1795WU,0.5D,1795WR,0.5D,1795R,0.5D,2365(DIESEL 3.0L)UN,0.5D,2365(DIESEL 3.0L)UN,0.5D,2345(PV8)R,0.5D,2345(PV8)R,0.5D,2390(DV8)UN,0.5D,2390(DV8)UN,0.5D,940RG,0.5D,940BG,0.5D,830WU,0.5D,2365(DIESEL 3.0L)WU,0.5D,2345(PV8)WU,0.5D,2390(DV8)BG,0.5D,1775P,1.0,1995(PV8NA)P,1.0,1995(PV8NA)S,1.0,2330(DV8)W,1.0,2330(DV8)BG,1.0,2145PW,1.0,2145BG,0.5D,1145(PV8)S,0.5D,1145(DIESEL-NON 3.0L)RG,0.5D,1145(PV8)W,0.5D,1145(DIESEL-NON 3.0L)S,0.5D,1215(DIESEL 3.0L)W,0.5D,1215(DIESEL 3.0L)C2238L-7 C2240L-7C2238L-11 C2240L-11Control (D243)Module-Climate C2443-7 C2444L-7C2443-9 C2444L-9Sunlight (T166)Sensor-Refrigerant (T278)Sensor-Pressure-Refrigerant (T278)Sensor-Pressure-Refrigerant (T278)Sensor-Pressure-C2444L-8 C2443-8D Sheet2A Sheet2C2274L-7C3070L-9 C3069M-9C3070L-17 C3069M-17C2725L-3C2725L-4C2724-4C2724-3C2273E-7C2273E-11C2274L-11valve (D332)Refrigerant solenoid valve (D332)Refrigerant solenoid valve (D332)Refrigerant solenoid C3470-22C3470-17C3470-23C3470-24C3470-25C3470-9+C3470-10-C1465-2V OUTC1465-3 5 V C1465-1GNDC3529-2V OUTC3529-3 5 V C3398-2V OUTC3398-3 5 V C3529-1GNDC3398-1GNDC0790L-3RC0790L-4C0790L-1LC0790L-2C0999M-2C0999M-1C0128-1C0128-2C0127E-2C0127E-1气候控制模块制冷剂电磁阀制冷剂电磁阀制冷剂电磁阀柴油-除3.0升汽油V8柴油3.0升日光传感器制冷剂压力传感器制冷剂压力传感器制冷剂压力传感器。

R,0.5DRN,0.5DRN,0.5D Y,0.5DB,0.5D N,0.5DY,0.5DBG,0.5DG,0.5DR,0.5DPU,0.5D R,0.5DGK,0.5DRN,0.5DBG,0.5DBG,0.5DR,0.5DR,0.5D R,0.5D R,0.5D R,0.5D N,0.5DY,0.5DRY,0.5D RB,0.5D RU,0.5D RW,0.5D RG,0.5D R,0.5D N,0.5DY,0.5DR,0.5DR,0.5DY,0.5DG,0.5DR,0.5DY,0.5DG,0.5DRN,0.5DRN,0.5DB,0.5D RN,0.5DRN,0.5DB,0.5DB,0.5DRN,0.5DB,2.5D B,0.5DRN,0.5DN,0.5H(DV6EU4)N,0.5H(DV6EU3)Y,0.5H (DV6EU4)Y,0.5H(DV6EU3)BG,0.5H (DV6EU4)RN,0.5D B,2.5D R,0.5H(DV6EU3)BG,0.5H(DV6EU3)G,0.5H (DV6EU4)G,0.5H(DV6EU3)Y,0.5H (DV6EU4)Y,0.5H(DV6EU3)R,0.5H (DV6EU4)C2365L-9C2365L-11C2365L-7C2365L-15C2365L-13C2365L-14selector indicator (B113)Lamp-Automatic gearbox-selector indicator (B113)Lamp-Automatic gearbox-Gearshift mechanism (D308)C Sheet1B Sheet1switch (S100)Lighting control position (T331)Sensor-PCB/PRND-C2674L-2 C2675L-2C0903-10 C0868-10C2790-4 C2791-4C2790-6 C2791-6C2790-5 C2791-5C2790-3 C2791-3C2790-2 C2791-2C2790-1 C2791-1C0903-18 C0868-18C0903-11 C0868-11C2674L-4 C2675L-4C2674L-3 C2675L-3C0903-9 C0868-9C0903-20 C0868-20C0903-19 C0868-19C2674L-6 C2675L-6C2674L-5 C2675L-5C2674L-1 C2675L-1C1167-9 C1165L-9C0868-23 C0903-23control module (D307)Transmission-TCM and Control Valve Body (D306)C2366C-9C2366H-9C2366H-11C2366C-11C2366H-7C2791-7 C2790-7C2791-8 C2790-8C0903-24 C0868-24Type 3C2366C-14C2366H-13C2366C-7C2366H-15C2366C-15C2366C-13C2366H-14C2657-2SPORT/MANUAL LEDC2656-7ILLUMC2656-6GNDC2658-8BATT C2658-7AUXC0041-9ILLUMSJ117C2657-1ILLUM/BATTC2658-15SPORT/MANUAL LEDC2658-3ILLUM C2658-16ILLUM/BATTC2658-14D LEDC2658-13N LED C2658-12R LED C2658-11P LED C2658-10SHIFTLOCK -C2658-9SHIFTLOCK +C2658-2P LOCKC2658-1GND C2658-4S/MC2658-6STEP -C2658-5STEP +SJ973C2656-4 D LED C2656-5ILLUM/BATTC2656-3N LED C2656-2R LED C2656-1P LED C2657-3GNDC2657-4ILLUMSJ52C2598-1SPORT/MANUALC0193-1Silver PlatedC0193-5Silver PlatedC0193-4Silver PlatedSJ2000SJ2001SJ301SJ300STEP -STEP +C0193-7Silver PlatedC0193-11Silver PlatedC0193-12Silver PlatedSHIFTLOCK +/KEYLOCK +P LOCK CONFIRMATIONSHIFTLOCK -换档位置传感器换挡杆位指示灯泡灯光控制开关ＴＣＳ及车身阀变速箱模块换挡杆装置锁止开关PY,1.0H(DV6EU4)PY,1.0H(DV6EU3)PY,1.5D B,1.0H(DV6EU4)PY,1.0HB,1.0H(DV6EU3)B,1.0H(DV6EU4)B,1.0H(DV6EU4)B,1.0H(DV6EU3)B,1.0H(DV6EU3)PY,1.0HPY,1.0HPY,1.0HB,1.0H(DV6EU4)B,1.0H(DV6EU3)B,1.5DB,4.0D A Sheet1C2366H-1C2366C-1C2365L-1control module (D307)Transmission-TCM and Control Valve Body (D306)Capacitor (G158)C2366C-10C2366H-10C2365L-10TYPE 3C0193-14Silver PlatedC0193-16Silver PlatedGNDSJ6409BATTC1324-2SJ2410SJ6410C1324-1C0193-13Silver PlatedGNDSJ2409C0560L-1SJ173电容ＴＣＭ及车身阀变速箱模块电源接地接地R,0.5DRN,0.5DRN,0.5D Y,0.5DB,0.5D N,0.5DY,0.5DBG,0.5DG,0.5DR,0.5D R,0.5DPU,0.5D GK,0.5DRN,0.5DBG,0.5DBG,0.5DR,0.5DR,0.5D R,0.5D R,0.5D R,0.5D N,0.5DY,0.5DRY,0.5D RB,0.5DRU,0.5D RW,0.5D RG,0.5D R,0.5D N,0.5DY,0.5DR,0.5DR,0.5DY,0.5DG,0.5DR,0.5DY,0.5DG,0.5DRN,0.5DRN,0.5DB,0.5D RN,0.5DRN,0.5DB,0.5DB,0.5DRN,0.5D B,2.5D B,0.5DRN,0.5D N,0.5H(PV8NA)N,0.5H(PV6)Y,0.5H (PV8NA)Y,0.5H(PV6)BG,0.5H (PV8NA)RN,0.5D B,2.5D R,0.5H(PV6)BG,0.5H(PV6)G,0.5H (PV8NA)G,0.5H(PV6)Y,0.5H (PV8NA)Y,0.5H(PV6)R,0.5H (PV8NA)C2365L-9C2365L-11C2365L-7C2365L-15C2365L-13C2365L-14selector indicator (B113)Lamp-Automatic gearbox-selector indicator (B113)Lamp-Automatic gearbox-C2790-6 C2791-6Gearshift mechanism (D308)C Sheet1B Sheet1switch (S100)Lighting control position (T331)Sensor-PCB/PRND-C2674L-2 C2675L-2C0903-10 C0868-10C2790-3 C2791-3C2790-5 C2791-5C2790-4 C2791-4C2790-2 C2791-2C2790-1 C2791-1C0903-18 C0868-18C0903-11 C0868-11C2674L-4 C2675L-4C2674L-3 C2675L-3C0903-9 C0868-9C0903-20 C0868-20C0903-19 C0868-19C2674L-6 C2675L-6C2674L-5 C2675L-5C2674L-1 C2675L-1C1167-9 C1165L-9C0868-23 C0903-23TCM and Control Valve Body (D306)control module (D307)Transmission-C2366A-9C2366B-9C2366B-11C2366A-11C2366B-7Type 3C2791-7 C2790-7C2791-8 C2790-8C0903-24 C0868-24C2366A-14C2366B-13C2366A-7C2366B-15C2366A-15C2366A-13C2366B-14C2657-2SPORT/MANUAL LEDC2656-7ILLUMC2656-6GNDC2658-15SPORT/MANUAL LEDC2658-7AUXC2658-3ILLUM C2658-8BATT C0041-9ILLUMSJ117C2657-1ILLUM/BATTC2658-16ILLUM/BATTC2658-14D LED C2658-13N LED C2658-12R LED C2658-11P LED C2658-10SHIFTLOCK -C2658-9SHIFTLOCK +C2658-2P LOCKC2658-1GND C2658-4S/MC2658-6STEP -C2658-5STEP +SJ973C2656-4 D LED C2656-5ILLUM/BATTC2656-3N LED C2656-2R LED C2656-1P LED C2657-3GNDC2657-4ILLUMSJ52C2598-1C0193-1Silver PlatedC0193-5Silver PlatedC0193-4Silver PlatedSJ2000SJ2001SJ301SJ300STEP -STEP +SPORT/MANUALC0193-7Silver PlatedC0193-11Silver PlatedC0193-12Silver PlatedSHIFTLOCK +/KEYLOCK +P LOCK CONFIRMATIONSHIFTLOCK -选档杆装置选档杆位置传感器灯控制开关档位杆指示灯ＴＣＭ及车身阀变速箱模块锁止开关PY,1.0H(PV8NA)PY,1.0H(PV6)PY,1.5D B,1.0H(PV8NA)PY,1.0HB,1.0H(PV6)B,1.0H(PV8NA)B,1.0H(PV8NA)B,1.0H(PV6)B,1.0H(PV6)PY,1.0HPY,1.0HPY,1.0HB,1.0H(PV8NA)B,1.0H(PV6)B,1.5DB,4.0D A Sheet1C2366B-1C2366A-1C2365L-1control module (D307)Transmission-TCM and Control Valve Body (D306)Capacitor (G158)C2366A-10C2366B-10C2365L-10TYPE 3C0193-14Silver PlatedC0193-16Silver PlatedGNDSJ409BATTC1324-2SJ1410SJ410C1324-1C0193-13Silver PlatedGNDSJ1409SJ173C0560L-1ＴＣＭ控制阀电容变速箱模块。

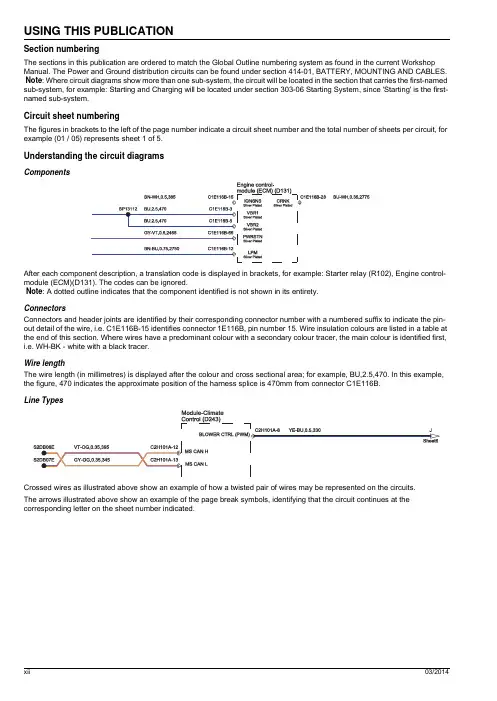

USING THIS PUBLICATIONSection numberingThe sections in this publication are ordered to match the Global Outline numbering system as found in the current Workshop Manual. The Power and Ground distribution circuits can be found under section 414-01, BATTERY, MOUNTING AND CABLES. Note: Where circuit diagrams show more than one sub-system, the circuit will be located in the section that carries the first-named sub-system, for example: Starting and Charging will be located under section 303-06 Starting System, since 'Starting' is the first-named sub-system.Circuit sheet numberingThe figures in brackets to the left of the page number indicate a circuit sheet number and the total number of sheets per circuit, for example (01 / 05) represents sheet 1 of 5.Understanding the circuit diagramsComponentsAfter each component description, a translation code is displayed in brackets, for example: Starter relay (R102), Engine control-module (ECM)(D131). The codes can be ignored.Note: A dotted outline indicates that the component identified is not shown in its entirety.ConnectorsConnectors and header joints are identified by their corresponding connector number with a numbered suffix to indicate the pin-out detail of the wire, i.e. C1E116B-15 identifies connector 1E116B, pin number 15. Wire insulation colours are listed in a table at the end of this section. Where wires have a predominant colour with a secondary colour tracer, the main colour is identified first, i.e. WH-BK - white with a black tracer.Wire lengthThe wire length (in millimetres) is displayed after the colour and cross sectional area; for example, BU,2.5,470. In this example, the figure, 470 indicates the approximate position of the harness splice is 470mm from connector C1E116B.Line TypesCrossed wires as illustrated above show an example of how a twisted pair of wires may be represented on the circuits.The arrows illustrated above show an example of the page break symbols, identifying that the circuit continues at the corresponding letter on the sheet number indicated.xii03/2014USING THIS PUBLICATION Ground pointsGround points are identified with an eyelet symbol and a connector number, except where components are grounded through its fixings, when only the eyelet is shown.The cup and ball symbol represents the male and female halves of the connector. Most connectors plug directly into a component but some are wired directly to the component using a ‘flylead’ as with C1EC01BM above.Colour CodesCODE COLOURBK or B BLACKBN or N BROWNBU or U BLUEGN or G GREENGY or S GREY (slate)OG or O ORANGEPK or K PINKRD or R REDVT or P PURPLEWH or W WHITEYE or Y YELLOW03/2014xiii204-04 - WHEELS AND TIRESTire Pressure Monitoring SystemXJ (LHD) - VIN: V61352 > (1b)(01 / 01)1VT-BN,0.75,2195YE,0.75,2195BU-BN,0.75,4190BN-WH,0.75,4190BK,0.75,2565BK,0.75,2565BK,0.75,3320BK,0.75,3320YE,0.75,4960VT-BN,0.75,4955BU-BN,0.75,4620BN-WH,0.75,4620BN-YE,0.75,3860BU-OG,0.75,3860BN-GN,0.75,3890GY-VT,0.75,3885YE,0.75,775VT-BN,0.75,775BU-BN,0.75,2230BN-WH,0.75,2230C31-E-15C31-E-16C31-B-14C31-B-13C44-A-13C44-A-14C44-A-11C44-A-12C11-B-8Initiator-Front-Left (M282)Initiator-Front-Right (M281)C11-B-14C11-B-15C11-B-12Initiator-Rear-Right (M283)Initiator-Rear-Left (M284)C3BP01E-14C3BP01E-15C3BP01G-19C3BP01G-18C3BP01G-31C3BP01E-2C3BP01G-30C3BP01E-1C1MC40-1C4MC43-1C4MC43-2C1MC41-1C1MC41-2C4MC42-1C4MC42-2C1MC40-2204-05 - VEHICLE DYNAMIC SUSPENSIONXJ (LHD) - VIN: V61352 > (1b)(01 / 02)2204-05 - VEHICLE DYNAMIC SUSPENSIONXJ (LHD) - VIN: V61352 > (1b)(02 / 02)3YE-OG,4.0,1105BK,4.0,1415BK,2.5,905BN-WH,0.35,3455BU-GN,0.35,3455VT,0.35,3455BN-WH,0.35,3455BU-GN,0.35,3455GY-OG,0.5,1320BN-VT,0.75,1320VT,0.35,1960GY-BU,0.35,1960BN-GN,0.35,1960VT,0.35,1960GY-BU,0.35,1960BU-OG,0.5,1625YE-GY,0.5,1675VT,0.35,3455GN-BN,0.35,875YE-VT,0.35,875YE-GN,0.35,875YE-OG,0.75,1675WH-BN,0.5,1675BU-GN,0.5,1675GN,0.5,1675VT-WH,0.5,1675BN-GN,0.35,5410BU-GY,0.35,5410GY-BU,0.35,5410GN-BU,0.35,1040YE-BU,0.35,1040BN-BU,0.35,1040BN-WH,0.35,4950GY-BN,0.35,4950GN-BN,0.35,4950WH-BU,0.35,560WH,0.35,615YE-BU,0.35,4500BN-BU,0.35,4500GN-BU,0.35,4500BN-WH,0.35,6705GY-BN,0.35,6705GN-BN,0.35,6705BN-GN,0.35,1960BN-GN,0.5,855BU-GY,0.5,855GY-BU,0.5,855Control (D446)Integrated Suspension Module-Accelerometer-Rear left (D415)SLS (Y236)Compressor-30.00 AmpsAir Suspension (M306)Motor-Compressor-SLS (Y234)Valve-Exhaust-A Sheet1Accelerometer-Rear left (D415)C33-F-22C33-F-21C33-F-20C33-F-21C33-F-20C31-D-9C31-D-8C31-D-10C44-E-5C44-E-7C44-E-6Front-Left (T236)Sensor-Height-Rear-Right (T237)Sensor-Height-Valve block-Rear (D280)Accelerometer-Rear right (D416)C31-C-12C33-F-22C31-C-13C31-C-11Accelerometer-Front right (D413)Sensor-Pressure-Air (T289)C4CL01A-2Silver PlatedC4CL01A-1Silver PlatedC4CL01C-1Silver PlatedC4CL01C-2Silver PlatedC4CD01F-6GNDC4CD01E-1EX_V_NEG C4CD01E-2EX_V_POSC4CD01F-16VA_RR_5V C4CD01F-15VA_RR_GNDC4CD01F-14VA_RR_SIGC4CD01F-14VA_RR_SIG C4CD01F-15VA_RR_GNDG4D128BS-1G4D171AR-1C4CD09-3PWR C4CD09-1SIG C4CD09-2GNDC4CD09-1SIG C4CD09-2GNDSPL048SPL049C4CL13A-5C4CL13A-1C4CL13A-4C1CL15A-5C1CL15A-4C1CL15A-1C4CD01F-11VA_FL_GNDC4CD01F-20RR.HGT_5VC4CD01F-13RR.HGT_GND C4CD01F-12RR.HGT_SIG C4CD01F-8HS CAN HC4CD01F-9HS CAN LC4CD01G-16VA_FR_SIG C4CD01F-16VA_RR_5V C4CD01G-17VA_FR_GNDC4CD01G-9VA_FR_5V C4CD01G-19FL.HGT_GRD C4CD01G-12FL.HGT_SIG C4CD01G-11FL.HGT_5VC4CD01F-18VA_FL_5V C4CD01F-10VA_FL_SIG C4CD01C-16PRESSURE_5V C4CD01C-18PRESSURE_SIG C4CD01C-17PRESSURE_GNDC4CD01C-5RR_CV_NEG C4CD01E-3RES_V_NEGC4CD01C-1RL_CV_NEGC4CD01C-2VALVE-POS C4CD24-2GNDC1CD08-1SIG C1CD08-2GNDC4CD09-3PWR C1CD08-3PWR C4CD24-1SIG C4CD24-3PWR C4CL02A-9C4CL02A-7C4CL02A-10C4CL02A-8RR_CV_NEG C4CL02A-2RES_CV_NEGC4CL02A-3RL_CV_NEGC4CL02A-5VALVE_POS205-02 - REAR DRIVE AXLE AND DIFFERENTIALXJ (LHD) - VIN: V61352 > (1b)(01 / 01)4RD,2.5,320RD,2.5,320GN-OG,0.75,3055BK,50.0,690WH-BU,0.35,465WH,0.35,520BK,25.0,955RD,6.0,3360RD,4.0,355GN-OG,0.75,2630BU-WH,0.5,4920BK,2.5,195GN,0.5,5080GY-YE,0.5,5080GN-WH,0.5,4920BU-BN,0.5,4920GY,0.5,4920BK,2.5,195BK,50.0,480VT-BN,0.5,5080YE-BU,0.5,5080VT-OG,2.5,4920YE-GN,2.5,4920Junction box-Central (P101)FUSE 22P 5.0 AmpsIgnition (R211)Relay-Junction box-Rear (P107)Junction box-Battery (P147)RF3340.0 AmpsLINK 4B 50.0 AmpsLINK 2B 250.0 Amps control (D283)Module-Rear differential Actuator-Rear differential (M275)Differential oil (T308)Sensor-Temperature-12.0 VoltsBattery (P100)SPL046SPL047C3BP01D-22C4BR01M-1C4DF10A-1C3BP01C-40C4BR01F-3C4BF01C-1C4BF01E-1SPL041SPL004C4ET63A-1HALL_V+C4ET64A-4Silver PlatedHALL PWRC4ET63B-3GND 1C4ET63B-6GND 2C4ET63A-8TEMP SIG 2+C4ET63A-11TEMP SIG 2-C4ET63A-7HALL_SIGBC4ET63A-4HALL_SIGA C4ET63A-10HALL_GND C4ET63C-5HS CAN H C4ET63C-2HS CAN LC4ET66A-2NEGSPL042C4ET64A-9Silver PlatedHALL GNDC4ET64A-10Silver PlatedHALL SENSOR AC4ET64A-6Silver PlatedHALL SENSOR BC4ET66A-1POS C4ET63A-12MOTOR-C4ET63A-16TEMP1-C4ET63A-13TEMP1+C4ET63A-3MOTOR+C4ET63B-4IGNC4ET63B-7VBATT1C4ET63B-8VBATT2C4D101A-1C4DC02A-1C4ET64A-8Silver PlatedTEMP+C4ET64A-2Silver PlatedMOTOR POSC4ET64A-3Silver PlatedMOTOR NEGC4ET64A-5Silver PlatedTEMP-G4D178AS-1206-05 - PARKING BRAKE AND ACTUATIONXJ (LHD) - VIN: V61352 > (1b)(01 / 01)5GY-RD,0.5,935BK,25.0,955RD,6.0,3360RD,2.5,515VT-GY,0.5,2340BN-RD,0.5,4150BN-RD,0.5,3520WH-BU,0.35,640WH,0.35,685BK,50.0,690BK,25.0,4490GY-RD,0.5,5070WH,0.5,4120WH,0.5,905YE-OG,0.5,360BN-BU,0.5,345VT-OG,0.5,360GN-OG,0.5,360YE-BK,0.5,905YE,0.5,905VT-BN,2.5,905YE-GN,2.5,905BN-YE,0.5,360VT-BN,0.5,445VT-BN,0.5,4425VT-BN,0.5,790GN-OG,0.5,4405YE-BK,0.5,4085YE,0.5,4080VT-BN,2.5,4080YE-GN,2.5,4080BN-YE,0.5,4385VT-BN,0.5,2255YE-OG,0.5,4385BN-BU,0.5,4310VT-OG,0.5,4405BK,2.5,860BK,50.0,480GY-RD,0.5,265BK,25.0,1835Switch-Brake pedal (S215)Battery (P100)Megafuse (P152)500.0 Ampsbrake control (D278)Module-Electric park-Module (BCM) (D207)Body Control-Junction box-Central (P101)Ignition (R211)Relay-FUSE 9P 5.0 AmpsJunction box-Rear (P107)RF130.0 AmpsC31-C-3Junction box-Battery (P147)LINK 1B 250.0 Amps LINK 2B 250.0 Amps LINK 4B 50.0 AmpsC31-C-1C44-B-8Actuator (D375)Parking Brake C33-H-21C33-H-8C33-H-10C33-H-9C44-E-2C33-H-11C44-E-4C44-E-3C44-E-1C31-E-7shift (Y378)Module-Transmission 12.0 VoltsJunction box-engine (P108)F295.0 AmpsC4CB01B-4HS CAN LC4CB01B-5HS CAN H C4CB01B-1VBATT MOTOR RHC3BP01F-41C3BP01F-15C3BP01D-22C4BR01M-1C4BR01G-9C2CA29-4SPL050SPL051C4CB01B-9IGNC4BF01E-1C4BF01C-1C4DF10A-1C4BF01B-1C4CB01B-11C3BF01A-1C4DC02A-1C4CB01A-13C4CB18-5HALL_RTN C3ET37-20C3ET37-19C3ET37-10SPL786C2CA29-1C4CB01A-11SW 3C4CB01B-7BRAKE_SWITCHC4CB01A-10SW 2C4CB01B-6SW 4C4CB01B-14SW 1C4CB01B-10C4CB01A-14LH MOTOR +VE C4CB01A-7TEMP LH C4CB01A-12C4CB01B-2SPL259C3ET37-9C4CB18-6C3ET37-8C4CB18-4HALL_SIG C4CB18-3HALL_PWRC4CB18-1C1BB01C-3C1BB01L-1C4CB01B-13GND MOTORSPL017C4D101A-1C3BF01B-1G4D110AR-1G4D178AS-1206-09 - ANTI-LOCK CONTROLXJ (LHD) - VIN: V61352 > (1b)(01 / 01)6BU-OG,0.5,1100BN-GN,0.5,1100WH-OG,0.5,1120BN,0.5,1115VT-WH,0.5,4470YE,0.5,4475GY-VT,0.5,2515VT,0.5,2515BK,50.0,480BK,25.0,1835GY-BN,0.5,1015VT-OG,0.5,1030BN-VT,0.5,1035YE,0.5,195YE,0.5,1045GN-OG,0.5,1100BU-WH,0.5,1100WH-BU,0.5,385WH,0.5,430BU-WH,0.5,3070GN-OG,0.5,3070BK,50.0,690GY-RD,2.5,475GN-RD,4.0,475YE,0.75,2495YE,0.75,800YE,0.75,2000GY-RD,0.5,200YE,0.75,425GY-RD,0.5,265BK,25.0,4490BK,4.0,635BK,2.5,780BK,4.0,780BK,0.5,930GY-BN,0.5,1040VT-OG,0.5,1040BN-VT,0.5,1040YE,0.5,995BK,2.5,635BN-GN,0.5,1395BU-OG,0.5,1395BN,0.5,950WH-OG,0.5,950BN-GN,0.5,4670BU-OG,0.5,4670BN,0.5,4670WH-OG,0.5,4665ABS module (D396)Sensor-Yaw Rate (T314)C31-B-18C31-B-17F2125.0 AmpsF2040.0 AmpsFUSE 5P 5.0 AmpsF295.0 AmpsJunction box-engine (P108)Ignition (R211)Relay-Junction box-Battery (P147)LINK 1B 250.0 AmpsJunction box-Central (P101)C31-C-5Megafuse (P152)MEGA 500.0 Amps12.0 VoltsBattery (P100)C12-A-14C12-B-14C12-A-15C12-A-16angle (T274)Sensor-Steering-C31-B-11C31-B-10C31-B-8C31-B-7C44-B-12C44-B-11C44-B-10C44-B-9Left rear (T343)Wheel speed sensor-Right rear (T342)Wheel speed sensor-Right front (T340)Wheel speed sensor-Left front (T341)Wheel speed sensor-C1CA01A-19RR_RTNC1CA01A-31RR_PWR C1CA01A-22FL_PWRC1CA01A-21FL_RTN C1CA01A-33RL_RTNC1CA01A-6FR_PWR C1CA01A-18FR_RTNC1CA01A-20RL_PWRC1CA01A-38VALVE GNDC1CA01A-13PUMP GND C3BF01B-1C4D101A-1C3CA09A-4GNDC1CA01A-8STRG ANGLE SIG A C1CA01A-4STRG ANGLE SIG B C1CA01A-15STRG ANG SEN RTNSPL069SPL068C3CA09A-2HS CAN POSC3CA09A-3HS CAN NEG C3CA09A-1IGNC1CA01A-24HS CAN 2 NEGC1CA01A-37HS CAN 2 POS C1CA01A-26HS CAN HC1CA01A-14HS CAN LC3BP01D-22C1BB01L-1C4DF10A-1C3BP01D-10C1BB01D-1C1BB01C-3SPL008C1BB01C-4SPL017SPL045C1CA01A-25VALVE SUPPLYC1CA01A-1PUMP SUPPLYC1CA01A-35IGNC1CA01A-7VBATT C4BF01B-1C3BF01A-1C4DC02A-1G1D125AR-1G1D122AL-1G1D122AR-1G3D181AL-1C2CS06-1GND C2CS06-4IGNC2CS06-3SIGNAL B C2CS06-2SIGNAL A G1D125AL-1C4CA06-2C4CA06-1C4CA04-2C4CA04-1C1CA05-1C1CA05-2C1CA03-1C1CA03-2G4D178AS-1211-04 - STEERING COLUMN Clock springXJ (LHD) - VIN: V61352 > (1b)(01 / 03)7211-04 - STEERING COLUMN Clock spring Restraints ControlXJ (LHD) - VIN: V61352 > (1b)(02 / 03)8211-04 - STEERING COLUMNClock springAirbag-Heater-Steering Module-Heater control-211-04 - STEERING COLUMNAdjustableGY-OG,1.5,840BN-GN,1.5,845YE-VT,0.35,3320GN-VT,0.35,3320GN-OG,0.35,245GN-OG,0.35,3320BN-VT,0.5,2575WH-GN,0.5,2575WH,0.35,2575WH-BN,0.35,2575VT-BN,0.35,2575BK,1.0,265BK,1.0,490BK,1.0,265BK,2.5,1260VT-BN,0.35,945BN-VT,0.5,945BN-GN,1.5,4845GY-OG,1.5,4850WH-GN,0.5,945WH,0.35,945WH-BN,0.35,945BK,50.0,480RD,6.0,3360BU-RD,4.0,3285BK,50.0,690YE-VT,0.35,1650GN-VT,0.35,1615GN-OG,0.35,1615GN-OG,0.35,1220BN-VT,0.5,1970WH-GN,0.5,1970WH,0.35,1970WH-BN,0.35,1970VT-BN,0.35,1970GN-OG,0.35,1295YE-VT,0.35,1525GN-VT,0.35,1525Module (BCM) (D207)Body Control-Junction box-Central (P101)C33-E-12C33-E-10C33-E-13C33-E-11C32-A-1C33-E-7C32-A-7LINK 4B 50.0 AmpsLINK 6B 40.0 Amps Junction box-Battery (P147)Battery (P100)12.0 VoltsC33-F-6C32-F-10C33-F-10C33-F-8adjustment (S468)Switch-Steering column Assembly-Steering column (D288)C32-C-11C32-C-12C32-C-10C32-C-8C32-C-7C32-F-6C32-F-8Isolator (S236)Switch-330.00 Ohms1.50 k Ohms2.00 k Ohms820.00 OhmsC3BP01B-28+5V COL ADJ SUPPC3BP01C-33COL_ADJ_MOTOR_UP/RETRACT C3BP01C-34COL_ADJ_MOTOR_DOWN/EXTENDC3BP01A-2COLUMN MOTOR RETRACTC3BP01A-18I_COL_ADJ_HALL_COUNT_TILTDIPPWMPWM DIPPWM PWM C3BP01B-14RAKE SOLENOID C3BP01B-13REACH SOLENOIDC3BP01F-25PWR GND SPL187C3BP01E-12COL ADJ EASY ENTRYC4D101A-1AIPC3BP01D-20VBATT3C3BP01D-22VBATT1AIPGNDC4DC02A-1C4DF10A-1C3BP01A-4COL ADJUST SW C3BP01A-28COL ADJ GNDC4BF01E-1C4BF01G-1G4D178AS-1C2PP03-6COLUMN POT VREF C2PP03-7COLUMN TILT POTC2PP03-3COLUMN UP/RETRACT C2PP03-5COLUMN POT RTN C2PP03-9TILT SOLENOID C2PP03-1TELE SOLENOID C2PP03-8COLUMN TELE POTC2PP03-4COLUMN DOWN/EXTENDC2PP03-2TELE SOLENOID GND C2PP03-10TILT SOLENOID GNDG2D116BR-1G3D161BR-1SPL083C2PP11-5MODE SELECTC2PP11-1COLUM ADJC2PP11-3RTN1Column 2Auto 3Not used211-04 - STEERING COLUMNLockVT-BN,0.75,1BK,0.75,1BK,0.5,1345WH-BU,0.35,1WH,0.35,1BU-WH,0.5,1415VT-BN,0.5,755VT-BN,0.5,5065WH-BU,0.35,500WH,0.35,550BK,50.0,690RD,6.0,3360VT-BN,0.5,4770VT-BN,0.5,715BK,50.0,480LINK 4B 50.0 AmpsC22-E-4C32-A-3Junction box-Central (P101)Module (BCM) (D207)Body Control-Clockspring (S422)C32-B-2C22-E-1C22-E-3C22-E-2Junction box-Battery (P147)12.0 VoltsBattery (P100)lock (D401)Module-Steering column Instrument cluster (J100)G4D178AS-1C3BP01C-4ESCL PWRC3BP01D-22VBATT1C2R115A-4LIN 2SPL063SPL062C4DF10A-1C4BF01E-1C4DC02A-1C4D101A-1C2RT03A-2PWRESCL GNDC2MC01A-28LINC2MC01A-31ESCL RLY CTRL C2RT03A-3HS CAN L C2RT03A-4HS CAN H C2RT03A-1GND211-04 - STEERING COLUMN Steering wheel - heated303-03 - ENGINE COOLINGBK,50.0,480GN,1.0,1BK,25.0,1835RD,10.0,FLYLEADGN,0.5,2635WH-BU,0.5,FLYLEADVT,0.5,3305VT,0.5,3305VT,0.5,3305BK,50.0,690BK,25.0,4490GN,1.5,1BK,10.0,2975GN,0.5,530BK,10.0,1430BK,10.0,FLYLEADGY-YE,0.75,FLYLEADC1EC01B-4 C1EC01BM-4Junction box-engine (P108)module (ECM) (D131)Engine controlmodule (ECM) (D131)Engine controlmodule (ECM) (D131)Engine controlC1EC01B-3 C1EC01BM-3F3580.0 AmpsF210.0 AmpsFUSE 4E 10.0 Ampsmodule (ECM) (R116)Relay-Engine control-RE2POWER MINIJunction box-Battery (P147)LINK 1250.0 AmpsC1EC01B-1 C1EC01BM-1Megafuse (P152)MEGA 500.0 Amps12.0 VoltsBattery (P100)Cooling Fan (D241)Control Unit-C1EC01BM-2 C1EC01B-2C1E111B-54ECFCC1E105B-8ECFCC1E116B-56Silver PlatedECFCC1BB01L-1C4DF10A-1C4BF01B-1C3BF01A-1C1BB01F-12C1BB01M-1SPL021SPL907C3BF01B-1C4DC02A-1C4D101A-1PWMG1D131AS-1VBATTIGNG4D178AS-1GN,0.5,345BK,70.0,100YE,0.5,1GY-OG,0.5,1GN,0.5,1375GY-OG,0.5,300RD-BK,1.5,1243BU-BK,1.5,1157BN-WH,0.5,1365BU-WH,0.5,1390GN-OG,0.75,1175GN-RD,0.75,2980RD,35.0,1BU-BK,2.5,1157GY-BU,2.5,1GN,0.5,2740BN-WH,0.5,4275YE,0.5,1GY-BU,2.5,100YE,0.5,100RD,6.0,3360BU-WH,0.5,4495GN-OG,0.75,2630GN-RD,2.5,755GN,0.5,2160GN,0.5,950GN-RD,0.75,340VT-OG,2.5,640GN-BN,0.5,1GY-BU,2.5,1GY-OG,4.0,1RD,35.0,100GY-OG,4.0,1RD-BK,2.5,1073GY-BU,2.5,1GY-OG,4.0,100BK,50.0,480GN-OG,0.5,360GN-RD,0.75,345BK,35.0,526Junction box-engine (P108)Relay-Starter motor (R291)R10MINIFUSE 19P 5.0 AmpsJunction box-Central (P101)Ignition (R211)Relay-Module (BCM) (D207)Body Control-Junction box-Battery (P147)LINK 4B 50.0 AmpsC31-C-2C31-B-20C33-H-5C31-A-16C11-PD-26C31-A-4LINK 10DB 40.0 Amps LINK 9DB 20.0 AmpsDual battery (P165)Junction box-Relay-Starter pinion (R304)R2POWER MINIC13-H-2C11-PD-25C11-PD-34C13-H-1C44-P-1C44-P-2C11-T-1C11-T-212.0 VoltsBattery (P100)MEGAFUSE2350.0 AmpsMEGAFUSE1450.0 Ampsmodule (ECM) (D131)Engine controlshift (Y378)Module-Transmission C33-H-7C33-H-2Starter motor (M101)G4D178AS-1C3BP01G-13C3BP01E-18C3BP01F-45C3BP01C-40DIPHSD C3BP01D-22C4DF10D-1C4BF01E-1C1BB01H-7C1BB01J-6C1BB01F-9C1BB01C-7C1BB01J-4C1BB01J-3SPL006SPL004SPL893SPL310C4DC02F-1C4DC02E-1C1BB01D-2C1BB01D-4C1BB01F-11C4Y124E-1C4Y124D-1C4Y124B-1C4Y124B-2C4D101A-1C1E116B-42Silver PlatedSTARTER_RELAY_LOWC1E116B-19Silver PlatedSTARTER_RELAY_HIGHC1E116B-15Silver PlatedIGNSNSC1E116B-28Silver PlatedCRNKC1E116B-31Silver PlatedPNSC1E116A-21Silver PlatedSM_COMMAND_L2C3ET37-1VBATT C3ET37-15PN SIGC3ET37-2IGNC1DC71A-2PINION_SOLENOID C1DC35-1C1DC71A-1MOTOR_SOLENOIDC1D101-1G1D120AS-1GN,0.5,950GN-BN,2.5,640GY-OG,0.5,1265GN,0.5,2160BK,50.0,5400GN-RD,0.75,340YE,0.5,1180BN-WH,0.5,1365GN-OG,0.75,2630BU-WH,0.5,1390BK,50.0,480BK,25.0,1835RD,6.0,3360GN,0.5,2740BN-WH,0.5,4275GN-RD,2.5,755BU-WH,0.5,4495BK,70.0,660BK,25.0,4490GN,0.5,345GN,0.5,1375GN-OG,0.5,360GN-RD,0.75,345GN-OG,0.75,1175GN-RD,0.75,2980BU-BK,1.5,1165RD-BK,2.5,1073Junction box-engine (P108)Starter (R102)Relay-R10POWER MINIF1930.0 AmpsF2815.0 AmpsFUSE 22P 5.0 AmpsFUSE 19P 5.0 AmpsJunction box-Central (P101)Module (BCM) (D207)Body Control-Ignition (R211)Relay-C31-B-20C31-A-16LINK 9BD 450.0 Amps LINK 1B 250.0 Amps LINK 4B 50.0 AmpsMEGA 500.0 AmpsJunction box-Battery (P147)Megafuse (P152)12.0 VoltsBattery (P100)shift (Y378)Module-Transmission C33-H-2C33-H-7C31-A-4C31-C-2C33-H-5module (ECM) (D131)Engine controlC11-T-2C11-PP-34MStarter motor (M101)300.00 AmpsStarter motor (M101)motor (N100)Solenoid-Starter-C1BB01F-9C1BB01C-7C1BB01F-11C3BP01G-13C3BP01E-18C3BP01F-45C3BP01C-40HSDC3BP01D-22DIPSPL006SPL310C1BB01D-4C1BB01L-1C4BF01B-1C4BF01E-1C4DF10A-1C4BF01J-1C3BF01A-1C3BF01B-1C4DC02A-1C4D101A-1C3ET37-15PN SIGC1E116B-42STARTER_RELAY_LOW C1E116B-19STARTER_RELAY_HIGHC1E116B-15IGNSNSC1E116B-28CRNKC1E116B-31PNS SPL004C3ET37-2IGN C3ET37-1VBATTC1DC73A-1G4D178AS-1C1DC35-1RD,35.0,100BK,50.0,100GY-OG,4.0,100GY-BU,2.5,1GY-OG,4.0,1GY-BU,2.5,1GN-BN,0.5,100GN-WH,0.5,100BN-GN,0.5,100GY-OG,0.5,100YE,0.5,100VT-OG,2.5,640RD,0.5,1000WH-VT,0.5,1185GY-BU,2.5,100GY-OG,4.0,1GY-BU,2.5,1OG-BU,2.5,1535OG-GN,1.5,1535BK,35.0,526BK,50.0,480Dual battery (P165)Junction box-LINK 9DB 20.0 AmpsF175.0 AmpsJunction box-engine (P108)Relay-Starter pinion (R304)R2Relay-Starter motor (R291)R10LINK 10DB 40.0 AmpsC11-PP-9C11-PP-34C44-P-1C44-P-2C11-T-1C11-T-2module (ECM) (D131)Engine controlBattery (P100)MEGAFUSE1450.0 AmpsC13-H-1C13-H-2Starter motor (M101)MEGAFUSE2350.0 Amps12.0 VoltsC1BB01J-3C1BB01J-4C1BB01F-9C1BB01J-6C1BB01D-4C1BB01F-11C1BB01H-4C1BB01H-7C1BB01D-2C4Y124E-1C4Y124B-1C4Y124B-2C1E105B-11O_S_STRTHC1E105B-9O_S_STRTL C1E105B-10STR_PINION_CTRL_NEGC1E105B-24STR_PINION_CTRL_POS C1E105B-32I_T_T50RC4DC02E-1C1D101-1C1DC71A-2PINION_SOLENOID C1DC71A-1MOTOR_SOLENOIDC1DC35-1C4D101A-1C4DC02F-1G1D120AS-1G4D178AS-1GN,0.5,950GY-OG,0.5,1230YE,0.5,1140GN,0.5,2160BK,50.0,480BN-WH,0.5,1375BU-WH,0.5,1385OG-BU,1.5,195OG-BU,2.5,1130BK,50.0,1VT-OG,0.5,1380BN-GN,0.5,100RD,6.0,3360GN,0.5,2740BN-WH,0.5,4275BU-WH,0.5,4495VT-OG,0.5,4540GN-BN,2.5,640BK,50.0,690BK,25.0,1835BK,25.0,4490BK,50.0,100GN,0.5,345GN,0.5,1335BK,35.0,526OG-BU,1.5,500Junction box-engine (P108)FUSE 19P 5.0 AmpsJunction box-Central (P101)Module (BCM) (D207)Body Control-Ignition (R211)Relay-C31-B-20C31-A-2C31-A-16LINK 9BP 400.0 Amps F1930.0 AmpsLINK 1B 250.0 Amps LINK 4B 50.0 AmpsMEGA 500.0 AmpsF175.0 AmpsJunction box-Battery (P147)Starter (R102)Relay-R10C11-PP-34Megafuse (P152)Battery (P100)Stud-cable junction (Y377)12.0 Voltsshift (Y378)Module-Transmission module (ECM) (D131)Engine controlC33-H-5C31-A-4Starter motor (M101)C1DC71B-2C3BP01G-13C3BP01E-18C3BP01F-45C3BP01E-19DIPHSD C3BP01D-22SPL006C1BB01F-9C1BB01F-11C1BB01D-4C1BB01H-4C1BB01L-1C4BF01B-1C4BF01E-1C4DF10A-1C4BF01J-1SPL001E C3BF01A-1C3BF01B-1C1DC11F-1C1DC11E-1C4DC02A-1C4D101A-1C1E105B-9O_S_STRTL C1E105B-11O_S_STRTH C1E105B-15I_S_T15C1E105B-17O_S_STRT C1E105B-25NEUTRALC1E105B-14I_S_WAKE C1E105B-32I_T_T50RC3ET37-15PN SIGC1D101-1C1DC71C-1C1DC35-1G1D120AS-1G4D178AS-1RD,35.0,100BK,50.0,100GY-OG,4.0,100GY-BU,2.5,1GY-OG,4.0,1GY-BU,2.5,1BK,2.5,1205BK,2.5,1210BK,4.0,1210BK,2.5,1205BK,4.0,1205GN-BN,0.5,1090GN-WH,0.5,1085BN-GN,0.5,1105GY-OG,0.5,1135YE,0.5,1135VT-OG,2.5,640RD,0.5,1000WH-VT,0.5,1185GY-BU,2.5,100BK,4.0,1415BK,4.0,1410GY-BU,2.5,1GY-OG,4.0,1OG-BU,2.5,1535OG-GN,1.5,1535BK,2.5,1410BK,2.5,1415BK,2.5,1410BK,35.0,526BK,50.0,480RHDC44-P-2Dual battery (P165)Junction box-LINK 9DB 20.0 AmpsF175.0 AmpsJunction box-engine (P108)Relay-Starter motor (R291)R10Relay-Starter pinion (R304)R2C11-PP-34LINK 10DB 40.0 Amps C11-PP-9C11-T-2C44-P-1C11-T-1C13-H-2module (ECM) (D131)Engine controlStarter motor (M101)C13-H-1Battery (P100)12.0 VoltsMEGAFUSE1450.0 AmpsMEGAFUSE2350.0 AmpsC4Y124B-2SPL900SPL901C1BB01H-7C1BB01D-2C1BB01J-4C1BB01J-6C1BB01H-4C1BB01J-3C1BB01F-9C1BB01D-4C1BB01F-11C1E111B-1C4Y124E-1C4Y124B-1C1E111B-2C1E111B-4SPL902SPL903C1E111B-2G_G_BAT2C1E111B-53O_S_STRTH C1E111B-19O_S_STRTL C1E111B-70STR_PINION_CTRL_NEG C1E111B-89STR_PINION_CTRL_POSC1E111B-1G_G_BAT1C1E111B-4G_G_BAT3C1E111B-14I_T_T50RG1D124AL-1G1D124AR-1G1D121AL-1C1D101-1C1DC71A-2PINION_SOLENOID C1DC71A-1MOTOR_SOLENOIDC1DC35-1G1D121AR-1C4D101A-1C4DC02E-1C4DC02F-1G1D120AS-1G4D178AS-1303-06 - STARTING SYSTEMPV8 and PV6 (without Stop-Start)GN,0.5,950GY-OG,0.5,1230YE,0.5,1140GN-BN,2.5,640GN,0.5,2160BK,50.0,5400BK,50.0,480GN-BN,0.5,1BN-WH,0.5,1375BU-WH,0.5,4495RD,6.0,3360GN,0.5,2740BN-WH,0.5,4275BK,50.0,690BK,25.0,1835BK,25.0,4490GN,0.5,345GN,0.5,1335BU-WH,0.5,1385BK,35.0,526OG-BU,2.5,1535BN-BU,2.5,878Junction box-engine (P108)FUSE 19P 5.0 AmpsJunction box-Central (P101)Module (BCM) (D207)Body Control-Ignition (R211)Relay-C31-A-16LINK 9BP 400.0 AmpsF1930.0 AmpsLINK 1B 250.0 Amps LINK 4B 50.0 AmpsF275.0 AmpsMEGA 500.0 AmpsJunction box-Battery (P147)Starter (R102)Relay-R10Megafuse (P152)12.0 VoltsBattery (P100)C31-B-20C33-H-5C31-A-4module (ECM) (D131)Engine controlshift (Y378)Module-Transmission Starter motor (M101)C11-T-2C11-PP-34C3BP01G-13C3BP01E-18C3BP01F-45HSDDIP C3BP01D-22SPL006C1BB01F-9C1BB01F-11C1BB01D-4C1BB01C-8C1BB01L-1C4BF01B-1C4BF01E-1C4DF10A-1C4BF01J-1C3BF01A-1C3BF01B-1C4DC02A-1C4D101A-1C3ET37-15PN SIGC1E111B-53O_S_STRTH C1E111B-19O_S_STRTL C1E111B-50I_S_T15C1E111B-47I_S_T50C1E111B-17I_S_TNSW C1E111B-14I_T_T50RC1D101-1C1DC71C-1C1DC35-1G4D178AS-1G1D120AS-1Junction box-Rear (P107)Relay-Fuel-Unit-Fuel Tank (D179)Fuel Pump +veSolenoid-Charge air Engine control Sensor-Throttle-Engine control Sensor-Temperature-WH-GN,0.5,1776VT,0.5,1776VT-BN,0.5,2170VT-OG,0.5,2960BK,0.5,1(RHD)BK,0.5,1(LHD)YE-VT,0.75,1678BN-WH,0.5,781YE-VT,0.5,1678BU-GN,0.75,1678BK-BU,0.75,1621YE-VT,0.5,1621YE-VT,0.75,1621WH,1.0,2166BU,1.0,2166GY,0.75,2166WH-OG,0.75,2166BU-OG,0.75,1051BU-WH,0.75,2166YE-OG,1.0,1280BU,1.0,1280GN-VT,0.5,700VT-GN,0.5,1BN,1.0,1188WH-GN,1.0,1188GN-WH,1.0,1120BN-VT,1.0,1120BU-OG,1.0,1540GN-BU,1.0,1465GY-YE,1.0,1540YE-BU,1.0,1465VT-GY,1.0,1635GN-VT,1.0,1635BK,0.5,1(LHD)VT-BN,0.5,790BU-WH,0.75,110BK,0.5,1(RHD)BN-WH,0.5,897BN-WH,0.5,840BU-OG,0.5,967BU-OG,0.5,570Switch-Brake vacuum (T520)Fuel injector-No.4 (T175)module (ECM) (D131)Engine controlFuel injector-No.6 (T177)C11-PD-14Fuel injector-No.5 (T176)Fuel injector-No.2 (T173)Fuel injector-No.3 (T174)Fuel injector-No.1 (T172)Actuator-Vane VGT (D363)position (CMP) (T107)Sensor-CamshaftSwitch-Brake pedal (S215)Actuator-EGR-Electric (D362)Actuator-EGR-Electric (D362)C1E116A-41Silver PlatedCIDC1E116A-40Silver PlatedSENSGND_20C1E116B-45Silver PlatedBOO_2C1E116B-26Silver PlatedBOO_1C1E116A-93Silver PlatedEGR_A+C1E116A-64Silver PlatedV_V_5V1C1E116A-82Silver PlatedEVP_AC1E116A-92Silver PlatedEGR_A-C1E116A-95Silver PlatedEGR_B+C1E116A-7Silver PlatedEVP_BC1E116A-94Silver PlatedEGR_B-C1E116A-24Silver PlatedVGT_B+C1E116A-48Silver PlatedVGT_B-C1E116A-42Silver PlatedSENSGND_19C1E116A-15Silver PlatedVGT_FBC1E116A-5Silver PlatedSENSGND_3C1E116A-67Silver PlatedV_V_5V6C1E208-2C1E116A-1Silver PlatedO_P_PVL21C1E210-2C1E209-2C1E210-1C1E209-1C1E116A-3Silver PlatedO_P_PVL23C1CA38A-1C1E116A-18Silver PlatedBVSC1CA38A-2C1E116A-26Silver PlatedO_P_PVH22C1E116A-2Silver PlatedO_P_PVL22C1E116A-27Silver PlatedO_P_PVH23C1E206-2C1E207-2C1E208-1C1E207-1C1E205-2C1E206-1C1E205-1C1E116A-50Silver PlatedO_P_PVL12C1E116A-51Silver PlatedO_P_PVL13C1E116A-25Silver PlatedO_P_PVH21C1E116A-75Silver PlatedO_P_PVH13C1E116A-74Silver PlatedO_P_PVH12C1E116A-49Silver PlatedO_P_PVL11C1E116A-73Silver PlatedO_P_PVH11G1D122BS-1SPL444G1D125BL-1C1E814B-1M+SPL445SPL786S5V3/V9C1E706-2GNDC2CA29-3C2CA29-1C1E706-1OUT C1E706-3PWR C1E814B-2M-C1E814B-3GND C1E814B-4SIG C1E814B-5PWRGND02/V20S3C1E720B-6Gold PlatedPWR C1E720B-4Gold PlatedGND C1E720B-1Gold PlatedM-C1E720B-2Gold PlatedSIG C1E720B-5Gold PlatedM+C1E720A-1Gold PlatedM-C1E720A-5Gold PlatedM+C1E720A-2Gold PlatedSIG C1E720A-6Gold PlatedPWR C1E720A-4Gold PlatedGND。
