New ProductS1PB thru S1PMVishay General Semiconductor Document Number: 88917For technical questions within your region, please contact one of the following: High Current Density Surface MountGlass-Passivated RectifiersFEATURES•Very low profile - typical height of 1.0 mm•Ideal for automated placement•Glass passivated chip junction•Low forward voltage drop•Low thermal resistance•Meets MSL level 1, per J-STD-020, LF maximumpeak of 260 °C•Component in accordance to RoHS 2002/95/ECand WEEE 2002/96/ECTYPICAL APPLICATIONSGeneral purpose, polarity protection, and rail-to-railprotection in both consumer and automotiveapplications.MECHANICAL DATACase: DO-220AA (SMP)Epoxy meets UL 94V-0 flammability ratingTerminals: Matte tin plated leads, solderable perJ-STD-002 and JESD22-B102E3suffix for consumer grade,meets JESD201class1A whisker test, HE3 suffix for high reliability grade(AEC Q101 qualified), meets JESD 201 class 2whisker testPolarity:Color band denotes the cathode end PRIMARY CHARACTERISTICSI F(AV)1AV RRM100 V to 1000 VI R 1µAV F0.95 VT J max.150 °CDO-220AA (SMP)eSMP TM SeriesMAXIMUM RATINGS (T A = 25°C unless otherwise noted)PARAMETER SYMBOL S1PB S1PD S1PG S1PJ S1PK S1PM UNIT Device marking code SB SD SG SJ SK SMMaximum repetitive peak reverse voltage V RRM1002004006008001000V Maximum RMS voltage V RMS70140280420560700V Maximum DC blocking voltage V DC1002004006008001000V Average forward current I F(AV) 1.0A Peak forward surge current 10 ms single halfsine-wave superimposed on rated loadI FSM30A Operating junction and storage temperature range T J, T STG- 55 to + 150°CNew ProductS1PB thru S1PMVishay General Semiconductor For technical questions within your region, please contact one of the following:Document Number: 88917Note:(1)Pulse test: 300 µs pulse width, 1 % duty cycleNote:(1)Thermal resistance from junction to ambient and junction to lead mounted on P.C.B. with 5.0 x 5.0 mm copper pad areas. R θJC is measuredat the terminal of cathode band. R θJC is measured at the top centre of the bodyNote:(1)Automotive grade AEC Q101 qualifiedRATINGS AND CHARACTERISTICS CURVES (T A = 25 °C unless otherwise noted)ELECTRICAL CHARACTERISTICS (T A = 25°C unless otherwise noted)PARAMETERTEST CONDITIONS SYMBOLS1PBS1PDS1PGS1PJS1PKS1PMUNIT Maximum instantaneous forward voltage (1)I F = 1.0 A I F = 1.0 A T J = 25 °C T J = 125 °C V F 1.10.95VMaximum reverse current (1)rated V RT J = 25 °C T J = 125 °CI R 1.0501.0100µA Typical reverse recovery time I F = 0.5 A, I R = 1.0 A,I rr = 0.25 A t rr 1.8µs Typical junction capacitance time4.0 V , 1 MHzC J6.0pFTHERMAL CHARACTERISTICS (T A = 25°C unless otherwise noted)PARAMETERSYMBOLS1PB S1PD S1PGS1PJ S1PK S1PM UNIT Typical thermal resistance (1)R θJA R θJL R θJC1051520°C/WORDERING INFORMATION (Example)PREFERRED P/N UNIT WEIGHT (g)PREFERRED PACKAGE CODEBASE QUANTITYDELIVERY MODES1PJ-E3/84A 0.02484A 30007" diameter plastic tape and reel S1PJ-E3/85A 0.02485A 1000013" diameter plastic tape and reel S1PJHE3/84A (1)0.02484A 30007" diameter plastic tape and reel S1PJHE3/85A (1)0.02485A1000013" diameter plastic tape and reelFigure 1. Maximum Forward Current Derating Curve Figure 2. Forward Power Loss CharacteristicsNew ProductS1PB thru S1PMVishay General Semiconductor Document Number: 88917For technical questions within your region, please contact one of the following: Figure3. Maximum Non-Repetitive Peak Forward Surge CurrentFigure4. Typical Instantaneous Forward CharacteristicsFigure5. Typical Reverse Leakage CharacteristicsFigure6. Typical Junction CapacitanceFigure7. Typical Transient Thermal ImpedanceNew ProductS1PB thru S1PMVishay General Semiconductor For technical questions within your region, please contact one of the following:Document Number: 88917PACKAGE OUTLINE DIMENSIONS in inches (millimeters)Legal Disclaimer NoticeVishay Document Number: NoticeSpecifications of the products displayed herein are subject to change without notice. Vishay Intertechnology, Inc., or anyone on its behalf, assumes no responsibility or liability for any errors or inaccuracies.Information contained herein is intended to provide a product description only. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Vishay's terms and conditions of sale for such products, Vishay assumes no liability whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of Vishay products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright, or other intellectual property right. The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Vishay for any damages resulting from such improper use or sale.。

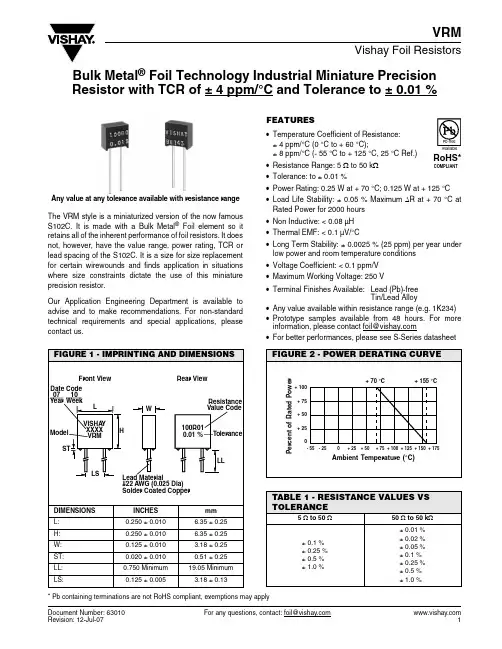

Document Number: 63010For any questions, contact: foil@VRMVishay Foil ResistorsBulk Metal ® Foil Technology Industrial Miniature Precision Resistor with TCR of ± 4 ppm/°C and Tolerance to ± 0.01 %Any value at any tolerance available with resistance rangeThe VRM style is a miniaturized version of the now famous S102C. It is made with a Bulk Metal ® Foil element so itretains all of the inherent performance of foil resistors. It does not, however, have the value range, power rating, TCR or lead spacing of the S102C. It is a size for size replacement for certain wirewounds and finds application in situations where size constraints dictate the use of this miniature precision resistor.Our Application Engineering Department is available to advise and to make recommendations. For non-standard technical requirements and special applications, please contact us.FEATURES•Temperature Coefficient of Resistance:± 4 ppm/°C (0 °C to + 60 °C);± 8 ppm/°C (- 55 °C to + 125 °C, 25 °C Ref.)•Resistance Range: 5 Ω to 50 k Ω•Tolerance: to ± 0.01 %•Power Rating: 0.25 W at + 70 °C; 0.125 W at + 125 °C•Load Life Stability: ± 0.05 % Maximum ΔR at + 70 °C at Rated Power for 2000 hours •Non Inductive: < 0.08 µH •Thermal EMF: < 0.1 µV/°C•Long Term Stability: ± 0.0025 % (25 ppm) per year under low power and room temperature conditions •Voltage Coefficient: < 0.1 ppm/V •Maximum Working Voltage: 250 V•Terminal Finishes Available:Lead (Pb)-freeTin/Lead Alloy•Any value available within resistance range (e.g. 1K234)•Prototype samples available from 48 hours. For more information, please contact foil@•For better performances, please see S-Series datasheet* Pb containing terminations are not RoHS compliant, exemptions may applyTABLE 1 - RESISTANCE VALUES VS TOLERANCE5 Ω to 50 Ω50 Ω to 50 k Ω± 0.1 %± 0.25 %± 0.5 %± 1.0 %± 0.01 %± 0.02 %± 0.05 %± 0.1 %± 0.25 %± 0.5 %± 1.0 %VRMVishay Foil Resistors Bulk Metal ® Foil Technology Industrial Miniature PrecisionResistor with TCR of ± 4 ppm/°C and Tolerance to ± 0.01 % For any questions, contact: foil@Document Number: 63010Note* For non-standard requests, please contact Application Engineering.TABLE 2 - GLOBAL PART NUMBER INFORMATIONNEW GLOBAL PART NUMBER:Y007345K4540Q9L (preferred part number format)DENOTES PRECISIONVALUE AER*YR = ΩK = k Ω0 = Standard9 = Lead (Pb)-free 1 - 999 = CustomPRODUCT CODE RESISTANCE TOLERANCEPACKAGING 0073 = VRMT = ± 0.01 %Q = ± 0.02 %A = ± 0.05 %B = ± 0.1 %C = ± 0.25 %D = ± 0.5 %F = ± 1.0 %L = Bulk PackFOR EXAMPLE: ABOVE GLOBAL ORDER Y0073 45K4540 Q 9 L:TYPE: VRMVALUE: 45.454 k ΩABSOLUTE TOLERANCE: ± 0.02 %TERMINATION: Lead (Pb)-free PACKAGING: Bulk PackHISTORICAL PART NUMBER EXAMPLE:VRMT 45K454Q B (will continue to be used)VRM T45K454Q B MODEL TERMINATION OHMIC VALUE RESISTANCE TOLERANCE PACKAGING VRMT = Lead (Pb)-free None = Tin/Lead alloy45.454 k ΩT = ± 0.01 %Q = ± 0.02 %A = ± 0.05 %B = ± 0.1 %C = ± 0.25 %D = ± 0.5 %F = ± 1.0 %B = Bulk Pack0734K 455Y 00Q 49LDisclaimer Legal Disclaimer NoticeVishayAll product specifications and data are subject to change without notice.Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein or in any other disclosure relating to any product.Vishay disclaims any and all liability arising out of the use or application of any product described herein or of any information provided herein to the maximum extent permitted by law. The product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein, which apply to these products.No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay.The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications unless otherwise expressly indicated. Customers using or selling Vishay products not expressly indicated for use in such applications do so entirely at their own risk and agree to fully indemnify Vishay for any damages arising or resulting from such use or sale. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.Product names and markings noted herein may be trademarks of their respective owners.元器件交易网Document Number: 。
