投影机使用说明书一、主要安全注意事项１、请插紧电源插头，否则可能导致起火。

２、请勿将多台电子设备的电源插头连接到一个墙壁插座上，否则，可能会因为墙壁插座过热引起火灾。

３、请勿使用破损的电源线或电源插头或松动的电源插座，否则可能导致触电或起火。

４、切勿过度弯折或缠绕电源线并避免在电源线上放臵重物，否则，可能会因为电源线破损，导致触电或引起火灾。

５、请勿用湿手插拔电源插头，否则可能导致触电。

６、在清洁之前，请先拔下电源插头，否则有触电或引起火灾的危险。

７、在产品出现问题时，必须拔下电源插头，彻底切断电源。

仅使用产品上的电源按钮不能彻底切断电源。

８、请勿通过插拔电源插座的方式来打开或关闭投影机。

（这样会减少灯泡寿命）。

二、安装和连接１、安装投影仪，使投影仪射出的光柱与投影屏幕成直角。

•调整投影仪的位臵，使镜头指向屏幕的中心位臵。

如果屏幕未垂直安装，屏幕上的画面可能不会呈长方形。

•请勿在光线明亮的地方安装投影屏幕。

如果周围环境太亮，则投射到屏幕上的画面将会被冲淡而显示不清楚。

•在明亮的环境中使用投影仪时，请用窗帘挡住光线。

•您可以相对于屏幕将投影仪安装到以下位臵：<桌面正投> / <吊装正投> / <桌面背投> / <吊装背投>.在屏幕前方安装投影仪将投影仪安装到屏幕前方时，可以使用菜单调整画面以使其正常显示，这取决于放臵投影仪的位臵：（１）.对于前部落地，请按：菜单 > 设臵 > 安装 > 桌面正投（2）.对于前部悬挂，请按：菜单 > 设臵 > 安装 > 吊装正投２、缩放和调焦（在投影机侧面）（1）.缩放旋钮，可以转动缩放旋钮，以便在缩放范围内调整图像大小。

（2）. 聚焦环，转动聚焦环调整屏幕画面的焦距。

四、更换和清洁过滤器更换投影仪过滤器的注意事项:•过滤器位于投影仪底面。

•关闭投影仪电源，在投影仪充分散热冷却后拔下电源线。

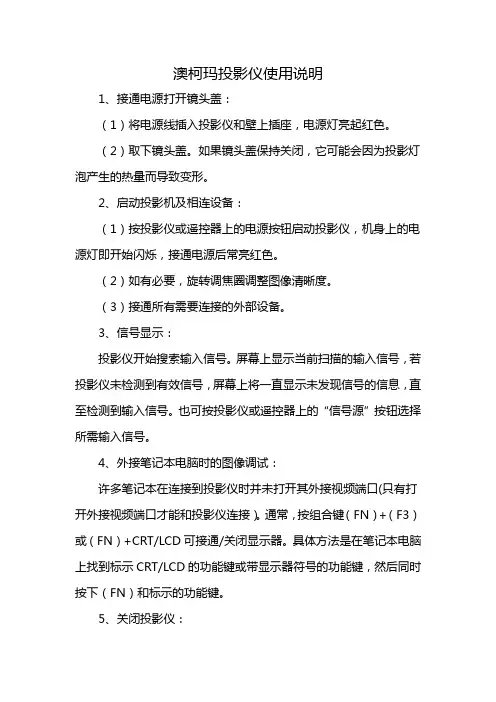

澳柯玛投影仪使用说明
1、接通电源打开镜头盖：
（1）将电源线插入投影仪和壁上插座，电源灯亮起红色。

（2）取下镜头盖。

如果镜头盖保持关闭，它可能会因为投影灯泡产生的热量而导致变形。

2、启动投影机及相连设备：
（1）按投影仪或遥控器上的电源按钮启动投影仪，机身上的电源灯即开始闪烁，接通电源后常亮红色。

（2）如有必要，旋转调焦圈调整图像清晰度。

（3）接通所有需要连接的外部设备。

3、信号显示：
投影仪开始搜索输入信号。

屏幕上显示当前扫描的输入信号，若投影仪未检测到有效信号，屏幕上将一直显示未发现信号的信息，直至检测到输入信号。

也可按投影仪或遥控器上的“信号源”按钮选择所需输入信号。

4、外接笔记本电脑时的图像调试：
许多笔记本在连接到投影仪时并未打开其外接视频端口(只有打开外接视频端口才能和投影仪连接）。

通常，按组合键（FN）+（F3）或（FN）+CRT/LCD可接通/关闭显示器。

具体方法是在笔记本电脑上找到标示CRT/LCD的功能键或带显示器符号的功能键，然后同时按下（FN）和标示的功能键。

5、关闭投影仪：
1）按电源，屏幕上将显示确认提示信息。

如果未在数秒钟内响应，该信息会消失。

2）再按一次电源，蓝色的电源指示灯开始闪烁，然后投影机灯泡熄灭，风扇则会继续运转大约90秒钟以冷却投影机。

3）冷却过程完成后，电源指示灯将常亮红色，风扇也将停止运行。

6、注意：若长时间不使用投影机，请将电源线从插座上拔下;在投影机关闭次序完成之前或在90秒钟的冷却过程中，切勿拔掉电源线。

●使用本产品前，请仔细阅读本说明书，并妥善保管以备查询。

● 使用本产品前，请务必仔细阅读“重要安全说明”。

激光家庭投影机用户使用说明书2018-01-31SysNo.838812018-02-062免责声明保修深圳市光峰光电技术有限公司保留所有权利。

未经深圳市光峰光电技术有限公司事先书面许可，不得以任何形式或方式，包括电子、机械、磁性、光学、化学、手写或其它方式，对本文的任何部分进行复制、传输、转译、储存于检索系统或翻译成任何文字或电脑语言。

所有商标和注册商标均属其自各所有人所有。

深圳市光峰光电技术有限公司未对本手册中的任何内容作出任何明示或暗示的陈述或保证，尤其对适销性或针对特定用途的适用性不提供任何保证。

此外，深圳市光峰光电技术有限公司保留修订本出版物和随时修改本文档内容而无需通知任何人的权利。

在正常使用和存放情况下，深圳市光峰光电技术有限公司对本产品的任何材料和工艺缺陷提供保修。

要求保修时必须提供购机日期证明。

如果在保修期内发现本产品有缺陷，深圳市光峰光电技术有限公司唯一的义务和针对您的独家补救办法是更换任何有缺陷的部件（包括劳务费）。

当您购买的产品发现有缺陷时，应立即通知经销商，以获得保修服务。

重要事项：如果客户未按照书面用法说明使用本产品，将不适用上述保修。

尤其是环境湿度必须介于 10% 和 90% 之间、温度介于 0°C 和 40°C 之间，以及避免在多灰尘的环境下操作本产品。

有关其他信息，请访问。

此标志警告用户本产品机身内未绝缘的电压可能足以导致电击。

因此与机身内任何部件进行任何形式的接触均存在触电危险。

此标志提醒用户注意一些与本机操作及维护有关的重要信息。

请仔细阅读此类信息以避免出现问题。

此标志提醒用户注意高温警告。

此标志提醒用户请勿用手触摸。

SysNo.838812018-01-312018-02-063重要安全说明....................................................................................EMC 等级说明..................................................................................................WEEE 指令........................................................................................................中国RoHs..........................................................................................................电池安全注意事项 ( 当产品附有遥控器电池时).........................................注意事项............................................................................................................简介..................................................................................................产品特点............................................................................................................包装概览............................................................................................................外观视图............................................................................................................控制面板............................................................................................................指示灯...............................................................................................................投影距离...........................................................................................遥控器..............................................................................................界面介绍..........................................................................................设置....................................................................................................................应用....................................................................................................................HDMI..................................................................................................................多媒体................................................................................................................多屏互动.............................................................................................................添加应用............................................................................................................云视听.企鹅.....................................................................................................腾讯音乐............................................................................................................腾讯电视游戏 (444567)1212131415161718191933333434353637382018-01-31SysNo.838812018-02-064此为B 级产品。

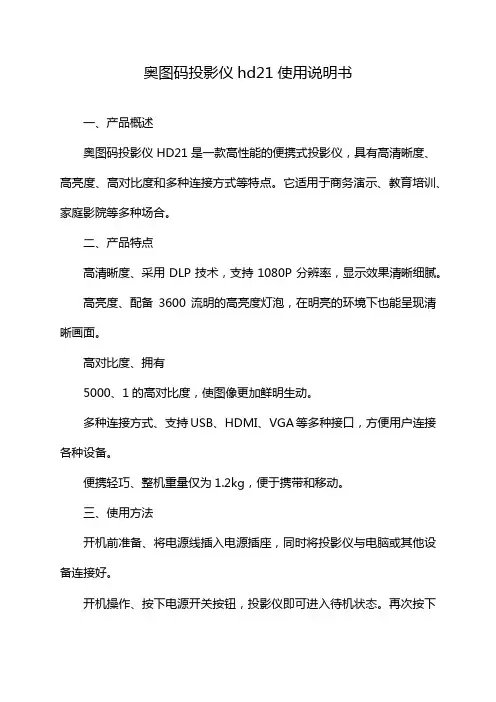

奥图码投影仪hd21使用说明书
一、产品概述
奥图码投影仪HD21是一款高性能的便携式投影仪，具有高清晰度、高亮度、高对比度和多种连接方式等特点。

它适用于商务演示、教育培训、家庭影院等多种场合。

二、产品特点
高清晰度、采用DLP技术，支持1080P分辨率，显示效果清晰细腻。

高亮度、配备3600流明的高亮度灯泡，在明亮的环境下也能呈现清晰画面。

高对比度、拥有
5000、1的高对比度，使图像更加鲜明生动。

多种连接方式、支持USB、HDMI、VGA等多种接口，方便用户连接各种设备。

便携轻巧、整机重量仅为1.2kg，便于携带和移动。

三、使用方法
开机前准备、将电源线插入电源插座，同时将投影仪与电脑或其他设备连接好。

开机操作、按下电源开关按钮，投影仪即可进入待机状态。

再次按下
电源开关按钮，即可启动投影仪。

调整画面、通过遥控器或投影仪本身的功能键，可以调整画面的大小、位置、亮度等参数，以达到最佳显示效果。

关闭投影仪、在使用完毕后，先按下电源开关按钮关闭投影仪，然后拔掉电源线。

四、注意事项
本产品只适用于室内使用，禁止在室外或潮湿环境下使用。

在清洁投影镜头时，请先关闭投影仪并拔掉电源线，然后用干净柔软的布轻轻擦拭。

不要使用化学溶剂或水直接清洗。

在连接设备时，请确保设备的输出信号与投影仪的输入信号匹配。

如果不确定可以使用什么接口连接，请参考产品说明书或咨询售后服务人员。

五、常见问题解答。

Optoma projector range Spring 2019The clear choice for projectionWhether displaying graphics and data in the office or at home watching live sports and movies, Optoma projectors produce a bright, well balanced and true to life colour reproduction. This is essential for reaching the optimum image quality of any big screen media, whether neatly encased in a compact and portable projector or as a permanently installed display device.Ultra short throw Short throw Desktop / Install Mobile Ultra mobileUltra mobile LED HomeDocument cameras Screens AccessoriesUltra short throw Ultra short throwEH320USTi EH320UST EH319USTiEH330UST W320USTi W320UST W319USTieW319USTirW319USTireW319USTiUltra short throwW330USTX320USTiX320USTX330USTUltra short throwEH460STEH415STEH200STShort throwZW310STeW460STW318STeW308STeShort throwZX310STe X318STe X308STe Desktop / InstallWU470WU416DU400EH512 WUXGA (1920 x 1200)Short throwDesktop / InstallEH470EH461EH416 1080p (1920 x 1080)1080p (1920 x 1080)Desktop / InstallDH401EH400+W461W416WXGA (1280 x 800)Desktop / InstallW402W400+W355Desktop / InstallW354X600X461X416XGA (1024 x 768)XGA (1024 x 768)MobileDesktop / Install MobileX402X400+WU337WU335WU334EH400EH345EH343EH337EH335MobileEH334DH350W400W345MobileW344W341W340MobileW335eW334eDW318eX400MobileMobileX345X344X343eXGA (1024 x 768)XGA (1024 x 768)XGA (1024 x 768)X342e DX318e S343e S342eXGA (1024 x 768)XGA (1024 x 768)SVGA (800 x 600)SVGA (800 x 600) MobileDS318eS334eDS317eSVGA (800 x 600)MobileMobileS331DS348S322eDS315eLH200WXGA (1280 x 800)XGA (1024 x 768)Ultra mobileUltra mobile LEDLH160ML1050ST+ML1050STML750STUltra mobile LEDUltra mobile LEDModel nameML750eML330LV130Resolution WXGA (1280 x 800)WXGA (1280 x 800)WSGA (800 x 480)Aspect ratio 16:10 native, 16:9 / 4:3 compatible 16:10 native, 16:9 / 4:3 compatible 16:9 native, 4:3 compatible Brightness¹700 LED brightness §500 LED brightness §300 LED brightness §Contrast15,000:120,000:1100,000:1Lamp life (max hrs)³20,000 (LED life)20,000 (LED life)30,000 (LED life)Noise level (typical)²30dB 34dB 36dB Weight (kg)0.380.460.4Dimensions (W x D x H mm)105 x 106 x 39157 x 122 x 35108 x 126 x 36Throw ratio 1.5:1 1.2:1 1.1:1Zoom type FixedFixedFixedImage size (native)0.43 - 2.54m (17" - 100") diagonal 16:100.25 - 3.05m (10" - 120") diagonal 16:100.64 - 2.03m (25" - 80") diagonal 16:9Keystone correction ±40° vertical ±40° vertical (auto)±40° vertical Offset 100%100%100%Lens shift ---Connections HDMI + MHL v1.0, Universal I/O - VGA / Audio out 3.5mm, microSD card slot, USB-A reader/wireless HDMI + MHL, AV in, Audio out 3.5mm,SPDIF, microSD card slot, 2x USB-A reader, RJ45HDMI + MHL, Audio out 3.5mm, USB-A Power Speaker (W)121.5Optional wireless WUSB / QuickCastBuilt in WiFi and Bluetooth / QuickCastHDCast ProBag ✓✓✓FeaturesNative office viewer, Media player, 1.5GB memory, LED light source, optional wireless presentingAuto v.keystone, android 4.4 KitKat, LED light source, Built in WiFi and BluetoothBuilt in batteryHomeOptoma’s home range has something for everyone – from a dedicated home cinema room to a brightly-lit living space. Our home entertainment projectors can be viewed without dimming the lights, so are perfect for watching TV, films, live sports or playing action-packed games with family and friends.UHZ65UHD65UHD60HomeUHD51AUHD51ALVeUHD370XUHD51HomeUHD40UHD300XUHL55HomeHZ45USTHZ40USTHD35USTHD31USTHomeGT1080DarbeeGT1080eGT1070XeHomeHD39DarbeeHD29DarbeeHD29HHD27LVHomeHD27e HD144X HD143XHome* Specification is to be confirmed and is subject to change.H116ST H116H184X Home* Specification is to be confirmed and is subject to change.Model nameDS-3084PWCDS-3100PMG+DS-3120PMG+Format 4:34:34:3Gain111Screen materialMatte white Matte white Matte white Viewing size (W x H mm)1710 x 12802030 x 15202340 x 1755Diagonal viewing (inch)84100120Black border R & L (mm)405047Black border bottom (mm)356045Black border top (mm)808080Weight (kg)8.9611.1313.6Case dimensions (W x D x H mm)1910 x 112 x 86 (including brackets)2250 x 112 x 86 (including brackets)2554 x 112 x 86 (including brackets)Manual pull downScreensModel nameDS-9120MGADS-1095PMG+DS-1109PMG+Format 16:916:1016:10Gain111Screen materialMatte white Matte white Matte white Viewing size (W x H mm)2030 x 12692030 x 12692340 x 1463Diagonal viewing (inch)9595109Black border R & L (mm)505047Black border bottom (mm)606040Black border top (mm)300300300Weight (kg)11.311.313.38Case dimensions (W x D x H mm)2250 x 112 x 86 (including brackets)2250 x 112 x 86 (including brackets)2554 x 112 x 86 (including brackets)Manual pull downDS-9072PWCDS-9084PMG+DS-9092PWCDS-9106MGA16:916:916:916:91111Matte white Matte white Matte white Matte white 1594 x 8971860 x 10452030 x 11452340 x 132072849210650505047553560453003003003008.969.9211.313.381814 x 112 x 86 (including brackets)2080 x 112 x 86 (including brackets)2250 x 112 x 86 (including brackets)2554 x112 x 86Manual pull downDS-1123PMG+DE-9120ETTDE-9106ETTDE-3100EGA16:1016:916:94:31111Matte white PS series flexible fabric, matte white PS series flexible fabric, matte white Matte white 2656 x 16602346 x 13202656 x 16602030 x 15201231061231005080805040555555300400400802018.420.712.52920 x 118 x 1322843 x 142 x 1523158 x 142 x 1522280 x 108 x 113Tab tensionElectricManual pull downModel nameDP-3072MWLDP-3084MWLDP-9046MWLFormat 4:34:316:9Gain111Screen materialMatte white Matte white Matte white Viewing size (W x H mm)1463 x 10971707 x 12801016 x 572Diagonal viewing (inch)728446Black border R & L (mm)353525Black border bottom (mm)680800210Black border top (mm)252520Weight (kg)5.636.332.8Case dimensions (W x D x H mm)1620 x 115 x 1151867 x 115 x 1151124 x 140 x 84Manual pull upModel nameDE-3120EGADE-9092EGADE-9106EGAFormat 4:316:916:9Gain111Screen materialMatte white Matte white Matte white Viewing size (W x H mm)2400 x 18002030 x 11452340 x 1320Diagonal viewing (inch)12092106Black border R & L (mm)505050Black border bottom (mm)555555Black border top (mm)80300300Weight (kg)14.812.2714.2Case dimensions (W x D x H mm)2650 x 108 x 1132280 x 108 x 1132590 x 108 x 113ElectricScreensDE-9120EGADE-1095EGADE-1109EGADE-1123EGA16:916:1016:1016:101111Matte white Matte white Matte white Matte white 2656 x 14942030 x 12692340 x 14632340 x 17551209510912350504750555050503003003003001612.2714.2162983 x 108 x 1132280 x 108 x 1132590 x 108 x 1132906 x 108 x 113ElectricDP-1082MWLDP-1095MWLManual pull upFixed frameModel nameDC350DC450DC550Resolution XGA, 720XGA, UXGA, 720 and 1080 support XGA, UXGA, 720 and 1080 support Camera 5MP13MP8MPZoom5x optical, 8x digital 17x optical, 8x digital 17x optical, 8x digital SD card support ✓✓✓Video recording ✓ (via USB or SD card)✓ (via USB or SD card)✓ (via USB or SD card)Microscope adaptors ✓✓✓Connections VGA out, VGA , power over USBVGA in/out, HDMI in/outVGA in/out, HDMI in/outSmartDC Software support Windows 7, 8, 8.1, 10 and Apple OSX 10.7 or aboveSoftware support Windows 7, 8, 8.1, 10 and Apple OSX 10.7 or aboveSoftware support Windows 7, 8, 8.1, 10 and Apple OSX 10.7 or aboveFeaturesImage rotation, mirror, freeze, compare, built-in mic, built-in speaker, VESA Mounting supportedImage rotation, mirror, freeze, compare, built-in mic, built-in speaker, VESA Mounting supportedImage rotation, mirror, freeze, compare, built-in mic, built-in speaker, VESA Mounting supportedDocument camerasDocument camerasDC455AccessoriesOptoma accessories to help you make the most of your projection experience.Ceiling mountOCM818B-RU / OCM818W-RU Ceiling mountOCM815B / OCM815WUST mountOWM3000ST mountOWM300STUniversal flush ceiling mount – available in black and white.Universal pole ceiling mount – available in black and white, with extension pole.Compact wall mount with vertical adjustment and adjustable mounting plate for easy installation. Designed for the Optoma ultra short throw projector range.Compact telescopic wall mount with vertical adjustment and adjustable mounting plate for easy installation. Designed for Optoma shortthrow projectors.Table mountOTM2000Wall mount adapterEWMA2000Universal carry bagSP .8EF08GC01Carry bag LSP .72801GC01Project directly onto a table top for a large interactive display with this easy installation table mount. Designed for the Optoma 320UST / 319UST ultra short throw projector range.Upgrade your Epson BrightLink, BrightLink Pro and PowerLite ultra short throw projector with an Optoma 320UST / 319UST projector. Compatible with Epson projector mounts (ELPMB28 / ELPMB43).Lightweight, durable and comes with a strap. Compatible with most Optoma projectors.Lightweight, durable and comes with a strap. Compatible with GT5000+ / GT5500+ Optoma projectors.For a full list of accessories and compatible products visit AccessoriesQuickCast bundleQuickCast starter kitQuickCast cradleQuickCast transmitterAccessoriesFor a full list of accessories and compatible products visit Wireless HDMIWireless USB adapterHDCast ProOptoma has a full range of LED displays.To see the range please visitGlossary4K4K Ultra HD provides four times as many pixels as Full HD 1080p. That’s 8.3 million on screen pixels (3840 x 2160) bringing greater realism to everyscene with thrilling detail, colour and contrast.Full 3DFull 3D projectors can display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting and the latest generationgames consoles.Media playerA handy integrated media player means you can use the projector as a stand-alone device, retrieving content from the internal memory,USB stick or a memory card.WUXGAWUXGA projectors have a native display of 1920x1200 pixels with an aspect ratioof 16:10. This format has proved highly popular in commercial and business environments.LEDLamp free LED projectors are more energy-efficient than lamp based projectors and havea much longer life span (up to 20,000 hours).TouchBeam interactive technologyOptoma’s finger-touch technology allows severalpeople to work simultaneously on the projected screen without using a pen. TouchBeam makes it easy to open documents or web browsers and draw, annotate, zoomand rotate images on the projected image.Full HD 1080p1080p resolution gives you sharp and detailed images from HD content without downscaling or compression; perfect for watching Blu-ray movies, HD broadcasting and playing video games.Eco +Eco + technology brings together high contrast, improved lamp life and energy saving features that are easy to use while reducing powerconsumption.Built-in batteryA built-in rechargeable battery provides cable-free projection time and a quick and easy setup – perfect for impromptu meetings or movies nights. It can also beused to charge a mobile device.HD ReadyHD Ready projectors can display 720p/1080i High Definition pictures. You’ll still see a big improvement from 720p/1080i HD pictures, though you won’t see every last detail fromsources such as Blu-ray (1080p) discs.24 frames per second (FPS)Most movies are shot at 24 frames per second(fps). Optoma projectors can accept high definition sources at 24 fps to display moviesexactly as the director intended.DARBEEDarbee’s acclaimed Visual Presence™ patented technology further enhances Optoma projection technology and adds more depth and realismdelivering a clearer sharper picture.HDR compatibleCapable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture for lifelikeimages with a greater sense of depth.Android™With built in Android you can download popular apps such as Netflix and YouTube.Amazon Alexa voice controlAlexa voice control enables a quick and easy setup for a movie or gaming session as users can switch inputs, launch content, adjust the volume and more with their voice. Note: Voice control is not supported in every country.Copyright © 2019, Optoma and its logo is a registered trademark of Optoma Corporation. Optoma Europe Ltd is the licensee of the registered trademark. All other product names and company names used herein are for identification purposes only and may be trademarks or registered trademarks of their respective owners. DLP , BrilliantColor™ and the DLP logo are registered trademarks of T exas Instruments. Crestron , the Crestron and RoomView logo are registered trademarks of Crestron Electronics, Inc. MHL, Mobile High-Definition Link and the MHL logo are trademarks or registered trademarks of the MHL, LLC. Lamp based projectors brightness and lifetime will vary depending on selected projector mode, environmental conditions and usage. As is common with all lamp based projectors, brightness will decrease over the lamp lifetime. LED projectors do not have a replaceable lamp and the brightness does not decay significantly over the product lifetime. ²The quoted noise level is based on testing and will vary according to operational use and environmental conditions. ³T ypical lamp life achieved through testing will vary according to operational use and environmental conditions. The quoted LED brightness rating is based on the perceived equivalent ANSI lumen brightness when compared to a standard lamp projector . The LED brightness rating takes into account the Helmholtz–Kohlrausch (HK) effect on the perceived brightness of colours. Lamp life hours is based on a daily cycle that reflects projector usage in a typical education environment. Errors and omissions excepted, all specifications are subject to change without notice. All images are for representation purposes only and may be simulated.ResolutionA projector’s native resolution is the number of pixels that it has available to create an image. The greater the resolution of a projector, the greater the detail and sharpness of the projected image.BrightnessBrightness is the light output of the projector. The brightness rating (ANSI lumen or LED brightness) is a measurement of the lightenergy being generated by the projector itself.ContrastContrast is the difference between the brightest and darkest parts in an image. A high contrast is particularly important for home projectors as it produces a picture with a deeper black level and clearly defined shadow detail.Aspect ratioA projector’s aspect ratio refers to the ratio between its width and height. For example, a 4:3 display produces an image that is more square, where a 16:9 ratio produces an image that is more rectangular in shape. The most common video projector aspect ratios are 4:3 (XGA and SXGA), 16:10 (WXGA and WUXGA) and 16:9 (standard HDTV , 1080p).Throw ratioThrow ratio is the ratio between the projection distance and image width. For example, a throw ratio of 2:1 means to achieve every unit of screen width requires 2 units of projection distance. Normally quoted as a range as most projectors have a zoom facility.Keystone correctionKeystone correction is performed digitally before the image passes through the lens. It can be used to manipulate the projected image vertically and/or horizontally so that you can get it as close to an even rectangle as possible.Lens shiftLens shift gives you the ability to move the projected image up or down and leftor right, while keeping the projector stationary. This makes it easier to position the projector in your room and enables a wider range of screen size options.PureMotionUsing sophisticated frame-interpolation technology, advanced motion control processing eliminates motion blurringor image judder, even in high-speed action sequences.DynamicBlackThis feature gives more depth to your image by smoothly adjusting the lamp output, based on the brightness information of each frame; to create a stunning high contrast ratio. Bright scenes appear crisp and clear, while dark scenes remain detailed with deep blacks and exceptional light and shade detail.Key definitionsAll Optoma projectors use DLP ® technology, pioneered by Texas Instruments. This technology uses millions of mirrors to produce high quality images and ensures the projectors do not suffer colour degradation over time.For more information on DLP visit/projectortechnology/DLPV05-17/01/19。

眼睛安全性警告請避免一直直視或面對投影機的光線。

盡量以背部面對光線。

建議使用指示筆或雷射指標筆，以避免使用者必須進入光線區。

若是在教室使用投影機，學生被要求指出螢幕上的某物時，請適時地留意學生。

為降低電源消耗，可利用百葉窗，減少周遭光源。

21 21211211212適用於影像及21211 21 26子功能表項目影像功能表按下/// 選擇要存取的功能表，然後按下進入功能表畫面。

mini-USB Office音樂功能表Travel runner.avi runner.avisummer.avi unfair.aviLove song.mp3Goodbye.mp3影像功能表1/2相片功能表Of fice 檢視器功能表USBtravel.doc 128 KB 165 KB143 KB 1,211 KB ..mini-USB 功能表設定功能表Travelrunner.avi runner.avisummer.avi unfair.avi資料來源圖示按下即可切換記憶體來源：內建記憶體 » SD 記憶卡 » USB 隨身碟。

內建記憶體USB 隨身碟 (支援 FAT 32 式)SD 記憶卡返回圖示反白此圖示，然後按下返回上一個畫面。

首頁功能表子功能表7<備註>顯示的畫面須視上一步選擇的資料來源而定，可能會有所不同。

Travel runner.avi runner.avisummer.avi unfair.avi影像播放模式 (請參閱第 8 頁)開始播放Travel runner.avi runner.avisummer.avi unfair.avimini-USB OfficeTravel runner.avirunner.avisummer.avi unfair.aviTravel runner.avi runner.avisummer.avi unfair.avi變更資料來源Travel runner.avi runner.avisummer.avi unfair.avi變更資料來源變更資料來源首頁功能表返回首頁功能表重複播放全部重複播放重複播放一首mini-USB Officemini-USB Office首頁功能表2. 進入「設定」功能表5. 選擇選項 4. 選擇設定媒體播放控制增加音量 + 倒轉降低音量+ 快轉+ 暫停 + 上一個影像短片 +播放+下一個影像短片音樂播放模式 (請參閱第10頁)<備註>顯示的畫面須視上一步選擇的資料來源而定，可能會有所不同。

投影仪使用说明【投影仪使用说明】一、简介投影仪是一种常见的多媒体设备，通过光学投影技术将图像或视频投射到幕布或平面上，用于会议、教育、娱乐等各种场合。

本文将提供投影仪的使用说明，以便用户能够正确、方便地操作该设备。

二、准备工作1.投影环境准备：确保投影区域光线充足，避免过强或过弱的光线影响投影效果。

幕布或平面应平整、清洁，避免影响图像清晰度。

2.连接设备：将电源线插入投影仪和电源插座，连接外部设备（如电脑、DVD播放器）和投影仪，确保信号传输正常。

三、操作步骤1.打开电源：按下电源按钮，等待几秒钟，投影仪指示灯亮起表示设备已启动。

2.调整图像：通过投影仪面板或遥控器上的菜单按钮，进入设置选项，对图像进行调整。

包括亮度、对比度、色彩、清晰度等参数的调节，以获得最佳显示效果。

3.选择信号源：根据所需投影内容，选择正确的信号源。

可以通过投影仪面板或遥控器上的信号源切换按钮进行选择，如选择电脑、DVD或USB等。

4.调整焦距：根据投影距离和图像大小进行调整，旋转投影仪上的焦距环或通过遥控器上的焦距调节按钮进行调整，以获得清晰的图像。

5.投影画面：将投影仪对准幕布或平面，调整投影仪与幕布的距离和角度，确保图像完整且垂直。

根据需要进行微调，以获得理想的投影效果。

6.结束使用：使用完毕后，按下电源按钮关闭投影仪，等待指示灯熄灭后再断开电源。

保持设备的清洁和安全，避免长时间使用或高温环境下使用。

四、注意事项1.投影仪在使用过程中会产生一定热量，请确保设备周围有足够空间散热，避免堵塞通风口。

2.长时间使用投影仪可能导致设备过热，请适当休息，以保护设备并延长使用寿命。

3.在连接和断开设备时，请务必确认电源已关闭，以避免电流冲击和设备损坏。

4.请使用干净、柔软的布清理投影仪外壳和镜头，避免使用有腐蚀性的化学品或过硬的物体，以免损坏设备。

5.投影仪具有一定灵敏度，请避免强烈撞击或摔落，尽量固定设备以防止意外发生。

6.根据投影仪的型号和规格，使用适当的电源和配件，以免电压不匹配或过载造成设备故障。

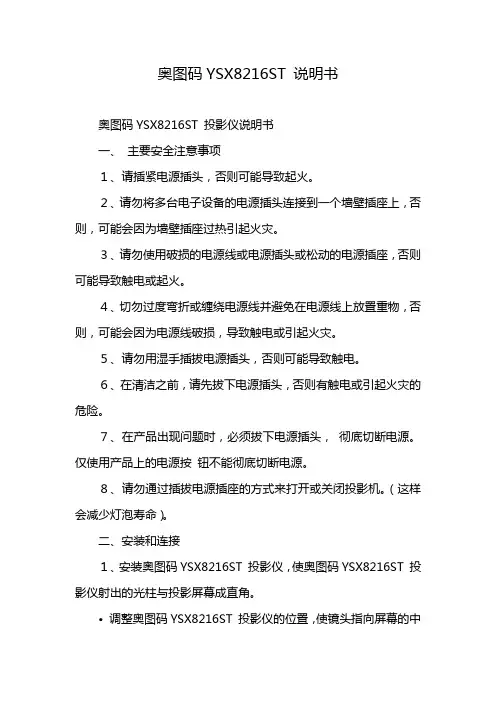

奥图码YSX8216ST 说明书奥图码YSX8216ST 投影仪说明书一、主要安全注意事项１、请插紧电源插头，否则可能导致起火。
