连接器英语对照

连接器常用材质及性能介绍1、连接器绝缘体常用材质通常有：PBT、NYLON、ABS、PC、LCP等材料，但原则上采用耐燃性较佳之材质。

ａ.PBT料：一般常用PBT料加20-30%玻璃纤维，具有抗裂防冲击、防电能力，其耐磨性好，磨擦系数较低，自身润滑效果好，耐油耐化学药品性好。

在高温高湿下伋有很好的介电强度。

其缩水率0.6%-3.0%之间，其耐温为230℃左右。

成型性好，具耐燃性。

其为连接器产品常用胶料。

ｂ.NYLON66、NYLON6T、PC、LCP料：其缩水率1.0%-0.3%，耐温比PBT高，常用NYLON66耐温260℃--280℃，NYLON6T 耐温280℃--300℃，LCP耐温290℃--320℃。

但其吸水性较大，一般用于耐高温与PITCH 较少的产品（如SMD、HOUSING、PLCC等产品）C．ABS料：具有良好抗冲击韧性、耐油性、耐磨性、容易成型、硬质性好、刚性好，耐温100℃左右，一般用于连接器中辅助产品上。

2、注塑成形常见之缺陷及其原因常见成型缺陷有以下几种：塑件有黑斑或黑液、表面不光洁、溢料、塑料成形不完整、气泡或烧焦、瘪形、拼缝线或塑件紧缩在模具内等等缺陷。

其主要原因分三部分：注塑机之因素、模具之因素、胶料之因素。

3、连接器接触件组成及性能接合体材质：插头用金属接合体材质，一般原则上以黄铜为主，但特别要求插拔次数极高，且长寿命期限时磷青铜，铍铜等弈可采用。

以下对目前行业上铜材种类及性作介绍1.黄铜---铜及锌之合金，共颜色因锌之含量而异。

a.黄铜-----含锌25~35%者，最适常温加工。

b.黄铜-----含锡35%~45%者，最适常温加工，市面上贩卖之铜板，铜棒均属之。

2.青铜----铜及锡之合金，其颜色因锡之含量而异。

一般广义之称呼除黄铜以外之铜合金称为青铜。

磷青铜-----在青铜中加以磷，耐摩性有之，但磷过多，则铸造困难，其成分为锡8~12%，磷0.5~1.5%.接触件材料选用接触件可用几种合金中的任何一种材料制成，具体选择则要根据接触件的类型，插拔的频度以及连接器所工作的电气条件和环境条件而定。

HDMI连接器专用英语对照HDMI连接器专用英语词汇符合HDMI标准的连接器 Connectors to HDMI Standard高清多媒体接口 High Definition Multimedia Interface (HDMI)HDMI A型连接器 HDMI Type A ConnectorHDMI B型连接器 HDMI Type B ConnectorHDMI C型连接器 HDMI Type C Connector一体式数字音频和视频 Digital Audio and Video in one数字电视 Digital Television (DVI)覆盖范围 Scope要求 Rating额定电流 Contact Current Rating温度范围 Temperature Range湿度 Humidity Range大气压力 Atmospheric Pressure控制信息 Preamble数据包 Data Island视频信息 Video Data测试方法和要求 Test Methods and Requirements最小化传输差分信号 Transition Minimized Differential Signaling (TMDS) 高清数字内容保护 High-Bandwidth Digital Content Protection(HDCP) 低电压差分讯号 Low-Voltage Differential Signaling (LVDS）扩展显示标识数据 Extended Display Identification Data（EDID）显示数据信道 Display Data Channel（DDC）全屏蔽提供静电放电保护 Full shielding for electrostatic discharge protection全屏蔽防静电 Full shielding for ESD protection提供无铅工艺 Lead-free process available带或不带面板凸缘 Offered with or without panel flange面板凸缘 Panel flange点对点 Point-to-point分支 Multi-drop热插拔检测 Hot Plug DetectTMDS屏蔽线 TMDS Shield Lines消费电子控制 Consumer Electronics Control(CEC)视频游戏主机 Video game consoles光缆组件 Cable assembliesHDMI连接器专用英语句子高清多媒体接口是将视频和音频合并到单一数字接口的一种规范。

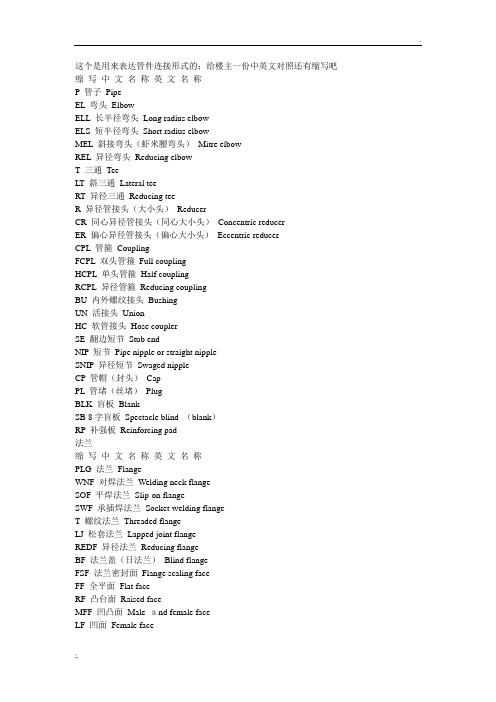

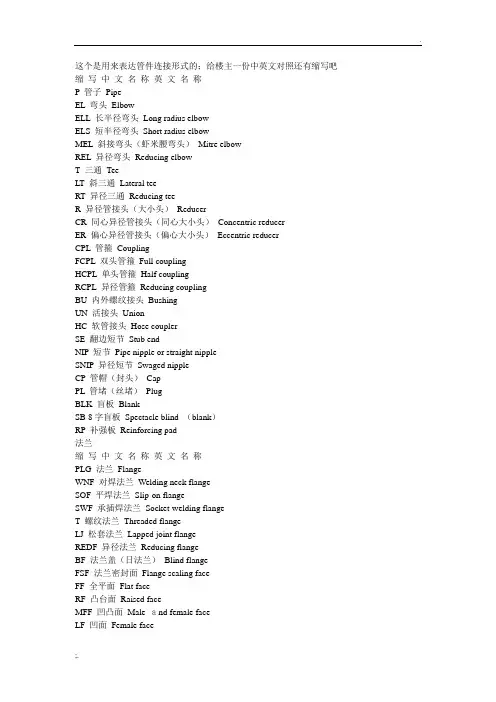

这个是用来表达管件连接形式的；给楼主一份中英文对照还有缩写吧缩写中文名称英文名称P 管子PipeEL 弯头ElbowELL 长半径弯头Long radius elbowELS 短半径弯头Short radius elbowMEL 斜接弯头（虾米腰弯头）Mitre elbowREL 异径弯头Reducing elbowT 三通TeeLT 斜三通Lateral teeRT 异径三通Reducing teeR 异径管接头（大小头）ReducerCR 同心异径管接头（同心大小头）Concentric reducerER 偏心异径管接头（偏心大小头）Eccentric reducerCPL 管箍CouplingFCPL 双头管箍Full couplingHCPL 单头管箍Half couplingRCPL 异径管箍Reducing couplingBU 内外螺纹接头BushingUN 活接头UnionHC 软管接头Hose couplerSE 翻边短节Stub endNIP 短节Pipe nipple or straight nippleSNIP 异径短节Swaged nippleCP 管帽（封头）CapPL 管堵（丝堵）PlugBLK 盲板BlankSB 8字盲板Spectacle blind （blank）RP 补强板Reinforcing pad法兰缩写中文名称英文名称PLG 法兰FlangeWNF 对焊法兰Welding neck flangeSOF 平焊法兰Slip-on flangeSWF 承插焊法兰Socket-welding flangeT 螺纹法兰Threaded flangeLJ 松套法兰Lapped joint flangeREDF 异径法兰Reducing flangeBF 法兰盖（日法兰）Blind flangeFSF 法兰密封面Flange scaling faceFF 全平面Flat faceRF 凸台面Raised faceMFF 凹凸面Male ａnd female faceLF 凹面Female faceLM 凸面Male faceRJ 环连接面Ring joint faceTG 榫槽面Tongue ａnd groove faceTF 榫面Tongue faceGF 槽面Groove face垫片缩写中文名称英文名称G 垫片GasketNMG 非金属垫片Non-metallic gasketAG 石棉垫片Asbestos gasketRG 橡胶垫片Rubber gasketTEG 聚四氟乙烯包复垫片PTFE envelope gasket SMG 半金属垫片Semimetallic gasketMJG 金属包垫片Meta-jacket gasketSWG 缠绕式垫片Spiral wound gasketMG 金属垫片Metallic gasketFMG 金属平垫片Flat metallic gasketSMSG 齿形金属垫片Solid metal serrated gasket LER 透镜式金属环垫Lens ring gasketOCR 八角形金属环垫Octagonal ring gasket OVR 椭圆形金属环垫Oval ring gaksetIR/OR 内外定位环Inner ring ａnd outer ringIR 内定位环Inner ringOR 外定位环Outer ring坚固件缩写中文名称英文名称B 螺栓BoltSB 螺柱Stud boltNU 螺母NutTB 花蓝螺母TurnbuckleWSR 垫圈WasherSWSR 弹簧垫圈Spring washer阀门缩写中文名称英文名称GV 闸阀Gate valveGLV 截止阀Globe valveCHV 止回阀Check valveBUV 蝶阀Butterfly valveBAV 球阀Ball valvePV 旋塞阀Plug valve （cock）CV 调节阀Control valveSV 安全阀Safety valveRV 减压阀Pressure reducing valveST 蒸汽疏水阀Steam trapPRV 泄压阀Pressur relief valveBV 呼吸阀Breather valveNV 针形阀Needle valveA V 角阀DV 隔膜阀TWV 三通阀SGV 插板阀管道上用的小型设备缩写中文名称英文名称SPR 气液分离器SeparatorFA 阻火器Flame arresterSR 过滤器StrainerSRY Y型过滤器Y-type strainerSRT T型过滤器T-type strainerSRB 桶式过滤器Bucket type strainerTSR 临时过滤器Temporary strainerSIL 消声器SilencerSG 视镜Slight glassSC 取样冷却器Sample coolerDF 排液漏斗Drain funnelLM 管道混合器Line mixerRO 限流孔板Restriction orificeMO 混合孔板Mixing orificeRD 爆破片（爆破膜）Rupture diskEJ 补偿器Expansion joint隔热、伴热中文名称英文名称INS 隔热Thermal insulationH 保温Hot insulationC 保冷Cold insulationP 防烫伤隔热Personnel protection insulation T&I 伴热Tracing ａnd insulation管道伴热（冷）TracingEST 蒸汽外伴热External steam tracingIST 蒸汽内伴热Internal steam tracingSJT 蒸汽夹套伴热Steam-jacket tracingET 电伴热Electric tracing配管材料和等级缩写中文名称英文名称M 金属材料Metallic materialCS 碳钢Carbon steelCAS 铸钢Cast steelFS 锻钢Forged steelAS 合金钢Alloy steelSS 不锈钢Stainless steelAUSTSS 奥氏体不锈钢Austenitic stainless-steelCI 铸铁Cast ironMI 可锻铸铁Malleable ironDI 球墨铸铁Ductile ironAL 铝AluminumBRS 黄铜BrassBRZ 青铜BronzeCU 紫铜CopperLAS 低合金钢Low alloy steelFLAS 低合金锻钢Forged low alloy steelCLAS 低合金铸钢Cast low alloy steelTHK 壁厚ThicknessSCH 表号Schedule numberSTD 标准StandardXS 加强Extra strongXXS 特强Double extra strong装置布置缩写中文名称英文名称CN 建北Construction northE 东EastW 西WestS 南SouthN 北NorthH 水平HorizontalV 竖直、铅直、直立VerticalGRD 地坪GroundUG 地下UndergroundBL 装置边界线Battery limit lineESEW 事故沐浴洗眼器Emergency shower ａnd eye washer HS 软管站Hose stationML 接续分界线Match linePS 管道支架（管架）Piping supportPR 管桥Pipe rackSTRU 构架（构筑物）StructureBLDG 建筑物BuildingPD 清扫设施Purge devicePT 池PitSHLT 棚ShelterCOFF 围堰CofferdamFL 楼板FloorPF 平台Plateform尺寸标注缩写中文名称英文名称EL 标高ElevationBOP 管底Bottom of pipeCOP 管中心Center of pipeTOP 管顶Top of pipeFOB 底平Flat on bottomFOT 顶平Flat on topCL（屯）中心线Center lineTL 切线Tangent lineSYM 对称的SymmetricalBOS 支架底Bottom of supportTOS 支架顶Top of supportCL 净距（净空）ClearanceCTC 中心至中心Center to centerCTF 中心至面Center to faceCTE 中心至端部Center to endETE 端到端End to endFEF 法兰端面Flange ａnd faceFTF 面到面Face to faceD 直径DiameterDN 公称直径Nominal diameterID 内径Inside diameterOD 外径Outside diameterDIM 尺寸DimensionMAX 最大MaximumMIN 最小MinimumA VG 平均AverageAPP 约、近似ApproximatePT.EL 点标高Point elevation图表缩写中文名称英文名称PFD 工艺流程图Process flow diagramPID 管道和仪表流程图Piping & instrument diagramCOD 接续图Continued on drawingDTL 详图DatailSPDWG（ISODWG）管段图Spool drawing （each line isometric drawing）DWGNO 图号Drawing numberDWGI 所在图号Drawing identificationLOW 材料表List of materialMTO 汇料Material take-offAPPX 附录AppendixJOB. No. 工号Job NumberBEDD 基础工程设计数据Basic engineering design dataDEDD 详细工程设计数据Detail engineering design data REV. No. 修改号Recision numberREFDWG 参考图Reference drawingSC 采样接口Sample connection操作方式及工作参数缩写中文名称英文名称AUT 自动AutomaticML 手动Manual controlCHOP 链条操作Chain operatedCSC 铅封关Car seal closeCSO 铅封开Car seal openLC 锁闭Lock closedLO 锁开Lock openNC 正常关Normally closeNO 正常开Normally openATM 大气压AtmospherePN 公称压力Nominal pressureA 绝压G 表压（T）温度Temperature（P）压力Pressure施工缩写中文名称英文名称W 焊接WeldingAW 电弧焊Arc weldingGSAW 气体保护电弧焊Gas shielded-acr weldingEFW 电熔焊Elecric fusion weldingERW 电阻焊Electric Resistance weldingGW 气焊Gas weldingLW 搭接焊Lap weldingBW 对焊Butt weldingTW 定位焊Tack weldingSW 承插焊Socket weldingCW 连续焊Continuous weldingSEW 密封焊Seal weldingSFG 堆焊SurfacingFW 现场焊接Field weldingHT 热处理Heat treatmentPH 预热PreheatingSR 应力消除Stress reliefPWHT 焊后热处理Post weld heat treatmentEIT 检查、探伤和实验Examination, inspection & testing VE 外观检查Visual examinationUI （UT）超声探伤Ultrasonic inspection （test）RI （RT）射线探伤Radiographic inspection （test）MPI （MT）磁粉探伤Magnetic particle inspection （test）LPI （PT）液体渗透检验Liquid penterant inspection （test）HADT 硬度实验Hardness testingHYDT 水压实验Hydraulic testingPNET 气压实验Pneumatic testing焊条Covered electrodeWW 焊丝Welding wireASSY 装配、组合AssemblyF 现场FieldF/F 现场制造Field faricatedSF 现场决定Suit in fieldCSP 冷紧Cold springBCT 螺栓冷紧Bolt cold tighteningBHY 螺栓热紧Bolt hot tighteningCO 清洗口Clean outANNY 退火AnnealedPE 平端面Plain endBE 坡口端Belelled endTHR 螺纹ThreadHB 布氏硬度Brinnel hardnessRC 洛氏硬度其他缩写中文名称英文名称FDN 基础FoundationINF 信息（资料）InformationREF 参考ReferenceREV 修改RevisionSEQ 序号（顺序）SequenceW/E 设备带来With equipmentW/I 仪表带来With instrumentCM 色标Colour markCA 腐蚀裕度Corrosion allowanceUTL 公用系统UtilityUC 公用工程接头Utility connectionQTY 数量QuantityWT 重量WeightMHR 工时Man hourBC 螺栓分布圆Bolt circleHP 高点High pointLP 低点Low pointSUC 吸入（口）SuctionDIS 排出（口）DischargeSO 蒸气吹扫（口）Steam outNPT 美国标准锥管螺纹National standard taper pipe thread NPS 美国标准直管螺纹National standard straight pipe thread DR 排液DrainVT 放气VentRTG （压力）等级RatingCL 等级ClassSMLS 无缝Seamless。

连接器术语中英⽂对照以下是以Starline系列为例的安费诺⼯业连接器部分术语中英⽂对照。

NO.English Name中⽂名称1Double lead Acme Thread双道梯形螺纹2Pressure Pad压板3Grommet密封胶圈4Mechanical clamp nut机械压紧螺母5washer垫圈6adapter连接套管7male insert/pin insert插针胶芯组件8pin contacts插针9coupling nut连接螺母10environmental cover male插头防护盖11environmental cover female插座防护盖12square flange receptacle⽅形法兰插座13flange gasket法兰垫⽚14female insert/socket insert插孔胶芯组件15scoket contacts插孔16insert clamp nut胶芯压紧螺母17conduit adapter管式套管18potting sleeve注胶衬套19basket weave grip织篮式电缆夹头20gland nut压紧螺母21straight plug直插头22square flange mounted plug法兰安装式插头23plastic dustcap塑胶防尘盖24junction box接线盒25gland格兰26Potting防爆胶27boot塑胶套筒28insert configurations胶芯排布29insertion tools插⼊⼯具30removal tools取出⼯具31contact crimping tools压接钳32Backcap后盖33Grip夹头34Cap 防尘盖35Cable电缆36Chain ring链环37Chain eyelet链形孔38crimp压接39Contact端⼦40Connector连接器41Clamp nut夹紧螺母42Coupling nut连接螺母43Insert胶芯44Jack插座45Jacket 护套46Label/ tag标签47PIN插针48Shell 外壳49Seal密封圈50Solder 焊接51Sleeve套筒52Snap ring卡环53wire电线。

连接器专业英语对照转载2009-06-03 14:42:40 阅读139 评论0 字号：大中小订阅Connecter 连接器Cable 导线Wire-to-wire 线至线Wire-to-board 线至板Mini-universal 小型通用Circular plastic connectors 塑料密封环连接器DL (dual-leaf) contact sockets 双叶式触点插座Drawn spring DIP contact socket 弹簧触点插座Zig-zag package sockets 锯齿形封装插座Positive lock connectors 确立锁定连接器Coax mix 同轴混合Shielded circular DIN connectors 屏蔽式圆型DIN连接器Memory card connectors 记忆装置插结连接器SIMM sockets 单列记忆模件插座Low profile 低高度CIS (commercial interconnection system) 商用连接系统Hinge connectors 铰连连接器Card-edge connectors 边缘插接连接器Euro card connectors 欧式插接连接器Modular interconnection system 组合连接系统interconnection system 互连系统RF connectors 射频连接器Twin-Ax connectors 双轴互连系统Low profile coaxial tap 低高度型有源同轴电缆线器4 position data connectors 4位数据连接器Insulation and wire support 绝缘体及导线套Ring-Tongue terminals 环形舌端子Wire size range 线径范围Slotted-Tongue terminals 叉式舌片端子Butt splices 对头接头Dentented Ring-Tongue terminals 卡爪环舌型端子Fits tab thickness 配合接片厚度Accepts terminals 配合端子Crimp-type tabs 压接式接片Free-Hanging and Panel-Mount Applications 自由悬挂及面板装嵌适用Cable clamp 电缆钳位夹PC Board vertical pin headers 垂直接插式接插头组件PC Board Right-Angle pin and socket headers 水平接插式接插头组件Panel-Mount connectors 面板装嵌连接器Insulation Displacement plugs 绝缘位移连接插头Dielectric withstanding voltage 介质承受电压Free-Hanging type cap housings 自由悬挂式套座壳体Semiautomatic crimping machine 半自动压接机Power supply 供给功率Air pir pressure 气压Panel mount type cap housings 面板装嵌套座壳体Post header for printed circuit board 印刷底板用柱头Mass termination assemblies 集体端接组件Post header assemblies 接插柱头组件Polarized right angle post header assembly 有极向性水平接插柱头组件Friction lock 锁尖装置Sigle leaf connectors 单叶片连接器CPC (circular plastic connectors) 塑料密封环型连接器Ceimp Snap-In contacts 压接式套入触点Socket with straight solder tails 直立焊脚插座Retention feature solder tails 弯曲焊脚Sockets with retention feature solder tails 面板附定曲脚插座High Pressure Tin (HPT) sockets 镀锡高压芯片Positive lock retention feature 彻底锁定装置Plug-Grounding Indents 插头外罩接地凹位Solder Cup connector 焊杯触点连接器Straight Exit RFI/EMI shield for Jacketed cable 直线引出RFI/EMI屏蔽外壳外套导线束适用Backshell assembly 后部外壳组件Board-Mount connectors with threaded inserts and board locks 底板安装连接器附内丝牙及板扣Board-Mount Receptacles 底板安装插座Non-Polarized Receptacles 无定位型插座Handset plug assembly 电话线插头组件Line cord plug assembly 听筒插头组件。

PCB连接器专用英语对照PCB连接器专用英语词汇印刷电路板 Printed Circuit Board （PCB）PCB连接器 PCB Connector线对板连接器 Wire-to-Board Connector板对板连接器 Board-to-Board Connector柔性扁平电缆 Flexible Flat Cable（FFC）FFC端子 FFC ContactFFC壳体 FFC HousingZIF连接器 ZIF Connector高拔出力 High extraction force三重插接连接器 Trio-Mate Connector柔性电路板 Flexible Printed Circuit（FPC）0.25mm 间距柔性印刷电路 (FPC) 连接器0.25mm pitch Flexible Printed Circuit (FPC) Connector0.3mm 间距 FPC 连接器 0.3mm Pitch FPC Connector0.5mm 间距 FPC 连接器 0.5mm Pitch FPC Connector1.0mm 间距 FPC 连接器 1.0mm Pitch FPC Connector1.25mm 间距 FPC 连接器 1.25mm Pitch FPC Connector可适应 FPC/FFC 电缆 Can accommodate FPC/FFC cable具有 ZIF 和非 ZIF 样式 Available in ZIF and non-ZIF styles多种引脚间距选择 Variety of centerline spacing options采用SMT和T/H PCB端接 Available in SMT and T/H PCB termination无需工具 Requires no tooling低电压差分信号 Low-Voltage Differential Signaling（LVDs）PCB连接器专用英语句子这些连接器在低压差分信号 (LVDS) 和嵌入式Display Port (eDP) 应用中都能提供卓越的性能。

连接器用语集(质量）中英日1 other part no. 不同现品现品相违2 other material 不同材料材料相违3 quantity shortage 数量不足数量不足4 mixed 异种混入异种混入5 broken 破损破损6 discrepant 不同相违7 illegible letters 文字不清晰文字不鲜明8 missing indication 忘记表示表示忘れ9 approval mark uua，csa标识 uua、csa表示10 inspection sheet 成绩书成绩书11 poor reeling 卷取不良巻き不良12 tangled 缠からみ13 reversed 卷反逆巻き14 defected splice 继续継ぎ15 back reel 往里卷里巻き16 direction off top 取出方法取り出し方法17 gap 上下距离ギャップ18 height,depth 高度，深度高さ、深さ19 location 位置位置20 width 宽度幅21 thickness 厚度厚さ22 outer diameter 外径外形（外寸）23 inner diameter 内径内径（内寸）24 angle 角度角度25 pitch 中心间距离ピッチ26 swage, chamfer 倒角面取り27 diagonal 对角尺寸対角寸法28 diameter 直径直径29 length 长度长さ30 symmetry 对称度対称度31 parallelism 平行度平行度32 perpendicularity 垂直度直角度33 true position 位置度真位置度34 flatness 平面度平面度35 concentricity 同轴度同芯度36 roundness 真圆度真円度37 coplanarity 平坦度平坦度38 straightness 直线度真直度39 push-on, push-off 插拔力挿抜力40 insertion force 插入力挿入力41 extraction force 引拔力引き抜き力42 normal force 接触力接触力43 retention force 保持力保持力44 fitness 固着力固着力45 spring back 复员力复元力46 strength 强度强度47 actuating force 开关作用力スイッチ作动力48 solder wicking 焊锡度半田上がり49 flux raise 焊剂フラックス上がり50 conductivity 导通性导通性51 contact failure 接触不稳定接触不安定52 contact resistance 接触抵抗接触抵抗53 lighting 点灯点灯54 short circuit 短路短络55 burning 烧伤焼损56 dielectric 耐电压耐电圧57 insulation resistance 绝缘抵抗絶縁抵抗58 chip & scrap 切粉切粉59 scrap 废弃スクラップ60 die & tool mark 打痕ダイマーク61 crack 破裂割れ62 burrs 毛刺バリ63 flaw/scratch 伤/划伤伤／削れ64 inclusion 异物混入异物混入65 adhered substance 异物附着异物付着66 dirty 脏污污れ67 discoloration 变色変色68 discrepant color 不同颜色色违い69 coloring 颜色不均色调むら70 crushed 压坏溃れ71 breakage 破损破损72 bent, deformed 弯曲、变形曲がり、変形73 shape 形状形状74 rusty 锈锖75 marking 打印マーキング76 camber 反挠度キャンバー77 curly 卷取カール78 twist 扭转ねじれ79 excess adhered bond 接着剂过多接着剤过多80 chipping 缺损欠け81 plating thickness 镀层厚度メッキ厚82 porosity 砂眼ポロシティー（有孔性）83 peeling 剥离剥离84 solderability 焊锡附着性半田付き性85 not plated 露出底质地肤露出86 corrosion 腐蚀腐食87 discrepant plating 镀层不同メッキ违い88 tensil strength 拉力强度引张强度89 stiffness 耐力耐力90 hardness 硬度硬度91 extension 伸展伸び92 bend strength 折曲强度折り曲げ强さ93 short shot 注塑不足ショート・ショット94 weld line 熔接线ウェルド・ライン95 sink 逊色ひけ96 warp 弯度そり97 bubble 气泡気泡98 silver streak 银色シルバー99 whity 白化白化100 blistered 胀ふくれ99 whity 白化白化100 blistered 胀ふくれ101 chip 缺损欠け102 breakage 折断折れ103 cut 切断カット104 ejector mark 喷射标记エジェクター・マーク105 burnning 烧焼け106 core misassembly 组装错误组合わせ违い107 filled mold/excessive 型芯破损/多料コア破损/余肉108 dregs stopped 碎屑堆积カスつまり109 moisture ratio 水分率水分率110 torn 撕裂ちぎれ111 flow mark 波纹フローマーク112 compo parts short 缺少部品欠品113 actuation 动作作动114 install 安装取付115 adhesive 接着接着116 twisted 旋转度ツイスト117 color code 条形码カラー・コード118 brazing 焊接ろう付け（ブレージング）119 various defects 多种不良多种の不良120 poor insertion 插入不良挿入不良121 poor crimping 压着不良圧着不良122 poor termination 压接不良圧接不良123 poor thread 螺纹不良ねじ切り不良124 poor tapping 分接头不良タップ不良125 adjusting 调整调整126 material change 材料交换材料交换127 operator error 作业错误作业128 blacken 染黑黒染め129 poor coating 镀层不良メッキ不良130 heat treatment 热处理热处理131 missed finish 未加工未加工132 poor buff 光洁度不良バフ不良133 passivate 不导体处理不导体处理1 package, paper 包装箱，纸包装箱、纸2 label 标签ラベル3 letters 文字文字4 reel 卷轴リール5 tube 塑料管チューブ6 tray 托盘トレイ7 emboss[im'bɔ:s] tape 包装带エンボス・テープ8 blister pack 泡沫箱ブリスター・パック9 receptacle 雌（母）リセ10 socket 插座ソケット11 contact leaf 叶形リーフ12 plug插头プラグ13 tab扁形タブ14 pin 销形ピン15 post 导向柱形ポスト16 cantilever支承梁カンチ・レバー17 tine 尖端タイン18 bow 弓形ボウ19 rolling 旋转ローリング20 tongue 舌部トング（舌部）21 lance 矛形锁定ランス22 dimple ['dimpl]坑形锁定ディンプル23 emboss [im'bɔ:s]压模エンボス24 stopper 塞子ストッパー25 dimple hole 坑式洞ディンプル・ホール26 stabilizer ['steibilaizə]安定面スタビライザー27 action area 活动部アクション部28 shoulder 肩部ショルダー29 rib 肋リブ30 wire barrel['bærəl]金属线ワイヤ31 insulation [.insju'leiʃən] barrel 绝缘インシュレーション32 serration 非光滑面セレーション33 kick back 反冲キック・バック34 transition 转换部トランジション35 v slot v型狭孔ｖスロット36 barrel step 桶形级板バレル・ステップ37 bell mouth 喇叭口ベル・マウス38 splice 接头スプライス39 carrier 连桥部分キャリア40 carrier hole 连桥部孔キャリア・ホール41 slot 狭孔スロット42 cut off tab 切断剩余部カット・オフ・タブ43 i.d. mark 特殊标记ｉ．ｄ．マーク44 amp mark amp 标记ａｍｐマーク45 bead 突起部ビード46 seam 接缝シーム47 notch 刻痕ノッチ48 circuit cavity 回路孔回路キャビティ49 pitch 间距ピッチ50 circuit wall 隔离壁极间壁51 outer surface 外侧面外侧面52 edge 边缘エッジ53 gate 出入口ゲート54 card slot 卡缝カード・スロット55 post hole 导向柱孔ポスト穴56 circuit number 电路号码回路番号57 mold i.d. mark 模穴号标记キャビティ・マーク58 inner surface 内侧面内侧面59 mate area 嵌合侧はめあい部60 window 窗口窓61 flange area 凸缘部フランジ部62 hinge area 铰链部ヒンジ部63 housing lance 塑料件矛式锁定ハウジング・ランス64 sphincter 括约スフィンクター65 leg 脚、腿レグ66 wing 翅ウィング67 rib 肋リブ68 lance hole 矛式孔ランス穴69 polarization 极心ポラリゼーション70 bridge 桥ブリッジ71 indent 刻印インデント(雕り込み）72 detent 爪デテント73 ear 耳耳74 mounting hole 组装孔取付け穴75 board lock area 板锁定部ボード・ロック部76 housing 塑料件ハウジング77 contact 端子コンタクト78 shell 铁壳シェル79 solder peg 焊锡耳ソルダー・ペグ80 retention leg 保留腿リテンション・レグ81 tine plate 尖端板タイン・プレート82 g-plate 接地板ｇプレート83 guide post 导向柱ガイド・ポスト84 guide socket 导向插座ガイド・ソケット85 slider 滑动板スライダー86 contact forming 端子两次加工コンタクト二次加工87 pre-insertion 予插入仮挿入88 final insertion 正式插入本挿入89 carrier cut 连桥切断キャリア・カット90 bending 弯曲曲げ91 resizing 修整修正92 soldering 焊锡半田付け93 inspection 检查検査94 packing 包装捆包95 brass 黄铜黄铜96 pre-tin brass 镀锡黄铜锡メッキ黄铜97 phos-bronze 磷青铜りん青铜98 pre-tin phos-bronze 镀锡磷青铜锡メッキりん青铜99 be-cu 铍铜ベリ铜100 pre-tin be-cu 镀锡铍铜锡メッキベリ铜101 au, be-cu 镀金铍铜金メッキベリ铜102 copper 铜铜103 ca-725 ca-725 ｃａ－７２５104 stainless steel 不锈钢ステンレス・スティール105 klf-5 kif-5 ｋｌｆ－５106 tin lead 焊锡半田锡107 pre-tin klf-5 镀锡klf-5 锡メッキｋｌｆ－５108 super phos-bronze 超磷青铜超りん青铜109 msp-1 msp-1 ｍｓｐ－１110 mf202r mf202r ｍｆ２０２ｒ111 pre-tin-cu msp-1 镀锡铜msp-1 锡铜メッキｍｓｐ－１112 max-251 max251 ｍａｘ２５１（りん青铜）113 z-klf-5 z-klf-5 ｚ－ｋｌｆ－５114 pre-tin z-klf-5 镀锡z-kif-5 锡メッキｚ－ｋｌｆ－５115 fpc fpc ｆｐｃ116 pcb(pc board) pc板ｐｃボード（プリント基板）117 nylon 尼龙ナイロン118 noryl ノリル119 pbt pbt ｐｂｔ120 dap dap ｄａｐ121 phenol 苯酚フェノール122 lcp lcp ｌｃｐpunch, press冲punching machine 冲床hydraulic machine油压机jack升降机decoiler整平机manufacture management制造管理stamping, press冲压feeder送料机rack, shelf, stack料架taker取料机to reverse material 翻料to load material上料to unload material卸料to return material/stock to退料scraped报废scrape ..v.刮;削robot机械手production line流水线packaging tool打包机packaging打包well type蓄料井insulated runner绝缘浇道方式hot runner热浇道runner plat浇道模块valve gate阀门浇口band heater环带状的电热器spindle阀针spear head刨尖头slag well冷料井cold slag冷料渣air vent排气道welding line熔合痕eject pin顶出针knock pin顶出销return pin回位销反顶针sleeve套筒stripper plate脱料板insert core放置入子runner stripper plate浇道脱料板guide pin导销eject rod (bar)（成型机）顶业捧subzero深冷处理three plate三极式模具runner system浇道系统stress crack应力电裂orientation定向sprue gate射料浇口，直浇口nozzle射嘴sprue lock pin料头钩销(拉料杆) slag well冷料井side gate侧浇口edge gate侧缘浇口tab gate搭接浇口film gate薄膜浇口flash gate闸门浇口slit gate缝隙浇口fan gate扇形浇口dish gate盘形浇口diaphragm gate隔膜浇口ring gate环形浇口submarine gate潜入式浇口tunnel gate隧道式浇口pin gate针点浇口runner less无浇道sprue less 无射料管方式long nozzle延长喷嘴方式spur浇口;溶waste废料board广告牌sliding rack滑料架to impose lines压线to compress, compressing压缩character die字模to feed, feeding送料material change, stock change材料变更feature change 特性变更prepare for, make preparations for 准备rotating speed, revolution转速abnormal handling异常处理组装类assembly line组装线layout布置图conveyer流水线运\输带rivet machine拉钉机rivet gun拉钉枪screw driver起子electric screw driver电动起子hydraulic machine 液压机pneumatic screw driver气动起子automation自动化to stake, staking, riveting铆合add lubricant oil加润滑油argon welding氩焊cylinder油缸robot机械手conveying belt输送带transmission rack输送架to draw holes抽孔bolt螺栓nut 螺母screw 螺丝identification tag标示单screwdriver plug起子插座automatic screwdriver电动启子to move, to carry, to handle搬运\ be put in storage入库packing包装staker = riveting machine铆合机fit together组装在一起fasten锁紧(螺丝)fixture 夹具(治具)pallet/skid栈板barcode条码barcode scanner条码扫描器fuse together熔合fuse machine/heat stake热熔机/热风枪processing, to process加工delivery, to deliver 交货to return delivery to. to send delivery back to return of goods退货easily damaged parts易损件standard parts标准件to lubricate润滑spring 弹簧spare tools location/buffer手工备品仓spare molds location模具备品仓tox machine自铆机品质类qualified products, up-to-grade products良品defective products, not up-to-grade products不良品defective product box不良品箱poor processing 制程不良poor incoming part来件不良exposed metal/bare metal金属裸露excessive defect过多的缺陷critical defect极严重缺陷major defect主要缺陷minor defect次要缺陷not up to standard不合规格cosmetic defect外观不良lack of painting烤漆不到位slipped screw head/slippery slipped thread滑丝missing part漏件wrong part错件oxidation氧化defective threading抽芽不良poor staking铆合不良deficient purchase来料不良deficient manufacturing procedure制程不良cosmetic inspection外观检查inner parts inspection内部检查blister 气泡angular offset 角度偏差dent 压痕scratch 刮伤deformation 变形filings 铁削defective label 不良标签abrasion 磨损breaking. (be)broken,(be)cracked 断裂short射料不足nick缺口speck瑕疪shine亮班splay 银纹gas mark焦痕delaminating起鳞speckle斑点mildewed =moldy = mouldy发霉burr(金属)flash(塑件)毛边poor staking铆合不良excessive gap间隙过大grease/oil stains油污inclusion杂质shrinking/shrinkage缩水mixed color杂色fold of packaging belt打包带折皱painting make-up补漆discoloration羿色water spots水渍impurity 杂质mismatch 错位failure, trouble 故障deformation 变形rust 生锈peel 脱漆shrink 缩水contamination 脏污water spots 水渍gap 间隙label error 标签错误missing label 漏贴rejection criteria 拒收标准suspected rejects 可疑庇abrasion 损伤、磨损texture surface 印花纹表面streak 条纹stains 污点blotch 斑点discoloration 脱色inclusion 杂质slug mark 压痕dirt grime 灰尘blush 毛边薄膜sink 下凹hickey 漏漆labels and logos 贴纸与商标configuration labels 组合贴纸corrugated container 瓦摆纸箱delaminating 脱层splattering 散点gouge 锉孔puckering 折痕通用类president董事长operator作业员position职务general manager总经理special assistant 特助deputy manager |\'depjuti| =vice manager副理deputy supervisor =vice supervisor副课长group leader组长line leader线长supervisor 课长responsible department负责单位human resources department人力资源部head count 人头数production department生产部门planning department企划部qc section品管课stamping factory冲压厂painting factory烤漆厂molding factory成型厂administration/general affairs dept./总务部production unit生产单位meeting minutes会议记录distribution department分发单位subject主题conclusion结论decision items决议事项pre-fixed finishing date预定完成日color management 颜色管理visual management 目视管理production capacity生产力first count初盘first check初盘复棹second count 复盘second check复盘复核quantity of physical inventory second count 复盘点数量physical inventory盘点数量physical count quantity帐面数量difference quantity差异量spare parts physical inventory list备品盘点清单cause analysis原因分析waste materials废料description品名specification 规格model机种work order工令revision版次remark备注registration登记registration card登记卡to control管制application form for purchase请购单consume, consumption消耗to notify通知to fill in填写to collect, to gather收集statistics统计cosmetic inspection standard 外观检验规范computer case 电脑外壳(组件)personal computer enclosure 电脑机箱产品front plate前板rear plate后板chassis |\'∫鎠i| 基座bezel panel面板hood 上盖base pan 基座bezel 面板riser card 扩充卡flat cable 排线top driver cage 上磁架bottom driver cage 下磁架resin film 树脂膜raw materials原料materials物料steel plate钢板roll/coil material卷料spare parts =buffer备品plastic parts塑胶件sheet metal parts/stamping parts 冲件material check list物料检查表finished product成品semi-finished product半成品good product/accepted goods/ accepted parts/good parts良品defective product/non-good parts不良品disposed goods处理品warehouse/hub仓库packing material包材basket蝴蝶竺plastic basket胶筐flow chart流程表单production tempo生产进度现状lots of production生产批量manufacture procedure制程to revise, modify修订to switch over to, switch—to, switching over切换engineering bottleneck, project difficulty工程瓶颈glove(s)手套glove(s) with exposed fingers割手套band-aid创可贴industrial alcohol工业酒精broom扫把mop拖把vacuum cleaner吸尘器rag 抹布garbage container灰箕garbage can垃圾箱garbage bag垃圾袋liaison联络单rags抹布lamp holder灯架to mop the floor拖地to clean a table擦桌子air pipe 气管delivery deadline交货期die worker模工production, to produce生产equipment设备resistance电阻beacon警示灯coolant冷却液crusher破碎机club car高尔夫球车plate电镀power button电源按键reset button重置键forklift叉车workshop traveler 天车trailer =long vehicle拖板车hydraulic trolley手压车hydraulic hand jack油压板车casing = containerization装箱velocity速度patent专利coordinate座标supply and demand供求career card履历卡barricade隔板carton box纸箱to pull and stretch拉伸work cell/work shop工作间sub-line支线bottleneck 瓶颈模具工程类plain die简易模pierce die冲孔模forming die成型模progressive die连续模stage die工程模compound die复合模shearing die剪边模riveting die铆合模feature die公母模male die公模female die母模cavity型控母模core模心公模die change 换模to fix a die装模to repair a die修模punch set上模座punch pad上垫板punch holder上夹板stripper pad脱料背板up stripper上脱料板upper plate上模板lower plate下模板die pad下垫板die holder下夹板die set下模座bottom block下垫脚bottom plate下托板(底板)upper supporting blank上承板upper padding plate blank上垫板top plate上托板（顶板）top block上垫脚stripping plate内外打(脱料板) outer stripper外脱料板inner stripper内脱料板lower stripper下脱料板punch冲头insert入块(嵌入件)deburring punch压毛边冲子groove punch压线冲子stamped punch字模冲子round punch圆冲子special shape punch异形冲子bending block折刀roller滚轴baffle plate挡块located block定位块supporting block for location定位支承块air cushion plate气垫板air-cushion eject-rod气垫顶杆trimming punch切边冲子stiffening rib punch = stinger 加强筋冲子ribbon punch压筋冲子reel-stretch punch卷圆压平冲子guide plate定位板sliding block滑块sliding dowel block滑块固定块die locker锁模器pressure plate =plate pinch压板thickness gauge厚薄规cutting die, blanking die冲裁模die block模块folded block折弯块sliding block滑块location pin定位销lifting pin顶料销die plate, front board模板padding block垫块stepping bar垫条panel board镶块to load a die装上模具to unload a die 御模具active plate活动板lower sliding plate下滑块板upper holder block上压块upper mid plate上中间板spring box弹簧箱spring-box eject-rod弹簧箱顶杆spring-box eject-plate弹簧箱顶板bushing block衬套cover plate盖板guide pad导料块pilot导正筒trim剪外边pierce剪内边pocket for the punch head挂钩槽slug hole废料孔radius半径shim/wedge/heel/pad/spacer/gasket楔子torch-flame cut火焰切割set screw止付螺丝form block折刀round pierce punch =die button圆冲子shape punch =die insert异形子stock located block定位块metal plate钣金miller铣床grinder磨床tolerance公差score =groove压线sliding block滑块lathe车active plate活动板baffle plate挡块cover plate盖板groove punch压线冲子air-cushion eject-rod气垫顶杆spring-box eject-plate弹簧箱顶板capability能力parameter参数factor系数driller钻床set up die架模height of die setting up架模高度analog-mode device类模器inner guiding post内导柱inner hexagon screw内六角螺钉dowel pin固定销coil spring弹簧lifter pin顶料销eq-height sleeves =spool等高套筒pin销lifter guide pin浮升导料销guide pin导正销wire spring圆线弹簧outer guiding post外导柱stop screw止付螺丝located pin定位销outer bush外导套press specification冲床规格die height闭模高度flow mark流痕welding mark溶合痕post screw insert螺纹套筒埋值self tapping screw自攻螺丝stripper plate脱料板piston活塞handle mold手持式模具flash mold溢流式模具positive mold挤压式模具split mold分割式模具die lifter举模器top stop上死点bottom stop下死点one stroke一行程to continue, cont.连动to grip(material)吸料location lump, locating piece, location block定位块reset复位to file burr 锉毛刺embedded lump |in\'bed| |l赞p|镶块stamping-missing漏冲to tight a bolt拧紧螺栓to loosen a bolt拧松螺栓punched hole冲孔to cut edge =side cut =side scrap 切边to bending折弯to pull, to stretch拉伸engraving, to engrave刻印stamping 油印to stake铆合designing, to design设计design modification 设计修改成gauge(or jig)治具pedal踩踏板stopper阻挡器flow board流水板torque扭矩spline =the multiple keys花键quenching淬火tempering回火annealing退火carbonization碳化alloy合金tungsten high speed steel钨高速的moly high speed steel钼高速的forming成型(抽凸,冲凸)draw hole抽孔emboss凸点dome凸圆semi-shearing半剪stamp mark冲记号deburr or coin压毛边punch riveting冲压铆合side stretch侧冲压平reel stretch卷圆压平groove压线stamp letter冲字(料号)tick-mark nearside正面压印tick-mark farside反面压印extension dwg展开图procedure dwg工程图die structure dwg模具结构图connecter 连接器cable 导线wire-to-wire 线至线wire-to-board 线至板mini-universal 小型通用circular plastic connectors 塑料密封环连接器dl (dual-leaf) contact sockets 双叶式触点插座drawn spring dip contact socket 弹簧触点插座zig-zag package sockets 锯齿形封装插座positive lock connectors 确立锁定连接器coax mix 同轴混合shielded circular din connectors 屏蔽式圆型din连接器memory card connectors 记忆装置插结连接器simm sockets 单列记忆模件插座low profile 低高度cis (commercial interconnection system) 商用连接系统hinge connectors 铰连连接器card-edge connectors 边缘插接连接器euro card connectors 欧式插接连接器modular interconnection system 组合连接系统interconnection system 互连系统rf connectors 射频连接器twin-ax connectors 双轴互连系统low profile coaxial tap 低高度型有源同轴电缆线器4 position data connectors 4位数据连接器insulation and wire support 绝缘体及导线套ring-tongue terminals 环形舌端子wire size range 线径范围slotted-tongue terminals 叉式舌片端子butt splices 对头接头dentented ring-tongue terminals 卡爪环舌型端子fits tab thickness 配合接片厚度accepts terminals 配合端子crimp-type tabs 压接式接片free-hanging and panel-mount applications 自由悬挂及面板装嵌适用cable clamp 电缆钳位夹pc board vertical pin headers 垂直接插式接插头组件pc board right-angle pin and socket headers 水平接插式接插头组件panel-mount connectors 面板装嵌连接器insulation displacement plugs 绝缘位移连接插头dielectric withstanding voltage 介质承受电压free-hanging type cap housings 自由悬挂式套座壳体semiautomatic crimping machine 半自动压接机power supply 供给功率air pir pressure 气压panel mount type cap housings 面板装嵌套座壳体post header for printed circuit board 印刷底板用柱头mass termination assemblies 集体端接组件post header assemblies 接插柱头组件polarized right angle post header assembly 有极向性水平接插柱头组件friction lock 锁尖装置sigle leaf connectors 单叶片连接器cpc (circular plastic connectors) 塑料密封环型连接器ceimp snap-in contacts 压接式套入触点socket with straight solder tails 直立焊脚插座retention feature solder tails 弯曲焊脚sockets with retention feature solder tails 面板附定曲脚插座high pressure tin (hpt) sockets 镀锡高压芯片positive lock retention feature 彻底锁定装置plug-grounding indents 插头外罩接地凹位solder cup connector 焊杯触点连接器straight exit rfi/emi shield for jacketed cable 直线引出rfi/emi 屏蔽外壳外套导线束适用backshell assembly 后部外壳组件board-mount connectors with threaded inserts and board locks 底板安装连接器附内丝牙及板扣board-mount receptacles 底板安装插座non-polarized receptacles 无定位型插座handset plug assembly 电话线插头组件line cord plug assembly 听筒插头组件1、表面间连接：interlayer connection2、层间连接：interlayer connection3、内层连接：innerlayer connection4、非菜单面连接：nonfunctional interfacial connection5、跨接线：jumper wire6、节(交)点：node7、附加线：haywire8、端接(点)：terminal9、连接线：terminated line10、端接：termination11、连接端：pad, land12、贯穿连接：through connection13、支线：stub14、印制插头：tab15、键槽：keying slot16、连接器：connector17、板边连接器：edge board connector18、连接器区：connector area19、直角板边连接器：right angle edge connector20、偏槽口：polarizing slot21、偏置端接区：offset terminal area22、接地：ground23、端接隔离(空环)：terminal clearance24、连通性：continuity25、连接器接触：connector contact26、接触面积：contact area27、接触间距：contact spacing28、接触电阻：contact resistance29、接触尺寸：contact size30、组件引腿(脚)：component lead31、组件插针：component pin32、最小电气间距：minimum electrical spacing33、导电性：conductivity34、边卡连接器：card-edge connector35、插卡连接器：card-insertion connector36、载流量：current-carrying capacity37、蹯径：path38、最短路径：shortest path39、关键路径：critical path40、倒角：miter41、串推：daisy chain42、斯坦纳树：steiner tree43、最小生成树：minimum spanning tree (mst)44、瓶颈宽度：necked width45、短叉长度：spur length46、短柱长度：stub length47、曼哈顿路径：manhattan path48、连接度(性)：connectivity。
