博朗剃须刀说明书

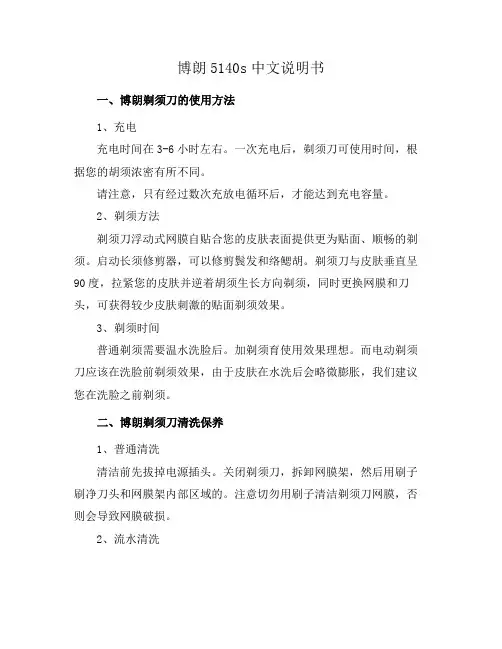

博朗5140s中文说明书一、博朗剃须刀的使用方法1、充电充电时间在3-6小时左右。

一次充电后，剃须刀可使用时间，根据您的胡须浓密有所不同。

请注意，只有经过数次充放电循环后，才能达到充电容量。

2、剃须方法剃须刀浮动式网膜自贴合您的皮肤表面提供更为贴面、顺畅的剃须。

启动长须修剪器，可以修剪鬓发和络鳃胡。

剃须刀与皮肤垂直呈90度，拉紧您的皮肤并逆着胡须生长方向剃须，同时更换网膜和刀头，可获得较少皮肤刺激的贴面剃须效果。

3、剃须时间普通剃须需要温水洗脸后。

加剃须育使用效果理想。

而电动剃须刀应该在洗脸前剃须效果，由于皮肤在水洗后会略微膨胀，我们建议您在洗脸之前剃须。

二、博朗剃须刀清洗保养1、普通清洗清洁前先拔掉电源插头。

关闭剃须刀，拆卸网膜架，然后用刷子刷净刀头和网膜架内部区域的。

注意切勿用刷子清洁剃须刀网膜，否则会导致网膜破损。

2、流水清洗防水剃须刀，每次剃须后，启动剃须刀，将它放在流动的热水进行剃须刀头部清洗。

有时可以使用肥皂（不含颗粒和磨损性物质的天然液体皂）清洗，洗净后可以继续运转剃须刀一段时间。

或拆下剃须刀网膜、刀头、风干所有部件。

3、自动清洗自动型剃须刀。

只要将剃须刀放入清洗器，通电选择清洗程序就可以自动完成清洗和充电工作，使清洁更加便捷。

4、常规保养每4个星期左右使用博朗喷雾清洁剂清洁刀头起到杀菌保养作用，在长须修剪器、造型器和网膜上滴加少量轻机油。

5、电池保养为了保持电池充电的效果，剃须刀必须约每6个月完全放电一次（通过正常使用的*放电），然后再完全充电，不宜长时间将剃须刀暴露于温度高于50摄氏度的环境中。

注意环保，请勿将报废电池与家庭垃圾一起丢弃。

将其送至适当的收集点进行处理。

Series1Series 1190s-1612 English 16Braun GmbH Frankfurter Straße 145 61476 Kronberg/Germany Our products are designed to meet the highest standards of quality, functionality and design. We hope you entirely enjoy your new Braun shaver.WarningYour shaver is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is a risk of electric shock.Never use the appliance with a damaged foil or cord.This appliance is not intended for use by children or persons with reduced physical or mental capabilities, unless they are given supervision by a person responsible for their safety. In general, we recommend that you keep the appliance out of reach of children. Children should be supervised to ensure that they do not play with the appliance.Oil bottleKeep out of reach of children. Do not swallow. Dispose of properly when empty.Description1 Foil protection cap2 Shaver foil3 Cutter block4 Long hair trimmer5 Charging light (190s only)6 On/off switch7 Special cord setCharging (190s only)The best environmental temperature for charging is between 15 °Cand 35 °C.• Using the special cord set, connect the shaver to an electrical outlet with the motor switched off.• When charging for the first time, leave the shaver to charge continuously for 4 hours. The charging light (5) shows that the shaver is being charged. When the battery is fully charged, the charging light intermit-tently blinks on and off. This indicates that the battery maintains its full English• Once the shaver is completely charged, discharge the shaver through normal use. Then recharge to full capacity. Subsequent charges will take about 1 hour.• Maximum battery capacity will only be reached after several charging/ discharging cycles.• If the rechargeable batteries are discharged, you may also shave by connecting the shaver to an electrical outlet via the special cord set.ShavingRemove the foil protection cap (1). Activate the on/off switch (6). The floating foil frame automatically adapts to your skin surface for a close, smooth shave.For pre-shaving after a few days of not having shaved, use the long hair trimmer (4) to pre-cut long hairs. For a close, smooth shave, finish with the foil.TrimmingPush out the long hair trimmer (a). It allows controlled trimming of moustache and sideburns. It evenly cuts and trims larger areas: ideal for shaping sideburns, moustaches and partial short beards.Frequent use of the long hair trimmer may reduce the battery capacity (190s only).Tips for the perfect shave• We recommend that you shave before washing, as the skin tends to be slightly swollen after washing.• Hold the shaver at right angles (90°) to the skin. Stretch the skin andshave against the direction of beard growth.• To maintain 100% shaving performance, replace your foil and cutterblock at least every 18 months or when worn.CleaningThe shaver head is suitable for cleaning under running tap water.Warning: Detach the shaver from the power supply before cleaningthe shaver head in water.• Model 190s only: Switch the shaver on and rinse the shaver head under hot running water.• You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.• Next, (model 190s: switch off the shaver) remove the shaver foil (2) and cutter block (3). Then leave the disassembled shaving parts to dry. Alternatively, you may clean the shaver using the brush provided (c):• Switch off the shaver. Remove the shaver foil.• Using the brush, clean the cutter block and the inner area of the shaver head. However, do not clean the shaver foil with the brush as this may damage the foil.Keeping your shaver in top shapeAbout every four weeks, clean the cutter block with Braun cleaning agents. Put a drop of light machine oil onto the long hair trimmer and the shaverfoil (d).Replacing the shaving partsTo maintain 100% shaving performance, replace your foil and cutter blockat least every 18 months or when worn. Change both parts at the same time for a closer shave with less skin irritation.(Shaver foil and cutter block: 10B)Preserving the batteries (190s only)In order to maintain the optimum capacity of the rechargeable batteries, the shaver has to be fully discharged (by shaving) every 6 months approximately. Then recharge the shaver to full capacity. Do not expose the shaver to temperatures higher than 50 °C for extended periods of time.Environmental noticeThis product contains rechargeable batteries. In the interest ofprotecting the environment, please do not dispose of the product inthe household waste at the end of its useful life. Disposal can takeplace at a Braun Service Centre or at appropriate collection points provided in your country.。

9395cc 9394cc 9390cc 9385cc 9384cc 9381cc 9380cc 9376cc 9375cc 9370cc 9365cc 9360cc 9355s9350s9345s9340s9335s9330s9325s9399sType 5793 99161149517Series 910a* 15a15bEnglishOur products are designed to meet the highest standards of quality, functionality and design. We hope you enjoy your new Braun product.Read these instructions completely, they contain safety information. Keep them for future reference.ImportantYour appliance is provided with a power supply, which has an inte-grated transformer (Safety Extra Low Voltage). Do not exchange or tamper with any part of it, otherwise there is risk of an electric shock. Only use the power supply provided with your appliance. If the appliance is marked 492, you can use it with any Braun power supply 492-XXXX.This appliance is suitable for cleaning under running water and use in a bathtub or shower. For safety reasons, it can only be operated cordless. Detach the shaver from the power supply before using it with water.Do not use if the appliance, the foil or the power supply are dam-aged.This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and super-vised.WarningKeep power supply, charging stand* and Clean & Charge Station* dry.Clean&Charge Station*To prevent the cleaning fluid from leaking, ensure that the Clean & Charge Station is placed on a flat surface. When a cleaning cartridge is installed, do not tip, move suddenly or transport the station in any way as cleaning fluid might spill out of the cartridge. Do not place the station inside a mirror cabinet, nor place it on a polished or lacquered surface.The cleaning cartridge contains a highly flammable liquid so keep it away from sources of ignition. Do not expose to direct sunlight and cigarette smoking nor store it over a radiator.Do not refill the cartridge and use only original Braun refill cartridges.*not with all models1 Foil & Cutter cassette2 Cassette release buttons3 Multi Head Lock switch4 On / off buttondisplay**5 Shaver5a Travel lock5b Replacement indicator for Foil & Cutter cassette5c Status segments5d Minutes left display5e Cleaning indicator*5f Plug reminder5g Battery icon*trimmer6 Precisioncontacts7 Shaver-to-station8 Release button for precision trimmer9 Shaver power socket10 Power supply**10a Charging stand*/**11 Travel case* not with all models (see display box)** design can differFor electric specifications, see printing on the power supply.•A full charge takes 1 hour and provides up to 60 minutes of cordless shaving time. This may vary depending on your beard growth and ambient temperature.•Recommended ambient temperature for charging is 5 °C to 35 °C, for storage and shaving it is 15 °C to 35 °C. The battery may not charge properly or at all under extremely low or high temperatures.•Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.•When the shaver is connected to an electrical outlet, it may take some minutes until the display illuminates.•Connect the shaver to an electrical outlet by snapping the power supply (10) into the power socket of the shaver (9) / the charging stand (10a). For cc models plug into the station power socket (see chapter «Clean & Charge Station»).•For first-time charge, charge continuously for at least 1 hour.•The actual charge status is shown on the display.•The display information is dependent on the model.•Some models only show icons during charging or operation. On other modelsa series of icons is also shown after the shaver has been turned off.UsageMake sure that the shaver is disconnected from the power supply. Press the on / off button (4) to operate the shaver.Tips for a perfect shave1. Position the shaver at the right angle (90°) to your skin.2. Stretch your skin slightly with your hand.3. Shave against the direction of your beard growth.Multi Head Lock switch (head lock)The shaver head can be locked in five positions to shave hard-to-reach areas (e.g.•Slide the Multi Head Lock switch (3) down to lock the shaver head.•Move the shaver head manually to your desired position.•For automatic cleaning in the Clean & Charge Station the head lock needs to be released.Precision trimmerThe trimmer can be used to trim sideburns, moustache or beard.•Press the release button (8) and slide the trimmer (6) upwards.Travel lockThe shaver can be locked to avoid unintended starting of the motor (e.g. for storing in a suitcase).•Press the on / off button (4) for 5 seconds to lock / unlock the shaver. This is confirmed by a beep sound and the lock icon appearing / disappearing on the display.Foil replacementTo maintain 100% shaving performance, replace the Foil & Cutter cassette (1), when the foil replacement indicator lights up (and no status segments are visible).•To remove the Foil & Cutter cassette press the release buttons (2).•Press the on / off button for 10 seconds to reset the counter.•Afterwards you need to unlock the shaver (see chapter «Travel lock»).•On some shaver models the replacement indicator will reset automatically after7 shaves.Cleaning under running waterEspecially important after foam or gel usage•Switch on the shaver cordless and rinse the shaver head under hot running water until all residues have been removed. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.•Next, switch off the shaver, press the release buttons (2) to remove the Foil & Cutter cassette (1) and let it dry.•If you regularly clean the shaver under water, apply a drop of light machine oil on top of the Foil & Cutter cassette once a week.The shaver needs to be cleaned under running water after each foam or gel usage!Cleaning with a brush•Switch off the shaver. Remove the Foil & Cutter cassette (1) and tap it out on a flat surface. Using the brush, clean the inner area of the pivoting head. Do not clean the cassette with the brush as this may damage it!The Clean & Charge Station has been developed for cleaning, charging, lubricating,12 Station power socket13 Lift button for cartridge exchange14 Station-to-shaver contacts15 Clean & Charge Station display15a L evel indicator15b Status light15c Cleaning program indicators*16 Start button17 Cleaning cartridge* not with all models (see display box)•Remove the protection foil from the C & C display.•Press the lift button (13) at the rear side of the C & C to lift the housing.•Hold the cleaning cartridge (17) down on a flat, stable surface (e.g. table).•Carefully remove the lid from the cartridge.•Slide the cartridge from the rear side into the base of the station until it snaps in.•Slowly close the housing by pushing it down until it locks.•Using the power supply (10), connect the station power socket (12) to an electrical outlet.Important: The shaver needs to be dry and free from any foam, gel or soap residue!•Insert the shaver in the C & C upside down, with the front showing and head lock (3) released.•The contacts (7) on the back of the shaver need to align with the contacts (14) in the C & C. Push the shaver backwards in the correct position. A beep sound confirms that the shaver sits properly in the C & C.•Only C & C with cleaning program selection: The C & C analyses the hygiene status. The status is shown by the cleaning program indicators (15c) in the C & C display (15). Charging the shaver in the C & CCharging will start automatically when the shaver has been inserted properly. Cleaning the shaver in the C & CWhen the cleaning indicator lights up on the shaver display, insert the shaver into the C & C, as described above.Cleaning programs (not with all models)short / economical cleaningnormal level of cleaningcleaningEach cleaning program consists of several cycles, where cleaning fluid is flushedAutomatic cleaningStart the cleaning process by pressing the start button (16). If status light (15b) does not shine (C & C switches to stand-by after ca. 10 minutes), press start button twice. Otherwise, cleaning will not start.Depending on your model and/or program selected, the cleaning time takes up to3 minutes and afterwards a fan runs. During this time the status light (15b) blinks. After cleaning, drying and charging is completed, all indicators turn off.Hold the C & C with one hand and tilt the shaver slightly to the front to release it. When the level indicator (15a) lights up permanently red, the remaining fluid in the cartridge is sufficient for about 3 more cycles. When the level indicator blinks red, the cartridge needs to be replaced – about every 4 weeks when used daily.After having pressed the lift button (13) to open the housing, wait for a few seconds before removing the used cartridge to avoid any dripping. Before discarding the used cartridge, make sure to close the openings using the lid of the new cartridge, since the used cartridge will contain contaminated cleaning solution.The hygienic cleaning cartridge contains ethanol or isopropanol (specification see cartridge), which once opened will naturally evaporate slowly. Therefore, each cartridge, if not used daily, should be replaced after approximately 8 weeks. The cleaning cartridge also contains lubricants for the shaving system, which may leave residual marks on the outer foil frame and the cleaning chamber of the C & C. These marks can be removed easily by wiping gently with a damp cloth and do not impact the shaver and its performance in any way.Braun recommends changing your shaver’s Foil & Cutter cassette every 18 months to maintain your shaver’s maximum performance.Available at your dealer or Braun Service Centres:•Foil & Cutter cassette: 92S/92M•Cleaning Cartridge: CCR•Braun Shaver cleaner sprayProduct contains batteries and/or recyclable electric waste. For environment protection, do not dispose of in household waste, but for recycling take toelectric waste collection points provided in your country.The cleaning cartridge can be disposed of with regular household waste.。

()614s h 19EngliBraun GmbHFrankfurter Straße 145 61476 Kronberg/Germany 96620210/X-13China/Korea/UKSer ies 5S e ri e s 511b5090cc112EnglishOur products are designed to meet the highest standards of quality, functionality and design. Thank you for your trust in Braun’s quality and we hope you enjoy your new Braun shaver.Please read the use instructions carefully and completely before using the appliance.Keep them for future reference.WarningYour appliance is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of an electric shock.Only use the special cord set provided with your appliance.Do not shave with a damaged foil or cord.The shaver is suitable forcleaning under running tabwater. Detach the shaver fromthe power supply before clean-ing it in water.Model 5040s w&d only:This appliance is suitable forcleaning under running waterand use in a bath or shower. Forsafety reasons it can only beoperated cordlessly.This appliance can be used by children aged from 8 years and above and per-sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and under-stand the hazards involved.Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.Oil bottle(models 5040s w&d/5030s/5020s) Keep out of reach of children. Do not swallow. Do not apply to eyes. Dispose of properly when empty.Clean&Charge Station(models 5090cc/5070cc/5050cc) To prevent the cleaning fluid from leaking, ensure that the Clean&Charge Station is placed on a flat surface. When a cleaning cartridge is installed, do not tip, move suddenly or transport the station in any way as cleaning fluid might spill out of the cartridge. Do not place the station inside a mirror cabinet, nor place it on a polished or lacquered surface.The cleaning cartridge contains a highly flammable liquid so keep it away from sources of ignition. Do not expose to direct sunlight and cigarette smoking nor store it over a radiator.Do not refill the cartridge and use only original Braun refill cartridges.1 Foil & Cutter cassette2 Cassette release button3 MultiHeadL ock switch4 On/off switch5 Shaver display6 Long hair trimmer7 Shaver-to-station contacts8a Release button for long hair trimmer8b Model number of shaver9 Shaver power socket10 Special cord set11a Brush11b Hard travel case*11c Protection cap**not with all modelsPrior to first use remove the protection foil if any from the shaver display and connect the shaver to an electrical outlet using the special cord set (10). Charging and basic operating information• A full charge provides up to 45 minutes of cordlessshaving time. This may vary according to your beard growth and environmental temperature.• Recommended ambient temperature for charging is 5 °C to 35 °C. The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for shaving is 15 °C to 35 °C.• Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.• When the shaver will be connected to an electrical outlet, it may take some minutes until the display illuminates.Charge statusThe shaver display (5) shows the charge status of the battery.During charging: The battery symbol will blink. (5090cc: The respective battery segment will blink.) Fully charged (shaver is connected to an electrical outlet): The battery symbol will light up for a few seconds. (5090cc: All battery symbols will light up for a few seconds.)Low chargeThe low-charge light flashes red when the battery is running low. You should be able to finish your shave. With switching off the shaver a beep sound reminds of the low charge status.Cleaning status(models 5090cc/5070cc/5050cc only)Travel lockThe lock symbol lights up when the shaver has been locked to avoid unintended starting of the motor (e.g. for storing it in a suitcase).Press the on/off switch (4) to operate the shaver. Tips for a perfect dry shaveFor best results, Braun recommends you to follow 3 simple steps:1. Always shave before washing your face.2. At all times, hold the shaver at the right angle(90°) to your skin.3. Stretch your skin and shave against the directionof your beard growth.MultiHeadLock switch (head lock)To shave hard-to-reach areas (e.g. under the nose) slide the MultiHeadLock switch (3) down to lock the shaver head. The shaver head can be locked in five positions. To change position, move the shaver head with your thumb and forefinger back or forth. It will automatically click into the next position.To set it back into the pivoting position the MultiHeadLock switch needs to be slid up again. Models 5090cc/5070cc/5050cc: For automatic cleaning in the Clean&Charge Station the head lock should be released.Long hair trimmerTo trim sideburns, moustache or beard press the release button (8a) and slide the long hair trimmer (6) upwards.Shaving with the cord (models 5090cc/5070cc/ 5050cc/5030s/5020s only)If the shaver has run out of power (discharged), you may also shave with the shaver connected to an electrical outlet via the special cord set.Travel lock• A ctivation: By pressing the on/off switch (4) for3 seconds the shaver is locked. This is confirmed by a beep sound and the lock symbol in the display. Afterwards the display turns off.• D eactivation: By pressing the on/off switch for3 seconds the shaver is unlocked again.• S witch the shaver on (cordless) and rinse the shaver head under hot running water until all residues have been removed. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.• N ext, switch off the shaver, press the release button (2) to remove the Foil & Cutter cassette (1) and let it dry.• I f you regularly clean the shaver under water, then once a week apply a drop of light machine oil on top of the Foil & Cutter cassette.Alternatively, you may clean the shaver with a brush:• S witch off the shaver. Remove the Foil & Cutter cassette (1) and tap it out on a flat surface. Using the brush, clean the inner area of the pivoting head. Do not clean the cassette with the brush as this may damage it!Model 5040s only:The shaver should be cleaned after each foam usage.The Clean&Charge Station has been developed for cleaning, charging, lubricating, disinfecting and storing your Braun shaver.12 Station power socket13 Lift button for cartridge exchange14 Station-to-shaver contacts15 Clean&Charge Station display15a Status light16 Start button17 Cleaning cartridgeInstalling the Clean&Charge Station (see fig. D)• Remove the protection foil from the Clean&Charge Station display.• Using the special cord set (10), connect the station power socket (12) to an electrical outlet. • Press the lift button (13) at the rear side of the Clean&Charge Station to lift up the housing.• Hold the cleaning cartridge (17) down on a flat, stable surface (e.g. table).• Carefully remove the lid from the cartridge.• Slide the cartridge from the rear side into the base of the station until it snaps into place.• Slowly close the housing by pushing it down until it locks.Charging the shaver in the Clean&Charge Station (see fig. D)Insert the shaver head down into the cleaning station. Important: The shaver needs to be dry and free from any foam or soap residue!The contacts (7) on the back of the shaver need to align with the contacts (14) in the station. Push the shaver in the correct position.A beep sound confirms that the shaver sits properly in the station. Charging will start automatically. Model 5090cc: The Clean&Charge Station analyzes«Cleaning programs» below.Cleaning the shaver(see fig. D)Station, upside down and with the front showing (with released head lock/contact alignment/beep sound). Cleaning programs5090cc: The hygiene status will be analyzed and oneshort economical cleaningnormal level of cleaninghigh intensive cleaning5070cc/5050cc: One standard cleaning program included.Start automatic cleaningStart the cleaning process by pressing the start button (16). If status light (15a) does not shine (Clean&Charge Station switches to stand-by after ca. 10 minutes), press start button twice. Otherwise cleaning will not start. For best shaving results, we recommend cleaning after each shave.Each cleaning program consists of several cycles, where cleaning fluid is flushed through the shaver head. Depending on your Clean&Charge Station model and/or program selected, the cleaning time takes up to 3 minutes. During this time the status light blinks. Leave the shaver in the station for drying.It takes several hours until remaining moisture evaporates depending on the climatic conditions. Afterwards the shaver is ready for use.After completing the cleaning and charging proce-dure, all indicators turn off.Removing the shaver from the Clean&Charge Station (see fig. E)Hold the Clean&Charge Station with one hand and tilt the shaver slightly to the front to release it. Cleaning Cartridge / Replacement (see fig. F) When the level indicator lights up permanently red, the remaining fluid in the cartridge is sufficient for about 3 more cycles. When the level indicator blinks red, the cartridge needs to be replaced - (about every 4 weeks when used daily.)After having pressed the lift button (13) to open the housing, wait for a few seconds before removingthe used cartridge to avoid any dripping. Before discarding the used cartridge, make sure to close the openings using the lid of the new cartridge, since the used cartridge will contain contaminated cleaning solution.The hygienic cleaning cartridge contains ethanol, which once opened will naturally evaporate slowly into the surrounding air. Each cartridge, if not used daily, should be replaced after approximately8 weeks to ensure optimal disinfection.The cleaning cartridge also contains lubricants for the shaving system, which may leave residual marks on the outer foil frame and the cleaning chamberof the Clean&Charge Station. These marks can be removed easily by wiping gently with a damp cloth. Braun recommends changing your shaver’sFoil & Cutter cassette every 18 months to maintain your shaver’s maximum performance.Available at your dealer or Braun Service Centres:• Foil & Cutter cassette: 52S/52B• Cleaning cartridge Clean&Charge Station: CCR •Braun Shaver cleaner spray21This product contains rechargeable batteries.In the interest of protecting the environment, please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.The cleaning cartridge can be disposed of with regular household waste.Subject to change without notice.For electric specifications, see printing on thespecial cord set.22。

360s-4+–360s -4S e r i e s 3360 1011330 320S e r i e s3EnglishOur products are designed to meet the highest standards of quality, functionality and design. We hope you enjoy your new Braun Shaver. WarningPlease read the use instruction carefully and thoroughly before using the appliance.Your shaving system is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of an electric shock.Do not shave with a damaged foil or cord.This appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities, unless they are given supervision by a person responsible for their safety. In general, we recommend that you keep the appliance out of reach of children. Children should be supervised to ensure that they do not play with the appliance.Oil bottleKeep out of reach of children. Do not swallow. Do not apply to eyes. Dispose of properly when empty.Description1 Foil & Cutter cassette2 Long hair trimmer34 On/off switch5 Charging lights (green)6 Low-charge light (red)7 Replacement light for shaving parts8 Shaver power socket9 Special cord set10 Etui (360s only)11 Protection cap (330s/320s only)ChargingThe best environmental temperature for charging is between 15 °C to 35 °C. Do not expose the shaver to temperatures higher than 50 °C for extendedis not used for a few months, leave the shaver to charge continuously for 4 hours.• Once the shaver is completely charged, discharge the shaver through normal use. Then recharge to full capacity. Subsequent charges will take about 1 hour.• A full charge provides up to 45 minutes of cordless shaving time depending on your beard growth. However, the maximum battery capacity will only be reached after several charging/discharging cycles.• If the rechargeable batteries are discharged, you may also shave by con-necting the shaver to an electrical outlet via the special cord set.• 5-minute quick charge is sufficient for a shave.Charging lights (5)The green charging lights show the charge status of the batteries(330s/320s: 1 charging light). The green charging light blinks when the shaver is being charged or switched on. When the battery is fully charged, all green charging lights (330s/320s: 1 charging light) shine permanently, provided the shaver is connected to an electrical outlet.Low-charge light (6)The red low-charge light flashes when the battery is running low.You should be able to finish your shave.ShavingPress the on/off switch (4) to operate the shaver (picture).The flexible shaving foils automatically adjust to every contour of your face (picture).Long hair trimmer (2)To trim sideburns, moustache or beard, slide the long hair trimmer upwards. Precision setting switch () (360s only)lowered.CleaningThe shaver head is suitable for cleaning under running tap water.Warning: Detach the shaver from the power supply before cleaningthe shaver head in water.Regular cleaning ensures better shaving performance. Rinsing the shaver head under running water after each shave is an easy and fast way to keep it clean:• Switch the shaver on (cordless) and rinse the shaver head under hot running water. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.• Next, switch off the shaver, remove the shaver Foil & Cutter cassette (1) and let it dry.• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil onto the long hair trimmer (2) and shaverFoil & Cutter cassette (1) (picture).Alternatively, you may clean the shaver using a brush:• Switch off the shaver. Remove the shaver Foil & Cutter cassette and tap it out on a flat surface (picture).• Using a brush, clean the inner area of the shaver head. However, do not clean the shaver Foil & Cutter cassette with a brush as this may damage it (picture).Keeping your shaver in top shapeReplacement light for shaving parts / ResetTo maintain 100% shaving performance, replace the shaver Foil & Cutter cassette (1), when the replacement light for shaving parts (7) comes on (after about 18 months) or when worn.Foil & Cutter cassette: 32S/32BThe replacement light will remind you during the next 7 shaves to replace the Foil & Cutter cassette. Then the shaver will automatically reset the display. After you have replaced the Foil & Cutter cassette (1), press the on/off switchPreserving the batteriesIn order to maintain the optimum capacity of the rechargeable batteries, the shaver has to be fully discharged (by shaving) every six months approxima-tely. Then recharge the shaver to full capacity.Environmental noticeThis product contains rechargeable batteries. In the interest ofprotecting the environment, please do not dispose of the product inthe household waste at the end of its useful life. Disposal can takeplace at a Braun Service Centre or at appropriate collection sitesprovided in your country.Subject to change without notice.For electric specifications, see printing on the special cord set.Braun GmbH Frankfurter Straße 145 61476 Kronberg/Germany 。

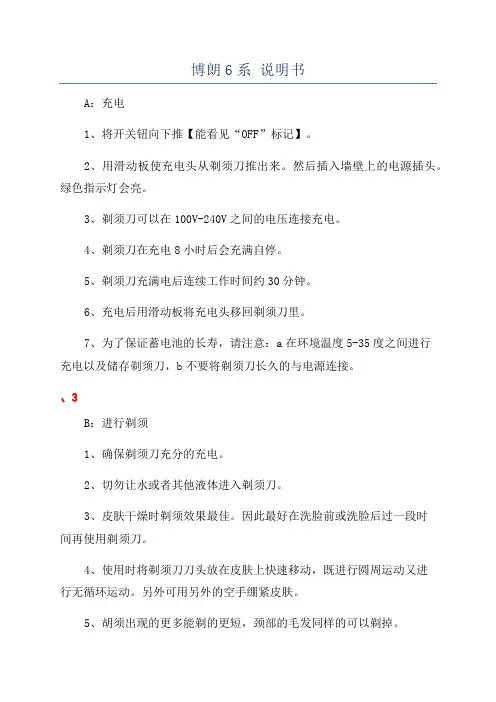

博朗6系说明书A：充电1、将开关钮向下推【能看见“OFF”标记】。

2、用滑动板使充电头从剃须刀推出来。

然后插入墙壁上的电源插头。

绿色指示灯会亮。

3、剃须刀可以在100V-240V之间的电压连接充电。

4、剃须刀在充电8小时后会充满自停。

5、剃须刀充满电后连续工作时间约30分钟。

6、充电后用滑动板将充电头移回剃须刀里。

7、为了保证蓄电池的长寿，请注意：a在环境温度5-35度之间进行充电以及储存剃须刀，b不要将剃须刀长久的与电源连接。

、3B：进行剃须1、确保剃须刀充分的充电。

2、切勿让水或者其他液体进入剃须刀。

3、皮肤干燥时剃须效果最佳。

因此最好在洗脸前或洗脸后过一段时间再使用剃须刀。

4、使用时将剃须刀刀头放在皮肤上快速移动，既进行圆周运动又进行无循环运动。

另外可用另外的空手绷紧皮肤。

5、胡须出现的更多能剃的更短，颈部的毛发同样的可以剃掉。

6、请注意：您的皮肤可能需要2-4个星期的时间不能完全适应此独特飞利浦剃须刀系统。

7、剃须结束后将保护盖盖好。

、3C：清洁1、清洁时请确保电源开关未打开。

2、使用飞利浦剃须刀专用毛刷进行清洁。

3、每周清洁一次胡须储藏室，每两个月清洁一次刀头。

4、可以使用能除掉油脂的液体（例如酒精）清洁剃须刀刀头。

清洁完毕之后请加上一滴专用润滑油，这样可以使刀头得到润滑，同时可以保证剃须的舒适性，并保证刀头更长的使用寿命。

5、为了避免混淆，每次清洁都要分开剃须刀刀头（网罩和刀片），既每个网罩和刀片不能混淆。

这点是很重要的，因为每组网罩和刀片是相互磨合的。

若将网罩和刀片调换的话，可能需要几个星期以后剃须刀才会达到最佳剃须效果。

博朗s9pro使用说明博朗s9pro使用说明书产品简介一、博朗s9pro设定范围1、设定值（SV）：同等温度范围值2、加热侧比例带（P）：1-量程或0．1-量程（温度输入）*13、制冷侧比例带（PC）：加热侧比例带1-1000％4、积分时间（I）：1-3600sec＊25、微分时间（D）：1-3600sec＊36、限制积分动作生效范围（ARW）：比例带的1-100％＊47、加热侧比例周期1-100sec＊58、制冷侧比例周期1-100sec＊69、不感带-10°—10或-10．0 —＋10oC［＊F］（温度输入），量程的-10—＋10。

0％（电压／电流输入）＊710、如果比例带设定为oC［﹡F］即成ON—OFF动作11、如果积分时间设定为0sec，即成PD动作12、如果微分时间设定为0sec，即成PI动作13、如果限制积分动作生效范围设定为0％，D动作则成OFF14、电流输出时不需设定周期15、电流输出时不需设定周期16、如果不感带设定为负，则成重叠二、博朗s9pro控制动作PID控制（ON—OFF．P．PI．PD控制）自动演算功能（AT）1、自调方式：限制周期法2、AT周期3、自主校正设定改变时，自主校正即建立加热／制冷PID控制动作除外，控制输出4、继电器接点输出：250VAC 3A（带负荷）1a连接电气性：超过300000次，额定负荷b）电压脉冲输出：0—12VDC（负荷电阻：超过600Ω）5、电流输出：4-20maDC（负荷电阻：超过600Ω）6、闸流控制管驱动用触发器输出：零测法中容量驱动7、闸流控制管输出：额定0．5A（环境温度低于40℃）温度报警三、博朗s9pro报警点：双报警（分别设定）报警种类：偏差报警（上限，下限，上下限，范围内）过程值输入报警（上限，下限）设定值输入报警（上限，下限）可以选择待机机能（设定值报警除外）控制环断线报警（LBA）LBA设定时间：0．1—200．0min不能设定为0．0minLBA不感带：0—9999oC［﹡F］（温度输入）0—量程（电压／电流输入）如果设定为0，LBA不动作。

博朗按键位置设计说明
博朗复位键在BRAUN标志的下方，而标志上方就是机身握把上所有的按键，金属色环状的并不是按键，中间的透明材质的蓝色按键才是，集成了启动开关键及剃须力度指示灯，稍下方两侧的镀铬加减键是用来调节剃须力度，共有柔和、正常、最大三个档位可选，相对应的指示灯颜色为白、浅蓝、深蓝色灯光，调到最大或最小后继续按会闪烁提示（操作如下动图），剃须刀带力度选择记忆，比如这回使用的是正常档位，那使用完关闭后下回再开启就是默认正常档位。

与松下修剪器设计在背面不同，它采用正面设计，按键上方是隐藏式修剪器上推式开关以及修剪器：推式开关上有标志的防滑装饰物，上方有字样，再上方就是修剪器了，刻有指纹状装饰图案。

上推式开关头段阻尼感比较大，但段落明显，推进过程咔得一声，质感很棒。

同样是上推式结构，相较于ES4033要复杂很多，内部支架除了前移打开，还有一个向上顶起的动作。
