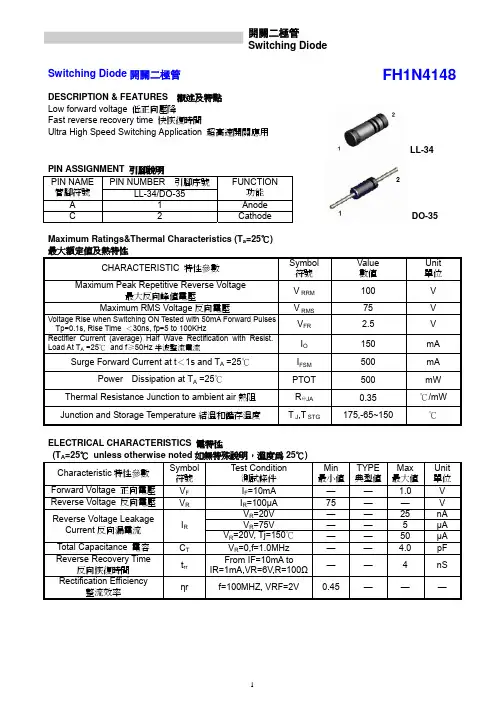

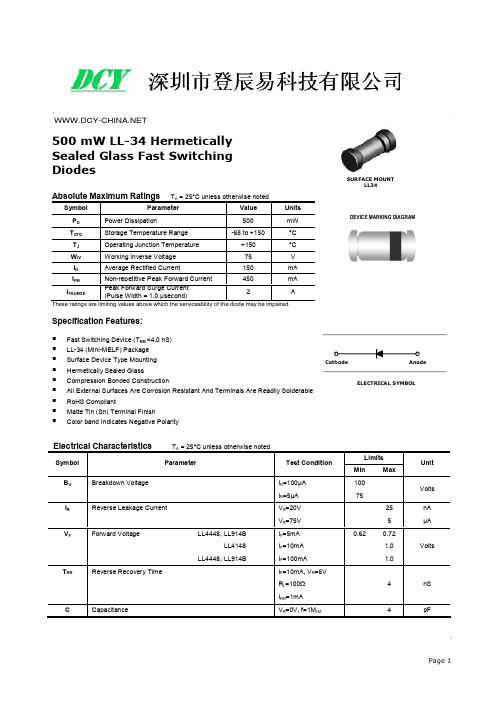

ఎਈऔ!Switching DiodeSwitching Diode ఎਈऔFH1N41481DESCRIPTION & FEATURES 概述及特點Low forward voltage 低正向壓降Fast reverse recovery time 快恢復時間 Ultra High Speed Switching Application 超高速開關應用PIN ASSIGNMENT 引腳說明PIN NUMBER 引腳序號PIN NAME 管腳符號 LL-34/DO-35FUNCTION 功能 A 1 Anode C 2 CathodeLL-34DO-35Maximum Ratings&Thermal Characteristics (T a =25℃) 最大額定值及熱特性CHARACTERISTIC 特性參數 Symbol符號 Value 數值 Unit 單位Maximum Peak Repetitive Reverse Voltage最大反向峰值電壓V RRM 100 V Maximum RMS Voltage 反向電壓V RMS 75 V Voltage Rise when Switching ON Tested with 50mA Forward Pulses Tp=0.1s, Rise Time ＜30ns, fp=5 to 100KHzV FR 2.5 V Rectifier Current (average) Half Wave Rectification with Resist.Load At T A =25℃ andf ≥50Hz 半波整流電流 I O 150 mA Surge Forward Current at t ＜1s and T A =25℃I FSM 500 mA Power Dissipation at T A =25℃PTOT 500 mW Thermal Resistance Junction to ambient air 熱阻 R ΘJA0.35℃/mW Junction and Storage Temperature 結溫和儲存溫度T J ,T STG 175,-65~150℃ELECTRICAL CHARACTERISTICS 電特性(T A =25℃ unless otherwise noted 如無特殊說明，溫度為25℃)Characteristic 特性參數Symbol 符號 Test Condition 測試條件 Min 最小值TYPE 典型值 Max 最大值Unit單位Forward Voltage 正向電壓V F I F =10mA — — 1.0 V Reverse Voltage 反向電壓V RI R =100µA 75 — — V V R =20V — — 25 nAV R =75V — — 5 µA Reverse Voltage LeakageCurrent 反向漏電流I RV R =20V, Tj=150℃ — — 50 µATotal Capacitance 電容 C T V R =0,f = 1.0MHz — — 4.0 pF Reverse Recovery Time 反向恢復時間 t rr From IF=10mA toIR=1mA,VR=6V,R=100Ω— — 4 nSRectification Efficiency整流效率ηr f =100MHZ, VRF =2V 0.45 — — —。

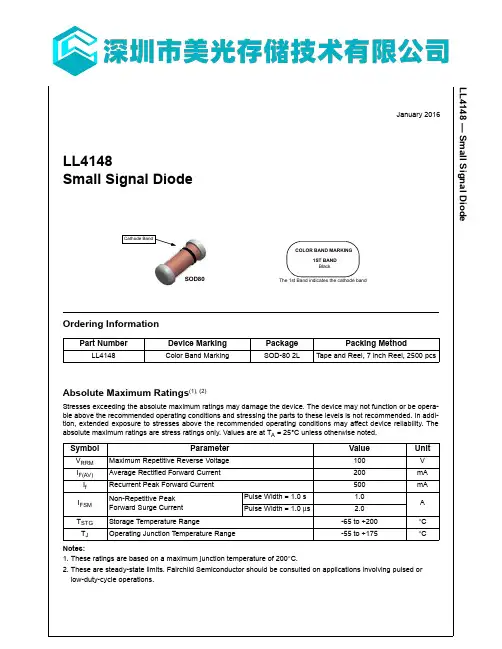

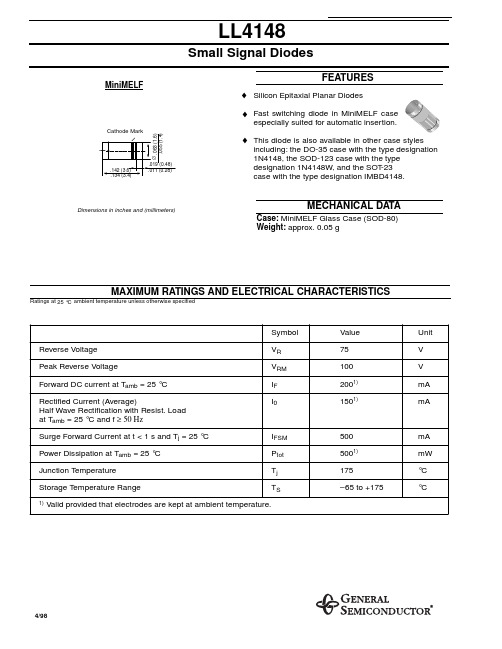

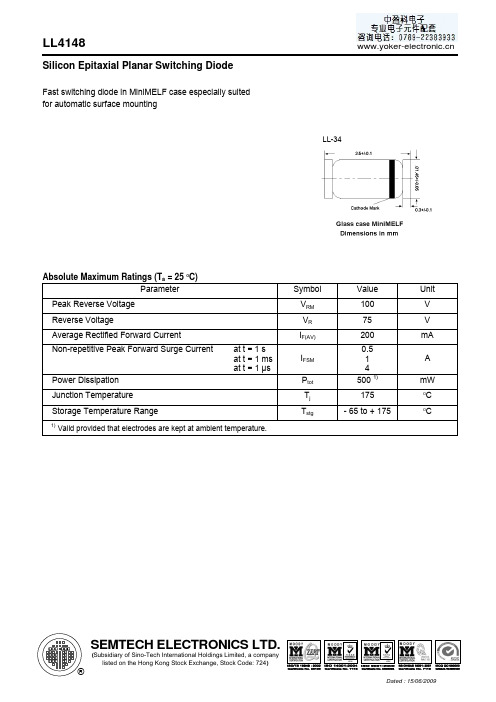

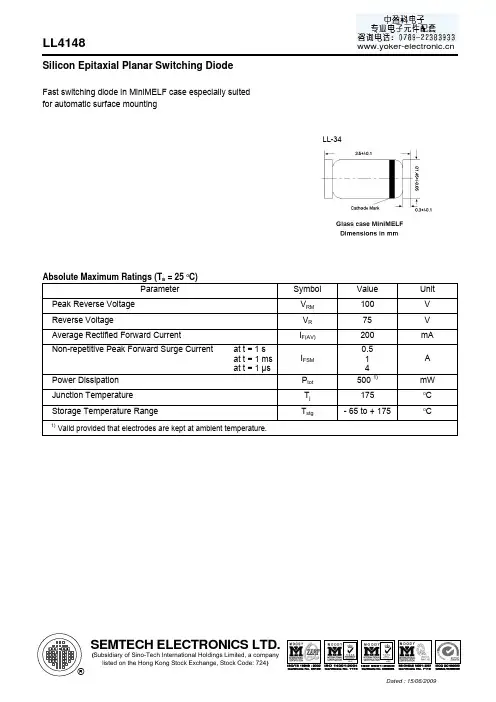

LL4148 — Small Signal Diode January 2016LL4148Small Signal DiodeOrdering InformationAbsolute Maximum Ratings (1), (2)Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera-ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi-tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only. Values are at T A = 25°C unless otherwise noted.Notes:1.These ratings are based on a maximum junction temperature of 200°C.2.These are steady-state limits. Fairchild Semiconductor should be consulted on applications involving pulsed or low-duty-cycle operations.Part NumberDevice Marking Package Packing Method LL4148Color Band Marking SOD-80 2L Tape and Reel, 7 inch Reel, 2500 pcs SymbolParameter Value Unit V RRMMaximum Repetitive Reverse Voltage 100V I F(AV)Average Rectified Forward Current 200mA I fRecurrent Peak Forward Current 500mA I FSMNon-Repetitive Peak Forward Surge Current Pulse Width = 1.0 s 1.0A Pulse Width = 1.0 μs 2.0T STGStorage Temperature Range -65 to +200°C T J Operating Junction Temperature Range -55 to +175°C COLOR BAND MARKING1ST BANDBlackThe 1st Band indicates the cathode bandSOD80Cathode BandElectrical CharacteristicsValues are at T A = 25°C unless otherwise noted.Symbol Parameter Conditions Min.Max.UnitV R Breakdown Voltage I R = 100 μA100V I R = 5.0 μA75V F Forward Voltage I F = 10 mA 1.0VI R Reverse Leakage V R = 20 V25nA V R = 20 V, T A = 150°C50μAC T Total Capacitance V R = 0, f = 1.0 MHz 4.0pFt rr Reverse Recovery Time I F = 10 mA, V R = 6.0 V (60 mA),I rr = 1.0 mA, R L = 100 Ω4.0ns。

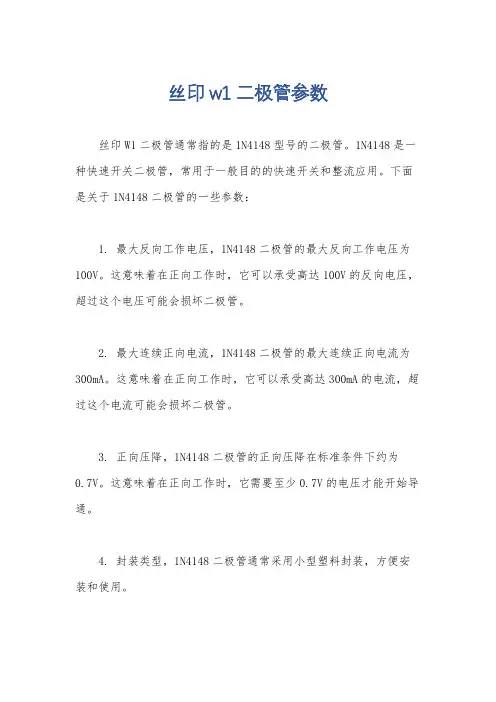

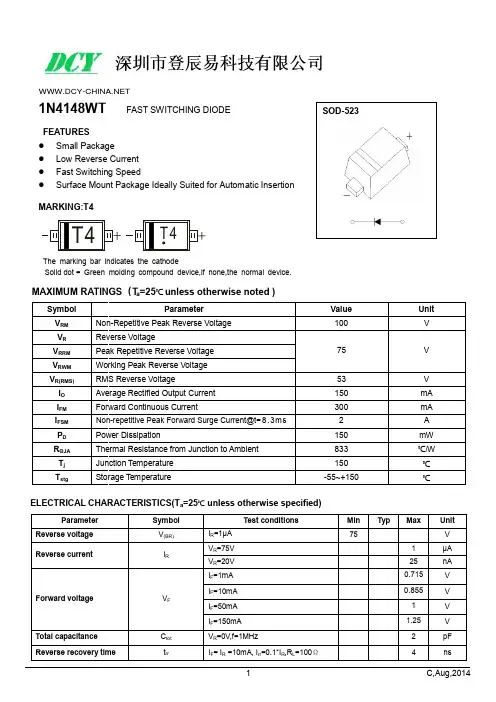

丝印w1二极管参数

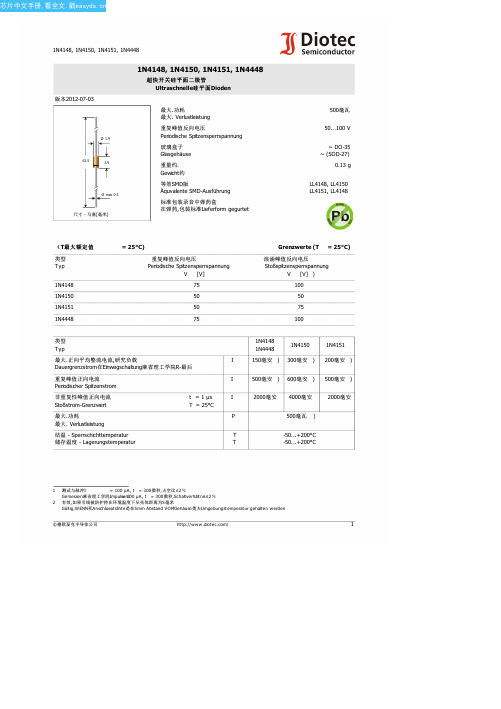

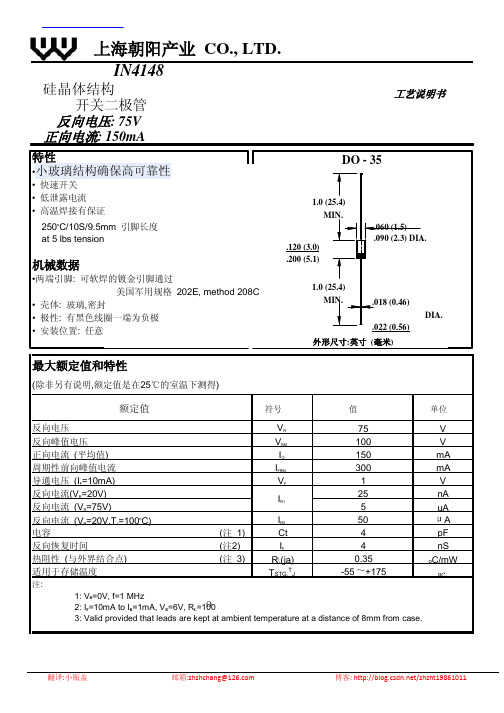

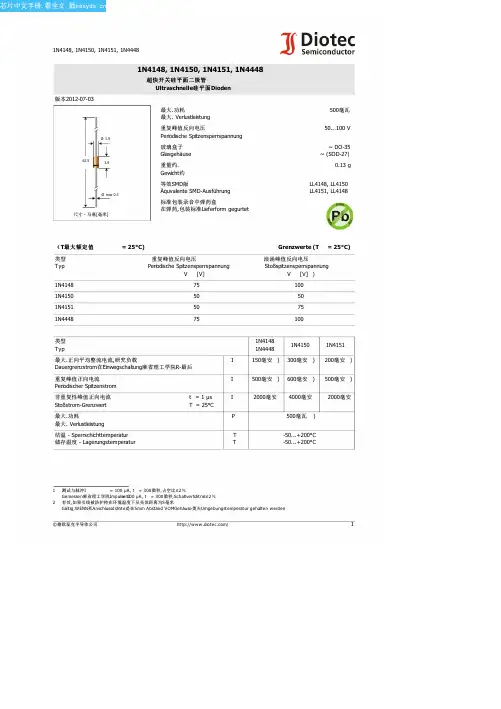

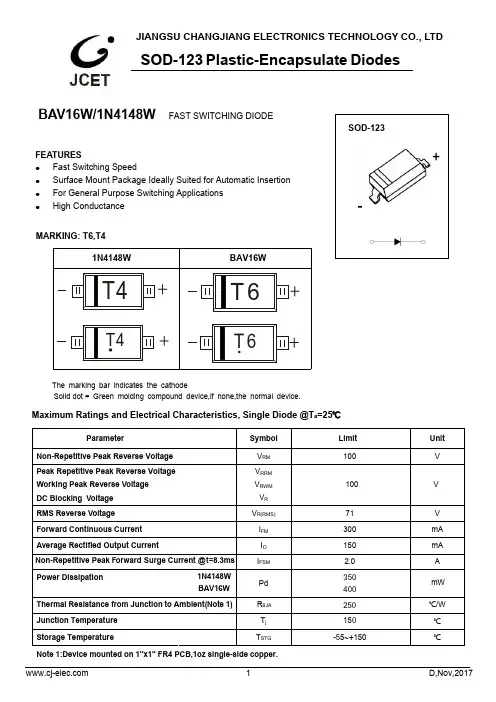

丝印W1二极管通常指的是1N4148型号的二极管。
1N4148是一种快速开关二极管，常用于一般目的的快速开关和整流应用。
下面是关于1N4148二极管的一些参数：
1. 最大反向工作电压，1N4148二极管的最大反向工作电压为100V。
这意味着在正向工作时，它可以承受高达100V的反向电压，超过这个电压可能会损坏二极管。
2. 最大连续正向电流，1N4148二极管的最大连续正向电流为300mA。
这意味着在正向工作时，它可以承受高达300mA的电流，超过这个电流可能会损坏二极管。
3. 正向压降，1N4148二极管的正向压降在标准条件下约为
0.7V。
这意味着在正向工作时，它需要至少0.7V的电压才能开始导通。
4. 封装类型，1N4148二极管通常采用小型塑料封装，方便安装和使用。
总的来说，1N4148二极管是一种常用的快速开关二极管，具有较高的反向工作电压和正向电流能力，适用于多种电子电路应用。
希望这些信息能够满足你的需求。
