© 2007 Microchip Technology Inc.

DS21191P-page 124AA128/24LC128/24FC128

Device Selection Table

Features:

•Single supply with operation down to 1.7V for 24AA128/24FC128 devices, 2.5V for 24LC128 devices•Low-power CMOS technology:-Write current 3 mA, typical-Standby current 100 nA, typical•2-wire serial interface, I2C™ compatible•Cascadable up to eight devices•Schmitt Trigger inputs for noise suppression•Output slope control to eliminate ground bounce•100 kHz and 400 kHz clock compatibility•1 MHz clock for FC versions•Page write time 5 ms, typical•Self-timed erase/write cycle•64-byte page write buffer •Hardware write-protect•ESD protection >4000V•More than 1 million erase/write cycles•Data retention > 200 years•Factory programming available•Packages include 8-lead PDIP, SOIC, TSSOP, DFN and MSOP packages•Pb-free and RoHS compliant•Temperature ranges:

E-mail: info@Page 1 of 3©2009-2010 by RF Monolithics, Inc.

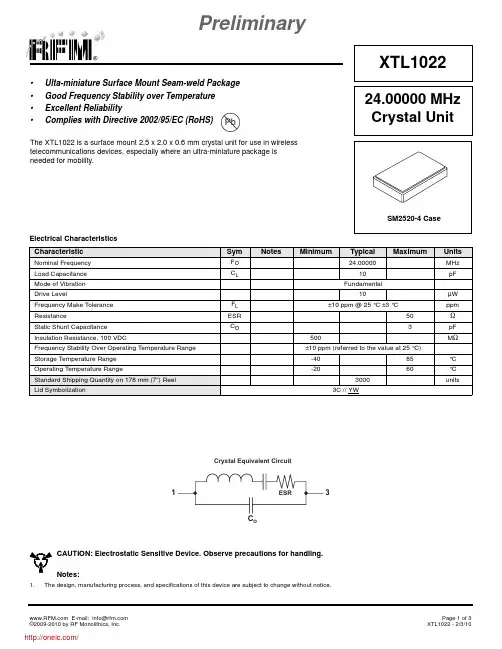

XTL1022 - 2/3/10Electrical Characteristics CharacteristicSym

NotesMinimum

TypicalMaximumUnitsNominal FrequencyFO24.00000MHzLoad CapacitanceCL10pFMode of VibrationFundamentalDrive Level10µWFrequency Make ToleranceFL±10 ppm @ 25 °C ±3 °CppmResistanceESR50ΩStatic Shunt CapacitanceCO3pFInsulation Resistance, 100 VDC500MΩFrequency Stability Over Operating Temperature Range±10 ppm (referred to the value at 25 °C)Storage Temperature Range-4085°COperating Temperature Range-2060°CStandard Shipping Quantity on 178 mm (7”) Reel3000unitsLid Symbolization 3C // YW24.00000 MHz

Crystal UnitXTL1022

CAUTION: Electrostatic Sensitive Device. Observe precautions for handling.

Notes:1.

The design, manufacturing process, and specifications of this device are subject to change without notice. SM2520-4 CasePreliminary

Tripp Lite1111 West 35th StreetChicago, IL 60609 USATelephone: +(773) 869 1234E-mail: saleshelp@

Model #: S222-000

Internal SCSI Adapter SCA (Ultra Micro 80F/HD68F)

HighlightsAdapters convert older SCSI devices to work with newer SCSI installationsPerfect for upgrading mixed installations

DescriptionUsed to connect SCA (single connector attachment) Ultra Micro 80 drives to wide HD68 internal cabling. Tripp Lite's internal adapters convert SCSIdevices with mixed installations. These adapters can save you the time and expense of buying new cables by simply adapting your existing ones tointerface with the connector types found on many of the newer model SCSI installations. Tripp Lite warrants this product to be free from defects inmaterials and workmanship for life.System RequirementsSCA drive needing to be attached to a wide HD68 SCSI ribbon

MB10S — Bridge Rectifier

© 2010 Fairchild Semiconductor Corporation

MB10S Rev. A01 July 2010

MB10S

Bridge Rectifier

Features

•Low leakage

•Surge overload rating : 35 amperes peak.

•Ideal for printed circuit board.

•UL certified, UL #E111753 and E326243.

Absolute Maximum Ratings * T

A = 25°C unless otherwise noted

* These ratings are limiting values above which the serviceability of any semiconductor device may by impaired.

Thermal Characteristics

* Device mounted on PCB with 0.5" x 0.5" (13 x 13 mm) lead length

Electrical Characteristics T

A = 25°C unless otherwise notedSymbolParameterValueUnits

V

RRMMaximum Repetitive Reverse Voltage1000V

V

RMSMaximum RMS Bridge Input Voltage700V

V

RDC Reverse Voltage (Rated V

R)1000V

I

F(AV)Average Rectified Forward Current, @ T

A = 50°C

On Glass-epoxy P.C.B.

On Aluminum substrate0.5
