This document was generated on 08/16/2012PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATIONPart Number:46207-0206Status:ActiveOverview:Mini-Fit® RTCDescription:4.20mm Pitch Mini-Fit® RTC Reflow High Temperature Compatible Header, Dual Row,Vertical, 6 Circuits, 3.18mm PCB Thickness, with PCB Pegs, LCP Housing, with Tin(Sn) Over Nickel (Ni) Plating, Glow Wire CompliantDocuments:3D ModelProduct Specification PS-46207-001 (PDF)Drawing (PDF)RoHS Certificate of Compliance (PDF)Agency CertificationCSALR19980ULE29179GeneralProduct FamilyPCB HeadersSeries46207ApplicationBoard-to-Board, Power, Wire-to-BoardCommentsCurrent = 13A max. per circuit when header is matedto a receptacle loaded with 45750 Mini-Fit® PlusHCS Crimp Terminal Crimped to 16 AWG wire.,See Molex product specification PS-45750-001 foradditional current de-rating information.. . This Molexproduct is manufactured from material that has thefollowing ratings, tested by independent agencies : .a) A Glow Wire Ignition Temperature (GWIT) of atleast 775 deg C per IEC 60695-2-13. . b) A Glow WireFlammability Index (GWFI) above 850 deg C per IEC60695-2-12.and hence complies with the requirementsset out in the International Standard IEC 60335-1 5thedition - household and similar electrical appliances- safety; section 30 Resistance to heat and fire. . .The customers using this product must determine itssuitability for use in their particular application throughtesting or other acceptable means as described inend-product glow-wire flammability test standardIEC 60695-2-11 and any applicable product end-usestandard(s). . . If it is determined during the customer’sevaluation of suitability, that higher performance isrequired, please contact Molex for possible productoptions.OverviewMini-Fit® RTCProduct NameMini-Fit® RTCUPC800756835679PhysicalBreakawayNoCircuits (Loaded)6Circuits (maximum)6Color - ResinBlackDurability (mating cycles max)100First Mate / Last BreakNoFlammability94V-0Glow-Wire CompliantYesGuide to Mating PartNoSeriesimage - Reference onlyEU RoHSChina RoHSELV and RoHSCompliantREACH SVHCContains SVHC: NoLow-Halogen StatusLow-HalogenNeed more information on productenvironmental compliance?Email productcompliance@molex.comFor a multiple part number RoHS Certificate ofCompliance, click herePlease visit the Contact Us section for anynon-product compliance questions.Search Parts in this Series46207SeriesMates With5557 Mini Fit Jr.™ Receptaclehttp://oneic.com/Keying to Mating PartNoneLock to Mating PartYesMaterial - MetalBrassMaterial - Plating MatingTinMaterial - Plating TerminationNickelMaterial - ResinHigh Temperature ThermoplasticNet Weight2.441/gNumber of Rows2OrientationVerticalPC Tail Length5.26mmPCB LocatorYesPCB RetentionYesPCB Thickness - Recommended3.18mmPackaging TypeTrayPitch - Mating Interface4.20mmPitch - Termination Interface4.20mmPolarized to Mating PartYesPolarized to PCBYesShroudedFullyStackableNoSurface Mount Compatible (SMC)YesTemperature Range - Operating-40°C to +105°CTermination Interface: StyleThrough HoleElectricalCurrent - Maximum per Contact13AVoltage - Maximum600V AC (RMS)/DCSolder Process DataDuration at Max. Process Temperature (seconds)30Lead-free Process CapabilitySMC & Wave Capable (TH only)Max. Cycles at Max. Process Temperature3Process Temperature max. C265Material InfoReference - Drawing NumbersProduct SpecificationPS-46207-001Sales DrawingSD-46207-001This document was generated on 08/16/2012PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATIONhttp://oneic.com/ 分销商库存信息:MOLEX0462070206

合集下载

0422271043;中文规格书,Datasheet资料

0422271043;中文规格书,Datasheet资料

/

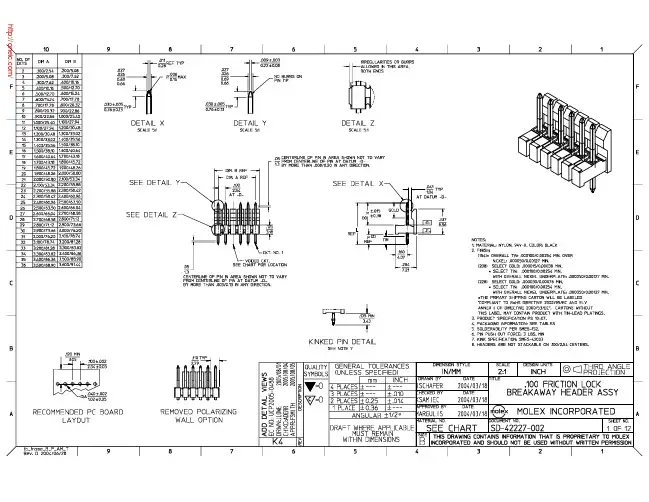

REV: SHEET No. K3 TITLE: .100 FRICTION LOCK BREAKAWAY HEADER ASSY. - 2 - DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: SD- 42227 -002 ADERR 04/22/2005 SSOUSEK 04/25/2005 FSMITH 04/26/2005 TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A](V.1).DOC A-42227-0248/0281 HEADER NUMBER: 41411 PIN NUMBER: 42663-AXB208 PIN LENGTH: L .540/13.72 MATING LENGTH: M .295/7.49 GOLD POINT: G .140/3.56 PC TAIL LENGTH: P .120/3.05 TIN: T .135/3.43 CKTS: 3-36 KINKS: NO REMOVED BACKWALLS: YES VOIDED CKTS: NONE PACKAGING: BULK 40873-0056 CKTS MATERIAL NUMBER ENG NUMBER CKTS MATERIAL NUMBER ENG NUMBER 02 20 22-28-0207 A-42227-0265 03 22-28-0037 A-42227-0248 21 22-28-0217 A-42227-0266 04 22-28-0047 A-42227-0249 22 22-28-0227 A-42227-0267 05 22-28-0057 A-42227-0250 23 22-28-0237 A-42227-0268 06 22-28-0067 A-42227-0251 24 22-28-0247 A-42227-0269 07 22-28-0077 A-42227-0252 25 22-28-0257 A-42227-0270 08 22-28-0087 A-42227-0253 26 22-28-0267 A-42227-0271 09 22-28-0097 A-42227-0254 27 22-28-0277 A-42227-0272 10 22-28-0107 A-42227-0255 28 22-28-0287 A-42227-0273 11 22-28-0117 A-42227-0256 29 22-28-0297 A-42227-0274 12 22-28-0127 A-42227-0257 30 22-28-0307 A-42227-0275 13 22-28-0137 A-42227-0258 31 22-28-0317 A-42227-0276 14 22-28-0147 A-42227-0259 32 22-28-0327 A-42227-0277 15 22-28-0157 A-42227-0260 33 22-28-0337 A-42227-0278 16 22-28-0167 A-42227-0261 34 22-28-0347 A-42227-0279 17 22-28-0177 A-42227-0262 35 22-28-0357 A-42227-0280 18 22-28-0187 A-42227-0263 36 22-28-0367 A-42227-0281 19 22-28-0197 A-42227-0264 A-42227-0213/0246 HEADER NUMBER: 41411 PIN NUMBER: 42663-AXA154 PIN LENGTH: L .540/13.72 MATING LENGTH: M .295/7.49 GOLD POINT: G N/A PC TAIL LENGTH: P .120/3.05 TIN: T OVERALL CKTS: 3-36 KINKS: NO REMOVED BACKWALLS: YES VOIDED CKTS: NONE PACKAGING: BULK 40873-0056 CKTS MATERIAL NUMBER ENG NUMBER CKTS MATERIAL NUMBER ENG NUMBER 02 20 22-28-0206 A-42227-0230 03 22-28-0036 A-42227-0213 21 22-28-0216 A-42227-0231 04 22-28-0046 A-42227-0214 22 22-28-0226 A-42227-0232 05 22-28-0056 A-42227-0215 23 22-28-0236 A-42227-0233 06 22-28-0066 A-42227-0216 24 22-28-0246 A-42227-0234 07 22-28-0076 A-42227-0217 25 22-28-0256 A-42227-0235 08 22-28-0086 A-42227-0218 26 22-28-0266 A-42227-0236 09 22-28-0096 A-42227-0219 27 22-28-0276 A-42227-0237 10 22-28-0106 A-42227-0220 28 22-28-0286 A-42227-0238 11 22-28-0116 A-42227-0221 29 22-28-0296 A-42227-0239 12 22-28-0126 A-42227-0222 30 22-28-0306 A-42227-0240 13 22-28-0136 A-42227-0223 31 22-28-0316 A-42227-0241 14 22-28-0146 A-42227-0224 32 22-28-0326 A-42227-0242 15 22-28-0156 A-42227-0225 33 22-28-0336 A-42227-0243 16 22-28-0166 A-42227-0226 34 22-28-0346 A-42227-0244 17 22-28-0176 A-42227-0227 35 22-28-0356 A-42227-0245 18 22-28-0186 A-42227-0228 36 22-28-0366 A-42227-0246 19 22-28-0196 A-42227-0229 /

MB10S;中文规格书,Datasheet资料

MB10S;中文规格书,Datasheet资料

MB10S — Bridge Rectifier

© 2010 Fairchild Semiconductor Corporation

MB10S Rev. A01 July 2010

MB10S

Bridge Rectifier

Features

•Low leakage

•Surge overload rating : 35 amperes peak.

•Ideal for printed circuit board.

•UL certified, UL #E111753 and E326243.

Absolute Maximum Ratings * T

A = 25°C unless otherwise noted

* These ratings are limiting values above which the serviceability of any semiconductor device may by impaired.

Thermal Characteristics

* Device mounted on PCB with 0.5" x 0.5" (13 x 13 mm) lead length

Electrical Characteristics T

A = 25°C unless otherwise notedSymbolParameterValueUnits

V

RRMMaximum Repetitive Reverse Voltage1000V

V

RMSMaximum RMS Bridge Input Voltage700V

V

RDC Reverse Voltage (Rated V

R)1000V

I

F(AV)Average Rectified Forward Current, @ T

A = 50°C

On Glass-epoxy P.C.B.

On Aluminum substrate0.5

AO7800;中文规格书,Datasheet资料

AO7800;中文规格书,Datasheet资料

SymbolVDSVGSIDMTJ, TSTGSymbolTypMax360415400460RθJL300350Maximum Junction-to-Lead CSteady-State°C/WThermal CharacteristicsParameterUnitsMaximum Junction-to-Ambient At ≤ 10sRθJA°C/WMaximum Junction-to-Ambient ASteady-State°C/WWTA=70°C0.19Junction and Storage Temperature Range-55 to 150°CPower Dissipation ATA=25°CPD0.3ATA=70°C0.7Pulsed Drain Current B5Continuous Drain Current ATA=25°CID0.9Drain-Source Voltage20VGate-Source Voltage±8VAbsolute Maximum Ratings TA=25°C unless otherwise notedParameterMaximumUnitsAO7800Dual N-Channel Enhancement Mode Field Effect TransistorFeaturesVDS (V) = 20VID = 0.9 A (VGS = 4.5V)RDS(ON) < 300mΩ (VGS = 4.5V)RDS(ON) < 350mΩ (VGS = 2.5V)RDS(ON) < 450mΩ (VGS = 1.8V)General DescriptionThe AO7800 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 1.8V, in the small SOT323 footprint. It can be used for a wide variety of applications, including load switching, low current inverters and low current DC-DC converters.It is ESD protected. Standard Product AO7800 is Pb-free (meets ROHS & Sony 259 specifications). AO7800L is a Green Product ordering option. AO7800 and AO7800L are electrically identical.SC-70-6(SOT-323)Top ViewD1

RO3104;中文规格书,Datasheet资料

RO3104;中文规格书,Datasheet资料

E-mail: info@Page 1 of 2©2009 by RF Monolithics, Inc.

RO3104 - 2/4/09Electrical Characteristics CharacteristicSymNotesMinimumTypicalMaximumUnitsCenter Frequency (+25 °C)Absolute FrequencyfC2, 3, 4, 5303.750303.900MHzTolerance from 303.825 MHz∆fC±75kHzInsertion LossIL2, 5, 61.32.0dBQuality FactorUnloaded QQU5, 6, 71300050 Ω Loaded QQL1700Temperature StabilityTurnover Temperature

TO6, 7, 810
