400K W沃尔沃柴油发电机组技术协议甲方：南阳二机石油装备（集团）有限公司乙方：南阳新成高架设备有限公司南阳二机石油装备（集团）有限公司（甲方）与南阳新成高架设备有限公司（乙方）关于大庆石油管理局钻探集团钻井一公司ZJ40DJ钻机上面的1000kW济柴发电机组和2×400kW沃尔沃柴油发电机组并机（带机房及并机柜），经过双方协商，达成如下技术协议：一、供电系统总体技术要求1、系统的设计制造依据“安全、可靠、先进、方便、实用”的原则，其动力控制系统，交流输出特性，控制操作和各种保护功能等应能满足用户的要求。

采用正确可靠的防潮、防水、防火措施，符合安全操作要求，接口满足系统要求；使用环境温度-40℃~+50℃。

2、模块化设计，满足快速、安全地搬迁、安装、拆卸要求，整机尺寸满足铁路运输和汽车运输的要求。

具有使用、维护、检修方便等特点。

3、外观精美，实用性强，满足高寒、多雨、多风沙环境下作业要求。

4、系统设计、制造标准应符合下列标准：GB2820-90工频柴油发电机组通用技术条件符合钻井行业HSE要求：符合其它有关电气标准；ISO3046 ISO8528 GB3096 IEC34 ISO9001 ISO14000等。

安全防护性能符合NAME1标准。

二、柴油发电机组的构成1、主发电机组为1000kW济柴发发电机组、1栋机房、相关动力电缆及附件等全套动力系统。

正常工作由主发电机组供电。

2、辅助发电机组为2×400kW两台（400kW/500kVA、400V、50Hz）瑞典沃尔沃（VOLVO）柴油发动机、英国斯坦福交流发电机（STAMFORD）及美国GAC电子调速系统和北京兰泊得机组并车控制系统配套而成的柴油发电机组， 1栋机房、相关动力电缆（房内连接电缆）及附件等全套动力系统。

当主发电机组出现故障时由两台辅助发电机组供电。

主发电机控制在MCC房内控制，辅助发电机组在两房中间并机房内控制，主发电机不带油箱，辅助发电机带油箱，机房预留加油、回油口。

共轨喷油系统是指柴油从油箱，被齿轮泵吸出，经过油水分离器，过齿轮泵，到柴油精滤器，到高压泵、共轨管、喷油器，并与传感器和ECU组成的闭环燃油供给系统，将喷射压力的产生和喷射过程彼此完全分开的一种供油方式。

沃尔沃D7E型发动机电控共轨喷油系统（EMS2），一缸与飞轮近，燃油由喷油器喷射，每缸对应一个喷油器。

共轨压力由两个交替工作的高压油泵产生。

油轨中的压力以及每个气缸中喷油的开始和结束都是由发动机电脑版控制的，控制喷油时间和喷油压力的灵活性，可以降低发动机噪音和Nox的排放。

共轨组成部分：一、油量控制（SCV/FCV）油量控制阀控制前往高压燃油泵的燃油流量，它配送达到或保持油轨压力所需要的燃油量。

二、高压燃油泵1.三个凸起凸轮带来每次凸轮轴旋转的六个泵油过程（每个泵完成三次泵油过程）2.经由高压油管到喷油器3. I/O-阀（整合的）4.来自油量控制阀三、高压油轨燃油泵将燃油送入油轨，然后由油轨送入喷油器。

每一喷油器通过各自的一根高压油管连接到公共燃油导轨上,系统内的油压由电控回路控制。

沃尔沃发动机购买和售后维修服务推荐北京沃博。

北京沃博内燃柴油机械有限公司是一家具有多年历史，从事销售维修德国道依茨（DEUTZ)，瑞典VOLVO及VOLVO-PENTA发动机和配件的专业化的服务企业！为客户提供相关技术咨询和售后服务和发动机大中修业务。

本公司经营理念的根本是：透过完善的技术服务和优质优价的配套产品来创造业内新的服务标准；透过积极主动的策略让客户获得更大的满足，并透过严谨的管理体系来落实。

本公司资深的销售、技术人才，凭借丰富的专业经验和竭诚服务的良好作风，在全国建立了良好的声誉和客户群体。

本公司以专业经营道依茨发动机总成和发动机配件为主，道依茨风冷发动机FL912, 913，914，413，513系列，水冷发动机FM1011, 1012, 1013, TCD2011，2012，2013，2015系列！公司按市场客户的业务需求下设：整机销售部，配件销售部，售后维修服务部，并设立业务在线咨询，提供24小时服务！本公司同时销售服务“燃气机组一绿色动力”业务。

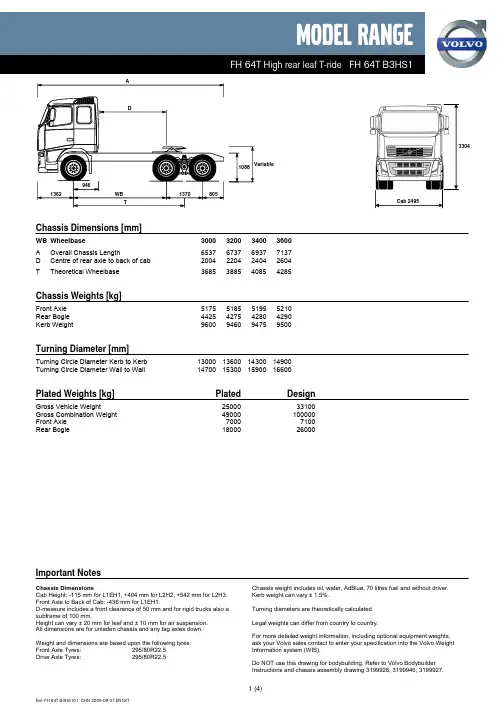

Important NotesChassis DimensionsCab Height: -115 mm for L1EH1, +404 mm for L2H2, +542 mm for L2H3. Front Axle to Back of Cab: -436 mm for L1EH1.D-measure includes a front clearance of 50 mm and for rigid trucks also a subframe of 100 mm.Height can vary ± 20 mm for leaf and ± 10 mm for air suspension.All dimensions are for unladen chassis and any tag axles down.Weight and dimensions are based upon the following tyres: Chassis weight includes oil, water, AdBlue, 70 litres fuel and without driver. Kerb weight can vary ± 1.5%.Turning diameters are theoretically calculated.Legal weights can differ from country to country.For more detailed weight information, including optional equipment weights, ask your Volvo sales contact to enter your specification into the Volvo WeightChassis Dimensions [mm]WB Wheelbase 3000320034003600A Overall Chassis Length 6537673769377137D Centre of rear axle to back of cab 2004220424042604T TheoreticalWheelbase 3685388540854285Chassis Weights [kg]Front Axle 5175518551955210Rear Bogie 4425427542804290Kerb Weight 9600946094759500Turning Diameter [mm]Turning Circle Diameter Kerb to Kerb 13000136001430014900Turning Circle Diameter Wall to Wall 14700153001590016600Plated Weights [kg] Plated DesignGross Vehicle Weight 2500033100Gross Combination Weight 49000100000Front Axle 70007100Rear Bogie 1800026000Cab 2495■ Standard Equipment □ Optional EquipmentFor more detailed information about cab and powertrain equipment, please refer to separate specification sheets.For all possible options and combinations of options please consult your Volvo sales contact who can create a specification to match your requirements using the Volvo Sales Support system (VSS). Core components□ L1EH1 Day cab ■ L2H1 Sleeper cab □ L2H2 Sleeper cab with high roof, Globetrotter □ L2H3 Sleeper cab with extra high roof (+140 mm), Globetrotter XL(FH) / LXL (FM) cabs ■ EU3 Euro 3 Engine emission level.■ D13A400 Diesel engine, 13 litre, 400 hp, 2000 Nm. □ D13A440 Diesel engine, 13 litre, 440 hp, 2200 Nm. □ D13A480 Diesel engine, 13 litre, 480 hp, 2400 Nm. □ D13A520 Diesel engine, 13 litre, 520 hp, 2500 Nm.□ D13C420 Diesel engine, 13 litre Euro 5 SCR, 420 hp, 2100 Nm □ D13C460 Diesel engine, 13 litre Euro 5 SCR, 460 hp, 2300 Nm □ D13C500 Diesel engine, 13 litre Euro 5 SCR, 500 hp, 2500 Nm □ D13C540 Diesel engine, 13 litre Euro 5 SCR, 540 hp, 2600 Nm■ EBR-EPG Engine brake, exhaust pressure governor□ EBR-EPGC Engine brake, exhaust pressure governor for I-shift□ EBR-VEB Engine brake, Volvo Engine Brake (incl. exhaust pressure governor)□ EBR-VEB+ Engine compression brake, Volvo Engine Brake+ (VEB+), incl. Exhaust Pressure Governor (EPG).□ EBR-VGT Engine brake, Variable Geometry Turbo□ AT2412C I-Shift, 12 speed, 2400 Nm, max. permitted GCW 44000 kg, fully automated electronically controlled gearshift and clutch, without clutch pedal.□ AT2412D I-Shift, 12 speed, 2400 Nm, max. permitted GCW 44000 kg, fully automated electronically controlled gearshift and clutch, without clutch pedal.□ AT2512CI-shift, 12 speed, 2500 Nm, max. permitted GCW 100000 kg and fully automated electronically controlled gearshift and clutch, without clutch pedal.(Only combinations with T-FLAT and rear axle ratios higher than or equal to 3.61 give GCW 100000 kg, others 80000 kg.) □ AT2612D I-Shift, 12 speed, 2600 Nm, max. permitted GCW 60000 kg, fully automated electronically controlled gearshift and clutch, without clutch pedal.□ ATO2512CI-shift overdrive, 12 speed, 2500 Nm, max. permitted GCW 60000 kg, for use with hub reduction axles. Fully automated electronically controlled gearshift and clutch, without clutch pedal.□ ATO2612DI-shift overdrive, 12 speed, 2600 Nm, max. permitted GCW 60000 kg, for use with hub reduction axles. Fully automated electronically controlled gearshift and clutch, without clutch pedal.□ PT2606 Powertronic 6-speed automatic gearbox, 2600 Nm ■ VT2214B Manual split range gearbox 2400 Nm, 14 speed □ VT2514B Manual split range gearbox 2500 Nm, 14 speed □ VT2814B Manual split range gearbox 2800 Nm, 14 speed□ VTO2214B Manual split range gearbox 2400 Nm with overdrive, 14 speed □ VTO2514B Manual split range gearbox 2500 Nm with overdrive, 14 speed □ VTO2814B Manual split range gearbox 2800 Nm with overdrive, 14 speed □ TP-BAS City gear changing software□ TP-DICON Distribution and Construction optimized gear changing software□ TP-FUEC Fuel optimized gear changing software □ TP-HDHeavy Duty gear changing software□ AMSO-AUT Manual gear shift in automatic mode, (I-Shift). □ AMSO-BAS Basic gear shifting (I-Shift). □ AVO-BAS Basic vocational I-shift software (not for version C)□ AVO-ENH Enhanced vocational I-shift software, construction & timber adapted (not for version C)□ CD40B-O Double disc clutch, diameter 400 mm □ CS43B-O Single disc clutch, diameter 430 mm■ CS43B-OR Single disc clutch, diameter 430 mm, reinforced; version B ■ FAL7.1 Front axle load 7.1 tonnes □ FAL7.5 Front axle load 7.5 tonnes □ FAL8.0 Front axle load 8.0 tonnes □ FAL8.5 Front axle load 8.5 tonnes □ FAL9.0 Front axle load 9.0 tonnes□ FST-MULFront leaf suspension, conventional spring■ FST-PAR Front leaf suspension, parabolic spring □ FST-PAR3 Front leaf suspension, stiff parabolic spring □ FSTAB Front stabilizer, normal stiffness■ FSTAB2 Front stabilizer, medium high stiffness □ FSTAB3 Front stabilizer, stiff■ RADD-TR1 Rear leaf suspension (6x4/8x4), T-ride narrow, 75 mm wide leafs□ RADD-TR2 Rear leaf suspension (6x4/6x6/8x4), T-ride wide, 90 mm wide leafs.■ RT2610HV Rear tandem axle, hub reduction, 3 planet gear, bogie load 26 tonnes, GCW 100 tonnes□ RT3210HV Rear tandem axle, hub reduction, bogie load 32 tonnes, GCW 100 tonnes□ RTS2370A Rear single reduction tandem, bogie load 23 tonnes, GCW 70 tonnes□ RAL23 Bogie load 23 tonnes ■ RAL26 Bogie load 26 tonnes □ RAL32 Bogie load 32 tonnes□ RST-MUL Rear leaf suspension, conventional spring ■ RST-PAR1 Rear leaf suspension, parabolic spring □ RALIM15First rear drive axle load limiter, 15.0 tonnesPackages■ AUDBAS Audio basic□ AUDMED+Audio medium plusTruck use□ ADR2 ADR adaptation, transportation of dangerous goods, 2 switches.□ PSCOOL Power steering cooler. ■ STWPOS-LLeft hand driveChassis■ BRAKE-ZV Volvo Z-cam brakes□ AUXPARK Auxiliary parking brake (2 extra parking brake chambers) ■ ABS-WHL ABS, Anti-lock brake system ■ FRAME88 Frame section thickness 8 mm■ FIL-TXEB Inner liner from transmission member to bogie end. ■ FRAMEHIG Frame rail section height, 300 mm ■ BBOX-L Battery box on left hand side ■ 2BATT170 Batteries 2x170 Ah □ 2BATT225Batteries 2x225 Ah□ BAMAFREE Maintenance free batteries ■ R405A71 Right aluminium 710 mm D-shaped fuel tank, 405 litres volume.Usable volume is 97% of stated volume. Min volume 150lMax volume 810l ■ UL-FUEL Without left fuel tank Min volume 160l Max volume 450l ■ FCAP-L Lockable fuel tank cap■ ESH-LEFT Muffler horizontal, left exhaust outlet □ ESH-REAR Muffler horizontal, rear exhaust outlet □ ESH-RIGH Muffler horizontal, right exhaust outlet□ ESH-VERT Muffler horizontal, vertical exhaust outlet on right hand side □ ESV-VERT Muffler vertical, vertical exhaust outlet on right hand side □ SWCP-BC Spare wheel carrier, behind cab■ SWCP-LB Spare wheel carrier, on left hand side partly under battery box □ SWCP-LF Spare wheel carrier, on left hand side in front of rear axle □ SWCP-T Plastic strips strapped to the chassis used as a temporary spare wheel carrier.□ SWCP-TPSpare wheel carrier transport mounted on top of frame■ Standard Equipment □ Optional EquipmentFor more detailed information about cab and powertrain equipment, please refer to separate specification sheets.For all possible options and combinations of options please consult your Volvo sales contact who can create a specification to match your requirements using the Volvo Sales Support system (VSS). □ WHC-TRP2 Two foldable wheel chocks delivered loose in cab □ WHCHOCK2 Two foldable wheel chocks □ TB-L80 Toolbox 800 mm, left side □ TB-R80 Toolbox 800 mm, right side □ SUP-BAS Standard side underrun protection □ CHAIN-SSnow chains□ TOWR-ONE One rear towing device ■ RFEND-BRear fenders, basic (3 piece fender with anti-spray function)Rims and Tyres□ WL-AL Aluminium rims□ WL-ALDP Dura-Bright aluminium rims, front-drive□ WL-ALDPD Dura-Bright aluminium rims, dual holes, front-drive □ WL-ALDU Aluminium rims, dual holes □ WL-ALP Polished aluminium rims□ WL-ALPDU Polished aluminium rims, dual holes ■ WL-ST Steel rims□ SPWT-D Spare wheel&tyre equal to drive wheel ■ SPWT-F Spare wheel and tyre equal to front wheel □ WCAPWheel capsPowertrain equipment■ 1COMP530 Single cylinder air compressor 318 cc □ 2COM1080 Dual cylinder air compressor 704 cc □ 2COMP900 Dual cylinder air compressor 636 cc ■ AIRIN-HI High air intake □ AIRIN-LO Low air intake□ ACL1ST-S Air cleaner with additional filter element□ 24AL120B Alternator 120 Ampere □ 24AL150B Alternator 150 Ampere■ 24ALT-HB Alternator 80 Ampere (D13/16) / 90 Ampere (D9/D11) □ 24ALT-XB Alternator 110 Ampere□ CCV-C Closed crankcase ventilation.□ CCV-OX Crank case ventilation for cold markets □ COOLC40 Cooling capacity 40°C, ATB ■ COOLC48 Cooling capacity 48º C, ATB□ TC-HWO Oil cooler for hydraulic transmissions – water/oil□ TC-MAOH2Oil cooler/mechanical transmission, air/oil, extra high performance■ TC-MWO Oil cooler for mechanical transmissions, basic performance,without retarder – water/oil□ TC-MWOH2 Oil cooler/mechanical transmission, water/oil, highperformance □ TRAP-HDSteel gearbox range housing, heavy duty. □ FUEQ-EH Fuel line electric heater■ AF-E Auxiliary fuel filter, electrically heated ■ EST-AID Engine start pre heating element□ PTER-DIN Power Take Off / splined shaft groove (female) DIN5462. □ PTER1400 Rear engine mounted power-take-off with flange SAE 1410 □ HPE-F101 Hydraulic pump F1-101, fixed displacement, single flow, rear engine mounted.□ HPE-F41 Hydraulic pump F1-41, fixed displacement, single flow, rear engine mounted.□ HPE-F51 Hydraulic pump F1-51, fixed displacement, single flow, rear engine mounted.□ HPE-F61 Hydraulic pump F1-61, fixed displacement, single flow, rear engine mounted.□ HPE-F81 Hydraulic pump F1-81, fixed displacement, single flow, rear engine mounted.□ HPE-T53 Hydraulic pump F2-53/53, fixed displacement, double flow, rear engine mounted.□ HPE-T70Hydraulic pump F2-70/35, fixed displacement, double flow, rear engine mounted.□ HPE-V120 Hydraulic pump VP1-120, variable displacement, single flow, rear engine mounted.□ HPE-V45 Hydraulic pump VP1-45, variable displacement, single flow, rear engine mounted.□ HPE-V75 Hydraulic pump VP1-75, variable displacement, single flow, rear engine mounted.□ PTPT-D DIN connection PTO, Powertronic □ PTPT-F Flange connection PTO, Powertronic□ PTR-D DIN connection PTO, low speed, manual gearbox □ PTR-DH DIN connection PTO, high speed, manual gearbox □ PTR-DM DIN connection PTO, medium speed, manual gearbox □ PTR-F PTO, 1 rear flange connection□ PTR-FH Flange connection PTO, high speed, manual gearbox □ PTR-FL Flange connection PTO, low speed, manual gearbox □ PTRD-D Power take-off with 1 front DIN connection + 1 rear DIN connection, manual gearbox□ PTRD-D1 Power take-off with 1 front DIN connection + 1 rear flange connection, manual gearbox□ PTRD-D2 Power take-off with 1 front DIN connection and 2 rear flange connections, manual gearbox□ PTRD-F Power take-off with 1 rear flange connection, manual gearbox □ APF-BAS Basic I-shift PTO functions□ APF-ENH Enhanced I-shift PTO functions□ HPG-F101 Hydraulic pump F1-101, fixed displacement, single flow, gearbox mounted.□ HPG-F41 Hydraulic pump F1-41, fixed displacement, single flow, gearbox mounted.□ HPG-F51 Hydraulic pump F1-51, fixed displacement, single flow, gearbox mounted.□ HPG-F61 Hydraulic pump F1-61, fixed displacement, single flow, gearbox mounted.□ HPG-F81 Hydraulic pump F1-81, fixed displacement, single flow, gearbox mounted.□ HPG-V120Hydraulic pump VP1-120, variable displacement, single flow, gearbox mounted.Cab exterior■ BUMP-S Front steel bumper.□ BUMP-SC Front steel bumper, construction applications. □ GUARD-EH Guard plate for cooling pipes and oil sump □ CABS-FUA Full air cab suspension■ CABS-MEC Mechanical cab suspension□ CABS-REA Cab suspension, rear air and front mechanical □ AD-ROOF Roof air deflector□ AD-ROOFB Roof air deflector with light box □ AD-SIDEL Long cab side air deflector □ AD-SIDES Short cab side air deflector. □ LADDERLadder back of cabSuperstructure preparations□ 5WM-ISHD 5th wheel ISO mounting, heavy duty, 16 mm mounting plate ■ 5WM-ISOHFifth wheel ISO mounting, high Z-profiles (t=8 mm) for 10 mm ISO saddle.Z-profile height above frame = 80 mm. Total height above frame 90 mm. ■ 5WH150 Fifth wheel leg-height 150 mm □ 5WH185 Fifth wheel leg-height 185 mm □ 5WH190 Fifth wheel leg-height 190 mm□ 5WT-GF George Fischer SK-S 36.20 V cast fifth wheel□ 5WT-GFHD Georg Fischer SK-HD 38.36 cast heavy duty fifth wheel ■ 5WT-JOJost cast fixed fifth wheel.Type JSK 37C for 5WM-ISOL/5WM-ISOM/5WM-ISOH, LUB-CENT.Type JSK 37E for 5WM-LPRO, LUB-CENT.Type JSK 42K for all fifth wheel mountings with ULUBCENT. □ 5WT-JOHDJost JSK 38C cast heavy duty fifth wheel■ RAMP-LOW Ramp sliding member, low height□ RAMP-MED Ramp sliding member, medium height ■ RDECKRear deck, basic□ RDECK-M Rear deck, medium□ WL-TA1A Working lamp trailer arch, 1 lamp amber■ WL-TA1W Working lamp trailer arch, 1 lamp white■ TBC-EC European Community trailer brake connection□ TRCON145 Trailer cable connection 14-pin connector for ADR vehicles(ADR).□ TRCON147 Trailer cable connection 14-pin connector without ADR(UADR).□ TRCONKOR Trailer cable connections for Korea□ TTRCON15 Trailer cable connections for ADR□ TTRCON7 Trailer cable connections, UADR■ TTRCON77 Trailer cable, two connections, UADR■ TRBR-HCF Hand controlled trailer brake, full pressure□ TRBR-HCR Hand controlled trailer brake, reduced pressure□ TAILPREP Taillift preparation kit■ Standard Equipment □ Optional EquipmentFor more detailed information about cab and powertrain equipment, please refer to separate specification sheets.For all possible options and combinations of options please consult your Volvo sales contact who can create a specification to match your requirements using the Volvo Sales Support system (VSS).。

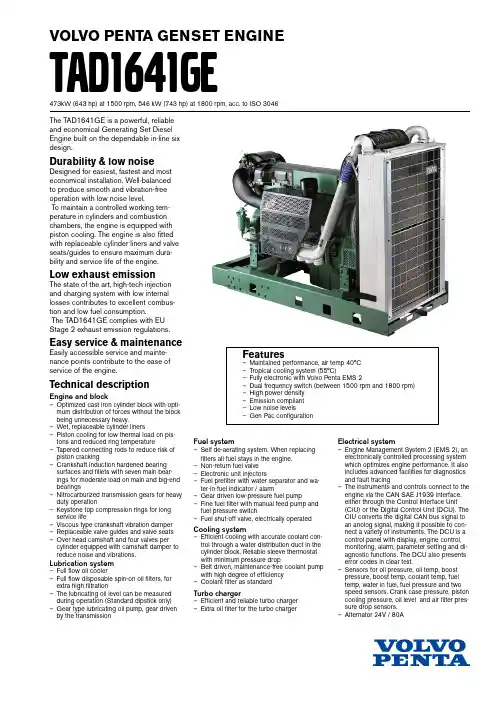

VOLVO PENTA GENSET ENGINE TAD1641GE473kW (643 hp) at 1500 rpm, 546 kW (743 hp) at 1800 rpm, acc. to ISO 3046 The TAD1641GE is a powerful, reliableand economical Generating Set DieselEngine built on the dependable in-line sixdesign.Durability & low noiseDesigned for easiest, fastest and mosteconomical installation. Well-balancedto produce smooth and vibration-freeoperation with low noise level.To maintain a controlled working tem-perature in cylinders and combustionchambers, the engine is equipped withpiston cooling. The engine is also fittedwith replaceable cylinder liners and valveseats/guides to ensure maximum dura-bility and service life of the engine.Low exhaust emissionThe state of the art, high-tech injectionand charging system with low internallosses contributes to excellent combus-tion and low fuel consumption.The TAD1641GE complies with EUStage 2 exhaust emission regulations.Easy service & maintenanceEasily accessible service and mainte-nance points contribute to the ease ofservice of the engine.Technical descriptionEngine and block– Optimized cast iron cylinder block with opti-mum distribution of forces without the blockbeing unnecessary heavy.– Wet, replaceable cylinder liners– Piston cooling for low thermal load on pis-tons and reduced ring temperature– Tapered connecting rods to reduce risk of piston cracking– Crankshaft induction hardened bearing surfaces and fillets with seven main bear-ings for moderate load on main and big-end bearings– Nitrocarburized transmission gears for heavy duty operation– Keystone top compression rings for long service life– Viscous type crankshaft vibration damper– Replaceable valve guides and valve seats– Over head camshaft and four valves per cylinder equipped with camshaft damper to reduce noise and vibrations. Lubrication system– Full flow oil cooler– Full flow disposable spin-on oil filters, for extra high filtration– The lubricating oil level can be measured during operation (Standard dipstick only)– Gear type lubricating oil pump, gear driven by the transmission Fuel system– Self de-aerating system. When replacingfilters all fuel stays in the engine.– Non-return fuel valve– Electronic unit injectors– Fuel prefilter with water separator and wa-ter-in-fuel indicator / alarm– Gear driven low-pressure fuel pump– Fine fuel filter with manual feed pump andfuel pressure switch– Fuel shut-off valve, electrically operatedCooling system– Efficient cooling with accurate coolant con-trol through a water distribution duct in thecylinder block. Reliable sleeve thermostatwith minimum pressure drop– Belt driven, maintenance-free coolant pumpwith high degree of efficiency– Coolant filter as standardTurbo charger– Efficient and reliable turbo charger– Extra oil filter for the turbo chargerElectrical system– Engine Management System 2 (EMS 2), anelectronically controlled processing systemwhich optimizes engine performance. It alsoincludes advanced facilities for diagnosticsand fault tracing– The instruments and controls connect to theengine via the CAN SAE J1939 interface,either through the Control Interface Unit(CIU) or the Digital Control Unit (DCU). TheCIU converts the digital CAN bus signal toan anolog signal, making it possible to con-nect a variety of instruments. The DCU is acontrol panel with display, engine control,monitoring, alarm, parameter setting and di-agnostic functions. The DCU also presentserror codes in clear text.– Sensors for oil pressure, oil temp, boostpressure, boost temp, coolant temp, fueltemp, water in fuel, fuel pressure and twospeed sensors. Crank case pressure, pistoncooling pressure, oil level and air filter pres-sure drop sensors.– Alternator 24V / 80AFeatures– Maintained performance, air temp 40°C– Tropical cooling system (55°C)– Fully electronic with Volvo Penta EMS 2– Dual frequency switch (between 1500 rpm and 1800 rpm)– High power density– Emission compliant– Low noise levels–Gen Pac configurationPower StandardsThe engine performance corresponds to ISO 3046, BS5514 and DIN 6271. The technical data applies to an engine without cooling fan and operating on a fuel with calorific value of 42.7 MJ /kg (18360 BTU/lb) and a density of 0.84 kg/liter (7.01 lb/US gal), also where this involves a deviation from the standards. Power output guaranteed within 0 to +2% att rated ambient conditions at delivery. Ratings are based on ISO 8528. Engine speed governing in accordance with ISO 3046/IV, class A1 and ISO 8528-5 class G3Exhaust emissionsThe engine complies with EU stage 2 emission legislation according to the Non Road Directive EU 97/68/EEC. The engine also complies with TA-luft -50% exhaust emission regulations.Rating GuidelinesPRIME POWER rating corresponds to ISO Standard Power for continuous operation. It is applicable for supplying electrical power at variable load for an unlimited number of hours instead of com-mercially purchased power. A10 % overload capability for govering purpose is available for this rating.MAXIMUM STANDBY POWER rating corresponds to ISOStandard Fuel Stop Power. It is applicable for supplying standby electrical power at variable load in areas with well established electrical networks in the event of normal utility power failure. No overload capability is available for this rating.1 hp = 1 kW x 1.36InformationFor more technical data and information, please look in the Gener-ating Set Engines Sales Guide.TAD1641GEAB Volvo PentaSE-405 08 Göteborg, SwedenTechnical DataGeneralEngine designation ........................................................................TAD1641GE No. of cylinders and configuration .......................................................in-line 6Method of operation ...............................................................................4-stroke Bore, mm (in.) .....................................................................................144 (5.67)Stroke, mm (in.) ..................................................................................165 (6.50)Displacement, l (in³) ....................................................................16.12 (983.7)Compression ratio .....................................................................................16.5:1Dry weight, kg (lb) ..........................................................................1480 (3263)Dry weight with Gen Pac, kg (lb) ...............................................1910 (4211)Wet weight, kg (lb) ........................................................................1550 (3417)Wet weight with Gen Pac, kg (lb) ..............................................2020 (4453)Performance1500 rpm 1800 rpm with fan, kW (hp) at: Prime Power430 (585) 485 (660)Max Standby Power473 (643)546 (743)Lubrication system 1500 rpm 1800 rpm Oil consumption, liter/h (US gal/h) at:Prime Power 0.10 (0.026) 0.11 (0.029)Max Standby Power 0.10 (0.026) 0.12 (0.032)Oil system capacity incl filters, liter ................................................................42Fuel system1500 rpm 1800 rpm Specific fuel consumption at:Prime Power, g/kWh (lb/hph) 25 % 223 (0.361) 232 (0.376)50 % 201 (0.326) 202 (0.327)75 % 196 (0.318) 197 (0.319) 100 %198 (0.321) 200 (0.324)Max Standby Power, g/kWh (lb/hph) 25 % 218 (0.353) 228 (0.370)50 % 199 (0.323) 201 (0.326)75 % 195 (0.316) 197 (0.319)100 %198 (0.321)205 (0.332)Intake and exhaust system 1500 rpm 1800 rpm Air consumption, m³/min (cfm) at: Prime Power 32 (1130) 42 (1483)Max Standby Power 35 (1236) 45 (1589)Max allowable air intake restriction,kPa (In wc) 5 (20.1) 5 (20.1)Heat rejection to exhaust, kW (BTU/min) at: Prime Power 326 (18539) 373 (21212)Max Standby Power 356 (20245) 442 (25136)Exhaust gas temperature after turbine, °C (°F) at: Prime Power 475 (887) 435 (815)Max Standby Power 490 (914) 470 (878)Max allowable back-pressure in exhaust line,kPa (In wc) 10 (40.2) 10 (40.2)Exhaust gas flow, m³/min (cfm) at:Prime power 79.0 (2790) 97.0 (3426)Max Standby Power 84.9 (2998) 106.6 (3765)Cooling system 1500 rpm 1800 rpm Heat rejection radiation from engine,kW (BTU/min) at:Prime Power 30 (1706) 32 (1820)Max Standby Power 34 (1934) 33 (1877)Heat rejection to coolant kW (BTU/min) at:Prime Power 172 (9781) 185 (10521)Max Standby Power 176 (10009) 199 (11317)Fan power consumption, kW (hp) 11 (15)19 (26)Standard equipmentEngineGen PacEngineAutomatic belt tensioner • •Lift eyelets • •FlywheelFlywheel housing with conn. acc. to SAE 1 • •Flywheel for 14” flex. plate and flexible coupling • •Vibration dampers • •Engine suspension Fixed front suspension • •Lubrication system Oil dipstick• •Full-flow oil filter of spin-on type • •By-pass oil filter of spin-on type • •Oil cooler, side mounted • •Low noise oil sump • •Fuel systemFuel filters of disposable type • •Electronic unit injectors• •Pre-filter with water separator • •Intake and exhaust systemAir filter with replaceable paper insert • •Air restriction indicator• •Air cooled exhaust manifold• •Connecting flange for exhaust pipe • •Exhaust flange with v-clamp • •Turbo charger, low right side • •Cooling systemTropical radiator incl intercooler •¹) •Belt driven coolant pump • •Fan hub • •Thrust fan •¹) •Fan guard − •Belt guard−•Control systemEngine Management System (EMS) with CAN-bus interface SAE J1939 ••CIU, Control Interface Unit – –AlternatorAlternator 80A / 24V • •Starting systemStarter motor, 7.0kW, 24V• •Connection facility for extra starter motor • •Instruments and sendersTemp.- and oil pressure for automatic ••stop/alarm 103°C Other equipmentExpandable base frame − •Engine Packing Plastic wrapping••1)must be ordered, se order specification − optional equipment or not applicable • included in standard specificationNote! Not all models, standard equipment and accessories are available in all countries. All specifications are subject to change without notice.The engine illustrated may not be entirely identical to production standard engines.E n g l i s h 12-2006. © 2006 A B V o l v o P e n taA* = 1587 mm / 62.5 in B* = 1120 mm / 44.1 in C* = 1976 mm / 77.8 inD = 2296 mm / 90.5 in (During transport)D = Max 3311 mm / 130.5 in* Including radiator and intercooler。

历经了90多年的发动机制造历史，Volvo这个品牌已经成为运行可靠、技术创新、性能一流和使用寿命的象征。

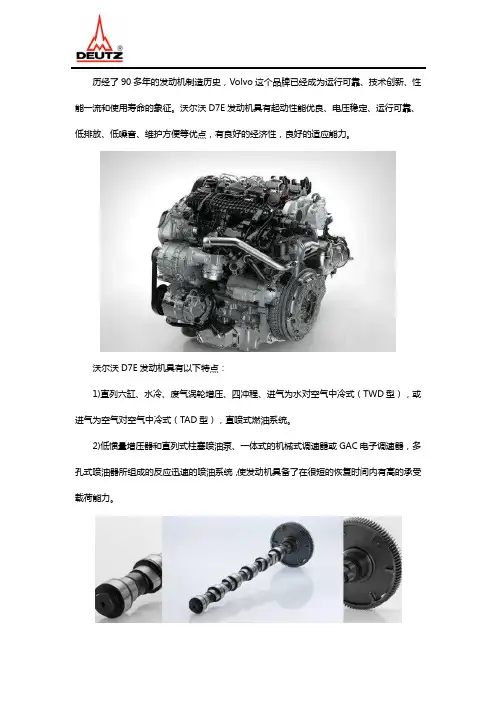

沃尔沃D7E发动机具有起动性能优良、电压稳定、运行可靠、低排放、低噪音、维护方便等优点，有良好的经济性，良好的适应能力。
