瑞士军工高清摄像手表使用说明

高清手表阐明书（720P高清防水摄像手表）一、总览图像仅供参考，请以什物为准A、形式切换键B、AV输出口/USB接口C、开要害D、高清摄像头E、时刻调校手柄F、录音孔G、状况指示灯重要声明：本产物是最新一代高清720p高清摄像手表并具有必定防水功用的高科技手表，在描绘与制作方面，依照3度防水标准（防水30米）的关联技术，但由于本产物的特别布局，这并不代表您能将本产物作为一款潜水表，用于水下摄录，更不能确保本产物在高水压下坚持不渗水和正常作业。

因而，您不能将其置于水下作业，而且需求严厉依照阐明书的辅导来运用产物，若是由于您运用不妥而形成产物进水损坏，本公司将不再对此产物供给质保以及售后服务。

要本产物更具确保的发扬其防水才能，您需求严厉的恪守以下操作办法：●区别USB密封旋钮、麦克风透音旋钮，麦克风密封旋钮这3种旋钮。

请依据上图区别麦克风旋钮与USB旋钮的不一样，不能交流运用，不然起不到任何的防水防尘作用，而致使产物损坏。

●A：MIC1与B-MIC2 都是麦克风拾音孔的旋钮，高度一致。

但一个有中间有孔，一个中间没有孔。

有孔的是麦克风录音孔的旋钮。

没有孔的是USB孔盖及麦克风防水盖。

请注重区别。

●A：MIC1 为带有透声孔的金属旋钮，在该旋钮中间部位有一个孔位（见下图），用于声响传导，在杰出的运用环境下，主张运用该旋钮，使得录制视频的一起也能够同步录入声响。

●B：MIC2 为不带透声孔的麦克风密封旋钮，在该旋钮内部，有一个防水密封胶垫，用于密封麦克风孔，在恶劣的运用环境下，主张运用该旋钮，起到麦克风的防水作用。

运用该旋钮后，能够防止飞溅的液体与粉尘进入麦克风孔位，但一起也隔阻了外部声响进入麦克风，所以，当麦克风孔位旋上了该旋钮，录制的视频将不带同步的声响。

●各个防水旋钮在运用时，请必须旋紧。

注重：查看USB 密封旋钮以及麦克风密封旋钮的密封胶垫能否掉落，若是掉落，请不要将其作为防水旋钮运用，当即换用备用的防水旋钮。

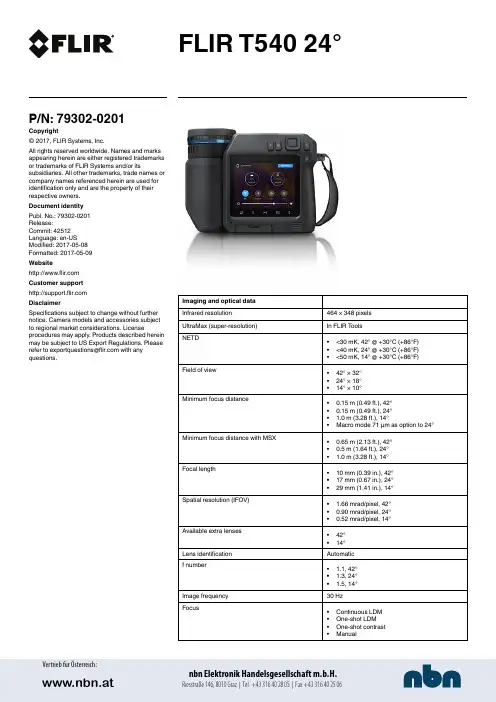

FLIR T54024°P/N:79302-0201Copyright©2017,FLIR Systems,Inc.All rights reserved s and marks appearing herein are either registered trademarks or trademarks of FLIR Systems and/or itssubsidiaries.All other trademarks,trade names or company names referenced herein are used for identification only and are the property of their respective owners.Document identity Publ.No.:79302-0201Release:Commit:42512Language:en-US Modified:2017-05-08Formatted:2017-05-09Website Customer support DisclaimerSpecifications subject to change without further notice.Camera models and accessories subject to regional market considerations.Licenseprocedures may apply.Products described herein may be subject to US Export Regulations.Please refer to ************************with any questions.©2017,FLIR Systems,Inc.#79302-0201;r./42512;en-US©2017,FLIR Systems,Inc.#79302-0201;r./42512;en-US©2017,FLIR Systems,Inc.#79302-0201;r./42512;en-US©2017,FLIR Systems,Inc.#79302-0201;r./42512;en-USP/N:79302-0201©2017,FLIR Systems,Inc. #79302-0201;r./42512;en-USSupplies and accessories:•T198495;Pouch for FLIR T6xx and T4xx series•T911705ACC;USB Type-C to USB Type-C cable(USB2.0standard),1.0m•T911632ACC;USB Type-C to HDMI adapter,standard specification UH311•T911631ACC;USB2.0A to USB Type-C cable,0.9m•T911630ACC;Power supply for camera,15W/3A•T911633ACC;Power supply for battery charger•T199610;Battery charger•T199300ACC;Battery•T199601;Hand strap and neck strap•T199347ACC;Hard transport case•T198583;FLIR Tools+(download card incl.license key)0.98i n 25m m 4.7i n 119.4m m5.51i n 140m m1.52i n 38.5m m6.41i n 162.8m mU N C ¼” -20O p t i c a l a x i s2.7i n 68.7m m1.43i n 36.2m m 1.89i n 47.9m mO p t i c a l a x i s0.98i n 25m m1.89i n 47.9m m4.7i n 119.4m m 4.53i n 115m m1.89i n 47.9m m1.42i n 36m m1.42i n 36.1m mO p t i c a l a x i sC a m e r a h o u s i n gS h e e tD r a w i n g N o .S i z eC h e c kD r a w n b yD e n o m i n a t i o n A 31(3)T 129991B a s i c d i m e n s i o n s F L I R T 5x x-2017-02-17R &D I n s t r u m e n t sM o d i f i e d1234567891013254CFBDGEA6R e vA1:2S c a l e4.84i n 122.9m m2.83i n 72m m1.68i n 42.8m m 1.79i n 45.4m m0.73i n 18.7m mF o r a d d i t i o n a l d i m e n s i o n s s e e p a g e 1C a m e r a w i t h L e n s I R f =17m m (24°)C a m e r a w i t h L e n s I R f =10m m (42°)C a m e r a w i t h L e n s I R f =29m m (14°)S h e e tD r a w i n g N o .S i z eC h e c kD r a w n b yD e n o m i n a t i o n A 32(3)T 129991B a s i c d i m e n s i o n s F L I R T 5x x-2017-02-17R &D I n s t r u m e n t sM o d i f i e d1234567891013254CFBDGEA6R e vA1:5S c a l e1.57i n 39.8m m3.7i n 94m m2.33i n 59.2m m1.47i n 37.3m m2.6i n 65.9m m4.24i n 107.7m m3.77i n 95.7m m2.93i n 74.5m m5.74i n 145.9m mB a t t e r yC h a r g e rS h e e tD r a w i n g N o .S i z eC h e c kD r a w n b yD e n o m i n a t i o n A 33(3)T 129991B a s i c d i m e n s i o n s F L I R T 5x x-2017-02-17R &D I n s t r u m e n t sM o d i f i e d1234567891013254CFBDGEA6R e vA1:5S c a l e。

Fluid TimeHYT was born of a question. Time flows and only gains meaning through content. So why limit its measurement to indicating the now in splendid isolation, with needle-sharp hands or fleeting digital displays?Determined that its rebellion should make statements and waves, a multi-disciplinary think-tank set out to create timepieces that visibly connect the past, present and future. The HYT answer is a watch that overcomes the force of gravity to indicate the passage of time with liquids. Highly advanced technology took its cue from philosophy to mirror time’s intrinsic fluidity.Grégory DourdeCEOGUaRaNTEEIn this manual, you can find the basic instructions for using and maintaining your watch.Each HYT watch bears an individual identification number, which guarantees both its authenticity, and that all the work involved in its creation has been supervised by a master watchmaker.Each HYT watch is equipped with a fluidic module. This device enables the time to be displayed via the meniscus1. The meniscus marks the boundary between the two immiscible fluids in the capillary3. The watch movement drives the module via the bellows2 fixed on the main plate. Only a professional watchmaker approved by HYT can replace this fluidic system. It bears a unique serial number.The card you received when you purchased your watch is the electronic guarantee certificate for your HYT watch.The QR Code on the front of your card gives you access to unique and interactive content, once you have downloaded the app. This content explains the correct way to use your watch, with specific videos and texts.The guarantee is activated upon purchase in our network of approved HYT retailers. You must present your activated guarantee card to be entitled to the guarantee.If following your purchase you have not received a confirmation e-mail, please go to /lounge. Then select the market place corresponding to your mobile. The app will ask you to scan the QR Code and enter your e-mail, in order to send you a password. By downloading this app, you will be able to contact our customer services in a single click in case of an incident or if you have any questions.Your HYT watch is guaranteed against all manufacturing defects for five years from the date it was purchased, if the watch was purchased from an approved HYT retailer. This guarantee does not however cover damage caused by incorrect handling or improper use of the watch.For any service, repair or maintenance procedure, please ensure you only use retailers approved by HYT or our customer services.Y ou can find the list of our network of approved retailers on our website .Any repair or maintenance work carried out by third parties who have not been approved by HYT will automatically void the guarantee. Any damage caused will then have to be repaired at your expense.PRECaUTIONS FOR USEYour HYT watch is set and ready to be worn.A colored liquid documents the recent past; a transparent fluid indicates the foreseeable future. Their meeting point is a meniscus in the capillary3, aka the now.Important :If you plan to store the watch for a Array while, the colored liquid has to be stored in itsown reservoir (in the left bellow2).To do this, pull the crown out to position B (timesetting). Allow the colored liquid to move into“Zone II” until it starts rewinding (ensure the timeneeded for this movement is respected). Oncethe rewinding phase is complete (colored liquidin “Zone I”), ensure that the crown remains in thetime setting position B. Your watch is now ready tobe stored for an extended period.The capillary3is then filled with transparentliquid (it is possible to still see some coloredliquid in “Zone I”).Produced and tested to stringent criteria, the constituent components of your HYT watch together form an exceptionally water resistant unit. To ensure these qualities are preserved, we recommend that you have the gaskets replaced during a service at an authorized retailer. Temperature variations, moisture, perspiration or repeated impacts may adversely affect its water resistance over the years.With its water resistant case, your HYT watch is fully washable. It should be cleaned regularly in lukewarm, soapy water, rinsed and then carefully dried with a soft cloth. Afterexposure to sea water, rinse your HYT watch in fresh water.QUICk GUIDE WINDING SETTING THE TImE p.7p.8p.9p.10p.11GlOSSaRy p.6SETTING THE TImECOUNTER ClOCkWISE p.10GlOSSaRy0. Fluidic module:To create a liquid time indicator that is compact, and wearable, HYT has developed a completely new high-tech concept, using two flexible bellows at each end of a capillary tube. The system is sealed in accordance with the most stringent standards used in the aerospace industry, with each bellow containing immiscible liquids. The exclusive patented fluidic module represents this complete system.1. Meniscus:The two liquids are separated by their intrinsic repulsive properties. . The meniscus marks the surface separating the liquids in the tube, indicating the time.2. Bellows:The bellows are the two reservoirs located at 6 o’clock. They are made of a highly resistant, flexible alloy four times finer than a human hair. The movement compresses the left-hand bellow which is emptied of its colored liquid. The other bellow then fills, and vice versa, moving the liquid within the capillary, and with it the meniscus which indicates the time.3. Capillary:This tube, made from the best quality glass as used in the medical industry, is circular in shape and contains two immiscible liquids. A surface treatment is applied to the inside of the capillary, which enables the two liquids to move smoothly without adhering to the glass.4. Rewind:When the colored liquid gets to 6 o’clock (Zone II), it switches to rewind mode, flowing back to its original position (Zone I).3215QUICk GUIDE1. Time display (hours)2. Minutes hand3. Seconds display4. Crown settingsPos A.: windingPos B.: time setting(pulled out)5. Power reserve indicator(65 hours)WINDINGPos A.INTRODUCTIONThis function ensures that the power required to drive your watch is stored by the movement.HOW TO USE• Wind the watch by turning the crown clockwise.SETTING THE TImEPos B.INTRODUCTIONThis function allows the time shown on your watch to be set using the crown.IMPORTANT•Moving the microfluids within the capillary 3 should be approached with much caution • We highly recommend that the fluid is only moved 10 minutes with each movementof the crown• This should mean that moving the fluid a full hour takes around 6 seconds.HOW TO USE•Pull the crown out to position “B”•minutes hand is at the time required • Push the crown in completely against the case.REWIND• is allowed by the pressure of the two bellows 2speed is higher when the retrograde 4II” and is minimal when the liquid approaches starting point in “Zone I”.DISPlay TImEExamPlES2) 10:353) 5:501) 6:30It is possible to set your watch counter clockwise.Warning: counter clockwise movement of the crown must be stopped when the colored liquid reaches “Zone I”.11HYT SA - Rue de PRébARReAu 17, 2000 NeucHâTel - SwiTzeRlANd - PHoNe + 41 32 323 27 70 - POWER RESERvEINDICaTOR。

Ergonomic new design forour most comfortable grip Separate Autofocus andImage Recording buttons *This sleek new design isn’t just window dressing. Fromthe rubberized, water-tight chassis to the scratch-resistantDragontrail ™ cover glass LCD, the new Exx-Series is madeto work hard all day long.HARD-WORKING DESIGN,FOR HARD-WORKING PROSLi-ion battery forextended use times Vibrant, 4” optically-bonded PCAP touchscreenBright LED work lights improve image clarity in dim areasSpeaker plays backvoice annotation Mic for voice annotation Scratch-resistantDragontrail TM cover glass FLIR Exx-Series ™ 5 MP digital camera now closerto thermal detector for superiorMSX ® enhancementsE53 | E75 | E85 | E95True 42° FOV for widearea surveys with asingle lens*Laser pointer providesvisual guidanceLaser provides distancemeasurement and precise autofocus **E75, E85, E95 onlyExx-Series cameras are backed by FLIR’s industry-leading warranty 2 years: Full protection, parts, labor 5 years: Battery 10 years: Detector D E T E C T O R WA R R A N T Y *B AT T E R Y WA R R A N T Y *F U L L P R O D U C T WA R R A N T Y *TECHNICAL SPECIFICATIONSLEARN MORE ABOUT EXX-SERIES CAMERAS AT /EXX-BUILDINGFLIR Exx-Series ™The Infrared Training Center The greater your knowledge about thermal imaging, the greater the dividends you’ll realize for your company and your career. That’s why the Infrared Training Center (ITC) offers classes for practically every application, from free online courses to advanced training that can certify you as a thermography expert, qualifying you to take a leadership role in your internal IR program. ITC classes include: • Thermography Fundamentals Training • IR Building Inspection • IR Roofing Inspection Thermography Certification Training Level I certifies that you know how a thermal imager works and how to use it. Level II cranks your credibility up a notch with more in-depth concepts and intensive labs. Level III asserts that you have knowledge and skills to administer your company’s thermography program. These certifications offer strong validation to support the work you do as a thermographer. Mobile Training Units and on-site training at your facility are encouraged if you wouldlike to certify a group of 10 or more. For a complete list and schedule of courses andmore information, visit or call 1.866.872.4647.Features By CameraE53E75E85E95IR Resolution240 × 180 (43,200 pixels)320 × 240 (76,800 pixels)384 × 288 (110,592 pixels)464 × 348 (161,472 pixels)UltraMax ®—307,200 pixels 442,368 pixels 645,888 pixels Object Temperature Range -20°C to 120°C(-4°F to 248°F)0°C to 650°C(32°F to 1200°F)-20°C to 120°C (-4°F to 248°F)0°C to 650°C (32°F to 1200°F)Optional300°C to 1000°C(572°F to 1830°F)-20°C to 120°C (-4°F to 248°F)0°C to 650°C (32°F to 1200°F)300°C to 1200°C (572°F to 2192°F)-20°C to 120°C (-4°F to 248°F)0°C to 650°C (32°F to 1200°F)300°C to 1500°C (572°F to 2732°F)Focus Manual Continuous, one-shot laser distance meter (LDM), one-shot contrast, manual Continuous, one-shotlaser distance meter(LDM), one-shotcontrast, manualContinuous, one-shot laser distance meter (LDM), one-shot contrast, manual Field of View (FOV)24° × 18°42° × 32° (10 mm lens), 24° × 18° (18 mm lens), 14° × 10° (29 mm lens)42° × 32° (10 mmlens), 24° × 18° (18mm lens), 14° × 10°(29 mm lens)42° × 32° (10 mm lens), 24° × 18° (18 mm lens), 14° × 10° (29 mm lens)Lens Identification —Automatic Automatic AutomaticTime-lapse (Infrared)———10 sec to 24 hoursLaser Area Measurement ——Yes YesLaser Distance Measurement —Yes, on-screen Yes, on-screen Yes, on-screen Measurement Presets No measurement, center spot, hot spot, cold spot, 3 spots, hot spot-spot*No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2Spotmeter 3 in live mode 1 in live mode 3 in live mode 3 in live mode Area 1 in live mode 1 in live mode 3 in live mode 3 in live mode Picture-in-Picture Centered infrared area on the visual image Resizable and movable Resizable and movable Resizable and movable Common Features Detector Type and Pitch Uncooled microbolometer, 17 µm Thermal Sensitivity/NETD <0.04°C @ 30°C (86°F), 24° lens Spectral Range 7.5 – 14.0 µm Image Frequency 30 Hz F-Number f/1.3, 24° lens Digital Zoom 1-4x continuous Image Presentation and Modes Display 4”, 640 × 480 pixel touch screen LCD with auto-rotation Digital Camera 5 MP, 53° × 41° FOV Color Palettes Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC Image Modes Infrared, visual, MSX ®, Picture-in-Picture MSX ®Embosses visual details on full resolution thermal image Measurement and Analysis Accuracy ±2°C (±3.6°F) or ±2% of reading for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)Alarms Moisture alarm, insulation alarm, measurement alarms Color Alarm (Isotherm)Above/below/interval/condensation/insulation Compass, GPS Yes; automatic GPS image tagging METERLiNK ®Yes; several readings Laser Pointer Yes; dedicated buttonImage Storage Storage Media Removable SD card (8 GB)Image File Format Standard JPEG with measurement data includedVideo Recording and Streaming Radiometric IR Video Recording Real-time radiometric recording (.csq)Non-Radiometric IR or Visual Video H.264 to memory cardRadiometric IR Video Streaming Yes, over UVC or Wi-FiNon-Radiometric IR Video Streaming H.264 or MPEG-4 over Wi-Fi; MJPEG over UVC or Wi-FiCommunication Interfaces USB 2.0, Bluetooth, Wi-Fi, DisplayPortVideo Out DisplayPort over USB Type-CAdditional Data Battery Type Li-ion battery, charged in camera or on separate chargerBattery Operating Time Approx. 2.5 hours at 25°C (77°F) ambient temperature and typical useOperating Temperature Range -15°C to 50°C (5°F to 122°F)Storage Temperature Range -40°C to 70°C (-40°F to 158°F)Shock/Vibration/Encapsulation; Safety 25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6, IP 54 /IEC 60529; EN/UL/CSA/PSE 60950-1Weight/Dimensions 1 kg (2.2 lbs), 27.8 × 11.6 × 11.3 cm (11.0 × 4.6 × 4.4 in)Box Contents Infrared camera with lens, battery (2 ea), battery charger, front protection, straps (hand, wrist), hard transport case, lanyards, lens caps, lens cleaning cloth, power supplies, 8 GB SD card, Torx wrench, cables (USB 2.0 A to USB Type-C, USB Type-C to USB Type-C, USB Type-C to HDMI)*Hot spot to center spot Delta measurement。

Multi-function Display for Greater Safety and ConvenienceVisionMaster FT TotalWatchThe multifunction VisionMaster FT TotalWatch offers complete bridge manning display and flexibility, with a combination of navigational technologies at a single workstation. The VisionMaster FT TotalWatch easily displays radar, chart radar, ECDIS, conning information display or central alarm management to suit your different operational requirements and navigational situations.The VisionMaster FT TotalWatch can be easily configured as a stand-alone workstation and employs a network-based architecture for easy data distribution on all displays, with an innovative user interface that shares commonality with all VisionMaster FT products.With VisionMaster FT TotalWatch, you can have at your fingertips all of the many benefits of the range of Northrop Grumman Sperry Marine’s successful VisionMaster FT products used by the maritime industry around the world. The VisionMaster FT TotalWatch provides many important benefits, including:• Single bridge display for greater convenience• Ultimate situational awareness• Reduced costs and manning needs• Admiralty Information Overlay (AIO) support• Upgradability and optional featuresSingle Bridge Display for Greater Convenience The multifunction VisionMaster FT TotalWatch offers you complete control and flexibility for bridge manning, enabling simultaneous applications to be executed on one workstation with easy switching between them. You can instantly select any VisionMaster FT function, to suit the navigational situation.With a common user interface in all watch modes for safe operation, the VisionMaster FT TotalWatch provides an intuitive user-friendly interface. Any combination of workstation functions and watchkeeper manning configurations can be created quickly and easily to suit user needs, providing navigation data for any watchkeeper at any given time.Ultimate Situational AwarenessThe VisionMaster FT TotalWatch represents the ultimate in situational awareness for the navigator, providing you with safe navigation in maximum confidence.All navigation data is available at any time, maximising situational awareness for each bridge watchkeeper, increasing safety and enhancing navigation performance. Available watch modes include:• Radar• Chart radar• ECDIS• Playback• Central Alarm Management• Conning Information Display• Third Party ApplicationsReduced Costs and Manning NeedsThe VisionMaster FT TotalWatch provides the ultimate in flexibility and redundancy for bridge configuration and manning.With a combination of navigation technologies in one console, the VisionMaster FT TotalWatch supports single watchkeeper bridge requirements and maximises system availability. It also enables reduced manning, so lowering costs as well as reducing the need for training, as it shares the common interface for all VisionMaster FT functions.Ease of use. Peace of mind.Single multi-function bridge display, providing all navigational needs in a single console, for greater safety and convenience. VisionMaster FT TotalWatchAdmiralty Information Overlay (AIO) support The VisionMaster FT series fully supports the AdmiraltyInformation Overlay (AIO) to make passage planning easier and safer, by keeping track of the latest electronic navigation chart (ENC) updates.The AIO includes all temporary and preliminary notices to mariners (T&PNMs), as well as additional navigationally significant information from the UKHO’s ENC validation programme, displayed as a single layer on top of the chart. This also enables shipping companies more easily to comply with port state control requirements, by providing T&PNMs where they do not currently exist in ENC coverage.Upgradability and optional featuresWe recognise that your needs may change over time, so have incorporated a simple built-in upgrade path, to enable you to transform any of the VisionMaster FT series into a complete TotalWatch multi-function workstation. TotalWatch is easy to install, whether in new-build or as a fully compatible retrofit.The VisionMaster FT TotalWatch offers a wide range of optional functions to further improve safety or provide additional important information.These include:• Track and speed control• Unique 3D Vision and sonar• Joystick heading control• Dual Radar, to eliminate blind arcs• ECDIS with radar overlay• CCTV• Fuel Navigator: the first model-based route optimisation system seamlessly integrated with an ECDIS to reduce fuel costs.Instant HelpWe have incorporated an extensive, context-sensitive iHelp facility, which allows the user to quickly search the operator’s manual or access information relevant to the functions on the TotalWatch screen.Type-Approved PerformanceThe VisionMaster FT TotalWatch is type-approved to comply with IEC60945 edn 4, IEC62388 edn 1, IEC62288 edn 1 and IEC61174 edn 3.ECDIS with Radar Overlay widescreenRadar widescreenChart Radar widescreenA division of the Northrop Grumman Corporation, Sperry Marine provides a range of sophisticated navigation solutions for mariners around the world: autopilot and steering control systems, compass systems, integrated navigation and bridge systems, integrated platform management systems, speedlogs, navigation radar and ECDIS. Working with mariners around the globe for over 100 years.Specifications and features subject to change without notice. ©2017 Northrop Grumman Systems Corporation All rights reserved.For more information, please contact:AMERICASNew Orleans, LA USATel: +1-504-328-9171ASIAChina, ShanghaiTel: +86-21-5179-0199Hong Kong, Sheung Wan Tel: +852-2581-9122Japan, Tokyo Tel: +81 (03)-3863-7401SingaporeTel: +65-6274-3332South Korea, BusanTel: +82-51-247-7455CANADANova Scotia, HalifaxTel: +1-902-468-9479British Columbia, Vancouver Tel: +1-604-821-2090EUROPEBelgium, AntwerpTel:+32 (0)3233-1433Denmark, Copenhagen Tel: +45 (0)77-33-6633Germany, HamburgTel: +49 (0)40-299-000The Netherlands, Vlaardingen Tel: +31 (0)10-445-1600Norway, BergenTel: +47 (0)55-94-9494United Kingdom, LondonTel: +44 (0)20-8329-200024/7 ServiceOur global service network provides prompt shipboard maintenance and repair services in every major seaport in the world, 24 hours a day, 365 days a year.Sperry Marine Service/Sales locations Sperry Marine Service Agents Regional Head offices Gyrofin officesBR-240-BLB-0314A330 # 14-07622014 RM Graphics_OPC_04/17。

高清摄像手表使用说明书产品简介感谢您使用本产品，本产品是首款具有高清数码摄像和拍照功能的手表，内置内存，又名“手表摄像机”。

可拍摄清晰照片和高画质视频，并具有单独录音功能。

为了您能够轻松的使用本产品，请认真阅读本说明书。

功能概述：1、运动型，录像拍照录音多功能手表；2、高品质网络摄像头摄像功能，达500万像素3、可直接在电脑播放视频，U盘功能；4、进口手表机芯，走时准确相关参数录像分辨率：1280*960或680*480 帧数：30帧/秒拍照分辨率：1600*1200录像格式：AVI 拍照格式：JPG充电时间：2-3小时最低照度：1.0LUX录像格式：AVI格式USB传速：2.0（Hs）内置锂电，可连续工作1、调节时间扭2、摄像头3开关机摄像键4、 USB接口5、拍照录音键6、装饰圈 7.状态指示灯、操作说明1，录像操作：长按开机键约3秒，红蓝灯同时亮起，红灯灭之后蓝色灯亮进入待机状态。

此时短按开机键，蓝灯慢闪3下后熄灭，手表开始录像。

录像时短按任意键，蓝色指示灯都会快闪3下后熄灭，提示正在录像过程中。

需要保存录像的时候，短按一下开机键，此时蓝灯慢闪，在蓝灯慢闪的时候，在短按一下开机键，此时蓝灯常亮，表示录像保存成功.2，拍照操作：在待机状态下，短按拍照键，红灯闪烁一次后红灯常亮，表示机器成功拍照并存储一张照片。

3，单独录音操作：在待机状态下，长按拍照键后红灯闪烁后松手，表示正在录音，短按保存文件进入待机状态。

4，充电：连接计算机USB接口或充电器，即可对摄像机进行充电。

充电时，红灯长亮蓝灯闪烁，当电池充满电后，红蓝灯长亮，请停止充电。

5关机：在任何模式下，长按开机键，红灯快闪3下并关机。

在待机状态下，不操作3分钟后自动关机。

5，设置录像时间：摄像机提供了在视频文件中显示录像时间的功能，格式为：年-月-日时:分:秒，设置时间方法如下：将表通过USB线与电脑良好连接，使用本机预存的WriteTime.exe 文件来更新录像时间，双击WriteTime.exe即可。

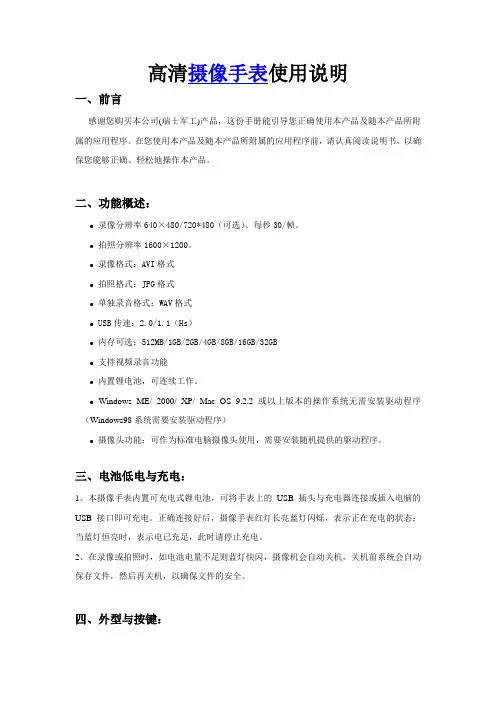

高清摄像手表使用说明一、前言感谢您购买本公司(瑞士军工)产品，这份手册能引导您正确使用本产品及随本产品所附属的应用程序。

在您使用本产品及随本产品所附属的应用程序前，请认真阅读说明书，以确保您能够正确、轻松地操作本产品。

二、功能概述：●录像分辨率640×480/720*480（可选）、每秒30/帧。

●拍照分辨率1600×1200。

●录像格式：AVI格式●拍照格式：JPG格式●单独录音格式：WAV格式● USB传速：2.0/1.1（Hs）●内存可选：512MB/1GB/2GB/4GB/8GB/16GB/32GB●支持视频录音功能●内置锂电池，可连续工作。

●Windows ME/ 2000/ XP/ Mac OS 9.2.2 或以上版本的操作系统无需安装驱动程序（Windows98系统需要安装驱动程序）●摄像头功能：可作为标准电脑摄像头使用，需要安装随机提供的驱动程序。

三、电池低电与充电：1、本摄像手表内置可充电式锂电池，可将手表上的USB插头与充电器连接或插入电脑的USB接口即可充电。

正确连接好后，摄像手表红灯长亮蓝灯闪烁，表示正在充电的状态；当蓝灯恒亮时，表示电已充足，此时请停止充电。

2、在录像或拍照时，如电池电量不足则蓝灯快闪，摄像机会自动关机，关机前系统会自动保存文件，然后再关机，以确保文件的安全。

四、外型与按键：1、开机/录像键：长按开/关机，短按录像。

2、拍照键：短按拍照键拍照。

3、USB接口4、摄像头5、指示灯6、组合复位键：先按住拍照键不放，再按开机/录像键五、操作方法：1、开机：在关机的状态下，长按开机/录像键两秒钟左右红、蓝灯同时亮，红灯灭蓝灯长亮进入待机的状态。

2、关机：在待机或录像的状态下，长按开机/录像键红灯会闪烁三下并关机；在待机的状态下不作任何动作3分钟后会自动关机。

3、录像：在待机状态下，短按开机/录像键蓝灯闪烁三下后熄灭，表示开始录像；在录像时短按任意键蓝灯都会闪三下，提示正在录像中；在蓝灯闪烁时短按开机/录像键会保存当前录像的文件并进入到待机的状态。

高清摄像手表使用说明一、前言感谢您购买本产品，这份手册能引导您正确使用本产品及随本产品所附属的应用程序。

在您使用本产品及随本产品所附属的应用程序前，请认真阅读说明书，以确保您能够正确、轻松地操作本产品。

二、功能概述：● USB传速：2.0（Hs）●录像格式:AVI格式●内存可选：512MB/1GB/2GB/4GB/8GB/16GB/32Gb/●支持拍照，摄像，录音，物体感应摄像功能●内置锂电池●Windows ME/ 2000/ XP/ Mac OS 9.2.2 或以上版本的操作系统无需安装驱动程序（Windows98系统需要安装驱动程序）三、充电：1、本摄像手表内置可充电式锂电池，可将手表上的USB插头与充电器连接或插入电脑的USB接口即可充电，正确连接好后，摄像手表红绿灯亮起，绿灯闪烁，当绿灯停止闪烁时，表示电已充足，此时请停止充电。

2、在录像时，如电池电量不足，摄像机会自动关机，关机前系统会自动保存录象文件，然后再关机，以确保文件的安全。

四外型与按键：1.拍照，单独录音键B接口3.开关机，摄像，物体感应摄像4.状态指示灯5.时间调校手柄 6.麦克风 7.摄像头五、操作方法：1.开机：长按开关键，开机后绿灯长亮，此时进入摄像待机状态。

2.摄像：在待机状态下，按一下开关机键转为绿灯闪烁3次，此时进入摄像，快速按开关机两下暂停并保存；3.物体感应摄像：在待机状态下，快速按开关机两下，红蓝灯快速闪三下，进入物体感应摄像，再按一下开关机键，暂停并保存.4.拍照：在待机状态下，按拍照键一下，红灯闪一下，拍一张照片并保存.5.单独录音：在待机状态下，长按单独录音键，红灯闪烁三下，进入单独录音，再按一下单独录音键暂停并保存。

6.关机：在待机状态下，长按开机键，红灯闪烁三下关机。

7.复位键：如出现死机现象，请拍照键和开关机键同时按复位.8.更改时间：USB连接电脑，内存里有一time.txt个文本文件，在内存里有时间显示更改成当时时间即可。
