高清摄像笔使用说明书(修正版)系统时间可修改

User Manual Before operating the unit,pleasereadthismanualcarefullyand understandthoroughly. Retain it for future use1 / 152 / 15Product FeaturesSuper image sensor for low illumination video recording. Auto focus, quick light response Full HD 1080P up to 30fps,720P up to 60fps H.264 compressionBuilt-in micro SD card,support up to 32GB Only one button, easy operationultra-integrated pen type design, suitable formeeting recording, evidence recording, andoutdoor sports scenes, etc.Easy download to PC/MAC with USB plugProduct OverviewLens MicrophoneLens Cover SliderReset Hole LED Indicator USB PlugFunction ButtonBasicOperations1.T urning The UnitOn/ Video Recording Press and hold the Function button tillthe blue indicatorturns on,release the button, the green indicator will blink and then turn off, the unitstarts videorecording.Click the Function button again, will stop recording, the blue indicator turns on and the unit ison standby mode.When the video clip lengthis over10 minutes,the unit will save the current clip file, and then restart video recording automatically.Note: Be sure to open the lens cover before recording.2.P hotoShootingEnter Photo Mode:When the unit ison standby mode(the blue indicator keeps on),doubleclick the Function button,the blue and green indicators will blink alternately, the unit entered Photo Mode.3 / 15.Click the Function button once to take a photo, the blue indicator blinks rapidly.Quit the Photo mode:Double click the Function button, the unit will back to Standby Mode, the blue indicator keeps on.3.T urning The Unit OffWhen the unit is on, press and hold the Function button for about 3 seconds,the unit will shut down. Auto power off function:The unit will shut down automatically in following conditions:(1). The battery power is low. The blueindicatorwill blink for seconds, and then the unit will shut down.(2). The memory is full. The blue and greenindicatorswill blinkfor seconds, and then the unit will shut down.(3).If no operation for one minute in Standby Mode, the unit will shut down to save power.4.C harging The Battery4 / 15The unit has an internal, rechargeable battery.The battery can be charged byfollowing ways:1). Plug the unit into your computer USB port.2). Plug the unit to DC5Vbattery charger.During charging, the blue indicator will blink, when the battery power is full, the blue indicator keeps on.5.R eset FunctionWhen the unit works abnormal for illegal operation or other unknown reasons, it needs to bereset.Use a thin stick (e.g. toothpick) to press the Reset button inside the Reset hole. Restart the unit, it will work normally again.6.S etting The UnitPlug the unit into the computer USB port, a new removable disk will appear on the computer screen. Open the removable disk, you will find the file setup.exe under the root directory, double-click the file to run it, following window will appear:5 / 15You can set date/time, frame size, image quality, audiovolume, etc.When thesetting is completed, click the button on the lower left to save the settings.To make the settings take effect, disconnect the unit with computer, and turn the unit on.6 / 157 / 15upgrade and update. Please base on real object.)Caution:Your device is a product of superior design and craftsmanship and should be treated with care. The following suggestions will help you protect your warrantycoverage.Keep the device dry. Precipitation, humidity, and all types of liquids or moisturecan contain minerals that will corrode electronic circuits. If your device doesget wet,allow it to dry completely.The unit may become fairly hot during recording –this is normal. To ensure proper cooling do not block the flow of air to the cover of the unit.Do not drop, knock, or shake the device. Rough handling can break internalcircuit boards and fine mechanics.Do not use harsh chemicals, cleaning solvents, or strong detergents to clean thedevice.*Please follow State′s law. Do not use the unit8 / 15illegally.使用说明书使用时请详细阅读本说明书，以免因不熟悉或不对操作，导致未达成使用目的。

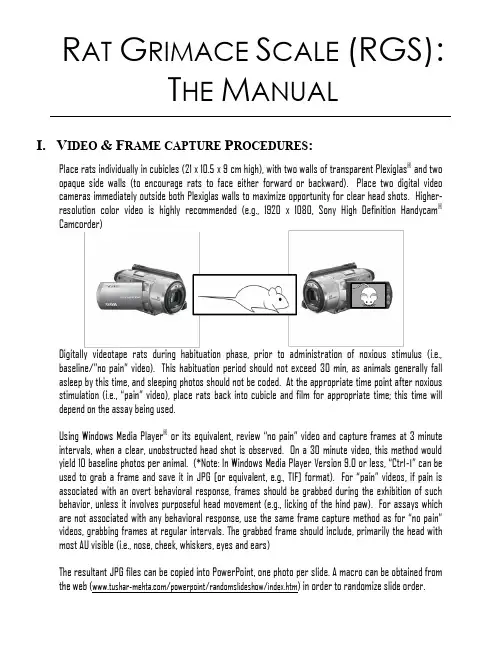

I. V IDEO & F RAME CAPTURE P ROCEDURES :Place rats individually in cubicles (21 x 10.5 x 9 cm high), with two walls of transparent Plexiglas ® and twoopaque side walls (to encourage rats to face either forward or backward). Place two digital video cameras immediately outside both Plexiglas walls to maximize opportunity for clear head shots. Higher-resolution color video is highly recommended (e.g., 1920 x 1080, Sony High Definition Handycam ® Camcorder)Digitally videotape rats during habituation phase, prior to administration of noxious stimulus (i.e., baseline/”no pain” video). This habituation period should not exceed 30 min, as animals generally fall asleep by this time, and sleeping photos should not be coded. At the appropriate time point after noxious stimulation (i.e., “pain” video), place rats back into cubicle and film for appropriate time; this time will depend on the assay being used.Using Windows Media Player ® or its equivalent, review “no pain” video and capture frames at 3 minute intervals, when a clear, unobstructed head shot is observed. On a 30 minute video, this method would yield 10 baseline photos per animal. (*Note: In Windows Media Player Version 9.0 or less, “Ctrl -I ” can be used to grab a frame and save it in JPG [or equivalent, e.g., TIF] format). For “pain” videos, if pain is associated with an overt behavioral response, frames should be grabbed during the exhibition of such behavior, unless it involves purposeful head movement (e.g., licking of the hind paw). For assays which are not associated with any behavioral response, use the same frame capture method as for “no pain” videos, grabbing frames at regular intervals. The grabbed frame should include, primarily the head with most AU visible (i.e., nose, cheek, whiskers, eyes and ears)The resultant JPG files can be copied into PowerPoint, one photo per slide. A macro can be obtained from the web (/powerpoint/randomslideshow/index.htm ) in order to randomize slide order.R AT G RIMACE S CALE (RGS): T HE M ANUALII.C ODING P ROCEDURES:Hide photo identifications (for example by placing them in the Notes panel within PowerPoint) during coding to ensure that coding is performed blind. Coders should always use the computer when coding, as photographs may lose resolution with printing. Before beginning the coding process the coder should view and familiarize oneself with baseline photos provided to determine the specific rat features present.All faces are to be coded for the presence and intensity of the following specific facial Action Units (AU), relative to the status of the region of the baseline prototype.A.I NTENSITY R ATINGS:Intensity ratings are coded for each AU.AU is no t present = 0AU moderately visible = 1AU pronounced = 2An RGS score for each photograph is calculated by averaging intensity ratings for each AU. An RGS difference score (relative to baseline/”no pain”) can then be calculated for each subject, a nd averaged across a group. These calculations are described in detail at the end of the document.NOTE: If an action unit is not present in the photo, a score of “NA” (Not Applicable) should be used.B.A CTION U NITS:1.Orbital TighteningRats in pain display a narrowing of the orbital area, a tightly closed eyelid, or an eye squeeze. An eye squeeze is defined as the orbital muscles around the eyes being contracted. The nictitating membrane may be visible around the eye and becomes more pronounced as the pain intensifies. As a guideline, any eye closure that reduces the eye size by more than half should be coded as a “2”. *Note that sleeping rats display closed eyes, but of a relaxed nature, whereas a rat in pain may display a closed eye with tight orbital muscles. Photographs of sleeping rats should not be taken and/or coded.“0” “1” “2”2.Nose/Cheek FlatteningRats in pain display a lack of bulge on top of the nose (i.e., a flattening of the nose). In the “no pain” condition a clear bulge is present at the bridge of the nose. The whisker pads are also rounded and slightly puffed out, leaving a clear crease between the pads and the cheek. When in pain, the bridge of the nose flattens and elongates, causing the whisker pads to flatten. At this time the crease between the pads and the cheek is no longer present. In frontal headshots, the nose may appear narrower and longer.“0”“1”“2”3.Ear Changes (Position, Orientation, Shape)The ears of rats in pain may be curled and pointed more than in the baseline position. In the baseline position ears are roughly perpendicular to the head, face forward, and are angled slightly backward. Importantly, the ears also have a rounded shape. In pain, the ears tend to fold, curl inwards and are angled forward. Th is curling of the ears tends to result in a “pointed” shape of the ears. In pronounced pain states, the ears are angled outward and are held close to 45° away from both the perpendicular axis and the nose. As a result, the space between the ears may appear wider relative to baseline.“0” “1” “2”4.Whisker ChangeRats in pain have whiskers that have moved from the baseline position and orientation. Whiskers startrelaxed and drooping slightly downwards and, as pain progresses, tension in the pads increases and they become angled back along the head. In pain, the whisker pad is contracted causing the whiskers to bunch and be directed outwards away from the face. This gives the appearance of the whiskers as “standing on end”. As follicles become tense, whiskers are closer together and are less distinct.“0” “1”“2”III.C ALCULATING RGS S CORES:1. Average all AUs for each photograph to give RGS score. Most of these preliminary calculations are easily2.After unblinding, sort data by subject (e.g., “Rat”) then by condition. Note that “no pain” photographs arealmost always baseline photographs taken prior to noxious stimulation:3.Calculate mean R GS score for all “no pain” and all “pain” photographs for each subject and subtract themean for the “no pain” photographs from the mean for the “pain” photographs to give an RGS difference score for each subject:4.Difference scores can then be averaged across subjects to give a mean difference score, which can beanalyzed for significance using a one-sample Student’s t-test compared to 0.IV.A TTRIBUTION:For all uses of the RGS, please attribute our companion publication as follows:Sotocinal, S.G., Sorge, R.E., Zaloum, A., Tuttle, A.H., Martin, L.J., Wieskopf, J.S., Mapplebeck, J.C.S., Wei, P., Zhan, S., Zhang, S., McDougall, J.J., King, O.D., and Mogil, J.S. The Rat Grimace Scale: a partially automated method for quantifying pain in the laboratory rat via facial expressions. Mol. Pain, in press.*********************************************************************.Good luck!。

录像笔的使用方法1. 录像笔的使用方法之一：打开录像笔开关，按下录像按钮即可开始录像。

在录像过程中，请注意保持笔的稳定，以确保录像画面清晰。

2. 使用方法二：连接笔到电脑或移动设备，可以实时查看录像、下载、编辑或分享录像文件。

3. 录像笔的使用方法还包括：确保笔内置存储空间足够，以确保能够完整存储录像内容。

4. 使用方法四：调整录像笔的分辨率和画质，以根据不同的拍摄需求选择合适的参数。

5. 使用方法五：保持适当的光线环境，以获得高质量的录像效果。

6. 使用方法六：录像过程中，注意观察录像笔屏幕上的指示灯，以确保录像状态正常。

7. 使用方法七：为了保护隐私，遵守当地法律法规，避免未经允许的录像行为。

8. 使用方法八：在录像前清理镜头，以确保录像画面清晰、无污点。

9. 录像笔的使用方法之一：了解录像笔的存储容量和电池续航能力，以便合理安排拍摄时间和内容。

10. 使用方法十：学会使用录像笔的变焦功能，以适应不同拍摄场景的需要。

11. 使用方法十一：在录像过程中，保持笔的对焦稳定，避免出现模糊或晃动的画面。

12. 使用方法十二：了解录像笔的特殊功能，例如夜视、运动模式等，以便在特定环境下得到最佳的录像效果。

13. 使用方法十三：在录像结束后，及时保存和备份录像文件，以免意外丢失重要内容。

14. 使用方法十四：学会使用录像笔的快捷功能，如快速启动录像、暂停录像等，以方便操作。

15. 使用方法十五：定期清理录像笔的表面和接口，以保持良好的使用状态。

16. 使用方法十六：了解录像笔的音频记录功能，并在需要时进行相关设置，以确保录像内容的完整性。

17. 使用方法十七：避免在低温或高温环境下长时间使用录像笔，以防对设备造成损坏。

18. 使用方法十八：了解录像笔的存储格式和文件类型，以便在后期编辑和处理时选择合适的软件和工具。

19. 使用方法十九：结合使用手机或平板等设备，通过应用程序实现远程控制、实时查看和分享录像文件。

摄像笔使用说明书一、总览1、麦克风2、摄像头3、电源开关4、指示灯5、复位孔6、模式转换开关(左边摄像，右边拍照)7、USB二、产品简介本产品是世界上首款采用内置存储器的摄像笔，不仅能用于文字书写，也能用于录像或拍照，使用十分方便，是现代科技与传统文具的完美结合。

产品操作简便，小巧精致，美观实用，便于携带，是商务、教育、安防、媒体、司法、旅游、医疗、生活等领域必备的实用工具，受到广大用户的青睐。

三、操作说明1.开机、摄像或拍照：在关机状态（指示灯全灭）下，短按按钮，先是黄灯亮一段时间（大概5秒左右）到蓝灯亮即开机。

注意：开机时若模式开关已经拨到录像模式（蓝灯亮），则直接进入录像模式立即开始录像；开机时若模式开关已经拨到拍照模式，则直接进入拍照模式（蓝灯亮）。

每次重新开机，都会进入初始化状态，在此期间，系统处于忙碌状态，请勿进行其他操作，如多次按按钮，连接计算机等；初始化时间会因存储器容量不同而略有区别。

2.摄像停止操作：在录像模式下，短按按钮，则停止当前的录像，并保存录像内容，蓝灯灭，橙灯亮，机器进入待机状态。

注意：a. 工作状态中，如果电量不足，摄像机会自动保存所摄影像并自动关机，请充电后再使用；b. 持续录像时，每过90分钟，摄像机将自动保存一次文件，并继续摄影，直至电池耗尽、手动停止；c. 每一次开始摄像和停止摄像的循环操作，都将生成一个新的视频文件；d. 文件存盘需要一定的时间，请勿在指示灯由蓝变橙的过程中进行其他操作，如：多次按按钮、连接计算机等，这样将会导致刚刚录制的视频文件无法顺利保存甚至导致摄像机停止响应。

e. 请在有充足照明的环境下，保持摄像机机身的竖直与稳定，并与被摄景物保持30cm以上的距离，以得到方向正确、色彩自然、图像清晰、画面稳定的影像；3.模式切换操作：A.在录像模式或待机状态下，将模式选择开关拨到拍照模式(右边)，则进入到拍照模式。

B.在拍照模式下，将模式选择开关拨到录像模式（左边），则进入到录像模式，并立即开始录像。

FULL HD HDMI Camera OPER ATION GUIDE HD-100ATo prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.1. Be sure to use only the standard adapter that is specified in the specification sheet. Using any other adapter could cause fire, electrical shock, or damage to the product.2. Incorrectly connecting the power supply or replacing battery may cause explosion,cause excessive heat or fire3. Securely plug the power cord into the power receptacle. Insecure connection may cause fire.4. Do not place conductive objects (e.g. screw drivers, coins, metal items, etc.) or containers filled with water on top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects.WARNINGThis symbol indicates that dangerousvoltage consisting a risk of electric shockis present within this unit.PRECAUTION This exclamation point symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.5. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock6. If any unusual smells or smoke come from the unit, stop using the product. Immediately disconnect the power sourceand contact the service center. Continued use in such a condition may cause fire or electric shock.7. If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way.8. When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire or electric shock.Please read this Operation Guide before installing and using the camera & retain this copy for your reference.1. Always follow the instructions in the operations guide when applying power. Fire and equipment damage can occur if power isapplied incorrectly. For the correct power supply,refer to the specifications page.2. Do not use camera if fumes, smoke or a strange odor is emitted from the camera, or if it seems not functional correctly.Disconnect the power source immediately and consult with your supplier.3. Do not use the camera in extreme environments where high temperatures or high humidity exists. Use the camera underconditions where temperatures are between 32°F ~ 104°F, and humidity is below 90%.4. If installed close to a TV, radio transmitter, magnet, electric motor transformer or audio speakers the magnetic field generatedmay interfere with or distort the image.5. Try to avoid fluorescent light reflections, unstable light conditions, direct pointing toward the sun. Use caution when operating the camerain the vicinity of spotlights or other bright lights and light reflecting objects.6. To prevent damage, do not drop the camera or subject it to strong shock or vibration.L- Left | R- Right | U- Up | D- Down | - Select• 4K UHD 1/3” Progressive Scan CMOS sensor capable of 4K (4096 x 2160) captures sharp and vivid images even under very low light conditions.• Powered by a back-illuminated pixel technology.• Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.• Superb motion-compensated temporal noise reduction filter for motion video without blurring.• OSD control breakout cable with two audio inputs and RS-485 for remote communication.• Flawlessly relays multi-channel embedded audio via HDMI 1.3a.• Perfectly suited for broadcast, pro audio/video, and security.• Versatile, compact, and rugged design.1. Move the Cursor Up/Down to Choose Menu To move from item to item in the menu, move the joystick to the Up/Down.2. Change the Value To change the value of the selected item, move the joystick to the Left/Right.3.Shift to the Sub Menu of the Chosen Menu To go into sub menu, press SEL key. The menu items with > always have its sub menu.OSD MENU MAIN MENU*WB CONTROLAE CONTROLDAY /NIGHTAUDIOIMAGE CONTROLSPECIALSETUPRESETEXITAWB - Auto white balance mode will adjust white balance within 3,000˜K ~ 8,000˜K temperature.ATW - Auto trace white mode will adjust white balance within 1,900˜K ~ 11,000˜K temperature.ONE PUSH - One push mode is used if AWB or ATW cannot produce the proper white balance. Place a white paper in front of the camera when using the one pushmode to self adapt.INDOOR - Indoor mode will adjust white balance to indoor lighting conditions.OUTDOOR - Outdoor mode will adjust white balance to outdoor lighting conditions.MANUAL - Manual mode will adjust white balance manually.BLUE - 0 ~ 100 ( Select blue gain within the range of 0 to 100 )RED - 0 ~ 100 ( Select Red gain within the range of 0 to 100 )WHITE BALANCE*MODE ATWPUSHBLUEREDRETURNSHUT FIXSHUT FIX mode provides more detailed shutter speed option. All other controls are tuned for the selected shutter speed.AGC FIX mode provides more detailed gain option. All other controls are tuned for the selected gain value. • SHUTTER : AUTO, 1/30 ~ 1/10,000 ( Shutter speed can be set ) • AGC MAX : OFF, LOW, MIDDLE, HIGH, DMIN, DMID, DMAX • AGC : AUTO, 0dB ~ 27dB, d2X ~ d9X ( Gain level can be set )• AGC MAX : OFF, LOW, MIDDLE, HIGH, DMIN, DMID, DMAX “AGC MAX” sets the maximum gain value to control the video noise caused by Auto Gain Control.• AE BRIGHT : 0~10 Auto Exposure brightness level can be adjusted.AE CONTROL*AE MODE SHUTTERSHUTTER 1/30IRISAGCAGC MAX 13*AE MODE AGC FIXSHUTTERIRISAGC 9dBAGC MAXSENS UPAE BRIGHT 6FLK CONTROL OFFLENS MODE MANUALRETURN• IRIS SPEED : 0 ~ 5 Electronic Iris speed can be controlled. ( DC Iris lens only )• LENS MODE : INDOOR, OUTDOOR, MANUAL Lens setting will be optimized for the selected environment. ( DC Iris lens only )• FLK CONTROL : AUTO, ON, OFF “FLK CONTROL” mode provides a proper image sensor frequency to match the• MODE : DAY(COLOR), NIGHT(B&W) Set camera to either color mode or B&W mode.• NIGHT COLOR : ON, OFF When “NIGHT COLOR” is turned ON, camera stays on color mode even“NIGHT(B&W)” is selected from the MODE.• COLOR BURST : ON, OFFColor burst signal ON or OFF can be set for CVBS signal. ( Not applicable )AE CONTROL*AE MODE AUTOSHUTTERIRISAGCAGC MAX*MODE DAY (COLOR)NIGHT COLOR OFFCOLOR BURST OFFRETURNMODE : OFF, LINE, MIC Select the proper audio mode from this menu.AUDIO LEVEL : -12dB ~ 48dB Audio level can be manually adjusted from this menu.MIC ATTENUATOR : ON, OFFAudio input attenuation can be controlled from this menu to minimize the audio noise level.AGC LIMIT: -0dB ~ 58dBAudio gain level can be adjusted from this menu when MIC attenuation is enabled.SAMPLE BITS : 16, 20, 24, 32 ( Audio sample bit rate can be adjusted from this menu )AUDIO*MODE LINEAUDIO LEVEL 0 dBMIC ATTENUATOR OFFAGC LIMITSAMPLE BITS 24BITSRETURNCamera image control can be adjusted from EFFECT menu.• DNR MODE : OFF, 2D, 3D, 2D+3D Digital noise reduction can be applied from this menu.• DNR LEVEL : AUTO, LOW, MIDDLE, HIGHNoise reduction level can be adjusted from this menu.• DNR APERTURE : 0 ~ 4 ( Motion artifacts tightness can be adjusted )• CONTRAST : 0 ~ 20 ( Contrast level can be adjusted )• BRIGHTNESS : 0 ~ 20 ( Brightness level can be adjusted )• SATURATION : 0 ~ 20 ( Saturation level can be adjusted )• HUE : 0 ~ 20 ( Hue level can be adjusted )• EDGE ENHANCE : 0 ~ 20 ( Image sharpness level can be adjusted )• AUTO SATURATE : OFF, LOW, MIDDLE, HIGH Decrease saturation automatically when noisy scene is detected.• AUTO EDGE : ON, OFF Decrease edge enhancement (sharpness) automatically when noisy scene is detected.• DEFAULT : See Effects menu to default value.• LENS SHADING : ON, OFF Optical vignetting issue can be corrected from this menu.•BLACK LEVEL : -64 ~ 64 ( Gamma level can be adjusted )• GAMMA CORRECT : DEFAULT, 0.4 ~ 1.0 ( Gamma level can be adjusted )• DNR : Camera noise level can be adjusted from this menu.* 0= Most Ghost Artifact | 4= Most Ghost ArtifactIMAGE CONTROLBRIGHTNESS 11SATURATION 10EDGE ENHANCE 5AUTO SATURATE MIDDLEAUTO EDGE ONBLACK WHITE LVGAMMA CORRECT DEFAULTDNRRETURN IMAGE CONTROLLENS SHADING OFFBRIGHTNESS 11SATURATION 10EDGE ENHANCE 5AUTO EDGE ONBLACK WHITE LVGAMMA CORRECT DEFAULTDNRRETURND ZOOM : ON, OFFDigital Zoom and PIP function can be enabled from this menu.• ZOOM CONTROL : RATIO, POSITION, RETURN Adjust the digital zoom ratio and position.Use LEFT / RIGHT button to adjust the ratio, then press select.USE LEFT / RIGHT/ UP / DOWN button to adjust the image position, then press select. Press select to exit.• PIP : ON, OFFTurn ON or OFF the PIP window.• PIP SIZE : 1/16, 1/25Change the size of PIP window.• PIP POSITION : POSITION, RETURN Adjust the PIP window location.USE LEFT / RIGHT/ UP / DOWN button to adjust the image position,then press select.Press select to exit.• DEFAULT : Set privacy zone to default value.Camera special functions can be adjusted from SPECIAL menu. SPECIAL*DZOOM OFFDEFOG OFF DIS OFF BACKLIGHT OFFBINNING OFF DEFECT PIXEL ON DISP . FUNCTIONWDR OFFFLICKER DETECT OFF PRIVACYHDMI MODE RGB444.709 RETURND-ZOOM*ZOOM CONTROLPIP OFF PIP SIZE 1/16 PIP POSITIONDZOOM SAVE DEFAULT RETURNDEFOG : ON, OFF, AUTO“DEFOG” menu improves foggy image.DWDR : ON, OFFWide Dynamic range can be adjusted from the sub menu.MOTION DETECT : ON, OFFCamera can detect a motion within the selected areas.• STRENGTH : 0 ~ 16Change defog strength.• THRESHOLD : 0 ~ 3Threshold value sets minimum sensitivity value for automatic defog control. Higher value makes defog-on control reluctant.• AUTO LEVEL : LOW, MID, HIGHAuto level value sets maximum strength value for automatic defog control. Higher value makes defog effect to be stronger.BACK-LIGHT : OFF, BLC, HLM ( Camera back-light compensation can be adjusted ) BLC : OFF, ON ( BLC enables back light compensation)• SIZE/POSITION : SIZE, POSITION, RETURN Adjust BLC area window size.• LEVEL : Back-light level compensation level can be adjusted from this menu. Higher level will compensate more from the selected area.• DISPLAY : OFF, ONBLC area display can be turned ON or OFF.• DEFAULT : Set BLC menu to default value.DEFOG SETUP*STRENGTH 4 THRESHOLD AUTO LEVEL RETURNBACKLIGHT - BLC*BLC ON SIZE/POSITIONLEVEL 128 DISPLAY ON DEFAULT RETURNHLM : OFF, ON HLM can be adjusted. • AREA DISPLAY : ON, OFFHLM AREA DISPLAY can be turned ON or OFF.• SIZE/POSITION : SIZE, POSITION, RETURN • Adjust BLC area window size.• LEVEL : 0 ~ 20Amount of masking area can be adjusted.• BLACK MASK : OFF, ONMasking area highlight can be turned ON or OFF.• DEFAULT : Set HLM menu to default value.BACKLIGHT - HLMAREA ON *AREA DISPLAY ON SIZE/POSITIONLEVEL 3 BLACK MASK ON DEFAULT RETURNDISPLAY FUNCTION : OFF, ONAdjust image display features from this menu. • FREEZE : OFF, ONImage freeze can be turned ON or OFF.• MIRROR : OFF, MIRROR, V-FLIP, BOTH(H/V) Image mirror or flip can be operated.• IMAGE EFFECT : OFF, NEGATIVE, GREY MODE, REDDISH-1 ~ 4, BLUISH-1 ~ 4, GREENISH-1 ~ 4.ROTATION : OFF, ROT_L 1:1 Several color effects can be applied.• ROTATION : OFF, ROT_L FULL, ROT_L 1:1, ROT_R Full, ROT_R 1:1 Image can be rotated either left or right side.• PICTURE STYLE : OFF, STANDARD, VIVID, CLEAR, VIVID CLEAR, NEUTRAL Different types of picture style can be applied.FLICKER DETECT : OFF, ON“FLICKER DETECT” mode provides a proper image sensor frequency to match the power frequency in order to minimize video flicker.DISPLAY FUNCITON*FREEZE OFFMIRROR OFF IMAGE EFFECT OFF ROTATION OFFPICTURE STYLE OFF PIC CONTRAST ON PIC SATURATION PIC EDGE RETURNMODE : ON, OFFEnable “PRIVACY ZONE” ON or OFF. TYPE : SQUARE, POLYGONPrivacy zone can be setup from this menu.PRIVACY MASK*MODE ONTYPE SQUARE MASK NO. MASK 1 DISPLAY ONCOLOR BLACKCamera setup can be adjusted from this menu.CAM TITLE : OFF, ONCamera title can be turned ON or OFF.COMMUNICATION : ON, OFF, AUTO ( VISCA communication control can be adjusted )• CAM ID : 0 ~ 7 ( Camera ID can be setup )MODE : FACTORY, USERCamera will reset to factory default or user saved value.RESET :Reset the camera to the selected mode.SAVE AS USER :Save the user desired setting from the menu. Mode must be set to User.SETUP*CAM TITLE OFFCOMMNUCATION SYSTEM INFO OUTPUT FORMAT 1080P30 RETURNRESET*MODE FACTORY RESET SYSTEM INFO SAVE AS USER RETURNVIDEOImage Sensor 1/3 inch Progressive CMOSSensor Size Diagonal 7.2mmEffective Pixels Horizontal: 1920, Vertical: 1080Pixel Size 2.75 µm x 2.75 µmResolution 1080p & 1080i: 1920 x 1080, 720p & 720i: 1280 x 720 Resolution/Rate 1080 60p/59.94p/50p/30p/29.97p/25p/24p1080 60i/59.94i/50i720 60p/59.94p/50pOutput HDMI 1.3aColor Space 4:2:2 (YCbCr) 10bitMin. Illumination 0.2Lux (Day), 0.1Lux (Night), 0.005Lux(Slow Shutter ON)White Balance Auto & Manual (9,000 K - 11,000 K) LENSLens C/CS Mount (Default 4mm HD Lens)AUDIO INPUTInput 3.5mm TRS StereoMic-in & Line in over I/O CableSample Rate 16/24/32 BitsPHYSICALCamera Control RS-485 VISCA, OSD ButtonOperation Temp 32° F - 104° FDimension 39mm x 39mm x 50.50mm / 1.53” x 1.53” x 1.99”(With default 4mm Lens)Weight 180g / 0.39lbs (With default 4mm Lens)Power 6W at 12VDC (+9 - +15VDC)*Specification are subject to change without notice.Visit us:/supportE-mail us:***********************Give us a Call:Toll Free: 844.631.8367 | Tel: 909.333.7421 Operating Hours: Mon-Fri | 8:00am – 5:00pm PST。

Aiptek 720p Hd Instruction ManualAiptek 720p Hd Instruction ManualAiptek Camcorder User Manuals Download - ManualsLib. Camera manuals and free ... Aiptek A-HD 720P User Manual & Instructions - 483 |. Manual ... Camera ...Aiptek A-HD+ 1080p User Manual & Instructions - 489 Manual Library Hd camcorder aiptek eBay HD 720P AIPTEK Mini DV Camcorder Digital Video Camera: ...Aiptek HD-1 720P User Manual Instructions - 356 Manual. HD Wearable Video Camera 1080p - Midland Radio. : Midland XTC-200VP3 720p High .... Products 1 - 9 of 9 — Read PDF Aiptek 720p Hd Camcorder. Manual. Aiptek 720p Hd Camcorder Manual. If you ally infatuation such a referred aiptek 720p hd.. Products 1 - 9 of 9 — Merely said, the aiptek 720p hd camcorder manual is universally compatible ... Aiptek A-HD 720P User Manual & Instructions - 483 | Manual .NEW AIPTEK ACTION SILVER HIGH-DEF 1080P 720P . and the owners manual thats .. Aiptek A-HD Pro User Manual . Aiptek Action HD Description.. Aiptek A-HD 720P User Manual Instructions - 483 Manual. Aiptek Manual Pdf Viewer - Video Camera Pdf Viewer. Topic: Action camcorder hd 720p manual .... Feb 4, 2021 — Specs: 1gb Internal Memory, HD 1280x720, Mp3 Player, 8 Aiptek 720p Hd Camcorder Manual browserquest.mozilla. Make Offer - AIPTEK P-HD+ ...AIPTEK PDF user manuals, service Page 2/8 Online Library Aiptek 720p Hd Camcorder Manual manuals, operating guides Camcorder, Digital Camera user .... Feb 4, 2021 — Aiptek HD-1 720P V5T6 or V5T2 Cameras Downloads Manual. Free AIPTEK User Manuals . User Manual. 21 pgs 445.06 .... AIPTEK PENCAM TRIO HD USER MANUAL Pdf Download ManualsLib We ... Pencam Software - everiphone Aiptek PenCam Trio HD Camcorder 720p HD with .... Products 1 - 9 of 9 — Aiptek - High-Definition Digital Camcorder with 2.4" Color LCD Screen - Blue. $149.99Your Write a review The aiptek A-HD 720p camcorder is a .... You can store up to two hours of hd 1080p video on a 4gb memory card. Pdf for aiptek camcorders hd 1 manual. Aiptek v5vp hd high definition camcorder 720p .... Aiptek HD Camcorder / Camera V5VP w/ Charger Tested. Aiptek a-hd 720p user manual - 483. download or read online this user guide and instruction pdf about ... 8d69782dd3En vivoFerencvarosi TC vs FC Barcelona | Ferencvarosi TC vs FC Barcelona en lГnea Link 6PinoyLittleGirl:Klein,******************************************Penny the preteen cutie, cutie (25) @iMGSRC.RUDatei herunterladen 20-10-02.GT50.ODC.part2.rar (100,00 Mb) In free mode | Modelgirl21-Floor,*****************Du Sel Sur La Peau 1984 Full DownloadBoyМальчикиморейигор(ez),**************Hyperbolic trig identities cheat sheetCandidtightass35,************************orphanage-abuse-stories。

高清摄像机使用说明书<< 圆珠笔式—720P >>图片仅供参考，请以实物为准一、 产品简介感谢您选购本产品，作为一款数码摄录一体机，它有多种实用的功能，时尚精致的外观，稳定卓越的品质，广泛多样的用途，将给您带去全新难忘的使用体验，是您身边不可缺少的实用工具。

本机有的功能为：高清摄像、高清拍照、优质录音、电脑摄像头、可移动磁盘。

本产品具有的特点为：多功能、多用途、外观时尚酷炫、摄录效果卓越、小巧便携、易于使用、稳定可靠、响应快速等。

本产品适用于：记者采访、精彩抓拍、突发事件记录、生活片段记录、娱乐休闲记录、体育运动记录、教学辅助记录、家庭安防监控、执法刑侦取证、旅行人文风景记录、户外探险记录、辅助记忆，等等。

二、 结构概述编号名称 描述 1操作键 它是一个多功能按键，在不同模式以及状态下具有不同功能，包括：开机、关机、开始摄像、停止摄像、拍照、开始录音、停止录音。

2摄像头 用于拾取图像信号。

3麦克风 用于拾取音频信号。

4状态指示灯孔 内置红绿蓝三色指示灯，3种颜色的灯通过不同的组合方式指示产品的不同工作状态。

5模式开关 通过拨动模式开关，改变设备当前工作模式 6 Standard 4 Pin USB 接口 连接数据线、电源线的接口。

三、 操作说明1. 开关机：1.1 开机A. 长按操作键（部件1）2秒钟，再松开按键。

图片仅供参考，请以实物为准B. 产品电源被打开，绿灯亮起，进入产品的初始化状态。

C. 初始化完成，绿灯熄灭。

D. 开机后，设备进入默认的摄像功能待机状态，红灯亮起。

E. 完成开机。

注意：本产品的开机类似于电脑的启动，有一个启动过程，在此期间，请勿进行任何操作，直到开机动作完成。

开机初始化的时间长短，视存储容量大小而异。

1.2 关机A. 长按操作键（部件1）2秒钟，再松开按键。

B. 状态指示灯全部熄灭，完成关机。

注意：如果您的产品正在工作中，关机时，产品会自动为您保存正在录制的文件。

T1高清摄像笔使用说明1、充电本机内置可充电锂电池，初次使用本机时，请进行充电建议：前三次使用时，请将电池电量用完后，再进行饱和充电，充电时长约3-4小时，以便将电池寿命达到最长本机可通过以下方式进行充电:l 连接计算机充电，将USB线与计算机连接，即可进行充电l 用本机随机携带的充电器充电，将数据线与充电器连接，将充电器插入电插座，连接机器，即可进行充电充电时，指示灯红灯长亮，表示在充电中，红灯熄灭，表示电量充满。

注意: 当电池电量不足时, 本机红蓝灯快闪5次后，会进入保护状态并关机，此时本机会自动保存当前文件并关机，此时请对本机进行充电。

2、模式转换通过结构所示的模式开关，本机可进行录像，移动侦测录像，拍照，磁盘，网络摄像头等多种功能转换模式开关位置功能说明①1、开机后，可进行拍照2、开机后，连接计算机读盘3、连接电视后，向上翻页②移动侦测模式③1、开机后，可进行视频录制2、开机后，网络摄像头功能3、连接电视后，向下翻页注意：在开机后，进行模式转换时，请暂停当前操作，并在暂停后等待约4-5秒后，进行模式转换，否则易出现死机现象。

3、开机/关机l 开机：当机器处于关闭状态时，长按开机键，此时指示灯亮起，表示本机已完成开机。

l 关机：保存当前文档后，长按关机键，此时指示灯完全灭掉，表示本机已完成关机。

4、录制影像将模式开关拨至结构说明所示③的位置，本机开机后，此时黄灯长亮，点按顶部按键，此时黄灯闪烁，进入录像状态，再次点按顶部按键，暂停录像，本机保存当前文档，此时黄灯恢复长亮，并处于待机状态。

注意：为确保文件不会丢失，每5分钟自动保存一个视频文件本机属于高端方案，高清技术，为确保视频效果及使用顺畅，请使用CLASS 6 以上原装正版存储卡，否则易出现死机，不放不流畅等现象。

5、移动侦测将模式开关拨至结构说明所示②的位置，本机开机后，此时蓝灯长亮，当侦测到移动物体时，自动启动录像，此时蓝灯闪烁；当侦测不到移动物体10秒后，自动停止录像并保存文件，处于待机状态。

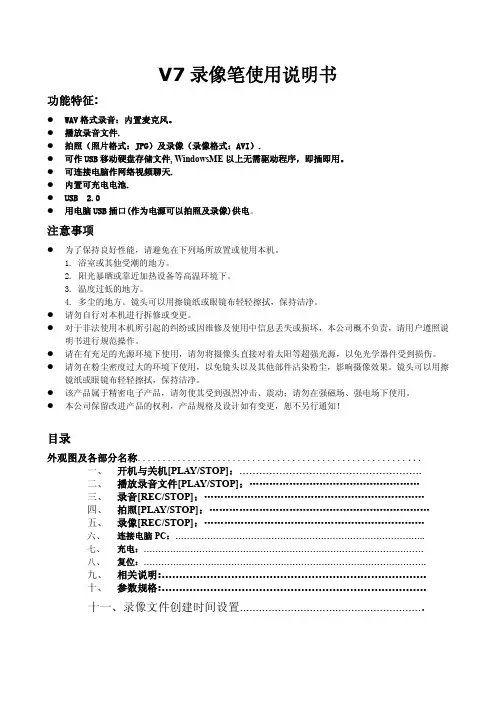

V7 录像笔使用说明书功能特征:l WAV 格式录音：内置麦克风。

l播放录音文件.l拍照（照片格式：JPG）及录像（录像格式：AVI）.l可作 USB 移动硬盘存储文件, WindowsME 以上无需驱动程序，即插即用。

l可连接电脑作网络视频聊天.l内置可充电电池.l USB 2.0l用电脑 USB 插口(作为电源可以拍照及录像)供电。

注意事项l为了保持良好性能，请避免在下列场所放置或使用本机。

1. 浴室或其他受潮的地方。

2. 阳光暴晒或靠近加热设备等高温环境下。

3. 温度过低的地方。

4. 多尘的地方。

镜头可以用擦镜纸或眼镜布轻轻擦拭，保持洁净。

l请勿自行对本机进行拆修或变更。

l对于非法使用本机所引起的纠纷或因维修及使用中信息丢失或损坏，本公司概不负责，请用户遵照说 明书进行规范操作。

l请在有充足的光源环境下使用，请勿将摄像头直接对着太阳等超强光源，以免光学器件受到损伤。

l请勿在粉尘密度过大的环境下使用，以免镜头以及其他部件沾染粉尘，影响摄像效果。

镜头可以用擦 镜纸或眼镜布轻轻擦拭，保持洁净。

l该产品属于精密电子产品，请勿使其受到强烈冲击、震动；请勿在强磁场、强电场下使用。

l本公司保留改进产品的权利，产品规格及设计如有变更，恕不另行通知！目录外观图及各部分名称......................................................．．．一、 开机与关机[PLAY/STOP]：……………………………………………….二、 播放录音文件[PLAY/STOP]：……………………………………………三、 录音[REC/STOP]：…………………………………………………………四、 拍照[PLAY/STOP]：…………………………………………………………五、 录像[REC/STOP]：…………………………………………………………六、 连接电脑 PC：…………………………………………………………………………..七、 充电：……………………………………………………………………………………八、 复位：…………………………………………………………………………………….九、 相关说明:………………………………………………………………….十、 参数规格:………………………………………………………………….十一、录像文件创建时间设置………………………………………………….外观图及各部件名称1、 MODE 模式开关2、 LED 双色工作指示灯3、 PLAY/STOP 播放/开关机/拍照4、 REC/STOP 录音/录像5、 RESET 复位键6、 USB USB 插头7、 EARPHONE 耳机插孔按键及操作说明：一、 开机与关机[PLAY/STOP]：开机：长按[PLAY/STOP]键约 4 秒开机，开机后“LED 红灯”长亮进入待机状态。
