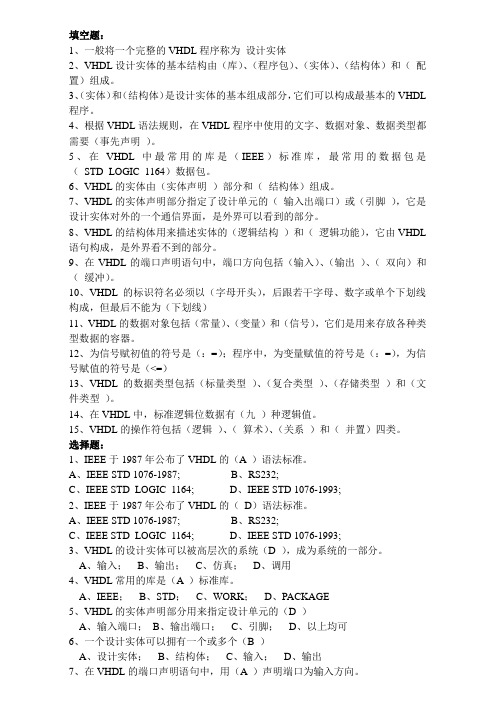

填空题：1、一般将一个完整的VHDL程序称为设计实体2、VHDL设计实体的基本结构由（库）、（程序包）、（实体）、（结构体）和（配置）组成。
3、（实体）和（结构体）是设计实体的基本组成部分，它们可以构成最基本的VHDL 程序。
4、根据VHDL语法规则，在VHDL程序中使用的文字、数据对象、数据类型都需要（事先声明）。
5、在VHDL中最常用的库是（IEEE）标准库，最常用的数据包是（STD_LOGIC_1164）数据包。
6、VHDL的实体由（实体声明）部分和（结构体）组成。
7、VHDL的实体声明部分指定了设计单元的（输入出端口）或（引脚），它是设计实体对外的一个通信界面，是外界可以看到的部分。
8、VHDL的结构体用来描述实体的（逻辑结构）和（逻辑功能），它由VHDL 语句构成，是外界看不到的部分。
9、在VHDL的端口声明语句中，端口方向包括（输入）、（输出）、（双向）和（缓冲）。
10、VHDL的标识符名必须以（字母开头），后跟若干字母、数字或单个下划线构成，但最后不能为（下划线）11、VHDL的数据对象包括（常量）、（变量）和（信号），它们是用来存放各种类型数据的容器。
12、为信号赋初值的符号是（：=）；程序中，为变量赋值的符号是（：=），为信号赋值的符号是（<=）13、VHDL的数据类型包括（标量类型）、（复合类型）、（存储类型）和（文件类型）。
14、在VHDL中，标准逻辑位数据有（九）种逻辑值。
15、VHDL的操作符包括（逻辑）、（算术）、（关系）和（并置）四类。
选择题：1、IEEE于1987年公布了VHDL的（A）语法标准。
A、IEEE STD 1076-1987;B、RS232;C、IEEE STD_LOGIC_1164;D、IEEE STD 1076-1993;2、IEEE于1987年公布了VHDL的（D）语法标准。
A、IEEE STD 1076-1987;B、RS232;C、IEEE STD_LOGIC_1164;D、IEEE STD 1076-1993;3、VHDL的设计实体可以被高层次的系统（D ），成为系统的一部分。
VHDL程序设计教程习题参考解答第1章思考题解答1．什么是VHDL？简述VHDL的发展史。
答：VHDL是美国国防部为电子项目设计承包商提供的，签定合同使用的，电子系统硬件描述语言。
1983年成立VHDL语言开发组，1987年推广实施，1993年扩充改版。
VHDL 是IEEE标准语言，广泛用于数字集成电路逻辑设计。
2．简述VHDL设计实体的结构。
答：实体由实体名、类型表、端口表、实体说明部分和实体语句部分组成。
根据IEEE标准，实体组织的一般格式为：ENTITY 实体名 IS[GENERIC(类型表)；] --可选项[PORT(端口表)；] --必需项实体说明部分； --可选项[BEGIN实体语句部分；]END [ENTITY] [实体名]；3．分别用结构体的3种描述法设计一个4位计数器。
答：用行为描述方法设计一个4位计数器如下，其它描述方法，读者可自行设计。
LIBRARY IEEE;USE IEEE.STD_LOGIC_1164.ALL;use ieee.std_logic_unsigned.all;ENTITY countA ISPORT (clk,clr,en:IN STD_LOGIC;Qa,qb,qc,qd:OUT STD_LOGIC);END countA;ARCHITECTURE example OF countA ISSIGNAL count_4:STD_LOGIC_vector (3 DOWNTO 0);BEGINQa <= count_4(0);Qb <= count_4(1);Qc <= count_4(2);Qd <= count_4(3);PROCESS (clk,clr)BEGINIF (clr = '1' ) THENCount_4 <= "0000";ELSIF (clk'EVENT AND clk = '1' ) THENIF (en = '1' ) THENIF (count_4 = "1111") THENcount_4 <= "0000";ELSEcount_4 <= count_4+ '1';END IF;END IF;END IF;END PROCESS;END example;第2章思考题解答1．什么叫对象？对象有哪几个类型？答：在VHDL语言中，凡是可以赋于一个值的客体叫对象(object)。
填空题1、在实际的数字系统中，某些动作是互相独立，可以在同一时间执行的，在VHDL 语言中应该使用并行描述语句来对这些动作进行描述。
2、当信号代入语句在进程内部使用时，它将以顺序语句的形式出现，当其在结构体的进程之外使用时，它将以并行语句的形式出现。
3、选择信号代入语句的并发操作可以在进程外实现进程内的CASE语句的功能。
4、PROCESS语句不是一条单纯的程序语句，而是一个程序结构，该程序结构起始于进程的标识符，终止于END PROCESS。
5、在进程语句中可以定义变量（VARIABLE）而不能定义信号量（SIGNAL），其等效于开辟了一个存储空间，6、如果进程中既没有敏感信号列表，又没有WAIT语句，那么该进程将陷入无限循环中。
7、元件调用语句（COMPONENT）语句的结构中，GENERIC语句进行元件的参数说明，PORT语句进行元件的端口说明8、端口映射有两种方法：端口位置映射和端口名称映射。
9、块（BLOCK）语句可以分为普通BLOCK语句和卫式BLOCK语句。
10、在VHDL语言程序中，子程序有两种：一是过程（PROCEDURE），二是函数（FUNCTION）。
11、过程语句和函数语句的最主要的区别是函数语句可以有返回值。
12、在VHDL语言中信号的延迟分两种模型，惯性延时和传输延时。
综述题1、在一个构造体中块结构和进程结构的区别是什么？答案：●一个构造体中的各个块是并行执行的，与书写顺序无关。
●每个块里的各个语句也是并行执行的，与书写顺序无关。
●一个构造体中的各个进程是并行执行的，与书写顺序无关。
●每个进程里的各个语句是顺序执行的，与书写顺序有关。
●在一个构造体中，块里面可以包含多个进程，各个进程是并行执行的。
●在一个构造体中，块与进程可以并列，各个块和进程都是并行执行的。
●在一个构造体中，进程里面不能包含块结构。
因为进程里面是顺序执行语句，而块语句结构是并行执行的。
2、简述什么叫并发过程调用语句以及其使用要点。
一、简答题1、VHDL语言程序的基本结构？实体、结构体、配置、包集合、库。
2、信号和变量的区别？①信号用于作为电路中的信号连线，变量用于作为进程中局部数据存储单元；②信号是全局量在整个结构体内的任何地方都可以使用，变量是局部量只能在进程、子程序内部定义和使用；③信号代入语句采用“<=”代入符，该语句即使被执行也不会使信号立即发生代入，变量的赋值符号为“:=”，在变量赋值语句中，语句一旦被执行，其值立即被赋予变量。
3、可编程逻辑器件的优点？①集成度高，极大的减小电路的面积，降低功耗，提高可靠性；②具有完善先进的开发工具，提供语言、图形等设计方法，十分灵活，通过仿真工具来验证设计的正确性；③可以反复地擦除、编程，方便设计的修改和升级；④灵活地定义管教功能，减轻设计工作量，缩短系统开发时间；⑤保密性好。
4、函数与过程的异同？相同点：函数与过程都是子程序，主函数调用它们以后能将处理结果返回主程序；函数与过程中的语句都是顺序执行的。
不同点：过程的参数可以是输入，也可以是输出，函数的参数都是输入参数；函数只有一个输出，只能通过函数体内的RETURN语句来实现，函数体内不能有信号赋值语句，而过程却可以有不止一个输出，而且是通过过程体内的信号赋值语句或者变量赋值语句来实现的；函数的调用只能通过表达式来实现，过程的调用则是通过过程调用语句来实现的。
5、CPLD与FPGA的异同？①FPGA采用SRAM进行功能配置，可重复编程，但系统掉电后，SRAM中的数据丢失。
因此，需在FPGA外加EPROM，将配置数据写入其中，系统每次上电自动将数据引入SRAM中。
CPLD器件一般采用EEPROM存储技术，可重复编程，并且系统掉电后，EEPROM中的数据不会丢失，适于数据的保密。
②FPGA器件含有丰富的触发器资源，易于实现时序逻辑，如果要求实现较复杂的组合电路则需要几个器件结合起来实现。
CPLD的与或阵列结构，使其适于实现大规模的组合功能，但触发器资源相对较少。
vhdl课后习题答案VHDL课后习题答案在学习VHDL（VHSIC Hardware Description Language）这门课程时，课后习题是巩固知识、提高能力的重要方式。
通过认真完成课后习题并查看答案，我们可以更好地理解和掌握VHDL的相关知识，提高自己的编程能力。
下面我们将通过几个典型的VHDL课后习题答案来展示VHDL的魅力和应用。
1. 课后习题一题目：使用VHDL编写一个简单的门电路，包括AND门、OR门和NOT门，并进行仿真验证。
答案：首先，我们定义AND门、OR门和NOT门的输入输出信号。
然后，使用VHDL语言编写各个门电路的逻辑实现，并进行仿真验证。
最后，我们可以观察仿真波形图，验证门电路的功能是否符合预期。
2. 课后习题二题目：使用VHDL编写一个4位全加器，并进行综合、布线和时序分析。
答案：首先，我们定义全加器的输入输出信号。
然后，使用VHDL语言编写4位全加器的逻辑实现，并进行综合、布线和时序分析。
最后，我们可以观察综合和布线报告，分析全加器的资源利用情况和时序性能。
3. 课后习题三题目：使用VHDL编写一个有限状态机（FSM），实现一个简单的计数器，并进行状态转移图和状态转移表的分析。
答案：首先，我们定义有限状态机的状态和状态转移条件。
然后，使用VHDL 语言编写有限状态机的逻辑实现，并进行状态转移图和状态转移表的分析。
最后，我们可以观察状态转移图和状态转移表，验证有限状态机的状态转移是否符合预期。
通过以上几个VHDL课后习题答案的展示，我们可以看到VHDL在数字电路设计和硬件描述方面的强大应用。
通过学习VHDL并完成课后习题，我们可以提高自己的编程能力，掌握数字电路设计的基本原理和方法。
希望大家在学习VHDL的过程中能够认真完成课后习题，并不断提高自己的编程水平。
