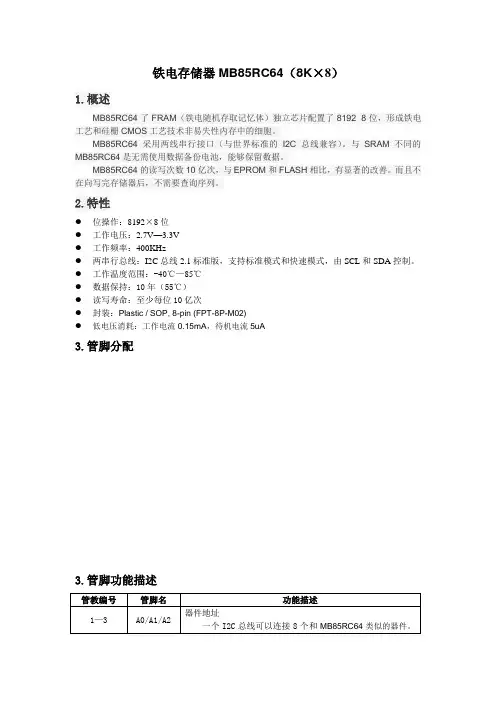

铁电存储器MB85RC64（8K×8）1.概述MB85RC64了FRAM（铁电随机存取记忆体）独立芯片配置了8192×8位，形成铁电工艺和硅栅CMOS工艺技术非易失性内存中的细胞。

MB85RC64采用两线串行接口（与世界标准的I2C总线兼容）。

与SRAM不同的MB85RC64是无需使用数据备份电池，能够保留数据。

MB85RC64的读写次数10亿次，与EPROM和FLASH相比，有显著的改善。

而且不在向写完存储器后，不需要查询序列。

2.特性●位操作：8192×8位●工作电压：2.7V—3.3V●工作频率：400KHz●两串行总线：I2C总线2.1标准版，支持标准模式和快速模式，由SCL和SDA控制。

●工作温度范围：-40℃—85℃●数据保持：10年（55℃）●读写寿命：至少每位10亿次●封装：Plastic / SOP, 8-pin (FPT-8P-M02)●低电压消耗：工作电流0.15mA，待机电流5uA3.管脚分配3.管脚功能描述4.模块框图5.I2C电路MB85RC64有两线串行接口，支持I2C总线，并作为从器件工作。

I2C总线定义的“主机”和“从机”设备的沟通角色，主机启动总线控制权。

此外，通过I2C总线，在一个主机可以连接多个从器件。

在这种情况下，必须给从器件分配一个唯一的设备地址。

6.I2C通信协议I2C总线是双线串行接口，采用了双向数据总线（SDA）和串行时钟（SCL）。

数据传输只能由总线主机，这也将提供串行时钟的同步启动。

SCL为低电平时，SDA信号应该改变。

然而，作为一种例外，启动和停止时的通信序列，SDA被允许改变当SCL为高电平。

●启动条件：开始时，SCL为稳定高电平，SDA产生下降沿。

●停止条件：停止时，SCL为稳定低电平，SDA产生上升沿。

停止条件是终止从设备和主机通信。

MB85RC64不需要像内部写存储器像E2PROM花时间去查询序列，因此当写停止命令结束，设备进入待机模式。

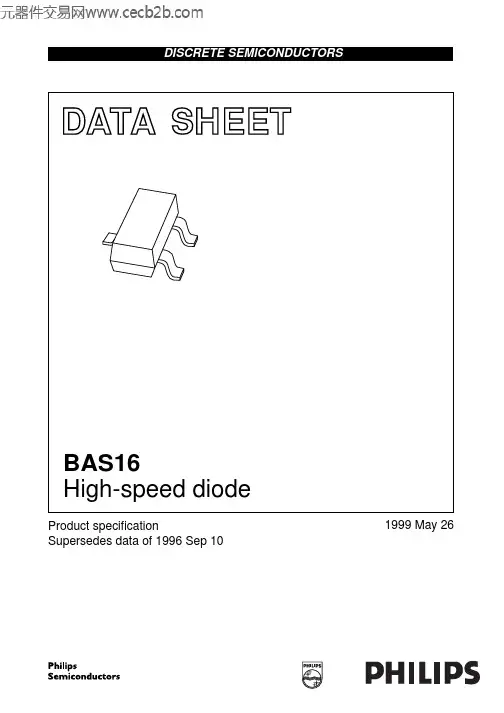

DATASHEETProduct specificationSupersedes data of 1996 Sep 101999May 26DISCRETE SEMICONDUCTORSBAS16High-speed diodebook, halfpageM3D088High-speed diodeBAS16FEATURES•Small plastic SMD package •High switching speed: max.4ns •Continuous reverse voltage:max.75V•Repetitive peak reverse voltage:max.85V•Repetitive peak forward current:max. 500mA.APPLICATIONS•High-speed switching in hybrid thick and thin-film circuits.DESCRIPTIONThe BAS16 is a high-speed switchingdiode fabricated in planar technology,and encapsulated in a small SOT23plastic SMD package.PINNINGPIN DESCRIPTION 1anode 2not connected 3cathodeFig.1 Simplified outline (SOT23) and symbol.Marking code: A6p =made in Hong Kong; A6t =made in Malaysia .handbook, halfpage 213MAM1852n.c.13LIMITING VALUESIn accordance with the Absolute Maximum Rating System (IEC 134).Note1.Device mounted on an FR4 printed-circuit board.SYMBOL PARAMETERCONDITIONSMIN.MAX.UNITV RRM repetitive peak reverse voltage −85V V R continuous reverse voltage −75V I F continuous forward current see Fig.2; note 1−215mA I FRM repetitive peak forward current −500mA I FSMnon-repetitive peak forward currentsquare wave; T j =25°C prior to surge; see Fig.4t =1µs −4A t =1ms −1A t =1s−0.5A P tot total power dissipation T amb =25°C; note 1−250mW T stg storage temperature −65+150°C T j junction temperature−150°CHigh-speed diodeBAS16ELECTRICAL CHARACTERISTICS T j =25°C unless otherwise specified.THERMAL CHARACTERISTICS Note1.Device mounted on an FR4 printed-circuit board.SYMBOL PARAMETERCONDITIONSMAX.UNIT V Fforward voltagesee Fig.3I F =1mA 715mV I F =10mA 855mV I F =50mA 1V I F =150mA1.25V I Rreverse currentsee Fig.5V R =25V 30nA V R =75V1µA V R =25V; T j =150°C 30µA V R =75V; T j =150°C50µA C d diode capacitance f =1MHz; V R =0; see Fig.61.5pF t rrreverse recovery timewhen switched from I F =10mA to I R =10mA; R L =100Ω; measured at I R =1mA; see Fig.74nsV frforward recovery voltage when switched from I F =10mA; t r =20ns;see Fig.81.75VSYMBOL PARAMETERCONDITIONSVALUE UNIT R th j-tp thermal resistance from junction to tie-point 330K/W R th j-a thermal resistance from junction to ambientnote 1500K/WHigh-speed diodeBAS16GRAPHICAL DATADevice mounted on an FR4 printed-circuit board.Fig.2Maximum permissible continuous forward current as a function of ambient temperature.0501002002500200MSA562 -115015010050I F (mA)T amb (o C)(1)T j =150°C; typical values.(2)T j =25°C; typical values.(3)T j =25°C; maximum values.Fig.3Forward current as a function of forward voltage.handbook, halfpage02300I F(mA)100200MBG3821V F (V)(1)(3)(2)Fig.4 Maximum permissible non-repetitive peak forward current as a function of pulse duration.Based on square wave currents.T j =25°C prior to surge.handbook, full pagewidthMBG70410t p (µs)1I FSM (A)10210−1104102103101High-speed diode BAS16Fig.5Reverse current as a function of junction temperature.10510410200MGA884100T ( C)jo I R (nA)10310275 V25 VtypmaxV = 75 V RtypFig.6Diode capacitance as a function of reverse voltage; typical values.f =1MHz; T j =25°C.handbook, halfpage08161240.80.60.40.2MBG446V R (V)C d (pF)High-speed diode BAS16Fig.7 Reverse recovery voltage test circuit and waveforms.(1)I R =1mA.handbook, full pagewidtht rr(1)I F toutput signalt rtt p10%90%V Rinput signal V = V I x R R F SR = 50SΩI FD.U.T.R = 50iΩSAMPLING OSCILLOSCOPEMGA881Fig.8 Forward recovery voltage test circuit and waveforms.t rtt p10%90%Iinputsignal R = 50SΩIR = 50iΩOSCILLOSCOPEΩ1 k Ω450 D.U.T.MGA882V frtoutput signalVHigh-speed diodeBAS16PACKAGE OUTLINEUNIT A 1max.b p c D E e 1H E L p Q w v REFERENCESOUTLINE VERSION EUROPEAN PROJECTIONISSUE DATE 97-02-28IECJEDECEIAJmm0.10.480.380.150.093.02.81.41.20.95e 1.92.52.10.550.450.10.2DIMENSIONS (mm are the original dimensions)0.450.15SOT23b pD e 1eAA 1L pQdetail XH EE w M v M ABAB 01 2 mmscaleA 1.10.9cX123Plastic surface mounted package; 3 leadsSOT23High-speed diode BAS16DEFINITIONSData Sheet StatusObjective specification This data sheet contains target or goal specifications for product development. Preliminary specification This data sheet contains preliminary data; supplementary data may be published later. Product specification This data sheet contains final product specifications.Limiting valuesLimiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended periods may affect device reliability.Application informationWhere application information is given, it is advisory and does not form part of the specification.LIFE SUPPORT APPLICATIONSThese products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.High-speed diode BAS16NOTESHigh-speed diode BAS16NOTESPhilips Semiconductors Product specification High-speed diode BAS16NOTES1999May2611© Philips Electronics N.V. SCA All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights.Internet: 199965Philips Semiconductors – a worldwide company Netherlands: Postbus 90050, 5600PB EINDHOVEN, Bldg.VB,Tel.+31402782785,Fax.+31402788399New Zealand: 2Wagener Place, C.P.O.Box 1041, AUCKLAND,Tel.+6498494160,Fax.+6498497811Norway: Box 1, Manglerud 0612, OSLO,Tel.+4722748000,Fax.+4722748341Pakistan: see Singapore Philippines: Philips Semiconductors Philippines Inc.,106Valero St.Salcedo Village, P.O.Box 2108MCC,MAKATI,Metro MANILA, Tel.+6328166380,Fax.+6328173474Poland: Ul.Lukiska 10, PL 04-123WARSZAWA,Tel.+48226122831,Fax.+48226122327Portugal: see Spain Romania: see Italy Russia: Philips Russia, atcheva 35A, 119048MOSCOW,Tel.+70957556918,Fax.+70957556919Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,Tel.+653502538,Fax.+652516500Slovakia: see Austria Slovenia: see Italy South Africa: S.A. PHILIPS Pty Ltd., 195-215Main Road Martindale,2092JOHANNESBURG, P.O.Box 58088 Newville 2114,Tel.+27114715401,Fax.+27114715398South America: Al.Vicente Pinzon,173, 6th floor,04547-130SÃO PAULO,SP, Brazil,Tel.+55118212333,Fax.+55118212382Spain: Balmes 22, 08007BARCELONA,Tel.+34933016312,Fax.+34933014107Sweden: Kottbygatan 7, Akalla, S-16485STOCKHOLM,Tel.+46859852000,Fax.+46859852745Switzerland: Allmendstrasse 140, CH-8027ZÜRICH,Tel.+4114882741Fax.+4114883263Taiwan: Philips Semiconductors, 6F, No.96, Chien Kuo N.Rd.,Sec.1,TAIPEI, Taiwan Tel.+886221342886,Fax.+886221342874Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,209/2Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,Tel.+6627454090,Fax.+6623980793Turkey: Yukari Dudullu, Org. San. Blg., 2.Cad. Nr. 28 81260Umraniye,ISTANBUL, Tel.+902165221500,Fax.+902165221813Ukraine : PHILIPS UKRAINE, 4Patrice Lumumba str., Building B, Floor 7,252042KIEV, Tel.+380442642776, Fax. +380442680461United Kingdom: Philips Semiconductors Ltd., 276Bath Road, Hayes,MIDDLESEX UB35BX, Tel.+441817305000,Fax.+441817548421United States: 811East Arques Avenue, SUNNYVALE, CA 94088-3409,Tel.+18002347381, Fax.+18009430087Uruguay: see South America Vietnam: see Singapore Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000BEOGRAD,Tel.+38111625344,Fax.+38111635777For all other countries apply to: Philips Semiconductors,International Marketing &Sales Communications, Building BE-p, P.O.Box 218,5600MD EINDHOVEN, The Netherlands,Fax.+31402724825Argentina: see South AmericaAustralia: 34 Waterloo Road, NORTH RYDE, NSW 2113,Tel.+61298054455,Fax.+61298054466Austria:Computerstr. 6, A-1101 WIEN, P.O. Box 213,Tel.+431601011248, Fax.+431601011210Belarus: Hotel Minsk Business Center, Bld.3, r.1211, Volodarski Str.6,220050MINSK, Tel.+375172200733,Fax.+375172200773Belgium: see The NetherlandsBrazil:see South AmericaBulgaria:Philips Bulgaria Ltd., Energoproject, 15th floor,51James Bourchier Blvd., 1407SOFIA,Tel.+3592689211,Fax.+3592689102Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,Tel.+18002347381, Fax.+18009430087China/Hong Kong: 501Hong Kong Industrial Technology Centre,72Tat Chee Avenue, Kowloon Tong, HONG KONG,Tel.+852********,Fax.+852********Colombia: see South AmericaCzech Republic: see AustriaDenmark: Sydhavnsgade 23, 1780COPENHAGEN V,Tel.+4533293333,Fax.+4533293905Finland: Sinikalliontie 3, FIN-02630ESPOO,Tel.+3589615800,Fax.+358961580920France: 51Rue Carnot, BP317, 92156SURESNES Cedex,Tel.+33140996161,Fax.+33140996427Germany: Hammerbrookstraße 69, D-20097HAMBURG,Tel.+4940235360,Fax.+494023536300Hungary:see AustriaIndia: Philips INDIA Ltd, Band Box Building, 2nd floor,254-D,Dr.Annie Besant Road, Worli, MUMBAI 400025,Tel.+91224938541,Fax.+91224930966Indonesia: PT Philips Development Corporation, Semiconductors Division,Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,Tel.+62217940040ext.2501, Fax.+62217940080Ireland: Newstead, Clonskeagh, DUBLIN 14,Tel.+35317640000,Fax.+35317640200Israel: RAPAC Electronics, 7Kehilat Saloniki St, PO Box 18053,TEL AVIV 61180, Tel.+97236450444,Fax.+97236491007Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,20124MILANO, Tel.+390267522531,Fax.+390267522557Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,TOKYO 108-8507, Tel.+81337405130,Fax.+81337405057Korea: Philips House, 260-199Itaewon-dong, Yongsan-ku, SEOUL,Tel.+8227091412,Fax.+8227091415Malaysia: No.76Jalan Universiti, 46200PETALING JAYA, SELANGOR,Tel.+60 37505214,Fax.+6037574880Mexico: 5900Gateway East, Suite 200, EL PASO, TEXAS 79905,Tel.+9-58002347381, Fax +9-58009430087Middle East: see Italy Printed in The Netherlands 115002/03/pp12 Date of release: 1999May 26Document order number: 939775005878。

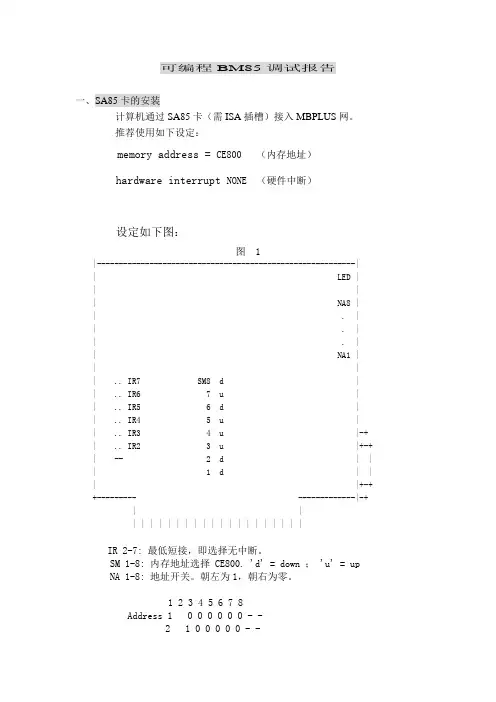

可编程BM85调试报告一、SA85卡的安装计算机通过SA85卡（需ISA插槽）接入MBPLUS网。

推荐使用如下设定：memory address = CE800 （内存地址）hardware interrupt NONE （硬件中断）设定如下图：图 1|-----------------------------------------------------------|| LED || || NA8 || . || . || . || NA1 || || .. IR7 SM8 d || .. IR6 7 u || .. IR5 6 d || .. IR4 5 u || .. IR3 4 u |-+ | .. IR2 3 u |+-+ | -- 2 d | | | 1 d | | | |+-+ +--------- -------------|-+ | || | | | | | | | | | | | | | | | | | | |IR 2-7: 最低短接，即选择无中断。

SM 1-8: 内存地址选择 CE800. 'd' = down ； 'u' = up NA 1-8: 地址开关。

朝左为1，朝右为零。

1 2 3 4 5 6 7 8Address 1 0 0 0 0 0 0 - -2 1 0 0 0 0 0 - -3 0 1 0 0 0 0 - -4 1 1 0 0 0 0 - -. . . . . . . . . .63 0 1 1 1 1 1 - -64 1 1 1 1 1 1 - -SA85卡的驱动程序有16位和32位两种。

此次调试在NT Workstation4.0上进行。

由于下载软件bm85load.exe需要16位驱动程序(在DOS下格式为：bm85load /s5c /re000 /p4.4 bm85.exe) 。

所以需安装SA85卡的16位驱动程序。

MB16ACPortable USB Monitor Hybrid Signal SolutionUser GuideCopyright © 2017 ASUSTeK COMPUTER INC. All Rights Reserved.No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.Products and corporate names appearing in this manual may or may not be registeredtrademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.Table of contentsNotices .........................................................................................................iii Safety information ......................................................................................iv Care & cleaning ............................................................................................v Takeback services ......................................................................................vi Caution ........................................................................................................vi 1.1 Welcome! ......................................................................................1-11.2 Package contents .........................................................................1-11.3Monitor introduction ....................................................................1-21.3.1 Front view .......................................................................1-21.3.2 QuickFit Function ............................................................1-32.1 Monitor standing positions .........................................................2-12.2 Connect the USB monitor with system ......................................2-22.3 Announcements ...........................................................................2-33.1OSD (On-Screen Display) menu .................................................3-13.1.1 How to reconfigure ..........................................................3-13.1.2 OSD Function Introduction ..............................................3-23.2 Specifications .............................................................................3-103.3 Troubleshooting (FAQ) ..............................................................3-113.4Supported Timing List ...............................................................3-13NoticesFederal Communications Commission StatementThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:• This device may not cause harmful interference, and• This device must accept any interference received including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference willnot occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help. Canadian Department of Communications StatementThis digital apparatus does not exceed the Class B limits for radionoise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.This class B digital apparatus complies with Canadian ICES-003.As an Energy Star® Partner, our company has determinedthat this product meets the Energy Star® guidelines forenergy efficiency.Safety information• Before setting up this Portable USB Monitor, carefully read all the documentation that came with the package.• To prevent fire or shock hazard, never expose this Portable USB Monitor to rain or moisture.• Never try to open this Portable USB Monitor cabinet.• Before using this Portable USB Monitor, make sure all cables are correctly connected and the power cables are not damaged. If youdetect any damage, contact your dealer immediately.• Avoid dust, humidity, and temperature extremes. Do not place this Portable USB Monitor in any area where it may become wet. Place this Portable USB Monitor on a stable surface.• Never push objects or spill liquid of any kind into the slots on this Portable USB Monitor cabinet.• If you encounter technical problems with this Portable USB Monitor, contact a qualified service technician or your retailer.• This Portable USB Monitor is powered by USB port which complies with LPS and SELV circuit according to IEC60950-1:2005.Care & cleaning• Cleaning. Turn your monitor off and unplug the cable. Clean the monitor surface with a lint-free, non-abrasive cloth. Stubborn stainsmay be removed with a cloth dampened with mild cleaner.• Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended for use with the LCD. Never spray cleaner directly on thescreen, as it may drip inside the monitor and cause an electric shock. The following symptoms are normal with the monitor:• You may find slightly uneven brightness on the screen depending on the desktop pattern you use.• When the same image is displayed for hours, an afterimage of the previous screen may remain after switching the image. The screen will recover slowly or you can turn off the Power Switch for hours.• When the screen becomes black or flashes, or cannot work anymore, contact your dealer or service center to fix it. Do not repair the screen by yourself!Conventions used in this guideWARNING: Information to prevent injury to yourself when trying tocomplete a task.CAUTION: Information to prevent damage to the componentswhen trying to complete a task.IMPORTANT: Information that you MUST follow to complete atask.NOTE: Tips and additional information to aid in completing a task.Where to find more informationRefer to the following sources for additional information and for product and software updates.1. ASUS websitesThe ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to 2. Optional documentationYour product package may include optional documentation that may have been added by your dealer. These documents are not part ofthe standard package.Takeback servicesASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials. Please go to /english/Takeback.htm for detail recycling information in different region.CautionWe suggest to use the attached pen or any pen or stick that can fit in the hole at the corner as a simple stand for the monitor.Please reserve at least 10cm/4 inch of the pen at the back of the monitor to stabilize.1.1 Welcome!Thank you for purchasing the ASUS® Portable USB Monitor!The latest ASUS Portable USB Monitor provides great portability and simplicity to your daily life, enhancing both of your viewing experience and style.1.2 Package contentsCheck your package for the following items:Portable USB MonitorQuick Start GuideWarranty CardUSB Type-C CableSmart coverUSB Type-C to A adapterPen• If any of the above items is damaged or missing, contact your retailerimmediately.• Inbox pen is not included in the warranty.1.3Monitor introduction1.3.1Front view1. Pen hole •Use the attached pen to insert into the hole, the monitor can stand up directly without the smart cover.2. Power button/Power LED • Press this button to turn the monitor on/off.•The color definition of the power indicator is as the below table. 3. Menu button • Press this button to enter the OSD menu.4. Blue light filter •Adjust the energy level of blue light emitted from LED backlight.5.USB Type-C port1.3.2QuickFit FunctionThe QuickFit function contains two patterns: (1) Grid (2) Photo size.1.Grid pattern: Facilitates designers and users to organize content and layout on one page and achieve a consistent look and feel.Alignment grid 1 will be rotated automatically if auto rotation is enabled.•Auto rotation function is only working under Windows OS by installing DisplayWidget software.Alignment Grid22.Photo size: Provides photographers and other users to accurately view and edit their photos in real size on the screen.2.1 Monitor standing positionsYou can stand up the monitor by several positions with the smart cover.2.2Connect the USB monitor with systemorIn case the computer does not support Type-C interface but only USB3.0 interface, please install the official driver from ASUS website firstly.Please make sure the USB Type-C cable and Type-C to A adapter is connected between the USB monitor and the system.• Please check ASUS website for latest driver and DisplayWidget software.2.3 AnnouncementsAs this product and attached smart cover includes magnet in the structure, there could be potential risk to cause the damage of computer hard disc and objects that are sensitive to magnet.3.1OSD (On-Screen Display) menu3.1.1How to reconfigure1. Press the MENU button to activate the OSD menu.2. Press the ❑ button to toggle between options in the Menu. As you move from one icon to another, the option name is highlighted.3. To select the highlighted item on the menu press the button.4. Press the ❑ button to select the desired parameter.5.Press the button to enter the slide bar and then use the ❑ button, according to the indicators on the menu, to make your changes.6.to accept and returnto previous menu.3.1.2 OSD Function Introduction1. SplendidThis function contains eight sub-functions that you can select for your preference.: This is the best choice for document editing with SPLENDID™ Video Intelligence Technology.• sRGB Mode : This is the best choice for viewing photos and graphics from PCs.• Scenery Mode : This is the best choice for scenery photo displaying with SPLENDID™ Video Intelligence Technology.• Theater Mode : This is the best choice for movie watching with SPLENDID™ Video Intelligence Technology.• Game Mode : This is the best choice for game playing with SPLENDID™ Video Intelligence Technology.•Night View Mode : This is the best choice for playing dark-scene game or watching dark-scene movie with SPLENDID™ Video Intelligence Technology.• Reading Mode : This is the best choice for book reading.•Darkroom Mode : This is the best choice for a weak ambient light environmen.• In the Standard Mode, the Saturation, SkinTone, Sharpness, and ASCR functions are not user-configurable.• In the sRGB, the Saturation, Color Temp., SkinTone, Sharpness, Brightness, Contrast and ASCR functions are not user-configurable.•In the Reading Mode, the Saturation, SkinTone, Sharpness, ASCR, contrast, and Color Temp functions are not user-configurable.2.Blue Light FilterAdjust the energy level of blue light emitted from LED backlight.• Level 0: No change.•Level 1~4: The higher the level,the more blue light will be reduced.• When Blue Light Filter is activated,the default settings of Standard Mode will be automatically imported.• Between Level 1 to Level 3, the Brightness function is user-configurable.• Level 4 is optimized setting. It is compliance with TUV Low Blue Light Certification. The Brightness function is not user-configurable.•To alleviate eye strain, rest your eyes for fifteen minutes for every two hours spent in front of the screen. Frequent blinking and eye exercise helps keep your eye moist to prevent them from drying out. In addition, your computer screen should be placed 20 to 28 inches (50-70cm) away from you.3. ColorSelect the image color you like from this function.• Brightness : The adjusting range is from 0 to 100.• Contrast : The adjusting range is from 0 to 100. • Saturation : The adjusting range is from 0 to 100.• Color Temp.: Contains three preset color modes (Cool , Normal , Warm )and User Mode.•Skin Tone : Contains three color modes including Reddish , Natural , and Yellowish .•In the User Mode, colors of R (Red), G (Green), and B (Blue) are user-configurable; the adjusting range is from 0 ~ 100.4. ImageYou can adjust the image Sharpness, Trace Free, Aspect Control, VividPixel and ASCR from this main function.• Sharpness : Adjusts the picture sharpness. The adjusting range is from 0 to 100.• Trace Free : Speeds up the response time by Over Drive technology. The adjusting range is from lower 0 to faster 100.• Aspect Control : Adjusts the aspect ratio to “Full ”, “4:3”,“1:1”. •VividPixel: ASUS Exclusive Technology that brings lifelike visuals for crystal-clear and detail-oriented enjoyment. The adjusting range is from 0 to 100.•ASCR : Select ON or OFF to enable or disable dynamic contrast ratio function.•4:3 is only available when input source is in 4:3 format .5. System SetupAdjusts the system configuration.• Splendid Demo Mode: Activate the demo mode for the Splendid function.• Auto Rotation: To enable/disable rotate image automatically.Please be noted that Auto rotation function is only working under Windows OS byinstalling DisplayWidget software• GamePlus: The GamePlus Function provides a toolkit and creates a better gaming environment for users when playing different types ofgames. Particularly, Chrosshair function is specially designed for newgamers or beginners interested in First Person Shooter (FPS) games.To active GamePlus:• Select ON to enter the GamePlus main menu.• Press to select between Chrosshair, Timer and Display Alignment function.• Press to confirm the function you choose. Select to go off, and exit.GamePlus-Timer• QuickFit: See page 1-3 for details.• ECO Mode: Activate the ecology mode for power saving.• OSD Setup: Adjusts the OSD Timeout, DDC/CI, and Transparency of the OSD screen.• Language: Select OSD language. The selections are: English, French, German, Spanish, Italian, Dutch, Russian, Poland, Czech, Croatia, Hungary, Romania, Portugal, Turkey, Simplified Chinese, Traditional Chinese, Japanese, Korean, Persian, Thai and Indonesian.• M ore: Return the next page of System Setting.• Key Lock: Disable all key functions. Pressing the menu button for more than five seconds to disable key lock function.• I nformation:Displays the monitor information.• Power Indicator: Turn the power LED indicator on/off.• Power Key Lock: To disable / enable power key.• All Reset: Selects “Yes” to revert all settings to the factory default mode.6. ShortcutSelecting this option allows you to set shortcut key.• Shortcut : User can select from “Blue Light Filter” “Splendid”, “Brightness”, “Contrast”, “Auto Rotation”, “Color Temp.”,“QuickFit”, “GamePlus” and set as shortcut key.7. MyFavoriteLoad/Save all settings on the monitor.3.2 Specifications*Specifications are subject to change without notice.3.3 Troubleshooting (FAQ)*1: White color background will consume higher power, so it’s better to use white color background to test the power limit from source USB Type-C device.*2: If MB16AC does not re-start when adjusting to value 100, that meanssource USB Type-C device has sufficient power supply.3.4 Supported Timing List。

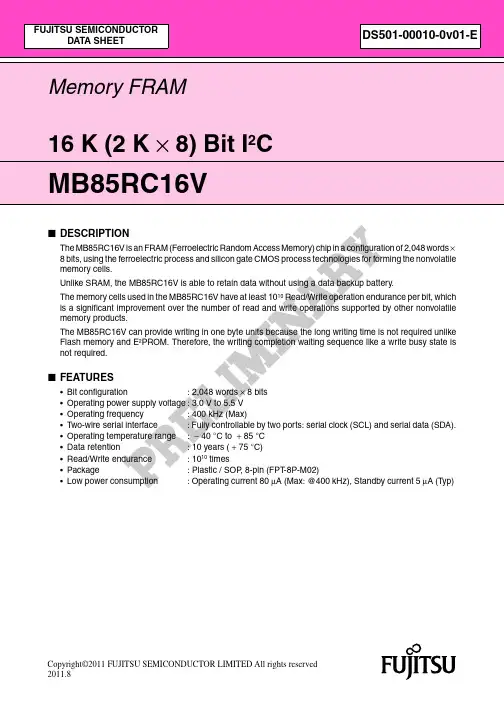

FUJITSU SEMICONDUCTORDATA SHEETCopyright©2011 FUJITSU SEMICONDUCTOR LIMITED All rights reserved 2011.8Memory FRAM16 K (2 K × 8) Bit I 2CMB85RC16V■DESCRIPTIONThe MB85RC16V is an FRAM (F erroelectric Random Access Memory) chip in a configuration of 2,048 words × 8 bits, using the ferroelectric process and silicon gate CMOS process technologies for forming the nonvolatile memory cells.Unlike SRAM, the MB85RC16V is able to retain data without using a data backup battery.The memory cells used in the MB85RC16V have at least 1010 Read/Write operation endurance per bit, which is a significant improvement over the number of read and write operations supported by other nonvolatile memory products.The MB85RC16V can provide writing in one byte units because the long writing time is not required unlike Flash memory and E 2PROM. Therefore, the writing completion waiting sequence like a write busy state is not required.■FEATURES•Bit configuration : 2,048 words × 8 bits •Operating power supply voltage : 3.0 V to 5.5 V •Operating frequency : 400 kHz (Max) •T wo-wire serial interface : Fully controllable by two ports: serial clock (SCL) and serial data (SDA).•Operating temperature range : − 40 °C to + 85 °C •Data retention : 10 years ( + 75 °C) •Read/Write endurance : 1010 times •Package : Plastic / SOP , 8-pin (FPT -8P-M02)•Low power consumption : Operating current 80 μA (Max: @400 kHz), Standby current 5 μA (Typ)DS501-00010-0v01-EMB85RC16V■PIN FUNCTIONAL DESCRIPTIONSPinNumberPin Name Functional Description1 to 3NC No Connect pins Leave it unconnected.4VSS Ground pin5SDA Serial Data I/O pinThis is an I/O pin of serial data for performing bidirectional communication of mem-ory address and writing or reading data. It is possible to connect some devices. It is an open drain output, so a pull-up resistance is required to be connected to the external circuit.6SCL Serial Clock pinThis is a clock input pin for input/output timing serial data. Data is sampled on the rising edge of the clock and output on the falling edge.7WP Write Protect pinWhen Write Protect pin is “H” level, writing operation is disabled. When Write Pro-tect pin is “L” level, the entire memory region can be overwritten. Reading operation is always enabled regardless of the Write Protect pin state. The write protect pin is internally pulled down to the VSS pin and that is recognized as the “L” level (write enabled) when the pin is the open state.8VDD Supply Voltage pinMB85RC16V■I2C (Inter-Integrated Circuit)The MB85RC16V has the two-wire serial interface and the I2C bus, and operates as a slave device.The I2C bus defines communication roles of “master” and “slave” devices, with the master side holding the authority to initiate control. Furthermore, a I2C bus connection is possible where a single master device is connected to multiple slave devices in a party-line configuration.2MB85RC16V■I2C COMMUNICATION PROTOCOLThe I2C bus provides communication by two wires only, therefore, the SDA input should change while SCL is the “L” level. However, when starting and stopping the communication sequence, SDA is allowed to change while SCL is the “H” level.•Start ConditionTo start read or write operations by the I2C bus, change the SDA input from the “H” level to the “L” level while the SCL input is in the “H” level.•Stop ConditionTo stop the I2C bus communication, change the SDA input from the “L” level to the “H” level while the SCL input is in the “H” level. In the reading operation, inputting the stop condition finishes reading and enters the standby state. In the writing operation, inputting the stop condition finishes inputting the rewrite data and enters the standby state.Note : The FRAM device does not need the programming wait time (t WC) after issuing the Stop Condition during the write operation.MB85RC16V ■ACKNOWLEDGE (ACK)In the I2C bus, serial data including memory address or memory information is sent in units of 8 bits. The acknowledge signal indicates that every 8 bits of the data is successfully sent and received. The receiver side usually outputs the “L” level every time on the 9th SCL clock after every 8 bits are successfully trans-mitted. On the transmitter side, the bus is temporarily released on this 9th clock to allow the acknowledge signal to be received and checked. During this released period, the receiver side pulls the SDA line down to indicate that the communication works correctly.If the receiver side receives the stop condition before transmitting the acknowledge “L” level, the read operation ends and the I2C bus enters the standby state. If the acknowledge “L” level is not detected, and the Stop condition is not sent, the bus remains in the released state without doing anything.■MEMORY ADDRESS STRUCTUREThe MB85RC16V has the memory address buffer to store the 11-bit information for the memory address.As for byte write, page write and random read commands, the complete 11-bit memory address is configured by inputting the memory upper address (3 bits) and the memory lower address (8 bits), and saving to the memory address buffer and access to the memory is performed.As for a current address read command, the complete 11-bit memory address is configured by inputting the memory upper address (3 bits) and by the memory address lower 8-bit which has saved in the memory address buffer, and saving to the memory address buffer and access to the memory is performed.MB85RC16V■DEVICE ADDRESS WORDF ollowing the start condition, the 8 bit device address word is input. Inputting the device address word decideswhether the master or the slave drives the data line. However, the clock is always driven by the master. The device address word (8bits) consists of a device T ype code (4bits), memory upper address code (3bits), anda Read/Write code (1bit).•Device Type Code (4bits)The upper 4 bits of the device address word are a device type code that identifies the device type, and are fixed at “1010” for the MB85RC16V.•Memory Upper Address Code (3bits)Following the device type code, the 3 bits of the memory upper address code are input.The slave address selection is not performed by the external pin setting on this device. These 3 bits are not the setting bits for the slave address, but the upper 3-bit setting bits for the memory address.•Read/Write Code (1bit)The 8th bit of the device address word is the R/W (Read/Write) code. When the R/W code is “0” input, a write operation is enabled, and the R/W code is “1” input, a read operation is enabled for the MB85RC16V.If the device code is not “1010”, the Read/Write operation is not performed and the standby state is chosen.MB85RC16V ■DATA STRUCTUREThe master inputs the device address word (8 bits) following the start condition, and then the slave outputs the Acknowledge “L” level on the ninth bit. After confirming the Acknowledge response, the sequential 8-bit memory lower address is input, to the byte write, page write and random read commands.As for the current address read command, inputting the memory lower address is not performed, and the address buffer lower 8-bit is used as the memory lower address.When inputting the memory lower address finishes, the slave outputs the Acknowledge “L” level on the ninth bit again.Afterwards, the input and the output data continue in 8-bit units, and then the Acknowledge “L” level is output for every 8-bit data.MB85RC16V■FRAM ACKNOWLEDGE -- POLLING NOT REQUIREDThe MB85RC16V performs the high speed write operations, so any waiting time for an ACK* by the acknowl-edge polling does not occur.*: In Flash memory and E2PROM, the Acknowledge Polling is performed as a progress check whether rewriting is executed or not. It is normal to judge by the 9th bit of Acknowledge whether rewriting is performed or not after inputting the start condition and then the device address word (8 bits) during rewriting.■WRITE PROTECT (WP)The entire memory array can be write protected by setting the WP pin to the “H” level. When the WP pin is set to the “L” level, the entire memory array will be rewritten. Reading is allowed regardless of the WP pin's “H” level or “L” level.Do not change the WP signal level during the communication period from the start condition to the stop condition.Note : The WP pin is pulled down internally to the VSS pin, therefore if the WP pin is open, the pin status is recognized as the “L” level (write enabled).MB85RC16V ■COMMAND•Byte WriteIf the device address word (R/W “0” input) is sent after the start condition, an ACK responds from the slave.After this ACK, write memory addresses and write data are sent in the same way, and the write ends by•Page WriteIf data is continuously sent after the following address when the same command (expect stop condition) as Byte Write was sent, a page write is performed. The memory address rolls over to first memory address (000H)at the end of the address. Therefore, if more than 2 Kbytes are sent, the data is overwritten in orderMB85RC16V•Current Address ReadIf the last write or read operation finishes correctly up to the end of stop condition, the memory address that was accessed last remains in the memory address buffer (the length is 11 bits).When sending this command without turning the power off, it is possible to read from the memory address n+1 which adds 1 to the total 11-bit memory address n, which consists of the memory upper address 3-bit from the device address word input and the lower 8-bit of the memory address buffer. If the memory address n is the last address, it is possible to read with rolling over to the head of the memory address (000H). The current address (address that the memory address buffer indicates) is undefined immediately after turning•Random ReadAfter specifying the address as well as for write system command, issuing another start condition, by trans-mitting Device Address Word (R/W “1” input), the one byte data from the memory address saved in the memory address buffer can be read synchronously to SCL.Setting values for the first and the second memory upper address codes should be the same (The figure below shows the input example).The final NACK (SDA is the “H” level) is issued by the receiver that receives the data. In this case, this bit is•Sequential ReadData can be received continuously following the Device address word (R/W “1” input) after specifying the address in the same way as for Random Read. If the read reaches the end of address, the read address■ABSOLUTE MAXIMUM RATINGS*: These parameters are based on the condition that Vss is 0 V .WARNING:Semiconductor devices can be permanently damaged by application of stress (voltage, current,temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.■RECOMMENDED OPERATING CONDITIONS*: These parameters are based on the condition that Vss is 0 V .WARNING:The recommended operating conditions are required in order to ensure the normal operation ofthe semiconductor device. All of the device's electrical characteristics are warranted when the device is operated within these ranges.Always use semiconductor devices within their recommended operating condition ranges.Operation outside these ranges may adversely affect reliability and could result in device failure.No warranty is made with respect to uses, operating conditions, or combinations not represented on the data sheet. Users considering application outside the listed conditions are advised to contact their representatives beforehand.ParameterSymbol RatingUnit Min Max Power supply voltage*V DD − 0.5 + 6.0V Input voltage*V IN − 0.5V DD + 0.5 ( ≤ 6.0)V Output voltage*V OUT − 0.5V DD + 0.5 ( ≤ 6.0)V Ambient temperature T A − 40 + 85 °C Storage temperatureT STG− 40+ 125°CParameterSymbol ValueUnit Min Typ Max Power supply voltage*V DD 3.0⎯ 5.5V “H” level input voltage*V IH V DD × 0.8⎯ 5.5V “L” level input voltage*V IL V SS ⎯V DD × 0.2V Ambient temperatureT A− 40⎯+ 85°C■ELECTRICAL CHARACTERISTICS1.DC Characteristics(within recommended operating conditions)*1: Applicable pin: SCL,SDA *2: Applicable pin: SDAParameterSymbol ConditionValueUnit Min Typ Max Input leakage current*1|I LI |V IN = 0 V to V DD ⎯⎯1μA Output leakage current*2|I LO |V OUT = 0 V to V DD ⎯⎯1μA Operating power supply current I CC SCL = 400 kHz⎯4080μA Standby current I SB SCL, SDA = V DDWP = 0V or V DD or OPEN T A = + 25 °C in stop condi-tion⎯510μA “L” level output voltage V OL I OL = 2 mA ⎯⎯0.4V Input resistance for WP pin R INV IN = V IL (Max)50⎯⎯k ΩV IN = V IH (Min)1⎯⎯M Ω2.AC Characteristics(within recommended operating conditions)AC characteristics were measured under the following measurement conditions.Power supply voltage : 3.0 V to 5.5 V Operating temperature : − 40 °C to + 85 °C Input voltage amplitude : V DD × 0.2 to V DD × 0.8 Input rise time : 5 ns Input fall time : 5 ns Input judge level : V DD /2 Output judge level: V DD /2ParameterSymbolValueUnitSTANDARD MODE FAST MODE MinMax Min Max SCL clock frequency FSCL 01000400kHz Clock high time T HIGH 4.0⎯0.6⎯μs Clock low time T LOW 4.7⎯ 1.3⎯μs SCL/SDA rise time T r ⎯1000⎯300ns SCL/SDA fall time T f ⎯300⎯300ns Start condition hold T HD:STA 4.0⎯0.6⎯μs Start condition setup T SU:STA 4.7⎯0.6⎯μs SDA input hold T HD:DAT 0⎯0⎯ns SDA input setup T SU:DAT 250⎯100⎯ns SDA output hold T DH:DAT 0⎯0⎯ns Stop condition setupT SU:STO 4.0⎯0.6⎯μs SDA output access after SCL fall T AA ⎯3⎯0.9μs Pre-charge timeT BUF 4.7⎯ 1.3⎯μs Noise suppression time constant on SCL, SDAT SP⎯50⎯50ns4.Pin capacitanceParameter Symbol Conditions ValueUnit Min Typ Max I/O capacitance C I/O V DD = V IN = V OUT = 0V, f = 1 MHz, T A = + 25 °C⎯⎯15pF Input capacitanceC IN⎯⎯15pF■NOTES ON USE•Data written before performing IR reflow is not guaranteed after IR reflow.•VDD is required to be rising from 0 V because turning the power on from an intermediate level may cause malfunctions, when the power is turned on.ParameterSymbol ValueUnit Min Max SDA, SCL level hold time during power down tpd 85⎯ ns SDA, SCL level hold time during power up tpu 85⎯ ns Power supply rise time tr 0.550ms Power supply fall time tf 0.0150ms Power off timetOFF50⎯ms■ORDERING INFORMATIONPart number Package RemarksMB85RC16VPNF-G-JNE1 8-pin, plastic SOP (FPT-8P-M02)MB85RC16VPNF-G-JNERE1 8-pin, plastic SOP(FPT-8P-M02)Embossed Carrier tape■PACKAGE DIMENSIONPlease check the latest package dimension at the following URL. /package/en-search/MEMOFUJITSU SEMICONDUCTOR LIMITED Nomura Fudosan Shin-yokohama Bldg. 10-23, Shin-yokohama 2-Chome, Kohoku-ku Y okohama Kanagawa 222-0033, JapanT el: +81-45-415-5858/fsl/en/For further information please contact:North and South AmericaFUJITSU SEMICONDUCTOR AMERICA, INC. 1250 E. Arques Avenue, M/S 333Sunnyvale, CA 94085-5401, U.S.A.T el: +1-408-737-5600 Fax: +1-408-737-5999 /micro/EuropeFUJITSU SEMICONDUCTOR EUROPE GmbH Pittlerstrasse 47, 63225 Langen, GermanyT el: +49-6103-690-0 Fax: +49-6103-690-122 /semiconductor/KoreaFUJITSU SEMICONDUCTOR KOREA LTD.902 Kosmo T ower Building, 1002 Daechi-Dong, Gangnam-Gu, Seoul 135-280, Republic of Korea T el: +82-2-3484-7100 Fax: +82-2-3484-7111 /fsk/Asia PacificFUJITSU SEMICONDUCTOR ASIA PTE. LTD.151 Lorong Chuan,#05-08 New T ech Park 556741 SingaporeT el : +65-6281-0770 Fax : +65-6281-0220/semiconductor/FUJITSU SEMICONDUCTOR SHANGHAI CO., LTD. Rm. 3102, Bund Center, No.222 Y an An Road (E), Shanghai 200002, ChinaT el : +86-21-6146-3688 Fax : +86-21-6335-1605 /fss/FUJITSU SEMICONDUCTOR P ACIFIC ASIA LTD. 10/F., World Commerce Centre, 11 Canton Road, Tsimshatsui, Kowloon, Hong KongT el : +852-2377-0226 Fax : +852-2376-3269/fsp/Specifications are subject to change without notice. For further information please contact each office.All Rights Reserved.The contents of this document are subject to change without notice.Customers are advised to consult with sales representatives before ordering.The information, such as descriptions of function and application circuit examples, in this document are presented solely for the purpose of reference to show examples of operations and uses of FUJITSU SEMICONDUCTOR device; FUJITSU SEMICONDUCTOR does not warrant proper operation of the device with respect to use based on such information. When you develop equipment incorporating the device based on such information, you must assume any responsibility arising out of such use of the information.FUJITSU SEMICONDUCTOR assumes no liability for any damages whatsoever arising out of the use of the information.Any information in this document, including descriptions of function and schematic diagrams, shall not be construed as license of the use or exercise of any intellectual property right, such as patent right or copyright, or any other right of FUJITSU SEMICONDUCTOR or any third party or does FUJITSU SEMICONDUCTOR warrant non-infringement of any third-party's intellectual property right or other right by using such information. FUJITSU SEMICONDUCTOR assumes no liability for any infringement of the intellectual property rights or other rights of third parties which would result from the use of information contained herein.The products described in this document are designed, developed and manufactured as contemplated for general use, including without limitation, ordinary industrial use, general office use, personal use, and household use, but are not designed, developed and manufactured as contemplated (1) for use accompanying fatal risks or dangers that, unless extremely high safety is secured, could have a serious effect to the public, and could lead directly to death, personal injury, severe physical damage or other loss (i.e., nuclear reaction control in nuclear facility, aircraft flight control, air traffic control, mass transport control, medical life support system, missile launch control in weapon system), or (2) for use requiring extremely high reliability (i.e., submersible repeater and artificial satellite).Please note that FUJITSU SEMICONDUCTOR will not be liable against you and/or any third party for any claims or damages aris-ing in connection with above-mentioned uses of the products.Any semiconductor devices have an inherent chance of failure. You must protect against injury, damage or loss from such failures by incorporating safety design measures into your facility and equipment such as redundancy, fire protection, and prevention of over-current levels and other abnormal operating conditions.Exportation/release of any products described in this document may require necessary procedures in accordance with the regulations of the Foreign Exchange and Foreign Trade Control Law of Japan and/or US export control laws.The company names and brand names herein are the trademarks or registered trademarks of their respective owners.Edited: Sales Promotion Department。
