ABAQUS2016子程序关联(绝对原创)

分享子程序编程经验miracle17178最近我一直在编写路面的移动载荷，移动载荷包括DLOAD（移动竖向荷载）和UTRACLOAD（移动水平力），编程过程中遇到的问题比较多，总结总结，给后边编类似程序的同志们一点捷径。

问题：1.开始时用VDLOAD编写子程序，完成了竖直力的移动加载，可是对应的水平力没办法加，原因是：VDLOAD是在显示求解explicit中调用的，而水平力UTRACLOAD是在隐士求解implicit中调用的，同一STEP无法实现两者同时加载，只好改用DLOAD，之后同时加载，完成。

2.两个子程序同时加载时会出现问题，单个施加一个子程序，都可以顺利通过，但是将两个子程序粘贴到一个新的.for文件中却会出现Problemduringlinking - Abaqus/Standard User Subroutines. This error may be due to a mismatch in the Abaqus user subroutine arguments. These arguments sometimes change from release to release, so user subroutines used with a previous version of Abaqus may need to be adjusted. 查了simwe里面相关的帖子，试了很多方法，都不行，最后，我先运行DLOAD，之后再把UTRACLOAD 的程序直接粘贴到DLOAD中而不是将两个程序粘贴到新文件中，再去调试，结果通过了，而且结果正确，所以，我总结为：出现连接错误时，不一定都是子程序验证不通过，或是变量定义冲突等原因。

不知道大家还有没有别的看法。

3.我编写的移动荷载模拟汽车一列四个轮子（就是大型货车四排轮子）通过一个10m模型，大部分人编写的时候一开始就将四个轮子的后轮挨着模型边缘，再让四个轮载区域同时移动，等前面的轮子区域挨着路面边缘时，停止，这样有一个缺点，就是模型的长至少是两个车长，这还要看你关注的是哪个区域的受力情况，我编写的时候是靠TIME(2)*V-L（TIME(2)*V代表前边轮的移动距离，L是后轮前沿距前轮前沿的距离）保证时间和加载区域的协调统一，这样我的模型只是一个车长，只要将STEP中Time period设置成两个车长通过的时间就行了，这样前轮先上路面，随着TIME(2)的增加，后轮在前轮移动L后也上了路面，等到前轮出了模型，后轮还会随着时间的增加继续加载，直到两个车长的通过时间结束，所以这样下来，模型小了，单元也少了，节省资源节省时间。

***防火墙英文存放位置及安装路径，系统组件……第一部分Abaqus的安装问题（不含子程序）1）用虚拟光驱加载DVD2，安装Document，直接运行根目录下的setup.exe即可，安装过程比较简单。

(完成1后不要急着安装啊！因为你需要做一些事情来使得你的电脑可以破解abaqus。

做什么呢！需要做两项，分别是：1.1.设置一个环境变量，变量名为：LM_LICENSE_FILE；变量值为：27011@127.0.0.1。

这个时候有人会问，这是咋回事啊！因该是27011@自己的电脑名称。

我要告诉你这个127.0.0.1就是指你的电脑。

所以不用再写你的电脑名字了，要是万一你的电脑名字是汉语的，那么还不好使呢！这个步骤的目的在于在你的电脑里面建立了一个解码系统，可以明目张胆地使用abaqus。

1.2.修改abaqus安装盘中SHooTERS文件夹中的abaqus69.dat，打开它，将“this_host”修改为127.0.0.1。

保存。

)根据个人安装经验，上述方法有时可能会失效，自己调整如下。

因为我下载的版本的license文件第一行为：SERVER THIS_host ID=20111111 27011 而不是SERVER THIS_host ID=20111111 27003第4步：变量名LM_LICENSE_FILE，值为hostname （hostname为你的计算机名字）第8步：27003@hostname 更改为27011@hostname （hostname为你的计算机名字）2）设置环境变量：鼠标右键点击桌面“我的电脑”图标，通过路径“属性->高级->环境变量”，然后在系统变量栏新建一个环境变量，变量名LM_LICENSE_FILE，值为27011@hostname。

（以前版本的为27003等现为27011，hostname为你的计算机名）3）用虚拟光驱加载DVD1，先安装License，运行X:\win86_32\license\Windows\Disk1\InstData\VM\install.exe。

第一种方法：在Job模块里，创建工作，在Edit Job对话框中选择General选项卡，在Usersubroutine file中点击Select按钮，从弹出对话框中选择你要调用的子程序文件（后缀为.for或.f）。

第二种方法：1. 建立工作目录?崠2. 将Abaqus安装目录\6.4-pr11\site下的aba_param_dp.inc 或aba_param_sp.inc 拷贝到工作目录，并改名为aba_param.inc；3. 将编译的fortran程序拷贝到工作目录；4.将.obj文件拷贝到工作目录；5. 建立好输入文件.inp；6. 运行abaqus job=inp_name user=fortran name即可。

以下是网上摘录的资料，供参考：用户进行二次开发时，要在命令行窗口执行下面的命令：abaqus job=job_name user=sub_nameABAQUS会把用户的源程序编译成obj文件，然后临时生成一个静态库standardU.lib和动态库standardU.dll，还有其它一些临时文件，而它的主程序（如standard.exe和explicit.exe等）则没有任何改变，由此看来ABAQUS是通过加载上述2个库文件来实现对用户程序的连接，而一旦运行结束则删除所有的临时文件。

这种运行机制与ANSYS、LS-DYNA、marc等都不同。

这些生成的临时文件要到文件夹C:\Documents and Settings\Administrator\Local Settings\Temp\中才能找到，这也是6楼所说的藏了一些工作吧，大家不妨试一下。

1子程序格式(程序后缀是.f; .f90; .for;.obj??)答：我试过，.for格是应该是不可以的，至少6.2和6.3版本应该是不行，其他的没用过，没有发言权。

在Abaqus中，运行abaqus j=jobname user=username时，默认的用户子程序后缀名是.for（.f,.f90应该都不行的，手册上也有讲过），只有在username.for文件没有找到的情况下，才会去搜索username.obj，如果两者都没有，就会报错误信息。

Abaqus安装及子程序验证详解System Requirements for Abaqus6.9ProductsSystem Requirements for Abaqus6.10ProductsSystem Requirements for Abaqus6.11Products更多信息请查阅网址：/support/sup_systems_info.htmlAbaqus v6.10.1可使用：MVS2008+IVF10.1MVS2008+IVF11.1这二种组合@FG\XL#VAbaqus v6.9.1可使用：MVS2005+IVF9.1MVS2005+IVF10.1MVS2008+IVF10.1这三种组合需要说明的是，msv2010不兼容IVF11.1，MVS2008+IVF10.1是比较好的选择。

1、首先，安装之前一定要看看Abaqus的要求，具体的程序安装说明网上都有，10.0后的安装智能化了许多，本人在这里只说明需要注意的地方。

2、Abaqus6.9安装除了需要vs c++和intel fortran外还需要安装PlatformSDK到“Microsoft Visual Studio8（msv8.0）安装目录”\vc下，因为在“Microsoft Visual Studio 8安装目录”\VC\bin\amd64\vcvarsamd64.bat（64位系统）和“Microsoft Visual Studio8安装目录”\Common7\Tools\vsvars32.bat（32位系统）文件中已经设置了VC和PlatformSDK环境变量。

3、Abaqus6.10已经不需要专门安装PlatformSDK。

在mvs9.0安装目录中的vcvarsamd64.bat和vsvars32.bat文件关于环境变量的设置与msv8.0有很大的不同。

4、关于系统变量的相关设置。

本人不赞同手动修改系统变量，觉得程序自己设置比较好，所以这种方法不需要手动修改相关系统变量。

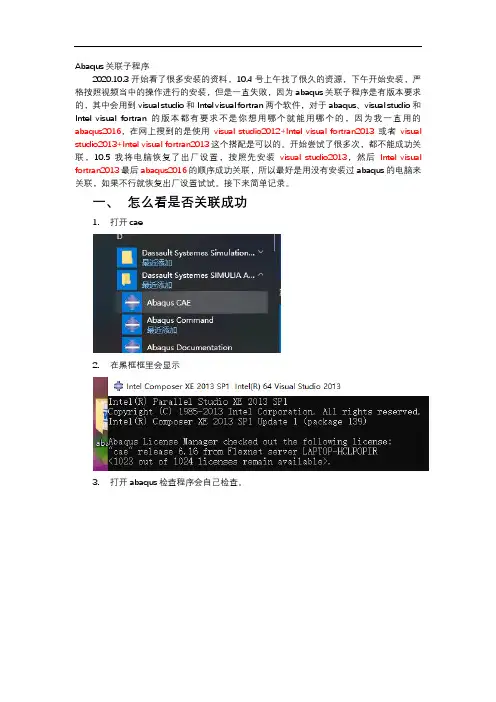

Abaqus关联子程序2020.10.3开始看了很多安装的资料，10.4号上午找了很久的资源，下午开始安装，严格按照视频当中的操作进行的安装，但是一直失败，因为abaqus关联子程序是有版本要求的，其中会用到visual studio和Intel visual fortran两个软件，对于abaqus、visual studio和Intel visual fortran的版本都有要求不是你想用哪个就能用哪个的，因为我一直用的abaqus2016，在网上搜到的是使用visual studio2012+Intel visual fortran2013或者visual studio2013+Intel visual fortran2013这个搭配是可以的。

开始尝试了很多次，都不能成功关联，10.5我将电脑恢复了出厂设置，按照先安装visual studio2013，然后Intel visual fortran2013最后abaqus2016的顺序成功关联，所以最好是用没有安装过abaqus的电脑来关联，如果不行就恢复出厂设置试试。

接下来简单记录。

一、怎么看是否关联成功1.打开cae2.在黑框框里会显示3.打开abaqus检查程序会自己检查。

4.如果关联成功，程序检查完以后会出现一个文档，里面的选项都是PASS就是关联成功，最后一项如果是错误没事的二、安装visual studio2013我只用FORTRAN所以这里只选择用于C++的基础类就好跑完就好了三、安装Intel visual Fortran2013这里改变路径也可以的，之后直接点击Extract这里可以改变路径之后就会安装完成四、安装abaqus2016过于麻烦自己搜吧，百度安装abaqus2016教程就有五、关联子程序原理就是打开abaqus之前先打开这两个软件。

几行代码加到abaqus上面的一个文件。

1.先找到abaqus的那个文件2.我的安装路径是3.你们自己设置的路径自己找找不到直接搜索名字就行，之后右键编辑。

安装VS+IVF+ABAQUS第一步：：：找到IVF初始化文件及其绝对路径(X:\是所在盘符，x是IVF版本相关的数字)IVF 10.x都是X:\...\Intel\Compiler\10.x\xxx\bin\ifortvars.batIVF 11.x32位系统是X:\...\Intel\Compiler\11.x\xxx\bin\ia32\ifortvars_ia32.batintel64位系统是X:\...\Intel\Compiler\11.x\xxx\bin\intel64\ifortvars_intel64.bat（注意64位是分intel64位和AMD64位，根据机器情况选择软件版本，Abaqus 也是如此，我只用过所以也只讨论intel64）再找到已安装的Abaqus所在文件夹下的Commands文件夹中的abq6XXX.bat文件，右键编辑打开它，在@echo off下插入下面这行命令(以32位系统IVF11.x为例)@call "X:\...\Intel\Compiler\11.x\xxx\bin\ia32\ifortvars_ia32.bat"保存关闭abq6XXX.bat文件。

第二步：：在开始菜单的Abaqus文件夹中找到Abaqus Verification快捷方式，点击它进行验证。

我的配置：VS2013+IVF2013 SP1 update3+ABAQUS 6.14.1将aba6141.bat 文件中改为：@echo offcall "C:\Program Files (x86)\Intel\Composer XE 2013 SP1\bin\ifortvars.bat" intel64 vs2013"G:\SIMULIA\Abaqus\6.14-1\code\bin\abq6141.exe" %*THANKS !!!致力为企业和个人提供合同协议，策划案计划书，学习课件等等打造全网一站式需求欢迎您的下载，资料仅供参考。

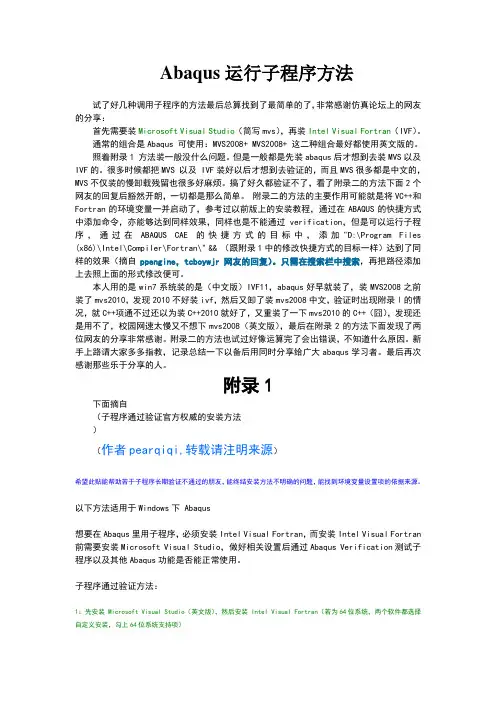

Abaqus运行子程序方法试了好几种调用子程序的方法最后总算找到了最简单的了，非常感谢仿真论坛上的网友的分享：首先需要装Microsoft Visual Studio（简写mvs），再装Intel Visual Fortran（IVF）。

通常的组合是Abaqus v6.10.1可使用：MVS2008+IVF10.1 MVS2008+IVF11.1 这二种组合最好都使用英文版的。

照着附录1 方法装一般没什么问题。

但是一般都是先装abaqus后才想到去装MVS以及IVF的。

很多时候都把MVS 以及IVF装好以后才想到去验证的，而且MVS很多都是中文的，MVS不仅装的慢卸载残留也很多好麻烦。

搞了好久都验证不了，看了附录二的方法下面2个网友的回复后豁然开朗，一切都是那么简单。

附录二的方法的主要作用可能就是将VC++和Fortran的环境变量一并启动了，参考过以前版上的安装教程，通过在ABAQUS 的快捷方式中添加命令，亦能够达到同样效果，同样也是不能通过verification，但是可以运行子程序，通过在ABAQUS CAE的快捷方式的目标中，添加"D:\Program Files (x86)\Intel\Compiler\Fortran\10.1.034\em64t\bin\ifortvars.bat" && （跟附录1中的修改快捷方式的目标一样）达到了同样的效果（摘自ppengine，tcboywjr网友的回复）。

只需在搜索栏中搜索ifortvars.bat，再把路径添加上去照上面的形式修改便可。

本人用的是win7系统装的是abaqus6.10.mvs2008（中文版）IVF11，abaqus好早就装了，装MVS2008之前装了mvs2010，发现2010不好装ivf，然后又卸了装mvs2008中文，验证时出现附录Ⅰ的情况，就C++项通不过还以为装C++2010就好了，又重装了一下mvs2010的C++（囧），发现还是用不了，校园网速太慢又不想下mvs2008（英文版），最后在附录2的方法下面发现了两位网友的分享非常感谢。

1.1.37 UMATHTUser subroutine to define a material's thermalbehavior.Product: Abaqus/StandardWarning: The use of this subroutine generally requires considerable expertise. You are cautioned that the implementation of any realistic thermal model requires significant development and testing. Initial testing on models with few elements under a variety of boundary conditions is strongly recommended.References●“User-defined thermal material behavior,”Section 23.8.2 of the Abaqus Analysis User's Manual● *USER MATERIAL●“Freezing of a square solid: the two-dimensional Stefan problem,”Section 1.6.2 of the Abaqus Benchmarks Manual●“UMATHT,”Section 4.1.22 of the Abaqus Verification ManualOverviewUser subroutine UMATHT:● can be used to define the thermal constitutive behavior of the material as well as internal heat generation during heat transfer processes;● will be called at all material calculation points of elements for which the material definition includes a user-defined thermal material behavior;● can be used with the procedures discussed in “Heat transfer analysis procedures: overview,”Section 6.5.1 of the Abaqus Analysis User's Manual;● can use solution-dependent state Variables;● must define the internal energy per unit mass and its variation with respect to temperature and to spatial gradients of temperature;● must define the heat flux vector and its variation with respect to temperature and to gradients of temperature;● must update the solution-dependent state Variables to their values at the end of the increment;● can be used in conjunction with user subroutine USDFLD to redefine any field Variables before they are passed in; and● is described further in “User-defined thermal material behavior,”Section 23.8.2 of the Abaqus Analysis User's Manual.Use of subroutine UMATHT with coupled temperature-displacement elementsUser subroutine UMATHT should be used only with reduced-integration or modified coupled temperature-displacement elements if the mechanical and thermal fields are not coupled through plastic dissipation. No such restriction exists with fully integrated coupled temperature-displacement elements.User subroutine interfaceSUBROUTINE UMATHT(U,DUDT,DUDG,FLUX,DFDT,DFDG,1 STATEV,TEMP,DTEMP,DTEMDX,time,Dtime,PREDEF,DPRED,2 CMNAME,NTGRD,NSTATV,PROPS,NPROPS,COORDS,PNEWDT,3 NOEL,NPT,LAYER,KSPT,KSTEP,KINC)CINCLUDE 'ABA_PARAM.INC'CCHARACTER*80 CMNAMEDIMENSION DUDG(NTGRD),FLUX(NTGRD),DFDT(NTGRD),1 DFDG(NTGRD,NTGRD),STATEV(NSTATV),DTEMDX(NTGRD),2 time(2),PREDEF(1),DPRED(1),PROPS(NPROPS),COORDS(3)user coding to define U,DUDT,DUDG,FLUX,DFDT,DFDG,and possibly update STATEV, PNEWDTRETURNENDVariables to be definedUInternal thermal energy per unit mass, U, at the end of increment. This variable is passed in as the value at the start of the increment and must be updated to its value at the end of the increment.DUDTVariation of internal thermal energy per unit mass with respect to temperature,, evaluated at the end of the increment.DUDG(NTGRD)Variation of internal thermal energy per unit mass with respect to the spatial gradients of temperature,, at the end of the increment. The size of this array depends on the value of NTGRD as defined below. This term is typically zero in classical heat transfer analysis.FLUX(NTGRD)Heat flux vector,, at the end of the increment. This variable is passed in with the values at the beginning of the increment and must be updated to the values at the end of the increment.DFDT(NTGRD)Variation of the heat flux vector with respect to temperature,, evaluated at the end of the increment.DFDG(NTGRD,NTGRD)Variation of the heat flux vector with respect to the spatial gradients of temperature,, at the end of the increment. The size of this array depends on the value of NTGRD as defined below.Variables that can be updatedSTATEV(NSTATV)An array containing the solution-dependent state Variables.In an uncoupled heat transfer analysis STATEV is passedinto UMATHT with the values of these Variables at the beginning of the increment. However, any changes in STATEV made in usersubroutine USDFLD will be included in the values passed into UMATHT, since USDFLD is called before UMATHT. In addition, if UMATHT is being used in a fully coupled temperature-displacement analysis and user subroutine CREEP, user subroutine UEXPAN, user subroutine UMAT, or user subroutine UTRS is used to define the mechanical behavior of the material, those routines are called before this routine; therefore, any updating of STATEV done in CREEP, UEXPAN, UMAT, or UTRS will be included in the values passed into UMATHT.In all cases STATEV should be passed back from UMATHT as the values of the state Variables at the end of the current increment.PNEWDTratio of suggested new time increment to the time increment being used (DTIME, see below). This variable allows you to provide input to the automatic time incrementation algorithms in Abaqus/Standard (if automatic time incrementation is chosen).PNEWDT is set to a large value before each call to UMATHT.If PNEWDT is redefined to be less than 1.0, Abaqus/Standard must abandon the time increment and attempt it again with a smaller time increment. The suggested new time increment provided to the automatic time integration algorithms is PNEWDT ×DTIME, wherethe PNEWDT used is the minimum value for all calls to user subroutines that allow redefinition of PNEWDT for this iteration.If PNEWDT is given a value that is greater than 1.0 for all calls to user subroutines for this iteration and the increment converges in this iteration, Abaqus/Standard may increase the time increment. The suggested new time increment provided to the automatic time integration algorithms is PNEWDT ×DTIME, where the PNEWDT used is the minimum value for all calls to user subroutines for this iteration.If automatic time incrementation is not selected in the analysis procedure, values of PNEWDT that are greater than 1.0 will be ignored and values of PNEWDT that are less than 1.0 will cause the job to terminate.Variables passed in for informationTEMPTemperature at the start of the increment.DTEMPIncrement of temperature.DTEMDX(NTGRD)Current values of the spatial gradients of temperature,TIME(1)Value of step time at the beginning of the current increment.time(2)Value of total time at the beginning of the current increment.DTIMETime increment.PREDEFarray of interpolated values of predefined field Variables at this point at the start of the increment, based on the values read in at the nodes.DPREDarray of increments of predefined field Variables.CMNAMEUser-defined material name, left justified.NTGRDnumber of spatial gradients of temperature.NSTATVnumber of solution-dependent state variables associated with this material type (defined as described in “Allocating space” in “Usersubroutines: overview,”Section 15.1.1 of the Abaqus Analysis User's Manual).PROPS(NPROPS)User-specified array of material constants associated with this user material.NPROPSUser-defined number of material constants associated with this user material.COORDSAn array containing the coordinates of this point. These are the current coordinates in a fully coupled temperature-displacement analysis if geometric nonlinearity is accounted for during the step(see “Procedures: overview,”Section 6.1.1 of the Abaqus Analysis User's Manual); otherwise, the array contains the original coordinates of the point.NOEL :Element number.NPT :Integration point number.LAYER :Layer number (for composite shells and layered solids).KSPT: Section point number within the current layer.KSTEP: Step number.KINC: Increment number.Example: Using more than one user-defined thermal material modelTo use more than one user-defined thermal material model, the variable CMNAME can be tested for different material names inside user subroutine UMATHT, as illustrated below:IF (CMNAME(1:4) .EQ. 'MAT1') THENCALL UMATHT_MAT1(argument_list)ELSE IF(CMNAME(1:4) .EQ. 'MAT2') THENCALL UMATHT_MAT2(argument_list)END IFUMATHT_MAT1 and UMATHT_MAT2 are the actual user material subroutines containing the constitutive material models for each material MAT1 and MAT2, respectively. Subroutine UMATHT merely acts as a directory here. The argument list can be the same as that used in subroutine UMATHT.Example: Uncoupled heat transferAs a simple example of the coding of user subroutine UMATHT, consider uncoupled heat transfer analysis in a material. The equationsfor this case are developed here, and the corresponding UMATHT is given. This problem can also be solved by specifying thermal conductivity, specific heat, density, and internal heat generation directly.First, the equations for an uncoupled heat transfer analysis are outlined.The basic energy balance iswhere V is the volume of solid material with surface area S,is the density of the material,is the material time rate of the internal thermal energy, q is the heat flux per unit area of the body flowing into the body, and r is the heat supplied externally into the body per unit volume.A heat flux vectoris defined such thatwhereis the unit outward normal to the surface S. Introducing the above relation into the energy balance equation and using the divergence theorem, the following relation is obtained:The corresponding weak form is given bywhereis the temperature gradient andis an arbitrary variational field satisfying the essential boundary conditions.Introducing the backward difference integration algorithm:the weak form of the energy balance equation becomesThis nonlinear system is solved using Newton's method.In the above equations the thermal constitutive behavior of the material is given byAndwhereare state Variables.The Jacobian for Newton's method is given by (after dropping the subscriptson U)The thermal constitutive behavior for this example is now defined. We assume a constant specific heat for the material. The heat conduction in the material is assumed to be governed by Fourier's law.The internal thermal energy per unit mass is defined aswithwhere c is the specific heat of the material andFourier's law for heat conduction is given aswhereis the thermal conductivity matrix andis position, so thatandThe assumption of conductivity without any temperature dependence implies thatNo state variables are needed for this material, so the allocation of space for them is not necessary.A thermal user material definition can be used to read in the two constants for our simple case, namely the specific heat, c, and the coefficient of thermal conductivity, k, so thatSUBROUTINE UMATHT(U,DUDT,DUDG,FLUX,DFDT,DFDG,1 STATEV,TEMP,DTEMP,DTEMDX,time,DTIME,PREDEF,DPRED,2 CMNAME,NTGRD,NSTATV,PROPS,NPROPS,COORDS,PNEWDT,3 NOEL,NPT,LAYER,KSPT,KSTEP,KINC)CINCLUDE 'ABA_PARAM.INC'CCHARACTER*80 CMNAMEDIMENSION DUDG(NTGRD),FLUX(NTGRD),DFDT(NTGRD),1 DFDG(NTGRD,NTGRD),STATEV(NSTATV),DTEMDX(NTGRD),2 TIME(2),PREDEF(1),DPRED(1),PROPS(NPROPS),COORDS(3) CCOND = PROPS(1)SPECHT = PROPS(2)CDUDT = SPECHTDU = DUDT*DTEMPU = U+DUCDO I=1, NTGRDFLUX(I) = –COND*DTEMDX(I)DFDG(I,I) = –CONDEND DOCRETURNEND1.1.13 HETVALUser subroutine to provide internal heat generation in heat transfer analysis.Product: Abaqus/StandardReferences●“Uncoupled heat transfer analysis,”Section 6.5.2 of the Abaqus Analysis User's Manual●“Fully coupled thermal-stress analysis,”Section 6.5.4 of the Abaqus Analysis User's Manual● *HEAT GENERATION●“HETVAL,”Section 4.1.9 of the Abaqus Verification Manual OverviewUser subroutine HETVAL:● can be used to define a heat flux due to internal heatgeneration in a material, for example, as might be associated with phase changes occurring during the solution;● allows for the dependence of internal heat generation on state Variables (such as the fraction of material transformed) that themselves evolve with the solution and are stored as solution-dependent state variables;● will be called at all material calculation points for which the material definition contains volumetric heat generation during heat transfer, coupled temperature-displacement, or coupled thermal-electrical analysis procedures;● can be useful if it is necessary to include a kinetic theory fora phase change associated with latent heat release (for example, in the prediction of crystallization in a polymer casting process);● can be used in conjunction with user subroutine USDFLD if itis desired to redefine any field Variables before they are passed in; and● cannot be used with user subroutine UMATHT.User subroutine interfaceSUBROUTINE HETVAL(CMNAME,TEMP,time,DTIME,STATEV,FLUX,1 PREDEF,DPRED)CINCLUDE 'ABA_PARAM.INC'CCHARACTER*80 CMNAMECDIMENSION TEMP(2),STATEV(*),PREDEF(*),TIME(2),FLUX(2),1 DPRED(*)user coding to define FLUX and update STATEVRETURNENDVariables to be definedFLUX(1)Heat flux, r (thermal energy per time per volume: JT–1L–3), at this material calculation point.。

Abaqus运行子程序方法试了好几种调用子程序的方法最后总算找到了最简单的了，非常感谢仿真论坛上的网友的分享：首先需要装Microsoft Visual Studio（简写mvs），再装Intel Visual Fortran（IVF）。

通常的组合是Abaqus 可使用：MVS2008+ MVS2008+ 这二种组合最好都使用英文版的。

照着附录1 方法装一般没什么问题。

但是一般都是先装abaqus后才想到去装MVS以及IVF的。

很多时候都把MVS 以及 IVF装好以后才想到去验证的，而且MVS很多都是中文的，MVS不仅装的慢卸载残留也很多好麻烦。

搞了好久都验证不了，看了附录二的方法下面2个网友的回复后豁然开朗，一切都是那么简单。

附录二的方法的主要作用可能就是将VC++和Fortran的环境变量一并启动了，参考过以前版上的安装教程，通过在ABAQUS的快捷方式中添加命令，亦能够达到同样效果，同样也是不能通过verification，但是可以运行子程序，通过在ABAQUS CAE的快捷方式的目标中，添加"D:\Program Files (x86)\Intel\Compiler\Fortran\" && （跟附录1中的修改快捷方式的目标一样）达到了同样的效果（摘自ppengine，tcboywjr网友的回复）。

只需在搜索栏中搜索，再把路径添加上去照上面的形式修改便可。

本人用的是win7系统装的是（中文版）IVF11，abaqus好早就装了，装MVS2008之前装了mvs2010，发现2010不好装ivf，然后又卸了装mvs2008中文，验证时出现附录Ⅰ的情况，就C++项通不过还以为装C++2010就好了，又重装了一下mvs2010的C++（囧），发现还是用不了，校园网速太慢又不想下mvs2008（英文版），最后在附录2的方法下面发现了两位网友的分享非常感谢。

附录二的方法也试过好像运算完了会出错误，不知道什么原因。

实例：最简单的杆件单轴拉伸，材料本构模型采用线弹性模型，E＝206000MPa, ν=0.3。

左端约束，右端施加均布力q=1。

Author: xueweek希望这个小例子能帮助初学者减少一两天的摸索时间1材料本构模型：σ=Eε在Property中定义材料时，在General下选中User Material，输入206000，0.3。

以上两个数值代表E、ν，在用户子程序中代表着PROPS(1)、PROPS(2)。

然后在General 下选中Depvar，由于该例子中没有使用状态变量，因此在第一项中输入大于0的数值即可。

建模大家都会，故省略2ABAQUS调用用户子程序大家在论坛上也可以看到很多方法，我这里指介绍最简单的一种。

在Job Manager中点击Edit选项，在General选项的最后一项中选择自己建立好的用户子程序文件。

（注：用户子程序文件可以使用文本编辑器进行编辑，当然也可以用Fortran 编译器，如果对自己的用户子程序文件的语法不放心，可以先用Fortan编译器进行编译，不过编译前要先建立Project，关于Fortran编译，这里不再介绍）。

完成后，点击submit即可进行分析。

3结果以下两张图分布是用户子程序和ABAQUS自带的材料模型得到的应力云图，可以看出两种图形完全相同。

4UMAT子程序对于初学者来说，需要注意的是，FORTRAN对于程序语言格式上的要求。

例如，对于FORTRAN语言，前六个字符必须空出来，等等。

检查语法最好的方法就是在FORTRAN编译器上进行编译。

SUBROUTINE UMAT(STRESS,STATEV,DDSDDE,SSE,SPD,SCD,RPL,DDSDDT,1 DRPLDE,DRPLDT,STRAN,DSTRAN,TIME,DTIME,TEMP,DTEMP,PREDEF,DPRED,2 CMNAME,NDI,NSHR,NTENS,NSTATV,PROPS,NPROPS,COORDS,DROT,3 PNEWDT,CELENT,DFGRD0,DFGRD1,NOEL,NPT,LAYER,KSPT,KSTEP,KINC)include 'aba_param.inc'CHARACTER*8 CMNAMEDIMENSION STRESS(NTENS),STATEV(NSTATV),DDSDDE(NTENS,NTENS),1 DDSDDT(NTENS),DRPLDE(NTENS),STRAN(NTENS),DSTRAN(NTENS),2 TIME(2),PREDEF(1),DPRED(1),PROPS(NPROPS),COORDS(3),DROT(3,3),3 DFGRD0(3,3),DFGRD1(3,3)C UMAT FOR ISOTROPIC ELASTICITYC CANNOT BE USED FOR PLANE STRESSC ----------------------------------------------------------------C PROPS(1) - EC PROPS(2) - NUC ----------------------------------------------------------------IF (NDI.NE.3) THENWRITE (6,*) 'THIS UMAT MAY ONLY BE USED FOR ELEMENTS 1 WITH THREE DIRECT STRESS COMPONENTS'CALL XITENDIFCC ELASTIC PROPERTIESEMOD=PROPS(1)ENU=PROPS(2)EBULK3=EMOD/(1-2*ENU)EG2=EMOD/(1+ENU)EG=EG2/2EG3=3*EGELAM=(EBULK3-EG2)/3CC ELASTIC STIFFNESSCDO K1=1, NDIDO K2=1, NDIDDSDDE(K2, K1)=ELAMEND DODDSDDE(K1, K1)=EG2+ELAMEND DODO K1=NDI+1, NTENSDDSDDE(K1 ,K1)=EGEND DOCC CALCULATE STRESSCDO K1=1, NTENSDO K2=1, NTENSSTRESS(K2)=STRESS(K2)+DDSDDE(K2, K1)*DSTRAN(K1)END DOEND DOCRETURNEND5INP输入文件*Heading** Job name: Job-1 Model name: Model-1** Generated by: Abaqus/CAE 6.10-1*Preprint, echo=NO, model=NO, history=NO, contact=NO**** PARTS***Part, name=Part-1*End Part****** ASSEMBLY***Assembly, name=Assembly***Instance, name=Part-1-1, part=Part-1*Node1, 0.0399999991, 0.0399999991, 0.400000006 2, 0.0399999991, 0.029*******, 0.400000006 3, 0.0399999991, 0.0199999996, 0.400000006 4, 0.0399999991, 0.00999999978, 0.400000006 5, 0.0399999991, 0., 0.400000006 6, 0.0399999991, 0.0399999991, 0.389999986 7, 0.0399999991, 0.029*******, 0.389999986 8, 0.0399999991, 0.0199999996, 0.389999986 9, 0.0399999991, 0.00999999978, 0.389999986 10, 0.0399999991, 0., 0.389999986 11, 0.0399999991, 0.0399999991, 0.379999995 12, 0.0399999991, 0.029*******, 0.379999995 13, 0.0399999991, 0.0199999996, 0.379999995 14, 0.0399999991, 0.00999999978, 0.379999995 15, 0.0399999991, 0., 0.379999995 16, 0.0399999991, 0.0399999991, 0.370000005 17, 0.0399999991, 0.029*******, 0.370000005 18, 0.0399999991, 0.0199999996, 0.370000005 19, 0.0399999991, 0.00999999978, 0.370000005 20, 0.0399999991, 0., 0.370000005 21, 0.0399999991, 0.0399999991, 0.360000014 22, 0.0399999991, 0.029*******, 0.360000014 23, 0.0399999991, 0.0199999996, 0.360000014 24, 0.0399999991, 0.00999999978, 0.360000014 25, 0.0399999991, 0., 0.360000014 26, 0.0399999991, 0.0399999991, 0.349999994 27, 0.0399999991, 0.029*******, 0.349999994 28, 0.0399999991, 0.0199999996, 0.349999994 29, 0.0399999991, 0.00999999978, 0.349999994 30, 0.0399999991, 0., 0.349999994 31, 0.0399999991, 0.0399999991, 0.340000004 32, 0.0399999991, 0.029*******, 0.340000004 33, 0.0399999991, 0.0199999996, 0.340000004 34, 0.0399999991, 0.00999999978, 0.340000004 35, 0.0399999991, 0., 0.340000004 36, 0.0399999991, 0.0399999991, 0.330000013 37, 0.0399999991, 0.029*******, 0.330000013 38, 0.0399999991, 0.0199999996, 0.330000013 39, 0.0399999991, 0.00999999978, 0.330000013 40, 0.0399999991, 0., 0.330000013 41, 0.0399999991, 0.0399999991, 0.319999993 42, 0.0399999991, 0.029*******, 0.319999993 43, 0.0399999991, 0.0199999996, 0.319999993 44, 0.0399999991, 0.00999999978, 0.319999993 45, 0.0399999991, 0., 0.319999993 46, 0.0399999991, 0.0399999991, 0.310000002 47, 0.0399999991, 0.029*******, 0.310000002 48, 0.0399999991, 0.0199999996, 0.310000002 49, 0.0399999991, 0.00999999978, 0.310000002 50, 0.0399999991, 0., 0.310000002 51, 0.0399999991, 0.0399999991, 0.300000012 52, 0.0399999991, 0.029*******, 0.300000012 53, 0.0399999991, 0.0199999996, 0.300000012 54, 0.0399999991, 0.00999999978, 0.300000012 55, 0.0399999991, 0., 0.300000012 56, 0.0399999991, 0.0399999991, 0.289999992 57, 0.0399999991, 0.029*******, 0.289999992 58, 0.0399999991, 0.0199999996, 0.289999992 59, 0.0399999991, 0.00999999978, 0.289999992 60, 0.0399999991, 0., 0.289999992 61, 0.0399999991, 0.0399999991, 0.280000001 62, 0.0399999991, 0.029*******, 0.280000001 63, 0.0399999991, 0.0199999996, 0.280000001 64, 0.0399999991, 0.00999999978, 0.280000001 65, 0.0399999991, 0., 0.280000001 66, 0.0399999991, 0.0399999991, 0.270000011 67, 0.0399999991, 0.029*******, 0.270000011 68, 0.0399999991, 0.0199999996, 0.270000011 69, 0.0399999991, 0.00999999978, 0.270000011 70, 0.0399999991, 0., 0.270000011 71, 0.0399999991, 0.0399999991, 0.25999999 72, 0.0399999991, 0.029*******, 0.25999999 73, 0.0399999991, 0.0199999996, 0.2599999976, 0.0399999991, 0.0399999991, 0.25 77, 0.0399999991, 0.029*******, 0.25 78, 0.0399999991, 0.0199999996, 0.25 79, 0.0399999991, 0.00999999978, 0.25 80, 0.0399999991, 0., 0.25 81, 0.0399999991, 0.0399999991, 0.239999995 82, 0.0399999991, 0.029*******, 0.239999995 83, 0.0399999991, 0.0199999996, 0.239999995 84, 0.0399999991, 0.00999999978, 0.239999995 85, 0.0399999991, 0., 0.239999995 86, 0.0399999991, 0.0399999991, 0.230000004 87, 0.0399999991, 0.029*******, 0.230000004 88, 0.0399999991, 0.0199999996, 0.230000004 89, 0.0399999991, 0.00999999978, 0.230000004 90, 0.0399999991, 0., 0.230000004 91, 0.0399999991, 0.0399999991, 0.219999999 92, 0.0399999991, 0.029*******, 0.219999999 93, 0.0399999991, 0.0199999996, 0.219999999 94, 0.0399999991, 0.00999999978, 0.219999999 95, 0.0399999991, 0., 0.219999999 96, 0.0399999991, 0.0399999991, 0.209999993 97, 0.0399999991, 0.029*******, 0.209999993 98, 0.0399999991, 0.0199999996, 0.209999993 99, 0.0399999991, 0.00999999978, 0.209999993 100, 0.0399999991, 0., 0.209999993 101, 0.0399999991, 0.0399999991, 0.200000003 102, 0.0399999991, 0.029*******, 0.200000003 103, 0.0399999991, 0.0199999996, 0.200000003 104, 0.0399999991, 0.00999999978, 0.200000003 105, 0.0399999991, 0., 0.200000003 106, 0.0399999991, 0.0399999991, 0.189999998 107, 0.0399999991, 0.029*******, 0.189999998 108, 0.0399999991, 0.0199999996, 0.189999998 109, 0.0399999991, 0.00999999978, 0.189999998 110, 0.0399999991, 0., 0.189999998 111, 0.0399999991, 0.0399999991, 0.180000007 112, 0.0399999991, 0.029*******, 0.180000007 113, 0.0399999991, 0.0199999996, 0.180000007 114, 0.0399999991, 0.00999999978, 0.180000007 115, 0.0399999991, 0., 0.180000007 116, 0.0399999991, 0.0399999991, 0.170000002 117, 0.0399999991, 0.029*******, 0.170000002 118, 0.0399999991, 0.0199999996, 0.170000002 119, 0.0399999991, 0.00999999978, 0.170000002 120, 0.0399999991, 0., 0.170000002 121, 0.0399999991, 0.0399999991, 0.159999996 122, 0.0399999991, 0.029*******, 0.159999996 123, 0.0399999991, 0.0199999996, 0.159999996 124, 0.0399999991, 0.00999999978, 0.159999996 125, 0.0399999991, 0., 0.159999996 126, 0.0399999991, 0.0399999991, 0.150000006 127, 0.0399999991, 0.029*******, 0.150000006 128, 0.0399999991, 0.0199999996, 0.150000006 129, 0.0399999991, 0.00999999978, 0.150000006 130, 0.0399999991, 0., 0.150000006 131, 0.0399999991, 0.0399999991, 0.140000001 132, 0.0399999991, 0.029*******, 0.140000001 133, 0.0399999991, 0.0199999996, 0.140000001 134, 0.0399999991, 0.00999999978, 0.140000001 135, 0.0399999991, 0., 0.140000001 136, 0.0399999991, 0.0399999991, 0.129999995 137, 0.0399999991, 0.029*******, 0.129999995 138, 0.0399999991, 0.0199999996, 0.129999995 139, 0.0399999991, 0.00999999978, 0.129999995 140, 0.0399999991, 0., 0.129999995 141, 0.0399999991, 0.0399999991, 0.119999997 142, 0.0399999991, 0.029*******, 0.119999997 143, 0.0399999991, 0.0199999996, 0.119999997 144, 0.0399999991, 0.00999999978, 0.119999997 145, 0.0399999991, 0., 0.119999997 146, 0.0399999991, 0.0399999991, 0.109999999 147, 0.0399999991, 0.029*******, 0.109999999 148, 0.0399999991, 0.0199999996, 0.109999999 149, 0.0399999991, 0.00999999978, 0.109999999 150, 0.0399999991, 0., 0.109999999 151, 0.0399999991, 0.0399999991, 0.100000001 152, 0.0399999991, 0.029*******, 0.100000001 153, 0.0399999991, 0.0199999996, 0.100000001156, 0.0399999991, 0.0399999991, 0.0900000036 157, 0.0399999991, 0.029*******, 0.0900000036 158, 0.0399999991, 0.0199999996, 0.0900000036 159, 0.0399999991, 0.00999999978, 0.0900000036 160, 0.0399999991, 0., 0.0900000036 161, 0.0399999991, 0.0399999991, 0.0799999982 162, 0.0399999991, 0.029*******, 0.0799999982 163, 0.0399999991, 0.0199999996, 0.0799999982 164, 0.0399999991, 0.00999999978, 0.0799999982 165, 0.0399999991, 0., 0.0799999982 166, 0.0399999991, 0.0399999991, 0.0700000003 167, 0.0399999991, 0.029*******, 0.0700000003 168, 0.0399999991, 0.0199999996, 0.0700000003 169, 0.0399999991, 0.00999999978, 0.0700000003 170, 0.0399999991, 0., 0.0700000003 171, 0.0399999991, 0.0399999991, 0.0599999987 172, 0.0399999991, 0.029*******, 0.0599999987 173, 0.0399999991, 0.0199999996, 0.0599999987 174, 0.0399999991, 0.00999999978, 0.0599999987 175, 0.0399999991, 0., 0.0599999987 176, 0.0399999991, 0.0399999991, 0.0500000007 177, 0.0399999991, 0.029*******, 0.0500000007 178, 0.0399999991, 0.0199999996, 0.0500000007 179, 0.0399999991, 0.00999999978, 0.0500000007 180, 0.0399999991, 0., 0.0500000007 181, 0.0399999991, 0.0399999991, 0.0399999991 182, 0.0399999991, 0.029*******, 0.0399999991 183, 0.0399999991, 0.0199999996, 0.0399999991 184, 0.0399999991, 0.00999999978, 0.0399999991 185, 0.0399999991, 0., 0.0399999991 186, 0.0399999991, 0.0399999991, 0.029******* 187, 0.0399999991, 0.029*******, 0.029******* 188, 0.0399999991, 0.0199999996, 0.029******* 189, 0.0399999991, 0.00999999978, 0.029******* 190, 0.0399999991, 0., 0.029******* 191, 0.0399999991, 0.0399999991, 0.0199999996 192, 0.0399999991, 0.029*******, 0.0199999996 193, 0.0399999991, 0.0199999996, 0.0199999996 194, 0.0399999991, 0.00999999978, 0.0199999996 195, 0.0399999991, 0., 0.0199999996 196, 0.0399999991, 0.0399999991, 0.00999999978 197, 0.0399999991, 0.029*******, 0.00999999978 198, 0.0399999991, 0.0199999996, 0.00999999978 199, 0.0399999991, 0.00999999978, 0.00999999978 200, 0.0399999991, 0., 0.00999999978 201, 0.0399999991, 0.0399999991, 0. 202, 0.0399999991, 0.029*******, 0. 203, 0.0399999991, 0.0199999996, 0. 204, 0.0399999991, 0.00999999978, 0. 205, 0.0399999991, 0., 0. 206, 0.029*******, 0.0399999991, 0.400000006 207, 0.029*******, 0.029*******, 0.400000006 208, 0.029*******, 0.0199999996, 0.400000006 209, 0.029*******, 0.00999999978, 0.400000006 210, 0.029*******, 0., 0.400000006 211, 0.029*******, 0.0399999991, 0.389999986 212, 0.029*******, 0.029*******, 0.389999986 213, 0.029*******, 0.0199999996, 0.389999986 214, 0.029*******, 0.00999999978, 0.389999986 215, 0.029*******, 0., 0.389999986 216, 0.029*******, 0.0399999991, 0.379999995 217, 0.029*******, 0.029*******, 0.379999995 218, 0.029*******, 0.0199999996, 0.379999995 219, 0.029*******, 0.00999999978, 0.379999995 220, 0.029*******, 0., 0.379999995 221, 0.029*******, 0.0399999991, 0.370000005 222, 0.029*******, 0.029*******, 0.370000005 223, 0.029*******, 0.0199999996, 0.370000005 224, 0.029*******, 0.00999999978, 0.370000005 225, 0.029*******, 0., 0.370000005 226, 0.029*******, 0.0399999991, 0.360000014 227, 0.029*******, 0.029*******, 0.360000014 228, 0.029*******, 0.0199999996, 0.360000014 229, 0.029*******, 0.00999999978, 0.360000014 230, 0.029*******, 0., 0.360000014 231, 0.029*******, 0.0399999991, 0.349999994 232, 0.029*******, 0.029*******, 0.349999994 233, 0.029*******, 0.0199999996, 0.349999994236, 0.029*******, 0.0399999991, 0.340000004 237, 0.029*******, 0.029*******, 0.340000004 238, 0.029*******, 0.0199999996, 0.340000004 239, 0.029*******, 0.00999999978, 0.340000004 240, 0.029*******, 0., 0.340000004 241, 0.029*******, 0.0399999991, 0.330000013 242, 0.029*******, 0.029*******, 0.330000013 243, 0.029*******, 0.0199999996, 0.330000013 244, 0.029*******, 0.00999999978, 0.330000013 245, 0.029*******, 0., 0.330000013 246, 0.029*******, 0.0399999991, 0.319999993 247, 0.029*******, 0.029*******, 0.319999993 248, 0.029*******, 0.0199999996, 0.319999993 249, 0.029*******, 0.00999999978, 0.319999993 250, 0.029*******, 0., 0.319999993 251, 0.029*******, 0.0399999991, 0.310000002 252, 0.029*******, 0.029*******, 0.310000002 253, 0.029*******, 0.0199999996, 0.310000002 254, 0.029*******, 0.00999999978, 0.310000002 255, 0.029*******, 0., 0.310000002 256, 0.029*******, 0.0399999991, 0.300000012 257, 0.029*******, 0.029*******, 0.300000012 258, 0.029*******, 0.0199999996, 0.300000012 259, 0.029*******, 0.00999999978, 0.300000012 260, 0.029*******, 0., 0.300000012 261, 0.029*******, 0.0399999991, 0.289999992 262, 0.029*******, 0.029*******, 0.289999992 263, 0.029*******, 0.0199999996, 0.289999992 264, 0.029*******, 0.00999999978, 0.289999992 265, 0.029*******, 0., 0.289999992 266, 0.029*******, 0.0399999991, 0.280000001 267, 0.029*******, 0.029*******, 0.280000001 268, 0.029*******, 0.0199999996, 0.280000001 269, 0.029*******, 0.00999999978, 0.280000001 270, 0.029*******, 0., 0.280000001 271, 0.029*******, 0.0399999991, 0.270000011 272, 0.029*******, 0.029*******, 0.270000011 273, 0.029*******, 0.0199999996, 0.270000011 274, 0.029*******, 0.00999999978, 0.270000011 275, 0.029*******, 0., 0.270000011 276, 0.029*******, 0.0399999991, 0.25999999 277, 0.029*******, 0.029*******, 0.25999999 278, 0.029*******, 0.0199999996, 0.25999999 279, 0.029*******, 0.00999999978, 0.25999999 280, 0.029*******, 0., 0.25999999 281, 0.029*******, 0.0399999991, 0.25 282, 0.029*******, 0.029*******, 0.25 283, 0.029*******, 0.0199999996, 0.25 284, 0.029*******, 0.00999999978, 0.25 285, 0.029*******, 0., 0.25 286, 0.029*******, 0.0399999991, 0.239999995 287, 0.029*******, 0.029*******, 0.239999995 288, 0.029*******, 0.0199999996, 0.239999995 289, 0.029*******, 0.00999999978, 0.239999995 290, 0.029*******, 0., 0.239999995 291, 0.029*******, 0.0399999991, 0.230000004 292, 0.029*******, 0.029*******, 0.230000004 293, 0.029*******, 0.0199999996, 0.230000004 294, 0.029*******, 0.00999999978, 0.230000004 295, 0.029*******, 0., 0.230000004 296, 0.029*******, 0.0399999991, 0.219999999 297, 0.029*******, 0.029*******, 0.219999999 298, 0.029*******, 0.0199999996, 0.219999999 299, 0.029*******, 0.00999999978, 0.219999999 300, 0.029*******, 0., 0.219999999 301, 0.029*******, 0.0399999991, 0.209999993 302, 0.029*******, 0.029*******, 0.209999993 303, 0.029*******, 0.0199999996, 0.209999993 304, 0.029*******, 0.00999999978, 0.209999993 305, 0.029*******, 0., 0.209999993 306, 0.029*******, 0.0399999991, 0.200000003 307, 0.029*******, 0.029*******, 0.200000003 308, 0.029*******, 0.0199999996, 0.200000003 309, 0.029*******, 0.00999999978, 0.200000003 310, 0.029*******, 0., 0.200000003 311, 0.029*******, 0.0399999991, 0.189999998 312, 0.029*******, 0.029*******, 0.189999998 313, 0.029*******, 0.0199999996, 0.189999998316, 0.029*******, 0.0399999991, 0.180000007 317, 0.029*******, 0.029*******, 0.180000007 318, 0.029*******, 0.0199999996, 0.180000007 319, 0.029*******, 0.00999999978, 0.180000007 320, 0.029*******, 0., 0.180000007 321, 0.029*******, 0.0399999991, 0.170000002 322, 0.029*******, 0.029*******, 0.170000002 323, 0.029*******, 0.0199999996, 0.170000002 324, 0.029*******, 0.00999999978, 0.170000002 325, 0.029*******, 0., 0.170000002 326, 0.029*******, 0.0399999991, 0.159999996 327, 0.029*******, 0.029*******, 0.159999996 328, 0.029*******, 0.0199999996, 0.159999996 329, 0.029*******, 0.00999999978, 0.159999996 330, 0.029*******, 0., 0.159999996 331, 0.029*******, 0.0399999991, 0.150000006 332, 0.029*******, 0.029*******, 0.150000006 333, 0.029*******, 0.0199999996, 0.150000006 334, 0.029*******, 0.00999999978, 0.150000006 335, 0.029*******, 0., 0.150000006 336, 0.029*******, 0.0399999991, 0.140000001 337, 0.029*******, 0.029*******, 0.140000001 338, 0.029*******, 0.0199999996, 0.140000001 339, 0.029*******, 0.00999999978, 0.140000001 340, 0.029*******, 0., 0.140000001 341, 0.029*******, 0.0399999991, 0.129999995 342, 0.029*******, 0.029*******, 0.129999995 343, 0.029*******, 0.0199999996, 0.129999995 344, 0.029*******, 0.00999999978, 0.129999995 345, 0.029*******, 0., 0.129999995 346, 0.029*******, 0.0399999991, 0.119999997 347, 0.029*******, 0.029*******, 0.119999997 348, 0.029*******, 0.0199999996, 0.119999997 349, 0.029*******, 0.00999999978, 0.119999997 350, 0.029*******, 0., 0.119999997 351, 0.029*******, 0.0399999991, 0.109999999 352, 0.029*******, 0.029*******, 0.109999999 353, 0.029*******, 0.0199999996, 0.109999999 354, 0.029*******, 0.00999999978, 0.109999999 355, 0.029*******, 0., 0.109999999 356, 0.029*******, 0.0399999991, 0.100000001 357, 0.029*******, 0.029*******, 0.100000001 358, 0.029*******, 0.0199999996, 0.100000001 359, 0.029*******, 0.00999999978, 0.100000001 360, 0.029*******, 0., 0.100000001 361, 0.029*******, 0.0399999991, 0.0900000036 362, 0.029*******, 0.029*******, 0.0900000036 363, 0.029*******, 0.0199999996, 0.0900000036 364, 0.029*******, 0.00999999978, 0.0900000036 365, 0.029*******, 0., 0.0900000036 366, 0.029*******, 0.0399999991, 0.0799999982 367, 0.029*******, 0.029*******, 0.0799999982 368, 0.029*******, 0.0199999996, 0.0799999982 369, 0.029*******, 0.00999999978, 0.0799999982 370, 0.029*******, 0., 0.0799999982 371, 0.029*******, 0.0399999991, 0.0700000003 372, 0.029*******, 0.029*******, 0.0700000003 373, 0.029*******, 0.0199999996, 0.0700000003 374, 0.029*******, 0.00999999978, 0.0700000003 375, 0.029*******, 0., 0.0700000003 376, 0.029*******, 0.0399999991, 0.0599999987 377, 0.029*******, 0.029*******, 0.0599999987 378, 0.029*******, 0.0199999996, 0.0599999987 379, 0.029*******, 0.00999999978, 0.0599999987 380, 0.029*******, 0., 0.0599999987 381, 0.029*******, 0.0399999991, 0.0500000007 382, 0.029*******, 0.029*******, 0.0500000007 383, 0.029*******, 0.0199999996, 0.0500000007 384, 0.029*******, 0.00999999978, 0.0500000007 385, 0.029*******, 0., 0.0500000007 386, 0.029*******, 0.0399999991, 0.0399999991 387, 0.029*******, 0.029*******, 0.0399999991 388, 0.029*******, 0.0199999996, 0.0399999991 389, 0.029*******, 0.00999999978, 0.0399999991 390, 0.029*******, 0., 0.0399999991 391, 0.029*******, 0.0399999991, 0.029******* 392, 0.029*******, 0.029*******, 0.029******* 393, 0.029*******, 0.0199999996, 0.029*******396, 0.029*******, 0.0399999991, 0.0199999996 397, 0.029*******, 0.029*******, 0.0199999996 398, 0.029*******, 0.0199999996, 0.0199999996 399, 0.029*******, 0.00999999978, 0.0199999996 400, 0.029*******, 0., 0.0199999996 401, 0.029*******, 0.0399999991, 0.00999999978 402, 0.029*******, 0.029*******, 0.00999999978 403, 0.029*******, 0.0199999996, 0.00999999978 404, 0.029*******, 0.00999999978, 0.00999999978 405, 0.029*******, 0., 0.00999999978 406, 0.029*******, 0.0399999991, 0. 407, 0.029*******, 0.029*******, 0. 408, 0.029*******, 0.0199999996, 0. 409, 0.029*******, 0.00999999978, 0. 410, 0.029*******, 0., 0. 411, 0.0199999996, 0.0399999991, 0.400000006 412, 0.0199999996, 0.029*******, 0.400000006 413, 0.0199999996, 0.0199999996, 0.400000006 414, 0.0199999996, 0.00999999978, 0.400000006 415, 0.0199999996, 0., 0.400000006 416, 0.0199999996, 0.0399999991, 0.389999986 417, 0.0199999996, 0.029*******, 0.389999986 418, 0.0199999996, 0.0199999996, 0.389999986 419, 0.0199999996, 0.00999999978, 0.389999986 420, 0.0199999996, 0., 0.389999986 421, 0.0199999996, 0.0399999991, 0.379999995 422, 0.0199999996, 0.029*******, 0.379999995 423, 0.0199999996, 0.0199999996, 0.379999995 424, 0.0199999996, 0.00999999978, 0.379999995 425, 0.0199999996, 0., 0.379999995 426, 0.0199999996, 0.0399999991, 0.370000005 427, 0.0199999996, 0.029*******, 0.370000005 428, 0.0199999996, 0.0199999996, 0.370000005 429, 0.0199999996, 0.00999999978, 0.370000005 430, 0.0199999996, 0., 0.370000005 431, 0.0199999996, 0.0399999991, 0.360000014 432, 0.0199999996, 0.029*******, 0.360000014 433, 0.0199999996, 0.0199999996, 0.360000014 434, 0.0199999996, 0.00999999978, 0.360000014 435, 0.0199999996, 0., 0.360000014 436, 0.0199999996, 0.0399999991, 0.349999994 437, 0.0199999996, 0.029*******, 0.349999994 438, 0.0199999996, 0.0199999996, 0.349999994 439, 0.0199999996, 0.00999999978, 0.349999994 440, 0.0199999996, 0., 0.349999994 441, 0.0199999996, 0.0399999991, 0.340000004 442, 0.0199999996, 0.029*******, 0.340000004 443, 0.0199999996, 0.0199999996, 0.340000004 444, 0.0199999996, 0.00999999978, 0.340000004 445, 0.0199999996, 0., 0.340000004 446, 0.0199999996, 0.0399999991, 0.330000013 447, 0.0199999996, 0.029*******, 0.330000013 448, 0.0199999996, 0.0199999996, 0.330000013 449, 0.0199999996, 0.00999999978, 0.330000013 450, 0.0199999996, 0., 0.330000013 451, 0.0199999996, 0.0399999991, 0.319999993 452, 0.0199999996, 0.029*******, 0.319999993 453, 0.0199999996, 0.0199999996, 0.319999993 454, 0.0199999996, 0.00999999978, 0.319999993 455, 0.0199999996, 0., 0.319999993 456, 0.0199999996, 0.0399999991, 0.310000002 457, 0.0199999996, 0.029*******, 0.310000002 458, 0.0199999996, 0.0199999996, 0.310000002 459, 0.0199999996, 0.00999999978, 0.310000002 460, 0.0199999996, 0., 0.310000002 461, 0.0199999996, 0.0399999991, 0.300000012 462, 0.0199999996, 0.029*******, 0.300000012 463, 0.0199999996, 0.0199999996, 0.300000012 464, 0.0199999996, 0.00999999978, 0.300000012 465, 0.0199999996, 0., 0.300000012 466, 0.0199999996, 0.0399999991, 0.289999992 467, 0.0199999996, 0.029*******, 0.289999992 468, 0.0199999996, 0.0199999996, 0.289999992 469, 0.0199999996, 0.00999999978, 0.289999992 470, 0.0199999996, 0., 0.289999992 471, 0.0199999996, 0.0399999991, 0.280000001 472, 0.0199999996, 0.029*******, 0.280000001 473, 0.0199999996, 0.0199999996, 0.280000001476, 0.0199999996, 0.0399999991, 0.270000011 477, 0.0199999996, 0.029*******, 0.270000011 478, 0.0199999996, 0.0199999996, 0.270000011 479, 0.0199999996, 0.00999999978, 0.270000011 480, 0.0199999996, 0., 0.270000011 481, 0.0199999996, 0.0399999991, 0.25999999 482, 0.0199999996, 0.029*******, 0.25999999 483, 0.0199999996, 0.0199999996, 0.25999999 484, 0.0199999996, 0.00999999978, 0.25999999 485, 0.0199999996, 0., 0.25999999 486, 0.0199999996, 0.0399999991, 0.25 487, 0.0199999996, 0.029*******, 0.25 488, 0.0199999996, 0.0199999996, 0.25 489, 0.0199999996, 0.00999999978, 0.25 490, 0.0199999996, 0., 0.25 491, 0.0199999996, 0.0399999991, 0.239999995 492, 0.0199999996, 0.029*******, 0.239999995 493, 0.0199999996, 0.0199999996, 0.239999995 494, 0.0199999996, 0.00999999978, 0.239999995 495, 0.0199999996, 0., 0.239999995 496, 0.0199999996, 0.0399999991, 0.230000004 497, 0.0199999996, 0.029*******, 0.230000004 498, 0.0199999996, 0.0199999996, 0.230000004 499, 0.0199999996, 0.00999999978, 0.230000004 500, 0.0199999996, 0., 0.230000004 501, 0.0199999996, 0.0399999991, 0.219999999 502, 0.0199999996, 0.029*******, 0.219999999 503, 0.0199999996, 0.0199999996, 0.219999999 504, 0.0199999996, 0.00999999978, 0.219999999 505, 0.0199999996, 0., 0.219999999 506, 0.0199999996, 0.0399999991, 0.209999993 507, 0.0199999996, 0.029*******, 0.209999993 508, 0.0199999996, 0.0199999996, 0.209999993 509, 0.0199999996, 0.00999999978, 0.209999993 510, 0.0199999996, 0., 0.209999993 511, 0.0199999996, 0.0399999991, 0.200000003 512, 0.0199999996, 0.029*******, 0.200000003 513, 0.0199999996, 0.0199999996, 0.200000003 514, 0.0199999996, 0.00999999978, 0.200000003 515, 0.0199999996, 0., 0.200000003 516, 0.0199999996, 0.0399999991, 0.189999998 517, 0.0199999996, 0.029*******, 0.189999998 518, 0.0199999996, 0.0199999996, 0.189999998 519, 0.0199999996, 0.00999999978, 0.189999998 520, 0.0199999996, 0., 0.189999998 521, 0.0199999996, 0.0399999991, 0.180000007 522, 0.0199999996, 0.029*******, 0.180000007 523, 0.0199999996, 0.0199999996, 0.180000007 524, 0.0199999996, 0.00999999978, 0.180000007 525, 0.0199999996, 0., 0.180000007 526, 0.0199999996, 0.0399999991, 0.170000002 527, 0.0199999996, 0.029*******, 0.170000002 528, 0.0199999996, 0.0199999996, 0.170000002 529, 0.0199999996, 0.00999999978, 0.170000002 530, 0.0199999996, 0., 0.170000002 531, 0.0199999996, 0.0399999991, 0.159999996 532, 0.0199999996, 0.029*******, 0.159999996 533, 0.0199999996, 0.0199999996, 0.159999996 534, 0.0199999996, 0.00999999978, 0.159999996 535, 0.0199999996, 0., 0.159999996 536, 0.0199999996, 0.0399999991, 0.150000006 537, 0.0199999996, 0.029*******, 0.150000006 538, 0.0199999996, 0.0199999996, 0.150000006 539, 0.0199999996, 0.00999999978, 0.150000006 540, 0.0199999996, 0., 0.150000006 541, 0.0199999996, 0.0399999991, 0.140000001 542, 0.0199999996, 0.029*******, 0.140000001 543, 0.0199999996, 0.0199999996, 0.140000001 544, 0.0199999996, 0.00999999978, 0.140000001 545, 0.0199999996, 0., 0.140000001 546, 0.0199999996, 0.0399999991, 0.129999995 547, 0.0199999996, 0.029*******, 0.129999995 548, 0.0199999996, 0.0199999996, 0.129999995 549, 0.0199999996, 0.00999999978, 0.129999995 550, 0.0199999996, 0., 0.129999995 551, 0.0199999996, 0.0399999991, 0.119999997 552, 0.0199999996, 0.029*******, 0.119999997 553, 0.0199999996, 0.0199999996, 0.119999997556, 0.0199999996, 0.0399999991, 0.109999999 557, 0.0199999996, 0.029*******, 0.109999999 558, 0.0199999996, 0.0199999996, 0.109999999 559, 0.0199999996, 0.00999999978, 0.109999999 560, 0.0199999996, 0., 0.109999999 561, 0.0199999996, 0.0399999991, 0.100000001 562, 0.0199999996, 0.029*******, 0.100000001 563, 0.0199999996, 0.0199999996, 0.100000001 564, 0.0199999996, 0.00999999978, 0.100000001 565, 0.0199999996, 0., 0.100000001 566, 0.0199999996, 0.0399999991, 0.0900000036567, 0.0199999996, 0.029*******, 0.0900000036568, 0.0199999996, 0.0199999996, 0.0900000036569, 0.0199999996, 0.00999999978, 0.0900000036 570, 0.0199999996, 0., 0.0900000036 571, 0.0199999996, 0.0399999991, 0.0799999982572, 0.0199999996, 0.029*******, 0.0799999982573, 0.0199999996, 0.0199999996, 0.0799999982574, 0.0199999996, 0.00999999978, 0.0799999982 575, 0.0199999996, 0., 0.0799999982 576, 0.0199999996, 0.0399999991, 0.0700000003577, 0.0199999996, 0.029*******, 0.0700000003578, 0.0199999996, 0.0199999996, 0.0700000003579, 0.0199999996, 0.00999999978, 0.0700000003 580, 0.0199999996, 0., 0.0700000003 581, 0.0199999996, 0.0399999991, 0.0599999987582, 0.0199999996, 0.029*******, 0.0599999987583, 0.0199999996, 0.0199999996, 0.0599999987584, 0.0199999996, 0.00999999978, 0.0599999987 585, 0.0199999996, 0., 0.0599999987 586, 0.0199999996, 0.0399999991, 0.0500000007587, 0.0199999996, 0.029*******, 0.0500000007588, 0.0199999996, 0.0199999996, 0.0500000007589, 0.0199999996, 0.00999999978, 0.0500000007 590, 0.0199999996, 0., 0.0500000007 591, 0.0199999996, 0.0399999991, 0.0399999991592, 0.0199999996, 0.029*******, 0.0399999991593, 0.0199999996, 0.0199999996, 0.0399999991594, 0.0199999996, 0.00999999978, 0.0399999991 595, 0.0199999996, 0., 0.0399999991 596, 0.0199999996, 0.0399999991, 0.029*******597, 0.0199999996, 0.029*******, 0.029*******598, 0.0199999996, 0.0199999996, 0.029*******599, 0.0199999996, 0.00999999978, 0.029******* 600, 0.0199999996, 0., 0.029******* 601, 0.0199999996, 0.0399999991, 0.0199999996602, 0.0199999996, 0.029*******, 0.0199999996603, 0.0199999996, 0.0199999996, 0.0199999996604, 0.0199999996, 0.00999999978, 0.0199999996 605, 0.0199999996, 0., 0.0199999996 606, 0.0199999996, 0.0399999991, 0.00999999978 607, 0.0199999996, 0.029*******, 0.00999999978 608, 0.0199999996, 0.0199999996, 0.00999999978 609, 0.0199999996, 0.00999999978, 0.00999999978 610, 0.0199999996, 0., 0.00999999978 611, 0.0199999996, 0.0399999991, 0. 612, 0.0199999996, 0.029*******, 0. 613, 0.0199999996, 0.0199999996, 0. 614, 0.0199999996, 0.00999999978, 0. 615, 0.0199999996, 0., 0. 616, 0.00999999978, 0.0399999991, 0.400000006 617, 0.00999999978, 0.029*******, 0.400000006 618, 0.00999999978, 0.0199999996, 0.400000006 619, 0.00999999978, 0.00999999978, 0.400000006 620, 0.00999999978, 0., 0.400000006 621, 0.00999999978, 0.0399999991, 0.389999986 622, 0.00999999978, 0.029*******, 0.389999986 623, 0.00999999978, 0.0199999996, 0.389999986 624, 0.00999999978, 0.00999999978, 0.389999986 625, 0.00999999978, 0., 0.389999986 626, 0.00999999978, 0.0399999991, 0.379999995 627, 0.00999999978, 0.029*******, 0.379999995 628, 0.00999999978, 0.0199999996, 0.379999995 629, 0.00999999978, 0.00999999978, 0.379999995 630, 0.00999999978, 0., 0.379999995 631, 0.00999999978, 0.0399999991, 0.370000005 632, 0.00999999978, 0.029*******, 0.370000005 633, 0.00999999978, 0.0199999996, 0.370000005。

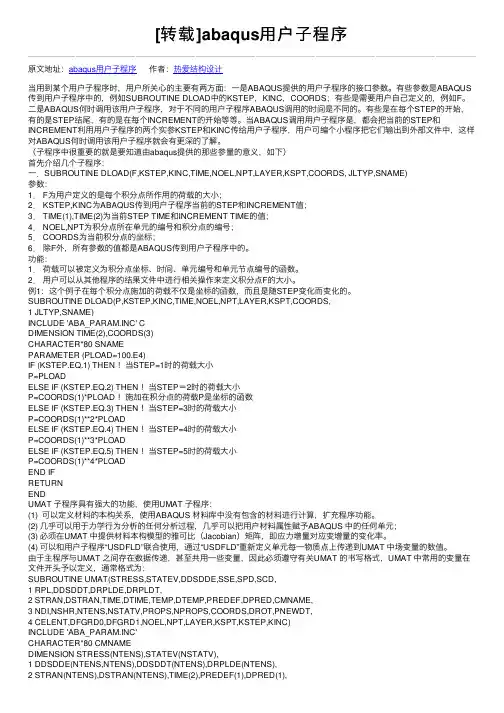

[转载]abaqus⽤户⼦程序原⽂地址：abaqus⽤户⼦程序作者：热爱结构设计当⽤到某个⽤户⼦程序时，⽤户所关⼼的主要有两⽅⾯：⼀是ABAQUS提供的⽤户⼦程序的接⼝参数。

有些参数是ABAQUS 传到⽤户⼦程序中的，例如SUBROUTINE DLOAD中的KSTEP，KINC，COORDS；有些是需要⽤户⾃⼰定义的，例如F。

⼆是ABAQUS何时调⽤该⽤户⼦程序，对于不同的⽤户⼦程序ABAQUS调⽤的时间是不同的。

有些是在每个STEP的开始，有的是STEP结尾，有的是在每个INCREMENT的开始等等。

当ABAQUS调⽤⽤户⼦程序是，都会把当前的STEP和INCREMENT利⽤⽤户⼦程序的两个实参KSTEP和KINC传给⽤户⼦程序，⽤户可编个⼩程序把它们输出到外部⽂件中，这样对ABAQUS何时调⽤该⽤户⼦程序就会有更深的了解。

（⼦程序中很重要的就是要知道由abaqus提供的那些参量的意义，如下）⾸先介绍⼏个⼦程序：⼀．SUBROUTINE DLOAD(F,KSTEP,KINC,TIME,NOEL,NPT,LAYER,KSPT,COORDS, JLTYP,SNAME)参数：1． F为⽤户定义的是每个积分点所作⽤的荷载的⼤⼩；2． KSTEP,KINC为ABAQUS传到⽤户⼦程序当前的STEP和INCREMENT值；3． TIME(1),TIME(2)为当前STEP TIME和INCREMENT TIME的值；4． NOEL,NPT为积分点所在单元的编号和积分点的编号；5． COORDS为当前积分点的坐标；6．除F外，所有参数的值都是ABAQUS传到⽤户⼦程序中的。

功能：1．荷载可以被定义为积分点坐标、时间、单元编号和单元节点编号的函数。

2．⽤户可以从其他程序的结果⽂件中进⾏相关操作来定义积分点F的⼤⼩。

例1：这个例⼦在每个积分点施加的荷载不仅是坐标的函数，⽽且是随STEP变化⽽变化的。

SUBROUTINE DLOAD(P,KSTEP,KINC,TIME,NOEL,NPT,LAYER,KSPT,COORDS,1 JLTYP,SNAME)INCLUDE 'ABA_PARAM.INC' CDIMENSION TIME(2),COORDS(3)CHARACTER*80 SNAMEPARAMETER (PLOAD=100.E4)IF (KSTEP.EQ.1) THEN ！当STEP=1时的荷载⼤⼩P=PLOADELSE IF (KSTEP.EQ.2) THEN ！当STEP＝2时的荷载⼤⼩P=COORDS(1)*PLOAD ！施加在积分点的荷载P是坐标的函数ELSE IF (KSTEP.EQ.3) THEN ！当STEP=3时的荷载⼤⼩P=COORDS(1)**2*PLOADELSE IF (KSTEP.EQ.4) THEN ！当STEP=4时的荷载⼤⼩P=COORDS(1)**3*PLOADELSE IF (KSTEP.EQ.5) THEN ！当STEP=5时的荷载⼤⼩P=COORDS(1)**4*PLOADEND IFRETURNENDUMAT ⼦程序具有强⼤的功能，使⽤UMAT ⼦程序：(1) 可以定义材料的本构关系，使⽤ABAQUS 材料库中没有包含的材料进⾏计算，扩充程序功能。

Abaqus2016+vs2012+IntelFortran2013（由abaqus6.13+vs2012+IntelFortran2013改编）（abaqus2016中Fortran编译器的配置）目前Abaqus的最新版本已经是2016，Intel Fortran编译器的最新版本不清楚想要在Abaqus里用子程序，必须安装Intel Visual Fortran，而安装Intel Visual Fortran前需要安装Microsoft Visual Studio，做好相关设置后通过Abaqus Verification测试子程序以及其他Abaqus功能是否能正常使用。

一、ABAQUS 与Intel Fortran及Visual Studio的兼容性介绍：大家知道ABAUQS如果需要用User Subroutine必须有Intel Fortran，而Intel Fortran又必须在Visual Studio的环境下运行。

三者之间存在的两两兼容问题，必须引起注意。

目前用的配搭：Abaqus 2016+VS2012+Intel Fortran XE2013（我所使用的）二、ABAQUS 、Intel Fortran、Visual Studio的安装顺序及安装方法：（1）、安装顺序：step1、安装visual studio（VS）（必须在Intel Fortran XE2013安装之前）：一般而言安装VS没有任何难度，需要注意的一点是对于64位系统需要安装64位支持，而在有些版本中该模块是默认安装中没有选中的。

为了避免漏装可以在安装时选择完全安装（complete）。

此外，为了避免因为非英文版VS产生的各种不可预料的整合问题，建议使用英文版VS。

step 2、安装intel visual fortran （IVF）。

为了实现IVF和VS的整合（integration to visual studio），step 2需要在step 1之后进行。

A B A Q U S用户子程序(总4页)本页仅作为文档封面，使用时可以删除This document is for reference only-rar21year.MarchABAQUS用户子程序ABAQUS/Standard subroutines：: Define time-dependent, viscoplastic behavior (creep and swelling).定义和时间相关的、粘塑性的运动（蠕变和膨胀）2. DFLOW: Define nonuniform pore fluid velocity in a consolidation analysis.在压实分析中，定义非均匀孔隙流速度3. DFLUX: Define nonuniform distributed flux in a heat transfer or mass diffusion analysis.在热传递和质量扩散分析中，定义非均匀的分布流量4. DISP: Specify prescribed boundary conditions.指定规定的边界条件5. DLOAD: Specify nonuniform distributed loads.指定非均匀的分布荷载6. FILM: Define nonuniform film coefficient and associated sink temperatures for heattransfer analysis.对热传递分析指定非均匀的膜层散热系数和联合的散热器温度7. FLOW: Define nonuniform seepage coefficient and associated sink pore pressure for consolidation analysis.对压实分析定义非均匀的渗流系数和渗入孔隙压力8. FRIC: Define frictional behavior for contact surfaces.对接触面定义摩擦9. GAPCON: Define conductance between contact surfaces or nodes in a fully coupled temperature-displacement analysis or pure heat transfer analysis.在一个完全耦合的温度—置换分析或者是纯热传递分析中，定义接触面或节点间的导热系数。

第一种方法：在Job模块里，创建工作，在Edit Job对话框中选择General选项卡，在User subroutine file中点击Select按钮，从弹出对话框中选择你要调用的子程序文件(后缀为.for或。

f）。

第二种方法：1. 建立工作目录/ ]”2。

将Abaqus安装目录\6.4-pr11\site下的aba_param_dp。

inc 或aba_param_sp.inc拷贝到工作目录，并改名为aba_param。

inc；3. 将编译的fortran程序拷贝到工作目录；4。

将。

obj文件拷贝到工作目录；5。

建立好输入文件.inp;6. 运行abaqus job=inp_name user=fortran name即可。

以下是网上摘录的资料，供参考：用户进行二次开发时，要在命令行窗口执行下面的命令:abaqus job=job_name user=sub_nameABAQUS会把用户的源程序编译成obj文件，然后临时生成一个静态库standardU。

lib和动态库standardU.dll，还有其它一些临时文件，而它的主程序（如standard.exe和explicit.exe 等）则没有任何改变，由此看来ABAQUS是通过加载上述2个库文件来实现对用户程序的连接，而一旦运行结束则删除所有的临时文件。

这种运行机制与ANSYS、LS—DYNA、marc等都不同。

这些生成的临时文件要到文件夹C：\Documents and Settings\Administrator\Local Settings\Temp\中才能找到，这也是6楼所说的藏了一些工作吧，大家不妨试一下。

1 子程序格式（程序后缀是.f； .f90；。

for;。

obj？?）答：我试过，。

for格是应该是不可以的，至少6。

2和6。

3版本应该是不行，其他的没用过，没有发言权。

在Abaqus中，运行abaqus j=jobname user=username时，默认的用户子程序后缀名是。

Abaqus运行子程序方法试了好几种调用子程序的方法最后总算找到了最简单的了，非常感谢仿真论坛上的网友的分享：首先需要装Microsoft Visual Studio（简写mvs），再装Intel Visual Fortran（IVF）。

通常的组合是Abaqus v6.10.1可使用：MVS2008+IVF10.1 MVS2008+IVF11.1 这二种组合最好都使用英文版的。

照着附录1 方法装一般没什么问题。

但是一般都是先装abaqus后才想到去装MVS以及IVF的。

很多时候都把MVS 以及IVF装好以后才想到去验证的，而且MVS很多都是中文的，MVS不仅装的慢卸载残留也很多好麻烦。

搞了好久都验证不了，看了附录二的方法下面2个网友的回复后豁然开朗，一切都是那么简单。

附录二的方法的主要作用可能就是将VC++和Fortran的环境变量一并启动了，参考过以前版上的安装教程，通过在ABAQUS 的快捷方式中添加命令，亦能够达到同样效果，同样也是不能通过verification，但是可以运行子程序，通过在ABAQUS CAE的快捷方式的目标中，添加"D:\Program Files (x86)\Intel\Compiler\Fortran\10.1.034\em64t\bin\ifortvars.bat" && （跟附录1中的修改快捷方式的目标一样）达到了同样的效果（摘自ppengine，tcboywjr网友的回复）。

只需在搜索栏中搜索ifortvars.bat，再把路径添加上去照上面的形式修改便可。

本人用的是win7系统装的是abaqus6.10.mvs2008（中文版）IVF11，abaqus好早就装了，装MVS2008之前装了mvs2010，发现2010不好装ivf，然后又卸了装mvs2008中文，验证时出现附录Ⅰ的情况，就C++项通不过还以为装C++2010就好了，又重装了一下mvs2010的C++（囧），发现还是用不了，校园网速太慢又不想下mvs2008（英文版），最后在附录2的方法下面发现了两位网友的分享非常感谢。

ABAQUS用户子程序学习小结1 FORTRAN语言中的“I-N规则”:I、J、K、L、M、N开头的为整型变量，其他开头为实型变量;1.1 Fortran书写格式:1-5列:标号区;6列:续写标号区，一般就写"1";7-72列:语句区，本区内空格无效;注释行以C开头，本行内书写格式无要求;参考周煦《FORTRAN77结构化程序设计》，中国科学技术出版社，1995，38-40页 2 DIMENSION COORDS(3)表示声明一个含3个元素的数组，下标分别为1、2、3，访问形式为COORDS(n)，n为1,3;3 子程序(*.for)文件中如何输出调试信息:WRITE(6,*)'COORDS(1)',COORDS(1)，在*.dat文件中可看到输出，如果希望WRITE输出到msg文件中，则写为WRITE(7,*)'COORDS...;4 用户子程序DLOAD中COORDS数组的含义:COORDS(1)也是一个数组，存贮单元集合中所有单元积分点的X坐标，COORDS(2)存贮Y坐标，相应INP文件中的写法为:*DLOADPY,PYNU其中PY为单元集合名称，定义方法为:*Elset, elset=BEAM, generate1, 5, 1...*ELSET,ELSET=PYBEAM5 DLOAD中F的定义方法:F只有定义在单元积分点上才有效，例如:F=1.0*COORDS (1)附一个简单实例:beam.inp文件:*Heading** Job name: Job-1 Model name: beam *Preprint, echo=NO, model=NO, history=NO, contact=NO**** PARTS***Part, name=PART-1*End Part**** ASSEMBLY***Assembly, name=Assembly***Instance, name=PART-1-1, part=PART-1 *Node1, 0., 0.2, 20., 0.3, 40., 0.4, 60., 0.5, 80., 0.6, 100., 0. *Element, type=B311, 1, 22, 2, 33, 3, 44, 4, 55, 5, 6*Elset, elset=BEAM, generate1, 5, 1** Region: (Section-1-BEAM:BEAM), (Beam Orientation:BEAM)** Section: Section-1-BEAM Profile: Profile-1*Beam Section, elset=BEAM, material=STEEL, temperature=GRADIENTS, section=RECT0.2, 5.0.,0.,-1.*End Instance*Nset, nset=ENDS, instance=PART-1-11, 6*Nset, nset=_M4, internal, instance=PART-1-16,*Nset, nset=_M5, internal, instance=PART-1-11,*End Assembly**** MATERIALS***Material, name=STEEL*Elastic210000., 0.3*ELSET,ELSET=PYBEAM**** BOUNDARY CONDITIONS**** Name: Disp-BC-1 Type: Symmetry/Antisymmetry/Encastre*Boundary_M4, ENCASTRE** ---------------------------------------------------------------- **** STEP: Step-1***Step, name=Step-1*Static**** LOADS**** Name: CFORCE-1 Type: Concentrated force*DLOADPY,PYNU**** OUTPUT REQUESTS****** FIELD OUTPUT: F-Output-1 ***Output, field, variable=PRESELECT **** FIELD OUTPUT: F-Output-2 ***Output, field*Element OutputSF,**** HISTORY OUTPUT: H-Output-1 ***Output, history*Node Output, nset=ENDSCF1, CF2, CF3, CM1, CM2, CM3, RF1, RF2 RF3, RM1, RM2, RM3, U1, U2, U3, UR1 UR2, UR3*El Print, freq=999999*Node Print, freq=999999*End Stepbbb.for文件SUBROUTINE DLOAD(F,KSTEP,KINC,TIME,NOEL,NPT,LAYER,KSPT,COORDS,1 JLTYP,SNAME) CINCLUDE 'ABA_PARAM.INC'CDIMENSION TIME(2), COORDS (3)CHARACTER*80 SNAMEWRITE(6,*)'COORDS(3)',COORDS(3)F=1.0*COORDS (1)RETURNEND运行方法:在Abaqus Command提示符后输入:abaqus job=beam user=bbb interactive 子程序如下～如何编写，调研子程序,子程序USDFLD中给固化度赋了一个初值1×10-4。
