天花板内藏直吹式(超薄型)
??超薄厚度仅为200mm
??三档风量、超静音，为您创造更舒适的环境 ??后部配管，安装宽度仅需96cm

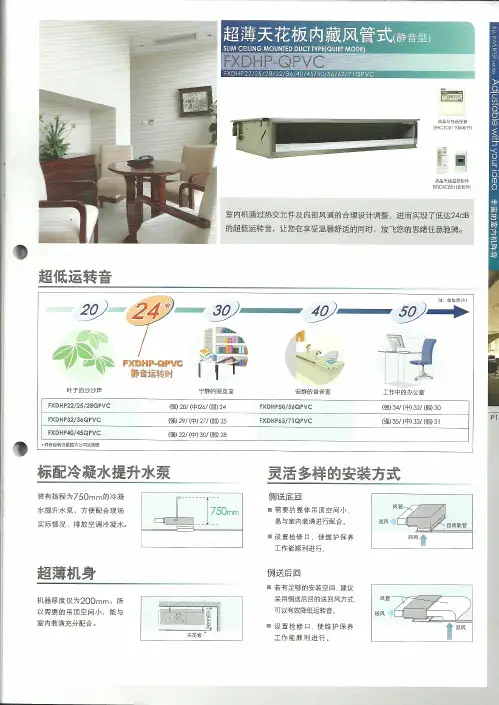

天花板内藏风管式
?? 配置有适量的机外静压 ?? 风管连接时送风口能自由设置
天花板嵌入导管内藏式
?? 灵活适应房间内部结构 ?? 高扬程冷凝水泵
?? 多种机外静压模式，可连接较长风管
天花板嵌入式<四向气流> FXFP-KMVC ?? 高扬程冷凝水泵
?? 可引入室外新风
?? 自动摆动运转的三种模式?? 正方形面板，全机统一
天花板嵌入式<双向气流>?? 适应狭小的过道空间
?? 高天花板设计，气流直达地面?? 高扬程冷凝水泵
?? 自动摆动运转模式
落地内藏式FXNP-MMVC ?? 隐藏在窗边墙脚的最佳装置
?? 气流分布均匀，制热效果更佳
?? 全系列机型高度和厚度一致,更匹配装潢?? 长效过滤网设置，清洁周期更长
? 挂壁式
?? 标配无线,操作更容易 ?? 可设定5档送风角度 ?? 低运转音。

先进技术赋予产品优异性能
高低压腔涡旋式压缩机
压缩机，空调系统中至关重要的心脏部件，优异与否与空调系统整体性能息息相关。大金积累了多年的压缩机开发生产经验，辅以 VRV 中央空调系统领域的雄厚实力，不断寻找VRV 中央空调系统与适用压缩机之间的技术平衡点，只为每一款大金VRV 中央空调 系统都拥有一颗最为适合的心脏。
涡盘壁厚
50 减小约 ％
常见压缩机 V动力高低压腔涡旋式压缩机
涡盘高度
20 提升约 ％
New 9槽式集中线圈定子 有效提高系统部分负荷 时的运转效率，同时9 片卷槽均独立排列，不 但进一步提升电机转 矩，更避免了热量的 无效传导。
New 6极式钕磁铁转子 回转振动抑制，静音 效果更佳。
3
特殊树脂密封气环结构 有效减小摩擦系数，性能更好。
一体化热交换器
高低压腔涡旋式压缩机
芯片液冷恒温技术
智能感知3D气流技术
先进技术缔造优秀品质
业界先进的IPLV(C)
空调系统IPLV(C)大幅度提升，远超国家一级能效等级
6.60 6.50 6.50 6.50 6.30 6.00 6.00 5.60
6.60
8HP
10HP 12HP 14HP 16HP 18HP
4.5
5.0
5.6
6.3
7.1
8.0
9.0
10.0
11.2
12.5
14.0
15.0
6
室外机规格表
室外机
型号 匹数 组合方式 电源 额定制冷容量★1 额定制热容量★2 额定耗电量 IPLV(C)值 机器尺寸 风扇风量 机外静压 运转音★3 夜间静音运转 现场配管尺寸 重量 冷媒
25

电磁阀（热气体：SVP） 用于防止低压瞬时下降。
电磁阀（回油：SVO） 用于从储液器向压缩机回油。
四通阀
用于在冷却和加热模式之间切换。
高压传感器
用于检测高压。
低压传感器
用于检测低压。
高压压力开关（用于变频 当 出 现 故 障 时 ， 为 了 防 止 高 压 升 高 ， 该 开 关 在 高 压 为
压缩机）
高压传感器
用于检测高压。
低压传感器
用于检测低压。
高压压力开关（用于变频 压缩机） 高压压力开关（用于标准 压缩机 1）
压力调节阀（液体管）
过冷换热器
当出现故障时，为了防止高压升高，该开关在高压为 4.0MPa 以上时启动，停止压缩机的运行。
当压力为 2 至 2.7MPa 时，该阀门打开，防止压力升高， 从而可以避免因运输或储存过程中压力的升高而导致的对 功能部件的损害。 用于使来自电子膨胀阀（冷却）或室内机（加热）的液体 制冷剂过冷。
剂：Tb）
他。
热敏电阻（过冷换热器气 用于检测过冷换热器蒸发侧的气管温度、使过冷换热器出
管：Tsh）
口处的过热度保持稳定，及其他。
热敏电阻（贮液器出口液 用于检测贮液器出口液体管的温度、防止在多个室外单元
体管：Tl）
系统的情况下在加热过程中室外单元间发生漂移，及其他。
用于检测储液器入口（冷却）或室内单元（加热）处的气 热敏电阻（储液器入口） 管温度。
4.0MPa 以上时启动，停止压缩机的运行。
当压力为 2 至 2.7MPa 时，该阀门打开，防止压力升高，
调压阀（液体管）
从而可以避免因运输或储存过程中压力的升高而导致的对
功能部件的损害。
过冷换热器
