MOXA交换机使用说明

EDS-508A Series8-port managed EthernetswitchesFeatures and Benefits•Turbo Ring and Turbo Chain (recovery time <20ms @250switches),andSTP/RSTP/MSTP for network redundancy•TACACS+,SNMPv3,IEEE 802.1X,HTTPS,and SSH to enhance networksecurity•Easy network management by web browser,CLI,Telnet/serial console,Windows utility,and ABC-01•Supports MXstudio for easy,visualized industrial network managementCertificationsIntroductionThe EDS-508A standalone 8-port managed Ethernet switches,with their advanced Turbo Ring and Turbo Chain technologies (recovery time <20ms),RSTP/STP,and MSTP,increase the reliability and availability of your industrial Ethernet network.Models with a wide operating temperature range of -40to 75°C are also available,and the switches support advanced management and security features,making the EDS-508A switches suitable for any harsh industrial environment.Additional Features and Benefits•Command line interface (CLI)for quickly configuring major managed functions•DHCP Option 82for IP address assignment with different policies •Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring•Compatible with PROFINET protocol for transparent data transmission•Automatic warning by exception through email and relay output •IGMP snooping and GMRP for filtering multicast traffic•Port-based VLAN,IEEE 802.1Q VLAN,and GVRP to ease network planning•QoS (IEEE 802.1p/1Q and TOS/DiffServ)to increase determinism •Port Trunking for optimum bandwidth utilization•RMON for proactive and efficient network monitoring•SNMPv1/v2c/v3for different levels of network management•Bandwidth management to prevent unpredictable network status •Lock port function for blocking unauthorized access based on MAC addressSpecificationsInput/Output InterfaceAlarm Contact Channels 2,Relay output with current carrying capacity of 1A @24VDC Digital Input Channels 2Digital Inputs+13to +30V for state 1-30to +3V for state 0Max.input current:8mA ButtonsReset button100BaseFX Ports(multi-mode ST connector)EDS-508A-MM-ST Series:2100BaseFX Ports(single-mode SC connector)EDS-508A-SS-SC Series:2100BaseFX Ports,Single-Mode SC Connector,80kmEDS-508A-SS-SC-80Series:2Standards IEEE802.3for10BaseTIEEE802.3u for100BaseT(X)and100BaseFXIEEE802.1X for authenticationIEEE802.1D-2004for Spanning Tree ProtocolIEEE802.1w for Rapid Spanning Tree ProtocolIEEE802.1s for Multiple Spanning Tree ProtocolIEEE802.1Q for VLAN TaggingIEEE802.1p for Class of ServiceIEEE802.3x for flow controlIEEE802.3ad for Port Trunk with LACPOptical Fiber800Typical Distance4km5km40km80kmWave-lengthTypical(nm)130013101550TX Range(nm)1260to13601280to13401530to1570 RX Range(nm)1100to16001100to16001100to1600Optical PowerTX Range(dBm)-10to-200to-50to-5 RX Range(dBm)-3to-32-3to-34-3to-34 Link Budget(dB)122929 Dispersion Penalty(dB)311Note:When connecting a single-mode fiber transceiver,we recommend using anattenuator to prevent damage caused by excessive optical power.Note:Compute the“typical distance”of a specific fiber transceiver as follows:Linkbudget(dB)>dispersion penalty(dB)+total link loss(dB).Ethernet Software FeaturesFilter802.1Q VLAN,Port-based VLAN,IGMP v1/v2,GVRP,GMRPIndustrial Protocols EtherNet/IP,Modbus TCPManagement IPv4/IPv6,SNMPv1/v2c/v3,LLDP,Port Mirror,Back Pressure Flow Control,BOOTP,DDM,DHCP Option66/67/82,DHCP Server/Client,Fiber check,Flow control,RARP,RMON,SMTP,SNMP Inform,Syslog,Telnet,TFTPMIB MIB-II,Bridge MIB,Ethernet-like MIB,P-BRIDGE MIB,Q-BRIDGE MIB,RMON MIBGroups1,2,3,9,RSTP MIBRedundancy Protocols STP,MSTP,RSTP,LACP,Link Aggregation,Turbo Chain,Turbo Ring v1/v2 Security HTTPS/SSL,TACACS+,Port Lock,RADIUS,SSHTime Management NTP Server/Client,SNTP,IEEE1588v2PTP(software-based)Max.No.of VLANs64Packet Buffer Size1MbitsPriority Queues4VLAN ID Range VID1to4094LED InterfaceLED Indicators PWR1,PWR2,FAULT,10/100M(TP port),100M(fiber port),MSTR/HEAD,CPLR/TAIL Serial InterfaceConsole Port RS-232(TxD,RxD,GND),8-pin RJ45(115200,n,8,1)DIP Switch ConfigurationEthernet Interface Turbo Ring,Master,Coupler,ReservePower ParametersConnection2removable6-contact terminal block(s)Input Voltage12/24/48VDC,Redundant dual inputsOperating Voltage9.6to60VDCInput Current EDS-508A Series:0.22A@24VDCEDS-508A-MM/SS Series:0.30A@24VDCOverload Current Protection SupportedReverse Polarity Protection SupportedPhysical CharacteristicsHousing MetalIP Rating IP30Dimensions80.2x135x105mm(3.16x5.31x4.13in)Weight1040g(2.3lb)Installation DIN-rail mounting,Wall mounting(with optional kit)Environmental LimitsOperating Temperature Standard Models:-10to60°C(14to140°F)Wide Temp.Models:-40to75°C(-40to167°F)Storage Temperature(package included)-40to85°C(-40to185°F)Ambient Relative Humidity5to95%(non-condensing)Standards and CertificationsSafety EN60950-1,UL60950-1,CSA C22.2No.60950-1,UL508Hazardous Locations ATEX,Class I Division2EMC EN55032/24EMI CISPR32,FCC Part15B Class AEMS IEC61000-4-2ESD:Contact:6kV;Air:8kVIEC61000-4-3RS:80MHz to1GHz:20V/mIEC61000-4-4EFT:Power:2kV;Signal:1kVIEC61000-4-5Surge:Power:2kV;Signal:2kVIEC61000-4-6CS:10VIEC61000-4-8PFMFShock IEC60068-2-27Vibration IEC60068-2-6Freefall IEC60068-2-31MTBFTime1,043,909hrsStandards Telcordia(Bellcore),GBWarrantyWarranty Period5yearsDetails See /warrantyPackage ContentsDevice1x EDS-508A Series switchCable1x DB9female to RJ4510-pinInstallation Kit4x cap,plastic,for RJ45port2x cap,plastic,for SC fiber port(-SC models)2x cap,plastic,for ST fiber port(-ST models)Documentation1x quick installation guide1x warranty card1x product certificates of quality inspection,Simplified Chinese1x product notice,Simplified ChineseDimensionsOrdering Information80EDS-508A8––––-10to60°C EDS-508A-T8––––-40to75°C EDS-508A-MM-SC62–––-10to60°CEDS-508A-MM-SC-62–––-40to75°CTEDS-508A-MM-ST6–2––-10to60°C EDS-508A-MM-ST-T6–2––-40to75°C EDS-508A-SS-SC6––2–-10to60°C EDS-508A-SS-SC-T6––2–-40to75°CEDS-508A-SS-SC-6–––2-10to60°C80EDS-508A-SS-SC-6–––2-40to75°C80-TAccessories(sold separately)Storage KitsABC-01Configuration backup and restoration tool for managed Ethernet switches and AWK Series wirelessAPs/bridges/clients,0to60°C operating temperaturePower SuppliesDR-120-24120W/2.5A DIN-rail24VDC power supply with universal88to132VAC or176to264VAC input byswitch,or248to370VDC input,-10to60°C operating temperatureDR-452445W/2A DIN-rail24VDC power supply with universal85to264VAC or120to370VDC input,-10to50°C operating temperatureDR-75-2475W/3.2A DIN-rail24VDC power supply with universal85to264VAC or120to370VDC input,-10to60°C operating temperatureMDR-40-24DIN-rail24VDC power supply with40W/1.7A,85to264VAC,or120to370VDC input,-20to70°Coperating temperatureMDR-60-24DIN-rail24VDC power supply with60W/2.5A,85to264VAC,or120to370VDC input,-20to70°Coperating temperatureWall-Mounting KitsWK-46Wall-mounting kit,2plates,8screws,46.5x66.8x1mmRack-Mounting KitsRK-4U19-inch rack-mounting kitSoftwareMXview-50Industrial network management software with a license for50nodes(by IP address)MXview-100Industrial network management software with a license for100nodes(by IP address)MXview-250Industrial network management software with a license for250nodes(by IP address)MXview-500Industrial network management software with a license for500nodes(by IP address)MXview-1000Industrial network management software with a license for1000nodes(by IP address)MXview-2000Industrial network management software with a license for2000nodes(by IP address)MXview Upgrade-50License expansion of MXview industrial network management software by50nodes(by IP address)©Moxa Inc.All rights reserved.Updated Sep10,2019.This document and any portion thereof may not be reproduced or used in any manner whatsoever without the express written permission of Moxa Inc.Product specifications subject to change without notice.Visit our website for the most up-to-date product information.。

EDS-208A Series8-port unmanaged Ethernet switchesFeatures and Benefits•10/100BaseT(X)(RJ45connector),100BaseFX(multi/single-mode,SC or STconnector)•Redundant dual12/24/48VDC power inputs•IP30aluminum housing•Rugged hardware design well suited for hazardous locations(Class1Div.2/ATEX Zone2),transportation(NEMA TS2/EN50121-4/e-Mark),and maritimeenvironments(DNV/GL/LR/ABS/NK)•-40to75°C operating temperature range(-T models)CertificationsIntroductionThe EDS-208A Series8-port industrial Ethernet switches support IEEE802.3and IEEE802.3u/x with10/100M full/half-duplex,MDI/MDI-X auto-sensing.The EDS-208A Series has12/24/48VDC(9.6to60VDC)redundant power inputs that can be connected simultaneously to live DC power sources.These switches have been designed for harsh industrial environments,such as in maritime(DNV/GL/LR/ABS/NK),rail wayside,highway, or mobile applications(EN50121-4/NEMA TS2/e-Mark),or hazardous locations(Class I Div.2,ATEX Zone2)that comply with FCC,UL,and CE standards.The EDS-208A switches are available with a standard operating temperature range from-10to60°C,or with a wide operating temperature range from-40to75°C.All models are subjected to a100%burn-in test to ensure that they fulfill the special needs of industrial automation control applications.In addition,the EDS-208A switches have DIP switches for enabling or disabling broadcast storm protection,providing another level of flexibility for industrial applications.SpecificationsEthernet Interface10/100BaseT(X)Ports(RJ45connector)EDS-208A/208A-T:8EDS-208A-M-SC/M-ST/S-SC Series:7EDS-208A-MM-SC/MM-ST/SS-SC Series:6All models support:Auto negotiation speedFull/Half duplex modeAuto MDI/MDI-X connection100BaseFX Ports(multi-mode SC connector)EDS-208A-M-SC Series:1EDS-208A-MM-SC Series:2100BaseFX Ports(multi-mode ST connector)EDS-208A-M-ST Series:1EDS-208A-MM-ST Series:2100BaseFX Ports(single-mode SC connector)EDS-208A-S-SC Series:1EDS-208A-SS-SC Series:2Standards IEEE802.3for10BaseTIEEE802.3u for100BaseT(X)and100BaseFXIEEE802.3x for flow controlOptical Fiber800Typical Distance4km5km40kmWavelength Typical(nm)13001310TX Range(nm)1260to13601280to1340 RX Range(nm)1100to16001100to1600Optical Power TX Range(dBm)-10to-200to-5 RX Range(dBm)-3to-32-3to-34 Link Budget(dB)1229 Dispersion Penalty(dB)31Note:When connecting a single-mode fiber transceiver,we recommend using anattenuator to prevent damage caused by excessive optical power.Note:Compute the“typical distance”of a specific fiber transceiver as follows:Linkbudget(dB)>dispersion penalty(dB)+total link loss(dB).Switch PropertiesMAC Table Size2KPacket Buffer Size768kbitsProcessing Type Store and ForwardPower ParametersConnection1removable4-contact terminal block(s)Input Current EDS-208A/208A-T,EDS-208A-M-SC/M-ST/S-SC Series:0.11A@24VDCEDS-208A-MM-SC/MM-ST/SS-SC Series:0.15A@24VDCInput Voltage12/24/48VDC,Redundant dual inputsOperating Voltage9.6to60VDCOverload Current Protection SupportedReverse Polarity Protection SupportedDIP Switch ConfigurationEthernet Interface Broadcast storm protectionPhysical CharacteristicsHousing AluminumIP Rating IP30Dimensions50x114x70mm(1.96x4.49x2.76in)Weight275g(0.61lb)Installation DIN-rail mounting,Wall mounting(with optional kit)Environmental LimitsOperating Temperature Standard Models:-10to60°C(14to140°F)Wide Temp.Models:-40to75°C(-40to167°F) Storage Temperature(package included)-40to85°C(-40to185°F)Ambient Relative Humidity5to95%(non-condensing)Standards and CertificationsEMC EN55032/24EMI CISPR32,FCC Part15B Class AEMS IEC61000-4-2ESD:Contact:6kV;Air:8kVIEC61000-4-3RS:80MHz to1GHz:10V/mIEC61000-4-4EFT:Power:2kV;Signal:1kVIEC61000-4-5Surge:Power:2kV;Signal:2kVIEC61000-4-6CS:10VIEC61000-4-8PFMFHazardous Locations ATEX,Class I Division2Maritime ABS,DNV-GL,LR,NKRailway EN50121-4Safety UL508Shock IEC60068-2-27Traffic Control NEMA TS2Vibration IEC60068-2-6Freefall IEC60068-2-31MTBFTime2,701,531hrsStandards Telcordia(Bellcore),GBWarrantyWarranty Period5yearsDetails See /warrantyPackage ContentsDevice1x EDS-208A Series switchDocumentation1x quick installation guide1x warranty cardDimensionsOrdering InformationModel Name 10/100BaseT(X)PortsRJ45Connector100BaseFX PortsMulti-Mode,SCConnector100BaseFX PortsMulti-Mode,STConnector100BaseFX PortsSingle-Mode,SCConnectorOperating Temp.EDS-208A8–––-10to60°C EDS-208A-T8–––-40to75°C EDS-208A-M-SC71––-10to60°C EDS-208A-M-SC-T71––-40to75°C EDS-208A-M-ST7–1–-10to60°C EDS-208A-M-ST-T7–1–-40to75°C EDS-208A-MM-SC62––-10to60°C EDS-208A-MM-SC-T62––-40to75°C EDS-208A-MM-ST6–2–-10to60°C EDS-208A-MM-ST-T6–2–-40to75°C EDS-208A-S-SC7––1-10to60°C EDS-208A-S-SC-T7––1-40to75°C EDS-208A-SS-SC6––2-10to60°C EDS-208A-SS-SC-T6––2-40to75°C Accessories(sold separately)Power SuppliesDR-120-24120W/2.5A DIN-rail24VDC power supply with universal88to132VAC or176to264VAC input byswitch,or248to370VDC input,-10to60°C operating temperatureDR-452445W/2A DIN-rail24VDC power supply with universal85to264VAC or120to370VDC input,-10to50°C operating temperatureDR-75-2475W/3.2A DIN-rail24VDC power supply with universal85to264VAC or120to370VDC input,-10to60°C operating temperatureMDR-40-24DIN-rail24VDC power supply with40W/1.7A,85to264VAC,or120to370VDC input,-20to70°Coperating temperatureMDR-60-24DIN-rail24VDC power supply with60W/2.5A,85to264VAC,or120to370VDC input,-20to70°Coperating temperatureWall-Mounting KitsWK-30Wall-mounting kit,2plates,4screws,40x30x1mmWK-46Wall-mounting kit,2plates,8screws,46.5x66.8x1mmRack-Mounting KitsRK-4U19-inch rack-mounting kit©Moxa Inc.All rights reserved.Updated Jan30,2019.This document and any portion thereof may not be reproduced or used in any manner whatsoever without the express written permission of Moxa Inc.Product specifications subject to change without notice.Visit our website for the most up-to-date product information.。

ICS-G7848A Series48G Layer3full Gigabit modular managed EthernetswitchesFeatures and Benefits•Up to48Gigabit Ethernet ports•Up to48optical fiber connections(SFP slots)•Up to48PoE+ports with external power supply(with IM-G7000A-4PoEmodule)•Fanless,-10to60°C operating temperature range•Modular design for maximum flexibility and hassle-free future expansion•Hot-swappable interface and power modules for continuous operation•Turbo Ring and Turbo Chain(recovery time<20ms@250switches),andSTP/RSTP/MSTP for network redundancy•Isolated redundant power inputs with universal110/220VAC power supplyrange•Supports MXstudio for easy,visualized industrial network management•V-ON™ensures millisecond-level multicast data and video network recoveryCertificationsIntroductionProcess automation and transportation automation applications combine data,voice,and video,and consequently require high performance and high reliability.The ICS-G7848A Series full Gigabit backbone switches’modular design makes network planning easy,and allows greater flexibility by letting you install up to48Gigabit Ethernet ports.The ICS-G7848A Series also supports Layer3routing functionality to facilitate the deployment of applications across networks,making them ideal for large-scale industrial networks.The ICS-G7848A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video,voice,and data across a network.The fanless switches support the Turbo Ring,Turbo Chain,and RSTP/STP redundancy technologies,and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.Additional Features and Benefits•Layer3switching functionality to move data and information across networks(ICS-G7800A Series)•Advanced PoE management functions:PoE output setting,PD failure check,PoE scheduling,and PoE diagnostics(with IM-G7000A-4PoE module)•Command line interface(CLI)for quickly configuring major managed functions•Supports advanced VLAN capability with Q-in-Q tagging•DHCP Option82for IP address assignment with different policies •Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring•Compatible with PROFINET protocol for transparent data transmission•Digital inputs for integrating sensors and alarms with IP networks •Redundant,dual AC power inputs•IGMP snooping and GMRP for filtering multicast traffic •IEEE802.1Q VLAN and GVRP protocol to ease network planning •QoS(IEEE802.1p/1Q and TOS/DiffServ)to increase determinism •Port Trunking for optimum bandwidth utilization•TACACS+,SNMPv3,IEEE802.1X,HTTPS,and SSH to enhance network security•Access control lists(ACL)increase the flexibility and security of network management•SNMPv1/v2c/v3for different levels of network management •RMON for proactive and efficient network monitoring •Bandwidth management to prevent unpredictable network status •Lock port function for blocking unauthorized access based on MAC address•Port mirroring for online debugging•Automatic warning by exception through email and relay outputSpecificationsInput/Output InterfaceAlarm Contact Channels Relay output with current carrying capacity of2A@30VDCDigital Inputs+13to+30V for state1-30to+1V for state0Max.input current:8mAEthernet InterfaceStandards IEEE802.1D-2004for Spanning Tree ProtocolIEEE802.1p for Class of ServiceIEEE802.1Q for VLAN TaggingIEEE802.1s for Multiple Spanning Tree ProtocolIEEE802.1w for Rapid Spanning Tree ProtocolIEEE802.1X for authenticationIEEE802.3for10BaseTIEEE802.3ab for1000BaseT(X)IEEE802.3ad for Port Trunk with LACPIEEE802.3u for100BaseT(X)and100BaseFXIEEE802.3x for flow controlIEEE802.3z for1000BaseSX/LX/LHX/ZXIEEE802.3af/at for PoE/PoE+outputSlot Combination12slots for4-port interface modules(10/100/1000BaseT(X),or PoE+10/100/1000BaseT(X),or100/1000BaseSFP slots)1Ethernet Software FeaturesManagement ARP,Back Pressure Flow Control,BOOTP,DDM,DHCP Option66/67/82,DHCP Server/Client,IPv4,LLDP,Port Mirror,RMON,SNMP Inform,SNMPv1/v2c/v3,Syslog,Telnet,TFTP,SMTP,RARP,Flow controlFilter802.1Q,GMRP,GVRP,IGMP v1/v2/v3,QinQ VLANMulticast Routing DVMRP,PIM-DM,PIM-SM,PIM-SSMRedundancy Protocols Link Aggregation,MSTP,RSTP,Turbo Chain,Turbo Ring v1/v2,V-ONRouting Redundancy VRRPSecurity Access control list,Broadcast storm protection,HTTPS/SSL,MAB authentication,Sticky MAC,NTP authentication,Port Lock,RADIUS,SSH,TACACS+Time Management NTP Server/Client,SNTPUnicast Routing OSPF,RIPV1/V2,Static RouteIndustrial Protocols EtherNet/IP,Modbus TCPMIB Bridge MIB,Ethernet-like MIB,MIB-II,P-BRIDGE MIB,Q-BRIDGE MIB,RMON MIBGroups1,2,3,9,RSTP MIBSwitch PropertiesDRAM128MBFlash16MBIGMP Groups4096Jumbo Frame Size9.6KBMAC Table Size16KMax.No.of VLANs2561.See the IM-G7000A datasheet for Gigabit Ethernet module product information.Packet Buffer Size12MbitsVLAN ID Range VID1to4094Priority Queues8USB InterfaceStorage Port USB Type ASerial InterfaceConsole Port USB-serial console(Type B connector) Power ParametersInput Voltage110to220VAC,Redundant dual inputs Operating Voltage85to264VACOverload Current Protection SupportedReverse Polarity Protection SupportedInput Current0.87/0.51A@110/220VACPhysical CharacteristicsIP Rating IP30Dimensions440x176x523.8mm(17.32x6.93x20.62in) Weight12,900g(28.5lb)Installation Rack mountingEnvironmental LimitsOperating Temperature-10to60°C(14to140°F)Storage Temperature(package included)-40to85°C(-40to185°F)Ambient Relative Humidity5to95%(non-condensing)Standards and CertificationsSafety EN60950-1,UL60950-1EMC EN55032/24EMI CISPR32,FCC Part15B Class AEMS IEC61000-4-2ESD:Contact:6kV;Air:8kVIEC61000-4-3RS:80MHz to1GHz:20V/mIEC61000-4-4EFT:Power:4kV;Signal:4kVIEC61000-4-5Surge:Power:2kV;Signal:2kVIEC61000-4-6CS:10VIEC61000-4-8PFMFRailway EN50121-4Freefall IEC60068-2-32Shock IEC60068-2-27Vibration IEC60068-2-6MTBFTime314,973hrsStandards Telcordia(Bellcore),GBWarrantyWarranty Period5yearsDetails See /warrantyPackage ContentsDevice1x ICS-G7848A Series switchCable1x USB type A male to USB type B maleInstallation Kit2x rack-mounting ear4x cap,plastic,for SFP slotPower Supply1x power cord,EU type1x power cord,US typeDocumentation1x quick installation guide1x warranty cardNote48V external power supply,SFP modules and/or modules from the IM-G7000A ModuleSeries need to be purchased separately for use with this product.DimensionsOrdering InformationModel Name Layer10GbE SFP+Slots 100/1000Base SFPSlots10/100/1000BaseT(X)PortsRJ45ConnectorOperating Temp.ICS-G7848A-HV-HV30Up to48Up to48-10to60°CAccessories(sold separately)IM-G7000A Module SeriesIM-G7000A-4GSFP Gigabit Ethernet interface module with4100/1000BaseSFP slots,-10to60°C operating temperature IM-G7000A-4GTX Gigabit Ethernet interface module with410/100/1000BaseT(X)ports,-10to60°C operatingtemperatureIM-G7000A-4PoE Gigabit Ethernet PoE+interface module with410/100/1000BaseT(X)ports,-10to60°C operatingtemperaturePower ModulesPWR-G7000A-AC Power supply module(85to264VAC)for ICS-G7748A/G7750A/G7752A/G7848A/G7850A/G7852ASeries,-10to60°C operating temperatureSFP ModulesSFP-1FELLC-T SFP module with1100Base single-mode with LC connector for80km transmission,-40to85°Coperating temperatureSFP-1FEMLC-T SFP module with1100Base multi-mode,LC connector for2/4km transmission,-40to85°C operatingtemperatureSFP-1FESLC-T SFP module with1100Base single-mode with LC connector for40km transmission,-40to85°Coperating temperatureSFP-1G10ALC WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for10km transmission;TX1310nm,RX1550nm,0to60°C operating temperatureSFP-1G10ALC-T WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for10km transmission;TX1310nm,RX1550nm,-40to85°C operating temperatureSFP-1G10BLC WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for10km transmission;TX1550nm,RX1310nm,0to60°C operating temperatureSFP-1G10BLC-T WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for10km transmission;TX1550nm,RX1310nm,-40to85°C operating temperatureSFP-1G20ALC WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for20km transmission;TX1310nm,RX1550nm,0to60°C operating temperatureSFP-1G20ALC-T WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for20km transmission;TX1310nm,RX1550nm,-40to85°C operating temperatureSFP-1G20BLC WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for20km transmission;TX1550nm,RX1310nm,0to60°C operating temperatureSFP-1G20BLC-T WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for20km transmission;TX1550nm,RX1310nm,-40to85°C operating temperatureSFP-1G40ALC WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for40km transmission;TX1310nm,RX1550nm,0to60°C operating temperatureSFP-1G40ALC-T WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for40km transmission;TX1310nm,RX1550nm,-40to85°C operating temperatureSFP-1G40BLC WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for40km transmission;TX1550nm,RX1310nm,0to60°C operating temperatureSFP-1G40BLC-T WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for40km transmission;TX1550nm,RX1310nm,-40to85°C operating temperatureSFP-1GEZXLC SFP module with11000BaseEZX port with LC connector for110km transmission,0to60°C operatingtemperatureSFP-1GEZXLC-120SFP module with11000BaseEZX port with LC connector for120km transmission,0to60°C operatingtemperatureSFP-1GLHLC SFP module with11000BaseLH port with LC connector for30km transmission,0to60°C operatingtemperatureSFP-1GLHLC-T SFP module with11000BaseLH port with LC connector for30km transmission,-40to85°C operatingtemperatureSFP-1GLHXLC SFP module with11000BaseLHX port with LC connector for40km transmission,0to60°C operatingtemperatureSFP-1GLHXLC-T SFP module with11000BaseLHX port with LC connector for40km transmission,-40to85°Coperating temperatureSFP-1GLSXLC SFP module with11000BaseLSX port with LC connector for1km/2km transmission,0to60°Coperating temperatureSFP-1GLSXLC-T SFP module with11000BaseLSX port with LC connector for1km/2km transmission,-40to85°Coperating temperatureSFP-1GLXLC SFP module with11000BaseLX port with LC connector for10km transmission,0to60°C operatingtemperatureSFP-1GLXLC-T SFP module with11000BaseLX port with LC connector for10km transmission,-40to85°C operatingtemperatureSFP-1GSXLC SFP module with11000BaseSX port with LC connector for300m/550m transmission,0to60°Coperating temperatureSFP-1GSXLC-T SFP module with11000BaseSX port with LC connector for300m/550m transmission,-40to85°Coperating temperatureSFP-1GZXLC SFP module with11000BaseZX port with LC connector for80km transmission,0to60°C operatingtemperatureSFP-1GZXLC-T SFP module with11000BaseZX port with LC connector for80km transmission,-40to85°C operatingtemperaturePower CordsPWC-C7EU-2B-183Power cord with Continental Europe(EU)plug,2.5A/250V,1.83mPWC-C13US-3B-183Power cord with United States(US)plug,1.83mPWC-C13EU-3B-183Power cord with Continental Europe(EU)plug,1.83mPWC-C13UK-3B-183Power cord with United Kingdom(UK)plug,1.83mPWC-C13CN-3B-183Power cord with three-prong China(CN)plug,1.83mPWC-C7US-2B-183Power cord with United States(US)plug,10A/125V,1.83mPWC-C7AU-2B-183Power cord with Australian(AU)plug,2.5A/250V,1.83mPWC-C13AU-3B-183Power cord with Australian(AU)plug,1.83mPWC-C7UK-2B-183Power cord with United Kingdom(UK)plug,2.5A/250V,1.83mSoftwareMXview-50Industrial network management software with a license for50nodes(by IP address)MXview-100Industrial network management software with a license for100nodes(by IP address)MXview-250Industrial network management software with a license for250nodes(by IP address)MXview-500Industrial network management software with a license for500nodes(by IP address)MXview-1000Industrial network management software with a license for1000nodes(by IP address)MXview-2000Industrial network management software with a license for2000nodes(by IP address)MXview Upgrade-50License expansion of MXview industrial network management software by50nodes(by IP address) Storage KitsABC-02-USB Configuration backup and restoration tool,firmware upgrade,and log file storage tool for managedEthernet switches and routers,0to60°C operating temperatureABC-02-USB-T Configuration backup and restoration tool,firmware upgrade,and log file storage tool for managedEthernet switches and routers,-40to75°C operating temperature©Moxa Inc.All rights reserved.Updated Jun21,2021.This document and any portion thereof may not be reproduced or used in any manner whatsoever without the express written permission of Moxa Inc.Product specifications subject to change without notice.Visit our website for the most up-to-date product information.。

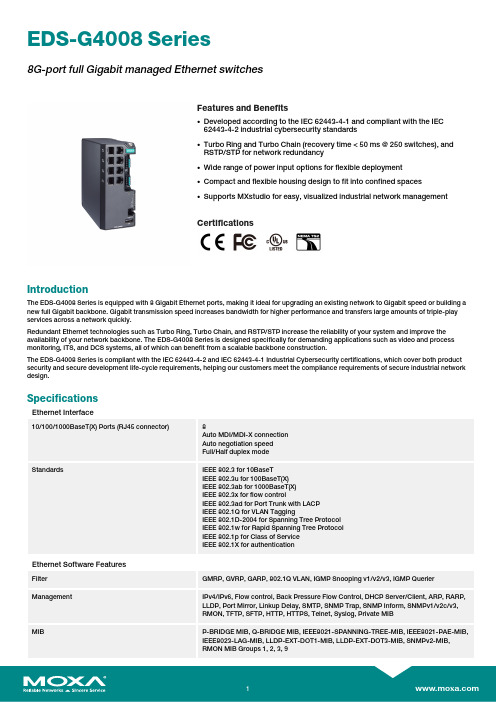

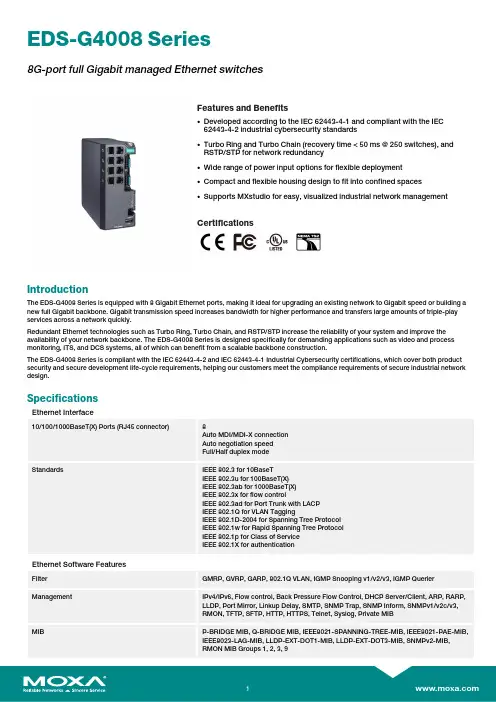

EDS-G4008Series8G-port full Gigabit managed Ethernet switchesFeatures and Benefits•Developed according to the IEC62443-4-1and compliant with the IEC62443-4-2industrial cybersecurity standards•Turbo Ring and Turbo Chain(recovery time<50ms@250switches),andRSTP/STP for network redundancy•Wide range of power input options for flexible deployment•Compact and flexible housing design to fit into confined spaces•Supports MXstudio for easy,visualized industrial network managementCertificationsIntroductionThe EDS-G4008Series is equipped with8Gigabit Ethernet ports,making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone.Gigabit transmission speed increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly.Redundant Ethernet technologies such as Turbo Ring,Turbo Chain,and RSTP/STP increase the reliability of your system and improve the availability of your network backbone.The EDS-G4008Series is designed specifically for demanding applications such as video and process monitoring,ITS,and DCS systems,all of which can benefit from a scalable backbone construction.The EDS-G4008Series is compliant with the IEC62443-4-2and IEC62443-4-1Industrial Cybersecurity certifications,which cover both product security and secure development life-cycle requirements,helping our customers meet the compliance requirements of secure industrial network design.SpecificationsEthernet Interface10/100/1000BaseT(X)Ports(RJ45connector)8Auto MDI/MDI-X connectionAuto negotiation speedFull/Half duplex modeStandards IEEE802.3for10BaseTIEEE802.3u for100BaseT(X)IEEE802.3ab for1000BaseT(X)IEEE802.3x for flow controlIEEE802.3ad for Port Trunk with LACPIEEE802.1Q for VLAN TaggingIEEE802.1D-2004for Spanning Tree ProtocolIEEE802.1w for Rapid Spanning Tree ProtocolIEEE802.1p for Class of ServiceIEEE802.1X for authenticationEthernet Software FeaturesFilter GMRP,GVRP,GARP,802.1Q VLAN,IGMP Snooping v1/v2/v3,IGMP QuerierManagement IPv4/IPv6,Flow control,Back Pressure Flow Control,DHCP Server/Client,ARP,RARP,LLDP,Port Mirror,Linkup Delay,SMTP,SNMP Trap,SNMP Inform,SNMPv1/v2c/v3,RMON,TFTP,SFTP,HTTP,HTTPS,Telnet,Syslog,Private MIBMIB P-BRIDGE MIB,Q-BRIDGE MIB,IEEE8021-SPANNING-TREE-MIB,IEEE8021-PAE-MIB,IEEE8023-LAG-MIB,LLDP-EXT-DOT1-MIB,LLDP-EXT-DOT3-MIB,SNMPv2-MIB,RMON MIB Groups1,2,3,9Redundancy Protocols STP,RSTP,Turbo Ring v2,Turbo Chain,Ring Coupling,Dual-Homing,LinkAggregation,MSTPSecurity Broadcast storm protection,Rate Limit,Trust access control,Static Port Lock,MACSticky,HTTPS/SSL,SSH,RADIUS,TACACS+,Access control list,Login and PasswordPolicyTime Management SNTP,NTP Server/Client,NTP AuthenticationProtocols IPv4/IPv6,TCP/IP,UDP,ICMP,ARP,RARP,TFTP,DNS,NTP Client,DHCP Server,DHCP Client,802.1X,QoS,HTTPS,HTTP,Telnet,SMTP,SNMPv1/v2c/v3,RMON,SyslogSwitch PropertiesMAC Table Size16KJumbo Frame Size9.216KBMax.No.of VLANs256VLAN ID Range VID1to4094IGMP Groups512Priority Queues4Packet Buffer Size1MBLED InterfaceLED Indicators PWR1,PWR2,STATE,FAULT,MSTR/HEAD,CPLR/TAIL,SYNCSerial InterfaceConsole Port RS-232(TxD,RxD,GND),8-pin RJ45(115200,n,8,1)USB InterfaceUSB Connector USB Type A(Reserved)Input/Output InterfaceAlarm Contact Channels1,Relay output with current carrying capacity of1A@24VDCDigital Input Channels1Digital Inputs+13to+30V for state1-30to+3V for state0Max.input current:8mAButtons Reset buttonDIP Switch ConfigurationDIP Switches Turbo Ring,Master,Coupler,ReservePower ParametersConnection2removable4-contact terminal block(s)Pre-installed Power Module-LV/-LV-T models:PWR-100–LV-HV/-HV-T models:PWR-105-HV-INote The EDS-G4008Series supports modular power supplies.The model names and powerparameters are determined by the installed power module.For example:EDS-G4008-T+PWR-100-LV=EDS-G4008-LV-TEDS-G4008-T+PWR-105-HV-I=EDS-G4008-HV-TIf you install a different power module,refer to the specifications of the correspondingmodel.For example,if you replace the power module of the EDS-G4008-LV-T with thePWR-105-HV-I,refer to the specifications of the EDS-G4008-HV-T.Input Voltage-LV/-LV-T models:12/24/48VDC,Redundant dual inputs-HV/-HV-T models:110/220VDC/VAC,Single inputOperating Voltage-LV/-LV-T models:9.6to60VDC-HV/-HV-T models:88to300VDC,85to264VACInput Current-LV/-LV-T models:12-48VDC,1.50-0.40A or24VDC,0.70A-HV/-HV-T models:110-220VAC,50-60Hz,0.30-0.20A or110-220VDC,0.30-0.20A Overload Current Protection SupportedReverse Polarity Protection SupportedPower Consumption(Max.)EDS-G4008-LV(-T)models:8.84WEDS-G4008-HV(-T)models:10.73WPhysical CharacteristicsIP Rating IP40Dimensions55x140x120mm(2.17x5.51x4.72in)Weight859.5g(1.89lb)Installation DIN-rail mounting,Wall mounting(with optional kit)Housing MetalEnvironmental LimitsOperating Temperature Standard models:-10to60°C(14to140°F)Wide temp.models:-40to75°C(-40to167°F)Storage Temperature(package included)-40to85°C(-40to185°F)Ambient Relative Humidity5to95%(non-condensing)Standards and CertificationsIndustrial Cybersecurity IEC62443-4-1IEC62443-4-2Safety UL61010-2-201,EN62368-1(LVD)EMC EN55032/35,EN61000-6-2/-6-4EMI CISPR32,FCC Part15B Class AEMS IEC61000-4-2ESD:Contact:8kV;Air:15kVIEC61000-4-3RS:80MHz to1GHz:20V/mIEC61000-4-4EFT:Power:4kV;Signal:4kVIEC61000-4-5Surge:Power:4kV;Signal:4kVIEC61000-4-6CS:10VIEC61000-4-8PFMFMaritime-LV/-LV-T models:DNV,ABS,NK,LRVibration IEC60068-2-6Shock IEC60068-2-27Freefall IEC60068-2-32Railway EN50121-4Traffic Control NEMA TS2Power Substation IEC61850-3,IEEE1613Class1Hazardous Locations Class I Division2,ATEX,IECExMTBFTime EDS-G4008-LV/-LV-T models:1,098,085hrsEDS-G4008-HV/-HV-T models:511,204hrsStandards Telcordia SR332WarrantyWarranty Period5yearsDetails See /warrantyPackage ContentsDevice1x EDS-G4008Series switchDocumentation1x quick installation guide1x product notice,Simplified Chinese1x product certificates of quality inspection,Simplified Chinese1x warranty cardDimensionsOrdering InformationModel Name 10/100/1000BaseT(X)Ports,RJ45ConnectorOperating Voltage Pre-installed Power Module Operating Temp.EDS-G4008-LV89.6to60VDC PWR-100-LV-10to60°C EDS-G4008-LV-T89.6to60VDC PWR-100-LV-40to75°CEDS-G4008-HV888to300VDC,85to264VACPWR-105-HV-I-10to60°CEDS-G4008-HV-T888to300VDC,85to264VACPWR-105-HV-I-40to75°CAccessories(sold separately)Power SuppliesHDR-60-2460W/2.5A DIN-rail24VDC power supply,universal85to264VAC or120to370VDC input voltage,-30to70°C operating temperatureNDR-120-24120W/5.0A DIN-rail24VDC power supply,universal90to264VAC or127to370VDC input voltage,-20to70°C operating temperatureNDR-120-48120W/2.5A DIN-rail48VDC power supply,universal90to264VAC or127to370VDC input voltage,-20to70°C operating temperatureNDR-240-48240W/5.0A DIN-rail48VDC power supply,universal90to264VAC or127to370VDC input voltage,-20to70°C operating temperatureMDR-40-24DIN-rail24VDC power supply with40W/1.7A,85to264VAC,or120to370VDC input,-20to70°Coperating temperatureMDR-60-24DIN-rail24VDC power supply with60W/2.5A,85to264VAC,or120to370VDC input,-20to70°Coperating temperature©Moxa Inc.All rights reserved.Updated Oct27,2022.This document and any portion thereof may not be reproduced or used in any manner whatsoever without the express written permission of Moxa Inc.Product specifications subject to change without notice.Visit our website for the most up-to-date product information.。

确认对应数据流量过大的端口号，在对应端口号右边做配置。 例如我们对port3 进行速率限制： 下拉菜单选择Limit Broadcast(限制广播数据包通过)或limit Broadcast and Multicast(限制广播及组播数据包通过) 具体选择哪一项，可根据前面流量实时监测判定的问题数据源进行选择。 如果确实是某一端口数据流量过大，导致网络通讯堵塞，可通过rate limiting速率限制功能，降低该端口带宽权限。
MOXA交换机配置步骤 – Monitor流量监控功能
首先进入交换机的实时流量监控页面， 察看当前交换机的数据流量
实时流量显示图
单播流量
组播流量
广播流量
选择system：显示当前口3的数据流量
通过察看system或某一port的实时数据流量，来判断网络问题产生的原因，是否为某一端口的数据流量过大造成。

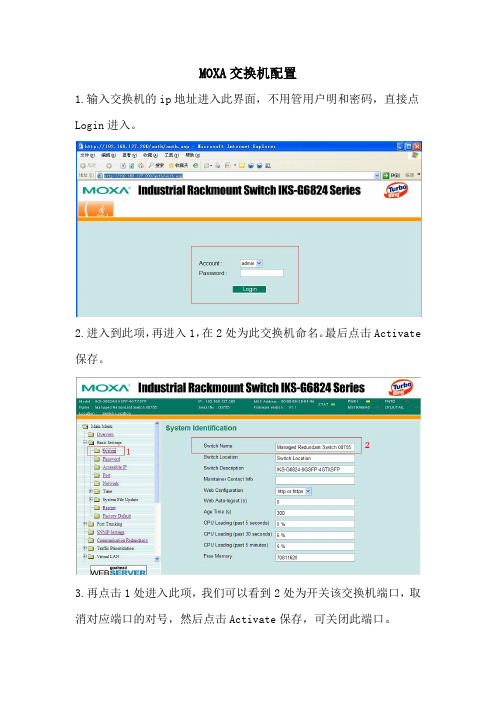

MOXA交换机配置
1.输入交换机的ip地址进入此界面，不用管用户明和密码，直接点Login进入。

2.进入到此项，再进入1，在2处为此交换机命名。

最后点击Activate 保存。

3.再点击1处进入此项，我们可以看到2处为开关该交换机端口，取消对应端口的对号，然后点击Activate保存，可关闭此端口。

4．再点击红框处进入环网配置页面。

5.如下1处配置，协议选择Turbo Ring V2.端口号选择光跳线所插的对应端口号。

6.下面为做两个环时（井下一个环，环上其中一台交换机与地面核心交换机一相连）所做的配置。

端口号为与核心交换机一相连的端口。

7. 下面为做两个环时（井下一个环，环上其中另一台交换机与地面核心交换机二相连）所做的配置。

端口号为与核心交换机二相连的端口。

结束。

8.附环网管理软件免费版。

限量20台交换机。

一、 测试网络拓扑IP 地址：192.168.100.0段子网掩码：255.255.255.0网关：192.168.100.1101P24P23P24P23P23P24网络拓扑描述：➢ 核心使用1台三层交换机IKS-G6824A ➢ 汇聚使用2台PT-7528交换机 ➢ 接入使用非网管型8口交换机。

➢ IKS-G6824A 和2PT-7528交换机均使用P23和P24端口组成千兆环网，各个产线中非网管型交换机互相级联后，接入至PT-7528.➢ 模拟现场设备划分4个网段：192.168.100.0、192.168.101.0、192.168.102.0、192.168.103.0。

➢ 服务器使用192.168.20.0网段。

要求：1. 服务器192.168.20.0网段要和现场的4个网段数据互通； 2. 现场4个网段之间数据互相隔离。

二、核心交换机IKS-G6824A配置步骤2.1.准备Moxa交换机默认IP地址为192.168.127.253默认用户：admin默认密码：moxa如果设备是新产品没有做过配置的话，先将PC 的有线网卡IP 地址修改成192.168.127.xxx（因为交换机默认的网段是192.168.127.0）2.2.进入交换机设置界面浏览器中输入交换机默认IP地址（192.168.127.253）进入配置界面。

假如不知道交换机当前的IP地址，使用“edscfgui”软件，可以搜索出交换机IP地址。

打开浏览器，输入交换机IP地址，进入交换机配置界面。

2.3.IP地址设置进入Home-→System--→Network--→IP Settings，进入IP地址设置选项IP Address 修改IP地址Subnet Mask 修改子网掩码Default Gateway 修改网关修改完成后，点击“Apply”进行保存。

保存后，请使用新的IP地址重新进入配置界面。

（此次测试核心交换机IP地址设置为192.168.127.1）修改完IP地址后，请使用新的IP地址重新进入配置界面。

MOXA交换机调试指南Ver 0.01.2012.12.11编写：数字化工程智能组审核：批准：长园深瑞继保自动化有限公司二〇一二年十二月摩莎（MOXA）交换机调试指南编写：数字化工程智能组1. 登录MOXA交换机三种方式1.1. 串口控制台若不知道PT-7728 的IP 地址，您可以选择使用串口控制台的连接方法，用串口线将PT-7728 连接到PC 机的COM 口。

下面介绍如何通过串口控制台登录。

前提是需要安装P Comm Terminal Emulator软件，安装程序见附件。

1. 在Windows 桌面，点击开始－程序－PComm Lite 1.3－Terminal Emulator。

2.在Port Manager 下选择Open 打开一个新连接。

3. 在Property 窗口打开后选择「Communication Parameter」标签，给控制台连接择合适的COM 口，其余字段请依照以下所示设置：Baud Rate设为115200，Data Bits设为8，Parity设None，Stop Bits设为1。

4.点击Terminal标签，在Terminal Type上选择VT100。

点击OK继续。

5.在Ternminal 分页，输入1将Ternminal Type 设为ansi/VT100，然后按Enter。

6.屏幕上会出现Console 登陆画面。

按Enter打开帐户选择器，选择admin 或user。

在键盘上使用向下键将光标移到Password 区并输入密码。

该密码将于访问任何控制台时被要求输入（web, serial, Telnet），如果您不想设置密码，让Password 留白即可，然后按Enter 键。

7. 此时将出现PT-7728 串口控制台的Main Menu。

（在PComm Terminal Emulator 之下可以选择Edit 菜单下的Font 进行字型调整项。

）8.1.2. Telnet控制台Telnet控制台使用的频率最低，需要注意的是不能同时使用串口控制和Telnet 连接PT-7728。

打开MOXA交换机光盘中自带的edscfgui.exe配置工具(EDS-408A/utility/edscfgui.exe 目录)
点击List Server -> Broadcast Search，软件自动开始搜索当前网络内联网的交换机
选中当前交换机，点击右键菜单中的Modify IP Address一项，弹出交换机IP修改对话框。

在IP Address一项前面打勾，并将交换机IP修改成需要的值。

确定后弹出警告对话框，选择yes即可。

依次将环网内的所有交换机IP设置在同一网段，如192.168.0.xxx
修改本地电脑的IP地址，使其与交换机的当前IP在同一网段下如192.168.0.32。

这时才能通过IE浏览器访问交换机。

打开左边的communication redundancy菜单项，右边画面出现网络协
EDS-408A系列最新firmware版本支持Turbo Ring V2，相对于V1
请注意Enable Ring Coupling环间耦合功能不启用，所以在前面方框中不要勾选。

EDS-619系列16+3G埠小巧模組化網管型乙太網路交換器特色與優點•小巧的交換器可容納多達19個光纖連線•模組化設計，擁有4埠銅質/光纖組合•支援熱插拔媒體模組，允許不斷電下連續運作•支援Turbo Ring 和Turbo Chain （對於250台交換器斷線復連時間小於20毫秒）1、RSTP/STP 和MSTP 網路備援•支援TACACS+、SNMPv3、IEEE 802.1X 、HTTPS 和SSH ，強化網路安全•透過網頁瀏覽器、CLI 、Telnet ／序列主控台、Windows 工具程式和ABC-01輕鬆管理網路•支援MXstudio ，輕鬆進行視覺化工業網路管理認證簡介小巧的EDS-619系列的多功能模組化設計能夠讓使用者合併光纖和銅質模組，以便建立適合任何自動化網路的交換器解決方案。

EDS-619的模組化設計可讓您安裝最多3個Gigabit 乙太網路連接埠和16個快速乙太網路連接埠，而進階的Turbo Ring 和Turbo Chain （復原時間小於20毫秒）技術、RSTP/STP 以及MSTP 則可協助增加您的工業乙太網路的可靠性與可用性。

同時也提供寬溫（-40至75°C ）的型號選擇。

EDS-619系列支援數個可靠以及智慧的功能，包括EtherNet/IP 、Modbus TCP 、LLDP 、DHCP Option 82、SNMP Inform 、QoS 、IGMP snooping 、VLAN 、TACACS+、IEEE 802.1X 、HTTPS 、SSH 、SNMPv3以及更多功能，使得乙太網路交換器適合任何惡劣的工業環境。

附加特色與優點•命令列介面（CLI ）快速設定主要網管功能•SNMP Inform 可用於確保可靠的事件管理•LLDP 可用於進行自動拓樸搜索•DHCP Option 82適用於以不同原則指派IP 位址•支援EtherNet/IP 和Modbus TCP 通訊協定以進行設備管理和監控•相容於PROFINET 通訊協定以進行透通式數據傳輸•埠鏡像可用於線上除錯•IGMP 和GMRP ，用於篩選多播流量•可基於連接埠實現VLAN 、IEEE 802.1Q VLAN 以及GVRP ，以簡化網路規劃•QoS （IEEE 802.1p/1Q 和ToS/DiffServ ）可增加確定性•連接埠聚合可提供最佳頻寬使用率•SNMPv1/v2c/v3，適用不同層級的網路管理•RMON 提供主動且有效率的網路監控•頻寬管理可防止無法預測的網路狀態•鎖定連接埠功能可根據MAC 位址封鎖未經授權的存取•發生例外狀況時透過電子郵件和繼電器輸出自動發出警告規格Input/Output InterfaceDigital Inputs+13to +30V for state 1-30to +3V for state 0Max.input current:8mAAlarm Contact ChannelsRelay output with current carrying capacity of 1A @24VDC1.Gigabit 乙太網路斷線復連時間小於50毫秒Ethernet InterfaceModule4slots for any combination of4-port interface modules,10/100BaseT(X)or100BaseFX Standards IEEE802.1D-2004for Spanning Tree ProtocolIEEE802.1p for Class of ServiceIEEE802.1Q for VLAN TaggingIEEE802.1s for Multiple Spanning Tree ProtocolIEEE802.1w for Rapid Spanning Tree ProtocolIEEE802.1X for authenticationIEEE802.3for10BaseTIEEE802.3ab for1000BaseT(X)IEEE802.3ad for Port Trunk with LACPIEEE802.3u for100BaseT(X)and100BaseFXIEEE802.3x for flow controlEthernet Software FeaturesFilter GMRP,GVRP,IGMP v1/v2,Port-based VLANIndustrial Protocols EtherNet/IP,Modbus TCPManagement Back Pressure Flow Control,BOOTP,DDM,DHCP Option66/67/82,DHCP Server/Client,Flow control,IPv4/IPv6,LLDP,Port Mirror,RARP,RMON,SMTP,SNMP Inform,SNMPv1/v2c/v3,Syslog,Telnet,TFTPMIB Bridge MIB,Ethernet-like MIB,MIB-II,P-BRIDGE MIB,Q-BRIDGE MIB,RMON MIBGroups1,2,3,9,RSTP MIBRedundancy Protocols Link Aggregation,MSTP,RSTP,STP,Turbo Chain,Turbo Ring v1/v2Security Broadcast storm protection,HTTPS/SSL,Port Lock,RADIUS,SSH,TACACS+Time Management NTP Server/Client,SNTPSwitch PropertiesIGMP Groups256MAC Table Size8KMax.No.of VLANs64Packet Buffer Size1MbitsPriority Queues4VLAN ID Range VID1to4094LED InterfaceLED Indicators PWR1,PWR2,FAULT,MSTR/HEAD,CPLR/TAIL,G1/G2/G3Serial InterfaceConsole Port RS-232(TxD,RxD,GND),8-pin RJ45(115200,n,8,1)DIP Switch ConfigurationEthernet Interface Turbo Ring,Master,Coupler,ReservePower ParametersConnection1removable6-contact terminal block(s)Input Voltage12/24/48VDC,Redundant dual inputsOverload Current Protection SupportedReverse Polarity Protection SupportedPhysical CharacteristicsIP Rating IP30Dimensions185x151x157.4mm(7.28x5.95x6.20in) Weight2,509g(5.53lb)Installation DIN-rail mounting,Wall mounting(with optional kit) Environmental LimitsOperating Temperature EDS-619:0to60°C(32to140°F)EDS-619-T:-40to75°C(-40to167°F)Storage Temperature(package included)-40to85°C(-40to185°F)Ambient Relative Humidity5to95%(non-condensing)Standards and CertificationsFreefall IEC60068-2-32EMC EN55032/35,EN61000-6-2/-6-4EMI CISPR32,FCC Part15B Class AEMS IEC61000-4-2ESD:Contact:6kV;Air:8kVIEC61000-4-3RS:80MHz to1GHz:10V/mIEC61000-4-4EFT:Power:4kV;Signal:4kVIEC61000-4-5Surge:Power:2kV;Signal:2kVIEC61000-4-6CS:10VIEC61000-4-8PFMFHazardous Locations ATEX,Class I Division2Maritime ABS,DNV-GL,LR,NKRailway EN50121-4Safety UL508,EN62368-1Shock IEC60068-2-27Traffic Control NEMA TS2Vibration IEC60068-2-6MTBFTime475,816hrsStandards Telcordia(Bellcore),GBWarrantyWarranty Period5yearsDetails See /tw/warrantyPackage ContentsDevice1x EDS-619Series switchCable1x RJ45-to-DB9console cableDocumentation1x product certificates of quality inspection,Simplified Chinese1x product notice,Simplified Chinese1x quick installation guide1x warranty cardNote SFP modules and/or modules from the CM-600Module Series need to be purchasedseparately for use with this product.尺寸訂購資訊Model Name Layer Total No.of PortsModule10/100BaseT(X)and/or100BaseFXCombo Ports10/100/1000BaseT(X)or100/1000BaseSFPOperating Temp.EDS-6192194slots for up to1610/100BaseT(X)and/or100BaseFX ports30to60°CEDS-619-T2194slots for up to1610/100BaseT(X)and/or100BaseFX ports3-40to75°C配件（選購）CM-600Module SeriesCM-600-4TX Fast Ethernet interface module with410/100BaseT(X)ports,RJ45connectors,-40to75°C operatingtemperatureCM-600-4MSC Fast Ethernet interface module with4100BaseFX multi-mode ports,SC connectors,-40to75°Coperating temperatureCM-600-4MST Fast Ethernet interface module with4100BaseFX multi-mode ports,ST connectors,-40to75°Coperating temperatureCM-600-4SSC Fast Ethernet interface module with4100BaseFX single-mode ports,SC connectors,-40to75°Coperating temperatureCM-600-3MSC/1TX Fast Ethernet interface module with110/100BaseT(X)port,RJ45connector,and3100BaseFX multi-mode ports,SC connectors,-40to75°C operating temperatureCM-600-3SSC/1TX Fast Ethernet interface module with110/100BaseT(X)port,RJ45connector,and3100BaseFX single-mode ports,SC connectors,-40to75°C operating temperatureCM-600-2MSC/2TX Fast Ethernet interface module with210/100BaseT(X)ports,RJ45connectors,and2100BaseFX multi-mode ports,SC connectors,-40to75°C operating temperatureCM-600-2SSC/2TX Fast Ethernet interface module with210/100BaseT(X)ports,RJ45connectors,and2100BaseFX single-mode ports,SC connectors,-40to75°C operating temperatureStorage KitsABC-01Configuration backup and restoration tool for managed Ethernet switches and AWK Series wireless APs/bridges/clients,0to60°C operating temperatureSFP ModulesSFP-1FELLC-T SFP module with1100Base single-mode with LC connector for80km transmission,-40to85°Coperating temperatureSFP-1FEMLC-T SFP module with1100Base multi-mode,LC connector for2/4km transmission,-40to85°C operatingtemperatureSFP-1FESLC-T SFP module with1100Base single-mode with LC connector for40km transmission,-40to85°Coperating temperatureSFP-1G10ALC WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for10km transmission;TX1310nm,RX1550nm,0to60°C operating temperatureSFP-1G10ALC-T WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for10km transmission;TX1310nm,RX1550nm,-40to85°C operating temperatureSFP-1G10BLC WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for10km transmission;TX1550nm,RX1310nm,0to60°C operating temperatureSFP-1G10BLC-T WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for10km transmission;TX1550nm,RX1310nm,-40to85°C operating temperatureSFP-1G20ALC WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for20km transmission;TX1310nm,RX1550nm,0to60°C operating temperatureSFP-1G20ALC-T WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for20km transmission;TX1310nm,RX1550nm,-40to85°C operating temperatureSFP-1G20BLC WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for20km transmission;TX1550nm,RX1310nm,0to60°C operating temperatureSFP-1G20BLC-T WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for20km transmission;TX1550nm,RX1310nm,-40to85°C operating temperatureSFP-1G40ALC WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for40km transmission;TX1310nm,RX1550nm,0to60°C operating temperatureSFP-1G40ALC-T WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for40km transmission;TX1310nm,RX1550nm,-40to85°C operating temperatureSFP-1G40BLC WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for40km transmission;TX1550nm,RX1310nm,0to60°C operating temperatureSFP-1G40BLC-T WDM-type(BiDi)SFP module with11000BaseSFP port with LC connector for40km transmission;TX1550nm,RX1310nm,-40to85°C operating temperatureSFP-1GEZXLC SFP module with11000BaseEZX port with LC connector for110km transmission,0to60°C operatingtemperatureSFP-1GEZXLC-120SFP module with11000BaseEZX port with LC connector for120km transmission,0to60°C operatingtemperatureSFP-1GLHLC SFP module with11000BaseLH port with LC connector for30km transmission,0to60°C operatingtemperatureSFP-1GLHLC-T SFP module with11000BaseLH port with LC connector for30km transmission,-40to85°C operatingtemperatureSFP-1GLHXLC SFP module with11000BaseLHX port with LC connector for40km transmission,0to60°C operatingtemperatureSFP-1GLHXLC-T SFP module with11000BaseLHX port with LC connector for40km transmission,-40to85°C operatingtemperatureSFP-1GLSXLC SFP module with11000BaseLSX port with LC connector for1km/2km transmission,0to60°C operatingtemperatureSFP-1GLSXLC-T SFP module with11000BaseLSX port with LC connector for1km/2km transmission,-40to85°Coperating temperatureSFP-1GLXLC SFP module with11000BaseLX port with LC connector for10km transmission,0to60°C operatingtemperatureSFP-1GLXLC-T SFP module with11000BaseLX port with LC connector for10km transmission,-40to85°C operatingtemperatureSFP-1GSXLC SFP module with11000BaseSX port with LC connector for300m/550m transmission,0to60°Coperating temperatureSFP-1GSXLC-T SFP module with11000BaseSX port with LC connector for300m/550m transmission,-40to85°Coperating temperatureSFP-1GZXLC SFP module with11000BaseZX port with LC connector for80km transmission,0to60°C operatingtemperatureSFP-1GZXLC-T SFP module with11000BaseZX port with LC connector for80km transmission,-40to85°C operatingtemperatureSFP-1GTXRJ45-T SFP module with11000BaseT port with RJ45connector for100m transmission,-40to75°C operatingtemperaturePower SuppliesDR-120-24120W/2.5A DIN-rail24VDC power supply with universal88to132VAC or176to264VAC input byswitch,or248to370VDC input,-10to60°C operating temperatureDR-452445W/2A DIN-rail24VDC power supply with universal85to264VAC or120to370VDC input,-10to50°Coperating temperatureDR-75-2475W/3.2A DIN-rail24VDC power supply with universal85to264VAC or120to370VDC input,-10to60°C operating temperatureMDR-40-24DIN-rail24VDC power supply with40W/1.7A,85to264VAC,or120to370VDC input,-20to70°Coperating temperatureMDR-60-24DIN-rail24VDC power supply with60W/2.5A,85to264VAC,or120to370VDC input,-20to70°Coperating temperatureSoftwareMXview-50Industrial network management software with a license for50nodes(by IP address)MXview-100Industrial network management software with a license for100nodes(by IP address)MXview-250Industrial network management software with a license for250nodes(by IP address)MXview-500Industrial network management software with a license for500nodes(by IP address)MXview-1000Industrial network management software with a license for1000nodes(by IP address)MXview-2000Industrial network management software with a license for2000nodes(by IP address)MXview Upgrade-50License expansion of MXview industrial network management software by50nodes(by IP address)Wall-Mounting KitsWK-75Wall-mounting kit,2plates,8screws,75x90x2.5mm©Moxa Inc.版權所有.2021年1月8日更新。

MOXA
交换机参数配置
以EDS-516A交换机为例，将交换机接上24V电源，在1-14 口中任选一口用RJ45网线连接到计算机网卡。 交换机的默认IP为192.168.127.253，将计算机的IP地址设 置为192.168.127.0，然后在浏览器中输入交换机的默认IP地 址192.168.127.253，回车就进入交换机的参数配置界面
默认用户名为admin，默认密码为空，然后点击login进入
进入参数配置主界面
导入参数配置文件步骤：选择Basic Setting / System File Update / Local Import /Export 进入配 置文件导入导出界面
在 Upload Configure Data 一行中选择 Browse ，找到预先备好的配置文件，然后点 击Import ，将配置文件上传到交换机中。
文件上传成功后，交换机自动断开连接。 假如交换机上传的IP地址为 192.168.0.248 ，将计算机的IP改为 192.168.0.1，在浏览器中输入 192.168.0.248 ，再次进入，查看IP等参 数是否正确，配置好的交换机密码一般为 空，或者是METSO的默认密码pw4net ， 也可以在Basic Setting中修改密码。
在 Communication Redundancy 中，蓝圈标出的是定义交换机和交换机 之间通讯的接口，这里用的是16口（光纤）和1口（RJ45）。红圈标出 的是定义两个环网之间通讯的接口（MCS系统只有一个环网，所以未用）
交换机如果有配置参数改动，或者接口变动等，需 要将配置文件导出，以作备用。在 Upload Configure Data 计算机选定的位置

注意：此示范只适用于Moxa NProt 5000系列，不适用于我公司生产的KJ135交换机内置的嵌入式Moxa 4000系列产品！（后面介绍）
安装程序：
软件运行初始化界面：
扫描设备信息：
配置菜单信息：系统相关选项：
网络配置：
设备端口定义：（通讯速率，校验位，数据位，停止位，通讯方式）
此设备NPort 5230，端口1只支持RS232通讯接口
端口2支持RS422，RS485通讯接口（接入设备时需注意）
设置设备配置密码：映射端口选项：
出现菜单选项，选择需映射设备右击，已映射设备，配置相关信息
点击COM Setting，出现菜单，选择需映射的端口
与天津华宁KT200通讯时，必须将Fast Flush选中！
设置串口通讯参数（波特率，校验位，数据位，停止位，通讯方式）
NPort4000系列配置工具，需安装：
软件启动界面：
扫描网内设备：
不用全部映射，占用系统资源，点击Clear All，选中相应设备，进行配置
右键点击设备，弹出菜单，进行配置选择需映射的端口号码：
选择通讯方式，注意选中Fast Flush功能串口配置：。

P/N: 1802002100012*1802002100012*EDS-210A Quick Installation GuideMoxa EtherDevice SwitchEdition 3.0, February 2017Technical Support Contact Information /support Moxa Americas:Toll-free: 1-888-669-2872Tel: 1-714-528-6777Fax: 1-714-528-6778 Moxa China (Shanghai office): Toll-free: 800-820-5036 Tel: +86-21-5258-9955 Fax: +86-21-5258-5505 Moxa Europe:Tel: +49-89-3 70 03 99-0Fax: +49-89-3 70 03 99-99 Moxa Asia-Pacific: Tel: +886-2-8919-1230 Fax: +886-2-8919-1231 Moxa India:Tel: +91-80-4172-9088Fax: +91-80-4132-10452017 Moxa Inc. All rights reserved.OverviewEDS-210A series 10-port industrial Ethernet switches are equipped with 1 Gigabit fiber optic Ethernet port, up to 8 10/100M copper ports, and 4 100M fiber optic Ethernet ports, making it ideal for applications that require high bandwidth data convergence and long-distance uplinks. The EDS-210A series provides 12/24/48 VDC redundant power inputs, has a rugged IP30-rated metal housing, and is DIN-rail mountable. These switches are compliant with FCC/UL/CE standards and undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-210A series has a -10 to 60°C operating temperature range and is also available with wide-temperature operation (-40 to 75°C).NOTE Throughout this Hardware Installation Guide, we use EDS as an abbreviation for Moxa EtherDevice Switch:EDS = Moxa EtherDevice SwitchPackage ChecklistYour EDS is shipped with the following items. If any of these items is missing or damaged, please contact your customer service representative for assistance.•Moxa EtherDevice™ Switch•Protective caps for unused ports•Quick installation guide (printed)•Warranty cardFeaturesHigh Performance Network Switching Technology•10/100/1000BaseT(X) (EDS-210A-1GTX-1GSFP-4SFP only), 10/100BaseT(X) auto-negotiation speed, full/half duplex mode, auto MDI/MDI-X connection, and 100Base SFP slot /1000Base SFP slot. •IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3ab for 1000BaseT, and IEEE 802.3z for 1000BaseX.•Store-and-forward switching process type.Rugged Design•Operating temperature range of -10 to 60°C, or extended operating temperature of -40 to 75°C (T models only)•IP30, rugged high-strength case•DIN-rail or panel mounting available•Redundant dual 12/24/48 VDCPanel Layout of EDS-210A-1GSFP-1SFP/EDS-210A-1GTX-1GSF-4SFP1. Grounding screw2. Terminal block for power input (PWR1, PWR2) and relay output3. Power input PWR1 LED4. Power input PWR2 LED5. TP port’s 10/100 Mbps LED6. TP port’s 10/100/1000 Mbps LED7. SFP port's 100Mbps LED8. SFP port's 1000Mbps LED9. Port number 10. 10/100 BaseT(X) Port 11. 10/100/1000 BaseT(X) Port 12. 100Base SFP slot 13. 1000Base SFP slot 14. Model Name 15. Screw hole for wall mounting kit 16. DIN rail kitMounting Dimensions unit = mm (in)DIN-Rail MountingThe aluminum DIN-rail attachment plate should already be fixed to the back panel of the EDS when you take it out of the box. If you need to reattach the DIN-rail attachment plate, make sure the metal spring is situated towards the top, as shown in the figures below.STEP 1: Insert the top of the DIN-rail into the slot just below the metal spring. STEP 2:The DIN-rail attachment unit will snap into place as shown below.To remove the DIN-rail from the EDS, simply reverse Steps 1 and 2. Wall Mounting (optional)For some applications, you will find it convenient to mount the EDS on the wall, as illustrated below.STEP 1:Remove the aluminum DIN-railattachment plate from theEDS’s rear panel, and thenattach the wall mount plates, asshown in the figure.STEP 2:Mounting the EDS on the wall requires 4 screws. Use theswitch, with wall mount plates attached, as a guide tomark the correct locations of the 4 screws. The heads ofthe screws should be less than 6.0 mm in diameter, andthe shafts should be less than 3.5 mm in diameter, asshown in the figure at the right.NOTE Before tightening screws into the wall, make sure the screw head and shank size are suitable by inserting the screw into one of the keyhole-shaped apertures of the wall mounting plates.Do not tighten the screws all the way in — leave about 2 mm to allow room for sliding the wall mount panel between the wall and the screws STEP 3:Once the screws are fixed inthe wall, insert the fourscrew heads through thelarge parts of thekeyhole-shaped apertures,and then slide the EDSdownwards, as indicated.Tighten the four screws foradded stability.Wiring RequirementsYou should also pay attention to the following items:•Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must cross, make sure the wires are perpendicular at the intersection point.NOTE: Do not run signal or communications wiring and power wiring in the same wire conduit. To avoid interference, wires with different signal characteristics should be routed separately.•You can use the type of signal transmitted through a wire to determine which wires should be kept separate. The rule of thumb is that wiring with similar electrical characteristics can be bundledtogether.•Keep input wiring and output wiring separated.•It is strongly advised that you label wiring for all devices in the system when necessary.Grounding the Moxa EtherDevice SwitchGrounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices.Wiring the Redundant Power InputsBoth power inputs can be connected simultaneously to live DC power sources. If one power source fails, the other live source acts as a backup, and automatically supplies the EDS-210A with power.The two 2-contact terminal block connectors on the EDS's top panel are used for the EDS's two DC power inputs. Top and front view of the terminal block connectors are shown here.Step 1: Insert the negative/positive DC wires into the Array V-/V+ terminalsStep 2: To keep the DC wires from pulling loose, use asmall flat-blade screwdriver to tighten the wire-clampscrews on the front of the terminal block connector.Step 3: Insert the plastic terminal block connectorprongs into the terminal block receptor, which is locatedon the EDS’s top panel.Communication ConnectionsEDS-210A models have 10/100BaseT(X) Ethernet ports,10/100/1000BaseT(X) Ethernet ports,100BaseSFP and 1000BaseSFP. 10/100BaseT(X) Ethernet Port ConnectionThe 10/100BaseT(X) ports located on the EDS’s front panel are used to connect to Ethernet-enabled devices.Next, we show pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type) ports, and also show cable wiring diagrams for straight-through and cross-over Ethernet cables.MDI Port PinoutsMDI-X Port Pinouts 8-pin RJ45RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable WiringRJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring10/100/1000BaseT(X) Ethernet Port ConnectionThe 10/100/1000BaseT(X) ports located on Moxa EtherDevice Switch’s front panel are used to connect to Ethernet-enabled devices. Most users will choose to configure these ports for Auto MDI/MDI-X mode, in which case the port’s pinouts are adjusted automatically depending on the type of Ethernet cable used (straight-through or cross-over), and the type of device (NIC-type or HUB/Switch-type) connected to the port.In the following section, we give pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type) ports. We also give cable wiring diagrams for straight-through and cross-over Ethernet cables.10 /100Base T(x) RJ45 PinoutsMDI Port PinoutsMDI-X Port Pinouts 8-pin RJ451000BaseT RJ45 PinoutsRJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable WiringRJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring100Base-FX or 1000Base-X Fiber PortThe Fiber ports on the EDS-210A series are SFP type slots, which support both 100Base-FX and 1000Base-X speed fiber transceiver to workproperly. Moxa provides complete transceiver models for various distance requirements.Multi-mode:1000BaseSX0 to 550 m, 850 nm (50/125μm , 400MHz*km) 0 to 275 m, 850 nm (62.5/125μm , 200MHz*km) 1000BaseLX 0 to 1100 m, 1310 nm (50/125μm , 800MHz*km)0 to 550 m, 1310 nm (62.5/125μm , 500MHz*km) Single-mode:1000BaseLX 0 to 10 km, 1310 nm (9/125μm , 3.5 PS/(nm*km)) 1000BaseLHX 0 to 40 km, 1310 nm (9/125μm , 3.5 PS/(nm*km)) 1000BaseZX 0 to 80 km, 1550 nm (9/125μm , 19 PS/(nm*km)) Multi-mode:100BaseFx 0 to 5 km, 1300 nm (50/125μm , 800MHz*km)0 to 4 m, 1300 nm (62.5/125μm , 500MHz*km) Single-mode:100BaseFx 0 to 40 km, 1310 nm (9/125μm , 3.5 PS/(nm*km)) The concept behind the LC port and cable is quite straightforward. Suppose you are connecting devices I and II. Unlike electrical signals, optical signals do not require a circuit in order to transmit data.Consequently, one of the optical lines is used to transmit data from device I to device II, and the other optical line is used to transmit data from device II to device I, for full-duplex transmission.Remember to connect the Tx (transmit) port of device I to the Rx (receive) port of device II, and the Rx (receive) port of device I to the Tx (transmit) port of device II. If you make your own cable, we suggest labeling the two sides of the same line with the same letter (A-to-A and B-to-B, as shown below, or A1-to-A2 and B1-to-B2).LC-Port Pinouts LC-Port to LC-Port Cable WiringRedundant Power InputsBoth power inputs can be connected simultaneously to live DC power sources. If one power source fails, the other live source acts as a backup, and automatically supplies all of the EDS’s power needs.LED IndicatorsThe front panel of the Moxa EtherDevice Switch contains several LED indicators. The function of each LED is described in the table below.Auto MDI/MDI-X ConnectionThe Auto MDI/MDI-X function allows users to connect the EDS’s10/100/1000BaseT(X) ports to any kind of Ethernet device, without paying attention to the type of Ethernet cable being used for the connection. This means that you can use either a straight-through cable or cross-over cable to connect the EDS to Ethernet devices.Triple Speed Functionality and SwitchingThe EDS’s 10/100/1000 Mbps RJ45 switched port auto negotiates with the connected device for the fastest data transmission rate supported by both devices. The EDS is a plug-and-play device, so software configuration is not required at installation or during maintenance.The half/full duplex mode for the RJ45 switched ports is user dependent and changes (by auto-negotiation) to full or half duplex, depending on which transmission speed is supported by the attached device.Auto-Negotiation and Speed SensingThe EDS’s RJ45 Ethernet ports independently support auto-negotiation for transmission speeds of 10 Mbps, 100 Mbps, and 1000 Mbps, with operation according to the IEEE802.3 standard.This means that some nodes could be operating at 10 Mbps, while at the same time, other nodes are operating at 100 Mbps or 1000 Mbps. Auto-negotiation takes place when an RJ45 cable connection is made, and then each time a LINK is enabled. The EDS advertises its capability for using 10 Mbps, 100 Mbps, or 1000 Mbps transmission speeds, with the device at the other end of the cable expected to advertise similarly. Depending on what type of device is connected, this will result in agreement to operate at a speed of 10 Mbps, 100 Mbps, or 1000 Mbps. If an EDS’s RJ45 Ethernet port is connected to a non-negotiating device, it will default to 10 Mbps speed and half-duplex mode, as required by the IEEE802.3 standard.SpecificationsTechnologyStandards IEEE 802.3 for 10BaseT,IEEE 802.3u for 100BaseT(X) and 100Base FX,IEEE 802.3ab for 1000BaseT,IEEE 802.3z for 1000BaseSX/LX/LHX/ZXFlow Control EEE 802.3x flow control, back pressure flow control InterfaceRJ45 Ports 10/100BaseT(X) and 10/100/1000BaseT(X) autonegotiation speedFiber Ports 100Base-FX or 1000Base-X SFP slotLED Indicators PWR1, PWR2, 10/100M, 10/100M/1000M, 100M,1000MOptical Fiber: 100 or 1000Base SFP modulesGigabit EthernetSFP-SX SFP-LX SFP-LHX SFP-ZX Wavelength 850nm 1310nm 1310nm 1550nm Max.TX -4 dBm -3 dBm 1 dBm 5 dBm Min.TX -9.5 dBm -9.5 dBm -4 dBm 0 dBm RX Sensitivity -18 dBm -20 dBm -24 dBm 24 dBm Link Budget 8.5 db 10.5 dB 20 dB 24 dBTypical Distance 550 m a275 m b1100 m c550 m d10 kme40 km e80 km fSaturation 0 dBm -3 dBm -3 dBm -3 dBma. 50/125 μm, 400 MHz*km fiber optic cableb. 62.5/125 μm, 200 MHz*km fiber optic cablec. 50/125 μm, 800 MHz*km fiber optic cabled. 62.5/125 μm, 500 MHz*km fiber optic cablee. 9/125 μm, 3.5 PS/(nm*km) fiber optic cablef. 9/125 μm, 19 PS/(nm*km) fiber optic cable。

Weight Installation
1.7351x990”10r2ag.c7k6mionu.)nting
若发现有任何附件遗失或受损，请联络 Moxa 售后人员。
面板外观
1 3
SSTTAATT
PPWWRR11
PPWWRR22
FFAAUULLTT MMAASSTTEERR CCOOUUPPLLEERR
LLNNKK//AACCTT SSPPEEEEDD FFDDXX//HHDDXX
CCOOUUPPLLEERR MMOODDEE RRIINNGG PPOORRTT PPOORRTT
R.O.C. TEL: +886-2-8919-1230
P/N: 1802077280013
包装清单
Moxa PT 系列交换机的包装清单如下： • 1 个 Moxa PT 系列交换机 • 硬件安装指南 • 含用户手册和 SNMP MIB 文件的 CD 光盘 • Moxa 产品保修卡 • RJ45 到 DB9 控制口线缆 • 未使用端口的保护盖 • 2 个机架挂耳
flow control
界面
快速以太网 10/100BaseT(X) or 100BaseFX (SC/ST
connector or SFP slot)
千兆以太网 10/100/1000BaseT(X), 1000BaseSX/LX/
LHX/ZX (SFP slot, LC connector)
系统 LED 指示灯
备注：Moxa PT 交换机端口顺序为下面一行为奇数，上面一行为偶数。 端口编号为机器模块（M1/M2/M3/M4）加端口，例如 1-1、3-8，分别代 表 M1 插槽的 1 号口、M3 插槽的 8 号口。
-2-

怎样设置MOXA交换机环网协议
• 1. 应用产品
Product Line Model Name
EDS-518E EDS-518E
EDS-408A EDS-408A
• 2. 系统架构
• 3. 交换机设置
3.1 准备
如果交换机是新产品没有做过配置的话，那么它的IP地址就是它的默认IP:192.168.127.253，这时要将PC的有线网卡设置成跟它同一网段，即192.168.128.xxx
• 3.2 配置交换机
3.2.1 交换机
将所有交换机级联并进行设置，请先不要将交换机连成环网。

连接电脑的有线网卡到交换机，并关闭电脑的无线网卡，运行edscfgui软件，并点击search.
• 3.2.2 登录交换机
点击edscfgui软件中的web登入
•或者直接在web浏览器中输入交换机的IP地址，用户名：admin，默认密码：空或者moxa
EDS-400系列默认密码为空
•EDS-500系列默认密码为moxa
• 3.3.3 设置Turbo Ring
•开启第一个环，并设置启用Turbo Ring 的两个端口，点击Activate启用•EDS-500E系列点击Redundancy Protocol，选择Turbo Ring v2模式
•开启第一个环，并设置启用Turbo Ring的两个端口，点击Apply启用
• 4. Turbo Ring 测试
将所有交换机按照所设置的端口连接成环网，电脑连接任一交换机的任一端口，打开cmd，ping其他交换机，能够ping通，则说明环网设置成功。

TN-4500A SeriesEN5015512+4G/24+4G-port Gigabit Ethernet switches with up to20PoEportsFeatures and Benefits•2to4Gigabit ports with bypass relay function on the bypass models•2Gigabit fiber ports with embedded multi-mode Q-ODC®interface on fibermodels•Up to4Gigabit ports with PoE function•Up to20IEEE802.3at/af compliant combo PoE and Ethernet ports•Supports regular and push-pull M12connectors•Turbo Ring and Turbo Chain(recovery time<20ms@250switches)1,andSTP/RSTP/MSTP for network redundancy•Complies with all EN50155mandatory test items2•Isolated power with24to110VDC power supply range•-40to70°C system operating temperature rangeCertificationsIntroductionThe ToughNet TN-4500A Series M12managed Ethernet switches are designed for railway applications,including rolling stock and wayside installations.The switches use M12and other circular connectors to ensure tight,robust connections,and guarantee reliable operation in industrial environments where vibration and shock are commonplace.The TN-4500A Series Ethernet switches provide12or24fast Ethernet M12ports with or without IEEE802.3at/af compliant PoE functionality,and the Gigabit models have4Gigabit Ethernet interfaces with PoE and optional bypass relay functionality.In addition,the fiber models provide2Gigabit fiber interface ports with an embedded2km multimode fiber transceiver.The PoE switches are classified as power source equipment(PSE).The switches provide up to30watts of power per port,and can be used to power IEEE802.3at/af compliant powered devices(PDs),such as IP cameras,wireless access points,and IP phones.The24to110VDC wide power input range and isolated dual power inputs not only allow you to use the same type of power source at different sites around the globe,but also increase the reliability of your communications system. Furthermore,the-40to70°C operating temperature range of the switches ensures they can withstand deployment in harsh environments.TN-4500A Series Ethernet switches are compliant with the mandatory sections of EN50155,covering operating temperature,power input voltage, surge,ESD,and vibration,as well as conformal coating and power insulation,making the switches suitable for a variety of industrial applications. Additional Features and Benefits•Provides up to30watts per PoE port with a total power budget of 120watts per switch•DHCP Option82for IP address assignment with different policies •IGMP snooping and GMRP for filtering multicast traffic•Port-based VLAN,IEEE802.1Q VLAN,and GVRP to ease network planning•QoS(IEEE802.1p/1Q and ToS/DiffServ)allows real-time traffic classification and prioritization•IEEE802.3ad,LACP for optimum bandwidth utilization •SNMPv1/v2c/v3for different levels of network management •TACACS+,SNMPv3,IEEE802.1X,HTTPS,and SSH to enhance network security •RMON for proactive and efficient network monitoring •Bandwidth management to prevent unpredictable network status •Lock port allows access by only authorized MAC addresses •Port mirroring for online debugging•Automatic warning by exception through email and relay output •Line-swap fast recovery•LLDP for automatic topology discovery in network management software•Configurable by web browser,Telnet/serial console,CLI,and Windows utility•Loop protection to prevent network loops•Wall mounting installation capability1.If the port link speed is1Gigabit or higher,the recovery time is<50ms.2.This product is suitable for rolling stock railway applications,as defined by the EN50155standard.For a more detailed statement,click here:/doc/specs/EN_50155_Compliance.pdfSpecificationsInput/Output InterfaceAlarm Contact Channels2x relay output in one M12A-coded5-pin male connector with current carryingcapacity of1A@30VDCEthernet Interface10/100/1000BaseT(X)Ports(M12X-coded8-pin female connector)TN-4516A-4GTX-WV-T models:4 TN-4516A-4GTX-WV-CT-T models:410/100BaseT(X)Ports(M12D-coded4-pin female connector)TN-4512A models:12TN-4516A non-PoE models:16 TN-4516A-4GTX models:12 TN-4516A-4GTXBP models:12 TN-4524A/4528A models:8PoE Ports(10/100BaseT(X),M12D-coded4-pin female connector)TN-4516A PoE models:12TN-4520A/4524A/4528A models:16PoE Ports(100/1000BaseT(X),M12X-coded8-pin female connector)TN-4500A PoE models:4TN-4500A PoE fiber(ODC)and bypass(GTXBP)models:210/100/1000BaseT(X)Ports(M12X-coded8-pin female connector with bypass relay)TN-4516A-4GTXBP models:4TN-4516A-12PoE-2GPoE-2GTXBP models:2 TN-4528A-16PoE-2GPoE-2GTXBP models:210/100/1000BaseT(X)Ports,Q-ODC Fiber Connector TN-4516A-12PoE-2GPoE-2GODC models:2 TN-4528A-16PoE-2GPoE-2GODC models:2Standards IEEE802.1D-2004for Spanning Tree ProtocolIEEE802.1p for Class of ServiceIEEE802.1Q for VLAN TaggingIEEE802.1s for Multiple Spanning Tree ProtocolIEEE802.1w for Rapid Spanning Tree ProtocolIEEE802.1X for authenticationIEEE802.3for10BaseTIEEE802.3ab for1000BaseT(X)IEEE802.3ad for Port Trunk with LACPIEEE802.3af/at for PoE/PoE+outputIEEE802.3u for100BaseT(X)and100BaseFXIEEE802.3x for flow controlIEEE802.3z for1000BaseSX/LX/LHX/ZXEthernet Software FeaturesBroadcast Forwarding Broadcast forwardingConfiguration Options Command Line Interface(CLI)through Serial/Telnet/SSHWeb Console(HTTP/HTTPS)Windows UtilityFilter GMRPGVRP802.1Q VLANPort-based VLANStatic MulticastMulticast FilteringIGMP Snooping v1/v2/v3IGMP QuerierDHCP FilterManagement IPv4/IPv6Flow controlLLDPICMPPort MirrorQoS/CoS/ToSRMONSMTPSNMP InformSNMP TrapSNMPv1/v2c/v3SyslogAccount ManagementLoop ProtectionDNS ServerDHCP option82(relay agent)Port-based DHCP ServerDHCP Server(options1/3/12/15/42/50/55)DHCP Client(options1/3/50/51/53/54/55/57/66/67)MIB Bridge MIBEthernet-like MIBMIB-IIP-BRIDGE MIBQ-BRIDGE MIBRMON MIB Groups1,2,3,9RSTP MIBRedundancy Protocols MSTPRSTPSTPTurbo ChainTurbo Ring v1/v2Turbo Ring with DRCStatic Port TrunkLACPSecurity Access control listTrust access controlBroadcast storm protectionTACACS+RADIUSHTTPS/SSLSSHRate LimitTime Management IEEE1588PTP v1/v2NTP Server/ClientSNTP Server/ClientSwitch PropertiesIGMP Groups256Max.No.of VLANs64VLAN ID Range VID1to4094Jumbo Frame Size9.712KBLED InterfaceLED Indicators PWR1,PWR2,FAULT,MSTR/HEAD,CPLR/TAIL,Ethernet ports,PoE ports Serial InterfaceConsole Port M12A-coded male connectorPower ParametersInput Current TN-4512A models:Max.0.30A@24VDCTN-4516A non-PoE models:Max.0.33A@24VDCTN-4516A non-PoE4GTX/4GTXBP models:Max.0.62A@24VDCTN-4516A PoE models:Max.7.0A@24VDCTN-4520A models:Max.7.0A@24VDCTN-4524A models:Max.6.5A@24VDCTN-4528A models:Max.7.0A@24VDCInput Voltage24/36/48/72/96/110VDCNo.of Power Inputs2Power Connector M23connectorOperating Voltage16.8to137.5VDCOverload Current Protection SupportedReverse Polarity Protection SupportedTotal PoE Power Budget TN-4500A PoE models:120WPhysical CharacteristicsDimensions TN-4512A models:199.8x115x82.3mm(7.87x4.53x3.24in)TN-4516A non-PoE models:229.6x115x82.3mm(9.04x4.53x3.24in)TN-4516A non-PoE4GTX/4GTXBP models:229.6x115x92.3mm(9.04x4.53x3.63in)TN-4516A PoE models:229.6x115x122.3mm(9.04x4.53x4.82in)TN-4520A models:279.6x115x122.3mm(11.00x4.53x4.82in)TN-4524A/4528A models:347.8x115x122.3mm(13.70x4.53x4.81in)Housing MetalIP Rating IP42Weight TN-4512A models:1,032g(2.28lb)TN-4516A non-PoE models:1,248g(2.75lb)TN-4516A PoE models:2,090g(4.61lb)TN-4516A fiber(ODC)models:2,180g(4.81lb)TN-4520A models:2,292g(5.05lb)TN-4524A models:2,388g(5.27lb)TN-4528A models:2,559g(5.64lb)TN-4528A fiber(ODC)models:2,645g(5.83lb)Installation Wall mountingProtection TN-4500A Series-CT models:PCB Conformal CoatingEnvironmental LimitsOperating Temperature-40to70°C(-40to158°F)Storage Temperature(package included)-40to85°C(-40to185°F)Ambient Relative Humidity5to95%(non-condensing)Altitude3000mStandards and CertificationsEMC EN55032/35EMS IEC61000-4-2ESD:Contact:6kV;Air:8kVIEC61000-4-3RS:80MHz to1GHz:20V/mIEC61000-4-4EFT:Power:2kV;Signal:2kVIEC61000-4-5Surge:Power:2kV;Signal:2kVIEC61000-4-6CS:10VIEC61000-4-8PFMFFreefall IEC60068-2-31Radio Frequency FCCRailway EN50121-4EN50155IEC60571Railway Fire Protection EN45545-2Safety UL62368-1IEC62368-1EN62368-1Shock IEC60068-2-27,IEC61373,EN50155Vibration IEC60068-2-64,IEC61373,EN50155DeclarationGreen Product RoHS,CRoHS,WEEEMTBFStandards Telcordia SR332Time TN-4512A models:816,541hrsTN-4516A non-PoE models:815,913hrsTN-4516A non-PoE4GTX models:755,975hrsTN-4516A non-PoE4GTXBP models:624,458hrsTN-4516A PoE models:459,971hrsTN-4516A PoE2GTXBP models:434,683hrsTN-4516A PoE fiber(ODC)models:413,810hrsTN-4520A models:437,198hrsTN-4524A models:453,479hrsTN-4528A models:421,101hrsTN-4528A2GTXBP models:398,146hrsTN-4528A fiber(ODC)models:380,761hrsWarrantyWarranty Period5yearsDetails See /warrantyPackage ContentsDevice1x TN-4500A Series switchInstallation Kit2x cap,female,metal,for M12port(console and relay ports,fixed on switch)6/8/10/12/14x cap,male,metal,for M12port(Ethernet ports,fixed on switch)1x wall-mounting kitDocumentation1x quick installation guide1x warranty cardDimensionsTN-4512A ModelsTN-4516A Non-PoE ModelsTN-4516A Non-PoE4GTX/4GTXBP ModelsTN-4516A PoE ModelsTN-4516A PoE Fiber(ODC)ModelsTN-4524A ModelsTN-4528A Fiber(ODC)Models Ordering InformationModel Name10/100/1000BaseT(X)PortsQ-ODC FiberConnector10/100/1000BaseT(X)PortsM12X-Coded8-Pin FemaleConnector10/100/1000BaseT(X)PortsM12X-Coded8-Pin FemaleConnector withBypass Relay10/100BaseT(X)PortsM12D-Coded4-Pin FemaleConnectorPoE Ports10/100BaseT(X),M12D-Coded4-Pin FemaleConnectorPoE Ports100/1000BaseT(X),M12X-Coded8-Pin FemaleConnectorConformalCoatingTN-4512A-WV-T–––12–––TN-4512A-WV-CT-T–––12––✓TN-4516A-WV-T–––16–––TN-4516A-WV-CT-T–––16––✓TN-4516A-4GTX-WV-T–4–12–––TN-4516A-4GTXBP-WV-T––412–––TN-4516A-4GTX-WV-CT-T–4–12––✓TN-4516A-4GTXBP-WV-––412––✓CT-TTN-4516A-12PoE-––––124–4GPoE-WV-TTN-4516A-12PoE-––––124✓4GPoE-WV-CT-TTN-4516A-12PoE-––2–122–2GPoE-2GTXBP-WV-TTN-4516A-12PoE-––2–122✓2GPoE-2GTXBP-WV-CT-TTN-4516A-12PoE-2–––122–2GPoE-2GODC-WV-TTN-4516A-12PoE-2–––122✓2GPoE-2GODC-WV-CT-TTN-4520A-16PoE-––––164–4GPoE-WV-TTN-4520A-16PoE-––––164✓4GPoE-WV-CT-TTN-4524A-16PoE-WV-T–––816––TN-4524A-16PoE-WV-–––816–✓CT-TTN-4528A-16PoE-–––8164–4GPoE-WV-TTN-4528A-16PoE-–––8164✓4GPoE-WV-CT-TTN-4528A-16PoE-––28162–2GPoE-2GTXBP-WV-TTN-4528A-16PoE-––28162✓2GPoE-2GTXBP-WV-CT-TTN-4528A-16PoE-2––8162–2GPoE-2GODC-WV-TTN-4528A-16PoE-2––8162✓2GPoE-2GODC-WV-CT-TAccessories(sold separately)Storage KitsABC-01-M12Configuration backup and restoration tool with M12connector for managed Ethernet switches andwireless APs/Bridges/Clients,0to60°C operating temperatureCablesCBL-M12D(MM4P)/RJ45-100IP67M12-to-RJ45cable,IP67-rated,1mCBL-M23(FF6P)/OPEN-BK-100IP67M23to6-pin power cable,IP67-rated female6-pin M23connector,IP67,1mCBL-M12DMM4PM12DMM4P-BK-M12-to-M12Cat-5E STP Ethernet cable,4-pin D-coded M12connector,IP67,1m100-IP67CBL-M12XMM8P-Y-100-IP67M12-to-M12Cat-5UTP Ethernet cable,8-pin male X-coded crimp type M12connector,IP67,1mCBL-M12XMM8P-Y-300-IP67M12-to-M12Cat-5UTP Ethernet cable,8-pin male X-coded crimp type M12connector,IP67,3m CBL-M12XMM8PRJ45-Y-200-IP67M12-to-RJ45Cat-5UTP Ethernet cable,8-pin male X-coded crimp type M12connector,IP67,2m ConnectorsM12D-4PMM-IP67M12D-coded connector,QUICKON type,4-pin male,IP67M12D-4P-IP68D-coded screw-in sensor connector,male,IP68A-PLG-WPM23-01-IP67M23cable connector,female6-pin,crimp type,IP67M12A-5P-IP68A-coded screw-in sensor connector,female,IP68,4.05cmM12X-8PMM-IP67-HTG X-coded screw-in Gigabit Ethernet connector,8-pin male M12connector,IP67M12Connector CapsA-CAP-M12F-M-PP Metal cap for M12female push-pull connectorA-CAP-M12F-M Metal cap for M12female connectorA-CAP-M12M-M Metal cap for M12male connector©Moxa Inc.All rights reserved.Updated Feb02,2023.This document and any portion thereof may not be reproduced or used in any manner whatsoever without the express written permission of Moxa Inc.Product specifications subject to change without notice.Visit our website for the most up-to-date product information.11。
