美国废钢分类标准
- 格式:doc
- 大小:22.50 KB
- 文档页数:2
美国钢铁产品的标准比较多,主要有以下几种:美国钢铁产品的标准比较多,主要有以下几种:ANSI 美国国家标准AISI??美国钢铁学会标准ASTM 美国材料与试验协会标准ASME 美国机械工程师协会标准AMS 航天材料规格(美国航空工业最常用的一种材料规格,由SAE制定)API 美国石油学会标准AWS 美国焊接协会标准SAE 美国机动车工程师协会标准MIL 美国军用标准QQ 美国联邦政府标准A216::WCB , WCCA217: WC6 , WC9 , C5 (ZGCr5Mo)A351: CF8 , CF3 , CF3 M , CF8C标准号? ? ? ? 标准中文名称? ? ? ? 标准英文名称ASTM A1-00 ? ? ? ? 碳素钢丁字轨? ? ? ? Standard Specification for Carbon Steel Tee Rails ASTM A2-02 ? ? ? ? 普通型,带槽和防护型碳素工字钢轨? ? ? ? Standard Specification for Carbon Steel Girder Rails of Plain, Grooved, and Guard TypesASTM A3-01 ? ? ? ? 低、中、高碳素钢鱼尾(连接)板? ? ? ? Standard Specification for Steel Joint Bars, Low, Medium, and High Carbon (Non-Heat-Treated)ASTM A6/A6M-04a ? ? ? ? 轧制结构钢板材、型材和薄板桩通用技术要求? ? ? ? Standard Specification for General Requirements for Rolled Structural Steel Bars, Plates, Shapes, and Sheet Piling ASTM A20/A20M-04a ? ? ? ? 压力容器用钢板材通用要求? ? ? ? Standard Specification for General Requirements for Steel Plates for Pressure VesselsASTM A27/A27M-03 ? ? ? ? 通用碳素钢铸件? ? ? ? Standard Specification for Steel Castings, Carbon, for General ApplicationASTM A29/A29M-04 ? ? ? ? 热锻及冷加工碳素钢和合金钢棒? ? ? ? Standard Specification for Steel Bars, Carbon and Alloy, Hot-Wrought, General Requirements forASTM A31-04 ? ? ? ? 钢铆钉及铆钉和压力容器用棒材? ? ? ? Standard Specification for Steel Rivets and Bars for Rivets, Pressure VesselsASTM A34/A34M-01 ? ? ? ? 磁性材料的抽样和采购试验的标准惯例? ? ? ? Standard Practice for Sampling and Procurement Testing of Magnetic MaterialsASTM A36/A36M-04 ? ? ? ? 碳素结构钢技术规范? ? ? ? Standard Specification for Carbon Structural SteelASTM A47/A47M-99 ? ? ? ? 铁素体可锻铁铸件? ? ? ? Standard Specification for Ferritic Malleable Iron CastingsASTM A48/A48M-03 ? ? ? ? 灰铁铸件? ? ? ? Standard Specification for Gray Iron CastingsASTM A49-01 ? ? ? ? 经热处理的碳素钢鱼尾(连接)板,微合金鱼尾板及锻制碳素钢异型鱼尾板? ? ? ? Standard Specification for Heat-Treated Carbon Steel Joint Bars, Microalloyed Joint Bars, and Forged Carbon Steel Compromise Joint BarsASTM A53/A53M-04 ? ? ? ? 无镀层热浸的、镀锌的、焊接的及无缝钢管的技术规范? ? ? ? Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and SeamlessASTM A65-01 ? ? ? ? 钢轨道钉? ? ? ? Standard Specification for Steel Track SpikesASTM A66-01 ? ? ? ? 钢质螺旋道钉? ? ? ? Standard Specification for Steel Screw SpikesASTM A67-00 ? ? ? ? 热加工低碳钢和高碳钢垫板技术规范? ? ? ? Standard Specification for Steel Tie Plates, Low-Carbon and High-Carbon Hot-WorkedASTM A74-04 ? ? ? ? 铸铁污水管及配件的技术规范? ? ? ? Standard Specification for Cast Iron Soil Pipe and FittingsASTM A82-02 ? ? ? ? 钢筋混凝土用无节钢丝? ? ? ? Standard Specification for Steel Wire, Plain, for Concrete ReinforcementASTM A90/A90M-01 ? ? ? ? 镀锌和镀锌合金钢铁制品镀层重量的试验方法? ? ? ? Standard Test Method for Weight [Mass] of Coating on Iron and Steel Articles with Zinc or Zinc-Alloy Coatings ASTM A99-03 ? ? ? ? 锰铁合金? ? ? ? Standard Specification for FerromanganeseASTM A100-04 ? ? ? ? 硅铁? ? ? ? Standard Specification for FerrosiliconASTM A101-04 ? ? ? ? 铬铁? ? ? ? Standard Specification for FerrochromiumASTM A102-04 ? ? ? ? 钒铁合金? ? ? ? Standard Specification for FerrovanadiumASTM A105/A105M-03 ? ? ? ? 管系部件用碳素钢锻件? ? ? ? Standard Specification for Carbon Steel Forgings for Piping ApplicationsASTM A106/A106M-04a ? ? ? ? 高温用无缝碳素钢管? ? ? ? Standard Specification for Seamless Carbon Steel Pipe for High-Temperature ServiceASTM A108-03 ? ? ? ? 优质冷加工碳素钢棒材技术规范? ? ? ? Standard Specification for Steel Bar, Carbon and Alloy, Cold-FinishedASTM A109/A109M-03 ? ? ? ? 冷轧碳素钢带技术规范? ? ? ? Standard Specification for Steel, Strip, Carbon (0.25 Maximum Percent), Cold-RolledASTM A111-99a(2004)e1 ? ? ? ? 电话和电报线路用镀锌"铁"丝规格? ? ? ? Standard Specification for Zinc-Coated (Galvanized) Iron Telephone and Telegraph Line WireASTM A116-00 ? ? ? ? 镀锌钢丝编织栏栅网? ? ? ? Standard Specification for Metallic-Coated, Steel Woven Wire Fence FabricASTM A121-99(2004) ? ? ? ? 镀锌刺钢丝? ? ? ? Standard Specification for Mettalic-Coated Carbon Steel Barbed WireASTM A123/A123M-02 ? ? ? ? 钢铁产品的锌镀层(热浸镀锌)技术规范? ? ? ? Standard Specification for Zinc (Hot-Dip Galvanized) Coatings on Iron and Steel ProductsASTM A125-96(2001) ? ? ? ? 热处理螺旋形钢弹簧? ? ? ? Standard Specification for Steel Springs, Helical, Heat-TreatedASTM A126-04 ? ? ? ? 阀门、法兰和管配件用灰铁铸件? ? ? ? Standard Specification for Gray Iron Castings for Valves, Flanges, and Pipe FittingsASTM A128/A128M-93(2003) ? ? ? ? 钢铸件,奥氏体锰? ? ? ? Standard Specification for Steel Castings, Austenitic ManganeseASTM A131/A131M-04 ? ? ? ? 海船用结构钢? ? ? ? Standard Specification for Structural Steel for ShipsASTM A132-04 ? ? ? ? 钼铁合金? ? ? ? Standard Specification for FerromolybdenumASTM A134-96(2001) ? ? ? ? 电熔(电弧)焊钢管(NPS为16英寸和16英寸以上)? ? ? ? Standard Specification for Pipe, Steel, Electric-Fusion (Arc)-Welded (Sizes NPS 16 and Over)ASTM A135-01 ? ? ? ? 电阻焊钢管? ? ? ? Standard Specification for Electric-Resistance-Welded Steel PipeASTM A139/A139M-04 ? ? ? ? 电熔(电弧)焊钢管(4英寸以上的)? ? ? ? Standard Specification for Electric-Fusion (Arc)-Welded Steel Pipe (NPS 4 and Over)ASTM A143/A143M-03 ? ? ? ? 热浸镀锌结构钢制品防脆裂措施和探测脆裂的程序? ? ? ? Standard Practice for Safeguarding Against Embrittlement of Hot-Dip Galvanized Structural Steel Products and Procedure for Detecting EmbrittlementASTM A144-02 ? ? ? ? 铁钨合金规范? ? ? ? Specification for FerrotungstenASTM A146-04 ? ? ? ? 氧化钼制品? ? ? ? Standard Specification for Molybdenum Oxide Products ASTM A148/A148M-03 ? ? ? ? 结构用高强度钢铸件? ? ? ? Standard Specification for Steel Castings, High Strength, for Structural PurposesASTM A153/A153M-04 ? ? ? ? 钢铁制金属构件上镀锌层(热浸)? ? ? ? Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel HardwareASTM A159-83(2001) ? ? ? ? 汽车用灰铁铸件? ? ? ? Standard Specification for Automotive Gray Iron CastingsASTM A167-99 ? ? ? ? 不锈钢和耐热铬镍钢板、薄板及带材? ? ? ? Standard Specification for Stainless and Heat-Resisting Chromium-Nickel Steel Plate, Sheet, and StripASTM A176-99 ? ? ? ? 不锈钢和耐热铬钢板、薄板及带材? ? ? ? Standard Specification for Stainless and Heat-Resisting Chromium Steel Plate, Sheet, and StripASTM A178/A178M-02 ? ? ? ? 电阻焊接碳素钢钢管及碳锰钢锅炉和过热器管的技术规范? ? ? ? Standard Specification for Electric-Resistance-Welded Carbon Steel and Carbon-Manganese Steel Boiler and Superheater TubesASTM A179/A179M-90a(2001) ? ? ? ? 热交换器和冷凝器用无缝冷拉低碳钢管? ? ? ? Standard Specification for Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes ASTM A181/A181M-01 ? ? ? ? 普通锻制碳素钢管的规格? ? ? ? Standard Specification for Carbon Steel Forgings, for General-Purpose PipingASTM A182/A182M-02 ? ? ? ? 高温设备用锻制或轧制的合金钢管法兰、锻制管件、阀门及零件? ? ? ? Standard Specification for Forged or Rolled Alloy-Steel Pipe Flanges, Forged Fittings, and Valves and Parts for High-Temperature ServiceASTM A183-03 ? ? ? ? 钢轨用碳素钢螺栓和螺母? ? ? ? Standard Specification for Carbon Steel Track Bolts and NutsASTM A184/A184M-01 ? ? ? ? 混凝土加筋用变形钢筋编织网? ? ? ? Standard Specification for Fabricated Deformed Steel Bar Mats for Concrete ReinforcementASTM A185-02 ? ? ? ? 钢筋混凝土用焊接钢丝结构? ? ? ? Standard Specification for Steel Welded Wire Reinforcement, Plain, for ConcreteASTM A192/A192M-02 ? ? ? ? 高压用无缝碳素钢锅炉管? ? ? ? Standard Specification for Seamless Carbon Steel Boiler Tubes for High-Pressure ServiceASTM A193/A193M-04b ? ? ? ? 高温设备用合金钢和不锈钢螺栓材料? ? ? ? Standard Specification for Alloy-Steel and Stainless Steel Bolting Materials for High-Temperature ServiceASTM A194/A194M-04a ? ? ? ? 高温和高压设备用碳素钢与合金钢螺栓和螺母的规格? ? ? ? Standard Specification for Carbon and Alloy Steel Nuts for Bolts for High Pressure or High Temperature Service, or BothASTM A197/A197M-00 ? ? ? ? 化铁炉用可锻铸铁? ? ? ? Standard Specification for Cupola Malleable IronASTM A202/A202M-03 ? ? ? ? 压力容器用铬锰硅合金钢板? ? ? ? Standard Specification for Pressure Vessel Plates, Alloy Steel, Chromium-Manganese-SiliconASTM A203/A203M-97(2003) ? ? ? ? 压力容器用镍合金钢板? ? ? ? Standard Specification for Pressure Vessel Plates, Alloy Steel, NickelASTM A204/A204M-03 ? ? ? ? 压力容器用钼合金钢板? ? ? ? Standard Specification for Pressure Vessel Plates, Alloy Steel, MolybdenumASTM A209/A209M-03 ? ? ? ? 锅炉和过热器用无缝碳钼合金钢管? ? ? ? Standard Specification for Seamless Carbon-Molybdenum Alloy-Steel Boiler and Superheater TubesASTM A210/A210M-02 ? ? ? ? 锅炉和过热器用无缝中碳素管? ? ? ? Standard Specification for Seamless Medium-Carbon Steel Boiler and Superheater TubesASTM A213/A213M-04 ? ? ? ? 无缝铁素体和奥氏体合金钢锅炉、过热器和换热器管? ? ? ? Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, andHeat-Exchanger TubesASTM A214/A214M-96(2001) ? ? ? ? 热交换器与冷凝器用电阻焊接碳素钢管? ? ? ? Standard Specification for Electric-Resistance-Welded Carbon Steel Heat-Exchanger and Condenser Tubes ASTM A216/A216M-93(2003) ? ? ? ? 高温下使用的适合于熔焊的碳素钢铸件规格? ? ? ? Standard Specification for Steel Castings, Carbon, Suitable for Fusion Welding, for High- Temperature ServiceASTM A217/A217M-02 ? ? ? ? 适合高温受压零件用合金钢和马氏体不锈钢铸件? ? ? ? Standard Specification for Steel Castings, Martensitic Stainless and Alloy, for Pressure-Containing Parts, Suitable for High-Temperature ServiceASTM A220/A220M-99 ? ? ? ? 珠光体可锻铁? ? ? ? Standard Specification for Pearlitic Malleable IronASTM A225/A225M-03 ? ? ? ? 压力容器用锰矾镍合金钢板? ? ? ? Standard Specification for Pressure Vessel Plates, Alloy Steel, Manganese-Vanadium-NickelASTM A227/A227M-99 ? ? ? ? 机械弹簧用冷拉钢丝? ? ? ? Standard Specification for Steel Wire, Cold-Drawn for Mechanical SpringsASTM A228/A228M-02 ? ? ? ? 乐器用优质弹簧钢丝? ? ? ? Standard Specification for Steel Wire, Music Spring QualityASTM A229/A229M-99 ? ? ? ? 机械弹簧用油回火的钢丝? ? ? ? Standard Specification for Steel Wire, Oil-Tempered for Mechanical SpringsASTM A230/A230M-99 ? ? ? ? 阀门用油回火优质碳素钢弹簧丝? ? ? ? Standard Specification for Steel Wire, Oil-Tempered Carbon Valve Spring QualityASTM A231/A231M-96(2002) ? ? ? ? 铬钒合金钢弹簧丝? ? ? ? Standard Specification for Chromium-Vanadium Alloy Steel Spring WireASTM A232/A232M-99 ? ? ? ? 阀门用优质铬钒合金钢弹簧丝? ? ? ? Standard Specification for Chromium-Vanadium Alloy Steel Valve Spring Quality WireASTM A234/A234M-04 ? ? ? ? 中温与高温下使用的锻制碳素钢及合金钢管配件? ? ? ? Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature ServiceASTM A239-95(2004) ? ? ? ? 用普力斯试验法(硫酸铜浸蚀)确定铁或钢制品上镀锌层最薄点的测试方法? ? ? ? Standard Practice for Locating the Thinnest Spot in a Zinc (Galvanized) Coating on Iron or Steel ArticlesASTM A240/A240M-04ae1 ? ? ? ? 压力容器用耐热铬及铬镍不锈钢板、薄板及带材? ? ? ? Standard Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General ApplicationsASTM A242/A242M-04 ? ? ? ? 高强度低合金结构钢? ? ? ? Standard Specification for High-Strength Low-Alloy Structural SteelASTM A247-67(1998) ? ? ? ? 铁铸件中石墨显微结构评定试验方法? ? ? ? Standard Test Method for Evaluating the Microstructure of Graphite in Iron CastingsASTM A249/A249M-04 ? ? ? ? 锅炉、过热器、换热器和冷凝器用焊接奥氏体钢管? ? ? ? Standard Specification for Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser TubesASTM A250/A250M-04 ? ? ? ? 锅炉和过热器用电阻焊铁素体合金钢管? ? ? ? Standard Specification for Electric-Resistance-Welded Ferritic Alloy-Steel Boiler and Superheater TubesASTM A252-98(2002) ? ? ? ? 焊接钢和无缝钢管桩? ? ? ? Standard Specification for Welded and Seamless Steel Pipe PilesASTM A254-97(2002) ? ? ? ? 铜焊钢管规格? ? ? ? Standard Specification for Copper-Brazed Steel TubingASTM A255-02 ? ? ? ? 测定钢淬透性用末端淬火试验的标准试验方法? ? ? ? Standard Test Method for Determining Hardenability of SteelASTM A262-03 ? ? ? ? 奥氏体不锈钢晶间浸蚀敏感性的检测? ? ? ? Standard Practices for Detecting Susceptibility to Intergranular Attack in Austenitic Stainless SteelsASTM A263-03 ? ? ? ? 耐腐蚀铬钢包覆板材,薄板材及带材技术规范? ? ? ? Standard Specification for Stainless Chromium Steel-Clad PlateASTM A264-03 ? ? ? ? 包覆的不锈铬镍钢板,薄板及带材规格? ? ? ? Specification for Stainless Chromium-Nickel Steel-Clad PlateASTM A265-03 ? ? ? ? 镍和镍基合金包覆钢板规格? ? ? ? Standard Specification for Nickel and Nickel-Base Alloy-Clad Steel PlateASTM A266/A266M-03a ? ? ? ? 压力容器部件用碳素钢锻件规格? ? ? ? Standard Specification for Carbon Steel Forgings for Pressure Vessel ComponentsASTM A268/A268M-04 ? ? ? ? 一般设备用无缝和焊接铁素体与马氏体不锈钢管? ? ? ? Standard Specification for Seamless and Welded Ferritic and Martensitic Stainless Steel Tubing for General ServiceASTM A269-04 ? ? ? ? 一般设备用无缝和焊接奥氏体不锈钢管? ? ? ? Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General ServiceASTM A270-03a ? ? ? ? 卫生设施用无缝钢和焊接奥氏体不锈钢管? ? ? ? Standard Specification for Seamless and Welded Austenitic Stainless Steel Sanitary TubingASTM A275/A275M-98(2003) ? ? ? ? 钢锻件的磁粉检查试验方法? ? ? ? Standard Test Method for Magnetic Particle Examination of Steel ForgingsASTM A276-04 ? ? ? ? 不锈钢棒材和型材? ? ? ? Standard Specification for Stainless Steel Bars and ShapesASTM A278/A278M-01 ? ? ? ? 适用于650F容压部件用灰铸铁件的技术规范? ? ? ? Standard Specification for Gray Iron Castings for Pressure-Containing Parts for Temperatures Up to 650°F (350°C) ASTM A283/A283M-03 ? ? ? ? 低和中等抗拉强度碳素钢板? ? ? ? Standard Specification for Low and Intermediate Tensile Strength Carbon Steel PlatesASTM A285/A285M-03 ? ? ? ? 压力容器用低和中等抗拉强度的碳素钢板? ? ? ? Standard Specification for Pressure Vessel Plates, Carbon Steel, Low- and Intermediate-Tensile StrengthASTM A288-91(2003) ? ? ? ? 涡轮发电机磁性定位环用碳素钢和合金钢锻件? ? ? ? Standard Specification for Carbon and Alloy Steel Forgings for Magnetic Retaining Rings for Turbine Generators标准号? ? ? ? 标准中文名称? ? ? ? 标准英文名称ASTM A289/A289M-97(2003) ? ? ? ? 发电机非磁性定位环用合金钢锻件的技术规范? ? ? ? Standard Specification for Alloy Steel Forgings for Nonmagnetic Retaining Rings for GeneratorsASTM A290-02 ? ? ? ? 减速器环用碳素钢和合金钢锻件? ? ? ? Standard Specification for Carbon and Alloy Steel Forgings for Rings for Reduction GearsASTM A291-03 ? ? ? ? 减速器小齿轮、齿轮和心轴用碳素钢和合金钢锻件? ? ? ? Standard Specification for Steel Forgings, Carbon and Alloy, for Pinions, Gears and Shafts for Reduction Gears ASTM A295-98 ? ? ? ? 高碳耐磨轴承钢技术规范? ? ? ? Standard Specification for High-Carbon Anti-Friction Bearing SteelASTM A297/A297M-97(2003) ? ? ? ? 一般用耐热铬铁与镍铬铁合金钢铸件规格? ? ? ? Standard Specification for Steel Castings, Iron-Chromium and Iron-Chromium-Nickel, Heat Resistant, for General ApplicationASTM A299/A299M-04 ? ? ? ? 压力容器用锰硅碳钢板? ? ? ? Standard Specification for Pressure Vessel Plates, Carbon Steel, Manganese-SiliconASTM A302/A302M-03 ? ? ? ? 压力容器用锰钼和锰钼镍合金钢板? ? ? ? Standard Specification for Pressure Vessel Plates, Alloy Steel, Manganese-Molybdenum and Manganese-Molybdenum-Nickel ASTM A304-04 ? ? ? ? 有末端淬火淬透性要求的合金钢棒材的技术规范? ? ? ? Standard Specification for Carbon and Alloy Steel Bars Subject to End-Quench Hardenability RequirementsASTM A307-04 ? ? ? ? 抗拉强度为60000psi的碳素钢螺栓和螺柱的技术规范? ? ? ? Standard Specification for Carbon Steel Bolts and Studs, 60 000 PSI Tensile StrengthASTM A308/A308M-03 ? ? ? ? 经热浸处理镀有铅锡合金的薄板材的技术规范? ? ? ? Standard Specification for Steel Sheet, Terne (Lead-Tin Alloy) Coated by the Hot-Dip ProcessASTM A309-01 ? ? ? ? 用三点试验法测定长镀锌薄钢板镀层的重量成分的试验方法? ? ? ? Standard Test Method for Weight and Composition of Coating on Terne Sheet by the Triple-Spot TestASTM A311/A311M-04 ? ? ? ? 有机械性能要求的消除应力的冷拉碳素钢棒? ? ? ? Standard Specification for Cold-Drawn, Stress-Relieved Carbon Steel Bars Subject to Mechanical Property Requirements ASTM A312/A312M-04a ? ? ? ? 无缝和焊接奥氏体不锈钢管? ? ? ? Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel PipesASTM A313/A313M-03 ? ? ? ? 不锈钢弹簧丝技术规范? ? ? ? Standard Specification for Stainless Steel Spring WireASTM A314-97(2002) ? ? ? ? 锻造用不锈及耐热钢坯及钢棒规格? ? ? ? Standard Specification for Stainless Steel Billets and Bars for ForgingASTM A319-71(2001) ? ? ? ? 高温无压部件用灰铁铸件? ? ? ? Standard Specification for Gray Iron Castings for Elevated Temperatures for Non-Pressure Containing PartsASTM A320/A320M-04 ? ? ? ? 低温用合金钢螺栓材料规格? ? ? ? Standard Specification for Alloy-Steel and Stainless Steel Bolting Materials for Low-Temperature ServiceASTM A321-90(2001) ? ? ? ? 经淬火和回火的碳素钢棒? ? ? ? Standard Specification for Steel Bars, Carbon, Quenched and TemperedASTM A322-91(2001)e1 ? ? ? ? 合金钢棒材.级别? ? ? ? Standard Specification for Steel Bars, Alloy, Standard GradesASTM A323-93(2000) ? ? ? ? 硼铁规格? ? ? ? Standard Specification for FerroboronASTM A324-73(2000) ? ? ? ? 钛铁合金? ? ? ? Standard Specification for FerrotitaniumASTM A325-04a ? ? ? ? 经热处理最小抗拉强度为120/105ksi的热处理钢结构螺栓? ? ? ? Standard Specification for Structural Bolts, Steel, Heat Treated, 120/105 ksi Minimum Tensile Strength ASTM A325M-04a ? ? ? ? 经热处理最小抗拉强度为830Mpa的热处理钢结构螺栓? ? ? ? Standard Specification for Structural Bolts, Steel, Heat Treated 830 Mpa Minimum Tensile Strength [Metric] ASTM A327-91(1997) ? ? ? ? 铸铁冲击试验方法? ? ? ? Standard Test Methods for Impact Testing of Cast IronsASTM A327M-91(1997) ? ? ? ? 铸铁冲击试验方法(米制)? ? ? ? Standard Test Methods for Impact Testing of Cast Irons (Metric)ASTM A328/A328M-03 ? ? ? ? 薄钢板桩? ? ? ? Standard Specification for Steel Sheet Piling ASTM A333/A333M-04a ? ? ? ? 低温用无缝与焊接钢管规格? ? ? ? Standard Specification for Seamless and Welded Steel Pipe for Low-Temperature ServiceASTM A334/A334M-04a ? ? ? ? 低温设备用无缝与焊接碳素和合金钢管? ? ? ? Standard Specification for Seamless and Welded Carbon and Alloy-Steel Tubes for Low-Temperature ServiceASTM A335/A335M-03 ? ? ? ? 高温用无缝铁素体合金钢管? ? ? ? Standard Specification for Seamless Ferritic Alloy-Steel Pipe for High-Temperature ServiceASTM A336/A336M-03a ? ? ? ? 压力与高温部件用合金钢锻件规格? ? ? ? Standard Specification for Alloy Steel Forgings for Pressure and High-Temperature PartsASTM A338-84(2004) ? ? ? ? 铁路,船舶和其他重型装备在温度达到650华氏度(345摄氏度)时使用的可锻铸铁法兰,管件和阀门零件? ? ? ? Standard Specification for Malleable Iron Flanges, Pipe Fittings, and Valve Parts for Railroad, Marine, and Other Heavy Duty Service at Temperatures Up to 650°F (345°C)ASTM A340-03a ? ? ? ? 有关磁性试验用符号和定义的术语? ? ? ? Standard Terminology of Symbols and Definitions Relating to Magnetic TestingASTM A341/A341M-00 ? ? ? ? 用直流磁导计和冲击试验法测定材料的直流磁性能的试验方法? ? ? ? Standard Test Method for Direct Current Magnetic Properties of Materials Using D-C Permeameters and the Ballistic Test MethodsASTM A342/A342M-99 ? ? ? ? 磁铁材料导磁率的试验方法? ? ? ? Standard Test Methods for Permeability of Feebly Magnetic MaterialsASTM A343/A343M-03 ? ? ? ? 在电力频率下用瓦特计-安培计-伏特计法(100-1000赫兹)和25 厘米艾普斯亭(EPSTEIN) 机架测定材料的交流电磁性能的试验方法? ? ? ? Standard Test Method forAlternating-Current Magnetic Properties of Materials at Power Frequencies UsingWattmeter-Ammeter-Voltmeter Method and 25-cm Epstein Test FrameASTM A345-98 ? ? ? ? 磁设备用平轧电炉钢? ? ? ? Standard Specification for Flat-Rolled Electrical Steels for Magnetic ApplicationsASTM A348/A348M-00 ? ? ? ? 用瓦特计--安培计--伏特计法(100-10000赫兹)和25厘米艾普斯亭框测定材料的交流磁性能的试验方法? ? ? ? Standard Test Method for Alternating Current Magnetic Properties of Materials Using the Wattmeter-Ammeter-Voltmeter Method, 100 to 10 000 Hz and 25-cm Epstein FrameASTM A350/A350M-04 ? ? ? ? 要求进行缺口韧性试验的管道部件用碳素钢与低合金钢锻件技术规范? ? ? ? Standard Specification for Carbon and Low-Alloy Steel Forgings, Requiring Notch Toughness Testing for Piping ComponentsASTM A351/A351M-03 ? ? ? ? 容压零件用奥氏体及奥氏体铁素体铸铁的技术规范? ? ? ? Standard Specification for Castings, Austenitic, Austenitic-Ferritic (Duplex), for Pressure-Containing PartsASTM A352/A352M-03 ? ? ? ? 低温受压零件用铁素体和马氏体钢铸件规格? ? ? ? Standard Specification for Steel Castings, Ferritic and Martensitic, for Pressure-Containing Parts, Suitable for Low-Temperature ServiceASTM A353/A353M-93(1999) ? ? ? ? 压力容器用经二次正火及回火处理的含9%镍的合金钢板? ? ? ? Standard Specification for Pressure Vessel Plates, Alloy Steel, 9 Percent Nickel,Double-Normalized and TemperedASTM A354-04 ? ? ? ? 淬火与回火合金钢螺栓,双头螺栓及其他外螺纹紧固件规格? ? ? ? Standard Specification for Quenched and Tempered Alloy Steel Bolts, Studs, and Other Externally Threaded FastenersASTM A355-89(2000) ? ? ? ? 渗氮用合金钢棒? ? ? ? Standard Specification for Steel Bars, Alloys, for NitridingASTM A356/A356M-98(2003) ? ? ? ? 蒸汽轮机用厚壁碳素钢、低合金钢和不锈钢铸件? ? ? ? Standard Specification for Steel Castings, Carbon, Low Alloy, and Stainless Steel, Heavy-Walled for Steam TurbinesASTM A358/A358M-04 ? ? ? ? 高温用电熔焊奥氏体铬镍合金钢管? ? ? ? Standard Specification for Electric-Fusion-Welded Austenitic Chromium-Nickel Stainless Steel Pipe for High-Temperature Service and General ApplicationsASTM A363-03 ? ? ? ? 地面架空线用镀锌钢丝绳? ? ? ? Standard Specification for Zinc-Coated (Galvanized) Steel Overhead Ground Wire StrandASTM A367-60(1999) ? ? ? ? 铸铁的激冷试验方法? ? ? ? Standard Test Methods of Chill Testing of Cast IronASTM A368-95a(2000) ? ? ? ? 不锈钢和耐热钢丝绳的标准? ? ? ? Standard Specification for Stainless Steel Wire StrandASTM A369/A369M-02 ? ? ? ? 高温用锻制和镗孔碳素钢管和铁素体合金钢管? ? ? ? Standard Specification for Carbon and Ferritic Alloy Steel Forged and Bored Pipe for High-Temperature ServiceASTM A370-03a ? ? ? ? 钢制品机械测试的标准试验方法和定义? ? ? ? Standard Test Methods and Definitions for Mechanical Testing of Steel Products标准号? ? ? ? 标准中文名称? ? ? ? 标准英文名称ASTM A372/A372M-03 ? ? ? ? 薄壁压力容器用碳素钢及合金钢锻件? ? ? ? Standard Specification for Carbon and Alloy Steel Forgings for Thin-Walled Pressure VesselsASTM A376/A376M-02a ? ? ? ? 高温中心站用无缝奥氏钢管? ? ? ? Standard Specification for Seamless Austenitic Steel Pipe for High-Temperature Central-Station ServiceASTM A377-03 ? ? ? ? 球墨铸铁压力管规范索引? ? ? ? Standard Index of Specifications for Ductile-Iron Pressure PipeASTM A380-99e1 ? ? ? ? 不锈钢零件、设备和系统的清洗和除垢? ? ? ? Standard Practice for Cleaning, Descaling, and Passivation of Stainless Steel Parts, Equipment, and SystemsASTM A381-96(2001) ? ? ? ? 高压输送用金属弧焊钢管? ? ? ? Standard Specification forMetal-Arc-Welded Steel Pipe for Use With High-Pressure Transmission SystemsASTM A384/A384M-02 ? ? ? ? 防止钢组件热浸镀锌时翘曲和扭曲用安全保护? ? ? ? Standard Practice for Safeguarding Against Warpage and Distortion During Hot-Dip Galvanizing of Steel Assemblies ASTM A385-03 ? ? ? ? 提供高质量镀锌覆层(热浸)? ? ? ? Standard Practice for Providing High-Quality Zinc Coatings (Hot-Dip)ASTM A387/A387M-03 ? ? ? ? 压力容器用铬钼合金钢板? ? ? ? Standard Specification for Pressure Vessel Plates, Alloy Steel, Chromium-MolybdenumASTM A388/A388M-03 ? ? ? ? 重型钢锻件超声波检测? ? ? ? Standard Practice for Ultrasonic Examination of Heavy Steel ForgingsASTM A389/A389M-03 ? ? ? ? 适合高温受压部件用经特殊热处理的合金钢铸件规格? ? ? ? Standard Specification for Steel Castings, Alloy, Specially Heat-Treated, for Pressure-Containing Parts, Suitable for High-Temperature ServiceASTM A390-95(2001) ? ? ? ? 饲养家禽用镀锌钢丝栏栅网(六角形和直线形)? ? ? ? Standard Specification for Zinc-Coated (Galvanized) Steel Poultry Fence Fabric (Hexagonal and Straight Line)ASTM A391/A391M-01 ? ? ? ? 80号合金钢链条? ? ? ? Standard Specification for Grade 80 Alloy Steel ChainASTM A392-03 ? ? ? ? 镀锌钢丝链环栏栅网? ? ? ? Standard Specification for Zinc-Coated Steel Chain-Link Fence FabricASTM A394-04 ? ? ? ? 传动塔架用镀锌和裸露钢螺栓? ? ? ? Standard Specification for Steel Transmission Tower Bolts, Zinc-Coated and BareASTM A395/A395M-99e1 ? ? ? ? 高温用铁素体球墨铸铁受压铸件? ? ? ? Standard Specification for Ferritic Ductile Iron Pressure-Retaining Castings for Use at Elevated TemperaturesASTM A400-69(2000) ? ? ? ? 钢棒的成分及机械性能选择指南? ? ? ? Standard Practice for Steel Bars, Selection Guide, Composition, and Mechanical PropertiesASTM A401/A401M-03 ? ? ? ? 铬硅合金钢丝? ? ? ? Standard Specification for Steel Wire, Chromium-Silicon AlloyASTM A403/A403M-04 ? ? ? ? 锻制奥氏体不锈钢管配件? ? ? ? Standard Specification for Wrought Austenitic Stainless Steel Piping FittingsASTM A407-93(2004) ? ? ? ? 盘簧用冷拉钢丝? ? ? ? Standard Specification for Steel Wire, Cold-Drawn, for Coiled-Type SpringsASTM A409/A409M-01 ? ? ? ? 腐蚀场所或高温下使用的焊接大口径奥氏体钢管? ? ? ? Standard Specification for Welded Large Diameter Austenitic Steel Pipe for Corrosive or High-Temperature ServiceASTM A411-03 ? ? ? ? 镀锌低碳钢铠装线? ? ? ? Standard Specification for Zinc-Coated (Galvanized) Low-Carbon Steel Armor WireASTM A413/A413M-01 ? ? ? ? 碳素钢链? ? ? ? Standard Specification for Carbon Steel Chain ASTM A414/A414M-04 ? ? ? ? 压力容器用碳素薄钢板? ? ? ? Standard Specification for Steel, Sheet, Carbon, for Pressure VesselsASTM A416/A416M-02 ? ? ? ? 预应力混凝土用无涂层七股钢铰线? ? ? ? Standard Specification for Steel Strand, Uncoated Seven-Wire for Prestressed ConcreteASTM A417-93(2004) ? ? ? ? 之字形、方形、正弦形家具用弹簧元件用冷拔钢丝? ? ? ? Standard Specification for Steel Wire, Cold-Drawn, for Zig-Zag, Square-Formed, and Sinuous-Type Upholstery Spring UnitsASTM A418-99(2003) ? ? ? ? 涡轮机及发电机钢转子锻件的超声波检查方法? ? ? ? Standard Test Method for Ultrasonic Examination of Turbine and Generator Steel Rotor ForgingsASTM A420/A420M-04 ? ? ? ? 低温下用锻制碳素钢和合金钢管配件? ? ? ? Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Low-Temperature ServiceASTM A421/A421M-02 ? ? ? ? 预应力混凝土用无涂层消除应力钢丝的技术规范? ? ? ? Standard Specification for Uncoated Stress-Relieved Steel Wire for Prestressed ConcreteASTM A423/A423M-95(2000) ? ? ? ? 无缝和电焊低合金钢管? ? ? ? Standard Specification for Seamless and Electric-Welded Low-Alloy Steel TubesASTM A424-00 ? ? ? ? 搪瓷用钢薄板? ? ? ? Standard Specification for Steel, Sheet, for Porcelain EnamelingASTM A426/A426M-02 ? ? ? ? 高温用离心铸造的铁素体合金钢管? ? ? ? Standard Specification for Centrifugally Cast Ferritic Alloy Steel Pipe for High-Temperature ServiceASTM A427-02 ? ? ? ? 冷轧和热轧用锻制合金钢辊? ? ? ? Standard Specification for Wrought Alloy Steel Rolls for Cold and Hot ReductionASTM A428/A428M-01 ? ? ? ? 钢铁制品上铝覆层重量的测试方法? ? ? ? Standard Test Method for Weight [Mass] of Coating on Aluminum-Coated Iron or Steel ArticlesASTM A434-04 ? ? ? ? 热轧与冷精轧经回火及淬火的合金钢棒? ? ? ? Standard Specification for Steel Bars, Alloy, Hot-Wrought or Cold-Finished, Quenched and TemperedASTM A435/A435M-90(2001) ? ? ? ? 钢板的直射束纵向超声波检验? ? ? ? Standard Specification for Straight-Beam Ultrasonic Examination of Steel PlatesASTM A436-84(2001) ? ? ? ? 奥氏体灰口铁铸件? ? ? ? Standard Specification for Austenitic Gray Iron CastingsASTM A437/A437M-01a ? ? ? ? 高温用经特殊处理的涡轮型合金钢螺栓材料? ? ? ? Standard Specification for Alloy-Steel Turbine-Type Bolting Material Specially Heat Treated for High-Temperature ServiceASTM A439-83(1999) ? ? ? ? 奥氏体可锻铸铁铸件? ? ? ? Standard Specification for Austenitic Ductile Iron CastingsASTM A447/A447M-93(2003) ? ? ? ? 高温用镍铬铁合金钢铸件(25-12级)? ? ? ? Standard Specification for Steel Castings, Chromium-Nickel-Iron Alloy (25-12 Class), for High-Temperature Service ASTM A449-04a ? ? ? ? 经淬火和回火的钢螺栓和螺柱? ? ? ? Standard Specification for Quenched and Tempered Steel Bolts and StudsASTM A450/A450M-04 ? ? ? ? 碳素钢管、铁素体合金钢管及奥氏体合金钢管? ? ? ? Standard Specification for General Requirements for Carbon, Ferritic Alloy, and Austenitic Alloy Steel TubesASTM A451/A451M-02 ? ? ? ? 高温用离心铸造的奥氏体钢管? ? ? ? Standard Specification for Centrifugally Cast Austenitic Steel Pipe for High-Temperature ServiceASTM A453/A453M-03 ? ? ? ? 具有同奥氏体钢相类似的膨胀系数、屈服强度为50-120Ksi(345-827MPa)的耐高温螺栓材料? ? ? ? Standard Specification for High-Temperature Bolting Materials, with Expansion Coefficients Comparable to Austenitic Stainless SteelsASTM A455/A455M-03 ? ? ? ? 压力容器用高强度碳锰钢板? ? ? ? Standard Specification for Pressure Vessel Plates, Carbon Steel, High-Strength ManganeseASTM A456/A456M-99(2003) ? ? ? ? 大型曲轴锻件的磁粉检查? ? ? ? Standard Specification for Magnetic Particle Examination of Large Crankshaft ForgingsASTM A459-97(2003) ? ? ? ? 镀锌平轧扁钢铠装带? ? ? ? Standard Specification for Zinc-Coated Flat Steel Armoring TapeASTM A460-94(2004)e1 ? ? ? ? 包铜钢丝绳标准? ? ? ? Standard Specification for Copper-Clad Steel Wire StrandASTM A463/A463M-02a ? ? ? ? 热浸镀铝薄钢板? ? ? ? Standard Specification for Steel Sheet, Aluminum-Coated, by the Hot-Dip ProcessASTM A466/A466M-01 ? ? ? ? 非焊接碳素钢链? ? ? ? Standard Specification for Weldless Chain ASTM A467/A467M-01 ? ? ? ? 机器链和盘旋链? ? ? ? Standard Specification for Machine and Coil Chain标准号? ? ? ? 标准中文名称? ? ? ? 标准英文名称。
废钢基础知识!定义、分类及回收途径等废钢铁的定义1废钢铁的定义在生产生活过程中淘汰或者损坏的作为回收利用的废旧钢铁。
是金属回收当中对黑色金属废料的统称,包括废钢、废铁、冶金废渣、氧化废料等。
废钢由于其产生的情况不同,而存在各种不同的形状,其性能与产生此种废钢的成材基本相同,但也受到时效、有效性(长时间堆积生成的锈蚀)、疲劳性(加工后的成品材随年月增长导致的元素变化)等因素的影响,而性能有所降低。
钢铁厂生产过程中不成为产品的钢铁废料(如切边、切头等)以及使用后报废的设备、构件中的钢铁材料,成分为钢的叫废钢;成分为生铁的叫废铁,统称废钢铁。
目前世界每年产生的废钢总量为3~4亿吨,约占钢总产量的45~50%,其中85~90%用作炼钢原料,10~15%用于铸造、炼铁和再生钢材。
2废钢铁的概念区分废铁的碳含量一般大于2.0%。
优质废铁的硫含量(质量分数)和磷含量(质量分数)分别不大于0.070%和0.40%。
普通废钢、合金废铁的硫含量(质量分数)和磷含量(质量分数)分别不大于0.12%和1.00%。
高炉添加料的含铁量应不小于65.0%。
废钢的碳含量一般小于2.0%,硫含量均不大于0.050%。
非合金废钢中残余元素应符合以下要求:镍的质量分数不大于0.30%、铬的质量分数不大于0.30%、铜的质量分数不大于0.30%。
除锰、硅以外,其他残余元素含量总和(质量分数)不大于0.60%。
3废钢的分布我国废钢铁资源产生的地域分布也不平衡,全国80%以上的废钢铁资源分布在东北(辽、黑)华北(京、津、唐、晋)华东(江苏、沪、鲁)鄂、川、粤这12个工矿企业比较集中、人口比较稠密的省市;其它地区由于地理条件较差、人口较少,生成的废钢资源不足20%。
废钢铁的品种废钢铁包括废钢、废铁、渣钢、氧化废料等几大类别,有碳素废钢、合金废钢、钢屑、铁屑、氧化屑、轻薄料、钢渣等十几个品种。
按不同的规格标准和质量要求合理规划、分清品种,即便于充分利用,又有利于生产。

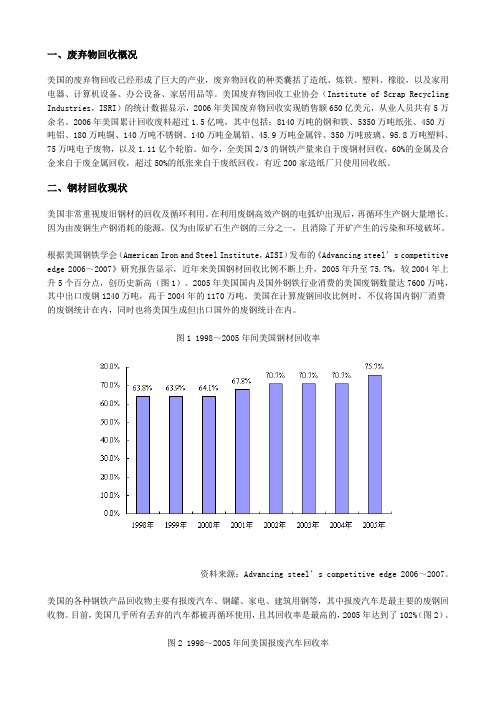

一、废弃物回收概况美国的废弃物回收已经形成了巨大的产业,废弃物回收的种类囊括了造纸、炼铁、塑料、橡胶,以及家用电器、计算机设备、办公设备、家居用品等。
美国废弃物回收工业协会(Institute of Scrap Recycling Industries,ISRI)的统计数据显示,2006年美国废弃物回收实现销售额650亿美元,从业人员共有5万余名。
2006年美国累计回收废料超过1.5亿吨,其中包括:8140万吨的钢和铁、5350万吨纸张、450万吨铝、180万吨铜、140万吨不锈钢、140万吨金属铅、45.9万吨金属锌、350万吨玻璃、95.8万吨塑料、75万吨电子废物,以及1.11亿个轮胎。
如今,全美国2/3的钢铁产量来自于废钢材回收,60%的金属及合金来自于废金属回收,超过50%的纸张来自于废纸回收,有近200家造纸厂只使用回收纸。
二、钢材回收现状美国非常重视废旧钢材的回收及循环利用。
在利用废钢高效产钢的电弧炉出现后,再循环生产钢大量增长。
因为由废钢生产钢消耗的能源,仅为由原矿石生产钢的三分之一,且消除了开矿产生的污染和环境破坏。
根据美国钢铁学会(American Iron and Steel Institute,AISI)发布的《Advancing steel’s competitive edge 2006~2007》研究报告显示,近年来美国钢材回收比例不断上升,2005年升至75.7%,较2004年上升5个百分点,创历史新高(图1)。
2005年美国国内及国外钢铁行业消费的美国废钢数量达7600万吨,其中出口废钢1240万吨,高于2004年的1170万吨。
美国在计算废钢回收比例时,不仅将国内钢厂消费的废钢统计在内,同时也将美国生成但出口国外的废钢统计在内。
图1 1998~2005年间美国钢材回收率资料来源:Advancing steel’s competiti ve edge 2006~2007。
国外关于垃圾分类管理制度1.美国垃圾分类管理制度美国垃圾分类管理制度相对成熟和完善。
在美国,各州都有自己的垃圾分类管理政策和制度,但总体来说,美国的垃圾分类主要包括可回收物、有害垃圾和其他垃圾三大类。
可回收物包括纸张、塑料、金属和玻璃等,有害垃圾包括电池、药品、灯泡等,其他垃圾则是指无法再利用的垃圾。
在美国,垃圾分类管理制度有以下特点:(1)各州和城市有不同的垃圾分类政策和制度,但都遵循“减量化、分类化、资源化”的原则。
(2)美国政府鼓励居民和企业积极参与垃圾分类,通过提供相关的设施和信息宣传,促进垃圾分类工作的顺利进行。
(3)美国政府注重对可回收物和有害垃圾的处理和利用,大力推广再生资源利用和垃圾处理技术,以减少对环境的影响。
2.日本垃圾分类管理制度日本是世界上垃圾分类管理做得最好的国家之一,其垃圾分类制度非常严格和细致。
日本的垃圾分类主要包括可燃垃圾、不燃垃圾、资源回收垃圾和大型废弃物。
日本的垃圾分类管理制度有以下特点:(1)日本政府对垃圾分类有非常严格的法律法规,对垃圾分类不到位或不当处理将处以高额罚款。
(2)日本政府注重垃圾分类的宣传教育工作,通过各种渠道向居民普及垃圾分类知识和技巧,从而提高居民的垃圾分类意识和能力。
(3)日本政府鼓励居民和企业积极参与垃圾分类和资源回收工作,通过建立资源回收点和垃圾分类设施,方便居民进行分类和投放。
3.德国垃圾分类管理制度德国是垃圾分类管理制度做得非常好的国家之一,其垃圾分类工作非常系统和规范。
德国的垃圾分类主要包括可回收垃圾、厨余垃圾、有害垃圾和一般垃圾。
德国的垃圾分类管理制度有以下特点:(1)德国政府高度重视垃圾分类工作,设立专门的垃圾分类部门,负责制定和实施垃圾分类政策和措施。
(2)德国政府鼓励居民自觉参与垃圾分类工作,通过提供分类指导和设施支持,方便居民进行垃圾分类和投放。
(3)德国政府注重对可回收物和厨余垃圾的回收和利用,通过建立回收网络和循环利用系统,实现垃圾资源化和减量化。
废钢等级划分1. 引言废钢是指被废弃、丧失原有价值的钢铁制品,包括废旧钢材、废旧机械设备以及其他废弃物中的钢铁部分。
废钢回收和再利用对环境保护和资源循环利用具有重要意义。
然而,不同类型的废钢质量和用途存在差异,因此需要对废钢进行等级划分。
本文将介绍废钢等级划分的目的、方法以及相关标准,并对不同等级的废钢进行详细描述,以便于更好地理解和应用。
2. 目的废钢等级划分的主要目的是为了方便分类管理和有效利用不同质量和性能特点的废钢。
通过对废钢进行等级划分,可以实现以下目标:•有序管理:根据不同等级对废钢进行分类管理,方便统计、监管和交易。
•资源利用:根据不同等级将合适的废钢用于合适的领域,提高资源利用效率。
•质量控制:根据不同等级要求生产出符合规定标准的废钢,确保废钢再利用的质量。
3. 方法废钢等级划分一般采用综合评价方法,结合废钢的化学成分、力学性能、外观质量等指标进行评定。
常用的方法包括:•化学成分分析:通过对废钢样品进行化学成分分析,确定其中各元素含量,从而判断其适用领域和再利用价值。
•力学性能测试:通过对废钢样品进行拉伸、弯曲等力学性能测试,评估其强度、韧性等性能指标。
•外观质量检查:对废钢外观进行检查,包括表面缺陷、腐蚀程度等方面的评估。
以上方法可以单独或组合使用,根据具体需要来确定废钢的等级。
4. 标准废钢等级划分通常依据国家或行业相关标准进行。
以下是中国国家标准中关于废钢等级划分的一些常见标准:4.1 GB/T 3190-2010《铸造及锻件用铸铁》该标准主要适用于回收和再利用铸造及锻件用铸铁的废钢。
根据化学成分和力学性能,将废钢分为以下等级:•HT150:化学成分和力学性能满足GB/T 3190-2010标准中HT150铸铁的要求。
•HT200:化学成分和力学性能满足GB/T 3190-2010标准中HT200铸铁的要求。
•HT250:化学成分和力学性能满足GB/T 3190-2010标准中HT250铸铁的要求。
美国钢铁标准(2009-10-20 11:46:15)1.美国( ASTM )钢铁牌号表示方法简介1.1 美国钢铁标准化机构简介美国有多家学会、协会从事钢铁标准化工作,涉及钢铁材料标准的标准化机构,主要有:AISI——美国钢铁学会。
ACI——美国合金铸造学会。
ANSI——美国国家标准学会。
ASTM——美国材料与方验协会。
SAE——美国汽车工程师协会。
ASME——美国机械工程师协会。
AWS——美国焊接学会UNS 是金属与合金牌号统一数字体系的简称。
它是由 ASTM E507 和 SAE J1086 等技术标准推荐使用的。
ANSI标准广泛用于整个工业,但该学会本身不制定标准,只是从其他标准化机构中选取一部分标准发布为国家标准,其标准号采用双编号如ANSI/ASTM ,牌号是采用另一编号标准中的牌号。
美国材料与试验协会( ASTM )标准广泛用于钢铁材料,它的特点是能够代表标准制定部门、钢铁企业和用户三方协商一致的意见,因此被广泛使用。
2. ASTM 标准钢铁牌号表示方法简介2.1 结构钢牌号表示方法大多数牌号的表示符号 SAE 系统的规定,少数情况例外。
碳素结构钢棒材1005~1095 共 49 个牌号, 10 代表碳素钢。
较高锰含量碳素钢棒材 1513~1572 共 16 个牌号, 15 代表较高锰含量碳素钢。
易切削结构钢 1108~1151 , 1211~1215 和 12L13~12L15 共 23 个牌号。
11 表示硫系易切削结构钢, 12 表示硫磷复合易切削结构钢, 12L 表示铅硫复合易切削结构钢。
合金结构钢 1330~E9310 和硼钢 50B44~94B30 共 90 个牌号。
牌号前两位数字的代表钢类均符合 SAE 系统规定。
弹簧钢 1050 碳素弹簧钢、 5160 合金弹簧钢和含硼弹簧钢 51B60 等均分别属于碳素钢和合金结构钢标准。
以上各类钢详细情况可参阅 ASTM A29/A29M标准。
废钢的分类标准主要分为以下几类:来源分类:包括家庭废钢、工业废钢和建筑废钢。
家庭废钢主要包括厨房废钢、电子废钢、家电废钢等;工业废钢主要包括钢板废料、钢管废料、金属零部件等;建筑废钢主要包括钢筋、钢管、钢板等。
加工程度分类:包括生产废钢、车间废钢和加工废钢。
生产废钢是指从钢铁企业本身生产过程中产生的废钢,车间废钢是指在生产过程中不符合规格要求但可继续使用的废钢,加工废钢是指经过一定加工后形成的废钢。
成分分类:包括碳素钢、合金钢和不锈钢。
碳素钢是指含有铁、碳两种元素的废钢,合金钢是指在碳素钢的基础上加入一定量的其他合金元素,不锈钢是指含有铁、铬、镍等元素的钢。
外观分类:包括裸采废钢、包装好的废钢和其他形状的废钢。
裸采废钢是指没有经过包装的废钢,包装好的废钢是指经过包装、压缩等处理后的废钢,其他形状的废钢包括扭曲的废钢、折断的废钢等。
用途分类:分为熔炼用废钢和非熔炼用废钢。
其中,熔炼用废钢按外形尺寸和单件重量又分为5个型号:重型废钢、中型废钢、小型废钢、统料型废钢、轻料型废钢。
这些分类标准有助于对废钢进行合理地回收、处理和利用,有助于提高资源利用率和环境保护。
废钢是钢铁生产、消费中产生的可再生的原料资源,废钢作为钢铁生产所必需的资源,是唯一可替代铁矿石用于钢铁产品制造的原料。
除此之外,废钢还是一种载能原料。
回收1吨废钢铁,可炼钢约0.8吨,节约铁矿石2吨至3吨,节约焦炭1吨,废气、废水、废渣的排放可分别减少86%、76%和97%,有利于清洁生产和排废减量化。
随着中国钢铁工业发展,废钢消费量逐年增加。
在中国,钢材市场供需两旺,钢铁工业继续加快发展,对废钢铁资源的需求量大幅增加。
2000年以来,我国钢铁产量快速增长,废钢需求逐年增大。
2008年我国粗钢产量达到5亿吨,占世界钢产量的38.46%,消耗废钢7200万吨,成为世界上最大的废钢需求市场。
2009年由于受宏观经济环境好转、市场回暖等利好驱动,国内钢材产量加快增长。
废钢需求量也猛增,2009年,中国废钢消耗总量约为8000万吨。
随着世界文明的进步,全球未来的钢铁工业,电炉将会逐步替代转炉,废钢将会逐步替代铁矿石,而少量的铁矿石应用将作为资源自然消耗的补充,真正成为与自然和谐的生态工业。
由于国际市场铁矿石市场价格的不断上升,国内电力供给能力的增强,以及国内废钢产出量的增长,预计今后中国电炉生产能力将会出现较快的增长,市场需求也将有所上升。
新电炉钢产能的建设效益与传统流程相比,差距将会大大减小。
因而,可以预计钢铁行业对废钢的需求也会出现快速增长。
另外,随着国家重点工程的建设和城镇化建设的实施等,对钢铁的需求量增长较快,而中国铁矿石资源短缺且世界铁矿石资源有限,钢铁企业趋向发展循环经济,因此废钢的需求将会出现快速增长,开发前景广阔。
第一章废钢相关概述1.1废钢基本概念1.1.1废钢的定义1.1.2废钢的来源1.1.3废钢的优势1.2废钢利用概述1.2.1废钢的利用价值1.2.2废钢利用状况1.2.3废钢回收利用处理方法1.3国际废钢标准介绍1.3.1美国废钢铁标准1.3.2日本废钢铁分类标准1.3.3俄罗斯及欧洲废钢标准第二章钢铁行业发展分析2.1世界钢铁行业发展概况2.1.1世界钢铁行业发展的特征浅析2.1.2世界钢铁业发展呈现梯度转移2.1.3全球钢铁产能增长趋势分析2.2中国钢铁行业发展分析2.2.1中国引领世界钢铁业发展2.2.2中国钢铁业迈入新兴发展阶段2.2.3国家支持钢铁产业整合提升优势企业地位2.32006-2010年3月中国钢铁行业运行分析2.3.12006年中国钢铁行业运行综述2.3.22007年中国钢铁产业成效显著2.3.32008年中国钢铁行业运行分析2.3.42009年中国钢铁行业的运行2.3.52010年1-3月我国钢铁行业的发展情况2.4中国钢铁行业发展循环经济分析2.4.1循环经济的涵义及原则2.4.2中国钢铁行业发展循环经济的必要性2.4.3钢铁企业循环经济发展模式比较分析2.4.4钢铁业发展循环经济对策2.5钢铁行业发展面临的挑战及对策2.5.1影响中国钢铁行业持续发展的五大因素2.5.2中国钢铁行业集中度低的不利影响2.5.3中国钢铁行业发展的对策2.5.4中国钢铁工业发展的五大战略第三章国际废钢市场分析3.1世界废钢市场发展概况3.1.1世界废钢贸易发展回顾3.1.2世界废钢贸易情况3.1.3全球废钢市场供应趋紧3.1.4中亚国家出台政策限制废钢出口3.2日本3.2.1日本废钢出口规模不断扩大3.2.2日本废钢出口持续增长3.2.32007-2009年日本不锈钢废钢进口统计3.3俄罗斯3.3.1俄罗斯废钢市场发展概述3.3.2俄罗斯废钢出货统计3.3.3俄罗斯计划提高废钢出口关税3.4韩国3.4.1韩国废钢市场供需回顾3.4.2韩国废钢进口分析3.4.3韩国废钢供需均创新高3.4.4韩国废钢市场需求预测3.5其他国家3.5.1土耳其废钢进口居全球首位3.5.2美国废钢出口迅速增长3.5.3巴西废钢供应状况3.5.4越南废钢需求增长迅速第四章中国废钢行业的发展4.1中国废钢行业发展分析4.1.1中国废钢铁产业发展成就回顾4.1.2中国废钢行业发展浅析4.1.3中国废钢铁应用呈现三大特点4.1.4国内废钢进口量持续下降及其原因解析4.2中国废钢市场发展概况4.2.1“十五”期间中国废钢市场供需回顾4.2.2中国废钢市场价格受国际废钢市场变化的影响变小4.2.3中国废钢市场高位运行原因分析4.2.4中国废钢市场步入调整阶段4.32006-2009年中国废钢市场运行分析4.3.12006年国内废钢市场运行回顾4.3.22007年中国废钢市场运行概况4.3.32008年中国废钢市场分析4.3.42009年中国废钢市场的发展4.4政策对废钢市场的影响4.4.1中国加征钢坯出口关税政策对废钢市场影响浅析4.4.2废旧物资增值税政策的调整对中国废钢铁市场的影响4.4.3中国废钢新标准有助于废钢贸易进一步规范4.5中国废钢产业发展面临的挑战4.5.1中国废钢行业发展存在的问题4.5.2中国废钢市场发展形势十分严峻4.5.3国内废钢市场发展面临的困境4.5.4国内废钢供需矛盾日益突出4.6中国废钢产业发展的对策4.6.1中国废钢行业发展的有效措施4.6.2国内废钢市场发展的建议4.6.3中国钢铁企业废钢采购应对措施4.6.4“十一五”期间中国废钢产业发展对策4.7废钢行业的投资及前景4.7.1废钢行业的投资机会4.7.2废钢行业的投资风险4.7.3废钢行业的投资建议4.7.4废钢市场发展前景预测第五章不锈钢废钢5.1不锈钢废钢基本概述5.1.1不锈钢简介5.1.2废不锈钢的主要来源5.1.3废不锈钢的再生和加工方式5.2不锈钢产业发展概况5.2.1中国不锈钢发展的优势评析5.2.2中国不锈钢行业发展综述5.2.3中国不锈钢市场的特点5.2.4不锈钢产业发展中存在的问题及对策5.3不锈钢废钢市场发展分析5.3.1国内废不锈钢市场发展的特点5.3.2中国不锈钢废钢市场分析5.3.3中国不锈钢废钢生产预测第六章中国废钢加工配送分析6.1中国废钢加工设备应用概况6.1.1废钢的加工方法及其设备概述6.1.2中国废钢加工机械应用展望6.2中国中小型废钢加工设备发展概况6.2.1国内中小型废钢加工设备发展简述6.2.2中国中小型废钢加工设备前景展望6.2.3“十一五”期间中国中小型废钢加工设备发展建议6.3中国废钢加工配送体系发展分析6.3.1中国亟需加快废钢铁配送体系建设6.3.2中国废钢加工配送体系发展的建议6.3.3中国废钢加工配送基地的战略调整方向第七章重点企业7.1首钢集团股份有限公司7.1.1公司简介7.1.2首钢废钢基地已正式投入使用7.1.3首钢供应公司积极创新废钢采购供应模式7.2宝钢集团有限公司7.2.1公司简介7.2.2宝钢积极建设最具竞争力的废钢采购供应链7.2.3宝钢合金废钢回收与利用实践解析7.3中钢集团公司7.3.1公司简介7.3.2中钢计划在北方构建废钢加工基地7.3.3中钢集团大型废钢加工机械试车成功7.4武汉钢铁集团金属资源有限责任公司7.4.1公司简介7.4.2武钢金资公司分品种供应废钢效果突出7.5太原钢铁(集团)有限公司7.5.1公司简介7.5.2太钢提升不锈钢废钢质量的措施7.5.3太钢加工厂分级采购碳素废钢效果突出二月底,中国废钢铁应用协会9楼会议室内春意融融。
废钢等级分类废钢是指经过某种原因变为废弃的钢材,包括废旧钢铁、废钢铁制品以及废钢铁加工过程中产生的废料等。
废钢的等级分类是对废钢进行了不同标准和属性的划分,以便更好地处理、回收和利用废钢资源。
废钢等级分类对于废钢行业来说至关重要,它能够有效地指导行业发展,提高废钢资源的利用率,降低环境污染。
一、废钢等级分类的标准有哪些?在废钢等级分类中,通常会根据废钢的特点、成分、加工工艺等多个方面进行分类。
以下是一些常见的废钢等级分类标准:1. 按照化学成分分类:根据废钢材料中的主要元素和合金元素的差异进行分类,如碳钢、合金钢、不锈钢等。
2. 按照尺寸和形状分类:根据废钢材料的尺寸和形状特点进行分类,如钢筋、角钢、管材等。
3. 按照处理方法分类:根据废钢材料的处理方法进行分类,如碎片废钢、切割废钢、打包废钢等。
4. 按照来源分类:根据废钢材料的来源进行分类,如建筑废钢、汽车废钢、机械废钢等。
5. 按照质量等级分类:根据废钢材料的质量差异进行分类,如一级废钢、特级废钢、优质废钢等。
二、废钢等级分类的意义何在?废钢等级分类具有重要意义,主要体现在以下几个方面:1. 按照化学成分分类可以指导废钢的回收和再利用。
由于不同化学成分的废钢具有不同的特性和用途,通过分类可以更好地进行资源回收和再加工利用。
2. 按照尺寸和形状分类可以提高废钢的处理效率。
根据废钢的尺寸和形状分类,可以更好地进行分类处理和分类存储,提高处理效率和空间利用率。
3. 按照处理方法分类可以指导废钢的处理过程。
不同处理方法对应不同的设备和工艺,通过分类可以指导废钢的处理过程,提高处理效率和资源利用率。
4. 按照来源分类可以指导废钢的收集和归类管理。
通过按照来源进行分类,可以更好地指导废钢的收集和归类管理,提高废钢资源的回收和利用效果。
5. 按照质量等级分类可以指导废钢的利用方式。
通过对废钢的质量进行分类,可以更好地指导废钢的利用方式,将高质量的废钢用于高值利用,降低资源浪费。
美国废钢分类标准
一般标准A.清洁。
所有等级废钢都必须无污垢,不含有色金属或任何异物,不能有过多的铁锈和腐蚀,然而,"无污垢,无有色金属或任何异物"的措辞并不意味着不得含偶然混入极少量的夹杂物。
因为在正常加工和搬运特定品种废钢中,显然,有极少量的夹杂物是不可避免的。
B.等外物料。
在交货的特定品种的废钢铁中含有极少量的尺寸略微超过规定范围以及在质量和种类方面略微不能满足规定的要求的物料时,如果能证明在正常加工和搬运中这种品种废钢铁中含这种等外物料是不可避免的话,则不应该改变交货废钢铁的分类等级。
C.残余合金元素。
在本标准分类中,只要用"无金属元素术语之处,系特钢中所含的残余合金元素,并非为炼合金钢而加入的元素。
当残余金属元素不超过以下百分比时,可以认为是无合金元素废钢:镍:0.45% 钼:0.10% 铬:0.20% 锰:1.65%除锰外的所有残余元素的总量不得超过0.60%。
D.偏差。
与废钢铁一般分类标准中的任何偏差,由买卖双方协商解决,ISRI代号NO.:200 1号熔炼用重废钢。
废锻钢或废钢,厚度≥1/4英寸,单块尺寸不得超过60×24英寸(装料箱尺寸),需加工成能确保压实装料作业。
201 1号熔炼用重废钢,3英尺×18英寸,废锻铁或废钢,厚度≥1/4英寸,单块尺寸不得超过36×18英寸,(装料箱尺寸),需加工成能够保证压实装料作业。
202 1号熔炼用重废钢,5英尺×18英寸。
废锻铁或废钢,厚度≥1/4英寸,单块尺寸不得超过60×18英寸(装料箱尺寸),需加工成能确保压实装料作业。
203 2号熔炼用重废钢,废锻铁和/或废钢,无涂层的和镀锌的,厚度≥1/8英寸,装料规格包括不适合作1号熔炼用重废钢的物料,需加工成能确保压实装料作业。
204 2号熔炼用重废钢。
废锻铁或废钢,无涂层的和镀锌的,最大尺寸为36×18英寸,可包括所有经适当加工的汽车废钢。
205 2号熔炼用重废钢,3英尺X18英寸。
废锻铁和废钢,无涂层的和镀锌的,最大尺寸为36X18英寸。
可包括经适当加工的汽车废钢,但不含薄铁板和轻薄料。
206 2号熔炼用重废钢,5英尺X18英寸,废锻铁和废钢,无涂层的和镀锌的,最大尺寸为60X18英寸。
可包括经适当加工的汽车废钢,但不含薄铁板和轻薄料。
207 1号边角废钢。
清洁废钢,任何尺寸不得超过12英寸。
包括工厂新的边角废钢(例如,薄钢板切边和冲压废料等),不得包括旧汽车本身和护泥板,不含镀层,加衬和搪瓷的薄板及硅含量大于0.5%的电工钢板废料)
207A 新的无涂层薄钢板切边废钢。
供直接装料用,最大尺寸为8英尺X18英寸。
无旧汽车本身和挡泥板,无镀层,加衬和搪瓷薄板及硅含量大于0.5%的电工钢板废料。
必须能合适地平放在汽车里。
208 1号打包废钢。
新的无涂层薄钢板废钢--切边或冲裁残料骨架废钢经压缩或人工打包至装料箱尺寸,重量不小于75磅每立方英尺(人工打包要牢固,以便用磁铁搬运)。
可包括STANLEY球料、用总棒缠绕的卷料或冲裁残料骨架的卷料,要确保牢固,可包括化学脱锡废钢。
不可包括旧汽车本身和挡泥板。
无镀层、加衬和搪瓷薄板及硅含量大于0.5%的电工钢板废料。
209 2号打包废钢。
旧的无涂层薄钢板和镀锌的钢板废料,经液压压缩至装料箱尺寸,重量不小于75磅每立方英尺,不可包括镀锡、镀铅和搪瓷板废料。
210 切碎废钢。
经切碎后用磁力分选出的均质废钢铁,来源于旧汽车、未加工的1号和2号废钢、各种打包用料和薄板废钢。
平均密度50磅/英尺3。
211 切碎废钢。
经切碎后用磁力分选出的均质废钢铁,来源于旧汽车、未加工的1号和2号废钢,各种打包用料和薄板废钢,平均密度70磅/英尺3。
212 切碎的边角废钢。
1000系列的碳钢的切碎边角废钢或薄钢板。
废钢料的平均密度60磅/英尺3。
213 重熔用切碎的镀锡板罐头盒。
切碎的镀锡板或镀铬薄板罐头盒,可含铅顶盖,但不能含铅罐,有色金属(罐头盒结构中的除外),和任何非金属杂物。
214 3号打包废钢。
废旧薄钢板,压缩至装料箱尺寸,重量不小于75磅/英尺3。
可包括不适合作2号打包废钢的所有镀层废钢。
215 焚烧压块废钢。
镀锡板罐头盒废料,经压缩至装料箱尺寸,重量不小于75磅/英尺3。
废罐头盒需通过公认的垃圾焚烧炉处理。
216 镀铅锡合金钢板打包废钢。
新的镀铅锡合金废钢板--切边或冲裁残料骨架废钢,经压缩或人工打包至装料箱尺寸,重量不小于75磅/英尺3(人工打包要牢固,以便用磁铁搬运)。
可包括STANLEY球料,用芯棒缠绕的卷料或冲裁残料骨架卷料,要确保牢固。
217 1号打包废钢,废锻铁和/或废钢,厚度大于等于1/8英寸,压缩至装料箱尺寸,重量不小于75磅/英尺3。
无各种金属镀层材料。
218 2号打包废钢。
废锻铁和/或废钢,无涂层的和镀锌的,厚度大于等于1/8英寸,压缩至装箱尺寸,重量不小于75磅/英尺3。
气割或人工拆卸的汽车本身和挡泥板,按重量计最多可占60%(此百分比由汽车本身、底盘、传动轴和挡板组成),应无各种镀层材料,而汽车上原有的除外。
