wisLink工业交换机说明书V

SIMATIC NET工业以太网交换机SCALANCE XC-200操作说明02/2023法律资讯警告提示系统为了您的人身安全以及避免财产损失，必须注意本手册中的提示。

人身安全的提示用一个警告三角表示，仅与财产损失有关的提示不带警告三角。

警告提示根据危险等级由高到低如下表示。

危险表示如果不采取相应的小心措施，将会导致死亡或者严重的人身伤害。

警告表示如果不采取相应的小心措施，可能导致死亡或者严重的人身伤害。

小心表示如果不采取相应的小心措施，可能导致轻微的人身伤害。

注意表示如果不采取相应的小心措施，可能导致财产损失。

当出现多个危险等级的情况下，每次总是使用最高等级的警告提示。

如果在某个警告提示中带有警告可能导致人身伤害的警告三角，则可能在该警告提示中另外还附带有可能导致财产损失的警告。

合格的专业人员本文件所属的产品/系统只允许由符合各项工作要求的合格人员进行操作。

其操作必须遵照各自附带的文件说明，特别是其中的安全及警告提示。

由于具备相关培训及经验，合格人员可以察觉本产品/系统的风险，并避免可能的危险。

按规定使用 Siemens 产品请注意下列说明：警告Siemens 产品只允许用于目录和相关技术文件中规定的使用情况。

如果要使用其他公司的产品和组件，必须得到 Siemens 推荐和允许。

正确的运输、储存、组装、装配、安装、调试、操作和维护是产品安全、正常运行的前提。

必须保证允许的环境条件。

必须注意相关文件中的提示。

商标所有带有标记符号 ® 的都是 Siemens AG 的注册商标。

本印刷品中的其他符号可能是一些其他商标。

若第三方出于自身目的使用这些商标，将侵害其所有者的权利。

责任免除我们已对印刷品中所述内容与硬件和软件的一致性作过检查。

然而不排除存在偏差的可能性，因此我们不保证印刷品中所述内容与硬件和软件完全一致。

印刷品中的数据都按规定经过检测，必要的修正值包含在下一版本中。

Siemens AGDigital Industries Postfach 48 4890026 NÜRNBERG C79000-G8952-C442-14Ⓟ 02/2023 本公司保留更改的权利Copyright © Siemens AG 2016 - 2023.保留所有权利目录1简介 (7)2安全须知 (15)3安全建议 (17)4设备描述 (25)4.1产品总览 (25)4.2设备视图 (31)4.2.1SCALANCE XC206-2 (ST/BFOC) (31)4.2.2SCALANCE XC206-2 (SC) (32)4.2.3SCALANCE XC206-2G PoE (33)4.2.4SCALANCE XC206-2SFP (34)4.2.5SCALANCE XC208 (35)4.2.6SCALANCE XC208G PoE (36)4.2.7SCALANCE XC216 (37)4.2.8SCALANCE XC216-3G PoE (38)4.2.9SCALANCE XC216-4C (38)4.2.10SCALANCE XC224 (40)4.2.11SCALANCE XC224-4C (41)4.3附件 (41)4.4SELECT/SET 按钮 (47)4.5LED 指示灯 (49)4.5.1总览 (49)4.5.2“RM”LED (50)4.5.3“SB”LED (50)4.5.4“F”LED (50)4.5.5LED“DM1”和“DM2” (51)4.5.6LED“L1”和“L2” (51)4.5.7端口 LED (52)4.6C-PLUG (54)4.6.1C-PLUG 的功能 (54)4.6.2更换 C-PLUG (56)4.7组合端口 (57)4.8以太网供电 (PoE) (58)4.8.1符合标准的电源和电压范围 (58)4.8.2设备的 PoE 属性 (59)4.8.3电源传输和引脚分配 (30 W) (61)SCALANCE XC-200目录4.8.4电源传输和引脚分配 (60 W) (62)4.8.5组态 (62)5组装和拆卸 (63)5.1安装的安全注意事项 (63)5.2关于 SFP 收发器的一般说明 (66)5.3安装类型 (66)5.4在 DIN 导轨上安装 (67)5.4.1基于固定板的凹顶导轨安装 (67)5.4.2无固定板时的凹顶导轨安装 (69)5.5在标准 S7-300 导轨上安装 (70)5.5.1在带有固定板的标准导轨 S7-300 上安装 (70)5.5.2在不带固定板的标准导轨 S7-300 上安装 (71)5.6在标准导轨 S7-1500 上安装 (72)5.6.1在带有固定板的标准导轨 S7-1500 上安装 (72)5.6.2在不带固定板的标准导轨 S7-1500 上安装 (74)5.7基于固定板的墙式安装 (75)5.8更改固定销的位置 (76)5.9拆卸 (77)6连接 (79)6.1不使用 PoE 的设备的安全注意事项 (79)6.2PoE 设备的安全注意事项 (80)6.3有关在危险场所使用的安全注意事项 (82)6.4附加说明 (85)6.5接线规则 (86)6.624 V DC 电源 (87)6.754 V DC 电源 (88)6.8信号触点 (90)6.9功能性接地 (91)6.10串口 (92)6.11工业以太网 (94)6.11.1电气 (94)6.11.2光纤 (95)SCALANCE XC-200目录7维护和清洁 (97)8故障排除 (99)8.1使用 TFTP 下载新固件（无需 WBM 和 CLI） (99)8.2恢复出厂设置 (100)9技术规范 (101)9.1SCALANCE XC206-2 (ST/BFOC) 的技术规范 (101)9.2SCALANCE XC206-2 (SC) 的技术规范 (104)9.3SCALANCE XC206-2G PoE 的技术规范 (107)9.4SCALANCE XC206-2G PoE (54 V) 的技术规范 (110)9.5SCALANCE XC206-2G PoE EEC (54 V) 的技术规范 (113)9.6SCALANCE XC206-2SFP 的技术规范 (116)9.7SCALANCE XC206-2SFP G 的技术规范 (119)9.8SCALANCE XC206-2SFP EEC 的技术规范 (122)9.9SCALANCE XC206-2SFP G EEC 的技术规范 (125)9.10SCALANCE XC208 的技术规范 (128)9.11SCALANCE XC208G 的技术规范 (130)9.12SCALANCE XC208G PoE 的技术规范 (132)9.13SCALANCE XC208G PoE (54 V) 的技术规范 (134)9.14SCALANCE XC208EEC 的技术规范 (136)9.15SCALANCE XC208G EEC 的技术规范 (138)9.16SCALANCE XC216 的技术规范 (140)9.17SCALANCE XC216EEC 的技术规范 (142)9.18SCALANCE XC216-3G PoE 的技术规范 (144)9.19SCALANCE XC216-3G PoE (54 V) 的技术规范 (146)9.20SCALANCE XC216-4C 的技术规范 (150)9.21SCALANCE XC216-4C G 的技术规范 (153)9.22SCALANCE XC216-4C G EEC 的技术规范 (156)9.23SCALANCE XC224 的技术规范 (159)9.24SCALANCE XC224-4C G 的技术规范 (161)9.25SCALANCE XC224-4C G EEC 的技术规范 (164)9.26机械稳定性（运行时） (167)SCALANCE XC-200目录9.27射频辐射符合 NAMUR NE21 标准 (167)9.28电缆长度 (167)9.29交换特性 (168)10尺寸图 (171)11证书和认证 (179)索引 (189)SCALANCE XC-200简介1操作说明的用途这些操作说明适用于 SCALANCE XC-200 系列产品的安装和连接。

本文部分内容来自网络整理，本司不为其真实性负责，如有异议或侵权请及时联系，本司将立即删除！== 本文为word格式，下载后可方便编辑和修改！ ==国威交换机说明书篇一：国威WS848-P型电话交换器说明书目录一、系统简介 .................................................................. ..................................................................... .....1.1概况 .................................................................. ....1.2主要功能 ..................................................................二、产品规格 .................................................................. ..................................................................... .....三、结构和安装 .................................................................. ......................................................................3.1外观说明 ..................................................................3.2安装环境 ..................................................................3.3接地方法 ..................................................................四、一般功能编程举例??????????????????????????????4.1 怎能样开通或关闭外线?????????????????????????4.2怎样录制电脑话务员的语音?????????????????????????4.3怎样开通电脑话务员?????????????????????????4.4怎样设置外线打进指定分机响铃???????????????????????4.5怎样设置分机打出直拨外线或拨9打外线???????????????????4.6怎样设置外线打出专线专用?????????????????????????4.7怎样设置长途自动加发IP?????????????????????????4.8怎样设置自编分机号?????????????????????????五、系统编程 .................................................................. ..................................................................... .....5.2如何进入编程状态5.2系统初始化 ................................................................5.3外线开通与关闭设置 ........................................................5.4外线打入响应方式选择 ......................................................5.5 外线打入指定分机响铃设置 ..................................................5.6分机打出方式设置 ..........................................................5.7 分机外线打出权限设置 ......................................................5.8 分机允许使用外线权限设置 ..................................................5.9分机国内长途、声讯台及限制电话权限设置 .....................................5.10分机国际长途电话权限设置 .................................................5.11分机外线通话时间设置 .....................................................5.12分机IP功能设置 ..........................................................5.13分机号码更改设置 .........................................................5.14 系统密码更改设置 .........................................................5.15 限制码设置 ...............................................................5.16 IP号码设置 .............................................................5.17 电脑话务员接通时间 ......................................................六、系统编程表 .................................................................. ......................................................................七、功能使用表 .................................................................. ......................................................................八、功能使用具体操作方法 .................................................................. ..................................................8.1呼叫内线分机 ..............................................................8.2外线打出 ..................................................................8.3指定外线打出 ..............................................................8.4外线打入响应 ..............................................................8.5日夜方式选择 ..............................................................8.6外线电话转接 ..............................................................8.7 外线保留及取回 ............................................................8.8遇忙转移及无人接转移 ......................................................8.9代接电话 ..................................................................8.10电脑话务员录制 ...........................................................一、系统简介1.1概况本集团电话是在综合国内外众多集团电话优点的基础上开发出来的新一代通信设备，并按照中华人民共和国信息产业部技术要求生产。

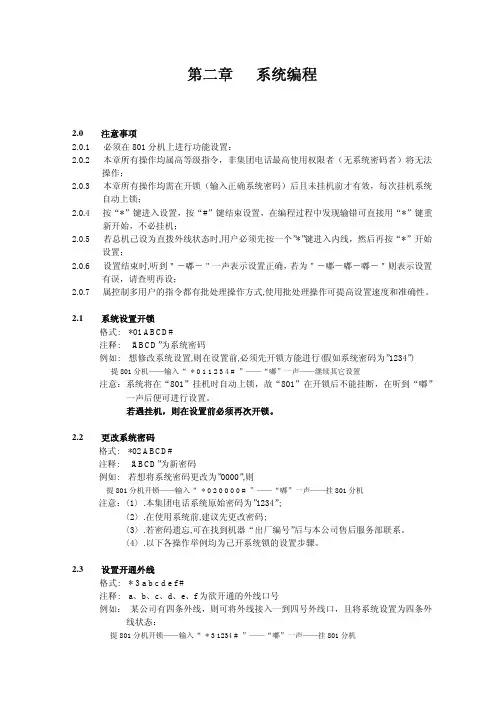

第二章系统编程2.0 注意事项2.0.1 必须在801分机上进行功能设置：2.0.2 本章所有操作均属高等级指令，非集团电话最高使用权限者（无系统密码者）将无法操作；2.0.3 本章所有操作均需在开锁（输入正确系统密码）后且未挂机前才有效，每次挂机系统自动上锁；2.0.4 按“*”键进入设置，按“#”键结束设置，在编程过程中发现输错可直接用“*”键重新开始，不必挂机；2.0.5 若总机己设为直拨外线状态时,用户必须先按一个”*”键进入内线，然后再按“*”开始设置；2.0.6 设置结束时,听到＂－嘟－＂一声表示设置正确，若为＂－嘟－嘟－嘟－＂则表示设置有误，请查明再设；2.0.7 属控制多用户的指令都有批处理操作方式,使用批处理操作可提高设置速度和准确性。

2.1 系统设置开锁格式: *01 ABCD#注释: “ABCD”为系统密码例如: 想修改系统设置,则在设置前,必须先开锁方能进行(假如系统密码为”1234”) 提801分机——输入“* 0 1 1 2 3 4 # ”——“嘟”一声——继续其它设置注意：系统将在“801”挂机时自动上锁，故“801”在开锁后不能挂断，在听到“嘟”一声后便可进行设置。

若遇挂机，则在设置前必须再次开锁。

2.2 更改系统密码格式: *02 ABCD#注释: “ABCD”为新密码例如: 若想将系统密码更改为”0000”,则提801分机开锁——输入“* 0 2 0 0 0 0 # ”——“嘟”一声——挂801分机注意：〈1〉.本集团电话系统原始密码为”1234”;〈2〉.在使用系统前,建议先更改密码;〈3〉.若密码遗忘,可在找到机器“出厂编号”后与本公司售后服务部联系。

〈4〉.以下各操作举例均为己开系统锁的设置步骤。

2.3 设置开通外线格式: * 3 a b c d e f #注释: a、b、c、d、e、f为欲开通的外线口号例如：某公司有四条外线，则可将外线接入一到四号外线口，且将系统设置为四条外线状态：提801分机开锁——输入“* 3 1234 # ”——“嘟”一声——挂801分机在使用中，有时有特殊需要，用户无需将外线顺序接入一至四号口，而可按需要接入，如接入二、四、五和第六口，则提801分机开锁——输入“ * 3 2456 # ”——“嘟”一声——挂801分机若用户没有外线而将集团电话作为内部交换机，可将系统设为无外线状态：提801分机开锁——输入“ * 3 # ”——“嘟”一声——挂801分机2.4 中继分组2.4.1 设置某外线为某几部分机的专线格式: * 4 1 A abc #注释: “A”为外线口号;”abc”为分机现时号例如: 将第三号外线设为”803”和”335”(335为某分机的现时号)的专线,设置如下: 提801分机开锁——输入“* 4 1 3 803 # ”——“嘟”一声后挂机——再提机开锁输入“ * 4 1 3 335# ”——“嘟”一声——挂801分机或用批处理方式：提801分机开锁——输入“* 4 1 3 803 # ”——“嘟”一声——继续输入“3 335 #”——“嘟”一声——挂801分机注意：（1）每根外线最多设置四部分机为其专线；（2）取消专线只需重新开通外线（见2.3项）即可。

Getting Started Guide December, 2017Tabl e o f ContentsP urpose (3)Before you start (3)1 L ogin to the switch v ia console port (4)Bring up networ k operating s y ste m I N OS (4)235 4 6 E nter pri v ileged m ode and execute C L I co mm ands (5)L ogin to the switch v ia m anage m ent port - ssh (6)E nter con f iguration m ode (9)Assign static I P address to m anage m ent port (10)Bare m etal switch pre-installed with O N I E (12)78Login to I N OS (5)PurposeThis getting started guide provides steps necessary (as shown below) to initially bring up the Inventec switches for configuration.1.Login to the switch via console port “CON”2.Bring up Inventec Network Operating System “INOS”3.Login to “INOS”4.Enter privileged mode and execute CLI command to show management IP address5.Login to the switch via management port “MGMT”6.Enter configuration mode and perform an simple configuration as an example to show how itworks7.Assign static IP address to the management port8.Bare metal switch preinstalled with ONIEFor additional installation and configuration information for the Inventec switches, see the Inventec switch documentations: INOS Administration Guide and INOS CLI Command Reference.Before you startRefer to the switch User Manual “Appendix A” to make sure the switch is properly positioned o n desktop or rack mounted. DHCP is enabled by default to acquire IP address on the network. To g et access to the IP address information by console, configure the terminal server or terminal-emulation program to use the following settings:Baud rate: 115200 bpsData bits: 8Parity: noneStop bit: 1Flow control: nonePlease note: This getting started guide shows how to access the switch by console, then by management port using IP address acquired by DHCP.To configure static IP address on management port to access the switch. Please refer to Step 7. “Assign static IP address to the management port.”Now connect a console cable from terminal server to the console port “CON” at the back of the switch.1.Login to the switch via console port “CON”To login to the switch. Please note, the first stop is the “Inventec Linux”. In which INOS is running as an application in the background. Use admin/inventec for login and password as shown below to login to Inventec Linux.2.Bring up Network Operating System INOSNext we need to bring up INOS. In order to do so, the root access is required. On command p rompt, type “sudo –s” and insert the default password “inventec” to change user login from “admin” to “root”. The command prompt will be changed from “admin@localhost” to “root@localhost”.Type “inos-console” to bring up INOS to exit current login and a new user login prompt will show up.3.Login to INOSTo login to INOS, type “admin” for User. Please note, there is no password for this. Press “Enter” key to bypass password query. When “(localhost)>” prompt is shown, system is ready for use.4.Enter privileged mode and execute CLI command to show management IP addressIn order to execute CLI command, command prompt needs to be on privileged mode.Type “enable” to enter privileged mode. The command prompt sign should change from “>” to “#”.Let’s try some basic CLI commands:Type “show version” to show basic information of the system.Type “show serviceport” to show management IP address. Record the IP address. You will be using the IP address to login to the switch.5.Login to the switch via management port “MGMT”Connect an Ethernet cable from management port “MGMT” at the back of the switch to network. Launch a terminal emulator program such as “PuTTY”. Use “SSH” to connect to the management IP address with port 22, as shown below. Select “Open” to continue.First time login it will show the warning that “the server’s host key is not cached in the registry. ……”. Press “YES” to continue.On login prompt, enter “admin” and “inventec” for user and password to login to “inventec Linux” as the same shown previously.Type “sudo –s” and enter password “inventec” to change user from “admin” to “root”.Type “inos-cli” to bring up INOS. Please note, this command is not the same as the one (“inos-console”) used in the console login shown previously.Next it will show “Initializing console session. Press ^Z to exit”. Press “Enter” key to continue.6.Enter configuration mode and perform a simple configuration as an example to show how it works Now you can change the command prompt from “localhost” to any name by typing “hostname <new name>”. For example, below shows how to change command prompt name from “localhost” t o “host123”.Next let’s do a basic configuration to turn on a port. Type the configuration b elow. Note the “config” command opens an editor to allow configuration. The “end” command exits the configuration mode. Below example shows how to enable port 1 of the switch.l oca l host:~#l oca l host :~# inos-cliconsole session. Press ^z to exit.l oca l host) #l oca l host) >l oca l host) >enl oca l host) #hostname host123#To verify the configuration. Type the show command as shown below. The output shows port 1 is configured to be enabled.7.Assign static IP address to the management portTo configure static IP address on management port to access the switch built with embedded platform, please refer to INOS Administration Guide, Section 2: Getting Started with Switch Configuration/“Configuring Service Port Information”. If you do not see the serviceport IP configuration commands, chances are you are working with a switch that’s built with x86 base platform, so p lease move on to the below paragraph.To configure static IP address on management port to access the switch built with x86 based platform, please use the following steps to configure static IP address for eth0 port in Linux environment: Steps to make the ip address of a system as static1.Make backup copy of the interface file (cp interfaces interfaces.bak)2.Open interface file (sudo vi /etc/network/interfaces) configureinterface 0/1no shutdownendshow running-config interface 0/13.Look forauto eth0 & iface eth0 inet dhcp4.Replace the above commands withauto eth0iface eth0 inet staticaddress 192.168.1.100(Enter desired ip here)netmask 255.255.255.0network 192.168.1.0broadcast 192.168.1.255gateway 192.168.1.15.Then exit the editor (press ESC and “:”, type “x”), and enter belowsudo ifdown eth0; sudo ifup eth08.Bare metal switch preinstalled with ONIEFor systems shipped as bare metal switches, Inventec provides the ONIE installerthrough which the supported vendor’s NOS can be installed. The followingexample shows the steps to install Pica’s OS image from the ONIE prompt using anexternal USB.1.First, copy the image to the USB formatted with FAT32, then plug the USB to the switch.2.Apply the below steps from ONIE prompt to mount the USB and install the image:3.mkdir /diagmount /dev/sdb1 /diagcd /diag4.ls –l verify the image is there.5.onie-nos-install <Image>rootmkdir /diagmount /dev/sdb1 /diagcd /diagls -lonie-nos-install picos-2.7.1.binAfter installation the switch boots up with PicOS v2.7.1admin pica8version。

4口千兆环网工业交换机用户手册版本：V2.01发布日期：10/2021大连德嘉工控设备有限公司目录1.产品概述 (3)2.产品特性 (3)3.产品外观 (4)4.安装指南 (5)5.网络拓扑结构 (5)近些年来，随着网络技术的飞速发展，以太网进入了工业自动化领域，形成了新型的工业以太网控制网络技术。

这是由于工业自动化系统向分布化、智能化控制方面发展，开放的、透明的通讯协议以及使用的简洁性已得到工控业界的广泛认可，致使越来越多的工控设备支持工业以太网通信。

以太网技术引入工业控制领域，其技术优势非常明显：（1）Ethernet是全开放网络，遵照网络协议不同厂商的设备可以很容易实现互联。

（2）以太网能实现工业控制网络与企业信息网络的无缝连接。

（3）软硬件成本低廉，以太网技术现已非常成熟，支持以太网的软硬件受到厂商的高度重视和广泛支持，有多种软件开发环境和硬件设备供用户选择。

（4）通信速率高，当前以太网的通信速率为10M、100M、1000M开始广泛应用4口千兆环网交换机具有4个1000M/100M/10M自适应以太网交换机接口，使用灵活方便，可组成总线型和星型以及冗余环网等各种较复杂的网络拓扑结构。

采用工业级标准设计，-10～+70℃宽温型工业级工作温度。

可广泛的用于PLC、HMI、DCS、工控机等各种基于工业以太网的工控设备，支持多种工业以太网协议，如PROFINET（IRT除外）、MODBUS TCP/IP、TCP/IP等。

整体设计采用“凹陷”网口设计，外观上和普通交换机大有差别，将网线水晶头能够有力的支撑保护住。

这样使用类似西门子网线金属头时，可将其前半部分掩盖住，不至于全都裸露在外面，可以能够有效地“拖住”网线，使网线水晶头也不会容易脱落，而且看起来还非常美观。

2产品特性●电源电压：标准工业24V直流电压供电。

●符合IEEE802.3x、10/100/1000Base-T、IEEE1000Base-X/IEEE100Base-FX工业以太网标准。

SIWR-MS100-4G三卡工业无线路由器产品说明书Rev. 2.02020/08SIWR-MS100-4G三卡工业无线路由器使用说明书注意事项! 请勿带电插拔核心板及外围模块！! 请遵循所有标注在产品上的警示和指引信息。

! 请保持本产品干燥。

如果不慎被任何液体泼溅或浸润，请立刻断电并充分晾。

! 使用中注意本产品的通风散热，避免温度过高造成元器件损坏。

! 请勿在多尘、脏乱的环境中使用或存放本产品。

! 请勿将本产品应用在冷热交替环境中，避免结露损坏元器件。

! 请勿粗暴对待本产品，跌落、敲打或剧烈晃动都可能损坏线路及元器件。

! 请勿使用有机溶剂或腐蚀性液体清洗本产品。

! 请勿自行修理、拆卸本公司产品，如产品出现故障请及时联系本公司进行维修。

! 擅自修改或使用未经授权的配件可能损坏本产品，由此造成的损坏将不予以保修。

联系方式如产品使用过程中出现硬件故障可根据以下联系方式进行沟通：邮件：******************网址：地址：深圳市宝安区新安街道留仙大道2号汇聚创新园2栋2306SIWR-MS100-4G三卡工业无线路由器使用说明书目 录一、产品概述 (1)二、硬件接口说明 (2)三、产品操作说明 (2)3.1配置路由器 (4)SIWR-MS100-4G三卡工业无线路由器使用说明书一、产品概述SIWR-MS100-4G是一款多功能路由器设备，具有强大的异构网络通讯能力，支持百兆RJ45以太网和IEEE 802.11b/g/n标准多种连网方式，为客户提供便捷的有线和无线宽带接入方案。

本产品采用DC 9∽36V宽电压设计，更好的适应复杂的工业供电，并具备防雷击、防浪涌的供电保护设计。

本产品采用高性能网络处理器，基于高可靠Linux嵌入式操作系统开发，提供友好的可视化管理界面和安全的VPN接入功能，实现安全、稳定、高速的移动宽带接入。

本产品可广泛应用于工业自动化、智慧城市、仓储、物流、分拣、电力、大型机械设备、以及各类信息化/工业化改造。
