孚瑞肯FR300D电梯专用变频器用户手册V2.0

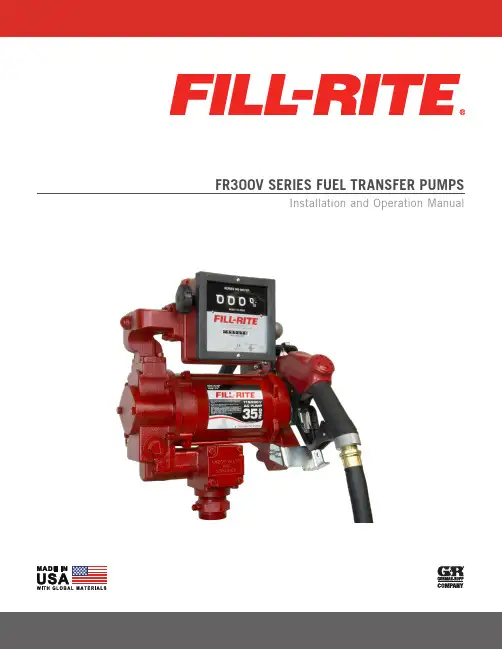

FR300V SERIES FUEL TRANSFER PUMPSInstallation and Operation ManualTable of ContentsThank You! ...........................................................................................2 Warranty Policy ....................................................................................2 About This Manual ................................................................................3 Safety Information ...............................................................................3 Installation .......................................................................................3-4 Anti-Siphon Device ...............................................................................5 Bung Adaptor and Suction Pipe Installation ...........................................5 Nozzle Boot Installation ........................................................................5 Electrical Wiring ...................................................................................6 Wiring Procedure ..................................................................................6 Operating Instructions ..........................................................................6 Pad Locking (6)Safety Testing Approvals .......................................................................7 Fluid Compatibility ...............................................................................7 Technical Information / Specifications ..................................................7 Troubleshooting ...............................................................................8-9Accessories (9)Replacement Parts Information .....................................................10-11 300VE Model Information (12)Limited Warranty PolicyFill-Rite Fort Wayne warrants the goods manufactured shall be free from defects of materials and workmanship. Specific warranty details for individual products can be found at .Thank You!Thank you for your loyalty to the Fill-Rite ® brand of fuel transfer pumps.Your safety is important, so please read and thoroughly understandthe procedures set forth in this manual. In addition, please save theseinstructions for future reference and record the model, serial number, andpurchase date of your fuel transfer pump. Protect yourself as well as thosearound you by observing all safety instructions and adhering to all danger,warning, and caution symbols. Please register your Fill-Rite ® product via/product_registration .IMPORTANT RETURN POLICYPlease do not return this product to the store. For all warranty andproduct questions, please contact Fill-Rite Technical Support at 1 (800) 720-*****************************************(M-F,8AM–5PMET).About This ManualFrom initial concept and design through its final production, your Fill-Rite pump is built to give you years of trouble-free use. To insure it provides that service, it is critical that you read this entire manual prior to attempting to install or operate your new pump. Become familiar with the terms and diagrams, and pay close attention to the highlighted*************************(M-F,8AM–5PMET).Safety InformationInstallationThe Fill-Rite FR300V series pump is designed to offer several different mounting configurations. It can be mounted on a skid tank using the tank adapter supplied with the pump (see attached diagrams) or mounted on a concrete island using an optional pedestal adapter (available through your Fill-Rite distributor). Regardless of mounting style, all tanks must be properly vented.The FR300V series pump has a built-in check valve with pressure relief to reduce unsafe excess pressure from thermal expansion of the fluid. It also features an integral bypass valve to help minimize wear when the pump is operating with the nozzle closed.Typical Skid Tank Installation Materials• 1-1/4" pipe cut to a length that will terminate at least 3" from the bottom of thetank when installed into the tank adapter with the tank adapter installed intothe tank flange (see SKID TANK INSTALLATION diagram).• Threaded pipe joint sealant appropriate for application.Installation Procedure1. Thread the 1-1/4" pipe into the tank adapter. Seal threads liquid tight withappropriate thread sealant.2. Screw the tank adapter into the tank flange; seal threads liquid tight withappropriate thread sealant.3. Mount the pump on the adapter; seal threads liquid tight with appropriatethread sealant.4. Fill-Rite recommends installation of an Anti-Siphon Device.Typical “Pedestal / Island” Installation Materials• 1-1/4" threaded suction pipe, cut to extend 32-1/2" above the island.• FRPA125 Pedestal Kit (includes Pedestal Pipe, Base, & Coupler).• Threaded pipe joint sealant appropriate for application.Installation Procedure 1. Remove the coupler from the pedestal pipe by loosening the set screws.2. Slip the pedestal pipe/pump base assembly over the 1-1/4" suction pipe.3. Loosen the screws in the pedestal base to allow the pedestal pipe to slide downexposing the end of the suction pipe.4. Screw the coupler onto the suction pipe; seal threads liquid tight withappropriate thread sealant.5. Slide the pedestal pipe into the coupler and tighten the set screws.6. Tighten the screws in the pedestal base.7. Mount the pump on the coupler seal threads liquid tight with appropriate thread sealant.Bung Adapter / Suction Pipe Assembly and InstallationFR300V series pumps feature a 2" Bung Adapter with integral connection for ananti-siphon device. When installing the suction pipe into the bung adapter, the suctionpipe must be inserted into the bung adapter correctly for proper operation. The suctionpipe threads into the tank adapter, and must be cut to a length that positions it at least 3"from the bottom of the tank.1. Measure and cut suction pipe to fit as described above.2. Examine the bung adapter to determine top and bottom for proper insertion ofthe suction pipe. The bung adapter is labeled to help: the end marked “PUMPSIDE” is the top of the bung adapter. Note that the internal threads for thesuction pipe are at the TOP of the opening.3. Wrap the threads of the suction pipe with the appropriate sealant for the fluidbeing pumped. Insert the suction pipe (with the threaded side up) into thebottom of the bung adapter until the threads engage.4. Tighten the suction tube into the bung adapter to create an air / fluid tight seal.5. Apply an anti-seize thread compound to the external threads on the bottom ofthe bung adapter. Install the assembled bung adapter and suction pipe into thebung opening on the tank. Tighten to a fluid / air tight seal.6. Install pump onto bung adapter using appropriate fluid sealant, and tighten to afluid / air tight seal.Anti-Siphon DeviceYour FR300V series pump comes from the factory ready to install an anti-siphon tube back to the tank. An anti-siphon device (a.k.a. vacuum breaker) is important because it will break a liquid siphon if there is an open nozzleor a leaking hose below the fluid level in the tank when the pump is turned off. Fill-Rite recommends anti-siphonkit # KIT700AS be installed from the pump outlet back to the vapor space in the tank.This illustration shows where to install the tube so that it terminates in the vapor space at the top of the tank.The tube must terminate in the vapor space; if it terminates below the fluid level in the tank, it will not preventsiphoning. It is very important there are no liquid traps in the tubing; it must have a continuous slope from thepump down to the tank, and can be connected into any opening in the top of the tank if the tank adapter is notused. Use reducer bushings as required for proper fit and seal.The 1/4" NPT opening in the side of the tank adapter terminates in the vapor space of the tank. Make liquid tightconnections using the appropriate sealant from the adapter to the anti-siphon outlet using a minimum of 1/4"metal tubing that is compatible with whatever liquid is being pumped. If the anti-siphon tank adapter is beingused and the 1/4" NPT opening is not used for the tubing, leave the factory installed plug in place.Fill-Rite offers Anti-Siphon kit # KIT700AS (available through your Fill-Rite distributor). This kit contains thenecessary fittings and tubing to complete the installation as pictured in this section. NOTE: This kit ONLY worksfor tank top installations.If not using the KIT700AS, you will need the KIT700AVB. This will allow you to connect a line either back to thetank, or to the bung adapter.TOP1 1/4" SUCTION PIPEANTI-SIPHON LINEWiring ProcedureUse the Voltage Selector Switch on the end of the pump to select the input voltage for the pump. NOTE: The pump comes from the factory pre-set to 115V AC position.Electric WiringOperating Instructions 1. Reset Meter to “0” (if applicable).2. Remove dispensing nozzle from nozzle boot.3. Move the switch lever to the “ON” position to power the pump.4. Insert the dispensing nozzle into the container to be filled.5. Operate the nozzle to dispense fluid; release nozzle when the desired amount of fluid has been dispensed.6. Move switch lever to the “OFF” position to stop the pump.7. Remove the dispensing nozzle from the container and store it in the nozzle boot.PadlockingYour Fill-Rite pump nozzle can bepadlocked for added security.With the pump turned off, and thenozzle in the stored position, a padlockcan be inserted through the nozzlerest and nozzle handle opening. Thisconfiguration prevents the nozzle frombeing removed from the nozzle cover.Diesel fuel, kerosene, mineral spirits, Stoddard solvents, heptane, bio-diesel (B20 max.), and bio-diesel (B21 – B100) using KIT300BD.Technical Information / SpecificationsDesign Features:• Inlet: Bung: 2" male NPT; Suction pipe: 1-1/4" female NPT or for “E” series models Bung: 2" male BSPT; Suction pipe: 1-1/2" BSPP.• Outlet: 1" NPT, or 1" BSPT (BSPT on “E” series models).• Cast iron pump housing: iron (composite) rotor, and carbon (composite) vanes.• Security: Pump equipped for padlocking (see page 7 for details).• Thermal overload protection.• Heavy duty switch.• 30 minute duty cycle.• Explosion proof motor UL listed with sealed bearings that require nomaintenance.• Integral check valve with pressure relief on inlet side prevents pressure build up and improves vertical lift.• Easy access strainer.• Automatic bypass valve.• 2" threaded base for tank openings.• Constant Amp Draw (Service Factor of 1.0):0 115V AC 60Hz – 9.8 amps / 50Hz – 11.4 amps.0 230V AC 60Hz – 4.9 amps / 50Hz – 5.7 amps.Overall Dimensions:• Model FR310V: 17.12" wide X 15" high x 14.9" deep.• Model FR311V: 17.12" wide X 19.25" high x 14.9" deep.• Model FR319V: 17.12" wide x 19.4" high x 14.9" deep.Shipping Weight:FR310V: 80 lbs. / FR311V: 91 lbs. / FR319V: 92 lbs.Accessories:See page 9 for a complete list of available accessories.Performance:• 26 psi (1.79 bar) maximum pressure at pump outlet.• Up to 35 gallons (132 liters) per minute.• Maximum viscosity of fluid pumped: #2 diesel fuel.• Maximum Pump Operating Temperature: 150 degrees F (66 degrees C).• Minimum Pump Operating Temperature: minus 13 degrees F (minus 25 degreesC) (note that for operation at lower temperatures, we recommend the “Arctic Nozzle” and “Arctic Hose” accessories section on page 9).Suction Lift:The lift in feet is equal to the vertical distance from the surface of the fluid in the tank to the inlet of the pump, LESS friction losses through the vertical and horizontal runsof pipe, all elbows, and other fittings. System should be set up to require a minimum amount of suction lift.• For #2 diesel fuel use all other models (3/4 hp), suction lift is 18' (5.5 m).Safety Testing ApprovalsAlways keep the nozzle in contact with the container being filled during the filling process to minimize the possibility of static electricity build up.If in doubt about compatibility of a specific fluid, contact supplier of fluid to check for any adverse reactions to the following wetted materials:cast iron; steel; zinc plated steel; 300 series stainless steel; carbon; polyester; fluorocarbon; Teflon; brass; iron; copper; buna; 400 seriesTroubleshootingThe following Troubleshooting guide is provided to offer basic diagnostic assistance in the event you encounter abnormal service from your Fill-Rite product.If you have questions regarding installing, operating, or servicing your product, please feel free to contact our Technical Support at 1 (800) 720-5192 or via email at*************************(M-F,8AM–5PMET).Bold text indicates repairs that are not serviceable by the owner; please refer to our Warranty Policy on page 2 for further instructions.* Repairs marked with an asterisk (*) will require Repair Kit #300KTF7794. This kit includes a replacement rotor and new vanes, as well as a number of other important seals and components to complete the repair.Troubleshooting (Continued)AccessoriesA wide variety of accessories are available to help you maximize the performance of your Fill-Rite pump. Listed below are the applicable available accessories for your specific product.Please contact your authorized Fill-Rite distributor to purchase the accessories you need.Replacement Parts InformationFor repairs or routine maintenance, Fill-Rite offers the parts you need. The following parts diagram and list covers all applicable parts for your Fill-Rite product. These parts can be obtained through any authorized Fill-Rite dealer. Be sure to use only genuine Fill-Rite replacement parts for your service and maintenance needs. For a list of authorized dealers, please visit .FR300V / FR310V / FR311V / FR319V Parts ListFR311V Parts ListThe FR311V configuration adds a 901C Series mechanical meter, inlet meter flange, outlet meter flange, the associated attaching hardware, and gaskets. This package is available in gallon or liter register.FR319V Parts ListThe FR319V configuration adds a 900CD or 900CDP series digital meter, inlet meter flange, outlet meter flange, the associated attaching hardware, and gaskets. This packageis available in pulsing or non-pulsing configuration.2111300H0745 Rev. 8Motor Plate InformationENTRY THREADS ARE M20-1,5 6HVOLT: 115/230 Hz: 60/50 HP: ¾ AMB TEMP: 40°C PH: 1 RPM: 1725/1425 DUTY RATING: 30 MIN. FLA: 9.8/4.9/11.4/5.7 INS: B Serial Number and Year of Manufacture.Fill-Rite8825 Aviation DriveFort Wayne, IN 46809 USAWARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT.Materials of ConstructionMaterials of construction of the external surface of the unit are: painted steel;painted cast iron; painted aluminum; zinc plated steel.Materials of construction of the wetted parts are: cast iron; steel; zinc plated steel;300 series stainless steel; carbon; polyester; fluorocarbon; Teflon; brass; iron; copper;buna; 400 series stainless steel; aluminum.Repair and MaintenanceContact the place of purchase for warranty repair and maintenance.InstallationPump must be installed in compliance with EN 60079-14 or IEC 60079-14, as applicable.Certificates for Compliance of Safety have been obtained for the following agencies for products sold outside the US and Canada. Please refer to the tag on your particular product for its particular compliance data.2809II 2 G Ex db h IIA T4 Gb F M09ATEX0075X Ex db IIA T4 Gb IECEx FMG19.0014XSpecific Conditions of Use1. Consult the manufacturer if dimensional information on the flameproof joints is necessary.2. ISO Class 8.8, M6 hex-head screws (Yield Stress 640 MPa) shall be used to replace the terminal cover fasteners.3. ISO Class 8.8, M8 hex-head screws (Yield Stress 640 MPa) shall be used to replace the stator housing fasteners.4. An electrically conductive hose and nozzle must be used with flammable liquids. To minimize static electricity buildup, always keep the nozzle in contact with the container being filled during the fueling process.The following standards were used to show compliance in the European Union:EN IEC 60079-0:2018, Ed 7 “Explosive atmospheres – Part 0: Equipment –General requirements”EN 60079-1:2014, Ed 7 “Explosive atmospheres – Part 1: Equipment protection by flameproof enclosures “d””EN ISO 80079-36:2016, Ed 1 “Explosive atmospheres – Part 36: Non-electrical equipment for explosive atmospheres – Basic method and requirements”EN ISO 80079-37:2016, Ed 1 “Explosive atmospheres – Part 37: Non-electricalequipment for explosive atmospheres – Non electrical type of protection constructional safety “c”, control of ignition source “b”, liquid immersion “k””Directive 2014/34/EU – Equipment and protective systems intended for use in potentially explosive atmospheres.Directive 2011/65/EU – Restrictions of the use of certain hazardous substances in electrical and electronic equipment.The following standards were used to show compliance for IECEx certification:IEC 60079-0:2017, Ed 7IEC 60079-1:2014, Ed 72809Fill-Rite Company 8825 Aviation Drive Fort Wayne, Indiana 46809 USAT 1 (800) 720-5192 1 (260) 747-7524 F 1 (800) 866-4681 | | 。

I.总述三菱变频器500系列分为四大类别：1简单、易用型的FR-S500。

2小型、高性能的FR-E500。

3风机、水泵适用的FR-F500。

4多功能、通用型的FR-A500。

其中FR-E500又分为：～三相380V的FR-E540系列。

～三相220V的FR-E520系列。

～单相220V的FR-E520S系列。

以下要介绍的FR-E540外形如图所示：FR-E540具有如下优点：1采用磁通矢量控制，实现1Hz运行150%转矩输出。

2具有PID，15段速等多功能选择功能。

3内置RS485通讯口。

4柔性PWM，实现更低噪声运行。

5可选择FR-PA02-02简易型面板或FR-PU04LCD显示面板。

II.FR-E540的结构:前视图：拆掉前盖板和辅助板后：III.FR-E540的安装:安装1)小心使用变频器使用了塑料零件，因此，为了不造成破损，请小心地使用，其次，不要仅在前盖板上使用了太大的力。

前盖板的拆卸前盖板是由位于A，B，C位置的插销固定的，请按箭头方向以C为支点，同时按下A，B，取下前盖板。

前盖板的安装接线后安装时，请固定插销。

请不要在拆掉前盖板状态下投入电源。

接线盖的拆卸请按箭头A的方向拉出接线板罩。

接线盖的安装电线通过接线孔接线，确保盖板装到原来的位置。

辅助盖板的拆卸如图按下箭头A的同时，以箭头B为支点使右侧提起，朝右方拉出可拆卸下来。

辅助盖板的安装将辅助盖板的安装爪（左侧）插入变频器本体的安装位置的同时，按下右侧的安装抓可安装上。

操作面板的拆卸按下箭头A的同时，以箭头B为支点使右侧提起，朝右方拉出可拆卸下来。

操作面板的安装将操作面板的安装爪（左侧）插入变频器本体的安装位置的同时，按下右侧的安装抓可装上。

注意:为确保安全，请断开电源以后安装和拆卸。

操作面板可以拆下，反面露出充电部和控制板。

拆下使用时，必须安装选件的内面板（FR-E5P）。

绝对不要触摸控制板，以免引起变频器发生故障。

2)请安置在不易受震动的地方。

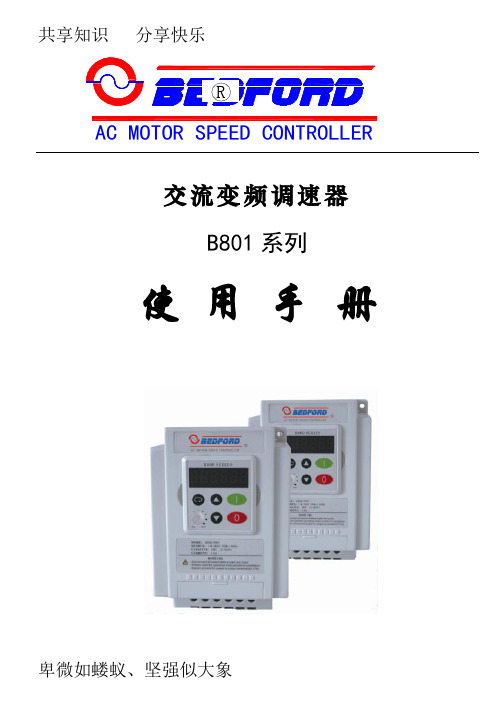

B801系列使用手册V1.4目录1、前言 (1)2、安全注意事项 (1)3、产品检查3.1检查步骤 (1)3.2型号说明 (1)4、安装4.1外型尺寸 (2)4.2使用环境 (2)4.3注意事项 (2)5、配线5.1基本接线图 (4)5.2操作注意 (5)6、数字操作器使用方法6.1显示器及操作键 (5)6.2操作键的使用 (5)7、测试运转 (6)7.1掌握一些相应的调节方法或许能让您获得更理想的使用效果 (6)7.2键盘操作模式 (6)7.3键盘操作正、反转模式 (7)7.4控制端子操作模式 (7)7.5参数恢复出厂设定值 (7)7.6参数修改后储存条件 (7)8、显示屏上的符号解释 (8)9、参数和数据表9.1参数一览表 (11)9.2参数说明 (13)10、故障指令及对策10.1故障发生时处理排除的注意事项 (18)10.2异常故障处理对策表 (18)10.3运转注意事项 (19)11、B801-200V系列标准规格 (20)12、B801-400V系列标准规格 (21)1、前言感谢您选用B801系列高性能变频器，使用前务必请认真阅读本说明书。

2、安全注意事项变频器是电力电子新产品，为了您的安全，本手册中有“危险”“注意”等符号是提醒您在搬运、安装、运转、检查变频器时的安全防范事项。

! 危险错误使用时，可能造成人员伤亡。

! 注意错误使用时，可能造成变频器或系统损坏。

3、产品检查3.1检查步骤•变频器是否符合所订购的型号与规格。

•检查在运输过程中，变频器是否因运送不慎造成损伤，若有损坏请勿接入电源。

•保修单编号是否与变频器一致。

当您发现有上述问题时，请立即通知有关销售商的业务人员。

3.2型号说明4、安装4.1外型尺寸4.2使用环境变频器安装的环境对变频器正常功能的发挥及其使用寿命有直接的影响，因此，变频器安装的环境必须符合下列条件：•周围温度：壁挂型，-10~45℃；柜内封闭型，-10~40℃。

感谢您购买孚瑞肯电气（深圳）有限公司开发生产的FR530系列矢量控制变频器。

FR530系列矢量控制变频器主要定位为中高端市场的OEM客户及特定要求的风机、水泵类负载应用场合，其设计灵活，内嵌SVC、VF控制于一身，可广泛应用于对速度控制精度、转矩响应速度、低频输出特性有较高要求的应用场合。

本用户手册详细介绍了FR530系列矢量控制变频器的产品特征、结构特点、参数设置、运行调试、维护检查等方面的内容。

使用前请务必认真阅读本手册中的安全注意事项，在确保人身及设备安全的前提下使用该产品。

第一章产品信息........................................................................................................................................... - 3 -1.1产品铭牌 (3)1.2产品额定值 (4)1.3产品技术规格 (4)1.4产品外形和安装尺寸及重量 (6)1.5产品端子配置 (10)1.5.1 接线方式.................................................................................................................................. - 10 -1.5.2主回路端子 ............................................................................................................................... - 11 -1.5.3控制回路端子 ........................................................................................................................... - 13 -第二章功能参数表..................................................................................................................................... - 15 -第三章故障诊断及对策 ............................................................................................................................. - 37 -附录A:MODBUS通讯协议........................................................................................................................ - 40 -附录B:选配件.............................................................................................................................................. - 45 -B.1制动电阻 (45)B.2PROFIBUS通讯模块 (46)1.1 产品铭牌型号说明产品铭牌上的型号用数字、符号和字母组合的方式表示了其所属系列、适用电源种类、功率等级等信息。

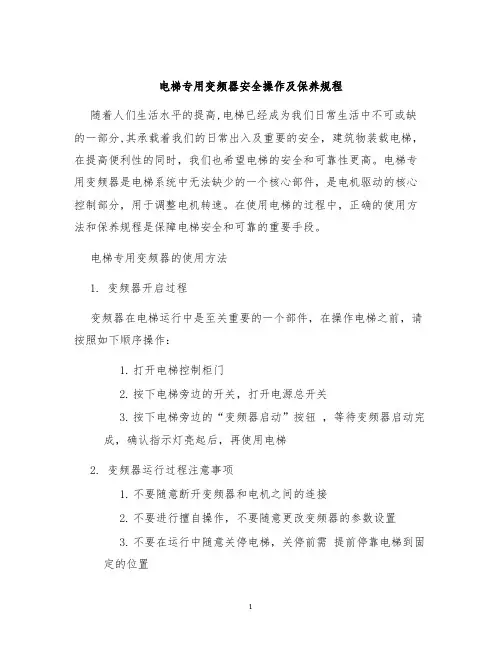

电梯专用变频器安全操作及保养规程随着人们生活水平的提高,电梯已经成为我们日常生活中不可或缺的一部分,其承载着我们的日常出入及重要的安全，建筑物装载电梯，在提高便利性的同时，我们也希望电梯的安全和可靠性更高。

电梯专用变频器是电梯系统中无法缺少的一个核心部件，是电机驱动的核心控制部分，用于调整电机转速。

在使用电梯的过程中，正确的使用方法和保养规程是保障电梯安全和可靠的重要手段。

电梯专用变频器的使用方法1. 变频器开启过程变频器在电梯运行中是至关重要的一个部件，在操作电梯之前，请按照如下顺序操作：1.打开电梯控制柜门2.按下电梯旁边的开关，打开电源总开关3.按下电梯旁边的“变频器启动”按钮，等待变频器启动完成，确认指示灯亮起后，再使用电梯2. 变频器运行过程注意事项1.不要随意断开变频器和电机之间的连接2.不要进行擅自操作，不要随意更改变频器的参数设置3.不要在运行中随意关停电梯，关停前需提前停靠电梯到固定的位置3. 变频器异常故障的处理流程1.发现电梯出现异常情况，应该及时将电梯停靠在最近的楼层2.打开控制柜门，确认变频器是否有告警指示灯亮起3.根据变频器的故障代码手册，查找对应的故障原因和解决方案电梯专用变频器的保养操作1. 定期检查变频器的状态变频器在使用的过程中容易因环境影响，因时间积累而出现问题，在日常使用过程中，对于以下情况可能需定期进行检查：1.变频器外壳是否存在损伤和变形2.变频器风扇是否运行正常3.变频器电容是否正常4.变频器继电器是否正常5.变频器接线是否良好2. 定期清洁变频器对于电梯专用变频器进行定期的清洁和整理，可以缩短故障的判断和维修时间。

在清洁过程中需要注意以下几点：1.在进行清洁之前，要先切断电源2.在清洁过程中不要使用水清洗变频器3.用干布或吹风机对变频器进行清理，避免使用刷子等物品对变频器造成损伤3. 定期更换保护物件为延长变频器的使用寿命，需要定期进行保护物件的更换，包括：1.更换散热器内的滤网，定期清除其上的积尘2.更换电容和继电器，避免其老化或故障时造成设备损坏总结电梯专用变频器是电梯运行中不可或缺的部件，较好地节约了电能，提高了工作效率。

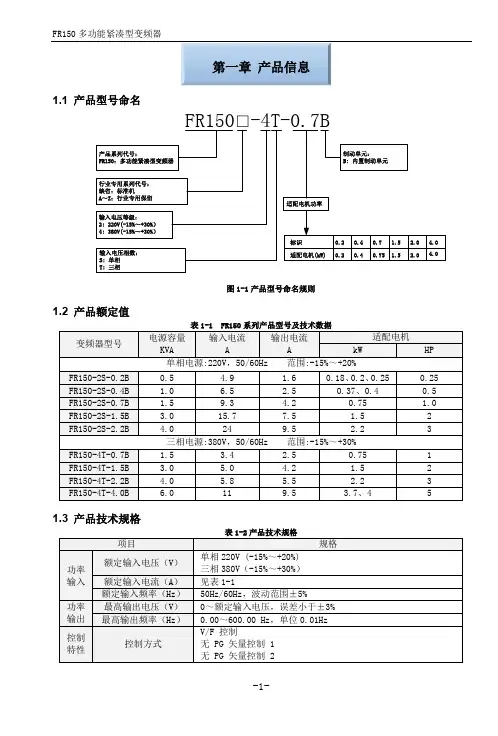

第一章产品信息1.1 产品型号命名图1-1产品型号命名规则1.2 产品额定值1.3 产品技术规格1.4 产品外形和安装尺寸及重量1.5.1主回路端子A : FR150单相主回路端子图1-3a FR150单相端子示意图B : FR150三相主回路端子图1-3b FR150三相端子示意图PB NC1.5.2控制回路端子DI1+24V DI2DI3DI4+10V R1A R1B R1CAI1AI2485+AO1GND DI7/HI Y1GND485-PE图1-4 控制端子示意图屏蔽PE 屏蔽接地辅助外引键盘接口接口第二章功能参数表F00～F17是基本功能参数，U00组是状态监视参数，U01组是故障监视参数。

功能参数表相关说明:更改属性:“△”表示该参数的设定值在变频器停机和运行状态均可更改；“×”表示该参数的设定值在变频器处于运行状态时不可更改；“⊙”表示该参数为实际检测值，不能更改；附录一. Modbus 通讯协议1.1. 适用范围:1.适用系列:孚瑞肯FR 系列变频器。

2.适用网络:支持ModBus 协议，RTU 格式，具备RS485总线的“单主多从”通讯网络。

RS485异步半双工通讯模式，最低有效位优先发送。

RS485端子默认数据格式为:1-8-N-2，波特率:9600bps 。

数据格式1-8-N-2、1-8-O-1、1-8-E-1、1-8-N-1，波特率4800、9600、19200、38400、57600、115200bps 可选。

推荐使用双绞屏蔽线做为通信线，以降低外部干扰对通信的影响。

1.3. 协议格式:附图1协议格式ADU(Application Data Unit)中的校验是ADU 前三部分的CRC16校验和通过高低字节交换而得。

在协议格式中，CRC 校验的低字节在前，高字节在后。

1.4. 协议格式说明1.地址码变频器从机地址。

设定范围1～247，0为广播地址。

1.6．CRC校验发送设备首先计算CRC值，并附在发送信息中。
