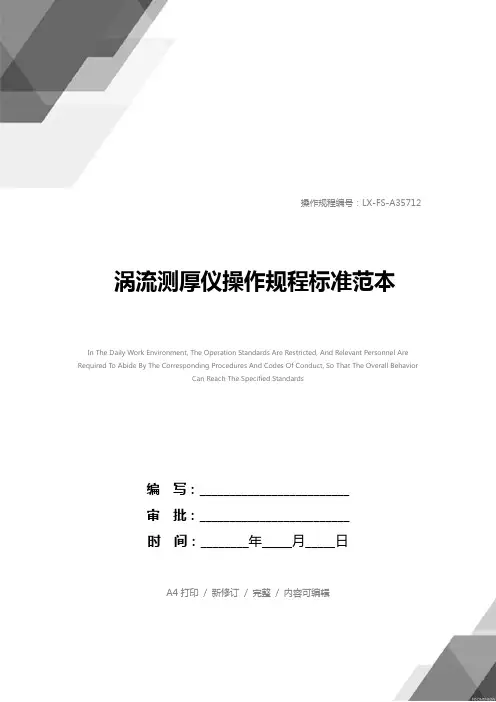

操作规程编号：LX-FS-A35712 涡流测厚仪操作规程标准范本In The Daily Work Environment, The Operation Standards Are Restricted, And Relevant Personnel Are Required To Abide By The Corresponding Procedures And Codes Of Conduct, So That The Overall BehaviorCan Reach The Specified Standards编写：_________________________审批：_________________________时间：________年_____月_____日A4打印/ 新修订/ 完整/ 内容可编辑涡流测厚仪操作规程标准范本使用说明：本操作规程资料适用于日常工作环境中对既定操作标准、规范进行约束，并要求相关人员共同遵守对应的办事规程与行动准则，使整体行为或活动达到或超越规定的标准。
资料内容可按真实状况进行条款调整，套用时请仔细阅读。
1 清除净被测物件上的污物、尘土和水。
将仪器的探头擦拭干净。
2 按下开关键，仪器自检完毕发出一鸣音，显示”0 0”便可以进行测量操作。
3 将探头平稳、垂直地放落在被测件上，待仪器鸣叫一声，显示器上便显示出涂层的厚度值。
然后再抬头高探头，重新落下，进行下一次测量这样反复5—10次，就可以完成一个测量序列。
4 在测试过程中，如因探头放置不平稳，或探头太脏等原因，显示出明显的错误值，此时应按下清键，将错误值删除。
否则将影响整体测试结果的准确性。
5 按统计键5次，可顺次显示出以下统计数：MEAN—平均值；MAX—最大值；MIN—最小值；S—标准偏差；N—测量次数。
6 统计程序完成后，可接着进行下一次测量序列。
若需要获得更多的连续统计数据，只要按两次上调键时，接着再进行测量，则测量出的数据和以前的数据是连续累加的。
涡流检测仪使用说明欢迎使用涡流检测仪，这可是个超酷的检测小能手呢。
下面我就来给你唠唠怎么用它。
一、准备工作。
1. 检查设备。
- 先把涡流检测仪从它的小窝里（存放的地方）拿出来，好好瞅一瞅。
看看它的机身有没有啥磕磕碰碰的地方，就像检查一个小宝贝有没有受伤一样。
- 再瞅瞅那些连接的线缆，确保它们都插得稳稳当当的，可别松松垮垮的，不然就像没系紧鞋带一样，会出问题的。
2. 开机预热。
- 找到电源开关，轻轻一按，把它打开。
这时候呢，就像它在伸懒腰、做热身运动一样，给它一点时间预热一下。
一般预热个几分钟就差不多了，具体时间可以参考说明书上的小提示哦。
二、检测设置。
1. 选择检测模式。
- 在检测仪的操作面板上，有一些小按钮或者菜单选项。
你得根据你要检测的东西来选择合适的检测模式。
比如说，你要是检测金属管材，那就得选管材检测模式；要是检测金属板材，那板材检测模式就是你的菜啦。
这就好比你去钓鱼，得根据鱼的种类选对鱼饵一样。
2. 调整参数。
- 接下来就是调整参数啦。
这里面有检测频率、增益、相位这些听起来有点复杂的东西。
不过别担心，就像调收音机一样，你可以试着先从一些默认的参数开始，然后根据检测的实际情况再微调。
- 检测频率呢，简单来说就是检测仪发射信号的节奏快慢。
如果检测的材料比较薄，可能就需要高一点的频率；材料厚呢，频率就可以低一点。
增益就像是给检测仪的眼睛戴上一副放大镜，让它能更清楚地看到微小的缺陷。
相位呢，就有点像调整方向，让检测的信号和缺陷的信号能对上号。
三、开始检测。
1. 放置探头。
- 拿着探头，这可是检测仪的小触角哦。
把探头轻轻放在要检测的金属表面上，要确保探头和表面接触良好，就像两只手紧紧握在一起一样。
如果中间有空气或者脏东西，就可能影响检测结果啦。
2. 移动探头。
- 然后慢慢地移动探头，就像扫地机器人在地上慢慢走一样，要均匀、平稳地移动。
在移动的过程中，检测仪的屏幕或者指示灯就会给你反馈啦。
如果检测到有缺陷，它可能会发出警报声，或者在屏幕上显示出一些特别的标记，就像发现宝藏（其实是缺陷）的时候，它在大声喊“这里有情况”一样。

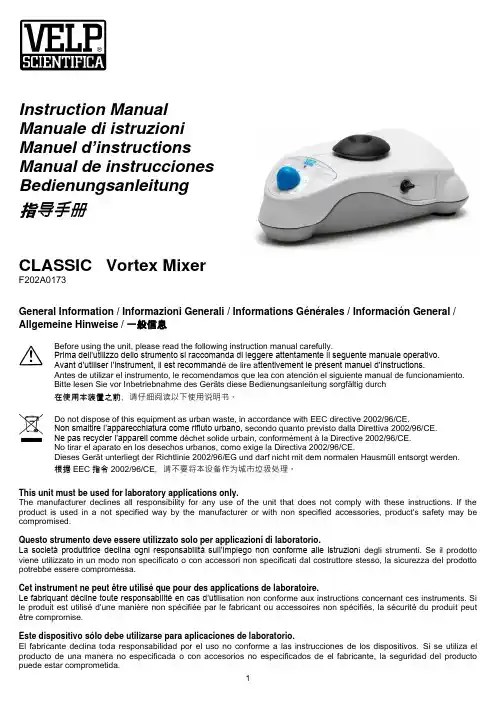

Instruction ManualManuale di istruzioniManu el d’instructionsManual de instruccionesBedienungsanleitung指导手册CLASSIC Vortex MixerF202A0173General Information / Informazioni Generali / Informations Générales / Información General / Allgemeine Hinweise / 一般信息Before using the unit, please read the following instruction manual carefully.Prima dell’utilizzo dello strumento si raccomanda di leggere attentamente il seguente manuale operativo.Avant d’utiliser l’instrument, il est recommandé de lire a ttentivement le présent manuel d’instructions.Antes de utilizar el instrumento, le recomendamos que lea con atención el siguiente manual de funcionamiento.Bitte lesen Sie vor Inbetriebnahme des Geräts diese Bedienungsanleitung sorgfältig durch在使用本装置之前，请仔细阅读以下使用说明书。
Do not dispose of this equipment as urban waste, in accordance with EEC directive 2002/96/CE.Non smaltire l’apparecchiatura come rifiuto urbano, secondo quanto previsto dalla Direttiva 2002/96/CE.Ne pas recycler l’appareil comme déchet solide urbain, conformément à la Directive 2002/96/CE.No tirar el aparato en los desechos urbanos, como exige la Directiva 2002/96/CE.Dieses Gerät unterliegt der Richtlinie 2002/96/EG und darf nicht mit dem normalen Hausmüll entsorgt werden.根据EEC指令2002/96/CE，请不要将本设备作为城市垃圾处理。
Honeywell测厚仪系统操作说明系统开机程序：1。
合工厂220VAC总电源，合主机220V主电源,合显示器电源，启动服务器。
系统将自动启动Ｗindows2000和RAE操作系统。
2。
合IO控制柜内CD控制和MD控制220VAC电源，合 Cast 扫描架MSS柜220VAC电源，合Film扫描架MSS柜电源，合Film扫描架交流220VAC电源。
系统停机程序：１。
在RAE 操作界面上点击登陆为研发员（Developer）,输入密码*** ，点击，点击系统停止（System Stop）按钮，然后点击OK,关闭RAE操作系统。
２。
点击Windows2000的开始菜单Start…,点击shutdown,然后点击OK，关闭windows2000操作系统，服务器电源自动断电。
3。
关闭显示器电源，关闭Cast 扫描架MSS柜电源，关闭Film扫描架MSS柜电源，关闭Film扫描架交流220VAC电源，关闭CD控制和MD控制电源。
注意：为保证测厚仪的正常运行，1。
必须保证压缩空气的正常提供，要求压力保持在4公斤以上。
2。
定期用酒精和脱脂棉将上下头窗口膜擦干净。
3。
如有过程报警（SS1 Safety Foult),可点击，再在画面上点击“复位清除传感器安全保护（Restart MSS to clear safety fault)”来清除报警。
4。
如有意外停电，请先按停机程序关闭系统，待电源恢复后，按开机程序要求开机。
品种更换快捷键 “Simple Recipe Change”这个按键用于显示快捷品种更换画面，通过一个按键可以方便地完成以下的一系列动作：结束当前运行的品种、检索和下载新的品种、启动新品种。
如果只需要改变品种参数而不启动品种或者在下载前需要检查或更改品种参数，请使用品种更换(Recipe Change)画面。
使用快捷品种更换画面的步骤如下：1.选定品种的组别(如果有多于一个的品种组别)；2.从该组别的清单里选定新的品种；3.选“OK”结束当前品种并下载和启动新品种；4.选“Cancel”退出画面而保留原有品种。
User GuideHeavy Duty CFM-CMM Thermo-Anemometer With built-in non-contact IR Thermometer and Laser PointerIntroductionCongratulations on your purchase of the Extech HD300 CFM Thermo-Anemometer. This handheld meter measures and displays air velocity, air flow (volume), temperature of air, and surface temperature (using the built-in non-contact IR thermometer). This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable service.FeaturesCFM/CMM Thermo-Anemometer with built-in non-contact IR Thermometer measures remote surfaces to 932°F (500°C) with a 30:1 distance to spot ratio andLaser pointer.Simultaneous display of Air Flow or Air Velocity plus ambient temperature.Eight (8) memory locations permit the user to store multiple air duct AREA values for fast and easy recall.Twenty (20) reading average for Air Flow or Air Velocity.Large backlit LCD display.3% velocity accuracy via low friction 2.83” (72mm) ball-bearing vane wheel on a3.9’ (120cm) cable.Data Hold and Max/Min/Avg.Auto Power OFF (can be disengaged).Safety•Use extreme caution when the laser pointer beam is on Array•Do not point the beam toward anyone's eye or allow the beamto strike the eye from a reflective surface•Do not use the laser near explosive gases or in otherpotentially explosive areasHD300-EU V2.0 4/082Meter Description1. LED display for Air Velocity, Air Flow, ProbeTemperature, and remote surfacetemperature. Units of measurement and useralerts are also displayed on the LCD.2. Vane Sensor. Hold the sensor in the flow ofair to take a reading.3. IR sensor: Non-contact temperaturemeasurement for remote surfaces.4. Laser Pointer: Helps the user aim the IRsensor.5. Battery access: Cover on rear panel6. PC interface jack: Use the supplied cable toconnect meter to a PC7. Upper Keypad (brief descriptions below):IRT: Press and hold to measure remote surface temperature. Release to hold the temperature value on the display.MAX/MIN (for air temperature measurements): Used to record and store the highest and lowest readings for temperature measurements made by the vaneprobe.AVG: Used to obtain Average for multi-point measurements in either FLOW or VELOCITY modes. Up to twenty (20) points can be averaged.HOLD (for air temperature measurements): Press to freeze the displayed temperature reading measured by the probe. Press again to unlock the display.Press and hold for 2 seconds to activate the LCD backlight. Press and hold againfor 2 seconds to turn the backlight off.8. Lower Keypad: Press to record and store the highest, lowest and continuous moving average readings for single point measurements. This button also functions as the decimal positioning tool in the AREA mode.mode, the meter displays air volume. In VELOCITY mode, the meter displays airspeed. This button also functions as the UP arrow button in AREA mode.AREA / NEXT: Press and hold to enter the AREA mode. The NEXT function allows the user to save AREA values to any of eight memory locations. This button is alsoused to clear stored readings in the MAX/MIN/AVG modes.Press to freeze the displayed air velocity or air flow reading. Press again to unlock display. Thisbutton also functions as the right arrow button in the AREA mode.NOTE: Battery Compartment and Tripod Mount are located on the reverse side of the meterHD300-EU V2.0 4/083HD300-EU V2.0 4/084 OperationAir Velocity Measurements1.Connect the sensor to the sensor input jack on top of the meter. 2.button. 3. Select the VELOCITY function using the UNITS button.Press the button repeatedly until the LCD displaysVEL .4. Press and hold the UNITS button for 2 seconds (untiltwo tones are heard) to change the temperature unitsfrom °C to °F or from °F to °C. The LCD will reflect theselection.5. Select the desired air velocity units using the UNITSbutton. The LCD will reflect the selection.6. Place the sensor in the air current to be measured withthe arrow on the inlet side of the vane (see diagram).7.View the air velocity and temperature readings on the LCD Display. Air Flow (Volume) Measurements (CFM / CMM)1.Connect the sensor to the sensor input jack on top of the meter. 2.3. Select the FLOW mode using the UNITS button. Press the button repeatedly until theLCD displays FLOW CFM (cubic feet per minute) or FLOW CMM (cubic meters perminute) as desired.4.Measure the dimensions of the duct or vent in question and calculate the area insquare feet or square meters Note: If the dimensional measurements are made in inches (or cm), convert them feet (ormeters) before calculating the square area.5.To begin entering the area in m 2 or ft 2press and hold the AREA button for approx. 2 seconds (until two tones are heard). 6.Momentarily press the NEXT button to select the desired memory location to store the area value (there are eight locations). 7.8.Press and hold the AREA button for approx. 2 seconds (until two tones are heard) to save the area value in memory. 9. Place the sensor in the air current to be measured with the symbol on the inlet side ofthe vane.10. View the air flow and temperature readings on the LCD Display.11. If the CFM or CMM reading exceeds 9999, the display will show the X10 or X100multiplier in the lower right hand corner of the LCD indicating that the displayed valuemust be multiplied by 10 or 100 to arrive at the correct flow measurement value.Arrow Side view of VaneHD300-EU V2.0 4/085 Non-contact IR Surface Temperature MeasurementsThe built-in IR sensor can remotely measure the temperature of just about any surface. The Laser pointer allows the user to aim accurately when taking remote measurements. 1.2.The IR sensor is located at the top of the meter. 3.Point the sensor toward the surface to be measured. 4. Press and hold the IRT button to begin measuring theIR TEMP andswitch on to help aim the meter.5. The measured IR surface temperature will appear on theLCD. The temperature displayed is the temperature ofthe area within the spot.6. When the IRT button is released, the laser pointer willswitch off and the reading will freeze (data hold) on thedisplay for approximately 7 seconds.7.After the 7 second hold time the meter returns to the AirVelocity/Flow and Air Temperature mode.WARNING: Do not directly view or direct the laser pointer at an eye. Low powervisible lasers do not normally present a hazard, but may present some potential forhazard if viewed directly for extended periods of time.Data Hold1.The HOLD button in the upper keypad area freezes the displayed vane temperature reading. Press again to unlock the display. 2. The HOLD button in the lower keypad area freezes the displayed air velocity or airflow measurements. Press again to unlock the display.3. The HOLDindicator will appear on the LCD when the display is in Data Hold mode.MIN-MAX-AVG Recording ModesThe HD300 has several MIN-MAX-AVG modes described separately below. MIN-MAX-AVG functions are available for all measurements made with the vane sensor (air velocity, air flow, and air temperature).Continuous Moving AverageIn the Continuous Moving Average mode the meter displays the continuous average of the measured readings for up to a 10 hour period.1. Turn the meter ON.2. Place the sensor in the air stream.3. Press the MAX-MIN button in the lower keypad area for air velocity / flow.4. Press the MAX-MIN button in the upper keypad area for air temperature.5. The meter will begin averaging readings once per second.Single Point Min-Max-AvgIn the Single Point Average Mode the meter takes a reading once per second andstores the highest, lowest, and average readings.1. Turn the meter ON.2. Place the sensor in the air stream.3. Press the MAX-MIN button (lower keypad area for air velocity/flow; upperkeypad area for air temperature) to enter the REC mode and display onlythe highest reading (display will show REC MAX).4. Press again to view the MIN value (display will show REC MIN). Now thedisplay will show only the lowest reading.5. Press again to view the AVG value (display will show REC AVG).6. To return to normal operation mode, press and hold the MAX-MIN buttonuntil two tones are heard.Multi-point AverageIn the Multi-Point Average Mode the meter averages up to 20 Air Velocity readings.1. Turn the meter ON.2. Press and hold the AVG button for 2 seconds (until two beeps are heard). A‘0’ will display in the upper right hand corner of the LCD and ‘AVG’ willappear on the bottom of the LCD.3. Place the sensor in the air stream under test.4. Press the AVG button momentarily to capture the reading (a single tone willbe heard) and the HOLD and AVG icons will appear on the bottom of theLCD. The ‘0’ that was displayed previously will increment to ‘1’. Thisnumber will increment with each successive press of the AVG button.5. Take more readings (up to a maximum of 20) in the same fashion asdescribed in step 4.6. The LCD will display the average of all the readings taken since the multi-point mode was accessed in step 2.7. To return to normal operation, press and hold the AVG button for 2 seconds(until two tones are heard).8. To clear the stored readings after exiting the Multi-point Average mode,press the AREA button once.HD300-EU V2.0 4/086HD300-EU V2.0 4/087 Battery ReplacementWhen the battery icon appears on the LCD, the 9V battery must be replaced.1.The battery compartment is located on the rear of the meter. 2.Press in and down on the arrow located above the tilt stand hinge. 3. Replace the 9V battery and the battery coverYou, as the end user, are legally bound (Battery ordinance) to return all usedbatteries and accumulators; disposal in the household garbage is prohibited!You can hand over your used batteries / accumulators, gratuitously, at thecollection points for our branches in your community or wherever batteries /accumulators are sold!Follow the valid legal stipulations in respect of the disposal of the device at theend of its lifecycleAuto Power OFF overrideThe HD300 is programmed to turn off automatically after idling for 15 minutes. This isdesigned to save battery life in the event the meter is left ON inadvertently. (Note: When the meter is in the “CFF/CMM” or “Average” mode, Auto Power Off is disabled.)To over-ride this feature:1.Turn the meter OFF 2.3.Release the button when appears in the display. 4.The meter will now remain ON until the user manually turns if OFF. 5. The next time the meter is turned OFF the Auto Power OFF function will be re-activated.USB PC Interface and SoftwareThe HD300 is equipped with a communication jack on its upper left side. The suppliedcommunications cable connects to this jack and to a USB port on a PC. The suppliedsoftware allows the user to view and save readings to the PC. Instructions for use andfeatures are detailed in the supplied software HELP utility.HD300-EU V2.0 4/088 IR TheoryIR thermometers measure the surface temperature of an object. The meter’s optics sense emitted, reflected, & transmitted energy that is collected and focused onto the meter’s detector. The meter’s circuitry translates this information into an LCD reading.InfraRed Measurement Considerations• When taking IR measurements the meter automatically compensates for ambient temperature changes. Note that it may take up to 30 minutes to adjust to extremelywide ambient changes.• Low temperature measurements quickly followed by high temperature measurements may require several minutes to stabilize as a result of the IR sensor cooling process. • If the surface of the object under test is covered with frost, oil, grime, etc., clean before taking measurements.• If an object's surface is highly reflective apply masking tape or flat black paint before measuring.• Steam, dust, smoke, etc. can obstruct measurements.• To find a hot spot, aim the meter outside the area of interest then scan across (in an up and down motion) until the hot spot is located.•IR measurements cannot be made through glass. IR Field of ViewEnsure that the desired target is larger than the spot size. As the distance from an object increases, the spot size of the area measured by the meter becomes larger. The meter’s field of view ratio is 30:1, meaning that if the meter is 30 inches (cm) from the target, the diameter (spot) of the object under test must be at least 1 inch (cm). Refer below to theEmissivityMost organic materials and painted or oxidized surfaces have an emissivity of 0.95.Inaccurate readings will result when measuring shiny or polished surfaces. Tocompensate, cover the surface under test with masking tape or flat black paint. Allow time for the tape to reach the same temperature as the material underneath then measure the temperature of the tape or the painted surface.Thermal Emissivity Table for Common MaterialsMaterial Emissivity Material Emissivity Asphalt 0.90 to 0.98 Cloth (black) 0.98skin 0.98 Concrete 0.94 HumanCement 0.96 Leather 0.75 to 0.80Sand 0.90 Charcoal0.96(powder) Earth 0.92 to 0.96 Lacquer 0.80 to 0.95(matt)0.97Water 0.67 LacquerIce 0.96 to 0.98 Rubber (black) 0.94Snow 0.83 Plastic 0.85 to 0.95Glass 0.85 to 1.00 Timber 0.90Ceramic 0.90 to 0.94 Paper 0.70 to 0.940.81oxides Marble 0.94 ChromiumPlaster 0.80 to 0.90 Copper Oxides 0.78Mortar 0.89 to 0.91 Iron Oxides 0.78 to 0.82Brick 0.93 to 0.96 Textiles 0.90HD300-EU V2.0 4/089HD300-EU V2.0 4/08 10Useful Equations and Conversions AREA equation for rectangular or square ductsArea equation for circular ductsCubic equationsNOTE: Measurements made in inchesmust be converted to feet or meters before using the above formulae.Unit of Measure Conversion Tablem/s ft/min knots km/h MPH 1 m/s1 196.87 1.944 3.6 2.24 1 ft/min0.00508 1 0.00987 0.01829 0.01138 1 knot0.5144 101.27 1 1.8519 1.1523 1 km/h0.2778 54.69 0.54 1 0.6222 1 MPH0.4464 87.89 0.8679 1.6071 1Width (W) Height (H) Area (A) = Width (W) x Height (H) CFM (ft 3/min) = Air Velocity (ft/min) x Area (ft 2) CMM (m 3/min) = Air Velocity (m/sec) x Area (m 2) x 60 Radius Area (A) = π x r 2 Where π = 3.14 and r 2 = radius x radiusSpecificationsGeneral SpecificationsDisplay Dual Display Multi-function LCD with 9999 countsMeasurements Air Velocity: m/s, km/h, ft/min, knots, mph;Air Flow: CMM (m3/min) and CFM (ft3/min);Air Temperature (through vane) and Surface Temperature(using the IR thermometer function): °C and °F Data Hold Freezes displayed readingSampling rate 1 reading per secondSensors Air velocity/Air flow sensor: Conventional angled vane armswith low-friction ball bearing. Air temperature sensor: Precisionthermistor (built into the vane assembly); Surface temperaturevia non-contact IR sensor.IR Distance to Spot ratio 30:1IR Spectral response 6 to 14µmIR Emissivity 0.95 fixedMIN-MAX-AVG Record and Recall lowest, highest, and average readings Auto Power OFF Automatic shut off after 15 minutes (can be disengaged) PC Interface USB PC Communication with supplied software and cable fordata acquisitionOver range indication Dashes appears on the LCDLow battery indication Battery symbol appears on the LCDPower supply 9V BatteryOperating conditions Meter: 0 to 50o C (32 to 122o F); 80% RH max.Sensor: 0 to 60o C (32 to 140o F)Dimensions / Weight Main instrument: 8.0 x 3.0 x1.9" (203 x 75 x 50mm)Sensor head: 2.8” (72mm) diameteroz.(280g)9.8WeightHD300-EU V2.0 4/0811Range SpecificationsAir Velocity Measurements Range Resolution Accuracy (%rdg) m/s (meters per second) 0.40 – 30.00 m/s 0.01 m/s ± (3% + 0.20m/s) km/h (kilometers per hour) 1.4 – 108.0 km/h 0.1 km/h ± (3% + 0.8km/h) ft/min (feet per minute) 80 – 5900 ft/min 1 ft/min ± (3% + 40ft/min) mph (miles per hour) 0.9 – 67.0 mph 0.1 mph ± (3% + 0.4m/h) knots (nautical miles per hour) 0.8 to 58.0 knots 0.1 knots ± (3% + 0.4knots)Air Flow Measurements Range Resolution Area CMM (cubic meters per minute) 0-999,900 m3/min 0.001 0 to 999.9m2CFM (cubic feet per minute) 0-999,900 ft3/min 0.001 0 to 999.9ft2 Temperature Range Resolution Accuracy0.1o C/F±2o C (4o F)Air Temperature (vane) -10 to 60o C (14 to140o F)Surface Temperature (IR) -50 to -20o C (-58 to -0.1o C/F± 5o C (9o F)4o F)0.1o C/F±2% or ±2o C (4o F)-20 to 500o C (-4 to932o F)Copyright © 2008 Extech Instruments Corporation (a FLIR company)All rights reserved including the right of reproduction in whole or in part in any form.HD300-EU V2.0 4/0812。
涡流测厚仪使用说明书目 录 １． 概述．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１ ２． 技术参数．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．２ ３． 仪器的成套性．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．３ ４． 按键说明．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．３ ５． 测量操作．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．３ ６． 校正操作．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．５ ７． 故障排除．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．７ ８． 日常维护．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．８ 使用说明书 １． 概述 ＥＤ２００型涡流测厚仪，是一种小型的、用电池供电的便携式仪器，具有快速、方便、无损检测的特点，适于测量各种非磁性金属基体上绝缘性覆盖层的厚度。
本仪器主要用于测量铝型材表面的氧化膜或涂层厚度，也可用于测量建筑用铝塑复合板表面氟碳涂层的厚度，以及测量其它铝件的阳极氧化膜和塑料、纸张的厚度。
本仪器可在生产现场、销售现场或施工现场对产品进行快速无损的膜厚检查，可用于生产检验、验收检验和质量监督检验。
本仪器符合国家标准ＧＢ４９５７，已通过国家计量部门的样机试验，并获得计量器具制造许可证。
许可证号为：辽制０１０３００１２。
ＥＤ３００型涡流测厚仪是ＥＤ２００型涡流测厚仪的改进型，体积减小、重量减轻、外形美观，仪器电路板和探头都做了改进，性能和寿命有所提高。
本仪器具有以下重要功能： ♦ 自动校正。
简单地通过按键即可自动校正仪器，校正数据自动ED200型 ED300型存储，下次使用时开机即可直接测量。
♦ 数据统计。
可对测量值自动统计，输出５个统计参数。
测厚仪使用说明书1、概述1．1 适用范围金属、塑料、陶瓷及其它任何超声波的良导体，只要有上、下平行的两个表面，就能用此仪器测量厚度。
此仪器可用在工业生产领域中对各种材料或零件作精确测量，其另一重要方面是可以对生产设备中的各种管道和压力容器进行监测，监测它们在使用过程中受腐蚀后的减薄程度。
1．2 基本原理超声波测量厚度的原理与光波测量原理相似。
探头发射的超声波脉冲到达被测物体并在物体中传播，到达分界面时被反射回探头，通过精确测量超声波在材料中传播的时间来确定被测材料的厚度。
1．3 仪器各部份名称BATT--- 低电压标志--- 耦合标志m/s--- 声速单位mm---厚度单位ON ---- 开机键ZERO---校准键VEL--- 声速键▲▼ --- 声速、厚度、厚度单元调整键VEL＋ZERO---厚度存储键机器右下角的圆形铁块为校准试块2、性能指标显示方式：四位数字液晶显示显示最小单位：0.1mm工作频率:5MHz测量范围:1.2〜225mm钢）声速调节范围：1000〜9999m/s使用温度范围:0〜40C电源：二节5 号电池3、主要功能自动校准零点, 可对系统误差进行修正线性自动补偿, 在全范围内利用计算机软件对探头非线性误差进行修正, 以提高准确度。
采用上下调节键可对声速、厚度进行快速调整, 可快速查询厚度存储单元。
耦合状态提示: 提供耦合标志通过观察其稳定状态可知耦合是否正常。
可存储十个厚度值,关机后数据不丢失, 为高空及野外作业工作带来方便。
测声速功能，根据样块厚度直接测出其声速，避免了查表或换算带来的麻烦。
低电压提示自动关机：定时自动关机会帮您断电全键膜密闭式操作—防油污，提高使用寿命4、测量步骤4．1 测量准备将探头插入主机探头插座中，按ON键开机，全屏幕显示数秒后显示上次关机前使用的声速。
此时可以开始测量。
4．2 声速的调整如果当前屏幕显示为厚度值，按VEL键进入声速状态，屏幕将显示当前声速存储单元的内容。

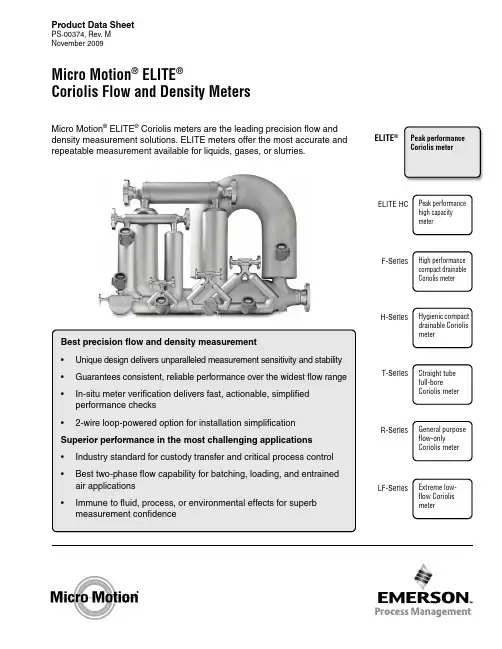

Product Data SheetPS-00374, Rev. MNovember 2009Micro Motion® ELITE® Coriolis meters are the leading precision flow and density measurement solutions. ELITE meters offer the most accurate and repeatable measurement available for liquids, gases, or slurries.Best precision flow and density measurement•Unique design delivers unparalleled measurement sensitivity and stability •Guarantees consistent, reliable performance over the widest flow range •In-situ meter verification delivers fast, actionable, simplified performance checks•2-wire loop-powered option for installation simplificationSuperior performance in the most challenging applications •Industry standard for custody transfer and critical process control •Best two-phase flow capability for batching, loading, and entrained air applications•Immune to fluid, process, or environmental effects for superbmeasurement confidenceHigh performancecompact drainableCoriolis meterPeak performanceCoriolis meterHygienic compactdrainable CoriolismeterStraight tubefull-boreCoriolis meterGeneral purposeflow-onlyCoriolis meterF-SeriesELITE®H-SeriesT-SeriesR-SeriesExtreme low-flow CoriolismeterLF-SeriesMicro Motion® ELITE®Coriolis Flow and Density MetersPeak performancehigh capacitymeterELITE HCMicro Motion ELITE flow and density metersMicro Motion Coriolis meters meet a vast range of application needs, ranging from extreme low-flow up to high-flow, high-capacity lines. Cryogenic, hygienic, high-temperature, and high-pressure—Micro Motion meters can handle them all. Micro Motion meters are available with a variety of wetted parts to ensure the best material compatibility. Now with the industry’s only 2-wire Coriolis option, Micro Motion provides unsurpassed simplicity of installation and application flexibility.Coriolis meters.Coriolis meters offer dramatic benefits over traditional volumetric measurement technologies. Coriolis meters:•Deliver accurate and repeatable process data over a wide range of flow rates and processconditions.•Provide direct inline measurement of mass flow and density, and also measure volume flow and temperature—all from a single device.•Have no moving parts, so maintenance costs are minimal.•Have no requirements for flow conditioning or straight pipe runs, so installation is simplifiedand less expensive.•Provide advanced diagnostic tools for both the meter and the process.ELITE Coriolis meters.Micro Motion ELITE meters are the leading meters for precision flow and density measurement. ELITE meters offer the most accurate measurement available for virtually any process fluid, while exhibiting exceptionally low pressure drop. Every ELITE meter features standard secondary containment, and is available with stainless steel or nickel-alloy wetted parts and a wide variety of process connections to meet your every need.Now with in-situ meter verification, ELITE delivers the best in measurement and ease of use for critical applications. ELITE meters offer the best measurement performance for mass, density, and volume, regardless of process or environmental conditions. ELITE meters provide measurement capability for two-phase flow, liquid, and gas custody transfer, and process conditions from–400°F (–240°C) to 662°F (350°C).ContentsTemperature limits. . . . . . . . . . . . . . . . . . . . . . . . . 3 Accuracy and repeatability . . . . . . . . . . . . . . . . . . 4 Liquid flow performance . . . . . . . . . . . . . . . . . . . . 5 Gas flow performance. . . . . . . . . . . . . . . . . . . . . . 6 Density range (liquid only). . . . . . . . . . . . . . . . . . . 8 Vibration limits. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Power consumption. . . . . . . . . . . . . . . . . . . . . . . . 8 Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Pressure ratings . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Environmental effects . . . . . . . . . . . . . . . . . . . . . 10 Hazardous area classifications. . . . . . . . . . . . . . 11 Materials of construction. . . . . . . . . . . . . . . . . . . 18 Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Fitting options . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Ordering information. . . . . . . . . . . . . . . . . . . . . . 372Micro Motion® ELITE® Flow and Density MetersMicro Motion ® ELITE ® Flow and Density Meters 3Temperature limitsAll models except high-temperature models (1)(2)(3)(4)(1)T emperature limits may be further restricted by hazardous area approvals. See pages 11–17.(2)The temperature graphs shown here are for use only as a general guide.(3)When ambient temperature is below –40 °F (–40 °C), a core processor or Model 2400S transmitter must be heated to bring its localambient temperature to between –40 °F (–40 °C) and +140 °F (+60 °C). Long-term storage of electronics at ambient temperatures below –40 °F (–40 °C) is not recommended.(4)The temperature limits shown apply only when the electronics are not covered (for example, by insulation). If the sensor case must beinsulated, use extended mount electronics.High-temperature modelsA m b i e n t t e m p e r a t u r e o f c o r e p r o c e s s o r o r t r a n s m i t t e r i n °F (°C )A m b i e n t t e m p e r a t u r e o f c o r e p r o c e s s o r o r4Micro Motion ® ELITE ® Flow and Density MetersAccuracy and repeatabilityElectronics optionModel 2400S,enh. core processorOther MVD transmitter, std. core processor Mass and volume flow (1)(1)Accuracy options vary by model. Models CMF010, CMFS010, CMFS015, sensors with Model 2200S transmitter, and all high-temperature models have fewer accuracy options. See Ordering information on page 37.LiquidAccuracy ±0.05% of rate (2)(3)(2)When flow rate is less than zero stability /0.0005, accuracy = ±[(zero stability /flow rate) × 100]% of rate, andrepeatability = ±[½(zero stability /flow rate) × 100]%.(3)When ordered with the ±0.10% factory calibration option, accuracy on liquid = ±0.10% when flow rate ≥ zero stability /0.001. When flowrate < zero stability /0.001, accuracy = ±[(zero stability /flow rate) × 100]% of rate and repeatability = ±[½(zero stability /flow rate) × 100]% of rate.±0.10% of rate (4)(4)When flow rate is less than zero stability /0.001, accuracy = ±[(zero stability /flow rate) × 100]% of rate andrepeatability = ±[½(zero stability /flow rate) × 100]% of rate.Repeatability±0.025% of rate ±0.05% of rate GasAccuracy ±0.35% of rate (5)(5)When flow rate is less than zero stability / 0.0035, accuracy equals ±[(zero stability /flow rate) × 100]% of rate and repeatability equals±[½(zero stability /flow rate) × 100]% of rate.±0.35% of rate Repeatability ±0.20% of rate ±0.20% of rate Density (1)(6)(6)Specifications for ±0.0002 g/cm 3 (±0.2 kg/m 3) density accuracy are based on reference conditions of water at 68 to 140°F (20 to 60°C)and 15 to 30 psig (1 to 2 bar).LiquidAccuracy ±0.0002 g/cm 3 (±0.2 kg/m 3)±0.0005 g/cm 3 (±0.5 kg/m 3)Repeatability±0.0001 g/cm 3 (±0.1 kg/m 3)±0.0002 g/cm 3 (±0.2 kg/m 3)TemperatureAccuracy ±1 °C ± 0.5% of reading ±1 °C ± 0.5% of reading Repeatability±0.2 °C ±0.2 °C lb/minkg/h Zero stabilityCMFS010M 0.0000750.002CMFS010H, P 0.000150.004CMFS015M 0.000370.01CMFS015H, P 0.000730.02CMF010M, H 0.0000750.002CMF010P 0.000150.004CMF0250.0010.027CMF0500.0060.163CMF1000.0250.680CMF2000.08 2.18CMF3000.25 6.80CMF4001.5040.91Micro Motion ® ELITE ® Flow and Density Meters 5Liquid flow performanceMass Volume (1)(1)Specifications for volumetric flow rate are based on a process-fluid density of 1 g/cm 3 (1000 kg/m 3). For fluids with density other than1g/cm 3 (1000 kg/m 3), the volumetric flow rate equals the mass flow rate divided by the fluid’s density.lb/minkg/h gal/min l/h bbl/hm 3/hMaximum flow rateCMFS01041080.5108CMFS01512330 1.5330CMF01041080.5108CMF025802180102180CMF0502506800306800CMF100100027,20012027,200CMF200320087,10038587,10055087CMF30010,000272,0001200272,0001700272CMF40020,000545,0002400545,0003400545Typical accuracy, turndown, and pressure drop with CMF100 and 2400S or enhanced core processorThe graph below is an example of the relationship between accuracy, turndown, and pressure drop when measuring the flow of water with a Model CMF100 sensor and Model 2400S transmitter or enhanced core processor.Actual pressure drop is dependent on process conditions. T o determine accuracy, turndown, and pressure drop with your process variables, use the Micro Motion product selector, available at .Turndown from maximum flow rate 500:1100:120:110:12:1Accuracy ±% 1.250.250.050.050.05Pressure droppsi ~0~00.20.713.5bar~0~00.010.050.93Flow rate, % of maximumA c c u r a c y , %6Micro Motion ® ELITE ® Flow and Density MetersGas flow performanceWhen selecting sensors for gas applications, measurement accuracy is a function of fluid mass flow rate independent of operating temperature, pressure, or composition. However, pressure drop through the sensor is dependent upon operating temperature,pressure, and fluid composition. Therefore, when selecting a sensor for any particular gas application, it is highly recommended that each sensor be sized using the Micro Motion product selector, available at .Mass Volume (1)(1)Standard (SCFM) reference conditions are 14.7 psia and 68 °F . Normal (Nm 3/h) reference conditions are 1.013 bar and 0°C.lb/minkg/h SCFM Nm 3/h Flow rates that produceapproximately 10 psid (0.68 bar) pressure drop on air (2)(2)Air at 68 °F (20 °C) and 100 psi (6.8 bar).CMFS0100.3846CMFS0151241218CMF010M, H 0.30846CMF010P 0.2635CMF025********CMF05010300145230CMF1005013006401000CMF200150400020003100CMF30049013,300650010,300CMF400125034,00016,60026,250Flow rates that produceapproximately 50 psid (3.4 bar) pressure drop on natural gas (3)(3)Natural gas with MW 16.675 at 68 °F (20 °C) and 500 psi (34.0 bar).CMFS010*******CMFS01539090130CMF010M, H 1303045CMF010P 0.9252035CMF02516450380600CMF0504011409701530CMF100185500043006700CMF20056015,20013,00020,500CMF300185050,50043,00068,000CMF4004700128,000109,000172,000Micro Motion ® ELITE ® Flow and Density Meters 7Gas flow performance continuedTypical mass flow accuracy and pressure drop with CMF100 and transmitter with MVD technology Air at 68 °F (20 °C), static pressures as indicated on graphNatural gas (MW 16.675) at 68 °F (20 °C), static pressure as indicated on graphStandard or Normal Volumetric CapabilityStandard and normal volumes are “quasi mass” flow units for any fixed composition fluid. Standard and normal volumes do not vary with operating pressure, temperature, or density. With knowledge of density at standard or normal conditions (available from reference sources), a Micro Motion meter can be configured to output in standard or normal volume units without the need forpressure, temperature, or density compensation. Contact your local sales representative for more information.Flow rateP r e s s u r e d r o p A c c u r a c y (± % o f r a t e )lb/min kg/hbarInches H 2OpsiFlow rateP r e s s u r e d r o pA c c u r a c y (± % o f r a t e )lb/min kg/hbarInches H 2Opsi8Micro Motion ® ELITE ® Flow and Density MetersDensity range (liquid only)Vibration limitsPower consumptionWeightRangeUp to 5 g/cm 3Up to 5000 kg/m 3Meets IEC 68.2.6, endurance sweep, 5 to 2000 Hz, 50 sweep cycles at 1.0 gMeter with core processor4 watts maximum Meter with Model 2400S transmitter 7 watts maximumMeter with Model 2200S transmitter Loop-powered, 0.8 watts maximum Meter with Model 1700/2700 transmitterRefer to transmitter documentationWeights provided are the weight of the flowmeter with 150 lb weld neck raised face flanges.With junction box With core processor,Model 2400S,or Model 2200S transmitter (1)(1)Weight stated for sensor with aluminum core processor. Add 4 lb (2 kg) for stainless steel core processor or stainless steelModel 2400S transmitter.lb kglb kg CMFS010——94CMFS015——94CMF010147199CMF02584136CMF050126178CMF10029133416CMF20063296831CMF3001657517077CMF400441200446202Micro Motion ® ELITE ® Flow and Density Meters 9Pressure ratingsSensor rating(1)(1)Process connection rating may differ from sensor rating. Please choose process connections accordingly.316L and 304L stainless steel Alloy C-22High pressure psi barpsi bar psi bar CMFS010181312560004136000413CMFS015181312560004136000413CMF010181312532632256000413CMF02515001032755190——CMF05015001032683185——CMF10014501002465170——CMF20015801082755190——CMF30017301192683185——CMF400150010328551972973205PED compliance Sensors comply with council directive 97/23/EC of 29 May 1997 on Pressure EquipmentDual seal complianceCSA sensors comply with ANSI/ISA 12.27.01-2003 requirements for process sealing between electrical systems and flammable or combustible process fluidsASME B31.3 secondarycontainment rating (2)(3)(2)For operating temperatures above 300°F (148°C), pressure needs to be derated as follows. Linear interpolation may be used betweenvalues. Process connection derating may differ from sensor rating.Burst pressure (3)Housing rating (3)(3)The housing of high-temperature models is rated for neither secondary containment nor burst pressure.psi barpsi bar CMFS010850585169356CMFS015850585169356CMF010(4)(4)Optional rupture disks for high-pressure CMF010P will burst if pressure inside sensor housing reaches 400 psi (27 bar).425293042209CMF025850585480377CMF050850585286364CMF100625433299227CMF200550372786192CMF300275181568108CMF400250171556107Flow tubesHousing316L sensors304L sensors Alloy C-22 sensors 316L sensors 304L sensors up to 300 °F (up to 148 °C)None None None None None at 400 °F (at 204 °C)7.2% derating 5.4% derating None 7.2% derating 5.4% derating at 500 °F (at 260 °C)13.8% derating 11.4% derating 4.7% derating ——at 600 °F (at 316 °C)19.2% derating 16.2% derating 9.7% derating ——at 650 °F (at 343 °C)21.0% derating18.0% derating11.7% derating——Environmental effectsProcess temperature effectProcess temperature effect is defined as:•For mass flow measurement, the worst-case zero offset due to process fluid temperature change away from the zeroing temperature.•For density measurement, the maximum measurement offset due to process fluid temperature change away from the density calibration temperature.Process temperature effect% of maximum flow rate per °C density accuracy per °C(1)(1)For –100 °C and above.g/cm3 kg/m3CMFS010, CMFS015,CMF010, CMF025,CMF050, and CMF100±0.0002±0.000015±0.015CMF200±0.0005±0.000015±0.015CMF300±0.0005±0.000015±0.015CMF400±0.0007±0.000015±0.015Pressure effectPressure effect is defined as the change in sensor flow and density sensitivity due to process pressure change away from the calibration pressure. Pressure effect can be corrected.Pressure effect on flow accuracy% of rate per psi% of rate per barliquid gas liquid gasCMFS010None None None NoneCMFS015None None None NoneCMF010None None None NoneCMF025None None None NoneCMF050None None None NoneCMF100–0.0002None–0.003NoneCMF200–0.0008–0.0004–0.012–0.006CMF300–0.0006–0.0003–0.009–0.0045CMF400–0.001–0.0005–0.015–0.0075Pressure effect on density accuracyg/cm3 per psi kg/m3 per barCMFS010None NoneCMFS015None NoneCMF010None NoneCMF0250.0000040.058CMF050–0.000002–0.029CMF100–0.000006–0.087CMF2000.0000010.0145CMF3000.00000020.0029CMF400–0.00001–0.14510Micro Motion® ELITE® Flow and Density MetersHazardous area classificationsUL (1)(1)The following products are not available with UL approval: sensors with enhanced core processor, Model 2400S transmitter, orModel 2200S transmitter; high-temperature sensors; extreme high-temperature sensors.All models with core processorAmbient temperature: –40 to +104°F (–40 to +40°C)Class I, Div. 1, Groups C and DClass I, Div. 2, Groups A, B, C, and D Class II, Div.1, Groups E, F , and GAll models with junction boxAmbient temperature: +104°F (+40°C) maximum Class I, Div. 1, Groups C and DClass I, Div. 2, Groups A, B, C, and D Class II, Div.1, Groups E, F , and GCSA and CSA C-US (2)(2)The following products are available only with CSA C-US approval (i.e., not CSA): sensors with enhanced core processor orModel 2400S transmitter; high-temperature sensors; extreme high-temperature sensors.All models with Model 2400S transmitter Ambient temperature: –40 to +140°F (–40 to +60°C)Class I, Div 2, Groups A, B, C and DAll models with core processor or Model 2200S transmitterAmbient temperature: –40 to +140°F (–40 to +60°C)Class I, Div. 1, Groups C and DClass I, Div. 2, Groups A, B, C, and D Class II, Div.1, Groups E, F , and GAll models with junction boxAmbient temperature: +140°F (+60°C) maximum Class I, Div. 1, Groups C and DClass I, Div. 2, Groups A, B, C, and DClass II, Div.1, Groups E, F , and GATEXAll models with Model 2400S transmitter(3) °C(3)For ambient and process temperature limits, refer to the temperature graphs on pages 13–16.(3) °C Models CMFS010, CMFS015, CMF010, CMF025,CMF050, and CMF100 with Model 2200S transmitter0575II 2G Ex ib IIC T1–T4II 2D Ex ibD 21 T70 °C II 3G Ex nA II T1–T4II 3D Ex tD A22 IP65 T70 °C Models CMF200, CMF300, and CMF400 with Model 2200S transmitter0575II 2G Ex ib IIB/IIC T1–T4II 2D Ex ibD 21 T70 °C II 3G Ex nA II T1–T4II 3D Ex tD A22 IP65 T70 °CModels CMF010, CMF025, CMF050, CMF100,CMFS010, and CMFS015 with core processor or junction box(3) °C(3) °C Models CMF200, CMF300, and CMF400with core processor or junction box(3) °C (3) °CHazardous area classifications continuedIECExAll models with Model 2400S transmitter Ex nA II T (1)(1)For ambient and process temperature limits, refer to the temperature graphs on pages 13–16.Models CMF010, CMF025, CMF050, CMF100, CMFS010, and CMFS015 with core processor or junction boxEx ib IIC T (1)Models CMF200, CMF300, and CMF400with core processor or junction boxEx ib IIB/IIC T (1)Models CMFS010, CMFS015, CMF010, CMF025,CMF050, and CMF100 with Model 2200S transmitter Ex ib IIC T1–T4Ex nA II T1–T4Model CMF200, CMF300, and CMF400 with Model 2200S transmitter Ex ib IIB/IIC T1–T4Ex nA II T1–T4NEPSIAll models with Model 2400S transmitter Ex nA II T (1)Models CMF010, CMF025, CMF050, CMF100, CMFS010, and CMFS015 with core processor or junction boxEx ib IIC T (1)Models CMF200, CMF300, and CMF400with core processor or junction boxEx ib IIB/IIC T (1)Hazardous area classifications continuedModel CMF010, CMF025, or CMF050 with junction box connected to MVD transmitterUse the above graph to determine the temperature class for a given fluid and ambient temperature. The maximum surfacetemperature for dust is as follows: T6:T 80°C, T5:T 95°C, T4:T 130°C, T3:T 195°C, T2 to T1:T 254°C. The minimum ambient and process fluid temperature allowed for dust is –40°C.The use of the sensor at an ambient temperature higher than +55°C is possible, provided that the ambient temperature does not exceed the maximum temperature of the medium taking into account the temperature classification and the maximum operating temperature of the sensor.Ambient temperature rangeTa–240°C to +55°CModel CMF100 with junction box connected to MVD transmitterUse the above graph to determine the temperature class for a given fluid and ambient temperature. The maximum surfacetemperature for dust is as follows: T6:T 80°C, T5:T 95°C, T4:T 130°C, T3:T 195°C, T2 to T1:T 254°C. The minimum ambient and process fluid temperature allowed for dust is –40°C.The use of the sensor at an ambient temperature higher than +55°C is possible, provided that the ambient temperature does not exceed the maximum temperature of the medium taking into account the temperature classification and the maximum operating temperature of the sensor.Ambient temperature rangeTa–60°C to +55°CM a x a m b i e n t t e m p (°C)M a x a m b i e n t t e m p (°C )Hazardous area classifications continuedModel CMF200 or CMF300 with junction box connected to MVD transmitter (1)(1)Refer to page 15 for “T” rating graph for high-temperature models with junction box.Use the above graph to determine the temperature class for a given fluid and ambient temperature. The maximum surfacetemperature for dust is as follows: T6:T 80°C, T5:T 95°C, T4:T 130°C, T3:T 195°C, T2 to T1:T 254°C. The minimum ambient and process fluid temperature allowed for dust is –40°C.The use of the sensor at an ambient temperature higher than +55°C is possible, provided that the ambient temperature does not exceed the maximum temperature of the medium taking into account the temperature classification and the maximum operating temperature of the sensor.Ambient temperature rangeTa–55°C to +55°CModel CMF400 with junction box connected to MVD transmitter (1)Use the above graph to determine the temperature class for a given fluid and ambient temperature. The maximum surfacetemperature for dust is as follows: T6:T 80°C, T5:T 95°C, T4:T 130°C, T3:T 195°C, T2: to T1:T 234°C. The minimum ambient and process fluid temperature allowed for dust is –40°C.The use of the sensor at an ambient temperature higher than +60°C is possible, provided that the ambient temperature does not exceed the maximum temperature of the medium taking into account the temperature classification and the maximum operating temperature of the sensor.Ambient temperature rangeTa–68°C to +60°CM a x a m b i e n t t e m p (°C)M a x a m b i e n t t e m p (°C )Hazardous area classifications continuedHigh-temperature models CMF200A, CMF200B, CMF300A, CMF300B, CMF400A, or CMF400B with junction box connected to MVD transmitterUse the above graph to determine the temperature class for a given fluid and ambient temperature. The maximum surface temperature for dust is as follows: T6:T 80°C, T5:T 95°C, T4:T 130°C, T3:T 195°C, T2:T 290°C, T1:T 363°C. The minimum ambient and process fluid temperature allowed for dust is –40°C.The use of the sensor at an ambient temperature higher than +55°C is possible, provided that the ambient temperature does not exceed the maximum temperature of the medium taking into account the temperature classification and the maximum operating temperature of the sensor.Ambient temperature rangeTa–50°C to +55°CModels CMF010, CMF025, CMF050, CMF100, CMF200 or CMF300 with core processor or enhanced core processor (1)(1)Refer to page 16 for “T” rating graph for high-temperature models with core processor.Use the above graph to determine the temperature class for a given fluid and ambient temperature. The maximum surface temperature for dust is as follows: T5:T 95°C, T4:T 130°C, T3:T 195°C, T2 to T1:T 254°C.Ambient temperature rangeTa–40°C to +55°CM a x a m b i e n t t e m p (°C)M a x a m b i e n t t e m p (°C )Hazardous area classifications continuedModel CMF400 with core processor or enhanced core processorUse the above graph to determine the temperature class for a given fluid and ambient temperature. The maximum surface temperature for dust is as follows: T5:T 95°C, T4:T 130°C, T3:T 195°C, T2 to T1:T 234°C.Ambient temperature rangeTa–40°C to +60°CHigh-temperature models CMF200A, CMF200B, CMF300A, CMF300B, CMF400A, or CMF400B with core processor, enhanced core processor, or Model 1700/2700 transmitterUse the above graph to determine the temperature class for a given fluid and ambient temperature. The maximum surfacetemperature for dust is as follows: T5:T 95°C, T4:T 130°C, T3:T 195°C, T2: T 290°C, T1:T 363°C. The minimum ambient and process fluid temperature allowed for dust is –40°C.Since the electronics are mounted approx. 1 meter away from the sensor by means of a flexible stainless steel hose, the use of the sensor at an ambient temperature higher than +55°C is possible, provided that the ambient temperature does not exceed themaximum temperature of the medium taking into account the temperature classification and the maximum operating temperature of the sensor.Ambient temperature rangeTa–50°C to +55°CM a x a m b i e n t t e m p (°C)M a x a m b i e n t t e m p (°C )Hazardous area classifications continuedModels CMFS010 or CMFS015 with enhanced core processorUse the above graph to determine the temperature class for a given fluid and ambient temperature. The maximum surfacetemperature for dust is as follows: T5:T 95°C, T4:T 130°C, T3:T 195°C, T2 to T1:T 207°C. The minimum ambient and process fluid temperature allowed for dust is –40°C.Ambient temperature rangeTa–40°C to +55°CModels CMFS010, CMFS015, CMF010, CMF025, CMF050, and CMF100 with Model 2200S transmitterUse the above graph to determine the temperature class for a given fluid and ambient temperature. The maximum surfacetemperature for dust is as follows: T4:T 130°C, T3:T 195°C, T2 to T1:T 254°C.Sensor fluid temp (°C)M a x a m b i e n t t e m p (°C)Hazardous area classifications continuedMaterials of constructionModels CMF400 with Model 2200S transmitterUse the above graph to determine the temperature class for a given fluid and ambient temperature. The maximum surface temperature for dust is as follows: T4:T 130°C, T3:T 195°C, T2 to T1:T 234°CWetted parts (1)(2)(3)(1)General corrosion guides do not account for cyclical stress, and therefore should not be relied upon when choosing a wetted materialfor your Micro Motion sensor. Please refer to the Micro Motion corrosion guide for proper material compatibility information.(2)The outer flange ring on lap-joint type flanges is non-wetted and is 304L stainless steel. Consult factory for other materials.(3)Models CMF010P , CMFS010P , CMFS015P , and CMF400P have nickel alloy tubes and stainless steel fittings. Material compatibility isnever better than 316L stainless steel. Refer to the Micro Motion Corrosion Guide for the Micro Motion policy on fixed bi-metallic sensor capability.304L or 316L stainless steel; or alloy C-22Housing 304L stainless steel (4)Junction box 300-series stainless steel (4) or polyurethane-painted aluminum; NEMA 4X (IP66)(4)316L stainless steel is available.Core processor300-series stainless steel (4) or polyurethane-painted aluminum; NEMA 4X (IP66)Model 2400S transmitter Polyurethane-painted aluminum or 316L stainless steel; NEMA 4X (IP66)Model 2200S transmitterPolyurethane-painted aluminum or 316L stainless steel; NEMA 4X (IP66/67)Sensor fluid temp (°C)M a x a m b i e n t t e m p (°C )。
