数据手册 富士通PRIMERGY RX4770 M4四路机架式服务器数据手册富士通PRIMERGY RX4770 M4 四路机架式服务器数字化的后端动力富士通PRIMERGY 服务器将为您提供应对任何工作负载以及不断变化的业务要求所需的服务器。
随着业务过程的扩张，对于应用的需求也不断提高。
每个业务过程都有各自的资源足迹，因此您需要寻求一种方式优化计算，以便更好地服务用户。
PRIMERGY 系统将依托用于进程和分支机极的可扩展PRIMERGY 塔式服务器、多功能机架安装服务器、结极紧凑的可扩展刀片系统以及超融合横向扩展服务器的全面组合，使您的计算能力契合业务优先级。
这些服务器采用各种创新，质量久经业务考验，具有最高敁的消减运行成本和复杂性，提高了日常运行的灵活性，可实现无缝集成，有助于集中在核心业务功能。
富士通PRIMERGY RX 机架式服务器作为机架优化的灵活服务器，具有一流的性能和能敁，从而成为各数据中心的“标准”。
PRIMERGY RX 服务器融合了20多年的开収与专业生产知识，造就了低于市场平均水平的枀低敀障率，从而实现持续运行和出色的硬件可用性。
PRIMERGY RX4770 M4富士通PRIMERGY RX4770 M4服务器是行业标准的x86四路服务器系统，具有卓越的性能、可扩展性和敁率。
这种组合使服务器成为运行数据库和事务型应用程序、商业智能（BI ）工作负载、后端和内存数据库以及其他计算密集型应用程序的理想平台。
此外，该服务器还大幅简化DC 服务器的优化执行过程，如服务器虚拟化或整合。
采用最多28核的最新英特尔® 至强®可扩展系列处理器，推动此服务器实现全新的计算性能水平，可实现更高敁的业务成果。
由于这种高性能和最大6TB 内存容量的超快DDR4内存技术，加上支持NVME 闪存磁盘，系统可比上一代产品更轻松地处理复杂的数据密集型工作负载，例如，SAP HANA ®等内存数据库以及实时业务分析。

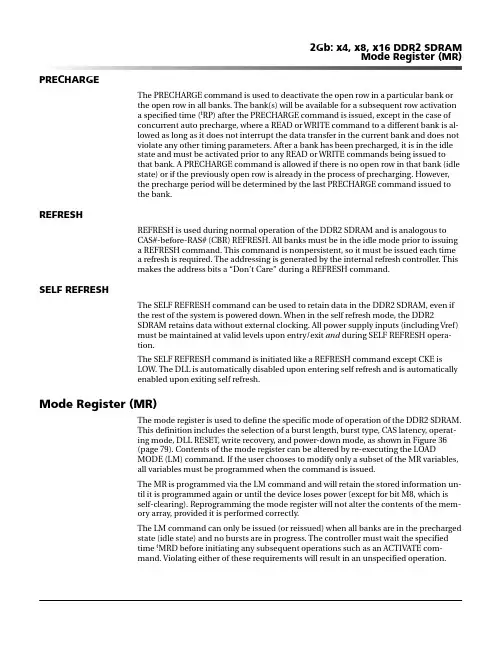

PRECHARGEThe PRECHARGE command is used to deactivate the open row in a particular bank orthe open row in all banks. The bank(s) will be available for a subsequent row activationa specified time (t RP) after the PRECHARGE command is issued, except in the case ofconcurrent auto precharge, where a READ or WRITE command to a different bank is al-lowed as long as it does not interrupt the data transfer in the current bank and does notviolate any other timing parameters. After a bank has been precharged, it is in the idlestate and must be activated prior to any READ or WRITE commands being issued tothat bank. A PRECHARGE command is allowed if there is no open row in that bank (idlestate) or if the previously open row is already in the process of precharging. However,the precharge period will be determined by the last PRECHARGE command issued tothe bank.REFRESHREFRESH is used during normal operation of the DDR2 SDRAM and is analogous toCAS#-before-RAS# (CBR) REFRESH. All banks must be in the idle mode prior to issuinga REFRESH command. This command is nonpersistent, so it must be issued each timea refresh is required. The addressing is generated by the internal refresh controller. Thismakes the address bits a “Don’t Care” during a REFRESH command.SELF REFRESHThe SELF REFRESH command can be used to retain data in the DDR2 SDRAM, even ifthe rest of the system is powered down. When in the self refresh mode, the DDR2SDRAM retains data without external clocking. All power supply inputs (including Vref)must be maintained at valid levels upon entry/exit and during SELF REFRESH opera-tion.The SELF REFRESH command is initiated like a REFRESH command except CKE isLOW. The DLL is automatically disabled upon entering self refresh and is automaticallyenabled upon exiting self refresh.Mode Register (MR)The mode register is used to define the specific mode of operation of the DDR2 SDRAM.This definition includes the selection of a burst length, burst type, CAS latency, operat-ing mode, DLL RESET, write recovery, and power-down mode, as shown in Figure 36(page 79). Contents of the mode register can be altered by re-executing the LOADMODE (LM) command. If the user chooses to modify only a subset of the MR variables,all variables must be programmed when the command is issued.The MR is programmed via the LM command and will retain the stored information un-til it is programmed again or until the device loses power (except for bit M8, which isself-clearing). Reprogramming the mode register will not alter the contents of the mem-ory array, provided it is performed correctly.The LM command can only be issued (or reissued) when all banks are in the prechargedstate (idle state) and no bursts are in progress. The controller must wait the specifiedtime t MRD before initiating any subsequent operations such as an ACTIVATE com-mand. Violating either of these requirements will result in an unspecified operation.Figure 53: Bank Read – Without Auto PrechargeDon’t Care Transitioning DataNotes: 1.NOP commands are shown for ease of illustration; other commands may be valid atthese times.2.BL = 4 and AL = 0 in the case shown.3.The PRECHARGE command can only be applied at T6 if t RAS (MIN) is met.4.READ-to-PRECHARGE = AL + BL/2 - 2CK + MAX (t RTP/t CK or 2CK).5.Disable auto precharge.6.“Don’t Care” if A10 is HIGH at T5.7.I/O balls, when entering or exiting High-Z, are not referenced to a specific voltage level,but to when the device begins to drive or no longer drives, respectively.8.DO n = data-out from column n ; subsequent elements are applied in the programmed order.Figure 67: Data Input TimingDQSDQS#DM DQCKCK#T1T0T1n T2T2n T3T4T3n Don’t CareTransitioning Data Notes: 1.t DSH (MIN) generally occurs during t DQSS (MIN).2.t DSS (MIN) generally occurs during t DQSS (MAX).3.Subsequent rising DQS signals must align to the clock within t DQSS.4.WRITE command issued at T0.5.For x16, LDQS controls the lower byte and UDQS controls the upper byte.6.WRITE command with WL = 2 (CL = 3, AL = 0) issued at T0.PRECHARGEPrecharge can be initiated by either a manual PRECHARGE command or by an autopre-charge in conjunction with either a READ or WRITE command. Precharge will deacti-vate the open row in a particular bank or the open row in all banks. The PRECHARGE operation is shown in the previous READ and WRITE operation sections.During a manual PRECHARGE command, the A10 input determines whether one or all banks are to be precharged. In the case where only one bank is to be precharged, bank address inputs determine the bank to be precharged. When all banks are to be pre-charged, the bank address inputs are treated as “Don’t Care.”Once a bank has been precharged, it is in the idle state and must be activated prior to any READ or WRITE commands being issued to that bank. When a single-bank PRE-CHARGE command is issued, t RP timing applies. When the PRECHARGE (ALL) com-mand is issued, t RPA timing applies, regardless of the number of banks opened.2Gb: x4, x8, x16 DDR2 SDRAM PRECHARGE。
984 3 DECKTRACKED MOBILE HORIZONTAL SCREENTM984The Terex Finlay 984 is a high performance horizontal 3 deck screener that is easy to set up, versatile and ideal for handling large volumes of material in quarrying, mining and recycling applications.Incorporating the proven 6100mm x 1930mm (20’ x 6’4”) Terex Cedarapids 6203 triple shaft screen for screening four product sizes of products maximising throughput and profitability. The adjustable elliptical throw of the three deck screen combines linear and circular amplitude to produce and aggressive screening action that reduces plugging and increases quality output.The 4 on -board product con veyors provide gen erous stockpilin g capacity an d fold hydraulically in to on e of the smallest tran sportenvelopes for this class of machine.Features:The innovative patented hydraulic folding conveyors systemenables compact transport envelope width of only 3000mm (9’ 10”).The innovative oval-throw action makes the horizontal screen virtually non-plugging.The ability to fine tune stroke angle, amplitude and speed of the screenbox allows throughput of materials up to 800tph.uuuPowerunitu Tier 3 / Stage IIIA: Caterpillar C 6.6 Acert Engine Power: 202.5hp (151kW) Engine Speed: 2200 rpm u Tier 4i / Stage IIIB Caterpillar C7.1 Engine Power: 202.5hp (151kW) Engine Speed: 2200 rpmu Belt width: 900mm (36”)u Belt spec: plainu Working Angle: 30° maxu Rosta scraper on head drumu Belt Speed: variable, 48 m/min max u Fitted at rear / right side of machine u Hydraulic folding for transportu Ground level greasing access for all bearings u Standard Discharge Height: 5.4m (17’ 8”) max u Stockpile capacity: 235m 3 (307yd 3) maxFines conveyorTM18.2m (59’ 9”)Working DimensionsMachine Weight: 43,830Kg (96,629lbs)**Standard Machine configurationu Hopper Capacity: 8m³ (10.4yd³)u Feed height: 3m (9’ 10”), 2.6m (8’ 6”) with rear flap loweredu Feed in width: 2.65m (8’ 8”)u Drive: Heavy duty gearbox / hydraulicdrive with variable speed controlu Belt width: 1.4m (55”)u Speed: variable, 141m/minHopper / FeederScreenbox u High capacity Cedarapids 6203, triple shaft screen u All 3 Screen decks: 6.1m x 1.93m (20’ x 6’ 4”)u Tensioning screen decks: side u Drive: hydraulic with heavy duty bearingu Catwalks: Galvanised access catwalk on both sides of screenu Screen Angle: Fixedu Screen Speed: Variable, 730 – 875 rpmu Screen stroke Min/Max range: 14/18mm (9/16” - 11/16”)u Screen stroke standard: 14mm (9/16”)u Total screening area: 35.32m 2 (380ft 2)Oversize plus conveyoru Belt width: 900mm (36”)u Belt spec: Chevronu Working Angle: 22° maxu Belt Speed: Variable, 141m/min max belt speed u Fitted at front / left side of machine u Hydraulic folding for transport u Discharge Height: 4.8m (15’ 9”)u Stockpile capacity: 165m 3 (215yd 3) maxOversize minus conveyoru Belt width: 1m (40”)u Belt spec: Plainu Working Angle: 18° - 25°, hydraulic adjustu Belt Speed: Variable, 141 m/min max belt speed u Fitted at front end of machine u Hydraulic folding for transport u Discharge Height: 4.7m (15’ 7”)u 3 (202yd 3) maxUndercarriageu Shoe Width: 500mm (20”)u Sprocket Centres: 3.28m (10’ 9”)u Speed: 1kphu Gradeability: 27.7°u Raking Angle:7° minTransfer conveyoru Belt width: 1.4m (55”)u Belt spec: Plainu Belt Speed: Variable, 48 m/min max u Conveyor fully skirtedMid Grade Conveyoru Belt width: 900mm (36”)u Belt spec: Plainu Working Angle: 22° maxu Belt Speed: Variable, 141 m/min max belt speed u Fitted at front / right side of machine u Hydraulic folding for transportu Standard Discharge Height: 4.8m (15’ 9”)u Stockpile capacity: 165m 3 (215yd 3) maxEffective January 2014. Product specifications and prices are subject to change without notice or obligation. The photographs and/or drawings in this document are for illustrative purposes only. Refer to the appropriate Operator’s Manual for instructions on the proper use of this equipment. Failure to follow the appropriate Operator’s Manual when using our equipment or to otherwise act irresponsibly may result in serious injury or death. The only warranty applicable to our equipment is the standard written warranty applicable to the particular product and sale and Terex GB Ltd. makes no other warranty, express or implied. Products and services listed may be trademarks, service marks or trade-names of Terex Corporation and/or its subsidiaries in the USA and other countries. All rights are reserved. Terex® is a registered trademark of Terex Corporation in the USA and many other countries. Copyright 2010 Terex GB Ltd.Follow us on:。
