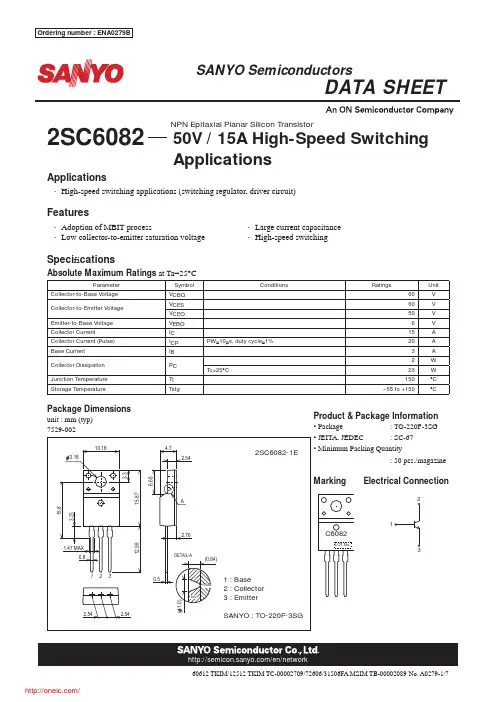

No. A0279-1/7Applications • High-speed switching applications (switching regulator, driver circuit)Features• Adoption of MBIT process•Large current capacitance • Low collector-to-emitter saturation voltage • High-speed switchingSpeci fi cationsAbsolute Maximum Ratingsat Ta=25°CParameterSymbol ConditionsRatingsUnit Collector-to-Base Voltage V CBO60V Collector-to-Emitter Voltage V CES 60V V CEO 50V Emitter-to-Base Voltage V EBO 6V Collector Current I C 15A Collector Current (Pulse)I CP PW ≤10μs, duty cycle ≤1%20A Base Current I B 3A Collector Dissipation P C 2W Tc=25°C23W Junction Temperature Tj 150°C Storage TemperatureTstg--55 to +150°CPackage Dimensionsunit : mm (typ)7529-00260612 TKIM/12512 TKIM TC-00002709/72606/31506FA MSIM TB-000020892SC6082NPN Epitaxial Planar Silicon Transistor50V / 15A High-Speed Switching ApplicationsProduct & Package Information• Package : TO-220F-3SG • JEITA, JEDEC : SC-67• Minimum Packing Quantity : 50 pcs./magazineMarkingElectrical ConnectionC6082LOT No.Electrical Characteristicsat Ta=25°CParameterSymbol ConditionsRatingsUnit mintypmaxCollector Cutoff Current I CBO V CB =40V , I E =0A 10μA Emitter Cutoff Current I EBO V EB =4V , I C =0A 10μADC Current Gain h FE 1V CE =2V , I C =330mA 200560h FE 2V CE =2V , I C =10A 50Gain-Bandwidth Product f T V CE =10V , I C=2A195MHz Output CapacitanceCob V CB =10V , f=1MHz 85pF Collector-to-Emitter Saturation Voltage V CE (sat)I C =7.5A, I B =375mA 200400mV Base-to-Emitter Saturation Voltage V BE (sat)I C =7.5A, I B =375mA 1.2V Collector-to-Base Breakdown Voltage V (BR)CBO I C =100μA, I E =0A 60V Collector-to-Emitter Breakdown Voltage V (BR)CES I C =100μA, R BE =0Ω60V V (BR)CEO I C =1mA, R BE =∞50V Emitter-to-Base Breakdown Voltage V (BR)EBO I E =100μA, I C =0A 6V Turn-On Time t on See speci fi ed Test Circuit52ns Storage Time t stg 560ns Fall Timet f37nsSwitching Time Test CircuitOrdering InformationDevicePackage Shippingmemo2SC6082-1ETO-220F-3SG50pcs./magazine Pb FreeCC I C =20I B1= --20I B2=5APW=20μsD.C.≤1%Collector-to-Emitter V oltage, V CE -- VC o l l e c t o r C u r r e n t , I C -- ACollector-to-Emitter V oltage, V CE -- VC o l l e c t o r C u r r e n t , I C -- AIT10574IT105751001000100.010.11.0100.010.11.010100100010100100010100100010Collector Current, I C -- AD C C u r r e n t G a i n , h F ECollector Current, I C-- AD C C u r r e n t G a i n , h F EBase-to-Emitter V oltage, V BE -- VC o l l e c t o r C u r r e n t , I C -- ACollector-to-Base V oltage, V CB -- VO u t p u t C a p a c i t a n c e , C o b -- p FCollector Current, I C -- AC o l l e c t o r -t o -E m i t t e r S a t u r a t i o n V o l t a g e , V C E (s a t ) -- VG a i n -B a n d w i d t h P r o d u c t , f T -- M H zCollector Current, I C -- AIT10576IT10577IT10578IT10581IT105800.10.01IT10579C o l l e c t o r -t o -E m i t t e r S a t u r a t i o n V o l t a g e , V C E (s a t ) -- VCollector Current, I C -- ACollector Current, I C -- AB a s e -t o -E m i t t e r S a t u r a t i o n V o l t a g e , V B E (s a t ) -- VIT10582321.02375IT105830.10.01Collector-to-Emitter V oltage, V CE -- VC o l l e c t o r C u r r e n t , I C -- AAmbient Temperature, Ta -- °CC o l l e c t o rD i s s i p a t i o n , P C -- WCase Temperature, Tc -- °CC o l l e c t o rD i s s i p a t i o n , P C -- WIT167110.010.11.010100IT16709IT16710Magazine Specifi cation 2SC6082-1EOutline Drawing2SC6082-1EMass (g)Unit1.8mm* For referenceThis catalog provides information as of June, 2012. Specifi cations and information herein are subject to change without notice.分销商库存信息: ONSEMI2SC6082。
