诺西GSM基站故障排查指导手册中国移动通信集团上海有限公司网络优化中心2013年9月目录1基站设备： (3)1.1腔体更换步骤 (3)2载频更换步骤 (3)2.1FLEXI EDGE站型载频更换步骤 (3)2.2MCPA站型载频更换步骤 (3)2.3主控板更换步骤 (4)2.4基站数据重配步骤 (4)3基站常见故障判断方法及处理 (4)3.1分集接收差异过大 (4)3.2VSWR驻波告警 (5)3.3传输故障 (5)3.4天线端口配置错误 (5)3.5基站配置错误 (5)4零话务： (6)4.1整体排除流程图 (6)4.2排查步骤 (6)4.3具体案例 (7)5器件故障（宏站）： (7)5.1整体排除流程图 (8)5.2排查步骤 (8)5.3具体案例 (9)6器件故障（室分）： (10)6.1排障流程图 (10)6.2排查步骤 (11)6.3具体案例 (12)7传输故障： (12)7.1整体排查流程图 (12)7.2排查步骤 (13)8天馈线故障： (13)8.1排障流程图 (13)8.2排查步骤 (13)8.3具体案例 (14)1 基站设备：定义：属于机架以内范围的设备故障，包括腔体，载频，主控板等需要更换或数据重配置，需在3天内完成排障。
目前诺西在上海移动现网中主要有2个系列的基站设备，分别为FLEXI EDGE 站型和MCPA站型，并以MCPA站型为主。
1.1 腔体更换步骤1)将故障所在的小区锁住2)将连接在腔体上的射频线做好标记3)先将腔体与载频的连接线拆除，然后依次拆除腔体上的连接线（只需拆除腔体一侧），卸除1/2跳线4)更换腔体，重新复原1/2跳线、射频线、连接腔体的数据线（切记所有连接线按原有顺序复原）5)解锁，重启BCF，观察所有载频是否正常工作、有无告警（注意有无话务，因动过1/2跳线需要观察RSSI值）6)与BSC确认此站是否处于正常状态（最好能等待1小时以上，观察故障是否会重复出现）2 载频更换步骤2.1 FLEXI EDGE站型载频更换步骤1）将故障载频锁住。
诺西e N o d e B常见故障处理说明方案集团标准化办公室：[VV986T-J682P28-JP266L8-68PNN]诺西常见故障标准化处理说明书1诺西FlexiBTS7650告警处理<告警名称>BASESTATIONFAULTY<处理方法>按照故障可能的原因分类，分别列出处理方法如下：1.1BTSBlocked1.2BTSinternalSWmanagementproblem1.3BasebandBusfailure1.4SystemModulefailure1.5IncompatibleSWversiondetected1.6S1interfacesetupfailure1.7Temperaturealarm2诺西FlexiBTS7651告警处理<告警名称>BASESTATIONOPERATIONDEGRADED<处理方法>按照故障可能的原因分类，分别列出处理方法如下：2.1BTSreferenceclockmissing2.2BTSresetrequired2.3TransportlayerconnectionfailureinX2interface3诺西FlexiBTS7652告警处理<告警名称>BASESTATIONNOTIFICATION<处理方法>按照故障可能的原因分类，分别列出处理方法如下：5.1BTStimenotcorrected5.2Fanfailure5.3Fanfailure4诺西FlexiBTS7653告警处理<告警名称>CELLFAULTY<处理方法>按照故障可能的原因分类，分别列出处理方法如下：3.1CellBlocked3.2BasebandBusfailure3.3Cellpowerfailure3.4Configurationerror:NotenoughHWforLCR3.5FailureinopticalRP3interface3.6Temperaturealarm3.7RFLossofsecondaryopticalinterface3.8RFModulefailure3.9VSWRalarm5诺西FlexiBTS7654告警处理<告警名称>CELLOPERATIONDEGRADED<处理方法>按照故障可能的原因分类，分别列出处理方法如下：4.1VSWRalarm4.2FailureinopticalRP3interface6诺西FlexiBTS7655告警处理<告警名称>CELLNOTIFICATION<处理方法>按照故障可能的原因分类，分别列出处理方法如下：6.1TXfailureinMIMO6.2Radioresourcesswitchedoff。
.一体化代维项目试点课题研究成果故障处理案例库中国移动通信集团福建有限公司二○一二年四月目录：1 基站专业 (6)1.1天馈类 (6)1.1.1.Antenna connection faulty. (6)1.1.2.Rx levels differ too much between main and diversity antennas (7)1.1.3.RSSI detected Rx signal difference exceeding threshold (9)1.1.4.ERxx DDU module has detected VSWR above minor limit at A (Or B) (11)1.1.5.ECxx RTC module has detected VSWR above major limit at antenna (12)1.1.6.RF module detected VSWR above major limit (13)1.1.7.The reflected power of remote tune combiner is too high (15)1.1.8.CHANNEL FAILURE RATE ABOVE DEFINED THRESHOLD (16)1.1.9.MEAN HOLDING TIME BELOW DEFINED THRESHOLD (19)1.1.10.EXCESSIVE TCH INTERFERENCE (21)1.1.11.BTS WITH NO TRANSACTIONS (22)1.2基站硬件类 (24)1.2.1Oven oscillator adjustment function interrupted (24)1.2.2ESMA System module has lost connection to ESEA System Extension module (25)1.2.3ESMx System module has lost connection to all modules on optical ports (27)1.2.4FBUS HW failure (28)1.2.5LAPD failure (29)1.2.6ECxx RTC module received insufficient Tx power (30)1.2.7EXxx TRX module Tx power overdriven at DPC (31)1.2.8ERxx DDU module has detected no Tx power at TxB input (32)1.2.9RF Module has detected no TX power in internal filter block (33)1.2.10The RF receiver frequency hopping synthesizer 1 is not locked (34)1.2.11The transmitter output power has dropped at least 3 dB (35)1.2.12EXCESSIVE TCH INTERFERENCE (36)1.2.13CHANNEL FAILURE RATE ABOVE DEFINED THRESHOLD (37)1.2.14The tuning of a cavity has failed in remote tune combiner. (39)1.2.15Tuning carrier is not detected in remote tune combiner (40)1.2.16The synthesizer in remote tune combiner is faulty (41)1.2.17There is disturbance in the serial DL bus or bus is broken (41)1.2.18Performance of the main branch LNA in remote tune combiner is degraded (42)1.2.19ECxx RTC module cavity tuning synthesizer faulty. (43)1.2.20Master TRX detected that connection to slave TRX is lost (44)1.2.21Interface problems between O&M and DSP SW (45)1.2.22Baseband bus major operation error occurred in ESMx System module (46)1.2.23EXxx TRX module SW download from ESMA System module failed (47)1.2.24Power unit input voltage fault (48)1.2.25Supply voltage to ESMA near low/high limit (48)1.2.26No connection to power unit (49)1.2.27Power unit input voltage fault (50)1.2.28EXxx TRX module cooling fan(s) report no rotation (51)1.2.29ESEA System Extension Module fan(s) out of order (52)1.2.30ESMA System module has detected no fans (52)1.2.31TSxx temperature is dangerously high (53)1.2.32RF module ambient temperature outside operating range (54)1.2.33Cabinet door is open./Cabinet cover is open (55)1.3基站数据配置类 (56)1.3.1Commissioned RF cabling does not match BTS configuration (56)1.3.2Mismatch between BSC/MMI configuration file and the actual (57)1.3.3TRX object allocation failed in RF module (57)1.3.4Too few antennas available for Rx diversity (58)1.3.5PDU control has switched off ECxx RTC Module (59)1.3.6ESMA System module has lost connection to FSEx External Alarm (60)1.3.7Module power cable connections are incorrectly configured (61)1.3.8ERxx DDU module connected to wrong EXxx TRX module (62)1.3.9TRX is stuck in waiting for system information state (63)1.3.10Configuration of BCF Failed (64)1.4基站传输类 (66)1.4.1.PCM FAILURE (66)1.4.2.Difference between PCM and base station frequency reference (67)1.4.3.FAR-END ALARM (68)1.4.4.FREQUENCY ERROR/ LOSS OF INCOMING (69)2 数据专业 (71)1 基站专业1.1天馈类1.1.1.Antenna connection faulty.1.1.2.Rx levels differ too much between main and diversity antennas1.1.3.RSSI detected Rx signal difference exceeding threshold1.1.4.ERxx DDU module has detected VSWR above minor limit at A (Or B)1.1.5.ECxx RTC module has detected VSWR above major limit at antenna1.1.6.RF module detected VSWR above major limit1.1.7.The reflected power of remote tune combiner is too high1.1.8.CHANNEL FAILURE RATE ABOVE DEFINED THRESHOLD1.1.9.MEAN HOLDING TIME BELOW DEFINED THRESHOLD1.1.10.EXCESSIVE TCH INTERFERENCE1.1.11.BTS WITH NO TRANSACTIONS1.2基站硬件类1.2.1Oven oscillator adjustment function interrupted1.2.2ESMA System module has lost connection to ESEA System Extension module1.2.3ESMx System module has lost connection to all modules on optical ports1.2.4FBUS HW failure1.2.5LAPD failure1.2.6ECxx RTC module received insufficient Tx power1、1.2.7EXxx TRX module Tx power overdriven at DPC1、1.2.8ERxx DDU module has detected no Tx power at TxB input1、1.2.9RF Module has detected no TX power in internal filter block、1.2.10The RF receiver frequency hopping synthesizer 1 is not locked1、1.2.11The transmitter output power has dropped at least 3 dB1、1.2.12EXCESSIVE TCH INTERFERENCE1.2.13CHANNEL FAILURE RATE ABOVE DEFINED THRESHOLD1.2.14The tuning of a cavity has failed in remote tune combiner.1.2.15Tuning carrier is not detected in remote tune combiner1.2.16The synthesizer in remote tune combiner is faulty1、1.2.17There is disturbance in the serial DL bus or bus is broken1、1.2.18Performance of the main branch LNA in remote tune combiner is degraded1、1.2.19ECxx RTC module cavity tuning synthesizer faulty.1、1.2.20Master TRX detected that connection to slave TRX is lost1、1.2.21Interface problems between O&M and DSP SW1、1.2.22Baseband bus major operation error occurred in ESMx System module1、1.2.23EXxx TRX module SW download from ESMA System module failed1.2.24Power unit input voltage fault1、1.2.25Supply voltage to ESMA near low/high limit1、1.2.26No connection to power unit1.2.27Power unit input voltage fault1、。

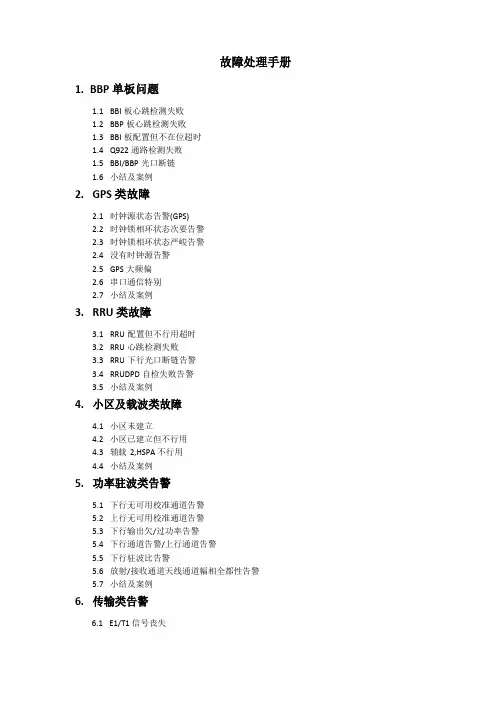

故障处理手册1.BBP 单板问题1.1BBI 板心跳检测失败1.2BBP 板心跳检测失败1.3BBI 板配置但不在位超时1.4Q922 通路检测失败1.5BBI/BBP 光口断链1.6小结及案例2.GPS 类故障2.1时钟源状态告警(GPS)2.2时钟锁相环状态次要告警2.3时钟锁相环状态严峻告警2.4没有时钟源告警2.5GPS 大频偏2.6串口通信特别2.7小结及案例3.RRU 类故障3.1RRU 配置但不行用超时3.2RRU 心跳检测失败3.3RRU 下行光口断链告警3.4RRUDPD 自检失败告警3.5小结及案例4.小区及载波类故障4.1小区未建立4.2小区已建立但不行用4.3辅载2,HSPA 不行用4.4小结及案例5.功率驻波类告警5.1下行无可用校准通道告警5.2上行无可用校准通道告警5.3下行输出欠/过功率告警5.4下行通道告警/上行通道告警5.5下行驻波比告警5.6放射/接收通道天线通道幅相全都性告警5.7小结及案例6.传输类告警6.1E1/T1 信号丧失6.2E1/T1 告警指示6.3E1/T1 远端告警指示6.4E1/T1 帧失步6.5E1/T1 环回故障6.6E1T1 高误码率门限告警6.7小结及案例7.信令类告警7.1IMA 链路信元定界失步故障7.2IMA 链路帧失步故障7.3IMA 链路延迟失步故障7.4IMA 链路远端接收故障7.5IMA 链路接收故障7.6IMA 组配置失败故障7.7IMA 远端组配置失败故障7.8IMA 组内激活链路数缺乏故障7.9IMA 远端组内激活链路数缺乏故障7.10ALCAP 断链故障7.11AAL2PATH上的AIS 故障7.12SAAL 断链故障7.13NCP 告警7.14CCP 告警7.15小结及案例8.其他故障告警8.1PSU 特别8.2DHCP 启动告警8.3OM 通道断链告警8.4小结及案例处理故障的原则：处理故障前请先对告警进展分析。

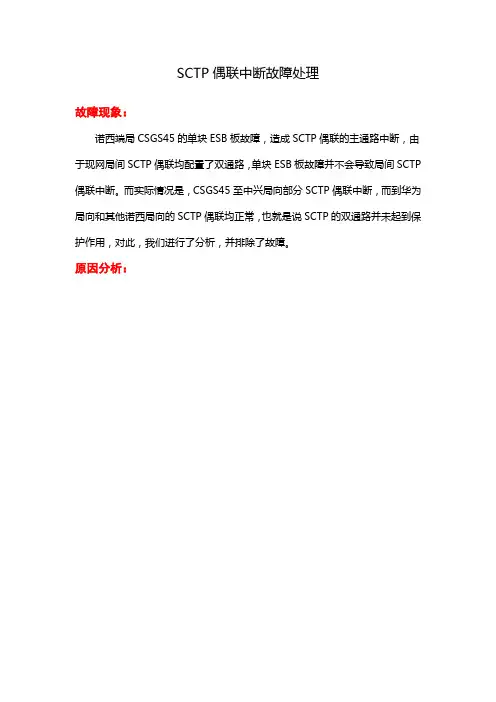

SCTP偶联中断故障处理故障现象：诺西端局CSGS45的单块ESB板故障，造成SCTP偶联的主通路中断，由于现网局间SCTP偶联均配臵了双通路，单块ESB板故障并不会导致局间SCTP偶联中断。
而实际情况是，CSGS45至中兴局向部分SCTP偶联中断，而到华为局向和其他诺西局向的SCTP偶联均正常，也就是说SCTP的双通路并未起到保护作用，对此，我们进行了分析，并排除了故障。
原因分析：分析判断可能原因：1、备用通路不通2、诺西端局硬件或配臵问题3、中兴端局硬件或配臵问题原因排查：SCTP（STREAM CONTROL TRANSMISSION PROTOCOL 流控制传输协议）能在两个端点之间提供稳定、有序的数据传递服务，在SIGTRAN协议的应用中，SCTP 上层用户是SCN 信令的适配模块（如M2UA、M3UA），下层是IP网。
偶联实际上是在两个SCTP端点之间建立的连接关系，任何时刻两个SCTP端点之间能且仅能建立一个偶联。
通路则是一个端点将SCTP分组数据发送到对端端点特定传送地址的路由。
在现网中，如下图1所示，两个端局之间配臵了4个偶联，每个偶联具有主备两条通路，并采用了心跳机制，即当某条通路空闲时，本端端点会生成相应的心跳消息并通过该空闲通路发送到对端端点，而对端端点收到消息后将立即发回对应的心跳确认消息。
该机制被用来随时监视偶联通路的可用情况，当某一条通路故障时，数据传送将立即切换到另一条通路上，以此来保持SCTP偶联的可靠性和稳定性。
通路1图1 局间偶联示意图图2 诺西端局偶联配臵示意图如上图所示，诺西端局的偶联建立在GISU板上，每一块GISU板对应一个偶联。
每个偶联的两条通路分别通过两块ESB板连接直IP承载网，进而与对端局相连。
本次故障起因为ESB1板故障，但单块ESB板故障只会导致偶联2条通路中的1条通路中断，根据偶联的心跳机制，数据传输将立即切换到另一条通路上，整个偶联将不会受影响。
诺西常见故障标准化处理说明书1 诺西FlexiBTS7650告警处理<告警名称>BASESTATIONFAULTY<处理方法>按照故障可能的原因分类，分别列出处理方法如下：1.1BTSBlocked1.2BTSinternalSWmanagementproblem1.3BasebandBusfailure1.4SystemModulefailure1.5IncompatibleSWversiondetected1.6S1interfacesetupfailure1.7Temperaturealarm2 诺西FlexiBTS7651告警处理<告警名称>BASESTATIONOPERATIONDEGRADED<处理方法>按照故障可能的原因分类，分别列出处理方法如下：2.1BTSreferenceclockmissing2.2BTSresetrequired2.3TransportlayerconnectionfailureinX2interface3 诺西FlexiBTS7652告警处理<告警名称>BASESTATIONNOTIFICATION<处理方法>按照故障可能的原因分类，分别列出处理方法如下：5.1BTStimenotcorrected5.2Fanfailure5.3Fanfailure4 诺西FlexiBTS7653告警处理<告警名称>CELLFAULTY<处理方法>按照故障可能的原因分类，分别列出处理方法如下：3.1CellBlocked3.2BasebandBusfailure3.3Cellpowerfailure3.4Configurationerror:NotenoughHWforLCR3.5FailureinopticalRP3interface3.6Temperaturealarm3.7RFLossofsecondaryopticalinterface3.8RFModulefailure3.9VSWRalarm5 诺西FlexiBTS7654告警处理<告警名称>CELLOPERATIONDEGRADED<处理方法>按照故障可能的原因分类，分别列出处理方法如下：4.1VSWRalarm4.2FailureinopticalRP3interface6 诺西FlexiBTS7655告警处理<告警名称>CELLNOTIFICATION<处理方法>按照故障可能的原因分类，分别列出处理方法如下：6.1TXfailureinMIMO6.2Radioresourcesswitchedoff。
