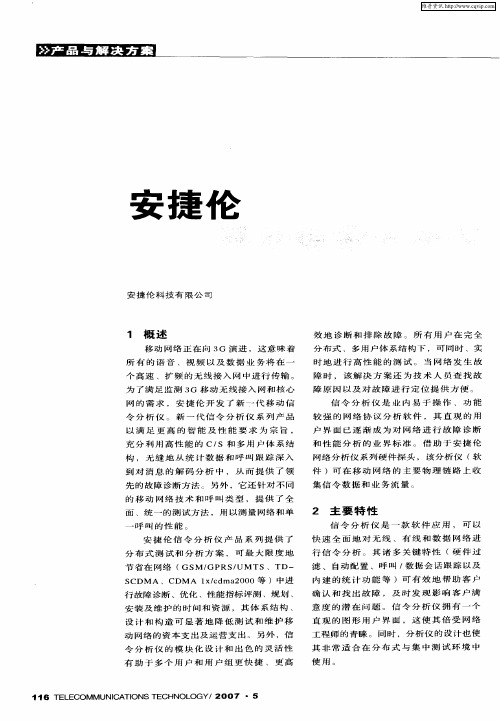

安捷伦信令分析仪系列

安捷伦的的网络分析仪安捷伦（Agilent）是一家知名的电子测试与测量仪器制造商，旗下的网络分析仪（Network Analyzer）是其产品线中的重要组成部分。

网络分析仪是一种可以用来测试和分析各种电子设备和电路的仪器，包括高速数字电路、射频和微波电路等。

安捷伦的网络分析仪以其高性能、稳定性和可靠性而受到业界的广泛认可和好评。

它主要用于测量和分析滤波器、放大器、天线、传输线、无线通信设备和通信系统等各种电子设备和电路的性能参数。

网络分析仪可以对电路中的功率、幅度、相位、传输特性、频率响应等进行测量和分析，帮助工程师们更好地了解电路的工作状态，对其进行优化和调整，提高产品的性能和可靠性。

安捷伦的网络分析仪具有多种功能和特点，如高精度、宽带、高速度、低噪声等。

它能够覆盖从直流到高频率范围内的信号测量和分析，支持多种不同的测试模式和测量参数。

同时，安捷伦的网络分析仪还具备友好的用户界面和易于操作的功能，使得工程师们可以方便地进行各种测试和分析，提高工作效率和测试准确性。

安捷伦的网络分析仪还具有强大的数据处理和分析能力。

它提供了多种数据显示和分析工具，包括频谱显示、时间域显示、功率谱显示、相位谱显示等，帮助用户更直观地了解电路的性能特性。

此外，它还支持数据的存储和导出，可以将测试数据保存为文件，方便用户进行后续的数据处理和分析。

此外，安捷伦的网络分析仪还具备良好的扩展性和兼容性。

它可以通过各种接口和插件来扩展其功能和应用范围，如信号发生器、频率计、电源等。

同时，它还支持多种通信接口和协议，如GPIB、LAN、USB等，可以与其他设备和系统进行互联互通，方便用户进行综合性能测试和系统集成。

在实际应用中，安捷伦的网络分析仪已广泛应用于各个领域，如电子制造、通信、无线电、航空航天等。

它可以用于产品研发、生产测试、维修和故障排除等各个环节，为工程师们提供了一个强大而可靠的工具，帮助他们更好地完成工作任务。

总之，安捷伦的网络分析仪作为一种高性能的测试与测量仪器，具有多种功能和特点，广泛应用于各个领域。

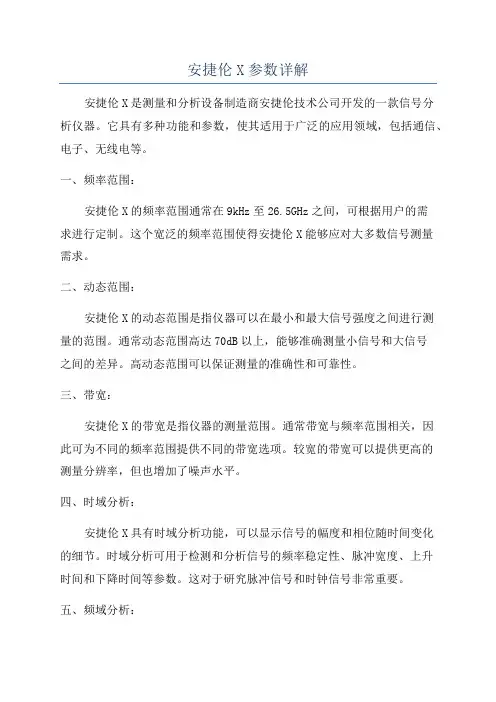

安捷伦X参数详解安捷伦X是测量和分析设备制造商安捷伦技术公司开发的一款信号分析仪器。

它具有多种功能和参数，使其适用于广泛的应用领域，包括通信、电子、无线电等。

一、频率范围：安捷伦X的频率范围通常在9kHz至26.5GHz之间，可根据用户的需求进行定制。

这个宽泛的频率范围使得安捷伦X能够应对大多数信号测量需求。

二、动态范围：安捷伦X的动态范围是指仪器可以在最小和最大信号强度之间进行测量的范围。

通常动态范围高达70dB以上，能够准确测量小信号和大信号之间的差异。

高动态范围可以保证测量的准确性和可靠性。

三、带宽：安捷伦X的带宽是指仪器的测量范围。

通常带宽与频率范围相关，因此可为不同的频率范围提供不同的带宽选项。

较宽的带宽可以提供更高的测量分辨率，但也增加了噪声水平。

四、时域分析：安捷伦X具有时域分析功能，可以显示信号的幅度和相位随时间变化的细节。

时域分析可用于检测和分析信号的频率稳定性、脉冲宽度、上升时间和下降时间等参数。

这对于研究脉冲信号和时钟信号非常重要。

五、频域分析：安捷伦X还可以进行频谱分析，通过显示信号在不同频率上的幅度变化，帮助用户了解信号的频率分布情况。

频谱分析可以用于检测和分析信号的谐波、杂散等频率成分。

六、相位噪声测量：安捷伦X提供高精度的相位噪声测量，可以用于分析和评估振荡器、时钟信号和频率合成器等设备的相位稳定性。

相位噪声测量的精度和灵敏度对于一些射频和微波应用至关重要。

七、频率计：安捷伦X还可以作为频率计使用，可以精确地测量和显示信号的频率值。

频率计通常用于校准和调整频率合成器、时钟信号源等设备。

八、功率测量：安捷伦X可以准确测量信号的功率，包括平均功率、峰值功率等。

功率测量对于电源和射频系统的设计和调试非常重要。

综上所述，安捷伦X是一款功能强大、灵活多样的信号分析仪器。

它的广泛的频率范围、动态范围和带宽选项，使其适用于各种测量需求。

同时，它还具有时域分析、频域分析、相位噪声测量、频率计和功率测量等多种功能，满足了用户对信号测量和分析的各种要求。

Agilent Signaling Analyzer快速使用指南--以太网和8端口E1接口目录1. 软件安装 (3)2. 软件许可设置 (3)3. 仪表的Firmware升级 (4)3.1设置仪表的IP地址 (5)3.2 Firmware 升级 (6)4. 模块的连接和配置 (7)4.1 连接 (7)4.2 8端口E1模块设置 (9)4.3 以太网端口模块设置 (18)5．分析功能 (20)5.1 添加或者替换协议栈 (22)5.2 进行协议解码的查看 (24)5.3 显示过虑器的使用 (28)附录 (29)附录1： J6803A/B（DNA Pro）说明 (29)附录2： J6803A/B（DNA Pro）软件安装 (31)附录3： Disable RTSM 端口 (32)FAQ (33)1. 软件安装安捷伦J6801A/B(DNA)系列信令分析软件(Signaling Analyzer)由Signaling Analyzer 和Network Analyzer两个软件组成。

如果准备实时从现网进行数据采集和分析,在PC上必须安装NA和SA.如果进行后分析,只需要安装SA系统要求: Windows 2000 以上的中英文系统，建议系统不再安装其他应用软件，防止软件冲突内存:建议1G ,至少512M注意:NA和SA的软件版本需要匹配(但不一定是版本号一样)软件安装过程，建议不修改默认选项（目录选项除外）2. 软件许可设置当软件第一次安装后,需要进行软件许可输入NA软件的许可:启动Analyzer Hardware(select LIM),这时会弹出窗口,设置License,选择License software 按钮(如果需要试用,选择Trial Lincese),对应的产品号为J6840A,输入License选择后退出NA 程序SA软件许可:SA的软件许可的结构是：基本软件+技术选件,基本软件的产品号为J7830A启动Signaling Analyzer Realtime Mode程序输入基本软件(J7830A)的序号,输入一个技术选件的序列号,如果有多个技术选件,可以通过license工具设置进入SA程序后,通过菜单栏的Tools->License 调出,将相应的技术选件的序列号输入到相应的技术选件,就可以了3. 仪表的Firmware升级上图是DNA实时工作的原理图,DNA从被测的网络接口采集数据,由NA嵌入版本软件进行处理,并通过网络发送到控制PC上,控制PC上安装了NA和SA的软件,数据首先发送给NA 软件,然后通过内部进程通信交给SA软件。

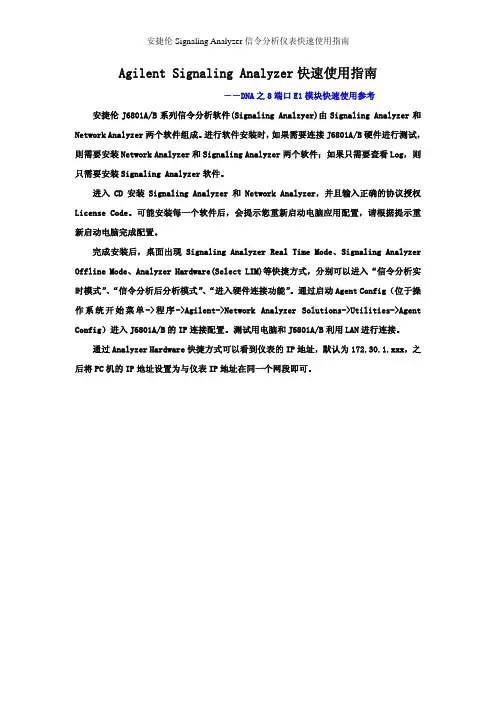

Agilent Signaling Analyzer快速使用指南――DNA之8端口E1模块快速使用参考 安捷伦J6801A/B系列信令分析软件(Signaling Analzyer)由Signaling Analyzer和Network Analyzer两个软件组成。

进行软件安装时，如果需要连接J6801A/B硬件进行测试，则需要安装Network Analyzer和Signaling Analyzer两个软件；如果只需要查看Log，则只需要安装Signaling Analyzer软件。

进入CD安装Signaling Analyzer和Network Analyzer，并且输入正确的协议授权License Code。

可能安装每一个软件后，会提示您重新启动电脑应用配置，请根据提示重新启动电脑完成配置。

完成安装后，桌面出现Signaling Analyzer Real Time Mode、Signaling Analyzer Offline Mode、Analyzer Hardware(Select LIM)等快捷方式，分别可以进入“信令分析实时模式”、“信令分析后分析模式”、“进入硬件连接功能”。

通过启动Agent Config（位于操作系统开始菜单->程序->Agilent->Network Analyzer Solutions->Utilities->Agent Config）进入J6801A/B的IP连接配置。

测试用电脑和J6801A/B利用LAN进行连接。

通过Analyzer Hardware快捷方式可以看到仪表的IP地址，默认为172.30.1.xxx，之后将PC机的IP地址设置为与仪表IP地址在同一个网段即可。

1、运行Signaling Analzyer软件Signaling Analyzer Real Time Mode，进入配置界面1、这里可以看到当前连接的DNA（J6801A）模块列表。

1981Agilent E4406AVector Signal AnalyzerAccuracyS p e e d2Fast and accurate measurements To stay competitive, wireless equipment manufacturers need flexible test equipment capable of testing different formats with little change in set-up. The Agilent E4406A vector signal analyzer (VSA) is the perfect fit, offering the best combination of speed and accuracy for making one-button,standards-based measurements.2.5G and 3G formatsFor engineers developing next-generation wireless components and systems, the E4406A provides W-CDMA, cdma2000,1xEV-DO and EDGE/GSM formats. Using one-button measurements, engineers can quickly verify conformance to these new formats. As the standards have evolved, we have continued to enhance existing measurement personalities, and add new ones. The modular architecture of the E4406A makes it simple for you to upgrade and be ready for the latest standards.You develop the wireless future…Easy to useMulti-format3…we provide the signal analysis.An investment for your future The number of wireless technologies deployed around the world is growing and the demand for any particular format can change quickly. The E4406A offers format and frequency flexibility.Comprehensive signal analysis Speeding up production means being ready to manufacture anything and lose no time doing it. The E4406A easily adapts to virtually any popular format:•W-CDMA •cdma2000•1xEV-DO •cdmaOne •EDGE •GSM •NADC •PDC •iDEN •Spectrum •Waveform“We have decreased the (transmitter power calibration)test time by 25%.”–T est Systems Designer4Built for speed…Fast standards-based measurements As a wireless system or componentmanufacturer, you are under pressure to increase throughput while minimizing capital investments. Long test times can severely limit your manufacturing throughput, so we designed the E4406A.Since its introduction, progressive enhancements to the E4406A ensure its performance keeps pace with the ever-increasing need for speed.Today's E4406A is faster than ever. For example, the W-CDMA adjacent channel power ratio (ACPR) measurement is now nearly eight times faster than it used to be.Output radio frequency spectrum (ORFS) is two times faster, W-CDMA code domain power (CDP) is five times faster, and other measurements have improved as well.The E4406A transmitter power calibration uses time record data and built-in algorithms to provide complete transmitter level calibration with incredible speed – with all the accuracy you expect from the affordably-priced E4406A.In addition to high-speed throughput and accuracy in the manufacturing environment,the E4406A is designed to allow research and development engineers to quickly obtain results with minimal keystrokes.The E4406A delivers a logical user interface and a wealth of quick “one button” measurments, enabling designers to quickly try multiple test without getting bogged down in crypitic menus. The E4406A interface provides the edge needed to expediently evaluate new designs and successfully meet the demands of today's competitive environment.Base station transceiver suite of testsTypical spectrum analyzerNow even faster…without giving up accuracy.Fast spectrum measurementsThe E4406A features pre-configured, one-button measurements for many cellular standards and can also be used for narrowband spectrum measurements. Manufacturers can expect to make inter-modulation distortion and other amplitude measurements up to three times faster using the E4406A. AccuracyYou don’t need to reduce measurementspeed to get accurate results. Superiorabsolute level accuracy of ±0.6 dB(±0.4 dB typical) provides unmatchedperformance and minimizes test uncertainty.Combined with a linearity of ±0.25 dBover a 76 dB range, the E4406A is astate-of-the-art measurement tool.Absolute level accuracyNarrow span spectrum measurement over GPIB E4406A VSA spectrum analyzer25 updates/second Typicalspectrumanalyzer56The E4406A VSA…Focused applications including EDGE, GSM,W-CDMA, cdma2000, 1xEV-DO, cdmaOne,and NADC as well as narrow-span spectrum and waveform analysisBaseband measurements with balanced/unbalanced multiple impedance inputsLarge,high-resolution, color display makes viewing multiple traces easyZoomfeature allows users to display selected measurement windowsAutomatic alignment ensures accurate measurement resultsOne-button,standards-based measurements7…comprehensive signal analysis.High-speed LAN, parallel, and GPIB ports provide speed and flexibility whenIntuitive key strokesBuilt-in floppy disk drive provides PC compatibility and data archivingManufacturing8Standards complianceIn manufacturing, you need straightforward pass/fail verification of critical specifications.With built-in test limits you don ’t have to keep track of every standard. The E4406A performs tests to the requirements of current industry standards with free, easy-to-install, firmware updates.Speed and throughputIn the world of high-speed manufacturing every millisecond counts. Identify your throughput restrictions and if measurement speed is creating a bottleneck, consider the significant speed advantage of the E4406A.Transmitter and receiver testingIn combination with the Agilent E4438C ESG vector signal generator, the E4406A offers base station receiver and transmitter testing for major 2G, 2.5G, and 3G wireless formats.The E4406A combined with an E4438C is a test solution that provides the required flexibility, without compromising accuracy, for maximum throughput in base station production with the ability to migrate to new formats.Designed for manufacturing…Development9Verify next-generation designs For R&D engineers developing next-generation wireless components and systems, the E4406A is a low-cost tool that quickly verifies conformance. Your investment is secure because the E4406A has a modular architecture – making it easy to upgrade to the latest standards.Characterize using leading test methodsDigital modulation presents new challenges to amplifier manufacturers.Designers need effective methods to quickly characterize digital signals. The E4406A ’s complementary cumulative-distribution function (CCDF) is useful for determining a signal ’s power statistics,revealing the power peaks relative to the average power for assessing linearity requirements.Flexible power measurements Multicarrier power amplifier (MCPA)designers are faced with new measurement challenges. Designers must characterize intermodulation distortion at many frequency offsets and evaluate the effects of different modulation formats over a wide dynamic range. The E4406A features a fully-configurable ACP measurement that can test up to five frequency offsets and be optimized for dynamic range or speed.…and product development.10GSM with EDGE (Option 202)The EDGE measurement personality performs the latest standards-based measurements, including:•Error vector magnitude (EVM)•Multi-slot power versus time (PvT)•ORFS •IQ offset•Channel plans for 400, 800, 900, 1800, 1900 MHz•GSM measurements from Option BAH The EVM measurement features a unique algorithm to simultaneously display the EVM numerical results and the EDGE constellation diagram using the industry-specified measurement filter.GSM (Option BAH)The GSM measurement personality lets you quickly perform measurements to the latest ETSI standards:•Mean transmitter carrier power •Multi-slot PvT •ORFS•Phase and frequency error (PFER)•IQ offset•Transmitter band spurious•Channel plans for 400, 700, 800, 900, 1800, 1900 MHzThe personality features easy channel and timeslot selections, configurable PvT masks,and a typical ORFS dynamic range of 90 dB.NADC and PDC (Option BAE)Both the North American Digital Cellular (NADC) and Personal Digital Cellular (PDC)measurement personalities are included in this option. The NADC measurements are structured according to the IS-136 TDMA standard. Measurements included in this option are:•ACP •EVM•Occupied bandwidth (for PDC)The personalities feature base station and mobile radio mode set-ups, as well as sync word search capability.iDEN (Option HN1)The iDEN measurement personality performs measurements to the Motorola iDEN specialized mobile radio format. •Occupied bandwidth (OBW)•ACPR•Transmitter bit error rate (BER)TDMA measurement personalities…11W-CDMA (Option BAF)The complexity of W-CDMA demands the flexibility and depth of demodulation capability provided by this personality.Perform the following measurements on the HPSK uplink or downlink QPSK signals:•Code domain •QPSK EVM•Modulation accuracy (composite rho and EVM)•Channel power•Adjacent channel power leakage ratio (ACLR)•Power control •PvT•Intermodulation distortion •Multicarrier power•Spectrum emission mask •OBW •CCDFThis personality has the ability toautomatically determine active channels,to synchronize with any W-CDMA channel,to display code domain power in a multi-rate view, and to demodulate down to the symbol level. Variable capture intervals and pre-defined test models enable the user to perform fast, accurate measurements for manufacturing or in-depth analysis for R&D.cdma2000 (Option B78)The cdma2000 measurement personality offers the logical upgrade path from IS-95 to IS-2000 testing. Measurements support the forward and reverse links.•Code domain •QPSK EVM•Modulation accuracy (composite rho and EVM)•Channel power •ACPR•Intermodulation distortion •Spectrum emission mask •OBW •CCDFAdvanced code domain analysis algorithms display Walch codes for either Hadamard or OVSF coding schemes in a multi-rate view. Other capability includes code domain power error, symbol EVM,symbol power versus time, active channel identification, variable PN offset, quasi-orthogonal functions and demodulated symbol bit displays after de-spreading.… and CDMA measurement personalities.12Expanding measurement potential…cdmaOne (Option BAC)Built on Agilent ’s pioneering efforts in CDMA measurement techniques,this personality provides quick and easy measurement set-ups for the TIA/EIA-95, J-STD-008,IS-97D, and IS-98D band classes:•Modulation accuracy (rho)•Code domain •Channel power •ACPR•Close-in spuriousAlong with the world ’s fastest ACPR measurements, this personality features PN (pseudo-noise sequence) search, time offset, and carrier feed-through analysis.1xEV-DO (Option 204)With digital demodulation analysis, the 1xEV-DO measurement personality provides the most comprehensive, easy-to-use,1xEV-DO measurement solution available in an analyzer. This personality, which performs measurements for both forward link and reverse link signals, provides key transmitter measurements for analyzing systems based on the 3GPP2 and TIA/EIA/IS-856 standards.Forward link•Channel power•Power versus time mask •Spurious emissions and ACP •Intermodulation distortion •OBW•Code domain•Modulation accuracy (composite rho)•QPSK EVM•Power statistics (CCDF)Reverse link •Code domain•Modulation accuracy (composite rho)For forward link, the PvT mask and spurious emissions/ACP measurements support both the idle slot (burst signal) and active slot (full power signal). With the auto-burst search function, you can see the standard-based time mask for the 1xEV-DO idle slot in PvT. Code domain, modulation accuracy (composite rho), and QPSK EVM can also measure for each channel ’s Pilot, MAC, and Data in QPSK/8PSK/16QAM. Designed with flexibility in mind, this personality supports the unique 1xEV-DO forward link signals ’feature of time divisions multiplex (TDM). For reverse link, code domain, and modulation accuracy provide powerful modulation analysis functions for transmitter tests.13IQ inputs (Option B7C)Capitalize on the E4406A ’s demodulation capabilities by extending the measurement range to baseband. The baseband IQ input option enables engineers to measure the complete signal path of a receiver or transmitter and directly compare signals both before and after frequency conversion and IQ (de)modulation.Ideally suited for R&D engineers and manufacturing environments, this option allows measurement of baseband I and Q signals in either balanced or unbalanced systems. Input configurations include 50-ohm unbalanced, 600-ohm balanced, and 1-Mohm balanced or unbalanced –enabling a variety of systems to be directly tested without cumbersome and error-inducing conversion networks.Applicable in-band 3GPP W-CDMA,cdma2000, EDGE/GSM, and Basic mode measurements are supported via RF and IQ inputs, enabling engineers to track down signal degradation both before and after RF/IF conversion.Additional features include auto calibration of input signals, variable dc offsets and a dc to 5-MHz input frequency range (10 MHz in I + jQ mode)....tailored to user requirements.14E4406A VSA/89601Asoftware combinationThe standards-based, one-button test capabilities of the E4406A can be expanded with the flexible digital demodulation and analysis capabilities of the Agilent 89601A PC software. This teaming provides fast and accurate data acquisition with powerful,flexible modulation analysis tools for, both common and evolving communications standards.The 89601A vector signal analysis software is the heart of the Agilent 89600 series of vector signal analyzers. This software provides flexible tools for demodulating and analyzing even the most advanced digital modulations, whether or not they are contained in an established standard. Features include variable block size signal acquisition with user-selectable pulse search and synch words, and a user-con-trollable adaptive equalizer. Filter types include cosine (raised and square-root raised), Gaussian, and low-pass – all with configurable alpha/BT. Supported modula-tion formats for both continuous and burst carriers include FSK (2, 4, 8, and 16 level),BPSK, QPSK, OQPSK, DQPSK, p/4DQPSK,8PSK, QAM (16 to 256 level), VSB (8 and 16 level), EDGE, and MSK.The software also provides signal capture and analysis features, such as the capability to download signal capture files for playback through signal generators,and display high-speed spectrograms.The 89601A software runs on a PC connected to the E4406A, via LAN or GPIB,and provides hardware control and results displays along with modulation analysis.Coupling speed and power…15/find/vsa…with Agilent’s tradition of excellence.Service and supportThe speed and accuracy of the E4406A VSA is only a small part of what you get from Agilent. We strive to provide complete solutions that go beyond our customers ’expectations. Only Agilent offers the depth and breadth of enhancements, software, services, connectivity, accessibility, and support to help you reach your measurement objectives. For more information on the E4406A VSA, including product and application literature, visit our Web site at /find/vsaPre-sales service• rentals, leasing, and financing • application engineering services Post-sales service• standard 3-year global warranty • Worldwide Call Center and Service Center support network • one-year calibration intervals • firmware upgrades downloadable from the Web PC connectivity • 10 baseT LAN port • floppy disk drive • GPIB interface• VXI Plug and Play driversPeripheral and product interfaces • parallel printer port • printer support • VGA monitor output• Agilent E4438C ESG vector signal generator•Agilent 89601A vector signal analysis softwareTraining and access to information • on-site user training • factory service training• Web-based support of frequently asked questions• manuals on CD-ROM and on the Web Software• programming examples on CD-ROM • SCPI (Standard Commands for Programmable Instruments)• PC-based performance verification and adjustment softwareOrdering Array informationE4406A vector signal analyzerModel DescriptionE4406A7 MHz to 4 GHzOption DescriptionDigital Demodulation MeasurementsE4406A-202EDGE with GSM measurementpersonalityE4406A-2041xEV-DO measurementpersonalityE4406A-B78cdma2000 measurementpersonalityE4406A-BAC cdmaOne measurementpersonalityE4406A-BAE NADC, PDC measurementpersonalityE4406A-BAF W-CDMA measurementpersonalityE4406A-BAH GSM measurement personality E4406A-HN1IDEN measurementpersonalityInputs and outputsE4406A-300321.4 MHz IF outputBBIQE4406A-B7C I/Q inputsCalibration documentationE4406A-UK6Commercial calibrationcertificate with test data AccessoriesE4406A-1CM Rack mount kitE4406A-1CN Handle kitE4406A-1CP Rack mount and handle kitE4406A-1CR Rack slide kit* Includes English manual set.。

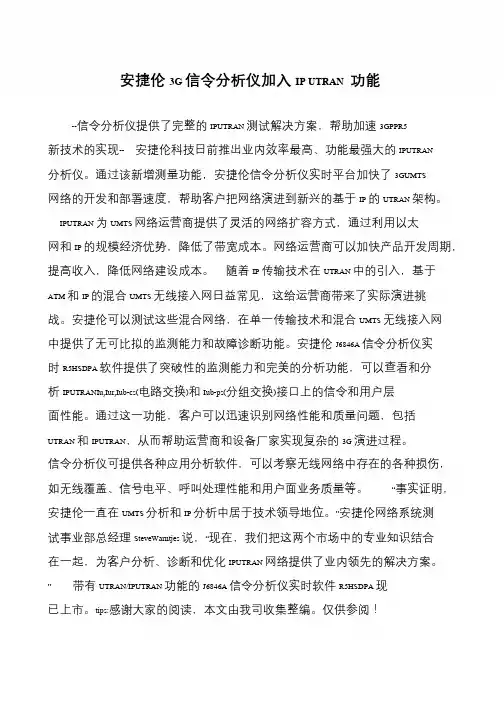

安捷伦3G 信令分析仪加入IP UTRAN 功能--信令分析仪提供了完整的IPUTRAN 测试解决方案，帮助加速3GPPR5新技术的实现-- 安捷伦科技日前推出业内效率最高、功能最强大的IPUTRAN 分析仪。

通过该新增测量功能，安捷伦信令分析仪实时平台加快了3GUMTS网络的开发和部署速度，帮助客户把网络演进到新兴的基于IP 的UTRAN 架构。

IPUTRAN 为UMTS 网络运营商提供了灵活的网络扩容方式，通过利用以太网和IP 的规模经济优势，降低了带宽成本。

网络运营商可以加快产品开发周期，提高收入，降低网络建设成本。

随着IP 传输技术在UTRAN 中的引入，基于ATM 和IP 的混合UMTS 无线接入网日益常见，这给运营商带来了实际演进挑战。

安捷伦可以测试这些混合网络，在单一传输技术和混合UMTS 无线接入网中提供了无可比拟的监测能力和故障诊断功能。

安捷伦J6846A 信令分析仪实时R5HSDPA 软件提供了突破性的监测能力和完美的分析功能，可以查看和分析IPUTRANIu,Iur,Iub-cs(电路交换)和Iub-ps(分组交换)接口上的信令和用户层面性能。

通过这一功能，客户可以迅速识别网络性能和质量问题，包括UTRAN 和IPUTRAN，从而帮助运营商和设备厂家实现复杂的3G 演进过程。

信令分析仪可提供各种应用分析软件，可以考察无线网络中存在的各种损伤，如无线覆盖、信号电平、呼叫处理性能和用户面业务质量等。

“事实证明，安捷伦一直在UMTS 分析和IP 分析中居于技术领导地位。

”安捷伦网络系统测试事业部总经理SteveWarntjes 说，“现在，我们把这两个市场中的专业知识结合在一起，为客户分析、诊断和优化IPUTRAN 网络提供了业内领先的解决方案。

”带有UTRAN/IPUTRAN 功能的J6846A 信令分析仪实时软件R5HSDPA 现已上市。
