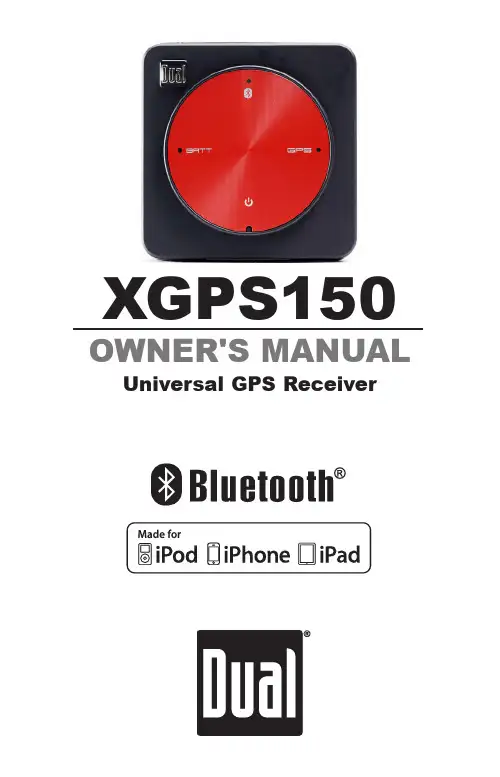

OWNER'S MANUALUniversal GPS ReceiverXGPS150XGPS1502IntroductionThank you for purchasing the XGPS150 Universal Bluetooth ® GPS Receiver from Dual Electronics.The XGPS150 works with signals from GPS satel-lites to determine your location anywhere in the world. It then can transmit your location informa-tion to many kinds of devices which have Blue-tooth connectivity and support the Bluetooth Serial Port Profile (SPP). This includes:• the iPhone ® (generations 2 through 4)• the iPod touch ® (generations 2 through 4)• the first generation of the iPad ®You can also connect the XGPS150 to many An-droid ®, Windows ® or Blackberry ® smart phones and tablets, as well as to notebook computers run-ning Windows or OS X.NOTE: Not all manufacturers include SPP in their devices, even if the device has Bluetooth. Please consult the owner’s manual for your specific de -vice to determine whether it supports SPP . Some devices, like Android-based devices, may need a helper app to connect to the XGPS150. See Pair-ing with your device for more information.Low battery indicator. This light will flash red when the battery level is low and the device re-quires recharging. (See Charging the XGPS150.) During charging, the light will glow red and change to green when charging is complete. This light is normally off while the XGPS150 is running. Bluetooth status indicator. This light will indicate whether the XGPS150 is searching for a device to connect to, negotiating a connection with a device, or has successfully paired to a device. A slow flash(about once per second) indicates the XGPS1503XGPS1504Features (cont’d)is available to connect to another device. A quick flash (approx. 5 times per second) briefly hap -pens when the XGPS150 is pairing with another device. A solid glow indicates that the XGPS150 has successfully paired and is communicating with another device.GPS status indicator. The GPS indicator will flash while the XGPS150 is searching for satellite signals. The light will change to a steady green when your location is successfully determined. NOTE: when paired with an iPad, iPod or iPhone the GPS status light will not illuminate until an app is actively requesting GPS information.XGPS1505charging the XGPS150.Mode switch . The mode switch must be set for the device you want to use the XGPS150 with:XGPS1506SetupThe XGPS150 is very simple to use. There is a one-time setup process to connect it to your iPad, iPod, smart phone, tablet or laptop computer. Once this setup process is completed, simply turn on the XGPS150 to begin using it.To setup the XGPS150 with your device, you will need to do two things:• Set the mode switch on the XGPS150 for the type of device you will be using.• Pair the XGPS150 with the device you will be using.Setting the mode switchWith the tip of a fine ballpoint pen, move the mode switch to the proper position:• If you are using the XGPS150 with an iPad, iPod touch or iPhone slide the switch right, away from the USB connector.• To use the XGPS150 with an Android, Win -dows or Blackberry smart phone, laptop com-puter or tablet, move the mode switch to the left, towards the USB connector.XGPS1507Pairing with your devicePairing is the process connecting two devices over Bluetooth and allowing them to communicate. You will need to go through the pairing process each time you use the XGPS150 with a new device, and the XGPS150 will automatically try to reconnect to the last device it was paired with.NOTE: If your device requires a code to connect during the pairing process, use “0000” or “1234”.Pairing the XGPS150 with the iPod touch, iPad or iPhone(NOTE: these instructions were written using iOS version 4.1 and may be different if you are using a different version of the iPhone OS.)• Make sure the mode switch on the XGPS150 is set correctly for your device (see Setup ).• On the touch/iPad/iPhone device, go to:Settings->General->Bluetoothand turn on Bluetooth. The device will automati-cally begin looking for the XGPS150.• Turn on the XGPS150. The blue Bluetooth status light on the XGPS150 will begin to blink slowly (about once per second).• After a few seconds, the XGPS150 will appear as XGPS150-xxxxxx in the list of devices on the touch/iPad/iPhone screen. (The last 6 digitsXGPS1508are part of the XGPS150 serial number andwill be different for each unit.) The word Misc may also appear for a few moments before XGPS150-xxxxxx appears.• Tap XGPS150-xxxxxx in the list of devices to connect to it. The words “Not Paired” will disap-pear and be replaced by the spinning cursor.• After approximately 10 seconds, theXGPS150-xxxxxx name in the device list will change to blue text and the word Connected will appear. The blue LED on the XGPS150 will blink rapidly for a few seconds and then stay illuminated, confirming the two devices have successfully paired and are communicating.Pairing the XGPS150 with an Android device (NOTE: these instructions were written using An-droid OS version 2.1 and may be different if you are using a different version of the Android OS.)• Make sure the mode switch on the XGPS150 is set correctly for your device (see Setup).• Turn on the XGPS150. The blue Bluetooth status light on the XGPS150 will begin to blink slowly (about once per second).• On the Android device go to:Settings->Applications->Development and enable the option for Allow mock loca-tions. This will let the Android device use GPSXGPS1509information from an external device like the XGPS150.• On the Android device go to:Settings->Wireless & networksand turn on Bluetooth.• On the Android device go toSettings->Wireless & networks->Bluetooth settingsand select Scan for devices .• After a few seconds, the word XGPS150-xxxxxx will appear in the list of devices. (Note: the last 6 digits are part of the XGPS150 serial number and will vary from device to device.) At this point, the Android device may say Paired but not connected and the blue Bluetooth indicator XGPS150 will continue to blink slowly.• In order for GPS-enabled apps to use informa -tion from an external GPS, you will likely need to install a helper app on your Android device. This helper app runs in the background and will let apps communicate with the XGPS150. Sev-eral helper apps are available, and we recom-mend using a free app on the Android Market called Bluetooth GPS .Using the Bluetooth GPS helper app with the XGPS150• Please make sure you have completed theXGPS15010steps above in Pairing the XGPS150 with an Android device .• Download and install the Bluetooth GPS app from the Android Marketplace.• Open the Bluetooth GPS app and select the XGPS150 from the pull-down menu on the Main tab.• Check the box next to Enable Mock GPS Provider .• Tap the Connect button. Your Android device will connect to the XGPS150 and begin stream-ing location data to apps on your device. The blue Bluetooth indicator on the XGPS150 will illuminate without blinking.Pairing the XGPS150 with a Blackberry device (NOTE: these instructions were written using a Blackberry Storm 9550 and may be different if you are using a different model of Blackberry smart phone.)• Make sure the mode switch on the XGPS150 is set correctly for your device (see Setup ).• Turn on the XGPS150. The blue Bluetooth light on the XGPS150 will begin to blink slowly (about once per second).• From the Blackberry main menu go to:Manage ConnectionsXGPS15011and turn on Bluetooth.• From the Blackberry main menu go to:Options->Bluetooth->Add Deviceand select Search .• After a few seconds, the name XGPS150-xxxxxx will appear in the list of paired devices. (Note: the last 6 digits are part of the XGPS150 serial number and will vary from device to device.)• From the Blackberry main menu go toOptions->Advanced Options->GPSand select the XGPS150-xxxxxx from the GPS Data Source list of devices. Also, on the same menu, make sure that GPS Services is set for Location On and Location Data is Enabled .If you need additional help connecting the XGPS150 to your device, please contact customer service(***************************).How -ever, due to the enormous number and variety of available devices, you may need to contact the manufacturer of your device for additional instruc-tions.XGPS15012Using the XGPS150Once the XGPS150 is paired with your device, you can begin using apps that utilize GPS information.The XGPS150 includes a non-slip pad for use in a car or on a boat. Slide the XGPS150 into the pad to secure it, making sure that the lip of the pad seals over the top edges of the XGPS150. The XGPS150 is not waterproof, but it will withstand light splashing when it is seated properly in the non-slip pad.A two-piece armband is also included for using the XGPS150 during hiking, geocaching, jogging, cy-cling or other outdoor activities. Use the armband without the extension to secure the XGPS150 around the strap of a backpack. With the exten -sion, the XGPS150 can be secured around your arm.Charging the XGPS150The XGPS150 is charged via the USB connector on the side of the device. To charge, simply con-nect the XGPS150 to the USB port on any com-puter using the included USB cable. A 12V ciga-rette lighter adapter is also included for charging the XGPS150 in a car. It takes approximately 2.5 hours to fully charge the XGPS150.XGPS15013Tips for best performance• Put the XGPS150 in a location with a clear view of the sky: the dashboard of your car, a boat bulkhead, the shoulder strap of a backpack, etc.• The range of the Bluetooth connection will drop as the battery level drops. If you find that the wireless connection is failing, try recharging the XGPS150.XGPS15014SpecificationsDimensions (WxHxD in mm)• XGPS150: 55.0 x 55.0 x 18.5• Non-slip pad: 94.0 x 144.0 x 22.0XGPS150 Voltage• Input voltage: 5 VDCCigarette Lighter Power Adapter Voltage • Input voltage: 12-24 VDC• Output: 5 VDCGPS• 65 Channel SkyTraq engine• Cold start: < 29 sec. typ. (open sky)• Warm start: < 25 sec. typ. (open sky)Bluetooth• CSR engine• Version: 2.1+EDR• Range: ~10m (~33 ft.) (open space)Internal Battery• Capacity: 680 mAh• Operating time: ~8.5 hours• Charging time: ~2.5 hoursEnvironment Requirements• Operating temp: 14˚F - 140˚F (-10˚C - 60˚C)• Storage temp: -4˚F - 176˚F (-20˚C - 80˚C)• Relative humidity: 5% - 95% non condensingXGPS15015ComplianceICC ComplianceThis Class [B] digital apparatus complies with Ca -nadian ICES-003.FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interfer -ence, and(2) this device must accept any interference re -ceived, including interference that may cause un-desired operation.Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to oper-ate the equipment.Note: This equipment has been tested and found to comply with the limits for a Class B digital de -vice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec-tion against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instruc-tions, may cause harmful interference to radioXGPS15016Compliance (cont’d)communications. However, there is no guarantee that interference will not occur in a particular in-stallation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected.• Consult the dealer or an experienced radio/TV technician for help.XGPS15017Limited One-Year Warranty This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Dual Electronics Corp. warrants this prod -uct to the original purchaser to be free from de-fects in material and workmanship for a period of one year from the date of the original purchase.Dual Electronics Corp. agrees, at our option, dur -ing the warranty period, to repair any defect in ma-terial or workmanship or to furnish an equal new, renewed or comparable product (whichever is deemed necessary) in exchange without charges, subject to verification of the defect or malfunction and proof of the date of purchase. Subsequent re-placement products are warranted for the balance of the original warranty period.Who is covered? This warranty is extended to the original retail purchaser for products purchased from an authorized Dual dealer and used in the U.S.A.What is covered? This warranty covers all defects in material and workmanship in this product. The following are not covered: software, installation/re -moval costs, damage resulting from accident, mis-use, abuse, neglect, product modification, improp -er installation, incorrect line voltage, unauthorized repair or failure to follow instructions supplied withXGPS15018Warranty (cont’d)the product, or damage occurring during return shipment of the product. Specific license condi -tions and copyright notices for the software can be found via .What to do?1. Before you call for service, check the trou-bleshooting guide in your owner’s manual. A slight adjustment of any custom controls may save you a service call.2. If you require service during the warranty pe-riod, you must carefully pack the product (prefer -ably in the original package) and ship it by prepaid transportation with a copy of the original receipt from the retailer to an authorized service center.3. Please describe your problem in writing and include your name, a return UPS shipping address (P .O. Box not acceptable), and a daytime phone number with your shipment.4. For more information and for the location of the nearest authorized service center please con-tact us by one of the following methods:• Call us toll-free at 1-866-382-5476•***********************Exclusion of Certain Damages: This warranty is exclusive and in lieu of any and all other warran -XGPS15019Warranty (cont’d)ties, expressed or implied, including without limita -tion the implied warranties of merchantability and fitness for a particular purpose and any obligation, liability, right, claim or remedy in contract or tort, whether or not arising from the company’s negli-gence, actual or imputed. No person or represen-tative is authorized to assume for the company any other liability in connection with the sale of this product. In no event shall the company be liable for indirect, incidental or consequential damages.Dual Electronics Corp.Toll Free: 1-866-382-5476©2011 Dual Electronics Corp. All rights reserved.Windows is a registered trademark of Microsoft Corporation in the United States and or other coun-tries. iPod, iPad and iPhone are trademarks ofApple Inc., registered in the US and other countries. “Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the devel-oper to meet Apple performance standards. Appleis not responsible for the operation of this device orits compliance with safety and regulatory standards. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Namsung is under license. Other trademarks and trade names are those of their respective owners.NSA1210-V01。

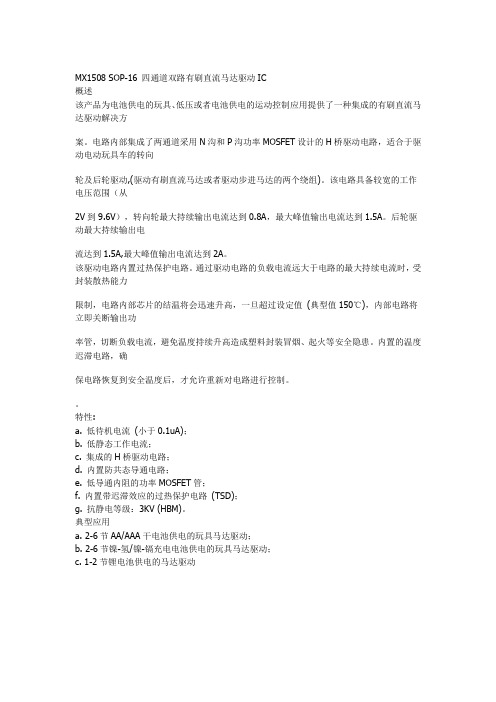

MX1508 SOP-16 四通道双路有刷直流马达驱动IC
概述
该产品为电池供电的玩具、低压或者电池供电的运动控制应用提供了一种集成的有刷直流马达驱动解决方
案。
电路内部集成了两通道采用N沟和P沟功率MOSFET设计的H桥驱动电路，适合于驱动电动玩具车的转向
轮及后轮驱动,(驱动有刷直流马达或者驱动步进马达的两个绕组)。
该电路具备较宽的工作电压范围（从
2V到9.6V），转向轮最大持续输出电流达到0.8A，最大峰值输出电流达到1.5A。
后轮驱动最大持续输出电
流达到1.5A,最大峰值输出电流达到2A。
该驱动电路内置过热保护电路。
通过驱动电路的负载电流远大于电路的最大持续电流时，受封装散热能力
限制，电路内部芯片的结温将会迅速升高，一旦超过设定值(典型值150℃)，内部电路将立即关断输出功
率管，切断负载电流，避免温度持续升高造成塑料封装冒烟、起火等安全隐患。
内置的温度迟滞电路，确
保电路恢复到安全温度后，才允许重新对电路进行控制。
特性:
a. 低待机电流(小于0.1uA)；
b. 低静态工作电流；
c. 集成的H桥驱动电路；
d. 内置防共态导通电路；
e. 低导通内阻的功率MOSFET管；
f. 内置带迟滞效应的过热保护电路(TSD)；
g. 抗静电等级：3KV (HBM)。
典型应用
a. 2-6节AA/AAA干电池供电的玩具马达驱动；
b. 2-6节镍-氢/镍-镉充电电池供电的玩具马达驱动；
c. 1-2节锂电池供电的马达驱动。
版权声明目录第1章产品简介 (1)1.1产品简介 (1)1.2产品规格 (2)1.3包装清单 (3)1.4面板指示灯及接口说明 (4)第2章产品硬件安装 (6)2.1硬件安装 (6)2.2网络连接拓扑 (7)第3章如何登录到设备 (11)3.1使用有线网卡连接 (11)3.2使用无线网卡连接 (15)3.3登陆WEB设置界面 (16)第4章工作模式设置向导 (17)4.13G路由器模式设置向导 (17)4.2无线接入点模式设置向导 (22)4.3无线信号放大模式设置向导 (22)4.4无线路由器模式设置向导 (24)第5章高级设置 (27)5.1LAN设置 (27)5.2W AN口设置 (29)5.3MAC地址克隆 (33)5.4域名服务器 (34)第6章无线设置 (35)6.1无线基本设置 (35)6.2无线安全设置 (38)6.3高级设置 (41)6.4WPS设置 (43)6.5无线访问控制 (45)6.6连接状态 (45)第7章DHCP服务器 (46)7.1DHCP服务设置 (46)7.2DHCP列表与绑定 (47)第8章虚拟服务器 (48)8.1端口段映射 (48)8.2DMZ主机 (50)8.3UPNP设置 (51)第9章带宽控制 (51)第10章3G流量统计 (53)10.13G流量统计 (53)10.2上网时间统计 (54)第11章安全设置 (55)11.1客户端过滤 (55)11.2URL过滤 (56)11.3MAC地址过滤 (58)11.4防网络攻击 (59)11.5远程WEB管理 (60)11.6W AN口PING (61)第12章路由设置 (62)第13章系统工具 (63)13.1时间设置 (63)13.2动态DNS (64)13.3备份/恢复设置 (65)13.4恢复出厂设置 (67)13.5软件升级 (68)13.6重启设备 (68)13.7修改登录密码 (69)13.8系统日志 (70)13.9退出登录 (70)附录一设置电脑自动获取IP地址 (71)附录二设备加密后如何设置网卡 (74)附录三名词解释 (76)附录四常见问题解答 (77)附录五3G上网卡兼容清单V 0.5 (81)联系方式 (83)第1章产品简介1.1产品简介感谢您购买3G150M便携式3G路由器/无线接入点/无线路由器（以下简称设备）。

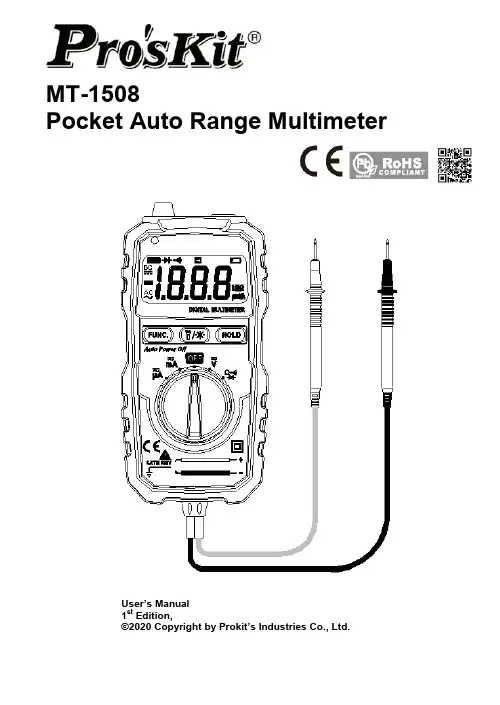

MT-1508Pocket Auto Range MultimeterUser’s Manual1st Edition,©2020 Copyright by Prokit’s Industries Co., Ltd.THE STATEMENTIn accordance with the international copyright law, without permission and written consent, please do not copy the contents of this manual in any form (including storage and retrieval or translation into languages of other countries or regions). The manual is subject to change in future edition without prior notice.Caution“Caution” mark refers to the condition and operation which may cause damage to the instrument or equipment.It requires that you must be careful during the execution of the operation. If you incorrectly perform the operation or do not follow the procedure, it may damage the instrument or equipment. In the circumstances that such conditions are not met or not fully understood, please do not continue to perform any operation indicated by the caution mark.Warning“Warning” mark indicates the condition and operation which may cause danger to u sers.It requires that you must pay attention during the execution of this operation. If incorrectly perform the operation or do not follow the procedure, it may result in personal injury or casualties. In the circumstances that such conditions are not met or not fully understood, please do not continue to perform any operation indicated by the warning mark.Before using the instrument, please read this manual carefully and pay attention to the relevant safety warning information.OVERVIEWThe instrument is a portable digital multimeter. It features stable performance, high accuracy, low power consumption and novel structure, more safe and reliable. I t’s an ideal measuring instrument for users.The instrument can measure DC voltage, AC voltage, DC current, AC current, resistance, diode and connectivity, and non-contact voltage detection function.This manual includes the relevant safety information, warning notices and so on, please read the related contents carefully before using the instrument, and strictly follow all warnings and precautions.SAFETY INSTRUCTIONSThe instrument is designed and manufactured strictly in accordance with the safety standard IEC61010 and in conformity with double insulation, over-voltage standard 600V CAT III and pollution level 2 safety standards.Please follow the manual to use the instrument, otherwise the protection function provided by the instrument may be reduced or invalid.SAFETY OPERATIONWarningIn order to avoid possible electric shock or personal injury, please abide by the following specification:●Before using the instrument, please read the “Safety Instructions” in advance. Use theinstrument in strict accordance with the provisions”, otherwise the protection ability provided by the instrument may be reduced or invalid.●Check the external shell first before using the instrument. Check whether there are anycracks or defects on the plastic parts. Please carefully check the insulator near the input terminal.●If the instrument is not working properly or is damaged, please do not use.●Do not touch the electrified body with more than 30V true effective value AC, 42V AC peak or60V DC.●The instrument shall be used according to the specified measurement category, voltage orcurrent rating.●When it shows low battery indication, please replace the battery in time to avoid anymeasurement error.●Please comply with local and national safety code. Wear personal protection equipment(such as approved rubber gloves, masks and flame retardant clothes, etc.) to prevent being damaged by electric shock and electric arc due to exposed hazardous live conductor.●The voltage applied between input terminals or between each terminal and earth point cannotexceed the specified ratings of the instrument.●Measure a known voltage to determine whether the instrument works properly.●When measuring, correct input terminal, function shift and range shift must be used.●Do not use the instrument around explosive gas, steam or in wet environment.●Do not use damaged probe. Check whether the insulation layer of the probe is damaged,whether there’s any exposed metal or sign of wear. Check the continuity of the probe.●When measuring, please connect the zero line or the ground line first, then connect the livewire; but when disconnecting, please cut off the live wire first, then disconnect the zero line and ground line.●When measuring, please keep your fingers behind the finger protector of the probe.●Before opening the back cover of the instrument, please disconnect the probe from themeasured object.●Do not use the instrument in the environment of exceeding the measurement category (CAT)rating of a single element with the lowest rating among the instrument, probe or accessories.CAT II⏹ INTRODUCTION 1. Flashlight2. Non-contact voltage detecting probe3. Non-contact voltage indicator4. Displaypress and hold it for 2 seconds, the backlight will be turn off. The auto power off function will automatically turn off after approx. 15 seconds of no operation.: Data hold button 7. Red probe of test lead 8. Black probe of test lead General Specifications●Environment condition of use:IEC/EN 61010-1 600V CAT III, pollution level 2 Altitude < 2000 mWorking environment temperature and humidity: 0~40(do not consider when it’s <80% RH, <10）Storage environment temperature and humidity: -10~60(<70% RH, remove the battery) ●Temperature coefficient: 0.1⨯ accuracy /●Maximum voltage allowed between the measuring terminal and the ground: 600V DC or AC RMS●Fuse protection: fuse FF250mA/600V ●Sampling rate: about 3 times/second. ●Display: 3 1/2 bit LCD●Over range indication: LCD display will show “OL”.●e displayed on the LCD display. ●-” ●Power requirement: 2x1.5V AAA batteries ●Dimension: 125*60*26mm Accuracy SpecificationsThe accuracy applies up to one year after the calibration.●Reference condition: environment temperature 18℃ to 28℃, relative humidity is no more than 80%.Frequency range: 40Hz~400Hz;Input protection: Maximum 250V DC or AC RMS.METHOD OF MEASUREMENTAC and DC Voltage Measurement1. Scroll the rotary switch to , press “FUNC.” button, select DC voltage or AC voltagemeasurement.2. Connect the probe in parallel to the circuit or power supply to be measured.3. Read the measuring value from the display. When measuring DC voltage, the display alsoshows the voltage polarity of the red probe test point.Warning●Do not input voltage higher than 600V, it’s possible to display higher voltage, but there maybe risk of damaging the instrument.●When measuring high voltage, be careful to avoid electric shock.●After completing all the measuring operation, make sure to disconnect the probe from themeasured circuit.1. Turn the rotary , press “FUNC.” button, select DC cur rent or AC currentmeasurement.2. Shut off the power supply of the circuit under test. Discharge all the high voltage capacitorson the circuit under test.3. Disconnect the circuit to be measured. Connect the instrument to the circuit to be measuredin series.4. Connect to the power of the circuit, and then read the measuring result from the display. If itdisplays “OL”, it means the input exceeds the measur ing range of the instrument. When measuring the DC and AC, it will show the voltage polarity of red probe test point on the display as well.5. Shut off the power of the circuit under test. Remove the probe of the instrument and restorethe circuit.Warning●To prevent possible electric shock, fire or personal injury, when measuring the current, pleasedisconnect the power of the circuit under test in advance, and fully discharge all the high voltage capacitors, then connect the instrument to the circuit in series.●Do not input above 200mA maximum measurement current value of the instrument,otherwise it may burn the fuse in the instrument.●After completed all the measuring operation, please disconnect the probe from the circuitunder test.1. Turn the rotary switch to ,(if not resistance measurement function, please press2. Connect the probe to the circuit under test in parallel to measure the resistance.3. Read the measuring results from the display.Warning●To prevent possible electric shock, fire or personal injury, before measuring the resistance,please disconnect the power supply of the circuit under test in advance, and fully discharge all the high voltage capacitors.●After completed all the measurement operation, make sure to disconnect the probe from thecircuit under test.Diode Test1. Turn the rotary switch tocathode of the diode to be measured, the reads on the display is the approximate value of diode forward voltage drop. If connected backwards, it will display “OL”.Warning●To prevent possible electric shock, fire or personal injury, before measuring the diode orconnectivity, please disconnect the power supply of the circuit to be measured in advance, and fully discharge all the high voltage capacitors.●If the measured diode is open circuit or in reverse polarity, the instrument will display “OL”. ●After completing all the measurement operations, make sure to disconnect the probe from thecircuit under test.Connectivity Test1. Turnmeasured circuit is less than 50Ω, the buzzer will sound.Warning●To prevent possible electric shock, fire or personal injury, before measuring the diode orconnectivity, please disconnect the power supply of the circuit to be measured in advance, and fully discharge all the high voltage capacitors.●After completing all the measurement operations, make sure to disconnect the probe from thecircuit under test.Non-contact Voltage Detection1. Turn the rotary switch of the instrument to any position except OFF.2. Put the non-contact voltage detecting probe of the instrument close to the live wire of the ACvoltage (less than 5mm).3. The indicator of the non-contact voltage will light up, it shows that there’s AC voltage on thelive wire.INSTRUMENT MAINTENANCEThis section provides the basic maintenance information, including description of replacing fuse and batteries.WarningDo not try to repair the instrument unless you are experienced repair person and have associated calibration, performance test and maintenance information.To prevent possible electric shock, fire or personal injury:●When the cabinet is opened, do not use the instrument to do any measurement.●Remove the input signal before cleaning the instrument.●Specified replacement parts shall be used. Please ask the qualified technicians to repair theinstrument.General MaintenanceUse a damp cloth and a small amount of detergent to clean the housing of the instrument. Please do not use abrasive or chemical solvents.Replace Fuse and BatteryWarning●electric shock or personal injury caused by error reading, when it displays” on the screen, the batteries should be replaced.●period, please remove the batteries to avoid any damage caused by battery leakage.●Use the fuse with specified amperage, fuse ratings, voltage ring and fuse speed.●To avoid electric shock or personal injury, before opening the back cover to replace batteries,the instrument should be shut down and checked to ensure that the probe has already been disconnected from the measuring circuit.Please follow the steps as below to replace the battery:1. Power off the instrument.2. Disconnect the probe from the circuit under test.3. Unscrew and open the cover of battery compartment on the back of this instrument.4. Remove the exhausted batteries, replace with new batteries.5. Close and screw the cover.Please follow the steps as below to replace the fuse:1. Turn off the power of the instrument.2. Disconnect the probe from the circuit under test.3. Unscrew and open the cover on the back of this instrument.4. Remove the damaged fuse, replace with new fuse.5. Close and screw the cover.MT-1508 袖珍型電表使用說明書聲明根據國際版權法，未經允許和書面同意，不得以任何形式（包括存儲和檢索或翻譯為其他國家或地區語言）複製本說明書的任何內容。

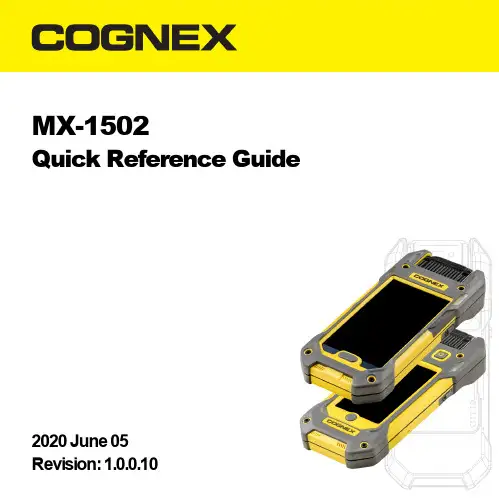

MX-1502Quick Reference Guide2020June05Revision:1.0.0.10PrecautionsTo reduce the risk of injury or equipment damage,observe the following precautions when you install the Cognex product:l Route cables and wires away from high-current wiring or high-voltage power sources to reduce the risk of damage or malfunction from thefollowing causes:over-voltage,line noise,electrostatic discharge(ESD),power surges,or other irregularities in the power supply.l Changes or modifications not expressly approved by the party responsible for regulatory compliance could void the user’s authority to operate theequipment.l Ensure that the cable bend radius begins at least six inches from the connector.Cable shielding can be degraded or cables can be damaged orwear out faster if a service loop or bend radius is tighter than10X the cablediameter.l This device should be used in accordance with the instructions in this manual.l All specifications are for reference purposes only and can change without notice.LayoutStandard front coverIndicator LEDsSide trigger buttonsPower buttonTouch screenHome buttonSpeaker ventsRecessed area for mobile cameraSlider to lock battery coverBattery coverLanyard hookEnd cap of pistol grip*Trigger button on the pistol grip* *Pistol grip is optional1Using or storing the device outside of the recommended temperature ranges may damage or reduce the lifespan of the battery.Leaving the MX Series Mobile Terminal with a mobile device in direct sunlight for an extended amount of time can raise the temperature above the recommended limit.MX-1502standard front cover model:MX-1502-LR Readers with6.2mm Lens1.Place the rubber insert on the base unit.2.Plug the USB cable into the base unit.3.Put the mobile device on the rubberinsert and connect it to the base unit withthe USB cable.4.Attach the top cover.5.Tighten the screws to fix the top cover.6.Open the back cover to take out thereader battery.7.Plug the pistol grip cable into the gripconnector.8.Insert the reader battery.9.Assemble the reader with the pistol gripand tighten the screws.Installation procedures and specifications are presented in detail in the MX-1502 Reference Manual,which is installed with the DataMan Setup Tool.From the Windows Start menu,select the following to access the manual:All Programs> Cognex>DataMan Software v6.1.0>Documentation.:All cable connectors are keyed to fit the connectors on the reader.not force the connections or damage may occur.Install Software and Documentation and Connect the ReaderTo configure an MX-1502reader,the DataMan Setup Tool software must be installed on a networked PC.The DataMan Setup Tool is available from the DataMan support site:/support/dataman.1.After installing the software,connect the MX-1502to your PC.unch the DataMan Setup Tool and click Refresh.3.Select your MX-1502reader from the list and click Connect.Imager SpecificationsLED WavelengthsThe MX-1502has Regulatory Model R00045(inductive)and Regulatory ModelR00079(non-inductive),and meets or exceeds the requirements of all applicable standards organizations for safe operation.However,as with any electrical equipment,the best way to ensure safe operation is to operate them according to the agency guidelines that follow.Please read these guidelines carefully before using your device.The following specifications apply to the MX-1502readers:CanadianKoreaJapanese StatementFor European Union UsersCognex complies with Directive2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of4July2012on waste electrical and electronic equipment (WEEE).This product has required the extraction and use of natural resources for its production.It may contain hazardous substances that could impact health and the environment,if not properly disposed.diminish the pressure on the natural resources,we encourage you to use the appropriate take-back systems for product disposal.Those systems will reuse or recycle most of the materials of the product you are disposing in a sound way.The crossed out wheeled bin symbol informs you that the product should not be disposed of along with municipal waste and invites you to use the appropriate separate take-back systems for product disposal.If you need more information on the collection,reuse,and recycling systems,please contact your local or regional waste administration.You may also contact your supplier for more information on the environmental performance of this product.Compliance Statements:Wireless Charging StationThe Wireless Charging Station has Regulatory Model1ABA(inductive)and Regulatory Model R00080(non-inductive),and meets or exceeds the requirements of all applicable standards organizations for safe operation.However,as with any electrical equipment,the best way to ensure safe operation is to operate them according to the agency guidelines that follow.Please read these guidelines carefully before using your device.Laser safety statement:Illumination and Lens assembly:This device has been tested inwith IEC60825-13rd ed.,2014.,and has been certified to be the limits of a Class2Laser device.Cognex complies with Directive2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of4July2012on waste electrical and electronic equipment (WEEE).This product has required the extraction and use of natural resources for its production.It may contain hazardous substances that could impact health and the environment,if not properly disposed.In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources,we encourage you to use the appropriate take-back systems for product disposal.Those systems will reuse or recycle most of the materials of the product you are disposing in a sound way.The crossed out wheeled bin symbol informs you that the product should not be disposed of along with municipal waste and invites you to use the appropriate separate take-back systems for product disposal.If you need more information on the collection,reuse,and recycling systems,please contact your local or regional waste administration.You may also contact your supplier for more information on the environmental performance of this product.CanadianKorean Statement Japanese StatementCompliance)根据中国大陆《电子信息产品污染控制管理办法》( 也称为中国大陆RoHS)，以下部份列出了本产品中可能包含的有毒有害物质或元素的名称和含量。
A1508系列温控表A1508系列温控表使用操作说明书特点：⊙热电偶/热电阻/模拟信号通用，软件选择输入 ⊙具有显示、报警、调节功能 ⊙采用先进双自由度PID 算法⊙具备不同系统（快速升降温和慢速加热系统）的自整定功能⊙多种控制输出选择，模块化设计 ⊙抗干扰能力强⊙开关电源100-240V AC⊙适用于系统温度控制场合为了您的安全，在使用前请仔细阅读以下内容！※请遵守下面的要点警告如果不按照说明操作会发生意外。
注意 如果不按照说明操作会导致产品毁坏。
1. 在以下情况下使用这个设备，如（核能控制、医疗设备、汽车、火车、飞机、航空、娱乐或安全装置等），需要安装安全保护装置，或联系我们索取这方面的资料，否则会引起严重的损失，火灾或人身伤害。
2. 必须要安装面板，否则可能会发生触电。
3. 在供电状态中不要接触接线端子，否则可能会发生触电。
4. 不要随意拆卸和改动这个产品，如确实需要请联系我们，否则会引起触电和火灾。
5.请在连接电源线或信号输入时检查端子号，否则会引起火灾。
1.这个装置不能使用在户外。
否则会缩短此产品的使用寿命或发生触电事故。
2.当电源输入端或信号输入端接线时，NO.20AMG(0.50m ㎡)螺丝拧到端子上的力矩为0.74·m-0.9n ·m 否则可能会发生损坏或连接端子起火。
3.请遵守额定的规格。
否则会缩短这个产品的寿命后发生火灾。
4.清洁这个产品时，不要使用水或油性清洁剂。
否则会发生触电或火灾，也将损坏本产品。
5.在易燃易爆，潮湿，太阳光直射，热辐射，振动等场所应避免使用这个单元。
否则可能会引起爆炸。
6.在这个单元中不能有流尘或沉淀物。
否则可能会引起火灾或机械故障。
7.不要用汽油，化学溶剂清洁仪表外壳。
使用这些溶剂会损害仪表外壳。
请用柔软的湿布（水或酒精）清洁塑料外壳。
一、仪表型号二、型号说明三、主要技术参数1、整机参数2、输入(4-20MA. 1-5V输入可订做)3、输出四、面板名称五、面板按键操作1、SET键：在正常显示状态下,点动SET键可进入SV设置菜单,长按SET键可以进入设置菜单。

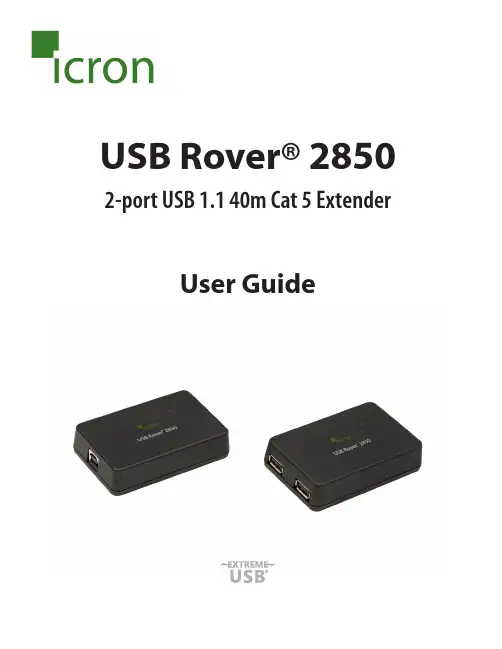

USB Rover® 2850 2-port USB 1.1 40m Cat 5 ExtenderUser GuideThank you for purchasing the USB Rover® 2850,2-port USB 1.1 40 m (131 ft) Cat 5 ExtenderPlease read this guide thoroughly.FCC Radio Frequency Interference Statement WarningThis device complies with FCC Part 15 Subpart B.CE StatementThe product meets European Standard EMC EN 55022 Class B and EN 55024.IC StatementThis Class B digital apparatus complies with Canadian ICES-003.Environmental StatementThis product is RoHS compliant and conforms to the requirements of Directive 2002/95/EC. Saftey StatementsThis product conforms to the standards set out by the CPSIA.This product has a flammability rating of V-1.ContentsIntroduction (4)Product Contents (4)Requirements (4)About the USB Rover® 2850 (4)Local Extender (LEX) and Remote Extender (REX) Descriptions (5)Installation Guide (6)Installing the LEX (6)Installing the REX (6)Connecting the LEX to the REX (7)Connecting a USB device (7)Troubleshooting (8)Specifications (9)Contacting Technical Support (10)Warranty Information (10)Obtaining Warranty Service (11)Technical Glossary (12)IntroductionThe instructions in this guide assume a general knowledge of computer installation procedures, familiarity with cabling requirements, and some understanding of USB devices.NOTE symbol emphasizes additional information that could be useful.CAUTION symbol indicates important information about an operational requirement.Product ContentsPackaged with:• LEX (Local Extender)• REX (Remote Extender)• 2m (6 ft) USB A-B Cable• Quick Start Guide and Warranty InformationRequirementsTo complete the installation you will require the following items that are not included:• USB compatible computer (host computer) with a USB compliant operating system• USB device(s)• Cat 5 Unshielded Twisted Pair (UTP) cable with two RJ45 connectors (if using surface cabling), or Cat 5 cabling with two information outlets and two Cat 5 patch cords with RJ45 connectors(if using premise cabling)A ll references to Cat 5 cable in this document refer to Cat 5e and represent the minimum cablerequirement.About the USB Rover® 2850The USB Rover® 2850 enables users to extend USB devices up to 40m (131 ft). Extension distances of up to 85 meters may be acheivable with some Low-Speed HID devices, such as keyboards and mice. notenotenoteRemote Extender (REX) DescriptionThe REX provides two downstream USB Type A ports for standard USB devices. Additional devices may be connected by connecting USB hubs.ITEMTYPE DESCRIPTION 1Link Port (RJ45)Accepts RJ45 connector for Cat 5 cabling.2 2 Device Ports (USB Type A)Connects to USB1.1/2.0 device(s).Local Extender (LEX) Description The LEX connects to the host computer using the supplied USB A-B Cable.ITEM TYPEDESCRIPTION 1Link Port (RJ45)Accepts RJ45 connector for Cat 5 cabling.2Device Port (USB Type B)Used to connect the LEX to the host computer.2112Installation GuidePreparing your siteThe maximum extension length is reduced by 13.2m (43.3 ft) for each USB hub added between thehost computer and the end device. Extender systems cannot be daisy chained. An extender system can have only one LEX and one REX.1.Determine where the host computer is to be located and set up the computer.2.Determine where you want to locate the remote USB device(s).3.Ensure the cable run (including patch cables) between the host computer and USB device(s) is no greater than 40m.Installing the LEX1.Place the LEX near the host computer.2. P lug the supplied USB cable into the LEX and into an available USB port on the computer.Installing the REX1.Place the REX near the USB device(s) at the desired remote location.USB 1.1 up to 40m over Cat 5REXLEXConnecting the LEX to the REXSurface Cabling1. Plug one end of the Cat 5 cable into the Link port (RJ45) on the LEX.2. Plug the other end of the Cat 5 cable into the Link port (RJ45) on the REX.Premise Cabling1. Plug one end of a Cat 5 patch cord into the Link port (RJ45) on the LEX.2. Plug the other end of the patch cord into the Cat 5 information outlet near the host computer.3. P lug one end of a second Cat 5 patch cord into the Link port (RJ45) on the REX.4. Plug the other end of the second patch cord into the Cat 5 (RJ45) information outlet near the USBdevice.The information outlets at the LEX and REX must be directly connected to each other with Cat 5cabling. There cannot be a switch or router in between the information outlets.Connecting a USB Device1. On the host computer, install any software required to operate the USB device. If necessary, refer to thedocumentation for the USB device(s).2. Connect the USB device(s) to the device port(s) on the REX.PROBLEM CAUSE SOLUTIONThe USB device does not operate correctly.• The USB device ismalfunctioning.• The computer does notrecognize the USB device.• The application software forthe USB device is not operating.1. Un-install and re-install the driver for the USBdevice.2. Update the driver for the USB device.3. Directly connect the USB device to the Host toverify the USB device operates correctly.The USB deviceis detected as an “Unknown Device” in the operating system.• The host computer or USBdevice may not be capable ofsupporting extreme distances.• The USB device’s timing doesnot conform to the USB 1.1specification.1. Connect the LEX to REX using a short cable.2. Unplug the LEX from the host and wait 15seconds. Then plug the LEX back into the host.The operating system reports that a power surge occurred or that the USB device is using too much power.• The Host is not providingenough power to the Extender.1. Connect the LEX to a different USB port on thehost.2. Connect a self-powered USB hub between theREX and the USB device.TroubleshootingThe following table provides troubleshooting tips. The solutions are arranged in the order in which they should be executed in most situations. If you are unable to resolve the problem after following these instructions,pleasecontactTechnicalSupport(*********************)forfurtherassistance.SpecificationsContacting Technical SupportIf you are experiencing problems not resolved by following the steps listed in the Trouble Shooting section, contact Technical Support(*********************)and provide the following information:• Host computer make and model• Operating system installed (e.g. Windows XP, Mac OS X, Windows 7 etc.)• Part number and serial number for both the LEX and REX• Make and model of all USB device(s) attached to the extender• Description of the installation• Description of the problemWarranty InformationLimited Hardware WarrantyIcron Technologies Corporation warrants that any hardware products accompanying this documentation shall be free from significant defects in material and workmanship for a period of up to three years from the date of purchase. Icron Technologies Corporation’s hardware warranty extends to the Licensee, its customers, and end users.The Warranty does not include repair of failures caused by: misuse, neglect, accident, modification, operation outside of a normal operating environment, failure caused by servicing of the device by non-authorized servicers, or failure caused by a product for which Icron Technologies Corporation is not responsible. Hardware RemediesIcron Technologies Corporation’s entire liability and the Licensee’s exclusive remedy for any breach of warranty shall be, at Icron Technologies Corporation’s option, either (a) return of the price paid, or (b) repair or replacement of hardware, which will be warranted for the remainder of the original warranty period or30 days, whichever is longer. These remedies are void if failure of the hardware has resulted from accident, abuse, or misapplication.Limitation of LiabilityThe hardware warranty set forth in this agreement replaces all other warranties. Icron Technologies Corporation expressly disclaims all other merchantability and fitness for a particular purpose and non-infringement of third-party rights with respect to the hardware.No Icron Technologies Corporation dealer, agent, or employee is authorized to make any modification extension or addition to this warranty. Under no circumstances will Icron Technologies Corporation, its suppliers or licensors be liable for any costs of procurement of substitute products or services, lost profits, loss of information or data, or any other special, indirect, consequential, or incidental damages arising inany way out of the sale of, use of, or inability to use Icron Technologies Corporation products or services, even if Icron Technologies Corporation, its suppliers or licensors have been advised of the possibility of such damages.In no case shall Icron Technologies Corporation, its suppliers and licensors’ liability exceed the actual money paid for the products at issue.Since some jurisdictions do not allow the limitation of implied warranties of liability for incidental, consequential, special or indirect damages, the above limitation may not always apply. The above limitation will not apply in case of personal injury where and to the extent that applicable law requires such liability.Obtaining Warranty ServiceTo obtain warranty service and help us serve you better, please provide the following information with your warranty request:• Host computer make and model• Operating system installed (e.g. Windows XP, Mac OS X, Windows 7 etc.)• Part number and serial number for both the LEX and REX• Make and model of all USB device(s) attached to the extender• Description of the installation• Description of the problemContact Icron Technologies Corporation within the warranty period for a Return Material Authorization (RMA) number. Please note that Icron Technologies Corporation will not accept returns without an RMA number. Ensure the product is packaged appropriately for safe shipment and mark the RMA number on the outside of the package. The package must be sent prepaid to Icron Technologies Corporation. It is highly recommended that the package be insured and shipped via a trackable shipping method. The repaired or replaced item(s) will be returned at Icron Technologies Corporation’s expense no later than thirty days after receipt the defective product.Address the returned product to:RMA CoordinatorIcron Technologies Corporation4664 Lougheed Highway, Suite 221Burnaby, BC CanadaV5C 5T5Contacting SalesEmail:***************Tel: +1 604 638 3920Contacting Technical SupportEmail:*********************Tel: +1 604 638 3920Technical GlossaryCategory 5 (Cat 5) Network CablingCategory 5 cable is commonly also referred to as Cat 5. This cabling is available in either solid or stranded twisted pair copper wire variants and as UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair). UTP cables are not surrounded by any shielding making them more susceptible to electromagnetic interference (EMI). STP cables include shielding over each individual pair of copper wires and provides better protection against EMI. Cat 5 has been superseded by Cat 5e cabling which includes improved data integrity to support high-speed communications.USB CablesUSB cables have two distinct connectors. The Type A connector is used to connect the cable from a USB device to the Type A port on a computer or hub. The Type B connector is used to attach the USB cable to a USB device.RJ45The Registered Jack (RJ) physical interface is what connects the network cabling (Cat 5) to the LEX and REX unit. You may use either the T568A (Table 1) or T568B scheme (Table 2) for cable termination as the extender uses all four pairs of the cable. RJ45 connectors are sometimes also referred to as 8P8C connectors.RJ45 Pin Positioning Table 1 - T568A WiringTable 2 - T568B WiringPIN PAIR WIRE CABLE COLOR PIN PAIRWIRECABLE COLOR 131WHITE/GREEN 121WHITE/ORANGE 232GREEN 222ORANGE 321WHITE/ORANGE 331WHITE/GREEN 412BLUE 412BLUE511WHITE/BLUE 511WHITE/BLUE 622ORANGE 632GREEN 741WHITE/BROWN 741WHITE/BROWN 842BROWN842BROWNUSB Type APort USB Type A ConnectorUSB Type B ConnectorUSB Type B PortNotesIcron Technologies Corporation 4664 Lougheed Highway, Suite 221 Burnaby, BC CanadaV5C 5T5Tel: +1 604 638 3920Fax: +1 604 638 3930。
