Lab-7

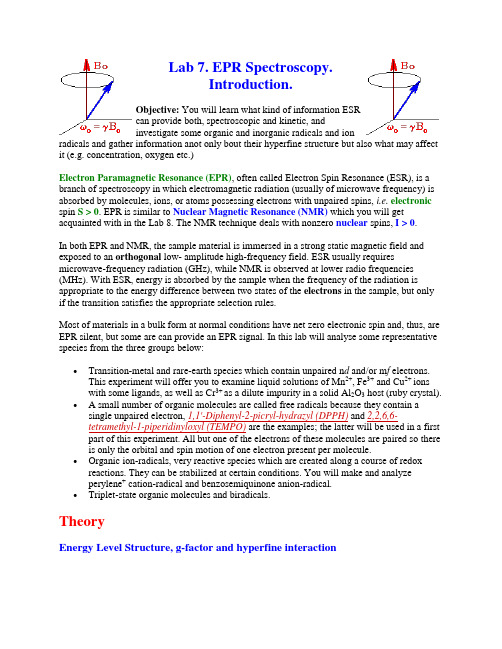

Lab 7. EPR Spectroscopy.Introduction.Objective: You will learn what kind of information ESRcan provide both, spectroscopic and kinetic, andinvestigate some organic and inorganic radicals and ionradicals and gather information anot only bout their hyperfine structure but also what may affect it (e.g. concentration, oxygen etc.)Electron Paramagnetic Resonance (EPR), often called Electron Spin Resonance (ESR), is a branch of spectroscopy in which electromagnetic radiation (usually of microwave frequency) is absorbed by molecules, ions, or atoms possessing electrons with unpaired spins, i.e.electronic spin S > 0. EPR is similar to Nuclear Magnetic Resonance (NMR) which you will get acquainted with in the Lab 8. The NMR technique deals with nonzero nuclear spins, I > 0.In both EPR and NMR, the sample material is immersed in a strong static magnetic field and exposed to an orthogonal low- amplitude high-frequency field. ESR usually requires microwave-frequency radiation (GHz), while NMR is observed at lower radio frequencies (MHz). With ESR, energy is absorbed by the sample when the frequency of the radiation is appropriate to the energy difference between two states of the electrons in the sample, but only if the transition satisfies the appropriate selection rules.Most of materials in a bulk form at normal conditions have net zero electronic spin and, thus, are EPR silent, but some are can provide an EPR signal. In this lab will analyse some representative species from the three groups below:∙Transition-metal and rare-earth species which contain unpaired n d and/or m f electrons.This experiment will offer you to examine liquid solutions of Mn2+, Fe3+ and Cu2+ ionswith some ligands, as well as Cr3+ as a dilute impurity in a solid Al2O3 host (ruby crystal).∙ A small number of organic molecules are called free radicals because they contain a single unpaired electron, 1,1'-Diphenyl-2-picryl-hydrazyl (DPPH) and 2,2,6,6-tetramethyl-1-piperidinyloxyl (TEMPO) are the examples; the latter will be used in a first part of this experiment. All but one of the electrons of these molecules are paired so there is only the orbital and spin motion of one electron present per molecule.∙Organic ion-radicals, very reactive species which are created along a course of redox reactions. They can be stabilized at certain conditions. You will make and analyzeperylene+ cation-radical and benzosemiquinone anion-radical.∙Triplet-state organic molecules and biradicals.TheoryEnergy Level Structure, g-factor and hyperfine interactionIn EPR, because of the interaction of the unpairedelectron spin moment (given by two projections, m s= ± 1/2, for a free electron) with the magnetic field,the so-called Zeeman effect, different projections ofthe spin gain different energies, as shown below andon the figure to the right:E m s = g μB B o m s (1)Here B o is the field strength of the external magnetic field. The SI units for magnetic field is tesla,T, but, historically in EPR, gauss (1 G = 0.0001 T) is still used. Other terms in Eq.(1): m s - is a spin projection on the field (m s = ± 1/2 for a free electron), μB is the Bohr magneton: μB = |eh/ 4πm e |= 9.2740 x 10-24 J/T (2)with e and m e beeing electron charge and mass, respectively, and h-Planck's constant. Parameter g for free electron, g e , has the value close to two: g e = 2.0023193. If the electron has nonzero orbiatl angular moment, L , the g -value (sometimes called factor Landé) becomes:g = 1 + S(S + 1) - L(L + 1) + J(J + 1) (3)2J(J + 1) The overall magnetic momentun, μeff , can be expessed via overall angular momentum, J , and the g-value:μeff = g μB [J (J + 1)]1/2 (4)For most of organic radicals and radical ions, unpaired electrons have L close to zero and the total electron angular momentum quantum number J is pretty much the spin quantum number, S . As result, their g-values are close to 2. Situation becomes much more complicated with transition metals. Not only they have large L 's and S 's, but these values depend on the surrounding electric fields of ligands, making everythings messier but also more interesting. In this case, Eq.(1) should be written as E mJ = g J μB B o m J , stating that the Zeeman splitting appears in accordance with the total angular momentum projection, m J . If L = 0 then J = S, and Eq.(1) will define the energies of all the possible projection of m s from -S to S - 1, S (2S + 1 of such).If the molecule contains nuclei with magnetic moments, such as protons, their interaction with external field and the electronic magnetic moment will change stationary energies of Eq.(1). The nuclear angular momentum quantum number I determines the nuclear magnetic moment the same way as for the electron:μ = g N μN [I (I + 1)]1/2 (5)with μN now being the nuclear Bohr magneton:μN = eh/ 4πm p = 5.051 x 10-27 J/T (6)much smaller value because of the ~2000 times more heavier proton m p . The nuclear g factor, g N , is obtained from a knowledge of the structure of the nucleus. Some of them are given here . Interaction with external field splits the nuclear sublevels due to Zeeman interaction the same way as for electron spin:E m I = g N μN B o m I (7)where m I is one of the 2I + 1 projections of the nuclear spin. Electron-nuclear interaction will depend on the projections of both, electron and nuclear spins:E electron-nuclear = A m I m s (8)where coefficient A , a so-called hyperfine coupling constant/interaction (hfi), depends not only on the g-values for the electron and the nucleus but also on the distance between them and their orientation with respect to the external field (dipole-dipole interaction). In solutions, the anisotropic part of this interaction averages out because of the fast molecular rotation. The remaining isotropic part is given by the Fermi contact interaction in the form:A = (8π/3)gN μN g e μB ρ(0) (9)where ρ(0) = |ψ(0)|2 is the unpaired electron density at the nucleus.For pure 1s electron on hydrogen atom, A equals h x 1420 MHz.Some other hyperfine constants can be found here . As a matter ofconvinience, hyperfine constants are usually given in Gauss, a =A /g e μB . For example, hydrogen it corresponds to a = 508 G. Summing up all energies, we arrive at modified Eq. (1):E = g eμB m s(B o + ∑ a i m Ii) - g NμN B o m I(10)You should note two important things:∙the signs in front of g e and g N are different because of the opposite charges of the electron and the proton, causing α spin of the electron to be higher in energy than β, but βN spin of the proton to be higher in energy than αN∙the magnetic field on the electron differs from the B o by a integer times a i and the sign of this cange is opposite for α and β electron spinsHydrogen atom example is given on the right. In EPR, allowed transitions correspond to the change of only m s:∆m s = ± 1, ∆m I = 0 (11)i.e. electronic spin "flips" but the nuclear one remains unchanged. Thus, in the figure on the right for hydrogen atom, only two transitions can be observed for a single resonant frequency hν. (This is a typical mode of EPR signal detection: microwave frequency is kept constant and magnetic field is varied). These transitions are separated by the hyperfine constant a (508 G for hydrogen atom). If there are more than one hydrogens, each of them will contribute to the changein magnetic field on the electron. All combinationsof the nuclear spin projections should be includedbut (EPR allowed) transitions only betweensublevels with the same configurstions of nuclearspins will be realized. For the case of four equivalentprotons, a simple ladder propagation scheme (Figureon the left) illustrates how to construct the EPRspectrum. Each new step corresponds to one moreproton added. In the first step, two lines appearcorresponding to the two different orientations of m I= -1/2 and m I = + 1/2. In the second step, each linesplits into two, corresponding to the two differentorientations of m I = -1/2 and m I = + 1/2, of thesecond proton.Since the two protons are equivalent,the splitting is the same on each step, resulting inthree lines of 1:2:1 intesity ratio. For the four protons,there will be 5 lines with the 1:4:6:4:1 intensity ratio.Lines with the lengths of these ratio separated byappropriate constants are called to represent a stickdiagram for the radical.If the spin of the nucleus is greater than 1/2, as in thecase of 14N ( I = 1), it splits each of the electroniclevels, α and β, into the 2I + 1 sublevels resulting in2I + 1 obeserved lines of equal intensity. In mostcases, one observes a combination of different nuclei with different constants which sometimes is not as easy to interpret. Example of a radical with twodifferent groups of hfi constants and different nuclei isshown on the right for a radical with one nitrogen and twoequivalent hydrogens (e.g. NH2).The magnitude of the hyperfine constants in a radical orradical ion reflects the extent of s character in its orbital(only s-orbital has nonzero density at the nucleus).Sometimes it is quite tricky how s -orbital gets populated.For example, we think of aromatic ion radicals as beingpurely π-systems, as you will see for yourselves, there aresubstantial hfi constants on there hydrogens. McConnell6showed that a aprt of the unpaired π-electron density istransferred through the C-H sigma bonding electrons to theH nucleus via exchange interactions. He provided a simpleformular which links the a H on a hydrogen with theunpaired electron spin density on the nearest carbon atomρπ:a H (G) = - 22.5ρπ(12)The signal intensity in EPR depends on how much absorption of the microwave power takes place. This value will be the larger the greater is the difference between populations of the α and β electron spin states. Following Boltzmann statistics, the latter can be estimated :(nα- nβ)/nβ = e-∆E/kT - 1 ~ gμB B o/k B T (13)a small value for regular X-band EPR spectrometer (9.5 GHz), which can be substanially increased by lowering the temperatute.The Lineshape andKineticsFigure on the rightshows how EPR signalshape of a stable radical,TEMPO (see itsstructure on the left),varies withconcentration(intensities were scaledto the same hight). It illustrates that thelinewidths of the resonant transitions are notinfinitely small and can be altered by theenvironment. At low concentrations, each line has a width because of the heterogeneous broadening, i.e. unresolved structure of the small hyperfine constants and the homogeneous broadening, Γo:Γo = 1/γe T2(14)which is caused by a limited lifetime T2 (also called a spin-spin relaxation time) of a radical at a particular spin state (uncertainty principle related). The constant γe is called the magnetogyric (or gyromagnetic) ratio and relates to Bohr's magneton, μB,γe = 4πμB/h = e/m e c = 1.77 x 107 s-1 G-1(15)The full width half maximum, Γ, is 31/2/2 = 0.866 times greater than the measured distance between maximum and minimum of the experimentaly detective derivative of absorption, i.e.Γ= 0.866 ∆. This lifetime can be affected by the dipole-dipole (and exchange) interaction with other radicals. If another unpared electron is at a distance r, the magnitude of its field at the spin can take any value between ± 2μB/r3, depending on orientation. Due to the fast rotation of both radicals, the interaction averages this field to zero except for a very short period of time during collision after which the radical can end up at a random configuration of its nuclear spins. Result of such randomization is equivalent to the jumping from one spectral position to another. For nitroxyl radical, such as TEMPO, with three equivalent spectral lines (S = 1), only 2/3 of such collisions result in a shift. Beacuse of that,the width will increase only at 2/3 of the rate of collision:Slow Exchange:Γ = Γo + 2k[R]/3γe(16)where k is the collision rate constant and [R] is the concentration of radicals. With further increase of the radical concentration, the continuing broadening will be accompanied by a measureable decrease in separation between the peaks, ∆B:Intermediate Exchange:(aN 2 - ∆B2 )1/2 = 2k[R]/3γe? (17)where a N is the hyperfine constant on nitrogen (separation between lines). After they coalesce, the overall width of now a single-line spectrum, starts decreasing:Rapid Exchange:Γ = γe(aN2)/k[R] (18)The radicals can exchange spins not on themselves but on any other radical as well. Oxygen has nonzero spin and can also cause the line broadening by the same mechanism. So if your solvent is nonviscous and you want to detect linewidths below 3 G, you may want to get rid of O2.Experimental apparatusThe ESP-300 ESR spectrometer (Bruker)consists of an electromagnet with powersupplies to generate and modulate a uniformmagnetic field of several thousand Gauss, aswell as the components that generate anddetect microwave power. The operationmanual is awailable on the web, courtesy ofthe University of Illinois at Urbana-Champaign. I am putting our version as well.A static magnetic field is provided by anelectromagnet with a current- regulatedpower supply. A homogeneous field isrequired for best results. A Hall probe, drivenfrom a stable constant-current power system,with a digital multimeter (DMM) reading theHall voltage, is used to measure the value ofthe magnetic field between the poles of themagnet.The microwave system consists of a microwave power supply (on a table above the magnet) which uses a clystron. The ouput of the microwave power (mw) supply is connected via rectangular waveguide (10 GHz) and through a circulator to a high-Q resonant cavity. The samples to be investigated are mounted in the middle of the cavity, where magnetic component of the microwave power has a maximum and is oriented perpendicular to the static field. A microwave diode, which detects the mw resides inside the same box as the power supply. The higher the quality of the resonant cavity the greater the microwave field can be obtained on the sample. Very polar solvents like water absorb efficiently on microwave frequencies themselves (remember microwave ovens?). Because of that, water samples have to be made in narrow cappilaries and carefully located in the center of the cavity. Most of our measurements will be done in the 0.1 - 1.0 mW range.There are variety of schemes for detectingresonant EPR transitions. Historically, mostpopular became a detection of absorption of themicrowave power. To minimize the noise fromthe mw diode in steady state measurements, amagnetic field modulation scheme with phasesensitive detection is usually employed. As aresult, the detected signal appears as a firstderivative (see figure on the right). In the Brukerspectrometer there is choice between 12.5 kHzand 100 kHz modulation frequency. Theamplitude of field modulation (MA) can bevaried up to 40 G (4mT). Yo have to be carefulin choosing appropriate MA. If MA is to big, thewidth of detected signal derivative would be wider than the real width of absorption, but if it is too small, the signal intensity would be less. For most of your case it is good first approximation to set MA between 0.5 and 1.0 G.References1.Pake G. E., Paramagnetic Resonance, (W. A. Benjamin, 1962).2.Wertz J.E., Bolton J.R. Electron spin resonance. - New York, McGraw-Hill BookCompany, 1972.3. C. P. Slichter, Principles of Magnetic Resonance (CLAS), 3rd ed., (Springer-Verlag,1992 and Harper & Row, 1963), p. 65.4.Van Vleck J. H., Phys. Rev., 74, 1168, (1948).5.Feynman, Leighton, and Sands, Lectures on Physics, (Addison-Wesley PublishingCompany, 1965), Vol. II, Chap. 23 & 24.6.McConnell, H.M. J. Chem. Phys. 24, 764 (1956)Last updated .。
