热电偶标准 SAE AMS 2750D(chinese)09-5-6

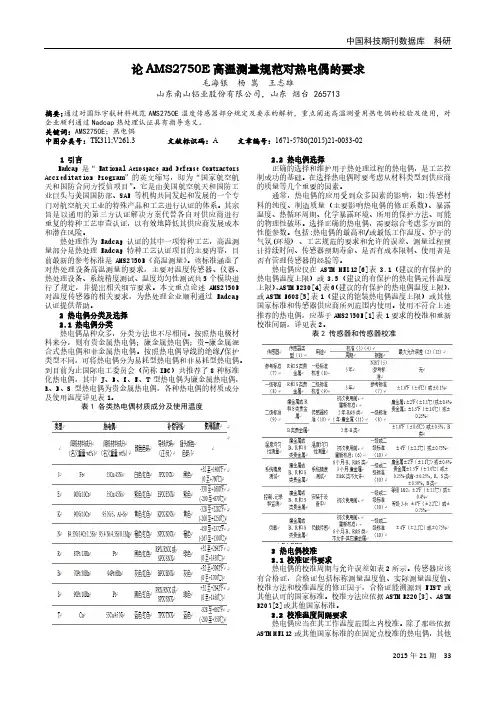

中国科技期刊数据库 科研2015年21期 33论AMS2750E 高温测量规范对热电偶的要求毛海银 杨 嵩 王志雄山东南山铝业股份有限公司，山东 烟台 265713摘要:通过对国际宇航材料规范AMS2750E 温度传感器部分规定及要求的解析，重点阐述高温测量用热电偶的校验及使用，对企业顺利通过Nadcap 热处理认证具有指导意义。

关键词：AMS2750E ；热电偶 中图分类号：TK311;V261.3 文献标识码：A 文章编号：1671-5780(2015)21-0033-021 引言Nadcap 是“ National Aerospace and Defense Contractors Accreditation Program ”的英文缩写，即为“国家航空航天和国防合同方授信项目”。

它是由美国航空航天和国防工业巨头与美国国防部、SAE 等机构共同发起和发展的一个专门对航空航天工业的特殊产品和工艺进行认证的体系。

其宗旨是以通用的第三方认证解决方案代替各自对供应商进行重复的特种工艺审查认证，以有效地降低其供应商发展成本和潜在风险。

热处理作为Nadcap 认证的其中一项特种工艺，高温测量部分是热处理Nadcap 特种工艺认证项目的主要内容，目前最新的参考标准是AMS2750E 《高温测量》。

该标准涵盖了对热处理设备高温测量的要求，主要对温度传感器、仪器、热处理设备、系统精度测试、温度均匀性测试共5个模块进行了规定，并提出相关细节要求。

本文重点论述AMS2750E 对温度传感器的相关要求，为热处理企业顺利通过Nadcap 认证提供帮助。

2 热电偶分类及选择 2.1 热电偶分类热电偶品种众多，分类方法也不尽相同。

按照热电极材料来分，则有贵金属热电偶；廉金属热电偶；贵-廉金属混合式热电偶和非金属热电偶。

按照热电偶导线的绝缘/保护类型不同，可将热电偶分为易耗型热电偶和非易耗型热电偶。

到目前为止国际电工委员会（简称IEC ）共推荐了8种标准化热电偶，其中J 、E 、K 、N 、T 型热电偶为廉金属热电偶，R 、B 、S 型热电偶为贵金属热电偶，各种热电偶的材质成分及使用温度详见表1。

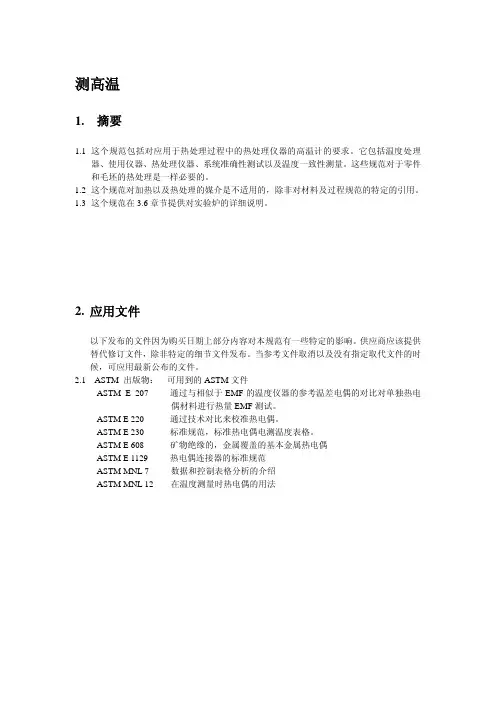

航空用材料说明书测高温1. SCOPE:1.1该规范涵盖热处理过程中的热处理设备。

他包括温度传感器、仪器使用、热处理设备、系统精确度测试以及温度均一性测量。

因此有必要保证不同的原材料在热处理过程中选用合适的规范。

1.2除非特别要求否则该分类不适用于加热或者中间热处理过程。

1.3实验室用炉的标准详见3.6。

2.适用性文件2.1 ASTM 发行：购买可联系ASTM, 100 Barr Harbor Drive, P.O. Box C700, West Conshohocken, PA 19428-2959 或。

ASTM E 207 热电元件材料与参比热电元件在相似的电动势－稳定性能下进行热电动势测试。

ASTM E 220 比较法校准热电偶ASTM E 230 标准化热电偶的标准说明书及温度－电动势表ASTM E 608 矿务绝缘，金属屏蔽贱金属热电偶。

ASTM E 1129 热电偶连接器的标准说明书ASTM MNL 7 数据及控制绘图分析表述ASTM MNL 12 温度测量用热电偶3.技术要求目录3.1温度传感器............................................................... . (4)3.1.1通用传感器知识...................................................... .. (4)3.1.1.1传感器适用性的认证 (4)3.1.1.2温度与电压的转换 (4)3.1.1.3热电偶校准要求.................................................................. (4)3.1.1.4热电偶使用 (4)3.1.1.5扩展导线 (4)3.1.1.6导线圈－刻度校准要求 (4)3.1.1.7导线圈－最大允许长度 ........................................................................ (5)3.1.1.8 K和E型热电偶以二级标准或SAT传感器的再利用...................................... . ..5 3.1.1.10可损耗贱金属热电偶测试“U”公式. (5)3.1.2参比标准传感器 ..................................................................................... .5 3.1.3一级标准传感器..................................................................................... . .5 3.1.4二级标准传感器 ..................................................................................... .6 3.1.5温度均一测试传感器............................................................................... . .6 3.1.6系统精确度测试传感器 ............................................................................ .6 3.1.7控制、监控以及记录传感器. (6)3.1.8载荷传感器........................................................................................... . 6 3.2使用仪器 ................................................................................................. .7 3.2.4控制、监视以及记录仪器 .. (8)3.2.5仪器的校准（参见表3） (8)3.2.6仪器的记录........................................................................................... . .9 3.2.7仪器的电子记录 .. (9)3.3热处理设备 (10)3.3.1炉子分级（参见表6和表7）.......... .. (10)3.3.1.1 A型仪器......................................................................................... . .10 3.3.1.2 B型仪器 . (11)3.3.1.3 C型仪器......................................................................................... . .11 3.3.1.4 D型仪器.... .. (11)3.3.1.5 E型仪器......................................................................................... . . .12 3.3.1.6.1仪器-冷却设备............................................................................... . .12 3.3.1.6.2仪器-淬火系统................................................................................ . 12 3.4系统准确度测试（SAT’s） (12)3.4.2系统准确度测试频率（参见表6及表7） (12)3.4.3系统准确度测试失效（失败） (13)3.4.4系统准确度测试步骤............................................................................ .. 13 3.4.4.2.1常驻测试传感器......................................................................... (13)3.4.4.8可选系统准确度测试步骤................................................................... . (15)3.4.5系统准确度测试仪器（参见表1及表3） (16)3.4.6系统准确度测试之记录......................................................................... .. 15 3.5炉温均一性测试................................................................................ . (16)3.5.2多重认证操作温度区间...................................................................... . (16)3.5.5起始TUS测温 (17)第2页/共37页3.5.6 TUS测温周期 ...................................................................................... .17 3.5.7 TUS频率（参见表8及表9）................................................................... . .17 3.5.8 TUS过程中的炉参数 ............................................................................. .17 3.5.9插入TUS传感器时的炉温度..................... .. (18)3.5.10加载条件............................................................ .. (18)3.5.11气氛炉TUS测温................................................................................... ..18 3.5.12真空炉TUS测温............................................................................. .. (18)3.5.13批处理炉、盐浴炉、温度可控液态化浴炉及流态化 (18)3.5.13.1 TUS传感器数目（参见表11） (18)3.5.13.2 TUS传感器定位 (18)3.5.13.3 TUS测温数据采集 (19)3.5.13.4盐浴炉、温度可控液态化浴炉及流态化床的可选探头测试法 (19)3.5.14连续及半连续炉...................... . . . (20)3.5.14.1体积法－TUS传感器的数量及定位................... (20)3.5.14.2平面法－TUS传感器的数量............................... . (20)3.5.14.3平面法－TUS传感器的定位...................... . . . . .. (20)3.5.14.4 TUS测温数据采集 (20)3.5.15连续炉或半连续炉或蒸器炉或马沸炉的可选TUS测试法. . . . . . . . . . . . . . . . . . . . ..21 3.5.15.1探头探测法.......... . . (21)3.5.15.2性能测试 (21)3.5.16 TUS测温传感器失效............................................................. . (21)3.5.17 TUS测温通过及失效技术要求.......... . (22)3.5.18 A类或C类设备的冷热记录传感器位置变换.......... . (22)3.5.19 TUS测试失效 (23)3.5.20 TUS测温设备（参见表1及表3） (23)3.5.21 TUS 报告............................... . . . . (23)3.5.22 本说明出版前的TUS测试 (24)3.5.23辐射测试 (24)3.6 试验室用炉 (24)3.7记录 (24)4.0品质保证规定................... (25)表1 热电偶及热电偶校准...................... (25)表2 热电偶及扩展导线............................ . (26)表3 设备及设备校准 ................ (27)表4 炉子绘图记录仪解决方案............................... (28)表5 记录仪打印及绘图速率 (28)表6 炉子等级、设备型号、SAT测试间隔 (28)表7 原材料炉子等级、设备型号、SAT测试间隔 (29)表8 炉子等级、设备类型及温度均匀性间隔 (30)表9 原材料炉子分类、设备类型及温度均匀性间隔 (30)表10 允许的校准/测试间隔延展期 (31)表11 TUS传感器需要数量....... (31)8.1 注释............................................ . . . . . (32)8.2 表中专用名词释义 (32)3.1温度传感器：温度传感器必须遵守表1以及下列要求。

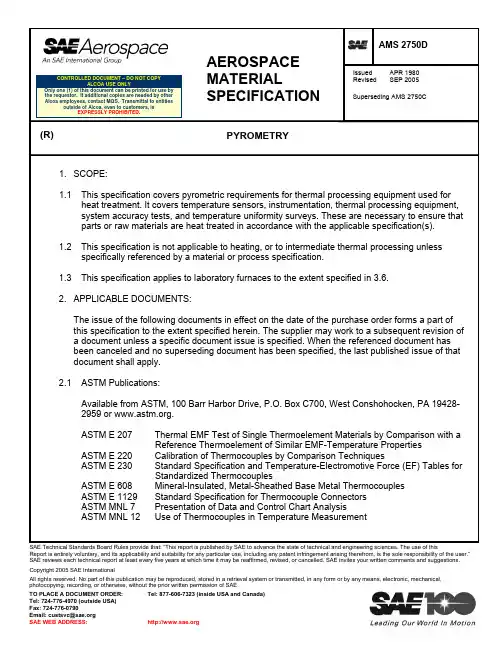

CONTROLLED DOCUMENT – DO NOT COPYALCOA USE ONLYOnly one (1) of this document can be printed for use bythe requestor. If additional copies are needed by otherAlcoa employees, contact MQS. Transmittal to entitiesoutside of Alcoa, even to customers, isSAE Technical Standards Board Rules provide that: “This report is published by SAE to advance the state of technical and engineering sciences. The use of thisReport is entirely voluntary, and its applicability and suitability for any particular use, including any patent infringement arising therefrom, is the sole responsibility of the user.” SAE reviews each technical report at least every five years at which time it may be reaffirmed, revised, or cancelled. SAE invites your written comments and suggestions. Copyright 2005 SAE InternationalAll rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of SAE.TO PLACE A DOCUMENT ORDER: Tel: 877-606-7323 (inside USA and Canada)Tel: 724-776-4970 (outside USA)3.1.1.4 Thermocouples and Their Usage: Thermocouples should only be used within the rangeslisted in ASTM MNL 12 Table 3.1 (Recommended Upper Temperature Limits for ProtectedThermocouples) or 3.5 (Recommended Upper Temperature Limits for ProtectedThermoelements), ASTM E 230 Table 6 (Suggested Upper Temperature Limits forProtected Thermocouples), ASTM E 608 Table 1 (Suggested Upper Temperature Limits for Sheathed Thermocouples), or other national standard and the sensor supplier. Use ofthermocouples not conforming to these recommendations shall be based upon calibrationand recalibration intervals required in Table 1 of this document.3.1.1.4.1 Thermocouple calibration intervals specified herein, whether based on time, number ofuses, or temperature are the maximums permitted. However, compliance with theseintervals does not relieve the user of the responsibility for ensuring that excessive drift hasnot occurred under the particular conditions (environment, time, and temperature) ofexposure. Users shall have supporting data such as, but not limited to, SAT, TUS, and re-calibration data and written procedures controlling the replacement of sensors includinglimits on maximum life and/or number of uses, as applicable.3.1.1.5 Extension wire in new installations (one year after the issue of this revision) shall conform toASTM E 230 or national equivalent. Extension wire shall not be spliced. Connectors, plugs,jacks and terminal strips are permitted if they are the compatible type, i.e. they havethermoelectric properties conforming to the characteristics of the correspondingthermocouple type – ASTM E 1129 may be used as a guide for round-pin connectors.Thermocouple composition and extension wire requirements are shown in Table 2.3.1.1.6 Thermocouples made from calibrated rolls may be used in lieu of individually calibratedthermocouples. Rolls up to 1000 feet (305 meters) in length may be sampled at one end;rolls over 1000 feet shall be sampled at both ends of the roll (see 3.1.1.1). Use the average correction factor calculated from both ends of the roll if the individual correction factors from each end are within acceptable limits of Table 1.3.1.1.6.1 The roll calibration method shall not be used for rolls over 1000 feet (305 meters) if thedifference between the highest and lowest calibration readings of the samplethermocouples at any calibration temperature exceeds the requirements in 3.1.1.6.2 or3.1.1.6.3, as applicable.3.1.1.6.2 1 °F (0.6 °C) for primary and secondary standard thermocouples.3.1.1.6.3 2 °F (1.1 °C) for system accuracy test, temperature uniformity test, controlling, monitoring,recording, and load thermocouples.3.1.1.6.4 For rolls not meeting 3.1.1.6.2 or 3.1.1.6.3:3.1.1.6.4.1 It is permissible to divide the roll into shorter length rolls that do meet the end to endtolerance specified in 3.1.1.6.2 or 3.1.1.6.3.3.1.1.6.4.2 It is permissible to use individual thermocouples from the roll if they are calibrated inaccordance with Table 1.3.1.1.7 The maximum amount of wire/cable in a roll at the time of calibration shall be as follows:Primary Standard Sensors ----------------------- 200 feet ( 60 meters)Other Noble Metal Sensors ---------------------- 2000 feet ( 610 meters)Base Metal Secondary Standard Sensors --- 2000 feet ( 610 meters)All Other Base Metal Sensors ------------------ 5000 feet ( 1525 meters)3.1.1.8 For reuse of Types K and E thermocouples above 500 °F (260 °C) depth of insertion shallbe equal to, or greater than, depth of insertion of any previous use.3.1.1.9 Reuse of any thermocouple is prohibited unless the insulation remains intact and wiresincluding the hot junction are not damaged. The salvage of damaged thermocouples ispermitted if the discrepant portion [including the portion exposed above 500 °F (260°C) forTypes K and E thermocouples] is trimmed off, the hot junction remade and thethermocouple recalibrated. If the salvaged thermocouple originated from a calibrated wireroll, the original roll calibration may be used in lieu of recalibration. The number of uses prior to salvage shall be included in the total number of uses of the thermocouple.3.1.1.10 Recalibration of any expendable base metal test thermocouples (SAT or TUS) is prohibited.Reuse is permitted so long as "U" in the following formula does not exceed 30. A “use” fortest thermocouples is defined as one cycle of heating and cooling the thermocouple.U = Number of uses below 1200 °F (650 °C) + 2 times number of uses between 1200 °F (650 °C) and 1800 °F (980 °C). Expendable base metal test thermocouples shall belimited to a single use above 1800 °F (980 °C).3.1.1.11 Recalibration of nonexpendable base metal Type E and K thermocouples used below500 °F (260 °C), Type J, Type N, and all noble metal thermocouples (SAT or TUS) shall bein accordance with Table 1.3.1.2 Reference standard sensors shall comply with Table 1.3.1.2.1 The reference standard sensor together with a primary standard instrument shall be used tocalibrate primary standard sensors.3.1.3 Primary standard sensors shall comply with Table 1.3.1.3.1 A primary standard sensor together with a primary standard instrument shall be used tocalibrate secondary standard sensors.3.1.4 S econdary standard sensors shall comply with Table 1.3.1.4.1 Use shall be limited to calibration of temperature uniformity, system accuracy, controlling,monitoring, recording, and load sensors.3.1.5 Temperature uniformity survey sensors shall comply with Table 1.3.1.5.1 Calibration of temperature uniformity survey sensors shall have been performed with aprimary or secondary standard instrument against a primary or secondary standard sensorin accordance with Table 1 except as specified in 3.1.5.2. See 3.1.1.8 and 3.1.1.9 for limits on reuse of thermocouples. Recalibration of Types K and E thermocouples that have beenexposed to temperatures above 500 °F (260 °C) is prohibited.3.1.5.2 Expendable base metal TUS thermocouples that are (1) used exclusively under 1200 °F(650 °C), (2) identified, and (3) preserved/protected from damage (i.e., crimping, excessivemoisture contact, corrosion, etc.) between tests or remain installed on a rack that isprotected between tests, may be reused subject only to the limitations of 3.1.1.9 and3.1.1.10. Nonexpendable base metal TUS thermocouples installed on racks and usedexclusively under 1200 °F (650 °C) shall be limited to no more than 90 uses or 3 years,whichever comes first.3.1.6 System accuracy test sensors shall comply with Table 1.3.1.6.1 Calibration of SAT sensors shall have been performed with a primary or secondary standardinstrument against a primary or secondary standard sensor in accordance with Table 1. See3.1.1.8, 3.1.1.9, and 3.1.1.10 for limits on reuse of thermocouples. Recalibration of Types Kand E thermocouples that have been exposed to temperatures above 500 °F (260 °C) isprohibited.3.1.7 Control, monitoring, and recording sensors shall comply with Table 1. Expendablethermocouples may be used, subject to the limitations of 3.1.1.9 and 3.1.1.10.3.1.7.1 Controlling, monitoring, and recording sensors shall be installed in thermal processingequipment within the work zone, or as close as possible, for controlling and/or monitoring of temperature, in conjunction with controlling and/or monitoring instruments.3.1.7.2 When a Load Sensor is used as a Control Sensor:3.1.7.3 Calibration shall have been performed before use. Recalibration of base metal loadthermocouples is prohibited (see 3.1.8.3).3.1.7.4 Expendable thermocouples, when used as a control sensor are limited to one use.3.1.7.5 Nonexpendable load thermocouples may be used to control temperature, subject to thelimitations of 3.1.8.3.1.8 Load sensors shall comply with Table 1.3.1.8.1 Load sensors, used for measurement of temperature of parts, simulated parts, or rawmaterial, shall be in contact with or buried in the load during thermal processing.3.1.8.2 Load sensors may be used as control sensors in accordance with 3.1.7.2. When a loadsensor is used as a control sensor, no control, monitoring, or recording sensor shall exceed the maximum allowed processing temperature.3.1.8.3 Recalibration of base metal load thermocouples is prohibited. Recalibration frequency ofnoble metal thermocouples shall be every six months after first use.3.1.8.4 Expendable base metal load thermocouples may be used up to 30 times when used at orbelow 1200 °F (650 °C) provided the requirements of section 3.1.1.9 are satisfied; they arelimited to one use above 1200 °F (650 °C). Nonexpendable base metal load thermocouplesmay be used as specified in 3.1.8.5.3.1.8.5 The life of nonexpendable base metal load thermocouples shall be determined by theoperating temperature(s). Records shall be maintained of the accumulated thermocoupleuse (furnace load cycle). Maximum number of uses or maximum elapsed usage time,whichever occurs first, shall be as follows:2300 °F (1260 °C) and above 1 use2200 °F (1205 °C) to 2299 °F (1260 °C) 10 uses1801 °F (980 °C) to 2199 °F (1205 °C) 30 days or 90 uses1200 °F (650 °C) to 1800 °F (980 °C) 90 days or 180 usesBelow 1200 °F (650 °C) 90 days or 270 usesWhen used in multiple ranges, the shortest frequency or usage shall apply. Replacement ofa load sensor earlier than the required SAT frequency satisfies the SAT requirement for theload sensor.Example 1:• A sensor with 9 uses at 2250 °F has only one more use allowed in the 2200-2299 °F range or any lower operating range.•No uses remain at 2300 °F or above.Example 2:• A sensor with 50 uses between 1400-1600 °F is then used at 1820 °F.•It has already exceeded the use limits for all ranges above 2199 °F.•It is now subject to the 90 use limit as it has been used in a higher temperature range.Example 3:• A sensor with 50 uses between 1400-1600 °F is then used at 1015 °F.•It has already exceeded the use limits for all ranges above 2199 °F.•It is subject to a 180 use limit as it has been used in the 1200-1800 °F temperature range.3.2 Instrumentation (See Tables 3, 4, and 5):Output of sensors shall be converted to temperature readings by instruments specified herein or instruments of equal or greater accuracy. Instruments shall be calibrated by NIST or anequivalent national standards organization, or against standards whose calibration is traceable to NIST or other recognized national equivalent(s) according to Table 3.3.2.1 Users shall review all instrument requirements in AMS 2750D as not all instruments approvedfor use in AMS 2750C will meet the requirements of this revision.3.2.2 The following requirements (3.2.2.1 and 3.2.2.2) apply to control, monitoring, or recordinginstruments purchased one year after the issue date of AMS 2750D. Control, monitoring, orrecording instruments purchased prior to one year after the publication of AMS 2750D maymeet the requirements of AMS 2750C.3.2.2.1 Temperature resolution requirements for furnace chart recorders shall be in accordance withTable 4.3.2.2.2 Process Recorder Print and Chart Speeds shall be in accordance with Table 5.3.2.3 Test instruments shall be digital and have a minimum readability of 1 °F or 1 °C.3.2.4 Controlling, Monitoring, or Recording Instruments:3.2.4.1 At least one recording and/or controlling instrument for each zone shall have a minimumreadability of 1 °F or 1 °C.3.2.4.2 Installation of controlling, monitoring or recording instruments shall conform to themanufacturer's recommendations.3.2.4.3 Offsets: If offsets are used, a documented procedure shall exist, describing when and howto perform manual and electronic offsets. The procedure shall address how to account forand reintroduce any intentional offsets. Prior to reintroducing any intentional offsets, anyinstrument calibration error found shall be taken into account. Adjustments (offsets) greaterthan those shown in Tables 6 or 7 shall not be used.3.2.4.3.1 If subsequent internal instrument adjustments or offsets are made to achieve TUSrequirements, these internal adjustments or offsets must be applied during subsequentSATs per 3.4.4.3.1. In addition, if subsequent internal instrument adjustments or offsetsare made to achieve SAT requirements, the effect on the TUS range or distribution shallbe considered as the range will shift upwards or downwards in response to the internaladjustment or offset.3.2.4.4 Controlling, monitoring and recording instruments shall receive an unmodified signal fromsensors except for analog to digital and digital to analog conversions, or a digitally-processed, error-checked equivalent representation of a direct measured value.3.2.5 Instrument Calibration:3.2.5.1 Calibration shall be performed on the instrument(s) listed in the Instrument Type column ofTable 3. Regardless of the calibration procedure used, it shall comply with the requirements of Table 3.3.2.5.2 Calibration accuracy and frequency requirements shall be in accordance with Table 3.3.2.5.3 Calibration shall be performed to the manufacturer’s instructions.3.2.5.3.1 Calibration of controlling, monitoring or recording instruments shall be performed to themanufacturer’s instructions or, if the manufacturer’s instructions are not used, a minimumof three simulated sensor inputs shall be used at the minimum, midpoint and maximum ofthe furnace Qualified Operating Temperature Range.3.2.5.3.2 Calibration of furnace controlling, monitoring or recording instrument(s) may be performedwith a load in process (for a single temperature range) if the furnace temperature remainswithin the processing tolerance and the furnace temperature record is appropriatelyannotated to indicate that a calibration occurred, including time and date.3.2.5.3.3 Calibration shall be performed on each channel in use that can be altered or adjusted, orgroup of channels that can be altered or adjusted.3.2.5.4 Chart recorder (circular and strip) speed(s) shall be verified annually and shall be accuratewithin ± 3 minutes per hour.3.2.5.5 Sensitivity shall be checked during calibration. See Table 3 footnote4.3.2.6 Instrumentation Records:3.2.6.1 A sticker affixed to the instrument shall indicate the most recent successful calibration. As aminimum, the sticker shall include:•Date the calibration was performed•Due date of the next calibration•Technician who performed the calibration•Any limitations or restrictions of the calibration shall be indicated on the sticker.3.2.6.2 The results of calibration shall be documented. At a minimum the report shall include:•Instrument number or furnace number•Make and model of instrument calibrated•Standard used during calibration•Method of calibration (manufacturer’s instructions, three point)•Required accuracy•As found and as left data at each calibration point•Offset as found and as left (as required)•Any intentional offset as left•Sensitivity (as required by Table 3, Note 4)•Statement of acceptance or rejection•Any limitations or restrictions of the calibration shall be included•Date the calibration was performed•Due date of the next calibration•Technician who performed the calibration•Calibration company (if not performed in-house)3.3.1.1 Instrumentation Type A:3.3.1.1.1 Each control zone shall have at least one control sensor connected to a control instrumentthat displays and controls temperature.3.3.1.1.2 The temperature indicated by the control sensor in each control zone shall be recorded bya recording instrument.3.3.1.1.3 At least two additional recording sensors in each control zone shall be located to bestrepresent the coldest and hottest temperatures based on the results from the most recenttemperature uniformity survey. It is recognized that certain furnace designs/loadingconfigurations can prevent the location of these sensors in the precise coldest and hottestlocations, but these sensors shall be located as close as practical.3.3.1.1.3.1 These recording locations may change over time. See 3.5.18 for relocationrequirements.3.3.1.1.4 At least one recording load sensor shall be located in each control zone.3.3.1.1.5 Each control zone shall have over-temperature protection. The sensor representing thehottest location per 3.3.1.1.3 may also be utilized as the over-temperature protectionsensor.3.3.1.2 Instrumentation Type B:3.3.1.2.1 Each control zone shall have at least one control sensor attached to a control instrumentthat displays and controls temperature.3.3.1.2.2 The temperature indicated by the control sensor in each control zone shall be recorded bya recording instrument.3.3.1.2.3 At least one recording load sensor shall be located in each control zone.3.3.1.2.4 Each control zone shall have over-temperature protection.3.3.1.3 Instrumentation Type C:3.3.1.3.1 Each control zone shall have at least one control sensor attached to a control instrumentthat displays and controls temperature.3.3.1.3.2 The temperature indicated by the control sensor in each control zone shall be recorded bya recording instrument.3.3.1.3.3 At least two additional recording sensors in each control zone shall be located to bestrepresent the coldest and hottest temperatures based on the results from the most recenttemperature uniformity survey. It is recognized that certain furnace designs/loadingconfigurations can prevent the location of these sensors in the precise coldest and hottestlocations, but these sensors shall be located as close as practical.3.3.1.3.3.1 These recording locations may change over time. See 3.5.18 for relocationrequirements.3.3.1.3.4 Each control zone shall have over-temperature protection. The sensor representing thehottest location per 3.3.1.3.3 may also be utilized as the over-temperature protectionsensor.3.3.1.4 Instrumentation Type D:3.3.1.4.1 Each control zone shall have at least one control sensor attached to a control instrumentthat displays and controls temperature.3.3.1.4.2 The temperature indicated by the control sensor in each control zone shall be recorded bya recording instrument.3.3.1.4.3 Each control zone shall have over-temperature protection.3.3.1.5 Instrumentation Type E:3.3.1.5.1 Each control zone shall have at least one control sensor attached to a control instrumentthat displays and controls temperature.3.3.1.6 Instrumentation - Refrigeration Equipment and Quench Systems:3.3.1.6.1 Refrigeration equipment shall have a temperature controller. This temperature controllerrequirement is not applicable to liquid nitrogen, dry ice and dry ice/liquid-cooledcontainers. All refrigeration equipment shall be equipped with a temperature recorder if itis used for a treatment where time-at-temperature is required. The above requirementsare not applicable during transportation of materials at sub-ambient temperatures.3.3.1.6.2 Quench systems used for heat treatments that include a quenchant temperaturerequirement (minimum, maximum or both) shall be equipped with a recording instrument.Existing installations at the release date of this revision do not require recordinginstruments.3.4 System Accuracy Tests (SATs):3.4.1 SATs shall be performed on the temperature control and recording systems in each controlzone of each piece of thermal processing equipment that is used for production heattreatments. The SATs shall also be performed on additional systems that qualifyinstrumentation as Types A, B, or C. See 3.3.1.1, 3.3.1.2, and 3.3.1.3.3.4.1.1 SATs shall be performed using a test instrument meeting the requirements of Table 3 and atest sensor meeting the requirements of Table 1.3.4.1.2 An SAT is not required for sensors whose only function is over-temperature control, loadsensors that are limited to a single use (one furnace load/cycle), sensors not used foracceptance as part of production heat treatment, or load sensors whose replacementfrequency is shorter than the SAT frequency. See 3.1.8.4 and 3.1.8.5.3.4.1.3 A new SAT shall be performed after any maintenance that could affect the SAT accuracy.Examples include replacement of the thermocouple and recalibration of the instrument when any adjustment has been made. Quality Assurance shall be consulted for direction onwhether specific maintenance requires a new SAT.3.4.2 SATs shall be performed upon installation and periodically thereafter in accordance with therequirements of Table 6 or 7. SAT frequency is based upon equipment class andinstrumentation type. If a preventive maintenance program (see 8.2.35) is in effect, frequency may be reduced one step (e.g., weekly to biweekly, biweekly to monthly, etc.) if allowed inTable 6 or 7 under either of the following conditions:3.4.2.1 Two sensors in each control zone are Type N, R, or S.3.4.2.2 Weekly readings show that the relationship between the control sensor and an additionalmonitoring sensor in each control zone remains within 2 °F (1 °C) of their relationship at thetime of the last Temperature Uniformity Survey.3.4.3 SAT Waiver: The requirement for an SAT is waived if all of the following (3.4.3.1 through3.4.3.6) apply:3.4.3.1 In addition to the required instrumentation of types A thru D there are always at least tworecording load sensors in each control zone, one monitoring and one controlling. In the case of Instrument type A and B, there would be one additional load sensor. Manual adjustments to the controller set point, based on observed load sensor readings provide acceptablecontrol. The controlling load sensor, in this context, does not need to be physicallyconnected to the furnace controller.3.4.3.2 Load sensors used for control shall comply with 3.1.7.2 and the monitoring load sensorsshall comply with 3.1.8.3.4.3.3 All noble metal load thermocouples in use shall be nonexpendable and shall be eitherreplaced or recalibrated quarterly.3.4.3.4 All base metal control and recording thermocouples in use shall be replaced annually.3.4.3.5 All noble metal control and recording thermocouples in use shall be replaced every twoyears.3.4.3.6 The load sensors are recalibrated or replaced anytime that observations, made andrecorded at least weekly, reveal any unexplainable difference between their readings andthe readings of other control, monitoring and recording sensors. Weekly readings must alsoshow that the relationship between the control sensor and an additional monitoring sensor in each control zone remains within 2 °F (1 °C) of their relationship at the time of the lastTemperature Uniformity Survey.3.4.4 System Accuracy Test Procedure3.4.4.1 The uncorrected temperature indication and/or recording of the sensor being tested, at anyoperating temperature, shall be compared with the corrected temperature indication of thetest sensor on a test instrument.3.4.4.2 The tip (measuring junction) of the SAT sensor shall be as close as practical to the tip(measuring junction) of the controlling, monitoring, or recording sensor, but the tip to tipdistance shall not exceed 3 inches (76 mm). Subsequent SAT tests shall utilize SATthermocouple(s) placed in the same locations/positions/depth as the initial test. The SATsensor may be inserted temporarily for the test or may be a resident test sensor, subject tothe limitations of 3.4.4.2.1.3.4.4.2.1 Resident SAT thermocouples may be employed subject to the following limitations:3.4.4.2.1.1 Resident SAT thermocouples shall be restricted to Type N, R or S at temperaturesexceeding 500 °F (260 °C) and shall be nonexpendable if exposed to temperaturesabove 1000 °F (538 °C).3.4.4.2.1.2 The resident SAT sensor type shall be different from that of the sensor being tested.Furthermore, a resident Type R sensor shall not be used to check a Type S sensor, anda resident Type S sensor shall not be used to check a Type R sensor.3.4.4.2.1.3 Resident SAT sensors shall be subject to the replacement and recalibrationrequirements of 3.1.6.3.4.4.3 The difference between the uncorrected reading of the sensor system being tested (sensor,leadwire, and instrument) and the corrected reading (after test sensor and test instrumentcorrection factors are applied) of the test sensor system shall be recorded as the systemaccuracy difference. Applicable correction factors shall be applied algebraically.3.4.4.3.1 Certain correction factors may be algebraically applied to the sensor system being testedwhen calculating the system accuracy difference, provided that these correction factorsare consistently applied during production heat treatment in accordance with documentedprocedures.Examples of correction factors that may be incorporated include:•Sensor correction factor as listed on the initial calibration report, or recalibration report (whether recalibration was performed in a laboratory or in-situ). Only the most recent sensor correction factor may be applied.•Control or recording instrument correction factor as listed on the most recent calibration report.•Intentional internal adjustment to the control or recording instrument solely to correct a skewed temperature uniformity distribution.• A previously documented and specified offset to the control instrument to correct an SAT difference, if this offset is in the form of an intentional manual offset of the control setpoint (e.g., If the desired setpoint is 1000 °F, set control instrument setpoint at 1003 °F).Correction factors that shall not be incorporated include:•Previously applied internal adjustments or offsets to the control or recording instrument to correct an SAT difference. These internal adjustments or offsets are alreadyreflected in the displayed or recorded temperature and shall not be applied twice. •Manually applied offsets to the control instrument that have been specified for production heat treatment solely to correct a skewed temperature uniformitydistribution. These manual offsets have no effect on the performance of an SAT or calculation of an SAT difference.。

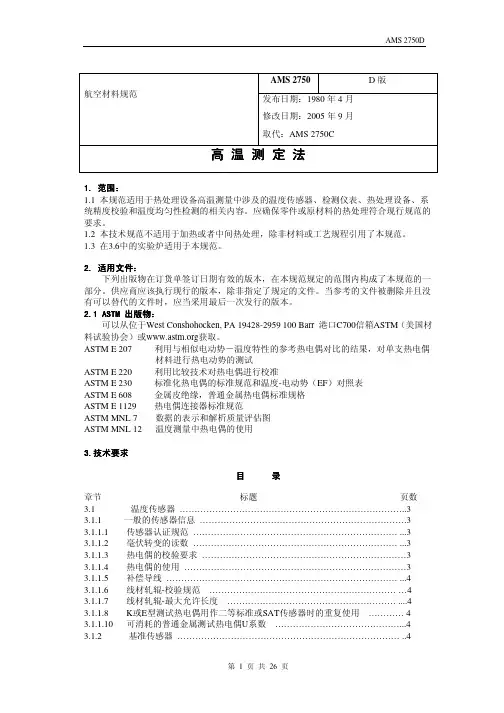

1. 1. 范围：范围：范围：1.1 本规范适用于热处理设备高温测量中涉及的温度传感器、检测仪表、热处理设备、系统精度校验和温度均匀性检测的相关内容。

应确保零件或原材料的热处理符合现行规范的要求。

1.2 本技术规范不适用于加热或者中间热处理，除非材料或工艺规程引用了本规范。

1.3 在3.6中的实验炉适用于本规范。

2. 2. 适用文件：适用文件：适用文件：下列出版物在订货单签订日期有效的版本，在本规范规定的范围内构成了本规范的一部分。

供应商应该执行现行的版本，除非指定了规定的文件。

当参考的文件被删除并且没有可以替代的文件时，应当采用最后一次发行的版本。

2.1 ASTM 2.1 ASTM 出版物：出版物：出版物：可以从位于West Conshohocken, PA 19428-2959 100 Barr 港口C700信箱ASTM （美国材料试验协会）或 获取。

ASTM E 207 利用与相似电动势－温度特性的参考热电偶对比的结果，对单支热电偶材料进行热电动势的测试ASTM E 220 利用比较技术对热电偶进行校准ASTM E 230 标准化热电偶的标准规范和温度-电动势（EF ）对照表ASTM E 608 金属皮绝缘，普通金属热电偶标准规格ASTM E 1129 热电偶连接器标准规范ASTM MNL 7 数据的表示和解析质量评估图ASTM MNL 12 温度测量中热电偶的使用3.3.技术要求技术要求技术要求目 录录章节 标题 页数3.1 温度传感器 (3)3.1.1 一般的传感器信息 (3)3.1.1.1 传感器认证规范 ..................................................................... (3)3.1.1.2 毫伏转变的读数 ..................................................................... (3)3.1.1.3 热电偶的校验要求 (3)3.1.1.4 热电偶的使用 (3)3.1.1.5 补偿导线 .............................................................................. (4)3.1.1.6 线材轧辊-校验规范 ............................................................... (4)3.1.1.7 线材轧辊-最大允许长度 ......................................................... . (4)3.1.1.8 K 或E 型测试热电偶用作二等标准或SAT 传感器时的重复使用 (4)3.1.1.10 可消耗的普通金属测试热电偶U 系数 (4)3.1.2 基准传感器 ………………………………………………………………… ..4AMS 2750D 版航空材料规范 发布日期：1980年4月 修改日期：2005年9月取代：AMS 2750C高 温 测 定 法3.1.4 二级标准传感器..................................................................... ..4 3.1.5 温度均匀性测试传感器............................................................ ..4 3.1.6 系统精确测试传感器............................................................... ..4 3.1.7 控制，监测，和记录传感器...................................................... ..5 3.1.8 负载传感器........................................................................... ..5 3.2 仪表.............................................................................. . (5)3.2.4 控制，监测或记录仪器............................................................ ..6 3.2.5 仪器校准（参看表3）............................................................... ..6 3.2.6 仪器记录.............................................................................. ..6 3.2.7 电子记录仪器. (7)3.3 热处理设备 (7)3.3.1 炉子等级（参看表6和7）......................................................... ..7 3.3.1.1 A型使用仪器..................................................................... .. (7)3.3.1.2 B型使用仪器..................................................................... .. (7)3.3.1.3 C型使用仪器..................................................................... .. (7)3.3.1.4 D型使用仪器........................................................................ .. (8)3.3.1.5 E型使用仪器 (8)3.3.1.6.1 冷却设备的仪器............................................................... .. (8)3.3.1.6.2 淬火系统的仪器............................................................... .. (8)3.4 系统精度校验(SAT’S) (8)3.4.2 系统精度校验频率（参看表6和7）............................................. ..8 3.4.3 系统精度校验免除.................................................................. ..8 3.4.4 系统精度校验程序.................................................................. ..9 3.4.4.2.1 固定测试传感器..................................................................... (9)3.4.4.8 可选择的系统精度校验程序 (10)3.4.5 系统精度校验仪表（参看表1和3） (10)3.4.6 系统精度校验记录............................................................ (10)3.5 炉温均匀性检测（TUS） (10)3.5.2 多重限定工作温度范围 ......................................................... ..10 3.5.5 初始TUS温度.. (11)3.5.6 周期TUS温度........................................................................ .11 3.5.7 TUS频率(参看表8和9) ............................................................ ..11 3.5.8 TUS中的使用炉参数............................................................... .11 3.5.9 插入TUS传感器时的炉温......................................................... .11 3.5.10 负载情况.............................................................................. (12)3.5.11 TUS的炉子环境..................................................................... .12 3.5.12 TUS下的炉子真空级别............................................................... .12 3.5.13 批量热处理炉，盐浴炉，控温液池以及流化态炉........................... (12)3.5.13.1 TUS传感器数量（参看表11）...................................................... ..12 3.5.13.2 传感器位置........................................................................... (12)3.5.13.3 TUS数据收集........................................................................... ..12 3.5.13.4 盐浴的可选择探测方法，液浴温度控制以及流化态炉 (13)3.5.14 连续和半连续炉 (13)3.5.14.1 TUS传感器位置及数量－测定体积的方法.................................... ..13 3.5.14.2 TUS传感器数量－水平方法...................................................... ..13 3.5.14.3 TUS传感器位置－水平方法......................................................... ..13 3.5.14.4 TUS数据收集........................................................................... ..13 3.5.15 连续炉、半连续炉或马弗炉、闭式炉的选择TUS方法........................ .13 3.5.15.1 探测方法.............................................................................. (14)3.5.15.2 性能测试.............................................................................. (14)3.5.17 TUS 验收/不合格情况 ……………………………………………………… .143.5.18 对于A 或C 级别仪器热或冷记录传感器的重新设置 (14)3.5.19 TUS 失效 (15)3.5.20 TUS 仪器（参看表1和3） (15)3.5.21 TUS 报告.............................................................................. (15)3.5.22 TUS 再版 (15)3.5.23 辐射测试 …………………………………………………………………… ..153.6 实验室用加热炉 …………………………………………………………… .163.7 记录 ………………………………………………………………………… .164.0 质量保证条款 ……………………………………………………………… .16表1 传感器和传感器校准 (16)表2 热电偶和补偿导线 (18)表3 使用仪器及校准 (18)表4 炉子记录图表的确定要求 (19)表5 记录器打印图表及速度 (20)表6 零件所用炉子分类、仪表类型以及SAT 校验周期 (20)表7 原材料炉所用炉子分类、仪表类型以及SAT 校验周期 (21)表8 零件所用炉子分类、仪表类型以及和TUS 校验周期 (21)表9 原材料炉所用炉子分类、仪表类型和TUS 校验周期 (22)表10 校验或试验间隔延长的容许值 …………………………………………… .22表11 TUS 传感器数量要求 (22)8.1 注释 (23)8.2 定义 (23)3.1 3.1 温度传感器温度传感器温度传感器必须满足表1及以下要求，在后面的章节中列出的用于特殊用途的除外。
